Chevrolet/GMC
FULL SIZE TRUCK 1/17
CHEVROLET/GMC
X110-SLV/X110-SRA
Installation Manual
Model: Full Size Truck
Model Year: 2014-UP
(Not compatible with BOSE® Sound System)
Model Year
CHEVROLET SILVERADO
GMC SIERRA
* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is
not guaranteed if the manufacturer has made production changes to the listed vehicles above.
WT, LS, LT, LT Z71, LTZ, LTZ Z71 2014-UP
SIERRA, SLE, SLT 2014-UP
Warning: Before you begin wiring, remove the ground wire from the negative
terminal of the battery. Failing to do so could lead to electric shock, injury or
improper product operation.
Introduction
Design and specifications are subject to change without notice for improvement.
To Ensure Safe Use, Always Follow These Precautions
The installation of this product requires specialized skills and experience. We recommend that you have the
product installed by the store that you purchased it from.
Before you use this product, be sure to carefully read this installation manual and the separate user's manual
so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as
a result of failure to follow the instructions in the manuals.
This manual includes a number of symbols that are intended to help you use the product safely, to prevent
harm to you and others, and to protect against damage to property. These symbols and their meanings are
listed below. Make sure you fully understand these symbols before you begin reading the main text.
Explanations of Injury and Damage That May Result from Incorrect Use
Warning
Caution
Ignoring the content marked by this indication and using the product incorrectly is
expected to lead to death or serious injury.
Ignoring the content marked by this indication and using the product incorrectly is only
expected to lead to injury or property damage.
Types of Precautions
Chevrolet/GMC
FULL SIZE TRUCK 2/17
Forbidden
Forbidden
Indicates actions that are forbidden
(must not be performed)
Mandatory
Indicates that disassembly is
forbidden.
Indicates actions that are
mandatory (must be performed)
Marks content that should receive
your full attention.
Warning
Do not disassemble or modify the product. Doing so could lead to an accident, re,
or electric shock.
Forbidden
Store screws and other small objects where small children cannot reach them. If one of these
small objects is swallowed, consult with a doctor immediately.
When replacing fuses, be sure to use fuses with the specied current rating. Failing to do so could
lead to an accident or re.
Forbidden
Mandatory
Only connect the product to a 12 VDC negative ground car. Failing to do so could lead to
an accident or re.
Before you begin wiring, remove the ground wire from the negative terminal of the battery.
Failing to do so could lead to electric shock or injury.
Do not cut the insulation on a cord and take power from another device. Doing so could
lead to re or electric shock.
Do not install the product in a location where it will obstruct the driver’s forward view;
interfere with the operation of the steering wheel, gearshift, or the like; or pose a
threat to passengers. Doing so could lead to an accident or injury.
Mandatory
Forbidden
Forbidden
Chevrolet/GMC
FULL SIZE TRUCK 3/17
When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank,
electrical wiring, and the like. This kind of damage could lead to an accident or re.
When installing and grounding the product, do not use any of the bolts or nuts of the
steering wheel, brakes, fuel tank, or the like. Doing so could make the brakes stop working
or lead to re.
Do not install the product near the passenger-side airbag. Doing so could interfere with the
operation of the airbag and lead to an accident or injury.
Bundle cords so that they don’t interfere with driving. Wrapping cords around the steering
wheel, gearshift, brake pedal, or the like, could lead to an accident or damage equipment.
Forbidden
Forbidden
Caution
Connect the product properly according to the instructions. Failing to do so could lead
to re or an accident.
Do not sandwich cords between the seat railing or allow them to touch protrusions.
Resulting breaks or shorts could lead to electric shock or re.
Do not block vents or heat sinks. Doing so could lead to re or damage equipment.
Use the accessories according to the instructions, and attach them securely.
Failing to do so could lead to an accident or damage equipment.
Do not install the product where it may be exposed to water or in a place with high levels
of humidity or dust. Doing so could lead to re or damage equipment.
Forbidden
Forbidden
Forbidden
The installation and wiring of this product requires specialized skills and experience.
Have the product installed and wired by the store that you purchased it from.
Tools Required
Panel Removing Tool Pliers T15 Torx Screwdriver
#2 Phillips Screwdriver 7mm Screwdriver Wire Cutters
10mm Socket Extension Ratchet
Chevrolet/GMC
FULL SIZE TRUCK 4/17
7mm
Accessory List
Source Unit Box Parts (X110-G)
Display Monitor X110-G Source Unit HDMI Cable Bracket
8mm x 8 Screws GPS Antenna USB Extension Cable
Chevrolet/GMC
FULL SIZE TRUCK 5/17
Pre Out Harness Direct Camera Adapter Display Cable
DVD Player Box Parts (DVE-5300X)
HDMI Cable Bracket DVE-5300X DVD Player Unit 8mm x 4 Screws
HDMI Cable Remote Control
Installation Kit Parts (G-KTX110-GM1/GM2)
Radio Dash Bezel Key Harness Display Mounting Brackets
Vent Covers DVD Player Mounting Brackets Source Unit Mounting Brackets
Chevrolet/GMC
FULL SIZE TRUCK 6/17
iDatalink Maestro Box Parts (ALP-MRR V2.0/ALP-HRN-GM3)
Main Harness Antenna Adapter Factory Camera Harness
SAT Radio Antenna Adapter Maestro USB Update Cable iDatalink Maestro Module
Programming the iDatalink® Maestro Module
Chevrolet/GMC
FULL SIZE TRUCK 7/17
1 INSTALL THE WEBLINK PLUG-IN
Go to:
idatalinkmaestro.com/plugin and follow the installation steps.
Review the System Requirements before installing.
If the plugin is already installed, the caution, “The plugin is already
installed” appears. Please skip to step 2.
3 CONNECT YOUR MAESTRO MODULE
Use the included USB cable to connect your Maestro module to your
PC.
4 LOG INTO WEBLINK
Go to:
idatalinkmaestro.com/login.
Enter your username and password, then click OK.
2 REGISTER A WEBLINK ACCOUNT
Go to:
idatalinkmaestro.com/register and complete the registration process.
A conrmation email will be sent to you requiring validation.
For existing customers, click log in.
5 PROGRAM YOUR MODULE
Follow the programming steps for your vehicle.
6 Once Programing is complete “FLASHING
COMPLETED!” will be displayed.
Proceed to the next page to complete installation.

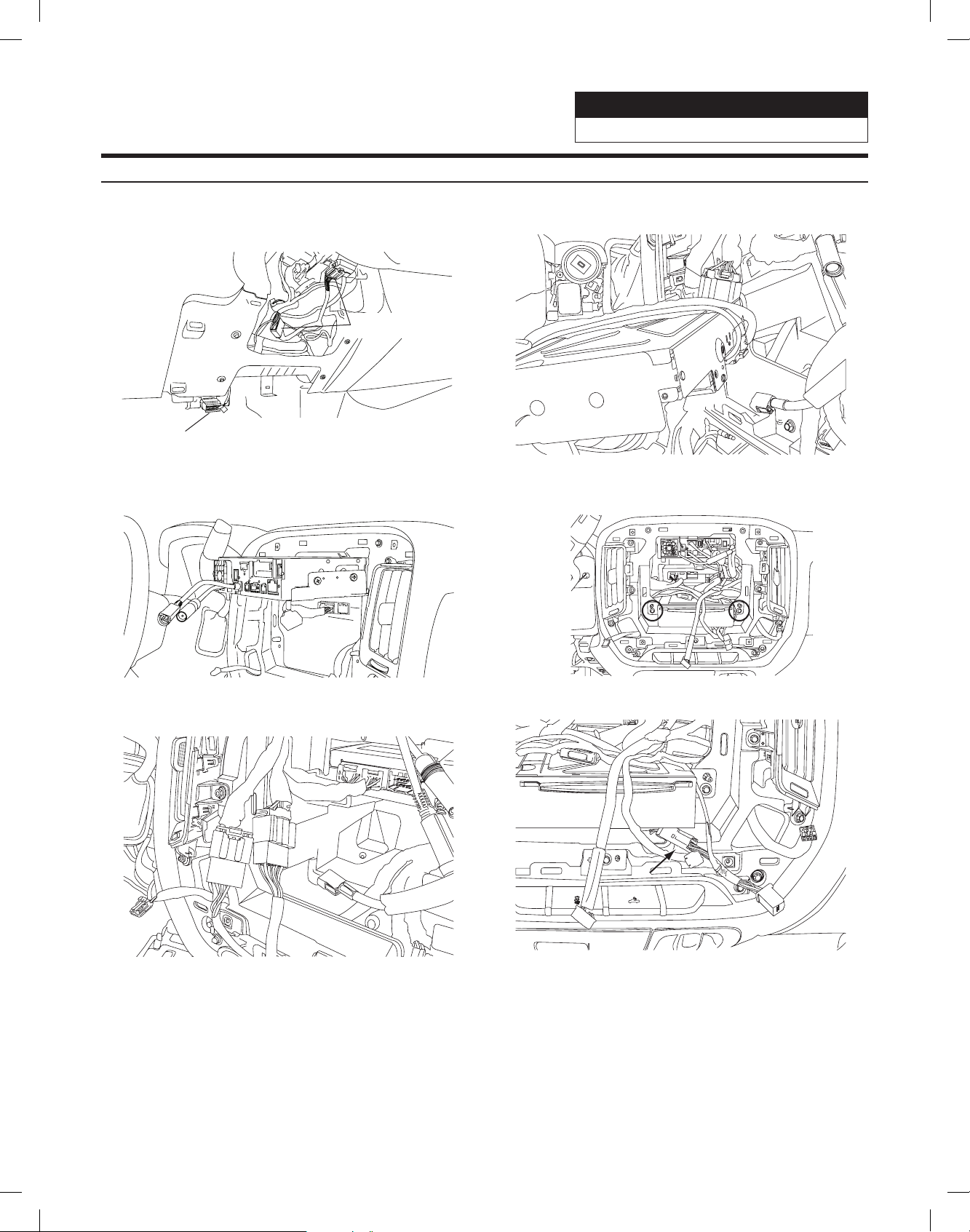

Factory Radio Removal Procedure
Chevrolet/GMC
FULL SIZE TRUCK 8/17
1 Disconnect the ground wire from the negative
terminal of the battery.
2 Unsnap and remove center dash trim piece from
around the radio and climate controls.
RADIO
MEDIA
A/C
MENU
BACK
TEMP
4 Disconnect and remove the radio tuner by lifting
the center tab. Use a pair of pliers to remove the
FM and SXM antenna connectors. Remove the CD
player by extracting (2) 7mm factory screws.
5 Remove the climate control module by carefully
unclipping it from factory panel. (This will later be
installed into the restyle bezel).
3 Remove (4) 7mm screws from the radio and climate
control bezel.
RADIO
MENU
MEDIA
BACK
A/C
TEMP
6 Extract (2) T15 Torx screws and unsnap the knee
cover on the driver side.
Factory Radio Removal Procedure
Chevrolet/GMC
FULL SIZE TRUCK 9/17
7 Unsnap the steering wheel lever and remove the
lower cover from the steering wheel column.
8 Remove the passenger’s side top and bottom
glove box compartments by extracting (6) T15 Torx
screws.
10 For trucks equipped with OEM camera, disconnect
the Gray 12-pin connector from the HMI box and
connect it to the OEM Camera adapter.
OEM
Camera
Glove box USB
11 Remove the bottom tab on the green USB
connector using a razor blade. (This will allow the
OEM USB adapter to connect properly.)
9 Unclip the USB cable from the metal bar support
and disconnect the green connector from the
HMI box. (may not be available on center console
equipped trucks)
KCX-630HD (Optional) HDMI Selector Interface
(Sold by Apple)
Lightning Digital AV Adapter
X110-G WIRING DIAGRAM
DISPLAY MONITOR
(Optional) iPhone Connection
X110-G Wiring Diagram
Chevrolet/GMC
FULL SIZE TRUCK 10/17
Steering Wheel
T-Harness
10-pin Black
Connector
Connector
10-pin Black
iDatalink MAESTRO Module
To OBDII Connector
To Steering
Wheel
Connector
18-pin Black
To Vehicle Connectors
Climate Control
To Climate
Controller
OEM Audio
20-pin Gray Connector
10-pin Gray
Connector
Blue Power Antenna
Blue/White Amp Turn-on
Brown Rear Mon. Remote Out
Brown/White Rear Mon. Remote In
AUX Power Connector
Power/Speaker
16-pin Green Connector
Black - Ground
Red - Acc 12V+
Yellow -12V+
OEM Camera Adapter
12-pin Gray Connector
(Audio)
Connector
3-pin Black
10-pin Green
Chime Speaker
Connector
3-pin Black
(Vehicle signals)
4-pin Black
(Power)
Connector
(Data)
Connector
X110-G
ANTENNA
Main Harness
External Display Power
DVD Player
HDMI Selector Box
Key Harness External Display
Direct Camera Input
USB
CAN I/F
GPS
SXM/DAB
EXT. KEY W.REMOTE POWER
PRE OUT
Direct Camera Adapter
DISP. OUT
HDMI IN HDMI OUT
Remote Harness
Power Harness
Key Harness
HDMI Cable
HDMI Cable
KCU-610MH USB Micro HDMI Samsung Cable
KCU-610HD USB Micro HDMI Cable
Smart phone applications (sold separately)
BRKT MONITOR
DISPLAY MONITOR
Chevrolet/GMC
FULL SIZE TRUCK 11/17
UPR 10GM
UP
HARD KEY BUTTONS
CLIMATE CONTROLLER
KCX-630HD (Optional) HDMI Selector Interface
POWER
HDMI IN 1 HDMI IN 2HDMI OUT
USB POWER
BRKT MONITOR
LWR 10GM
DVE-5300X DVD PLAYER
HDMI OutOpt. Out
Remote In
Cut loop when connecting
HDMI interface box.
(Optional) iPhone Connection
(Sold by Apple)
Lightning Digital AV Adapter
(Sold Separately)
KCE-461iV USB to
Lightning Cable
(Sold Separately) KCU-610HD HDMI Cable
(Sold Separately) KCE-220UB
For USB Charging ONLY
Component Locations
GPS Antenna
Chevrolet/GMC
FULL SIZE TRUCK 12/17
Radio Tuner
DVD Player
OBDII Connector
Steering Wheel
Harness
Sirius XM Tuner
(sold separately)
OEM Camera
Connector
GPS Antenna Installation
IMPORTANT: Follow the GPS installation procedure shown below. Failure to do so, will result in poor
GPSperformance.
Place the GPS antenna
on the center of the self
adhesive 70mm X 70mm
metal plate.
SXM Tuner
Keep the GPS antenna cable away from
the FPD(Display),Maestro module and
SXM tuner as these generate interference
and will decrease GPS performance.
Place the Maestro module
parallel to the Right side vent.
Maestro
SXM tuner location (SXM Tuner sold
separately) Note: Always mount SXM
tuner away from the X110-G and GPS
antenna cable. Route the cable along the
right side vent to reduce interference.
Tape the GPS
antenna cable
along the
steering wheel
column cover.
Route the GPS antenna cable down
to the knee cover area through the
opening below left side air vent.
X110-G Restyle Bezel Assembly
Chevrolet/GMC
FULL SIZE TRUCK 13/17
1 Attach the factory HVAC controller by clipping it to
the X110-G Restyle bezel.
2 Attached the top and bottom brackets to the
X110-G display using the provide 8mm screws.
3 Mount the display monitor to the restyle panel using
(4) 8mm screws.
Exploded-View Diagram
A/C
TEMP
OEM Climate Controller
Installation Instructions
Chevrolet/GMC
FULL SIZE TRUCK 14/17
1 Connect the steering wheel T-harness/OBDII
connector extension and route the cable to the
radio location.
SW T-Harness
OBDII Connector
2 Slide the X110-G radio tuner into the factory tuner
location and connect it to the main harness.
4 Connect the DVD player power harness and HDMI
cable from the DVD player to the X110-G.
5 Mount the DVD player it using (2) 7mm factory
screws.
3 Attached the updated Maestro module to the main
harness and plug the main harness to the vehicle.
6 Connect the HVAC controller T-harness.
Installation Instructions
Chevrolet/GMC
FULL SIZE TRUCK 15/17
7 Connect the X110-G to the main harness and
antenna connections.
8 Connect the X110-G display and snap into place.
Display Cable
Power
10 Attach the side vent covers.
MENU
CAM
WAV
A/C
11 Connect the battery terminal and begin the X110-G
setup.
Climate Control
Key Harness
9 Secure the X110-G restyle bezel using (4) 7mm
factory screws.
Chevrolet/GMC
FULL SIZE TRUCK 16/17
Set Up Guide
1 Turn the vehicle’s Ignition switch to ACC.
2 Turn ON the X110-SLV by pressing any key.
3 Select the user language and press OK.
4 Press and release the parking brake twice.
5 If a camera is present, turn it ON in the system menu.
(MENU/SETUP/SYSTEM/CAMERA/CAMERA SELECT)
6 AUDIO MUTE ON REVERSE- By default, when the vehicle is shifted into reverse the AUDIO will MUTE. If this
feature is not desired turn it off in the AUDIO MENU (MENU/SETUP/SOUND/MUTE WHILE BACKING UP)
7 Set the DVD player. (MENU/SETUP/SOURCE/HDMI)
8 When the KCX-630HD (HDMI SELECTOR) is present be sure to turn it ON in the SETUP MENU. (MENU/
SYSTEM/EXTERNAL ACCESSORIES/HDMI SELECTOR)
9 When the KAC-001 (External Accessory Control Module) is present be sure to turn it ON in the SETUP MENU.
(MENU/SYSTEM/EXTERNAL ACCESSORIES/EXTERNAL ACCESSORY CTLR)
10 Vehicle information- Set the desired gauge information.
(MENU/VEHICLE INFO/GAUGES/CAR SETTINGS)
Troubleshooting Guide
Symptom Possible Cause Remedy
1 iDatalink website says
serial number is invalid.
2 Headunit will not turn on. Incorrect serial number was
3 Cannot enter SETTINGS
MENU.
4 The Factory Onstar Voice
Recognition system is too
sensitive.
5 On the climate screen, the
power, recirculate, Rear
Defroster, Front Defroster
and AC buttons do nothing
when pressed.
6 Cannot control the DVD
Player properly.
7 Sound mutes when vehicle
is shifted into reverse.
8 Only the front speakers are
on for SXM Radio.
9 The vehicle is incorrectly
positioned on the
Navigation display.
Serial number may not be in
iDatalink database.
used when flashing maestro.
4 pin Maestro data cable is
disconnected or damaged.
OBD2 cable is not plugged in. Connect OBD2 connector to the OBD2
Monitor, key-harness or main
harness are not connected.
Vehicle is in motion or parking
brake is not engaged.
When you press the Onstar
button on the mirror, noises in
the vehicle may be recognized
as voice commands. In addition
radio key presses may also be
recognized as voice commands
while the Onstar is active.
This is normal. These are only status icons. They are
DVD has not been set on the
SETUP menu.
HDMI box has not been set on
the SETUP menu.
Mute on reverse is turned on in
the SOUND menu.
SXM Tuner has not been
activated
Poor GPS signal. Ensure the recommeded GPS antenna
Chevrolet/GMC
FULL SIZE TRUCK 17/17
Call ADS at 1-866-427-2999 and verify.
Flash Maestro with correct serial
number.
Check for proper connection or
disconnected pins.
port.
Check for proper connection or
disconnected pins.
With vehicle in (P)PARK engage the
parking brake. Release the parking
brake and engage the parking brake a
second time.
Set the KEY BEEP TO “0” in radio
settings menu.
not buttons. They will turn yellow when
selected.
Ensure DVD is ON in HDMI SETUP
menu.
Ensure DVD is ON in HDMI SETUP menu
and remote loop was cut on the wire
harness.
Change Mute on reverse to off.
Activate SXM Tuner.
route was used. See page 12.
Loading...
