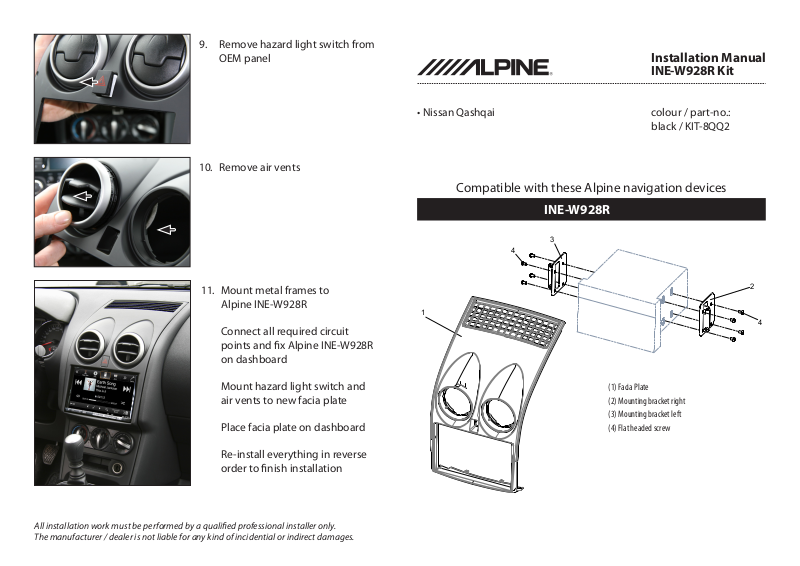

Alpine KIT-8QQ2 Installation Manual [EN]

9. Remove hazard light switch from
OEM panel

10. Remove air vents

Installation Manual
INE-W928R Kit

• Nissan Qashqai colour / part-no.:

black / KIT-8QQ2

Compatible with these Alpine navigation devices

INE-W928R

3

4

11. Mount metal frames to
Alpine INE-W928R

Connect all required circuit
points and x Alpine INE-W928R
on dashboard

Mount hazard light switch and
air vents to new facia plate

Place facia plate on dashboard

Re-install everything in reverse
order to nish installation

All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

2

1

4

(1) Facia Plate

(2) Mounting bracket right

(3) Mounting bracket left

(4) Flat headed screw

1. Nissan Qashquai OEM Dashboard

4. Unclip and remove OEM panel

6. Remove 4 screws

2. Unclip panel
(see arrows)

3. Remove panel

7. Remove OEM head unit

8 . Cut away plastic to clear
space for for Alpine INE-W928R
