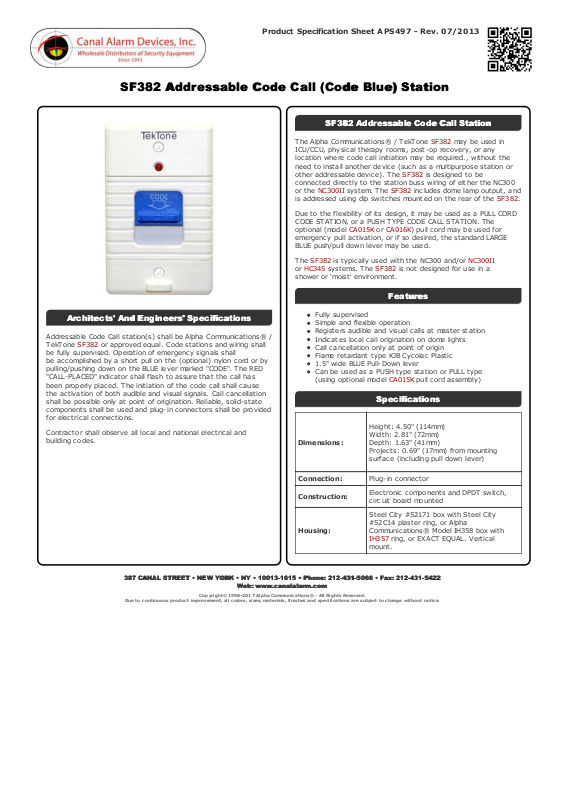

Alpha SF382 Specsheet

Product Specification Sheet APS497 - Rev. 07/2013

SF382 Addressable Code Call (Code Blue) StationSF382 Addressable Code Call (Code Blue) Station

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

Addressable Code Call station(s) shall be Alpha Communicat ions® /
TekTone SF382 or approved equal. Code st ations and wiring shall
be fully supervised. Operation of emergency signals shall
be ac complished by a short pull on the (optional) nylon cord or by
pulling/pushing down on the BLUE lever marked "CODE". The RED
"CALL-PLACED" indicator shall flash to assure t hat the c all has
been properly placed. T he initiation of t he c ode c all shall cause
the act ivation of both audible and visual signals. Call cancellation
shall be possible only at point of origination. Reliable, solid-st ate
components shall be used and plug-in c onnectors shall be provided
for electrical c onnections.

Contractor shall observe all local and national electrical and
building codes.

SF382 Addressable Code Call StationSF382 Addressable Code Call Station

The Alpha Communicat ions® / TekTone SF382 may be used in
ICU/CCU, physical t herapy rooms, post-op recovery, or any
locat ion where code call initiation may be required., without the
need to install another device (suc h as a multipurpose st ation or
other addressable devic e). T he SF382 is designed to be
connected directly to the stat ion buss wiring of either the NC300
or the NC300II syst em. The SF382 includes dome lamp output, and
is addressed using dip switches mounted on the rear of the SF382.

Due t o the flexibility of its design, it may be used as a PULL CORD
CODE STATION, or a PUSH TYPE CODE CALL STATION. The
optional (model CA015K or CA016K) pull cord may be used for
emergency pull activat ion, or if so desired, the standard LARGE
BLUE push/pull down lever may be used.

The SF382 is typically used with t he NC300 and/or NC300II
or HC345 systems. T he SF382 is not designed for use in a
shower or 'moist' environment.

FeaturesFeatures

Fully supervised
Simple and flexible operation
Registers audible and visual calls at master station
Indicates local c all origination on dome lights
Call cancellation only at point of origin
Flame retardant type KJB Cycolac Plastic

1.5" wide BLUE Pull-Down lever
Can be used as a PUSH type station or PULL type
(using optional model CA015K pull cord assembly)

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm)
Width: 2.81" (72mm)
Depth: 1.63" (41mm)
Projects: 0.69" (17mm) from mounting
surface (including pull down lever)

Connection: Plug-in connec tor

Construction:

Electronic component s and DPDT switc h,
circuit board mounted

Housing:

Steel City #52171 box with Steel City
#52C14 plaster ring, or Alpha
Communicat ions® Model IH358 box with

IH357 ring, or EXACT EQUAL. Vertical

mount.
