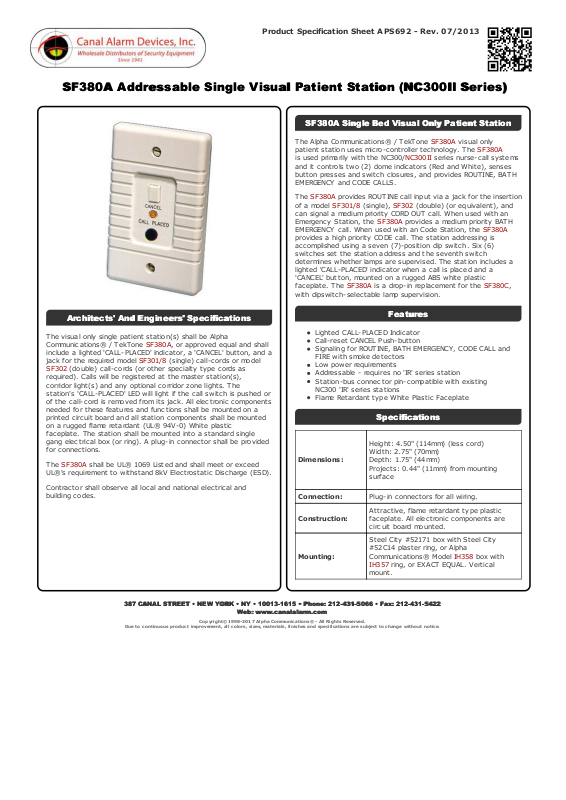

Alpha SF380A Specsheet

Product Specification Sheet APS692 - Rev. 07/2013

SF380A Addressable Single Visual Patient Station (NC300II Series)SF380A Addressable Single Visual Patient Station (NC300II Series)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The visual only single patient station(s) shall be Alpha
Communications® / T ekTone SF380A, or approved equal and shall
include a lighted 'CALL-PLACED' indicator, a 'CANCEL' button, and a
jack for t he required model SF301/8 (single) call-c ords or model

SF302 (double) call-c ords (or other specialty type c ords as

required). Calls will be registered at t he master station(s),
corridor light(s) and any optional corridor zone lights. The
stat ion's 'CALL-PLACED' LED will light if the call switch is pushed or
of t he c all-cord is removed from its jac k. All elect ronic components
needed for t hese features and funct ions shall be mounted on a
printed circuit board and all station components shall be mounted
on a rugged flame retardant (UL® 94V-0) White plast ic
fac eplate. The stat ion shall be mounted into a standard single
gang elect rical box (or ring). A plug-in c onnector shall be provided
for connect ions.

The SF380A shall be UL® 1069 Listed and shall meet or exceed
UL®'s requirement to withstand 8kV Electrostatic Discharge (ESD).

Contractor shall observe all local and national electrical and
building codes.

SF380A Single Bed Visual Only Patient StationSF380A Single Bed Visual Only Patient Station

The Alpha Communicat ions® / TekTone SF380A visual only
patient stat ion uses micro-c ontroller technology. The SF 380A
is used primarily with the NC300/NC300II series nurse-c all syst ems
and it c ontrols two (2) dome indicat ors (Red and White), senses
button presses and switch closures, and provides ROUTINE, BATH
EMERGENCY and CODE CALLS.

The SF380A provides ROUTINE call input via a jack for the insertion
of a model SF301/8 (single), SF302 (double) (or equivalent), and
can signal a medium priority CORD OUT c all. When used with an
Emergency St ation, t he SF380A provides a medium priority BATH
EMERGENCY call. When used with an Code Station, the SF380A
provides a high priority CODE call. The st ation addressing is
accomplished using a seven (7)- position dip switc h. Six (6)
switc hes set t he st ation address and the seventh switc h
determines whether lamps are supervised. T he st ation includes a
lighted 'CALL-PLACED' indicat or when a c all is placed and a
'CANCEL' button, mounted on a rugged ABS white plastic
fac eplate. The SF380A is a drop-in replacement for t he SF380C,
with dipswitc h-select able lamp supervision.

FeaturesFeatures

Lighted CALL-PLACED Indicat or
Call-reset CANCEL Push-button
Signaling for ROUTINE, BATH EMERGENCY, CODE CALL and
FIRE with smoke det ec tors
Low power requirements
Addressable - requires no 'IR' series stat ion
Stat ion-bus c onnector pin-c ompatible with existing
NC300 'IR' series st ations
Flame Retardant t ype White Plastic Fac eplate

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm) (less c ord)
Width: 2.75" (70mm)
Depth: 1.75" (44mm)
Projects: 0.44" (11mm) from mounting
surface

Connection: Plug-in connec tors for all wiring.

Construction:

Att ract ive, flame ret ardant t ype plastic
fac eplate. All electronic components are
circuit board mounted.

Mounting:

Steel City #52171 box with Steel City
#52C14 plaster ring, or Alpha
Communic at ions® Model IH358 box with

IH357 ring, or EXACT EQUAL. Vertical

mount.
