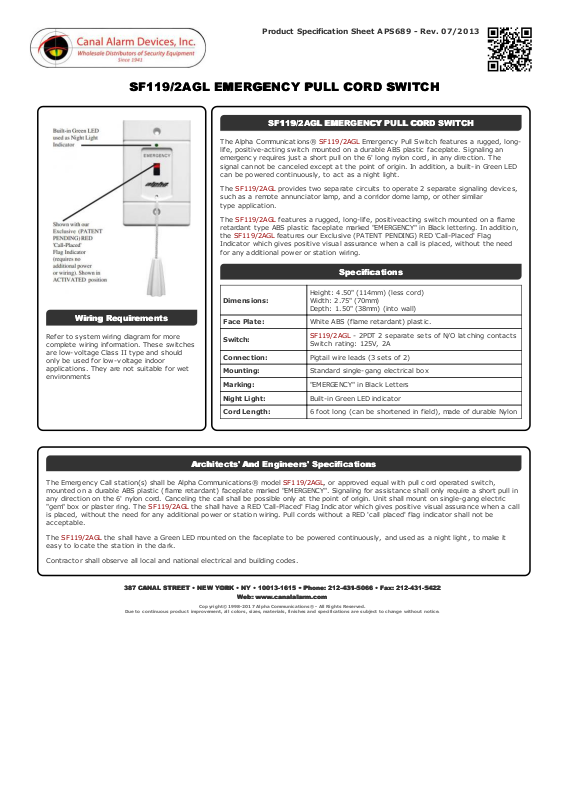

Alpha SF119-2AGL Specsheet

Product Specification Sheet APS689 - Rev. 07/2013

SF119/2AGL EMERGENCY PULL CORD SWITCHSF119/2AGL EMERGENCY PULL CORD SWITCH

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Wiring RequirementsWiring Requirements

Refer to system wiring diagram for more
complete wiring information. These switches
are low-voltage Class II type and should
only be used for low-voltage indoor
applications. T hey are not suitable for wet
environments

SF119/2AGL EMERGENCY PULL CORD SWITCHSF119/2AGL EMERGENCY PULL CORD SWITCH

The Alpha Communications® SF119/2AGL Emergency Pull Switch feat ures a rugged, long-
life, positive-acting switc h mounted on a durable ABS plastic faceplate. Signaling an
emergency requires just a short pull on the 6' long nylon cord, in any direction. The
signal cannot be canceled except at the point of origin. In addition, a built- in Green LED
can be powered c ontinuously, to ac t as a night light.

The SF119/2AGL provides t wo separate c ircuits to operate 2 separate signaling devices,
such as a remote annunciator lamp, and a corridor dome lamp, or ot her similar
type application.

The SF119/2AGL features a rugged, long-life, positiveac ting switch mounted on a flame
retardant t ype ABS plastic faceplate marked "EMERGENCY" in Black lett ering. In addition,
the SF119/2AGL features our Exclusive (PAT ENT PENDING) RED 'Call-Placed' Flag
Indicator which gives positive visual assurance when a call is placed, without the need
for any additional power or station wiring.

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm) (less c ord)
Width: 2.75" (70mm)
Depth: 1.50" (38mm) (into wall)

Face Plate: White ABS (flame retardant) plastic.

Switch:

SF119/2AGL - 2PDT 2 separate sets of N/O latc hing contac ts

Switc h rating: 125V, 2A

Connection: Pigtail wire leads (3 sets of 2)

Mounting: Standard single-gang electrical box

Marking: "EMERGENCY" in Black Letters

Night Light: Built-in Green LED indicat or

Cord Length: 6 foot long (can be shortened in field), made of durable Nylon

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The Emergency Call stat ion(s) shall be Alpha Communicat ions® model SF119/2AGL, or approved equal with pull c ord operated switch,
mounted on a durable ABS plastic (flame retardant) faceplate marked "EMERGENCY". Signaling for assistanc e shall only require a short pull in
any direction on the 6' nylon cord. Canceling the call shall be possible only at the point of origin. Unit shall mount on single-gang elec tric
"gem" box or plaster ring. The SF119/2AGL the shall have a RED 'Call- Placed' Flag Indicator which gives positive visual assurance when a c all
is placed, without the need for any additional power or station wiring. Pull cords without a RED 'c all placed' flag indicator shall not be
acceptable.

The SF119/2AGL t he shall have a Green LED mounted on the faceplate t o be powered continuously, and used as a night light, to make it
easy to loc ate the station in the dark.

Contractor shall observe all local and national electrical and building codes.
