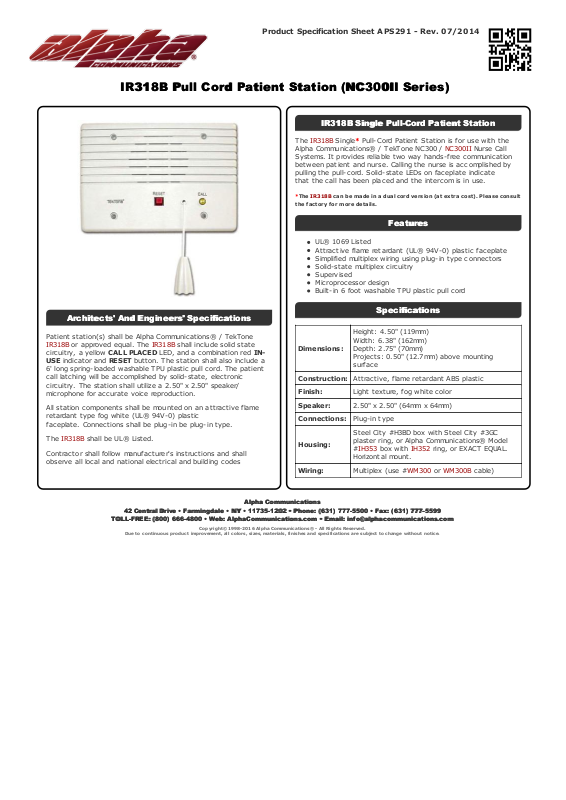

Product Specification Sheet APS291 - Rev. 07/2014

IR318B Pull Cord Patient Station (NC300II Series)IR318B Pull Cord Patient Station (NC300II Series)

Alpha CommunicationsAlpha Communications

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone] Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]

Copyright © 1998-2 016 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

Patient station(s) shall be Alpha Communications® / T ekTone

IR318B or approved equal. The IR318B shall include solid state

circuitry, a yellow CALL PLACED LED, and a c ombination red IN-
USE indicat or and RESET button. The station shall also include a
6' long spring-loaded washable TPU plastic pull cord. The patient
call latc hing will be ac c omplished by solid-stat e, elect ronic
circuitry. The stat ion shall utilize a 2.50" x 2.50" speaker/
microphone for accurate voice reproduction.

All station components shall be mounted on an attract ive flame
retardant t ype fog white (UL® 94V-0) plastic
fac eplate. Connect ions shall be plug-in be plug-in type.

The IR318B shall be UL® Listed.

Contractor shall follow manufacturer's instructions and shall
observe all local and national electrical and building codes

IR318B Single Pull-Cord Patient StationIR318B Single Pull-Cord Patient Station

The IR318B Single* Pull-Cord Patient Stat ion is for use with the
Alpha Communicat ions® / TekTone NC300 / NC300II Nurse Call
Systems. It provides reliable two way hands- free c ommunication
between patient and nurse. Calling the nurse is acc omplished by
pulling the pull-cord. Solid-stat e LEDs on fac eplate indicate
that the call has been placed and the intercom is in use.

*The IR318B ca n be made in a dual cord version (at extra cost). P lease consult

the f act ory f or more details.

FeaturesFeatures

UL® 1069 Listed
Att ract ive flame retardant (UL® 94V-0) plastic faceplate
Simplified multiplex wiring using plug-in type connect ors
Solid-stat e multiplex circuitry
Supervised
Microprocessor design
Built-in 6 foot washable TPU plastic pull cord

SpecificationsSpecifications

Dimensions:

Height: 4.50" (119mm)
Width: 6.38" (162mm)
Depth: 2.75" (70mm)
Projects: 0.50" (12.7mm) above mounting
surface

Construction: Att ract ive, flame retardant ABS plastic

Finish: Light texture, fog white color

Speaker: 2.50" x 2.50" (64mm x 64mm)

Connections: Plug-in type

Housing:

Steel City #H3BD box with Steel City #3GC
plaster ring, or Alpha Communications® Model
#IH353 box with IH352 ring, or EXACT EQUAL.
Horizontal mount.

Wiring: Multiplex (use #WM300 or WM300B cable)
