1 Introduction
The Allworx® Call Assistant is a user-friendly graphical application that is intended to be used by an
individual functioning in the role of an operator or receptionist. Call Assistant allows operators or
receptionists to monitor the state of every line in the system and to effectively dispatch calls by
answering, transferring, parking or sending to voicemail. Call Assistant is a fully integrated PC
software tool, which makes the operator’s tasks easy and efficient. This intuitive software is
designed to work in combination with any Allworx VoIP phone. The purpose of this document is to
give an overview including system requirements, installation and configuration, and product features
and functionality.
© 2006 InSciTek Microsystems, Inc. All rights reserved. Allworx is a registered trademark of InSciTek Microsystems. All other names may
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
be trademarks or registered trademarks of their respective owners.
Revised: February 8, 2007
Page 1
Call Assistant Quick Reference Guide
2 Views

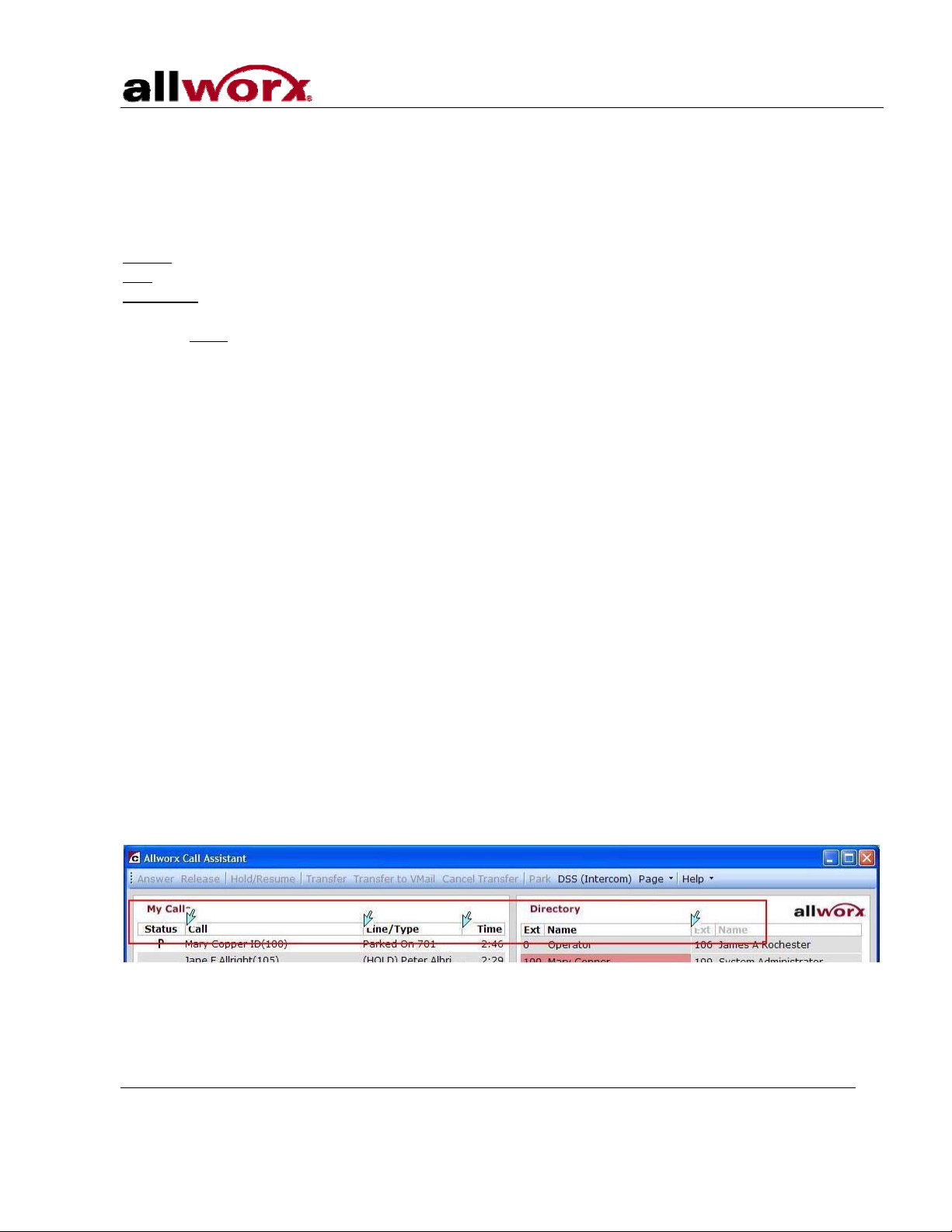

The application has three distinct work areas or views: My Calls, Directory and Outside Lines. Each
view is explained in a separate section.
Note: The application window and each of the views can be resized. To resize the view, place the
mouse on the boundary and click-and-drag the boundary to the desired size.
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
© 2006 InSciTek Microsystems, Inc. All rights reserved. Allworx is a registered trademark of InSciTek Microsystems. All other names may
be trademarks or registered trademarks of their respective owners.
Revised: February 8, 2007
Page 2
Call Assistant Quick Reference Guide
2.1 My Calls View
My Calls shows all calls currently being handled at the operator’s extension.
Every incoming or outgoing call associated with the operator’s phone appears in the My Calls view.
This view shows the following fields:
Status of a call (Ringing, Active, On Hold, Parked, Ended)
Call (caller ID, name and number, if available)
Line/Type (displays the “line” (or appearance) from the operator’s phone that the call came in or
went out on, additional information such as call is on hold or that the call is parked at an extension)
Elapsed
Time of the call in its current state.
The column width for each of the fields can be resized by click-and-dragging the boundary line
between the field names.
Many actions can be initiated on these calls, such as: Answer, Release, Hold, Transfer and Park.
See Features / Taskbar section for more information.
The calls are ordered with the oldest calls at the top of the view.
2.2 Directory View
The Directory view displays all extensions configured in the Allworx system with extension number
and description or user’s name. Each extension with Allworx VoIP or analog handsets shows the
current status through the use of color:
Green indicates Ringing
Red indicates In Use
Gray indicates Idle
Amber indicates Do Not Disturb.
Extensions with all other handsets types will always display Idle (grey). Various actions can be
initiated in the Directory in combination with the taskbar and other work areas. See
Features/Taskbar for more information.
The column width can be resized by click-and-dragging the boundary line between the first two
columns. The view will fit as many columns as possible without having to horizontally scroll the view.
© 2006 InSciTek Microsystems, Inc. All rights reserved. Allworx is a registered trademark of InSciTek Microsystems. All other names may
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
be trademarks or registered trademarks of their respective owners.
Revised: February 8, 2007
Page 3
Call Assistant Quick Reference Guide
2.2.1 Outside Lines View
All incoming lines, which have been designated for this operator, show up in the Outside Lines area,
including both VOIP and traditional CO lines. Each line shows status through the use of color: green
indicates Ringing, red indicates Active and gray indicates Inactive.
© 2006 InSciTek Microsystems, Inc. All rights reserved. Allworx is a registered trademark of InSciTek Microsystems. All other names may
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
be trademarks or registered trademarks of their respective owners.
Revised: February 8, 2007
Page 4
Call Assistant Quick Reference Guide
3 Product Features/Taskbar Options
Taskbar option’s states (enabled/disabled) are based on the status of the call currently selected in
the My Calls and Directory views. To perform any of the call options on the Call Assistant taskbar, a
targeted call in My Calls or extension in Directory must be selected. This is indicated by a border
placed around the selected item.
Inbound call unselected
Active call selected
3.1 Answer
An inbound call will be displayed in the My Call view as ringing. This call can be answered by two
methods:
1. Select the ringing call in My Calls view and then select Answer on the taskbar
-OR-
2. Double click on the ringing call in My Calls view
3.2 Release
End or drop the selected call in My Calls view.
3.3 Hold/Resume
When a call is placed on Hold, the Resume Taskbar option becomes active and is used to return to
this call. The call indicates Hold in My Calls view by blinking the call status icon.
© 2006 InSciTek Microsystems, Inc. All rights reserved. Allworx is a registered trademark of InSciTek Microsystems. All other names may
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
be trademarks or registered trademarks of their respective owners.
Revised: February 8, 2007
Page 5
Call Assistant Quick Reference Guide
Note: The call must be selected in My Calls view to Resume.
3.4 Transfer
Transfer moves calls to another person (extension) either as a blind transfer or attended transfer.
Operator performs a blind transfer (transfer to a targeted extension without an announcement) to
another extension:
1. Click Transfer on the taskbar: Cancel Transfer option is enabled on the taskbar; all other call
options are disabled.
2. Click the targeted extension in the Directory view: Cancel Transfer taskbar option becomes
disabled; call is now transferred.
3. Call changes to ‘Ended’ in My Calls view and then removed from the view.
Operator performs an attended transfer (transfer to a targeted extension with an announcement to
the target) to another extension:
1. Place call on Hold by selecting Hold option on the taskbar: calls status changes to "Hold" in
My Calls view.
2. Operator calls targeted extension by double clicking targeted extension in Directory view.
3. Targeted extension answer: announce call will be transferred to this extension.
4. Select the origin call (on hold) to be transferred in My Calls view.
5. Click Transfer on the taskbar.
6. Click targeted extension call in My Calls view.
7. Original call is immediately removed from My Calls view and the targeted extension call
status changes to Ended and then removed from My Calls view.
3.5 Transfer to Voicemail
The operator can transfer a call directly to a user’s voicemail with the Transfer to Voicemail option
on the taskbar.
3.6 Cancel Transfer
After Transfer or Transfer to Voicemail has been selected, Cancel Transfer is enabled. Selecting
this option will end the transfer and resume the call.
3.7 Park
Park option places a call on hold to one of the designated extensions (701 through 709) that can be
retrieved by any handset in the system.
© 2006 InSciTek Microsystems, Inc. All rights reserved. Allworx is a registered trademark of InSciTek Microsystems. All other names may
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
be trademarks or registered trademarks of their respective owners.
Revised: February 8, 2007
Page 6
Call Assistant Quick Reference Guide
3.8 DSS (Intercom)
Allworx phones on the same system can be used as intercoms with the DSS (Intercom) taskbar
option.
1. Select the targeted extension in the Directory view.
2. Select the DSS (Intercom) taskbar option.
3. The phone will announce by ringing, upon completion of this you can start talking.
4. The person you called will hear you over the speaker.
For non-Allworx handset, using the DSS (Intercom) option is functionally the same as placing a call.
3.9 Page
The operator can broadcast a message over the speaker of selected users phones by using the
Page option.
Call Assistant will execute one of the Allworx system paging zones to broadcast an announcement
by selecting one of the zones from the drop-down menu under the Page taskbar option. This
broadcast will go to the users assigned to that paging zone. By selecting the Page option without
the dropdown, the first paging zone is executed. See the Allworx System Administration Guide for
detail on how to configure and assign users to the paging zones.
3.10 Dialing Calls
Double-clicking any extension in the Directory view can place calls. The operator can still use their
handset while using Call Assistant. Call Assistant works collaboratively with the phone, extending
the phone’s capabilities. Dialing of arbitrary numbers can be easily accomplished using the phones
dial pad.
© 2006 InSciTek Microsystems, Inc. All rights reserved. Allworx is a registered trademark of InSciTek Microsystems. All other names may
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
be trademarks or registered trademarks of their respective owners.
Revised: February 8, 2007
Page 7
Call Assistant Quick Reference Guide
4 Help
4.1 Call Assistant Help
To access the help document from within the Allworx Call Assistant, select the Help option
on the taskbar.
4.2 Legend
To see an explanation of all symbols and color states for the various views used by the
Allworx Call Assistant, select Legend from the dropdown menu under the Help option on the
taskbar.
© 2006 InSciTek Microsystems, Inc. All rights reserved. Allworx is a registered trademark of InSciTek Microsystems. All other names may
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
be trademarks or registered trademarks of their respective owners.
Revised: February 8, 2007
Page 8
Call Assistant Quick Reference Guide
5 About Call Assistant
The user is provided the software releases details by selecting ‘About…’ from the dropdown menu
under the ‘Help’ option on the taskbar.
