Description
2 megapixel CCD camera with GigE Vision interface - More than 30 fps

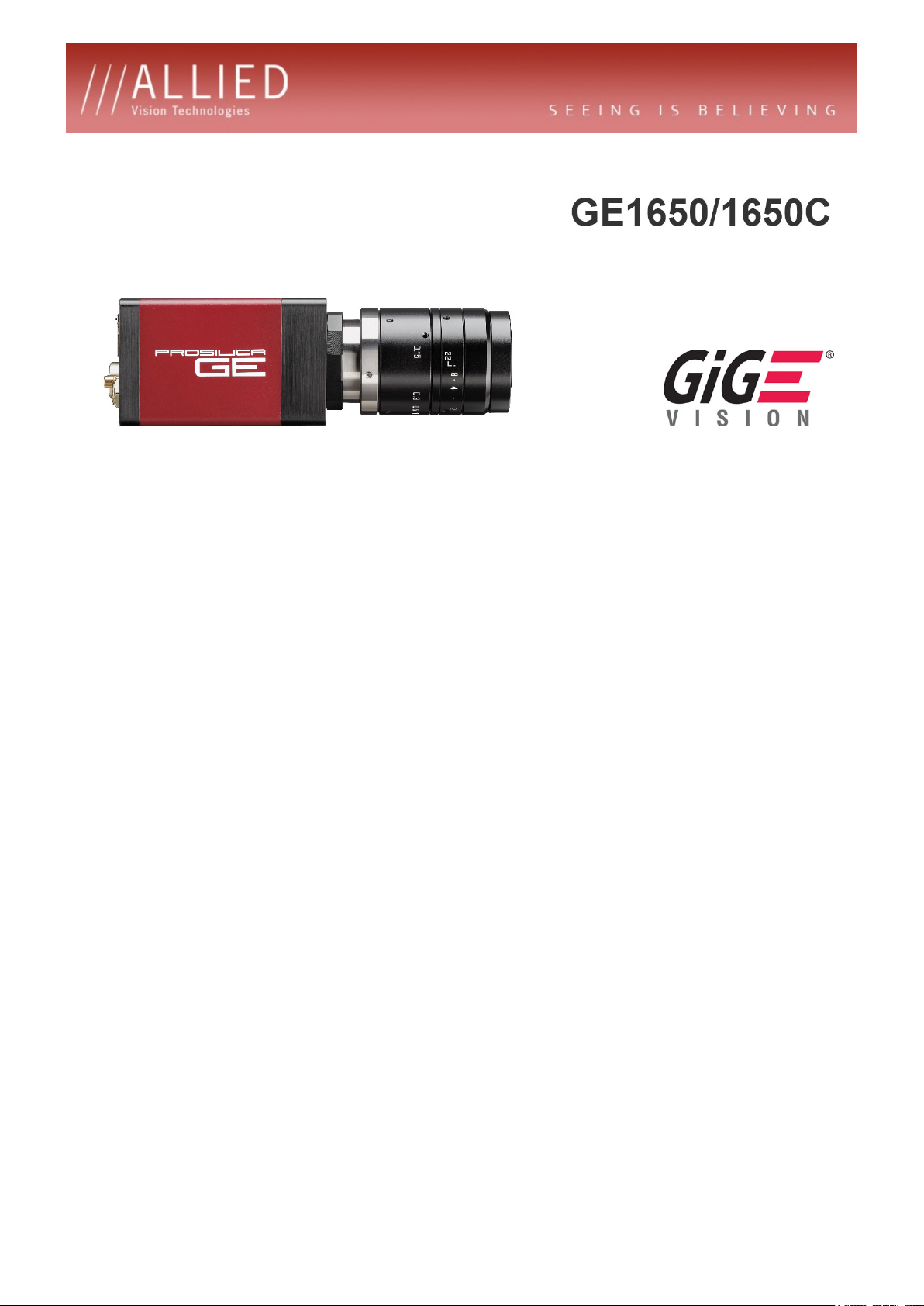

The 2 Megapixel GE1650 is a high-resolution CCD camera with Gigabit Ethernet interface
(GigE Vision®). The GE1650 incorporates a high-quality Truesense KAI-2020 CCD sensor
providing excellent monochrome and color image quality in 4:3 format. The GE1650 runs
over 30 frames per second at 1600 x 1200 resolution and even faster with region of interest
readout.
●
Truesense KAI-2020 Progressive scan CCD
●
Global shutter (Snapshot shutter)
●
Fast frame rate - 32 fps at full-resolution
●
Models:
❍
GE1650, 1600 x 1200, 32 fps, CCD, mono
❍
GE1650C, 1600 x 1200, 32 fps, CCD, color
●
Modular options:
❍
Nikon F-mount (Factory conversion)
❍
Canon EF Lens Mount (Factory conversion via RS232 I/O)
❍
IRC Filter on Monochrome cameras (Factory installation)
❍
Taped glass and microlens (Factory built)
❍
Taped glass No microlens (Factory built)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-ge/ge1650.html 1
Specifications
Prosilica GE 1650
Interface IEEE 802.3 1000baseT
Resolution 1600 x 1200
Sensor Truesense KAI-2020
Sensor type CCD Progressive
Sensor size Type 1
Cell size 7.4 µm
Lens mount C (adjustable)
Max frame rate at full resolution 32 fps
A/D 12 bit
On-board FIFO 32 MB
Output
Bit depth 8/12 bit
Mono modes Mono8, Mono12, Mono12Packed
Color modes YUV YUV411Packed
Color modes RGB
Raw modes BayerGR8, BayerGR12, BayerGR12Packed
TTL I/Os 1 input, 3 outputs (with galvanic isolation)
RS-232 1
Operating temperature 0°C ... +50°C
Power requirements (DC) 5V - 24V
Power consumption (12 V) 5 W
Mass 169 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class A, RoHS (2011/65/EU)
RGB8Packed, BGR8Packed, RGBA8Packed, BGRA8Packed,
RGB12Packed
General purpose inputs/outputs (GPIOs)
Operating conditions/Dimensions
80 x 51 x 39 including connectors, w/o tripod and lens
Download Prosilica GE1650 technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-ge/ge1650.html 2

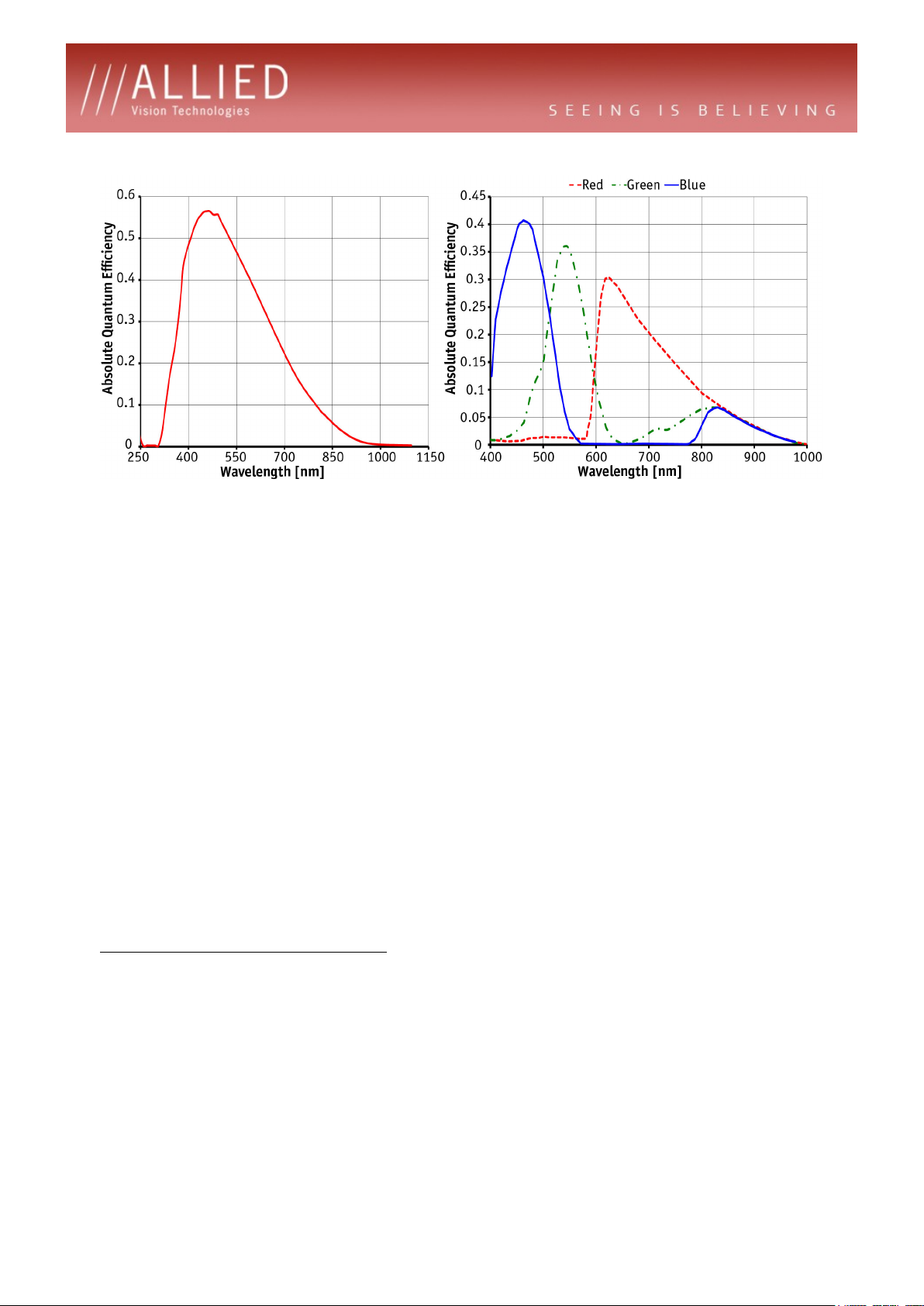

Smart features
Features include:
●
Auto Exposure
●
Auto Gain
●
Auto White balance
●
Flexible Binning
●
Region of Interest readout (AOI partial scan)
●
DSP subregion (selectable ROI for auto features)
●
StreamBytesPerSecond (easy bandwidth control)
●
Stream hold
●
Asynchronous external trigger and sync I/O
●
Global shutter (digital shutter)
●
Recorder and Multiframe Acquisition Modes
Application Note:
Birger EF-Mount, Modular Option -09
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-ge/ge1650.html 3
Applications
The GE1650 is ideal for a wide range of applications including:
●
Industrial inspection
●
Machine vision
●
LCD panel inspection
●
Medical imaging
●
Ophthalmology
●
Aeronautical and aerospace
●
Public security
●
Surveillance
●
Traffic imaging
●
OEM applications
Application Case Studies:
●
Prosilica Cameras Capture the Thrill of Roller Coaster Rides
Multimedia & Entertainment: 3db Solutions Inc. of Canada uses Prosilica GigE Vision
cameras for systems producing souvenir photos in amusement parks.
●
3D Quantitative Analysis of Cancer Biosignatures
Healthcare & Medical: Cell-CT Platform uses Prosilica GE1650 GigE camera in 3D imaging
system.
