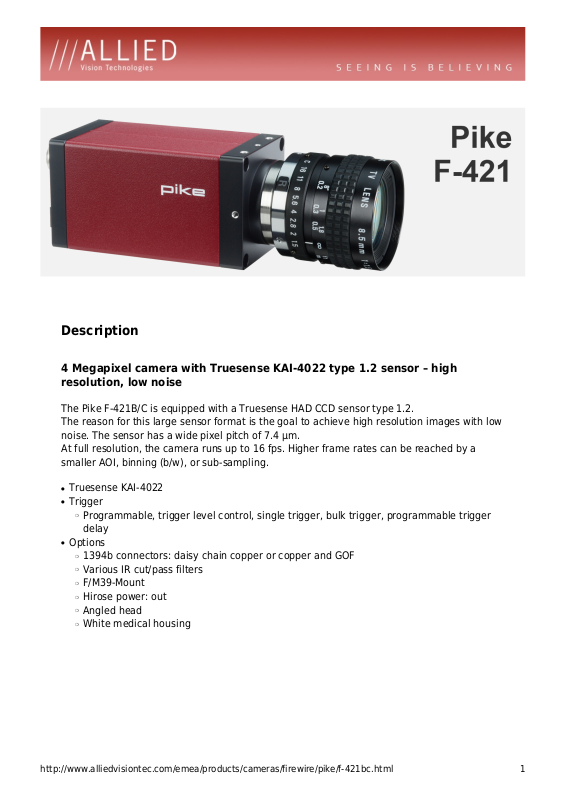

Page 1
Description
4 Megapixel camera with Truesense KAI-4022 type 1.2 sensor – high
resolution, low noise
The Pike F-421B/C is equipped with a Truesense HAD CCD sensor type 1.2.
The reason for this large sensor format is the goal to achieve high resolution images with low
noise. The sensor has a wide pixel pitch of 7.4 μm.
At full resolution, the camera runs up to 16 fps. Higher frame rates can be reached by a
smaller AOI, binning (b/w), or sub-sampling.
●
Truesense KAI-4022
●
Trigger
❍
Programmable, trigger level control, single trigger, bulk trigger, programmable trigger
delay
●
Options
❍
1394b connectors: daisy chain copper or copper and GOF
❍
Various IR cut/pass filters
❍
F/M39-Mount
❍
Hirose power: out
❍
Angled head
❍
White medical housing
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-421bc.html 1
Page 2
Specifications
Pike F-421
Interface IEEE 1394b - 800 Mb/s, 2 ports, daisy chain, fiber optic (GOF) optional
Resolution 2048 x 2048
Sensor Truesense KAI-4022
Sensor type CCD Progressive
Sensor size Type 1.2
Cell size 7.4 µm
Lens mount C
Max frame rate at full resolution 16 fps
A/D 14 bit
On-board FIFO 64 MB
Output
Bit depth 8-14 bit
Mono modes Mono8, Mono12, Mono16
Color modes YUV YUV411, YUV422
Color modes RGB RGB8
Raw modes Raw8, Raw12, Raw16
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 4 outputs
RS-232 1
Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) 4 W
Mass 250 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
96.8 x 44 x 44 mm including connectors, w/o tripod and lens
Pike technical drawing (C-Mount)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-421bc.html 2
Page 3
Smart features
●
Programmable LUT, white balance, hue, saturation
●
Debayering
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 22 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 70 µs - 67 s
●
Color correction
●
Shading correction
●
High SNR mode (up to 24 dB better signal-to-noise ratio)
●
Smear reduction
●
Sub-sampling, 2x – 8x binning (b/w)
●
Separate AOI for auto features
●
Sequence mode (changes the image settings on the fly)
●
Image mirror
●
Deferred image transport
●
SIS (secure image signature, time stamp for trigger, frame count etc.)
●
Storable user settings
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-421bc.html 3
Page 4
Applications
Equipped with a large sensor format (type 1.2), the Pike F-421B/C is the perfect fit for
low-light applications. It is distinguished by high-resolution images and an extraordinary
image quality with very low noise. The smart pre-processing features of the Pike even
enhance the image quality. This Pike camera is especially suited for:
●
Applications which require the highest image quality even with low light
●
OEM applications (modular concept)
●
Microscopy
●
Science and research
●
ITS (Intelligent traffic solutions)
●
Long cable lengths, 400 meters and more (fiber version)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-421bc.html 4
