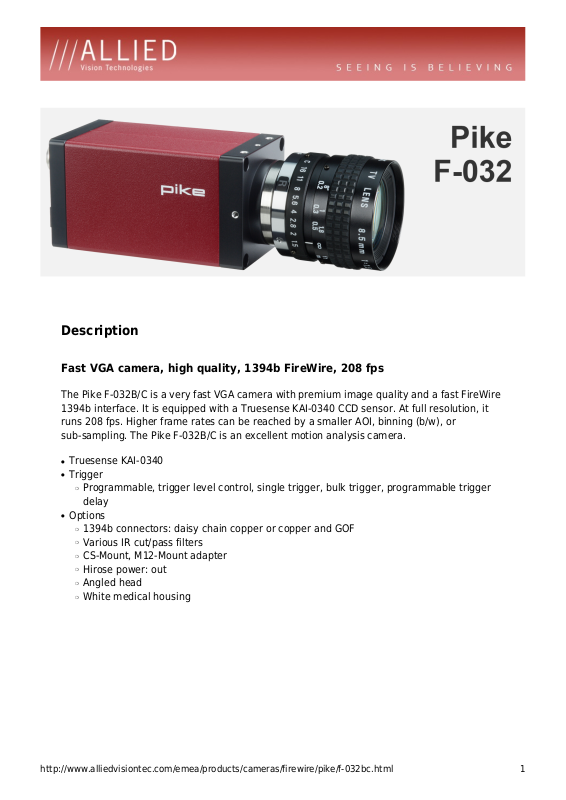

Description
Fast VGA camera, high quality, 1394b FireWire, 208 fps
The Pike F-032B/C is a very fast VGA camera with premium image quality and a fast FireWire
1394b interface. It is equipped with a Truesense KAI-0340 CCD sensor. At full resolution, it
runs 208 fps. Higher frame rates can be reached by a smaller AOI, binning (b/w), or
sub-sampling. The Pike F-032B/C is an excellent motion analysis camera.
●
Truesense KAI-0340
●
Trigger
❍
Programmable, trigger level control, single trigger, bulk trigger, programmable trigger
delay
●
Options
❍
1394b connectors: daisy chain copper or copper and GOF
❍
Various IR cut/pass filters
❍
CS-Mount, M12-Mount adapter
❍
Hirose power: out
❍
Angled head
❍
White medical housing
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-032bc.html 1
Page 2
Specifications
Pike F-032
Interface IEEE 1394b - 800 Mb/s, 2 ports, daisy chain, fiber optic (GOF) optional
Resolution 640 x 480
Sensor Truesense KAI-0340
Sensor type CCD Progressive
Sensor size Type 1/3
Cell size 7.4 µm
Lens mount C
Max frame rate at full resolution 208 fps
A/D 14 bit
On-board FIFO 64 MB
Output
Bit depth 8-14 bit bit
Mono modes Mono8, Mono12, Mono16
Color modes YUV YUV411, YUV422
Color modes RGB RGB8
Raw modes Raw8, Raw12, Raw16
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 4 outputs
RS-232 1
Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) 4 W
Mass 250 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
96.8 x 44 x 44 mm including connectors, w/o tripod and lens
Download Pike technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-032bc.html 2
Page 3

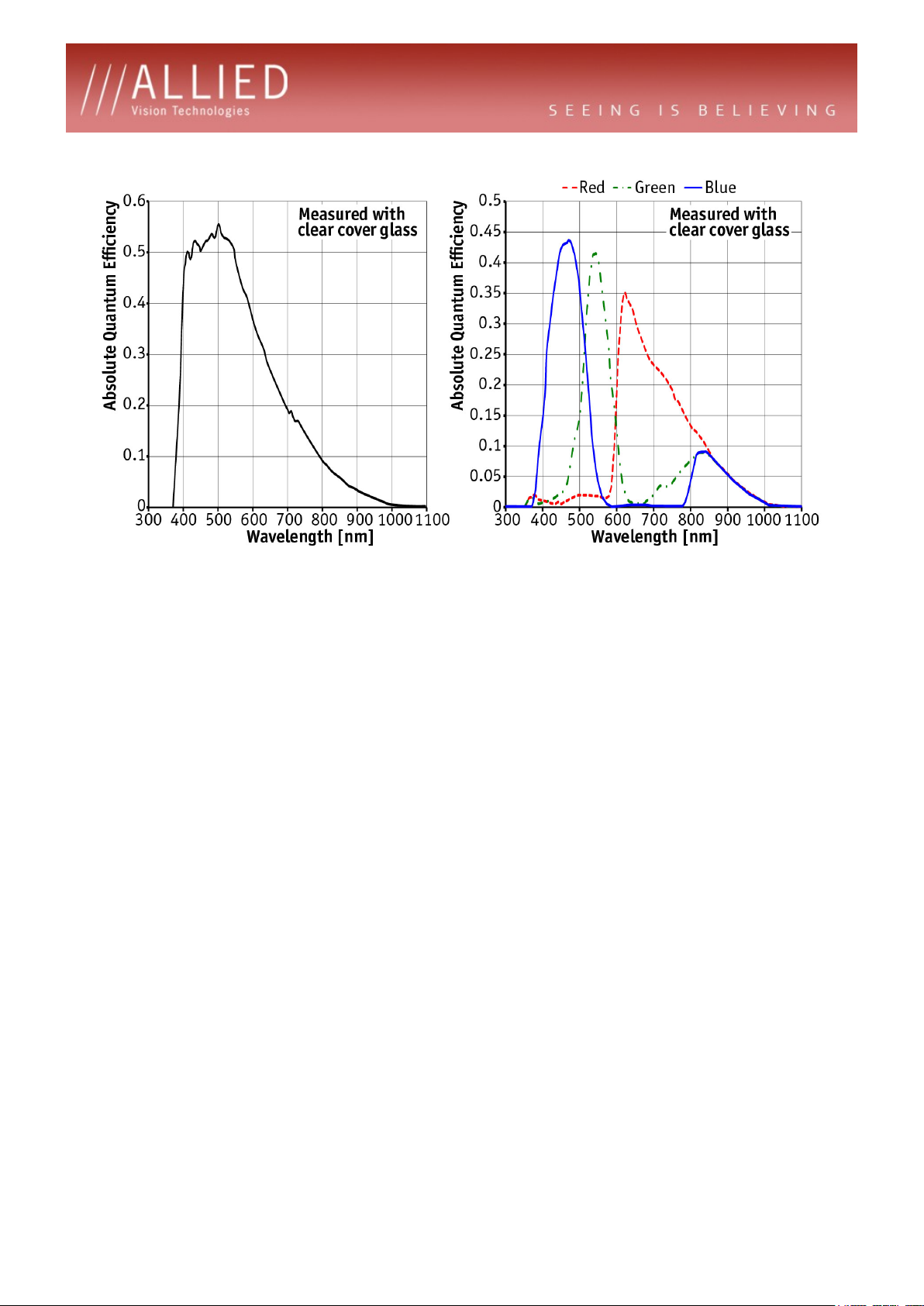

Smart features
●
Programmable LUT, white balance, hue, saturation
●
Debayering
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 22 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 18 µs - 67 s
●
Color correction
●
Shading correction
●
High SNR mode (up to 24 dB better signal-to-noise ratio)
●
Smear reduction
●
Sub-sampling, 2x – 8x binning (b/w)
●
Separate AOI for auto features
●
Sequence mode (changes the image settings on the fly)
●
Image mirror
●
Deferred image transport
●
SIS (secure image signature, time stamp for trigger, frame count etc.)
●
Storable user settings
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-032bc.html 3
Page 4
Applications
The Pike F-032B/C combines a very high frame rate of 208 fps with elaborate image
pre-processing functions and a fast 1394b FireWire port. The modular design of the Pike
provides many opportunities for customization.
This Pike camera is especially suited for:
●
Applications which require high frame rates and outstanding image quality
●
OEM applications (modular concept)
●
Sports, motion studies
●
3D recordings of still and moving objects
●
3D scanning
●
Science and research
●
Healthcare
●
Multimedia and entertainment
●
ITS (Intelligent traffic solutions)
●
Long cable lengths, 400 meters and more (fiber version)
Application Case Studies:
●
Motion Capture With AVT Cameras Makes Orthopedic Diagnosis Easier
With the aid of high-speed Pike 1394b cameras and SIMI Motion Software, doctors and
scientists are researching musculoskeletal dysfunction and can already offer new therapies
to patients, tailored to their individual needs.
●
Perfect Swing
With two Pike digital 1394b cameras, “Swing & See” helps recreational golfers to practice
their swing like professionals do.
●
AVT Pike Makes Football Robot Nearly Unbeatable
Automated table soccer game designed by Cologne University of Applied Science.
