Description
Ultra-compact 2 Megapixel CCD camera with GigE Vision
The 2 Megapixel GC1600 is a high-resolution CCD camera with Gigabit Ethernet interface
(GigE Vision®). The GC1600 incorporates a high-quality Sony CCD sensor providing excellent
monochrome and color image quality. The GC1600 runs 15 frames per second at 1600 x
1220 resolution and even faster with region of interest readout.
●
Sony ICX274 Progressive scan CCD
●
Very small and lightweight
●
Models:
❍
GC1600, 1620 x 1220, 15 fps, CCD, mono
❍
GC1600C, 1620 x 1220, 15 fps, CCD, color
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gc/gc1600.html 1
Specifications
Prosilica GC 1600
Interface IEEE 802.3 1000baseT
Resolution 1620 x 1220
Sensor Sony ICX274
Sensor type CCD Progressive
Sensor size Type 1/1.8
Cell size 4.4 µm
Lens mount C (adjustable)
Max frame rate at full resolution 15 fps
A/D 12 bit
On-board FIFO 16 MB
Output
Bit depth 8/12 bit
Mono modes Mono8, Mono12, Mono12Packed
Color modes YUV YUV411Packed, YUV422Packed, YUV444Packed
Color modes RGB RGB8Packed, BGR8Packed
Raw modes BayerRG8, BayerRG12, BayerGR12Packed
General purpose inputs/outputs (GPIOs)
TTL I/Os 1 input, 1 output
Opto-coupled I/Os 1 input, 1 output
RS-232 1
Operating conditions/Dimensions
Operating temperature 0°C ... +50°C
Power requirements (DC) 5-25 VDC*
Power consumption (12 V) 3.2 W
Mass 97 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class A, RoHS (2011/65/EU)
59 x 46 x 33 including connectors, w/o tripod and lens
* 5–16 VDC for Cameras with SN: 02-XXXXX-0XXXX
Download Prosilica GC1600 technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gc/gc1600.html 2

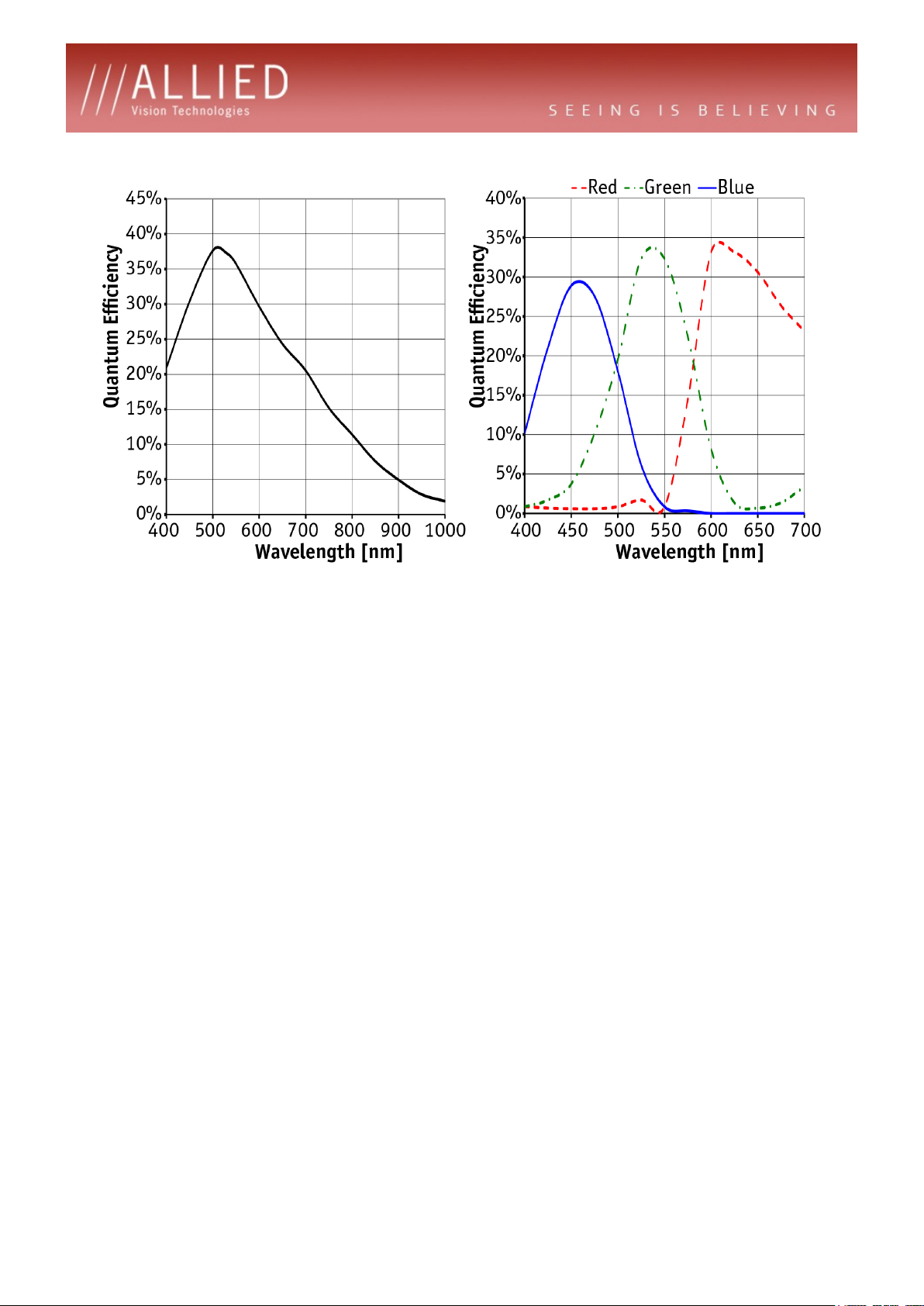

Smart features
The GC1600 features include:
●
Auto Exposure
●
Auto Gain
●
Auto White balance
●
Flexible Binning
●
Region of Interest readout (AOI partial scan)
●
StreamBytesPerSecond (easy bandwidth control)
●
DSP subregion (selectable ROI for auto features)
●
Stream hold
●
Asynchronous external trigger and sync I/O
●
Global shutter (digital shutter)
●
Recorder and Multiframe Acquisition Modes
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gc/gc1600.html 3
Applications
The GC1600 is ideal for a wide range of applications including:
●
Industrial inspection
●
Machine vision
●
Ophthalmology
●
LCD panel inspection
●
Aeronautical and aerospace
●
Public security
●
Surveillance
●
Traffic imaging
●
OEM applications
Application Case Study:
●
Prosilica Cameras Capture the Thrill of Roller Coaster Rides
Multimedia & Entertainment: 3db Solutions Inc. of Canada uses Prosilica GigE Vision
cameras for systems producing souvenir photos in amusement parks.
