Description
High sensitivity 1.4 Megapixel CCD camera - 30 fps
The GC1380H, and its color counterpart, the GC1380CH, are high-speed versions of the very
popular GC1380. The ultra-compact GC1380H is a very sensitive, high-resolution CCD
camera with Gigabit Ethernet interface (GigE Vision®) that runs 30 frames per second at
full resolution. It incorporates the incomparable Sony ICX285 CCD sensor that uses EXview
technology to provide high-sensitivity, excellent antiblooming, and superb image quality.
●
Sony ICX285 EXview CCD
●
Fast frame rate - 30 fps at full resolution
●
Models:
❍
GC1380H, 1360 x 1024, 30 fps, CCD, mono
❍
GC1380CH, 1360 x 1024, 30 fps, CCD, color
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gc/gc1380h.html 1
Specifications
Prosilica GC 1380H
Interface IEEE 802.3 1000baseT
Resolution 1360 x 1024
Sensor Sony ICX285
Sensor type CCD Progressive
Sensor size Type 2/3
Cell size 6.45 µm
Lens mount C (adjustable)
Max frame rate at full resolution 30 fps
A/D 12 bit
On-board FIFO 16 MB
Output
Bit depth 8/12 bit
Mono modes Mono8, Mono12, Mono12Packed
Color modes YUV YUV411Packed, YUV422Packed, YUV444Packed
Color modes RGB RGB8Packed, BGR8Packed
Raw modes BayerRG8, BayerRG12, BayerGR12Packed
General purpose inputs/outputs (GPIOs)
TTL I/Os 1 input, 1 output
Opto-coupled I/Os 1 input, 1 output
RS-232 1
Operating conditions/Dimensions
Operating temperature 0°C ... +50°C
Power requirements (DC) 5-25 VDC*
Power consumption (12 V) 3.5 W
Mass 111 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class A, RoHS (2011/65/EU)
59 x 46 x 33 including connectors, w/o tripod and lens
* 5–16 VDC for Cameras with SN: 02-XXXXX-0XXXX
Prosilica GC1380H technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gc/gc1380h.html 2

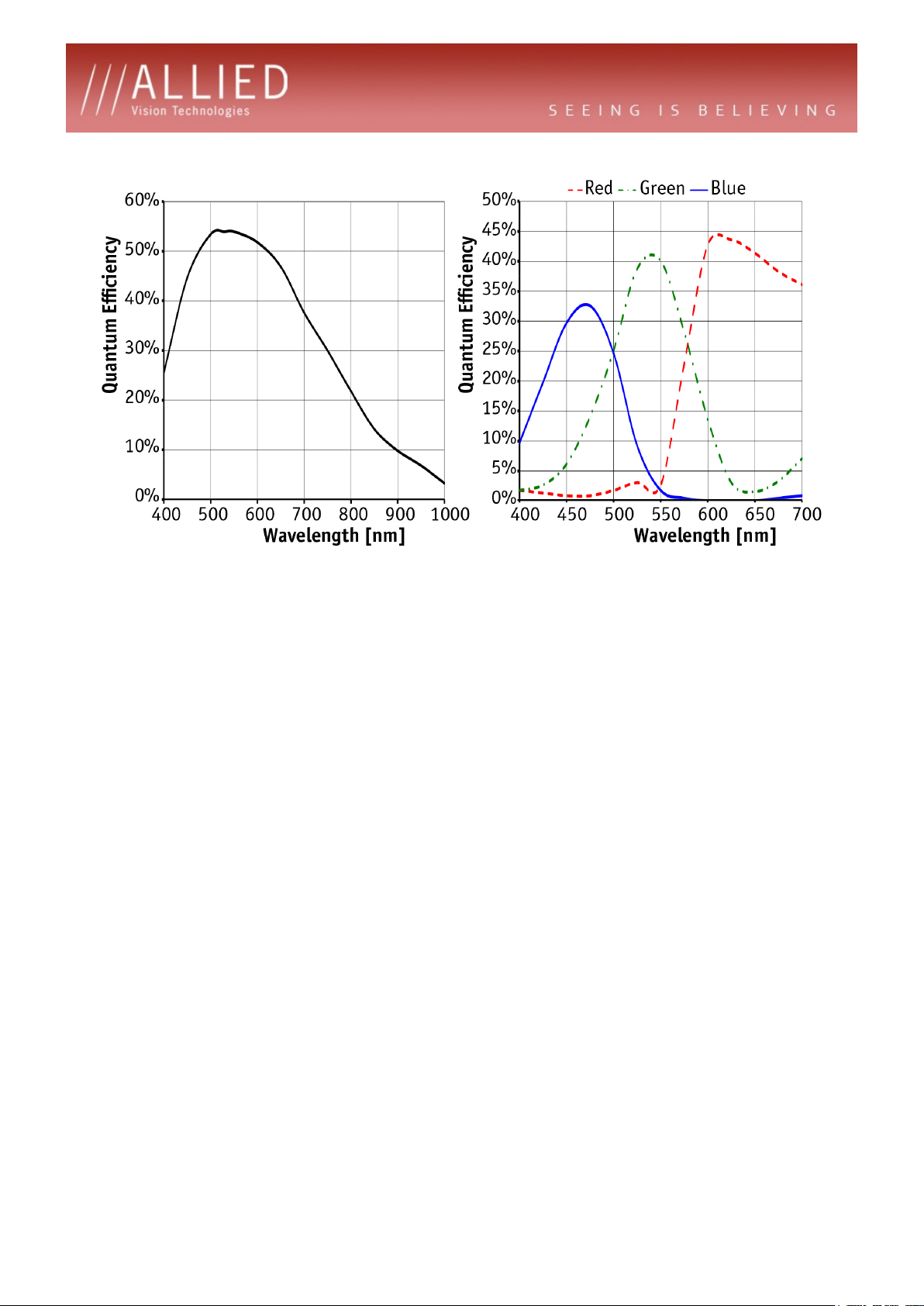

Smart features
The GC1380H features include:
●
Auto Exposure
●
Auto Gain
●
Auto White balance
●
Flexible Binning
●
Region of Interest readout (AOI partial scan)
●
StreamBytesPerSecond (easy bandwidth control)
●
DSP subregion (selectable ROI for auto features)
●
Stream hold
●
Asynchronous external trigger and sync I/O
●
Global shutter (digital shutter)
●
Recorder and Multiframe Acquisition Modes
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gc/gc1380h.html 3
Applications
The GC1380H is ideal for a wide range of applications including:
●
Industrial inspection
●
Machine vision
●
Ophthalmology
●
Microscopy
●
Fluorescence
●
Aeronautical and aerospace
●
Public security
●
Surveillance
●
Traffic imaging
Application Case Studies:
●
Prosilica GigE Vision Cameras Tested for New NASA Recording System
Prosilica’s GigE Vision GC Series Cameras are being tested by NASA as the Agency is
looking to upgrade one of its existing space shuttle video/camera recording systems.
