Description
16 Megapixel premium camera – 35 mm CCD sensor Truesense KAI-16000
The Pike F-1600B/C is a 16 Megapixel 1394b camera with exceptional image quality. It can
be operated both with single tap and dual tap mode. At full resolution, it runs up to 3.1 fps
(dual tap). Higher frame rates can be reached by a smaller AOI, binning (b/w), or
sub-sampling.
●
Truesense KAI-16000
●
Standard: Class 2 sensor, optional: Class 1 sensor
●
Standard: F-Mount
●
Trigger
❍
Programmable, trigger level control, single trigger, bulk trigger, programmable trigger
delay
●
Options
❍
1394b connectors: daisy chain copper or copper and GOF
❍
Various IR cut/pass filters
❍
M42/M58-Mount
❍
Hirose power: out
❍
Angled head
❍
White medical housing
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-1600bc.html 1
Specifications
Pike F-1600
Interface IEEE 1394b - 800 Mb/s, 2 ports, daisy chain, fiber optic (GOF) optional
Resolution 4872 x 3248
Sensor Truesense KAI-16000
Sensor type CCD Progressive
Sensor size Type 35 mm
Cell size 7.4 µm
Lens mount F
Max frame rate at full resolution 3 fps
A/D 14 bit
On-board FIFO 256 MB
Output
Bit depth 8-14 bit
Mono modes Mono8, Mono12, Mono16
Color modes YUV YUV411, YUV422
Color modes RGB RGB8
Raw modes Raw8, Raw12, Raw16
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 4 outputs
RS-232 1
Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) 4 W
Mass 380 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
142.8 x 59 x 59 mm including connectors, w/o tripod and lens
Pike technical drawing (F-Mount)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-1600bc.html 2

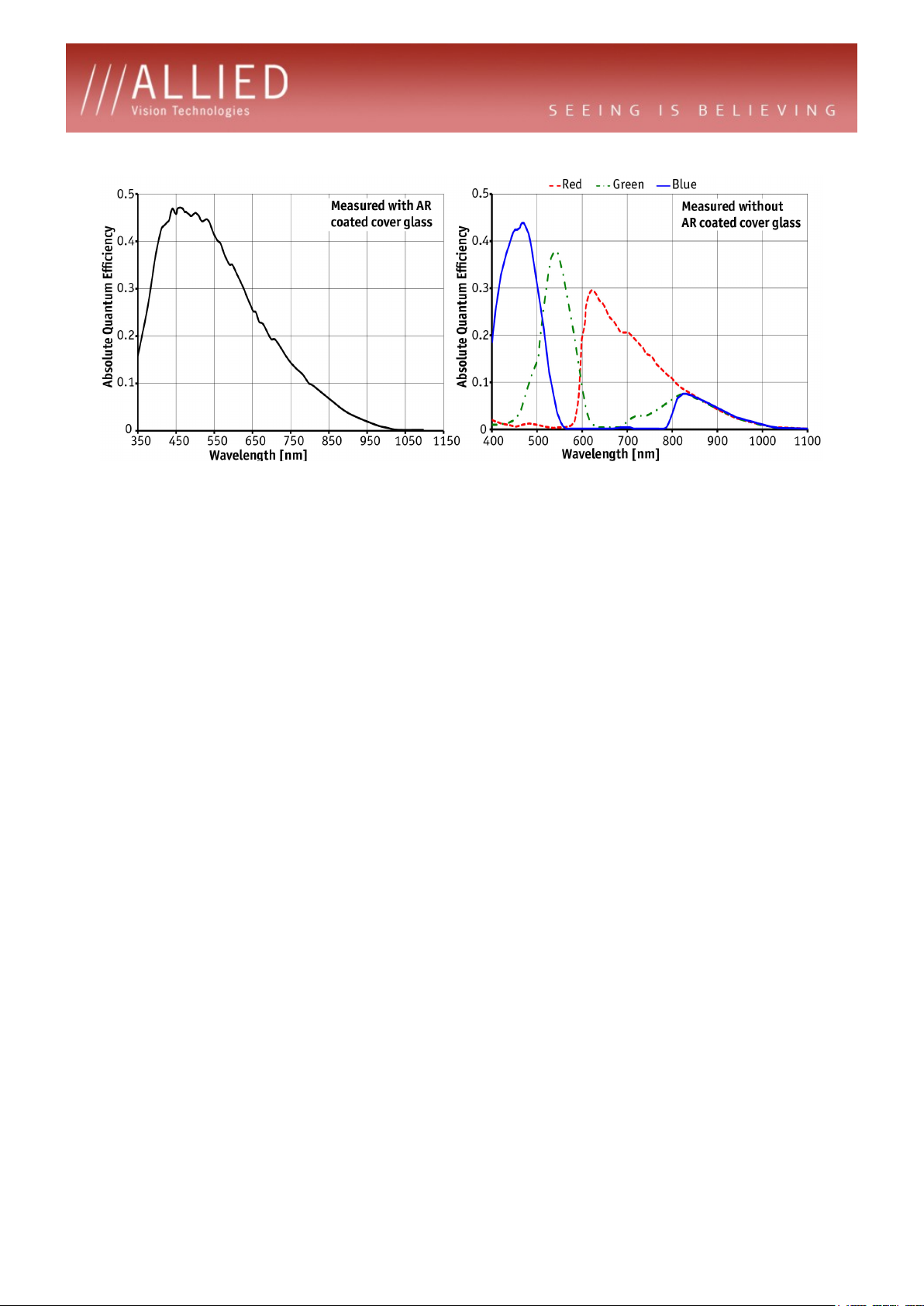

Smart features
●
Programmable LUT, white balance, hue, saturation
●
Debayering
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 24 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 636 µs - 67 s
●
Color correction
●
Shading correction
●
Defect pixel correction
●
High SNR mode (up to 24 dB better signal-to-noise ratio)
●
Sub-sampling, 2x – 8x binning (b/w)
●
Separate AOI for auto features
●
Sequence mode (changes the image settings on the fly)
●
Image mirror
●
Deferred image transport
●
SIS (secure image signature, time stamp for trigger, frame count etc.)
●
Storable user settings
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-1600bc.html 3
Applications
The Pike F-1600B/C is made for high-precision applications which require highest attention to
detail. Its excellent image quality can be enhanced by several image pre-processing
functions. It is also available with M42-Mount or with M58-Mount.
This camera is well-suited for:
●
Science and research
●
Metrology
●
Document scanning (replaces DSLR cameras - no mechanical shutter, long life time)
●
Healthcare and medical applications
●
Industrial inspection at high resolutions
●
Aerial imaging
●
Very demanding OEM camera applications
●
ITS (Intelligent traffic solutions)
●
Long cables - 400 meters and more without additional repeaters (fiber version)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/pike/f-1600bc.html 4
