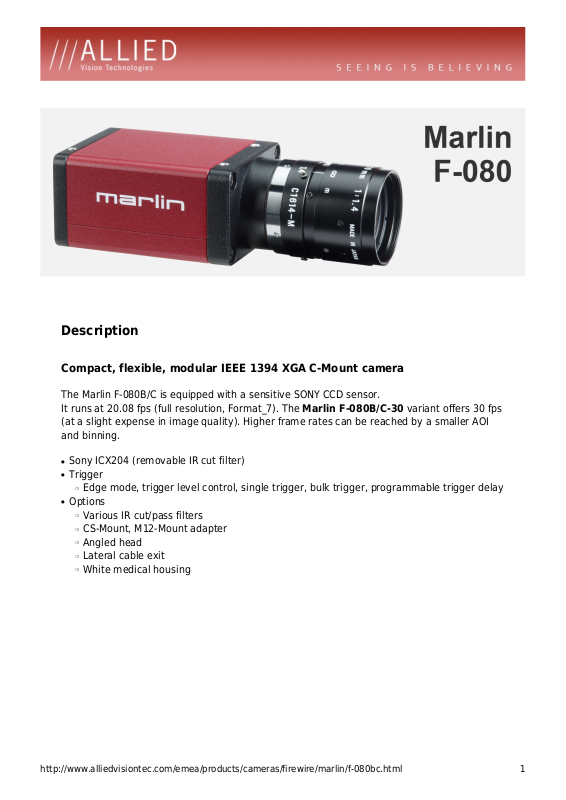

Description

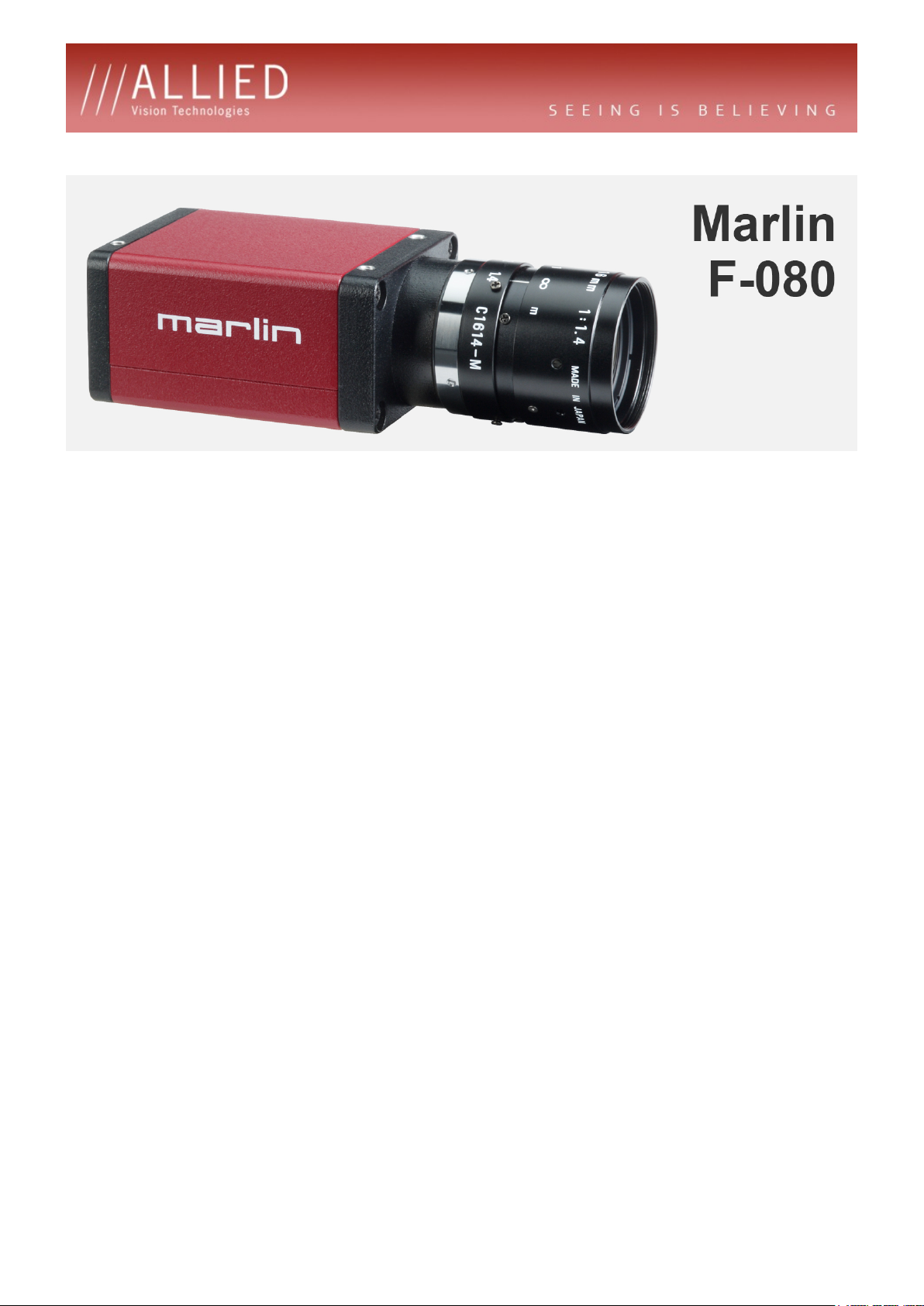

Compact, flexible, modular IEEE 1394 XGA C-Mount camera
The Marlin F-080B/C is equipped with a sensitive SONY CCD sensor.
It runs at 20.08 fps (full resolution, Format_7). The Marlin F-080B/C-30 variant offers 30 fps
(at a slight expense in image quality). Higher frame rates can be reached by a smaller AOI
and binning.
●
Sony ICX204 (removable IR cut filter)
●
Trigger
❍
Edge mode, trigger level control, single trigger, bulk trigger, programmable trigger delay
●
Options
❍
Various IR cut/pass filters
❍
CS-Mount, M12-Mount adapter
❍
Angled head
❍
Lateral cable exit
❍
White medical housing
http://www.alliedvisiontec.com/emea/products/cameras/firewire/marlin/f-080bc.html 1

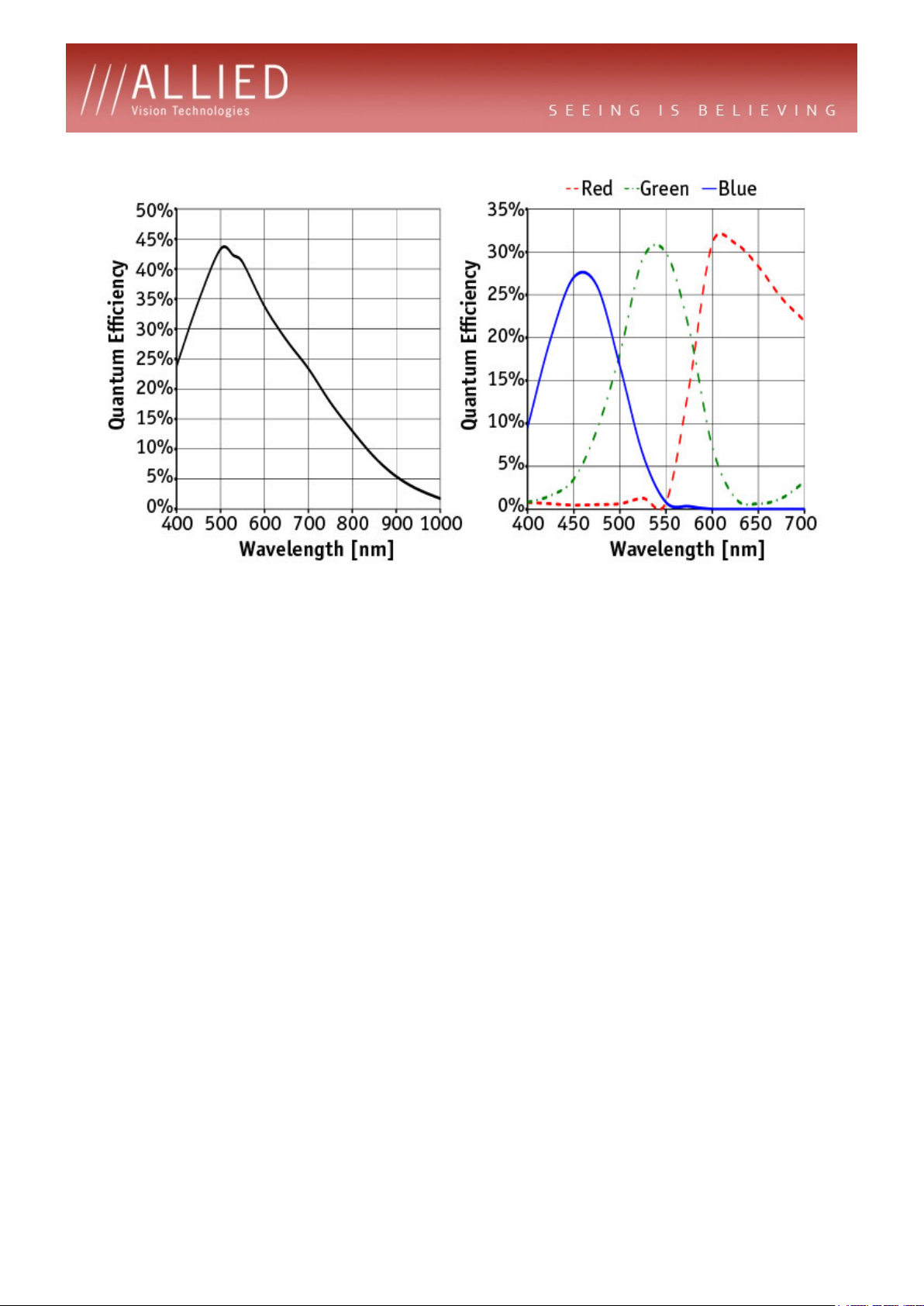

Specifications
Marlin F-080
Interface IEEE 1394a - 400 Mb/s, 1 port
Resolution 1032 x 778
Sensor Sony ICX204
Sensor type CCD Progressive
Sensor size Type 1/3
Cell size 4.65 µm
Lens mount C
Max frame rate at full resolution 20 fps
A/D 12 bit
On-board FIFO 8 MB
Output
Bit depth 8-10 bit
Mono modes Mono8, Mono16
Color modes YUV YUV411, YUV422
Color modes RGB RGB8
Raw modes Raw8
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 2 outputs
RS-232 1
Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) <3 W
Mass <120 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
72 x 44x 29 mm including connectors, w/o tripod and lens
optional 30 fps (slight expense in image quality)
Download Marlin technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/marlin/f-080bc.html 2
Smart features
Marlin cameras are equipped with many useful real-time image pre-processing functions.
They are performed by the FPGA inside the camera – with no additional CPU load on the host,
so that an inexpensive system is sufficient.
●
Programmable LUT, white balance, hue, saturation
●
Debayering
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 24 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 50 µs - 67 s
●
Color correction
●
Shading correction
●
Sub-sampling, 2x binning (b/w)
●
AOI (with speed increase)
●
Sequence mode - changes the image settings on the fly
●
Image mirror
●
Deferred image transport
●
SIS (secure image signature, time stamp for trigger, frame count etc.)
●
Storable user settings
http://www.alliedvisiontec.com/emea/products/cameras/firewire/marlin/f-080bc.html 3
Applications
With its modular and flexible design and the real-time pre-processing functions, this Marlin
camera fits for many applications:
●
Machine vision
●
Quality control
●
Semiconductor inspection
●
Industrial inspection
●
... and many more
