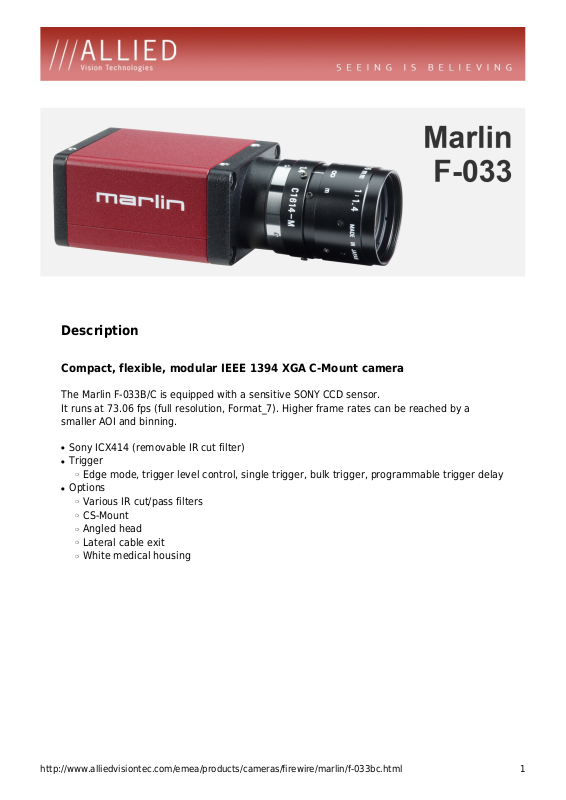

ALLIED Vision Technologies Marlin F-033 User Manual

Description

Compact, flexible, modular IEEE 1394 XGA C-Mount camera

The Marlin F-033B/C is equipped with a sensitive SONY CCD sensor.
It runs at 73.06 fps (full resolution, Format_7). Higher frame rates can be reached by a
smaller AOI and binning.

●

Sony ICX414 (removable IR cut filter)

●

Trigger

❍

Edge mode, trigger level control, single trigger, bulk trigger, programmable trigger delay

●

Options

❍

Various IR cut/pass filters

❍

CS-Mount

❍

Angled head

❍

Lateral cable exit

❍

White medical housing

http://www.alliedvisiontec.com/emea/products/cameras/firewire/marlin/f-033bc.html 1

Specifications

Marlin F-033

Interface IEEE 1394a - 400 Mb/s, 1 port
Resolution 656 x 494
Sensor Sony ICX414
Sensor type CCD Progressive
Sensor size Type 1/2
Cell size 9.9 µm
Lens mount C
Max frame rate at full resolution 73 fps
A/D 12 bit
On-board FIFO 8 MB

Output
Bit depth 8-10 bit
Mono modes Mono8, Mono16
Color modes YUV YUV411, YUV422
Color modes RGB RGB8
Raw modes Raw8

General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 2 outputs
RS-232 1

Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) <3 W
Mass <120 g
Body Dimensions

(L x W x H in mm)
Regulations CE, FCC Class B, RoHS

72 x 44x 29 mm including connectors, w/o tripod and lens

Download Marlin technical drawing (click here)

http://www.alliedvisiontec.com/emea/products/cameras/firewire/marlin/f-033bc.html 2

Smart features

Marlin cameras are equipped with many useful real-time image pre-processing functions.
They are performed by the FPGA inside the camera – with no additional CPU load on the host,
so that an inexpensive system is sufficient.

●

Programmable LUT, white balance, hue, saturation

●

Debayering

●

Gain

❍

Auto/manual

❍

Manual gain control: 0 - 24 dB

●

Exposure

❍

Auto/manual

❍

Exposure time: 32 µs - 67 s

●

Color correction

●

Shading correction

●

Sub-sampling, 2x binning (b/w)

●

AOI (with speed increase)

●

Sequence mode - changes the image settings on the fly

●

Image mirror

●

Deferred image transport

●

SIS (secure image signature, time stamp for trigger, frame count etc.)

●

Storable user settings

http://www.alliedvisiontec.com/emea/products/cameras/firewire/marlin/f-033bc.html 3

Applications

With its modular and flexible design and the real-time pre-processing functions, this Marlin
camera fits for many applications:

●

Machine vision

●

Quality control

●

Semiconductor inspection

●

Industrial inspection

●

... and many more
