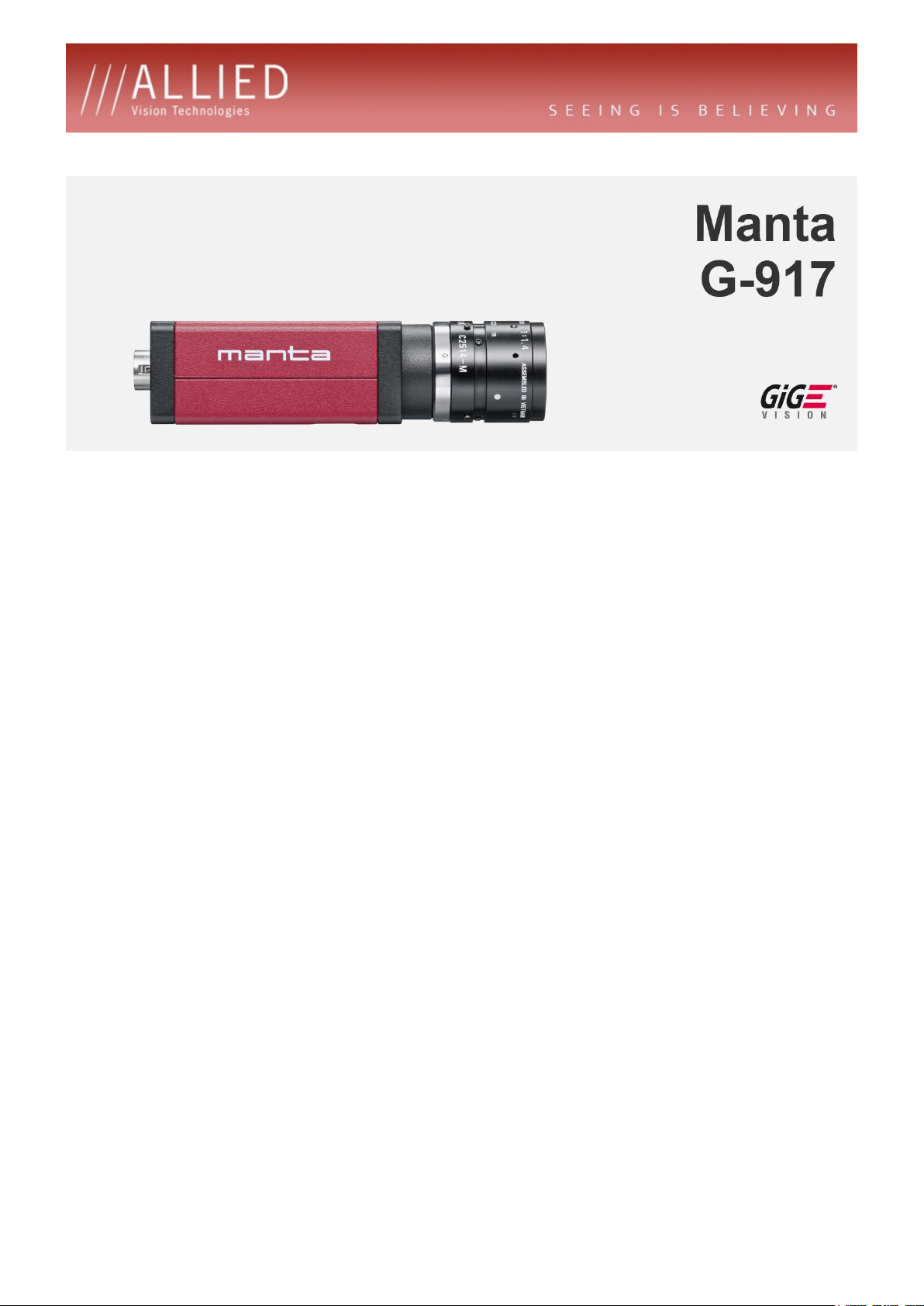

ALLIED Vision Technologies Manta G-917 User Manual

Description
GigE camera with Sony ICX814
The Manta G-917B/C includes an 1'' Sony ICX814 sensor with EXview HAD II technology and 9 Megapixels resolution. This new sensor is distinguished by excellent image quality and a high resolution.
Sony ICX814 (type1''), 9 Megapixels
Sync modes
Trigger
External trigger event: rising/falling/any edge, level high/low
External trigger delay: 0 to 19 s in 1 µs increments
Modular options
Various IR cut/pass filters
White medical housing
PoE (Power over Ethernet)
Camera temperature monitoring
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-917bc.html 1
Specifications
Manta G-917
Interface IEEE 802.3 1000baseT Resolution 3384 x 2710 Sensor Sony ICX814 Sensor type CCD Progressive Sensor size Type 1 Cell size 3.69 μm Lens mount C-Mount Max frame rate at full resolution 10 fps A/D 14 bit On-board FIFO 128 MB
Output Bit depth 8/14 (mono) - 8/12 (color) bit Mono modes Mono8, Mono12Packed, Mono12 Color modes YUV YUV411Packed, YUV422Packed, YUV444Packed Color modes RGB RGB8Packed, BGR8Packed Raw modes BayerRG8, BayerRG12, BayerRG12Packed
General purpose inputs/outputs (GPIOs) Opto-coupled I/Os 2 inputs, 2 outputs RS-232 1
Operating conditions/Dimensions Operating temperature +5 °C ... +45 °C Power requirements (DC) 8 V - 30 V Power consumption (12 V) 4.6 W (PoE) / 4 W (non-PoE) Mass 150 g Body Dimensions
(L x W x H in mm) Regulations CE, FCC Class B, RoHS
86.4 x 44 x 29 mm incl. connectors
Download Manta technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-917bc.html 2
Smart features
ROI (Region of Interest Readout)
Gain, exposure
3 Look-up tables (LUTs)
Gamma (0.25 - 4.0)
DSP subregion (selectable ROI for auto features)
Binning
Decimation (sub-sampling)
Stream hold
StreamBytesPerSecond (easy bandwidth control)
IEEE 1588 (PTP, Precision Time Protocol)
Event channel
Chunk data
Storable user sets
Camera temperature monitoring
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-917bc.html 3
Applications
The Manta G-917B/C is a 9 Megapixel GigE camera with excellent image quality and several modular options. It is suitable for a wide range of applications.
Typical applications:
Machine vision
High-resolution surveillance
High-resolution quality control
Large area scan
Aerial imaging
ITS (Intelligent traffic solutions)
... and many more
