Description

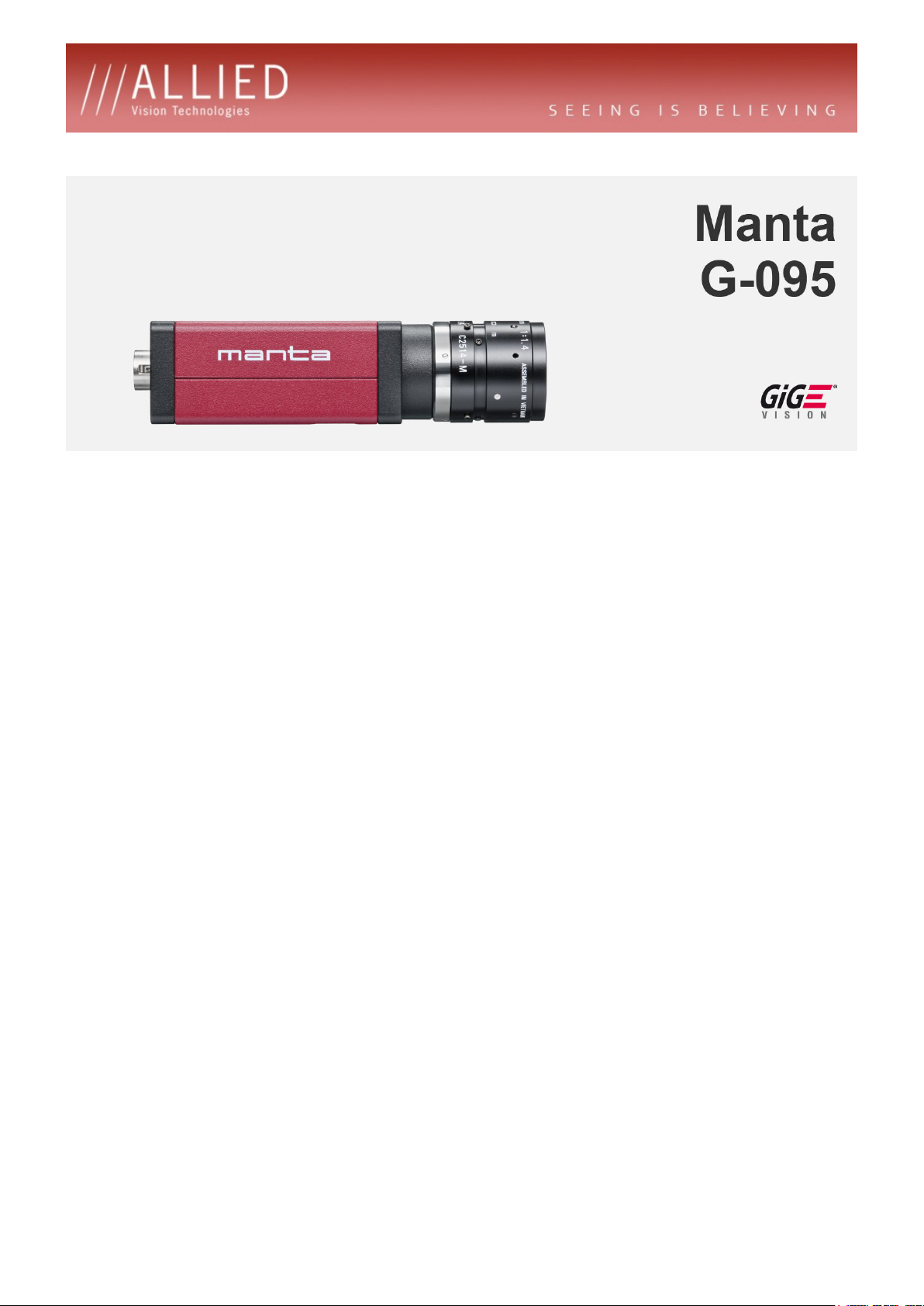

Sensitive GigE camera with ICX692 sensor - EXview HAD II
The Manta G-095B/C is a very sensitive camera with the EXview HAD II ICX692 sensor (1292
x 734 pixels). It runs 40 fps at full resolution. Besides the very good sensitivity both in the
visible and NIR spectrum, this camera incorporates three LUTs, sophisticated color correction
algorithms, a robust metal housing, and many modular options like angled heads or board
level versions. All Manta cameras are optionally available with PoE (Power over Ethernet).
●
EXview HAD II ICX692 sensor
●
Trigger
❍
External trigger event: rising/falling/any edge, level high/low
❍
External trigger delay: 0 to 60 seconds in 1 µs increments
●
Sync modes
❍
Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO
●
Modular options
❍
Various IR cut/pass filters
❍
CS-Mount
❍
Board level version
❍
Angled head
❍
White medical housing
❍
PoE (Power over Ethernet)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-095bc.html 1
Specifications
Manta G-095
Interface IEEE 802.3 1000baseT
Resolution 1292 x 734
Sensor Sony ICX692
Sensor type CCD Progressive
Sensor size Type 1/3
Cell size 4.08 µm
Lens mount C/CS-Mount
Max frame rate at full resolution 40 fps
A/D 14 bit
On-board FIFO 32 MB
Output
Bit depth 8-12 bit
Mono modes Mono8, Mono12, Mono12Packed
Color modes YUV YUV411, YUV422, YUV444
Color modes RGB RGB24, BGR24
Raw modes BayerRG8, BayerGR12, BayerRG12Packed
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 2 outputs
RS-232 1
Operating conditions/Dimensions
Operating temperature +5 °C ... +45 °C
Power requirements (DC) 8 V - 30 V
Power consumption (12 V) <3.7 W (PoE) / <3.6 W (non-PoE)
Mass <200 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
86.4 x 44 x 29 mm incl. connectors
Download Manta technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-095bc.html 2
Smart features
●
ROI (Region of Interest Readout)
●
Exposure
❍
Auto/one push/programmable
❍
Exposure time 45 µs to 60 s
●
White balance
❍
Auto/one push/programmable
●
On-board debayering
●
Hue, saturation, sharpness (color versions)
●
Gain
❍
Auto/one push/programmable
❍
Manual gain control: 0 to 32 dB (1 dB/step)
●
Three look-up tables (LUTs), gamma correction
●
DSP subregion (selectable ROI for auto features)
●
Binning (up to 8 x 14, independent x and y binning)
●
Stream hold
●
StreamBytesPerSecond (easy bandwidth control)
●
Event channel
●
Chunk data
●
Video-type auto-iris
●
5 storable user sets
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-095bc.html 3
Applications
The Manta G-095B/C is a very sensitive color camera with GigE Vision interface and PoE
option. Like the other Manta cameras, it includes three separate look-up tables for R, G, and
B, angled heads, or boardlevel versions with separate sensor head.
Typical applications:
●
Security and Surveillance
●
Imaging with low light level
●
Microscopy (low light)
●
... and many more
