Description
GigE Vision camera, XGA, Sony ICX415 - PoE option
The Manta G-046B/C is a very affordable GigE Vision camera with XGA resolution and a Sony
ICX415 sensor. It runs at 67 fps (full resolution). With a smaller ROI, faster frame rates are
possible.
This camera incorporates three LUTs, sophisticated color correction algorithms, a robust
metal housing, and many modular options like angled heads or board level versions. Manta
cameras cover a wide range of imaging applications. The Manta is optionally available with
PoE (Power over Ethernet).
●
Sony ICX415 (type 1/2), 0.5 Megapixels
●
Trigger
❍
External trigger event: rising/falling/any edge, level high/low
❍
External trigger delay: 0 to 60 seconds in 1 µs increments
●
Sync Modi
❍
Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO
●
Modular options
❍
Various IR cut/pass filters
❍
CS-Mount
❍
Board level version
❍
Angled head
❍
White medical housing
❍
PoE (Power over Ethernet)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-046bc.html 1
Specifications
Manta G-046
Interface IEEE 802.3 1000baseT
Resolution 780 x 580
Sensor Sony ICX415
Sensor type CCD Progressive
Sensor size Type 1/2
Cell size 8.3 µm
Lens mount C/CS-Mount
Max frame rate at full resolution 67 fps
A/D 14 bit
On-board FIFO 32 MB
Output
Bit depth 8-12 bit
Mono modes Mono8, Mono12, Mono12Packed
Color modes YUV YUV411, YUV422, YUV444
Color modes RGB RGB24, BGR24
Raw modes BayerRG8, BayerGR12, BayerRG12Packed
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 2 inputs, 2 outputs
RS-232 1
Operating conditions/Dimensions
Operating temperature +5 °C ... +45 °C
Power requirements (DC) 8 V - 30 V
Power consumption (12 V) <3.6 W
Mass <200 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
86.4 x 44 x 29 mm incl. connectors
Download Manta technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-046bc.html 2

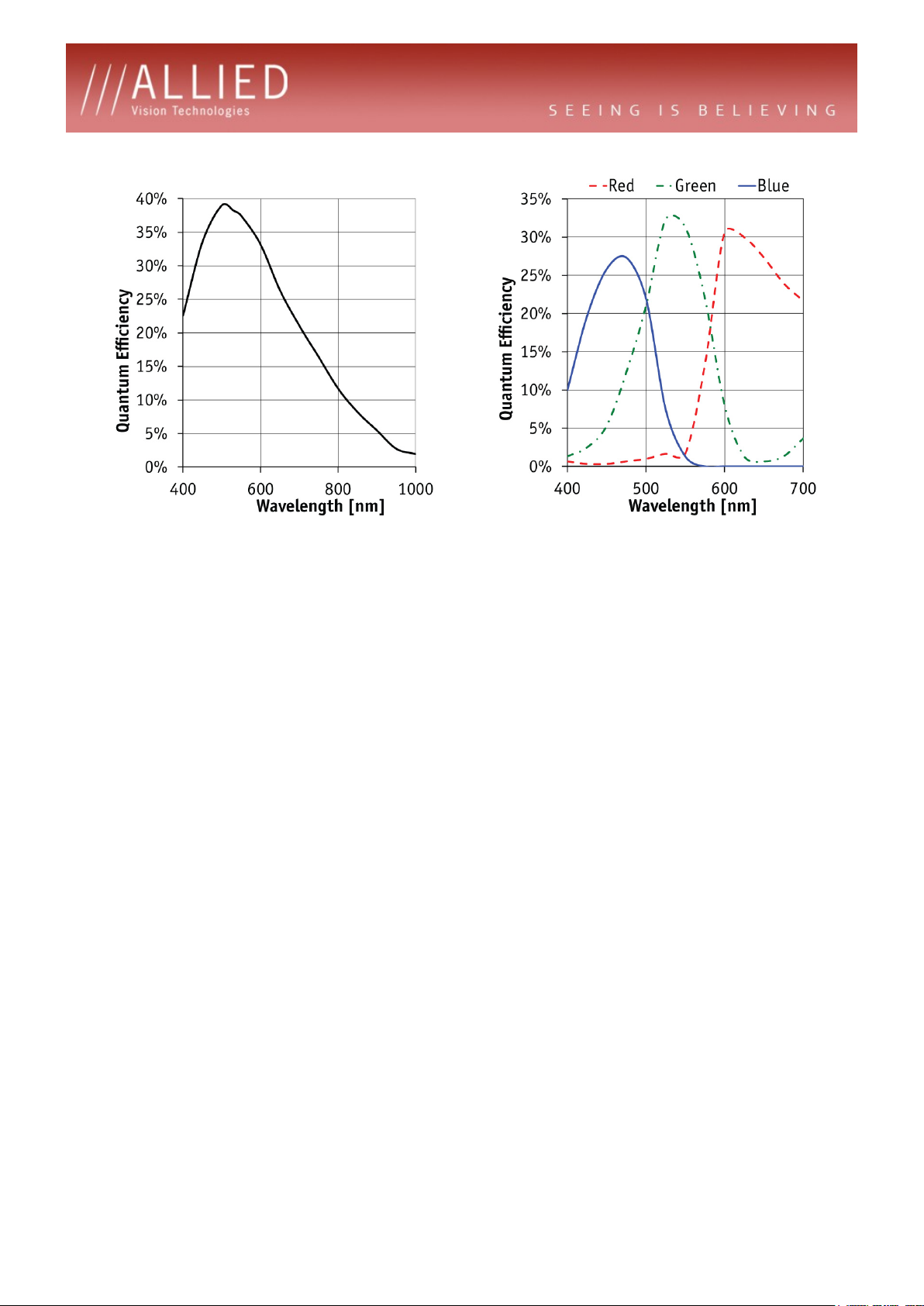

Smart features
●
ROI (Region of Interest Readout)
●
Exposure
❍
Auto/one push/programmable
❍
Exposure time 26 µs to 60 s
●
White balance
❍
Auto/one push/programmable
●
On-board debayering
●
Hue, saturation, sharpness (color versions)
●
Gain
❍
Auto/one push/programmable
❍
Manual gain control: 0 to 31 dB (1 dB/step)
●
Three look-up tables (LUTs), gamma correction
●
DSP subregion (selectable ROI for auto features)
●
Binning (up to 8 x 14, independent x and y binning)
●
Sub-sampling (decimation)
●
Stream hold
●
StreamBytesPerSecond (easy bandwidth control)
●
Event channel
●
Chunk data
●
Video-type auto-iris
●
5 storable user sets
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/manta/g-046bc.html 3
Applications
The Manta G-046B/C is a sensitive, flexible GigE Vision camera with many useful options: PoE
(Power over Ethernet), angled head, boardlevel versions and more.
Typical applications:
●
Applications which require high sensitivity (low light)
●
Semiconductor inspection
●
Pharmaceutical inspection
●
Logistics
●
ITS/Traffic monitoring
●
... and more
