Allied Telesis CG-WLBARGS User Manual
CG-WLBARGS
Wireless 108M
Broadband Router
User Manual
Contents
1. Product Introduction
1.1 Package Contents................................................................................... 3
1.2 Features..................................................................................................... 3
1.3 Hardware Introduction........................................................................ 4
2. Hardware Installation
2.1 WLBARGS should be connecting to PC and modem............ 5
2.2 Installation Procedure ......................................................................... 5
3. PC Setting
3.1 TCP/IP Configuration............................................................................. 6
3.1.1 Windows XP O/S................................................................ 6
3.1.2 Windows 2000 O/S........................................................... 8
3.1.3 Windows 98/95/ME O/S.............................................. 11
3.1.4 Mac OS 8.x~9.x O/S....................................................... 12
3.2 Browser Configuration...................................................................... 13
3.2.1 Windows O/S................................................................... 13
3.2.2 Mac O/S.............................................................................. 14
4. Network Configuration
4.1 Quick Network Configuration........................................................ 15
4.1.1 Auto obtain IP (DHCP)................................................. 17
4.1.2 Fixed IP................................................................................ 19
4.1.3 Dynamic IP (PPPoE)....................................................... 21
4.2 Establishing Wireless Internet Connection ............................. 23
<Windows XP (SP1) O/S>...................................................... 24
<Windows XP (SP2) O/S>...................................................... 25
5. Wireless Security Configuration
5.1 WEP Setting............................................................................................ 27
5.2 WPA Setup............................................................................................... 28
<WPA-PSK>.................................................................................. 28
<WPA-EAP>................................................................................. 29
6. Function Introduction
6.1 Features................................................................................................... 30
<Mode>........................................................................................ 30
WLBARGS Manual
Contents
WLBARGS Manual
<WAN setting (internet)>...................................................... 30
<WAN setting/ Dynamic DNS>........................................... 33
<WAN setting/Other setting>............................................. 34
<LAN setting/LAN IP>............................................................. 34
<LAN setting /DHCP server>................................................ 35
<LAN setting/PC database>................................................. 35
<Wireless setting/802.11g/b setting>............................. 36
<Wireless setting/802.11g/b security setting>........... 36
<Wireless setting/Access control>.................................... 37
<Security setting>..................................................................... 37
<Security setting/Connection control>.......................... 37
<Security setting/filter list>.................................................. 38
<Advanced setting/virtual server>................................... 39
<Advanced setting/DMZ>..................................................... 39

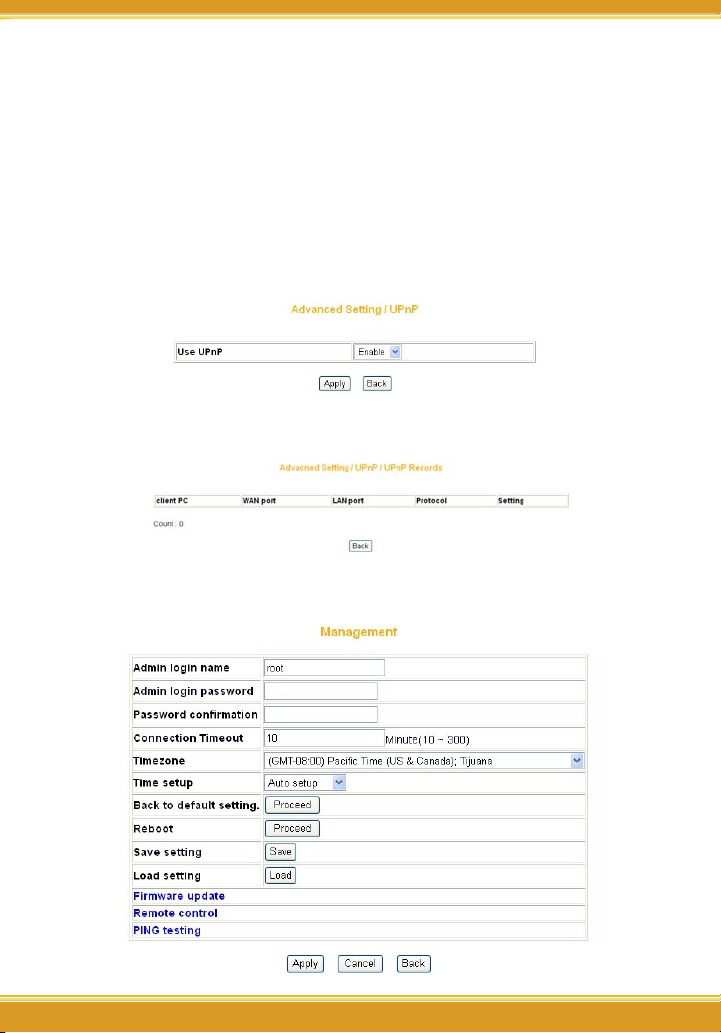

<Advanced setting/UPnP setting>.................................... 40
<Avanced setting/UPnP setting/UPnP port>............... 40
<Management>......................................................................... 40
<Status>......................................................................................... 43
<Status/Log Display/Dos Attack log>.............................. 43
<Status/Log Display/DHCP log>........................................ 43
<Status/Log Display/system log>...................................... 44
<Status/Log Display/E-mail function>............................ 44
6.2 Additional Functions........................................................................... 44
<Advanced Setting/Backup DNS>.................................... 45
<Advanced Setting/Routing/Static Routing>.............. 45
<Advanced Setting/ Routing/ Dynamic Routing (RIP)>
<Advanced Setting/ Routing/Routing Table>.............. 45
7. AP/Router Switching................................................................................................ 46
8. FAQ.................................................................................................................................... 47
9. Sepcifictaion................................................................................................................. 50
..... 45
2 3
2 3
Product Introduction
WLBARGS Manual
1
corega ‘s WLBARGS is an advanced model of broadband Router as well as
an IEEE802.11g wireless access point which can speeds up to 108Mbps. Its
management interface is straightforward for ease in setting up, while it supports various security features to effectively prevent hackers from attacking
your networks, such as firewall, WPA, Mac Address filtering, VPN pass through,
hidden ESSID and no respond to the WAN ping function. Different from the
dull and usual matchbox design, WLBARGS router is elegantly streamline
designed, which is a definitely a plus to this superb device.
1.1 Package Contents
Check the listed contents thoroughly before installation. In case of discrepancy
to the list below, check with your local dealers.
- Wireless 108M Boardband router
- Power Adapter
- Detachable Antenna
- Flat UTP cable
- Product stand Kit (with mounting screws)
- Wall mount kit
- User Manual
- Quick Installation Guide
1.2 Features
• Integrated 4 switched 100BASE-TX10BASE-T auto sensing ports.
• Support Super G mode which can speeds up to 108Mbps
• Built-in NAT and NAPT allowing multiple PCs and network equipments
connect to Internet simultaneously for internet gaming, and IM software.
• Allows wireless LAN, and Ethernet LAN to transfer data to each other, and
accessing broadband internet.
• WEP(64/128bits), VAN pass through (IPsec, PPTP, L2TP), and WPA-PSK security
technology.
• Prevents from hacker attack with massive load of packet attack by easy
Firewall (detecting Denial of Serivce attack), and AP hiding function.
• Supports web-base management interface
• Supports UPnP and supporting on-line broadband applications (Such as
Windows Messenger, MSN Messenger, Yahoo Mesenger, Skype, ICQ and etc.)
• Allows external Internet users to access information, and compatible on-line
gaming from the internal target host by setting the Virtual Server, and DMZ
setting.
• Easy browser setting.
WLBARGS Manual
2
3
1
4
5
Front
9
8
6
7
1
0
Back
AP Rou ter
11
Bottom
1.3 Hardware Introduction
1. Power LED (Green)
Indicate power status
2.Status LED (Red)
ON:Reboot/Hung up/FirmWare
upgrade
3. WAN LED (Green)
ON: Connected
6. Detachable Antenna
Connector
7. LAN port(1-4)
Connected with PC
8. WAN port
Connected with modem
Blink:Transmitting or receiving
data
4. Wireless LED (Green)
ON: Wireless function enable
Blink:Transmitting or receiving
data
5. LAN LED (Green)
ON: Connected
Blink: Transmitting or receiving
data
OFF: Disconnected
4 5
9. DC IN Socket
Connect with power
adapter
10. Initial Button
Press this buttom it will
reset to the default setting.
11. AP/Router Switch Button
Details please refer to
Chapter 7.
Modem
corega WLBARGS
PC
LAN
WA
N
Hardware Installation
2
2.1 WLBARGS should be connecting to PC and modem
Following the steps below to set up WLBARGS and the connection.
(1) Insert the cable connector into the Network Adapter embeded in PC, and
insert the other side into one of LAN ports (1~4) of the Router.
(2) Insert the connect into the WAN port of the Router and insert the other side
into the WAN port of the modem.
(3) Connect the Power Adapter, and plug in the AC power.
WLBARGS Manual
2.2 Installation Procedure
To ensure successful installation, following the below steps after confirming all installation data and/or equipment.
Install the hardware -> PC set-up -> Open the browser (such as IE 6.0), and
type [192.168.1.1] in the browser’s address bar, and press enter. -> Enter ID:
root, and leave Password empty, and press OK. ->Select [Quick Installation
Setting] for quick installation->Setting the Wirless Security->Use PC with
compatible wireless card for wireless connection.
PC Setting
WLBARGS Manual
3
3.1 TCP/IP Configuration
The following steps and screenshots maybe dissimilar in different operating systems. This manual takes Windows XP/200, 95/98/ME, and Mac O/S as
examples:
3.1.1 Windows XP O/S
(1) Enter [Control Panel] -> click [Network Connection] -> right click and select
[Open].
(2) Click [Local Area Connection] and right click and select [Properties].
6 7
WLBARGS Manual
(3) Click [General] -> click [Internet Protocol (TCP/IP), and click [Properties].
(4) Click [General], select [Obtaining an IP Address Automatically], and [Obtain
DNS Server address automatically], and press [Advance].
WLBARGS Manual
(5) Click [DNS] tab, unselect [Register this connection’s address in DNS], and
press [OK].
(6) Go back to [Internet Protocol TCP/IP] and press [OK].
(7) Press [OK] to close [Local Area Connection Properties].
3.1.2 Windows 2000 O/S
(1) Go to [My Computer], and enter [Control Panel], click open [Network and
Dial Up Connections].
8 9
WLBARGS Manual
(2) Right click [Local Area Connection], and select [Properties]
*Note: Please check if TCP/IP had been installed in the [Local Area Connection]. If not,
consult [Add TCP/IP] steps in this chapter.
(3) Click [Internet protocol (TCP/IP)] and click [Properties].
WLBARGS Manual
(4) Select [Obtain an IP address automatically], and [Obtain DNS server address
automatically]. And click [Advance].
(5) Click [DNS] tab in [Advance TCP/IP setting] page, and unselect [Register
this connection’s DNS address, and press [OK].
10 11
WLBARGS Manual
3.1.3 Windows 98/95/ME O/S
The configurations in all Windows 98/95/ME are the same, and this manual
takes Windows 98 as an example.
(1) Enter [Control Panel], and double click [Network].
(2) Click [Configuration] tab, and select [TCP/IP], click [Properties].
(3) Select [IP Address], and select [Obtain IP address automatically. Press
[OK].
WLBARGS Manual
(4) Click [Gateway] tab, remove all the gateways, and press [OK] to close the window.
(5) Go to [Network] and press [OK] to close the page.
(6) The [Restart the windows] screen will pop-up, press [OK] to restart the PC. If
the PC is not shown this message, restart the PC manually.
3.1.4 Mac OS 8.x~9.x O/S
(1) Open the [TCP/IP] configuration from [Control Panel].
(2) Select [Ethernet Network] in the [connection methods]; select [DHCP server]
in [Configuration], and close this page.
3.1.5 Mac OS X O/S
(1) Go [System Configuration] in Macintosh category.
(2) Open [Network] configuration in [System Configuration]. If there is no
[Network] configuration, select [Display all].
(3) Select [Built-in Ethernet] in [Display] from [Network] window. Select [Use
DHCP] in [Setting] from [TCP/IP].
(4) Press [Apply].
12 13
WLBARGS Manual
3.2 Browser Configuration
3.2.1 Windows O/S
The following examples are for Windows XP O/S, skip this chapter if you are
using Windows 200/98/ME.
(1) Open Internet Explorer (IE 6.0), select [Tools] menu and click [Internet Options]. If a
[Dial-up Connection] window is pop-up, close it, and do not connect to the Internet
now.
(2) Click [Connections] tab -> select [Never dial a connection] -> click [LAN Settings].
WLBARGS Manual
(3) Unselect all three options in the [Local Area Network LAN Setting].
(4) Press [OK] in the [Internet Options].
3.2.2 Mac O/S
(1) Open Internet Explorer (IE 5.0) Go to [Edit] in the menu bar, select [Internet
Explorer Preferences].
(2) Select [Proxies] options in [Network] on the left-side configuration items.
(3) Do not select [Web Proxy], press [OK].
14 15
Network Configuration
4
4.1 Quick Network Configuration
Basic configuration is required before connection your computer to the internet via WLBARGS. The connection methods may be differed by your contract
to the ISP. Please reconfirm your connection conditions with your ISP prior to
configure this router. The configuration procedures are as follow:
*Note: Anti-virus or Firewall software may prevent this router from being set-up
properly. Please close such software through out the setting of WLBARGS.
(1) Open the Web browser (Internet Explorer 6.0). If you use dial-up network
such as PPPoE, and are using Windows 2000/98/ME O/S. The [Dial-up
Network] window will pop-up; do not connect to the Internet right now,
and close the window.
(2) Type [192.168.1.1] in the browser’s address bar, press [Enter].
*Note: [192.168.1.1] is the IP address for configuring CG-WALBARGS, and is not corega’s
company public internet address. After you have completed the configuration,
connect to [http://www.corega-asia.com] for testing the connection.
(3) When log-in screen is appeared, type [root] for the username, and leave
empty for the password. Press [Summit].
WLBARGS Manual
(4) Please select the language. e.g.) English. Click on [Apply].
WLBARGS Manual
(5) Please select your region. e.g.) Singapore. Click on [Save].
(6) Click [Quick Installation Setting], and click [Next] to enter the Setup Wizard.
(7) When seeing this screen shot, click on [Next].
16 17
Loading...
