Allen & Heath WZ Mk2 User Manual

ALLEN&HEATH
Parts must be ordered from our distributor in your territory. A list of international distributors can be viewed at http://www.allen-heath.com/UK/distributors.asp
UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK service centres can be viewed at http://www.allen-heath.com/UK/service_centres.asp
WZ Mk2
14:4:2
How to order parts
ALLEN&HEATH WZ Mk2 14 parts identification Issue 1 Page 1 of 7
POTS FADERS & KNOBS:
A
Knob red AJ2074
Knob green AJ2077
Knob blue AJ2075
Knob brown AJ2080
Push button Square red AJ2961
Fader knob white AJ8078
Mono gain pot AI8111
HF pot AI8004
EQ frequency
AI8005
EQ cut/boost
AI8005
LF pot AI8004
Aux pot AI8003
Pan pot AI8008
Mono fader AI8117
Level A / B (gain) AI8007
HF, MF1, MF2, LF AI8006
Aux pot AI8003
Bal pot AI8008
Push button Square white AJ2960
Stereo fader AI8118
Knoblight blue
J2076
Knob grey AJ2078
Knob yellow AJ2079
Push button Rect white AJ7180
Push button square grey AJ7210
Fader knob light blue AJ8081
Mono i/p Stereo i/p
ALLEN&HEATH WZ Mk2 14 parts identification Issue 1 Page 2 of 7
Osc/noise trim AI8111
St 1, 2, 3, 4 to aux AI8003
Aux pot AI8003
Pan pot AI8008
Group fader AI8117
Fader knob red AJ8079
Talkback trim AI8111
St 1, 2, 3, 4 to LR AI8007
ALLEN&HEATH WZ Mk2 14 parts identification Issue 1 Page 3 of 7

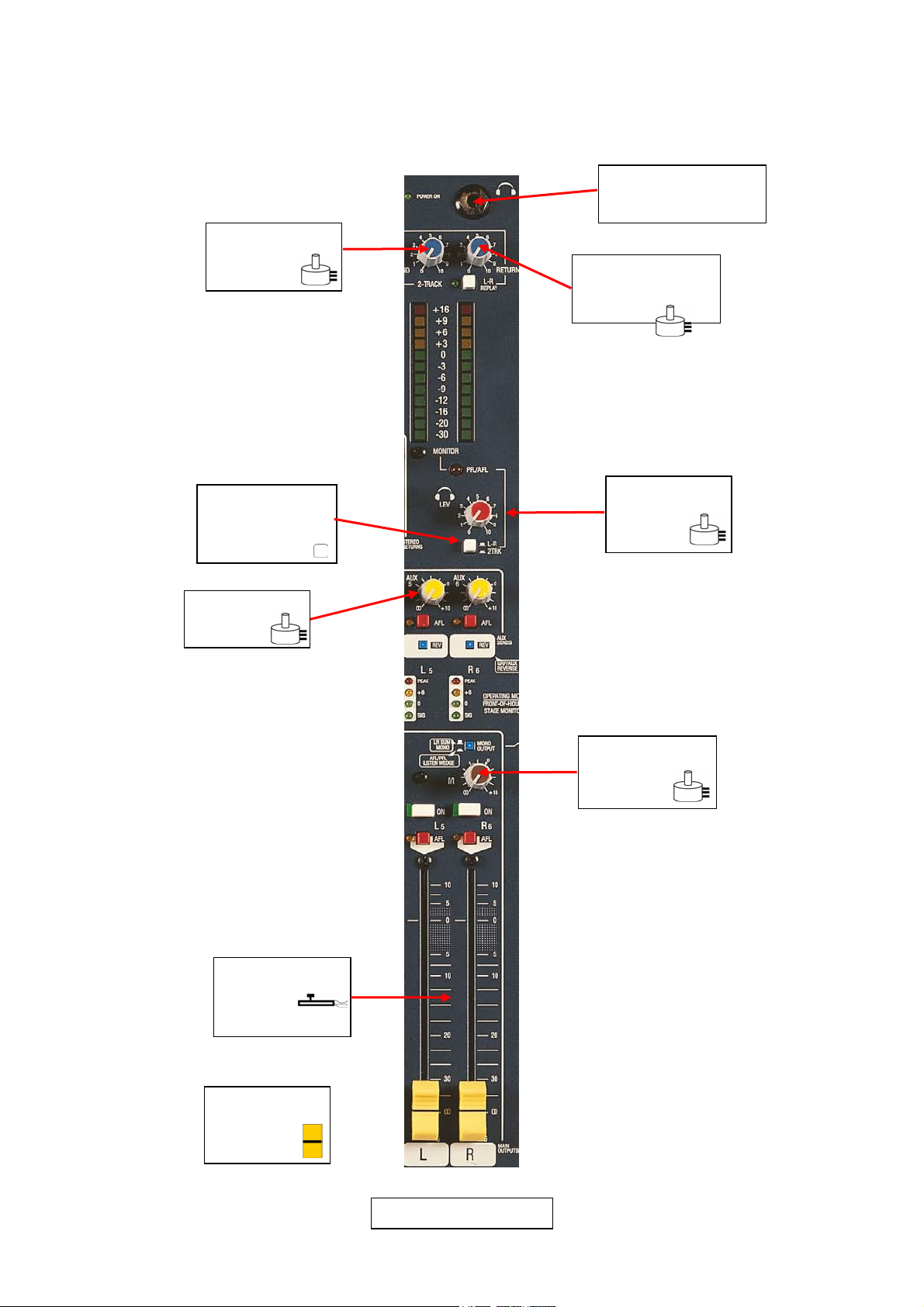

R
2 Track send AI8007
Push button Square white AJ2960
Aux 1-6 AI8003
L & R master faders AI8117
Fader knob yellow AJ8080
Headphone jack AL0328
2 Track return AI8007
Headphone level AI8007
Mono output AI8003
Master L
ALLEN&HEATH WZ Mk2 14 parts identification Issue 1 Page 4 of 7

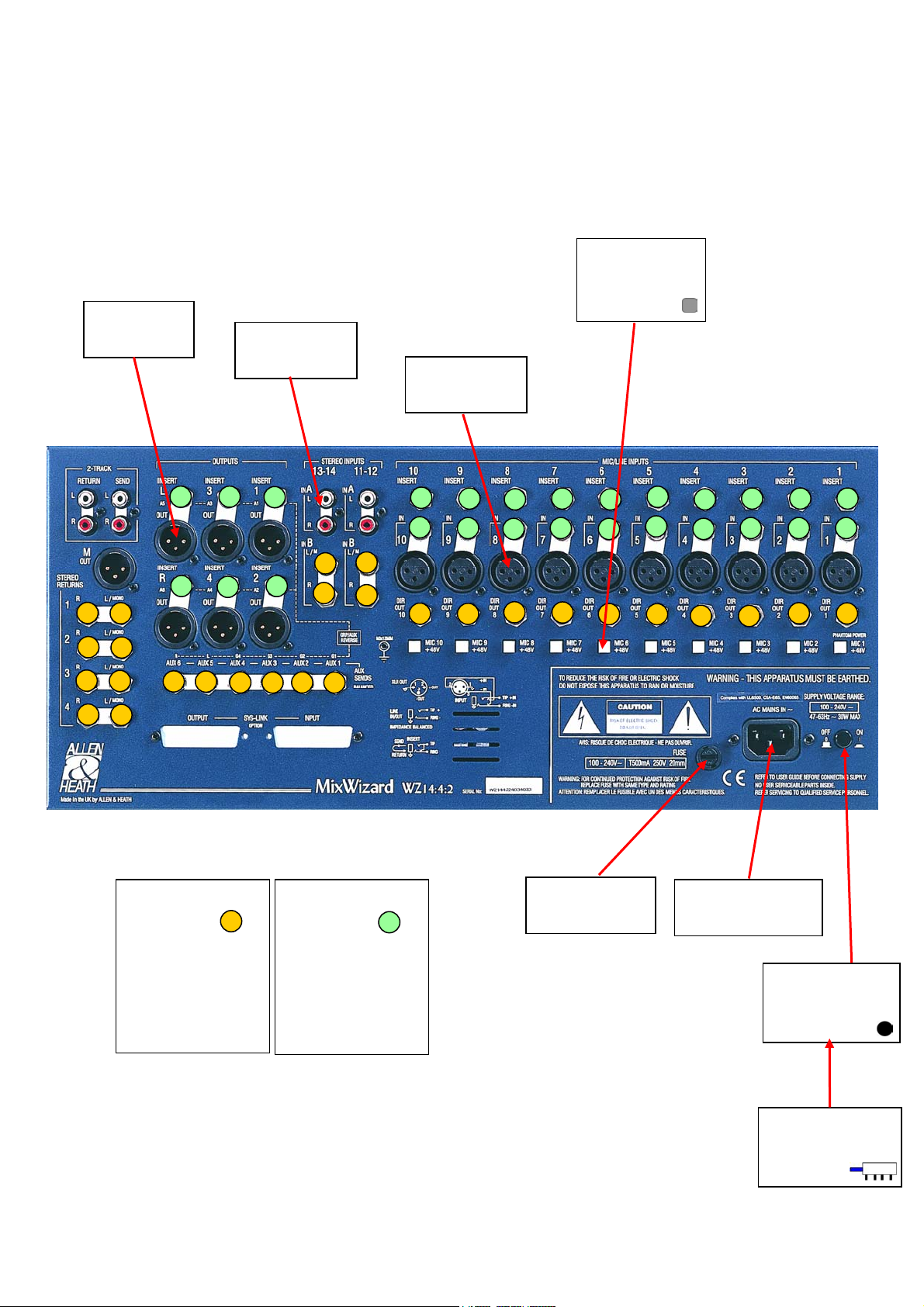

XLR male AL2411
Jack sockets AL3407
Aux outputs Direct outs Stereo Returns
RCA phono AL3240
Jack sockets AL3410
Line inputs Inserts Stereo L/M, R
XLR female AL2410
48V grey switch cap AJ8071
Fuse holder Al3178
AC mains inlet AL3458
AC mains switch cap AJ2887
AC mains switch AL3338
ALLEN&HEATH WZ Mk2 14 parts identification Issue 1 Page 5 of 7
INTERIOR PARTS:

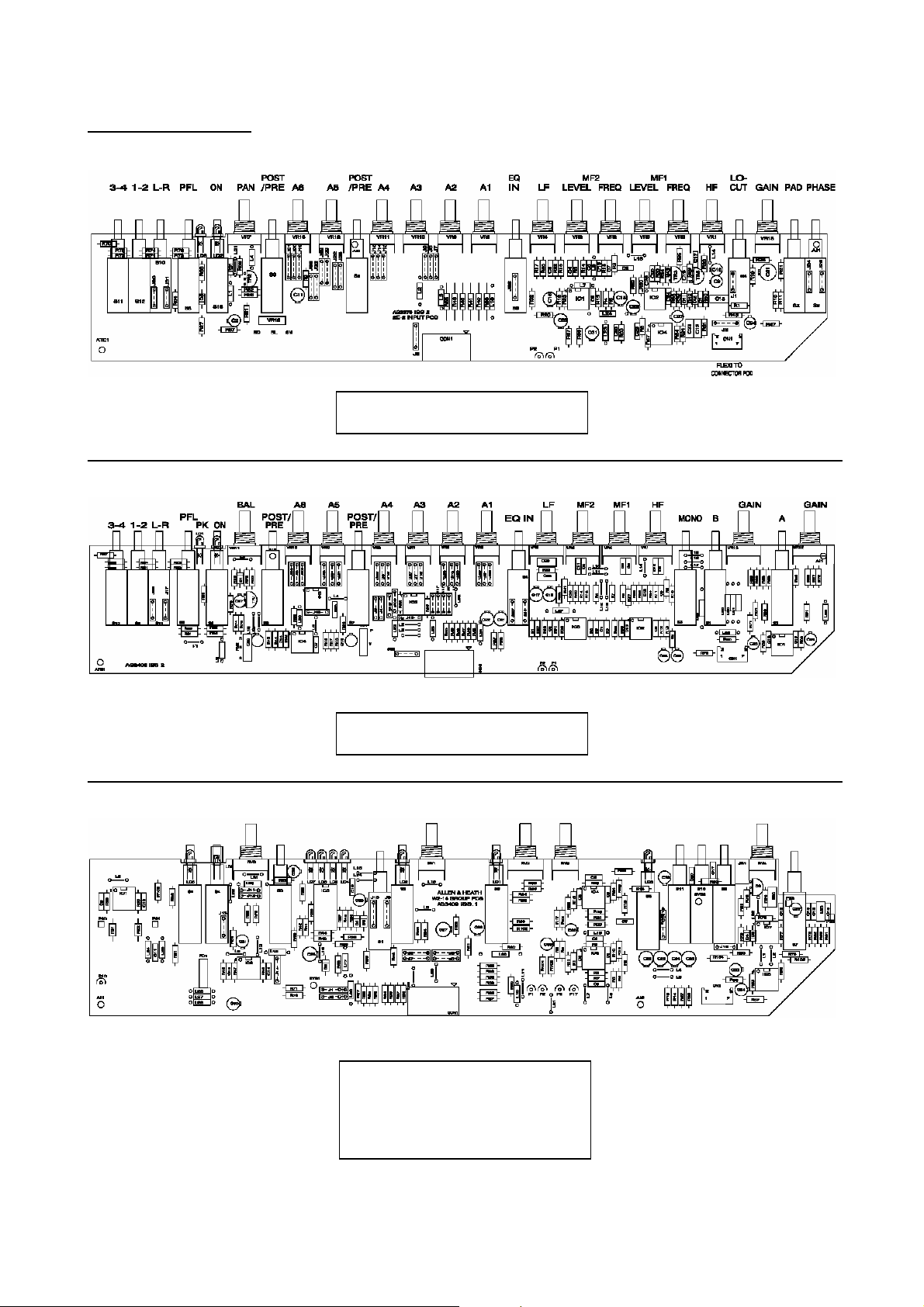

Mono i/p 002-452
Stereo i/p 002-427
Group 1 002-428
Group 2 002-454 X
Group 3 002-429
Group 4 002-454 X
X
X
X
X
X
X
ALLEN&HEATH WZ Mk2 14 parts identification Issue 1 Page 6 of 7
Left master 002-431
Right master 002-433
Connector 002-424
ALLEN&HEATH WZ Mk2 14 parts identification Issue 1 Page 7 of 7
