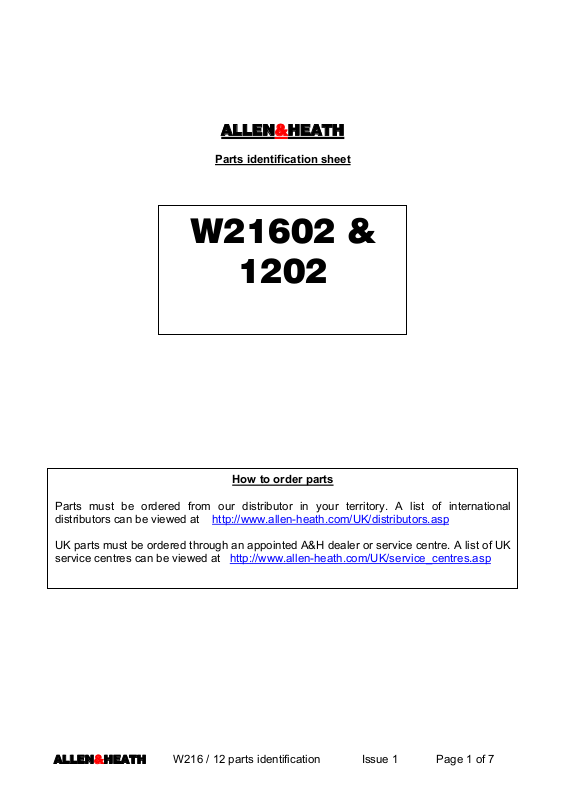

Allen & Heath W21602, W1202 Users Manual

ALLEN&HEATH
Parts must be ordered from our distributor in your territory. A list of international distributors can be viewed at http://www.allen-heath.com/UK/distributors.asp
UK parts must be ordered through an appointed A&H dealer or service centre. A list of UK service centres can be viewed at http://www.allen-heath.com/UK/service_centres.asp
W21602 &
1202
How to order parts
ALLEN&HEATH W216 / 12 parts identification Issue 1 Page 1 of 7
POTS, FADERS & KNOBS:
A
Knob red AJ2074
Knob green AJ2077
Knob blue AJ2075
Knob brown AJ2080
Push button Square red AJ2961
Fader knob white AJ8078
Mono gain pot AI8111
HF pot AI8004
EQ frequency
AI8005
EQ cut/boost
AI8005
LF pot AI8004
Aux pot AI8003
Pan pot AI8008
Mono fader AI8117
Level A / B (gain) AI8007
HF, MF1, MF2, LF AI8006
Aux pot AI8003
Bal pot AI8008
Stereo fader AI8118
Push button square grey AJ7210
Knoblight blue
J2076
Knob grey AJ2078
Knob yellow AJ2079
Push button Rect white AJ7180
Fader knob light blue AJ8081
Mono i/p
ALLEN&HEATH W216 / 12 parts identification Issue 1 Page 2 of 7
Stereo i/p
A
Headphone jack
ST1 to Aux 1 / 2 AI8003
ST1 to LR AI8007
Push button Rect grey AJ2865
Aux 1-6 AI8003
L & R master faders AI8117
Fader knob yellow AJ8080
AL0328
ST2 to Aux 1 AI8003
ST2 to LRl AI8007
Headphone level
I8007
AB level pot AI8007
Push button Square white AJ2960
Master L R & FX
ALLEN&HEATH W216 / 12 parts identification Issue 1 Page 3 of 7
XLR male AL2411
Jack sockets AL3407
AB outputs Aux outputs Direct outs FX footswitch
RCA phono AL3240
Jack sockets AL3410
Line inputs Inserts Stereo L/M, R ST1, ST2 Right
W212 shown Parts same for W214
XLR female AL2410
MIDI Al3520
Fuse holder Al3178
AC mains inlet AL3458
AC mains switch cap AJ2887
AC mains switch AL3338
ALLEN&HEATH W216 / 12 parts identification Issue 1 Page 4 of 7
INTERIOR PARTS:
W212 /W216 master left PCB 002-400
Note: Left master meter is a break off on the right master PCB
W212 / W216 mono i/p PCB 002-399
W212 stereo i/p PCB
002-403
ALLEN&HEATH W216 / 12 parts identification Issue 1 Page 5 of 7
Left master meter
W212 / W216 master right PCB with left meter break off 002-401
W212 / W216 FX processor PCB 002-446
W212 rear connector PCB 002-402
ALLEN&HEATH W216 / 12 parts identification Issue 1 Page 6 of 7
W216 rear connector PCB 002-422
ALLEN&HEATH W216 / 12 parts identification Issue 1 Page 7 of 7
