Page 1
Alienware Aurora R9
Service Manual
Regulatory Model: D23M
Regulatory Type: D23M002
Page 2
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2018 - 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or
its subsidiaries. Other trademarks may be trademarks of their respective owners.
2019 - 08
Rev. A00
Page 3
Contents
1 Working inside your computer..........................................................................................................6
Safety instructions.......................................................................................................................................................6
Before working inside your computer..........................................................................................................................6
Before you begin ...................................................................................................................................................6
Electrostatic discharge—ESD protection.................................................................................................................... 6
ESD field service kit ................................................................................................................................................... 7
Transporting sensitive components............................................................................................................................ 8
After working inside your computer.............................................................................................................................8
2 Removing and installing components..............................................................................................9
Inside view of your computer...................................................................................................................................... 9
System-board components....................................................................................................................................... 10
Recommended tools................................................................................................................................................. 10
Screw list...................................................................................................................................................................11
Left-side cover...........................................................................................................................................................12
Removing the left-side cover................................................................................................................................12
Installing the left-side cover..................................................................................................................................12
Top cover.................................................................................................................................................................. 13
Removing the top cover....................................................................................................................................... 13
Installing the top cover......................................................................................................................................... 14
Right-side cover........................................................................................................................................................ 15
Removing the right-side cover............................................................................................................................. 15
Installing the right-side cover............................................................................................................................... 16
2.5-inch hard drive.................................................................................................................................................... 18
Removing the 2.5-inch hard drive........................................................................................................................ 18
Installing the 2.5-inch hard drive.......................................................................................................................... 19
3.5-inch hard drive.................................................................................................................................................... 21
Removing the 3.5-inch hard drive........................................................................................................................ 21
Installing the 3.5-inch hard drive.......................................................................................................................... 22
2.5-inch hard-drive cage........................................................................................................................................... 24
Removing the 2.5-inch hard-drive cage............................................................................................................... 24
Installing the 2.5-inch hard-drive cage................................................................................................................. 25
3.5-inch hard-drive cage........................................................................................................................................... 25
Removing the 3.5-inch hard-drive cage............................................................................................................... 25
Installing the 3.5-inch hard-drive cage................................................................................................................. 26
460 W power-supply unit...........................................................................................................................................27
Removing the 460 W power-supply unit.............................................................................................................. 27
Installing the 460 W power-supply unit................................................................................................................ 29
850 W Power-supply unit.......................................................................................................................................... 31
Removing the 850 W power-supply unit.............................................................................................................. 31
Installing the 850 W power-supply unit................................................................................................................ 32
Right tron-light board.................................................................................................................................................34
Removing the right tron-light board......................................................................................................................34
3
Page 4
Installing the right tron-light board........................................................................................................................35
Processor liquid-cooling assembly............................................................................................................................36
Removing the processor liquid-cooling assembly................................................................................................36
Installing the processor liquid-cooling assembly..................................................................................................38
Coin-cell battery........................................................................................................................................................ 40
Removing the coin-cell battery.............................................................................................................................40
Installing the coin-cell battery...............................................................................................................................41
Memory modules.......................................................................................................................................................43
Removing the memory modules.......................................................................................................................... 43
Installing the memory modules............................................................................................................................ 44
Solid-state drive........................................................................................................................................................ 46
Removing the solid-state drive.............................................................................................................................46
Installing the solid-state drive...............................................................................................................................47
Single-graphics card................................................................................................................................................. 48
Removing the single-graphics card......................................................................................................................48
Installing the single-graphics card........................................................................................................................50
Dual-graphics card....................................................................................................................................................52
Removing the dual-graphics card........................................................................................................................ 52
Installing the dual-graphics card.......................................................................................................................... 55
Front bezel ............................................................................................................................................................... 57
Removing the front bezel..................................................................................................................................... 57
Installing the front bezel....................................................................................................................................... 60
Top bezel.................................................................................................................................................................. 65
Removing the top bezel....................................................................................................................................... 65
Installing the top bezel......................................................................................................................................... 66
Bottom cover.............................................................................................................................................................67
Removing the bottom cover................................................................................................................................. 67
Installing the bottom cover................................................................................................................................... 68
Processor fan and heat-sink assembly..................................................................................................................... 69
Removing the processor fan and heat-sink assembly......................................................................................... 69
Installing the processor fan and heat-sink assembly........................................................................................... 70
Processor..................................................................................................................................................................72
Removing the processor...................................................................................................................................... 72
Installing the processor........................................................................................................................................ 72
Wireless card............................................................................................................................................................ 73
Removing the wireless card.................................................................................................................................73
Installing the wireless card...................................................................................................................................74
Antennas...................................................................................................................................................................76
Removing the antennas....................................................................................................................................... 76
Installing the antennas......................................................................................................................................... 76
Front I/O-panel..........................................................................................................................................................77
Removing the front I/O panel............................................................................................................................... 77
Installing the front I/O-panel.................................................................................................................................78
Front-chassis fan.......................................................................................................................................................79
Removing the front-chassis fan............................................................................................................................79
Installing the front-chassis fan..............................................................................................................................80
Top-chassis fan.........................................................................................................................................................81
Removing the top-chassis fan..............................................................................................................................81
Installing the top-chassis fan................................................................................................................................83
Power-button board...................................................................................................................................................85
4
Page 5
Removing the power-button board.......................................................................................................................85
Installing the power-button board.........................................................................................................................85
System board............................................................................................................................................................86
Removing the system board................................................................................................................................ 86
Installing the system board.................................................................................................................................. 88
Entering the Service Tag in the BIOS setup program..........................................................................................91
3 Device drivers................................................................................................................................... 92
Operating system......................................................................................................................................................92
Downloading the audio driver....................................................................................................................................92
Downloading the graphics driver...............................................................................................................................92
Downloading the USB driver.....................................................................................................................................93
Downloading the WiFi driver..................................................................................................................................... 93
Downloading the media-card reader driver...............................................................................................................94
Downloading the chipset driver.................................................................................................................................94
Downloading the network driver................................................................................................................................95
4 System setup.................................................................................................................................... 96
System setup............................................................................................................................................................ 96
Entering BIOS setup program...................................................................................................................................96
Navigation keys.........................................................................................................................................................96
Boot Sequence..........................................................................................................................................................96
System setup options................................................................................................................................................97
Clearing CMOS settings............................................................................................................................................99
Clearing forgotten password................................................................................................................................... 100
5 Troubleshooting............................................................................................................................. 102
Enhanced Pre-Boot System Assessment (ePSA) diagnostics................................................................................102
Running the ePSA diagnostics...........................................................................................................................102
System diagnostic lights..........................................................................................................................................102
Recovering the operating system............................................................................................................................103
Flashing BIOS (USB key)........................................................................................................................................103
Flashing the BIOS...................................................................................................................................................103
WiFi power cycle.....................................................................................................................................................104
Flea power release..................................................................................................................................................104
5
Page 6
Working inside your computer
Safety instructions
Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless
otherwise noted, each procedure included in this document assumes that you have read the safety information that shipped with
your computer.
NOTE: Before working inside your computer, read the safety information that shipped with your computer. For more
safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
NOTE: Disconnect all power sources before opening the computer cover or panels. After you finish working inside
the computer, replace all covers, panels, and screws before connecting to the electrical outlet.
CAUTION: To avoid damaging the computer, ensure that the work surface is flat and clean.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card
by its edges or by its metal mounting bracket. Hold a component such as a processor by its edges, not by its pins.
CAUTION: You should only perform troubleshooting and repairs as authorized or directed by the Dell technical
assistance team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. See the
safety instructions that shipped with the product or at www.dell.com/regulatory_compliance.
CAUTION: Before touching anything inside your computer, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface, such as the metal at the back of the computer. While you work,
periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on its pull tab, not on the cable itself. Some cables
have connectors with locking tabs or thumb-screws that you must disengage before disconnecting the cable. When
disconnecting cables, keep them evenly aligned to avoid bending any connector pins. When connecting cables,
ensure that the ports and connectors are correctly oriented and aligned.
CAUTION: Press and eject any installed card from the media-card reader.
NOTE: The color of your computer and certain components may appear differently than shown in this document.
Before working inside your computer
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Before you begin
Steps
1. Save and close all open files and exit all open applications.
2. Shut down your computer. Click Start > Power > Shut down.
NOTE: If you are using a different operating system, see the documentation of your operating system for shutdown instructions.
3. Disconnect your computer and all attached devices from their electrical outlets.
4. Disconnect all attached network devices and peripherals, such as keyboard, mouse, and monitor from your computer.
5. Remove any media card and optical disc from your computer, if applicable.
6. After the computer is unplugged, press and hold the power button for 5 seconds to ground the system board.
Electrostatic discharge—ESD protection
ESD is a major concern when you handle electronic components, especially sensitive components such as expansion cards,
processors, memory DIMMs, and system boards. Very slight charges can damage circuits in ways that may not be obvious, such
6
Page 7
as intermittent problems or a shortened product life span. As the industry pushes for lower power requirements and increased
density, ESD protection is an increasing concern.
Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in
previous Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.
Two recognized types of ESD damage are catastrophic and intermittent failures.
• Catastrophic – Catastrophic failures represent approximately 20 percent of ESD-related failures. The damage causes an
immediate and complete loss of device functionality. An example of catastrophic failure is a memory DIMM that has received a
static shock and immediately generates a "No POST/No Video" symptom with a beep code emitted for missing or nonfunctional
memory.
• Intermittent – Intermittent failures represent approximately 80 percent of ESD-related failures. The high rate of intermittent
failures means that most of the time when damage occurs, it is not immediately recognizable. The DIMM receives a static
shock, but the tracing is merely weakened and does not immediately produce outward symptoms related to the damage. The
weakened trace may take weeks or months to melt, and in the meantime may cause degradation of memory integrity,
intermittent memory errors, etc.
The more difficult type of damage to recognize and troubleshoot is the intermittent (also called latent or "walking wounded") failure.
Perform the following steps to prevent ESD damage:
• Use a wired ESD wrist strap that is properly grounded. The use of wireless anti-static straps is no longer allowed; they do not
provide adequate protection. Touching the chassis before handling parts does not ensure adequate ESD protection on parts
with increased sensitivity to ESD damage.
• Handle all static-sensitive components in a static-safe area. If possible, use anti-static floor pads and workbench pads.
• When unpacking a static-sensitive component from its shipping carton, do not remove the component from the anti-static
packing material until you are ready to install the component. Before unwrapping the anti-static packaging, ensure that you
discharge static electricity from your body.
• Before transporting a static-sensitive component, place it in an anti-static container or packaging.
ESD field service kit
The unmonitored Field Service kit is the most commonly used service kit. Each Field Service kit includes three main components:
anti-static mat, wrist strap, and bonding wire.
Components of an ESD field service kit
The components of an ESD field service kit are:
• Anti-Static Mat – The anti-static mat is dissipative and parts can be placed on it during service procedures. When using an
anti-static mat, your wrist strap should be snug and the bonding wire should be connected to the mat and to any bare metal on
the system being worked on. Once deployed properly, service parts can be removed from the ESD bag and placed directly on
the mat. ESD-sensitive items are safe in your hand, on the ESD mat, in the system, or inside a bag.
• Wrist Strap and Bonding Wire – The wrist strap and bonding wire can be either directly connected between your wrist and
bare metal on the hardware if the ESD mat is not required, or connected to the anti-static mat to protect hardware that is
temporarily placed on the mat. The physical connection of the wrist strap and bonding wire between your skin, the ESD mat,
and the hardware is known as bonding. Use only Field Service kits with a wrist strap, mat, and bonding wire. Never use
wireless wrist straps. Always be aware that the internal wires of a wrist strap are prone to damage from normal wear and tear,
and must be checked regularly with a wrist strap tester in order to avoid accidental ESD hardware damage. It is recommended
to test the wrist strap and bonding wire at least once per week.
• ESD Wrist Strap Tester – The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit, it
is a best practice to regularly test the strap prior to each service call, and at a minimum, test once per week. A wrist strap tester
is the best method for doing this test. If you do not have your own wrist strap tester, check with your regional office to find out if
they have one. To perform the test, plug the wrist-strap's bonding-wire into the tester while it is strapped to your wrist and push
the button to test. A green LED is lit if the test is successful; a red LED is lit and an alarm sounds if the test fails.
• Insulator Elements – It is critical to keep ESD sensitive devices, such as plastic heat sink casings, away from internal parts
that are insulators and often highly charged.
• Working Environment – Before deploying the ESD Field Service kit, assess the situation at the customer location. For
example, deploying the kit for a server environment is different than for a desktop or portable environment. Servers are typically
installed in a rack within a data center; desktops or portables are typically placed on office desks or cubicles. Always look for a
large open flat work area that is free of clutter and large enough to deploy the ESD kit with additional space to accommodate
the type of system that is being repaired. The workspace should also be free of insulators that can cause an ESD event. On the
work area, insulators such as Styrofoam and other plastics should always be moved at least 12 inches or 30 centimeters away
from sensitive parts before physically handling any hardware components
7
Page 8
• ESD Packaging – All ESD-sensitive devices must be shipped and received in static-safe packaging. Metal, static-shielded
bags are preferred. However, you should always return the damaged part using the same ESD bag and packaging that the new
part arrived in. The ESD bag should be folded over and taped shut and all the same foam packing material should be used in
the original box that the new part arrived in. ESD-sensitive devices should be removed from packaging only at an ESDprotected work surface, and parts should never be placed on top of the ESD bag because only the inside of the bag is shielded.
Always place parts in your hand, on the ESD mat, in the system, or inside an anti-static bag.
• Transporting Sensitive Components – When transporting ESD sensitive components such as replacement parts or parts to
be returned to Dell, it is critical to place these parts in anti-static bags for safe transport.
ESD protection summary
It is recommended that all field service technicians use the traditional wired ESD grounding wrist strap and protective anti-static
mat at all times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all
insulator parts while performing service and that they use anti-static bags for transporting sensitive components.
Transporting sensitive components
When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these
parts in anti-static bags for safe transport.
Lifting equipment
Adhere to the following guidelines when lifting heavy weight equipment:
CAUTION: Do not lift greater than 50 pounds. Always obtain additional resources or use a mechanical lifting device.
1. Get a firm balanced footing. Keep your feet apart for a stable base, and point your toes out.
2. Tighten stomach muscles. Abdominal muscles support your spine when you lift, offsetting the force of the load.
3. Lift with your legs, not your back.
4. Keep the load close. The closer it is to your spine, the less force it exerts on your back.
5. Keep your back upright, whether lifting or setting down the load. Do not add the weight of your body to the load. Avoid twisting
your body and back.
6. Follow the same techniques in reverse to set the load down.
After working inside your computer
About this task
CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer.
Steps
1. Replace all screws and ensure that no stray screws remain inside your computer.
2. Connect any external devices, peripherals, or cables you removed before working on your computer.
3. Replace any media cards, discs, or any other parts that you removed before working on your computer.
4. Connect your computer and all attached devices to their electrical outlets.
5. Turn on your computer.
8
Page 9
Removing and installing components
Inside view of your computer
1. power-supply unit 2. 2.5-inch hard drive
3. 2.5-inch hard-drive cage 4. graphics card
5. system board 6. VR heat sink
7. processor fan and liquid cooling assembly 8. top cover
9. 3.5-inch hard-drive cage
9
Page 10
System-board components
1. front-chassis fan connector (FRONT_FAN) 2. power-supply connector
3. front-panel USB cable 2 (F_USB2) 4. front-panel USB cable 1 (F_USB1)
5. SATA 6 Gbps drive connector (SATA1) 6. SATA 6 Gbps drive connector (SATA2)
7. SATA 6 Gbps drive connector (SATA3) 8. SATA 6 Gbps drive connector (SATA4)
9. solid-state drive slot (M.2 SSD) 10. coin-cell battery
11. Service mode (SERVICE MODE) 12. CMOS reset jumper (CMOS_CLR)
13. Password reset jumper (PW_CLR) 14. LED controller connector (LED_CONTROLLER)
15. front audio connector (F_AUDIO) 16. PCI-Express x8 slot (SLOT4)
17. PCI-Express x4 slot (SLOT3) 18. PCI-Express x4 slot (SLOT3)
19. PCI-Express x16 mechanical/x8 electrical slot (SLOT1) 20. wireless-card slot (M.2 WIFI)
21. processor connector (AIX_CPU) 22. top-chassis fan (TOP_FAN)
23. processor-cooling assembly pump-fan connector
(PUMP_FAN)
25. memory-module slot 3 (DDR4/XMM3) 26. memory-module slot 1 (DDR4/XMM1)
27. memory-module slot 2 (DDR4/XMM2) 28. memory-module slot 4 (DDR4/XMM4)
24. processor socket (CPU1)
Recommended tools
The procedures in this document may require the following tools:
• Philips screwdriver #1
• Flat-head screwdriver
• Plastic scribe
10
Page 11
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw
type is restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.
Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Side-panel release latch Chassis M3x4 1
2.5-inch hard-drive cage Chassis #6-32 2
3.5-inch hard-drive cage Chassis #6-32 2
Power-supply unit
bracket
Power-supply unit Chassis #6-32 4
Right tron-light board Chassis #6-32 4
Radiator and fan
assembly
Antennas Chassis M3x4t 4
Top bezel Chassis #6-32 4
Solid-state drive System board M2x2.5 1
Wireless card System board M2x4 1
Cable-management
panel
Power-supply unit cage #6-32 2
Radiator and fan cage #6-32 4
Chassis #6-32 2
Front-panel light-board Front bezel M2x4 4
Power button module Front bezel M2x4 2
Front I/O-panel Front bezel M3x4 4
System board Chassis #6-32 8
11
Page 12
Left-side cover
Removing the left-side cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task
The following images indicate the location of the left-side cover and provides a visual representation of the removal procedure.
Steps
1. Remove the screw (M3x4) that secures the side-cover release latch to the chassis.
2. Pull the side-cover release latch to release the left-side cover away from the chassis.
3. Lift the left-side panel from the chassis.
Installing the left-side cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the left-side cover and provides a visual representation of the installation procedure.
12
Page 13
Steps
1. Locate the tabs on the left-side cover and slots on the chassis.
2. Rotate the left-side cover towards the chassis until it snaps into place.
3. Replace the screw (M3x4) that secures the side-cover release latch to the chassis.
Next steps
1. Follow the procedure in After working inside your computer.
Top cover
Removing the top cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the top cover and provides a visual representation of the removal procedure.
13
Page 14
Steps
Starting from the rear, pull up on the top cover to release it from the chassis.
NOTE: Top cover is tightly secured to the chassis by clips and may requires force to remove it off the chassis.
Installing the top cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the top cover and provides a visual representation of the installation procedure.
14
Page 15
Steps
Align the tabs on the top cover with the slots on the chassis and snap the top cover into place.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Right-side cover
Removing the right-side cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the top cover.
About this task
The following images indicate the location of the right-side cover and provides a visual representation of the removal procedure.
15
Page 16
Steps
1. Starting from the top-front tab, pull the right-side cover away from the chassis.
2. Remove the right-side cover from the chassis.
Installing the right-side cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the right-side cover and provides a visual representation of the installation procedure.
16
Page 17
17
Page 18
Steps
1. Align the tabs on the right-side cover with the slots on the chassis
2. Rotate the right-side cover towards the chassis until it snaps into place.
Next steps
1. Install the top cover.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
2.5-inch hard drive
Removing the 2.5-inch hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the 2.5-inch hard drive and provides a visual representation of the removal procedure.
18
Page 19
Steps
1. Disconnect the data and power cables from the hard drive.
2. Press the release tabs on the hard-drive carrier and slide the hard-drive assembly out of the hard-drive cage.
3. Pry the hard-drive carrier to release the tabs on the assembly from the slots on the hard drive.
4. Lift the hard drive out of the hard-drive assembly.
NOTE: Note the orientation of the hard drive so that you can replace it correctly.
NOTE: Repeat the steps to remove any additional 2.5-inch hard drive from your computer.
Installing the 2.5-inch hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 2.5-inch hard drive and provides a visual representation of the installation
procedure.
19
Page 20
NOTE: Note the orientation on the hard-drive carrier to replace it correctly.
20
Page 21
Steps
1. Align the hard drive with the pins on the hard-drive carrier.
2. Using the tabs on the opposite side, flex open the carrier to insert the pins on the other side.
3. Slide the hard-drive assembly into the hard-drive cage until it snaps into place.
4. Connect the data cable and power cable to the hard drive.
NOTE: Repeat the steps to install any additional 2.5-inch hard drive from your computer.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
3.5-inch hard drive
Removing the 3.5-inch hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the 3.5-inch hard drive and provides a visual representation of the removal procedure.
21
Page 22
Steps
1. Disconnect the data and power cables from the hard drive.
2. Press the release tabs on the hard-drive carrier and slide the hard-drive carrier out of the hard-drive cage.
3. Pry the hard-drive carrier to release the tabs on the carrier from the slots on the hard drive.
4. Lift the hard drive out of the hard-drive assembly.
NOTE: Note the orientation of the hard drive so that you can replace it correctly.
Installing the 3.5-inch hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 3.5-inch hard drive and provides a visual representation of the installation
procedure.
22
Page 23
NOTE: Note the orientation on the hard-drive carrier to replace it correctly.
23
Page 24
Steps
1. Align the hard drive with the pins on the hard-drive carrier.
2. Using the tabs on the opposite side, flex open the carrier to insert the pins on the other side.
3. Slide the hard-drive assembly into the hard-drive cage until it snaps into place.
4. Connect the data and power cables to the hard drive.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
2.5-inch hard-drive cage
Removing the 2.5-inch hard-drive cage
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the 2.5-inch hard drive, if installed.
About this task
The following images indicate the location of the 2.5-inch and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (#6-32) that secure the 2.5-inch hard-drive cage to the chassis.
2. Slide and remove the 2.5-inch hard-drive cage off the chassis.
NOTE: Repeat the procedure from step 1 to step 2 to remove the other 2.5-inch hard-drive cage.
24
Page 25
Installing the 2.5-inch hard-drive cage
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 2.5-inch hard-drive cage and provides a visual representation of the installation
procedure.
Steps
1. Insert the 2.5-inch hard-drive cage into its slot on the chassis.
2. Align the tabs on the cage with the tabs on the chassis.
3. Replace the two screws (#6-32) that secure the 2.5-inch hard-drive cage to the chassis.
NOTE: Repeat the procedure from step 1 to step 3 to install the other 2.5-inch hard-drive cage.
Next steps
1. Install the 2.5-inch hard drive, if required.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
3.5-inch hard-drive cage
Removing the 3.5-inch hard-drive cage
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the 3.5-inch hard drive, if installed.
25
Page 26
About this task
The following images indicate the location of the 3.5-inch and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (#6-32) that secure the 3.5-inch hard-drive cage to the chassis.
2. Lift the 3.5-inch hard-drive cage off the chassis.
Installing the 3.5-inch hard-drive cage
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 3.5-inch hard-drive cage and provides a visual representation of the installation
procedure.
26
Page 27
Steps
1. Insert the 3.5-inch hard-drive cage into its slot on the chassis.
2. Align the tabs on the cage with the tabs on the chassis.
3. Replace the two screws (#6-32) that secure the 3.5-inch hard-drive cage to the chassis.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
460 W power-supply unit
Removing the 460 W power-supply unit
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
NOTE: Note the routing of all cables as you remove them so that you can route them correctly after you replace the
power-supply unit.
About this task
The following images indicate the location of the power-supply unit and provides a visual representation of the removal procedure.
27
Page 28
28
Page 29
Steps
1. Remove the two screws (#6-32) that secure the power-supply unit bracket to the power-supply unit cage.
2. Lift the power-supply unit bracket off the power-supply unit cage.
3. Lift the power-supply unit cage and rotate the power-supply unit cage away from the chassis.
4. Press the releasing clip on the power-cable connectors and disconnect the power cables from the graphics card.
5. Disconnect the power cables from the hard drives.
6. Disconnect the processor-power cable and system-board power cable from the system board.
7. Rotate the power-supply unit cage towards the chassis.
8. Remove the four screws (#6-32) that secure the power-supply unit to the chassis.
9. Slide and lift the power-supply unit, along with the cables, off the chassis.
Installing the 460 W power-supply unit
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
29
Page 30
WARNING: The cables and ports on the back of the power-supply unit are color-coded to indicate the different power
wattage. Ensure that you plug in the cable to the correct port. Failure to do so may result in damaging the powersupply unit and/or system components.
About this task
The following images indicate the location of the power-supply unit and provides a visual representation of the installation
procedure.
30
Page 31
Steps
1. Place the power supply on the chassis.
2. Align the screw holes on the power-supply unit with the screw holes on the chassis.

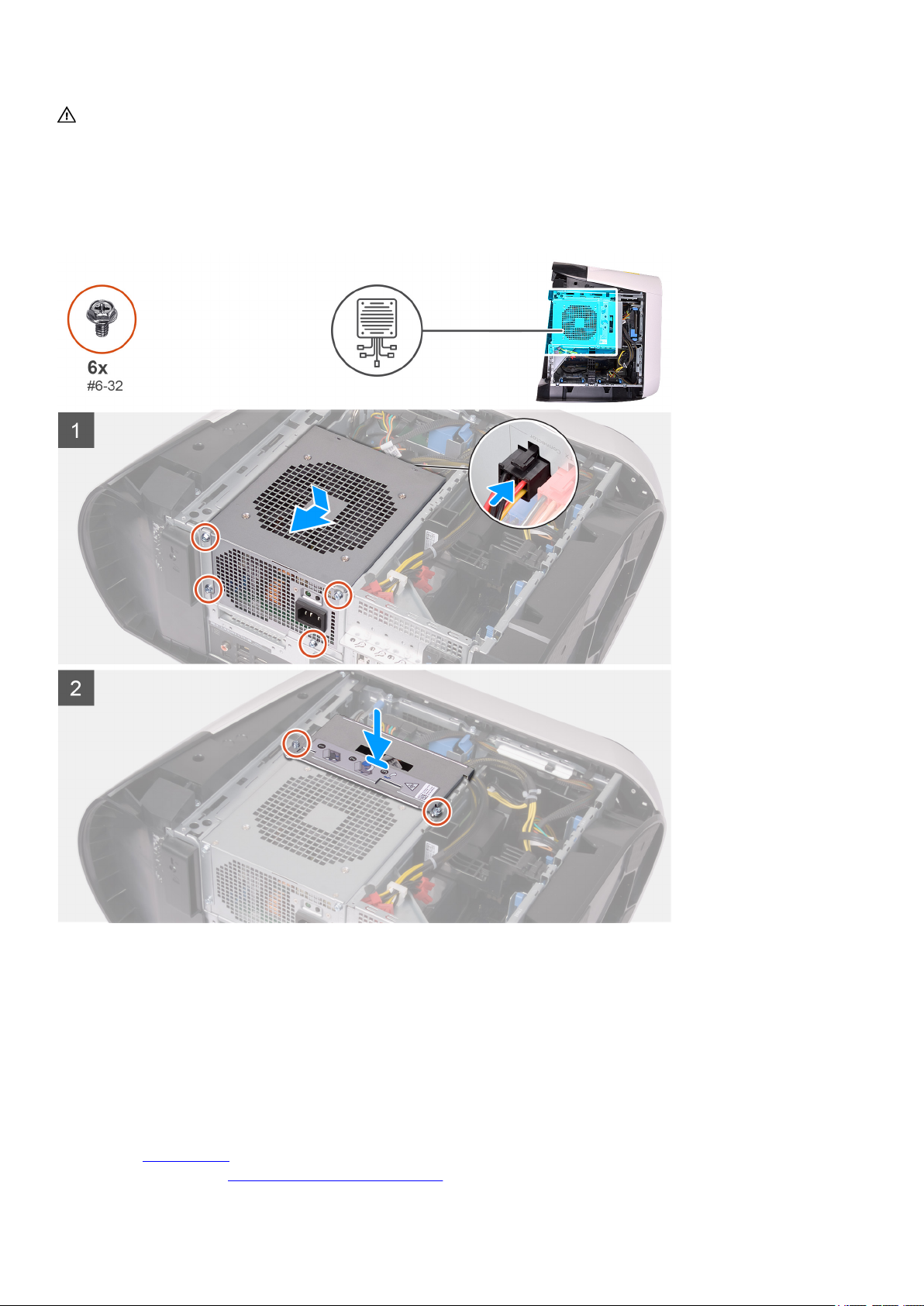

3. Replace the four screws (#6-32) that secure the power-supply unit to the chassis.
4. Lift and rotate the power-supply unit cage away from the chassis
5. Connect the processor-power cable and system-board power cable to the system board.
6. Connect the power cables to the hard drives.
7. Connect the power cables to the graphics card.

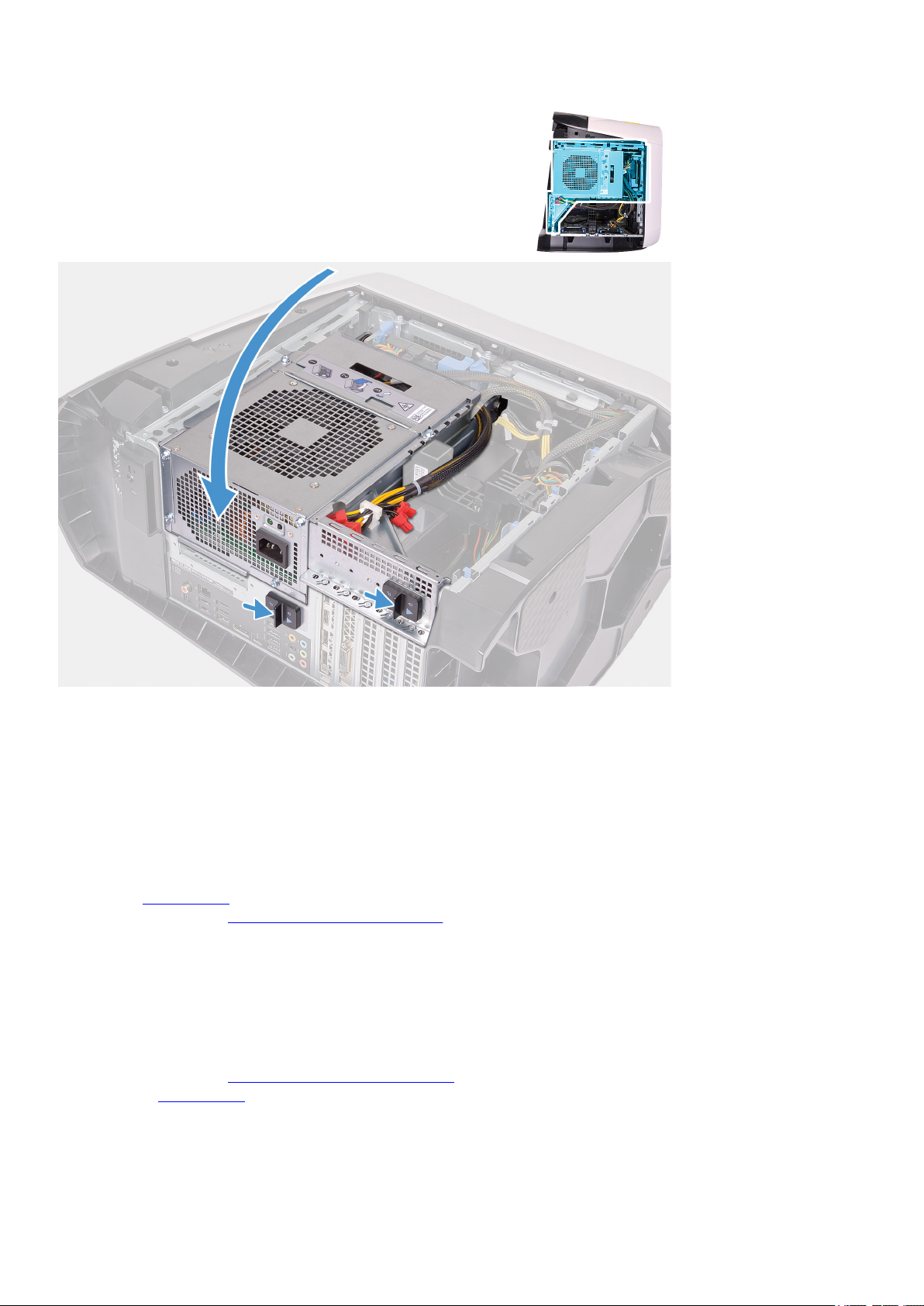

8. Rotate the power-supply unit cage towards the chassis
9. Slide the power-supply unit cage release latches towards the locked position.
10. Align the screw holes on the power-supply unit bracket with the screw holes on the power-supply unit cage.
11. Replace the two screws (#6-32) that secure the power-supply unit bracket to the power-supply unit cage.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
850 W Power-supply unit
Removing the 850 W power-supply unit
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
31
Page 32
NOTE: Note the routing of all cables as you remove them so that you can route them correctly after you replace the
power-supply unit.
About this task

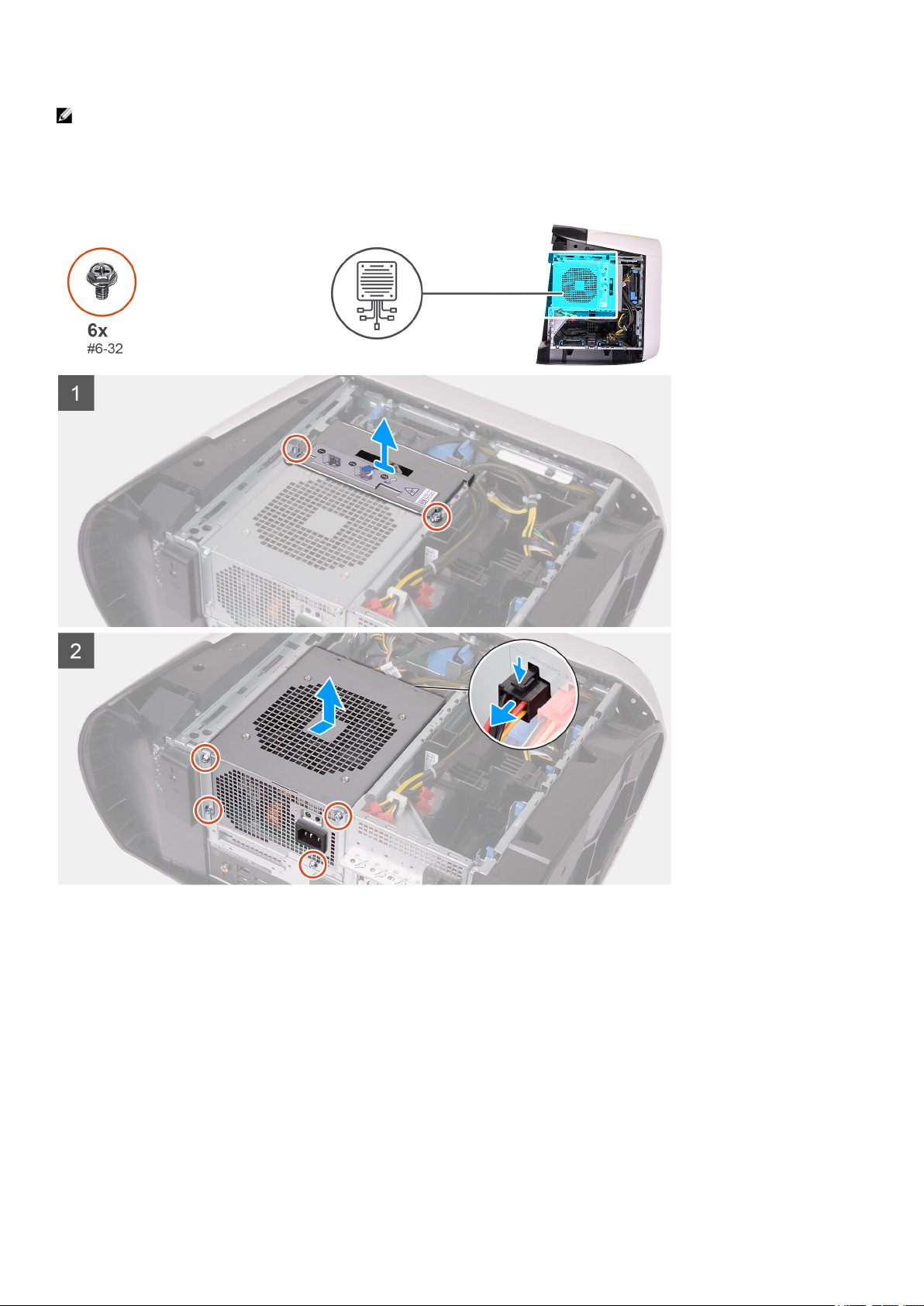

The following images indicate the location of the power-supply unit and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (#6-32) that secure the power-supply unit bracket to the power-supply unit cage.
2. Lift the power-supply unit bracket off the power-supply unit cage.
3. Press the releasing clip on the power-cable connectors and disconnect all the power cables from the power-supply unit.
4. Remove the four screws (#6-32) that secure the power-supply unit to the chassis.
5. Slide and lift the power-supply unit, along with the cables, off the chassis.
Installing the 850 W power-supply unit
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
32
Page 33
WARNING: The cables and ports on the back of the power-supply unit are color-coded to indicate the different power
wattage. Ensure that you plug in the cable to the correct port. Failure to do so may result in damaging the powersupply unit and/or system components.
About this task
The following images indicate the location of the power-supply unit and provides a visual representation of the installation
procedure.
Steps
1. Place the power supply on the chassis.
2. Align the screw holes on the power-supply unit with the screw holes on the chassis.
3. Replace the four screws (#6-32) that secure the power-supply unit to the chassis.
4. Connect all the power cables to the power-supply unit.
5. Align the screw holes on the power-supply unit bracket with the screw holes on the power-supply unit cage.
6. Replace the two screws (#6-32) that secure the power-supply unit bracket to the power-supply unit cage.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
33
Page 34
Right tron-light board
Removing the right tron-light board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the top-cover.
4. Remove the right-side cover.
About this task

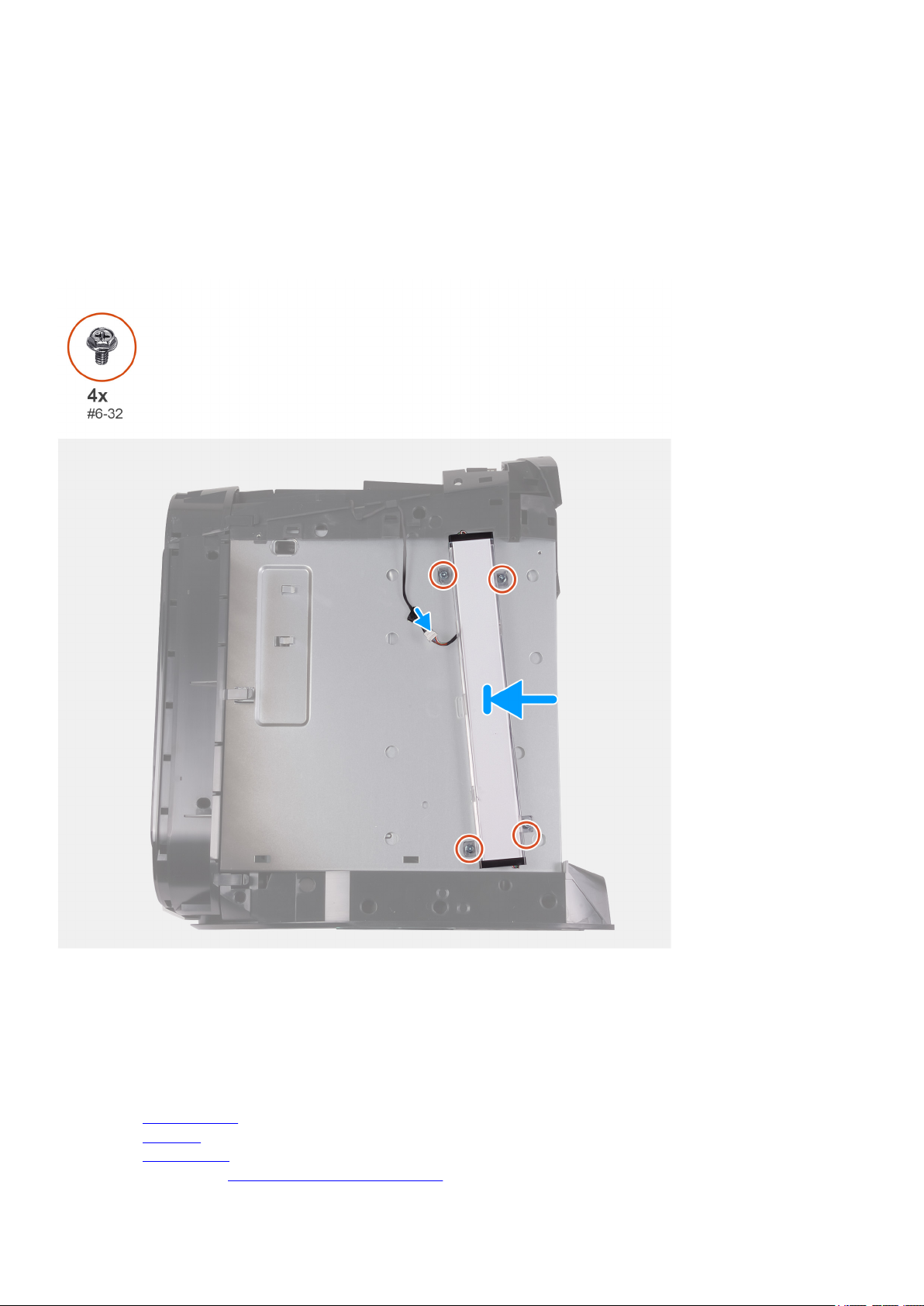

The following images indicate the location of the right tron-light board and provides a visual representation of the removal
procedure.
Steps
1. Disconnect the tron-light cable.

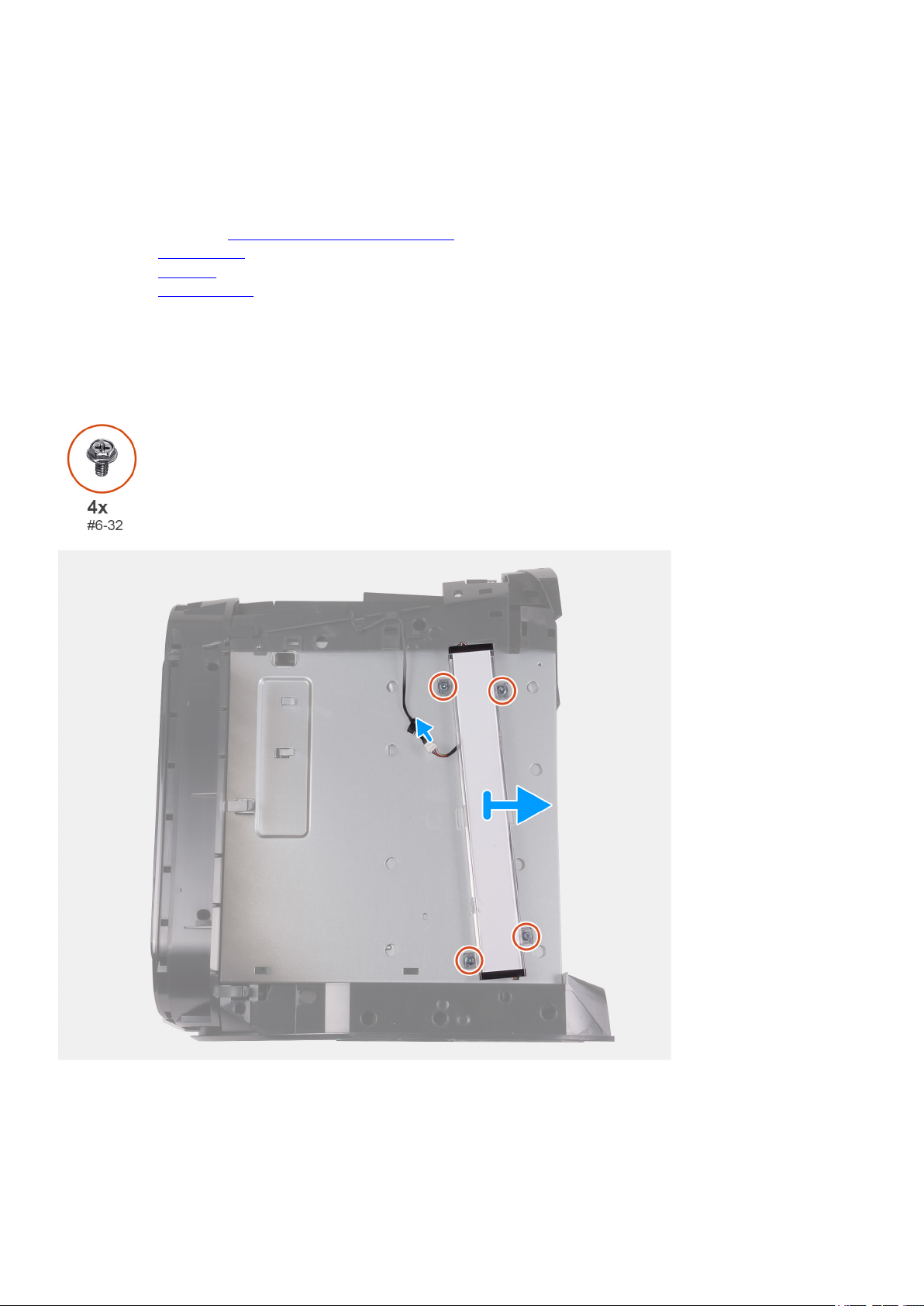

2. Remove the four screws (#6-32) that secure the right tron-light board to the chassis.
3. Remove the right tron-light board off the chassis.
34
Page 35
Installing the right tron-light board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the right tron-light board and provides a visual representation of the installation
procedure.
Steps
1. Align the screw holes on the right tron-light board with the screw holes on the chassis.
2. Replace the four screws (#6-32) that secure the right tron-light board to the chassis.
3. Connect the tron-light cable.
Next steps
1. Install the right-side cover.
2. Install the top-cover.
3. Install the left-side cover.
4. Follow the procedure in After working inside your computer.
35
Page 36
Processor liquid-cooling assembly
Removing the processor liquid-cooling assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
WARNING: Despite having a plastic shield, the processor liquid-cooling assembly may be very hot during normal
operation. Ensure that it had sufficient time to cool before you touch it.
CAUTION: To ensure maximum cooling for the processor, do not touch the heat transfer areas on the processor
liquid-cooling assembly. The oils in your skin can reduce the heat transfer capability of the thermal grease.
2. Remove the left-side cover.
3. Remove the top-cover.
4. Remove the right-side cover.
5. Remove the memory modules.
About this task
The following images indicate the location of the processor liquid-cooling assembly and provides a visual representation of the
removal procedure.
36
Page 37
Steps
1. Lay the computer on the right side.

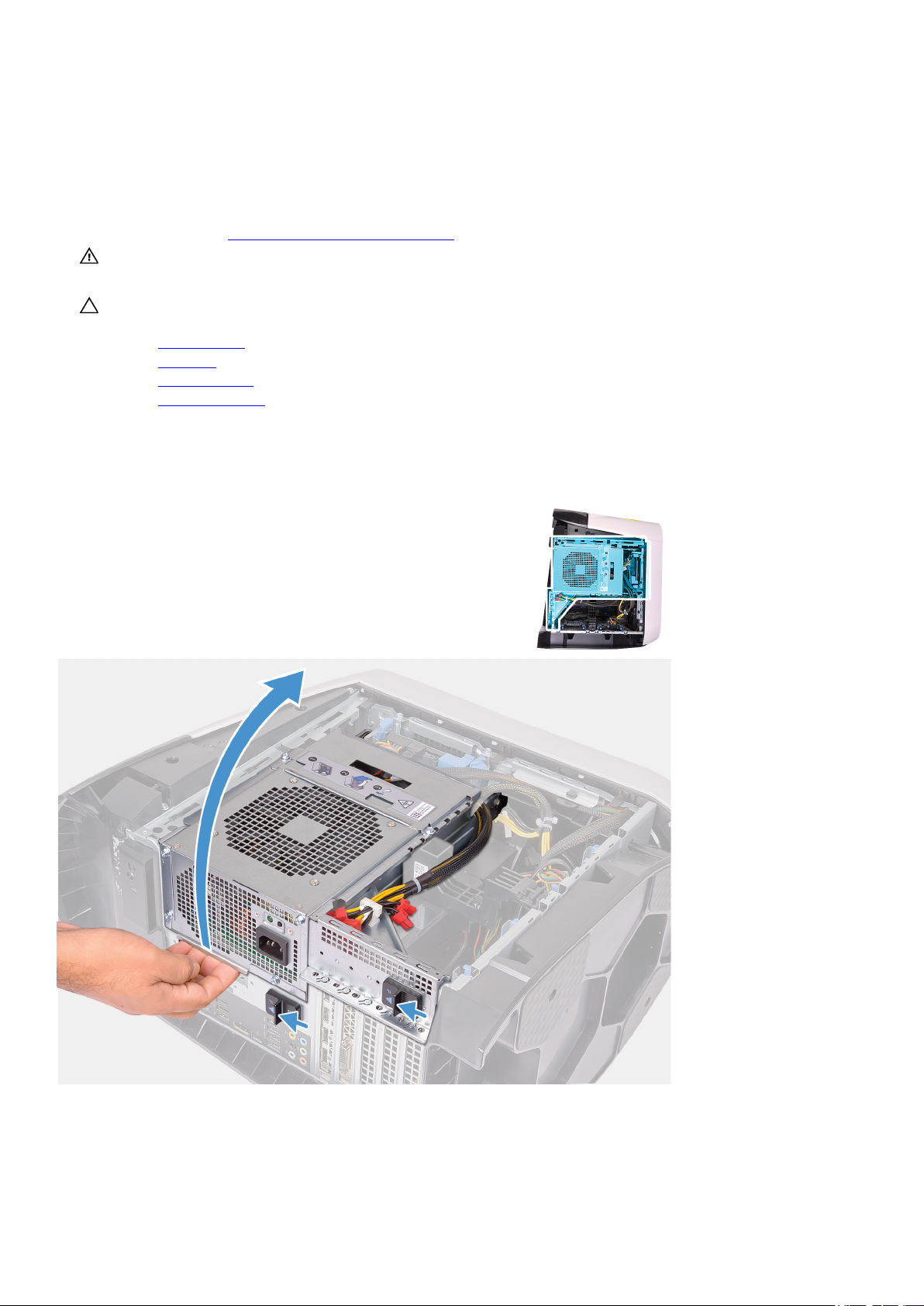

2. Slide the power-supply unit cage release latches to the unlock position.
3. Lift the power-supply unit cage.
4. Rotate the power-supply unit cage away from the chassis.

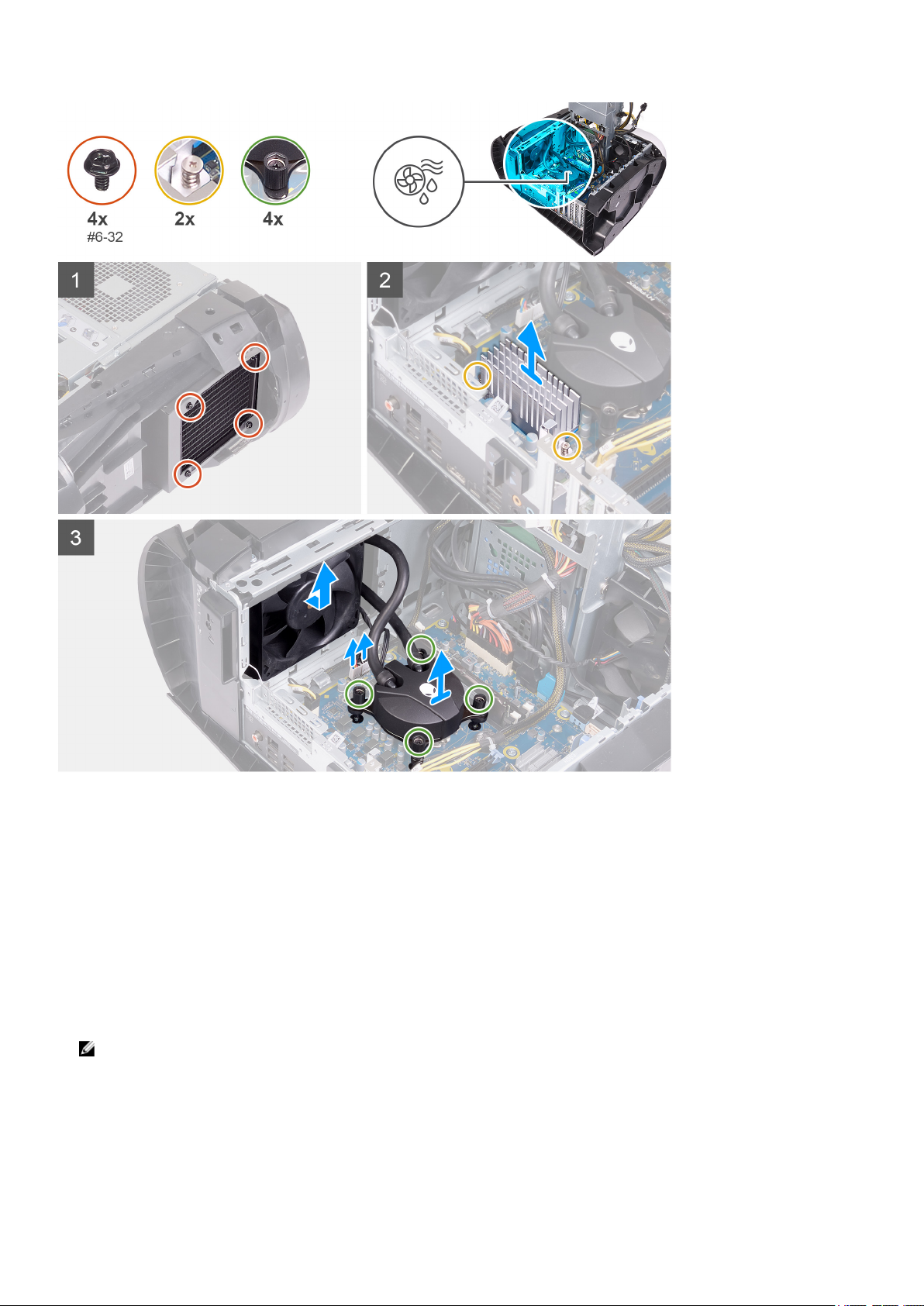

5. Loosen the two captive screws that secure the VR heat sink to the system board.
6. Remove the four screws (#6-32) that secure the radiator and fan assembly to the radiator and fan cage.
7. Lift the VR heat sink off the computer.
8. Disconnect the processor-cooling assembly cables from the system board.
9. In the reverse sequential order (as indicated on the processor cooler), loosen the four captive screws that secure the processor
cooler to the system board.
NOTE: If your are using an electric screwdriver, torque the screws at 6.9 +/-1.15 kilogram-force centimeter (6 +/-1
pound force inch).
10. Lift the processor-cooling assembly along with the cables off the computer.
37
Page 38
Installing the processor liquid-cooling assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: Incorrect alignment of the processor liquid-cooling assembly can damage the system board and
processor.
About this task

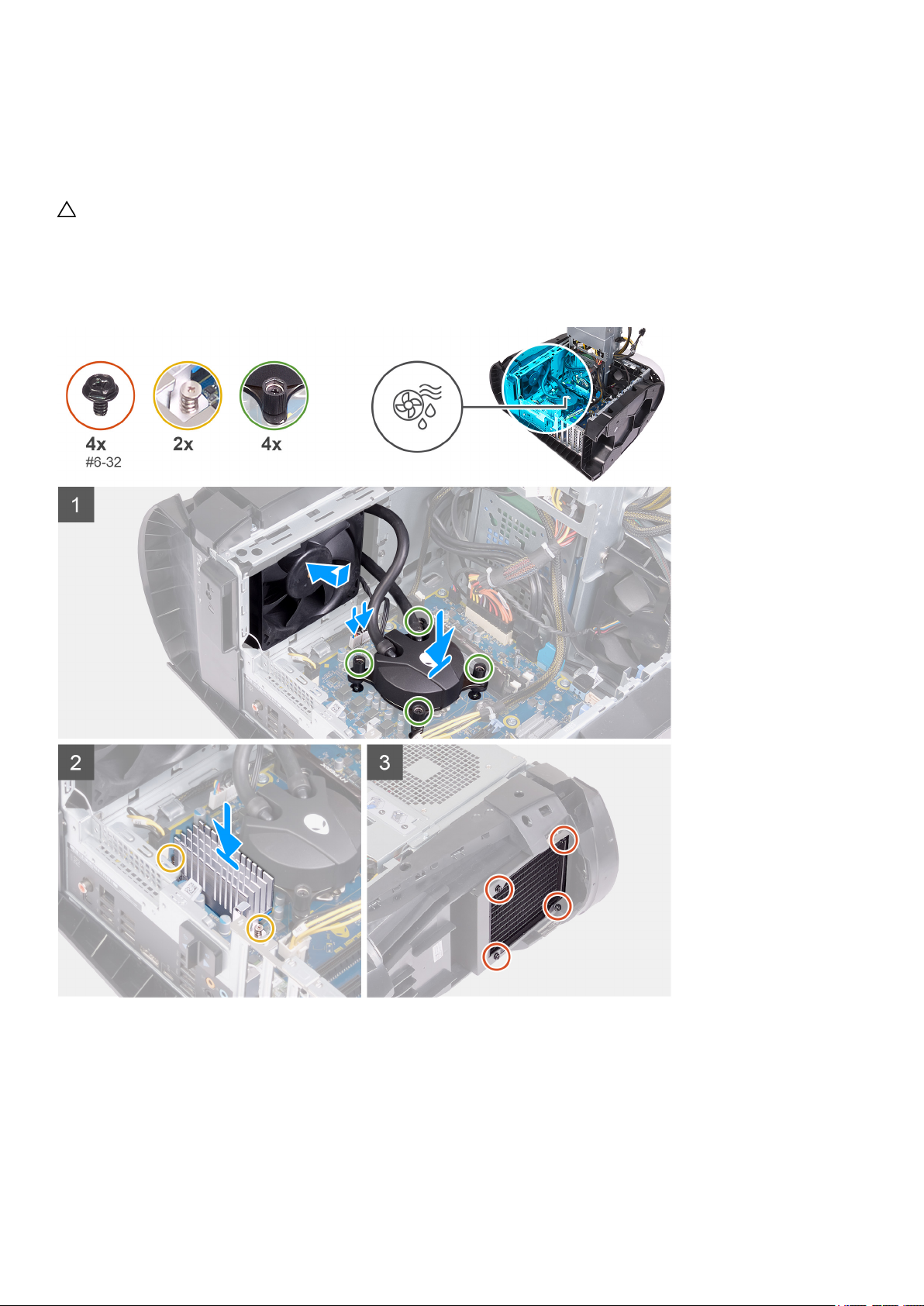

The following images indicate the location of the processor liquid-cooling assembly and provides a visual representation of the
installation procedure.
38
Page 39
Steps
1. Slide the radiator and fan assembly into the radiator and fan cage.
NOTE: Ensure that the hoses are facing the front of the system
2. Align the screw holes on the processor cooler with the screw holes on the system board.
3. Align the screw holes on the VR heat sink with the screw holes on the system board.
4. Tighten the two captive screws that secure the VR heat sink to the system board.
5. In the sequential order (as indicated on the processor cooler), tighten the four captive screws that secure the processor cooler
to the system board.
NOTE: If your are using an electric screwdriver, torque the screws at 6.9 +/-1.15 kilogram-force centimeter (6 +/-1
pound force inch).
6. Connect the processor-cooling assembly cables to the system board.

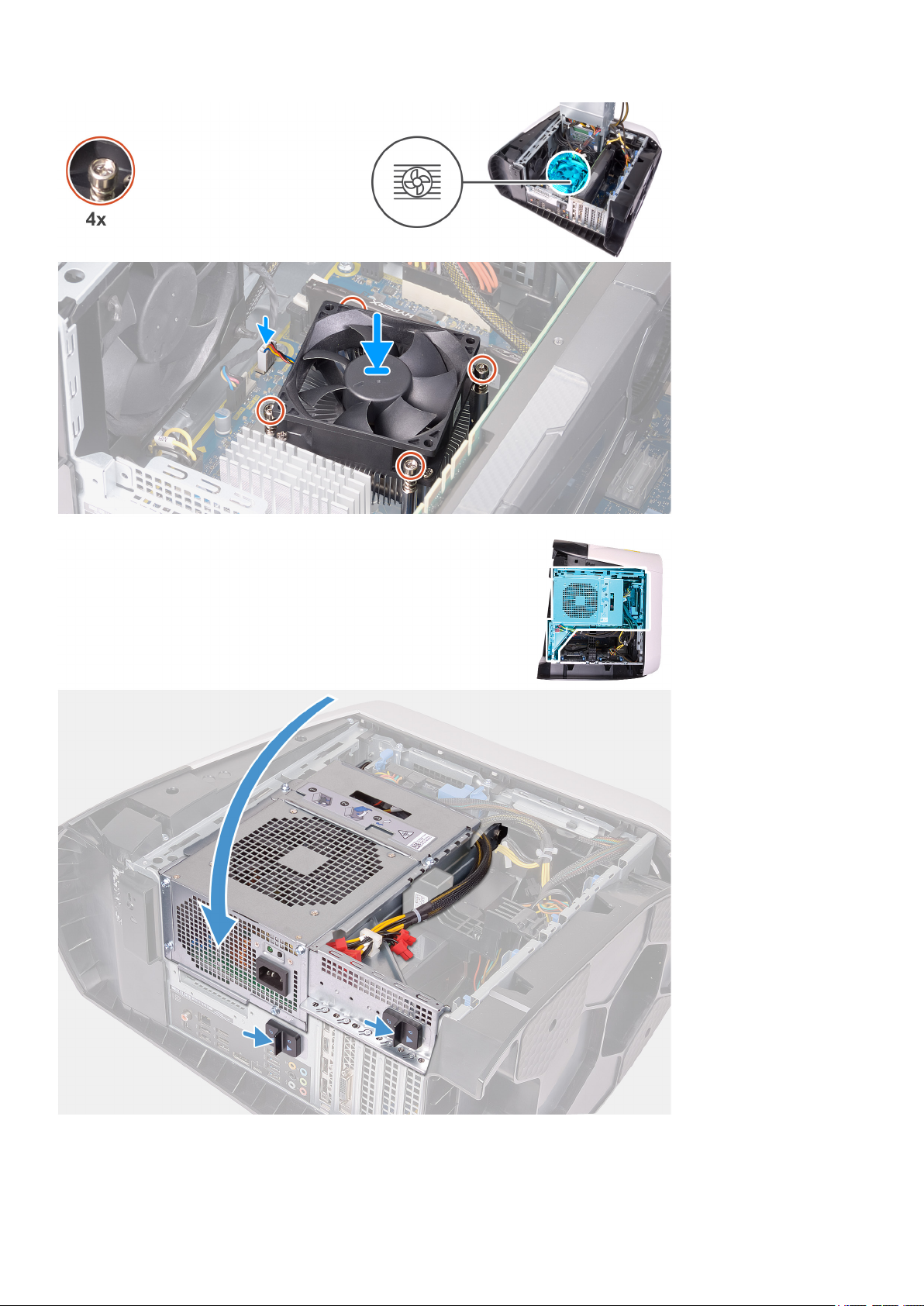

7. Replace the four screws (#6-32) that secure the radiator and fan assembly to the chassis.
8. Rotate the power-supply unit cage towards the chassis.
9. Slide the power-supply unit cage release latches towards the locked position.
Next steps
1. Install the memory modules.
2. Install the right-side cover.
3. Install the top-cover.
4. Install the left-side cover.
5. Follow the procedure in After working inside your computer.
39
Page 40
Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the
instructions in After working inside your computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
CAUTION: Removing the coin-cell battery resets the BIOS setup program’s settings to default. It is recommended
that you note the BIOS setup program’s settings before removing the coin-cell battery.
2. Remove the left-side cover.
About this task
The following images indicate the location of the coin-cell battery and provides a visual representation of the removal procedure.
40
Page 41
Steps
1. Lay the computer on the right side.

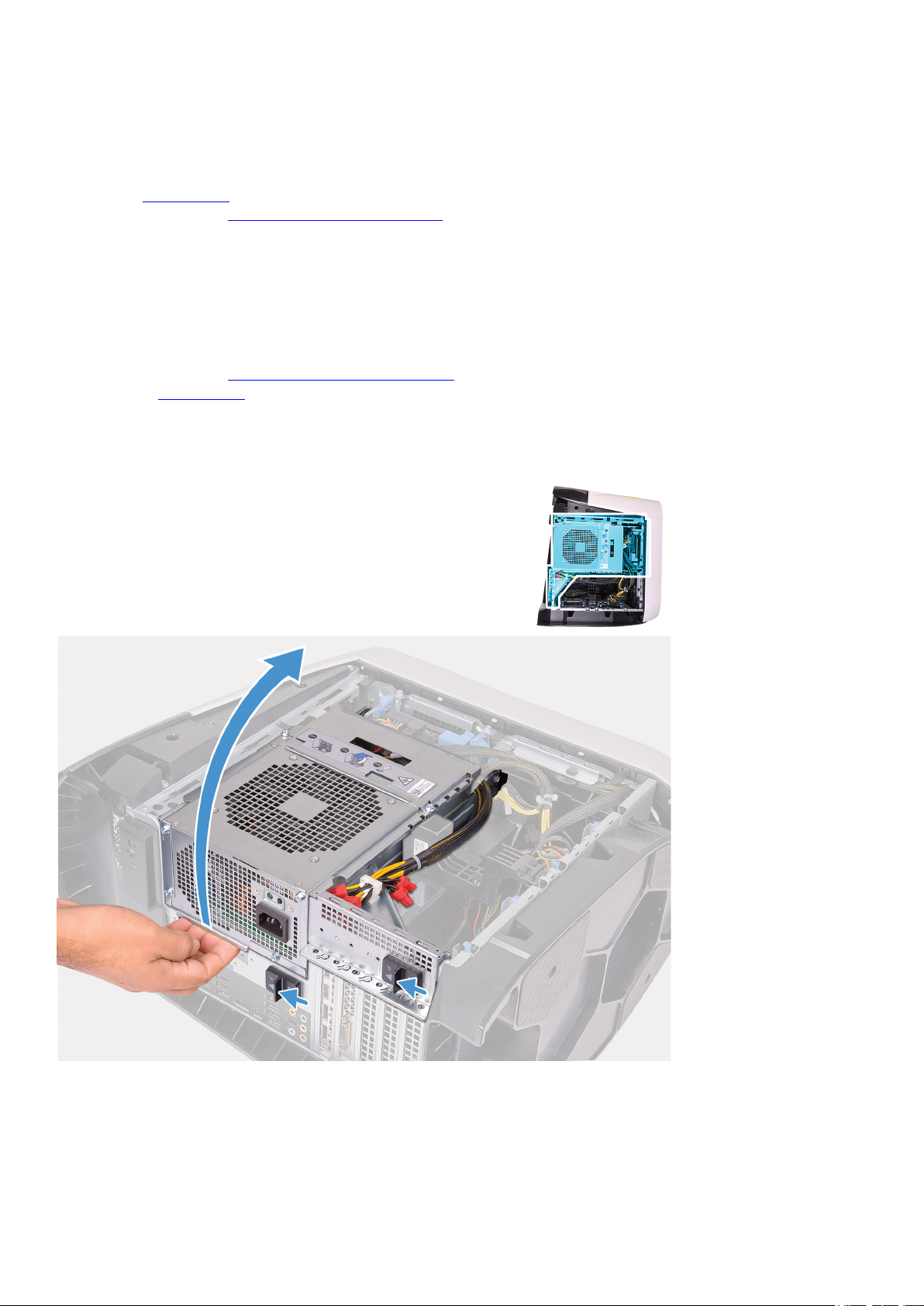

2. Slide the power-supply unit cage release latches to the unlock position.

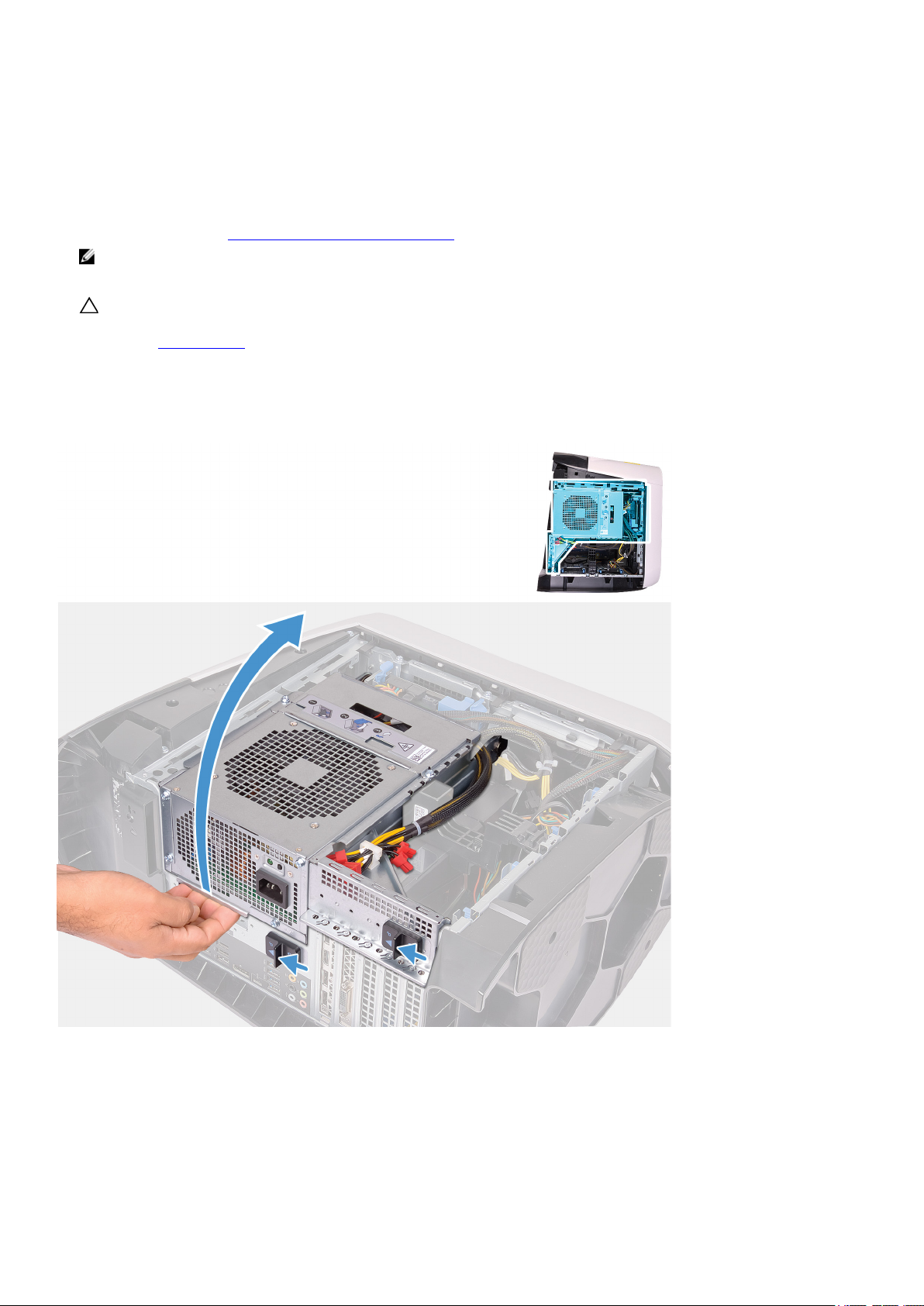

3. Lift the power-supply unit cage and rotate the power-supply unit cage away from the chassis.

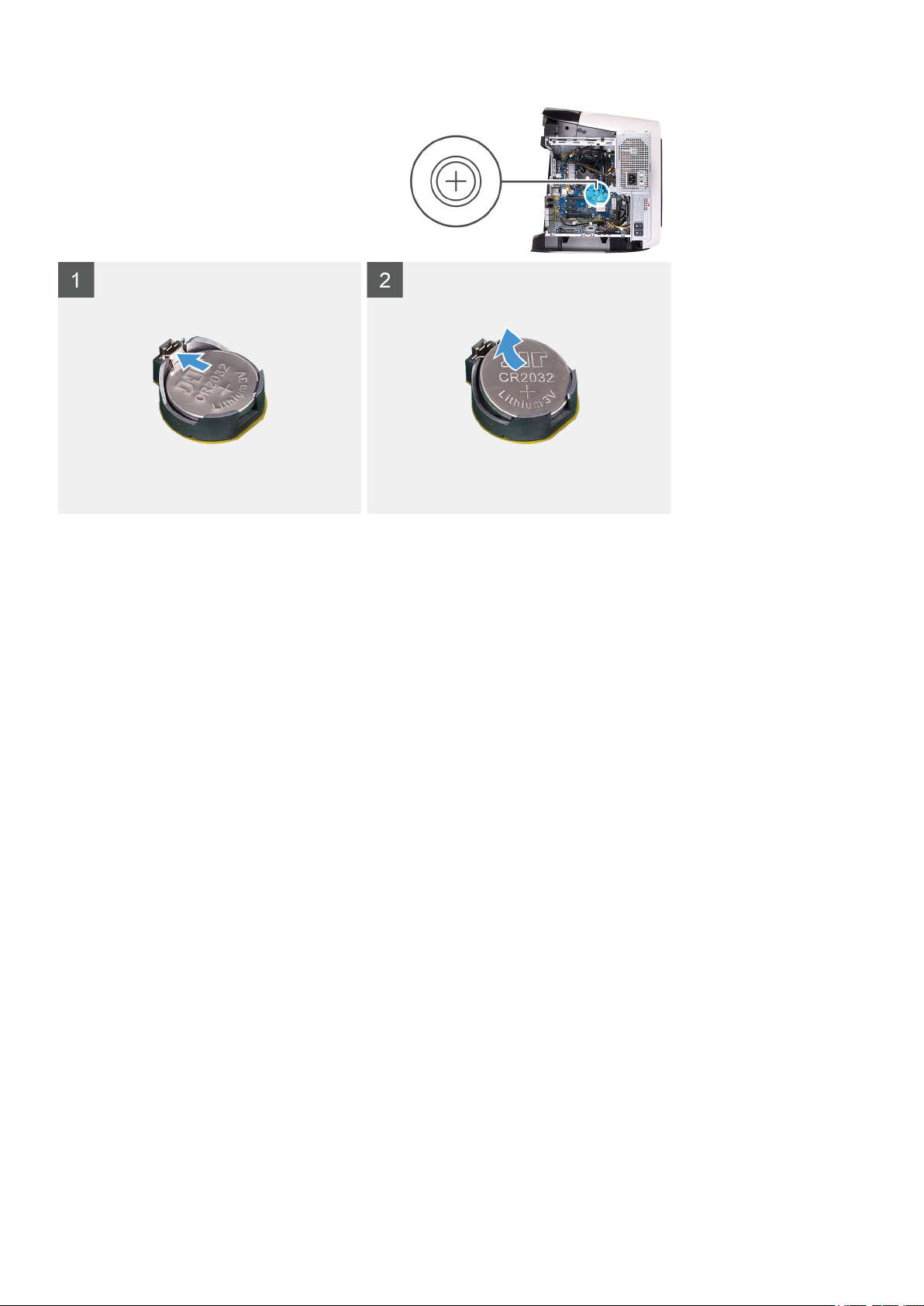

4. Press the battery-release lever away from the coin-cell battery until the coin-cell battery pops up.
5. Lift the coin-cell battery out of its socket.
Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the coin-cell battery and provides a visual representation of the installation procedure.
41
Page 42
Steps

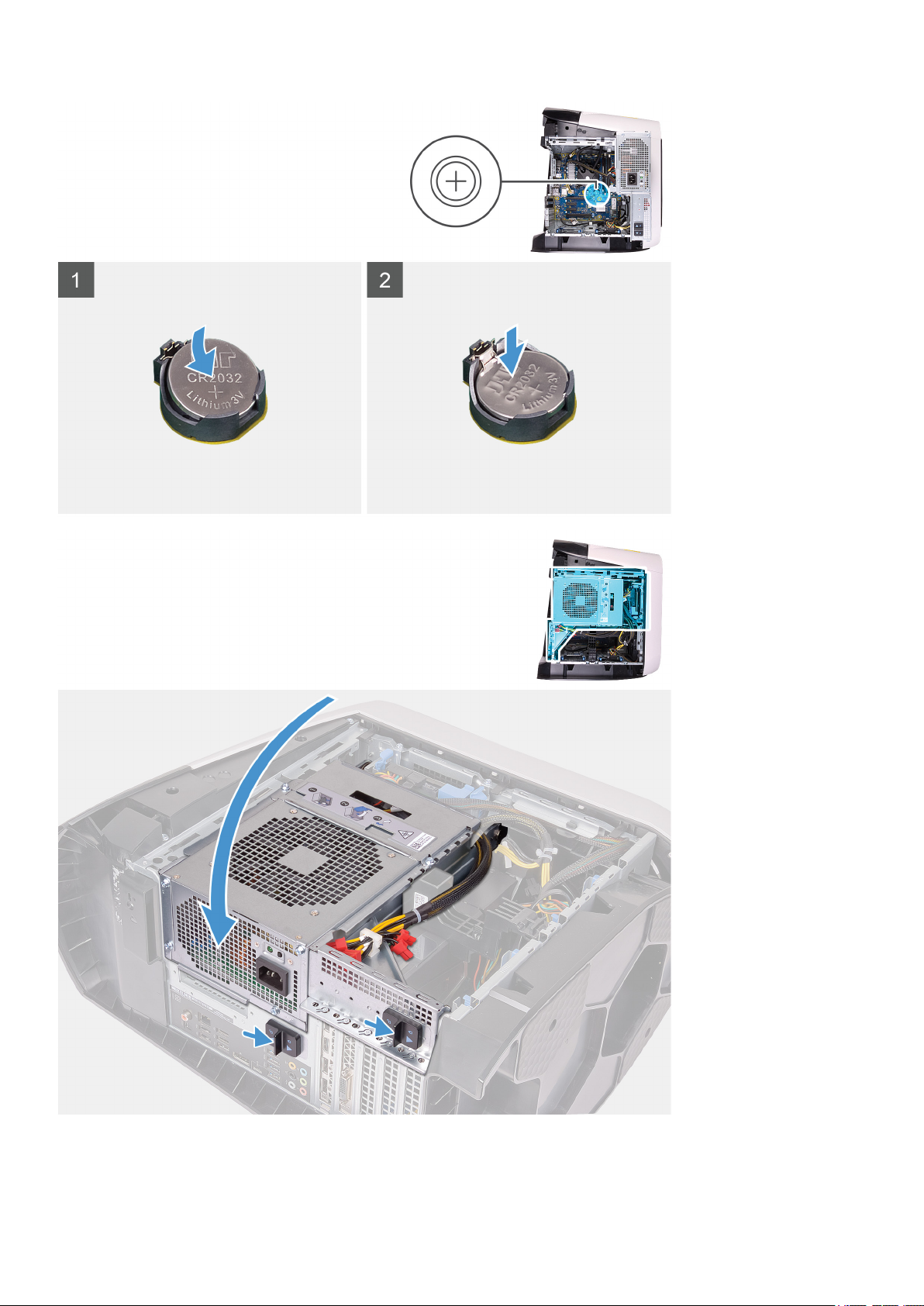

1. Insert a new coin-cell battery (CR2032) into the battery socket with the positive side facing up, and snap the battery into place.
42
Page 43
2. Rotate the power-supply unit cage towards the chassis.
3. Slide the power-supply unit cage release latches towards the locked position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task

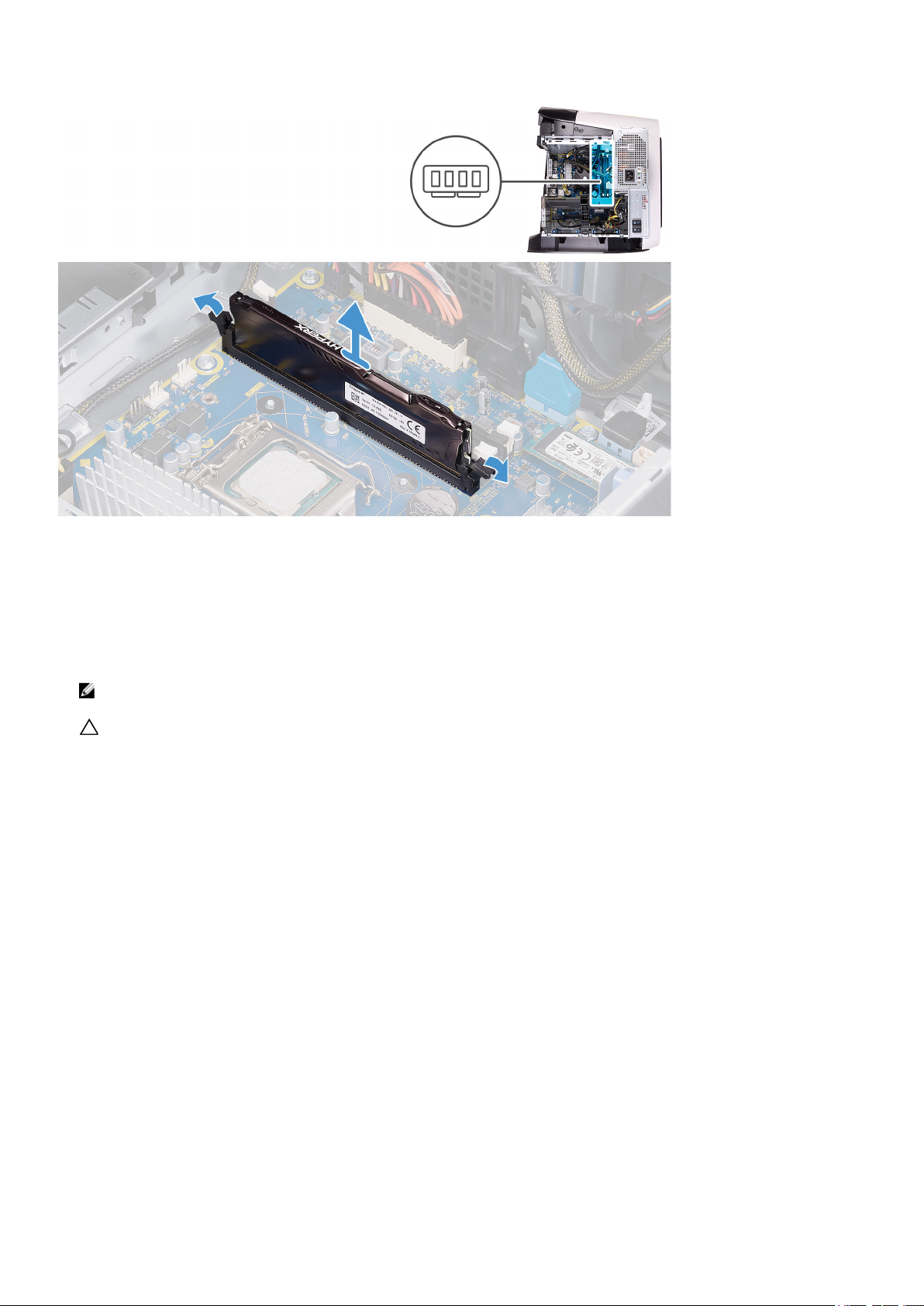

The following images indicate the location of the memory modules and provides a visual representation of the removal procedure.
43
Page 44
Steps
1. Lay the computer on the right side.
2. Slide the power-supply unit cage release latches to the unlock position.
3. Lift the power-supply unit cage and rotate the power-supply unit cage away from the chassis.
4. Push the securing clips away from the memory module.
5. Grasp the memory module near the securing clip, and then gently ease the memory module out of the memory-module slot.
NOTE: Repeat step 5 to step 6 to remove any other memory modules installed in your computer.
CAUTION: To prevent damage to the memory module, hold the memory module by the edges. Do not touch the
components on the memory module.
Installing the memory modules
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the memory modules and provides a visual representation of the installation
procedure.
44
Page 45
Steps

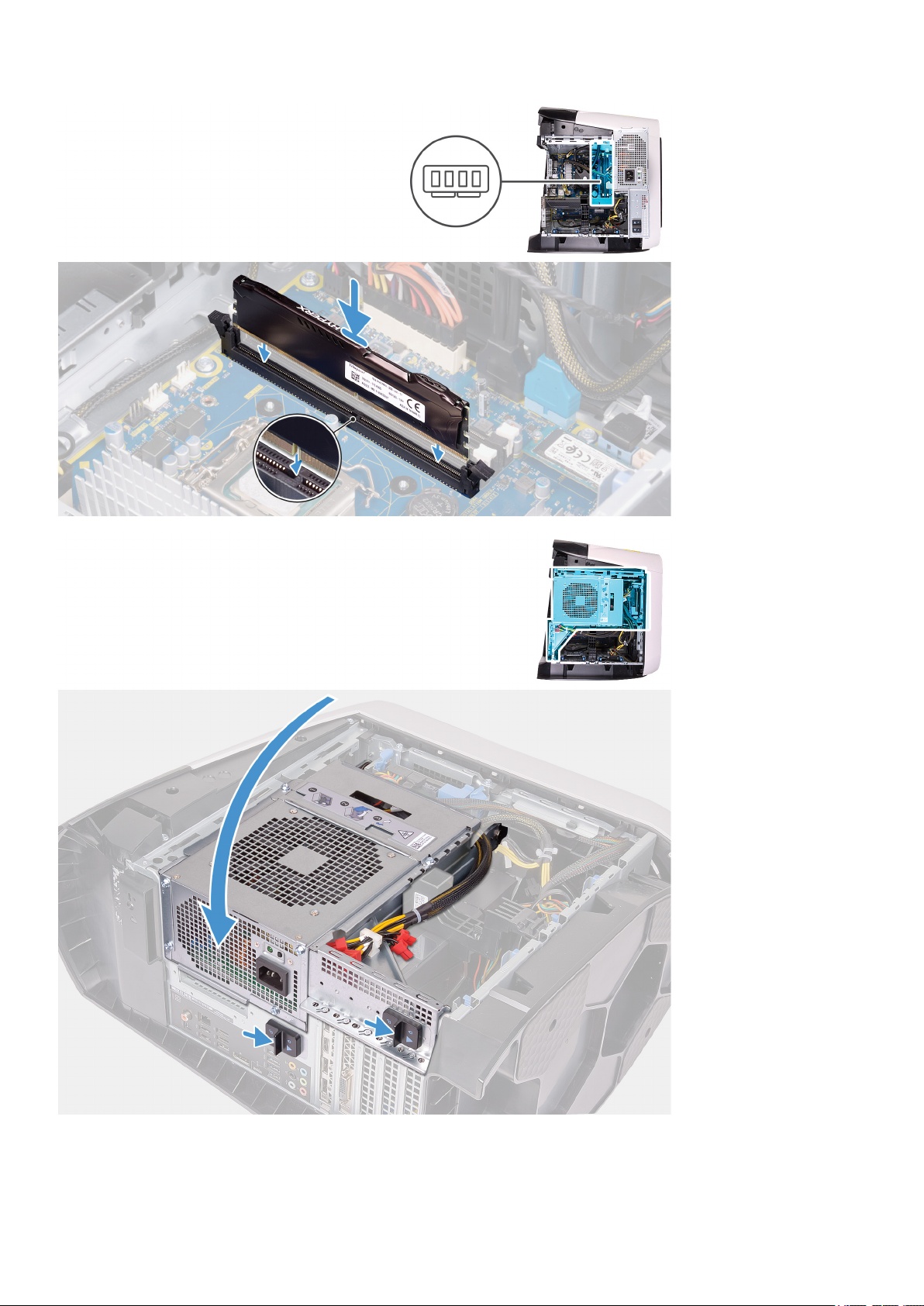

1. Ensure that the securing clips are extended away from the memory-module slot.
45
Page 46
2. Align the notch on the memory module with the tab on the memory-module slot.
3. Insert the memory module into the memory-module slot and press the memory module down until it snaps into position and the
securing clips lock in place.
CAUTION: To prevent damage to the memory module, hold the memory module by the edges. Do not touch the
components on the memory module.
NOTE: Repeat step 1 to step 3 to replace any other memory modules installed in your computer.
4. Rotate the power-supply unit cage towards the chassis.
5. Slide the power-supply unit cage release latches towards the locked position.
NOTE: Use slots XMM1 and XMM2 if you need to use two memory modules. For more information, see System-
board components.
The following table lists the available memory configuration matrix:
Table 2. Memory configuration matrix
Configuration
XMM1 XMM2 XMM3 XMM4
8 GB DDR4 8 GB
16 GB DDR4 8 GB 8 GB
32 GB DDR4 16 GB 16 GB
64 GB DDR4 16 GB 16 GB 16 GB 16 GB
16 GB XMP 8 GB 8 GB
32 GB XMP 16 GB 16 GB
64 GB XMP 16 GB 16 GB 16 GB 16 GB
Next steps
1. Remove the left-side cover.
2. Follow the procedure in After working inside your computer.
Slot
Solid-state drive
Removing the solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
NOTE: To avoid data loss, do not remove the drive while the computer is in sleep or on state.
2. Remove the left-side cover.
3. Remove the single-graphics card or dual-graphics card, as applicable.
About this task
The following images indicate the location of the solid-state drive and provides a visual representation of the removal procedure.
46
Page 47
Steps

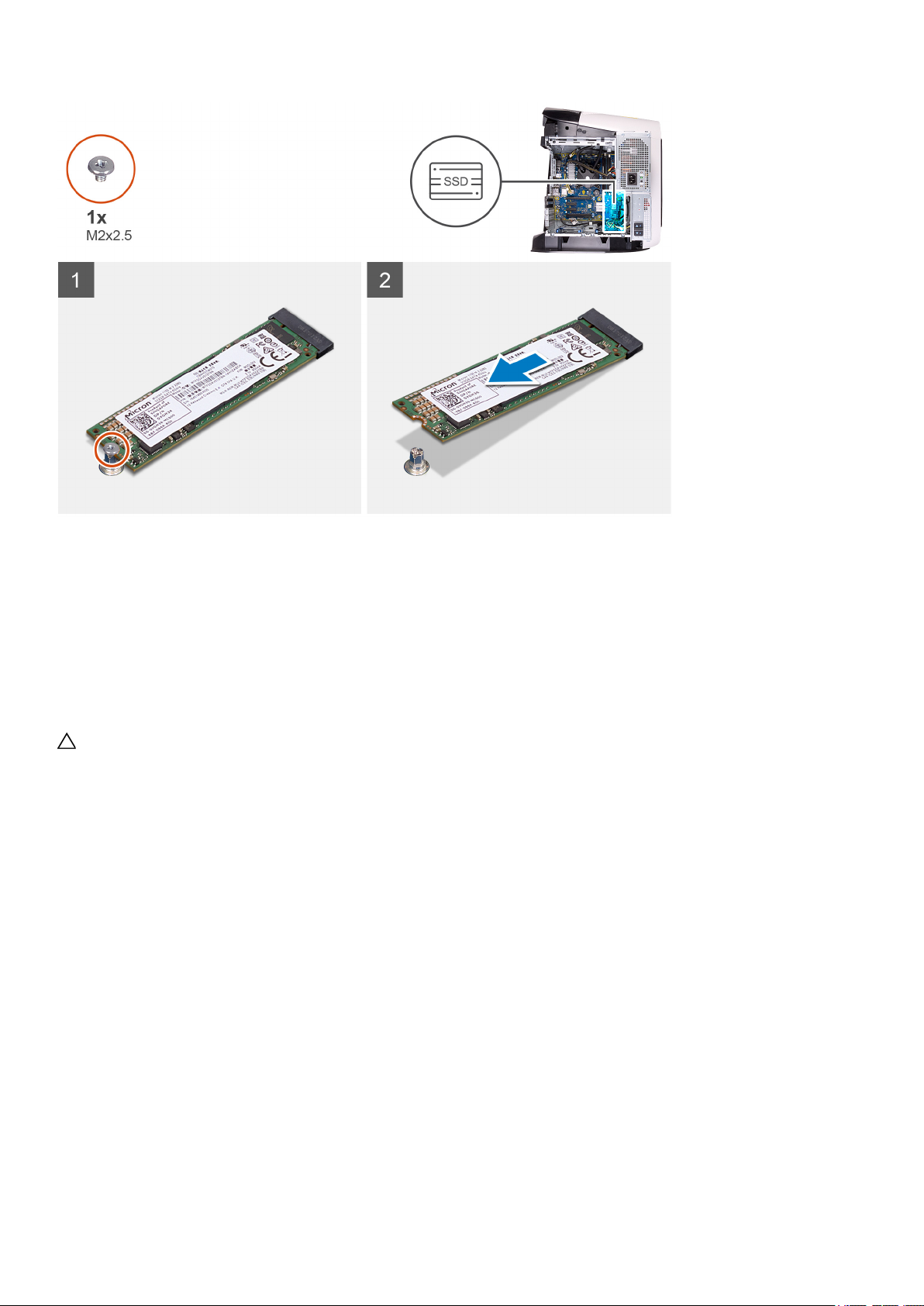

1. Remove the screw (M2x2.5) that secures the solid-state drive to the system board.
2. Slide and lift the solid-state drive off the system board.
Installing the solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
About this task
The following images indicate the location of the solid-state drive and provides a visual representation of the installation procedure.
47
Page 48

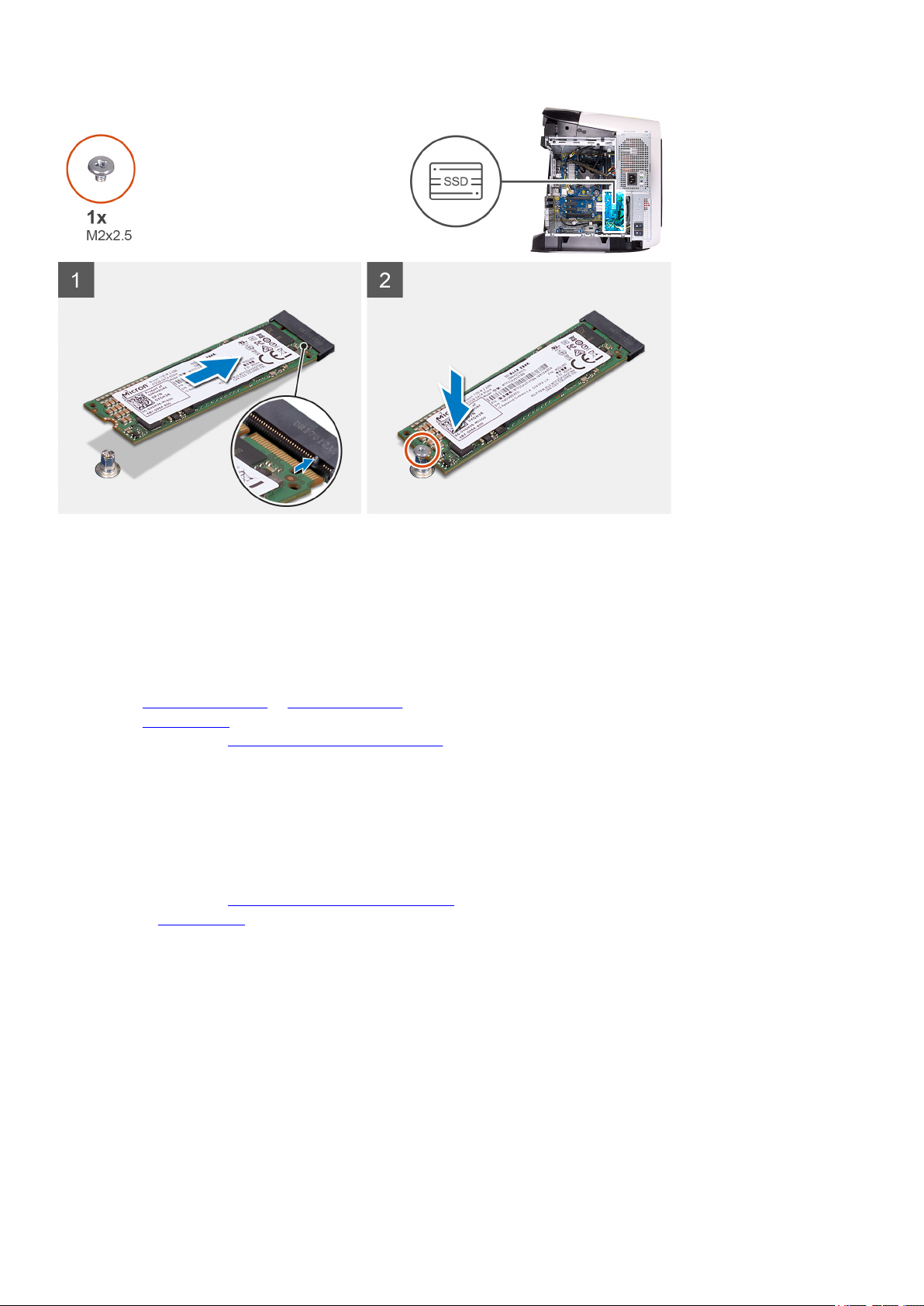

Steps
1. Align the notch on the solid-state drive with the tab on the solid-state drive slot.
2. Insert the solid-state drive at a 45-degree angle into the system board.
3. Press the other end of the solid-state drive down and replace the screw (M2x2.5) that secure the solid-state drive to the system
board.
Next steps
1. Install the single-graphics card or dual-graphics card, as applicable.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
Single-graphics card
Removing the single-graphics card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the graphics card and provides a visual representation of the removal procedure.
48
Page 49
49
Page 50
Steps

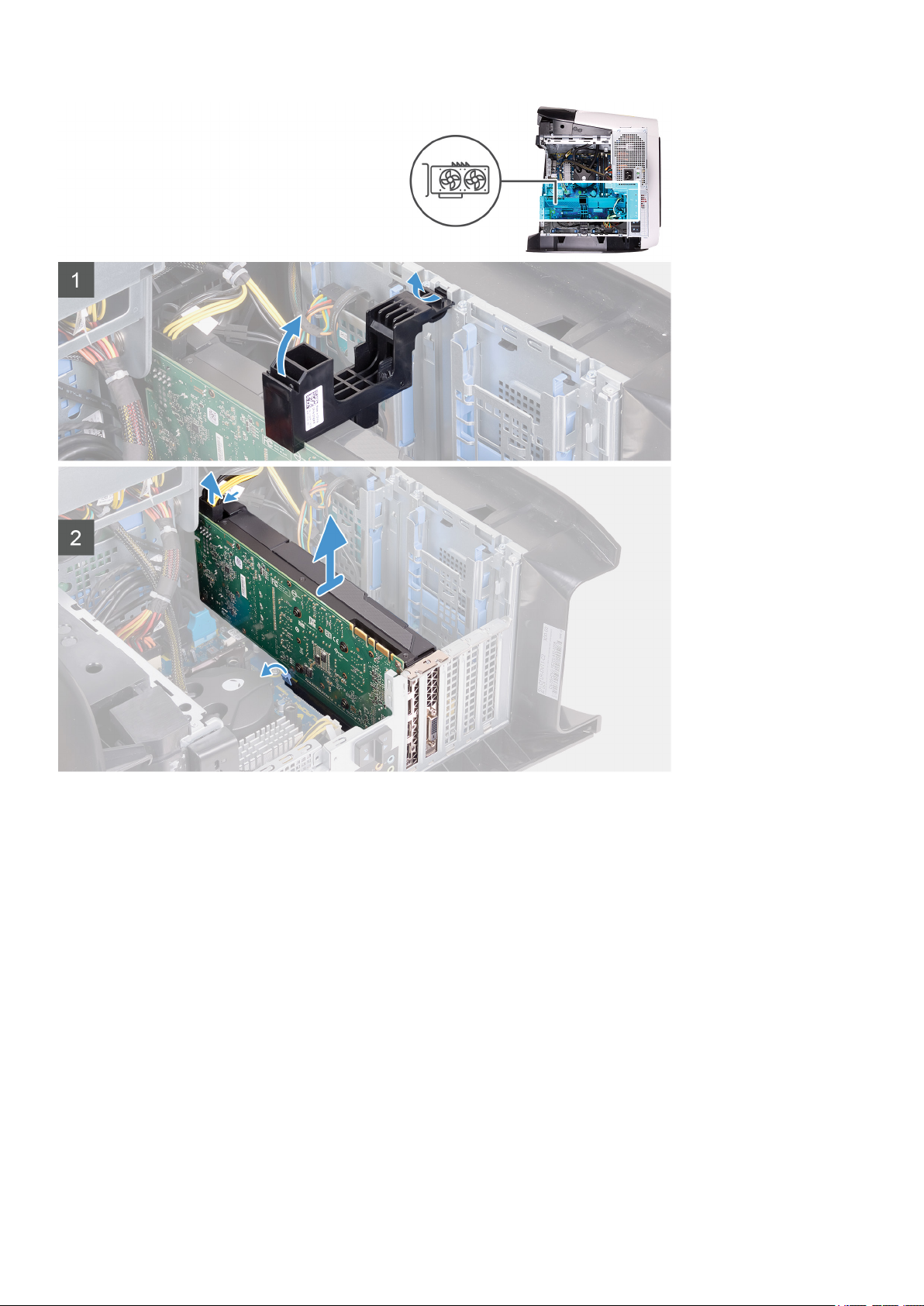

1. Lay the computer on the right side.
2. Slide the power-supply unit cage release latches to the unlock position.

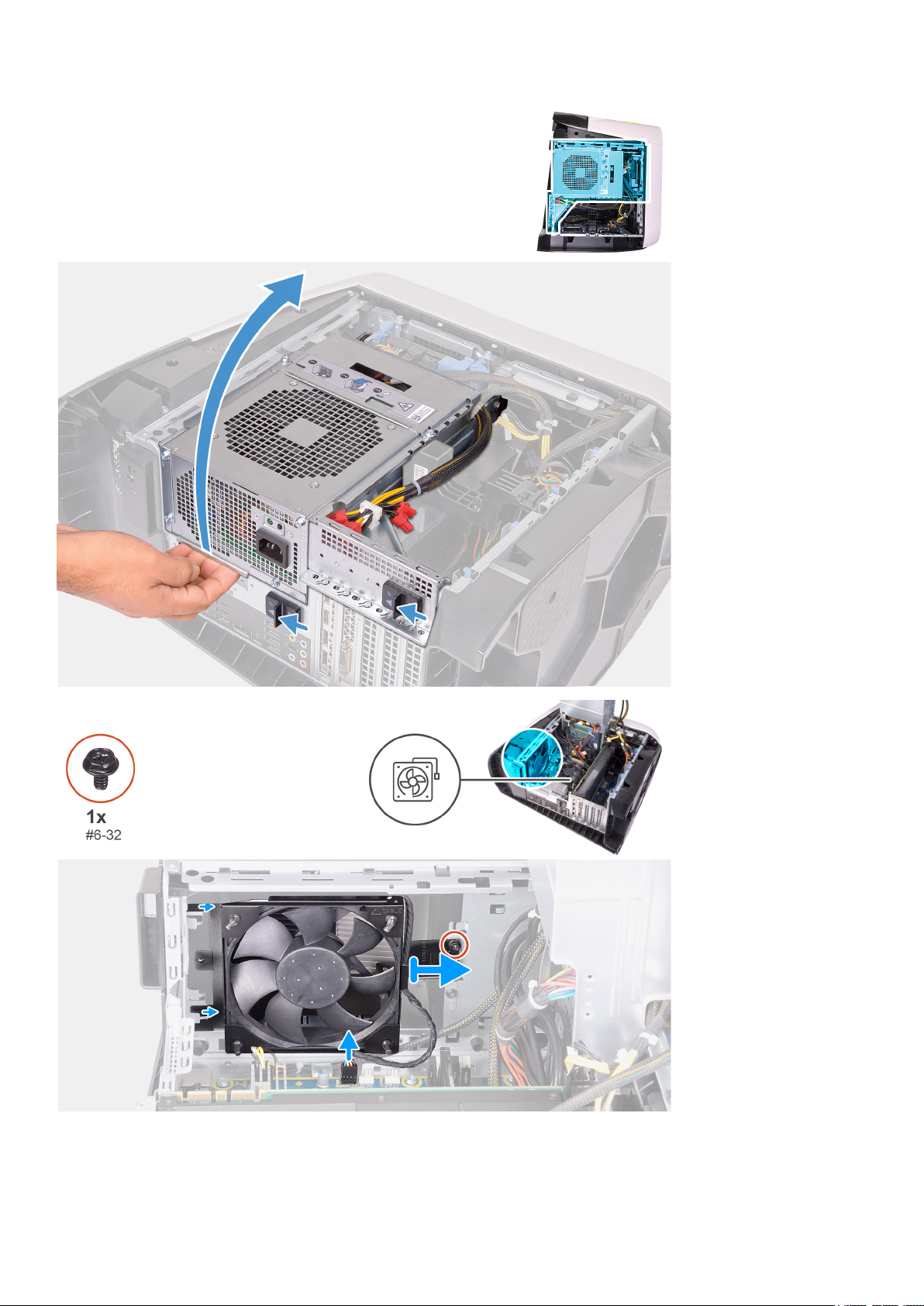

3. Lift the power-supply unit cage and rotate the power-supply unit cage away from the chassis.
4. Lift to release the graphics-card bracket from the chassis.
5. Press the releasing clip on the power-cable connectors and disconnect the power cables from the graphics card.
6. Push the securing tab on the PCIe slot away from the graphics card, grasp the card by its top corner, and ease it out of the slot.
Installing the single-graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the graphics card and provides a visual representation of the installation procedure.
50
Page 51
51
Page 52
Steps
1. Place the card into the X16 slot and press down firmly until the graphics card snaps into place.
2. Connect the power cables to the graphics card.
3. Slide the tab on the graphics-card bracket into the slot on the chassis and rotate it into place.

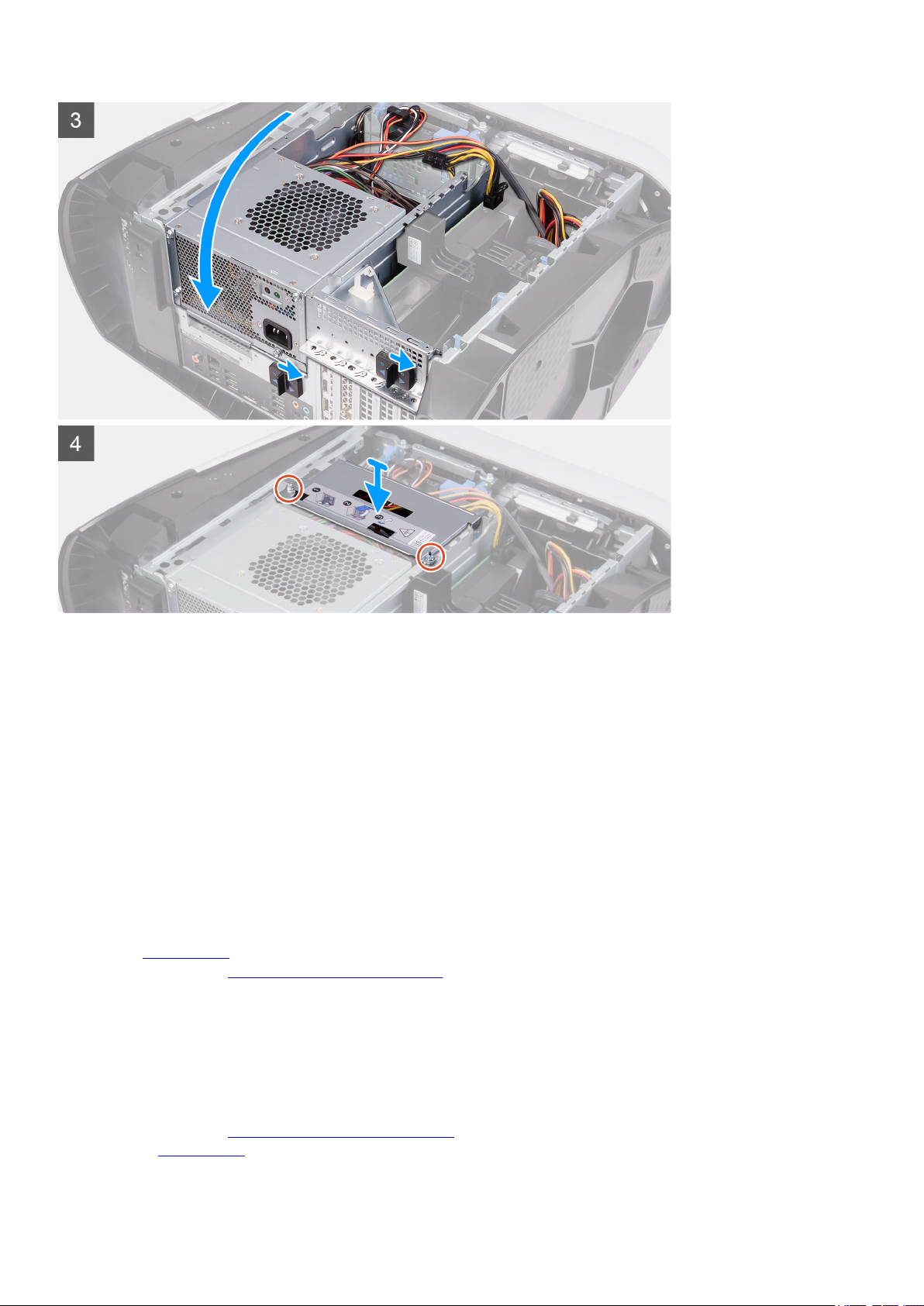

4. Rotate the power-supply unit cage towards the chassis.
5. Slide the power-supply unit cage release latches towards the locked position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Dual-graphics card
Removing the dual-graphics card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task

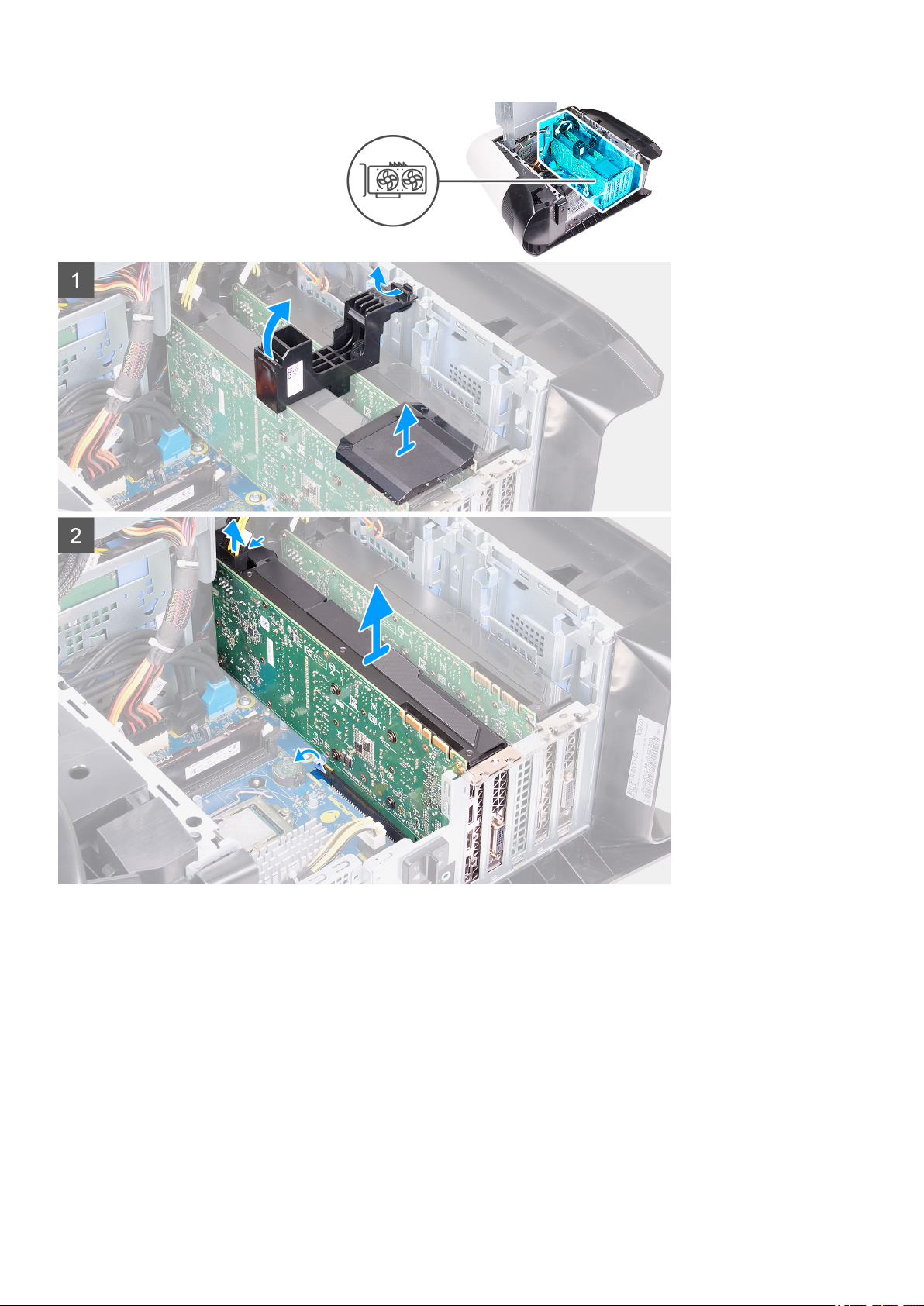

The following images indicate the location of the graphics card and provides a visual representation of the removal procedure.
52
Page 53
53
Page 54
Steps
1. Lay the computer on the right side.
2. Slide the power-supply unit cage release latches to the unlock position.
3. Lift the power-supply unit cage and rotate the power-supply unit cage away from the chassis.
4. Lift the graphics bridge that connects the graphics cards.
5. Lift to release the graphics-card bracket from the chassis.
6. Press the releasing clip on the power-cable connectors and disconnect the power cables from the graphics card.
7. Push the securing tab on the PCIe slot away from the graphics card, grasp the card by its top corner, and ease it out of the slot
on the PCI-Express x8 slot.
8. Push the securing tab on the PCIe slot away from the graphics card, grasp the card by its top corner, and ease it out of the slot
on the PCI-Express x16/x8 slot.
54
Page 55
Installing the dual-graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

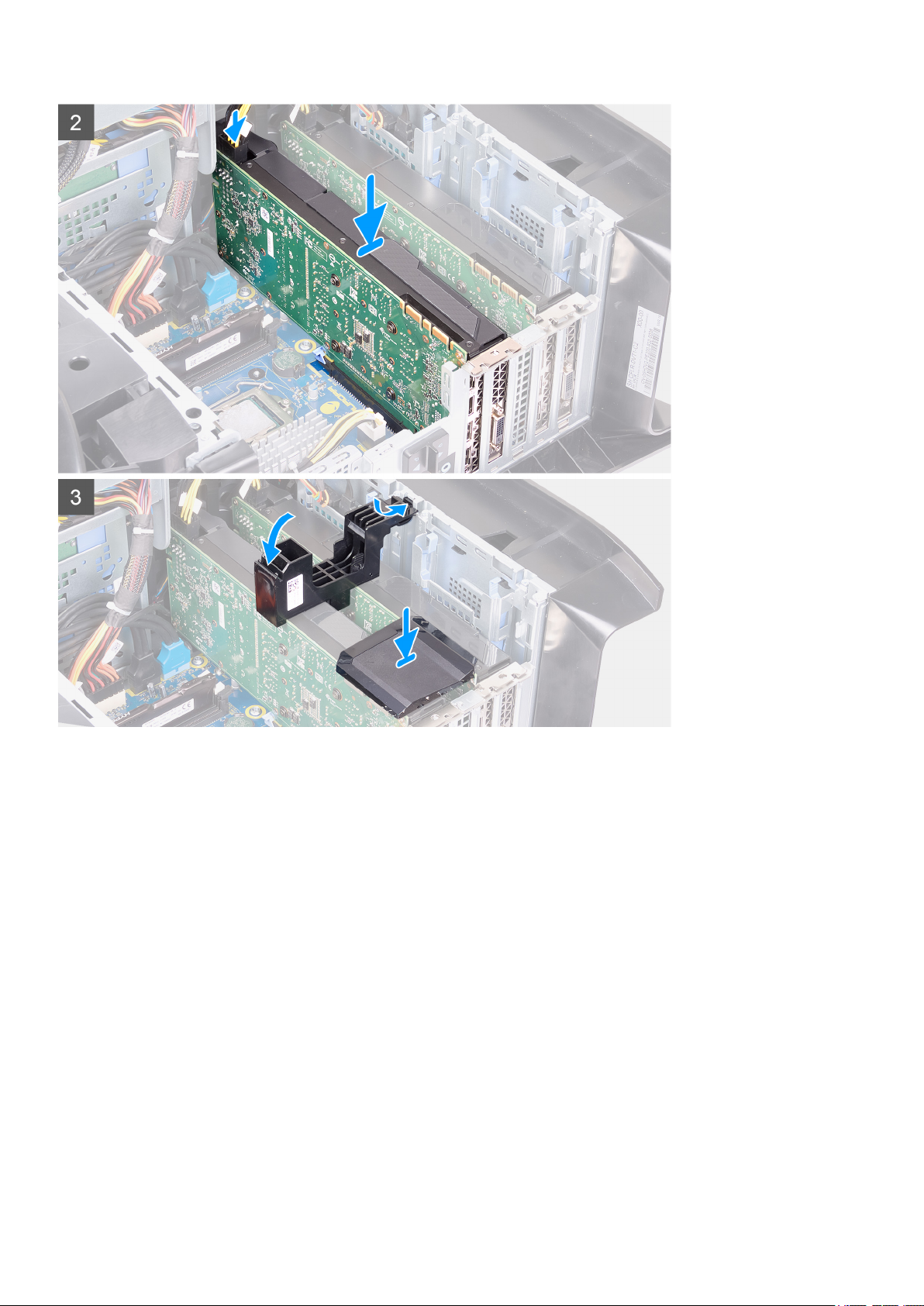

The following images indicate the location of the graphics card and provides a visual representation of the installation procedure.
55
Page 56
56
Page 57
Steps

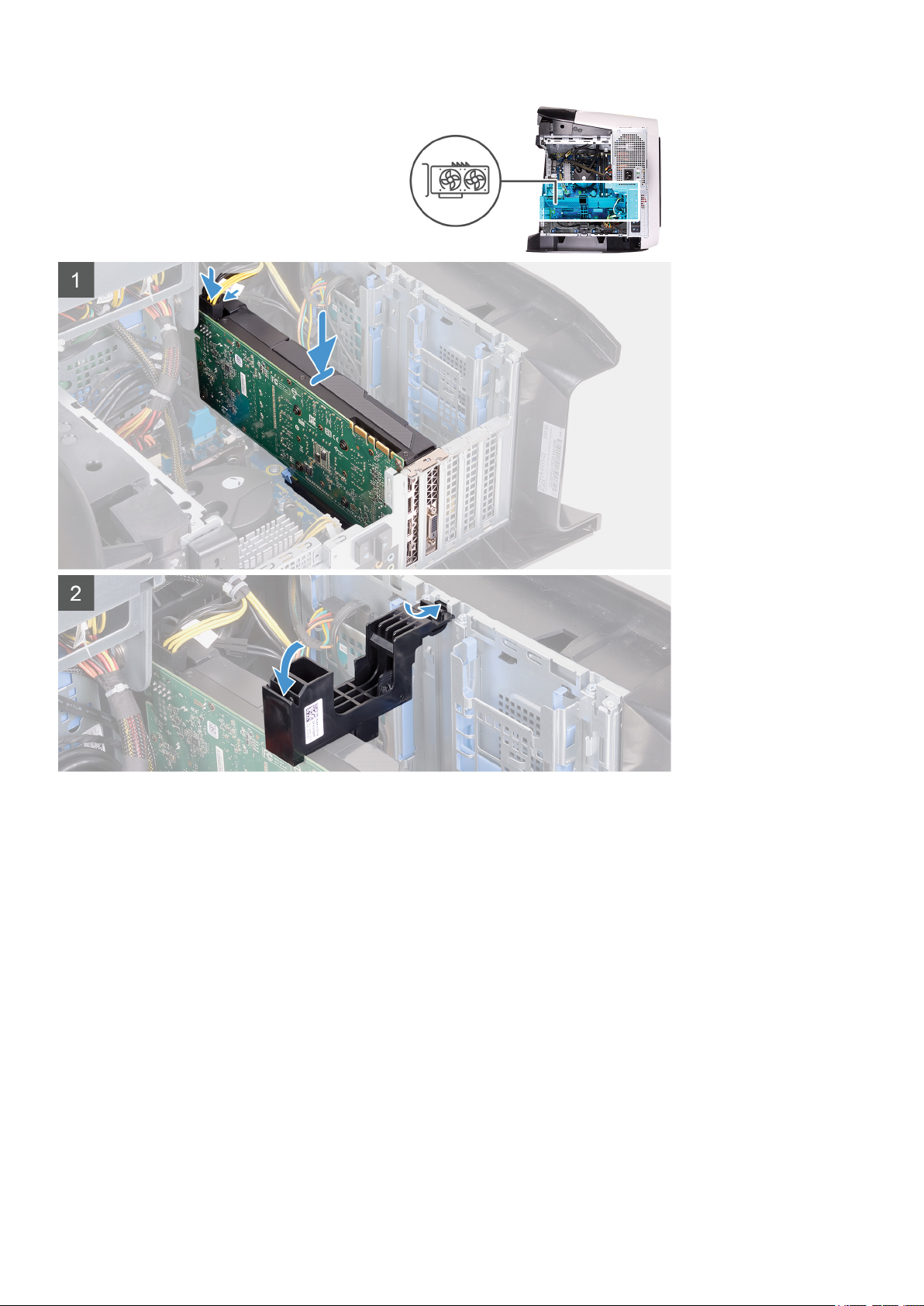

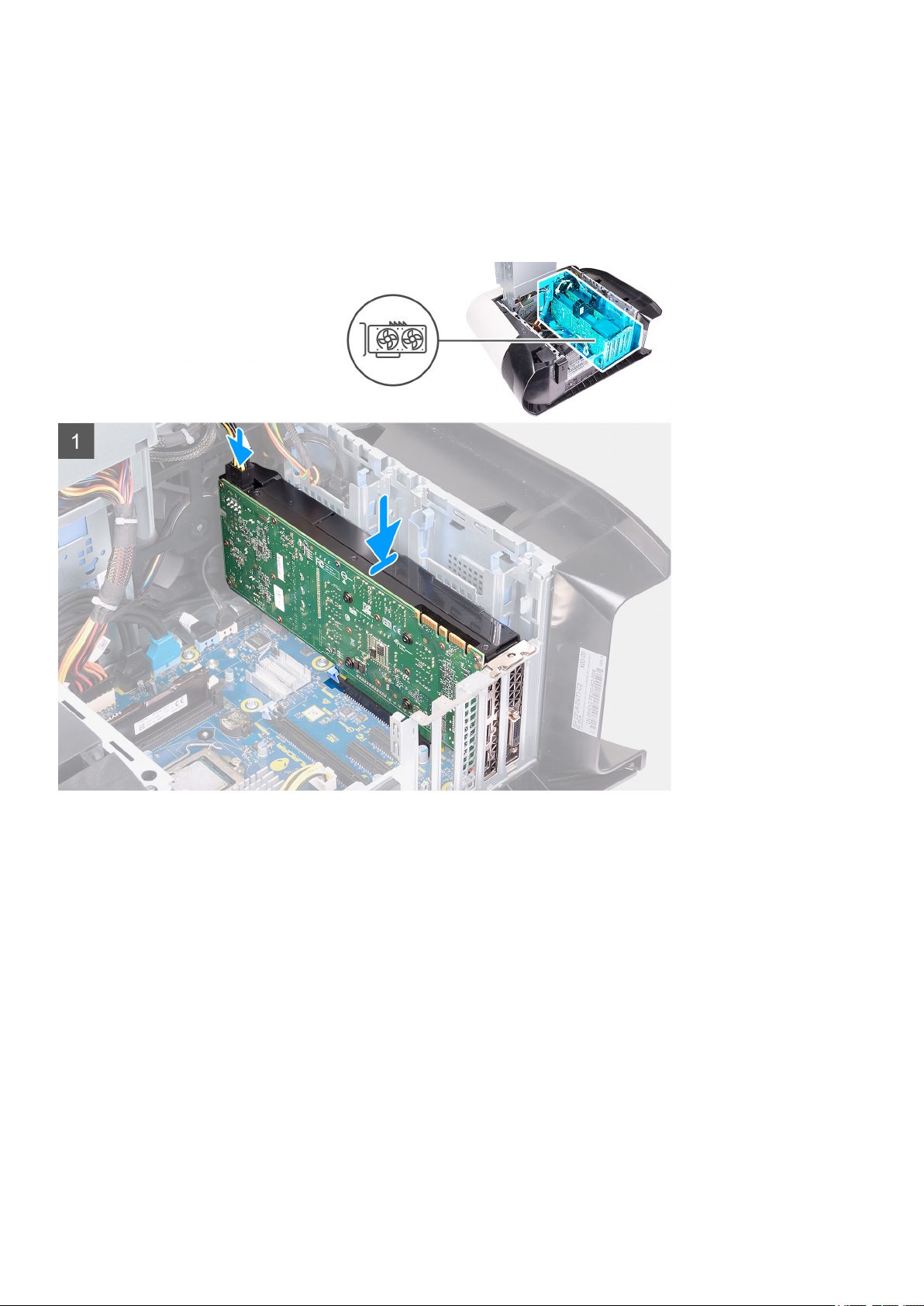

1. Align the graphics card with the slot on the system board.
2. Place the card into the x16/x8 slot and press down firmly until the graphics card snaps into place.
3. Place the card into the x8 slot and press down firmly until the graphics card snaps into place.
4. Connect the power cables to the graphics card.
5. Slide the tab on the graphics-card bracket into the slot on the chassis and snap it into place.
6. Replace the graphics bridge that connects the graphics cards.
7. Rotate the power-supply unit cage towards the chassis.
8. Slide the power-supply unit cage release latches towards the locked position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Front bezel
Removing the front bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the top-cover.
57
Page 58
4. Remove the right-side cover.
5. Remove the single-graphics card or dual-graphics card, as applicable.
About this task
The following images indicate the location of the front bezel and provides a visual representation of the removal procedure.
58
Page 59
59
Page 60
Steps
1. Lay the computer on the right side.
2. Slide the power-supply unit cage release latches to the unlock position.
3. Lift the power-supply unit cage and rotate the power-supply unit cage away from the chassis.

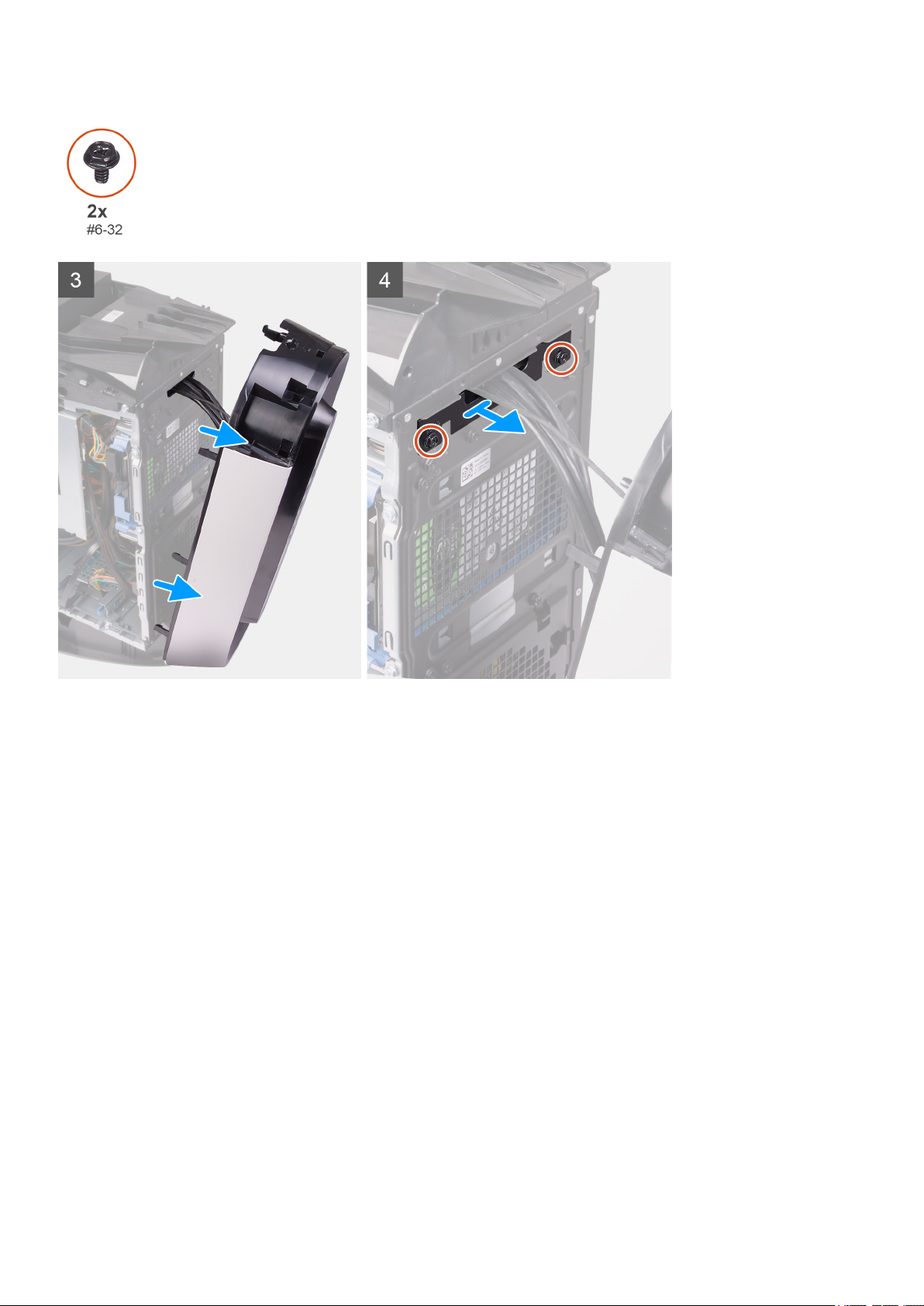

4. Rotate and pull the front bezel away from the front of the chassis to release the tabs on the front bezel from the slots on the
front panel.
5. Remove the two screws (#6-32) that secure the front-panel slot cover to the chassis.
6. Remove the cable management cover off the chassis.

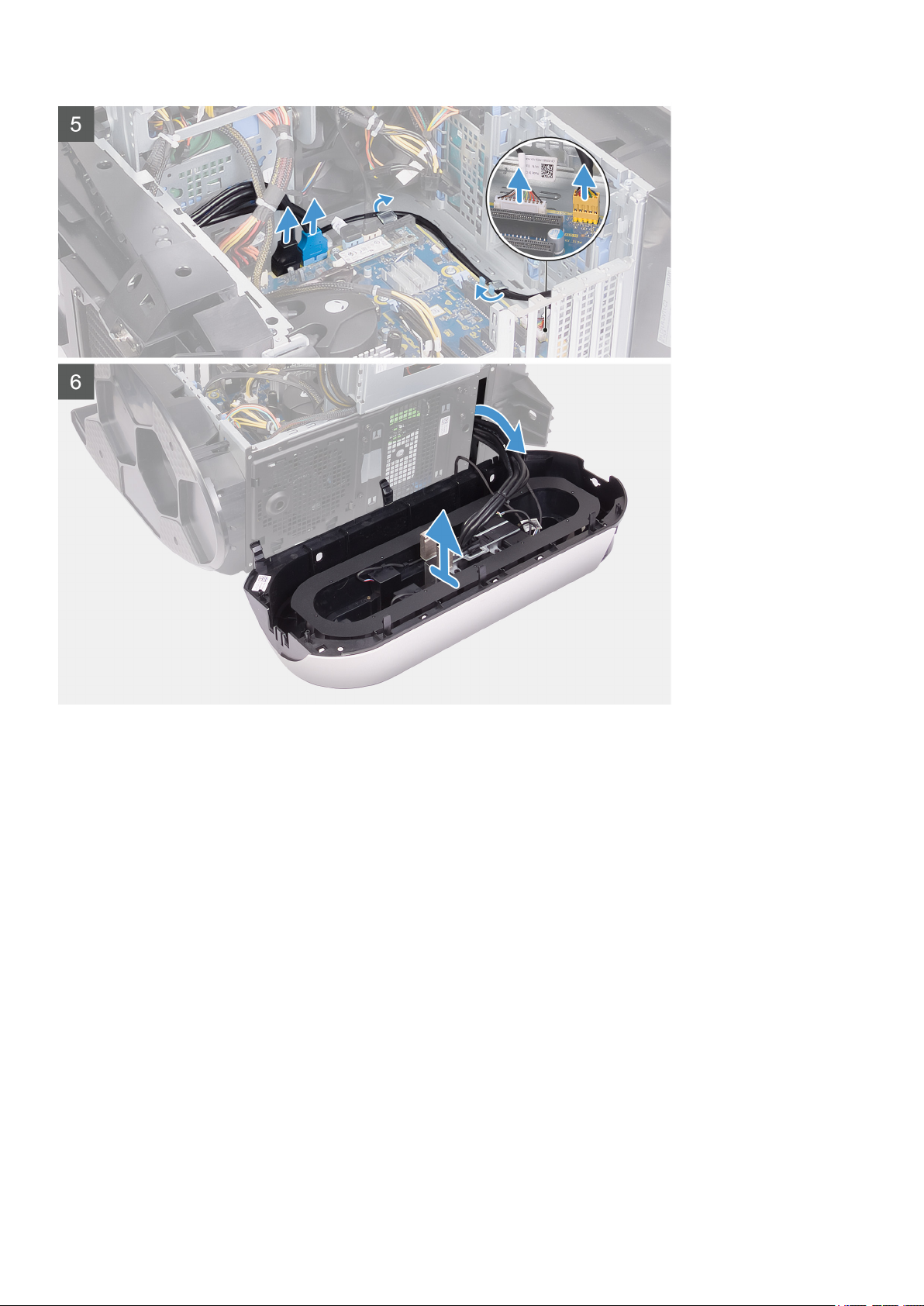

7. Disconnect the USB cables, LED controller cable and audio cable from the system board and remove the cables from the
routing guides on the inside of the chassis.
8. Place the computer in an upright position.
9. Disconnect the tron-light cable and then remove the cable from the routing guides on the chassis.

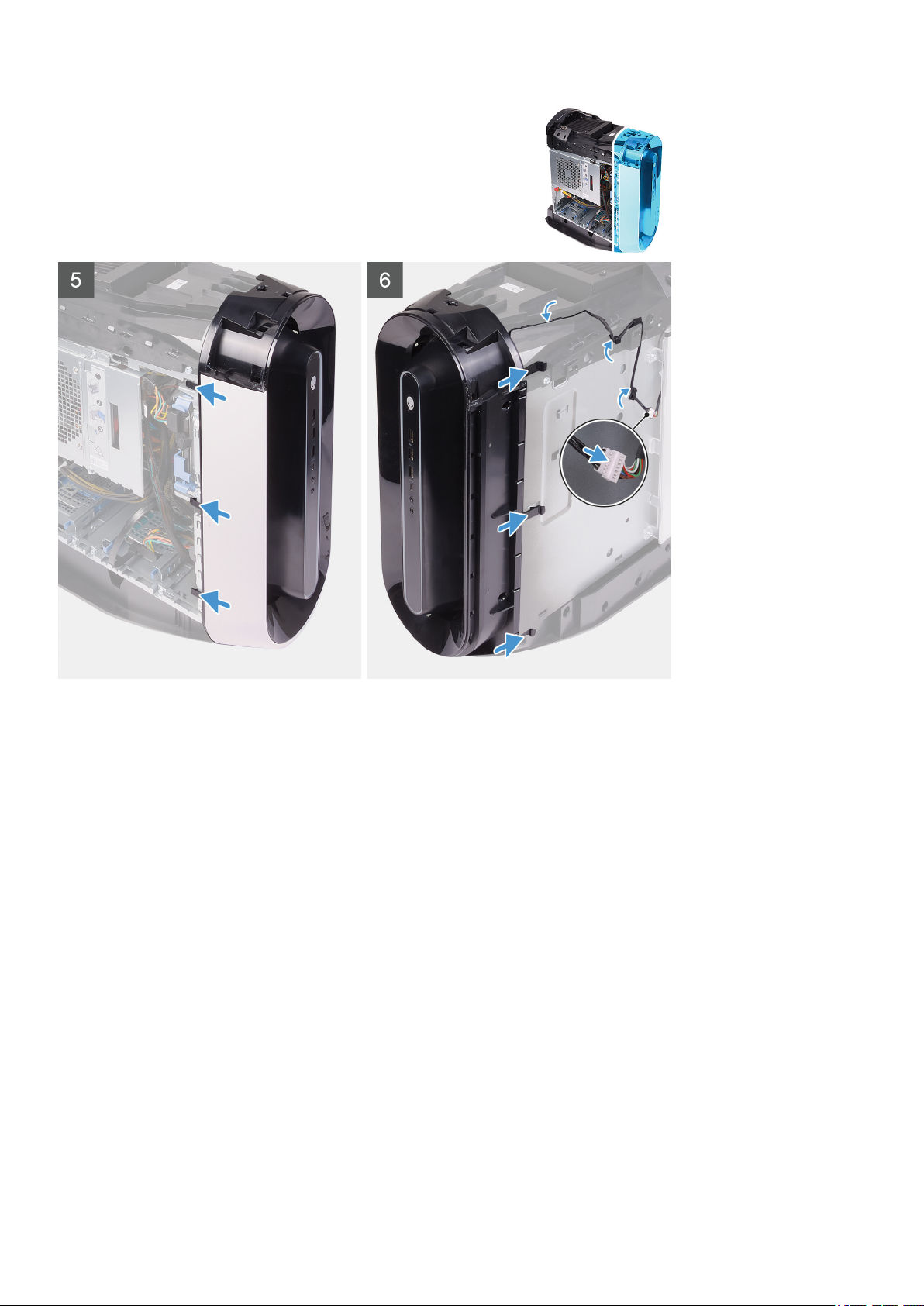

10. Grasp and release the front bezel tabs sequentially from the top, by moving them outward from the front panel.
11. Remove the power-button module cable from the routing guides on the chassis and disconnect the power-button module cable.
12. Route the cables through the slot on the front panel and lift the front bezel away from the chassis.
Installing the front bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
60
Page 61
About this task

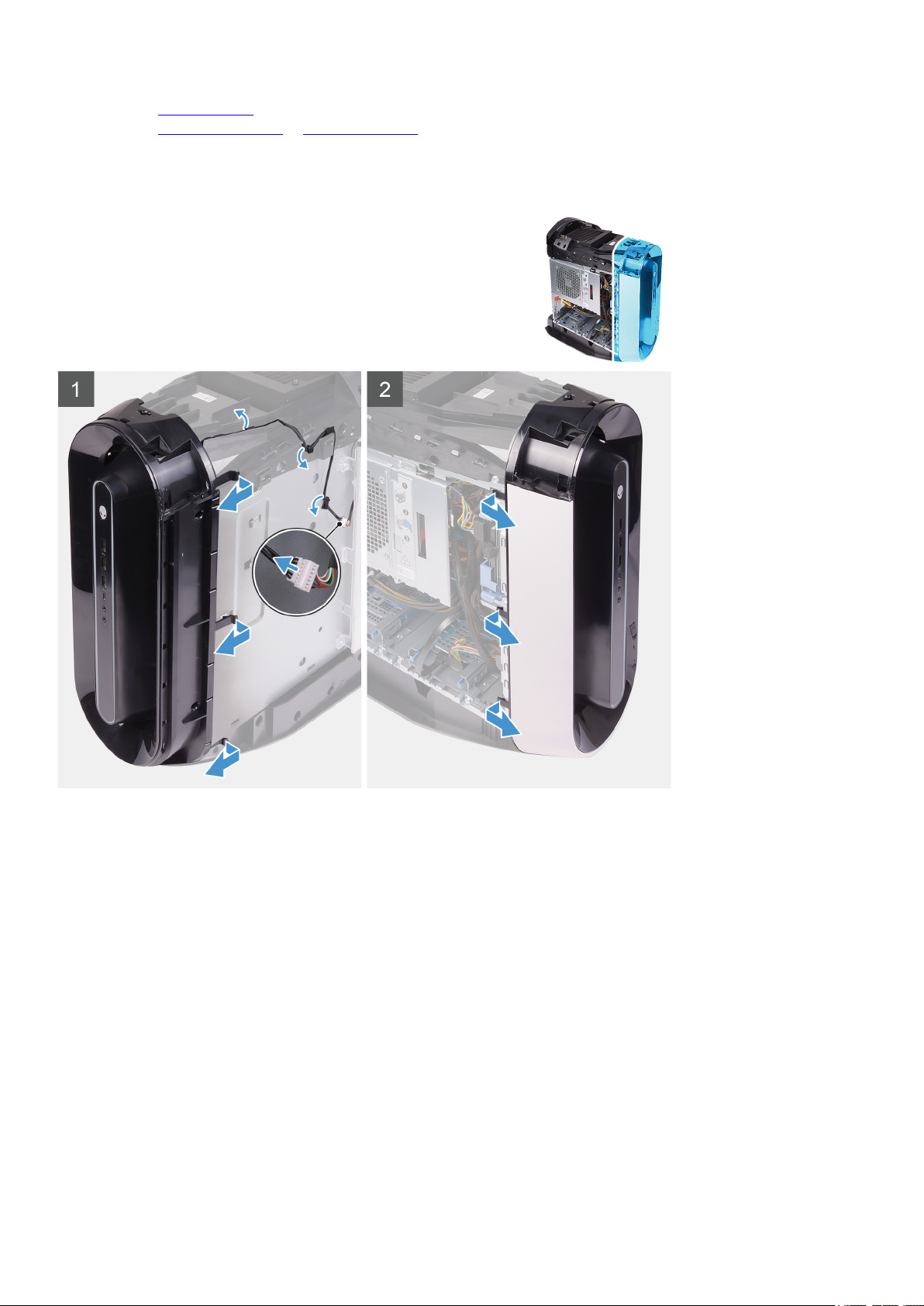

The following images indicate the location of the front bezel and provides a visual representation of the installation procedure.
616263
Page 62
Page 63
Page 64
Steps

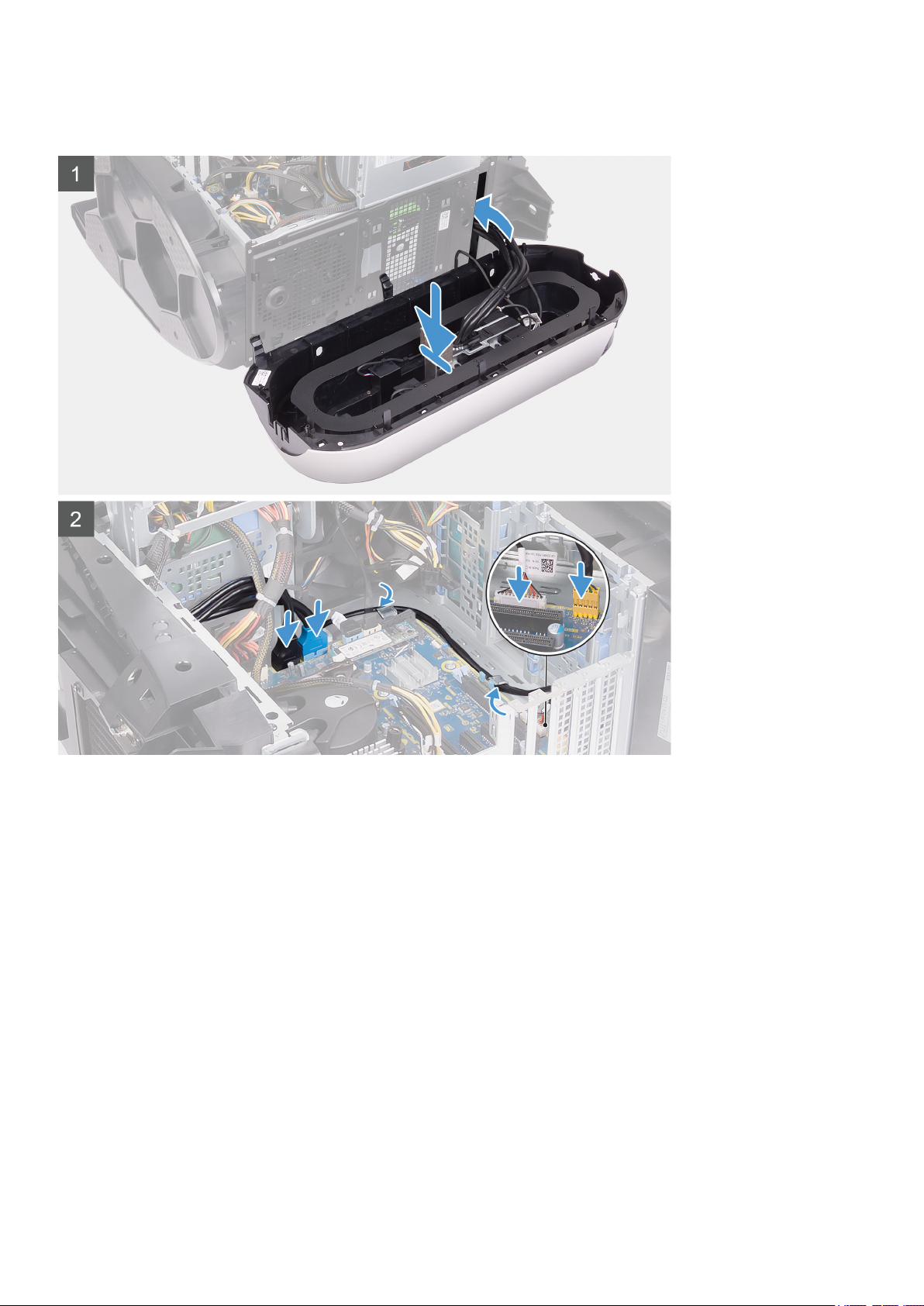

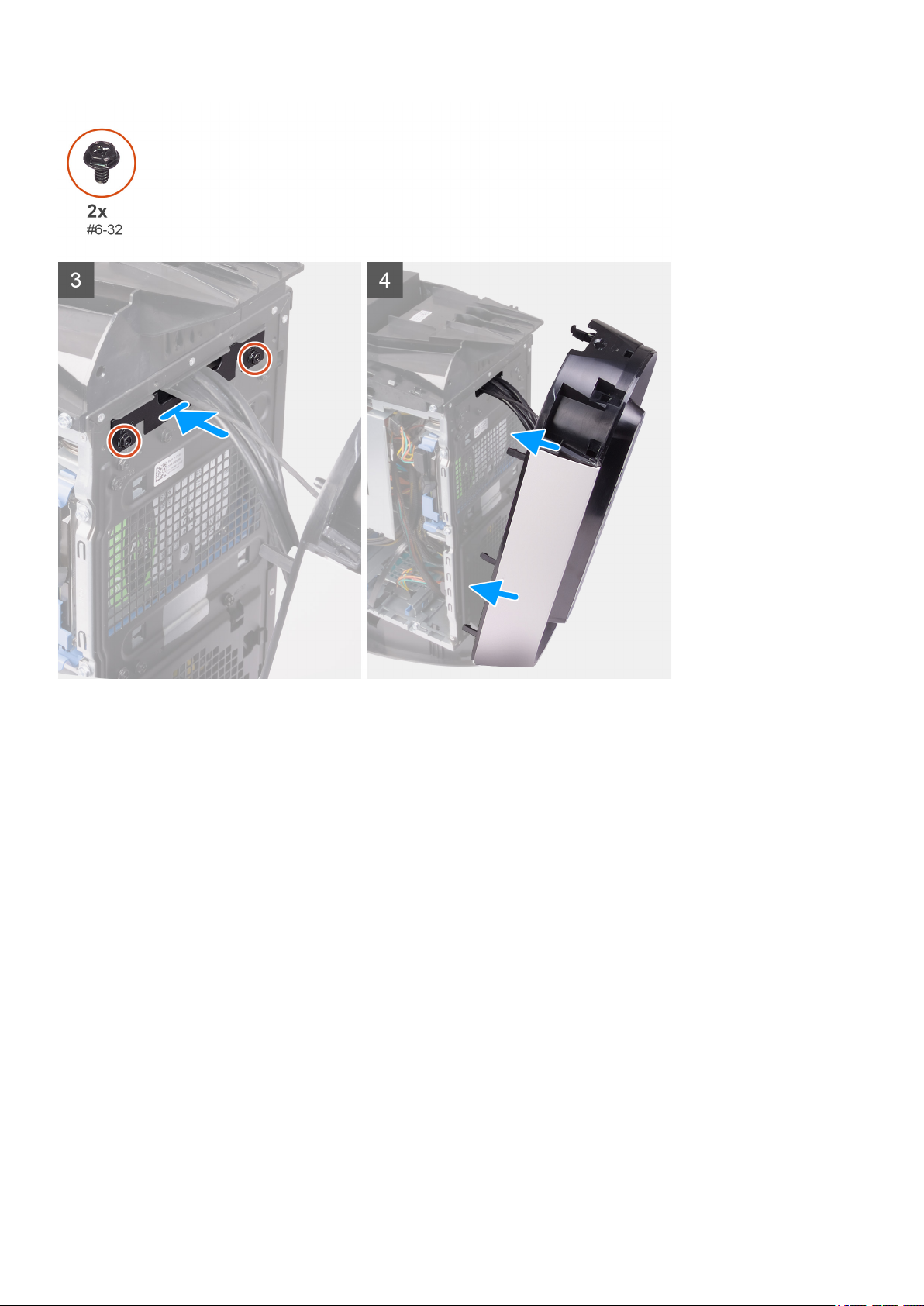

1. Route the cables through the slot on the front panel and align and clip the front bezel into place.
2. Align the screw hole of the cable management cover with the screw hole on the chassis.
3. Replace the two screws (#6-32) that secure the cable management cover to the chassis.
4. Connect the USB cables, LED controller cable and audio cable to the system board and route the cables through the routing
guides on the inside of the chassis.
5. Route the power-button module cable through the routing guides on the chassis and connect the power-button module cable.
6. Place the computer in an upright position.
7. Route the tron-light cable through the routing guides on the chassis and connect the tron-light cable.
8. Rotate the power-supply unit cage towards the chassis.
9. Slide the power-supply unit cage release latches towards the locked position.
Next steps
1. Install the single-graphics card or dual-graphics card, as applicable.
2. Install the right-side cover.
3. Install the top-cover.
4. Install the left-side cover.
5. Follow the procedure in After working inside your computer.
64
Page 65
Top bezel
Removing the top bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the top cover.
4. Remove the right-side cover.
5. Remove the wireless card.
6. Remove the front bezel.
About this task
The following images indicate the location of the top bezel and provides a visual representation of the removal procedure.

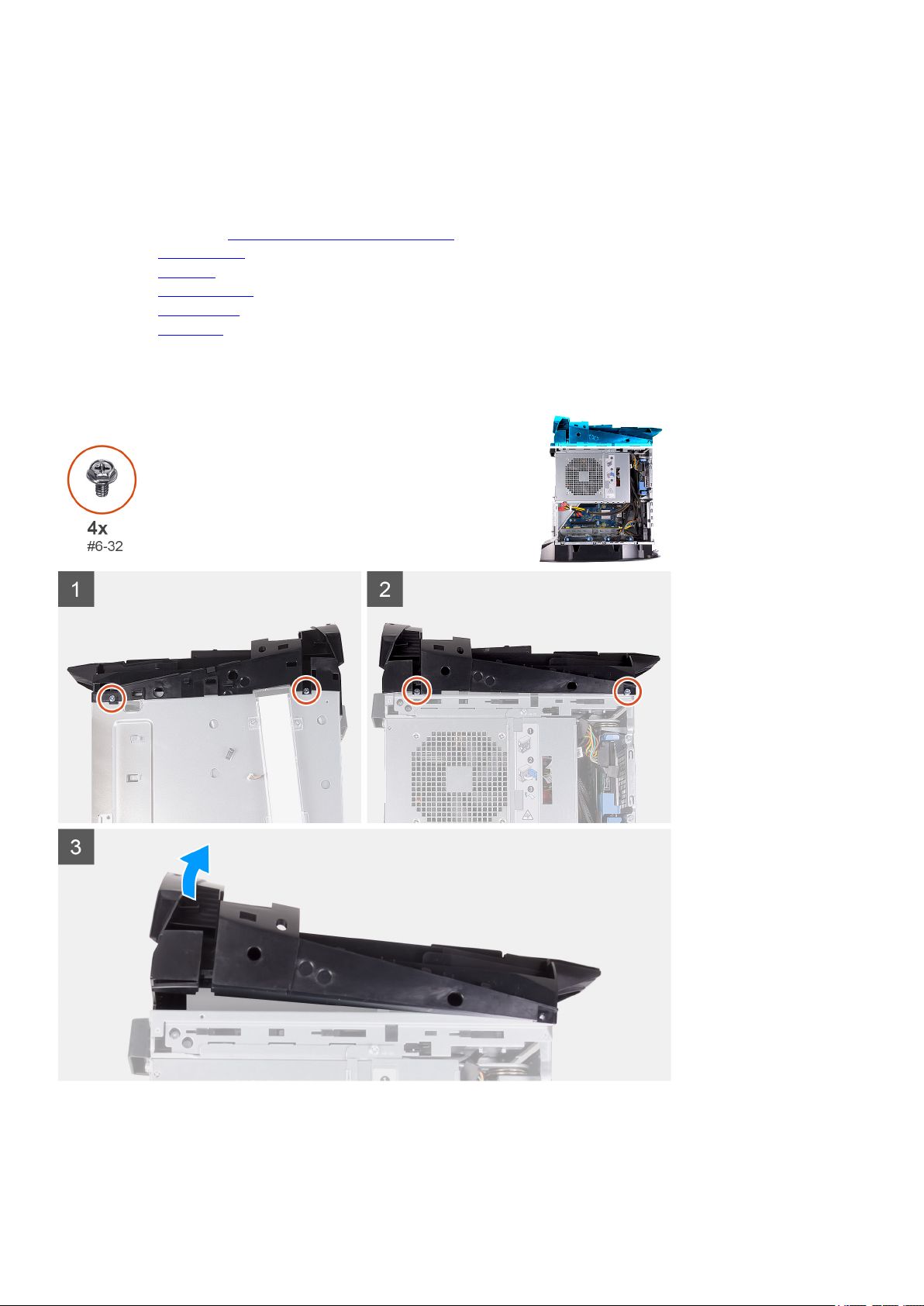

Steps
1. Remove the four screws (#6-32) that secure the top bezel to the right and left of the chassis.
2. Lift the top cover off the chassis.
65
Page 66
Installing the top bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the top bezel and provides a visual representation of the installation procedure.

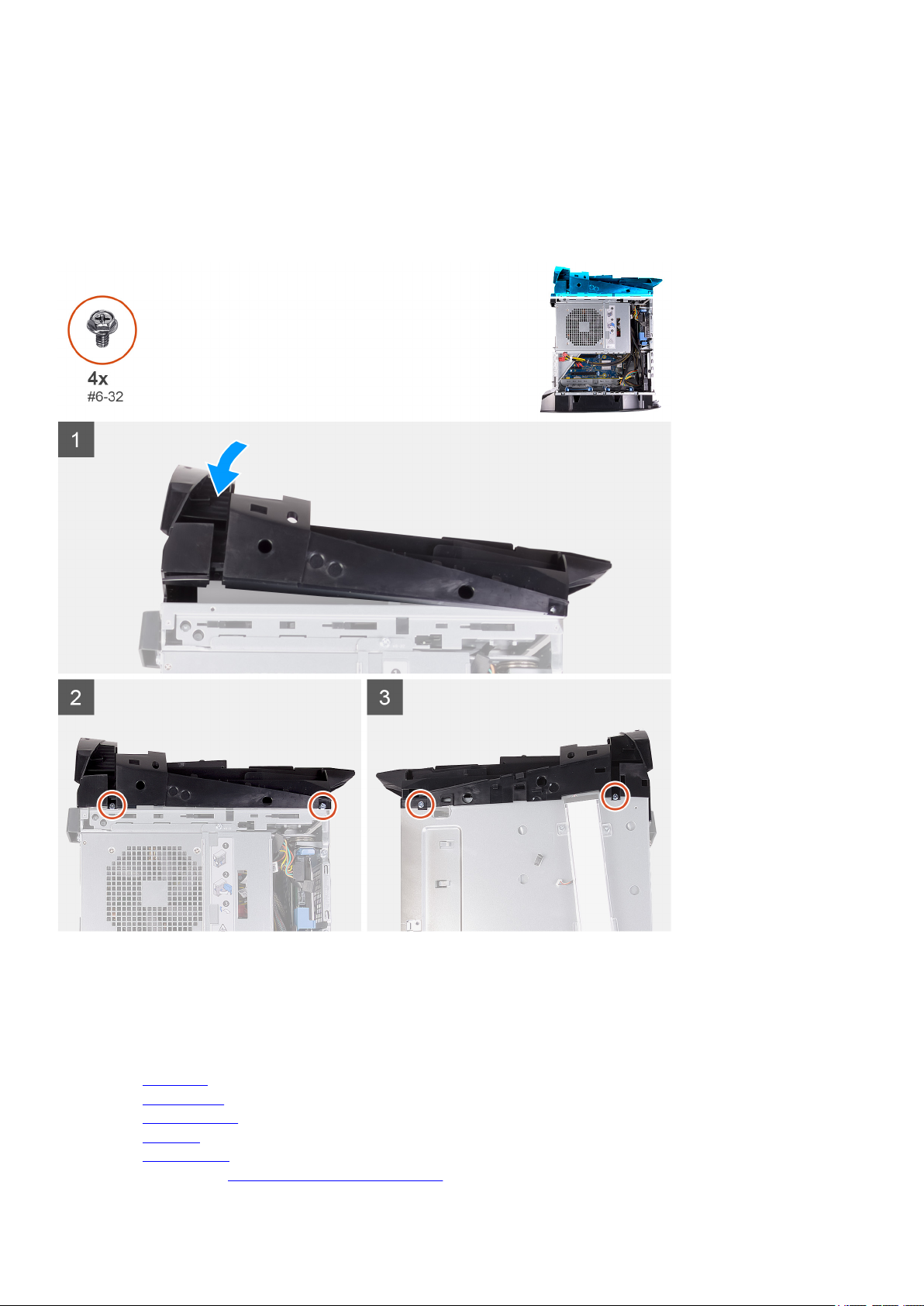

Steps
1. Align the tabs on the top cover with the slots on the chassis and snap the top cover into place.
2. Replace the four screws (#6-32) that secure the top bezel to the right and left of the chassis.
Next steps
1. Install the front bezel.
2. Install the wireless card.
3. Install the right-side cover.
4. Install the top cover.
5. Install the left-side cover.
6. Follow the procedure in After working inside your computer.
66
Page 67
Bottom cover
Removing the bottom cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the top cover.
4. Remove the right-side cover.
5. Remove the 2.5-inch hard-drive cages.
6. Remove the front bezel.
About this task
The following images indicate the location of the bottom cover and provides a visual representation of the removal procedure.

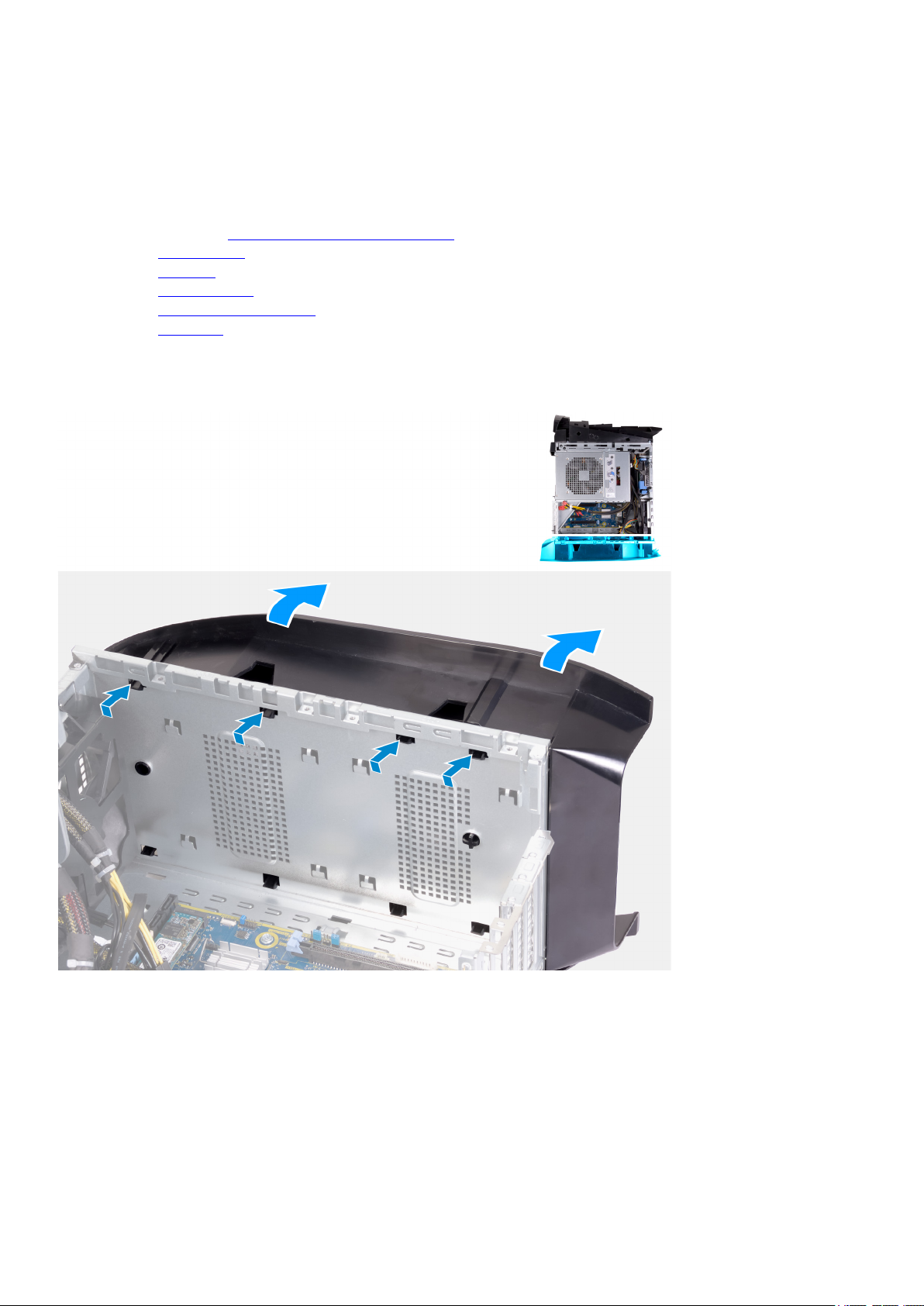

Steps
1. Place the computer on a clean and flat surface with the left side facing up.
2. Press the securing tabs to release the bottom cover from the slots on the chassis.
3. Remove the bottom cover from the chassis.
67
Page 68
Installing the bottom cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the bottom cover and provides a visual representation of the installation procedure.

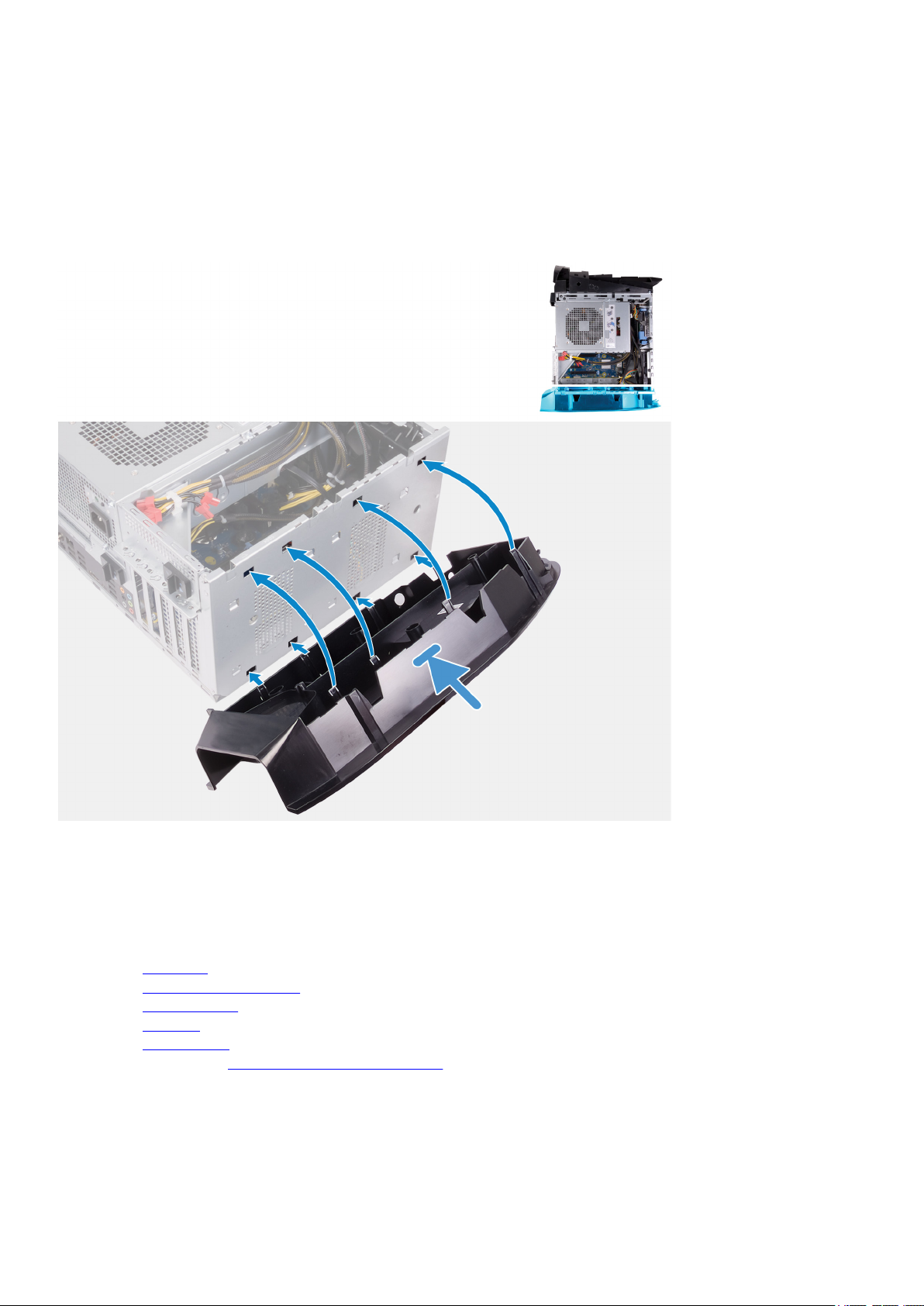

Steps
1. Align the tabs on the bottom cover with the slots on the chassis.
2. Rotate the bottom cover towards the chassis until it snaps into place.
Next steps
1. Install the front bezel.
2. Install the 2.5-inch hard-drive cages.
3. Install the right-side cover.
4. Install the top cover.
5. Install the left-side cover.
6. Follow the procedure in After working inside your computer.
68
Page 69
Processor fan and heat-sink assembly
Removing the processor fan and heat-sink assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to cool
before you touch it.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils
in your skin can reduce the heat transfer capability of the thermal grease.
2. Remove the left-side cover.
About this task
The following images indicate the location of the processor fan and heat-sink assembly and provides a visual representation of the
removal procedure.
69
Page 70

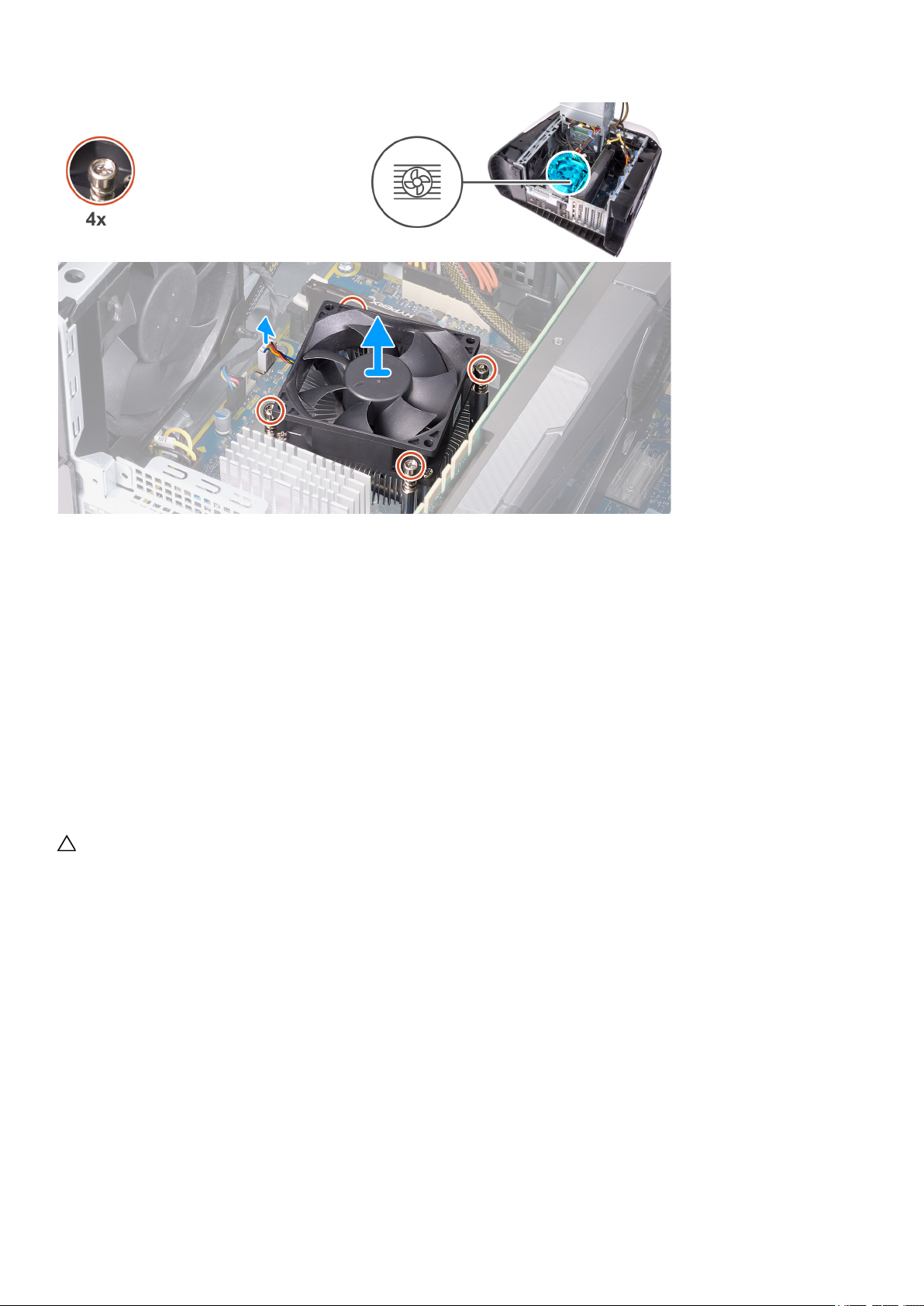

Steps
1. Lay the computer on the right side.
2. Slide the power-supply unit cage release latches to the unlock position.
3. Lift the power-supply unit cage and rotate the power-supply unit cage away from the chassis.
4. Disconnect the processor-fan cable from the system board.
5. In reverse sequential order, loosen the four captive screws that secure the processor fan and heat-sink assembly to the system
board.
6. Lift the processor fan and heat-sink assembly off the system board.
Installing the processor fan and heat-sink assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: If either the processor or the heat sink is replaced, use the thermal grease provided in the kit to ensure
that thermal conductivity is achieved.
About this task
The following images indicate the location of the processor fan and heat-sink assembly and provides a visual representation of the
installation procedure.
70
Page 71
Steps
1. Place the processor fan and heat-sink assembly on the processor.
71
Page 72
2. Align the captive screws on the processor fan heat-sink assembly with the screw holes on the system board.
3. In sequential order, tighten the four captive screws that secure the processor fan and heat-sink assembly to the system board.
4. Connect the processor-fan cable to the system board.
5. Rotate the power-supply unit cage towards the chassis.
6. Slide the power-supply unit cage release latches towards the locked position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Processor
Removing the processor
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the processor liquid-cooling assembly or processor fan and heat-sink assembly, as applicable.
About this task
The following images indicate the location of the processor and provides a visual representation of the removal procedure.

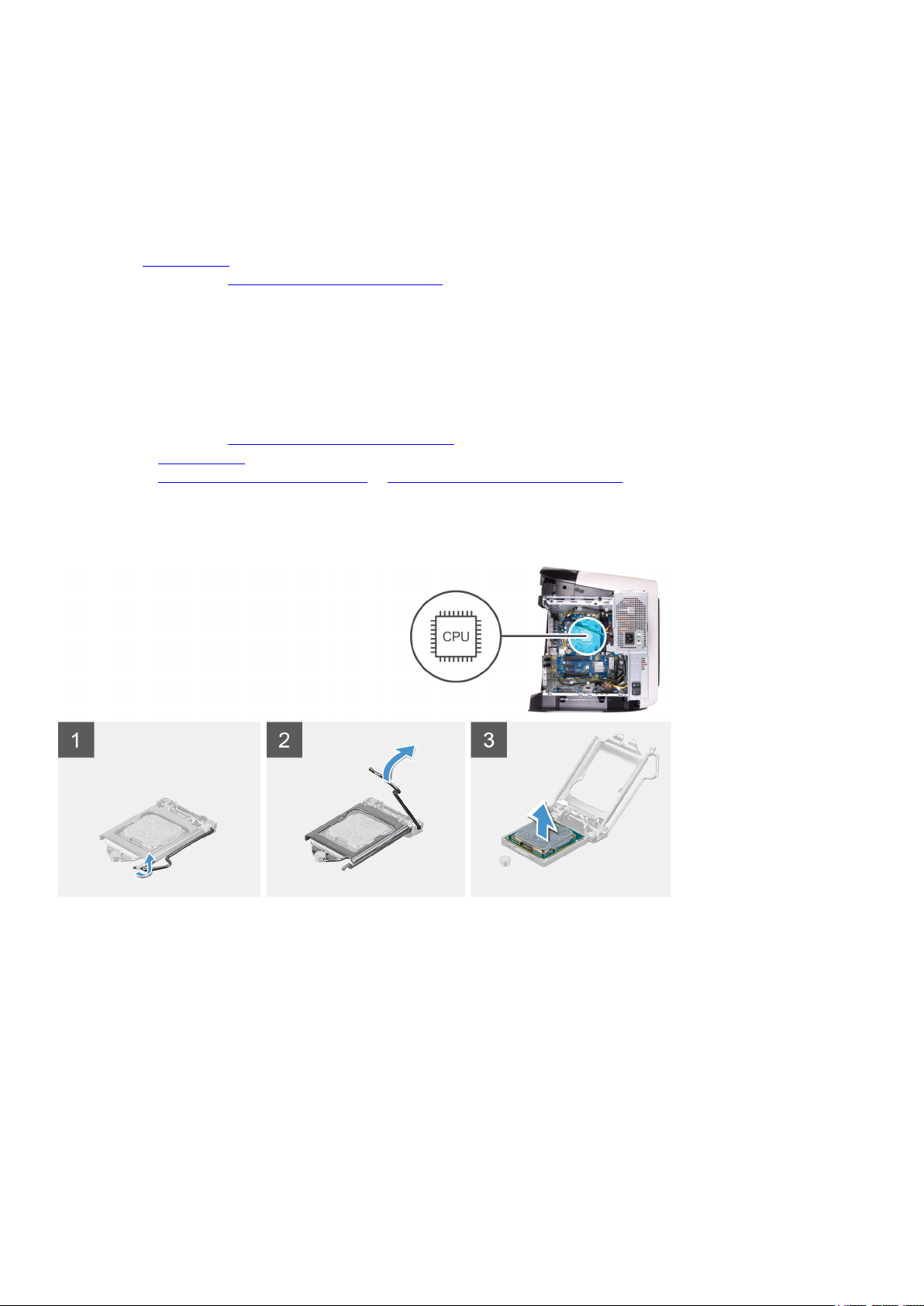

Steps
1. Press the release lever down and then push it away from the processor to release it from the tab.
2. Extend the release lever completely and open the processor cover.
3. Lift the processor off the processor socket.
Installing the processor
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the processor and provides a visual representation of the installation procedure.
72
Page 73

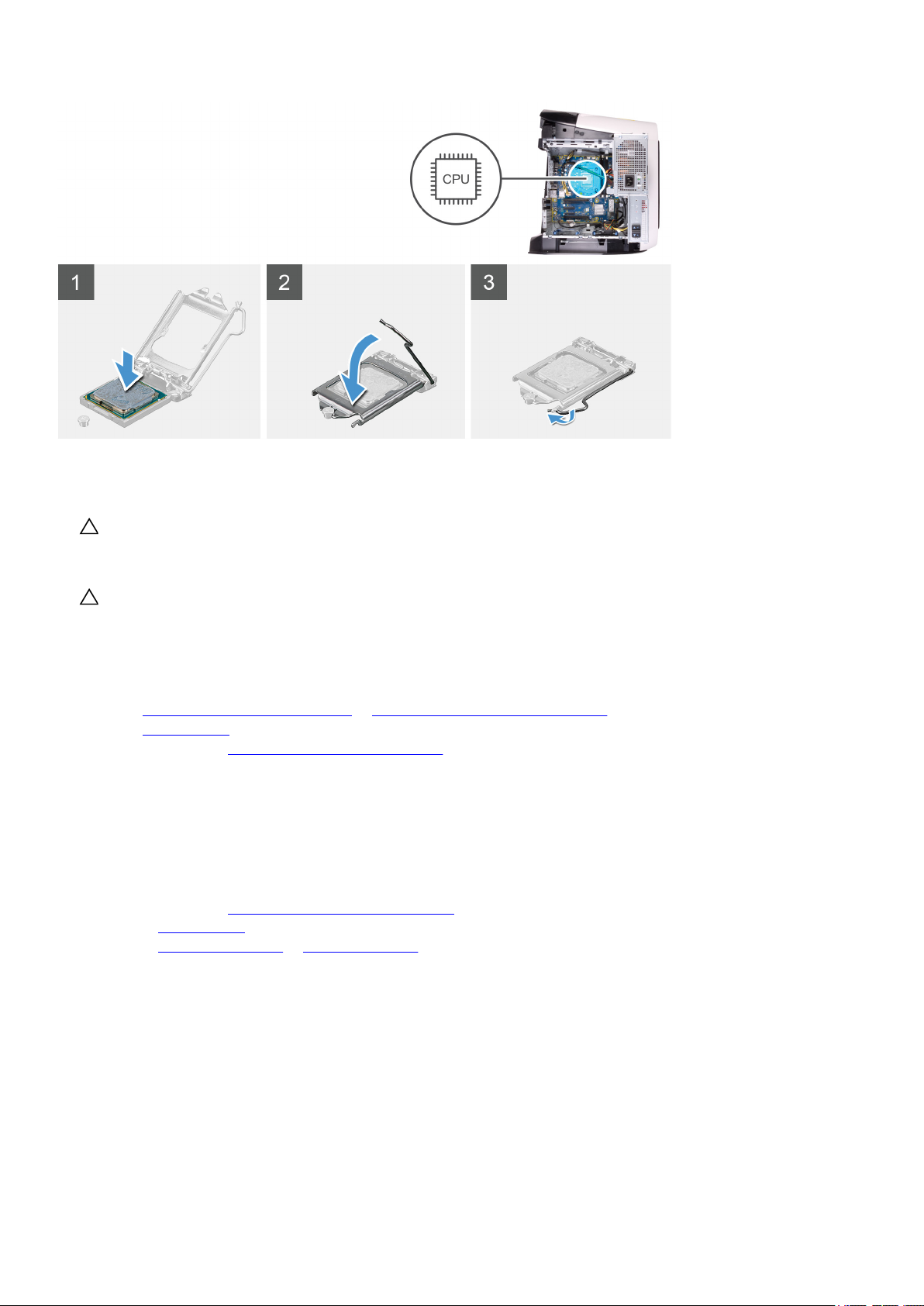

Steps
1. Ensure that the release lever on the processor socket is fully extended and the processor cover is fully open.
CAUTION: Position the processor correctly in the processor socket to avoid permanent damage to the processor.
2. Align the pin-1 corner on the processor with the pin-1 corner on the processor socket, and then place the processor in the
processor socket.
CAUTION: Ensure that the processor-cover notch is positioned underneath the alignment post.
3. When the processor is fully seated in the socket, close the processor cover.
4. Pivot the release lever down and place it under the tab on the processor cover.
Next steps
1. Install the processor liquid-cooling assembly or processor fan and heat-sink assembly, as applicable.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the single-graphics card or dual-graphics card, as applicable.
About this task
The following images indicate the location of the wireless card and provides a visual representation of the removal procedure.
73
Page 74

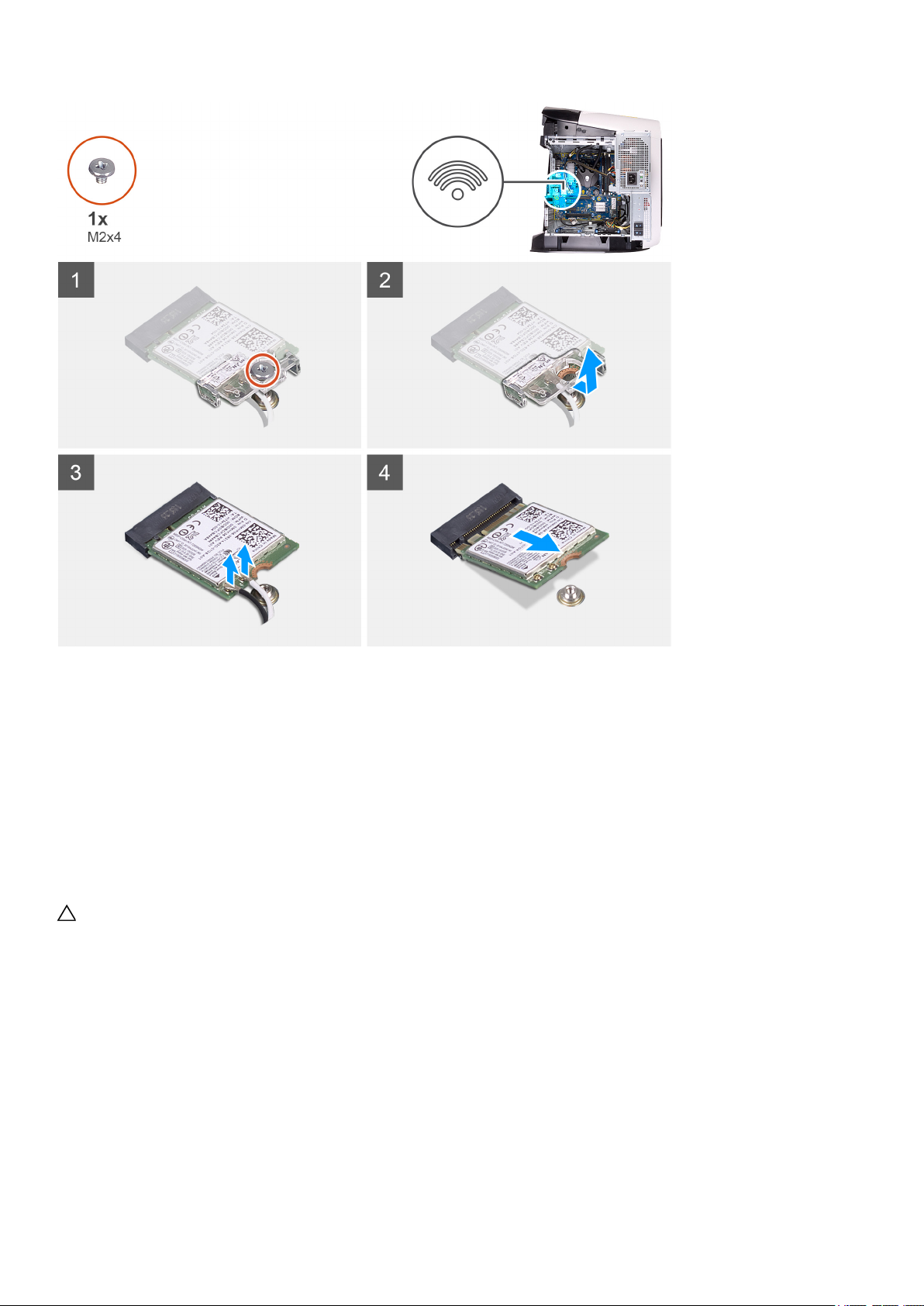

Steps
1. Remove the screw (M2x4) that secures the wireless card to the system board.
2. Lift the wireless-card bracket off the wireless card.
3. Disconnect the antenna cables from the wireless card.
4. Slide and remove the wireless card from the wireless-card slot.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: To avoid damage to the wireless mini-card, do not place any cables under it.
About this task
The following images indicate the location of the wireless card and provides a visual representation of the installation procedure.
74
Page 75

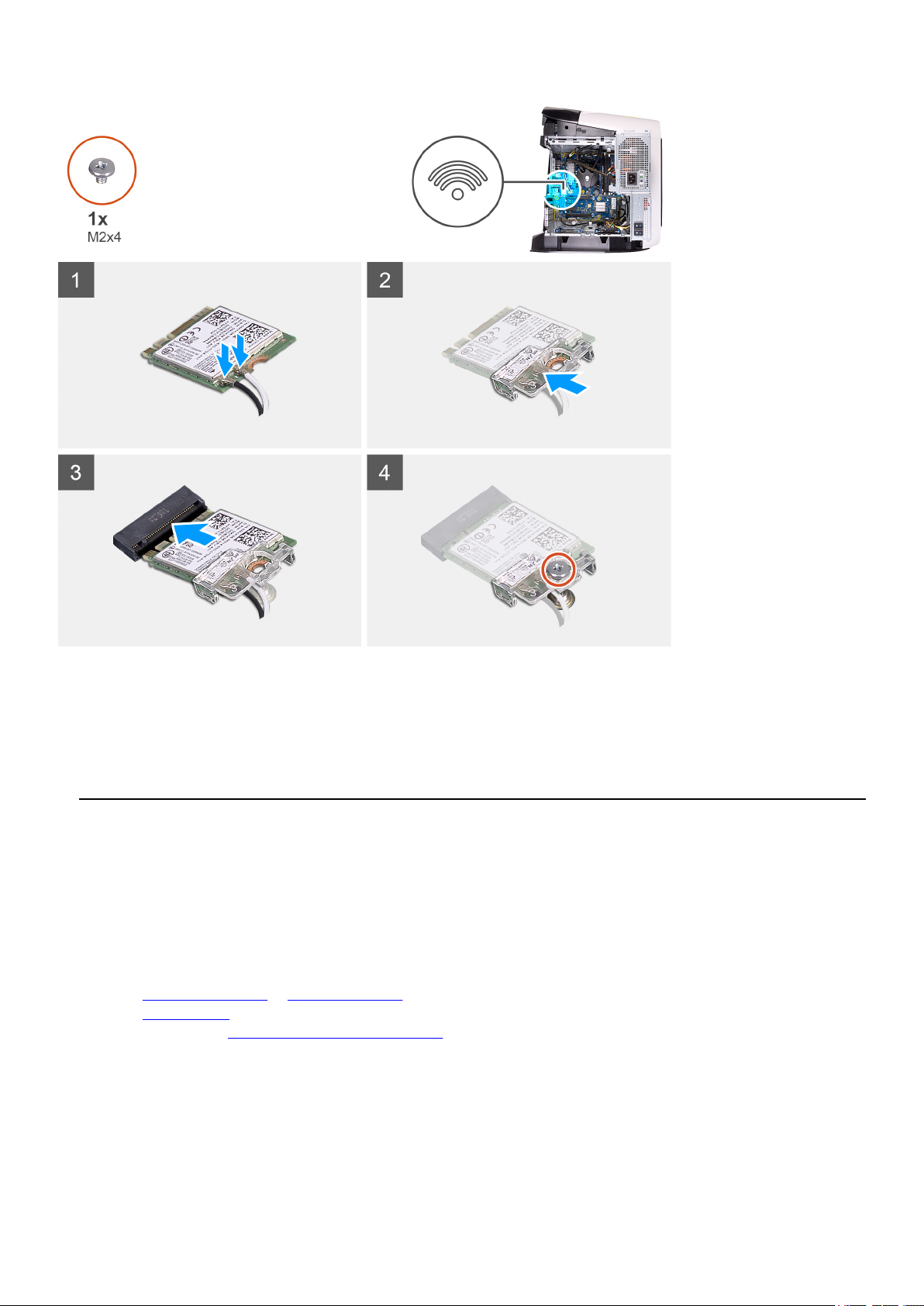

Steps
1. Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless card supported by your computer.
Table 3. Antenna-cable color scheme
Connectors on the wireless card Antenna-cable color
Main (white triangle) White
Auxiliary (black triangle) Black
2. Place the wireless-card bracket on the wireless card.
3. Align the notch on the wireless card with the tab on the wireless-card slot.
4. Slide the wireless card at an angle into the wireless-card slot.
5. Replace the screw (M2x4) that secures the wireless card to the system board.
Next steps
1. Install the single-graphics card or dual-graphics card, as applicable.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
75
Page 76
Antennas
Removing the antennas
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the top-cover.
4. Remove the right-side cover.
5. Remove the wireless card.
6. Remove the front bezel.
About this task
The following images indicate the location of the antennas and provides a visual representation of the removal procedure.

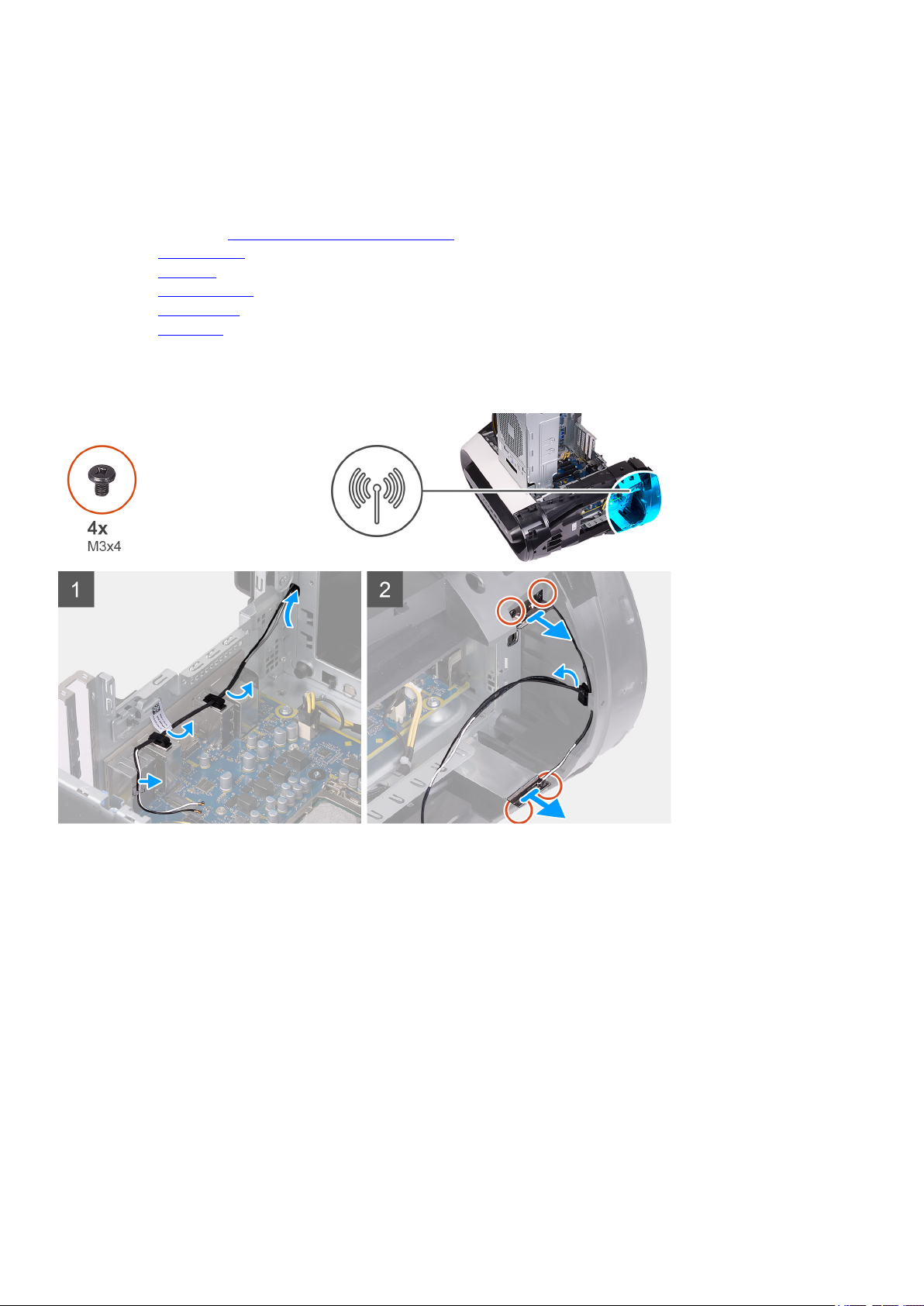

Steps
1. Note the antenna-cable routing and remove the antenna cables from the securing clips and routing guides inside the chassis.
2. Push down the antenna cables towards the top of the computer through the cable-routing slot on the chassis.
3. Remove the four screws (M3x4t) that secures the antennas to the chassis.
4. Remove the antenna cables from the routing guides on the top cover.
5. Pry the antenna off the chassis.
Installing the antennas
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the antennas and provides a visual representation of the installation procedure.
76
Page 77

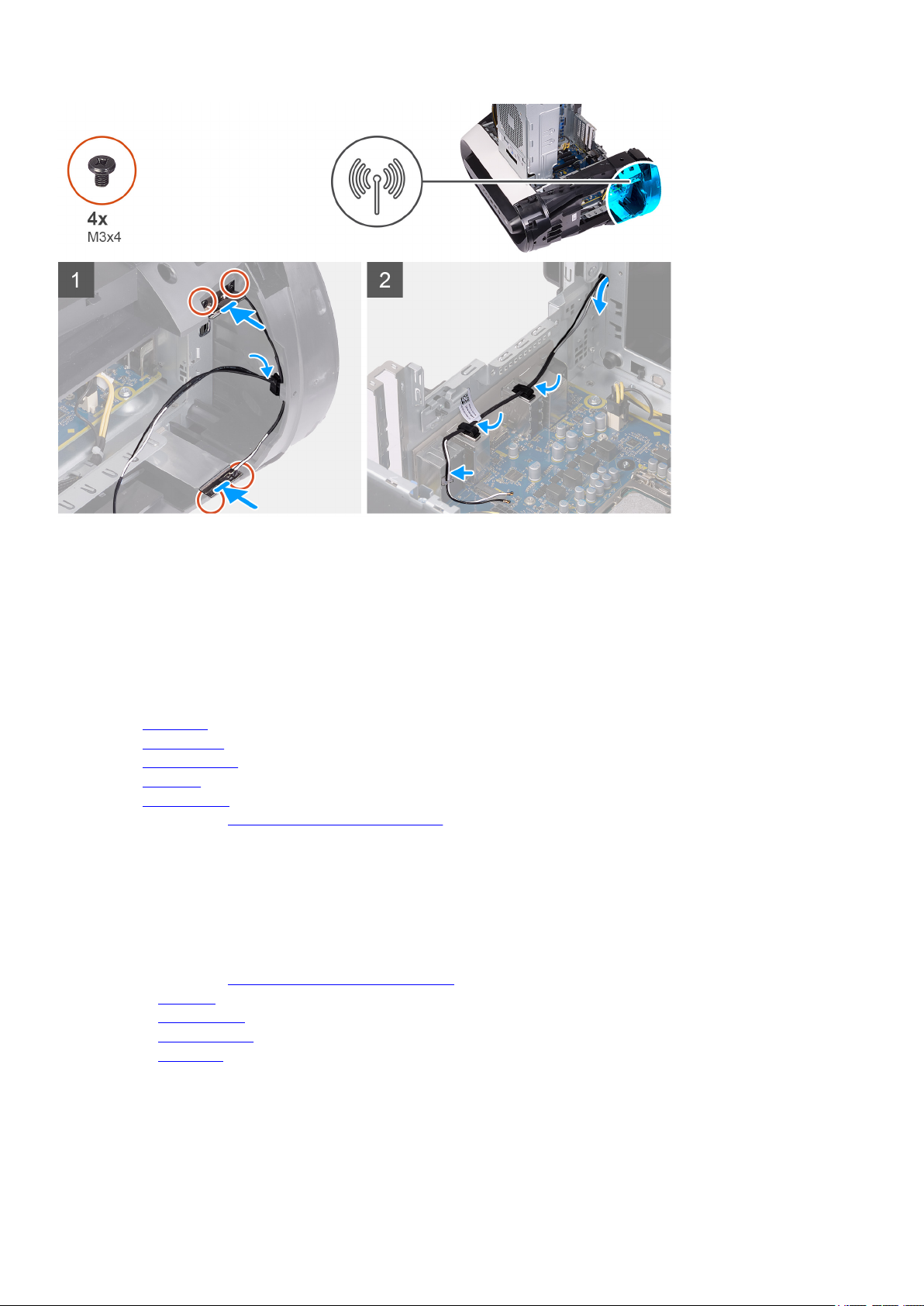

Steps
1. Adhere the antenna to the chassis.
2. Replace the four screws (M3x4t) that secures the antennas to the chassis.
3. Route the antenna cables through the routing guides on the chassis.
4. Slide the cables through the cable-routing slot on the chassis, and then route the antenna cables through the securing clips and
routing guides inside the chassis.
Next steps
1. Install the front bezel.
2. Install the wireless card.
3. Install the right-side cover.
4. Install the top-cover.
5. Install the left-side cover.
6. Follow the procedure in After working inside your computer.
Front I/O-panel
Removing the front I/O panel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the top cover.
3. Remove the left-side cover.
4. Remove the right-side cover.
5. Remove the front bezel.
About this task
The following images indicate the location of the front I/O-panel and provides a visual representation of the removal procedure.
77
Page 78

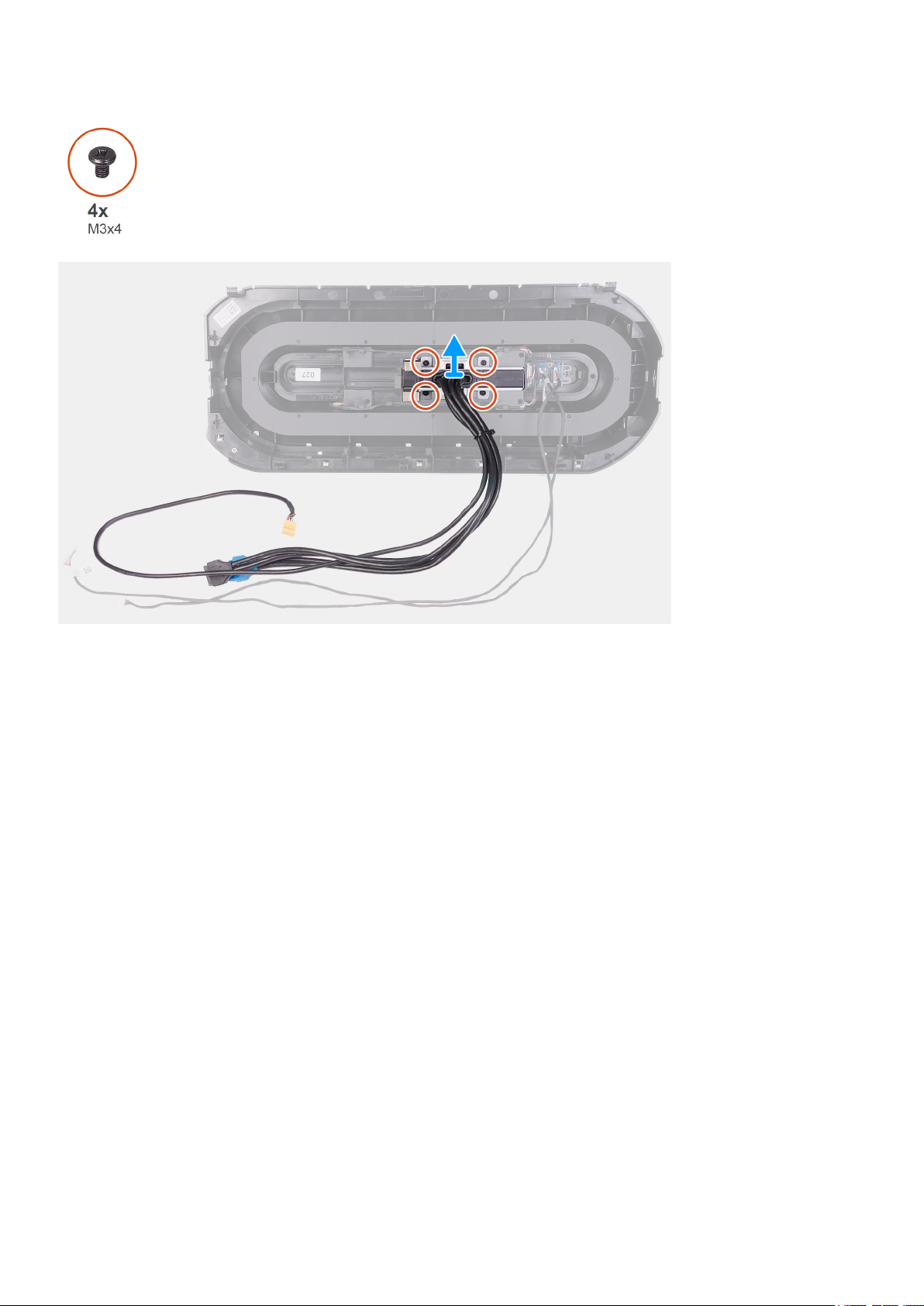

Steps
1. Remove the four screws (M3x4) that secures the front I/O-panel to the front bezel.
2. Lift the front I/O-panel off the front bezel.
Installing the front I/O-panel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front I/O-panel and provides a visual representation of the installation procedure.
78
Page 79
Steps
1. Align the screw holes on the front I/O-panel with the screw holes on the front bezel.
2. Replace the four screws (M3x4) that secures the front I/O-panel to the front bezel.
Next steps
1. Install the front bezel.
2. Install the right-side cover.
3. Install the left-side cover.
4. Install the top cover.
5. Follow the procedure in After working inside your computer.
Front-chassis fan
Removing the front-chassis fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the single-graphics card or dual-graphics card, as applicable.
About this task
The following images indicate the location of the front-chassis fan and provides a visual representation of the removal procedure.
79
Page 80
Steps
1. Disconnect the front-chassis fan cable from the system board.
2. Push the tab to release the front-chassis fan from the chassis.
3. Slide and lift the front-chassis fan off the chassis.
Installing the front-chassis fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front-chassis fan and provides a visual representation of the installation
procedure.
80
Page 81

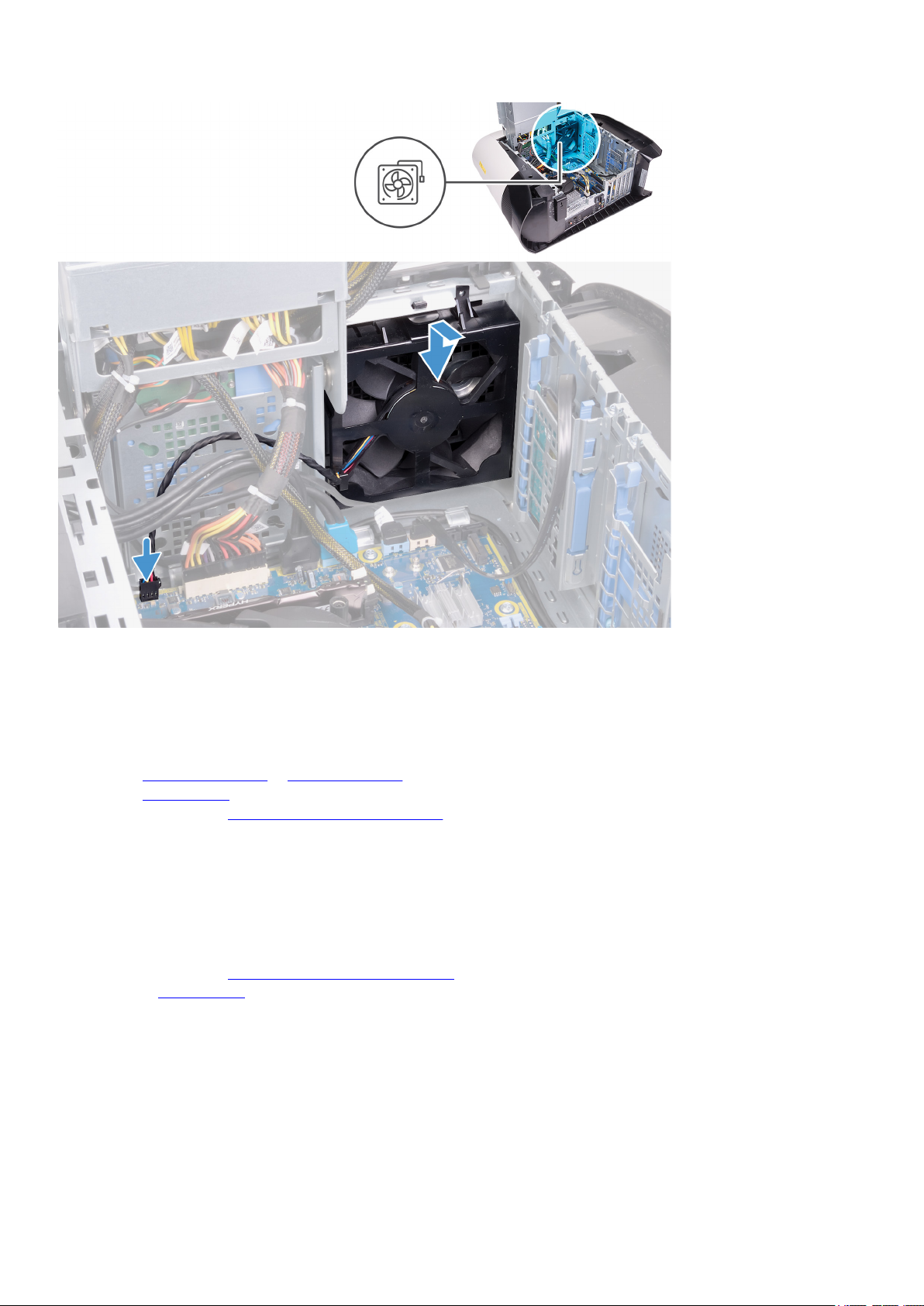

Steps
1. Align the tabs on the front-chassis fan with the slots on the chassis and slide the fan until it snaps into position.
2. Connect the front-chassis fan cable to the system board.
Next steps
1. Install the single-graphics card or dual-graphics card, as applicable.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
Top-chassis fan
Removing the top-chassis fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the top-chassis fan and provides a visual representation of the removal procedure.
81
Page 82

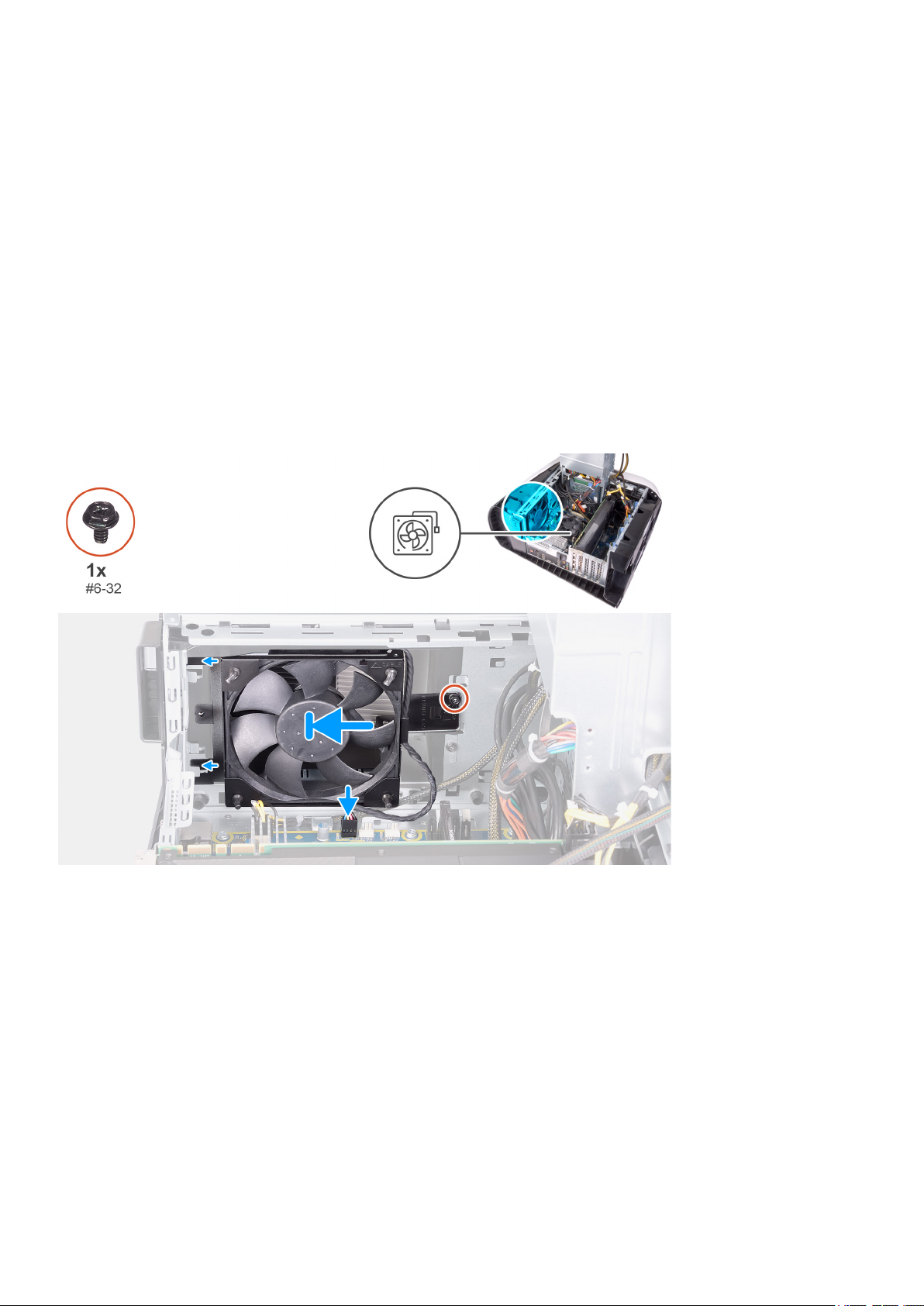

Steps
1. Lay the computer on the right side.
82
Page 83
2. Slide the power-supply unit cage release latches to the unlock position.
3. Lift the power-supply unit cage and rotate the power-supply unit cage away from the chassis.
4. Remove the screw that secures the top-chassis fan to the chassis.
5. Disconnect the top-chassis fan cable from the system board.
6. Remove the top-chassis fan from the chassis.
7. Remove the top-chassis fan cable from the routing guide on the top-chassis fan bracket.
8. Push the rubber grommets through the holes at each corner of the fan to release top-chassis fan from the bracket.
9. Slide the top-chassis fan off the top-chassis fan bracket.
Installing the top-chassis fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the top-chassis fan and provides a visual representation of the installation procedure.
83
Page 84
Steps
1. Align the holes on the top-chassis fan with the holes on the top-chassis fan bracket.
2. Insert the ends of the rubber grommets through the holes at each corner of the fan.
3. Align the grommets in the fan with the holes at each corner of the top-chassis fan bracket and pull through until they snap into
place.
4. Replace the screw (#6-32) that secures the top-chassis fan to the chassis.
5. Route the top-chassis fan cable through the routing guide on the bracket.
6. Align the tabs on the top-chassis fan with the slots on the chassis and slide the fan until it snaps into position.
7. Replace the screw that secures the top-chassis fan to the chassis.
8. Connect the top-chassis fan cable to the system board.
9. Rotate the power-supply unit cage towards the chassis.
10. Slide the power-supply unit cage release latches towards the locked position.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
84
Page 85
Power-button board
Removing the power-button board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the right-side cover.
4. Remove the top-cover.
5. Remove the front bezel.
About this task
The following images indicate the location of the power-button board and provides a visual representation of the removal
procedure.

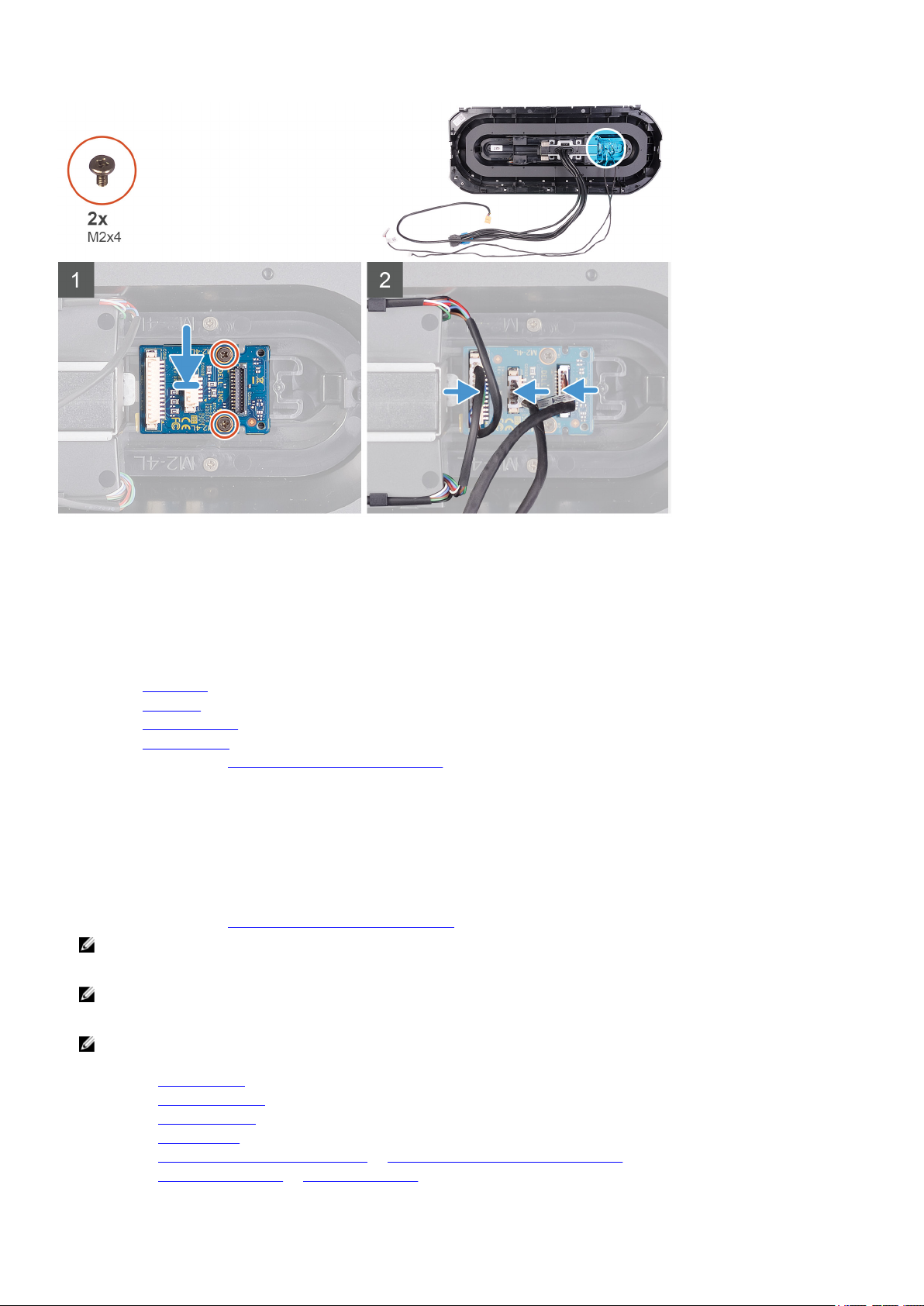

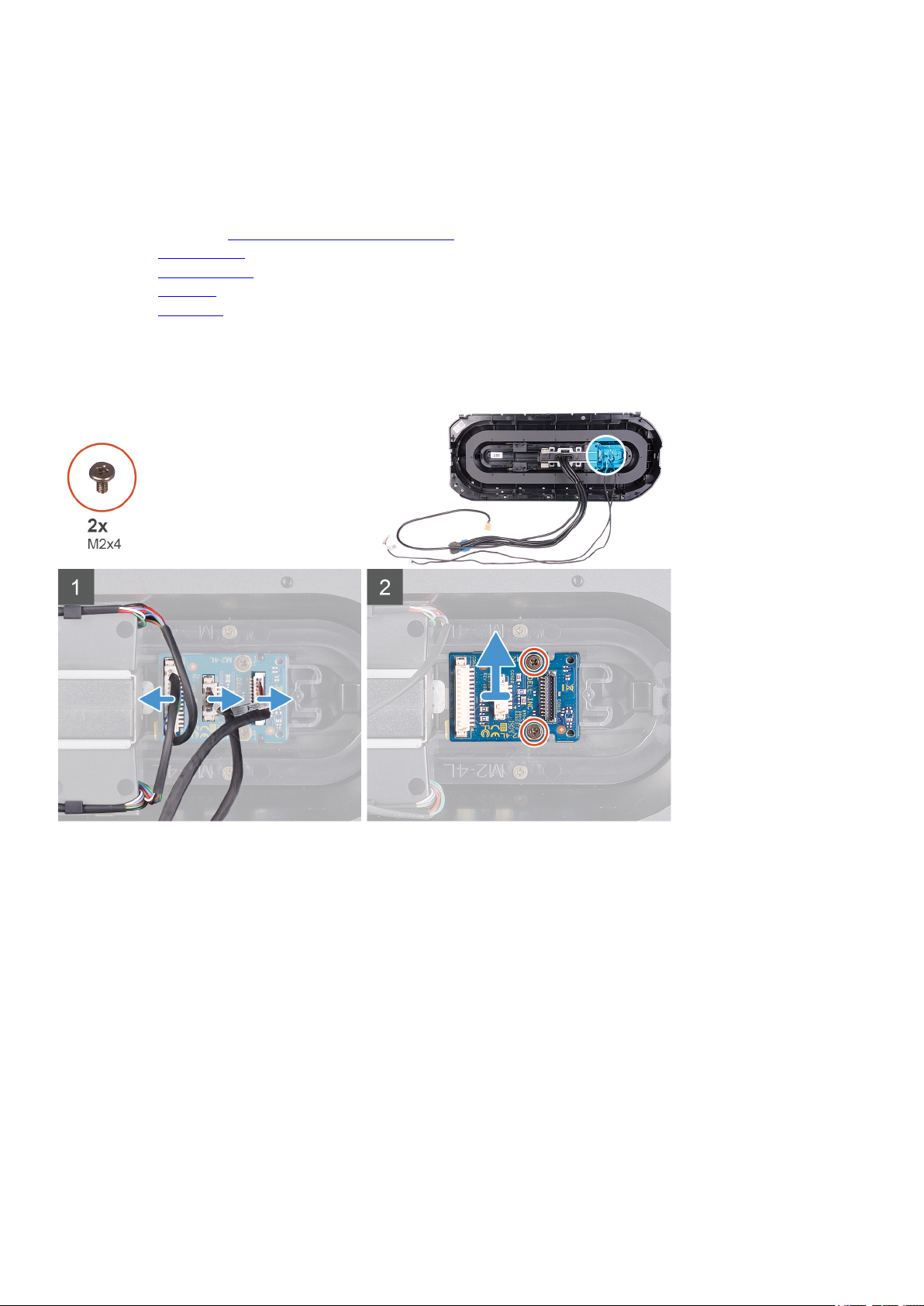

Steps
1. Remove the two screws (M2x4) that secure the power-button module to the front bezel.
2. Lift the power-button module off the front bezel.
3. Disconnect the cables from the power-button module.
Installing the power-button board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power-button board and provides a visual representation of the installation
procedure.
85
Page 86
Steps
1. Align the screw holes on the power-button module with the screw holes on the front bezel.
2. Replace the two screws (M2x4) that secure the power-button module to the front bezel.
3. Connect the cables to the power-button module.
Next steps
1. Install the front bezel.
2. Install the top-cover.
3. Install the right-side cover.
4. Install the left-side cover.
5. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS
setup program after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup
program. You must make the appropriate changes again after you replace the system board.
NOTE: Before disconnecting the cables from the system board, note the location of the connectors so that you
can reconnect the cables correctly after you replace the system board.
2. Remove the left-side cover.
3. Remove the memory modules.
4. Remove the solid-state drive.
5. Remove the wireless card.
6. Remove the processor liquid-cooling assembly or processor fan and heat-sink assembly, as applicable.
7. Remove the single-graphics card or dual-graphics card, as applicable.
86
Page 87
8. Remove the processor.
About this task
The following images indicate the location of the system board and provides a visual representation of the removal procedure.
87
Page 88

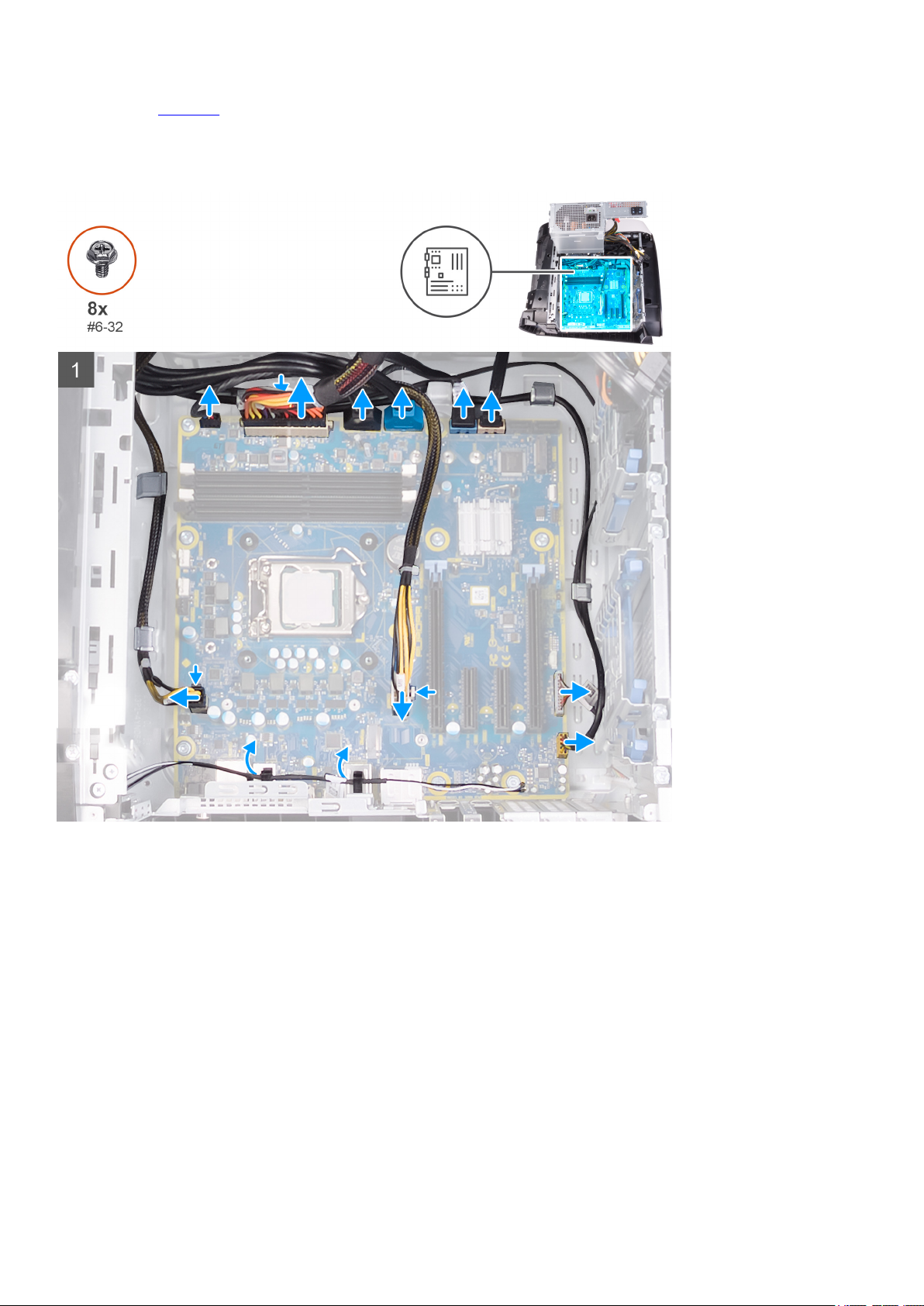

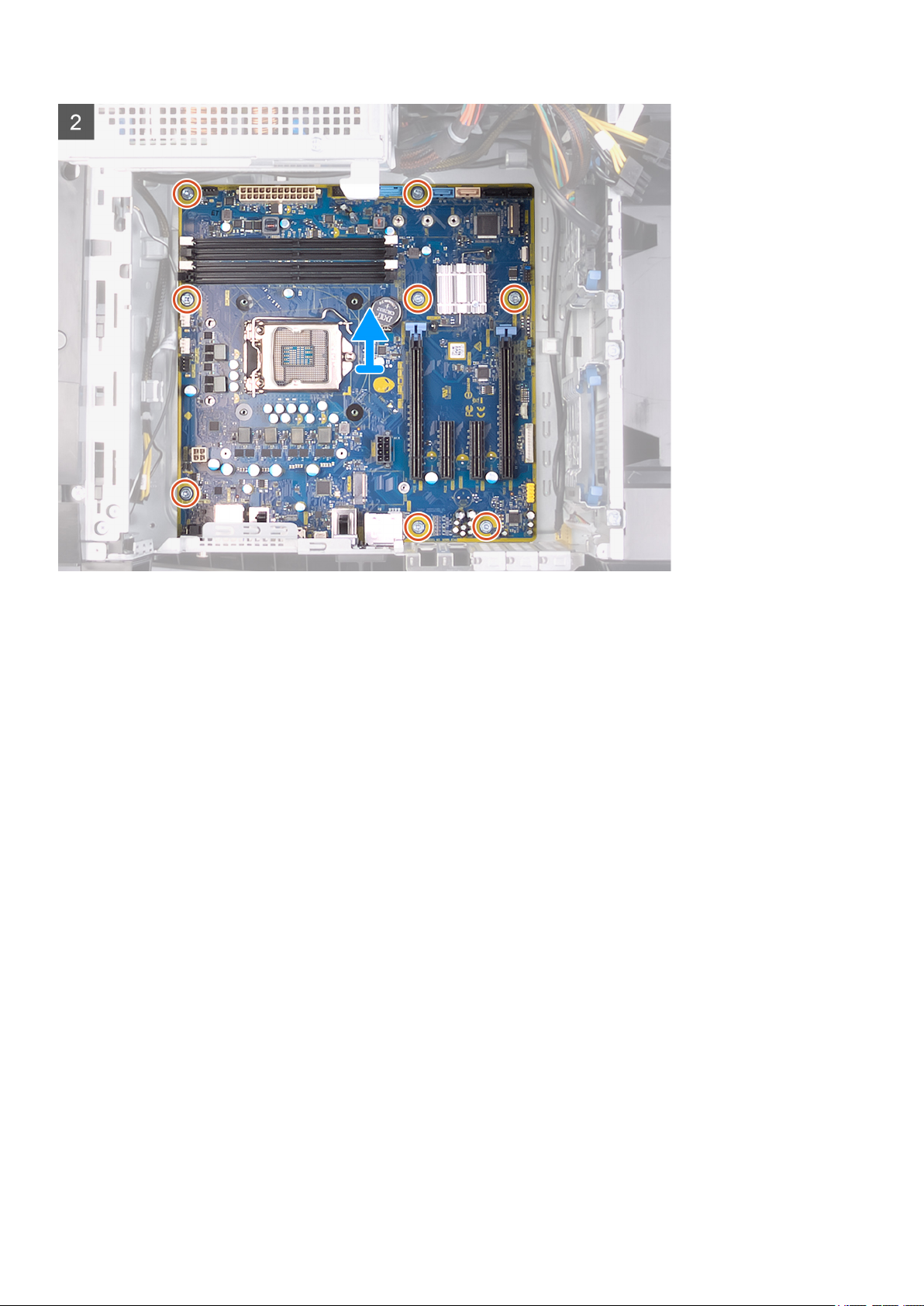

Steps
1. Disconnect the front panel USB cables from the system board.
2. Disconnect the hard drive data cables from the system board.
3. Disconnect the front panel audio cable from the system board.
4. Disconnect the LED controller cable from the system board.
5. Disconnect the graphics-card power cable from the system board.
6. Disconnect the processor power cable from the system board.
7. Disconnect the top-chassis fan cable from the system board.
8. Disconnect the system-board power cable from the system board.
9. Disconnect the front-chassis fan cable from the system board.
10. Remove the antenna cables from the routing guides on the chassis.
11. Remove the eight screws (#6-32) that secure the system-board assembly to the chassis.
12. Lift the system board off the chassis.
Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the system board and provides a visual representation of the installation procedure.
88
Page 89
89
Page 90

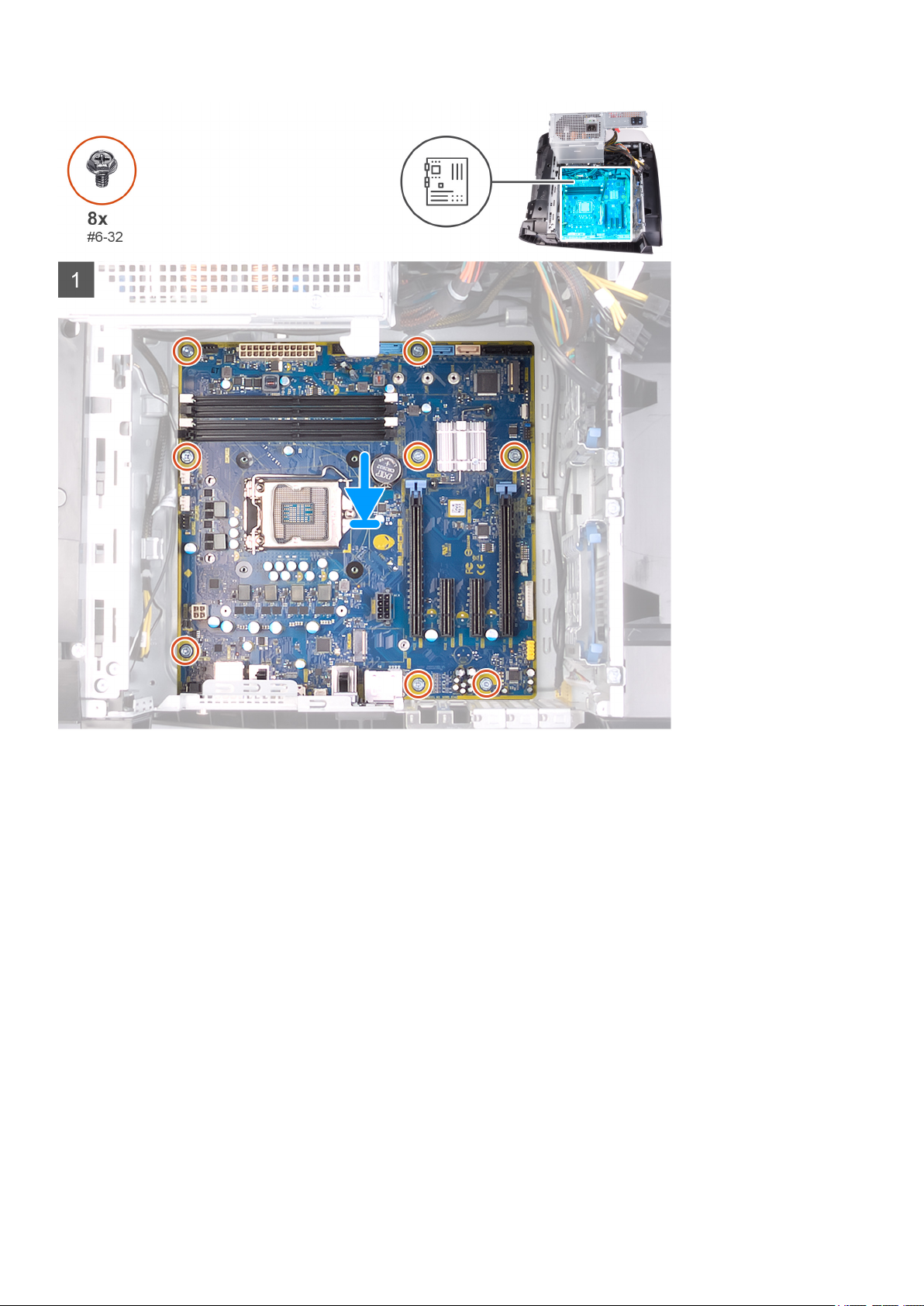

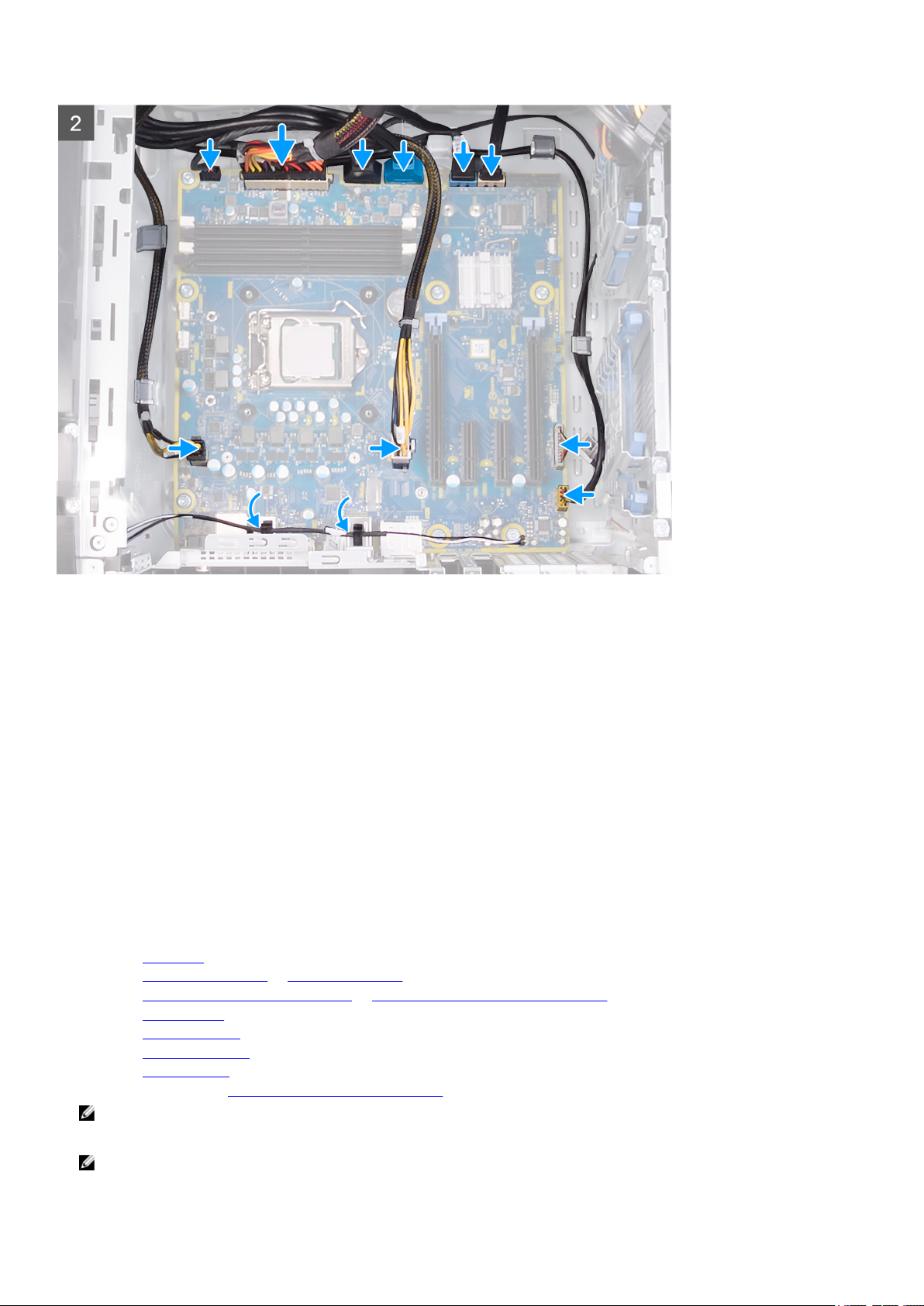

Steps
1. Align the ports on the system-board assembly with the slots on the chassis and align the system-board assembly in place.
2. Slide the system-board assembly to engage the latches that secure it to the chassis.
3. Replace the nine screws (#6-32) that secure the system-board assembly to the chassis.
4. Route the antenna cables through the routing guides on the chassis.
5. Route and connect the front-chassis fan cable to the system board.
6. Route and connect the system-board power cable to the system board.
7. Route and connect the top-chassis fan cable to the system board.
8. Route and connect the processor power cable to the system board.
9. Route and connect the graphics-card power cable to the system board.
10. Route and connect the LED controller cable to the system board.
11. Route and connect the front panel audio cable to the system board.
12. Route and connect the hard drive data cable to the system board.
13. Route and connect the front panel USB cables to the system board.
Next steps
1. Install the processor.
2. Install the single-graphics card or dual-graphics card, as applicable.
3. Install the processor liquid-cooling assembly or processor fan and heat-sink assembly, as applicable.
4. Install the wireless card.
5. Install the solid-state drive.
6. Install the memory modules.
7. Install the left-side cover.
8. Follow the procedure in After working inside your computer.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS
setup program after you replace the system board.
90
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup
program. You must make the appropriate changes again after you replace the system board.
Page 91
Entering the Service Tag in the BIOS setup program
Steps
1. Turn on or restart your computer.
2. Press F2 when the Dell logo is displayed to enter the BIOS setup program.
3. Navigate to the Main tab and enter the Service Tag in the Service Tag Input field.
Next steps
NOTE: Service tag is the alphanumeric identifier located at the back side of your computer.
91
Page 92
Device drivers
Operating system
• Windows 10 Home (64-bit)
• Windows 10 Professional (64-bit)
Downloading the audio driver
Steps
1. Turn on your computer.
2. Go to www.dell.com/support.
3. Enter the Service Tag of your computer, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer
model.
4. Click Drivers & downloads.
5. Click the Detect Drivers button.
6. Review and agree to the Terms and Conditions to use SupportAssist, then click Continue.
7. If necessary, your computer starts to download and install SupportAssist.
NOTE: Review on-screen instructions for browser-specific instructions.
8. Click View Drivers for My System.
9. Click Download and Install to download and install all driver updates detected for your computer.
10. Select a location to save the files.
11. If prompted, approve requests from User Account Control to make changes on the system.
12. The application installs all drivers and updates identified.
NOTE: Not all files can be installed automatically. Review the installation summary to identify if manual
installation is necessary.
13. For manual download and installation, click Category.
14. Click Audio in the drop-down list.
15. Click Download to download the audio driver for your computer.
16. After the download is complete, navigate to the folder where you saved the audio driver file.
17. Double-click the audio driver file icon and follow the instructions on the screen to install the driver.
Downloading the graphics driver
Steps
1. Turn on your computer.
2. Go to www.dell.com/support.
3. Enter the Service Tag of your computer, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer
model.
4. Click Drivers & downloads.
5. Click the Detect Drivers button.
6. Review and agree to the Terms and Conditions to use SupportAssist, then click Continue.
7. If necessary, your computer starts to download and install SupportAssist.
NOTE: Review on-screen instructions for browser-specific instructions.
8. Click View Drivers for My System.
9. Click Download and Install to download and install all driver updates detected for your computer.
92
Page 93
10. Select a location to save the files.
11. If prompted, approve requests from User Account Control to make changes on the system.
12. The application installs all drivers and updates identified.
NOTE: Not all files can be installed automatically. Review the installation summary to identify if manual
installation is necessary.
13. For manual download and installation, click Category.
14. Click Video in the drop-down list.
15. Click Download to download the graphics driver for your computer.
16. After the download is complete, navigate to the folder where you saved the graphics driver file.
17. Double-click the graphics driver file icon and follow the instructions on the screen to install the driver.
Downloading the USB driver
Steps
1. Turn on your computer.
2. Go to www.dell.com/support.
3. Enter the Service Tag of your computer, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer
model.
4. Click Drivers & downloads.
5. Click the Detect Drivers button.
6. Review and agree to the Terms and Conditions to use SupportAssist, then click Continue.
7. If necessary, your computer starts to download and install SupportAssist.
NOTE: Review on-screen instructions for browser-specific instructions.
8. Click View Drivers for My System.
9. Click Download and Install to download and install all driver updates detected for your computer.
10. Select a location to save the files.
11. If prompted, approve requests from User Account Control to make changes on the system.
12. The application installs all drivers and updates identified.
NOTE: Not all files can be installed automatically. Review the installation summary to identify if manual
installation is necessary.
13. For manual download and installation, click Category.
14. Click Chipset in the drop-down list.
15. Click Download to download the USB driver for your computer.
16. After the download is complete, navigate to the folder where you saved the USB driver file.
17. Double-click the USB driver file icon and follow the instructions on the screen to install the driver.
Downloading the WiFi driver
Steps
1. Turn on your computer.
2. Go to www.dell.com/support.
3. Enter the Service Tag of your computer, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer
model.
4. Click Drivers & downloads.
5. Click the Detect Drivers button.
6. Review and agree to the Terms and Conditions to use SupportAssist, then click Continue.
7. If necessary, your computer starts to download and install SupportAssist.
93
Page 94
NOTE: Review on-screen instructions for browser-specific instructions.
8. Click View Drivers for My System.
9. Click Download and Install to download and install all driver updates detected for your computer.
10. Select a location to save the files.
11. If prompted, approve requests from User Account Control to make changes on the system.
12. The application installs all drivers and updates identified.
NOTE: Not all files can be installed automatically. Review the installation summary to identify if manual
installation is necessary.
13. For manual download and installation, click Category.
14. Click Network in the drop-down list.
15. Click Download to download the WiFi driver for your computer.
16. After the download is complete, navigate to the folder where you saved the WiFi driver file.
17. Double-click the WiFi driver icon and follow the instructions on the screen to install the driver.
Downloading the media-card reader driver
Steps
1. Turn on your computer.
2. Go to www.dell.com/support.
3. Enter the Service Tag of your computer, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer
model.
4. Click Drivers & downloads.
5. Click the Detect Drivers button.
6. Review and agree to the Terms and Conditions to use SupportAssist, then click Continue.
7. If necessary, your computer starts to download and install SupportAssist.
NOTE: Review on-screen instructions for browser-specific instructions.
8. Click View Drivers for My System.
9. Click Download and Install to download and install all driver updates detected for your computer.
10. Select a location to save the files.
11. If prompted, approve requests from User Account Control to make changes on the system.
12. The application installs all drivers and updates identified.
NOTE: Not all files can be installed automatically. Review the installation summary to identify if manual
installation is necessary.
13. For manual download and installation, click Category.
14. Click Chipset in the drop-down list.
15. Click Download to download the media-card reader driver for your computer.
16. After the download is complete, navigate to the folder where you saved the media-card reader driver file.
17. Double-click the media-card reader driver file icon and follow the instructions on the screen to install the driver.
Downloading the chipset driver
Steps
1. Turn on your computer.
2. Go to www.dell.com/support.
3. Enter the Service Tag of your computer, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer
model.
4. Click Drivers & downloads.
94
Page 95
5. Click the Detect Drivers button.
6. Review and agree to the Terms and Conditions to use SupportAssist, then click Continue.
7. If necessary, your computer starts to download and install SupportAssist.
NOTE: Review on-screen instructions for browser-specific instructions.
8. Click View Drivers for My System.
9. Click Download and Install to download and install all driver updates detected for your computer.
10. Select a location to save the files.
11. If prompted, approve requests from User Account Control to make changes on the system.
12. The application installs all drivers and updates identified.
NOTE: Not all files can be installed automatically. Review the installation summary to identify if manual
installation is necessary.
13. For manual download and installation, click Category.
14. Click Chipset in the drop-down list.
15. Click Download to download the chipset driver for your computer.
16. After the download is complete, navigate to the folder where you saved the saved the chipset driver file.
17. Double-click the chipset driver file icon and follow the instructions on the screen to install the driver.
Downloading the network driver
Steps
1. Turn on your computer.
2. Go to www.dell.com/support.
3. Enter the Service Tag of your computer, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer
model.
4. Click Drivers & downloads.
5. Click the Detect Drivers button.
6. Review and agree to the Terms and Conditions to use SupportAssist, then click Continue.
7. If necessary, your computer starts to download and install SupportAssist.
NOTE: Review on-screen instructions for browser-specific instructions.
8. Click View Drivers for My System.
9. Click Download and Install to download and install all driver updates detected for your computer.
10. Select a location to save the files.
11. If prompted, approve requests from User Account Control to make changes on the system.
12. The application installs all drivers and updates identified.
NOTE: Not all files can be installed automatically. Review the installation summary to identify if manual
installation is necessary.
13. For manual download and installation, click Category.
14. Click Network in the drop-down list.
15. Click Download to download the network driver for your computer.
16. After the download is complete, navigate to the folder where you saved the network driver file.
17. Double-click the network driver file icon and follow the instructions on the screen to install the driver.
95
Page 96
System setup
NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not be
displayed.
System setup
CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain
changes can make your computer work incorrectly.
NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program
screen information for future reference.
Use the BIOS Setup program for the following purposes:
• Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive.
• Change the system configuration information.
• Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling base
devices.
Entering BIOS setup program
About this task
Turn on (or restart) your computer and press F2 immediately.
Navigation keys
NOTE: For most of the System Setup options, changes that you make are recorded but do not take effect until you
restart the system.
Keys Navigation
Up arrow Moves to the previous field.
Down arrow Moves to the next field.
Enter Selects a value in the selected field (if applicable) or follow the link in the field.
Spacebar Expands or collapses a drop-down list, if applicable.
Tab Moves to the next focus area.
Esc Moves to the previous page until you view the main screen. Pressing Esc in the main screen displays a
message that prompts you to save any unsaved changes and restarts the system.
Boot Sequence
Boot Sequence allows you to bypass the System Setup–defined boot device order and boot directly to a specific device (for
example: optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can:
• Access System Setup by pressing F2 key
• Bring up the one-time boot menu by pressing F12 key
The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are:
• Removable Drive (if available)
• STXXXX Drive (if available)
NOTE: XXX denotes the SATA drive number.
• Optical Drive (if available)
• SATA Hard Drive (if available)
• Diagnostics
96
Page 97
NOTE: Choosing Diagnostics, will display the ePSA diagnostics screen.
The boot sequence screen also displays the option to access the System Setup screen.
System setup options
NOTE: Depending on your computer and its installed devices, the items listed in this section may or may not appear.
Table 4. System setup options—Main menu
Main
System Date Displays the current date in mm/dd/yyyy format.
System Time Displays the current time in hh:mm:ss format.
BIOS Information
BIOS Version Displays the BIOS version number.
Product Information
Product Name Displays the product name. Default: Alienware Aurora R8.
Service Tag Displays the service tag of your computer.
Asset Tag Displays the asset tag of your computer.
Memory Information
System Memory Displays the total computer memory installed.
Memory Speed Displays the memory speed.
CPU Information
CPU Type Displays the processor type
CPU Speed Displays the speed of the processor.
CPU ID Displays the processor identification code.
Cache L1 Displays the processor L1 cache size.
Cache L2 Displays the processor L2 cache size.
Cache L3 Displays the processor L3 cache size.
Table 5. System setup options—Advanced menu
Advanced
Advanced BIOS Features
Intel SpeedStep Allows you to enable or disable Intel Speedstep Technology.
Default: Enabled.
NOTE: If enabled, the processor clock speed and core
voltage are adjusted dynamically based on the
processor load.
Virtualization Allows you to enable or disable Intel Virtualization Technology
feature for the processor.
VT for Direct I/O Allows you to enable or disable Intel Virtualization Technology
feature for the Direct I/O.
SATA Operation Allows you to configure the operating mode of the integrated
SATA hard drive controller.
Intel Ready Mode Technology Allows you to enable or disable the Intel Ready Mode
Technology.
Intel Software Guard Extensions Allows you to enable or disable Intel Software Guard
Extensions.
97
Page 98
Advanced
BIOS Recovery from Hard Drive Allows you to enable or disable BIOS Recovery from hard drive.
USB Configuration
Front USB Ports Allows you to enable or disable the front USB ports.
Rear USB Ports Allows you to enable or disable the rear USB ports.
Power Options
Numlock Key Allows you to set the status of the Num Lock key during boot to
On or Off.
Wake Up by Integrated LAN Allow the computer to be powered on by special LAN signals.
AC Recovery Sets what action the computer takes when power is restored.
Deep Sleep Control Allows you to define the controls when Deep Sleep is enabled.
USB Wake Support (S3) Allows you to enable the USB devices to wake the system from
Standby.
USB PowerShare (S4/S5) Allows you to charge external devices.
USB PowerShare Wake Support (S4/S5) Allows you to enable front the USB devices to wake the system
from S4/S5.
Auto Power On
Auto Power On Mode Allows you to set the computer to turn on automatically every
day or on a preselected date. This option can be configured only
if the Auto Power On mode is set to Enabled Everyday or
Selected Day.
Auto Power On Date Allows you to set the date on which the computer must turn on
automatically. This option can be configured only if the Auto
Power On mode is set to Enabled 1 to 31.
Auto Power On Time Allows you to set the time at which the computer must turn on
automatically. This option can be configured only if the Auto
Power On mode is set to Enabled hh:mm:ss.
Performance Options
Overclocking Feature
Core Over Clocking Level Allows you enable or disable the OC level1/level2 setting and
adjust the processor flex ratio and voltage in the Customization
mode.
Computrace Allows you to enable or disable the Computrace service using
the Absolute software.
Core Ratio Limit Override Allows you to set the core ratio limit.
Single Core Allows you to select single core or multiple cores.
Core Voltage Mode Allows you to select between adaptive and override voltage
modes.
Core Voltage Offset Allows you to set the override value of core voltage.
Long Duration PWR Limit Allows you to set the turbo mode power limit.
Short Duration PWR Limit Options Allows you to set the turbo mode power limit.
XMP Memory Allows you to set the XMP memory.
Table 6. System setup options—Security menu
Security
Admin Password Status Displays whether the admin password is set.
System Password Status Displays whether the system password is set.
98
Page 99
Security
HDD Password Status Displays if the hard drive password is set.
Admin Password Displays the admin password.
System Password Displays the system password.
HDD Password Displays the hard drive password.
Firmware TPM Displays the firmware TPM.
Table 7. System setup options—Boot menu
Boot
Boot List Option Displays the available boot devices.
File Browser Add Boot Option Allows you to set the boot path in the boot option list.
File Browser Del Boot Option Allows you to delete the boot path in the boot option list.
Secure Boot Control Allows you to enable or disable the secure boot control.
Load Legacy OPROM Allows you to enable or disable the Legacy Option ROM.
Boot Option Priorities Displays the available boot devices.
Boot Option #1 Displays the first boot device. Default: UEFI: Windows Boot
Manager.
Boot Option #2 Displays the second boot device. Default: Onboard NIC
Device.
Boot Option #3 Displays the third boot device. Default: Onboard NIC
Device.
Table 8. System setup options—Exit menu
Save & Exit
Save Changes and Reset Allows you to exit system setup and save your changes.
Discard Changes and Reset Allows you to exit system setup and load previous values
for all system setup options.
Restore Defaults Allows you to load default values for all system setup
options.
Discard Changes Allows you to exit your changes.
Save Changes Allows you to save your changes.
Clearing CMOS settings
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the CMOS jumper and provide a visual representation of the clearing CMOS
procedure.
99
Page 100

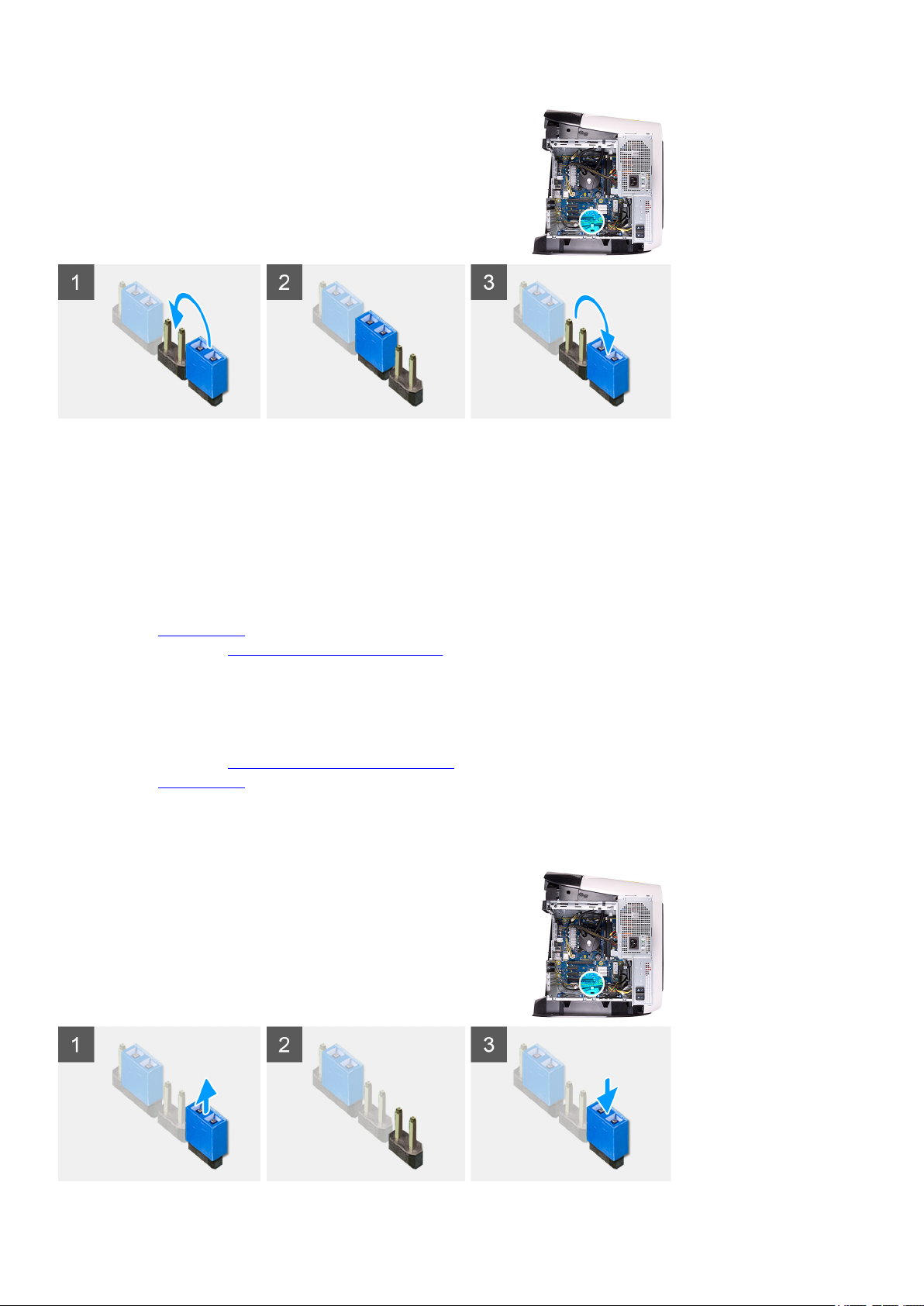

Steps
1. Disconnect the system-board power cable from the system board.
2. Remove the jumper plug from pins 217 and replace it on pins 216 (P216).
3. Wait for 5 seconds.
4. Remove the jumper plug from pins 216 and replace it on pins 217.
5. Connect the system-board power cable to the system board.
Next steps
1. Remove the left-side cover.
2. Follow the procedure in After working inside your computer.
Clearing forgotten password
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the memory modules and provide a visual representation of the removal procedure.
100
Loading...
