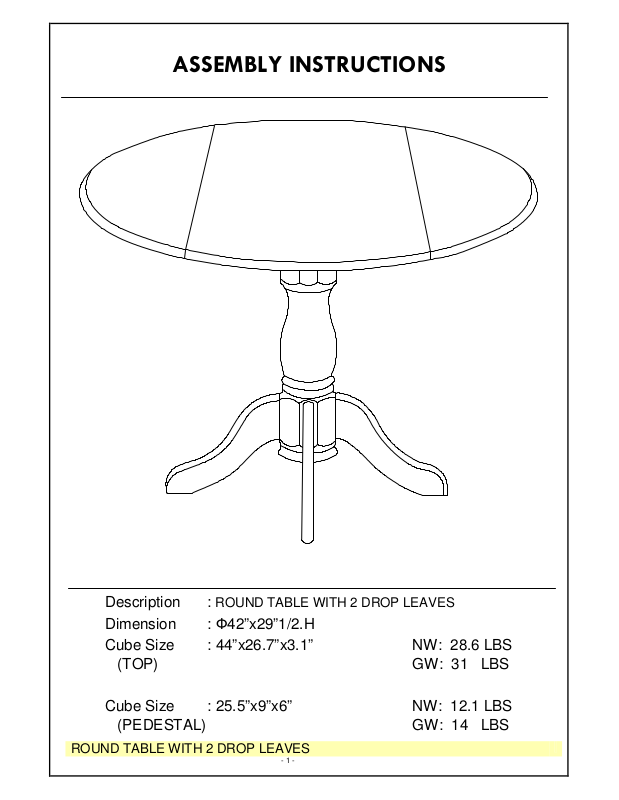

ASSEMBLY INSTRUCTIONS
Description :
ROUND TABLE WITH 2 DROP LEAVES
Dimension : Ф42”x29”1/2.H
Cube Size : 44”x26.7”x3.1” NW: 28.6 LBS
(TOP) GW: 31 LBS
Cube Size : 25.5”x9”x6” NW: 12.1 LBS
(PEDESTAL) GW: 14 LBS
ROUND TABLE WITH 2 DROP LEAVES
- 1 -
NO Description
Qty Sketch
NO
Description
Qty Sketch
NO Desc
ription
Qty Sketch
NO
Description
Qty Sketch
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take
the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please
separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following
parts:
A Top 1
C Pedestal 1
B Leg 4
D Mounting plate 1
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the
following hardware:
1
( Φ8.5xΦ19mm)
Hexagon nut
3
(M8x13mm)
5
( Φ6.5xΦ13mm)
Large flat
washer
Small flat
washer
4
2
4
4
4
6
Large lock
washer
( Φ8.5xΦ11mm)
Wrench
(M13mm)
Small lock
washer
( Φ6.5xΦ9mm)
4
1
12
7
9
Bolt
(M6x48mm)
Allen key
(M4)
12
1
ROUND TABLE WITH 2 DROP LEAVES
- 2 -
Medium flat
8
washer
( Φ6.5xΦ16mm)
8
STEP 1
Attach legs (B) to the pedestal (C) with washers (1), (2) and nuts (3). Tighten with wrench (4).
x4
1
2
3
4
B
C
STEP 2
Put the Mounting plate (D) on top of the pedestal, and attach with bolts (7), washers (5), (6). Tighten with Allen
key (9).
9
D
7
6
5
x4
ROUND TABLE WITH 2 DROP LEAVES
- 3 -
STEP 3
Carefully place the frame (from Step 2) on bottom side of the table top (A), with bolts (7), washers (8), (6).
Tighten with Allen key (9).
9
7
A
6
x8
8
ROUND TABLE WITH 2 DROP LEAVES
