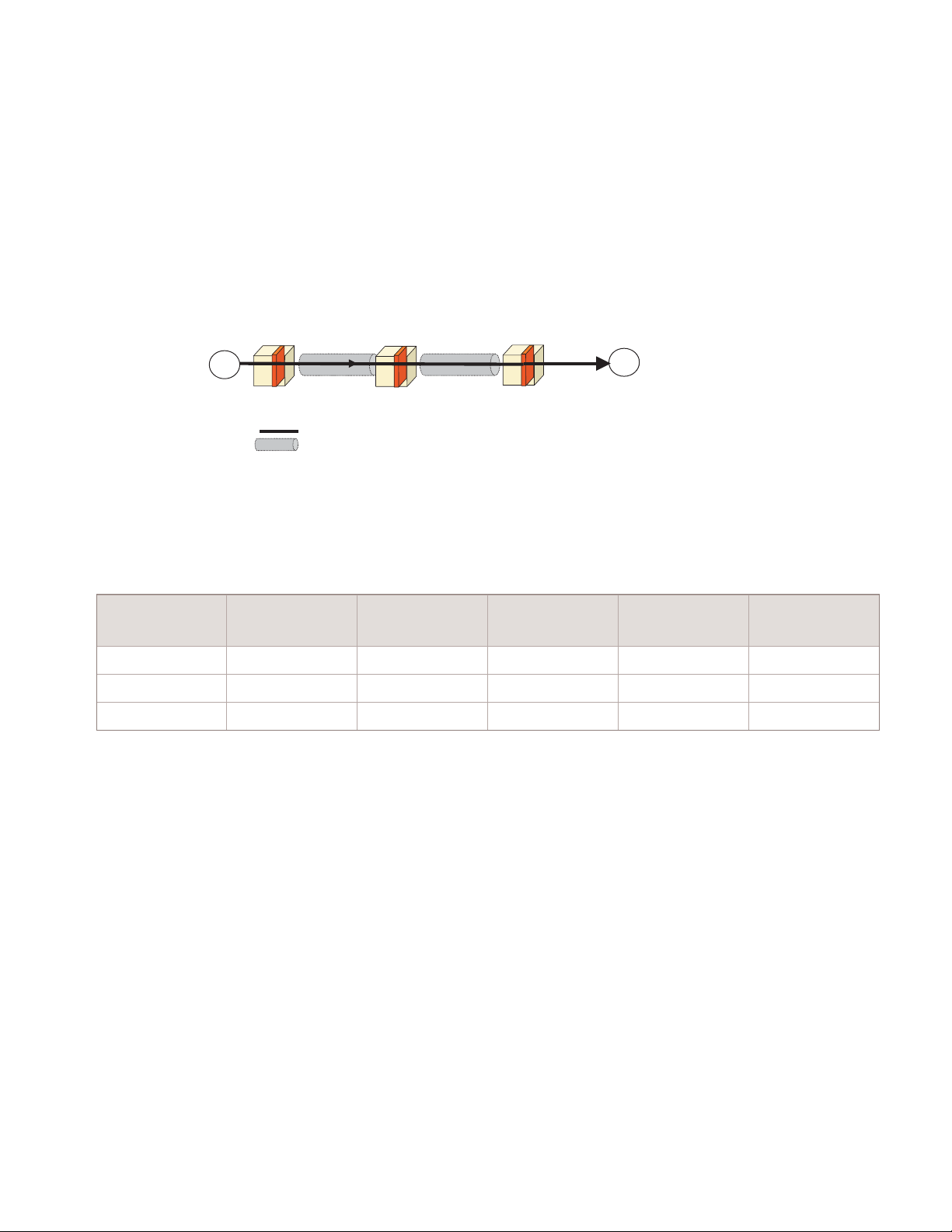

1-2 EVC over ETS example

1-3 ETS MIB tables

....................................................................................................................................................... 1-261-26

....................................................................................................................................... 1-251-25

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

ix

Aboutthis documentAbout this document

Purpose

The ES64U is an extension of the 1675 LambdaUnite MSS capabilities. It provides Ethernet Layer 2 switching features across the different physical interfaces provided by the way of Ethernet I/O boards. This equipment is also supplying an SMP management interface based on an Alcatel-Lucent proprietary MIB definition.

The complete SMP MIB description is supplied by Alcatel-Lucent via AS.1 files.

This document aims to describe the usage of this MIB from the management system point of view. It is proposed by Alcatel-Lucent to customers in order to help the development of a dedicated management system dealing with the full discovery and provisioning of the ES64U.

Intended audience

This document is intended to who ever is concerned with the SMP management of the ES64U.

It is considered as a reference guide for ES64U network management via SMP interface.

Related information

The manuals related to 1675 LambdaUnite MSS are shown in the following table:

Document title Document code

1675 LambdaUnite MSS Product Information and Planning Guide

Presents a detailed overview of the system, describes its applications, gives planning requirements, engineering rules, ordering information, and technical specifications.

1675 LambdaUnite MSS User Provisioning Guide

Provides step-by-step information for use in daily system operations. The manual demonstrates how to perform system provisioning, operations, and administrative tasks by use of WaveStar

®

CIT.

109740183

(365-374-195R11.1.1)

109740217

(365-374-196R11.1.1)

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

xi

About this document

...................................................................................................................................................................................................................................

Document title Document code

1675 LambdaUnite MSS Maintenance and Trouble-Clearing Guide

Gives detailed information on each possible alarm message. Furthermore, it provides procedures for routine maintenance, troubleshooting, diagnostics, and component replacement.

1675 LambdaUnite MSS Installation and System Turn-Up Guide

A step-by-step guide to system installation and set up. It also includes information needed for pre-installation site planning and post-installation acceptance testing.

1675 LambdaUnite MSS TL1 Command Guide

Describes the external TL1 interface for 1675 LambdaUnite MSS in terms of TL1 command, responses, and notification definitions.

ES64U Command Line Interface Guide 109740266

ES64U SMP Reference Guide 109740282

1675 LambdaUnite MSS Safety Guide 109510909

Documentation CD-ROM 1675 LambdaUnite MSS (all manuals on a CD-ROM) 109740258

1675 LambdaUnite MSS Software Release Description This document is delivered with the E software.

109740191

(365-374-197R11.1.1)

109740233

(365-374-198R11.1.1)

109740225

(365-374-199R11.1.1)

(365-374-200R11.1.1)

(365-374-201R11.1.1)

(365-374-159R11.1.1)

(365-374-181R11.1.1)

1675 LambdaUnite MSS Engineering and Ordering Information Drawing ED8C948-10

1675 LambdaUnite MSS Interconnect and Circuit Information Drawing ED8C948-20

These documents and drawings can be ordered at or downloaded from the Alcatel-Lucent

Online Customer Support Site (OLCS) (https://support.lucent.com) or through your Local

Customer

Technical support

Support.

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/) for contact

information.

How to comment

To comment on this document, go to the Online Comment Form (http://infodoc.

alcatel-lucent.com/comments/enus/) or e-mail your comments to the Comments Hotline

([email protected]).

...................................................................................................................................................................................................................................

xii

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

1 1ES64U SNMP MIB

description

Overview

Purpose

This section describes the supported SMP tables, columnar objects, and scalar objects for the ES64U.

Detailed information about the ES64U management interface can be found in the 1675 LambdaUnite MSS User Provisioning Guide.

SNMP MIB – managed entities

The different logical objects managed in the ETS MIBs, and their relationships are depicted in the following figure.

ote: Spanning tree, Bridge, and ETS over Provider Bridge MIBs are not supported in the present release and therefore not covered by this edition of the document.

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-1

ES64U SNMP MIB description Overview

...................................................................................................................................................................................................................................

SDH physical interface

Spanning Tree MIB

MST VLAN

Assignment

ETS MIB

ETS Traffic Descriptor

0..1

Color

Profile

Vlan Stack

1

n

ETS Flow Classifier

0..1

1

0..1

Ethernet ETB Interface (local or remote)

STI/RSTI

n

MSTI

1

n

OR

Per-VLAN STI

ETS over

1

n

InFlow

OR

n

Cross

Connection

OutFlow

OR

n

Bridge MIB

Bridge to ETS

ETS to Bridge

STP Port

n

Provider

Mapping

0..1

1

n

Bridge VLAN

1

Bridge Port

n

Bridge

VLAN Port

Bridge MIB

Contents

Vlan Protocol

Profile

0..1

1

SDH physical interface

1

Ethernet ETS Interface (local or remote)

1

0..1

Interfa ces/ Ports M IB

System 1-5

System MIB 1-5

Interfaces 1-7

Generic interface MIB 1-7

Ethernet Layer MIB 1-13

GFP Transmission Layers MIB 1-15

Error logs 1-17

...................................................................................................................................................................................................................................

1-2

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Overview

...................................................................................................................................................................................................................................

Error logs table 1-17

ETS Layer MIB 1-18

Overview 1-18

Alarms and events 1-27

Trap mechanism 1-27

Supported Alarms/Events 1-29

MIB tables for alarm/trap/event management 1-33

Enable trap manager 1-40

Remove manager from manager list 1-41

Upload manager address 1-42

Upload alarm profile information 1-44

Upload open alarm table 1-46

Upload log tables 1-47

Performance monitoring per port 1-50

Overview 1-50

MIB tables for PM per port 1-51

Creating collection of PM (RX & TX) 1-55

Deleting collection of PM (RX & TX) 1-56

Resetting current counters of PM (RX & TX) 1-57

Upload PM Information 1-58

Performance monitoring per queue 1-63

Overview 1-63

MIB tables for PM per queue 1-64

Creating collection of PM (RX & TX) per queue 1-69

Resetting current counters of PM (RX & TX) per queue 1-70

Deleting collection of PM (RX & TX) per queue 1-71

Upload PM per queue information 1-72

Service mirroring management 1-75

Mirror interface definition 1-76

Inflow mirror port 1-77

Inflow mirror flag 1-78

Outflow mirror port 1-79

Outflow mirror flag 1-80

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-3

ES64U SNMP MIB description Overview

...................................................................................................................................................................................................................................

Service mirroring upload 1-81

1+1 LAG - Link Aggregation management 1-83

Overview 1-83

1+1 LAG MIB tables 1-84

1+1 LAG port activate 1-90

1+1 LAG group activate 1-91

1+1 LAG group deactivate 1-93

1+1 LAG Upload 1-94

Support 1-95

Overview 1-95

Restart and truncate database 1-96

...................................................................................................................................................................................................................................

1-4

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description System

...................................................................................................................................................................................................................................

System MIB

System

System MIB

sysDescr (SNMPv2-MIB)

This object identifies the software version of the E.

Object identifier (OID):

1.3.6.1.2.1.1.1

Full path:

iso(1).org(3).dod(6).internet(1).mgmt(2).mib-2(1).system(1).sysDescr(1)

Description

The sysDescr is a 9 bytes string defined in the following way:

sysDescr

MIB field name Description

sysDescr

sysDescr [2,3] represents the Major version (number)

sysDescr [4,5] represents the Minor version (number)

sysDescr [6,7] represents the Maintenance version (number)

[1] is a “V” (upper case)

Example:

For example, ‘V010100’ represents version 1.1.

sysObjectID (SNMPv2-MIB)

The vendor's authoritative identification of the network management subsystem. This scalar is set to “Alcatel-Lucent”.

Object identifier (OID):

1.3.6.1.2.1.1.2

Full path:

iso(1).org(3).dod(6).internet(1).mgmt(2).mib-2(1).system(1).sysObjectID(2)

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-5

ES64U SNMP MIB description System

...................................................................................................................................................................................................................................

System MIB

sysName (SNMPv2-MIB)

This scalar, which is an administratively assigned name for this managed node, is set to “sysadm”.

Object identifier (OID):

1.3.6.1.2.1.1.5

Full path:

iso(1).org(3).dod(6).internet(1).mgmt(2).mib-2(1).system(1).sysame(5)

sysServices (SNMPv2-MIB)

A value that indicates the set of services that this entity may potentially offer. The value is a sum, which initially takes the value zero. Then, for each layer, L, in the range 1 through 7, that this node performs transactions for, 2

Object identifier (OID):

(L – 1)

is added to the sum.

1.3.6.1.2.1.1.7

Full path:

iso(1).org(3).dod(6).internet(1).mgmt(2).mib-2(1).system(1).sysServices(7)

Example:

ES64U, which is a layer 2 switch, has a value of 2 (2

(2–1)

).

...................................................................................................................................................................................................................................

1-6

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

Generic interface MIB

Interfaces

Generic interface MIB

Generic interface MIB tables

The generic interface MIB tables are:

•

IfStackTable (standard)

•

IfInvStackTable (standard)

•

IfTable (standard)

•

IfXTable (standard extension)

•

OpticsIMIfTable (proprietary)

•

OpticsIMEthConfTable (proprietary)

•

nnNMXOpticsExtETSPortMirrorTable (proprietary)

•

OpticsIMEthVLANTypeTable (proprietary)

The relevant managed attributes of the tables involved in the interfaces/ports management are the following:

IfStackTable (IF-MIB)

The ifStackTable contains information on the relationships between the multiple sub-layers of network interfaces.

Object identifier (OID):

1.3.6.1.2.1.31.1.2

Full path:

iso(1).org(3).dod(6).internet(1).mgmt(2).mib2(1).ifMIB(31).ifMIBObjects(1).ifStackTable(2)

Description

In particular, the ifStackTable contains information on which sub-layers run on top of' which other sub-layers, where each sub-layer corresponds to a conceptual row in the

ifTable. For example, when the sub-layer with ifIndex value x runs over the

sub-layer with

ifIndex value y, then this table contains:

ifStackStatus.x.y = active

For each ifIndex value, I, which identifies an active interface, there are always at least two instantiated rows in this table associated with I. For one of these rows, I is the value of

ifStackHigherLayer; for the other, I is the value of ifStackLowerLayer.(IfIis

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-7

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

Generic interface MIB

not involved in multiplexing, then these are the only two rows associated with I.) For example, two rows exist even for an interface which has no others stacked on top or below it:

ifStackStatus.0.x = active

ifStackStatus.x.0 = active

ifInvStackTable (IF-MIB)

The ifInvStackTable contains information on the relationships between the multiple sub-layers of network interfaces.

Object identifier (OID):

1.3.6.1.2.1.77.1.1

Full path:

iso(1).org(3).dod(6).internet(1).mgmt(2).mib2(1).ifInvMIB(77).ifInvMIBObjects(1).ifInvStackTable(1)

Description

In particular, the ifInvStackTable contains information on which sub-layers run 'underneath' which other sub-layers, where each sub-layer corresponds to a conceptual row in the ifTable. For example, when the sub-layer with ifIndex value x runs underneath the sub-layer with ifIndex value y, then this table contains:

ifInvStackStatus.x.y = active

For each ifIndex value, z, which identifies an active interface, there are always at least two instantiated rows in this table associated with z. For one of these rows, z is the value of

ifStackHigherLayer; for the other, z is the value of ifStackLowerLayer.(Ifzis

not involved in multiplexing, then these are the only two rows associated with z.)

For example, two rows exist even for an interface which has no others stacked on top or below it:

ifInvStackStatus.z.0 = active

ifInvStackStatus.0.z = active

This table contains exactly the same number of rows as the ifStackTable, but the rows appear in a different order.

...................................................................................................................................................................................................................................

1-8

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

Generic interface MIB

ES64U implementation

For the ES64U, the implementation is as follow:

•

ifStackStatus.ethernetInterface.gfpInterface

• ifInvStackStatus.gfpInterface.ethernetInterface

IfTable (IF-MIB)

A list of interface entries. The number of entries is given by the value of ifumber.

ES64U has interfaces of type gfp(IAAifType 221) and ethernetCsmacd(IAAifType 6).

Object identifier (OID):

1.3.6.1.2.1.2.2

Full path:

iso(1).org(3).dod(6).internet(1).mgmt(2).mib-2(1).interfaces(2).ifTable(2)

IfTable

MIB field name Description Value

IfIndex

IfType (RO) Type of interface Used values are:

IfSpeed (RO) Interface bandwidth in kbit/s

ifAdminStatus (R/W) Desired state of interface 1-up

ifOperStatus (RO) Actual state of interface 1-up

ifPhysAddress ot used

ifMTU The largest frame size which can be

Index of the table A unique value greater than 0

6-ethernet

221-gfp

2-down (initial value)

The following frame sizes are supported:

sent/received on the interface.

1574, 1600 ,1974, 2000, 2026, 4474, 4500, 4526, 9190, 9216, 9242

ote that the WA ports 31-126 and 159-254 do not support Jumbo frames; Jumbo frames are frames with more than 2026 bytes.

IfXTable (IF-MIB)

A list of interface entries. The number of entries is given by the value of ifumber. This table contains additional objects for the

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

IfTable.

1-9

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

Generic interface MIB

Object identifier (OID):

1.3.6.1.2.1.31.1.1

Full path:

iso(1).org(3).dod(6).internet(1).mgmt(2).mib-(1).ifMIB(31).ifMIBObjects(1).ifXTable(1)

IfXTable (augments ifTable)

MIB field name Description Value

IfPromiscuousMode Specifies if interface accepts all

1-true (default) packets/frames or not. Set to false (i.e. non-promiscuous mode, means that Ethernet frames are terminated), (read only)

OpticsIMIfTable (TSDIM-SNMPNE-MIB)

This table contains interface configuration not defined in the IfTable.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.5.1.19

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSnmpEMib(5).tsdimSnmpEMibObject(1).opticsIMIfTable(19)

OpticsIMIfTable

MIB field name Description Value

IfIndex Index of the table A unique value greater than 0

opticsIMIfRateLimitedSpeed This attribute carries out the rate limiting

functionality.

This attribute is used for the CAC tests – it is useful only for the Ethernet interface.

In kbit/s

Minimum value: 1Mbit/s

Default value: 0 Gbit/s

The actual bandwidth is the minimum value between the Rate Limit and the SDH current Speed.

TsdimIfUnderlieLayer (RO) Reference to the underlying path layer. 1 - SDH/Sonet

OpticsIMEthConfTable (OPTICSIM-ETHNE-MIB)

This media-specific interface table is used to define the proprietary configuration parameters for the Ethernet interfaces.

...................................................................................................................................................................................................................................

1-10

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

Generic interface MIB

Object identifier (OID):

1.3.6.1.4.1.637.54.1.25.2.1.1

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).opticsimEthMib(25). opticsimEthEMib(2).opticsimEthEMibObject(1).opticsIMEthConfTable(1)

OpticsIMEthConfTable

MIB field name Description Value

ifIndex

opticsIMEthMauIndex ot Used

opticsIMEthJackIndex ot Used

opticsIMEthConfEncaps ot Used

OpticsIMEthAvailableBandwidth (RO)

Index of the table A unique value greater than 0

Indicates the available bandwidth of a specific port (this value applies to the value which can be decrease from

opticsIMIfRateLimitedSpeed)

Indicates the available bandwidth of a specific port.

1. This parameter represents the available BW which can be assigned for CIR services using this port as their egress port

2. This parameter is meaningful only when

opticsIMEthCirOverbookingFactor

is set to a non-zero value.

3. This parameter is decreased by the CIR value of the traffic descriptors associated with services using this port as outflow.

4. Initial Available Bandwidth value is:

In kbit/s

Minimum value: 1Mbit/s

Default value: 0 Gbit/s

• In case of rate limit = 0

• Initial value = ifSpeed * (60

/

72)*(CirOverbookingFactor/

100)

• In case of rate limit ≠ 0

• Initial value = ifSpeed * (60

/

84)*(CirOverbookingFactor/

100)

OpticsIMEthConfVLANEtherType

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-11

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

OpticsIMEthConfTable

MIB field name Description Value

Generic interface MIB

OpticsIMEthClientType (RW)

opticsIMEthCirOverbookingFactor (RW)

opticsIMEthEirOverbookingFactor (RW)

Points to an entry in

opticsIMEthVLANTypeTable that

represents the EtherType value used to detect VLA tagged frames received from this interface, as well as to insert VLA tags to the frames to be transmitted.

Transmission direction of the frames received from this interface

This attribute defines the overbooking (OB) factor for the CIR bandwidth.

The overbooking factor is defined as a percentile.

This attribute defines the overbooking (OB) factor for the EIR bandwidth. The overbooking factor is defined as a percentile.

0 means standard EtherType (0x8100 VLA Tag) IEEE 802. 1Q

0 is the default value.

1-ets (sent to ETS Layer)

3-linkagg

0 means unlimited

100 means CIR

101 to 10000 means CIR/100 * (the value)

Values 1 to 99 are not allowed.

0 means unlimited

100 means PIR-CIR

101 to 10000 means (PIR-CIR)/100 * (the value)

Values 1 to 99 are not allowed.

OpticsIMEthVLANTypeTable

opticsIMEthVLANTypeTable

MIB field name Description Value

opticsIMEthVLANTypeIndex

Index of the table A unique value greater than 0

opticsIMEthVLANTypeEtherType(RW)

Define the protocol type (default 0x8100) >0x600 , not including:

opticsIMEthVLANTypeUserLabel(RW)

Define the label for this type Unique field

opticsIMEthVLANTypeRowStatus(RC)

Used to create, modify or delete a row in the table

...................................................................................................................................................................................................................................

1-12

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

CreateAndWait(5),CreateAndGo(4)Active(1), otReady(3),otInService(2), or Destroy(6)

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

Ethernet Layer MIB

OpticsIMEthConfTable

MIB field name Description Value

ifIndex

opticsIMEthMauIndex ot Used

opticsIMEthJackIndex ot Used

opticsIMEthConfEncaps ot Used

OpticsIMEthAvailable Bandwidth

(RO)

Index of the table A unique value greater than 0

Indicates the available bandwidth of a specific port (this value applies to the value which can be decrease from opticsIMIfRateLimitedSpeed)

OpticsIMEthConfVLAN EtherType

(RW)

Points to an entry in opticsIMEthVLATypeTable that represents the EtherType value used to detect VLA tagged frames received from this interface, as well as to insert VLA tags to the frames to be transmitted.

Read only.

OpticsIMEthClientType (RW) Transmission direction of the frames

received from this interface

opticsIMEthCir OverbookingFactor

(RW)

This attribute defines the overbooking (OB) factor for the CIR bandwidth.

The overbooking factor is defined as a percentile.

In kbit/s

Minimum value: 1Mbit/s

Default value: 0 Gbit/s

0 means standard EtherType (0x8100 VLA Tag) IEEE 802. 1Q

0 is the default value.

1-ets (sent to ETS Layer)

3-linkagg

0 means unlimited

100 means CIR

101 to 10000 means CIR/100 * (the value)

opticsIMEthEir OverbookingFactor

(RW)

MIB field name Description Value

opticsIMEthVLANTypeIndex

This attribute defines the overbooking (OB) factor for the EIR bandwidth. The overbooking factor is defined as a percentile.

opticsIMEthVLANTypeTable

0 means unlimited

100 means PIR-CIR

101 to 10000 means (PIR-CIR)/100 * (the value)

Index of the table A unique value greater than 0

opticsIMEthVLANTypeEtherType (RW)

Define the protocol type (default 0x8100) >0x600 , not including:

opticsIMEthVLANTypeUserLabel (RW)

Define the label for this type Unique field

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-13

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

opticsIMEthVLANTypeTable

MIB field name Description Value

opticsIMEthVLANTypeRowStatus (RC)

Ethernet Layer MIB

Used to create, modify or delete a row in the table

CreateAndWait(5),CreateAndGo(4)Active(1), otReady(3),otInService(2), or Destroy(6)

...................................................................................................................................................................................................................................

1-14

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

GFP Transmission Layers MIB

The media-specific interface MIB tables are tables not generic to all interfaces types. They are:

•

OpticsimGFPConfTable

• OpticsIMSdhIfTable (proprietary)

The managed attributes are the following.

OpticsIMSdhIfTable – Read Only

MIB field name Description Value

ifIndex

opticsIMSdhifType - ot Used Type of interface

opticsIMSdhIfUnderlieLayer Reference to the underlying path layer.

OpticsIMSdhIfSpeed - ot used Interface bandwidth in b/s

OpticsIMSdhIfVcType Type of the underlying SDH VC.

Index of the table A unique value greater than 0

(Read only)

(Read Only)

(Read only)

Possible values are :

22-PropPointToPointSerial (used for packet conc. Proprietary GFP)

118-hdlc

221-gfp

1-sdh

2-pdh (not supported)

3-none (default)

4-mau

5-pconc (packet concatenation)

6-vconc

1-other

2-vc12

3-vc3

4-vc4

5-vc4-4c

6-vt1-5

7-sts-1

opticsIMSdhIfCurrSpeed Value of actual ifSpeed of the relative

server TTP.

(Read only)

opticsimGFPConfTable – Not used

MIB field name Description Value

IfIndex

opticsimGFPConfFcs Activation/Deactivation of GFP Frame

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Index of interface in ifTable

Check Sequence usage (read-create)

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

The bandwidth configured by the 1678 SC

1- true

2- false (default value)

1-15

ES64U SNMP MIB description Interfaces

...................................................................................................................................................................................................................................

GFP Transmission Layers MIB

The following figure shows the relations between the tables.

Figure 1-1 Media-specific interface MIB tables

<<TSDIM- SNMPNE-MIB>>

<<ro>> opticsIMSdhIfSpeed <<ro>> opticsIMSdhIfUnderlieLayer : sdh,pdh,... <<ro>> opticsIMSdhIfType : gfp,hdlc... <<ro>> opticsIMSdhIfVcType : vc3,vc12...

<<Idx1>> ifIndex <<ro>> ifDescr <<rw>> ifType <<rw>> ifSpeed <<rw>> ifAdminStatus = up, down, testing <<ro>> ...

rc- mplsLdpEntityConfGenericIfIndexOrZero

0, because LDP label range is managed on Per-Platform basis

opticsIMSdhIfTable

Idx- ifIndex

<<IF-MIB>>

ifTable

Idx-mplsInterfaceConfIndex

0 if Per-PlatformLabel Space:

- RSVP label range

- static over signaled label range

Idx- ifIndex

Idx - IfIndex

<<rw>> opticsimLapsConfFlag = simpleFlag,twoFlags <<rw>> opticsimLapsConfErroneousFramesHandling = none, fscError,...

Idx - ifIndex

Idx- ifIndex

<<rc>> opticsimGFPConfFcs = true, false

<<ro>> opticsimHDLCExtDummy = 0

<<rc>> opticsimPPPConfScrammbling = true, false <<rc>> opticsimPPPConfMRU <<rc>> opti csimPPPConfMTU <<rc>> opticsimPPPConfFcsSize <<rc>> opticsimPPPConfEncaps = std, alcatelprop

<<ro>> pppLinkStatusBadAddress <<ro>> pppLinkStatusPhysicalIndex <<ro>> pppLinkStatusReceiveFcsSize <<ro>> pppLinkStatusTransmitFcsSize

<<OPTICSIM-LAPS-MIB>>

opticsimLapsConfTable

<<OPTICSIM-GFP-MIB>>

opticsimGFPConfTable

<<OPTICSIM-HDLC-MIB>>

opticsimHDLCExtTable

<<OPTICSIM-PPP-MIB>>

opticsimPPPConfTable

<<PPP-LCP- MIB>>

pppLinkStatus

<<Idx1>> mplsEnti tyLdpId <<Idx2>> mplsEntityIndex <<Idx3>> mplsLdpEntityConfGenericLabelRangeMinimum <<Idx4>> mplsLdpEntityConfGenericLabelRangeMaximum

<<ro>> mplsInterfaceAvailableBandwidth <<ro>> mplsInterfaceLabelParticipationType = Per- Platf , Per -Inter f <<ro>> mplsInterfaceTotalBandwidth <<rw>> mplsInterfaceLabelMaxIn <<rw>> mplsInterfaceLabelMinIn

<<rc>> hjMplsInterfaceLabelMaxIn <<rc>> hjMplsInterfaceLabelMinIn <<rc>> hjMplsInterfaceLabelRange <<rc>> hjMplsInterfaceUseInterfaceLabels = Per-Platf, Per-Interf

mplsLdpEntityConfGenericLabelRangeTable

<<rw>> opticsimMplsConfMaxManualLabelIn <<rw>> opticsimMplsConfResponsible = other,snmp,rsvp,ldp...

<<MPLS-LDP-MIB>>

<<LSR-MPLS-MIB>>

mplsInterfaceConfTable

(from MPLS)

<<augments>>

<<RSVP-TE-MPLS-MIB>> hjMplsInterfaceConfTable

<<rw>> opticsimDAConfTopology = disabled, hub, ring, signedNode <<rw>> opticsimDAConfProtocolMode = disabled, basicRxSubset, full

<<augments>><<augments>>

(from MPLS)

<<OPTICSIM-MPLS- MIB>>

opticsimMplsConfTable

(from MPLS)

<<OPTICSIM-DA-MIB>>

opticsimDAConfTable

<<OPTICSIM-ETHNE-MIB>>

<<rw>> opticsIMEthMauIndex <<rw>> opticsIMEthJackIndex <<rc>> opticsIMEthConfEncaps <<ro>> opticsIMEthAvailableBandwidth <<ro>> opti csIMEthClientType = ETS, ETB <<ro>> opticsIMEthAdmittedFractionalRate

rw-opticsIMEthConfVLANEtherType or 0

<<Idx>> opticsIMEthVLANTypeIndex <<rc>> opticsIMEthVLANTypeEtherType = 0x8100... <<rc>> opticsIMEthVLANTypeUserLabel <<rc>> opticsIMEthVLANTypeRowStatus

opticsIMEthConfTable

<<OPTICSIM-ETHNE-MIB>> opticsIMEthVLANTypeTable

<<OPTICSIM-ETHNE-MIB>>

opticsIMEthVLANTypeIndexNext

...................................................................................................................................................................................................................................

1-16

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Error logs

...................................................................................................................................................................................................................................

Error logs table

Error logs

Error logs table

The following table contains all SMP errors during provisioning:

•

opticsIMErrorLogTable

opticsimGFPConfTable – Not used

MIB field name Description Value

opticsIMErrorLogMgrIpAddr

opticsIMErrorLogSnmpRequest

opticsIMErrorLogErrorTex

The IP address of the Management System setting the MIB attributes.

The SMP Reqest ID. not-accessible

The error description. Read-Only

not-accessible

String.

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-17

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

Overview

ETS Layer MIB

Overview

The management of Ethernet ETS connections involves the following ETS MIB Tables:

•

opticsimETSTrafficDescrTable (proprietary)

•

opticsimEth2ETSFlowClassifierTable (proprietary)

•

opticsimETSInFlowTable (proprietary)

•

opticsimETSCrossConnectTable (proprietary)

•

opticsimETSOutFlowTable (proprietary)

•

opticsimETSVlanStackConfTable (proprietary)

•

nnNMXOpticsExtETSInflowMirrorTable (proprietary)

•

NMXOpticsExtETSOutflowMirrorTable (proprietary)

The managed attributes are the following:

MIB field name Description Value

OpticsIMETSTrafficDescrIndex

OpticsIMETSTrafficDescrType

OpticsIMETSTrafficDescrParam1

OpticsIMETSTrafficDescrParam2

OpticsIMETSTrafficDescrTable (ETS MIB)

Index of the table Result of Get method on

opticsIMETSTrafficDescrIndexext

ETS Class of service 1-bestEffortService

2-regulatedService

3-guaranteedService

4-groupedService

5-backgroundService

6-regulated4Service

7-regulated3Service

8-regulated1Service

9-guaranteed2Service

Committed Information Rate (Kbps) CIR value (default value in E: '0'b)

Peak Information Rate (Kbps) PIR value (default value in E: '0'b)

OpticsIMETSTrafficDescrParam3

Committed Burst Size (Bytes) CBS value (default value in E: '0'b)

OpticsIMETSTrafficDescrParam4

...................................................................................................................................................................................................................................

1-18

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

OpticsIMETSTrafficDescrTable (ETS MIB)

MIB field name Description Value

Overview

Peak Burst Size (Bytes) PBS value (default value in E: '0'b)

OpticsIMETSTrafficDescrParam5

ot used

OpticsIMETSTrafficDescrUserLabel

OpticsIMETSTrafficDescrRowStatus

MIB field name Description Value

OpticsIMETSInFlowIndex

OpticsIMETSInFlowServiceType

OpticsIMETSInFlowServiceID

OpticsIMETSInFlowUserLabel

Canonical name assigned to the traffic

Configurable string

descriptor

Used to create, modify or delete a row in the table

OpticsIMETSInFlowTable (ETS MIB)

CreateAndWait, Active, otInService, or Destroy

Index of the table Result of Get method on

opticsIMETSInflowIndexNext

Type of service to be carried over this flow 1-ethernet (default value)

Contains the appropriate value, service

Value of ifIndex (ifTable)

type dependent.

Canonical name assigned to the flow Configurable string,

OpticsIMETSInFlowTrafficDescr

index of pointed traffic descriptor

Value of opticsIMETSTrafficDescrIndex

(opticsIMETSTrafficDescrTable)

OpticsIMETSInFlowType

Specifies the type of Inflow. 0-unicastoAutoLearning (default value)

OpticsIMETSInFlowPolicing Mode

ETS Policing Mode 1 -colorBlind (default value)

2 –disabled (non policed traffic)

OpticsimETSInFlowCross ConnectIdentifier

Identifier of the pointed cross-connection (opticsIMETSCrossConnectTable)

Value of opticsIMETSCrossConnectIndex. Read-only field. It is initialized automatically by the E agent after the entry in the cross-connect table has been created

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-19

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

OpticsIMETSInFlowTable (ETS MIB)

MIB field name Description Value

OpticsimETSInFlowVLANPop

Overview

Enable or disabled the VLA Pop configuration. This object is meaningful only if service type is 'Ethernet'.

Read / Write.

ot supported by ISA ES 1/4

OpticsimETSInFlowColorProfile Pointer

Pointer to the related Color Profile (opticsIMETSColorProfileTable), if any. This object is meaningful only if service type is 'Ethernet' and if the PolicingMode is 'colorAware' or 'disabled'

Read / Write.

OpticsimETSInFlowLayer2 ProtocolList

Enables to choose if to tunnel toward a Provider etwork, or filter data and Layer 2 control frames.

Bit=1: Relative frame is tunnelled.

Bit=0: Relative frame is discarded.

Significant only if ServiceType is 'ethernet'.

Read.

1 – enabled

2 – disabled (default)

Related Color profile index.

0 if no color profile (default)

Default: all bits=1, i.e. tunnelling everything.

OpticsIMETSInFlowRowStatus

Used to create, modify or delete a row in the table

OpticsIMETSOutFlowTable (ETS MIB)

MIB field name Description Value

OpticsIMETSOutFlow Index

CreateAndWait, Active, otInService, or Destroy

Index of the table Result of Get method on

opticsIMETSOutflowIndexext

OpticsIMETSOutFlow ServerType

Type of service on which this flow will be

1-ethernet (default value)

carried

OpticsIMETSOutFlow ServerID

Contains the appropriate value, server type

Value of ifIndex (ifTable)

dependent.

OpticsIMETSOutFlow UserLabel

Canonical name assigned to the flow Configurable string,

...................................................................................................................................................................................................................................

1-20

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

OpticsIMETSOutFlowTable (ETS MIB)

MIB field name Description Value

OpticsimETSOutFlow CrossConnectIdentifier

Overview

OpticsIMETSOutFlow RowStatus

OpticsimETSOutFlow VLANStackPointer

nnNMXOpticsExtETSInflowMirrorTable (augments OpticsIMETSInFlowTable)

MIB field name Description Value

nnNMXOpticsExtETSInflowMirror

(RW)

Identifier of the pointed cross-connection (opticsIMETSCrossConnectTable)

Used to create, modify or delete a row in the table

Pointer to the related VLA Stack configuration (opticsIMETSVLAConfTable), if any. This object is meaningful only if service type is 'Ethernet'. Read / Write.

Flag that defines if this inflow traffic should be mirrored or not.

Value of opticsIMETSCrossConnectIndex. Read-only field. It is initialized automatically by the E agent after the entry in the cross-connect table has been created

CreateAndWait, Active, otInService, or Destroy

Pointer to the Related VLA Stack Conf

0 if no Vlan push has been associated to the outfllow (default)

• mirror this inflow

• don't mirror this inflow

nnNMXOpticsExtETSInflowMirrorPort (RW)

This field defines the port where to mirror the outflow (if it allowed – nnMXOpticsExtETSOutflowMirror field)

1. mirror to TAC1 port(default)

2. mirror to TAC2 port

The value is irrelevant while nnMXOpticsExtETSInflowMirror is 2

nnNMXOpticsExtETSOutflowMirrorTable (augments OpticsIMETSOutFlowTable)

MIB field name Description Value

nnNMXOpticsExtETSOutflowMirror

nnNMXOpticsExtETSOutflowMirrorPort (RW)

(RW)

Flag that defines if this outflow traffic should be mirrored or not.

This field defines the port where to mirror the outflow (if it allowed – nnMXOpticsExtETSOutflowMirror field)

1. mirror this outflow

2. don't mirror outflow(default)

1. mirror to TAC1 port(default)

2. mirror to TAC2 port

The value is irrelevant while nnMXOpticsExtETSOutflowMirror is 2

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-21

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

OpticsIMETSVLanStackConfTable (ETS MIB)

MIB field name Description Value

OpticsIMETSVlanStackConfIndex

Overview

First Index of the table Result of Get method on

opticsIMETSVlanStackConfIIndexext

OpticsIMETSVlanStackConfVlanIndex

OpticsIMETSVlanStackConfVlanID

OpticsIMETSVlanStackConfPriorityMode

OpticsIMETSVlanStackConfPriority

Second Index of the table: A value to identify the VLA number

Defines the VLA value to be set for VLA tag to be pushed

Represents the way by which priority bits of VLA tag have to be managed

The value of the priority bits to be set in the VLA tag to be pushed.

In the colorblind mode, it is the value to be set for all outgoing frames

In the coloraware mode, it is the value to be set only for green frames

Value fixed to 1

1..4094 (default is 0)

1-colorblind

• 0 – pri000 (default)

• 1 – pri001

• 2 – pri010

• 3 – pri011

• 4 – pri100

• 5 – pri101

• 6 – pri110

• 7 – pri111

• 10 – preserved priority from ingress

(The incoming priority bit will be code on the outgoing vlan)

OpticsIMETSVlanStackConfPriorityYellow

ot Used

OpticsIMETSVlanStackConfIRow Status

Used to create, modify, or delete a row in the table

OpticsIMETSCrossConnectTable (ETS MIB)

MIB field name Description Value

OpticsIMETSCrossConnectIndex

• 0 – pri000 (default)

CreateAndWait, Active, otInService, or Destroy

1stindex of the table Result of Get method on

opticsIMETSCrossConnectIndexext

OpticsIMETSCrossConnectInFlow Index

...................................................................................................................................................................................................................................

1-22

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

OpticsIMETSCrossConnectTable (ETS MIB)

MIB field name Description Value

Overview

2ndindex of the table = index of pointed InFlow (opticsIMETSInFlowTable)

OpticsIMETSCrossConnectOutFlowIndex

3rdindex of the table = index of pointed OutFlow (opticsIMETSOutFlowTable)

OpticsIMETSCrossConnectRow Status

Used to create, modify or delete a row in the table

opticsIMEth2ETSFlowClassifierTable (ETS MIB)

MIB field name Description Value

OpticsIMEth2ETSFlowClassifier InFlowIndex

1stindex of the table = index of related InFlow (opticsIMETSInFlowTable)

OpticsIMEth2ETSFlowClassifier Index

2ndindex of the table Result of Get method on

OpticsIMEth2ETSFlowClassifier Vlan

opticsIMETSInFlowIndex value of the related inflow

opticsIMETSOutFlowIndex value of the related outflow

CreateAndWait, CreateAndGo, otInService, or Destroy

Value of opticsIMETSInFlowIndex

opticsIMEth2ETSFlowClassifierIndexext

VLA Id of the flow, (or min VLA ID for a VLA range).

The 4096 value is also used for priority-based purposes.

Limitations:

• Minimum classifiers per inflow: 1.

• Maximum classifiers per inflow: 8.

• Classifiers with the same inflow -

• Classifiers with the same inflow

OpticsIMEth2ETSFlowClassifier MaxVlan

max VLA ID

OpticsIMEth2ETSFlowClassifier Priority

• 1..4094

• 4096 - untagged

• 4097 – don't care (default)

Can't have the same exact parameters (Vlan, MaxVlan, Pri, MaxPri).

ServiceID and different inflows Can't have the same Vlan (or to overlap).

• 0 - no range managed (default value)

• 1..4094

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-23

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

opticsIMEth2ETSFlowClassifierTable (ETS MIB)

MIB field name Description Value

Overview

user priority mapped in the InFlow (or min priority for a priority range)

The 0 value is used for VLA-based purposes

OpticsIMEth2ETSFlowClassifier MaxPriority

Max value of priority

OpticsIMEth2ETSFlowClassifier RowStatus

Used to create, modify or delete a row in the table

opticsIMETSInFlowServiceIDTable

• 0 – pri000

• 1 – pri001

• 2 – pri010

• 3 – pri011

• 4 – pri100

• 5 – pri101

• 6 – pri110

• 7 – pri111

• 8 – untagged

• 9 – don't care (default )

• 0 – pri000 no range managed

(default)

• 1.. 7 (pri001 to pri111)

CreateAndWait, Active, otInService, or Destroy

This table is a read-only version of the opticsIMETSInFlowTable.

It is ordered by ServiceID and InFlow.

An entry is created, in this table, automatically by the agent, when an entry is activated by the manager in the

opticsIMETSInFlowRowStatus equal to 'active'.

opticsIMETSInFlowTable with

An entry is deleted, in this table, automatically by the agent, when an entry is deactivated or deleted by the manager in the

opticsIMETSInFlowRowStatus equal to 'destroy' or 'notInService'.

opticsIMETSOutFlowServerIDTable

opticsIMETSInFlowTable with

This table is a read-only version of the opticsIMETSOutFlowTable.

It is ordered by ServerID and OutFlow.

An entry is created, in this table, automatically by the agent, when an entry is activated by the manager in the

opticsIMETSOutFlowRowStatus equal to 'active'.

opticsIMETSOutFlowTable with

...................................................................................................................................................................................................................................

1-24

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

Overview

An entry is deleted, in this table, automatically by the agent, when an entry is deactivated or deleted by the manager in the

opticsIMETSInFlowRowStatus equal to 'destroy' or 'notInService'.

Example with a point to point Ethernet EVC

opticsIMETSOutFlowTable with

The figure below depicts the case of an EVC going from nodes A to C over SDH topology

Figure 1-2 EVC over ETS example

ISA ES64

CE

Node A Node B

EVC Link over SONET

NodeC

CE

The table below summarizes the different ETS MIBs objects that must be provisioned in each E, to create a complete Ethernet switch:

Table 1-1 ETS objects creation

A ⇒ Z ETS TrafficDescr Eth2ETS

FlowClassifier

ode A Y

ode B Y

ode C Y

1

Y Y Y (xc1) Y

Y Y Y (xc2) Y

Y Y Y (xc3) Y

Notes:

1. Only if needed, because the same ETS Traffic Descriptor can be used by different Ethernet flows.

ETS InFlow ETS CrossConnect ETS OutFlow

The following figure shows the relations between the tables:

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-25

ES64U SNMP MIB description ETS Layer MIB

...................................................................................................................................................................................................................................

Overview

Figure 1-3 ETS MIB tables

<<OPTICSIM-ETS-MIB>>

opticsimEth2ETSFlowClassif ierIndexNext

<<OPTICSIM-ETS-MIB>>

opticsimETSTrafficDescrIndexNext

<<OPTICSIM-ETS-MIB>>

opticsimEth2ETSFlowClassif ierTable

<<Idx2>> opticsimEt h2ETSFlowClassifierIndex <<rc>> opticsimEth2ETSFl owClassifierVlan <<rc>> opticsimEth2ETSFl owClassifierMaxVlan <<rc>> opticsimEth2ETSFl owClassifierPriority <<rc>> opticsimEth2ETSFl owClassifierMaxPriority <<rc>> opticsimEth2ETSFl owClassifierRowStatus

Idx1-opticsimEth2ETSFl owClassifierInFlowIndex

<<OPTICSIM-ETS-MIB>>

opticsimETSInFlowIndexNext

<<OPTICSIM-ETS-MIB>>

<<Idx1>> opticsimET SInFlowIndex <<rc>> opticsimETSInFl owServiceType = other, ethernet, m pls, providerBridge <<rc>> opticsimETSInFl owUserLabel <<rc>> opticsimETSInFlowType <<rc>> opticsimETSInFl owPolicingMode = colorbli nd, disabled, coloraware <<rc>> opticsimETSInFlowRowStatus <<rc>> opticsimETSInFl owVlanPop = enabled, disabled

Idx2-opticsimETSCrossConnectI nFlowIndex

opticsimETSInFlowTable

rc-opticsimETSInFlowServiceID

if ServiceType= eth ernet

IF MIB

<<OPTICSIM-ETS-MIB>>

<<Idx1>> opticsimET STrafficDescrIndex <<rc>> opticsimETSTraffic DescrType = bes, rs, gs <<rc>> opticsimETSTrafficDescrParam1 = CIR <<rc>> opticsimETSTrafficDescrParam2 = PIR <<rc>> opticsimETSTrafficDescrParam3 = CBS <<rc>> opticsimETSTrafficDescrParam4 = PBS <<rc>> opticsimETSTrafficDescrParam5 <<rc>> opticsimETSTrafficDescrUserLabel <<rc>> opticsimETSTraffic DescrRowStatus

rc-opticsimETSInFlowTrafficDescr

rc-opticsimETSOutFlowServerID

<<IF-MIB>>

ifTable

(from Interfaces)

opticsimETSTrafficDescrTable

<<Idx1>> opticsimET SOutFlowIndex <<rc>> opticsimETSOutFlowServ erType = other, ethernet, mpls, providerBridge <<rc>> opticsimETSOutFlowUserLabel <<rc>> opticsimETSOutFlowRowStatus

if ServerType= eth ernet

Read Only version of InFlow Table, ordered by ServiceType / ServiceID / I nFlowIndex

<<OPTICSIM-ETS-MIB>>

opticsimETSInFlowServiceI DTable

Read Only version of OutFlow Table, ordered by ServiceType / ServiceID / O utFlowIndex

<<OPTICSIM-ETS-MIB>>

opticsimETSOutFlowIndex Next

<<OPTICSIM-ETS-MIB>>

opticsimETSOutFlowTable

Idx3-opticsimETSCrossConnectO utFlowIndex

<<OPTICSIM-ETS-MIB>>

opticsimETSOutFlowServ erIDTable

ro-opticsimETSInFlowCrossConnectI dentifier

can become significant only if policing m ode is coloraware or disabled, and service type i s ethernet.

rc-opticsIMETSInFlowColorProfilePointer or 0

<<OPTICSIM-ETS-MIB>>

<<Idx>> opticsIMETSColorProfileIndex <<rc>> opticsIMETSColorProfiIePriority0 = gr,y,red <<rc>> opticsIMETSColorProfiIePriority1 = gr,y,red <<rc>> ... <<rc>> opticsIMETSColorProfiIePriority7 = gr,y,red <<rc>> opticsIMETSColorP rofiIeUserLabel <<rc>> opticsIMETSColorProfileRowStatus

opticsIMETSColorProfileTable

or Ethernetover MPLSMIB: if Inflow ServiceType= mpls or if Outflow ServerType=mpls see diagram ETS over MPLSMIB

<<Idx1>> opticsimET SCrossConnectIndex <<rc>> opticsimETSCrossConnectR owStatus

<<OPTICSIM-ETS-MIB>>

opticsIMETSColorProfil eIndexNext

or Ethernet over ProviderBridgeMIB: if InflowServiceType= providerBridgeor if Outflow ServerType=providerBridge see diagram ETS over ProviderBridgeMIB

<<OPTICSIM-ETS-MIB>>

opticsimETSCrossConnectIndex Next

<<OPTICSIM-ETS-MIB>>

opticsimETSCrossConnectTable

<<OPTICSIM-ETS-MIB>>

opticsimETSVLanStackConfIndex Next

<<Idx1>> optcisIMETSVlanS tackConfIndex <<Idx2>> optcisIMETSVl anStackConfVlanIndex = 1. .3 <<rc>> optcisIMETSVlanSt ackConfVlanID = 0..4095 <<rc>> optcisIMETSVlanStackConf PriorityMode = colorbli nd, coloraware <<rc>> optcisIMETSVlanStackConfPriority = 0..7 <<rc>> optcisIMETSVlanS tackConfPriorityYellow = 0..7 <<rc>> optcisIMETSVlanSt ackConfRowStatus

ro-opticsimETSOutFlowCrossConnec tIdentifier

can become significant only if server ty pe is ethernet.

rc-opticsimETSOutFlowVLANStackPointer or 0

<<OPTICSIM-ETS-MIB>>

opticsimETSVlanStackConfTable

...................................................................................................................................................................................................................................

1-26

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Trap mechanism

Alarms and events

Trap mechanism

To use the trap mechanism you should use the following features:

Manager list

Define to which IP address and UDP port to send the traps:

You need to use 2 tables: (duplicate tables for future usage of filtering)

•

opticsIMMgrPollingInfoTable

• tsdimEFDTable

Maximum configured managers is 10.

Alarm profiles

Define profile for specific/group/all sources of alarm to use.

By default there are 4 profiles defined – those defaults can not be edited.

You can define up to 96 new alarm profiles.

Each profile defines the severity for each possible alarm.

For profile definition you need to use 2 tables:

•

If the severity can not be found within the relevant profile definition, the trap will use a default (minor).

•

By default all sources pointed to profile #2 (=primary alarms)

•

Open Alarm Table

Show the open alarms table

•

tsdimAlarmSevProfileTable – general description of the profile

tsdimAlarmSevTable – detailed information of this profile contents

tsdimAlarmSevDefault

tsdimIfAsapIndex (within opticsIMIfTable)

tsdimAPTTable

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-27

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Trap mechanism

Log

There are 2 log tables, one for alarm and the other for events

•

tsdimEventLogTable – general description of each log (default maximum log size

=1000)

tsdimAlarmLogTable – Log of all transmitted alarms

•

...................................................................................................................................................................................................................................

1-28

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Supported Alarms/Events

For more information you can use the document: ES64_SMP_MIB_and_traps_guide_Ed1.1.doc

Alarms

OpticsIMAlarmLossOfFrameRaise

This notification reports the Loss Of Frame (LOF) defect raise.

The loss of frame (LOF) alarm appears when the frame sync is not recognizable, and the out of frame (OOF) alarm persists for 3 ms.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.5.1.40.3

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSnmpEMib(5).tsdimSnmpEMibObject(1).opticsIMCommonAlarms(40). opticsIMAlarmLossOfFrameRaise(3)

opticsIMAlarmTsfRaise

This notification reports the Trail Signal Fail (TSF) defect raise.

Alarm based on detection in the SDH or OT transport network as defined in G.783 and G.798. GFP Server Signal Fail events refer to GFP Loss of Frame Delineation events as defined in the GFP state machine or propagation of TSF events to the GFP clients.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.5.1.40.35

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1) .tsdimSnmpEMib(5).tsdimSnmpEMibObject(1).opticsIMCommonAlarms(40). opticsIMAlarmTsfRaise(35)

OpticsimClientSignalFailRaise

This notification reports the Client Signal Fail (CSF) defect raise.

CSF events refer to failure events detected in the client signal on ingress (communicated to far-end by a CSF client management frame) or egress (client-specific mapping defects such as payload errors).

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.5.1.40.55

Full path:

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-29

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSnmpEMib(5).tsdimSnmpEMibObject(1).opticsIMCommonAlarms(40). opticsimClientSignalFailRaise(55)

Supported Alarms/Events

OpticsIMAlarmExstensionHeaderMismatchRaise

This notification reports the Extension Header Mismatch (EXM) defect raise.

Alarm based on detection of EXI field value in ITU-T G.7041. This alarm appears when the received Extension Header Identifier (EXI) is different from the expected EXI.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.5.1.40.67

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSnmpEMib(5).tsdimSnmpEMibObject(1).opticsIMCommonAlarms(40). opticsIMAlarmExstensionHeaderMismatchRaise(67)

opticsIMAlarmUserPayloadMismatchRaise

This notification reports the User Payload Mismatch (UPM) defect raise.

Alarm based on detection of UPI field value in ITU-T G.7041.This alarm appears when the received User Payload Identifier (UPI) is different from the expected UPI.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.5.1.40.69

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSnmpEMib(5).tsdimSnmpEMibObject(1).opticsIMCommonAlarms(40). opticsIMAlarmUserPayloadMismatchRaise(69)

Events:

tsdimAVCNotification

Indicates a generic Attribute Value Change Event.

Type:

OTIFICATIO-TYPE

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.20

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimAVCotification(20)

...................................................................................................................................................................................................................................

1-30

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Binding:

1. tsdimEventObjectClassIdentifier

2. tsdimEventObjectInstanceIdentifier

3. tsdimEventotificationId

4. tsdimEventTime

5. opticsIMAdditionalText

6. opticsIMAlarmType

Supported Alarms/Events

This notification is being sent in the following cases:

• SDH maximum speed change

• Current SDH speed change

• VC type change

tsdimStateChangeNotification

Indicates a generic State Change Event.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.21

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1) .tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimStateChangeotification(21)

Binding:

1. tsdimEventObjectClassIdentifier

2. tsdimEventObjectInstanceIdentifier

3. tsdimEventotificationId

4. tsdimEventTime

5. opticsIMAdditionalText

6. opticsIMAlarmType

This notification is being sent currently when

• Admin status is changed.

• Oper status changed

• Manager polling table change

tsdimObjectCreationNotification

Indicates a generic State Change Event.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.18

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-31

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1) tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimObjectCreationotification(18)

Binding:

1. tsdimEventObjectClassIdentifier

2. tsdimEventObjectInstanceIdentifier

3. tsdimEventotificationId

4. tsdimEventTime

5. opticsIMAdditionalText

6. opticsIMAlarmType

Supported Alarms/Events

This notification is being sent currently when

• Row status = creating new entry for:

– Pm per port (ethAggrCDRxRowStatus/ ethAggrCDTxRowStatus)

– Pm per Queue (ethAggrPerQueueCDRowStatus)

– External manager for traps (opticsIMMgrPollingRowStatus)

tsdimObjectDeletionNotification

Indicates a generic State Change Event.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.19

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimObjectDeletionotification(19)

Binding:

1. tsdimEventObjectClassIdentifier

2. tsdimEventObjectInstanceIdentifier

3. tsdimEventotificationId

4. tsdimEventTime

5. opticsIMAdditionalText

6. opticsIMAlarmType

This notification is being sent currently when

• Row status = destroy entry for:

– Pm per port (ethAggrCDRxRowStatus/ ethAggrCDTxRowStatus)

– Pm per Queue (ethAggrPerQueueCDRowStatus)

– External manager for traps (opticsIMMgrPollingRowStatus)

...................................................................................................................................................................................................................................

1-32

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

MIB tables for alarm/trap/event management

opticsIMMgrPollingInfoTable

This table contains the manager polling information. This polling mechanism is used in order to simulate a connection-oriented association between Manager and Agent.

Object identifier (OID):

1.3.6.1.2.1.1.1

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). opticsIMCommRouMib(6).opticsIMCommRouMibObject(1).opticsIMMgrPollingInfoTable(8)

opticsIMMgrPollingInfoTable (manager list MIB)

MIB field name Description Value

opticsIMMgrPollingIndex

opticsIMMgrPollingIpAddress (RC)

opticsIMMgrPollingUdpPort (RC)

opticsIMMgrPollingTimeOut (RC)

opticsIMMgrPollingRowStatus (RC)

tsdimEFDTable

This table specifies which traps will be sent to which management system. This EFD object is locked, via administrative state, by Agent when the first manager polling time-out expires and it is deleted when the secondtime-outt expires.

Object identifier (OID):

Running Index of the table Running index (1-100)

IP address of the manager By default - the IP is taken from the SMP

packet source IP address.

UDP port Default 162 as in standard

Future Use – not relevant seconds

Used to create, modify or delete a row in the table

CreateAndWait, Active, otInService, or Destroy

1.3.6.1.4.1.637.54.1.1.3.1.8

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimEFDTable(8)

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-33

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

tsdimEFDTable (manager list MIB)

MIB field name Description Value

tsdimEFDIndex

Running Index of the table Ethernet interfaces value as in IfTable

tsdimEFDDest (RC)

IP address of the manager

tsdimEFDPort (RC)

UDP port Default 162 as in standard

tsdimEFDRowStatus (RC)

MIB tables for alarm/trap/event management

Used to create, modify or delete a row in the table

tsdimEFDManagerIndex (RC)

Pointer to the equivalent index in

opticsIMMgrPollingInfoTable

CreateAndWait, Active, otInService, or Destroy

Index number

TsdimAlarmSevDefault

The default severity value used for new profile index/trap ID pairs that have not yet been modified.

This value is also used whenever an object's alarm severity profile index is set to 0. The default value of this object is indeterminate(5).

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.26

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimAlarmSevDefault(26)

TsdimAlarmSevProfileIndexNext

This object contains an appropriate value to be used for

tsdimAlarmSevProfileIndex when creating entries in the tsdimAlarmSevProfileTable.

The value –1 indicates that no unassigned entries are available.

To obtain the index value for a new entry, the manager issues a management protocol retrieval operation to obtain the current value of this object. After each retrieval, the agent should modify the value to the next unassigned index (or -1).

...................................................................................................................................................................................................................................

1-34

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.27

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimAlarmSevProfileIndexext(27)

MIB tables for alarm/trap/event management

tsdimAlarmSevProfileTable

This table specifies which profiles exist. Deleting an entry in this table automatically deletes the corresponding entries in the

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.28

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimAlarmSevProfileTable(28)

tsdimAlarmSeverityTable.

MIB field name Description Value

tsdimAlarmSevProfileIndex

tsdimAlarmSevProfileRowStatus (RC)

tsdimAlarmSevProfileUserLabel (RC)

tsdimAlarmSevTable

This table associates profile index and trap ID pairs with severities to be used for alarm traps that have occurred. (ote that this table does not apply to cleared alarms.)

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.29

Full path:

tsdimAlarmSevProfileTable (alarm profile MIB)

Index of the table

Used to create, modify or delete a row in the table

Define the name of the profile Free string

CreateAndWait, Active, otInService, or Destroy

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimAlarmSevTable(29)

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-35

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

tsdimAlarmSevTable (alarm profile MIB)

MIB field name Description Value

tsdimAlarmSevProfileIndex

MIB tables for alarm/trap/event management

1stindex of the table Pointer to the tsdimAlarmSevProfileTable

index

tsdimAlarmSevTrapId (RC)

nd

index of table Trap id as defined by MIB

2

tsdimAlarmSevRowStatus (RC)

tsdimAlarmSevSeverity (RC)

tsdimAlarmSevSeverityNotServAff (RC)

tsdimAPTTable

This table defines the TSDIM APT table. Agent uses this table in order to store the active alarms, while managing system can only read them.

Object identifier (OID):

Used to create, modify or delete a row in the table

Severity for the alarm while it's a service affective alarm

Severity for the alarm while it's a not service affective alarm

CreateAndWait, Active, otInService, or Destroy

1–critical

2–major

3- minor

6-cleared (not an alarm)

1–critical

2–major

3- minor

6-cleared ( = not an alarm)

1.3.6.1.4.1.637.54.1.1.3.1.2

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimAPTTable(2)

tsdimAPTTable (log MIB)

MIB field name Description Value

tsdimAPTAlarmTimeIndex

1stindex – indicate the time the alarm

Time ticks since 1970

occurred

tsdimAPTAlarmNotificationId

...................................................................................................................................................................................................................................

1-36

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

tsdimAPTTable (log MIB)

MIB field name Description Value

MIB tables for alarm/trap/event management

2ndindex - Sequence index

tsdimAPTAlarmProbableCause (RO)

The OID alarm description OID of trap as defined by MIB

(

opticsIMCommonAlarms).

tsdimAPTAlarmObjectClassIdentifier (RO)

The number of nodes within

tsdimAlarmLogObjectInstanceIdentifier

array

tsdimAPTAlarmObjectInstanceIdentifier (RO)

The OID which describe the alarm source OID array

tsdimAPTAlarmSeverity (RO)

The alarm severity while occurred 1–critical

tsdimLogTable

This table defines the characteristics of the logs, both alarms and events, currently maintained by the agent. It is a common table that describes the behavior of the two logs, in-fact it contains generic attributes not related to the type of records stored inside logs.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.3

Full path:

Integer

2–major

3- minor

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimLogTable(3)

tsdimLogTable (log MIB)

MIB field name Description Value

tsdimLogIndex

Running Index of the table Running index (1-100)

tsdimLogObjectClassIdentifier (RO)

OID of the relevant pointed table (event or alarm)

tsdimLogAdminStatus (RW)

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

tsdimEventLogTable OID or tsdimAlarmLogTable OID

1-37

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

tsdimLogTable (log MIB)

MIB field name Description Value

MIB tables for alarm/trap/event management

Admin condition 0 – locked

1–unlocked (Default)

2- shutting down

tsdimLogOperStatus (RO)

Oper status of the log table 0 – disabled

1–enabled (Default)

tsdimLogMaxSize (RO)

Max size of the log table Default 1000

tsdimAlarmLogTable

This table defines the TSDIM Alarm Log table. It is used to store the alarms generated by SMP E.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.5

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimAlarmLogTable(5)

tsdimAlarmLogTable (log MIB)

MIB field name Description Value

tsdimAlarmLogTimeIndex

1stindex – indicate the time the alarm

Time ticks since 1970

occurred

tsdimAlarmLogNotificationId

2ndindex – Sequence index Integer

tsdimAlarmLogProbableCause (RO)

The OID alarm description OID of trap as defined by MIB

tsdimAlarmLogObjectClassIdentifier (RO)

The number of nodes within

tsdimAlarmLogObjectInstanceIdentifier

Integer

array

tsdimAlarmLogObjectInstanceIdentifier (RO)

The OID which describe the alarm source OID array

tsdimAlarmLogSeverity (RO)

...................................................................................................................................................................................................................................

1-38

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

tsdimAlarmLogTable (log MIB)

MIB field name Description Value

MIB tables for alarm/trap/event management

The alarm severity while occurred 1–critical

2–major

3- minor

6-cleared ( currently not an alarm)

This table contains information about single event notification not alarm. Entries in this table are created automatically by Agent and they are never deleted because the Log behavior is automatically set to Wrap, hence when no more entry will be created (log full) new log entry will cause the deletion of the oldest one.

Object identifier (OID):

1.3.6.1.4.1.637.54.1.1.3.1.4

Full path:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).alcatel(637).ltt(54).tsdim(1).tsdimBasicMib(1). tsdimSupportMib(3).tsdimSupportMibObject(1).tsdimEventLogTable(4)

MIB field name Description Value

tsdimEventLogEventTimeIndex

1stindex – indicate the time the event occurred

tsdimEventLogNotificationId

2ndindex – Sequence index Integer

tsdimEventLogEventType (RO)

Type of event 3 – attribute change

tsdimEventLogObjectInstanceIdentifier (RO)

The number of nodes within

tsdimEventLogObjectClassIdentifier

array

tsdimEventLogObjectClassIdentifier (RO)

The OID which describe the event object which has change

tsdimEventLogTable (log MIB)

Time ticks since 1970

4 – state change

Integer

OID array

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-39

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Enable trap manager

...................................................................................................................................................................................................

Set the manager information in opticsIMMgrPollingInfoTable.

1

...................................................................................................................................................................................................

Set the manager information in tsdimEFDTable (set the index of the previous table in

2

tsdimEFDManagerIndex field).

...................................................................................................................................................................................................

Check the default severity profile pointer for each source (tsdimIfAsapIndex).

3

...................................................................................................................................................................................................

Check the alarm profile definitions, if needed, create a new alarm profile

4

(

tsdimAlarmSevTable) and change the pointed profile for the required source (step 3

again).

E ND OF STEPS

...................................................................................................................................................................................................

...................................................................................................................................................................................................................................

1-40

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Remove manager from manager list

...................................................................................................................................................................................................

Get from tsdimEFDTable the index pointed to the relevant row of

1

opticsIMMgrPollingInfoTable (tsdimEFDManagerIndex).

...................................................................................................................................................................................................

Delete the row from tsdimEFDTable.

2

...................................................................................................................................................................................................

Use the Index retrieved before (index = tsdimEFDManagerIndex) to delete the row

3

from

opticsIMMgrPollingInfoTable.

E ND OF STEPS

...................................................................................................................................................................................................

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-41

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Upload manager address

opticsIMMgrPollingInfoTable

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-COMMROU-MIB:: opticsIMMgrPollingIn-

foTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = opticsIMMgrPollingIndex (running index)

– According to the column:

–

• AttrVal.oid = OPTICSIM-COMMROU-MIB:: opticsIMMgrPollingIpAddress

• AttrVal.type = IpAddress

• AttrVal.val = IP address of manager

–or

• AttrVal.oid = OPTICSIM-COMMROU-MIB:: opticsIMMgrPollingUdpPort

• AttrVal.type = ITEGER

• AttrVal.val = UDP port for sending traps

–or

• AttrVal.oid = OPTICSIM-COMMROU-MIB:: opticsIMMgrPollingRowStatus

• AttrVal.type = ITEGER

• AttrVal.val = active / notInService

tsdimEFDTable

...................................................................................................................................................................................................................................

1-42

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Upload manager address

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = TSDIM-SUPPORT-MIB:: tsdimEFDTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = tsdimEFDIndex (running index)

– According to the column:

–

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimEFDDest

• AttrVal.type = IpAddress

• AttrVal.val = IP address of manager

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimEFDPort

• AttrVal.type = ITEGER

• AttrVal.val = UDP port for sending traps

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimEFDRowStatus

• AttrVal.type = ITEGER

• AttrVal.val = active / notInService

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimEFDManagerIndex

• AttrVal.type = ITEGER

• AttrVal.val = the index of the parallel row in opticsIMMgrPollingInfoTable

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-43

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Upload alarm profile information

tsdimIfAsapIndex

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = TSDIM-SMPE-MIB:: opticsIMIfTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = ifIndex (interface id as in ifTable)

– According to the column:

–

• AttrVal.oid = TSDIM-SMPE-MIB:: tsdimIfAsapIndex

• AttrVal.type = ITEGER

• AttrVal.val = index of the profile defined in tsdimAlarmSevProfileTable

tsdimAlarmSevProfileTable

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = TSDIM-SUPPORT-MIB:: tsdimAlarmSevProfileTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = tsdimAlarmSevProfileIndex (running index)

– According to the column:

–

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAlarmSevProfileRowStatus

• AttrVal.type = ITEGER

• AttrVal.val = active / notInService

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAlarmSevProfileUserLabel

• AttrVal.type = OCTET STRIG

• AttrVal.val = free string which describe the name of the profile

tsdimAlarmSevTable

...................................................................................................................................................................................................................................

1-44

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Upload alarm profile information

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = TSDIM-SUPPORT-MIB:: tsdimAlarmSevTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = tsdimAlarmSevProfileIndex (pointer to the relevant profile index in

tsdimAlarmSevProfileTable )

– AttrVal.instance[1] = tsdimAlarmSevTrapId (trap id index as deined in opticsIMCommon-

Alarms)

– According to the column:

–

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAlarmSevSeverity

• AttrVal.type = ITEGER

• AttrVal.val = 1- critical,2–major,3-minor

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAlarmSevSeverityotServAff

• AttrVal.type = ITEGER

• AttrVal.val = 1- critical,2–major,3-minor

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-45

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Upload open alarm table

tsdimAPTTable

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = TSDIM-SUPPORT-MIB:: tsdimAPTTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = tsdimAPTAlarmTimeIndex (time which the alarm occur)

– AttrVal.instance[1] = tsdimAPTAlarmotificationId (sequence number of the trap)

– According to the column:

–

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAPTAlarmObjectClassIdentifier

• AttrVal.type = ITEGER

• AttrVal.val = number of nodes

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAPTAlarmObjectInstanceIdentifier

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = OID description

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAPTAlarmProbableCause

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = OID description

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAPTAlarmSeverity

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = OID description

...................................................................................................................................................................................................................................

1-46

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Upload log tables

tsdimLogTable

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = TSDIM-SUPPORT-MIB:: TsdimLogTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = tsdimLogIndex (sequence number of the log)

– According to the column:

–

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimLogObjectClassIdentifier

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = identify the log table

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimLogAdminStatus

• AttrVal.type = ITEGER

• AttrVal.val=0-locked/ 1 – unlocked / 2- shutting down

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimLogOperStatus

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val=0-disabled , 1-enabled

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimLogMaxSize

• AttrVal.type = ITEGER

• AttrVal.val = max size of log table

tsdimAlarmLogTable

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-47

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Upload log tables

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = TSDIM-SUPPORT-MIB:: tsdimAlarmLogTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = tsdimAlarmLogTimeIndex (time which the alarm occur)

– AttrVal.instance[1] = tsdimAlarmLogotificationId (sequence number of the trap)

– According to the column:

–

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAlarmLogProbableCause

• AttrVal.type = ITEGER

• AttrVal.val = number of nodes

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAlarmLogObjectClassIdentifier

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = OID description

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAlarmLogObjectClassIdentifier

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = OID description

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimAlarmLogSeverity

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = OID description

tsdimEventLogTable

...................................................................................................................................................................................................................................

1-48

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Alarms and events

...................................................................................................................................................................................................................................

Upload log tables

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = TSDIM-SUPPORT-MIB:: tsdimAPTTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = tsdimEventLogEventTimeIndex (time which the event occur)

– AttrVal.instance[1] = tsdimEventLogotificationId (sequence number of this event)

– According to the column:

–

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimEventLogEventType

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = OID description

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimEventLogObjectClassIdentifier

• AttrVal.type = ITEGER

• AttrVal.val = number of nodes

–or

• AttrVal.oid = TSDIM-SUPPORT-MIB:: tsdimEventLogObjectInstanceIdentifier

• AttrVal.type = OBJECT IDETIFIER

• AttrVal.val = OID description

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-49

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Overview

Performance monitoring per port

Overview

Supported counters

The PM supports the following counters for RX:

• TRCO – Total received Octets

• TRCF – Total Received Frames

• TDF – Total Discard Frames

The PM supports the following counters for TX:

• TTO – Total Received Octets

• TTF – Total Transmitted Frames

• TDF – Total Discard Frames

There are 3 types of counters:

• Current – free running counters, those counters are available for Ethernet interface which are activated (admin up status on IfTable). Those counters can be reset to zero while required. You can delete & create the PM collection operation for those counters. While deleting the PM collection, those counters will not be available in the history table as well and their historic information will be deleted.

• History – counters for each interval time, there are 2 granularities for those interval, 15 minutes & 24 hours. The 15 minutes granularity collect the previous 96 intervals and the 24 hours granularity collect 2 intervals latest 24 hours and the current one since last midnight. The history RX/TX PM is available for interfaces which are retrievable on the current RX/TX tables.

• Maintenance – Those counters are free running HW counters which start their collection on system initiation and available regardless the admin status of the interfaces. Those counters can not be controlled.

...................................................................................................................................................................................................................................

1-50

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

MIB tables for PM per port

ethAggrCDRxTable

Current RX counters as defined above.

ethAggrCDRxTable (PM MIB)

MIB field name Description Value

ifIndex

Index of the table Ethernet interfaces value as in IfTable

ethAggrCDRxTRCF (RO)

TRCF (counter 64 bits) The number of Ethernet frames received

correctly by the Virtual Ethernet Interface.

ethAggrCDRxTRCO (RO)

TRCO (counter 64 bits) The number of octets of Ethernet frames

received correctly by the Virtual Ethernet Interface, including Ethernet headers characters.

ethAggrCDRxTDF (RO)

ethAggrCDRxStartTime (RO)

ethAggrCDRxResetCounter (RW)

ethAggrCDRxRowStatus (RC)

ethAggrCDTxTable

Current TX counters as defined above.

MIB field name Description Value

ifIndex

TDF (counter 64 bits)

Date & Time since last reset Time ticks since 1970

Reset the counters True(1)/False(2)

Used to create, modify or delete a row in the table

ethAggrCDTxTable (PM MIB)

CreateAndWait, Active, otInService, or Destroy (default =Active as in IfTable)

Index of the table Ethernet interfaces value as in IfTable

ethAggrCDTxTTF (RO)

TTF (counter 64 bits) The number of Ethernet frames transmitted

out by the Virtual Ethernet Interface.

ethAggrCDTxTTO (RO)

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-51

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

ethAggrCDTxTable (PM MIB)

MIB field name Description Value

MIB tables for PM per port

TTO (counter 64 bits) The number of octets of Ethernet frames

transmitted out by the Virtual Ethernet Interface, including Ethernet headers characters.

ethAggrCDTxTDF (RO)

TDF (counter 64 bits)

ethAggrCDTxStartTime (RO)

Date & Time since last reset Timeticks since 1970

ethAggrCDTxResetCounter (RW)

Reset the counters True(1)/False(2)

ethAggrCDTxRowStatus (RC)

ethAggrHDRxTable

History RX counters as defined above.

MIB field name Description Value

ifIndex

ethAggrHDRxGranularityPeriod (#2)

ethAggrHDRxPeriodEndtime (#3)

ethAggrHDRxIndex (#4)

(#1)

Used to create, modify or delete a row in the table

ethAggrHDRxTable (PM MIB)

Index of the table – interface index Ethernet interfaces value as in IfTable

1

st

Index of the table - Granularity of the

2

nd

interval

3rdIndex of the table – The end of period

CreateAndWait, Active, otInService, or Destroy (default =Active as in IfTable)

1 – 15 minutes

2 – 24 hours

Time ticks since 1970 time while this interval counters were collected

index of the table – The period number

4

th

relative to the current time

0 -95 while 0 is the current interval since

the last globular interval time. And the x

period interval is x times intervals previous

to the current one.

ethAggrHDRxTRCF (RO)

TRCF (counter 64 bits)

ethAggrHDRxTRCO (RO)

TRCO (counter 64 bits)

...................................................................................................................................................................................................................................

1-52

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

ethAggrHDRxTable (PM MIB)

MIB field name Description Value

MIB tables for PM per port

ethAggrHDRxTDF

ethAggrHDRxSuspectIntervalFlag (RO)

(RO)

ethAggrHDTxTable

History TX counters as defined above.

MIB field name Description Value

ifIndex

ethAggrHDTxGranularityPeriod (#2)

(#1)

TDF (counter 64 bits)

Indicating if there might be a problem with this interval collection (for ex. – the operation status was partially down, the

1 = Truth (should be suspected)

2 = False (should not be suspected)

clock has changed during this interval etc')

ethAggrHDTxTable (PM MIB)

Index of the table – interface index Ethernet interfaces value as in IfTable

1

st

Index of the table - Granularity of the

2

nd

interval

1 – 15 minutes

2 – 24 hours

ethAggrHDTxPeriodEndtime (#3)

ethAggrHDTxIndex (#4)

ethAggrHDTxTTF (RO)

ethAggrHDTxTTO (RO)

ethAggrHDTxTDF (RO)

ethAggrHDTxSuspectIntervalFlag (RO)

3rdIndex of the table – The end of period time while this interval counters were collected

index of the table – The period number

4

th

relative to the current time

TTF (counter 64 bits)

TTO (counter 64 bits)

TDF (counter 64 bits)

Time ticks since 1970

0 -95 while 0 is the current interval since the last globular interval time. And the x period interval is x times intervals previous to the current one.

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-53

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

ethAggrHDTxTable (PM MIB)

MIB field name Description Value

MIB tables for PM per port

ethAggrMainRxTable

Maintenance counters as defined above.

MIB field name Description Value

ifIndex

ethAggrMainRxTRCF (RO)

ethAggrMainRxTRCO (RO)

ethAggrMainRxTDF (RO)

Indicating if there might be a problem with this interval collection (for ex. – the operation status was partially down, the

1 = Truth (should be suspected)

2 = False (should not be suspected)

clock has changed during this interval etc')

ethAggrMainRxTable (PM MIB)

Index of the table Ethernet interfaces value as in IfTable

TRCF (counter 64 bits)

TRCO (counter 64 bits)

TDF (counter 64 bits)

ethAggrMainTxTable

Maintenance counters as defined above.

ethAggrMainTxTable (PM MIB)

MIB field name Description Value

ifIndex

Index of the table Ethernet interfaces value as in IfTable

ethAggrMainTxTTF (RO)

TTF (counter 64 bits)

ethAggrMainTxTTO (RO)

TTO (counter 64 bits)

ethAggrMainTxTDF (RO)

TDF (counter 64 bits)

...................................................................................................................................................................................................................................

1-54

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Creating collection of PM (RX & TX)

By default the collection is open for activated (ifTable) interfaces; the PM rowStatus default is active.

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrCDRxRowStatus

• AttrList[0].type = ITEGER

• AttrList[0].val = RowStatus_createAndGo

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrCDTxRowStatus

• AttrList[0].type = ITEGER

• AttrList[0].val = RowStatus_createAndGo

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-55

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Deleting collection of PM (RX & TX)

This will delete also all history information.

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrCDRxRowStatus

• AttrList[0].type = ITEGER

• AttrList[0].val = RowStatus_destroy

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrCDTxRowStatus

• AttrList[0].type = ITEGER

• AttrList[0].val = RowStatus_destroy

...................................................................................................................................................................................................................................

1-56

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Resetting current counters of PM (RX & TX)

Resetting the current counters will resume all the PM collection.

Limitation: In the 5.3 version the reset is done via re setting the ethAggrCDRxRowStatus or ethAggrCDTxRowStatus as in “Creating collection of PM (RX & TX)” (p. 1-55)

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrCDRxResetCounter

• AttrList[0].type = ITEGER

• AttrList[0].val = true (1)

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrCDTxResetCounter

• AttrList[0].type = ITEGER

• AttrList[0].val = true (1)

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-57

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Upload PM Information

Current Rx Counter Upload

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrCDRxTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

– According to the column:

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDRxTRCF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of received frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDRxTRCO

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of received octets

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDRxTDF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of discarded frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDRxRowStatus

• AttrVal.type = ITEGER

• AttrVal.val = active / notInService

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDRxStartTime

• AttrVal.type = TimeTicks

• AttrVal.val = date & time by seconds since 1970 that the current counters collection have started

Current Tx Counter Upload

...................................................................................................................................................................................................................................

1-58

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Upload PM Information

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrCDTxTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

– According to the column:

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDTxTTF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of transmitted frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDTxTTO

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of transmitted octets

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDTxTDF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of discarded frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDTxRowStatus

• AttrVal.type = ITEGER

• AttrVal.val = active / notInService

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrCDTxStartTime

• AttrVal.type = TimeTicks

• AttrVal.val = date & time by seconds since 1970 that the current counters collection have started

Maintenance Rx Counter Upload

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-59

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Upload PM Information

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrMaintRxTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

– According to the column:

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrMainRxTRCF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of transmitted frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrMainRxTRCO

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of transmitted octets

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrMainRxTDF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of discarded frames

Maintenance Tx Counter Upload

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrMaintTxTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

• According to the column:

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrMainTxTTF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of transmitted frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrMainTxTTO

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of transmitted octets

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrMainTxTDF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of discarded frames

History Rx Counter Upload

...................................................................................................................................................................................................................................

1-60

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Upload PM Information

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrHDRxTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

– AttrVal.instance[1] = ethAggrHDRxGranularityPeriod (1=15 minutes 2=24 hours)

– AttrVal.instance[2] = ethAggrHDRxPeriodEndtime (timeticks since 1970 while the end of

interval occurred)

– AttrVal.instance[3] = ethAggrHDRxIndex (index which indicate the relative number of history

period relative to the current period=0)

– According to the column:

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrHDRxTRCF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of received frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrHDRxTRCO

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of received octets

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrHDRxTDF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of discarded frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrHDRxSuspectIntervalFlag

• AttrVal.type = ITEGER

• AttrVal.val = Truth or False if this interval is suspected to be not correctly & fully collected during all

interval time

History Tx Counter Upload

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-61

ES64U SNMP MIB description Performance monitoring per port

...................................................................................................................................................................................................................................

Upload PM Information

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrHDTxTable

OUT ARG OpticIMCsgVar::AttrList:

•

– AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

– AttrVal.instance[1] = ethAggrHDTxGranularityPeriod (1=15 minutes 2=24 hours)

– AttrVal.instance[2] = ethAggrHDTxPeriodEndtime (timeticks since 1970 while the end of

interval occurred)

– AttrVal.instance[3] = ethAggrHDTxIndex (index which indicate the relative number of history

period relative to the current period=0)

– According to the column:

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrHDTxTTF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of transmitted frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrHDTxTTO

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of transmitted octets

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrHDTxTDF

• AttrVal.type = Counter64 (64 bits)

• AttrVal.val = umber of discarded frames

–or

• AttrVal.oid = OPTICSIM-ETHPM-MIB:: ethAggrHDTxSuspectIntervalFlag

• AttrVal.type = ITEGER

• AttrVal.val = Truth or False if this interval is suspected to be not correctly & fully collected during all

interval time

...................................................................................................................................................................................................................................

1-62

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

Overview

Performance monitoring per queue

Overview

PM per queue presents the Performance Monitoring for each queue.

There are currently 8 queues per port and they are equivalent to the TD type as follow:

1-bestEffortService, 2-regulatedService, 3-guaranteedService, 5-backgroundService

6-regulated4Service, 7-regulated3Service, 8-regulated1Service, 9-guaranteed2Service

The PM per queue supports the following counters:

• TCF – Total Conforming (green) Frames

• TnCF – Total non Conforming (yellow) Frames

• DiscardTCF – Total Discard Conforming (green) Frames

• DiscardTnCF Total Discard non Conforming (yellow) Frames

• TCO – Total Conforming (green) Octets

• TnCO – Total non Conforming (yellow) Octets

• DiscardTCO – Total Discard Conforming (green) Octets

• DiscardTnCO – Total Discard non Conforming (yellow) Octets

There are 3 types of counters:

• Current – free running counters, those counters are available for Ethernet interface which are activated (admin up status on IfTable). Those counters can be reset to zero while required. You can delete & create the PM collection operation for those counters. While deleting the PM collection, those counters will not be available in the history table as well and their historic information will be deleted.

• History – counters for each interval time, there are 2 granularities for those interval, 15 minutes & 24 hours. The 15 minutes granularity collect the previous 96 intervals and the 24 hours granularity collect 2 intervals latest 24 hours and the current one since last midnight. The history RX/TX PM is available for interfaces which are retrievable on the current RX/TX tables.

• Maintenance – Those counters are free running HW counters which start their collection on system initiation and available regardless the admin status of the interfaces. Those counters can not be controlled.

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-63

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

MIB tables for PM per queue

ethAggrPerQueueCDTable

Current counters as defined above.

ethAggrPerQueueCDTable (PM MIB)

MIB field name Description Value

ifIndex

1stIndex of the table Ethernet interfaces value as in IfTable

ethAggrPerQueueIndex

2ndIndex – Queue description Equivalent to Trafic Descriptor type:

1. bestEffortService

2. regulatedService

3. guaranteedService

4. groupedService (not supported)

5. backgroundService

6. regulated4Service

7. regulated3Service

8. regulated1Service

9. guaranteed2Service

ethAggrPerQueueCDTCF (RO)

ethAggrPerQueueCDTnCF (RO)

ethAggrPerQueueCDDiscardTCF (RO)

ethAggrPerQueueCDDiscardTnCF (RO)

ethAggrPerQueueCDTCO (RO)

ethAggrPerQueueCDTnCO (RO)

ethAggrPerQueueCDDiscardTCO (RO)

Total Conforming Frames-green (counter 64 bits)

Total on Conforming Frames-yellow (counter 64 bits)

Total Discard Conforming Frames-green (counter 64 bits)

Total Discard on Conforming Frames-yellow (counter 64 bits)

Total Conforming Octets-green (counter 64 bits)

Total on Conforming Octets -yellow (counter 64 bits)

counter 64 bits

...................................................................................................................................................................................................................................

1-64

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

ethAggrPerQueueCDTable (PM MIB)

MIB field name Description Value

MIB tables for PM per queue

ethAggrPerQueueCDDiscardTnCO(RO)

ethAggrPerQueueCDStartTime (RO)

ethAggrPerQueueCDResetCounter (RW)

ethAggrPerQueueCDRowStatus (RC)

ethAggrPerQueueHDTable

History counters as defined above.

MIB field name Description Value

Total Discard Conforming Octets -green

counter 64 bits

(counter 64 bits)

Total Discard on Conforming Octets

counter 64 bits

-yellow (counter 64 bits)

Date & Time since last reset Time ticks since 1970

Reset the counters True(1)/False(2)

Used to create, modify or delete a row in the table

ethAggrPerQueueHDTable (PM MIB)

CreateAndWait, Active, otInService, or Destroy (default =Active as in IfTable)

ifIndex

(#1)

1stIndex of the table – interface index Ethernet interfaces value as in IfTable

ethAggrPerQueueIndex (#2)

2

nd

ethAggrPerQueueHDGranularityPeriod (#3)

3

nd

interval

ethAggrPerQueueHDPeriodEndtime (#4)

Index – Queue description Equivalent to Trafic Descriptor type:

1. bestEffortService

2. regulatedService

3. guaranteedService

4. groupedService (not supported)

5. backgroundService

6. regulated4Service

7. regulated3Service

8. regulated1Service

9. guaranteed2Service

Index of the table - Granularity of the

1 – 15 minutes

2 – 24 hours

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-65

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

ethAggrPerQueueHDTable (PM MIB)

MIB field name Description Value

MIB tables for PM per queue

ethAggrPerQueueIndex (#5)

ethAggrPerQueueHDTCF (RO)

ethAggrPerQueueHDTnCF (RO)

ethAggrPerQueueHDDiscardTCF(RO)

ethAggrPerQueueHDDiscardTnCF (RO)

4thIndex of the table – The end of period time while this interval counters were collected

index of the table – The period number

5

th

relative to the current time

Total Conforming Frames-green (counter 64 bits)

Total on Conforming Frames-yellow (counter 64 bits)

Total Discard Conforming Frames-green (counter 64 bits)

Total Discard on Conforming Frames-yellow (counter 64 bits)

Time ticks since 1970

0-2 while 0 is the current interval since the last globular interval time. And the x period interval is x times intervals previous to the current one.

counter 64 bits

ethAggrPerQueueHDTCO (RO)

Total Conforming Octets-green (counter 64 bits)

ethAggrPerQueueHDTnCO (RO)

Total on Conforming Octets -yellow (counter 64 bits)

ethAggrPerQueueHDDiscardTCO (RO)

Total Discard Conforming Octets -green (counter 64 bits)

ethAggrPerQueueHDDiscardTnCO (RO)

Total Discard on Conforming Octets

-yellow (counter 64 bits)

ethAggrPerQueueHDSuspectIntervalFlag (RO)

Indicating if there might be a problem with this interval collection (for ex. – the operation status was partially down, the clock has changed during this interval etc')

counter 64 bits

1 = Truth (should be suspected)

2 = False (should not be suspected)

...................................................................................................................................................................................................................................

1-66

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

MIB tables for PM per queue

ethAggrPerQueueMaintTable

Maintenance counters as defined above

ethAggrMainTable (PM MIB)

MIB field name Description Value

ifIndex

Index of the table Ethernet interfaces value as in IfTable

ethAggrPerQueueIndex

2ndIndex – Quesu description Equivalent to Trafic Descriptor type:

1. bestEffortService

2. regulatedService

3. guaranteedService

4. groupedService (not supported)

5. backgroundService

6. regulated4Service

7. regulated3Service

8. regulated1Service

9. guaranteed2Service

ethAggrPerQueueMainTCF (RO)

ethAggrPerQueueMainTnCF (RO)

ethAggrPerQueueMainDiscardTCF (RO)

ethAggrPerQueueMainDiscardTnCF (RO)

ethAggrPerQueueMainTCO(RO)

ethAggrPerQueueMainTnCO(RO)

ethAggrPerQueueMainDiscardTCO (RO)

Total Conforming Frames-green (counter 64 bits)

Total on Conforming Frames-yellow (counter 64 bits)

Total Discard Conforming Frames - green (counter 64 bits)

Total Discard on Conforming Frames yellow (counter 64 bits)

Total Conforming Octets - green (counter 64 bits)

Total on Conforming Octets - yellow (counter 64 bits)

counter 64 bits

Total Discard Conforming Octets - green

counter 64 bits

(counter 64 bits)

ethAggrPerQueueMainDiscardTnCO (RO)

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-67

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

ethAggrMainTable (PM MIB)

MIB field name Description Value

MIB tables for PM per queue

Total Discard on Conforming Octets yellow (counter 64 bits)

counter 64 bits

...................................................................................................................................................................................................................................

1-68

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

Creating collection of PM (RX & TX) per queue

By default the collection is open for activated (ifTable) interfaces; the PM rowStatus default is active.

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrPerQueueCDRowStatus

• AttrList[0].type = ITEGER

• AttrList[0].val = RowStatus_createAndGo

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-69

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

Resetting current counters of PM (RX & TX) per queue

Resetting the current counters will resume all the PM collection.

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrPerQueueCDResetCounter

• AttrList[0].type = ITEGER

• AttrList[0].val = true (1)

...................................................................................................................................................................................................................................

1-70

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

Deleting collection of PM (RX & TX) per queue

This will delete also all history information.

9.3 Set I ARG OpticIMCsgVar::AttrList

• AttrList[0].instance[0] = interface ifIndex (ethernet type)

• AttrList[0].oid = opticsIMETSMib:: ethAggrPerQueueCDRowStatus

• AttrList[0].type = ITEGER

• AttrList[0].val = RowStatus_destroy

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-71

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

Upload PM per queue information

Current counter upload (per queue)

GetTable

I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDTable

OUT ARG

• AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

• AttrVal.instance[1] = ethAggrPerQueueIndex (Queue index according to TD type)

• According to the column:

AttrVal.oid AttrVal.type AttrVal.val

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDTCF

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDTnCF

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDDiscardTCF

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDDiscardTnCF

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDTCO

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDTnCO

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDDiscardTCO

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDDiscardTnCO

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDRowStatus

OPTICSIM-ETHPM-MIB:: ethAggrPerQueueCDStartTime

Counter64 (64 bits) umber of conforming (green) frames

Counter64 (64 bits) umber of non conforming (yellow) frames

Counter64 (64 bits) umber of discarded conforming (green) frames

Counter64 (64 bits) umber of discarded non conforming (yellow)

frames

Counter64 (64 bits) umber of conforming (green) octets

Counter64 (64 bits) umber of on conforming (yellow) octets

Counter64 (64 bits) umber of discarded conforming (green) octets

Counter64 (64 bits) umber of discarded non conforming octets

ITEGER active / notInService

TimeTicks date & time by seconds since 1970 that the current

counters collection have started

Maintenance counter upload (per queue)

GetTable

I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrPerQueueMaintTable

...................................................................................................................................................................................................................................

1-72

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

Upload PM per queue information

OUT ARG OpticIMCsgVar::AttrList:

• AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

• AttrVal.instance[1] = ethAggrPerQueueIndex (Queue index according to TD type)

• According to the column:

AttrVal.oid AttrVal.type AttrVal.val

ethAggrPerQueueMaintTCF Counter64 (64 bits) umber of conforming (green) frames

ethAggrPerQueueMaintTnCF Counter64 (64 bits) umber of non conforming (yellow) frames

ethAggrPerQueueMaintDiscardTCF Counter64 (64 bits) umber of discarded conforming (green) frames

ethAggrPerQueueMaintDiscardTnCF Counter64 (64 bits) umber of discarded non conforming (yellow)

frames

ethAggrPerQueueMaintTCO Counter64 (64 bits) umber of conforming (green) octets

ethAggrPerQueueMaintTnCO Counter64 (64 bits) umber of on conforming (yellow) octets

ethAggrPerQueueMaintDiscardTCO Counter64 (64 bits) umber of discarded conforming (green) octets

ethAggrPerQueueMaintDiscardTnCO Counter64 (64 bits) umber of discarded non conforming octets

History counter upload (per queue)

GetTable

I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = OPTICSIM-ETHPM-MIB:: ethAggrHDRxTable

• AttrVal.instance[0] = interface ifIndex (Ethernet type index from ifTable)

• AttrVal.instance[1] = ethAggrPerQueueIndex (Queue index according to TD type)

• AttrVal.instance[2] = ethAggrHDRxGranularityPeriod (1=15 minutes 2=24 hours)

• AttrVal.instance[3] = ethAggrHDRxPeriodEndtime (timeticks since 1970 while the

end of interval occurred)

• AttrVal.instance[4] = ethAggrHDRxIndex (index which indicate the relative number of history period relative to the current period=0)

• According to the column:

AttrVal.oid AttrVal.type AttrVal.val

ethAggrPerQueueHDTCF Counter64 (64 bits) umber of conforming (green) frames

ethAggrPerQueueHDTnCF Counter64 (64 bits) umber of non conforming (yellow) frames

ethAggrPerQueueHDDiscardTCF Counter64 (64 bits) umber of discarded conforming (green) frames

ethAggrPerQueueHDDiscardTnCF Counter64 (64 bits) umber of discarded non conforming (yellow)

frames

ethAggrPerQueueHDTCO Counter64 (64 bits) umber of conforming (green) octets

ethAggrPerQueueHDTnCO Counter64 (64 bits) umber of on conforming (yellow) octets

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-73

ES64U SNMP MIB description Performance monitoring per queue

...................................................................................................................................................................................................................................

AttrVal.oid AttrVal.type AttrVal.val

Upload PM per queue information

ethAggrPerQueueHDDiscardTCO Counter64 (64 bits) umber of discarded conforming (green) octets

ethAggrPerQueueHDDiscardTnCO Counter64 (64 bits) umber of discarded non conforming octets

ethAggrHDRxSuspectIntervalFlag ITEGER Truth or False if this interval is suspected to be not

correctly and fully collected during all interval time

...................................................................................................................................................................................................................................

1-74

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Service mirroring management

...................................................................................................................................................................................................................................

Overview

Service mirroring management

Overview

Purpose

The service mirroring feature enables to monitor traffic that enter the specified cross-connect (ingress mirroring), or leave the specified cross-connect (egress mirroring). The mirrored traffic could be monitored at specially defined ports (TAC1 or TAC2).

Any port in range 1-30, 129-158 could be defined as following:

• ormal port – ports works as usual port and allows to define services on it

• TAC1 port – port works as first service mirroring port. Doesn't allow defining services

on it.

• TAC2 port – port works as second service mirroring port. Doesn't allow defining services on it.

Contents

When a port is created, it is configured to normal port by default. Modification of mirror interface definition (meaning define a port to be used as mirrored port only) allowed for interfaces with AdminStatus down only. ot allowed to define more that one TAC1 interface, and more than one TAC2 interface.

Each inflow or outflow has service mirroring flag that defines if mirror traffic for the flow. Service mirroring index defines the service mirroring port – TAC1 or TAC2.

Mirror interface definition 1-76

Inflow mirror port 1-77

Inflow mirror flag 1-78

Outflow mirror port 1-79

Outflow mirror flag 1-80

Service mirroring upload 1-81

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-75

ES64U SNMP MIB description Service mirroring management

...................................................................................................................................................................................................................................

Mirror interface definition

Set mirror interface consists of executing the following action:

The sequence of actions is the following:

...................................................................................................................................................................................................

Set the service mirroring index in the nnNMXOpticsExtETSPortMirrorTable.

1

The sequence of operations is detailed in the next table:

1 Set I ARG OpticIMCsgVar::AttrVal

• AttrVal.instance[0] = InterfaceIndex

• AttrVal.oid = nnMXxMplsIf:: nnMXOpticsExtETSMirroringIndex

• AttrVal.type = ITEGER

• AttrVal.val = OTAC (0) / TAC1 (1) / TAC2 (2). default value – 0.

ote: Before the change of mirror interface(nnMXOpticsExtETSMirroringIndex) make sure the AdminStatus of the interface in IfTable is Down.

E ND OF STEPS

...................................................................................................................................................................................................

...................................................................................................................................................................................................................................

1-76

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Service mirroring management

...................................................................................................................................................................................................................................

Inflow mirror port

Set service mirror port for inflow consists of executing the following action:

The sequence of actions is the following:

...................................................................................................................................................................................................

Set the mirror port in the nnNMXOpticsExtETSInflowMirrorTable.

1

The sequence of operations is detailed in the next table:

1 Set I ARG OpticIMCsgVar::AttrVal

• AttrVal.instance[0] = InFlowIndex

• AttrVal.oid = nnMXxMplsIf:: nnMXOpticsExtETSInflowMirrorPort

• AttrVal.type = ITEGER

• AttrVal.val = TAC1 (1) / TAC2 (2). default value – 1

ote: Before the change of service mirroring index make sure the InflowMirror flag of the inflow in nnMXOpticsExtETSInflowMirrorTable is disabled.

E ND OF STEPS

...................................................................................................................................................................................................

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-77

ES64U SNMP MIB description Service mirroring management

...................................................................................................................................................................................................................................

Inflow mirror flag

Set inflow mirror flag for inflow consists of executing the following action:

The sequence of actions is the following:

...................................................................................................................................................................................................

Set the inflow mirror flag in the nnNMXOpticsExtETSInflowMirrorTable.

1

The sequence of operations is detailed in the next table:

1 Set I ARG OpticIMCsgVar::AttrVal

• AttrVal.instance[0] = InFlowIndex

• AttrVal.oid = nnMXxMplsIf:: nnMXOpticsExtETSInflowMirror

• AttrVal.type = ITEGER

• AttrVal.val = enabled (1) / disabled (2). default value – 2

ote:Before the change of inflow mirror make sure:

1. The RowStatus of the cross-connection connected to specified inflow in opticsIMETSCrossConnectTable is active.

2. nnMXOpticsExtETSOuflowMirror for outflow connected to the cross-connection is disabled.

E ND OF STEPS

...................................................................................................................................................................................................

...................................................................................................................................................................................................................................

1-78

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Service mirroring management

...................................................................................................................................................................................................................................

Outflow mirror port

Set service mirror port for outflow consists of executing the following action:

The sequence of actions is the following:

...................................................................................................................................................................................................

Set the outflow mirror flag in the nnNMXOpticsExtETSOutflowMirrorTable.

1

The sequence of operations is detailed in the next table:

1 Set I ARG OpticIMCsgVar::AttrVal

• AttrVal.instance[0] = OutFlowIndex

• AttrVal.oid = nnMXxMplsIf:: nnMXOpticsExtETSOutflowMirrorPort

• AttrVal.type = ITEGER

• AttrVal.val = TAC1 (1) / TAC2 (2). default value – 1

ote: Before the change of service mirroing index make sure the OutflowMirror flag of the outflow in nnMXOpticsExtETSOutflowMirrorTable is disabled.

E ND OF STEPS

...................................................................................................................................................................................................

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-79

ES64U SNMP MIB description Service mirroring management

...................................................................................................................................................................................................................................

Outflow mirror flag

Set service mirror flag for outflow consists of executing the following action:

The sequence of actions is the following:

...................................................................................................................................................................................................

Set the outflow mirror flag in the nnNMXOpticsExtETSOutflowMirrorTable.

1

The sequence of operations is detailed in the next table:

1 Set OpticIMCsgVar::AttrVal

• AttrVal.instance[0] = OutFlowIndex

• AttrVal.oid = nnMXxMplsIf:: nnMXOpticsExtETSOutflowMirror

• AttrVal.type = ITEGER

• AttrVal.val = enabled (1) / disabled (2). default value – 2

ote:Before the change of outflow mirror make sure:

1. The RowStatus of the cross-connection connected to specified inflow in opticsIMETSCrossConnectTable is active.

2. nnMXOpticsExtETSInflowMirror for outflow connected to the cross-connection is disabled.

E ND OF STEPS

...................................................................................................................................................................................................

...................................................................................................................................................................................................................................

1-80

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description Service mirroring management

...................................................................................................................................................................................................................................

Service mirroring upload

Uploading Service Mirroring information consists in retrieving the whole content of the following tables:

1.

nnNMXOpticsExtETSPortMirrorTable: interfaces

2.

nnNMXOpticsExtETSInflowMirrorTable: InFlows

3.

nnNMXOpticsExtETSOutflowMirrorTable: OutFlows

The sequence of actions is the following:

...................................................................................................................................................................................................

Interfaces upload

1

Uploading the interfaces consists in getting the

nnNMXOpticsExtETSPortMirrorTable content.

The sequence of operations is detailed in the next table:

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = nnMXxMplsIf::nnMXOpticsEx-

tETSPortMirrorTable

OUT ARG OpticsIMCsgVar::AttrList:

For each entry found in the table, for each column of the table, the following info are returned in AttrList:

• AttrVal.instance[0] = index of the interface (ifIndex)

• According to the column:

– AttrVal.oid = nnMXxMplsIf::nnMXOpticsExtETSMirroringIndex

– AttrVal.type = ITEGER

– AttrVal.val = Mirroring Index. OTAC(0) / TAC1(1) / TAC2(2)

...................................................................................................................................................................................................

InFlows upload

2

Uploading the inflows consists in getting the

nnNMXOpticsExtETSInflowMirrorTable content.

The sequence of operations is detailed in the next table:

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-81

ES64U SNMP MIB description Service mirroring management

...................................................................................................................................................................................................................................

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = nnMXxMplsIf::nnMXOpticsEx-

tETSInflowMirrorTable

OUT ARG OpticsIMCsgVar::AttrList:

For each entry found in the table, for each column of the table, the following info are returned in AttrList:

• AttrVal.instance[0] = index of the inflow (opticsIMETSInFlowIndex)

• According to the column:

– AttrVal.oid = nnMXxMplsIf::nnMXOpticsExtETSInflowMirror

– AttrVal.type = ITEGER

– AttrVal.val = Inflow Mirroring flag. Enabled (1) / Disabled (2)

Or

– AttrVal.oid = nnMXxMplsIf::nnMXOpticsExtETSInflowMirrorPort

– AttrVal.type = ITEGER

– AttrVal.val = Mirror Port. TAC1 (1) / TAC2 (2)

...................................................................................................................................................................................................

OutFlows upload

3

Service mirroring upload

Uploading the outflows consists in getting the

nnNMXOpticsExtETSOutflowMirrorTable content.

The sequence of operations is detailed in the next table:

1 GetTable I ARG OpticsIMCsgVar::CsgVar::OID: tableOid = nnMXxMplsIf::nnMXOpticsExtET-

SOutflowMirrorTable

OUT ARG OpticsIMCsgVar::AttrList:

For each entry found in the table, for each column of the table, the following info are returned in AttrList:

• AttrVal.instance[0] = index of the outflow (opticsIMETSOutFlowIndex)

• According to the column:

– AttrVal.oid = nnMXxMplsIf::nnMXOpticsExtETSOutflowMirror

– AttrVal.type = ITEGER

– AttrVal.val = Outflow Mirroring flag. Enabled (1) / Disbaled (2)

Or

– AttrVal.oid = nnMXxMplsIf::nnMXOpticsExtETSOutflowMirrorPort

– AttrVal.type = ITEGER

– AttrVal.val = Mirror Port. TAC1 (1) / TAC2 (2)

ND OF STEPS

E

...................................................................................................................................................................................................

...................................................................................................................................................................................................................................

1-82

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description 1+1 LAG - Link Aggregation management

...................................................................................................................................................................................................................................

Overview

1+1 LAG - Link Aggregation management

Overview

LAG interface

An LAG interface is a group of two Link Aggregation ports which is considered as a single interface.

In order to configure an LAG interface, the manager should configure two MIB tables:

•

alclnkaggAggPortTable (proprietary) – A table that contains Link Aggregation

Control configuration information about every Aggregation Port associated with this device. A row appears in this table for each ethernet interface.

The table is pre-configured with a row for each Ethernet interface. The configuration consists in modifying the specific interface values.

alclnkaggAggTable (proprietary) – A table that contains information about every

•

Aggregator that is associated with this System. The table is pre-configured with a row for every supported LAG group. The

configuration consists in modifying the specific LAG values.

The association of a port to a LAG group is based on the ActorAdminKey. Once the port's key equals an active LAG key, the port is an attached LAG member.

For LAG naming rules refer to Appendix B, “1+1 LAG naming rules” LAG naming rules.

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-83

ES64U SNMP MIB description 1+1 LAG - Link Aggregation management

...................................................................................................................................................................................................................................

1+1 LAG MIB tables

alclnkaggAggPortTable (ETS MIB)

MIB field name Description Value

alclnkaggAggPortIndex

Index of the table

alclnkaggAggPortActorSystemPriority

alclnkaggAggPortActorSystemID

alclnkaggAggPortActorAdminKey

alclnkaggAggPortActorOperKey

alclnkaggAggPortPartnerAdminKey

Priority value of the system. Inherited from the

alclnkaggAggActorSystemPriority

value.

Read-Only

In use only when LACP is enabled

Default value: 32784

ode MAC address Read-Only

The current administrative value of the Key for the Aggregation Port.

This is a 16-bit read-write value.

Can only be set if the port ifAdminStatus is Down.

Administrative value of Actor aggregation port

Read-Only

16-bit value

In use only when LACP is enabled.

Default value: 0

Administrative value of the Key for the partner port.

Read-Only

In use only when LACP is enabled.

Default value: 0

alclnkaggAggPortPartnerOperKey

Operational value of the Key for the partner port

Read-Only

In use only when LACP is enabled.

Default value: 0

alclnkaggAggPortSelectedAggID

The identifier value of the Aggregator that this Aggregation Port has currently selected. Zero indicates that the

Read-Only

Default value: 0

Aggregation Port has not selected an Aggregator. When this field is not zero and lacp is on the port receives and transmit LACP frames. When this field is not zero and lacp is off it just means that port is setup to Be port of that LAG.

...................................................................................................................................................................................................................................

1-84

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description 1+1 LAG - Link Aggregation management

...................................................................................................................................................................................................................................

alclnkaggAggPortTable (ETS MIB)

MIB field name Description Value

alclnkaggAggPortAttachedAggID

1+1 LAG MIB tables

ifIndex of the LAG to which this port is attached

alclnkaggAggPortActorPortPriority

Actor port priority Configurable by user. Read-Write:

alclnkaggAggPortPartnerAdminPortPriority

Administrative value of the partner port priority.

alclnkaggAggPortPartnerOperPortPriority

Operational value of the partner port priority

alclnkaggAggPortActorAdminState

A string of 8 bits, corresponding to the administrative values of Actor_State () as transmitted by the Actor in LACPDUs.

Zero if not attached, if this field is not zero the port receives and transmit user frames

ITEGER (0..65535)

Read-Only when lacp type is off

Default value: 0

Read-Only

ITEGER (0..65535)

In use only when LACP is enabled.

Default value: 0

Read-Only

ITEGER (0..255)

In use only when LACP is enabled.

Default value: 0

Read-Write when LACP is enabled

• 0: lacpActivity

• 1: lacpTimeout

• 2: aggregation

• 3: synchronization

• 4: collecting

• 5: distributing

• 6: defaulted

• 7: expired

Default value:

Bits 0, 1, 2, 6 are set,

Bits 3, 4, 5, 7 are clear.

Only bit 1 is effective

Read-Only

When LACP is Disabled

alclnkaggAggPortActorOperState

A string of 8 bits, corresponding to the operational values of Actor_State

Read-Only

On LACP disable mode, all bits are cleared

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-85

ES64U SNMP MIB description 1+1 LAG - Link Aggregation management

...................................................................................................................................................................................................................................

alclnkaggAggPortTable (ETS MIB)

MIB field name Description Value

alclnkaggAggPortPartnerAdminState

1+1 LAG MIB tables

alclnkaggAggPortPartnerOperState

alclnkaggAggPortOperState

alclnkaggAggPortState

A string of 8 bits, corresponding to the administrative values of Actor_State() or the partner port

A string of 8 bits, corresponding to the operational values of Actor_State() of the partner port

Read-Only

On LACP disable mode, all bits are cleared

Read-Only

On LACP disable mode, all bits are cleared

Operational status of the port Read-Only: ITEGER

• 1: up

• 2: down

• 3: notAttached

• 4: notAggregable

On LACP disable mode, only up and down are supported

Aggregation status of the port Read-Only: ITEGER

• 3: configured

• 4: selected

• 5: reserved

• 6: attached

On LACP disable mode, only values 4 and 6 are supported

alclnkaggAggPortLinkState

Operational status of the link Read-Only: ITEGER

• 1: up

• 2: down

alclnkaggAggPortPrimary

Port is defined as primary or not Read-Only: ITEGER

• 1: yes

• 2: no

• 3: notSignificant

On LACP disable mode, only value 3 is supported

alclnkaggAggPortLacpType

LacpType Read-Only

Port set with LACP protocol or not

...................................................................................................................................................................................................................................

1-86

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010

ES64U SNMP MIB description 1+1 LAG - Link Aggregation management

...................................................................................................................................................................................................................................

alclnkaggAggPortTable (ETS MIB)

MIB field name Description Value

alclnkaggAggPortRowStatus

1+1 LAG MIB tables

RowStatus RowStatus (always active)

alclnkaggAggTable (ETS MIB)

MIB field name Description Value

alclnkaggAggIndex

Index of the table

alclnkaggAggActorAdminKey

alclnkaggAggName

alclnkaggAggMACAddress

alclnkaggAggAdminState

alclnkaggAggActorSystemPriority

The current administrative value of the Key for the Aggregation Port. Given by operator.

ame of the aggregator is human readable string manually given by the operator

Aggregation Port MAC address (allocated by EMB).

status assigned by the administrator. The activation of the aggregator is managed by this nominator

A 2-octet indicating the priority value of the system.Configurable by operator. Change to this value affects all active LAGs with LACP on.

Read-Write

ITEGER (0..65535)

STRIG (SIZE (0..29))

Read-Only

ITEGER (0..65535)

Default value when no ports are members of the LAG is

00-00-00-00-00-00

• 1: enable

• 2: disable

Read-Write

ITEGER (0..65535)

In use only when LACP is enabled.

Default value: 32784 (0x8010)

alclnkaggAggActorSystemID

ode MAC addres Read-Only

In use only when LACP is enabled.

Default value:

00-00-00-00-00-00

alclnkaggAggActorOperKey

...................................................................................................................................................................................................................................

365-374-201R11.1.1 Issue 1 March 2010

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

1-87

ES64U SNMP MIB description 1+1 LAG - Link Aggregation management

...................................................................................................................................................................................................................................

alclnkaggAggTable (ETS MIB)

MIB field name Description Value

1+1 LAG MIB tables

Operational key of Actor aggregator Read-Only

16-bit value.

In use only when LACP is enabled.

Default value: 0.

alclnkaggAggPartnerSystemID

Partner node MAC address Read-Only

In use only when LACP is enabled.

Default value:

00-00-00-00-00-00

alclnkaggAggPartnerSystemPriority

Partner node priority Read-Write

ITEGER (0..65535)

In use only when LACP is enabled.

Default value: 0.

alclnkaggAggPartnerOperKey

alclnkaggAggSize

alclnkaggAggNumber

alclnkaggAggDescr

alclnkaggAggLacpType

Partner node Operational key Read-Only

In use only when LACP is enabled.

Default value: 0.

Maximum number of links that could be attached to this aggregator

Read-Write

ITEGER (0..10)

Default value: 10.

LAG number Unique number given by EMB when LAG is created

Read-Only

ITEGER (0..18)

String Description of the LAG Read-Only

DisplayString SIZE (0..255)

Defines whether Aggregator operates LACP or ot.

Read-Write

ITEGER

• 1: lacpOff

• 2: lacpOn

alclnkaggAggAdminState

...................................................................................................................................................................................................................................

1-88

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

365-374-201R11.1.1

Issue 1 March 2010
