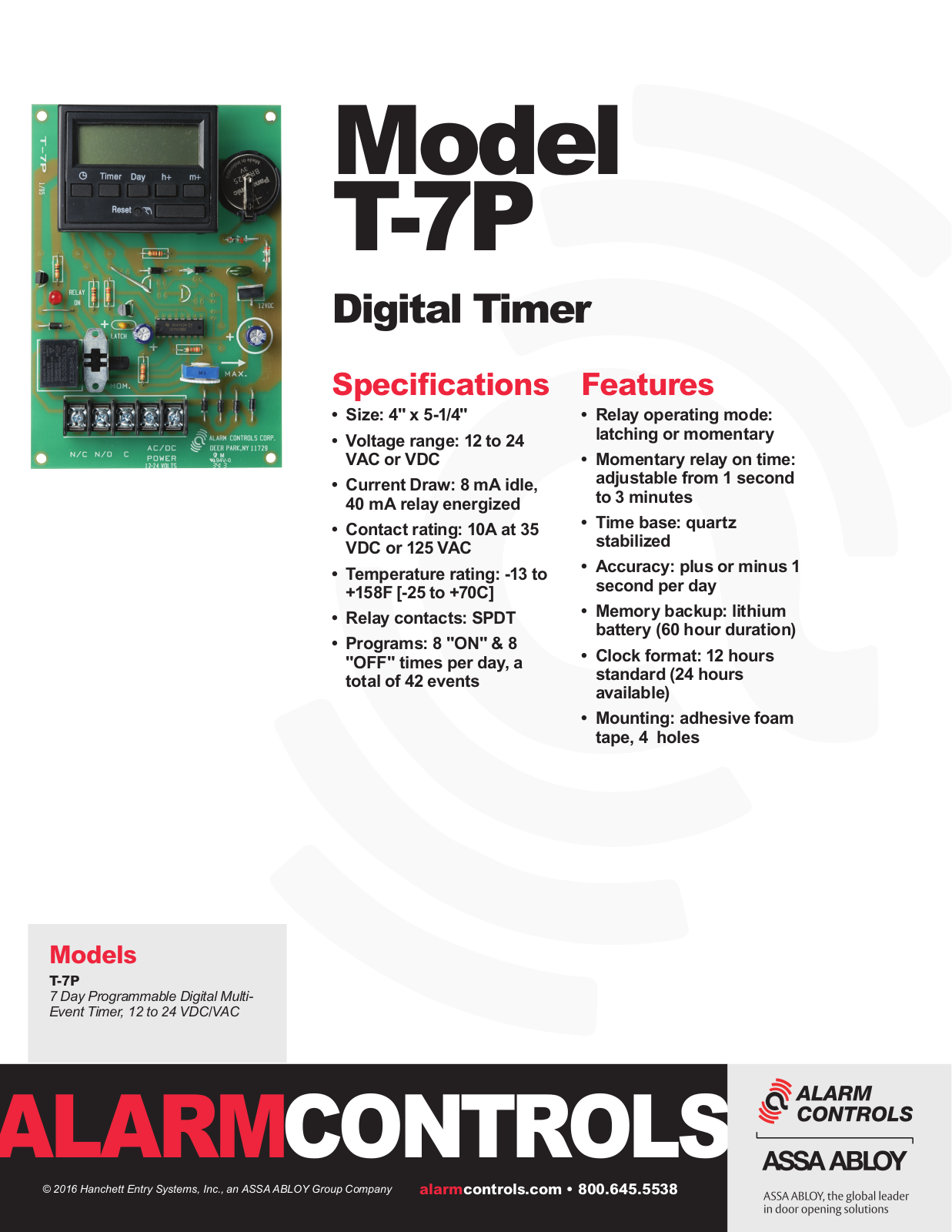

Alarm Controls T-7P Specsheet
Model
T-7P
Digital Timer
Specifications
• Size: 4" x 5-1/4"
• Voltage range: 12 to 24
VAC or VDC
• Current Draw: 8 mA idle,
40 mA relay energized
• Contact rating: 10A at 35
VDC or 125 VAC
• Temperature rating: -13 to
+158F [-25 to +70C]
• Relay contacts: SPDT
• Programs: 8 "ON" & 8
"OFF" times per day, a
total of 42 events
Features
• Relay operating mode:
latching or momentary
• Momentary relay on time:
adjustable from 1 second
to 3 minutes
• Time base: quartz
stabilized
• Accuracy: plus or minus 1
second per day
• Memory backup: lithium
battery (60 hour duration)
• Clock format: 12 hours
standard (24 hours
available)
• Mounting: adhesive foam
tape, 4 holes
Models
T-7P
7 Day Programmable Digital MultiEvent Timer, 12 to 24 VDC/VAC
CONTROLS
© 2016 Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company
alarmcontrols.com • 800.645.5538
