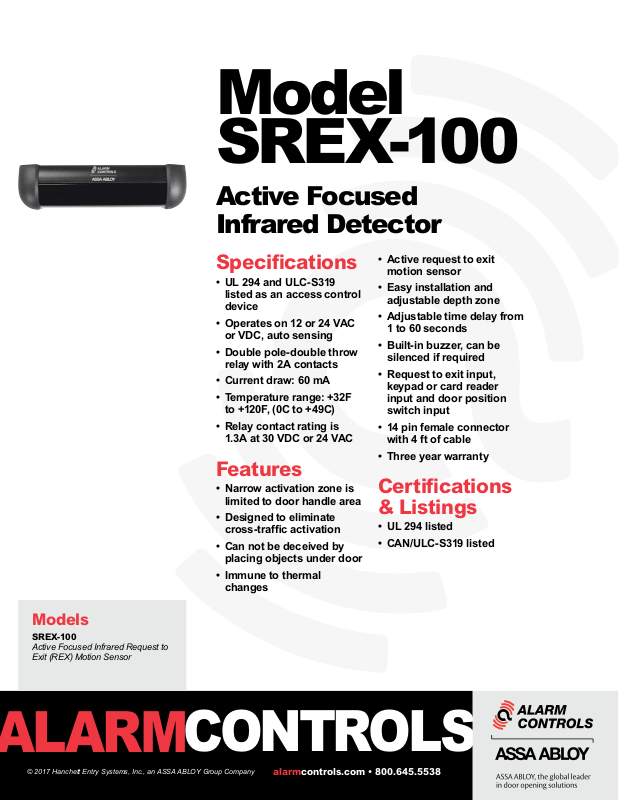

Alarm Controls SREX-100 Specsheet

Model
SREX-100

Active Focused
Infrared Detector

Specifications

• UL 294 and ULC-S319
listed as an access control
device

• Operates on 12 or 24 VAC
or VDC, auto sensing

• Double pole-double throw
relay with 2A contacts

• Current draw: 60 mA

• Temperature range: +32F
to +120F, (0C to +49C)

• Relay contact rating is

1.3A at 30 VDC or 24 VAC

Features

• Narrow activation zone is
limited to door handle area

• Designed to eliminate
cross-traffic activation

• Can not be deceived by
placing objects under door

• Immune to thermal
changes

• Active request to exit
motion sensor

• Easy installation and
adjustable depth zone

• Adjustable time delay from
1 to 60 seconds

• Built-in buzzer, can be
silenced if required

• Request to exit input,
keypad or card reader
input and door position
switch input

• 14 pin female connector
with 4 ft of cable

• Three year warranty

Certifications
& Listings

• UL 294 listed

• CAN/ULC-S319 listed

Models

SREX-100

Active Focused Infrared Request to
Exit (REX) Motion Sensor
