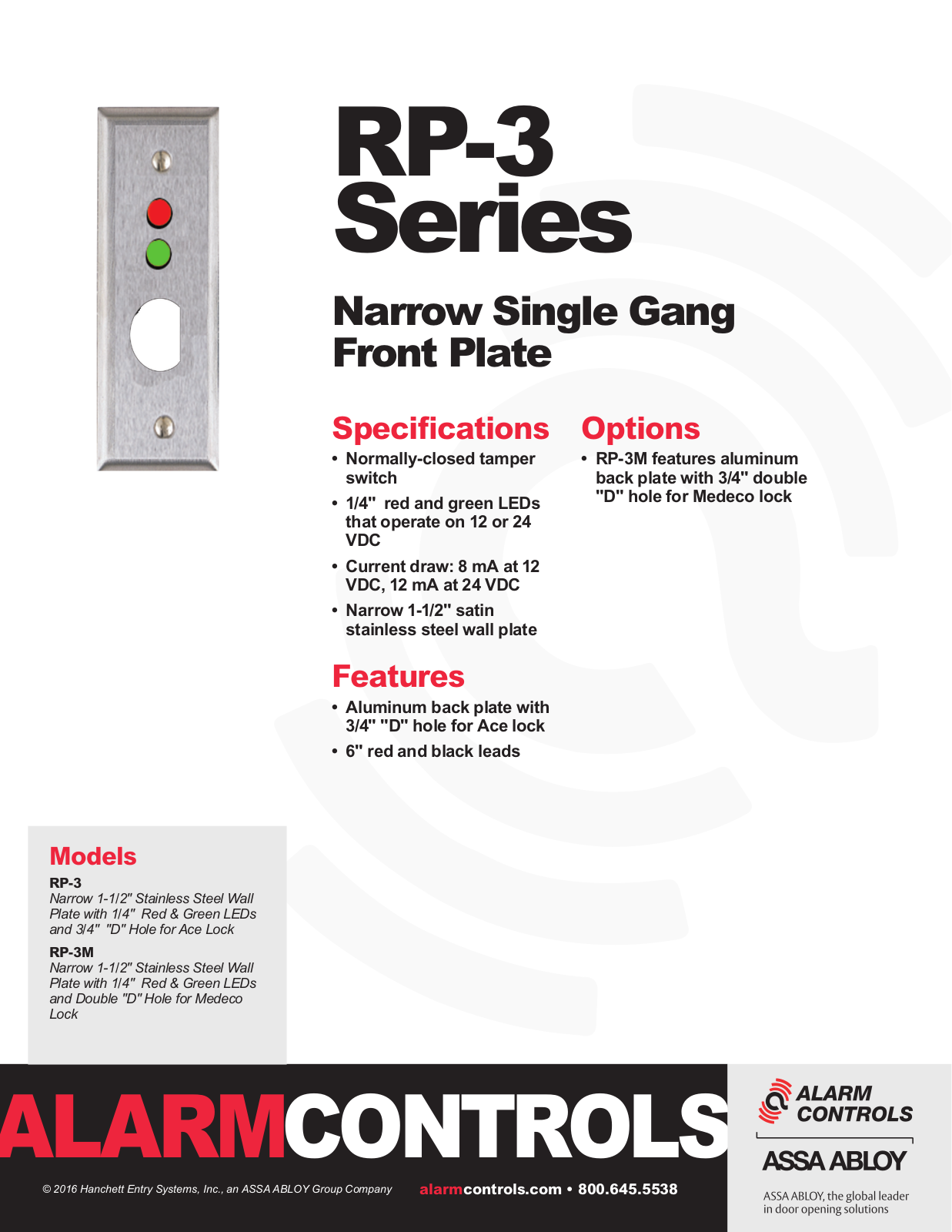

Alarm Controls RP-03, RP-03M Specsheet

RP-3
Series

Narrow Single Gang
Front Plate

Models

RP-3

Narrow 1-1/2" Stainless Steel Wall
Plate with 1/4" Red & Green LEDs
and 3/4" "D" Hole for Ace Lock

RP-3M
Narrow 1-1/2" Stainless Steel Wall
Plate with 1/4" Red & Green LEDs
and Double "D" Hole for Medeco
Lock

Specifications

• Normally-closed tamper
switch

• 1/4" red and green LEDs
that operate on 12 or 24
VDC

• Current draw: 8 mA at 12
VDC, 12 mA at 24 VDC

• Narrow 1-1/2" satin
stainless steel wall plate

Features

• Aluminum back plate with
3/4" "D" hole for Ace lock

• 6" red and black leads

Options

• RP-3M features aluminum
back plate with 3/4" double
"D" hole for Medeco lock

CONTROLS

© 2016 Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company

alarmcontrols.com • 800.645.5538
