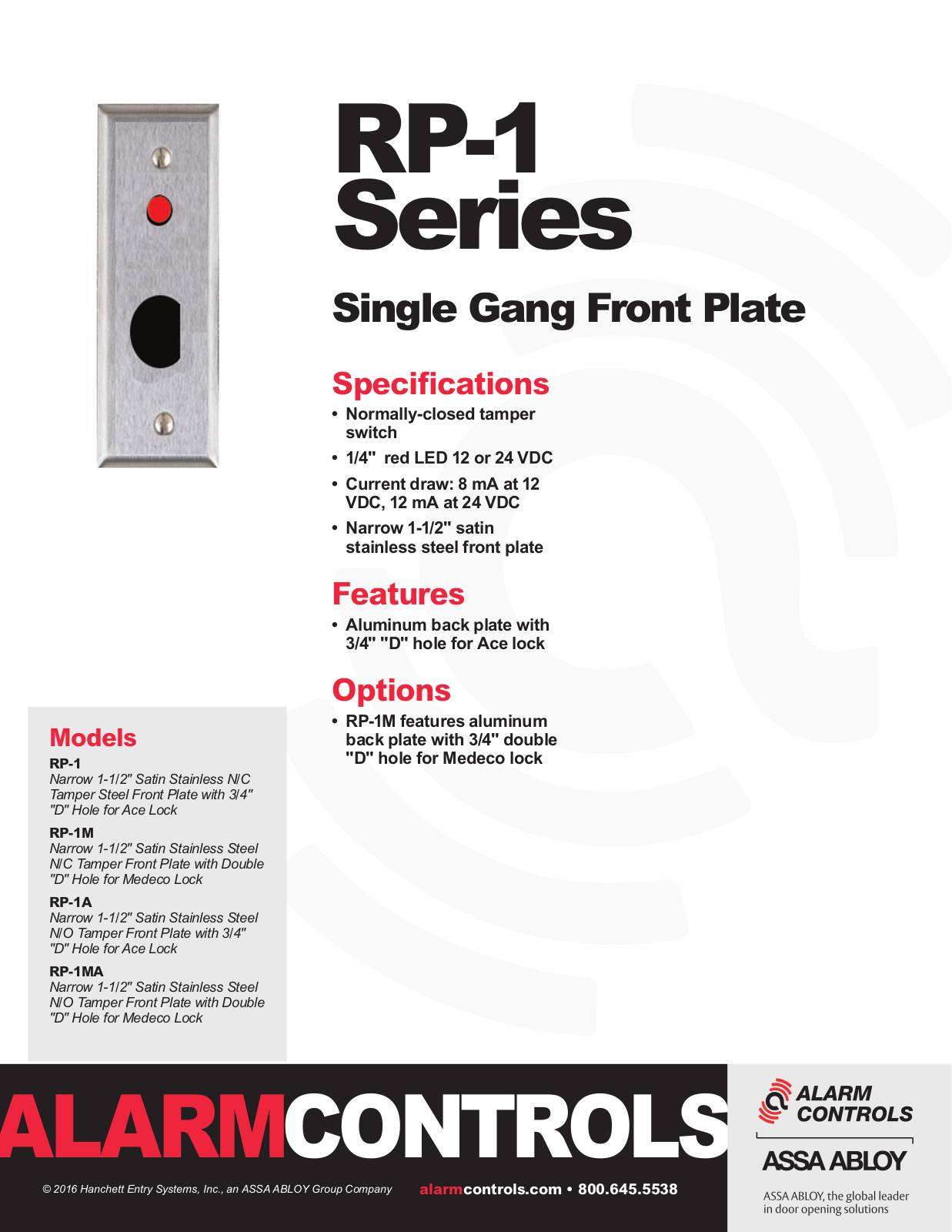

Alarm Controls RP-01 Specsheet

RP-1
Series

Single Gang Front Plate

Specifications

• Normally-closed tamper
switch

• 1/4" red LED 12 or 24 VDC

• Current draw: 8 mA at 12
VDC, 12 mA at 24 VDC

• Narrow 1-1/2" satin
stainless steel front plate

Features

• Aluminum back plate with
3/4" "D" hole for Ace lock

Models

RP-1

Narrow 1-1/2" Satin Stainless N/C
Tamper Steel Front Plate with 3/4"
"D" Hole for Ace Lock

RP-1M
Narrow 1-1/2" Satin Stainless Steel
N/C Tamper Front Plate with Double
"D" Hole for Medeco Lock

RP-1A
Narrow 1-1/2" Satin Stainless Steel
N/O Tamper Front Plate with 3/4"
"D" Hole for Ace Lock

RP-1MA
Narrow 1-1/2" Satin Stainless Steel
N/O Tamper Front Plate with Double
"D" Hole for Medeco Lock

Options

• RP-1M features aluminum
back plate with 3/4" double
"D" hole for Medeco lock

CONTROLS

© 2016 Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company

alarmcontrols.com • 800.645.5538
