Akira CT-21XF9A Schematic

S

e

C

r

v

r

v

r

v

o

i

l

c

o

e

u

M

r

a

T

a

V

n

u

a

l

2

M

o

d

e

l

G

r

o

u

p

:

C

T

-

2

1

o

d

e

l

G

r

o

u

p

:

C

T

-

2

1

X

CHASSIS: CN-9EA

MODEL:

F

9

CT-21XF9A

Model No: CT-21XF9A Version 1.0

3

CONTENT

Specifications .......................................................................................4

General description ..............................................................................5

Safety instructions .............................................................................. 11

Circuit adjustments ....................….................................................... 12

Set-up adjustment .............................................................................. 13

Service mode general instructions ...................................................... 15

Service mode adjustment ................................................................... 19

Main repairing flow diagram ..............................................................20

Main ICs description and repair data offering .................................... 26

Spare parts list .……………………………………………………….. 46

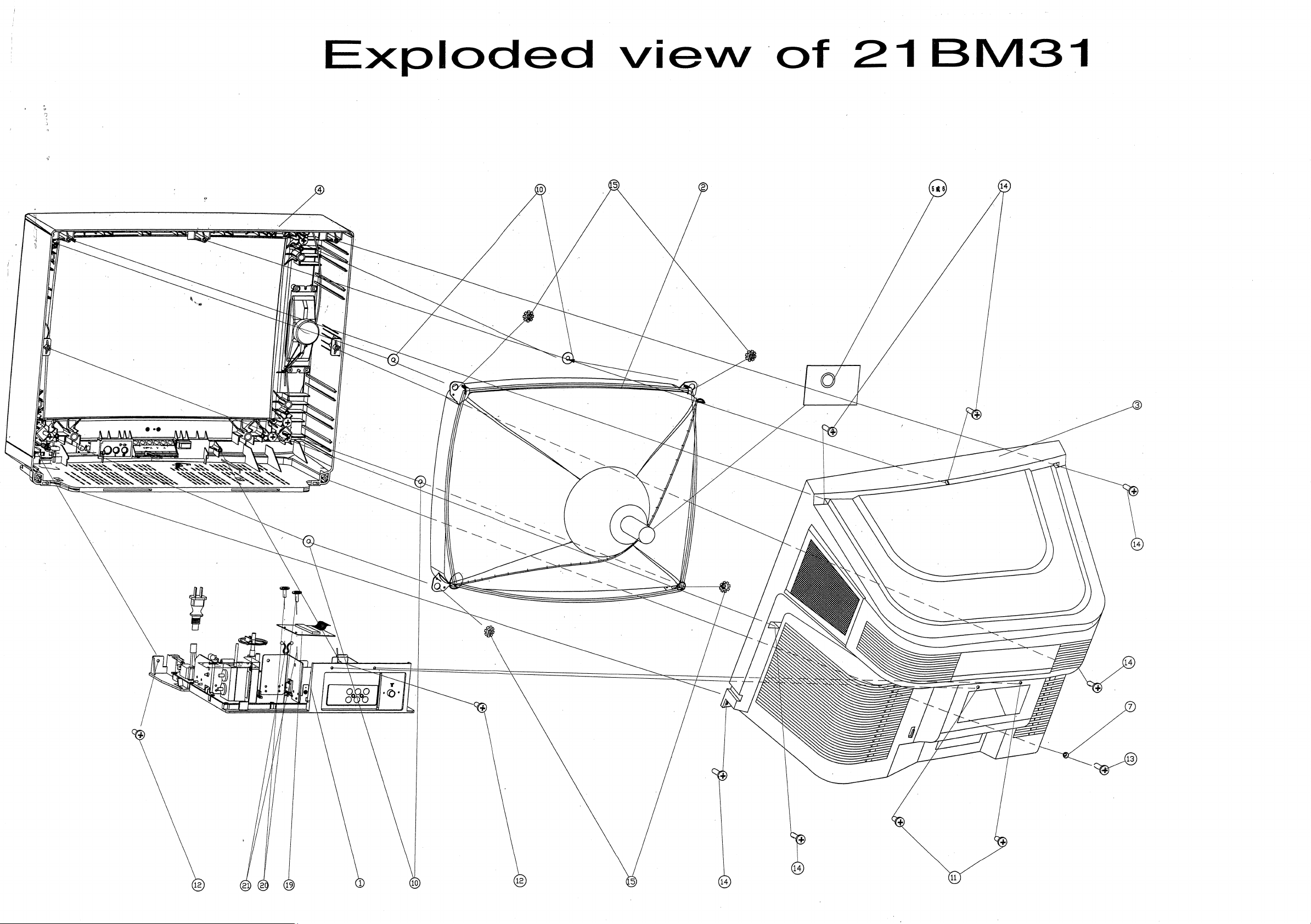

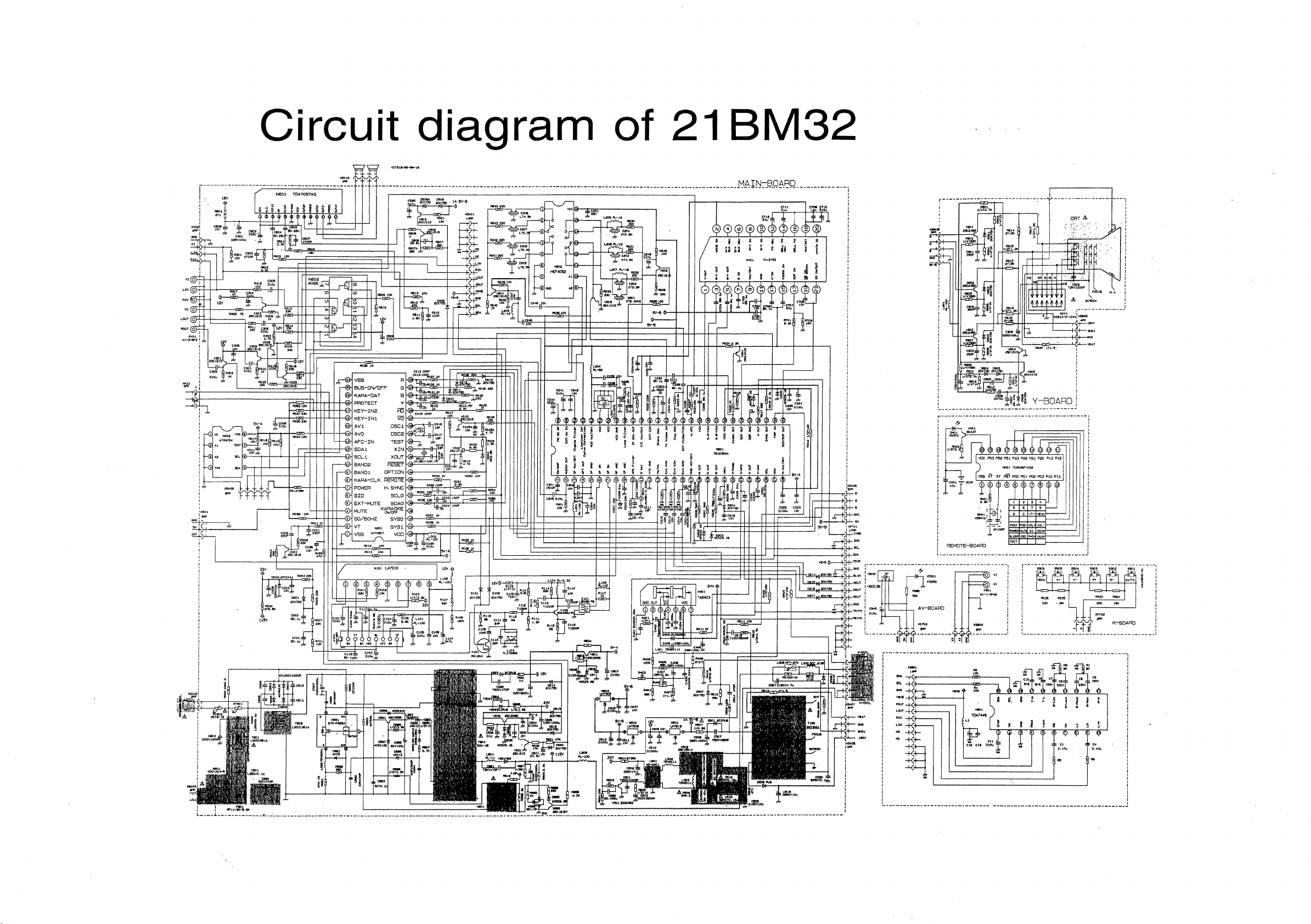

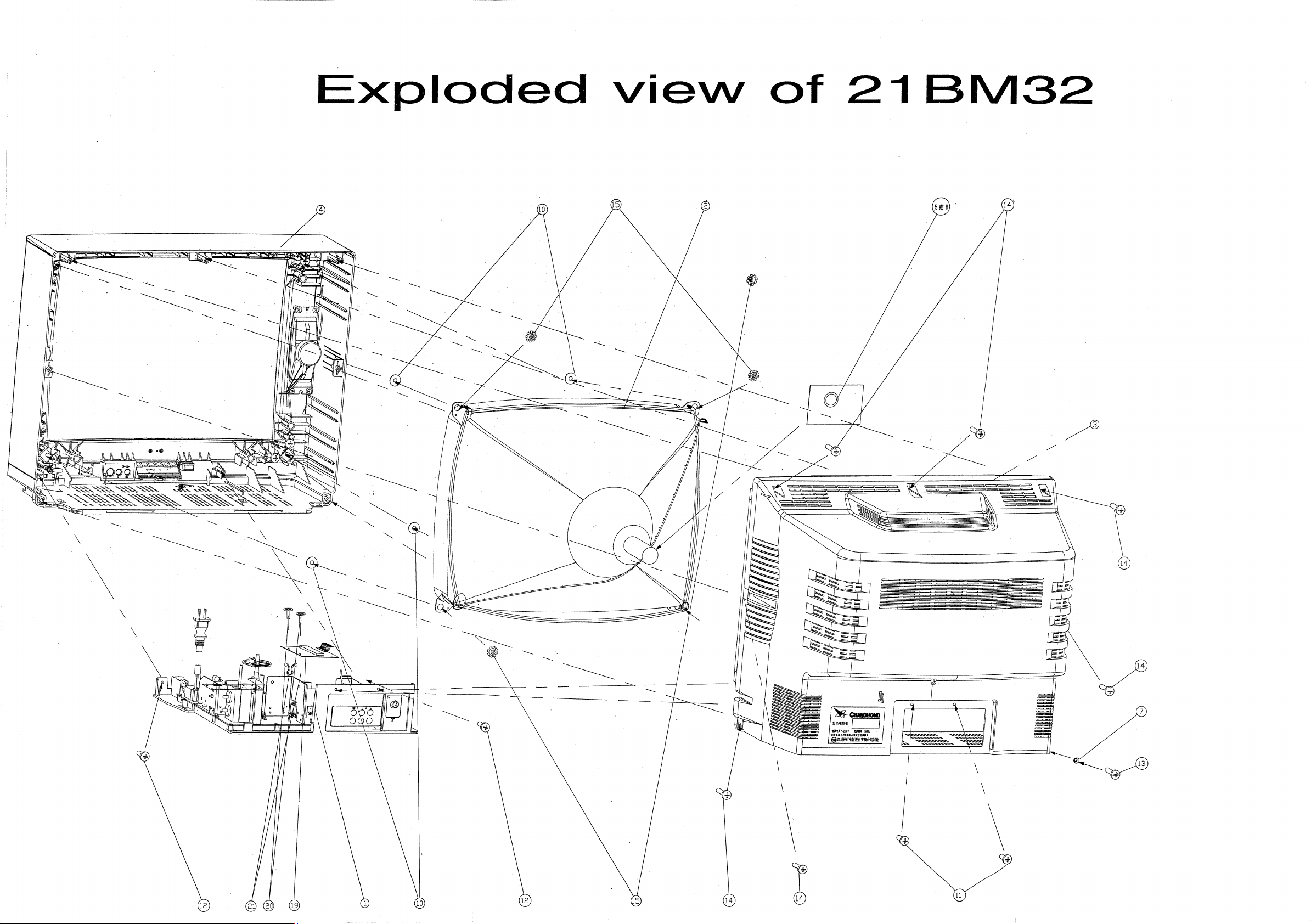

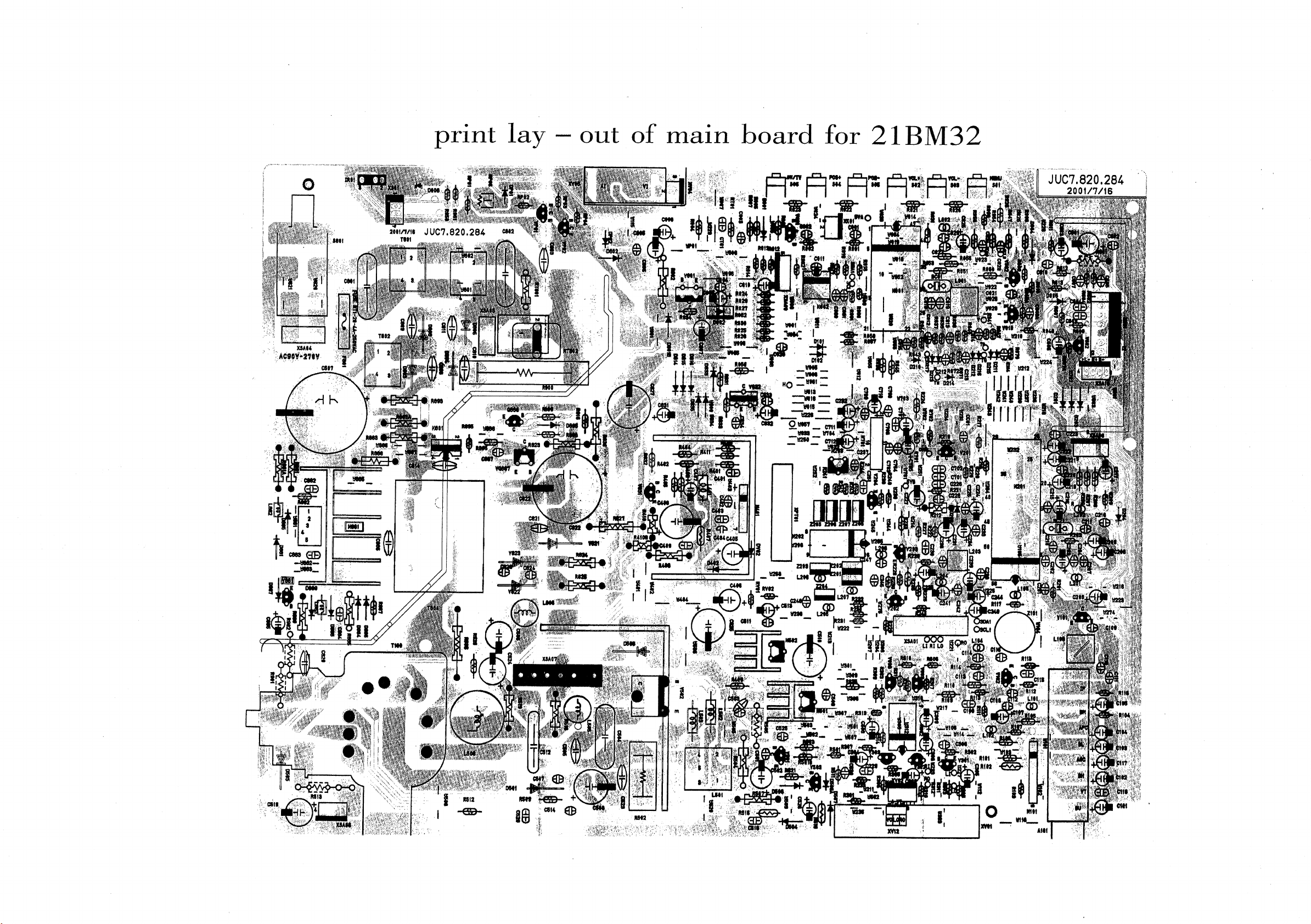

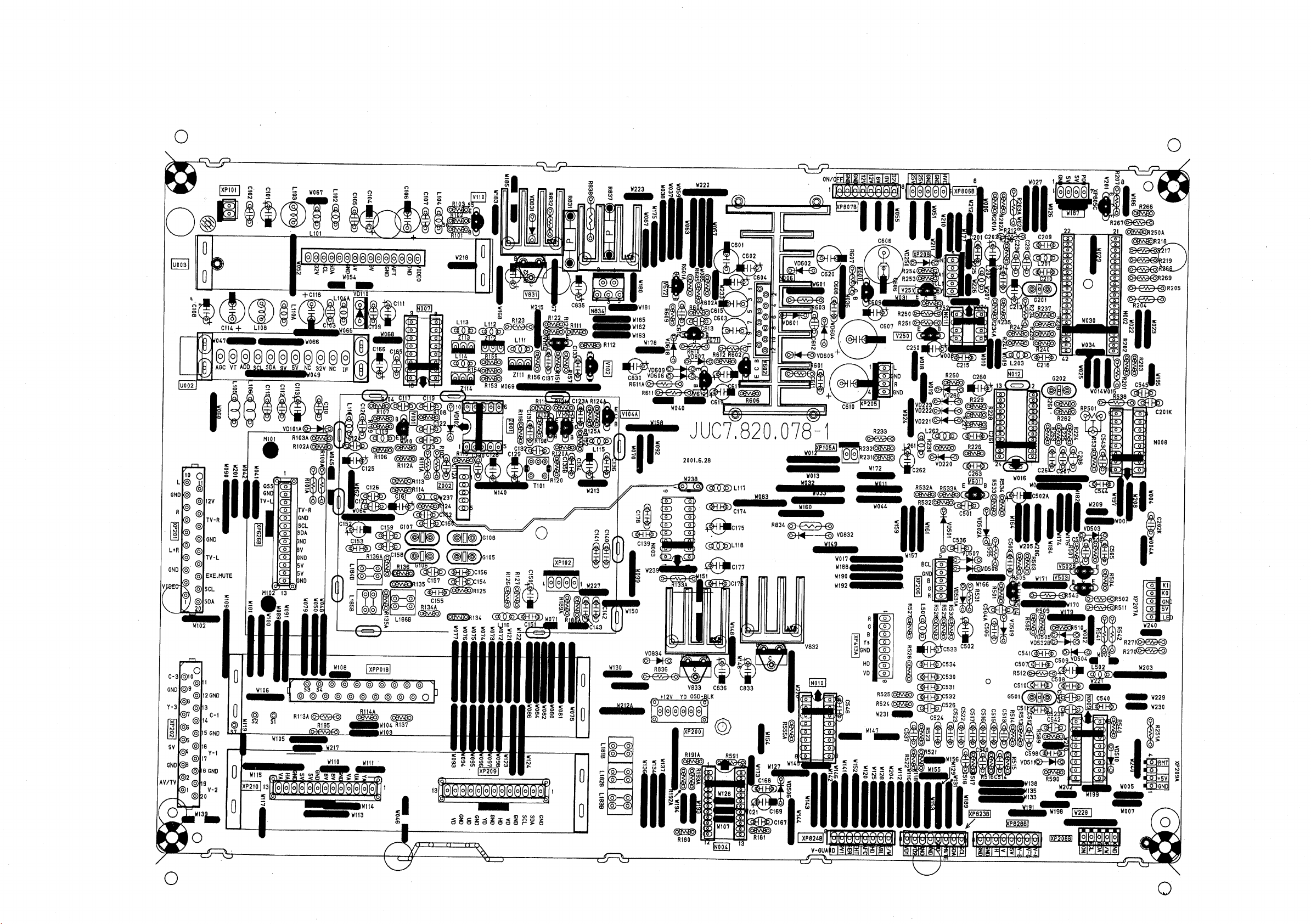

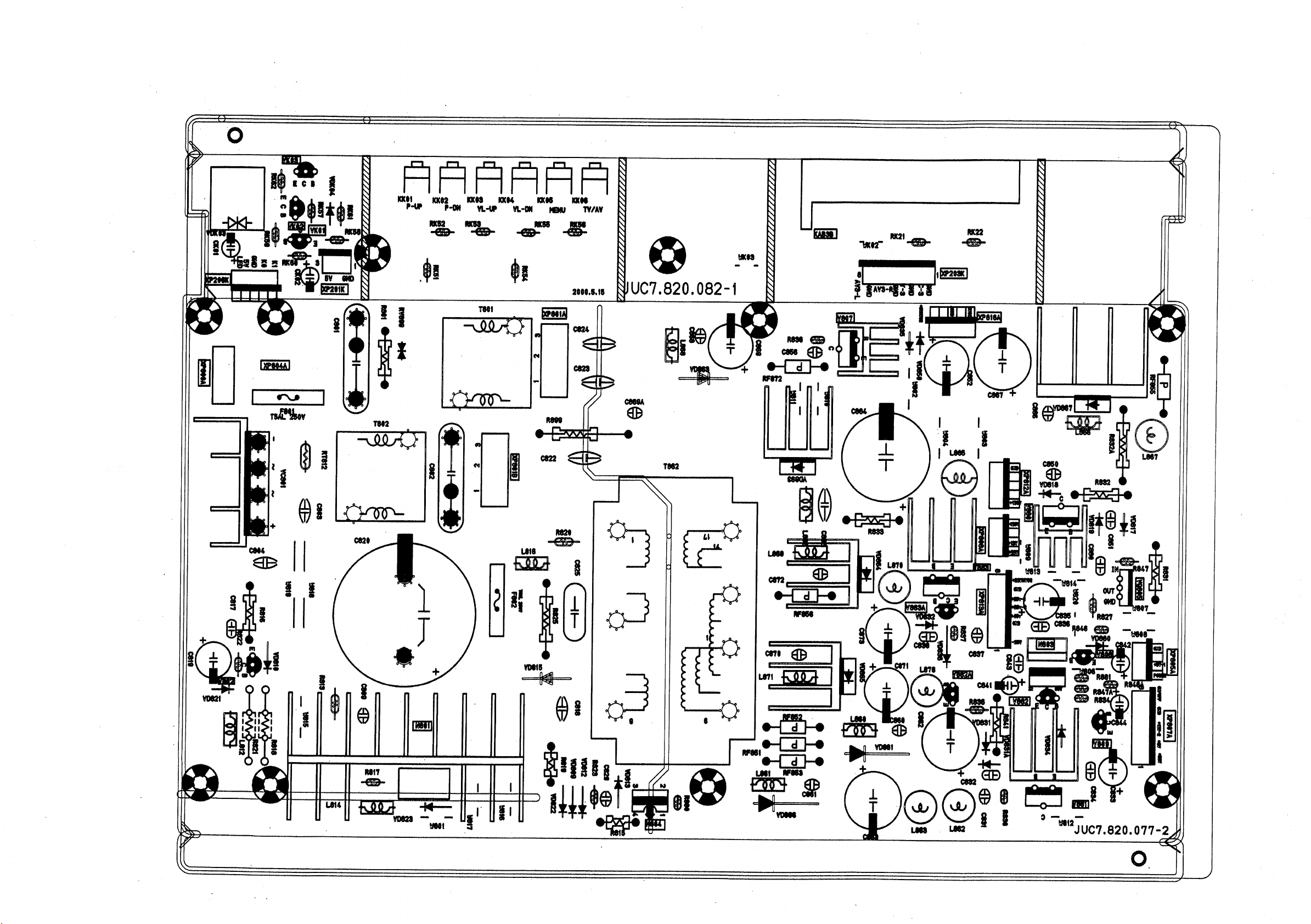

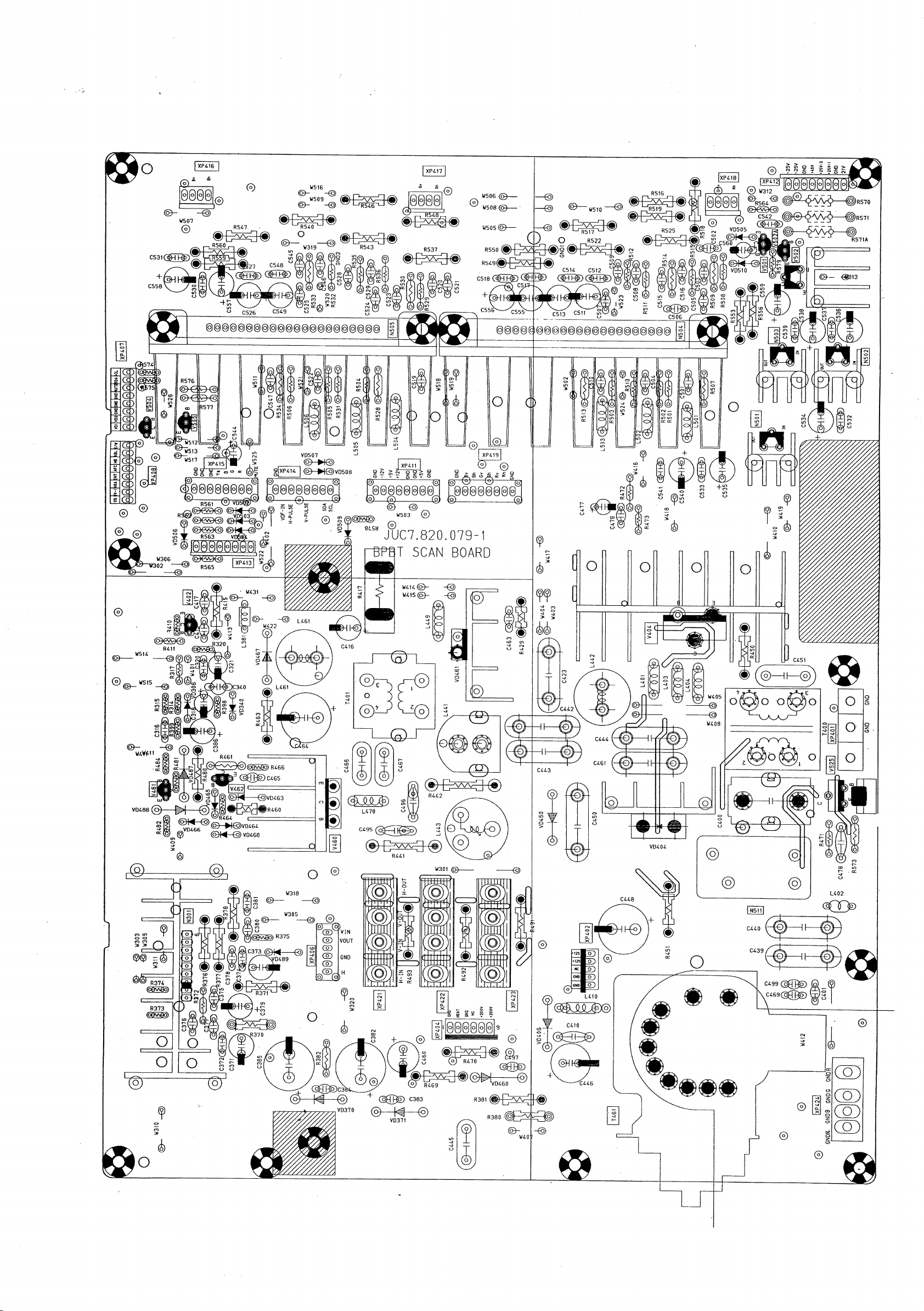

Appendix: Exploded view 21BM32/21BM31…..………………………………...68 Circuit diagram ……………………………………………………….73 Print lay-out of main board …………………………………………...74

Model No: CT-21XF9A Version 1.0

SPECIFICATIONS

RF system: Color system: PAIA.43, NTSC3.58, NTSC4.43, PAL-M, PAL-N Sound system: D/K, I, M, B/G Video system: PAL4.43, NTSC4.43, NTSC3.58, PAL-M, PAL-N (50/60Hz) Receiving channel: VHF: Cl~C12 (49.75 ~ 85.25MHz, 168.25 ~ 216.25MHz) UHF: C 13~C57 (471.25 ~ 863.25MHz) CATV: Zl~Z7 (111.0 ~ 167.0MHz) Z8~Z35 (223.0~447.0MHz) Programs Preset: 236 Antenna. input: 75Ù (imbalance) Picture tube: Effective screen dimension: 406mmx305mm; Flat-square tube Audio output: Main channel: 5W+5W (THD=7%) Power supply: AC 150~260V (50Hz

Weight: ~26kg Dimensions: 566mm(w) x 455mm(h) x 480mm(d) Power consumption: ~87W (AC 220V 50Hz)

Model No: CT-21XF9A Version 1.0

)

4

GENERAL DESCRIPTION

Figure 1 shows the block diagram of CN-9 (21BM32). Table 1 provides CN-9EA chassis main ICs and functions. Figure 2 shows the whole set power supply system for CN-9EA chassis. Figure 3 shows the system control circuit of CN-9EA chassis.

Table 1: 21BS32EA mainly ICs and functions

Location Type Mainly function

N001 CH08T0934 System control microprocessor N002 AT24C08-10PI Memory N945 HS0038A Remote control receiver NM01 TC9028F-022 Remote control transmitter N101 LA7910 Band decoder N202 HEF4052 Sound system switching

Small signal processing

N201 TB 1238AN N401 TA8403 Vertical output power amplifier N601 TDA7057AQ Audio power amplifier N701 TA1275AZ SECAM decoder N602 HCF4066BE Audio TV/AV switching NS01 TDA7449 Audio processor NT01 SAA5261 Teletext processor NT02 PCF8582 Memory

(IF/VIDEO/CHROMA/DEF)

5

Model No: CT-21XF9A Version 1.0

11

SAFETY INSTRUCTION

WARNING: BEFORE EXAMINING AND SERVICING THIS CHASSIS, READ CAREFULLY THE FOLLOWING SAFETY INSTRUCTIONS.

X-RAY RADIATION PRECAUTION

1. The EHT must be checked every time the receiver is serviced to ensure that the CRT does not emit X-ray radiation as result of excessive EHT voltage. The nominal EHT for this receiver is

27.5kv at zero beam current (minimum brightness) operating at AC 220V. The maximum EHT voltage permissible in any operating circumstances must not exceed 30KV. When checking the EHT, use the High Voltage Check procedure in this manual using an accurate EHT voltmeter.

2. The only source of X-RAY radiation in this receiver is the CRT to prevent X-ray radiation you should use the same type of CRT when replacing it.

3. Some components used in this receiver have safety-related characteristics preventing the CRT from emitting X-ray radiation. For continued safety, replacement component should only be made after referring the Product Safety notice below.

SAFETY PRECAUTION

1. The high voltage in the TV reaches to 27.5KV when the TV is in operation. Be more careful during opening the back cover.

a. The high voltage existing in the TV is very dangerous. Refer servicing to qualified

personnel only.

b. Before removing the high voltage cap, discharge the anode of the CRT and the chas-

sis in case of electric shock.

c. Wear a pair of goggles when handling the CRT to void broken pieces damaging your

eyes.

d. Do not hold the CRT neck in case of causing damage to the CRT.

2. When the power cord needs replacing, use the same one as stated in this manual.

3. Voltage exists between the hot and cold ground when the TV is in operation. Install a separation transformer during repairing or connecting to any tester for the sake of safety. The power of the separation transformer should be beyond rated overall power.

4. When replacing a burnout fuse, use the one with the same specifications as the original.

5. When replacing old wire, wind new one round the shaft to weld. When replacing components with safety in performance, use the same type as that specified by this manual and install it in the former way.

6. Never place wire near high-temperature or high-voltage components.

SAFETY CAUTIONS FOR PRODUCTS

Many electric and mechanical components in CN-9 chassis have special, safety performances, which are always neglected. Even if replacing them with some components with the same voltage and power, you can not get effective protection to X-ray. In the circuit diagram, these special electric components are indicated by the special mark ! , and on the shadow. When replacing any of them, use the one with the same specifications as the originals. Otherwise, it may cause X-ray radiation and damage to overall safety.

Model No: CT-21XF9A Version 1.0

12

CIRCUIT ADJUSTMENTS

GENERAL INFORMATIONS

All adjustment are thoroughly checked and corrected when the receiver leaves the factory. Therefore the receiver should operate normally and produce proper colour and B/W pictures upon installation. However, several minor adjustments may be required depending on the particular location in which the receiver is operated.

This receiver is shipped completely in carton. Carefully draw out the receiver from the carton and remove all packing materials. Power cord into a convenient 220 volts 50 Hz AC two pin power outlet. Turn the receiver ON. Check and adjust all the customer controls such as BRIGHTNESS, CONTRAST and COLOUR Controls to obtain natural colour or B/W picture.

AUTOMATIC DEGAUSSING

A degaussing coil is mounted around the picture tube so that external degaussing after moving the receiver is normally unnecessary, providing the receiver is properly degaussed upon installation. The degaussing coil operates for about 1 second after the power to the receiver is switched ON. If the set is moved or faced in a different direction, the power switch must be switched off at least 30 minutes in order that the automatic degaussing circuit operates properly. Should the chassis or parts of the cabinet become magnetized to cause poor colour purity, use an external-degaussing coil. Slowly move the degaussing coil around the faceplate of the picture tube, the sides and front of the receiver and slowly withdraw the coil to a distance of about 2m before disconnecting it from AC source. If colour shading still persists, perform the COLOUR PURITY ADJUSTMENT and CONVERGENCE ADJUSTMENTS procedures.

POWER SUPPLY ADJUSTMENT

CAUTION: +B voltage has close relation to high voltage. To avoid X-ray radiation, +B voltage should be to +115V.

1. Set RV801 to the mechanical center and AC power supply to 220±2V.

2. Connect a digital voltmeter to two pins of C822, and then turn on the TV.

3. Receive Philips test signal.

4. Adjust RV81 to make the voltmeter read 115±0.5V.

HIGH VOLTAGE EXAMINATION

CAUTION: No high voltage adjustment should be done in CN-9EA chassis.

1. Connect a precise high voltmeter to the second anode of the CRT.

2. Turn on the TV and set the brightness and contrast to minimum (i.e. set beam current of the CRT to zero).

3. The high voltage tested should be 27.5 ± 0.5KV.

4. Set the brightness to minimum or maximum, and ensure high voltage not beyond limitation of 30KV in any case.

Model No: CT-21XF9A Version 1.0

13

FOCUS ADJUSTMENT

1. Use the remote control to set the contrast to maximum and the brightness, chroma to medium.

2. Set H. V. lines near Philips picture center to thinnest with the focus adjustment potentiometer on the FBT. After finishing adjustment, ensure that no poor focusing exist near the center or around of the frame.

Before Adjusting After adjusting

SET-UP ADJUSTMENT

The following adjustments should be made when a complete realignment is required or a new picture tribe is installed. Perform the adjustments in order as follows:

1. Colour purity

2. Convergence

3. White Balance (See page 17)

Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning. Refer to figure 6.

COLOUR PURITY ADJUSTMENT

NOTE: Before attempting any purity adjustment, the receiver should be operated for at least fifteen minutes.

1. Demagnetize the picture tube and cabinet using a degaussing coil.

2. Set the brightness and contrast to maximum

3. Receive the green raster test signal.

4. Loosen the clamp screw holding the deflection coil and slide, the backward or forward to provide vertical green belt (zone) in the picture screen.

5. Remove the Rubber Wedges.

6. Rotate and spread the tabs of the purity magnet (See figure 7) around the neck of the picture tube until the green belt is in the centre of the screen.

7. Slowly move the deflection coil forward or backward until a uniform green screen is obtained. Tighten the Clamp screw of the coil temporarily.

8. Check the purity of the red and blue raster.

Model No: CT-21XF9A Version 1.0

15

CONVERGENCE ADJUSTMENTS

NOTE: Before a attempting any convergence adjustments, the receiver should be operated for at least fifteen minutes.

CENTRE CONVERGENCE ADJUSTMENT

1. Receive the pane pattern test signal.

2. Set the brightness and contrast for well-defined pattern.

3. Adjust two tabs of the 4-Pole Magnets to change the angle between them (See figure 7) and superimpose red and blue vertical lines in the centre area of the picture screen.

4. Turn the both tabs at the same time keeping the angle constant to superimpose red and blue horizontal lines at the centre of the screen.

5. Adjust two tabs of 6-Pole Magnets to superimpose red/blue line (land green line. Adjusting the angle affects the vertical lines and rotating both magnets affects the horizontal lines.

6. Repeat adjustments 3, 4, 5 keeping in mind red, green and blue movement, because 4-Pole Magnets and 6-Pole Magnets have mutual interaction and make dot movement complex.

CIRCUMFERENCE CONVERGENCE ADJUSTMENT

1. Loosen the clamping screw of defection coil slightly to allow the coil to tilt.

2. Temporarily put a wedge as shown in figure 6. (Do not remove cover paper on adhesive part of the wedge.)

3. Tilt front of the deflection coil up or down to obtain better convergence in circumference. (See figure 8) Push the mounted wedge into the space between picture tube and the coil to fix the coil temporarily.

4. Put other wedge into bottom space and remove the cover paper to stick.

5. Tilt front of the deflection coil right or left to obtain better convergence in circumference. (See figure 8)

6. Keep the deflection coil position and put another wedge in either upper space. Remove cover paper and stick the wedge on picture tube to fix the coil.

7. Detach the temporarily mounted wedge and put it in another upper space. Stick it on picture tube to fix the coil.

8. After fixing three wedges, recheck overall convergence. Tighten the screw firmly to fix the coil and check the coil is firm.

9. Stick three adhesive tapes on wedges as shown in figure 6.

SERVICE MODE GENERAL INSTRUCTIONS

1. ENTERING TO SERVICE MODE

Use the user remote receiver K10N-C1. Set the volume to minimum. Press the MUTE button on Remote Control. Keep pressing the MUTE button, press MENU button on TV set until the character D and an adjustment item appears on the screen.

2. SELECTING THE ADJUSTING ITEMS

Every pressing of the RED or GREEN button on remote control transmitter changes the adjustment items in the following BUS DATA table.

Model No: CT-21XF9A Version 1.0

17

Table 2 The BUS DATA FOR 21BM32

Number Adjustment Item Adjustment Function Type Data

1 BCUT Blue Dark Balance 60 2 RCUT Red Dark Balance 4F 3 GCUT Green Dark Balance 8D 4 MODE Factory data 20 5 OPT Option F3 6 OSD OSD position 06 7 ZHP 03 8 LANG FF

9 VM2 TB1238AN V/C/D mode data 80 10 UHF-H Factory ASM VT limit of UHF high byte 00 11 UHF-L Factory ASM VT limit of UHF LOW byte D8 12 VHFH-H Factory ASM VT limit of VHFH high byte 00 13 VHFH-L Factory ASM VT limit of VHFH low byte F0 14 VHFL-H Factory ASM VT limit of VHFL high byte 02 15 VHFL Factory ASM VT limit of VHFL low byte 10 16 SNUM 20 17 PNUM Protect number 7F 18 SELF COLN Self adjust COLC initial data 10 19 SELF TNTC Self adjust TNTC center initial data 00 20 SELF CNTC Self adjust CNTC initial data 20 21 SELF BRTC Self adjust BRTC initial data 80 22 SELF AGC Self adjust AGC initial data 20 23 SELF VCO Self adjust VCO initial data 80 24 SELF TB1231N P40UT select 00 25 BRTS Sub bright (difference) 00 26 V50 Volume 50% 57 27 V25 Volume 25% 3A 28 HAFC AFC gain 00 29 AFT PIF VCO center 48 30 RAGC RF AGC 28 31 SRY SECAM R-Y 08 32 SBY SECAM B-Y 08 33 VLIS Vertical line deflection of 50/60 Hz 0B 34 VSC Vertical S correction 0C

Model No: CT-21XF9A Version 1.0

18

Number Adjustment Item Adjustment Function Type Data

35 HPS Horizontal centering difference of 50/60Hz 10 36 HIT Vertical line of 50 Hz 20 37 VP50 Vertical centering of 50Hz 05 38 HPOS Horizontal center of 50 Hz 0C 39 VM1 V/C/D mode data 1 9F 40 VM0 V/C/D data 0 3C 41 RGCN Text RGB contrast min 16 42 TXCX Text RGB contrast max 2A 43 SHPN Sub sharpness min (difference) 1C 44 SHPX Sub sharpness max (difference) 1A 45 SV4 Sub sharp center (other AV) 20 46 ST4 Sub Sharp Center (other TV) 20 47 SV3 Sub sharp center (3.5BTSC AV) 20 48 ST3 Sub sharp center (3.58NTSC TV) 20 49 TNTN Sub tint min (difference) 28 50 TNTX Sub tint max (difference) 28 51 COLN Sub color min 00 52 COLX Sub color max (difference) 35 53 BRTN Sub bright min (difference) 20 54 BRTX Sub bright max (difference) 20 55 CNTN Sub contrast min 08 56 CNTC Sub contrast center 20 57 SCNT Sub contrast 06 58 COLS Sub color center (SECAM) 40 59 COLP Sub color center (PAL difference) 00 60 TNTC Sub tint center 40 61 COLC Sub color center (NSTC) 40 62 BRTC Sub-bright center 30 63 CNTX Sub contrast max 3F 64 BDRV Blue light Balance 40 65 GDRV Green light Balance 40

Model No: CT-21XF9A Version 1.0

19

3. ADJUSTMENT THE DATA

Pressing of the YELLOW or BLUE button on remote control transmitter will change the value of data, in the range from 00 to FF. The variable range depends on the adjusting item.

4. EXIT FROM SERVICE MODE

Use the keyboard on remote control transmitter or TV set to turn off the TV once.

SERVICE MODE ADJUSTMENT

1. SUB-BRIGHTNESS

1. Receive colour signals.

2. Set the contrast to maximum and the brightness to medium.

3. Set the chroma to medium. Enter the TV to the SERVICE mode. Select the BRTC item by pressing the item adjustment button on the remote transmitter, and set the data to 30 by pressing the data adjustment button. Operate the TV for 5 min in the mode.

4. Adjust the BRTC data until fuzzy picture does not appear on the high bright area of the screen and too dim picture not on the low-bright area.

5. Set the contrast and brightness to maximum or minimum, and then test normal picture alternation.

6. If the picture does not become dark when the contrast and brightness are set to minimum, or not

become bright when set to maximum, then adjust the BRTC data to get normal picture.

2. WHITE BALANCE ADJUSTMENT

1. Turn on the TV and preheat it for over 7 minute.

2. Use the remote control to set the contrast to maximum and the brightness to medium. Set the chroma to minimum.

3. Enter the TV to the SERVICE mode, and set the following data without changing other items.

RCUT ............4F

GCUT ............8D

BCUT ............60

GDRN ............40

BDRN ............40

4. Pull out the external antenna and press the MUTE button once on the remote control until a bright horizontal line appears on the screen. Adjust the GCUT data to get 160V±0.5 green gun voltage across the Y board.

5. Adjust the RCUT and BCUT data according to the given at Step 4 so that the bright horizontal line turns to yellow, then to white.

3. HORIZONTAL CENTERING ADJUSTMENT

Enter the TV to the service mode, and receive Philips test signal. Select the HPOS or HPS item by pressing the item adjustment button on the remote control, and adjust horizontal picture position in the centre of screen by pressing the data, adjustment button.

4. VERTICAL CENTERING ADJUSTMENT

Enter the TV to the service mode, and receive Philips test signal. Select the VPS0 or VP60 item by pressing the item adjustment button on the remote transmitter, and adjust vertical picture position in the centre of screen by pressing the data adjustment button.

Model No: CT-21XF9A Version 1.0

20

5. VERTICAL AMPLITUDE ADJUSTMENT

Enter the TV to the service mode, and receive pane test signals. Select the HIT item by pressing the item adjustment button on the remote transmitter, and adjust vertical amplitude by pressing the data, adjustment button so that vertical amplitude lacks a little. Continue to adjust vertical amplitude by pressing the data adjustment button until the first bar on pane signal touches edge of screen.

6. HORIZONTAL AMPLITUDE ADJUSTMENT

Receive Philips test signals. Adjust the horizontal amplitude adjustment inductance L506 so that the edge of the CRT covers the right and left borderlines of Philips picture by 1/3 grille.

7. BUS DATA INITIALIZATION

When the BUS DATA of TV is confused, enter the TV to the service mode. Press the SLEEP button on the Remote Control will initialize the BUS DATAS for all adjustment items.

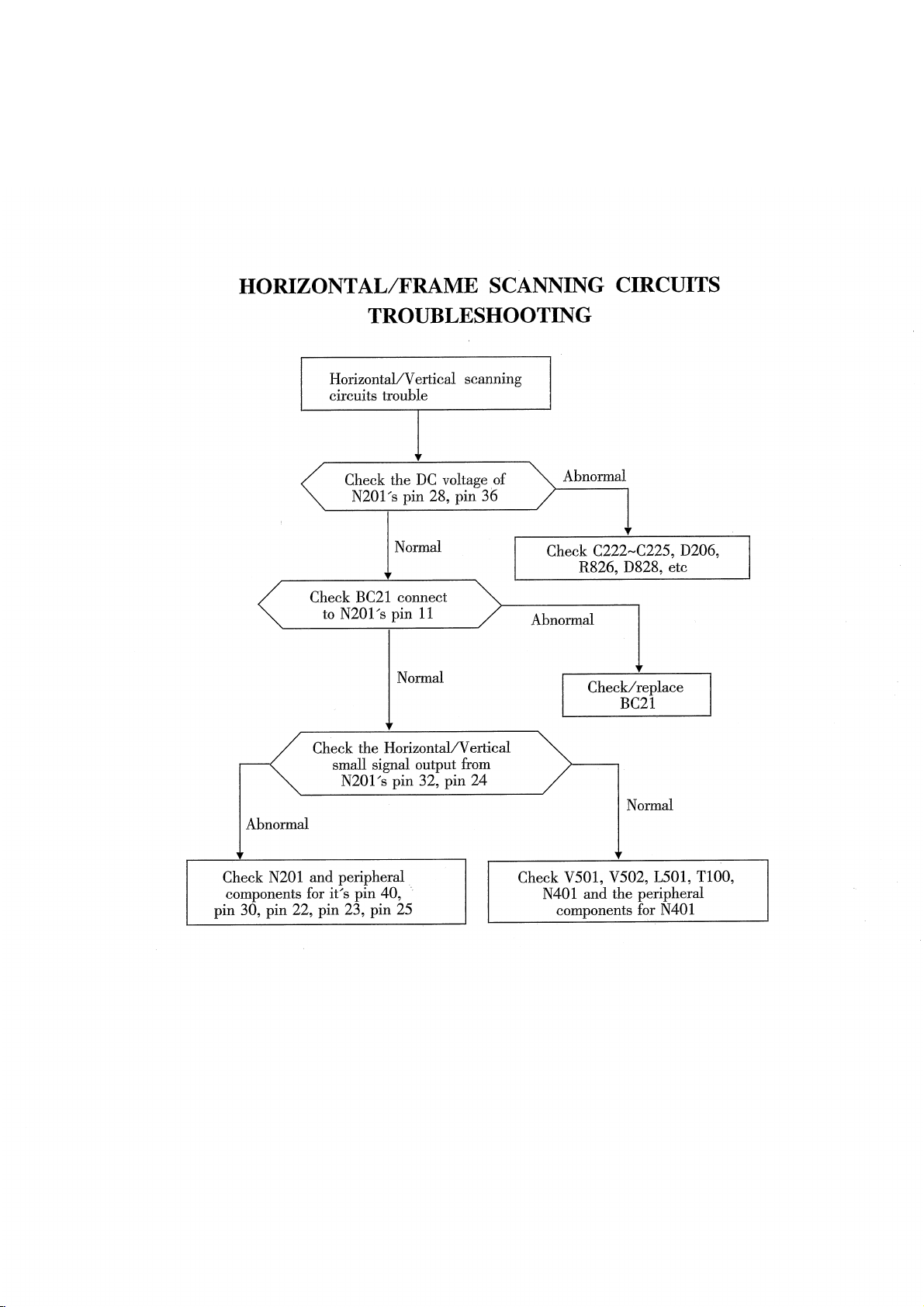

MAIN REPAIRING FLOW DIAGRAM

The following flow diagrams are for the corresponding troubleshooting, which can help you find the causes for troubles. Check as the order shown on the flow diagrams, you can find the defective component.

Model No: CT-21XF9A Version 1.0

26

MAIN ICS DESCRIPTION AND REPAIR DATA OFFERING

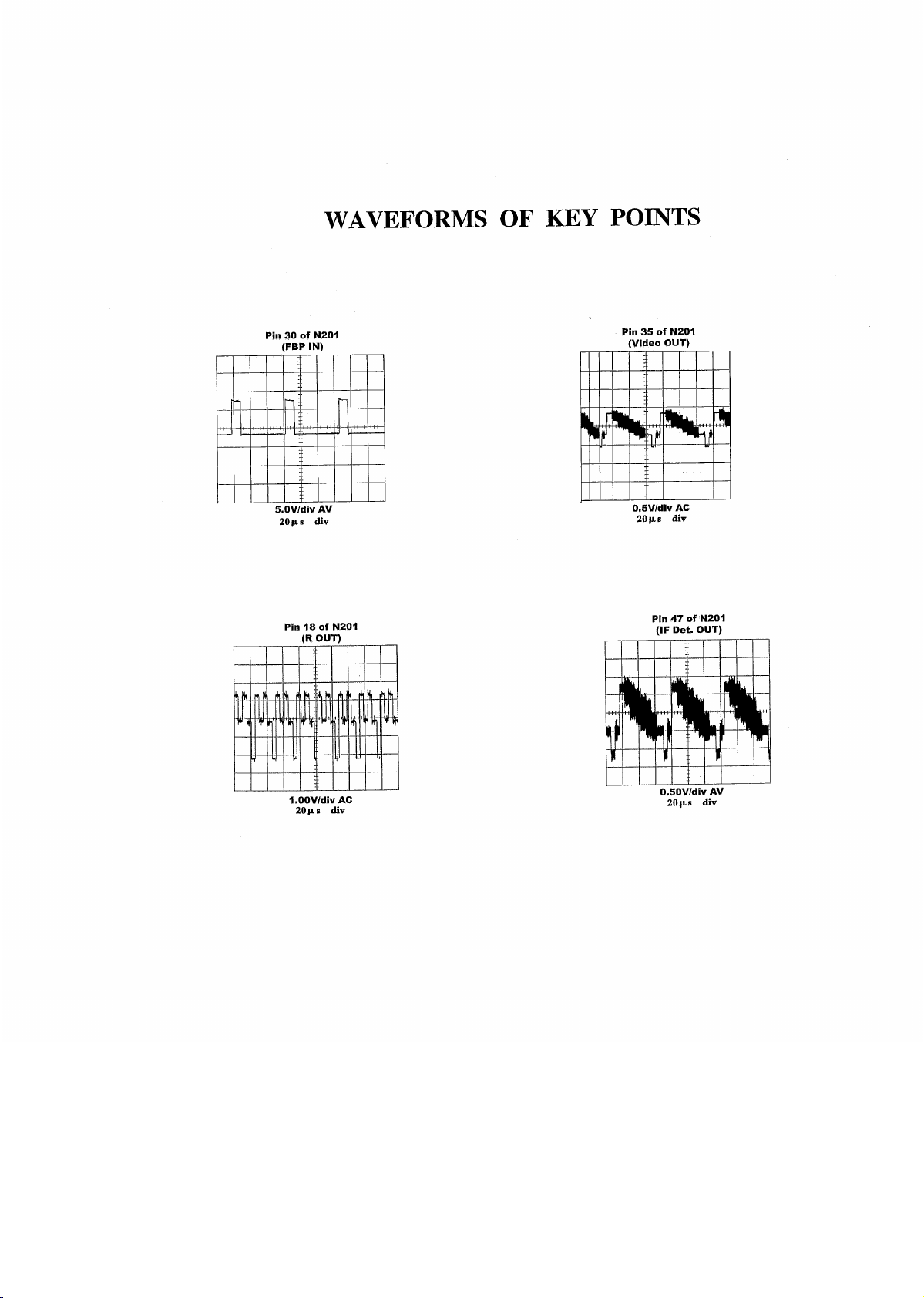

1. INTRODUCTION FOR IC TB1238AN (N201)

TB1238AN is a PAL/NTSC system color TV specific monolithic IC currently developed by Toshiba Co., which is controlled by Inter IC Bus. TB1238AN includes a picture IF processing circuit, a sound IF processing circuit, PLL video detection circuit, PLL sound frequency discrimination circuit, a luminance signal processing circuit, PAL/NTSC chroma signal processing circuit and RGB signal processing circuit. TV/AV switching circuit and Horizontal/Vertical scanning small signal processing circuit etc.

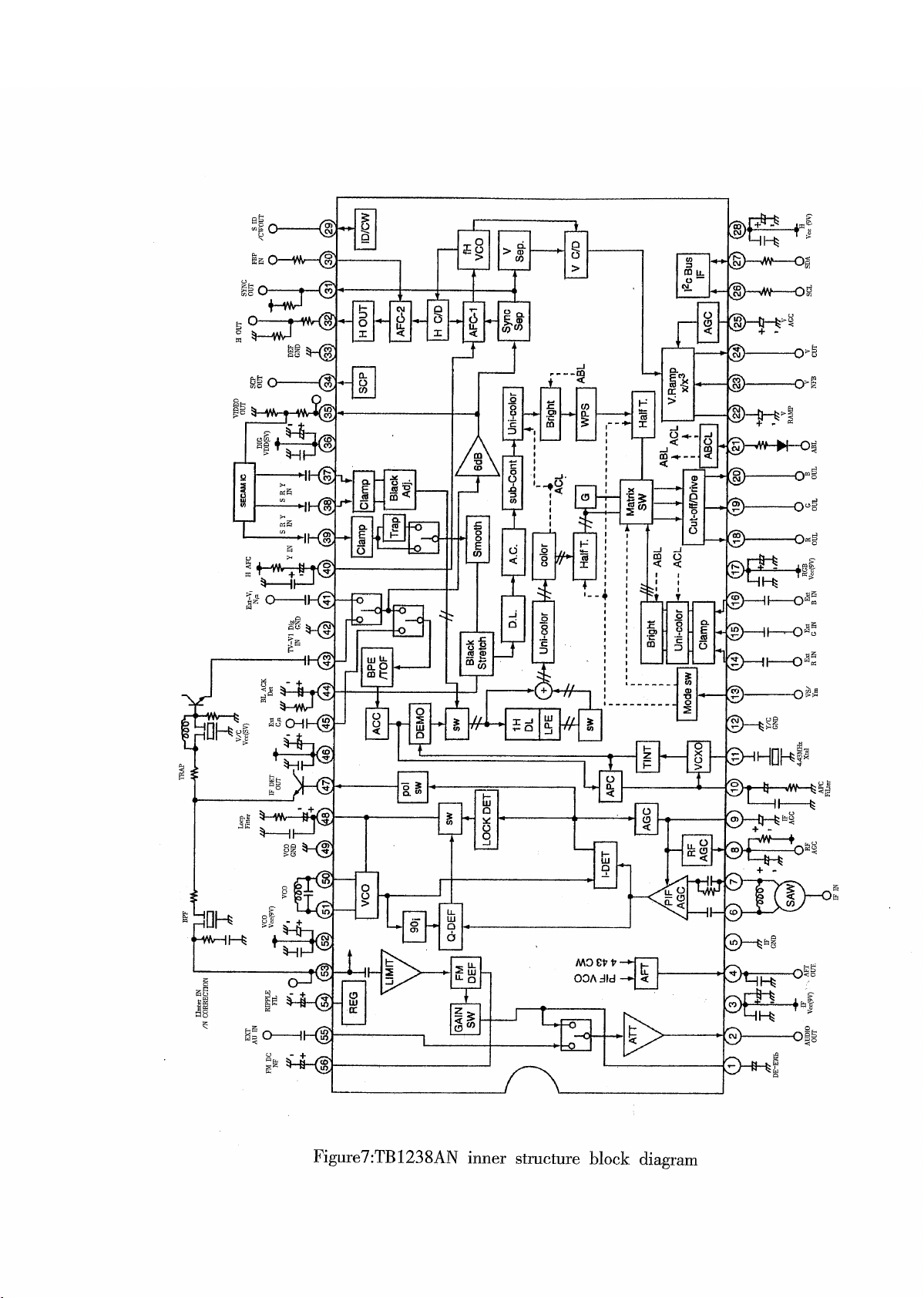

Figure 7 shows the inner structure block diagram of TBI238AN. The pin functions and repair data of TB1238AN is listed in the Table 3.

Model No: CT-21XF9A Version 1.0

Table 3 Pin functions and repair data of TB1238AN

Index type multimeter (r=20k)

Resistance for GND

Pin Symbol Function

1 DE-EMP Audio deemphasis

capacitor connect pin 2 AUDIO OUT Audio signal output 3.5 3.4 6.5 7.3 3 IF VCC +9V supply input for IF

amplify circuit 4 AFT OUT AFT voltage output 2 1.7 6.2 8.3 5 IF GND Ground for IF amplifier

circuit 6 IF IN IF signal input 0.20 0 6.8 11.2 7 IF IN IF signal input 1.4 1.4 6.8 11.2 8 RF AGC RF amplifier AGC

control voltage output 9 IF AGC IF amplifier AGC filter 6 4.4 7.2 11.2 10 APC FILTER APC filtering 1.8 1.8 10 11.2 11 4.43MHZXTA 4.43MHZ crystal

oscillating 12 Y/C GND Ground (Y/C signal

processor) 13 YS/YM Y-switch signal input 0 0 1 2 14 EXT R IN Character R signal input 0.9 0.9 7.2 11.2 15 EXT G IN Character G signal input 0.9 0.9 7.2 11.2 16 EXT B IN Character B signal input 0.9 0.9 7.2 11.2 17 RGB VCC Supply input (RGB) 9 9 0.8 0.9 18 R OUT R output 2.1 2.4 7 10 19 G OUT G output 2 2.4 6.8 10 20 B OUT B output 2.2 2.5 6.8 10 21 ABCL automatic brightness,

contrast control 22 V Ramp vertical Ramp generator

capacitor connect pin 23 V NFB V NFB input 5 5 7 9.3 24 V OUT vertical pulse signal

output 25 V AGC V AGC filter capacitor

connect pin 26 SCL (I2C) clock line 3.8 3.8 6 18.1 27 SDA (I2C) data line 3.8 3.9 6 18.1

'Quiescent

state

(V)

5 4.9 7.2 9.0

9 9 0.8 0.8

0 0 0 0

7.2 5.6 7 10

2.2 2.2 7.4 120

0 0 0 0

5.3 5.4 7.4 11

5.4 4.4 7 11

1 1 1 1

0.2 0.3 7.2 18

Dynamic

state

(V)

Model No: CT-21XF9A Version 1.0

(RxlK)

Red pen measure

Black

pen

measure

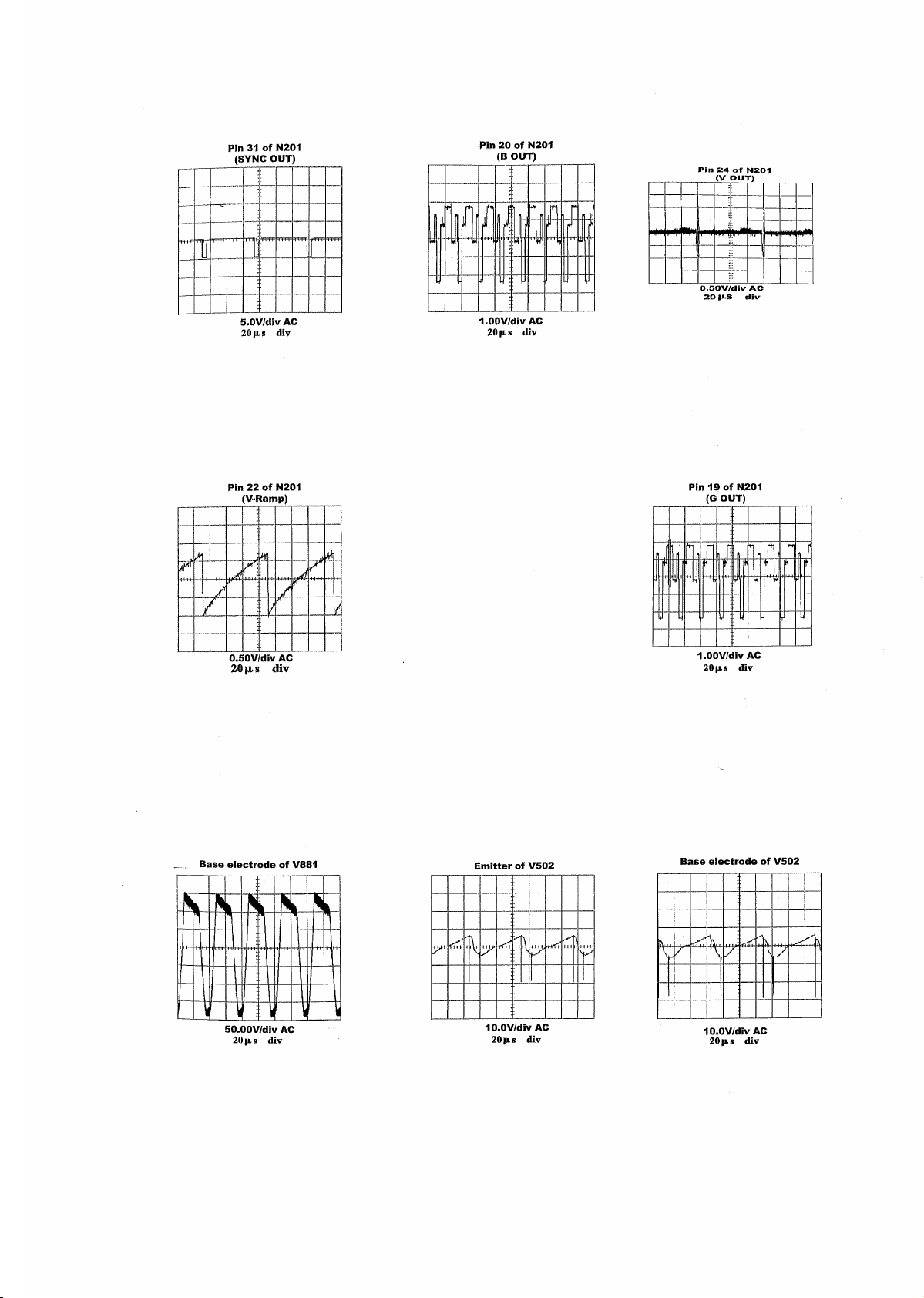

28

29

28 H VCC

29 SID/CW OUT 30 FBP IN Horizontal flyback pulse input 4 4.8 6 11

31 SYNC OUT SYNC pulse output 4 4.8 6 4 32 H VCC Horizontal excitation output 2 2 0.8 1 33 DEF GND Ground (detection circuit) 0 0 0 0 34 FBP IN Sandcastle pulse output 1.5 1.4 7.2 11 35 VIDEO OUT Video signal output 2.8 3 2 2.3 36 DIG. VD Digital circuit Supply 5.3 5.3 4 5.9

37 S R-Y IN 38 S B-Y IN SECAM R-Y signal input 2.6 2.6 7.2 11

39 Y IN Luminance signal input 1.1 1.1 7.2 12 40 H AFC

41 EXT.VIDEO/Y IN 42 DIG. GND Digital circuit ground 0 0 0 0

43 TV.VIDEO IN TV. Video signal input 2.8 3.2 7.2 11

44 BLACK DET Black level detecting filter 3.2 2.4 7.2

45 EXT.CIN External chroma signal input 2.9 2.9 7.2 11.5 46 Y/C VCC

47 IF DETOUT IF video detected output 4.6 3.7 1

48 LOOP Filter 49 VCO GND Ground (IF VCO circuit) 0 0 0 0 50 VCO

51 VCO

52 VCO VCC 53 Limitter IN Sound IF signal input 3.9 3.8 7.2 11

54 RIPPLE FILTER Ripple filter circuit 5.8 4.8 7.2 10 55 EXT AUDIO External audio signal input 3.4 3.4 7.2 11

56 FM DEC NF

.

Horizontal deflection supply input (+9V) SECAM identification/CW signal output

SESECAM R-Y signal input CAM B-Y signal input

Connecting RC network for horizontal AFC filter External video/luminance signal input

+5V supply input (Y/C processing system)

Connecting RC filter network for phase loop circuit

Voltage control oscillating coil connecting pin Voltage control oscillating coil connecting pin +9V supply input (IF VCO circuit)

FM direct current negative feedback filter capacitor con

9.6 9.6 4 18.3

1.8 3.8 7.2 11.2

2.6 2.7 7.2 11

6.8 6.8 7.2 18.5

1.6 1.6 7.2 11

5.2 5.2 1.6 2

4 4.8 7.2 11

8.1 8 1 0.7

8 8 1 0.7

9 9 0.8 0.6

necting

3.8 3.7 7

12

1.3

Model No: CT-21XF9A Version 1.0

30

2. INTRODUCTION FOR CPU IC TMP87CM38N-3673 (N001)

The pin functions and repair data of TMP87CM38N-3673 is listed in the table 4.

Table 4 Pin functions and repair data of TMP87CM38N-3673

Index type multimeter (r=20k)

Resistance for GND

Pin Symbol Function

Quiescent

state (v)

Dynamic

state (v)

Red pen measure

1 Vss Ground 0 0 0 0

Tuning voltage output

2 VT

3 KARA-ENA NC 0 0 6 21.5 4 MUTE 5 EXT-MUTE NC 0 0 6 13.5

6 S.ID NC 0 0 6 23.5

7 POWER

8 KARA-CLK NC 0 0 6 23.5 9 BAND1

10 BAND2 11 SCL1 Inter IC Bus clock line 4.3 4.3 5.8 21.3

12 SDA1 Inter IC Bus data line 1 4.5 4.5 5.6 21.3 13 AFC IN

14 AV0

15 EXT G IN NC 0 0 0 0

16 EXT B IN

17 RGB VCC

18 R OUT

19 G OUT NC 0 0 6.4 28 20 B OUT BUS on/off control output 4 3.9 6 21.5 21 ABCL Ground 0 0 0 0 22 R OUT OSD character It output 4.4 0 1.4 1.3 23 G OUT OSD character G output 4.5 0 1.4 1.3 24 B OUT OSD character B output 4.5 0 1.4 1.3

25 Y OUT

PWM phase-reversed wave.

Sound mute signal output, high level=Mute

Supply on/off control signal output, high level = off, low level = on

Tuner band switching control signal output Tuner band switching control signal output

Automatic frequency control input AV switch control signal O output

Keypad analog voltage input 1 Keypad analog voltage input 2 Supply protect checkout signal input, low level= protect

Character window signal/fast blanking signal for OSD

1 0.1 6 19

4.9 0 6 21.5

4.9 5 6 16.7

0 0 6 14

0 1.8 6 10

0 4 6 18

4.2 4.2 6 21.5

4.2 9 6 24.8

1.8 4.9 6 24.8

4.5 0 2 2

(RxlK)

Black pen

measure

Model No: CT-21XF9A Version 1.0

31

26 HD

27 VD

28 OSC1

29 OSC2 30 TEST Test pin 0 0 0 0 31 XIN

32 XOUT 33 RESET CPU reset pin 5 5 5.4 5

34 OPTION Option pin 4.9 4.6 6 14.5 35 RMT IN

36 H. SYNC 37 SCL0 Inter IC Bus clock line0 4.7 0 6 23

38 SDA0 Inter IC Bus data line 0 4.7 4.8 6 23 39 KARA ON/OFF NC 0 0 6 24

40 SYS0

41 SYS1 42 VDD +5V supply input 5 5 6 8.3

Model No: CT-21XF9A Version 1.0

Horizontal flyback for OSD Vertical sync pulse for OSD OSD character oscillator pin 1 OSD character oscillator pin 2

I0MHZ clock oscillation input 10MHZ clock oscillation output

Remote control instructions input Picture identification signal input

Sound system switch control Sound system switch control

0 3.8 5.8 19

4.9 4.7 5.6 14.8

4.8 4.9 5.6 23.8

4.8 4.9 5.6 24

1.5 0.5 6.2 24.3

2.2 2.2 4.8 24.3

3.5 3.4 6 24

1 4.5 6 15

0 0 6 11.3

1.2 4 6 11.3

32

3. Repair data for IC TDA7057AQ(N601)

TDA7057AQ is the audio power amplifier OF CN-9, the pin functions and repair data of it is listed in the table 5.

Table 5 Pin functions and repair data of TDA7057AQ

Index type multimeter (r=20k)

Resistance for GND

Pin Symbol Function

1 VC1 2 N.C. No connected 0 0

3 VI(1) Audio signal input 1 2.38 2.38 18.7 6.4 4 Vp Supply input pin 15 15 12.8 3.9 5 VI(2) Audio signal input 2 2.38 2.38 6 S-GND Signal ground 0 0 0 0

7 VC2

8 OUT2+ Audio signal output 2+ 7.0 7.0 12.8 5.4

9 PGND2 Ground 2(supply circuit) 0 0 0 0 10 OUT2- Audio signal output 2- 7.0 7.0 12.8 5.4 11 OUT1- Audio signal output 1- 7.0 7.0 12.8 5.4 12 PGND1 Ground l(supply circuit) 0 0 0 0 13 OUT1+ Audio signal output 1+ 7.0 7.0 12.8 5.4

Control pin for direct current volume

Quiescent

state (v)

0.96 0.96 13.5 6.2

0.98 0.98 16.8 6.2

Dynamic

state (v)

Red pen measure

4. Repair data for IC LA7910(N101)

LA7910 is the band decoder of CN-9, the pin functions and repair data of it is listed in the table 6.

Table 6 Pin functions and repair data of LA7910

Index type multimeter (r=20k)

Pin Symbol Function

1 OUT1 Decoder output 0 0 2.1 2.1

2 OUT2 Decoder output 2 0 0 2.1 2.1

3 BD1 Band control level input 1 5 0 39 11

4 BD2 Band control level input 2 0 0 22 10

5 GND Connect to ground 0 0 0 0

6 VC2 +33V supply input pin 33 13.5 5.8 25.5

7 OUT3 Decoder output 3 0 12 1.6 1.5

8 OUT4 Decoder output 4 0 0 0 12

9 VC1 +12V supply input pin 12 12 4.1 4.5

Model No: CT-21XF9A Version 1.0

Quiescent

state (v)

Dynamic

state (v)

Red pen measure

(RxlK)

Black pen

measure

 



Resistance for GND

(RxlK)

Black pen

measure

6.4

33

5. Repair data for IC TA8403(N401)

TA8403 is the vertical output power amplifier IC of CN-9, the pin functions and repair data of it is listed in the table 7.

Table 7 Pin functions and repair data of TA8403

Index type multimeter (r=20k)

Resistance for GND

Pin Symbol Function

1 GND Connect to ground 0 0 0 0

2 OUT Field pulse output 15 15 4 9.5

3

4 IN V sawtooth pulse input 1 1.1 2.2 2.2

5

6 Vcc Power supply pin

7

Pump power supply input 24.5 24.5 4.4 2

Connet to Phase compensate capacitance

Pump power supply output

Quiescent

state (v)

0:8 0.8 3.6 9.0

24.5

1.2 1.2 5.5 11

Dynamic

state (v)

24.5 3.5 7.3

Red pen measure

(RxlK)

Black pen

measure

6. Repair data for IC AT24C08(N002)

AT24C08 is the Memory of CN-9, the pin functions and repair data of it is listed in the table 8.

Table 8 Pin functions and repair data of AT24C08

Index type multimeter (r=20k)

Resistance for GND

Pin Symbol Function

1 A0 A0 address pin 0 0 0 0

2 A1 A1 address pin 0 0 0 0

3 A2 A2 address pin 0 0 0 0

4 Vss Connect to ground 0 0 0 0

5 SDA Inter IC Bus data line 4.5 4.5 5.6 22

6 SCL Inter IC Bus clock line 4.3 4.3 5.8 22

7 TEST Test terminal 0 0 0 0

8 YDD +5V supply input 5 5 3.6 8.5

Quiescent

state (v)

Dynamic

state (v)

Red pen measure

(RxlK)

Black pen

measure

Model No: CT-21XF9A Version 1.0

34

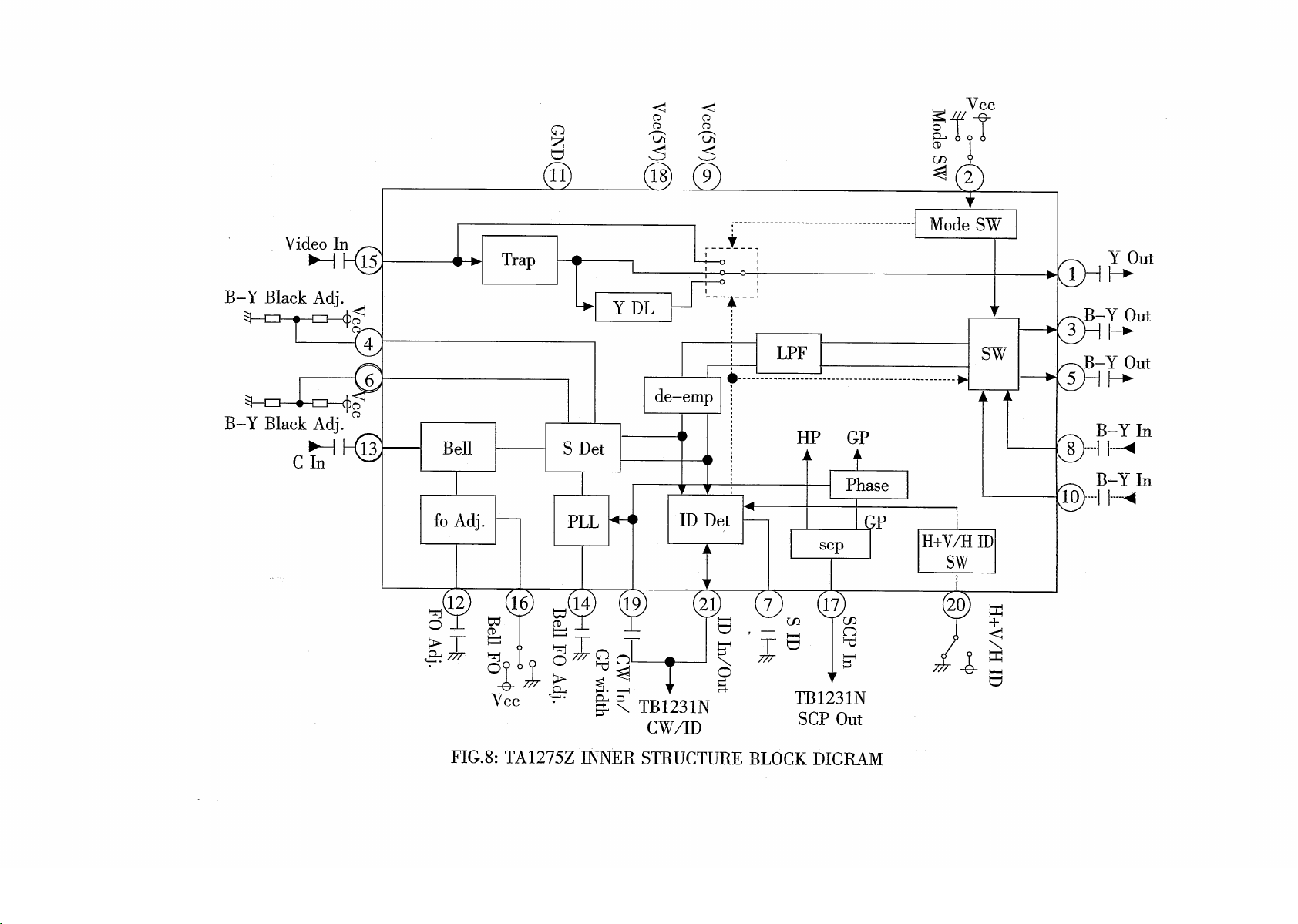

7. Introduction for IC TA1275Z

TA1275Z is the SECAM demodulation IC, which accomplishes a multicolor system with TB1231 series. This IC requires very few external parts.

Features

• Working with TB1231 series, which is PAL/NTSC PIF/VIF/VIDEO/CHROMA/DEF processor.

• Built-in FM demodulator with PLL circuit for color demodulation mad SECOM identification.

• DC voltage offset of demodulated signal adjuster.

• Input terminals for external R-Y/B-Y signals.

The pin functions and repair data of TA1275 is listed in the table 9. The inner structure block diagram of TA1275 is show as figure 8.

Table 9 Pin functions and repair data of TA1275

Digital multimeter (GDM8145)

Resistance for GND

Pin Symbol Function Quiescent

state (V)

1 YOUT The output pin for Y signal.

Standard output level is

1.0Vp-p. The 5.5MHz trap filter and delay line on the Y signal processing is controlled by the switch on pin #2. The output signal of the bell filter can be monitored on this pin by switching pin #13 for testing.

2 MODESW The pin for controlling the

Y processing mode. to Vcc :

5.5MHz trap open: 5.5MHz trap+DL to GND: DL

3 R-Y OUT The output pin for demodu-

lated R-Y signal. Standard output level is 0.7Vp -p with standard color bar signal. RY processor has a LPF to eliminate the carrier components.

4 R-Y BLSCK

CONTOL

The pin for controlling the black offset level. Adjusting range is within +30mV(This pin should be opened in the ease of using with TB 1231, because TB 1231 has an IIC BUS control for SECAM black alignment)

1.18 2.24 3.0 2.9

5.02 5.02 1.5 1.5

2.48 2.61 1.0 1.0

Model No: CT-21XF9A Version 1.0

Dynamic state (V)

(Rx200KÙ)

Red pen measure

Black

pen

measure

Pin Symbol Function

5 B-Y OUT The output pin for demodu-

lated B-Y signal. Standard output level is 0.56Vp-p. B-Y processor has a LPF to eliminate, the carrier components.

6 B-Y

BLACK CONTROL

7 S-ID

FILTER

8 EXT.R-Y

IN

9 5V Vcc The Vcc pin for Y/C pro-

10 EXT.B-Y

IN

11 GND The GND pin 12 FO-ADJ

FILTER

Model No: CT-21XF9A Version 1.0

The pin, for controlling the black offset level. Adjusting range is within +30mV. (This pin should be opened in the case of using with TB1231, because TB1231 has an IIC BUS control for SECAM black alignment) The pin for connecting the SECAM identification filter capacitor. A too big capacitor causes a time delay to get color signal on a picture, and a weak RF signal performance would getting worth if the capacitor is too small. The input pin for external R-Y signal. The gain of the internal amplifier is 0dB.

cessing block The input pin for external B-Y signal. The gain of the internal amplifier is 0dB.

The pin for connecting a capacitor for automatic adjusting circuit. Too big capacitor causes a time delay to get color signal on a picture, and the picture noise, flicker would be appeared if the capacitor is too small.

35

Digital multimeter (GDM8145)

Resistance for GND

Quiescent state (V)

Dynamic state (V)

(Rx200KÙ)

Red pen measure

2.44 2.61 1.0 1.0

2.60 2.58 1.0 1.0

2.07 2.07 1.0 1.0

2.59 2.58 1.0 1.0

5.02 5.02 1.5 1.5

2.06 2.58 1.0 1.0

0 0 0 0

2.90 2.76 1.0 1.0

Black

pen

measure

Pin Symbol Function

13 C IN The chroma signal input

pin. Apply composite signal through 100pF of coupling capacitor. Standard input signal level is 1Vp-p.

The bell monitor switch for testing is overlaid on this pin. When connecting this pin to GND through 47K12, the bell filter outut is observed on the pin #1 (YOUT)

14 BELLADJ.

FILTER

15 Y IN The Y signal input pin.

17 SCP IN The pin for input the

18 5V Vc-c Vc-c pin for logic block. 19 4.43 MHz

CW In

The pin for connection the filter .capacitor for the bell filter F0.

4.427MHz. A too big capacitor causes a time delay on bell filter F0 adjusting, and picture would be noisy if it is too small.

Apply the composite signal into this pin through a coupling capacitor. The standard input level is

1.0Vp-p.

sandcastle pulse.

The pin for input 4.43MHz of carrire wave for selfadjustment circuit. Input 500mVP -P sine wave through a coupling capacitor. The switch for changing the gate pulse width is overlaid on this pin. +200ns: to VC-C through 33k Ohm 0ns: open -200ns: to GND through 33k Ohm

36

Digital multimeter (GDM8145)

Resistance for GND

Quiescent state (V)

Dynamic state (V)

(Rx200KÙ)

Red pen measure

2.90 2.76 1.0 1.0

2.39 2.49 1.0 1.0

2.48 2.83 1.0 1.0

0.77 0.74 6.8 7.7

2.02 5.02 1.5 1.5

2.72 2.72 1.0 1.0

Black

pen

measure

Model No: CT-21XF9A Version 1.0

Pin Symbol Function

20 ID SW The switch pin for selecting

the ID detection mode. H+V : connected to Vc-c Auto seaeh : opened H : connected to GND

21 SECAM ID

In / Out

Model No: CT-21XF9A Version 1.0

The interface pin to the main processor TB 1231. This input/output interface pin sinks 7701xA of current when the TA1275Z recognizes the SECAM input signal turns the internal/external switch by the input DC voltage. Internal : gnd~2.5V

External : 2.5V~ Vc-c

37

Digital multimeter (GDM8145)

Resistance for GND

Quiescent state (V)

5.02 2.50 18.3 18.3

1.78 3.75 1.0 1.0

Dynamic state (V)

(Rx200KÙ)

Red pen measure

Black

pen

measure

39

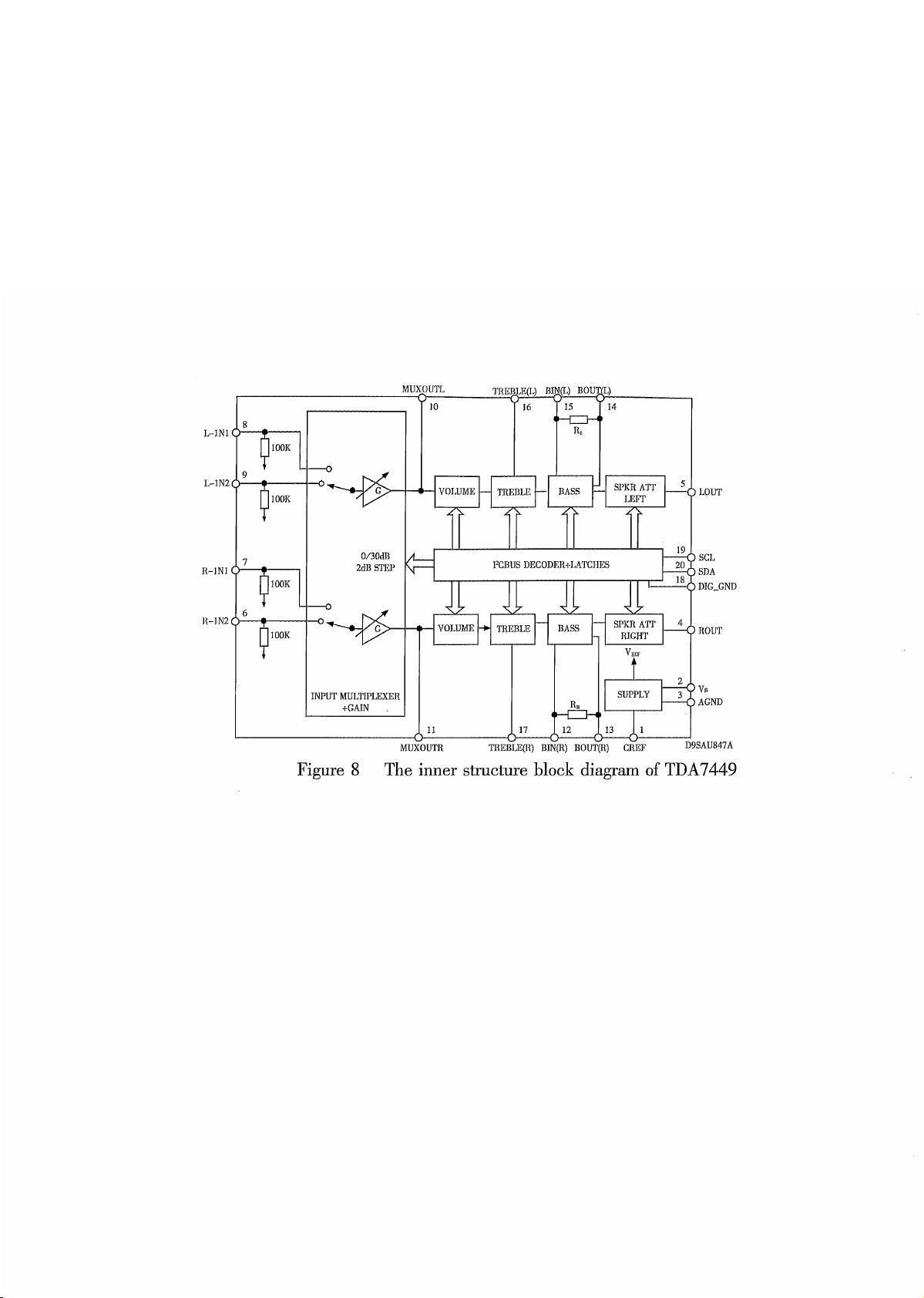

8. Introduction for ic TDA7449

The TDA7449 is a volume tone (bass and treble) balance (left/right) processor for quality audio application in TV system. Control of all the functions is accomplished by serial bus. The pin functions and repair data of TDA7449 is listed in the table 10. The inner structure block diagram of TDA7449 is show as figure 8.

Table 10 Pin functions and repair data of TDA7449

Digital multimeter (GDM8145)

Resistance for GND

Pin Symbol

1 Cref 0.06 0.01 27.72 22.18

2 Vs 0.05 0.01 0.75 0.74

3 GND 0.07 0.01 0.00 0.00

4 Rout 0.07 0.01 31.37 22.48

5 Lout 0.09 0.01 31.39 22.43

6 R2 0.10 0.02 28.20 25.42

7 R1 1.24 0.23 28.07 26.30

8 L1 1.14 0.21 28.11 26.22

9 L2 0.09 0.01 28.22 27.15 10 L-M 0.10 0.01 24.41 22.62 11 R-M 0.11 0.01 24.44 22.53 12 B-Rin 0.07 0.01 27.74 27.02 13 B-Rout 0.07 0.01 27.67 21.42 14 B-Lout 0.06 0.01 27.66 21.33 15 B-Lin 0.07 0.01 27.76 27.04 16 T-L 0.06 0.01 29.94 28.25 17 T-R 0.06 0.01 29.97 28.23 18 GND 0.06 0.01 0.00 0.00 19 SCL 2.20 2.20 27.98 16.90 20 SDA 2.06 2.24 27.36 16.18

Model No: CT-21XF9A Version 1.0

Quiescent state (V)

Dynamic state (V)

(R x 200KÙ)

Red pen measure

Black

pen

measure

41

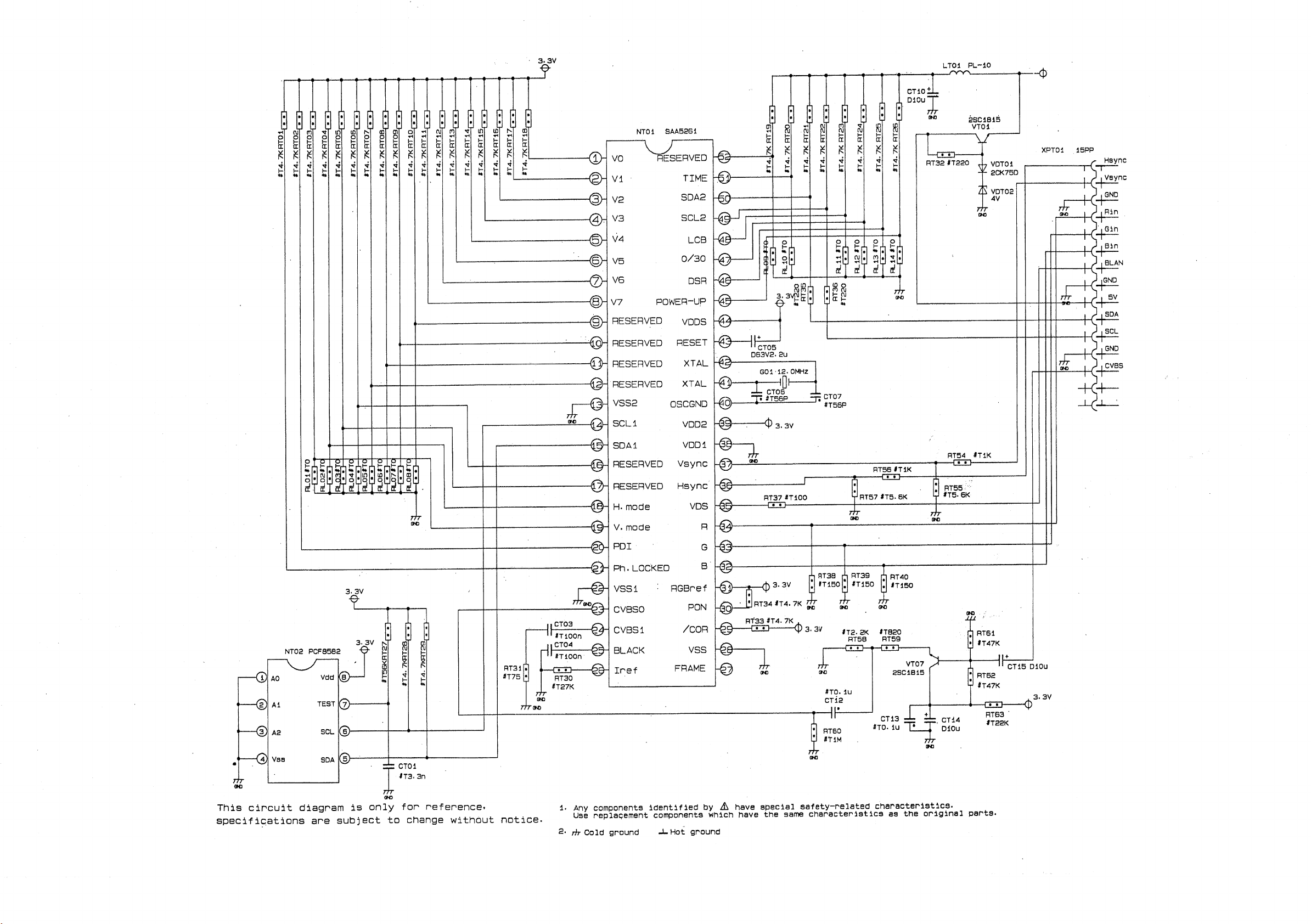

9. Repair data for IC SAA5261

The SAA5261 is a teletext signal processor. The pin functions and repair data of TDA7449 is listed in the table 11

Table 11 Pin functions and repair data of SAA5261

Digital multimeter (GDM8145)

Resistance for GND

Pin Symbol Quiescent

state (V)

1 VO 0.32 0.02 23.89 12.66 2 V1 0.29 0.12 24.92 13.15 3 V2 0.30 0.02 24.45 13.18 4 V3 0.26 0.02 23.80 13.20 5 V4 0.24 0.04 24.64 13.20 6 V5 0.25 0.04 21.44 13.21 7 V6 0.25 0.02 24.81 13.19 8 V7 0.24 0.05 23.90 13.25 9 RESERVED 0.24 0.04 27.32 13.24 10 RESERVED 0.25 0.05 26.22 13.32 11 RESERVED 0.13 0.04 20.63 13'24 12 RESERVED 0.31 0.07 20.97 13.08 13 VSS2 0.04 0.01 0.00 0.00 14 SCL1 2.81 1.70  15.14 15 SDA1 0.81 1.70  15.01 16 RESERVED 0.28 0.08 26.23 13.36 17 RESERVED 0.33 0.08 20.81 13.32 18 H.mode 0.09 0.01 20.53 13.35 19 V.mode 0.07 0.01 18.31 11.37 20 PDI 0.10 0.01 18.25 11.28 21 Ph.

LOCKED 22 VSS1 0.11 0.01 0.00 0.00 23 CVBS0 0.06 0.17 36.16 14.16 24 CVBS1 5.73 0.01 36.19 14.26 25 BLACK 6.20 0.01 38.72 14.31 26 Iref 6.56 0.23 27.06 12.28 27 FRAME 0.01 0.01 36.32 14.46 28 VSS 0.01 0.01 0.00 0.00 29 /COR 0.01 1.13 20.98 13.03 30 PON 0.01 1.13 28.90 13.01 31 RGBref 0.01 0.01 15.67 10.01 32 B 0.01 0.01 1.00 1.00 33 G 0.01 0.01 1.00 0.99 34 R 0.01 0.01 1.00 1.00 35 VDS 0.01 0.01 17.03 14.88 36 HSYNC 0.19 0.83 44.19 12.75 37 VSYNC 0.01 0.66 40.32 12.92 38 VDD1 0.01 0.01 0.00 0.00 39 VDD2 0.01 0.01 15.69 10.00 40 OSDGND 0.01 0.01 0.01 0.01

0.08 0.01 20.81 13.22

Dynamic state (V)

(R x 200KÙ)

Red pen measure

Black

pen

measure

Model No: CT-21XF9A Version 1.0

Position

42

Digital multimeter (GDM8145)

Resistance for GND

Pin Symbol

41 XTAL 0.39 0.66 37.24 13.93 42 XTAL 0.01 0.37 41.81 13.93 43 RESET 0.01 0.01  14.47 44 VDDS 0.01 0.01 18.63 10.02 45 POWER-UP 0.02 0.01 24.86 13.03 46 DSR 0.01 0.03 24.79 13.13 47 0/30 0.02 0.01 25.97 12.96 48 LCB 0.01 0.03 24.42 12.65 49 SCL2 0.01 1.08 21.07 11.80 50 SDA2 0.01 1.08 20.58 11.70 51 TIME 0.02 0.01 24.00 12.68 52 RESERVED 0.02 0.02 25.01 12.78

Quiescent state (V)

Dynamic state (V)

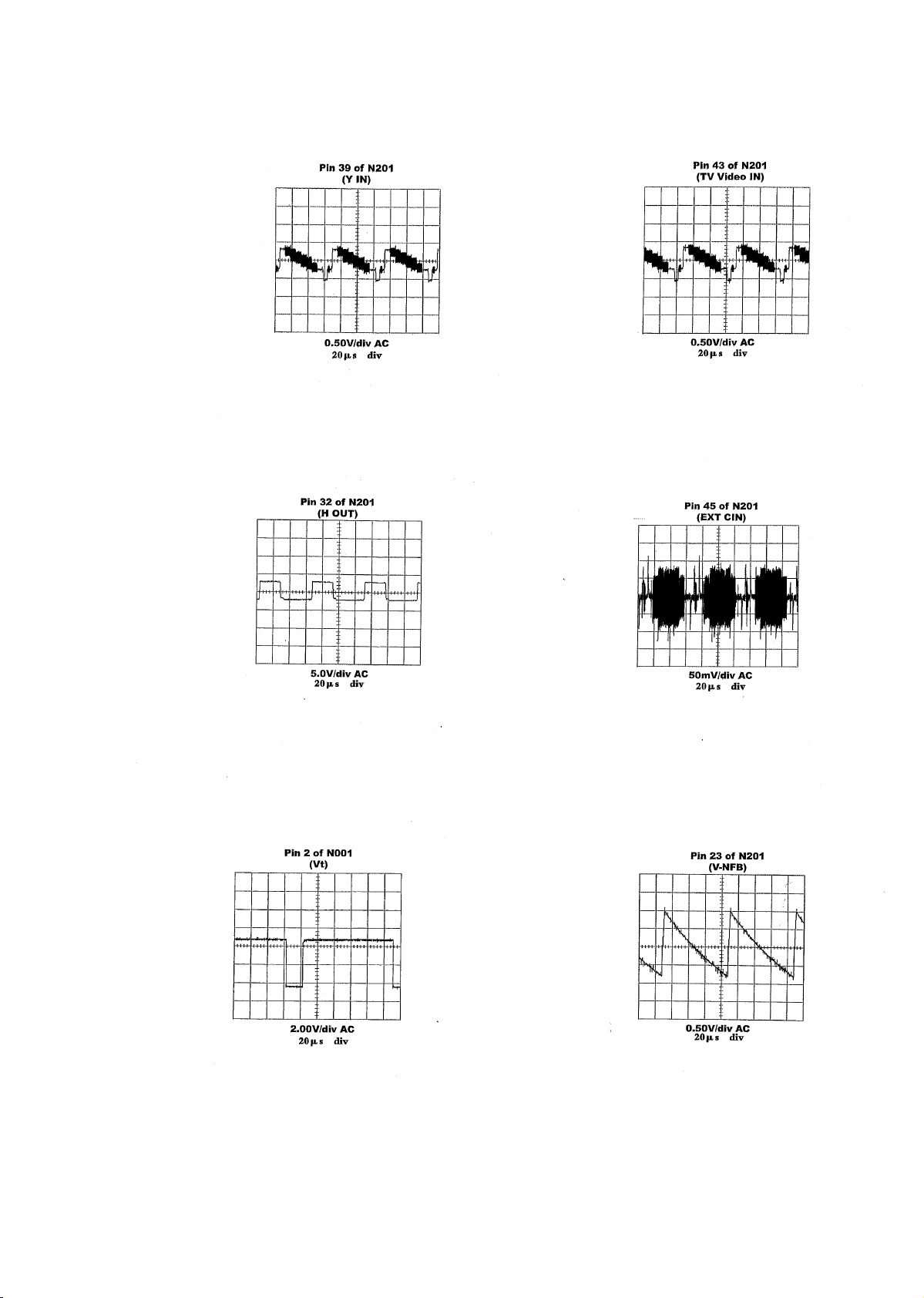

10. Voltage data of pin for main audion

Position Pin Ub(v) 0.4 1.8 1.2 4.4 1.9 3.2 4.9 0 2.5 -2.5 0.3 2.1 Uc(v) 3.5 11.5 0 6.6 0 6.6 11.5 11.5 11.5 8.4 15.2 125 Ue(v) 0 1.1 1.9 3.6 2.5 2.9 4.2 4.2 1.8 0 0 2.15

Ub(v) 15.2 0.6 5.6 11.5 -0.5 -0.4 0 6.3 1.4 1.4 0 0 0.4 Uc(v) 4.5 0 15 -0.5 -0.4 290 36.5 36.5 110 110 120 4.3 0 Ue(v) 15 0 5 11.5 0 0 0 6.1 1.1 1.1 1.1 0.1 0.7

Model No: CT-21XF9A Version 1.0

V00 V10 V20 V20 V20 V20 V30 V30 V30 V30 V50 V50

V5.03 V602 VS01 V802 V803 V804 V805 V806 V901 V902 V903 V904 V905

(R x 200KÙ)

Red pen measure

Black

pen

measure

46

SPARE PARTS LIST OF 21BS32EA

Main-board/AV-boa rd/K-board

Location No. Part No. Name Type

R112 51113470JU0 carbon film resistor RT13-0.166W-47 ohm J

R112 51153470JUY carbon film resistor NAS 1/6470J R307 51113470JU0 carbon film resistor RT13-0.166W-47 ohm J R307 51153470JUY carbon film resistor NAS1/6470J R116 51113560JU0 carbon film resistor RT13-0.166W-56 ohm J R116 51153560JUY carbon film resistor NAS1/6560J R115 51113680JU0 carbon film resistor RT13 -0.166W-68 ohm J R115 51153680JUY carbon film resistor NAS 1/6680J R081 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J R081 51153101JUY carbon film resistor NAS1/6101J R228 51113101JU0 carbon film resistor RT13-0.166W- 1001 ohm J R228 51153101JUY carbon film resistor NAS1/6101J R229 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J R229 51153101JUY carbon film resistor NAS1/6101J R301 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J R301 51153101JUY carbon film resistor NAS 1/6101J W275 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J W275 51153101JUY carbon film resistor NAS 1/6101J R230 51113221JU0 carbon film resistor RT13 -0.166W-2201 ohm J R230 51153221JUY carbon film resistor NAS 1/6221J R231 51113221JU0 carbon film resistor RT13-0.166W-220 ohm J R231 51153221JUY carbon film resistor NAS 1/6221J R232 51113221JU0 carbon film resistor RT13-0.166W-220 ohm J R232 51153221JUY carbon film resistor NAS1/6221J R241 51113221JU0 carbon film resistor RT13 -0.166W-220 ohm J R241 51153221JUY carbon film resistor NAS1/6221J

R242 51113221JU0 carbon film resistor RT13-01166W-220 ohm J R242 51153221JUY carbon film resistor NAS1/6221J R244 51113221JU0 carbon film resistor RT13 -0.166W-220 ohm J R244 51153221JUY carbon film resistor NAS 1/6221J

R038 51113391JU0 carbon film resistor RT13-0.166W-390 ohm J

R038 51153391JUY carbon film resistor NAS1/6391J

R040 51113391JU0 carbon film resistor RT13-0.166W-390 ohm J

R040 51153391JUY carbon film resistor NAS 1/6391J

R042 51113391JU0 carbon film resistor RT13-0.166W-390 ohm J

Model No: CT-21XF9A Version 1.0

47

Location No. Part No. Name Type

R042 51153391JUY carbon film resistor NAS1/6391J R217 51113561JU0 carbon film resistor RT13 -0.166W-560 ohm J R217 51153561JUY carbon film resistor NAS1/6561J R 114 51113681JU0 carbon film resistor RT13 -0.166W-680 ohm J R114 51153681JUY carbon film resistor NAS1/6681J R226 51113471JU0 carbon film resistor RT13-0.166W-470 ohm J R226 51113471JUY carbon film resistor NAS1/6471J R001 51113102JU0 carbon film resistor RT13-0.166W- 1K ohm J R001 51153102JUY carbon film resistor NAS 1/6102J R037 51113102JU0 carbon film resistor RT13-0.166W-lK ohm J R037 51153102JUY carbon film resistor NAS1/6102J R039 51113102JU0 carbon film resistor RT13 -0.166W- 1K ohm J R039 51153102JUY carbon film resistor NAS1/6102J R041 51113102JU0 carbon film resistor RT13-0.166W-lK ohm J R041 51153102JUY carbon film resistor NAS1/6102J R043 51113102JU0 carbon film resistor RT13-0.166W- 1K ohm J R043 51153102JUY carbon film resistor NAS1/6102J R044 51113102JU0 carbon film resistor RT13-0.166W- 1K ohm J R044 51153102JUY carbon film resistor NAS1/6102J R057 51113102JU0 carbon film resistor RT13-0.166W- 1K ohm J R057 51153102JUY carbon film resistor NAS1/6102J R058 51113102JU0 carbon film resistor RT13-0.166W-1K ohm J R058 51153102JUY carbon film resistor NAS 1/6102J R219 51113102JU0 carbon film resistor RT13-0.166W-lK ohm J R219 51153102JUY carbon film resistor NAS 1/6102J R220 51113102JU0 carbon film resistor RT13 -0.166W- 1K ohm J R220 51153102JUY carbon film resistor NAS1/6102J R225 51113102JU0 carbon film resistor RT13-0.166W- 1K ohm J R225 51153102JUY carbon film resistor NAS1/6102J R240 51113102JU0 carbon film resistor RT13-0.166W-1K ohm J R240 51153102JUY carbon film resistor NAS1/6102J R306 51113102JU0 carbon film resistor RT13 -0.166W- 1K ohm J R306 51153102JUY carbon film resistor NAS 1/6102J R111 51113122JU0 carbon film resistor RT13-0.166W-l.2K ohm J R111 51153122JUY carbon film resistor NAS1/6122J R113 51113122JU0 carbon film resistor RT13-0.166W-l.2K ohm J R113 51153122JUY carbon film resistor NAS 1/6122J R216 51113272JU0 carbon film resistor RT13-0.166W-2.7K ohm J R216 51153272JUY carbon film resistor NAS 1/6272J

Model No: CT-21XF9A Version 1.0

48

Location No. Part No. Name Type

R050 51113102J20 carbon film resistor RT13-0.166W-1K ohm J R050 51153102J2Y carbon film resistor NAS1/6102J R104 51113682JU0 carbon film resistor RT13-0.166W-6.SK ohm J R104 51113682JUY carbon film resistor NAS1/6682J R010 51113472JU0 carbon film resistor RT13-0.166W-4.7K ohm J R010 51153472JUY carbon film resistor NAS 1/6472J R062 51113472JU0 carbon film resistor RT13-0.166W-4.7K ohm J R062 51153472JUY carb6n film resistor NAS1/6472J R048A 51113472JU0 carbon film resistor RT13-0.166W-6.8K ohm J R048A 51153472JUY carbon film resistor NAS1/6472J R009 51113472JU0 carbon film resistor RT13-0.166W-8.2K ohm J R009 51153d72JUY carbon film resistor NAS1/6822J R012 51113103JU0 carbon film resistor RT13 -0.166W- 10K ohm J R012 51153103JUY carbon film resistor NAS1/6103J R013 51113103JU0 carbon film resistor RT13 -0.166W- 10K ohm J R013 51153103JUY carbon film resistor NAS1/6103J R018 51113103JU0 carbon film resistor RT13-0.166W- 10K ohm J R018 51153103JUY carbon film resistor NAS1/6103J R019 51113103JU0 carbon film resistor RT13-0.166W-10K ohm J R019 51153103JUY carbon film resistor NAS1/6103J R082 51113103JU0 carbon film resistor RT13-0.166W- 10K ohm J R082 51153103JUY carbon film resistor NAS1/6103J R201 51113103JU0 carbon film resistor RT13-0.166W- 10K ohm J R201 51153103JUY carbon film resistor NAS1/6103J R238 51113103JU0 carbon film resistor RT13-0.166W- 10K ohm J R238 51153103JUY carbon film resistor NAS1/6103J R239 51113103JU0 carbon film resistor RT13 -0.166W- 10K ohm J R239 51153103JUY carbon film resistor NAS1/6103J W 102 51113103JU0 carbon film resistor RT13-0.166W- 10K ohm J W 102 51153103JUY carbon film resistor NAS1/6103J R025 51113103JU0 carbon film resistor RT13-0.166W- 10K ohm J

R025 51153103JUY carbon film resistor NAS1/6103J R028 51113103JU0 carbon, film resistor RT13-0.166W- 10K ohm J R028 51153103JUY carbon film resistor NAS1/6103J R221 51113123JU0 carbon film resistor RT13-0.166W- 12K ohm J R221 51153123JUY carbon film resistor NAS1/6123J R002 51113223JU0 carbon film resistor RT13-0.166W-22K ohm J R002 51153223JUY carbon film resistor NAS1/6223J R607A 51113473JU0 carbon film resistor RT13-0.166W-47K ohm J

Model No: CT-21XF9A Version 1.0

49

Location No. Part No. Name Type

R607A 51153473JUY carbon film resistor NAS1/6473J R027 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R027 51153333JUY carbon film resistor NAS1/6333J R048 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R048 51153333JUY carbon film resistor NAS1/6333J R203 51113333JU0 carbon film resistor RT13-0.166W-47K ohm J R203 51153333JUY carbon film resistor NAS1/6473J R607 51113393JU0 carbon film resistor RT13-0.166W-39K ohm J R607 51153393JUY carbon film resistor NAS1/6393J R107 51113623JU0 carbon film resistor RT13-0.166W-62K ohm J R107 51153623JUY carbon film resistor NAS1/6623J R014 51113683JU0 carbon film resistor RT13-0.166W-68K ohm J R014 51153683JUY carbon film resistor NAS1/6683J R209 51113104JU0 carbon film resistor RT13-0.166W- 100K ohm J R209 51153104JUY carbon film resistor NAS1/6104J R222 51113224JU0 carbon film resistor RT13 -0.166W-220K ohm J R222 5 l'153224JUY carbon film resistor NAS1/6224J R070 51113474JU0 carbon film resistor RT13-0.166W-470K ohm J R070 51153474JUY carbon film resistor NAS1/6474J R071 51113474JU0 carbon film resistor RT13 -0.166W-470K ohm J R071 51153474JUY carbon film resistor NAS1/6474J R072 51113474JU0 carbon film resistor RT13-0.166W-470K ohm J R072 51153474JUY carbon film resistor NAS1/6474J R227 51113225JU0 carbon film resistor RT13-0.166W-2.2M ohm J R227 51153225JUY carbon film resistor NAS1/6225J R223 51113275JU0 carbon film resistor RT13-0.166W-2.7M ohm J R223 51153275JUY carbon film resistor NAS1/6275J R109 51124100JU0 carbon film resistor RT14-0.25W- 10 ohm J R109 51154100JUY carbon film resistor NAS1/4100J R808 51124220JU0 carbon film resistor RT14-0.25W-22 ohm J R808 51154220JUY carbon film resistor NAS1/4220J R305 51124750JU0 carbon film resistor RT14-0.25W-75 ohm J R305 51154750JUY carbon film resistor NAS1/4750J R245 51124101JU0 carbon film resistor RT14-0.25W- 100 ohm J R245 51154101JUY carbon film resistor NAS1/4101J R503 51124101JU0 carbon film resistor RT14-0.25W- 100 ohm J R503 51154101JUY carbon film resistor NAS1/4101J R501B 51124151JU0 carbon film resistor RT 14-0.25W- 150 ohm J R501B 51154151JUY carbon film resistor NAS1/4151J

Model No: CT-21XF9A Version 1.0

50

Location No. Part No. Name Type

R053 51124331JU0 carbon film resistor RT14-0.25W-3301 ohm J R053 5115433 IJUY carbon film resistor NAS1/4331J R055 51124331JU0 carbon film resistor RT14-0.25W-3301 ohm J R055 51154331JUY carbon film resistor NAS1/4331J R059 51124471JU0 carbon film resistor RT14-0.25W-4701 ohm J R059 51154471JUY carbon film resistor NAS1/4471J R236 51124471JU0 carbon film resistor RT14-0.25W-4701 ohm J R236 51154471JUY carbon film resistor NAS1/4471J R988 51124681J20 carbon film resistor RT14-0.25W-680 ohm J R988 51124681J2Y carbon film resistor NAS1/6681J R036 511241.02JU0 carbon film resistor RT14-0.25W-lK ohm J R036 51154102JUY carbon film resistor NAS1/4102J R045 51124102JU0 carbon film resistor RT14-0.25W-1K ohm J R045 51154102JUY carbon film resistor NAS1/4102J R403 51124102JU0 carbon film resistor RT14-0.25W-1K ohm J R403 51154102JUY carbon film resistor NAS1/4102J R411 51124102JU0 carbon film resistor RT14-0.25W- 1K ohm J R411 51154102JUY carbon film resistor NAS1/4102J W205 51124102JU0 carbon film resistor RT14-0.25W- 1K ohm J W205 51154102JUY carbon film resistor NAS1/4102J R008 51124152JU0 carbon film resistor RT14-0.25W-1.5K ohm J R008 51154152JUY carbon film resistor NAS1/4152J R224 51124222JU0 carbon film resistor RT14-0.25W-2.2K ohm J R224 51154222JUY carbon film resistor NAS1/4222J R103 51124392JU0 carbon film resistor RT14-0.25W-3.9K ohm J R103 51154392JUY carbon film resistor NAS1/4392J R110 51124562JU0 carbon film resistor RT14-0.25W-5.6K ohm J R110 51154562JUY carbon film resistor NAS1/4562J R105 51124562JU0 carbon film resistor RT14-0.25W-5.6K ohm J R105 51154562JUY carbon film resistor NAS1/4562J R051 51124822JU0 carbon film resistor RT14-0.25W-8.2K ohm J R051 51154822JUY carbon film resistor NAS1/4822J R047 51124103JU0 carbon film resistor RT14-0.25W-10K ohm J R047 51154103JUY carbon film resistor NAS 1/4103J R054 51124103JU0 carbon film resistor RT14-0.25W- 10K ohm J R054 51154103JUY carbon film resistor NAS 1/4103J R056 51124103JU0 carbon film resistor RT14-0.25W-10 ohm J R056 51154103JUY carbon film resistor NAS1/4103J R102 51124103JU0 carbon film resistor RT14-0.25W- 10K ohm J

Model No: CT-21XF9A Version 1.0

51

Location No. Part No. Name Type

R102 51154103JUY carbon film resistor NAS1/4103J R511 51124103JU0 carbon film resistor RT14-0.25W-10K ohm J R511 51154103JUY carbon film resistor NAS1/4103J R515 51124103JU0 carbon film resistor RT14-0.25W- 10K ohm J R515 51154103JUY carbon film resistor NASl/4103J R521 51124103JU0 carbon film resistor RT14-0.25W- 10K ohm J R521 51154103JUY carbon film resistor NASI/4103J R004 51124123JU0 carbon film resistor RT14-0.25W-12 ohm J R004 51154123JUY carbon film resistor NAS1/4123J R409 51124183JU0 carbon film resistor RT14-0.25W- 18K ohm J R409 51124183JUY carbon film resistor NAS1/4183J R924 51124183J20 carbon film resistor RT14-0.25W- 18K ohm J R924 51124183J2Y carbon film resistor NAS1/4183J R935 51124183J20 carbon film resistor RT14-0.25W- 18K ohm J R935 51124183J2Y carbon film resistor NAS 1/4183J R005 51124223JU0 carbon film resistor RT14-0.25W-22K ohm J R005 51154223JUY carbon film resistor NAS1/4223J R101 51124223JU0 carbon film resistor RT14-0.25W-22K ohm J R101 51154223JUY carbon film resistor NAS1/4223J R406 51124303JU0 carbon film resistor RT14-0.25W-30K ohm J R406 51154303JUY carbon film resistor NAS1/4303J R007 51124333JU0 carbon film resistor RTI4-0.25W-33K ohm J R007 51154333JUY carbon film resistor NAS1/4333J R026 51124333JU0 carbon film resistor RT14-0.25W-33 K ohm J R026 51154333JUY carbon film resistor NAS1/4333J R510 51124563J30 carbon film resistor RT14-0.25W-56K ohm J R510 51154563J3Y carbon film resistor NAS1/4563J R933 51124632J20 carbon film resistor RT14-0.25W-62K ohm J R933 51154623J2Y carbon film resistor NAS1/4623J R936 51124623JU0 carbon film resistor RT14-0.25W-62K ohm J R936 51154623JUY carbon film resistor NAS1/4623J R404 51124683JU0 carbon film resistor RT14-0.25W-68K ohm J R404 51154683JUY carbon film resistor NAS 1/4683J R405 51124683JU0 carbon film resistor RT14-0.25W-68K ohm J R405 51154683JUY carbon film resistor NAS1/4683J R402 51124124JU0 carbon film resistor RT14-0.25W- 120K ohm J R402 51154124JUY carbon film resistor NAS1/4124J R509 51124124JU0 carbon film resistor RT14-0.25W- 120K ohm J R509 51154124JUY carbon film resistor NAS1/4124J

Model No: CT-21XF9A Version 1.0

52

Location No. Part No. Name Type

R108 51124184JU0 carbon film resistor RT14-0.25W- 180K ohm J R108 51154184JUY carbon film resistor NAS1/4184J R520 51124224JU0 carbon film resistor RT14-0.25W-220K ohm J R520 51154224JUY carbon film resistor NAS1/4224J R505 51135102J50 carbon film resistor RT15-0.5W- 1K ohm J R898 51124221JU0 carbon film resistor RT14-0.25W-220 ohm J R001A 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J R001A 5111310 IJUY carbon film resistor NAS1/6101J R892 51124681JU0 carbon film resistor RT14-0.25W-680 ohm J R823 51124681JU0 carbon film resistor RT14-0.25W-680 ohm J R895 51124102JU0 carbon film resistor RT14-0.25W-1K ohm J R896 51124102JU0 carbon film resistor RT14-0.25W-1K ohm J R833 51124272JU0 carbon film resistor RT14-0.25W-2.7K ohm J R887 51124272JU0 carbon film resistor RT14-0.25W-2.7K ohm J R889 51124392JU0 carbon film resistor RT14-0.25W-3.9K ohm J R899 51124472JU0 carbon film resistor RT14-0.25W-4.7K ohm J R831 51124473JU0 carbon film resistor RT14-0.25W-47K ohm J R832 51124473JU0 carbon film resistor RT14-0.25W-47K ohm J R002A 51113102J20 carbon film resistor RT13-0.166W-1K ohm J R002A 51113102J2Y carbon film resistor NAS1/6102J R003A 51113102j20 carbon film resistor RT13 -0.166W- 11K ohm J R003A 51113102J2Y carbon film resistor NAS1/6102J R004A 51113102J20 carbon film resistor RT13-0.166W-1K ohm J R004A 51113102J2Y carbon film resistor NAS1/6102J R243 51113221JU0 carbon film resistor RT13-0.166W-220 ohm J R243 51113221JUY carbon film resistor NAS1/6221J R311 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J R311 51153101JUY carbon film resistor NAS1/6101J R312 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J R312 51153101JUY carbon film resistor NAS1/6101J R302 51113102JU0 carbon film resistor RT13-0.166W- 1K ohm J R302 51153102JUY carbon film resistor NAS1/6102J R310 51113102JU0 carbon film resistor RT13-0.166W- 1K ohm J R310 51153102JUY carbon film resistor NAS1/6102J R611 51113182JU0 carbon film resistor RT13-0.166W- 1.8K ohm J R611 51153182JUY carbon film resistor NAS1/6182J R303 51113472JU0 carbon film resistor RT13-0.166W-4.7K ohm J R303 51153472JUY carbon film resistor NAS1/6472J R024 51113103JU0 carbon film resistor RT13-0.166W- 10K ohm J

Model No: CT-21XF9A Version 1.0

53

Location No. Part No. Name Type

R024 51153103JUY carbon film resistor NAS1/6103J R099 51113103JU0 carbon film resistor RT13-0.166W-10K ohm J R099 51153103JUY carbon film resistor NAS1/6103J R606 51113103JU0 carbon film resistor RT13-0.166W-10K ohm J R606 51153103JUY carbon film resistor NAS1/6103J R603 51113153JU0 carbon film resistor RT13-0.166W-15K ohm J R603 51113153JUY carbon film resistor NAS1/6153J R605 51113153JU0 carbon film resistor RT13 -0.166W- 15K ohm J R605 51113153JUY carbon film resistor NAS1/6153J R613 51113183JU0 carbon film resistor RT13-0.166W- 18K ohm J R613 51153183JUY carbon film resistor NAS1/6183J R035 51113333JU0 carbon film resistor RT13 -0.166W-33K ohm J R035 51153333JUY carbon film resistor NAS1/6333J R309 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R309 51153333JUY carbon film resistor NAS1/6333J R313 51113333JU0 carbon film resistor RT13 -0.166W-33K ohm J R313 51153333JUY carbon film resistor NAS1/6333J R314 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R314 51153333JUY carbon film resistor NAS1/6333J R316 51113333JU0 carbon film resistor RT13 -0.166W-33K ohm J R316 51153333JUY carbon film resistor NAS1/6333J R317 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R317 51153333JUY carbon film resistor NAS1/6333J R035 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R035 51113333J36 carbon film resistor NAS1/6333J R309 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R309 51113333J36 carbon film resistor NAS1/6333J R313 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R313 51113333J36 carbon film resistor NAS1/6333J R314 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R314 51113333J36 carbon film resistor NAS1/6333J R316 51113333JU0 carbon film resistor RT13-0.166W-33 K ohm J R316 51113333J36 carbon film resistor NAS1/6333J R317 51113333JU0 carbon film resistor RT13-0.166W-33K ohm J R317 51113333J36 carbon film resistor NAS1/6333J R612 51113513JU0 carbon film resistor RT13-0.166W-51K ohm J R612 51153513JUY carbon film resistor NAS1/6513J R315 51113104JU0 carbon film resistor RT13-0.166W-100K ohm J R315 51153104JUY carbon film resistor NAS1/6104J

Model No: CT-21XF9A Version 1.0

54

Location No. Part No. Name Type

R701 51113622J20 carbon film resistor RT13-0.166W-6.2K ohm J R701 51113622J26 carbon film resistor NAS1/6622J R702 51113103J20 carbon film resistor RT3-0.166W-10K ohm J R702 51113103J26 carbon film resistor NAS1/6103J R893 51731513J20 glass glaze film resistor RI40-2W-51K ohm J R893A 51731513J20 glass glaze film resistor RI40-2W-51K ohm J R883 51731754J20 glass glaze film resistor RI40-1W-750K ohm J R212 51315121JH0 metal oxide film resistor RY21-0.5W- 120 ohm J R212 51325121JHY metal oxide film resistor MOS1/2W121J R410B 51315222JH0 metal oxide film resistor RY21-0.5W-2.2K ohm J R410B 51325222JHY metal oxide film resistor MOS1/2W222J R512 51315472JH0 metal oxide film resistor RY21-0.SW-4.7K ohm J R512 51325472JHY metal oxide film resistor MOS1/2W472J R407 513161*SJK0 metal oxide film resistor RY21-1W- 1.5 ohm J R407 513261*5JKY metal oxide film resistor MOS1W1R5J R408 51316241JK0 metal oxide film resistor RY21-1W-240 ohm J R408 51326241JKY metal oxide film resistor MOS1W241J R518 51316102JK0 metal oxide film resistor RY21-1W-1K ohm J R518 51326102JKY metal oxide film resistor MOS1W102J R802 51316102JK0 metal oxide film resistor RY21-1W-1K ohm J R802 51326102JKY metal oxide film resistor MOS1W102J R504 51317391JL0 metal oxide film resistor RY21-2W-390 ohm J R504 51327391JLY metal oxide film resistor MOS2W391J R519 51317102JL0 metal oxide film resistor RY21-2W-1K ohm J R519 51327102JLY metal oxide film resistor MOS2W102J R830 51317682JM0 metal oxide film resistor RY21-2W-6.8K ohm J R885 51315100J J0 metal oxide film resistor RY21-0.5W-10 ohm J R818 51315100J J0 metal oxide film resistor RY21-0.SW-10 ohm J R410 51315222JK0 metal oxide film resistor RY21-0.5W-2.2K ohm J

R888 51315332JK0 metal oxide film resistor RY21-0.5W-3.3K ohm J

R881 51316*15JK0 metal oxide film resistor RY21-1W-0.15 ohm J R601 513172*2JK0 metal oxide film resistor RY21-3W- l ohm J R502 5144GS*2K00 wire-wound resistor RXG4-6W-8.2 ohm K R900 5148C2P2J00 wire-wound resistor RXG6-H2-10W-2.2 ohm J R507 51515*82J40 fuse resistor RF 10-0.5W-0.82 ohm J R513 515162*7J70 fuse resistor RF10-1W-2.7 ohm J R825 515284*3J70 fuse resistor RF11-3W-4.3 ohm J R824 51527010JB0 fuse resistor RF11-2W- 1 ohm J RT802 51C20120M00 thermistor MZ73-12 ohm M

Model No: CT-21XF9A Version 1.0

55

Location No. Part No. Name Type

C211 5251C 120JV0 ceramic capacitor CC1-63V-06a-C-12PFJ CC01 5251C 180JV0 ceramic capacitor CC1-63V-06a-C- 18PFJ C111 5251C300JV0 ceramic capacitor CC1-63V-06a-C-30PFJ C018 5251C300JV0 ceramic capacitor CC1-63V-06a-C-30PFJ C019 5251C300JV0 ceramic capacitor CC1-63V-06a-C-30PFJ C114 5251C470JV0 ceramic capacitor CC1-63V-06a-C-47PFJ C246 5251C470JV0 ceramic capacitor CC1-63V-06a-C-47PFJ C247 5251C470JV0 ceramic capacitor CC1-63V-06a-C-47PFJ C110 5251C820JV0 ceramic capacitor CC1-63V-08a-C-82PFJ C022 5251C101J10 ceramic capacitor CC1-63 V- 12L-C-100PFJ C080 5251C101JV0 ceramic capacitor CC1-63 V-08a-C-100PFJ C081 5251C101JV0 ceramic capacitor CC1-63V-08a-C-100PFJ C109 5251C101JV0 ceramic capacitor CC1-63V-08a-C-100PFJ C002 5251C221JV0 ceramic capacitor CC1-63V-12C-C-220PFJ C001 5251S331JVO ceramic capacitor CC1-63V-10a-SL-330PFJ C514 52532471KV0 ceramic capacitor CT1-63V-06a-2B4-470PFK C530 52532471KV0 ceramic capacitor CT1-63V-06a-2B4-470PFK C112 52532102KV0 ceramic capacitor CT1-63V-06a-2B4-1000PFK C113 52532102KV0 ceramic capacitor CT1-63V-06a-2B4-1000PFK C116 52532102KV0 ceramic capacitor CT1-63V-06a-2B4-1000PFK C204 52532102KV0 ceramic capacitor CT1-63V-06a-2B4-1000PFK C220 52532102KV0 ceramic capacitor CT1-63V-06a-2B4-1000PFK C236 52532102KV0 ceramic capacitor CT1-63V-06a-2B4-1000PFK C404 52532102KV0 ceramic capacitor CT1-63V-06a-2B4-1000PFK C115 52532152KV0 ceramic capacitor CT1-63V-06a-2B4-1500PFK C201 52532152KV0 ceramic capacitor CT1-63V-06a-2B4-1500PFK C210 52532222KV0 ceramic capacitor CT1-63V-08a-2B4-2200PFK C518 52532472K11 ceramic capacitor CTl-63V210e-2B4-4700PFK C021 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C026 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C028 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C202 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C207 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C212 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C213 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C214 5253F103ZU0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C215 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C218 5253FiO3ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ C223 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4-10nFZ

Model No: CT-21XF9A Version 1.0

56

Location No. Part No. Name Type

C225 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C233 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C242 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C248 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C509 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C511 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C602 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C805 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C238 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C237 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C108 5253F223Z10 ceramic capacitor CT1-63V-12c-2F4 -0.022 mui FZ C251 5253F223Z10 ceramic capacitor CT1-63V-12c-2F4 -0.022 mui FZ C507 52542221K10 ceramic capacitor CT1-500V-06c-2B4 -220PFK C402 52542391K10 ceramic capacitor CT1-500V-06c-2B4 -390PFK C824 52542471K10 ceramic capacitor CT1-500V-06c-2B4 -470PFK C826 52542471K10 ceramic capacitor CT1-500V-06c-2B4 -470PFK C501 5254210JK10 ceramic capacitor CT1-500V-10c-2B4 -1000PFK C503 52542392K20 ceramic capacitor CT1-500V-14c-2B4 -3900PFK C808 52582102M30 ceramic capacitor CT81-1KV-10c-2B4 -1000PFM C808 52582102M31 ceramic capacitor CT7-250VAC-10C-2B4 -1000PFK C809 52582102M30 ceramic capacitor CT81-1KV-10c-2B4 -1000PFM C809 52582102M31 ceramic capacitor CT7-250VAC-10C-2B4 -1000PFK C810 52582102M30 ceramic capacitor CT81-1KV-10c-2B4 -1000PFM C810 52582102M31 ceramic capacitor CT7-250VAC-10C-2B4 -1000PFK C811 52582102M30 ceramic capacitor CT81-1KV-10c-2B4 -1000PFM C811 52582102M31 ceramic capacitor CT7-250VAC-10C-2B4 -1000PFK C821 52592471K20 ceramic capacitor CT81-2KV-10c-2B4 -470PFK C505 52592152K30 ceramic capacitor CT81-2KV-14c-2B4 -1500PFK C882 52532471KV0 ceramic capacitor CT1-63V-06a-2B4 -470PFK C833 5253F103ZV0 ceramic capacitor CT1-63V-08a-2F4 -10nFZ C820 52572222K90 ceramic capacitor CT7-400VAC-2E4-2200PFM C886 52592681K30 ceramic capacitor CT81-2KV- 12c-2B4 -680PFK C610 5251C101JV0 ceramic capacitor CC1-63V-08a-C-100PFJ C605 52532472KV0 ceramic capacitor CT1-63V-06a-2B4 -4700PFK C607 52532472KV0 ceramic capacitor CT1-63V-06a-2B4 -4700PFK C704 5253F103Z10 ceramic capacitor CT1-63V-08c-2F4 -10nFZ C706 5253F103Z10 ceramic capacitor CT1-63V-08c-2F4 -10nFZ C708 5253F103Z10 ceramic capacitor CT1-63V-08c-2F4 -10nFZ C709 5253F103Z10 ceramic capacitor CT1-63V-08c-2F4 -10nFZ

Model No: CT-21XF9A Version 1.0

57

Location No. Part No. Name Type

C228 52367472J10 mylar capacitor CL21X-50V-4700PFJ C403 52367563J10 mylar capacitor CL21X-50V-0.056 mui FJ C003 52367104J 10 mylar capacitor CL21X-50V-0.1 mui FJ C118 52367104J10 mylar capacitor CL21X-50V-0.1 mui FJ C226 52367104J10 mylar capacitor CL21X-50V-0.1 mui FJ C229 52367104J10 mylar capacitor CL21X-50V-0.1 mui FJ C230 52367104J10 mylar capacitor CL21X-50V-0.1 C235 52367104J10 mylar capacitor CL21X-50V-0.1 C816 52367104J 10 mylar capacitor C L21X-50V-0.1 mui FJ CT01 52367104J 10 mylar capacitor C L21X-50V-0.1 mui FJ C523 52367474J10 mylar capacitor CL21X-50V-0.47mui FJ C520 5236C104J10 mylar capacitor CL21X-250V-0.1mui FJ C209 5236C104J10 mylar capacitor CL21X-250V-0.1mui FJ C221 5236C104J10 mylar capacitor CL21X-250V-0.1mui FJ C817 52337183J10 mylar capacitor CL12-50V-0.018uFJ C409 52329473J10 mylar capacitor CL11X-100V-0.047 mui FJ C883 52367104J10 mylar capacitor CL21X-50V-0.1 mui FJ C887 52367104J10 mylar capacitor CL21X-50V-0.1 mui FJ C884 52367121J10 mylar capacitor CL21X-50V-1200PFJ C604 52367224J10 mylar capacitor CL21X-50V-0.22 mui FJ C609 52367224J10 mylar capacitor CL21X-50V-0.22 mui FJ C701 52367224J10 mylar capacitor CL21X-50V-0.1 mui FJ C702 52367224J10 mylar capacitor CL21X-50V-0.1 mui FJ C703 52367224J10 mylar capacitor CL21X-50V-0.033 mui FJ C801 5246Q104M50 polypropylene capacitor CBB62-250VAC-0.1 mui FM C801 5246Q104MY5 polypropylene capacitor RE104K C801 5246Q104MY6 polypropylene capacitor R46-275VAC C801 5246Q104M55 polypropylene capacitor 222233554104 C802 5246Q104M50 polypropylene capacitor CBB62-250VAC-0.11 mui FM C802 5246Q104MY5 polypropylene capacitor RE104K C802 5246Q104MY6 polypropylene capacitor R46-275VAC C802 5246Q104M55 polypropylene capacitor 222233554104 C512 5241D334JD0 polypropylene capacitor CBB13-400V-0.33 mui FJ C504 5248K722JB0 polypropylene capacitor CBB81-1.6KV-7200PFJ C008 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C010 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C025 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C205 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C217 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM

Model No: CT-21XF9A Version 1.0

58

Location No. Part No. Name Type

C241 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C249 52513100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C304 52513100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C305 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C104 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C101 52613100M10 aluminum electrolytic capacitor CD110-16V-10 mui FM C244 52613220MV0 aluminum electrolytic capacitor CD110-16V-22 mui FM C603 52613220MV0 aluminum electrolytic capacitor CD110-16V-22 mui FM C105 52623470MV0 aluminum electrolytic capacitor CD110X-16V-47 mui FM C234 52623470MV0 aluminum electrolytic capacitor CD110X-16V-47 mui FM C526 52623470MV0 aluminum electrolytic capacitor CD110X-16V-47 mui FM C203 52623470M10 aluminum electrolytic capacitor CD110X-16V-47 mui FM C239 52623470M10 aluminum electrolytic capacitor CD110X-16V-47 mui FM C216 52623101MV0 aluminum electrolytic capacitor CD110X-16V-100 mui FM C222 52623101MV0 aluminum electrolytic capacitor CD110X-16V-100 mui FM C232 52623101MV0 aluminum electrolytic capacitor CD110X-16V-100 mui FM C513 52623101MV0 aluminum electrolytic capacitor CD110X-16V-100 mui FM C806 52623101MV0 aluminum electrolytic capacitor CD110X-16V-100 mui FM C807 52623101MV0 aluminum electrolytic capacitor CD110X-16V-100 mui FM C224 52623101M10 aluminum electrolytic capacitor CD110X-16V-100 muiFM C510 52623471M10 aluminum electrolytic capacitor CD110X-16V-470 mui FM C601 52624101M10 aluminum electrolytic capacitor CD110X-25V-100 mui FM C408 52624102M10 aluminum electrolytic capacitor CD110X-25V-1000 mui FM C508 52624102M10 aluminum electrolytic capacitor CD110X-25V-1000 mui FM C502 52626470MV0 aluminum electrolytic capacitor CD110X-35V-47 mui FM C405 52626101M10 aluminum electrolytic capacitor CD110X-35V-100 mui FM C406 52626101M10 aluminum electrolytic, capacitor CD110X-35V-100 mui FM C825 52626102M10 aluminum electrolytic capacitor CD110X-35V-1000 mui FM C227 52617*47MV0 aluminum electrolytic capacitor CD110-50V-0.47 mui FM C208 52617010MV0 aluminum electrolytic capacitor CD110-50V-1 mui FM C219 52617010MV0 aluminum electrolytic capacitor CD110-50V-1 mui FM C231 52617010MV0 aluminum electrolytic capacitor CD110-50V-1 mui FM C606 526172*2MV0 aluminum electrolytic capacitor CD110-50V-2.2 mui FM C117 526174*7MV0 aluminum electrolytic capacitor CD110-50V-4.7 mui FM C407 526174"7MV0 aluminum electrolytic capacitor CD110-50V-4.7 mui FM C005 52617100MV0 aluminum electrolytic capacitor CD110-50V-10 mui FM C822 5268A221MA0 aluminum electrolytic capacitor CD293-160V-220 mui FM C524 526AA4*7M10 aluminum electrolytic capacitor CDSI-160V-4.7 mui FM C519 5262C100M10 aluminum electrolytic capacitor CD110X-250V-10 mui FM

Model No: CT-21XF9A Version 1.0

59

Location No. Part No. Name Type

C506 526EA100MlO aluminum electrolytic capacitor CD288H-160V-10 mui FM C831 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C827 52624102M10 aluminum electrolytic capacitor CD110X-25V-1000 mui FM C832 526174*7MV0 aluminum electrolytic capacitor CD110-50V-4.7 mui FM C885 52617101MV0 aluminum electrolytic capacitor CD110-50V-100 mui FM C507 5168D221MA0 aluminum electrolytic capacitor CD293-450V-220 mui FM C507 5168D221MA1 aluminum electrolytic capacitor CD289-450V-220 mui FM C302 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C308 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C309 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C608 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C705 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C710 52613100MV0 aluminum electrolytic capacitor CD110-16V-10 mui FM C707 52613100MV0 aluminum electrolytic capacitor CD110-50V-1 mui FM C711 52613100MV0 aluminum electrolytic capacitor CD110-50V-1 mui FM C712 52613100MV0 aluminum electrolytic capacitor CD110-50V- 1 mui FM L104 55632*33K10 invariablenes inductor LGB0606-0.33 mui HK L206 556328*2J10 invariablenes inductor LGBO606-8.2 mui HJ L207 556328*2J10 invariablenes inductor LGB0606-8.2 mui HJ L205 55632120J10 invariablenes inductor LGB0606-12 mui HJ L208 55632120J10 invariablenes inductor LGB0606-12 mui HJ L202 55632680J10 invariablenes inductor LGB0606-68 mui HJ L002 55632101J10 invariablenes inductor LGB0606-100 mui HJ L102 55632101J10 invariablenes inductor LGB0606-100 mui HJ L201 55632101J10 invariablenes inductor LGB0606-100 mui HJ L204 55632101J10 invariablenes inductor LGB0606-100 mui HJ L806 55646101K70 invariablenes inductor LGB-W1216-100 mui HK L806 84757001600 invariablenes inductor LGB-1216-100 mui HK W214 55632101J10 invariablenes inductor LGB0606-100uHJ L502 555756106A6 feed-through inductor ZZ008 L503 555756106A0 feed-through inductor ZZ008 L882 55572011085 feed-through inductor TEM2011 L883 55572011085 feed-through inductor TEM2011 L505 55986216570 H. Line inductor SCC-2165 L505 52367121J10 H. Line inductor HX65 TS01 filter inductor LCL-F15(JUB4.757.001) T802 filter inductor LCL-F16(JUB4.757.001) Z208 5731345MBOY ceramic filter SFSH4.5MCB Z208 57311045MH5 ceramic filter LT4.5MH

Model No: CT-21XF9A Version 1.0

60

Location No. Part No. Name Type

Z208 57311045MJ5 ceramic filter LT4.5MJ Z206 5731360MB0Y ceramic filter SFSH6.0MCB Z206 57311060MH5 ceramic filter LT6.0MH Z206 57311060M J5 ceramic filter LT6.0MJ Z205 5731365MB0Y ceramic filter SFSH6.5MCB Z205 51311065MH5 ceramic filter LT6.5MH Z205 51311065MJ5 ceramic filter LT6.5MJ

Z207 5731355MB0Y ceramic filter SFSH5.5MCB

Z262 5741455MB0Y ceramic filter TPS5.5MB

Z203 5741445MB0Y ceramic filter TPS4.5MB Z203 5741145MB05 ceramic filter XT4.5MB Z201 5741460MB0Y ceramic filter TPS6.0MB Z201 5741160MB05 ceramic filter XT6.0MB Z204 5741465MB0Y ceramic filter TPS6.5MB Z204 5741165MB05 ceramic filter XT6.5MH Z101 57111387800 SAWF LBN-38-78 L506 55A13027000 wide-adjustment HFT-270 8475900010B degaussing coil XC-2118(JUB4.759.001) L203 55891239AV0 mid-frequency transformer TRF1239AV L103 5589767950Y mid-frequency transformer TRF767950 LO01 55891166T10 mid-frequency transformer TRF1166T1 T100 5931165A000 mid-frequency transformer BSC65A L501 59331000100 H. Drive transformer AD-0001 L501 84739003100 H. Drive transformer BCT-5(JU4.739.031) T804 8472600310B switch transformer BCK-24314L D005 61411075DU0 diode 2CK75D D005 614144148U0 diode 1N4148 D101 61411075DU0 diode 2CK75D D101 614144148U0 diode 1N4148 D204 61411075DU0 diode 2CK75D D204 614144148U0 diode 1N4148 D508A 61411075DU0 diode 2CK75D D508A 614144148U0 diode 1N4148 D508 61411075DU0 diode 2CK75D D508 614144148U0 diode 1N4148 D506 61131011C6Y diode RM11C D506 diode 2CZRM 11C D402 61112529G50 diode 2CZ5295G V821 611308RG27Y diode RG2

Model No: CT-21XF9A Version 1.0

61

Location No. Part No. Name Type

V821 611308RG257 diode S2L60 D507 61411075D40 diode 2CK75D D507 61414414840 diode 1N4148 V822 611120RU260 diode 2CZRU2 V823 611120RU260 diode 2CZRU2 D501 611120RU260 diode 2CZRU2 D505 611120RU260 diode 2CZRU2 D004 61212036AU0 diode W05Z3.6A D004 612180361UY diode RD3.6EL D004 61212036AV0 diode W05Z3.6A D206 61212051BU0 diode W05Z5.1B D802 61212056BU0 diode W05Z5.6B D201 61212056BU0 diode W05Z5.6B D202 61212056BU0 diode W05Z5.6B D203 61212056BU0 diode W05Z5.6B D504 612120912U0 diode W05Z9.1B VD921 61512050R00 diode FG5RD D214 61411075DU0 diode 2CK75D D214 61411075DU6 diode 1N4148 D215 61411075DU0 diode 2CK75D D215 61411075DU6 diode 1N4148 D216 61411075DU0 diode 2CK75D D216 61411075DU6 diode 1N4148 D217 61411075DU0 diode 2CK75D D217 61411075DU6 diode 1N4148 D833 61411075DU0 diode 2CK75D D833 61411075DU6 diode 1N4148 D834 61411075DU0 diode 2CK75D D834 61411075DU6 diode 1N4148 D895 61212068BU5 diode W05Z6.8B D835 612120912U5 diode W05Z9.1B D886 61212180C25 diode W05Z18C D887 61212180C25 diode W05Z18C D889 61212240B21 diode W05Z24C D803 614145408A0 diode BY254 D804 614145408A0 diode BY254 D805 614145408A0 diode BY254 D806 614145408A0 diode BY254 D881 61100103025 diode AK03

Model No: CT-21XF9A Version 1.0

62

Location No. Part No. Name Type D884 61100111025 diode AU01Z D885 61100111025 diode AU01Z D888 61100111025 diode AU01Z D102 61411075DU0 diode 2CK75D D102 61411075DU6 diode 1N4148 V002 62210150YW0 audion 3CG1015-Y V002 62510150YWY audion 2SA1015-Y V201 62210150YW0 audion 3CG1015-Y V201 62510150YWY audion 2SA1015-Y V203 62210150YW0 audion 3CG1015-Y V203 62510150YWY audion 2SA1015-Y V503 62210150YW0 audion 3CG1015-Y V503 62510150YWY audion 2SA1015-Y V001 62118150YW0 audion 3DG1815-Y V001 62418150YWY audion 2SC1815-Y V010 62118150YW0 audion 3DG1815-Y V010 62418150YWY audion 2SC1815-Y V202 62118150YW0 audion 3DG1815-Y V202 62418150YWY audion 2SC1815-Y V204 62118150YW0 audion 3DG1815-Y V204 62418150YWY audion 2SC1815-Y V301 62118150YW0 audion 3DG1815-Y V301 62418150YWY audion 2SC1815-Y V303 62118150YW0 audion 3DG1815-Y V303 62418150YWY audion 2SC1815-Y V602 6242878A0WY audion 2SC2878-A V102 62103882040 audion 3DG388ATM V102 6240388204Y audion 2SC388ATM V102 64762388Y4Y audion KSC388C-Y V101 626120400WY audion RN1204 V801 62126880L60 audion 3DG2688-L V801 62126880204 audion 3DA2688 V501 62123830040 audion 3DG2383-0 V501 62123830Y40 audion 3DG2383-Y V501 6242383004Y audion 2SC2383-0 V501 62423830Y4Y audion 2SC2383-Y V501 6476238304Y audion KSC2383-0 V501 64762383Y4Y audion KSC2383-Y V501 62123830Y40 audion 3DG2383-Y

Model No: CT-21XF9A Version 1.0

63

Location No. Part No. Name Type V502 649250830YY audion BU2508DX V502 6442499000Y audion 2SD2499 V502 64424990003 attdion 3DD2499 V502 64424990003 audion 3DD2499 V831 62118150YW6 audion 2SC1815-Y V831 62118150YW0 audion 3DG1815-Y Q888 62118150YW6 audion 2SC1815-Y Q888 62118150YW0 audion 3DG1815-Y V003 62118150YW6 audion 2SC1815-Y V003 62118150YW0 audion 3DG1815-Y V881 62426550Y45 audion 2SC2655-Y V832 62126880L60 audion 3DG2688-L V009 62418150YWY audion 2SC1815-Y V302 62418150YWY audion 2SC1815-Y V008 62118150YW6 audion 2SC1815-Y D002 67312574J1Y integrate circuit mui PC574J D002 67311574C1Y integrate circuit CW574CS N203 6724178055Y integrate circuit L7805CV N502 6724178095Y integrate circuit L7809CV N501 6724178125Y integrate circuit L7812CV N501 6724278125Y integrate circuit MC7812CT N101 67113791CPY integrate circuit LA7910CP(LA7910) N101 6710379100 integrate circuit HD14052BP N202 671304052BY integrate circuit HEF4052BP N202 671071405CY integrate circuit MC14052BCP N401 671098403KY integrate circuit TA8403K N201 671401238NY integrate circuit TB1238AN N945 671320038AY integrate circuit HS0038A N945 672250638YY integrate circuit SFH506-38 N945 67132003804 integrate circuit HRM3800 N881 67138645405 integrate circuit STR-F6454 VQ887 67136811505 integrate circuit SE113N N001 67213873495 integrate circuit CH08T0934 N002 6721224C18Y integrate circuit AT24C08-10PI N601 671107057AS integrate circuit TDA7057AQ N602 671294066BY integrate circuit HCF4066BE N701 671091275A5 integrate circuit TA1275AZ F801 59817124005 fuse tube RT1-20-4A BC01 58310800080 crystal oscillator JA18A-8MHz

Model No: CT-21XF9A Version 1.0

64

Location No. Part No. Name Type BC21 583D0443380 crystal oscillator JA18A1-4.433619MHz S801 54111A04S00 power swich KDC-A04-S S901 54167605410 light touch switch KA1W6x5-41 S902 54167605410 light touch switch KA1W6x5-41 S903 54167605410 light touch switch KA1W6x5-41 S904 54167605410 light touch switch KA1W6x5-41 S905 54167605410 light touch switch KA1W6xS-41 S906 54167605410 light touch switch KA1W6x5-41 NS01 67146062105 pholoelectricity coupler TLP621GR N801 66114681705 pholoelectricity coupler HS817 BC641 56233310080 speaker YDT513-A3-10W-8 ohm BC642 56233310080 speaker YDT513-A3-10W-8 ohm XPS01 53411000210 power-line with a socket RVVZ-2P205-C2143 A101 82891001100 electric tuner TDQ-3A9-C A101 82891001130 electric tuner TDQ-3A9-C1 XV01 5384206PZ00 audio and video socket AV-2-6PZ X901 5384102PA00 audio mad video socket AV-1-2PH X902 5384101PY00 audio and video socket AV-I-IPH 68121150310 21" C11T 54SX503Y22-DC01

AUDIO PROCESSING BOARD

R3 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J

R3 51153101JUY carbon film resistor NAS1/6101J R4 51113101JU0 carbon film resistor RT13-0.166W-100 ohm J R4 51153101JUY carbon film resistor NAS1/6101J R1 51113102JU0 carbon film resistor RT13-0.166W-2K ohm J R1 51153102JUY carbon film resistor NAS1/6202J R2 51113102JU0 carbon film resistor RT13-0.166W-2K ohm J R2 51153102JUY carbon film resistor NAS1/6202J R5 51113102JU0 carbon film resistor RT13-0.166W-150K ohm J R5 51153102JUY carbon film resistor NAS1/6154J R6 51113102JU0 carbon film resistor RT13-0.166W-150K ohm J R6 51153102JUY carbon film resistor NAS1/6154J C13 5251C101JV0 ceramic capacitor CC1-63V-08a-2F4-10nFZ C14 52532472KV0 ceramic capacitor CT1-63V-06a-2B4-4700PFK C15 52532472KV0 ceramic capacitor CT1-63V-06a-2B4-4700PFK C9 52367224J10 mylar capacitor CL21X-50V-5600PFJ C10 52367224J10 mylar capacitor CL21X-50V-5600PFJ C5 52367224J10 mylar capacitor CL21X-50V-0.015 mui FJ

Model No: CT-21XF9A Version 1.0

65

Location No. Part No. Name Type C7 52367224J10 mylar capacitor CL21X-50V-0.015 mui FJ

C6 52367224J10 mylar capacitor CL21X-50V-330nFJ

C8 52367224J10 mylar capacitor CL21X-50V-330nFJ

C1 52367224J10 mylar capacitor CL21X-50V-470nFJ

C4 52367224J10 mylar capacitor CL21X-50V-470nFJ

C11 52613100MV0 aluminum capacitor CD110-16V-10 mui FM

C12 52613100MV0 aluminum capacitor CD110X-16V-47 mui FM

L1 55632680J10 invariablenes capacitor LGB0606-10 mui HJ

NS01 67110744905 integrate circuit TDA7449

TELETEXT BOARD

RT31 51911750JW6 chip resistor RC05K750JT

RT37 51911101JW6 chip resistor RC05K101JT RT38 51911102JW6 chip resistor RC05K102JT RT39 51911102JW6 chip resistor RC05K102JT RT40 51911102JW6 chip resistor RC05K102JT RT32 51911221JW6 chip resistor RC05K221JT RT35 51911221JW6 chip resistor RC05K221JT RT36 51911221JW6 chip resistor RC05K221JT RT01 51911472JW6 chip resistor RC05K472JT RT02 51911472JW6 chip resistor RC05K472JT RT03 51911472JW6 chip resistor RC05K472JT RT04 51911472JW6 chip resistor RC05K472JT RT05 51911472JW6 chip resistor RC05K472JT RT06 51911472JW6 chip resistor RC05K472JT RT07 51911472JW6 chip resistor RC05K472JT RT08 51911472JW6 chip resistor RC05K472JT RT09 51911472JW6 chip resistor RC05K472JT RT10 51911472JW6 chip resistor RC05K472JT RT11 51911472JW6 chip resistor RC05K472JT RT12 51911472JW6 chip resistor RC05K472JT RT13 51911472JW6 chip resistor RC05K472JT RT14 51911472JW6 chip resistor RC05K472JT RT15 51911472JW6 chip resistor RC05K472JT RT16 51911472JW6 chip resistor RC05K472JT RT17 51911472JW6 chip resistor RC05K472JT RT18 51911472JW6 chip resistor RC05K472JT RT19 51911472JW6 chip resistor RC05K472JT RT20 51911472JW6 chip resistor RC05K472JT

Model No: CT-21XF9A Version 1.0

66

Location No. Part No. Name Type RT21 51911472JW6 chip resistor RC05K472JT

RT22 51911472JW6 chip resistor RC05K472JT

RT23 51911472JW6 chip resistor RC05K472JT

RT24 51911472JW6 chip resistor RC05K472JT

RT25 51911472JW6 chip resistor RC05K472JT

RT26 51911472JW6 chip resistor RC05K472JT

RT33 51911472JW6 chip resistor RC05K472JT

RT34 51911472JW6 chip resistor RC05K472JT

RT30 51911273JW6 chip resistor RC05K273JT

RT55 51911223JW6 chip resistor RC05K223JT

RT57 51911223JW6 chip resistor RC05K223JT

RT56 51911473JW6 chip resistor RC05K473JT

RT54 51911563JW6 chip resistor RC05K563JT

CT06 52A11181J05 chip capacitor 0805CH56JS00NT

CT07 52A11181 J05 chip capacitor 0805CH56J500NT

CT03 52A12104Z05 chip capacitor 0805F104Z500NT

CT04 52A12104Z05 chip capacitor 0805F104Z500NT

CT12 52A12104Z05 chip capacitor 0805F104Z500NT

CT10 52613100MV0 aluminum electrolytic capacitor CD110X-16V-10 mui FM

CT05 52613100MV0 aluminum electrolytic capacitor CDl10X-50V-2.2 mui FM

VDT01 61411075D60 diode 2CK75D

VDT02 61212400A00 diode W05Z40A

VT02 62418150YWY audion 2SC 1815-Y

VT03 62418150YWY audion 2SC 1815-Y

VT01 62418150YWY audion 2SC2688

LT01 55632680J10 inductance LGB0606-10 mui HJ

G01 58341120084 crystal oscillator JA18AS-12MHz

NT01 integrate circuit SAA5264

Y BOARD

RW01 51113561J20 carbon resistor RT13-0.166W-560 ohm J

RW01 51113561JU6 carbon resistor NAS1/6561J RW02 51113561J20 carbon resistor RT13-0.166W-560 ohm J RW02 51153561J2Y carbon resistor NAS 1/6561J RW03 51113561J20 carbon resistor RT13-0.166W-560 ohm J ItW03 51153561J2Y carbon resistor NAS 1/6561J R902 51124200JU0 carbon resistor RT14-0.25W-20 ohm J R902 carbon resistor NAS1/4200J

Model No: CT-21XF9A Version 1.0

67

Location No. Part No. Name Type R903 51124471J30 carbon resistor RT14-0.25W-470 ohm J R903 51154471J3Y carbon resistor NAS 1/4471J R905 51124471J30 carbon resistor RT14-0.25W-470 ohm J R905 51154471J3Y carbon resistor NAS 1/4471J R907 51124471J30 carbon resistor RT14-0.25W-470 ohm J R907 51154471J3Y carbon resistor NAS 1/4471J R909 51113681JU0 carbon resistor RT13-0.166W-680 ohm J R909 51113681JU6 carbon resistor NAS 1/6681J R904 51124102J30 carbon resistor RT13-0.25W- 1K ohm J R904 51154 l02J3Y carbon resistor NAS 1/4102J R906 51124102J30 carbon resistor RT13-0.25W- 1K ohm J R906 51154102J3Y carbon resistor NAS 1/4102J R908 51124102J30 carbon resistor RT13 -0.25W- 1K ohm J R908 51154102J3Y carbon resistor NAS1/4102J R911 51124102J30 carbon resistor RT 13 -0.25W- 1K ohm J R911 51154102J3Y carbon resistor NAS 1/4102J R912 51124102J30 carbon resistor RT13 -0.25W- 1K ohm J R912 51154102J3Y carbon resistor NAS 1/4102J R910 51113272JU0 carbon resistor RT13 -0.25W-2.7K ohm J R910 51113272JU6 carbon resistor NAS 1/4272J R901 51113472JU0 carbon resistor 11T13-0.25W-4.7K ohm J R901 51113472JU6 carbon resistor NAS 1/4472J R917 51135122J50 carbon resistor RT15-0.5W-1.2K ohm J R918 51135122J50 carbon resistor RT15-0.5W- 1.2K ohm J R919 51135122J50 carbon resistor RT15-0.5W- 1.2K ohm J R913 51315680JH0 metal oxide film resistor RY21-0.5W-18K ohm J R913 51315680JH6 metal oxide film resistor MOS1/2W680J R914 51317183JL0 metal oxide film resistor RY21-2W- 18K ohm J R914 51317183JK6 metal oxide film resistor MOS2W183J R915 51317183JL0 metal oxide film resistor RY21-2W- 18K ohm J R915 51317183JK6 metal oxide film resistor MOS2W183J R916 51317183JL0 metal oxide film resistor RY21-2W- 18K ohm J R916 51317183JK6 metal oxide film resistor MOS2W 183J C901 00000000000 ceramic capacitor CT1-63V-06c-2B4-390PFK C902 00000000000 ceramic capacitor CT1-63V-06c-2B4-390PFK C903 00000000000 ceramic capacitor CT1-63V-06c-2B4-470PFK C909 00000000000 ceramic capacitor CT81-2KV-12c-2B4-1000PFK C904 52613100M10 aluminum electrolytic capacitor CDll0-16V-10 mui FM

Model No: CT-21XF9A Version 1.0

68

Location No. Part No. Name Type C905 52613220M10 aluminum electrolytic capacitor C D 110-16V-22 mui FM C906 52613471M11 aluminum electrolytic capacitor CD 110X- 16V-470 mui FM L901 55632101K10 invariablenes inductor LGB0606-100 mui HK D901 61411075DU0 diode 2CK75D I)901 61411075DU6 diode 1N4148 D902 61411075DU0 diode 2CK75D D902 61411075DU6 diode 1N4148 D903 61411075DU0 diode 2CK75D D903 61411075DU6 diode 1N4148 D904 61411075DU0 diode 2CK75D D904 61411075DU6 diode 1N4148 D905 61411075DU0 diode 2CK75D D905 61411075DU6 diode 1N4148 D906 61411075DU0 diode 2CK75D D906 61411075DU6 diode 1 N4148 V905 62210150Y40 audion 3CG1015-Y V905 62210150Y46 audion 2SA1015-Y V904 62118150Y40 audion 3DG1815-Y V904 62118150Y46 audion 2SC1815-Y V901 62124821060 audion 3DG2482(FA- 1) V901 62124821006 audion 2SC2482(FA- 1) V902 62124821060 audion 3DG2482(FA-1) V902 62124821006 audion 2SC2482(FA- 1) V903 62124821060 audion 3DG2482(FA- 1) V903 62124821006 audion 2S C2482(FA- 1) GZ01 53610210800 CRT socket GZSS-6-1F

Model No: CT-21XF9A Version 1.0

71

Description:

1. Install the CRT assembly (2) into the front cover assembly (4) with fixing torque of

3.5 ~ 4.5 Nm.

2. Connect cord plugs in the set according to the wiring diagram and position and tie leads according to engineering cards.

3. Remove cover of the CRT socket and solder focus wire fixedly. Then close the cover and solder the screen wire fixedly wire according to the wiring diagram. Finally bind together the two wires on the Y board assembly with the wire clip (8).

4. Bind together the cord plugs XS601, XS402 and high voltage wire, screen wire and focus wire of FBT with the wire clip (9).

5. Insert the power plug into the socket XS501 and power cord card into slot on the lower left corner of the front cover.

6. Bind together the cord plug KDY (JU6.604.375) with the wire clip (16) and fix the wire on upper internal part of radiating plate (JU5.861.190).

7. After adjustment, seal potentiometers on the FBT with white nitro magnetic paint Q04-3 (18).

8. Put the seal cap (7) onto the screw (13) after close the back cover. After inspection, seal it with plasticine and mark it.

9. Check and make sure that no scratch and foreign objects exist on / in the set, label plates are stuck fixedly and button can work normally.

10. Mount the teletext board assembly (19) onto the radiating flange of the chassis board

and secure it with M3 screws (20) and M3 nuts (21)

No Code No. Description Quantity Remarks 1 JU5.049.270 Chassis assembly 1 2 JU5.370.083 CRT assembly 1 3 JU6.116.712 Back cover assembly 1 4 JU6.116.720 Front cover assembly 1 5 JU6.672.1172 Y board assembly 1 For large-neck CRT 6 JU6.672.1173 Y board assembly 1 For small-neck CRT 7 T/JU8.634.115 Seal cap 1 8 T/JU8.667.310 Wire clip 1 9 T/JU8.667.328 Wire clip 1 10 T/JU8.942.264 Washer 4 11 Japan standard Tapping screw 4 x 15BAH0 2 12 Japan standard Tapping screw 4 x 15BAHCh 2 13 GB845-76 Cross panhead tapping screw

4 x 20 14 Japan standard Tapping screw 4 x 20BAH0 6 15 Notched washer nut M5 4 16 Wire clip M04107 1 17 Plasticine 18 ZBG51053-87 White nitro magnetic paint

Q04-3 19 JUC7.820.330 Teletext board assembly 1 20 GB818-85 Cross panhead tapping screw 2 21 GB6170-85 T hexagon nut 2

Model No: CT-21XF9A Version 1.0

1

Akira CT-21XF9A Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
