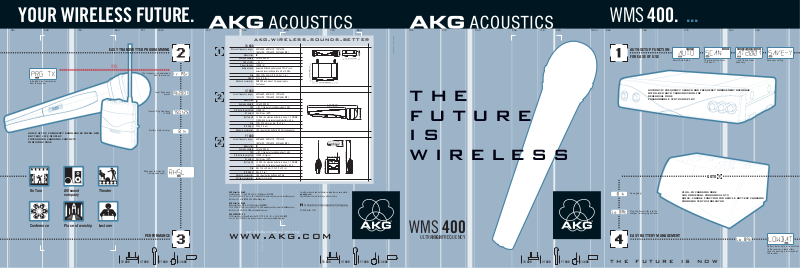

AKG WMS-400 Brochure

YOUR WIRELESS FUTURE.

THE FUTURE IS NOW

GOTO

104 274 342 446581 1024650 710 863 004971

SR 400 HT 400 PT 400 CU 400

WMS 400

ULTRAHIGHFREQUENCY

SR 400 HT 400 PT 400 CU 400SR 400 HT 400 PT 400 CU 400

schaefer-design.at

akg.wireless.sounds.better

236 374 542 650 710 863 1024374 542 650 710 863

world wide wireless with akg

www.akg.com

world wide wireless with akg

WMS 400. ...

the
future
is
wireless

For other products and distributors worldwide see our website:

www.akg.com

Specifications subject to change without notice.

03/04/Proa-Nr. 1493

AKG Acoustics GmbH

Lemböckgasse 21–25, P.O.B. 158, A-1230 Vienna/AUSTRIA,
Tel: [phone]*, Fax: [phone], www.akg.com, e-mail: [e-mail]
Hotline: [phone], [e-mail]

AKG Acoustics GmbH

Bodenseestraße 228, D-81243 München/GERMANY,
Tel: [phone], Fax: [phone], www.akg.com/de, e-mail: [e-mail]
Hotline: [phone], [e-mail]

AKG ACOUSTICS, U.S.

914 Airpark Center Drive, Nashville, TN 37217, U.S.A., Tel: [phone],
Fax: [phone], www.akgusa.com, e-mail: [e-mail]

650 to 680, 680 to 710, 720 to 750,
760 to 790, 790 to 820, 835 to 863 MHz
FM
35 to 20,000 Hz
< 0.3 %
120 dB (A)
balanced XLR and unbalanced TS 1/4" jack,
balanced level switchable to -30 or 0 dBm
200 x 140 x 44 mm (7.8 x 5.5 x 1.7 in.)
972 g (2.2 lbs.)
RMU 400 rack-mount kit, power supply,
2 antennas

650 to 680, 680 to 710, 720 to750,
760 to 790, 790 to 820, 835 to 863 MHz
FM
35 to 20,000 Hz
< 0.7 % typical at rated deviation / 1 kHz
120 dB (A)
50 mW max. (ERP)

1.5 V AA size alkaline batterie: 6 hours; 1.2 V NiMH,
2100 mAh AA size rechargeable battery: 8 hrs.
229 x 52.5 mm max. dia. (9 x 2 in.)
220 g (7.8 oz.)
1 AA size alkaline batterie, SA 63 stand adapter

650 to 680, 680 to 710, 720 to 750,
760 to 790, 790 to 820, 835 to 863 MHz
FM
35 to 20,000 Hz
< 0,7 % typical at rated deviation / 1 kHz
120 dB (A) typical
50 mW max. (ERP)

1.5 V AA size alkaline batterie: 6 hours; 1.2 V NiMH,
2100 mAh AA size rechargeable battery: 8 hrs.
60 x 73,5 x 30 mm (2.4 x 2.9 x 1.2 in.)
90 g (3.2 oz.)
1 AA size alkaline batterie, belt clip
external mute switch

SR 400

RF carrier frequency ranges

Modulation

Audio bandwidth

THD at 1 kHz

Signal-to-noise

Audio outputs

Size

Weight

Standard accessories

HT 400

Carrier frequency ranges

Modulation

Audio bandwidth

THD

S/N Ratio (A-weighted)

RF output

Battery life

Size

Net Weight

Standard accessories

PT 400

Carrier frequency ranges

Modulation

Audio bandwidth

THD

S/N Ratio (A-weighted)

RF output

Battery life

Size

Net Weight

Standard accessories

Optional accessories

9 inch (229 mm)

ø 2 inch (52,5 mm)

6.7 inch (172 mm)

2.9 inch (73,5 mm)

6.9 inch (176,2 mm)

1.2 inch

(30 mm)

2.4 inch (60 mm)

7.8 inch (200 mm)

1.7 inch

(44 mm)

5.5 inch (140 mm)

5.3 inch (136 mm)

AUTO-SETUP FUNCTION

FOR EASE OF USE

AUTOMATIC FREQUENCY SEARCH AND FREQUENCY MANAGEMENT DATABASE
INFRA-RED DATA TRANSMISSION LINK
REHEARSAL MODE
PROGRAMMABLE STATUS DISPLAY

Select Auto Setup The receiver scans the

UHF band…

Save your setting…and finds a clean

frequency

EASY BATTERY MANAGEMENT

Plug the transmitter into the
charger for charging batteries

PLUG-IN CHARGING MODE
TWO UNIVERSAL CHARGING SLOTS
QUICK-CHARGE FUNCTION FOR GENTLE BATTERY CHARGING
CHARGING STATUS INDICATOR

Battery status data is transmitted
to the receiver, a low battery
capacity warning is displayed on
the receiver.

Keep going!

EASY TRANSMITTER PROGRAMMING

QUICK SETUP, FREQUENCY DOWNLOAD BY INFRA-RED
BATTERY LIFE DISPLAY
INTEGRATED CHARGING CONTACTS
MINIATURE CASE

PERFORMANCE

Place of worship LecturerConference

AV/sound
company

On Tour Theater

Battery status display

Local frequency

preset

The frequency is downloaded

from the receiver

Infra-Red data transmission
from the receiver

Transmitting frequency

in MHz

Rehearsal function for

finding dead spots

C 411 L

C 416 L

C 417 L

C 419 L

C 420 L

C 444 L

C 55 L

CK 77 WR L

C 477 WR L

C 418 L

SR 400 HT 400 PT 400 CU 400

374 442 508 710124 198 238 650 863 972 1024

LM 3 L

CK 31 CK 32 CK 33

ANTENNA A BALANCED

ANTENNA B

+6 0 -30

dB

UNBALANCED

MADE IN AUSTRIA

DC IN

12V 500mA

SR 400 HT 400 PT 400 CU 400SR 400 HT 400 PT 400 CU 400SR 400 HT 400 PT 400 CU 400

INFRA-RED RADIATOR FOR TRANSMITTER PROGRAMMING

Infra-Red transmission is immune to RF interference and ensures
quick, reliable transmitter programming.

ON/OFF SWITCH RECESSED LEVEL CONTROL

The output level control is recessed to
prevent unintentional readjustment.

BACKLIT LCD

The LC display uses red/green bicolor backlighting for
easy operating status monitoring even from a distance.

MENU KEYS

for easy programming.

LED METERING

Accurate readout of audio level,
diversity status, and RF level.

METAL CASE

Half-rack case for easy, space-saving
rack mounting.

XLR AUDIO OUTPUT

Professional balanced XLR
audio output.

LOCKING DC INPUT

The DC input provides a locking
connector for reliable connection to
the power supply and to prevent the
power cable from being
disconnected unintentionally.

ANTENNA INPUTS

Allow you to connect plug-in antennas,
remote antennas, or even a complex
antenna network.

1/4" AUDIO OUTPUT

Professional unbalanced
1/4" output jack.

PRESET DISPLAY WITH AUDIO AND RF BARGRAPHS

The display indicates the currently selected frequency
preset as well as audio and RF levels.

FREQUENCY SEARCH DISPLAY

The receiver is automatically searching for clean
frequencies, making system programming quick
and easy.

REHEARSAL MODE DISPLAY

The receiver can record dropouts and related
parameters as the transmitter is moved around
the performance area.

WARNING DISPLAY

If, for instance, the transmitter batteries are running
low, the display backlighting will change to red,
reminding you that the system needs your attention.

INFRARED TRANSMISSION DISPLAY

The receiver is downloading frequency setup data
to the transmitter.

SR 400.STATIONARY RECEIVER.

* Depending on local frequency plans.

AUTOMATIC FREQUENCY SEARCH

The receiver will automatically scan its frequency band, find interference-free
frequencies, and transmit the related data to the transmitter by infrared.

PROGRAMMABLE DISPLAY

Shows the most important system parameters at a glance.

REHEARSAL FUNCTION

Records the most important system parameters during the soundcheck.

MULTI-CHANNEL CAPABILITY

Up to 12 channels can be operated simultaneously within a single subband.*

SYSTEM COMPONENTS.

PS 4000 ANTENNA SPLITTER

Wideband antenna splitter for four SR 400 receivers.
Expandable for up to 50 or more receivers. Optimum
performance at a reasonable cost.

HPA 4000 HEADPHONE AMPLIFIER

Headphone amplifier with eight inputs for SR 400 receivers
and one headphone output.

RA 4000 B OMNIDIRECTIONAL
WIDEBAND BOOSTER ANTENNA

• For indoor or outdoor use, specifically, for
near-field antenna setups with no preferred direction

• Integrated high-performance antenna booster
for use with antenna cables up to 180 m
(approx. 600 ft.) long

• Remote powering option

• Rugged, water-resistant case, BNC output

• Status LED

AB 4000 ANTENNA BOOSTER

High-performance antenna booster for inserting into long
antenna cables. One AB 4000 can compensate for
approximately 17 dB of cable attenuation, allowing RG
213 cable runs to be extended by approx. 60 m (200 feet).
Up to three AB 4000 boosters can be used in series for
extremely long cable runs.

• BNC or N input and output

• DC input

• Status LED

• Water-resistant case

ASU 4000 REMOTE POWER ADAPTER

Remote power supply for complex antenna networks

• BNC or N input and output

• Locking DC input

• Status LED

• Water-resistant case

TWO UNIVERSAL CHARGING SLOTS

Accommodate HT 400 and PT 400 transmitters,
or AA size rechargeable batteries.

CHARGING STATUS LED

LOCKING DC JACK

Input jack for a local or central power
supply (e.g., PSU 4000).

PLUG-IN CHARGING

Convenient charging with no need to remove the battery from the transmitter.
A single 1.2 V NiMH AA size battery (> 2000 mAh) provides up to 8 hours of operation.

TWO UNIVERSAL CHARGING SLOTS
QUICK-CHARGE FUNCTION FOR GENTLE BATTERY CHARGING
CHARGING STATUS INDICATOR

CU 400.CHARGER.

RECOMMENDED
MICROPHONES
FOR THE PT 400

Speech

Speech

Speech

Guitar,
Banjo

Violin,
Viola

Zither,
Sitar

Accordion

Presenter Theater Violin

FluteVocals

SpeechAerobics
trainer,
Announcer

Djembe,
Gumbe,
etc.

DidgeridooWoodwind
and brass
instruments

Vocals/
Theater

Theater

Djembe,

Gumbe,

etc.

Speech

HT 400 / D 880HT 400 / D 880MM DYNAMIC MICROPHONE DYNAMIC MICROPHONE
HT 400 / C 900HT 400 / C 900MM CONDENSER MICROPHONE CONDENSER MICROPHONE

HT 400.HANDHELD HELD TRANSMITTER. PT 400.BODYPACK TRANSMITTER.

The frequency is being
downloaded from the receiver

Local frequency preset Frequency in MHz Battery capacity display Low battery capacity warning

FREQUENCY DOWNLOAD FUNCTION FOR QUICK SETUP

Transmitter programming at the push of a button.

BATTERY CAPACITY DISPLAY

Accurate battery capacity countdown indication in hours.

“SCPM”-SINGLECELL POWER MANAGEMENT &
INTEGRATED CHARGING CONTACTS

A single AA size 1.5 V dry or NiMH rechargeable battery will last for
up to eight hours. Plug-in charging mode for rechargeable batteries
ensures minimum operating cost and ultimate convenience.

RUGGED BODY

Light, convenient, compact, sturdy.

Never before had it been possible to make a microphone diaphragm whose
thickness varied along its diameter. The VARIMOTION technique tunes the
diaphragm itself to the desired resonance frequency, eliminating the need
for tuning resonators in the microphone body.

The result is a better sound than ever before.

This two-stage shock mount suppresses handling and cable noise almost
completely, so the audience will only hear the sound of your voice.

D 880

M

C 900

M

RUBBER SUSPENSION RING

RESONANCE CAVITY

RUBBER SUSPENSION RING

CAPSULE CASE

METAL WEIGHT

ACOUSTIC RESISTOR

MOVING COIL

40µm

DUST SHIELD

20µm

NDFEBR-MAGNET

RESONANCE CAVITY

TRANSDUCER CASE

The Varimotion diaphragm

The Doubleflex shock mount

SHOCK MOUNT

A rubber suspension ring and precisely matching
brass weight ensure optimum suppression of handling
noise.

PB 1000 PRESENCE BOOST ADAPTER
The supplied, detachable PB 1000 Presence Boost
Adapter provides a high-frequency rise of 3 to 5 dB

up to 9 kHz that not only improves intelligibility of
speech but also adds sparkle to instrument sounds.

PPC 1000 POLAR PATTERN CONVERTER

The supplied PPC 1000 Polar Pattern Converter
allows you to change the microphone element's pickup
pattern from cardioid to hypercardioid.

The HT 400 handheld transmitter is available in two versions:

Professional vocal microphone elements will make your voice cut through the loudest mix. Choose either
the sheer power of the D 880M or the accurate clarity of the C 900M. Your voice is the reference.

EXTREMELY RUGGED SPRING STEEL WIRE MESH CAP

Protects the microphone transducer from damage in
tough usage on stage.

INFRA-RED SENSOR

Setting up the transmitter is incredibly easy as frequency and gain
data is downloaded from the receiver via infra-red transmission.

CHARGING CONTACTS

Convenient plug-in charging on the CU 400 charger is
cost efficient and friendly to the environment.

INTERCHANGEABLE COLOR CODE LABELS

For marking multichannel system transmitters
by colors and lettering.

DETACHABLE BELT CLIP

ON-MUTE/PRG-OFF SWITCH

Programming function: To activate the infra-red sensor, switch
from OFF to MUTE/PRG. The transmitter will enter silent mode
and be ready to receive data via IR.

DISPLAY

Indicates the selected frequency or preset as well as the
remaining battery capacity in hours.

SOFT-TOUCH FINISH

Soft-touch enamel reduces handling noise.

BATTERY COMPARTMENT

The transmitter can be powered by a single AA size
alkaline or rechargeable battery.

RUGGED MINI XLR CONNECTOR

Professional 3-pin mini XLR input for connecting MicroMic Series
or other head-worn microphones, lavalier microphones, or instrument
cables from AKG.

INTERFACE FOR EXTERNAL MUTE SWITCH

An external mute switch allows the user to mute the signal
even if the transmitter is hidden beneath clothes.

INPUT GAIN CONTROL

Sets the gain of the audio input stage.

ON-MUTE/PRG-OFF SWITCH

Programming function: To activate the infra-red sensor, switch
from OFF to MUTE/PRG. The transmitter will enter silent mode
and be ready to receive data via IR.

PSU 4000 CENTRAL POWER SUPPLY

Powers up to 12 SR 400 receivers plus antennas via three
PS 4000 antenna splitters to keep wiring simple.

PSU 01/4000

Central power supply for four SR 400 receivers through
one PS 4000. For small multichannel systems.

SRA 1 PASSIVE WIDEBAND
DIRECTIONAL ANTENNA

• For indoor or outdoor use,
specifically, for setting up
long-range radio links
(up to 100 m/330 feet)

• For use with antenna cables up
to 5 m (16 feet) long

• Water-resistant case, BNC output

SRA 2B ACTIVE WIDEBAND
DIRECTIONAL ANTENNA

• For indoor or outdoor use,
specifically, for setting up
radio links for distances up to
300 m (approx. 1000 ft.)

• Integrated high-performance
antenna booster for use with antenna
cables up to 200 m (approx. 655 ft.) long

• Remote powering option

• Water-resistant case, BNC output

• Status LED

• Optional laser positioning pointer

ZAPD ANTENNA COMBINER/SPLITTER

• For complex antenna networks
