Akai AC-R41-MP, AC-R31-MP, AC-R21-MP Service Manual

PULL SYNTHESIZED

STEREO RADIO WITH

COMPACT DISC PLAYER

DIGITAL

Models:
ACR21MP
ACR31MP
ACR41MP

SERVICE MANUAL

www.akai.ru

Ca r A ud io

AKAI ACR-21MP/31MP/41MP

TABL E O F CONTE NT S

Page

Technical Specifications ........... .................. . .................. ....1-2

Measure ment setup . .. ................ .................. .. .......... ...1-3

Service A ids , S afety Instruction, etc ....... ............. 1-4 to 1-5

Preparati o ns & Contro ls ..... .................. ............. 1-6 to 1-11

Maintena nce & T rouble sh ooting .... ............. ........ ....... . 1-12

Disa ssembly Instructi ons & Serv ic e positi ons ..... ..... ........ 2

Set Block diagra m ....... .............. ....... .......... .......... ......... 3

Set W irin g diagram .... ........................ ....... .... ................. 4

Key Boar d ................ .................. ........ ... . .................. ..... 5

Servo Board ...... ....... ........... ....... ......... ... ........... ....... ..... 6

Main Boa rd .............................. ........... . ......................... 7

Set Mech anical Explod ed v iew & pa rts lis t .... ............... ..... 8

......

......

......

......

..... .

......

......

......

......

......

... ...

SPECIFICATIONS

1-2

General

Powersupply:

Maximumpoweroutput:
Continuouspoweroutput:
Suitablespeakerimpedance:
Pre-Ampoutputvoltage:
Fuse:
Dimensions(WxHxD)
Weight:
AuxinLevel(optional):
Sub-out(optional):
ESP(optional):

FMStereoRadio

Frequencyrange:

Usablesensitivity:
quietingsensitivity(S/N=50dB):
Frequencyresponse:
Stereoseparation:
Imageresponseratio:
IFresponseratio:
Signal/noiseratio

12VDC(11V-16V)
Testvoltage14.4V,negativeground
50Wx4channels
20Wx4channels(4,10%T.H.D.)
4-8ohm

2.0V(CDplaymode:1KHz,0dB,10Kload)
15A
178x50x162mm

1.7kg
300mV

≥

4.0V

(CD40s,MP3120s)

≥≥

87.5-108.0MHz(EUROPEMODEL)

87.5-107.9MHz(USAMODEL)

65.0-74.0MHz(OIRTMODEL)

8dB

μ

12dB

μ

30Hz-15kHz
30dB(1kHz)
50dB
70dB
55dB

Ω

Ω

Components

Mountingcollar
TappingscrewsM5x6mm
Mountingbolt(50mm)
Wireconnector
Removablefaceplatecase
Trimplate
T-key
Operatinginstructions
Rubbercushion
Remotecontrol(optional)

1
4
1
1
1
1
2
1
1
1

MW(AM)Radio

Frequencyrange:

Usablesensitivity(S/N=20dB):

522-1620KHz(EUROPEMODEL)
530-1710KHz(USAMODEL)
30dBμ

DiscPlayer

System:
Frequencyresponse:
Signal/noiseratio:
Totalharmonicdistortion:
Wowandflutter:
Channelseparation:

Note:Specificationsanddesignaresubjecttochange

withoutnoticeforproductimprovements.

Discdigitalaudiosystem
20Hz-20kHz
>86dB
Lessthan0.20%(1kHz)
Belowmeasurablelimits
>60dB

MEASUREMENTSETUP

TunerFM

1-3

Bandpass

250Hz-15kHz

e.g.712270748001

LFVoltmeter

e.g.PM2534

S/Nanddistortionmeter

e.g.SoundTechnologyST1700B

RFGenerator

e.g.PM5326

DUT

Useabandpassfiltertoeliminatehum(50Hz,100Hz)anddisturbancefromthepilottone(19kHz,38kHz).

TunerAM(MW,LW)

RFGenerator

e.g.PM5326

DUT

Frameaerial

e.g.712270789001

Bandpass

250Hz-15kHz

e.g.712270748001

LFVoltmeter

e.g.PM2534

S/Nanddistortionmeter

e.g.SoundTechnologyST1700B

ToavoidatmosphericinterferenceallAM-measurementshavetobecarriedoutinaFaradayscage.
Useabandpassfilter(oratleastahighpassfilterwith250Hz)toeliminatehum(50Hz,100Hz).

CD

UseAudioSignalDiscSBC429482239730184
(replacestestdisc3)

DUT

L

R

S/Nanddistortionmeter

e.g.SoundTechnologyST1700B

LEVELMETER

e.g.SennheiserUPM550

withFF-filter

'

HANDLINGCHIPCOMPONENTS

GENERAL DISMOUNTING MOUNTING

e.g.WELLER
SoldertipPT-H7

SOLDERWICK
482232140042

CHIP

SOLDER

COMPONENT

GLUE

SOLDER

COPPERTRACK

P.C.B

SOLDERWICK

1-4

VACUUMPISTON

SOLDERING
IRON

SOLDERING
IRON

e.g.APAIROFTWEEZERS

HEATINGHEATING

SOLDERING
IRON

482239510082

CLEANING

A

B

C

e.g.APAIROFTWEEZERS

SLODER

Φ0.5-0.8mm

SLODERING

IRON

SLODERINGTIME
<3secretary/side

PRESSURE

Φ0.5-0.8mm

PRESSURE

EXAMPLES

SOLDER

SLODERING

IRON

A

B

SERVICEPACKAGE

SOLDERING
IRON

SOLDERING
IRON

PRECAUTIONS

CORRECT

COPPERTRACK

CHIPCOMPONENT

CORRECT

SOLDERING
IRON

NO！

GB

WARNING

AllICsandmanyothersemi-conductorsare
susceptibletoelectrostaticdischarges(ESD).
Carelesshandlingduringrepaircanreducelife
drastically.

Whenrepairing,makesurethatyouare
connectedwiththesamepotentialasthemass
ofthesetviaawristwrapwithresistance.
Keepcomponentsandtoolsalsoatthis
potential.

F

ATTENTION

TouslesICetbeaucoupd'autres
semi-conducteurssontsensiblesaux
dechargesstatiques(ESD).
Leurlongevitepourraitetreconsiderablement
ecourteeparlefaitqu'aucuneprecautionn'est
prisealeurmanipulation.
Lorsdereparations,s'assurerdebienetrerelie
aumemepotentielquelamassedel'appareilet
enfilerlebraceletsertid'uneresistancede
securite.
Veilleracequelescomposantsainsiqueles
outilsquel'onutilisesoientegalementace
potentiel.

1-5

ESD

D

WARNING

AlleICsundvieleandereHalbleitersind
empfindichgegenuberelektrostatischen
Entladungen(ESD).
UnsorgfaltigeBehandlungimReparaturfallkan
dieLebensdauerdrastischreduzieren.
VeranlassenSie,dassSieimReparaturfalluber

einPulsarmbandmitWiderstandverbunden
sindmitdemgleichenPotentialwiedieMasse
desGerates.
BauteileundHilfsmittelauchaufdiesesgleiche
Potentialhalten.

NL

WAARSCHUWING

AlleIC'senveleanderehalfgeleiderszijn
gevoeligvoorelectrostatischeontladingen
(ESD).
Onzorgvuldigbehandelentijdensreparatiekan
delevensduurdrastischdoenverminderen.
Zorgervoordatutijdensreparatieviaeen
polsbandmetweerstandverbondenbentmet
hetzelfdepotentiaalalsdemassavanhet
apparaat.
Houdcomponentenenhulpmiddelenookop
ditzelfdepotentiaal.

AVVERTIMENTO

I

TuttiICeparecchisemi-conduttorisono
sensibiliallescarichestatiche(ESD).
Lalorolongevitapotrebbeesserefortemente
ridattaincasodinonosservazionedellapiu
grandecauzioneallaloromanipolazione.
Duranteleriparazionioccorrequindiessere
collegatoallostessopotenzialechequellodella
massadell'apparecchiotramiteunbraccialetto
aresistenza.
Assicurarsicheicomponentieanchegliutensili
conqualisilavorasianoancheaquesto
potenziale.

ATTENTIONGB

Safetyregulationsrequirethatthesetberestoredtoitsoriginal
conditionandthatpartswhichareidenticalwiththosespecified,
beused.

NL

Veiligheidsbepalingenvereisen,dathetapparaatbijreparatiein
zijnoorspronkelijketoestandwordtteruggebrachtendatonderdelen,
identiekaandegespecificeerde,wordentoegepast.

F

LesnormesdesecuriteexigentqueI'appareilsoitremisaI'etat
d'origineetquesoientutiliseeslespiecesderechangeidentiques
acellesspecifiees.

D

BeijederReparatursinddiegeltendenSicherheitsvorschriftenzu
beachten.DerOriginalzustanddesGeratsdarfnichtverandertwerden;
furReparaturensindOriginal-Ersatzteilezuverwenden.

I

LenormedisicurezzaesigonocheI'apparecchiovengarimesso
nellecondizionioriginaliechesianoutilizzatiipezzidiricambio
identiciaquellispecificati.

Pourvotresecurite,cesdocuments
doiventetreutilisespardesspecia­listesagrees,seulshabilitesareparer
votreappareilenpanne.

CLASS1

LASERPRODUCT

GB

Warning!

Invisiblelaserradiationwhenopen.
Avoiddirectexposuretobeam.

S

Varning!

Osynliglaserstralningnarapparatenaroppnadochsparren
arurkopplad.Betraktaejstralen.

SF

Varoitus!

Avatussalaitteessajasuojalukituksenohitettaessaoletalttiina
nakymattomallelaserisateilylle.Alakatsosateeseen!

312211003420

Afterservicingandbeforereturningsettocustomerperforma
leakagecurrentmeasurementtestfromallexposedmetalpartsto
earthgroundtoassurenoshockhazardexist.Theleakagecurrent
mustnotexceed0.5mA.

DK

Advarse!

Usynliglaserstrlingvedabningnarsikkerhedsafbrydereer
udeaffunktion.Undgaudsaettelseforstraling.

a

PREPARATIONS

WiringDiagram

1-6

Antenna

Subwooferout

(Green)

ISOconnector

Fuse15A

Connector

Line-outGray(Rear)

Line-outBrown(Front)

R(Red)

L(White)

R(Red)

L(White)

ACC+/red

AutoAntenna/blue

Battery12V(+)/yellow

Ground/black

1-7

CONTROLS

PowerOn:Pressanybuttononthepanelexcepttoturnontheunit.

MP3 track+10 up

MP3 track-10 down

Track Random play

Track Repeat play

Intro play(10sec)

more than 2 sec.)

Top play ( press

Play / Pause

1-8

REMOTECONTROLS

PowerOn:Pressanybuttonontheremotecontroltoturnontheunit.

Poweron/off

Mute

PushtoselectVOL/BAS/

TRE/BAL/FAD,useVolume

buttontoadjustlevel

Pushmorethan2seconds

toMenumode

MP3track/file/character

search

ESP(CD40s,MP3120s)≥≥

(Optional)

Rotatethecontroltochoosefront

panelbuttonilluminationcolor.

Play/Pause

Topplay(press

morethan2sec.)

Introplay(10sec)

TrackRepeatPlay

TrackRandomPlay

MP3track-10down

MP3track+10up

TrafficAnnouncements

Identification

DiscPlayback

RadioPreset

Presstotunein

apresetstation

Holdformore
than2seconds
tostorestation.

Volume

MUTE

VOL

SEL

MENU

TAPTY

AF/REG

/

TOP

RadioTune

TrackSeek

65

SRC

AMS

SEARCH

BAND

4321

RDMRPTINT

DISP

SEARCH

BandSwitch

ProgramType

Displayswitch

AMS

MP3track/file/character

AlternativeFrequencylist

REG(Region)mode

Radio

Auxin(optional)

DiscPlay

(whendiscisin)

RadioPresetscan

RadioAutoPreset

search

FM1

FM2

FM3

OIRT

AM1

AM2

Replacingthelithiumbatteryofremotecontrolunit.

*Whentheoperationrangeofthecardremote

controlbecomesshortornoProperly,replace
thelithiumbatterywithanewone.Makesure
thebatterypolarityreplacementiscorrect.

1.Pulloutthebatteryholderwhilepressingthestopper.

2.Insertthebutton-typelithiumbatterywiththe
markfacingupward.

Insertthebatteryholderintothe

remotecontrol.

(CR2025)

(+)

WARNINGS:

Storethebatteryinplacewherechildrencannotreach.
Ifachildaccidentallyswallowsthebattery,
consultadoctorimmediately.
Donotrecharge,short,disassembleorheatthebattery
ordisposeitinafire.
Doinganyofthesethingsmaycausethebatterytogive
offheat,crackorstartafire.
Donotleavethebatterywithothermetallicmaterials.
Doingthismaycausethebatterytogiveoffheat,crack
orstartafire.
Whenthrowingawayorsavingthebattery,wrapitintape
andinsulate;otherwise,thebatterymaystarttogiveoff

heat,crackorstartafire.
Donotpokethebatterywithtweezersorsimilartools.
Doingthismaycausethebatterytogiveoffheat,crack
orstartafire.

CONTROLS

1-9

DiscEject:

Presstoslidedownthepanel.
Ifthereisadiscinside,thediscwillbeejectedautomatically.
Insertthediscintotheslot.Thepanelwillcloseautomatically.

Load:
Panelslide
down/close:

Donotapplyexcessiveforcetothepanel,doingsocancausedamagetotheunit.
Donotpresstoclosethepanelbeforethediscisinsertedcompletely,

doingsomaydamagethediscandtheunit.

Presstoslidedownthepanel.
Pressagaintoclosethepanel.

Radio: RadioTunebystep:presslessthan0.5sec.

RadioSeekautomatically:pressmorethan0.5sec.

DiscPlayback:

Trackskip:presslessthan0.5secondtogotothenextorprevioustrack.
Trackseek:pressmorethan0.5secondandholdittofastforwardorreversebackthetrack.

AMS:AutoMemoryStore

Pressbrieflytoscanthepresetstationfor5secondseach.Holdmorethan2seconds,the6
strongestavailablestationwillbeautomaticallysavedinthememoryofpresetbutton.

AMS

SETCLOCK

PressDISPbutton,timedisplays.Pressagainmorethan2seconds,timedisplayblinks.
Rotatetheknobclockwisetosethours.Rotatetheknobanticlockwisetosetminutes.

Pressthebuttonmorethan2secondstoentermenumode,theneachpresschangesthemodeasfollows:

DN

TAmodeMASKmodeDSPmodeLOUDON/OFFmodeESPmodeBEEPON/OFF

VOL

UP

VOLmode

COLORmode

(onlyintunermode)(onlyinFMmode)

DISP

(CD40s,MP3120s)≥≥

SEEK1/2modeST/MOmodeLOCAL/DXmode

(onlyintunermode)

DN

UP

TAmode:RotatetheknobtochooseTAALARMorTASEEKmode,WhenTAisturnedonandnotrafficprogramidentificationcode

hasbeenreceivedduringthespecifiedtime,noTA/TPisdisplayedandaccordingtotheMENUSELECT,alarmissetoff,

orTASEEKisactivated.

TAALARMmode :NOTA/TPisdisplayedandalarmissetoff. TASEEKmode:TASEEKisactivated.

ALBUM

MUSIC

ARTIST

ALBUM

MUSIC

ARTIST

VOL

CONTROLS

1-10

MASKmode:

rotatetheknob

DN

tochooseMASKDPI

VOL

UP

orMASKALLmode.

ALBUM

MUSIC

ARTIST

DSPmode:RotatetheknobtochooseDSPsoundeffect:

DN

VOL

LOUDmode:Rotatetheknobtochooseloudonoroff.

UP

BEEPON/OFFmode:Rotatetheknobtochoosebuttonbeepsoundonoroff.

PDSPOFFOPROCKCLASSICFLAT

MASKDPImode:

OnlytheAFwhichhasdifferentprogramidentificationismasked.

MASKALLmode:

TheAFwhichhasdifferentprogramidentificationandNORDS
signalwithhighfieldstrengthismasked.

ALBUM

MUSIC

ARTIST

ALBUM

MUSIC

SEEK1/2mode: Rotatetheknobtochooseradioseekmode1or2.

ARTIST

SEEK1:searchingstationwillstopwhennextstationisreceived.
SEEK2:searchingstationwillstopwhenorbuttonisreleasedandnextstationisreceived.

LO/DXmode:Rotatetheknobtochoosetunersensitivitylocalordistant.

ST/MOmode:RotatetheknobtochooseFMstereoormono.

COLORmode:

Rotatethecontroltochoosefrontpanelbuttonilluminationcolor.

COLOR1: buttonilluminationcolorisRED.
COLOR2: buttonilluminationcolorisGREEN.

VOLLAST/ADJUSTMODE

PressknobtochooseVOLLAST:theturn-onvolume

ALBUM

MUSIC

ARTIST

levelisthevolumeleveloflatestpoweroff.
RotateknobtochooseVOLADJ,

thenrotatetheknobtosettheturn-onvolumelevel.

ALBUM

MUSIC

ARTIST

MP3PLAYBACK

ALBUM

MUSIC

ARTIST

1-11

MP3

WhileplayingM3disc,thefolder/filenameandID3tag(Songtitle,AlbumandArtist)canentirelyscroll

P

displayedontheLCDdisplay.

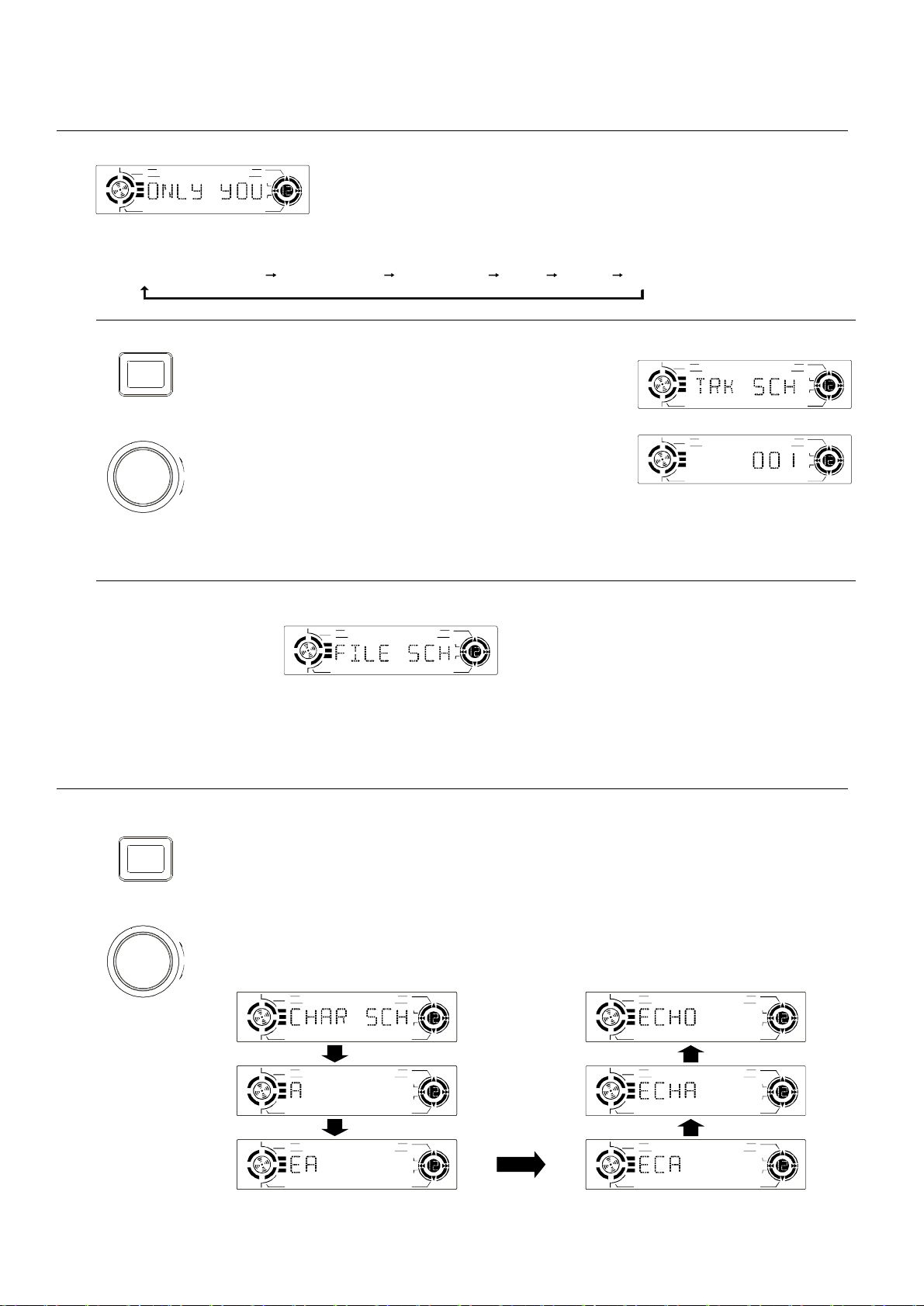

Elapsedplayingtime&TracknumbernumberSongtitleAlbumtitleArtistnameFoldername&Filename&number

M3TracksearchP

AMS

PressAMSbuttontoselect"TRACKSCH"mode.
PresstheknobandLCDdisplaywillshow"001".

IFyourdesiredtracknumberislessthan100,
rotatetheknobtoselectthefirstdigitandpressitonceagain
androtatesetthetenthdigitofthetracknumber.

DN

Presstheknobagainmorethan0.5secondtoplaythetrack.

VOL

IFyourdesiredtracknumberismorethan100,

UP

rotatetheknobtoselectthefirstdigitandpressittoconfirm,
rotatetheknobtoselectthetenthdigitandpressittoconfirm,
rotatetheknobtoselectthehundredthdigitandpressittoconfirm,
Presstheknobagaintoplaythetrack.

M3FilesearchP

PressAMSbuttontwiceto
select"FILESCH"mode.
Presstheknobtoenter.
Rotatetoselectfolder.theknob

IFyoujustwanttoplaysongsofthisfolder,presstheknob

ALBUM

MUSIC

ARTIST

MP3

morethan0.5secondtoplaythefirsttrackofthefolder.
IFyouwanttoplaydesiredtrackofthefolder,presstheknob
androtatetoselectthetrackyouwant.
Presstheknobagaintoplaythetrack.

*Ifthetracknumberyouenteris

beyondthemaximumfilenumber,
lastsongwillbeplayed.

ALBUM

MUSIC

ARTIST

ALBUM

MUSIC

ARTIST

MP3

MP3

MP3CHARACTERSEARCH

PressAMSbuttonthreetimestoselect"CHARSCH"mode.

AMS

DN

VOL

UP

PressSELbuttonandAdisplayed.
NowIfpressSELbuttonmorethan0.5seconds.whichfirstcharacterofitsnameiswillbeplayed.
Rotatetheknobtoselectthe1stcharacterofthedesiredtracknameandpressSELbuttontoconfirm.
Thenflashsatthenextplace,select2ndandothercharacterofthedesiredtracknameasstepsabove.

"A"

PressSELmorethan0.5secondstoplaythetrackoftheselectname.

Example:tosearchcharacterECHO

ALBUM

MUSIC

ARTIST

ALBUM

MUSIC

ARTIST

ALBUM

MUSIC

ARTIST

""

"".

MP3

MP3

MP3

thetrack"A"

ALBUM

MUSIC

ARTIST

ALBUM

MUSIC

ARTIST

ALBUM

MUSIC

ARTIST

MP3

MP3

MP3

1-12

MAINTENANCEANDTROUBLESHOOTING

Maintenance

Clearingdisc

Whenadiscbecomesdirtycleanitwithacleaningcloth.
Wipethediscfromthecenterout.

Cleaningthedisclens

Afterprolongeduse,dirtordustmayaccumulateatthelens.Toensuregoodplaybackquality,cleanthediscwithPhilipsCDlens

Cleaneroranycommerciallyavailablecleaner.Followtheinstructionssuppliedwithcleaner.

CleaningtheheadsandtheTapeParts

Toensuregoodplaybackquality,cleantheheadsA,thecapstanB,
andpressurerollerCafterevery50hoursoftapeoperation.Used
acottonswabslightlymoistenedwithcleaningfluidoralcohol.
Youcanalsocleantheheadsbyplayingacleaningtapeonce.

Troubleshooting

Ifyoususpectsomethingiswrong, immediatelyswitchpoweroff.Immediatelystopusingitandcallthestorewhereyoupurchasedit.

Nevertrytorepairtheunityourselfbecauseitisdangeroustodoso.

General

Nopoweror

nosound

Disc

Discisbut

inserted

nosound.

Discsoundskips,

tonequalityislow.

Soundskipsdue

tovibration.

Car'sengineswitchisnoton.

TurnyourcarskeytoACCorON.

Cableisnotcorrectlyconnected.

Checkconnection.

Fuseisburnt.

Replacefuse.

Checkvolumeormuteon/off.

Iftheabovesolutionscannothelp,

presstheRESETbutton.

Discisupsidedown.

Placediscinthecorrectdirection,
andthelabelsideup.

Discisdirtyordamaged

Cleandiscorchangeanotherdisc.

Discisdirtyordamaged.

CleanCDorchangeanotherCD.

Mountingangleisover30o.

Adjustmountingangletolessthan30.

Unstablemounting.
Mounttheunitsecurelywiththe
mountingparts.

o

Radio

Muchnoisein

broadcasts

Presetstation

lost

ErrorDisplayMessages

Stationistoofar,orsignalsaretooweak.

Selectotherstationsofhighersignallevel.

Batterycableisnotcorrectlyconnected.

Connectthebatterycabletothe
terminalthatisalwayslive.

DiscisnotCDorcontainsnoMP3files.

Discupsidedown.

Recoveryerror,checkthedisc.

MP3error,checkthedisc.

Discmechanismerror：

EJ

Pressbuttontoejectthedisc.
Incasethatthedisccannotbe
ejectedbypressingbutton,
presstheRESETswitchandpress

EJ

thebuttonagain.

EJ

Ifstillnotejectingconsultyour
dealer.

DISMANTLINGINSTRUCTIONS

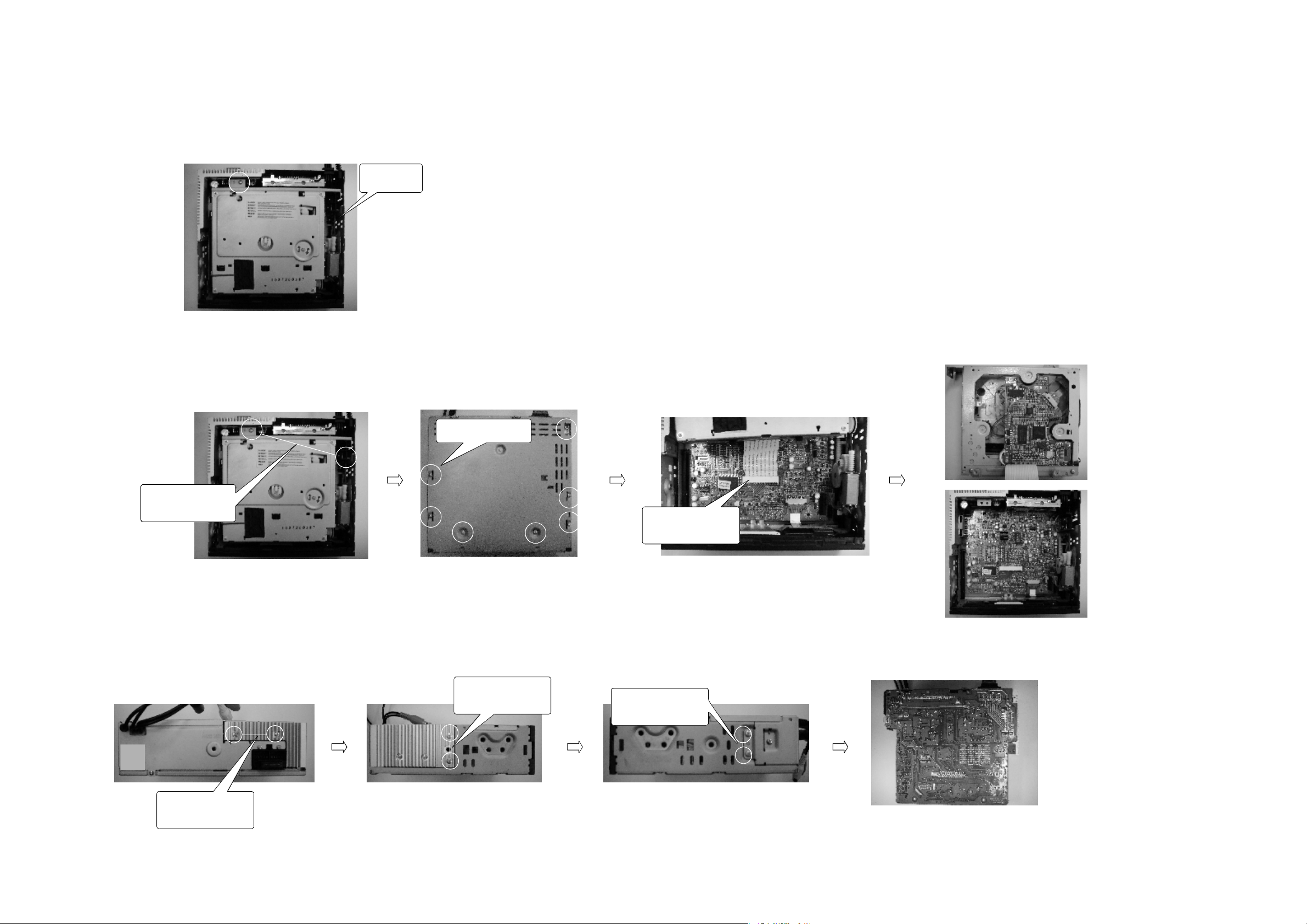

1Removetopcover、

2Removeloader、

2-12-1

Prizeupthe
topcover

3Removemainboard、

Removetwoscrews

Removetheseven
screws.

Removetwoscrews
ontheheadsinkat
leftside

PulloutFPCwire

Removetwoscrews
atrightside

Removescrewatrear

DISMANTLINGINSTRUCTIONS

2-2

2-2

ServicePositionA

ServicePositionC

ServicePositionB

ServicePositionD

SETBLOCKDIAGRAM

33

LCDDisplay

SETWIRINGDIAGRAM

44

5-15-1

KEYBOARD

LCDPINCONNECTION

TABLEOFCONTENTS

LCDDisplay.....................................................................5-1

KeyBoardCircuitDiagram..............................................

KeyBoardLayoutDiagram.............................................

ElectricalPartsList..............................................5-4

5-2

5-3

5-25-2

KEYBOARD-CIRCUITDIAGRAM

5-35-3

KEYBOARD-LAYOUTDIAGRAM
TOPVIEW

KEYBOARD-LAYOUTDIAGRAM
BOTTOMVIEW

5-45-4

ELECTRICALPARTSLIST-KEYBOARD

PartNO.

82-CM226-KB03-A

11-0102-1022-0

11-0102-1521-0

11-0102-2222-0

11-0102-3322-0

11-0102-4722-0

11-0102-8222-0

11-0102-1032-0

11-0102-2202-0

11-0102-4732-0

11-0102-1012-0

11-0102-1211-0

11-0102-1811-0

11-0102-2211-0

11-0103-3311-0

11-0102-3311-0

11-0102-4711-0

11-0103-4711-0

11-0102-6811-0

11-0103-6811-0

11-0202-1021-0

11-0202-1042-0

11-0203-1051-0

11-0405-0003-A

11-0431-0331-A

11-0431-0681-A

11-0501-0002-A

11-0501-0009-A

11-0501-0010-A

11-0901-0087-A

11-1821-0224-A

11-2011-0002-0

11-2011-0010-0

11-3400-0003-0

11-3300-0602-0

11-3102-0017-0

11-0181-0015-A

11-2601-0023-A

11-0421-0001-B

Description

CM226SMTKB

RMF1K1/16W5%SMT0603

RMF1K51/16W5%SMT0603

RMF2K21/16W5%SMT0603

RMF3K31/16W5%SMT0603

RMF4K71/16W5%SMT0603

RMF8K21/16W5%SMT0603

RMF10K1/16W5%SMT0603

RMF221/16W5%SMT0603

RMF47K1/16W5%SMT0603

RMF1001/16W5%SMT0603

RMF1201/16W5%SMT0603

RMF1801/16W5%SMT0603

RMF2201/16W5%SMT0603

RMF3301/10W5%SMT0805

RMF3301/16W5%SMT0603

RMF4701/16W5%SMT0603

RMF4701/10W5%SMT0805

RMF6801/16W5%SMT0603

RMF6801/10W5%SMT0805

CC1000PF/50V10%0603(X7R)

CC0.1F/16V+80%-20%0603

CC1F/25V-80%+20%SMT0805

SMDLEDRED/GREEN19-22URSYGC/S252/TR8

ZENERDIODE3.3V5%1/2W1206

ZENERDIODE6.8V5%1/2W1206

TR3904(SMTSOT-23)NPN

TRS8050SMTSOT-23

TRS8550SMTSOT-23

ICSC75823ELCDDRIVER

PCBCM226RKBD/SR/GLAMP166.5X41.0X1.2MM

KEYSWITCH4.3MM

KEYSWITHCH2.5MMTS1107GS-3

ZEBRASTRIPFORCM203

LCDBACKLIGHTFORCM203

15PINS0CKETFEMALEDSTE-15-3T

ENCODEREC110201M2D-HA1-026

LCDOFCM226BLACKMASK.JIC(TB4752N)

REMOTE-CRMHEADER

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

±

μ

μ

±

±

QTY

1

3

2

1

1

2

1

3

3

4

3

1

2

1

10

2

2

10

2

5

1

1

4

20

1

4

1

1

1

1

1

14

5

1

1

1

1

1

1

Location

R319R324R332

R323R331

R322

R321

R320,R362

R302

R311R330R365

R308,R312,R314

R309~310,R317,R370

R307R316,R318

R361

R336R363

R328

R348~R356R358

R327,R335

R326,R334

R337~345R347

R325,R333

R303~306,R315

C303

C306

C301,C304~305,C307

LED303~320LED323~324

ZD305

ZD301~304

Q301

Q302

Q303

IC301

SW301~SW302,SW305~SW310,

SW312~SW314,SW317,SW319~

SW320

SW315~SW316,SW303~SW304,

SW318

LED1

CON301

EN301

LCD301

IR301

，

，

，

6-16-1

SERVOBOARD

TABLEOFCONTENTS

CircuitDiagram...................................................................6-2

PCBLayout........................................................................6-3

..............................................................6-4ElectricalPartsList

6-26-2

SERVOBOARD-CIRCUITDIAGRAM

6-36-3

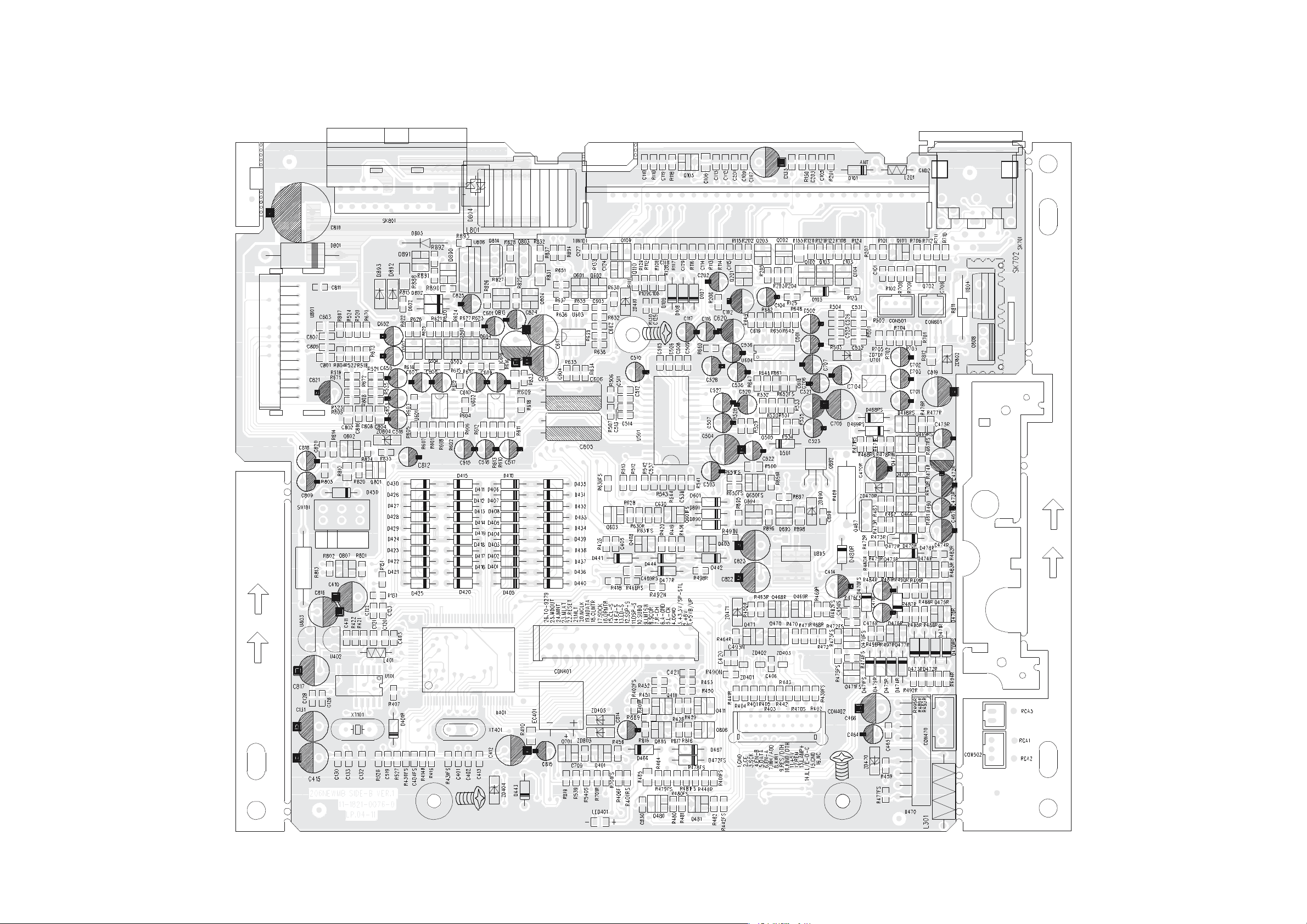

SERVOBOARD-LAYOUTDIAGRAM
TOPVIEW

SERVOBOARD-LAYOUTDIAGRAM
BOTTOMVIEW

6-46-4

ELECTRICALPARTSLIST-SERVOBOARD

PartNO.

82-CAD415-SB00-A

11-0102-1022-0

11-0102-1032-0

11-0102-1042-0

11-0102-1051-0

11-0102-1231-0

11-0102-1542-0

11-0102-1832-0

11-0102-2211-0

11-0102-6811-0

11-0102-2231-0

11-0102-2241-0

11-0102-3332-0

11-0102-4722-0

11-0102-4732-0

11-0102-7531-0

11-0103-8201-0

11-0102-8222-0

11-0102-1242-0

11-0102-8241-0

11-0103-1R01-0

11-0103-2R21-0

11-0103-1001-0

11-0103-1512-0

11-0202-1021-0

11-0202-1032-0

11-0202-1042-0

11-0202-1541-0

11-0202-2222-0

11-0202-3301-0

11-0202-3332-0

11-0202-3911-0

11-0202-4741-0

11-0202-6832-0

11-0202-8211-0

11-0431-0511-A

11-0501-0010-A

11-0901-0002-A

11-0901-0003-A

11-0901-0132-A

11-0901-0005-A

11-0901-0118-A

11-1821-0075-B

11-3111-0004-A

11-0102-3342-0

11-0102-1532-0

15-0900-0017-1

13-1507-0003-0

Description

CAD415ESPSMTSB

RMF1K1/16W5%SMT0603

Ω±

RMF10K1/16W5%SMT0603

RMF100K1/16W5%SMT0603

RMF1M1/16W5%SMT0603

RMF12K1/16W5%SMT0603

RMF150K1/16W5%SMT0603

RMF18K1/16W5%SMT0603

RMF2201/16W5%SMT0603

RMF6801/16W5%SMT0603

RMF22K1/16W5%SMT0603

RMF220K1/16W5%SMT0603

RMF33K1/16W5%SMT0603

RMF4K71/16W5%SMT0603

RMF47K1/16W5%SMT0603

RMF75K1/16W5%SMT0603

RMF821/10W5%SMT0805

RMF8K21/16W5%SMT0603

RMF120K1/16W5%SMT0603

RMF820K1/16W5%SMT0603

RMF11/10W5%SMT0805

RMF2R21/10W5%SMT0805

RMF101/10W5%SMT0805

RMF1501/10W5%SMT0805

CC1000PF/50V10%0603(X7R)

CC0.01F/50V20%0603

CC0.1F/16V+80%-20%0603

CC0.15F/50V+80%-20%0603

CC2200PF/50V10%0603(X7R)

CC33PF/50V5%SMT0603

CC0.033F/50V20%SMT0603

CC390PF/50V10%SMT0603

CC0.47F/25V-80%+20%0603

CC0.068F/50V20%SMT0603

CC820PF/50V10%SMT0603

ZENERDIODE5.1V1/2WSMT1206

TRS8550SMTSOT-23

ICDRAM4MX4TSOP3.3V

IC.S1L9226

ICIP4001D

ICS5L9276

ICS5L9291X100-TQFP-1414SAMSUNG

CD-ESPMP3SBD/S4IN1

15PINFPCSOCKETPITCH=1.0MM

RMF330K1/16W5%SMT0603

RMF15K1/16W5%SMT0603

LASERWARNINGLABELFORCMV100

SPONGEFORFPCFOR206

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

±

μ±

μ

μ

±

±

μ±

±

μ

μ±

±

Ω±

Ω±

QTY

1

2

3

3

5

1

2

2

2

1

9

2

6

6

10

2

1

2

2

1

2

1

1

1

6

8

20

1

3

2

2

1

2

2

1

1

1

1

1

1

1

1

1

1

2

1

1

1

Location

R925,R965

R903~905

R916,R934,R937

R932,R938,R985~987

R929

R913,R906

R928,R935

R933,R936

R926

R908,R931,R951~956,R911

R902R912

，

R959~964

R947~950,R957~958

R909,R915,R927,R939,R940,R942~946

R918,R920

R924

R921,R930

R907,R910

R991

R919,R988

R975

R917

R941

C904,C909,C924,C936~937,C943

C903,C905,C912,C914,C927,C928,

C948,C926

C902,C906~908,C910~911,C920~921,

C923,C925,C934~935,C941,C944~947

C951~952,C954

C916

C918,C930,C931

C938,C939

C922,C932

C919

C913,C933

C915,C929

C940

ZD903

Q901

IC905

IC901

IC904

IC903

IC902

CN902

R922,R923

R901

TOCDDECKCDX100

TOSERVOBOARD

PartNO.

11-3501-0008-D

14-1254-2004-0

11-0224-1067-0

11-0224-1077-0

11-0224-4752-0

11-0224-4767-0

11-0406-0011-A

11-1500-0004-A

11-2011-0005-A

16-0100-0013-A

Description

CDDECKCL-C01FY6SHINWAVER.3

PW,COLORZINCPTSSCREW

CE10F/16V20%4X5105C

μ±°

CE100F/16V20%6.3X5105C

μ±°

CE4.7F/50V20%4X5105C

μ±°

CE47F/16V20%5X5105C

μ±°

PHOTOTRANSISTORIR928-6C

XT16.9344MHZ(-20C~+70C)

CDDETECTORCDX100

25PINFFC1.25MML=100MM

，，

°°

QTY

1

4

3

3

3

2

2

1

1

1

Location

SBTODECK

CE903,CE905,CE906

CE910,CE912,CE913

CE901,CE908,CE909

CE904,CE914

LED901~902

XT901

SW901

CN901

7-17-1

MAINBOARD

TABLEOFCONTENTS

CircuitDiagram................................................................7-2

PCBLayout7-3

ElectricalPartsList 7-4to7-5.......................................

..........................................................

SERVOBOARD-CIRCUITDIAGRAM

7-27-2

SERVOBOARD-LAYOUTDIAGRAM
TOPVIEW

7-37-3

7-47-4

ELECTRICALPARTSLIST-MAINBOARD

PartNO.

11-0311-4R70-0

11-0402-4148-A

11-0115-0100-0

11-0125-2R22-0

11-0126-5601-0

11-0315-1001-0

82-CM226-MB16-C

11-0102-0R02-0

11-0102-1002-0

11-0102-1012-0

11-0102-1022-0

11-0102-1032-0

11-0102-1042-0

11-0102-1231-0

11-0102-1511-0

11-0102-1521-0

11-0102-1542-0

11-0102-2222-0

11-0102-2231-0

11-0102-2241-0

11-0103-2R21-0

11-0102-3311-0

11-0102-3322-0

11-0102-4711-0

11-0102-4722-0

11-0102-4732-0

11-0102-4741-0

11-0102-5121-0

11-0102-5622-0

11-0102-7521-0

11-0102-8232-0

11-0103-1012-0

11-0103-6811-0

Description

COIL4.7H3X5MM

DIODEIN41481/2W

RMF11W1%

RCF221/2W5%RTS

RCF561W5%RTS

AXISINDUCTOR10H

4X2VRDSESP2VSUBOIRTMBSMT

RMF01/16W5%SMT0603

RMF101/16W5%SMT0603

RMF1001/16W5%SMT0603

RMF1K1/16W5%SMT0603

RMF10K1/16W5%SMT0603

RMF100K1/16W5%SMT0603

RMF12K1/16W5%SMT0603

RMF1501/16W5%SMT0603

RMF1K51/16W5%SMT0603

RMF150K1/16W5%SMT0603

RMF2K21/16W5%SMT0603

RMF22K1/16W5%SMT0603

RMF220K1/16W5%SMT0603

RMF2R21/10W5%SMT0805

RMF3301/16W5%SMT0603

RMF3K31/16W5%SMT0603

RMF4701/16W5%SMT0603

RMF4K71/16W5%SMT0603

RMF47K1/16W5%SMT0603

RMF470K1/16W5%SMT0603

RMF5K11/16W5%SMT0603

RMF5K61/16W5%SMT0603

RMF7K51/16W5%SMT0603

RMF82K1/16W5%SMT0603

RMF1001/10W5%SMT0805

RMF6801/10W5%SMT0805

μ

Ω±

Ω±

Ω±

μ

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

Ω±

QTY

1

30

1

1

1

1

1

11

1

18

9

34

8

2

1

1

2

11

1

4

2

2

4

2

14

16

7

1

4

9

1

1

3

Location

L201

D103,D108,D466~467,D501,D601,

D802,D470FS,D471FS,D472FS,

D602,D401,D406,D409~410,D415,

D417~419,D431,D435~436,D443,

D438,D433,D426,D434,D437,D432,

D439

R811

R469

R813

L401

R111,R150~151,R630,R893,R889,

R401FS,R442FS,R478FS,R901,R904

R406F

R125,R131,R401~405,R614~617,

R636~637,R482FS,R628,R473FS,

R475FS,R651

R101,R121,R202~205,R462,R635,R837

R102,R106,R110,R429,R458,R460,

R463,R527,R532,R534,R607~608,

R804~805,R518~521,R807~808,R818,

R820,R823~824,R828R832~833,R207,

R421,R472FS,R474FS,R630FS,R476FS,

R477FS

R522~525,R819,R479FS,R480FS,R633

R535,R815

R123

R124

R528~529

R459,R450~453,R428,R128,R620~623

R132

R422,R530,R539,R481FS

R133,R500

R108,R526

R113~114,R541~542

R120,R122

R206,R415,R512,R513,R801,R802,

R825,R826,R543,R544,R817,R402FS,

R439FS,R631FS

R117~118,R129,R464,R605~606,

R611~612,R638~639,R814,R418,

R470,R632,R436,R634

R130,R430FS,R431FS,R624~R627

R533

R461,R506~507,R816

R601~602,R610,R613,R803,R603,

R604,R618,R619

R531

R609

R812,R810,R465

PartNO.

PartNO.

11-0202-1013-0

11-0202-1021-0

11-0202-1032-0

11-0202-1042-0

11-0203-1051-0

11-0202-1532-0

11-0202-2232-0

11-0202-2241-0

11-0203-2251-0

11-0202-3301-0

11-0202-2222-0

11-0202-3341-0

11-0202-6821-0

11-0406-0002-A

11-0431-1001-A

11-0431-0511-A

11-0431-0681-A

11-0501-0001-A

11-0501-0002-A

11-0501-0003-A

11-0901-0335-A

11-0901-0337-A

11-0901-0119-A

11-0901-0038-A

11-0901-0292-A

11-1821-0076-C

11-0102-4R71-0

11-0464-0002-A

11-0104-1021-0

11-0202-4711-0

11-0411-0008-A

11-0203-1041-0

14-0922-0001-1

14-0322-0007-A

14-1176-2607-0

11-0224-1053-0

11-0224-1067-0

11-0224-1077-0

11-0229-2242-0

11-0224-2253-0

11-0224-2261-0

11-0224-4767-0

11-0227-2272-0

Description

CC100PF/50V5%0603(NPO)

CC1000PF/50V10%0603(X7R)

CC0.01F/50V20%0603

CC0.1F/16V+80%-20%0603

μ

CC1F/25V-80%+20%SMT0805

μ

CC0.015F/50V20%SMT0603

CC0.022F/50V20%SMT0603

CC0.22F/25V10%0603(X7R)TDK

CC2.2F/16V+80%-20%0805

μ

CC33PF/50V5%SMT0603

CC2200PF/50V10%0603(X7R)

CC0.33uF/16V+80%-20%SMT0603

CC6800PF/50V10%0603(X7R)

LED2.2V10MAREDSMT0603

ZENERDIODE10V5%1/2W1206

ZENERDIODE5.1V1/2WSMT1206

ZENERDIODE6.8V5%1/2W1206

TRDTC343TK(SMTSOT-23)

TR3904(SMTSOT-23)NPN

TR3906(SMTSOT-23)PNP

ICCSC2313FSO-28YOUDA

ICUTC4558SOP-8UTC

IC.790RE(F)

ICBU1924RDSDEMOUDULATOR

IC,UTC1117-3.3V,SOT-23,UTC

PCBCM206NEWMBD/S181X149X1.6MM

RMF471/16W5%SMT0603

Ω±

ESDDIODEPG05GBUSV(5PINKEC)

RMF1K1/4W5%SMT1206

CC470PF/50V10%0603(X7R)

DIODEIN4148SMT1/2W

CC0.1F/16V+80%-20%0805

μ

HEATSINKIC7809FORCM226

BRACKETIC7386FORCM226

PLATINGNICKEL,BTBSCREW2607

CE1F/50V20%4X5105C

μ±°

CE10F/16V20%4X5105C

μ±°

CE100F/16V20%6.3X5105C

CE-NP0.22UF/50V20%4X585

CE2.2F/50V20%4X5105C

μ±°

CE22F/16V20%4X5105C

μ±°

CE47F/16V20%5X5105C

μ±°

CE220F/16V20%6.3X1185C

±

±

μ±

μ±

μ±

μ±

±

±

±

±

±

Ω±

±

μ±°

±℃

μ±°

QTY

2

6

4

22

1

2

10

1

4

4

2

2

1

1

1

1

4

7

16

9

1

3

1

1

1

1

2

3

2

4

1

1

1

1

2

5

5

14

1

17

3

3

2

Location

C537,C538

C118,C120,C123,C127,C505~506

C103,C121~122,C602

C110,C124~126,C128~130,C413,

C511~514,C519,C603,C630,C811,

C820,C135,C404FSC406,C403,C830

C106

C112~113

C101,C105,C108,C109,C119,C201,

C203,C411,C420,C421

C465

C801~804

C132~133,C401,C402

C114,C115

C508,C509

C604

LED401

ZD802

ZD804

ZD405,ZD470,ZD803,ZD404

Q501~504,Q601~602,Q604

Q101~104,Q109,Q201,Q203,Q401,

Q410,Q466,Q505,Q802,Q804~805,

Q807,Q813

Q105,Q202,Q411,Q603,Q801,Q806,

Q470FS,Q471FS,Q601FS

U501

U601~603

U401

U101

U805

R442,R443

ZD401~403

R827,R831

C805~808

D893

R888

TOPOFTHEMB

TOPOFTHEMB

ICBD435TOHEATSINK

C522~523,C809,C815,C814

C202,C824,C825,C812,C414

C107,C131,C410,C412,C504,C415,

C615~617,C823,C466,C817,C816,C822

C104

C507C510C515~518C520C527~528

C601,C607~610,C818,C116~117

C464,C467,C503

C102,C521,C821

C605,C606

，

7-57-5

ELECTRICALPARTSLIST-MAINBOARD

PartNO.

11-0231-3381-0

11-0311-1511-0

11-0321-4010-0

11-0411-0001-A

11-0512-0043-A

11-0522-0001-A

11-0901-0055-A

11-0144-0008-A

11-0901-0024-0

11-0901-0070-A

11-0901-0082-A

11-1500-0050-A

11-1500-0053-A

11-2101-0001-0

11-2701-0030-A

11-3101-0020-1

11-3101-0019-0

11-3111-0005-A

11-3111-0007-0

11-0411-0002-A

11-0226-2277-0

Description

CE3300F/16V20%12.5X25105

STANDINDUCTOR150H

CHOKEINDUCTOR400H24MM

FORCAD415

DIODEIN5401

TRBD435TO-126CCJ

TRB1243POWERSWITCH

ICL7809REGULATORST

GBX050PTCRILAIDA

IC78L05REGULATORST

ICTA7291SMOTOR-CTCTOSHIBA

I.C.TDA7386

CRYSTAL,4.500MHZ,30PPm,-30~+80,

HC-49/USDIP30PF

CRYSTAL,4.332MHZ,30PPm,-20+70,

DIPW/32PF

15ADINFUSE

FM/AMTC-702FYAB(FM/OIRT)

20PINPWR/SPKEST-KNT-20-04

P=2.0MM5PINWAFER

16PINFPCSOCKET1.0

25PINFPCSOCKET1.25

DIODEIN4001

CE220F/16V20%8X7105C

μ±

μ

≥μφ≤

（）

±℃℃

±℃℃

μ±°

QTY

1

1

1

1

1

3

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Location

C810

L301

L801

D801

Q808

Q467,Q803,Q814

U804

U806

U803

U470

U801

XT401

XT101

TUN101

SK801

CON470

CON402

CON401

D803

C819

EXPLODEDVIEW-MAINUNIT

8-18-1

MECHANICALPARTSLIST

8-28-2

Item

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

84-CM226-KB20-A

13-0707-0701-A

14-0322-0004-B

11-3101-0021-0

14-0722-0004-0

14-0722-0005-0

14-1070-2001-0

14-0107-0001-0

14-0207-0001-1

14-1070-2003-0

13-0807-0007-A

13-0807-0006-C

14-1080-2004-0

13-0307-0001-B

13-0907-0003-A

13-1207-0001-0

14-1150-1604-0

14-0322-0001-B

11-3200-0001-A

14-1170-2007-0

14-0107-0002-0

13-0807-0001-A

14-1275-2006-0

13-1807-0101-0

14-0422-0005-A

14-0322-0002-B

14-0722-0003-0

14-0422-0004-A

14-0722-0007-0

13-0807-0002-A

13-1107-0001-0

11-1841-0071-0

13-1722-0001-0

14-1174-2004-0

14-0322-0003-A

14-1270-2003-0

14-0722-0006-0

14-0722-0002-0

14-0722-0001-0

14-1180-2003-0

13-1307-0001-0

14-1176-2606-0

14-0422-0003-0

14-1176-2605-0

14-0444-0001-A

11-2501-0002-0

16-0300-0051-0

13-1600-0001-0

14-2600-0001-0

14-1176-2610-0

Description

CMR700FRONTPANELASM

RIMFOR206INCLEAR

BRACKETPANELFORCM226

15PINSOCKETMALEESTF-15-3-Z

SHAFT-BOTTOM-FRAMEFORCM226

SHAFTBRACKETPANELFORCM226

BLACKZINC,BM,SCREWBM20015

WASHER-22-025MMFOR206

SPRINGCABINETFOR206

M2.0X3.0BLACK,BM,SCREW

CONNECTORCOVERFOR206

LOCKFOR206

PFMCYLINDER,BLACKZINCSCREW

CABINETFOR206

LIGHTGUIDECABINETFOR206

RIGHTRACKFOR206

PLATINGNICKELSCREWPM1604

RIGHTARMFORCM226

MOTORMABUCHIFF-O50SK

PLATINGNICKEL,BM,SCREWBM2007

FELT-16-025MMFOR206

RIGHTSLIDEGUIDEFOR206

COLORZINC,BTP,SCREWBTP2006

DUSTPROOF206NATURALblack

BOTTOMFRAMEFORCM226

LEFTARMFORCM226

SHAFTARMFORCM226

FRONTFRAMEFORCM226

SHAFTFRONTFRAMELFORCM226

LEFTSLIDEGUIDEFOR206

GEAR-A-AND-GEAR-BFOR206

PCBCM206FBFLEX.FPC

INSULATINGSHEETFORCM226

PLATINGNICKEL,BTS,SCREWBT

BRACKETSLIDEFORCM226

COLOR,BM,SCREWBM2003

SHAFTBRACKETSLIDEFORCM226

SHAFT-GEAR-CFORCM226

SHAFT-GEAR-BFORCM226

PLATINGNICKELPFMSCREWPFM20

WORMGEARFOR206

PLATINGNICKEL,BTBSCREWM2.6X6

FRAMEMOTORFORCM226

PLATINGNIBTBSCREWM2.6X5

FRAMEBACKSHEETFORCM232

ANTSOCKETW/GNDL=230MM

2PINRCA280MMSUBOUTP=2.0MMOFCAD415

RUBBERFORCMV100

POLEFORCMV100

PLATINGNICKEL,BTBSCREWM2.6X10

QTYAssemblyPartNO

1

1

1

1

2

2

2

10

2

4

1

2

2

1

1

1

3

1

1

2

4

1

2

1

1

1

2

1

2

1

1

1

1

6

1

1

2

1

1

1

1

2

1

5

1

1

1

1

1

2

Item

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

14-1155-2607-0

14-2622-0001-0

14-0616-0001-E

14-0922-0001-1

14-1176-2607-0

11-2701-0030-A

14-0322-0007-A

83-CM226-MB16-C

14-0922-0002-0

14-1176-2612-0

14-1176-2606-0

11-3501-0008-D

83-CAD415-SB00-A

14-1254-2004-0

14-2807-0001-0

14-0207-0002-0

13-1107-0003-0

14-0107-0003-0

13-1107-0002-0

14-0807-0001-0

14-1174-2605-0

14-0322-0006-A

14-1200-2619-0

14-0322-0005-A

14-1174-2604-0

13-0722-0501-A

13-0422-0843-A

13-0122-0701-E

13-0522-0702-A

13-0522-0703-A

13-1507-0002-0

13-0522-0706-A

13-0922-0001-A

13-0522-0704-A

14-0306-0002-B

11-2601-0023-A

11-3400-0003-0

13-0522-0501-C

11-3300-0602-0

82-CM226-KB03-A

13-0222-0101-D

14-1025-1907-0

13-0922-0002-A

13-0522-0710-A

13-0522-0708-A

13-0522-0709-A

13-0522-0717-A

13-0722-0502-B

13-0522-0705-A

13-0522-0701-A

DescriptionQTYAssemblyPartNO

PLATINGNICKEL,PTPSCREW2607

SCREW-CU-POLEFORCM226

SHORTSHEETFORCM216

HEATSINKIC7809FORCM226

PLATINGNICKEL,BTBSCREW2607

FM/AMTC-702FYAB(FM/OIRT)

BRACKETIC7386FORCM226

4X2VRDSESP2VSUBOIRT7386MBASM

HEATSINKMAINFORCM226

PLATINGNICKEL,BTBSCREWM2.6X12

PLATINGNICKEL,BTBSCREWM2.6X6

CDDECKCL-C01FY6SHINWAVER.3

CAD415ESPSBASM

PW,COLORZINC,PTS,SCREW

CAP1FOR206

SPRINGFORGEARFOR206

GEAR-BFOR206

FELTFORGEARFOR206

GEAR-AFOR206

BUSH1FOR206

PLATINGNICKELBTSM2.6X5

BRACKETFRONTOFCLC01FORCM226

PivotscrewM2.6*19

BRACKETREAROFCLC01FORCM226

PLATINGNICKEL,BTSSCREW

ORNAMENTRINGFORCM226

LENSOFCM226130ASITRONICS

PANELFRONTFORCM226SILVER

KNOBEJECTFORCM226

KNOBSRCFORCM226

REMOTECONTROLSPONGEFOR206

KNOBBAND&DISPFORCM226

LIGHTGUIDEVOLFORCM226

KNOBNUMFORCM226

LCD-COVERFOR203

LCDOFCM226BLACKMASK.JIC(TB4752N)

ZEBRASTRIPFORCM203

KNOBENCODERFORCM226

LCDBACKLIGHTFORCM203

CM226SMTKBASM

PANELBACKFORCM226

BLACKZINC,FTP,SCREWM1.9X7

LININGKNOBLOUD&POWERFORCM226

SHELLKNOBPTYFORCM226

SHELLKNOBNEXTFORCM226

SHELLKNOBTAFORCM226

SHELLKNOBPWRFORCMV226

ORNAMENTRIBFORCM226

KNOBSLIDEFORCM226

KNOBAMS&AFFORCM226

2

1

1

1

2

1

1

1

1

2

2

1

1

4

1

1

1

1

1

1

4

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

4

1

1

2

1

1

1

1

1
