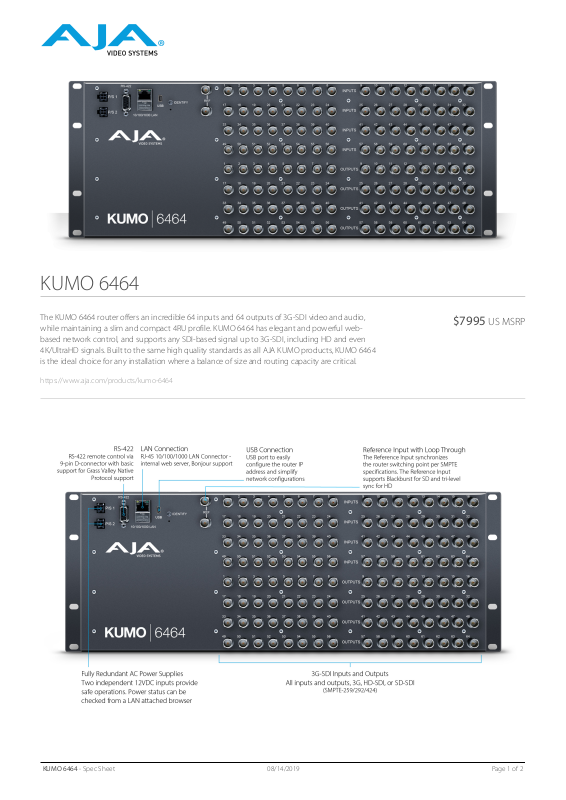

AJA KUMO-6464 Specifications
KUMO 6464
The KUMO 6464 router offers an incredible 64 inputs and 64 outputs of 3G-SDI video and audio,
while maintaining a slim and compact 4RU profile. KUMO 6464 has elegant and powerful webbased network control, and supports any SDI-based signal up to 3G-SDI, including HD and even
4K/UltraHD signals. Built to the same high quality standards as all AJA KUMO products, KUMO 6464
is the ideal choice for any installation where a balance of size and routing capacity are critical.
https://www.aja.com/products/kumo-6464
$7995 US MSRP
KUMO 6464 - Spec Sheet
08/14/2019 Page 1 of 2
Video Formats
270 Mbps, 1.5 Gbps, 3 Gbps SDI
270 Mbps DVB-ASI
Format agnostic, 150 Mbps - 3 Gbps
Video Input Digital
3G-SDI Inputs
64x BNC, SMPTE-259/292/424
Video Output Digital
3G-SDI Outputs
64x BNC, SMPTE-259/292/424
Noninverting
9-pin D-connector pinout is as follows:
1 GND
2 TX-
3 RX+
4 GND
5 No Connection
6 GND
7 TX+
8 RX-
9 GND
Shell GND
Ancillary Data
Passes all SDI embedded ancillary data including audio
Salvo
Up to 8 Salvos can be configured and saved in each KUMO router
Cable Equalization
(Belden 1694A)
3 Gbps, up to 140m
1.5 Gbps, up to 200m
270 Mbps, up to 400m
Automatic operation
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto
Select
All other rates are passed through and not reclocked
Switching Modes
Single, Dual, and Quad link modes
Switches in vertical blanking per SMPTE RP-168
Control Panel Compatibility
Size (w x d x h)
• 4RU - 17.4" x 1.55" x 7.00" (441.96 x 39.37 x 177.8 mm)
Weight
• 9.2 lbs (4.2 kg)
Power
• 10-14 VDC regulated, 32W typ, 36W max, power supply required, included
with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
AJA KUMO CP (First 32 I/O in Normal, all I/O in Dual or Quad mode) –
1RU X-Y Ethernet control panel
AJA KUMO CP2 (Single, Dual or Quad mode) – 2RU X-Y Ethernet
control panel
Reference Input
External, 2x BNC
Looping, nonterminating
Blackburst or tri-level sync
Network Interface
1x RJ-45, 10/100/1000 Ethernet
Supports AJA KUMO Ethernet control panels, direct connect or
networked
Basic support for Grass Valley Native Protocol
Embedded web server for remote control
Serial Interface
1x DB-9 Female, RS-422
Basic support for Grass Valley Native Protocol
KUMO 6464 - Spec Sheet
08/14/2019 Page 2 of 2
