Notices

Trademarks

AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products.

CION®, Corvid Ultra®, lo®, Ki Pro®, KONA®, KUMO®, ROI® and T-Tap® are registered trademarks of AJA Video Systems, Inc.

AJA Control Room™, FiDO™, KiStor™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™ and V2Digital™ are trademarks of AJA Video Systems, Inc.

AirPort, Apple, Apple logo, AppleShare, AppleTalk, FireWire, iPod, iPod touch, Mac, Macintosh and ProRes, are registered trademarks of Apple Inc. Final Cut Pro, QuickTime and QuickTime logo are trademarks of Apple Inc.

Avid, Avid DNxHD and Media Composer are registered trademarks of Avid Technology, Inc. Adobe is a registered trademark of Adobe Systems Incorporated in the United States and/or other

countries. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing, LLC. DVI is a registered trademark of DDWG. TASCAM is a registered trademark of TEAC Corporation. Dolby and the double-D Dolby logo are registered trademarks of Dolby Laboratories Licensing

Corporation. All other trademarks are the property of their respective holders.

Copyright

Contacting Support

Telephone: +1.530.271.3190

FAX : +1.530.271.3140

Web: http://www.aja.com

Support Email: [email protected]

Sales Email: [email protected]

Copyright © 2016 AJA Video Systems, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Video Systems, Inc.

When calling for support, have all information at hand prior to calling. To contact AJA for sales or support, use any of the following methods:

KONA v12.5 www.aja.com

Page 6

Chapter 1: Introduction

Overview

The AJA KONA series brings the highest quality 4K/UHD, 2K, HD, and SD video and audio to Mac and Windows computers. This manual discusses the installation of KONA cards and the necessary software drivers and plug-ins for each platform.

KONA Models Covered in this Manual

AJA Software & Utilities

AJA Control Panel The Control Panel provides:

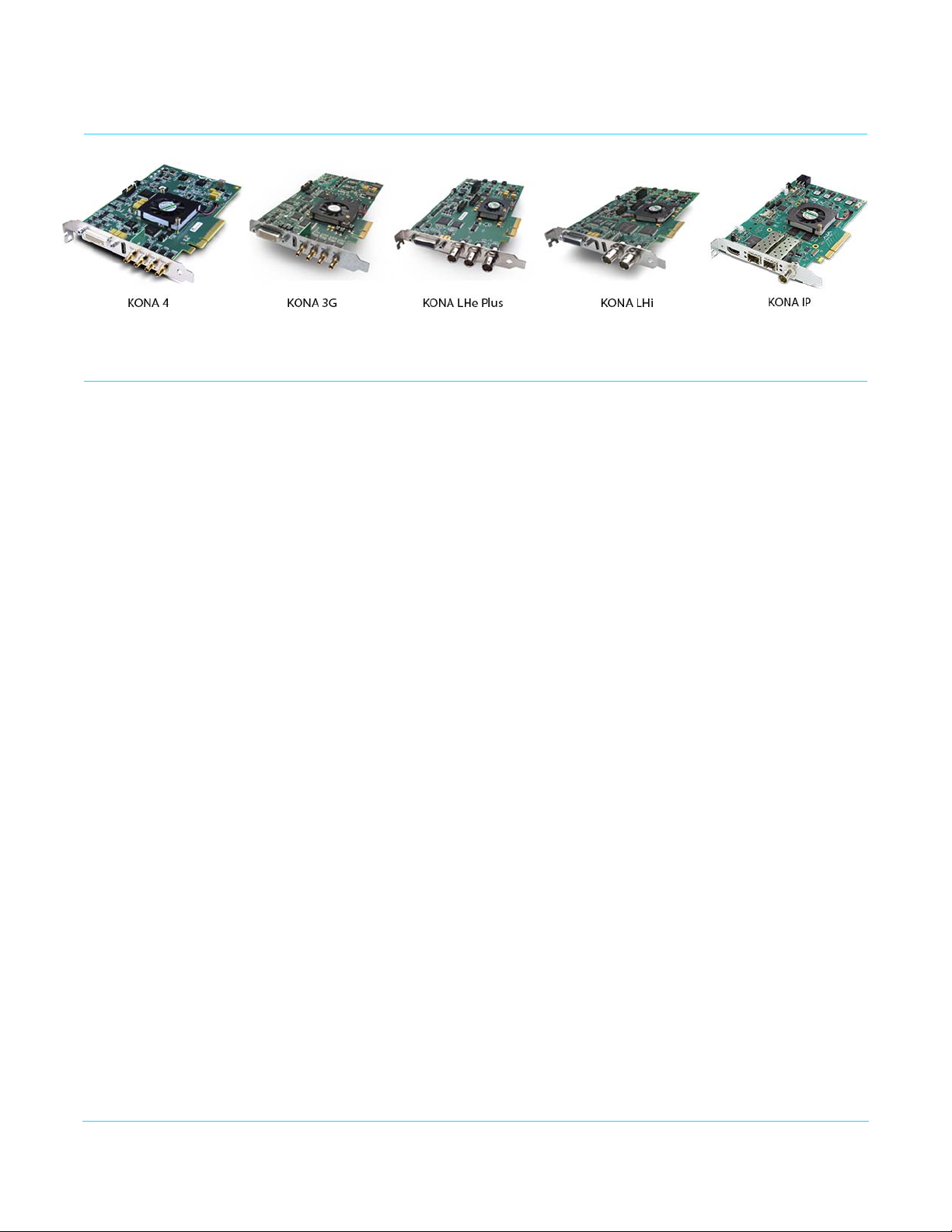

This manual covers the installation and operation of these models:

•KONA LHe Plus

•KONA LHi

•KONA 3G

•KONA 4

•KONA IP

AJA’s KONA software and hardware were developed for powerful integrated video/audio capture, editing, and production with a variety of 3rd-party software. With KONA and a qualified computer, you have the ultimate system for production, post-production, broadcast, and streaming work. AJA software is distributed as a unified package which includes all the software, firmware, plugins, and utility programs for AJA’s iO, KONA, and T-TAP products.

Three retail packages are available, one for Mac, one for Windows, and one for Linux.

NOTE: Support for the Linux OS retail drivers is based on the Linux application used and comes from

the application’s vendor.

The Mac and Windows packages include:

Drivers AJA device drivers for tightly integrated hardware/software operation.

• Source selection and control of your AJA hardware.

• A block diagram to show visually what routing and processing is being performed.

KONA v12.5

AJA Control Room Control Room is a cross-platform software application for ingest, playback and output

with AJA products.

AJA System Test System Test provides accurate and detailed evaluations of drive and PCIe performance

statistics, allowing you to measure the capabilities of your system for recording and playing back various resolutions and codecs.

www.aja.com

Page 7

3rd-Party Plugins AJA-provided plugins for popular 3rd-party Professional Video Applications from Adobe,

Avid, Apple, Telestream, and others.

To download AJA software, go to the AJA website:

For a complete software compatibility list, see the AJA website link:

System Requirements

AJA Video recommends that your system meet minimum hardware and software requirements to achieve a satisfactory level of performance. Updates to system requirements are subject to change.

NOTE: See Software Vendor system requirements for GPU recommendations and additional

hardware requirements and recommendations.

AJA recommends:

• Mac OS 10.9.5 or later

• Windows 7/8.1/10 with all updates

• 2.0 GHz quad core i7 minimum, for HD. For 4K, especially high frame rate, please

consult a system integrator, and the software vendor.

• 8GB RAM minimum, 32GB recommended, especially for 4K and/or High Frame Rate

applications

http://www.aja.com/en/support/downloads

http://www.aja.com/en/category/edit/compatibility

Disk Storage Methods

KONA 4/3G Features

Video I/O • SD-SDI, HD-SDI, Dual Link HD-SDI, HSDL, and 3G HD-SDI inputs

To ensure performance and quality, the disk storage system used with the workstation must be able to meet the demands of storing realtime uncompressed media. At the very minimum, the disk storage system must be able to provide and maintain a consistent transfer rate from the workstation to disk (read/write). There are a variety of system configurations and peripherals that can provide this level of performance.

For more on disk storage performance see “System Test Application” on page 19.

The KONA 4 and 3G cards offer many unique features for optimum quality, ease of use, and support for a wide variety of post production workflows. KONA 3G features include:

• HDMI 1.4a output

• KONA 3G I/O supports SD and HD over HDMI

•HDMI v2.0

• 30/36 bits/pixel, RGB or YUV, 2.25 Gbps

• 2K, HD, and SD, UltraHD with HFR support up to 60p 4:2:0

• HDR10 Support - HDR Infoframe metadata, in accordance with HDMI 2.0a/ CTA-861.3

• 2K support that includes 2048x1556 and 2048x1080 formats

• 4K and Ultra HD capture and playout

• KONA 3G supports framerates up to 30 fps

KONA v12.5

www.aja.com

Page 8

• KONA 4 supports framerates up to 60 fps

• 12-bit HD component analog video and SD analog component or composite and s-video output

• 10-bit HD/SD Video+Key Output

• HD/SD Hardware Downstream Keyer

KONA 4/3G supports Dual Link HD-SDI (4:4:4). KONA 4/3G supports the ingest and output of SMPTE-372M compliant 4:4:4 RGB video and 4:2:2 1080p 50, 1080p 59.94, and 1080p 60 at 10-bit.

KONA 4 supports both Quadrant and Two Sample Interleave transport standards for UHD and 4K video formats.

Conversion • Broadcast quality hardware-based 10-bit down-conversion

• Broadcast quality hardware based 10-bit up-conversion

• Broadcast quality hardware based 10-bit cross-conversion (1080 to 720 and 720 to

1080)

• Broadcast quality hardware based 10-bit SD aspect ratio conversion (anamorphic to letterbox, etc.)

KONA 4/3G features hardware-based full 10-bit broadcast quality motion adaptive SD to HD up-conversion, HD to SD down-conversion and HD to HD cross-conversion. The quality of the conversion features found in the KONA 4/3G is virtually identical to AJA's award winning stand-alone converter products used throughout the post production market. The KONA 4/3G built-in up-converter uses a a full 10-bit path, fully motion adaptive de-interlacing, and large multi-point digital interpolators. Down-conversion uses large multi-point digital interpolators, anti-alias filtering and interpolation.

Audio I/O • 8-channel 24-bit, 48kHz digital AES/EBU audio

Signal Timing • Genlock input with optional looping capability via the K3G- Box (terminated on the

Cabling • Standard 2-meter length connection cables including HDMI mini to HDMI output

UHD/4K Mode Capture and

Playout

Cross-conversion is high-quality hardware-based, providing capability to streamline dailies and offers true broadcast picture quality in realtime. Because these functions are in hardware on the card, they are available full time, all the time—with no CPU load. Such conversions are useful for cost effective monitoring, making standard definition dubs of an HD project, or upconverting from a standard definition project to an HD deliverable.

• 16 channels of SDI embedded digital audio

KONA 4/3G supports 8-channel 24-bit 48kHz AES audio via BNC connections on the supplied breakout cable—or with the optional K3G-Box,16-channels of AES audio.

KONA 4/3G’s high-quality input sample-rate conversion on AES inputs eliminates the need for audio source synchronization. Sample rate converters auto-lock to any AES input, 32-96kHz, and then convert it to 24-bit 48kHZ audio, locked to internal KONA 4/3G video. Sample rate conversion is done at very high quality (over 120db THD).

supplied breakout cable)

• LTC (longitudinal timecode) input/output

In 4K Mode, KONA 4/3G offers 4K capture and playback in both YCbCr and RGB.

When using a capture application that supports 4K geometry, the KONA 4/3G maps connectors SDI1 through SDI 4 as inputs for 4K video.

KONA v12.5

www.aja.com

Page 9

When 4K playout in Quadrant mode is selected, the four SDI connectors are remapped as outputs for driving the four quadrants of a 4K display. A large number of 4K formats are supported for this workflow; see the specifications ( for supported 4K formats. For a description of Two Sample Interleave output mapping, see

“2SI Mode” on page 68.

“KONA 4 Specifications” on page 81)

Internal HD/SD Hardware

Downstream Keyer

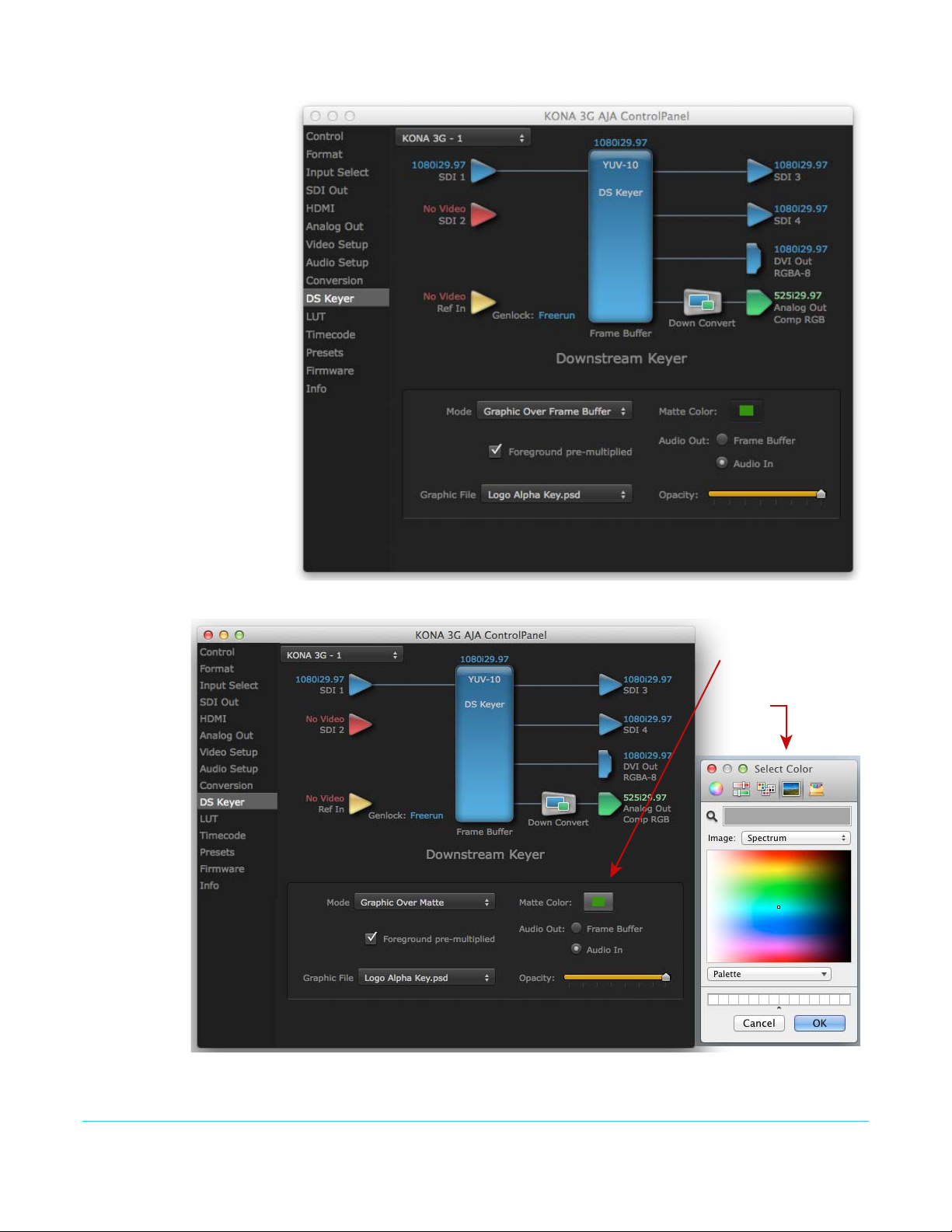

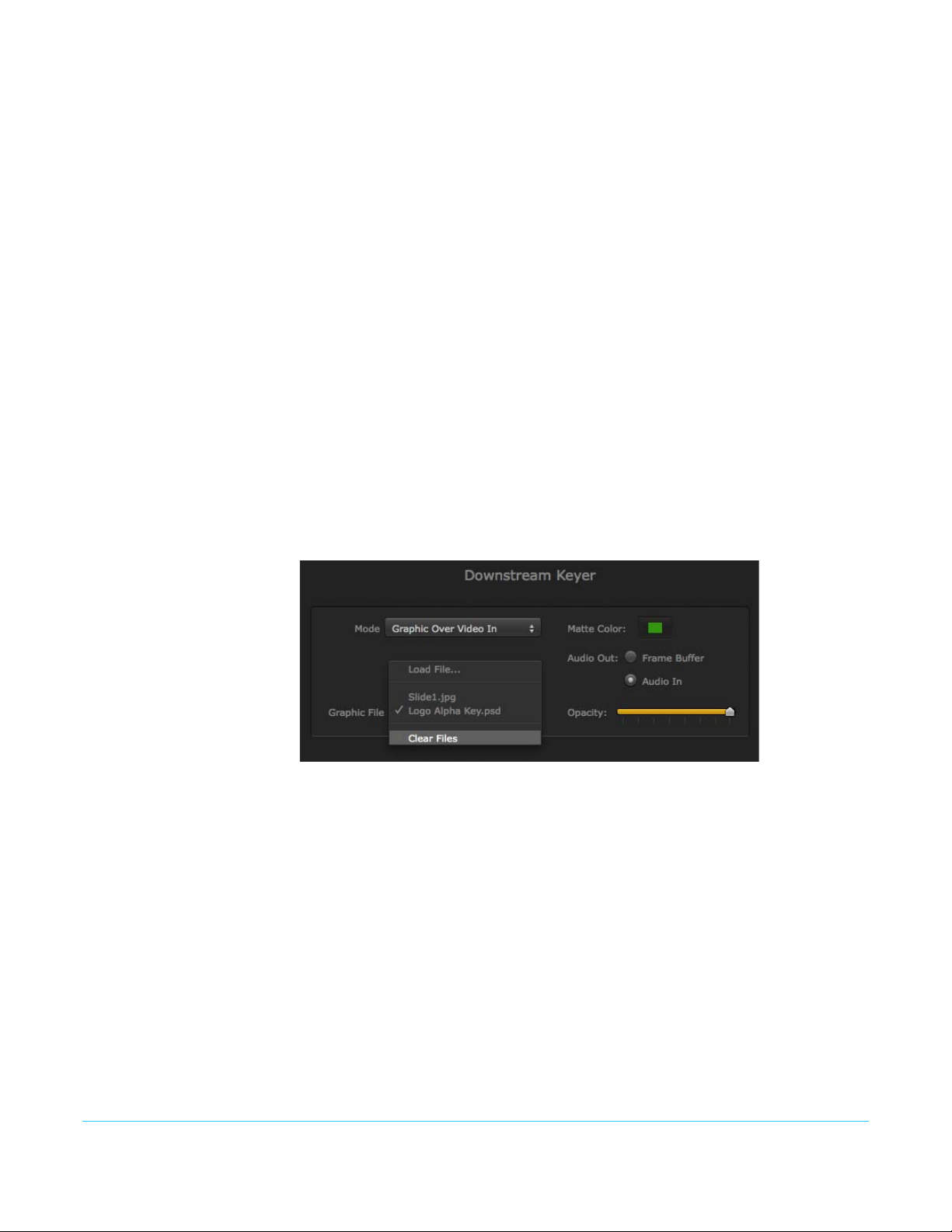

KONA 4/3G provides a powerful hardware keyer that can place graphic files with an alpha channel over video in a selectable matte or the contents of the card's framebuffer from a software application (including AJA TV). Key a bug or text over picture and avoid what might normally be a lengthy software render. Also, working with these software applications, you can key video that has an alpha-channel over video input or a matte. For example, you can load a QuickTime clip that has an alpha-channel (a flying logo generated in the Animation codec) into AJA TV and then place it over live video coming into the card and then passing both on to a VTR for recording or broadcast.

KONA LHe Plus Features

The KONA LHe Plus card offers a large number of unique features for optimum quality, ease of use, and support for a wide variety of workflows and environments. KONA LHe Plus provides flexible standard definition and high definition capture and playback, a hardware down-converter for working in mixed SD/HD environments—and it supports both analog and digital audio/video I/O.

Video I/O • 10-bit uncompressed SD/HD QuickTime capture card

• 12-bit HD Analog Component I/O

• 12-bit SD Analog Component/Composite/S-Video I/O

• One SDI or HD-SDI Input

• Two independent SDI/HD-SDI outputs

Conversion • Broadcast quality hardware-based 10-bit down-conversion

Audio I/O • 2-channel analog balanced XLR audio I/O

• 2-channel AES XLR audio I/O

• 8-channel SDI embedded audio I/O

Signal Timing • HD/SD genlock on analog video inputs

Cabling • Cables standard

• Optional KL-box Breakout Box—provides rack mounting and flexible easy I/O (KL-box cabling is included with the KL-box). When ordering, specify a KL-box for the KONA LHe Plus since it uses a unique cable.

KONA LHe Plus Audio KONA LHe Plus supports two-channel 24-bit 48kHz AES audio via XLR connections, and

eight-channel embedded 24-bit 48kHz audio over the same single SDI connection as the video. If you are using a digital deck—you’ll have the proper connections to the deck.

For analog audio, KONA LHe Plus provides two-channel balanced audio input and output. If you purchase the optional KL-Box breakout box, you also get two-channel unbalanced audio output (RCA jacks).

KONA LHe Plus also features AES input sample rate conversion; this feature eliminates the requirement for audio source synchronization. Sample rate converters auto-lock to any AES input, 32-96KHz, and then convert it to 24 bit 48KHz audio, perfectly locked to internal KONA LHe Plus video. Sample rate conversion is done at very high quality (over 120db THD).

KONA v12.5

www.aja.com

Page 10

KONA LHi Features

Video I/O • 10-bit uncompressed QuickTime capture card

Conversion • Broadcast quality hardware-based 10-bit down-conversion

Audio I/O • 2-channel analog balanced XLR audio I/O

The KONA LHi card offers a large number of unique features for optimum quality, ease of use, and support for a wide variety of workflows and environments. KONA LHi provides flexible standard definition and high definition capture and playback, a hardware-based converter for working in mixed SD/HD environments—and it supports both analog and digital audio/video I/O—including HDMI.

• 3G/HD/SD SDI I/O

• HDMI v1.3a w/Deep Color at 30 bits per pixel input/output

• 12-bit SD and HD Analog Component/Composite/S-Video I/O

• Broadcast quality hardware based 10-bit up-conversion

• Broadcast quality hardware based 10-bit cross-conversion (1080 to 720 and 720 to

1080)

• Broadcast quality hardware based 10-bit SD aspect ratio conversion (anamorphic to letterbox, etc.)

• 2-channel AES XLR audio I/O

• 8-channel SDI embedded audio I/O

Signal Timing • HD/SD genlock on analog video inputs

Cabling • Cables standard

KONA LHi Audio KONA LHi supports 2-channel 24-bit 48kHz or 96kHz AES audio via XLR connections, and

KONA IP Features

• LTC Input (on Reference input)

• Optional KLHi-box Breakout Box—provides rack mounting and flexible easy I/O (KLHi-box cabling is included with the KLHi-box).

8 channel embedded 24 bit 48kHz audio over HDMI or the same single SDI connection as the video. If you are using a digital deck—you’ll have the proper connections to the deck.

For analog audio, KONA LHi provides two-channel balanced audio input and output. If you purchase the optional KLHi-Box breakout box, you also get two-channel unbalanced audio output (RCA jacks).

KONA LHi also features AES input sample rate conversion; this feature eliminates the requirement for audio source synchronization. Sample rate converters auto-lock to any AES or HDMI input, 32-96KHz, and then convert it to 24 bit 48KHz audio, perfectly locked to internal KONA LHi video. Sample rate conversion is done at very high quality (over 120db THD). (HDMI audio can be 20 to 24 bit and will be saved as 24 bit samples.)

KONA IP is desktop video and audio I/O for professional IP-based workflows. KONA IP is the next generation of AJA’s industry-leading KONA line of PCIe capture and playback cards, and works with AJA's Control Room, Control Panel software and SDK tools, providing support for leading third party content creation applications. Designed as a flexible platform with support for SMPTE 2022-6/7 uncompressed IP video needs, KONA IP offers you the flexibility to keep current as the IP transition proceeds.

KONA v12.5

www.aja.com

Page 11

Operating Systems

Supported

NOTE: See the AJA Driver Release Notes, available on the AJA website and also installed with the

Video Formats • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

Physical Connection for IP

Video

Inputs and Outputs • Retail package configured by default with 2 inputs and 2 outputs on the top SFP

Video Output Digital • HDMI 1.4a output

•Mac

•Windows

•Linux

driver, for the exact OS versions supported.

• (HD) 1080PsF 23.98, 24, 25, 29.97, 30

• (HD) 1080i 25, 29.97

• (HD) 720P 50, 59.94, 60

• (SD) 625i 25

• (SD) 525i 29.97

• 2 x 10 Gb Ethernet SFP+ Cages - SFP+ modules not included.

For a list of 10GbE SFP+ modules tested by AJA, use the link below:

www.aja.com/en/products/kona-ip#techspecs

• SDK can support any input or output configuration up to 4 streams and up to 10 Gb in any direction over one link

• 30/36 bits/pixel, RGB or YUV, 2.25 Gbps

•HD/SD

Digital Audio Input • 16-Channel embedded audio

Digital Audio Output • 16-Channel embedded audio, 24-bit per channel, 48 kHz sample rate, synchronous

Signal Timing • 1 x BNC assignable to reference video or LTC input

Internal HD/SD Hardware

Downstream Keyer

Cable Connections

KONA LHi and LHe Plus Connectors

• 8-Channel HDMI embedded audio, 48 kHz sample rate, synchronous

KONA IP provides a powerful hardware keyer that can place graphic files with an alpha channel over video in a selectable matte or the contents of the card's framebuffer from a software application (including AJA TV). Key a bug or text over picture and avoid what might normally be a lengthy software render. Also, working with these software applications, you can key video that has an alpha-channel over video input or a matte. For example, you can load a QuickTime clip that has an alpha-channel (a flying logo generated in the Animation codec) into AJA TV and then place it over live video coming into the card and then passing both on to a VTR for recording or broadcast.

KONA offers unsurpassed cable connectivity for a video/audio capture card. Connections are made via the breakout cable (included with the card) and connectors mounted on the KONA Card endplate. These connectors, for all three KONA models, are illustrated on the following pages.

The Breakout cable used for both KONA LHi and LHe Plus models provides:

• Reference Input (BNC connector)

KONA v12.5

www.aja.com

Page 12

• Component/Composite/S Video Input (3x BNC)

• Component/Composite/S Video Output (3x BNC)

• AES In (2x XLR)

•AES Out (2x XLR)

• Balanced Audio In (2x XLR)

• Balanced Audio Out (2x XLR)

• RS-422 Machine Control (9-pin)

LHi Endplate Connectors on the KONA LHi card endplate additionally provide:

• Standard-definition or High-definition SDI input (1 BNC) and output (1 BNC)

• HDMI input and output (2x HDMI mini-connectors)

LHe Plus Endplate The KONA LHe Plus endplate provides one BNC for SDI/SDI HD input and two

independent SDI/SDI HD output BNC’s.

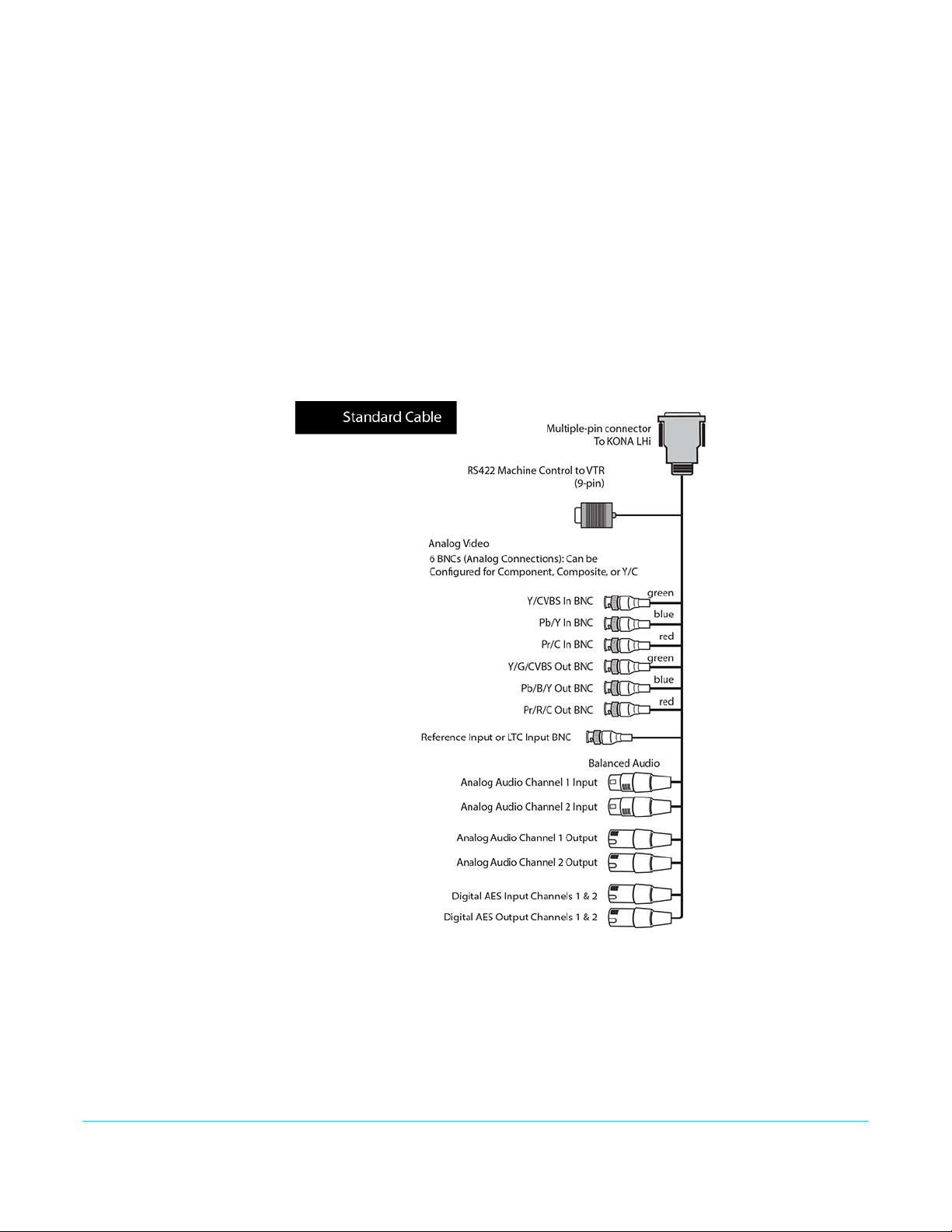

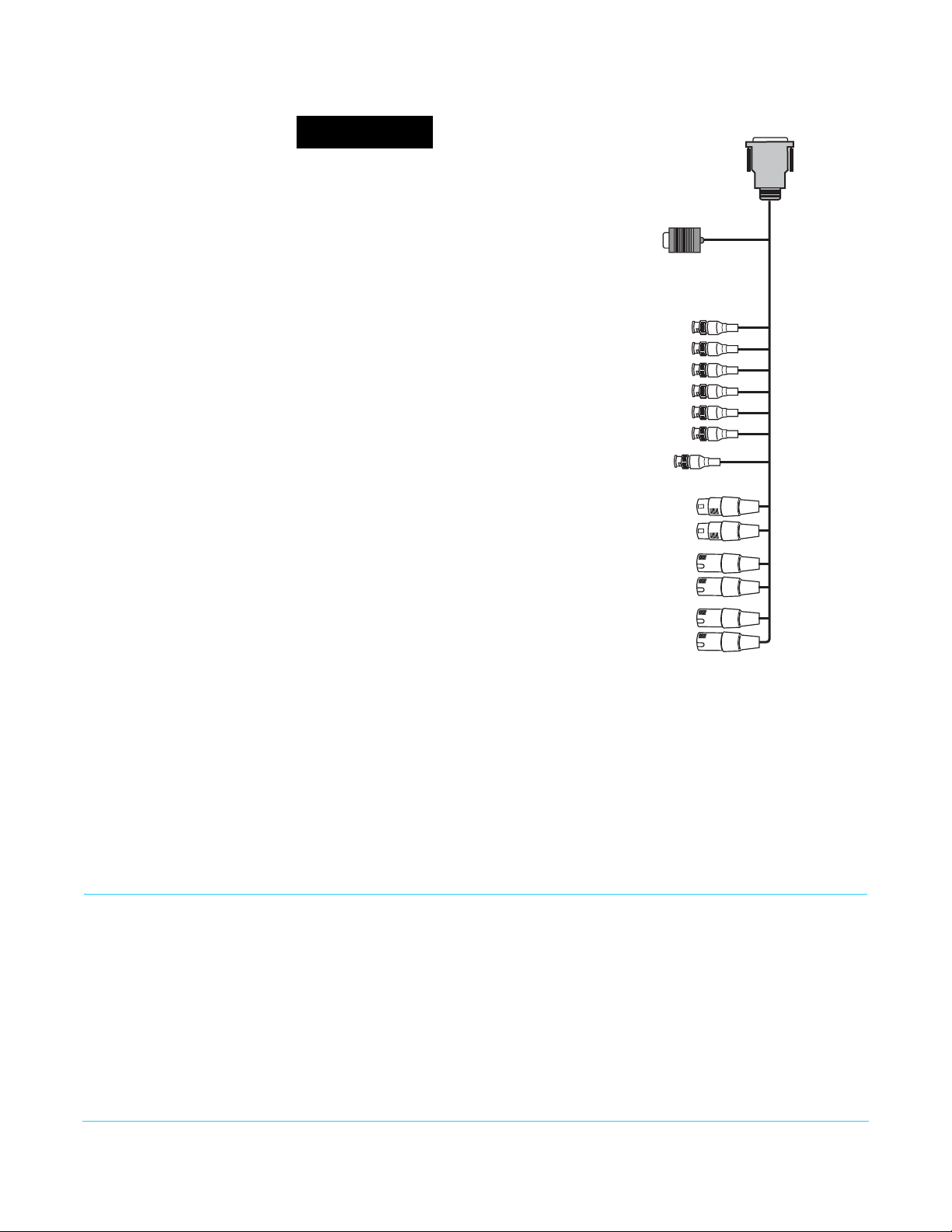

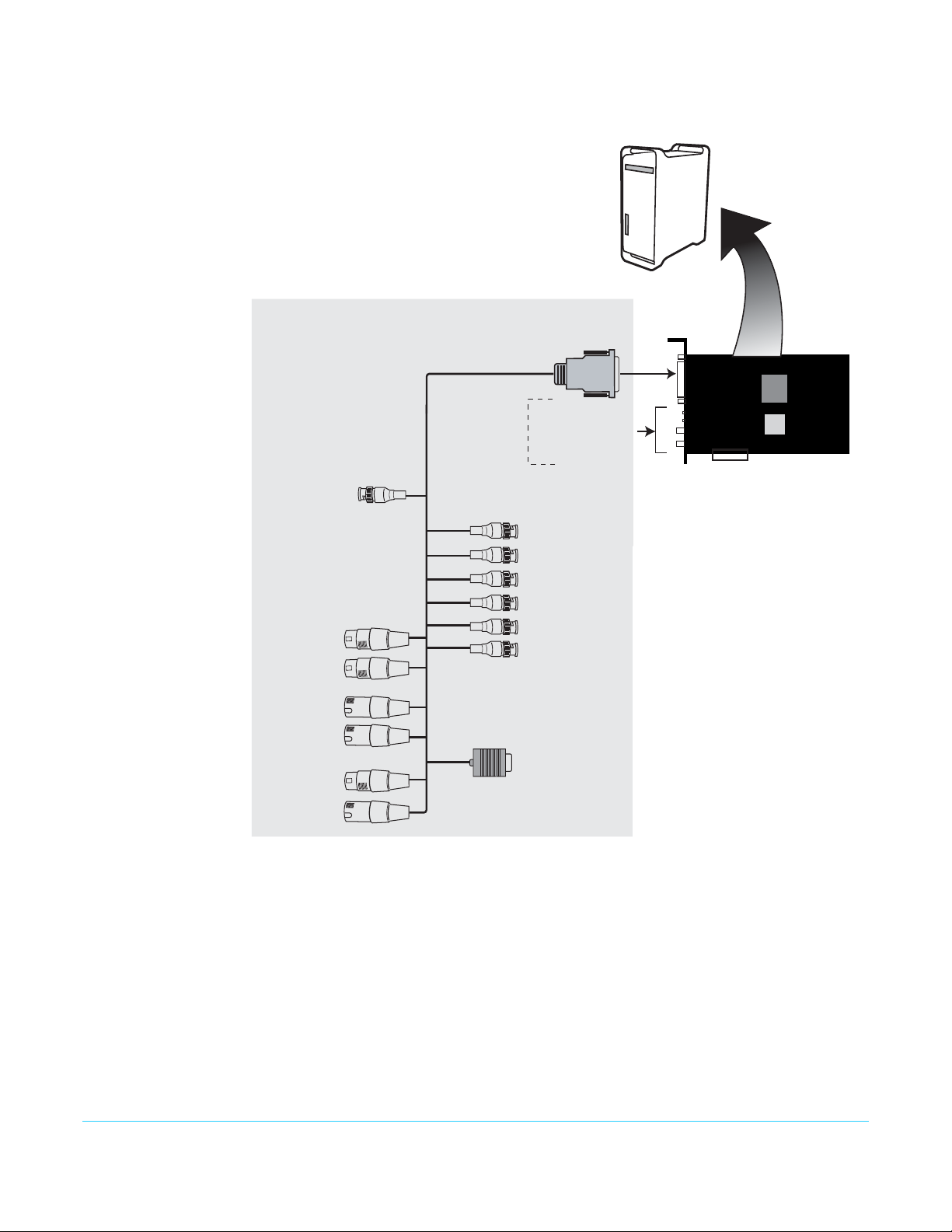

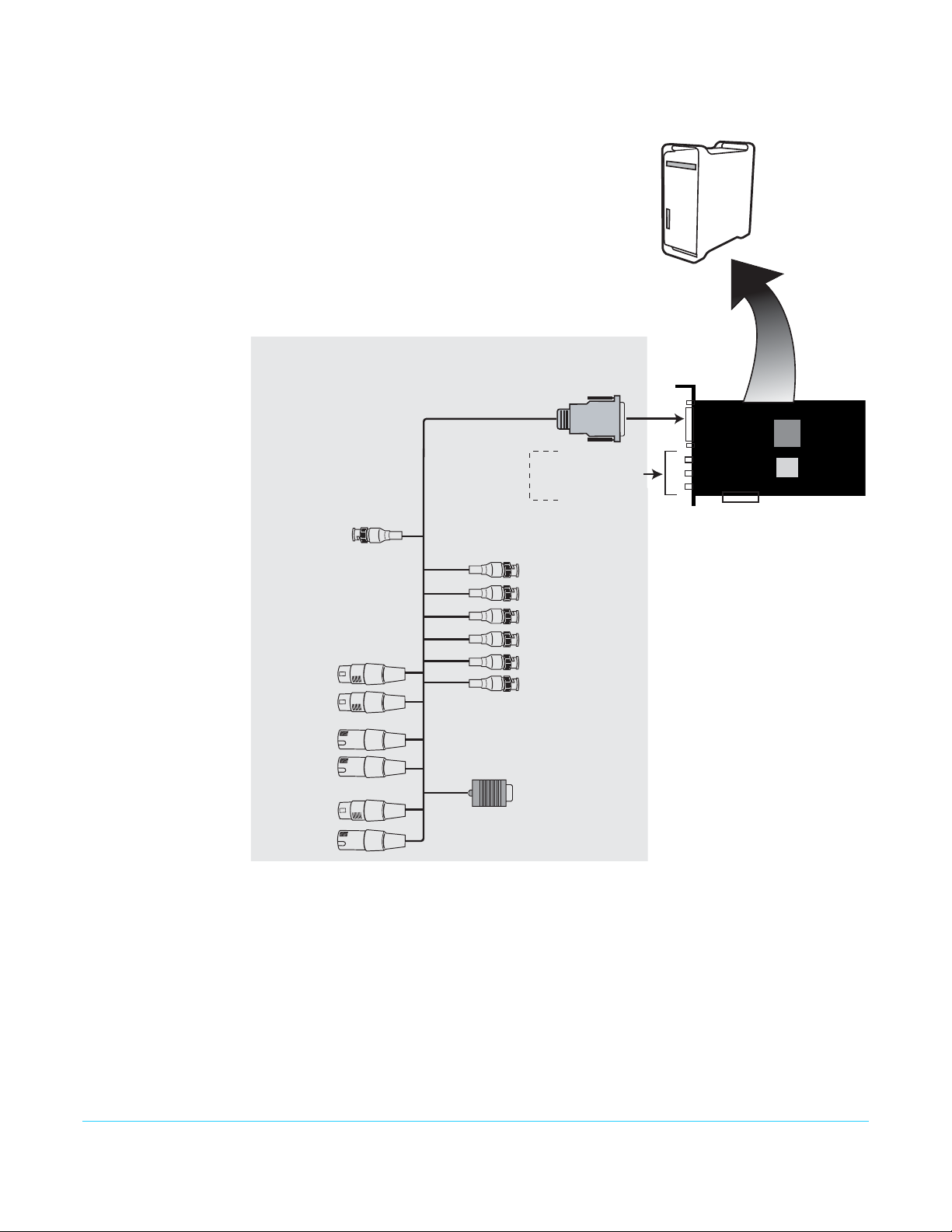

Figure 1. Breakout Cables for LHe Plus and LHi Models

KONA 4/3G Connectors

KONA v12.5

KONA 4/3G provides complete I/O connectivity choices in two multi-signal breakout cables and one HDMI-to-HDMI mini output cable. One multi-signal cable provides AES/ EBU digital BNC connections and analog video monitoring connections. The other has 4 mini-connectors on one end and 4 BNCs on the other providing SDI connections. Cable connections are marked on both the KONA card endplate and on the cable connectors for easy identification.

www.aja.com

Page 13

4-mini BNCs

to 4 standard

BNCs

Reference Input BNC

HDMI Output (1)

RS422 Machine Control to VTR

(9-pin)

SDI Out1/Link A BNC

SDI Out2/Link B BNC

SDI In1/Link A BNC

SDI In2/Link B BNC

Digital AES

Audio Input BNCs

Channels 1-8

Digital AES

Audio Output BNCs

Channels 1-8

LTC Input BNC

LTC Output BNC

SDI

KONA 4/3G

end-plate

3 BNCs (Analog Connections):

Output SD:

Component, Composite, or S-Video

Output HD: Component or RGB

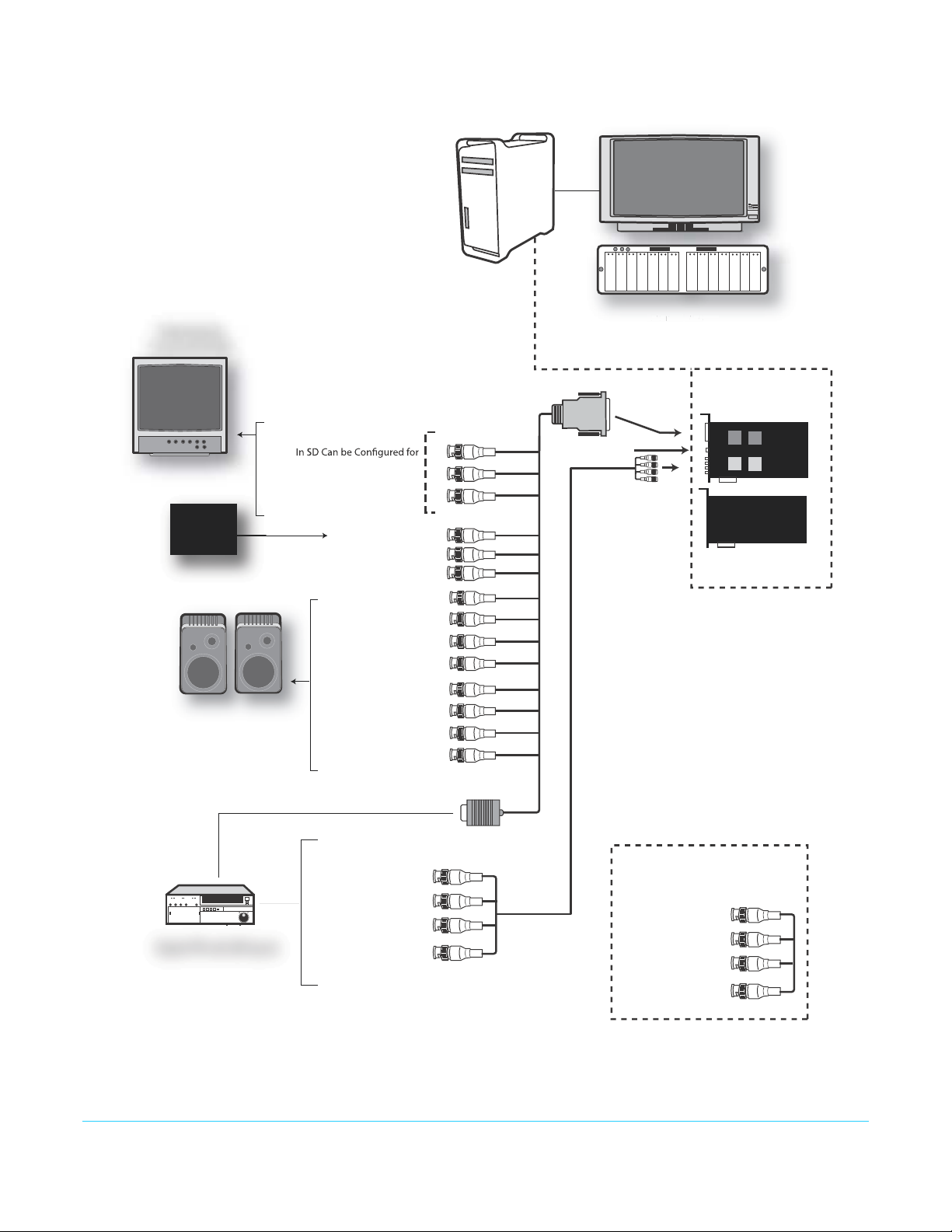

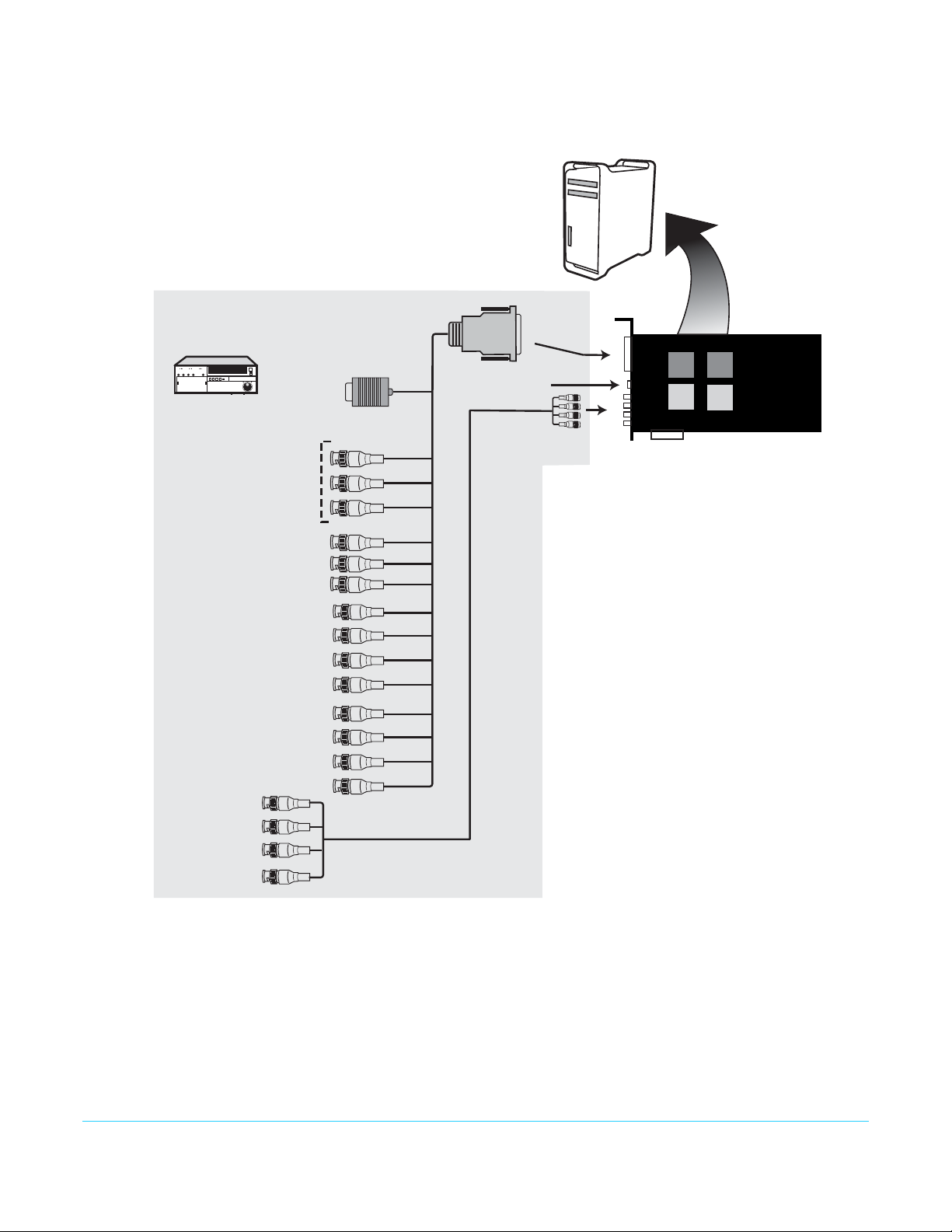

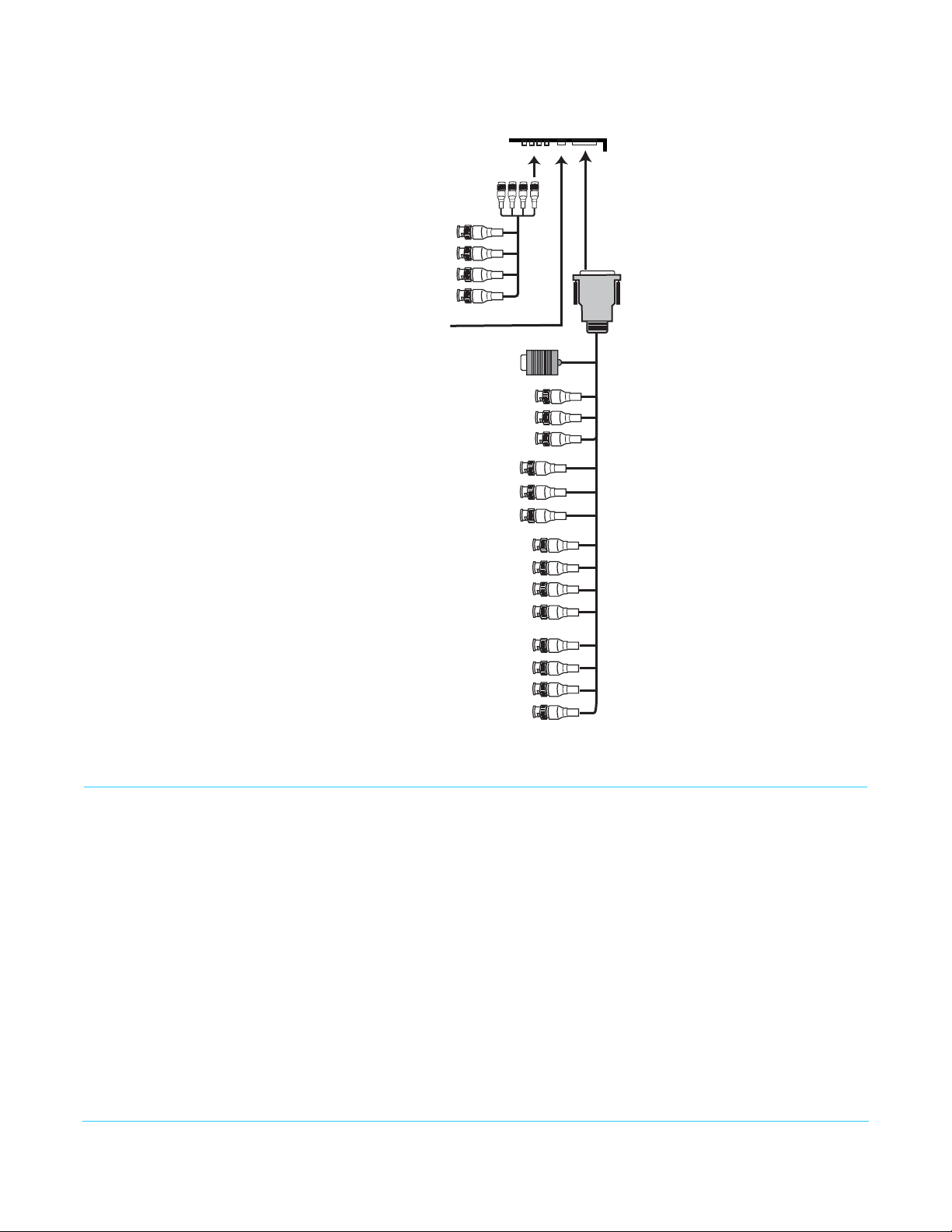

Figure 2. KONA 4/3G Breakout Cables

Using Breakout Boxes

KONA KL-Box for LHe Plus

The KONA product line offers two optional 19” 1RU rack-mountable breakout boxes that attach to the KONA card via cables that connect to the back of the Box. These cables are supplied with the Box. The breakout boxes offer the same inputs and outputs as the standard breakout cables and more. Breakout boxes can be easily rack mounted or placed on top of a broadcast monitor or editing desk.

The KONA KL-Box is connected via one 60-pin to 60-pin, and one 3-BNC to 3-BNC cable. When you purchase the KL-Box, you get two-channel unbalanced audio output (2 RCA Jacks) not available with the standard cable. When ordering a KL-Box, specify the KONA card model you’ll be using the KL box with to ensure you get the proper cable set.

KONA v12.5

www.aja.com

Page 14

Reference

(loop)

Output

Channels 1 & 2

Component

Video Out

Digital

Out

RS422

Machine

Control

External

Reference

(loop)

Analog Audio

Output

Balanced Audio In

Channels 1 & 2

Balanced Audio Out

Channels 1 & 2

Composite/

Component

Video In

Composite/

Component

Video Out

AES/EBU Audio

In and Out

Serial

Digital

Serial

Digital

Out

RS422

Machine

Control

External

Ref. or LTC

(loop)

Analog

Audio

Output

Balanced Audio In

Channels 1 & 2

Balanced Audio Out

Channels 1 & 2

Composite/

Component

Video In

Composite/

Component

Video Out

AES/EBU Audio

In and Out

SDI

SDI Out

HDMI v1.3a

Out

HDMI v1.3a

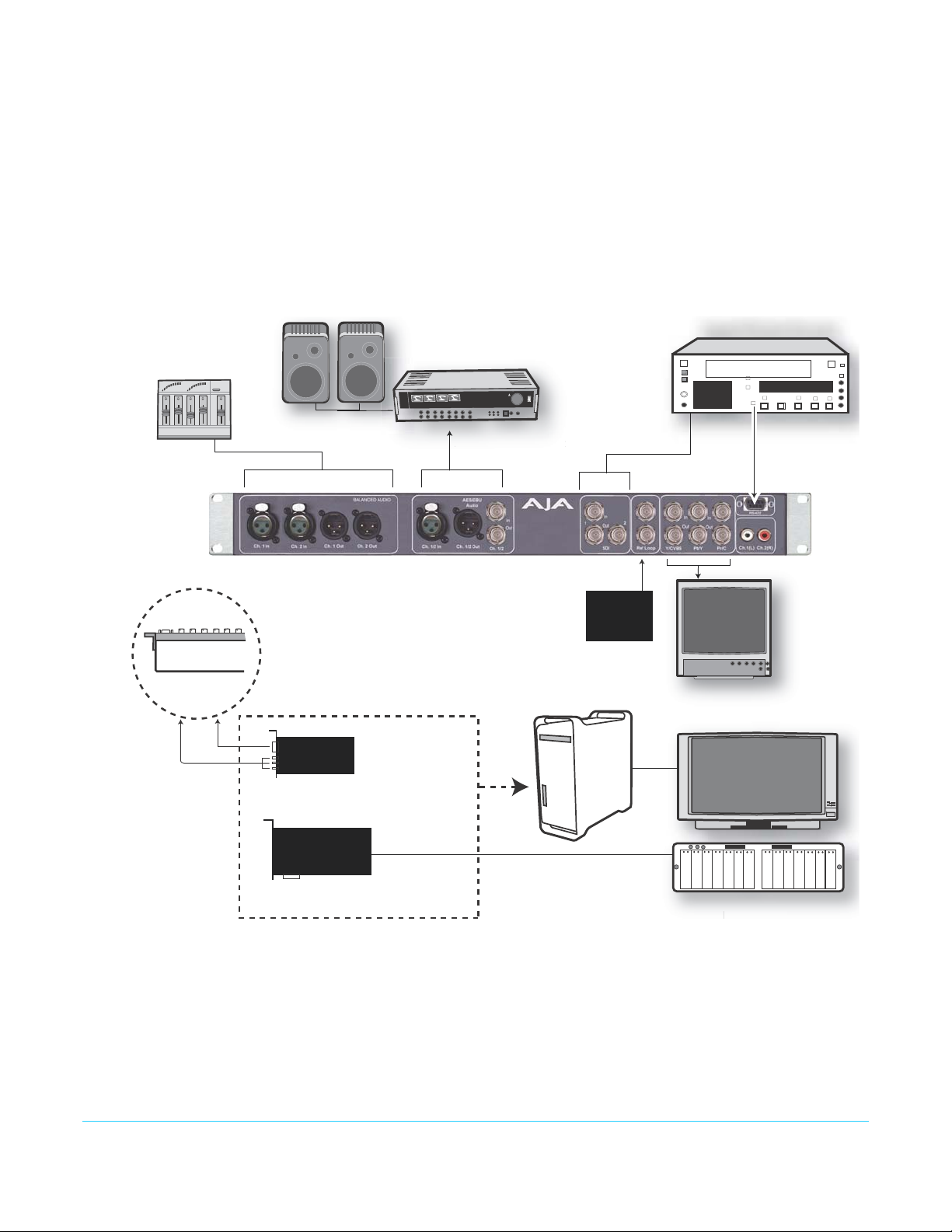

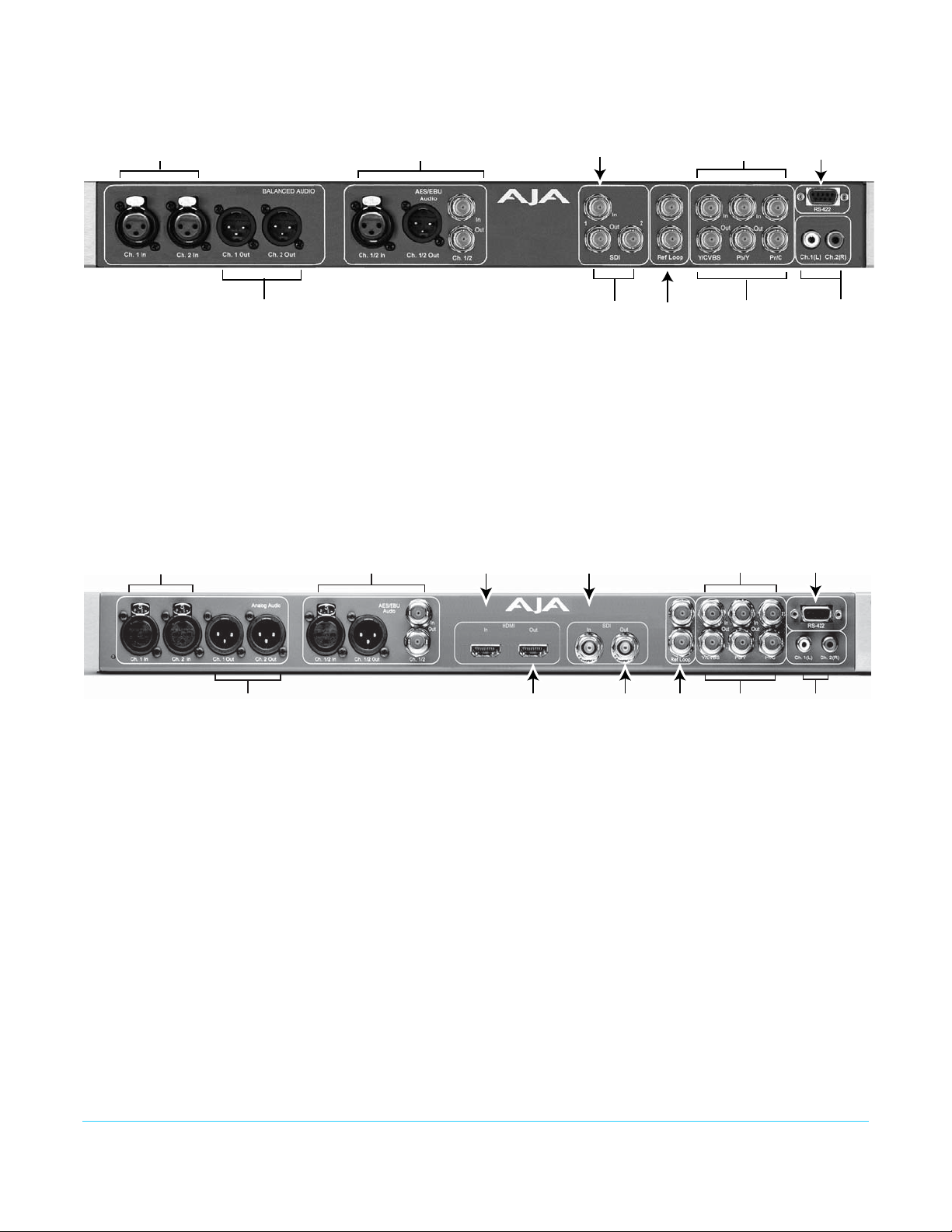

Figure 3. KL-Box Model Breakout Box

KONA KLHi-Box The KONA KLHi-Box offers the same connections as the KL-Box except a single connector

is provided for the following: SDI input, SDI output, HDMI v1.3a input, and HDMI v1.3a output.

NOTE: The HDMI connectors on the breakout box are full-size, not mini as on the LHi endplate

K3G-Box for KONA 4 & 3G

Figure 4. KLHi-Box Model Breakout Box.

The K3G-Box for KONA 4 and 3G offers convenient connector access and additional functionality including simultaneous BNC AES output, 2-channel RCA analog audio monitoring, and looping BNC connection for Genlock reference and LTC timecode. If you’re using a digital Betacam deck, HDCAM, DVCPRO HD, D5, D9 or even an HDCAM SR, you’ll have the proper connections.

KONA v12.5

www.aja.com

Page 15

RS422

Machine

Control

Longitudinal

Time Code

(LTC)

External

Reference

(loop)

Video Monitor Out

Component/

Composite

Video Output

Analog Audio

Output

AES/EBU Audio In

Channels 1 through 16

All AES/EBU audio connectors have two channels

per connector

SDI Ports 1 through 4AES/EBU Audio Out

Channels 1 through 16

HDMI

Out

HDMI Output

from KONA 3G

mini-HDMI connector

KONA 3G

Host

Connector

SDI Ports 1 through 4

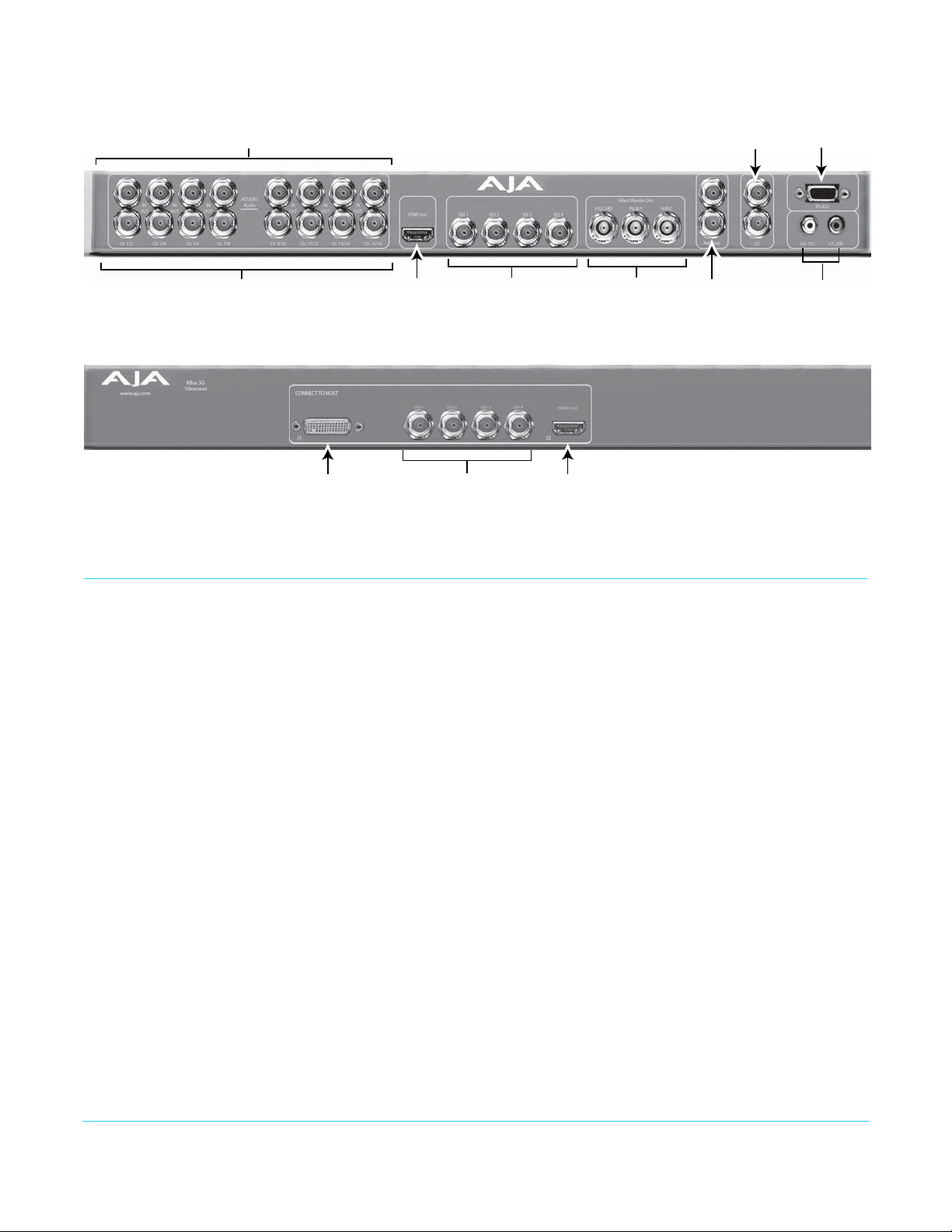

Figure 5. K3G-Box Model Breakout Box (front & rear view)

Detailed Connector Descriptions

LHe Plus/LHi Connectors

SDI Input and Outputs BNC connectors are provided on the KONA LHe and LHi card endplates for one SD-SDI or

HDMI Input and Output Two HDMI mini-connectors on the LHi endplate (full-size HDMI connectors on the KLHi

2-Channel Digital AES/EBU

Audio Inputs And Outputs

NOTE: AES XLR connections are digital and cannot be used with analog equipment having XLR

Connectors on the standard cable set are labeled by their function for easy installation and maintenance. Connectors on the optional KL-Box are similarly labeled

HD-SDI input. The LHe Plus has two, and LHi has one SDI output (format independent of the input). The SDI input and outputs support video and embedded 24-bit digital audio. Use SDI wherever possible for the best quality 10-bit uncompressed video input, capture and output. If peripheral equipment has a variety of inputs/outputs, look to see if it has SDI I/O, and use it where possible. Most high-end professional broadcast equipment supports SDI (VTRs, cameras, media storage servers, etc.).

Box) provide for input and output of HDMI compatible video (version 1.1) and multichannel embedded audio (8 channels). HDCP is not supported on either input or output. The LHi’s HDMI output does not have HDCP, and input sources having HDCP are not supported. The HDMI input is designed to support long cable runs—up to 100 ft. when using 22 or 24AWG HDMI cable, or up to 50 ft. using 28 or 30AWG HDMI cable. The HDMI output supports standard HDMI cables only.

One female XLR connector is provided for the channel 1 and 2 inputs, while a male XLR connector carries channel 1 and 2 outputs. AES/EBU signals are handled internally as 24bit digital.The optional KL-Box also provides XLR audio connections on the front panel.

connectors.

KONA v12.5

www.aja.com

Page 16

Analog 2-Channel Balanced

Audio

Unbalanced Audio on KL-

RS-422 Machine Control A female DE-9 connector on the LHi/LHe Plus breakout cable provides connection for

KONA 4/3G to K3GBox Connectors

8-Channel Digital AES/EBU

Audio I/O

Two sets of analog XLR connectors, one for each channel, support balanced audio connections. Male XLRs are provided for outputs and female XLRs are provided for inputs. Balanced audio (differential) connections provide better analog audio quality over longer cable runs. Most professional quality VTRs and audio equipment have XLR style connectors for analog audio. Analog audio signals are converted internally to 24-bit digital.

On the KL-Box are two analog output connectors, one for each channel. These

Box

connectors are RCA-style phono jacks.

VTRs, camcorders, disk media servers, and other devices using RS-422 SMPTE (Sony) protocol. This RS-422 connector is also present on the optional KL-Box (connector pinout is

Sony 9-pin protocol).

Connectors on the standard cable set are labeled for their function for easy installation and maintenance. Connectors on the optional K3G-Box (breakout box) are similarly labeled.

When using the standard cables, BNC connections are provided for AES/EBU audio input/ output. Four BNC connectors are provided for audio input and four for audio output. Each BNC carries two channels. The connectors are labeled for input/output and channels.

The optional K3G-Box provides BNC audio connections on the front panel for 16channels of audio input and output.

Unbalanced Audio on K3G-

RS-422 Machine Control A female DE-9 connector provides connection for VTRs, camcorders, disk media servers,

SDI Inputs & Outputs On the KONA 4/3G card, mini-connectors are provided for bi-directional SDI inputs and

HDMI Output An HDMI mini-connector on the KONA4/3G endplate (full-size HDMI connectors on the

On the K3G breakout box are two analog output connectors, one for each channel. These

Box

connectors are RCA-style phono jacks.

and other devices using RS-422 SMPTE (Sony) protocol. This connector is present on both the general I/O cables and the optional K3G-Box (connector pinout is

outputs for Single Link, Dual Link or 4K/UHD I/O. A cable with four Mini-connectors on one end and four BNCs on the other end is provided for connecting equipment to the SDI inputs and outputs.

In Standard mode, KONA 4/3G offers four video outputs altogether:

• two SDI outputs that are used for both High- and Standard-definition (SD/HD-SDI)

• two monitor outputs (discussed later), one component analog and one HDMI 1.4a.

Each of the four outputs is independently switchable between HD and SD. For example, if you are working in HD, you can have simultaneous HD-SDI, SD-SDI, and HD-component analog output.

SDI inputs and outputs support video and 8-channel embedded 24-bit digital audio. Use SDI wherever possible for the best quality 10-bit uncompressed video input, capture, and output. If peripheral equipment has a variety of inputs/outputs, look to see if it has SDI I/ O, and use it wherever possible. Most high-end professional broadcast equipment supports SDI (VTRs, cameras, media storage servers, etc.).

K3G-Box) provides HDMI 1.4 capability, supporting 4K up to 24fps and UHD at up to 60 fps.

Sony 9-pin protocol.)

KONA v12.5

NOTE: KONA 3G supports SD and HD over HDMI. KONA 4 supports UHD and 4K over HDMI.

www.aja.com

Page 17

HDMI also supports multi-channel embedded audio (8 channels). HDCP is not supported on the output.

Analog Monitor Out puts Both the standard I/O cable and the optional K3G-Box feature two groups of three BNC

connectors each, for input and output of component, composite and Y/C functions. The signals are labeled on both the cable and K3G-Box connectors.

The analog component output can be switched between SD and HD. KONA 4/3G features 12-bit component video output for both HD and SD. SD can be switched to composite and Y/C. (The same three BNC connectors share component and Y/C functions.) This allows use of an inexpensive analog monitor for both HD and SD work. You can even use a composite video monitor. For Dual Link HD-SDI output, HD or SD can be monitored through the component output. Dual Link HD can be output as 4:4:4 RGB.

Component video signals are generally higher quality than composite, but not as highquality as serial digital (SDI).

NOTE: About RGB: Although RGB is used less in today’s video systems, KONA 4/3G supports it for A/V

Monitor output. However, because the KONA 4/3G (and SMPTE SDI’s) native format is YPbPr, AJA recommends using YPbPr when the monitor supports it. The YPbPr format provides “headroom” for “superwhite” and superblack”—and these video levels will be clipped when transcoding to RGB. Also, the RGB/YPbPr transcoding involves a level translation that results in mathematical round-off error. RGB can be configured in the Playout setup panel of the specific application you are using with KONA 4/3G.

NOTE: About YPbPr: KONA 4/3G supports three different types of YPbPr:

•SMPTE/EBU N10

• Betacam (NTSC)

• Betacam (NTSC-J [Japan]).

These three formats differ in level only and can be configured in the Playout setup panel of the specific application you are using with KONA 4/3G.

Reference Video A single BNC on the standard KONA cable—or two BNC connectors on the K3G-Box

(looping)—allow you to synchronize KONA outputs to your house analog reference video signal (or black burst). If you have a sync generator or central piece of video equipment to use for synchronizing other video equipment in your studio, connect its analog composite output here. When KONA outputs video, it locks to this reference signal. When connecting a reference video source, the locking signal should be the same format as the Primary format selected in KONA software. It is possible in some circumstances to use an alternate format video signal if the basic frame rate is compatible.

KONA IP Connectors KONA IP provides SFP+ cages for 10GbE connectivity, rather than the DIN connectors

found on KONA 3G and KONA 4.

SFP Cages and Modules Two SFP+ cages are provided to connect two separate 10 Gigabit Ethernet Links. Both

links are bi-directional. Inputs and outputs for most uses will be set up over the same link if bandwidth allows it. In this first version of KONA IP, SMPTE 2022-6/7 is supported for input and output. Up to four total streams of SD or HD each with 16 audio channels and Metadata may be input or output at a time, and can be configured in the AJA Control Panel, which is detailed later in this manual. Transport Methods other than SMPTE 20226/7 may become available in the future.

KONA v12.5

For a list of 10GbE SFP+ modules tested by AJA, use the link below:

www.aja.com/en/products/kona-ip#techspecs

www.aja.com

Page 18

HDMI Output A full-size HDMI connector on the KONA IP endplate provides HDMI 1.4 capability.

NOTE: KONA IP supports SD and HD over HDMI.

HDMI also supports multi-channel embedded audio (8 channels). HDCP is not supported on the output.

Reference Video A single BNC on the KONA IP endplate allows you to synchronize KONA outputs to your

house analog reference video signal (or black burst). If you have a sync generator or central piece of video equipment to use for synchronizing other video equipment in your studio, connect its analog composite output here. When KONA outputs video, it locks to this reference signal. When connecting a reference video source, the locking signal should be the same format as the Primary format selected in KONA software. It is possible in some circumstances to use an alternate format video signal if the basic frame rate is compatible. KONA IP can also lock to an incoming SMPTE 2022-6 signal, or it can free run.

KONA v12.5

www.aja.com

Page 19

Chapter 2: Installation

Installation Overview

The installation and set up of a KONA card is very simple. All of the steps of installation and configuration are documented in this chapter, summarized as follows:

Card Placement 3. For the KONA Mac installation, AJA recommends that the card be placed in Slot 3 and

System Test Application

1. Unpack and examine the contents of the shipping box

2. If your computer has previously had another video capture or multimedia card

installed, ensure you remove the card and uninstall any related software before installing the KONA card. This will prevent any hardware or software conflicts.

the Apple Expansion Slot Utility be configured so that the slot is running at x4 lane speed or higher. (The choice of x4, x4, x1 and x16 is ideal.) Refer to the AJA website at:

http://www.aja.com/en/support/kona-system-configuration/

For the most up-to-date Windows system requirements for KONA, consult the AJA website:

http://www.aja.com/en/support/kona-pc-system-configuration/

4. Cable the system audio and video sources, VTR, audio monitor, and video monitor. If

you purchased the optional Breakout Box, then install it into an equipment rack or place it on a desk and connect its cables to the KONA card. If you're instead using the standard cable set, then use those to connect directly to your equipment.

5. Install KONA drivers and plugins.

Each of these steps is discussed in greater detail in the pages of this chapter.

AJA System Test is a utility for measuring system performance with AJA KONA Video Capture cards. It is installed with the KONA Driver. The application includes:

• System Disk Test

• AJA Device Test

• Disk + Device Test

•System Report

KONA v12.5

www.aja.com

Page 20

Unpacking

The application tests Read and Write, Capture and Playback speeds tests in both Megabytes per second and Frames per second. The disk speed tests differ from standard disk I/O performance applications in that they specifically test the system under conditions typically encountered with video capture, playback, and editing.

We suggest the best test is to fill your storage disk to 80% and then test capture at the highest data rate you will use.

Shipping Box Contents

Your KONA shipment includes:

• KONA 4/8-lane PCI-Express card

•KONA I/O cables.

KONA 4/3G Cables If you purchased the KONA 4 or 3G, you will receive this complement of cables:

• Cable, HDMI mini-to-HDMI output

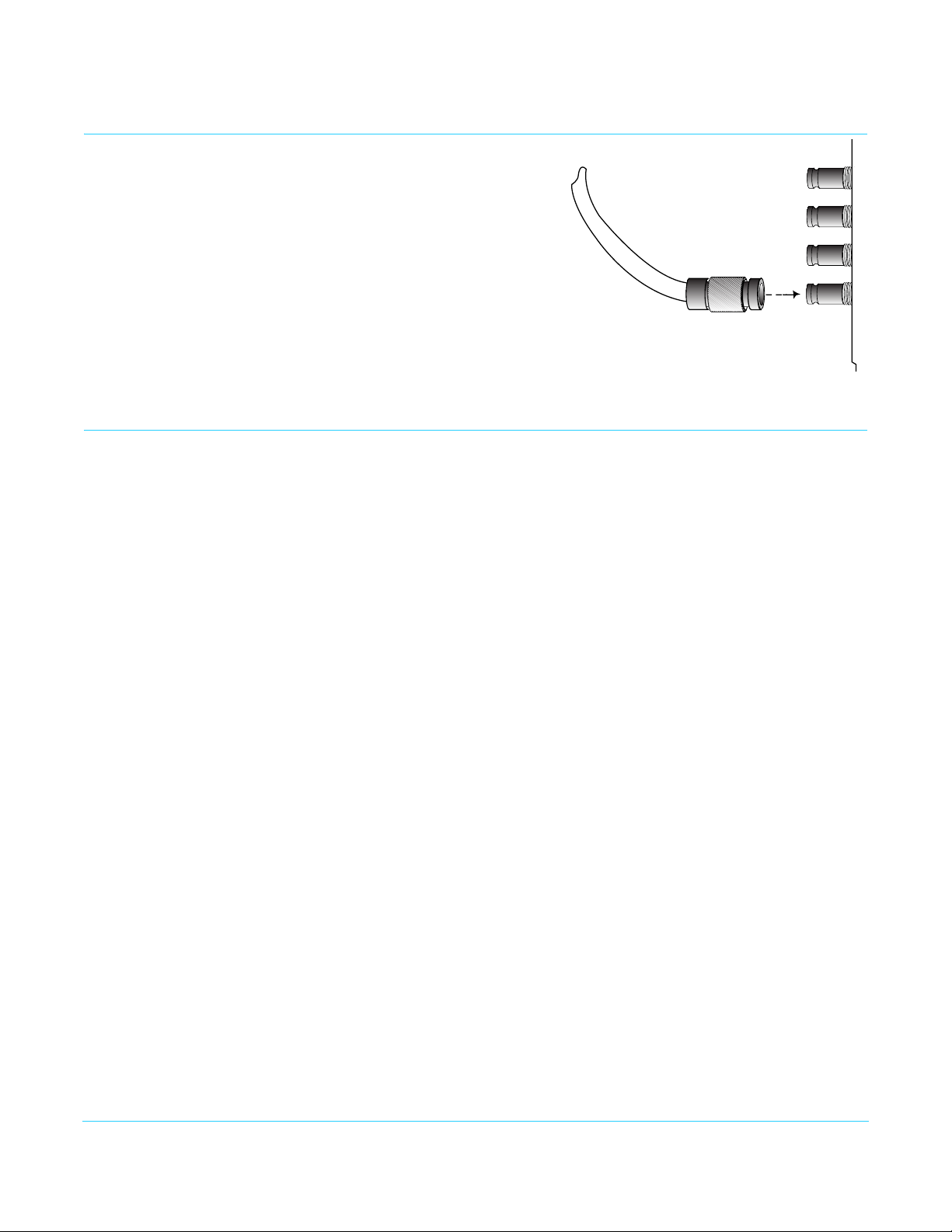

• Cable, KONA 4/3G SDI In/Out—mini-connectors on the card (technically called “1.0/2.3 connectors”) connect to full-size BNCs for ease of use and compatibility with professional equipment.

• Cable, AES BNC digital audio connectors, RS422, and Reference Input.

If you purchased the optional K3G-Box breakout box, it ships with a multi-pin to multipin cable for connecting from the KONA 4 or 3G card to the breakout box. The x4 BNC cable to 1.0/2.3 connectors cable that shipped with the card is also needed interconnect the SDI connectors out of the card to the breakout box. Also, the HDMI cable connects between the KONA 4/3G card and the box rear panel.

KONA v12.5

www.aja.com

Page 21

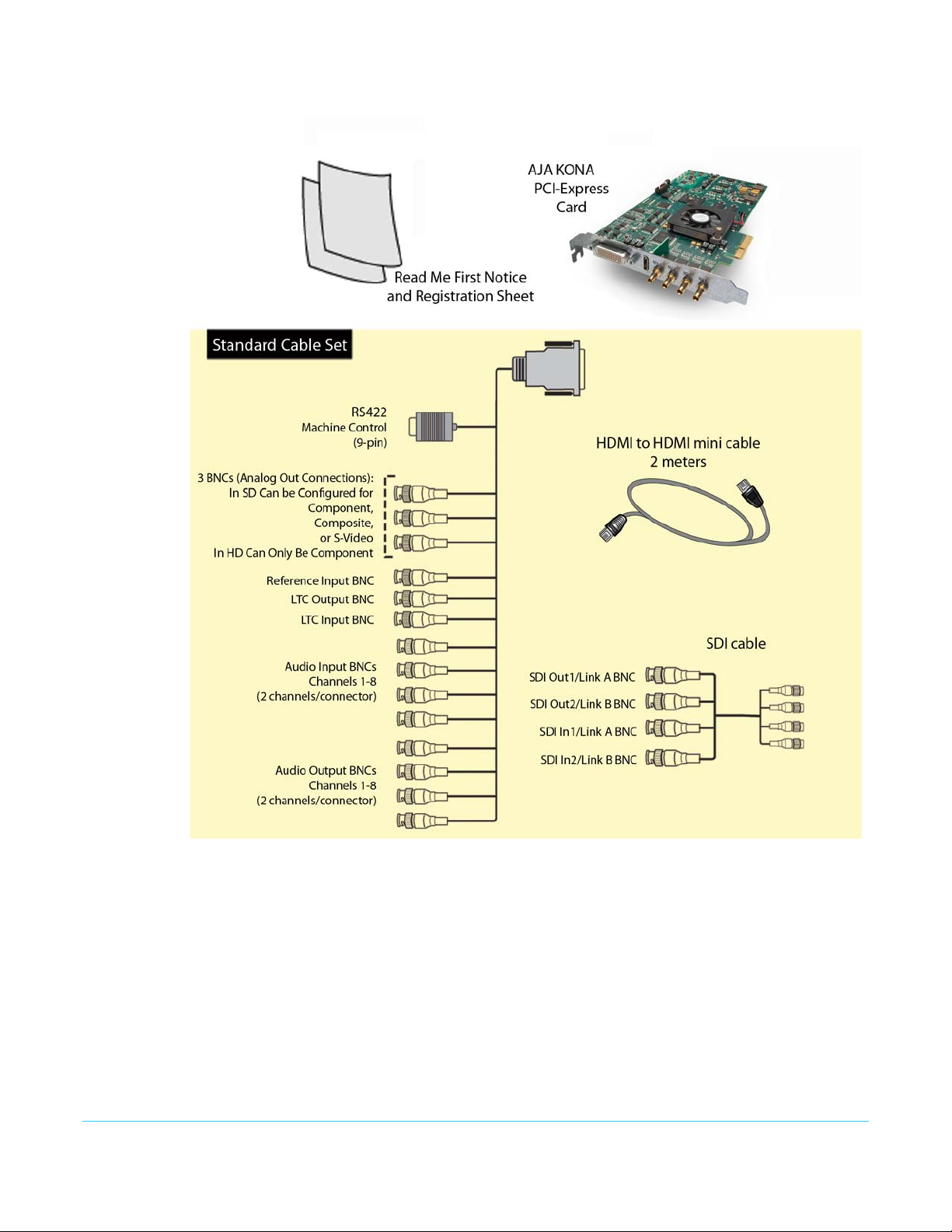

Figure 1. Shipping Box Contents, (KONA 3G contents shown)

KONA v12.5

The KONA LHi and LHe Plus cards use the breakout cable shown below providing XLR balanced audio connectors, an RS-422 9-pin connector, and BNCs for video I/O and reference connection.

www.aja.com

Page 22

Standard Cable

RS422 Machine Control to VTR

(9-pin)

Analog Audio Channel 1 Input

Analog Audio Channel 2 Input

Analog Audio Channel 1 Output

Analog Audio Channel 2 Output

Digital AES Input Channels 1 & 2

Digital AES Output Channels 1 & 2

Multiple-pin connector

To KONA LHi

Y/CVBS In BNC

Pb/Y In BNC

Pr/C In BNC

Y/G/CVBS Out BNC

Pb/B/Y Out BNC

Pr/R/C Out BNC

green

blue

red

green

blue

red

6 BNCs (Analog Connections): Can be Congured for Component, Composite, or Y/C

Reference Input or LTC Input BNC

Balanced Audio

Analog Video

Figure 2. KONA LHe Plus/LHi Breakout Cable

Installing the KONA Card in a MacPro

As you unpack your shipment, carefully examine the contents. Ensure you received everything and that nothing was damaged during shipping. If you find any damage, immediately notify the shipping service and supply them with a complete description of the damage. AJA will repair or replace damaged items. If you find shipping damage, contact your AJA dealer or distributor for details on how to have your KONA card repaired or replaced.

NOTE: Save packing materials and the shipping box. If you ever require service or move your

system—use the packaging materials and box for safe shipment.

1. Place the computer in a well-lit area, where you will have easy access when opening

the MacPro chassis.

2. Using your hand, touch the outside of the Mac to discharge any static electricity you

have. Remove the power cable from the back of the chassis.

3. Remove the side access door and described in your Apple User Manual. Lay the

machine on its side, motherboard facing up.

4. Remove the KONA card from its protective anti-static bag; place the card on top of

the bag.

KONA v12.5

www.aja.com

Page 23

5. Visually locate the PCI-Express slots inside the Mac chassis (Mac Pro photo shown on

the following page). The KONA card only requires a x4 lane PCI-Express slot, so any of the available slots will work correctly—(slot 3 is the preferred slot on the MacPro). You should configure the slots with the Apple Expansion Slot Utility application for the MacPro so that the KONA is at x4 or better speed.

6. Remove the card-edge access cover from the desired slot where you will be inserting

the KONA card. The card edge cover is secured by a tie-down bar with two secured screws on MacPro computers; remove and set them aside for securing the KONA card after installation.

7. Holding the KONA card by the end plate and an outside edge, carefully insert the

card by rocking it slowly into the slot. Ensure the card edge aligns properly with the computer's slot opening (where the card edge cover was just removed) and that it is fully seated in the slot.

8. Secure the card in the slot using the screw removed earlier or with the tie-down bar

found on MacPro machines.

9. Replace the outer access door on the MacPro.

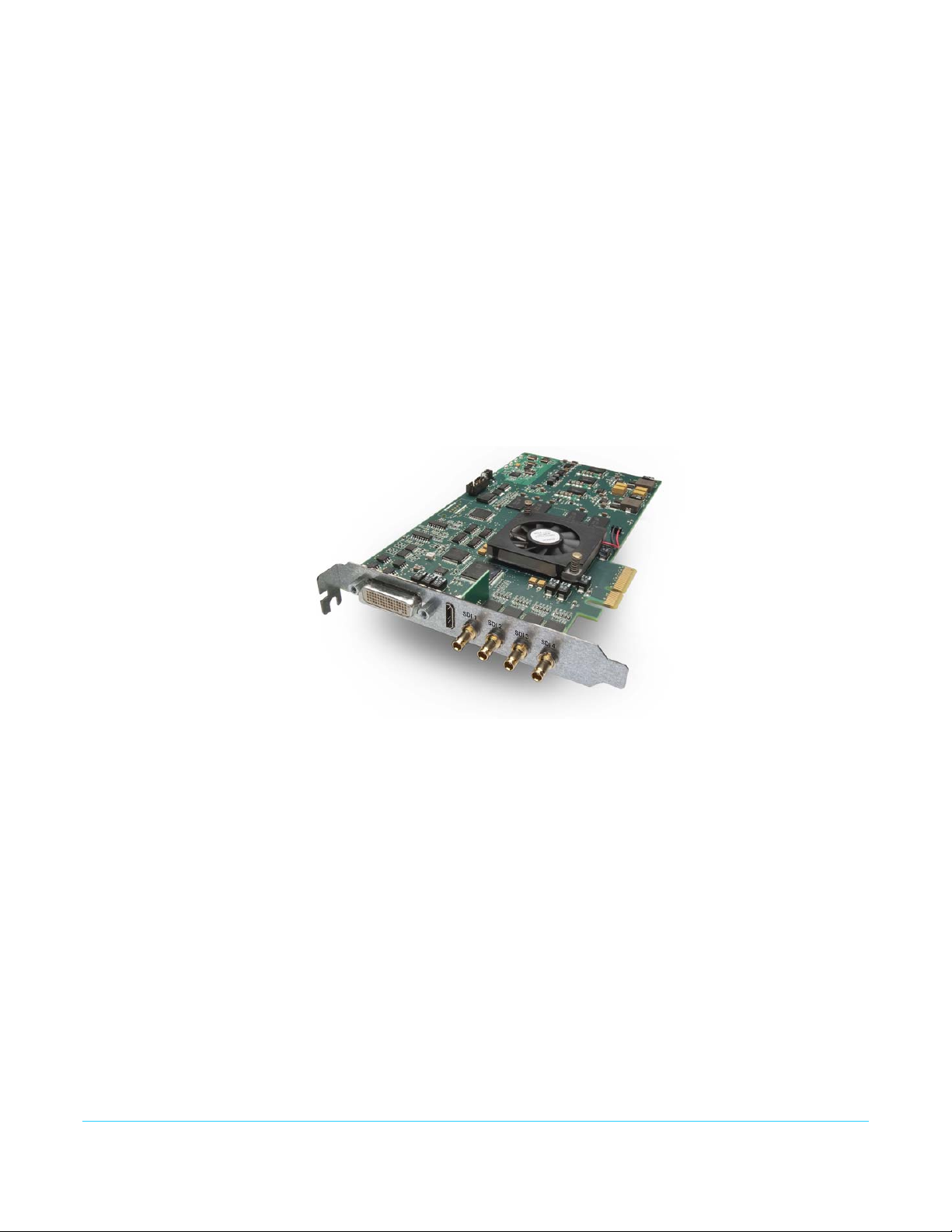

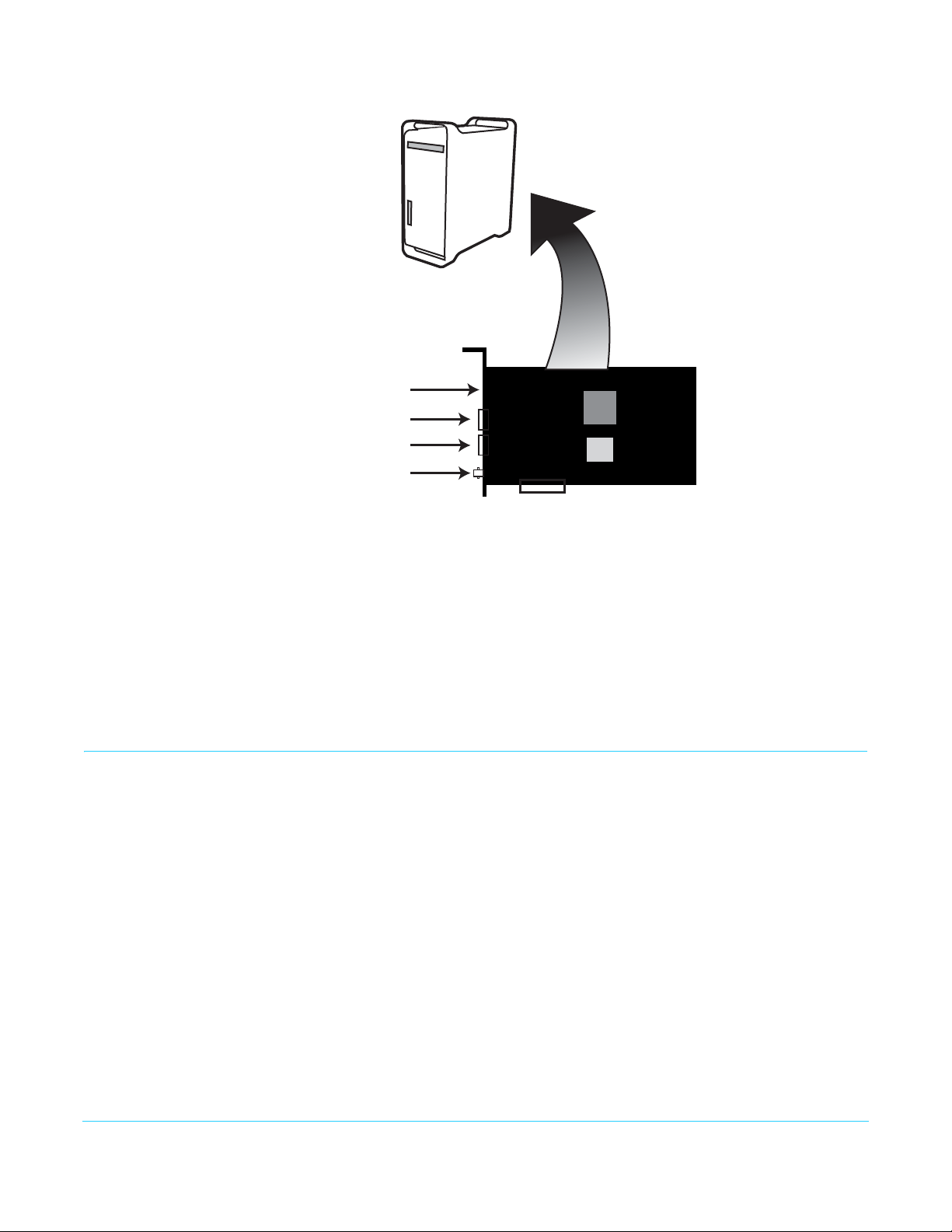

Figure 3. KONA Card (model 3G shown)

KONA v12.5

www.aja.com

Page 24

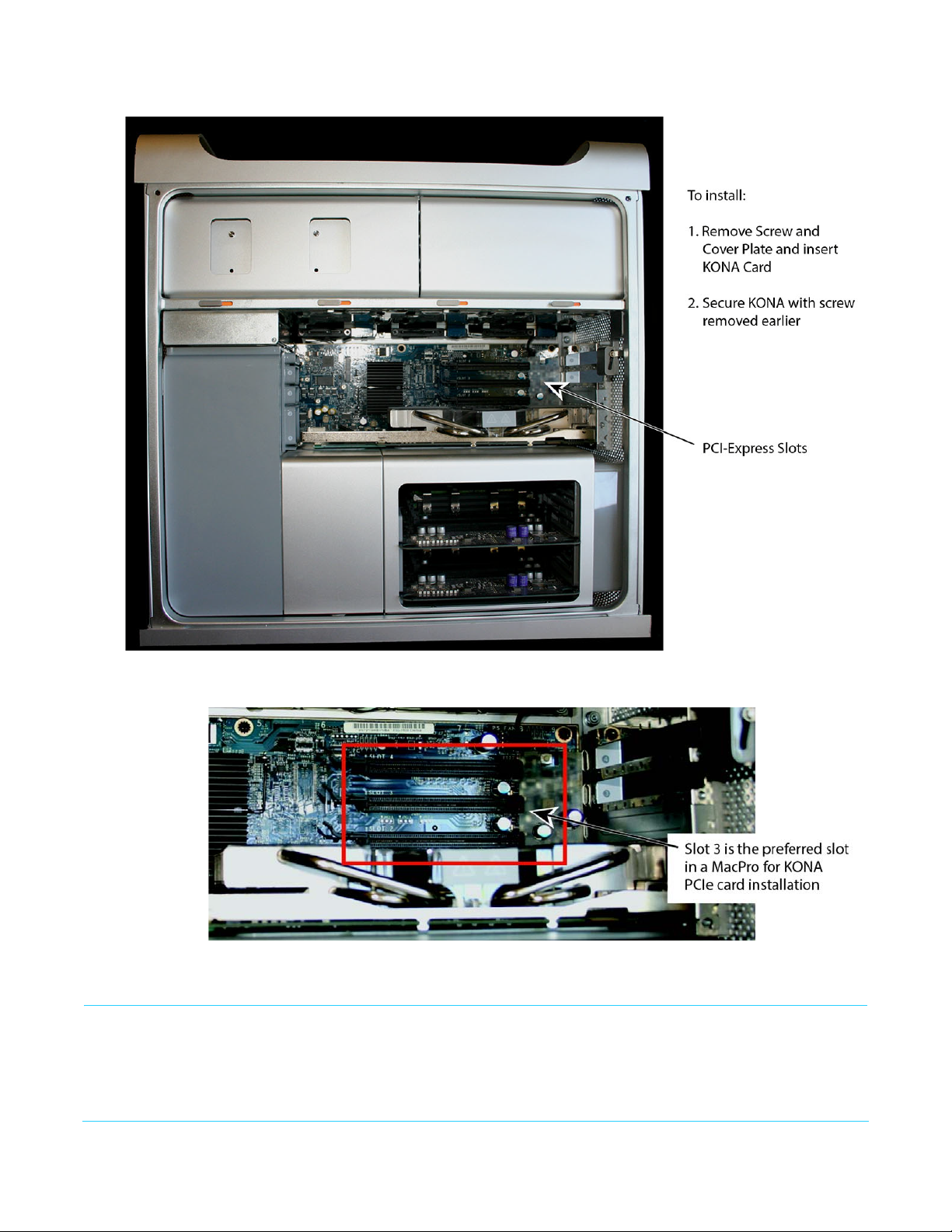

Figure 4. Mac Pro Cardcage Access

Figure 5. Card Slots, PCIe Mac Pro shown here

Installing the KONA Card in a Windows PC

1. Place the PC in a well-lit convenient area, where you will have easy access to the

chassis access door.

KONA v12.5

www.aja.com

Page 25

2. Touch the outside of the PC to discharge any static electricity in your body. Remove

the power cable from the back of the PC.

3. Open the PC to gain access to the card slots as described in your Workstation User

Manual.

4. Remove the KONA card from its protective anti-static bag; place the card on top of

the bag.

5. To install the KONA card and RAID controller card (SCSI or Fibre Channel), refer to the

AJA website for the latest installation updates. Because of hardware and software changes, AJA engineers are constantly testing

and grading workstation performance. The AJA website is your best source of up-todate approved workstation configurations (see links).

NOTE: Always put the RAID controller and KONA on separate PCI busses. This improves performance

by reducing bus contention.

6. Open the card retainer bar on the left side of the chassis cardcage. Remove the card

edge access cover from the desired slot where you will be inserting the KONA card.

7. Holding the KONA card by the card edge plate and an outside edge, carefully insert

the KONA card by rocking it slowly into the slot. Ensure the card edge aligns properly with the PC’s opening (where the card edge cover was just removed) and that it is fully seated in the slot.

8. Secure the card in the slot replacing the card retainer bar.

9. Replace the PC’s panel/door removed in step 3.

“Installation Overview” on page 19 for

Cabling the System

When installing your system, you’ll make video and audio input/output connections. These connectors are described individually in Chapter 1. The following diagrams illustrate and describe system interconnection for the three KONA models.

KONA v12.5

www.aja.com

Page 26

Standard Cable Set

Showing “BNC/DE9-cable” Use

KONA 4/ 3G Installs in PCI-Express Slot

SDI cable

HDMI Output cable

4-mini BNCs to 4 standard BNCs

RS422

Machine Control

(9-pin)

3 BNCs (Analog Out Connections):

In SD Can be Congured for

Component,

Composite,

or S-Video

In HD Can Only Be Component

Reference Input BNC

LTC Output BNC

LTC Input BNC

Audio Input BNCs

Channels 1-8

(2 channels/connector)

Audio Output BNCs

Channels 1-8

(2 channels/connector)

SDI Out1/Link A BNC

SDI Out2/Link B BNC

SDI In1/Link A BNC

SDI In2/Link B BNC

KONA 4/3G Connections

Figure 6. KONA 4/3G System Using Breakout Cable

Typical System Figure 7 on page 28 shows typical system interconnections for a system with digital A/V

sources. Your system may differ depending on VTRs, audio monitoring, and video monitoring.

1. If desired, connect your house reference sync to the KONA 4/3G Ref Loop connector

(BNC). On the breakout cable this is a terminated reference input. The second KONA 4/3G Ref Loop connector on the optional Breakout Box can be connected to your VTR. If you do not loop through the reference, the second connector should be terminated with a 75-ohm terminator.

KONA v12.5

www.aja.com

Page 27

2. Connect a Video Monitor to the KONA 4/3G Component Analog Video Out BNC

connectors (preferred), or instead connect to a composite monitor. (If you have an SDI or HD-SDI enabled monitor, you may also connect one of the KONASDI outputs to a monitor as well.)

3. Connect the 9-pin DE9 machine control cable on the supplied breakout cable to your

VTR's RS422 control port or connect a 9-pin DE9 cable between the breakout box and the VTR's RS422 serial port.

4. Connect two SDI cables between KONA 4/3G and your digital VTR (Digital Betacam

etc.): one from KONA 4/3G SDI In to the VTR SDI Out, and one from KONA 4/3G SDI Out (1 or 2) to the VTR SDI In. The KONA 4/3G SDI connections have embedded audio (16-channels) so the VTR must be configured accordingly. These connections will be made via the mini-connectors-to-BNC cable or via the optional K3G-Box.

5. If you have an AES/EBU-ready audio monitoring system, then connect the eight

channels of AES/EBU output from KONA 4/3G's BNC connectors: 1/2, 3/4, 5/6, and 7/ 8, to the monitoring system AES/EBU inputs. If you have an analog audio monitoring system, you can use the two RCA-style unbalanced stereo output jacks on the optional K3G-Box for output.

KONA v12.5

www.aja.com

Page 28

Digital VTR with SDI Inputs

SDI Video

with Embedded

Audio In/Out

AES/EBU Audio Out

to Monitor System

External Storage

Computer Monitor

•

Optional Genlock

Reference

HBA for connection

of external storage

Video Monitor

Component Video

Workstation computer

AJA KONA 4/3G Card

Installed

inside computer

SDI cable

4-mini BNCs to 4 standard BNCs

SDI Out1/Link A BNC

SDI Out2/Link B BNC

SDI In1/Link A BNC

SDI In2/Link B BNC

In 4K Mode all four mini BNCs are Inputs or Outputs, one for each Quandrant of the image

SDI Out1=Left top

SDI Out2=Right top

SDI Out 3=Left bottom

SDI Out 4=Right bottom

3 BNCs (Analog Connections):

Component,

Composite,

or S-Video

In HD Can Only Be Component

Reference Input BNC

LTC Output BNC

LTC Input BNC

RS422

Machine Control

(9-pin)

Audio Input BNCs

Channels 1-8

(2 channels/connector)

Audio Output BNCs

Channels 1-8

(2 channels/connector)

HDMI Output cable

Figure 7. Typical KONA 4/3G System Connections

orag

KONA v12.5

www.aja.com

Page 29

6 BNCs (Analog Connections):

Can be Congured for

Component,

Composite,

or Y/C

Standard Breakout Cable

KONA LHe Plus

Installs in

PCI-Express Slot

in Computer

Reference Input BNC

or LTC input

(switchable via AJA

Control Panel)

RS422 Machine Control to VTR (9-pin)

SDI Input BNC

SDI 1 Output BNC

SDI 2 Output BNC

Y/CVBS In BNC

Pb/Y In BNC

Pr/C In BNC

Y/G/CVBS Out BNC

Pb/B/Y Out BNC

Pr/R/C Out BNC

green

blue

red

green

blue

red

Analog Audio

Channel 1 Input

Analog Audio

Channel 2 Input

Analog Audio

Channel 1 Output

Analog Audio

Channel 2 Output

AES Input

Channels 1 & 2

AES Output

Channels 1 & 2

60-pin connector To KONA LHe Plus

Balanced Audio

Analog Video

SD/HD SDI

Video/Audio

Connections

LHe Plus Cable Connections

Figure 8. KONA LHe Plus System Using The Breakout Cable

KONA v12.5

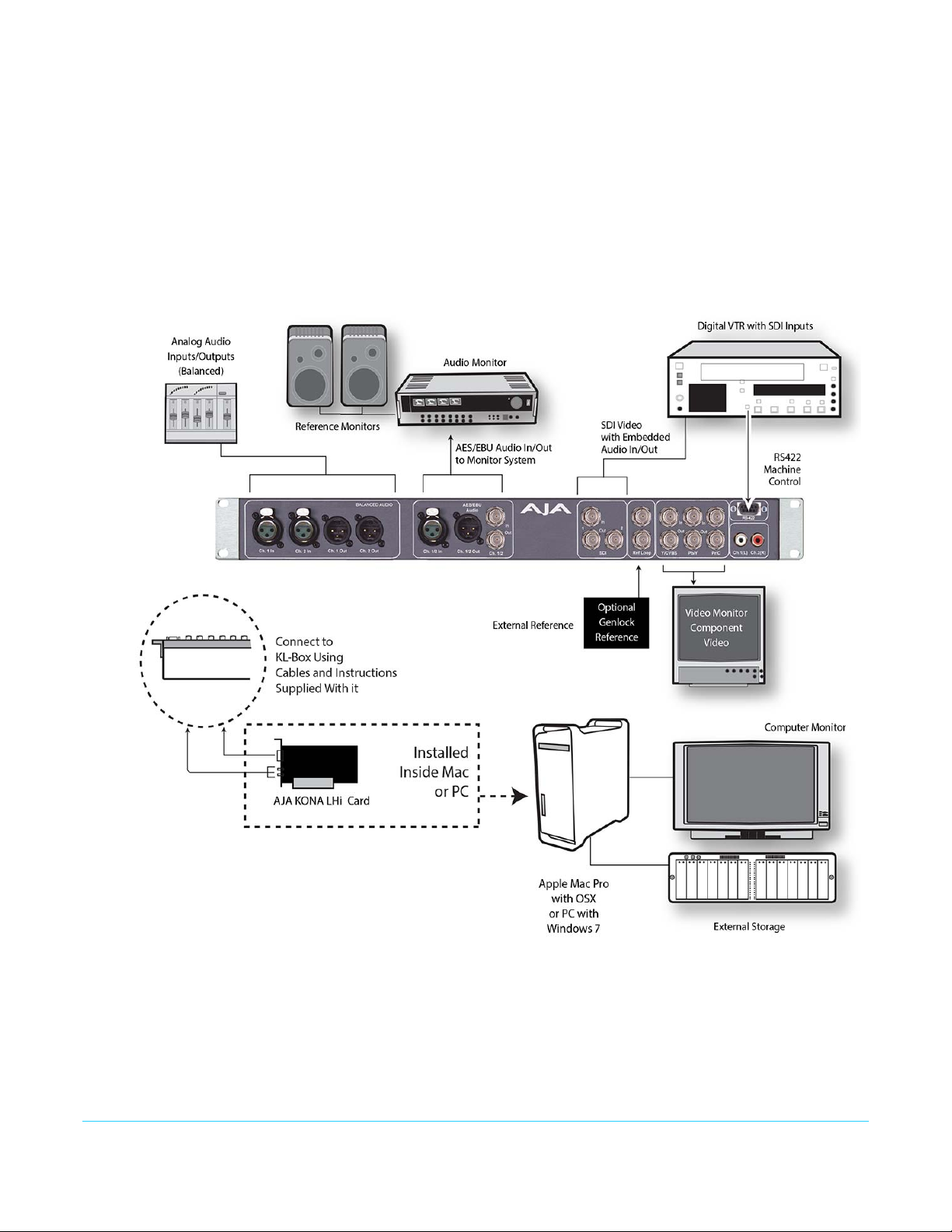

Typical System Figure 9 on page 30 shows typical system interconnections for KONA LHe Plus with digital

A/V sources. Your system may differ depending on VTRs, audio monitoring, and video monitoring.

1. If desired, connect your house reference sync to the KONA LHe Plus Ref Loop

connector (BNC). The second KONA Ref Loop connector on the KL-box (if used) can be connected to the VTR or terminated with a 75-ohm terminator.

2. Connect a Video Monitor to the KONA LHe Plus Component Analog Video Out BNC

connectors (preferred), or instead connect to a composite monitor.

3. Connect a 9-pin DE9 machine control cable between your VTR’s RS422 control port

and the breakout cable’s RS-422 machine control connector.

www.aja.com

Page 30

Digital VTR with SDI Inputs

RS422

Machine

Control

SDI Video with Embedded Audio In/Out

External Reference

Audio Monitor

AES/EBU Audio In/Out to Monitor System

Reference Monitors

Analog Audio

Inputs/Outputs

(Balanced)

Audio Monitor

POWER

CMPTR

RAID storage

Computer Monitor

t t t t t t t t t t t t t t t t t t

Optional

Genlock

Reference

Video Monitor

Component

Video

Workstation

AJA KONA LHe Plus Card

Connect to KL-Box Using Cables and Instructions supplied with it

Installed inside the computer

HBA for connection

of external storage

4. Connect two SDI cables between the KONA card (BNCs are on the card endplate) and your digital VTR (Digital Betacam etc.): one from KONA card’s SDI In to the VTR SDI Out, and one from card’s SDI Out (1 or 2) to the VTR SDI In. The KONA LHe Plus SDI connections have embedded audio so the VTR must be configured accordingly.

5. If you have an AES/EBU-ready audio monitoring system, connect the two channels of AES/EBU output from KONA’s XLR connectors (channels 1 and 2) to the monitoring system AES/EBU inputs. If, instead, you have an analog audio monitoring system, you can use either the XLR balanced audio connectors or the two RCA-style unbalanced stereo output jacks on the Optional KL-box for output.

Figure 9. Typical LHe Plus System Connections—Shown with Optional KL-Box

AES/EBU Audio In/Out

AID storag

KONA v12.5

www.aja.com

Page 31

6 BNCs (Analog Connections):

Can be Congured for

Component,

Composite,

or Y/C

Standard Breakout Cable

KONA LHi Installs in PCI-Express Slot in computer

Reference Input BNC

or LTC input

(switchable via KONA

Control Panel)

RS422 Machine Control to VTR (9-pin)

HDMI Input

HDMI Output

SDI Input BNC

SDI Output BNC

Y/CVBS In BNC

Pb/Y In BNC

Pr/C In BNC

Y/G/CVBS Out BNC

Pb/B/Y Out BNC

Pr/R/C Out BNC

green

blue

red

green

blue

red

Analog Audio

Channel 1 Input

Analog Audio

Channel 2 Input

Analog Audio

Channel 1 Output

Analog Audio

Channel 2 Output

AES Input

Channels 1 & 2

AES Output

Channels 1 & 2

60-pin connector To KONA LHi

Balanced Audio

Analog Video

SD/HD/3G-SDI

and HDMI Video/Audio Connections

LHi Cable Connections

Figure 10. KONA LHi System Using The Breakout Cable

KONA v12.5

Typical System Figure 11 on page 32 shows typical system interconnections for a system with digital A/V

sources. Your system may differ depending on VTRs, audio monitoring, and video monitoring.

1. If desired, connect your house reference sync to the KONA LHi Ref Loop connector (BNC). The second KONA LHi Ref Loop connector on the KLHi-box (if used) can be connected to the VTR or terminated with a 75-ohm terminator. If instead using LTC timecode input, connect to the Ref Loop input.

2. Connect an HDMI Video Monitor to the KONA LHi HDMI Out connector. Or instead, use the Component Analog Video Out BNC connectors to go to an analog monitor.

3. Connect a 9-pin DE9 machine control cable between your VTR’s RS422 control port and the breakout cable’s RS-422 machine control connector.

www.aja.com

Page 32

4. Connect two SDI cables between KONA LHi (BNCs are on the card endplate) and your digital VTR (Digital Betacam etc.): one from KONA LHi SDI In to the VTR SDI Out, and one from KONA LHi SDI Out to the VTR SDI In. The KONA LHi SDI connections have embedded audio so the VTR must be configured accordingly.

5. If you have an AES/EBU-ready audio monitoring system, then connect the two channels of AES/EBU output from KONA LHi’s XLR connectors (channels 1 and 2) to the monitoring system AES/EBU inputs. If you instead have an analog audio monitoring system, you can use either the XLR balanced audio connectors or the two RCA-style unbalanced stereo output jacks on the Optional KLHi-Box for output.

Figure 11. Typical KONA LHi System Connections—Shown with Optional KLHi-Box

KONA v12.5

www.aja.com

Page 33

KONA IP Installs in PCI-Express Slot in computer

HDMI Input

Upper SFP Cage

Lower SFP Cage

Reference BNC

KONA IP Connections

Figure 12. KONA IP Connectors

The KONA IP card fits into a standard PCIe slot of a computer or into PCIe chassis. The end spine has a full size HDMI output connector, two SFP cages (Upper and Lower), and a reference BNC connector.

Modules inserted into the two SFP+ cages can be used to connect two separate 10 Gigiabit Ethernet Links. Both links are bi-directional. Inputs and outputs can be set up over the same link if bandwidth allows it. The Upper and Lower SFP modules are configured (input, output, network settings) using the AJA Control Panel application. In most cases, only the top SFP will be used, with 2 Input links and 2 output links running over the same SFP.

Installing KONA Software

For AJA KONA software installation, go to the downloads page on the AJA website:

NOTE: Always uninstall previous versions of KONA software before updating your software.

Before installing the KONA software package, ensure that your capture/editing application is installed as detailed in its user documentation. You cannot use KONA with a third-party application until the application has been installed and run at least once on your workstation. Next, install the KONA software package.

http://www.aja.com/en/support/downloads/

KONA v12.5

www.aja.com

Page 34

Chapter 3: Operation

Using KONA with Professional Video /Audio Software

After you install the AJA software package on your computer, you’re ready to begin capturing and playing back video and audio using your choice of third-party software. You can go here for AJA software and documentation:

http://www.aja.com/en/support/downloads/

For further support information and downloads for third-party software and DirectShow for Developers, go to:

https://www.aja.com/en/category/edit/compatibility

Capture Formats When capturing, you can record data in the following file formats:

•DPX

•TGA

•BMP

•QuickTime

NOTE: Other file types can be captured using third-party capture applications such as Sienna,

Softron, Tools on Air, Drastic, or Quadrus.

AJA Control Panel Overview

The AJA Control Panel is a software application that provides a simple visual showing how the KONA hardware is currently configured and allows you to make changes. You can change signal input and output parameters and define the video processing that will be performed.

The AJA software installer automatically installs the Control Panel application on your computer.

Control Panel Screens Used

In This Manual

KONA v12.5

KONA 4 and KONA 3G Control Panel functions are virtually the same except for KONA 4’s higher frame rates and certain HDMI, Closed Caption, and Analog Out monitoring options for 4K/UHD formats. KONA 3G Control Panel screen shots are predominately used for this discussion.

www.aja.com

Page 35

Currently

Selected Func tion

Screen

Framebuffer Form at (Primary Format)

Inputs

Outputs

Parameter

Controls

AJA Control Panel User Interface

The AJA Control Panel user interface includes a visual block diagram of the unit’s current configuration. The current status, input and output settings, and many other details are depicted in the color-coded block diagram. Below this block diagram are various controls for changing operating parameters, which will vary depending on which function screen has been selected.

The left side of the AJA Control Panel provides a navigation list of available function screens. Clicking on a link (or alternatively, a related element in the block diagram) displays a function screen corresponding to that topic.

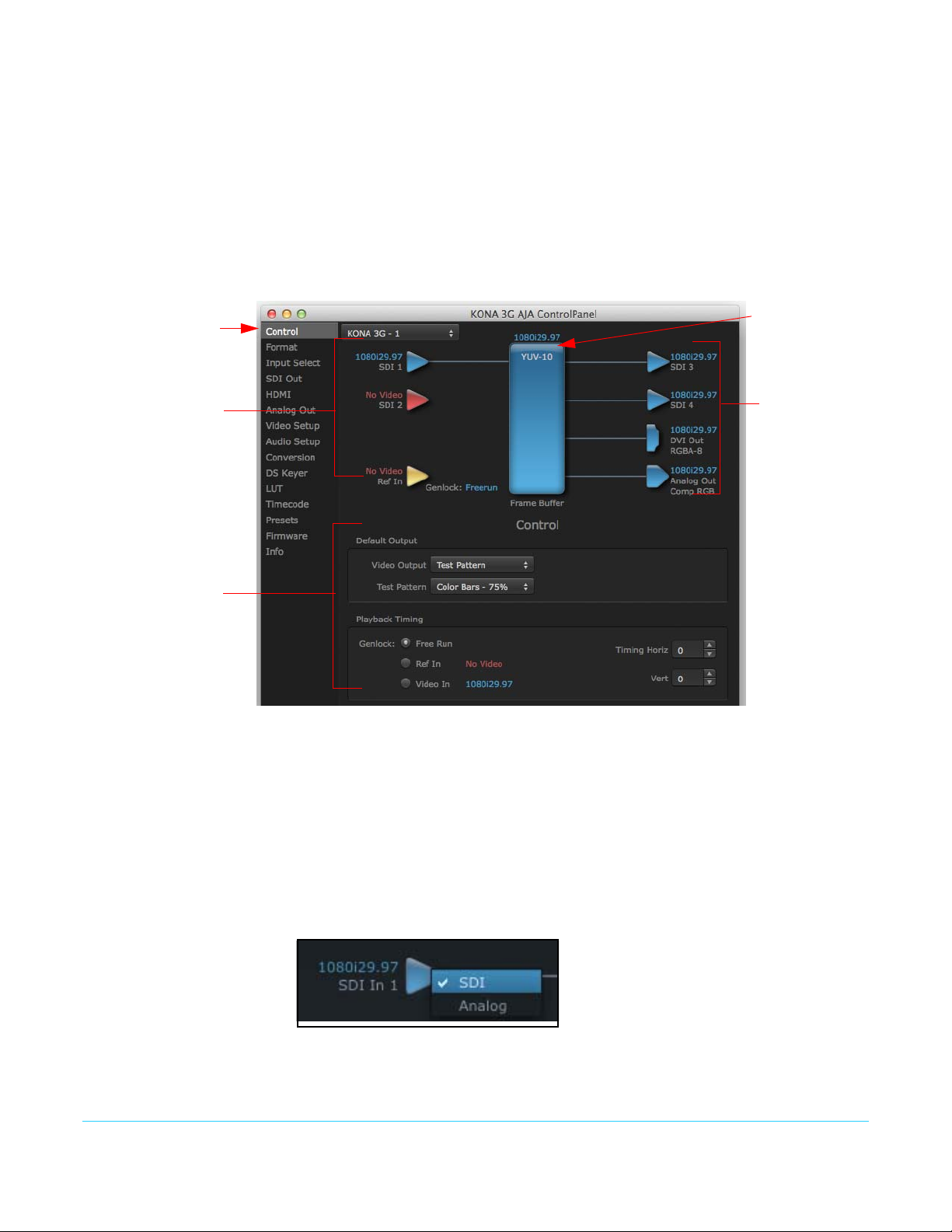

Figure 1. AJA Control Panel, Block Diagram and Controls

Block Diagram Area The top block diagram area of the Control Panel screen is a visual representation of the

processing, if any, that’s currently occurring, including inputs/outputs, reference source, and system status. Lines between inputs, the framebuffer, and outputs, show a video path. Where there are no lines, there is no connection; this can be because an input or output isn’t selected in the Input Select menu. The lines will also show whether the outputs are video or video + key.

You can click any of the function screen selection links in the left column to view its current settings or click on an icon to call up its related settings screen. You can also rightclick or Control-click to see context-sensitive information and choices.

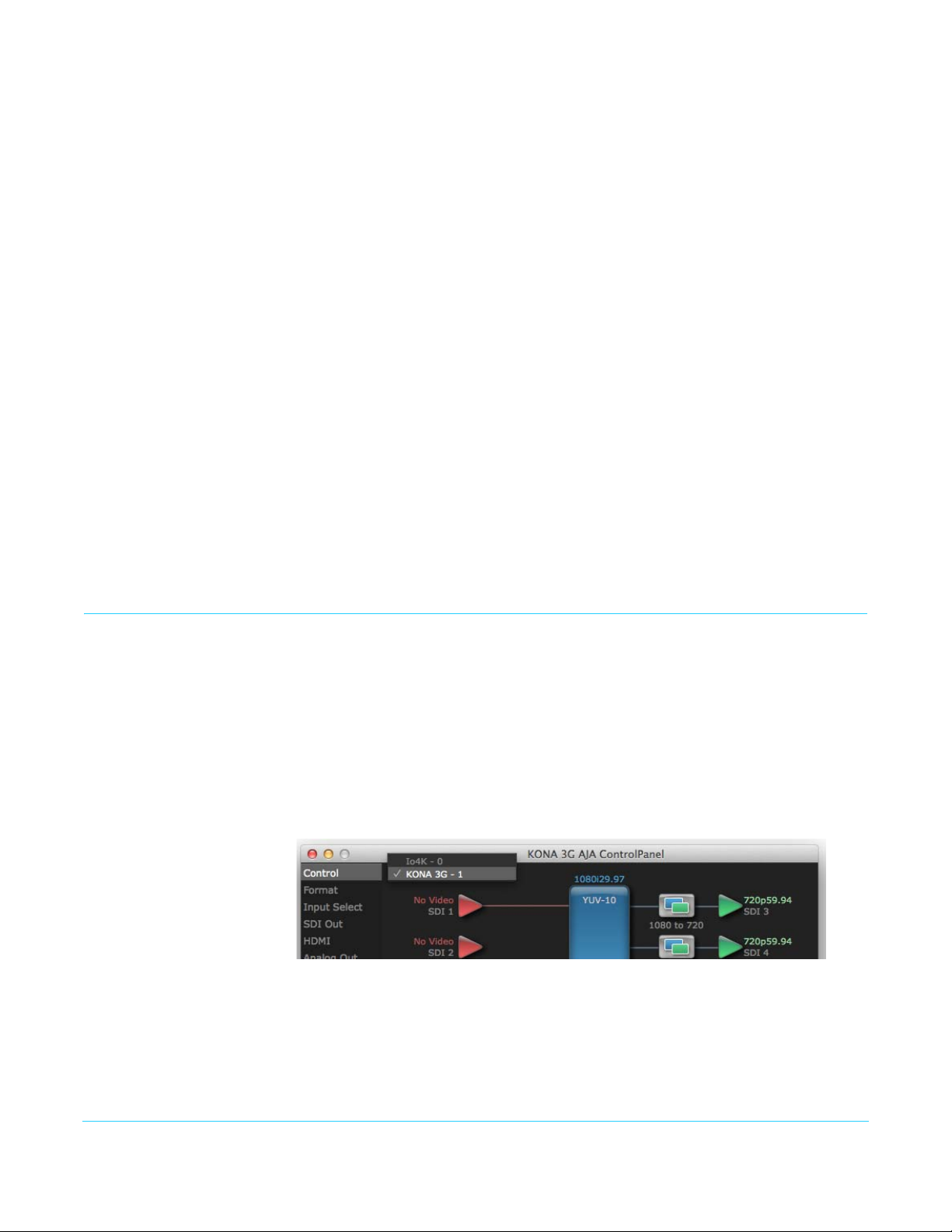

Figure 2. Context Sensitive Menu

Figure 2

Color Meanings All items in the AJA Control Panel block diagram are color-coded to show what is

happening in realtime. This applies to both icons and text. These colors indicate:

KONA v12.5

www.aja.com

Page 36

Blue Video is same format as the Primary Format (framebuffer)

Green Indicates that KONA is performing an active change to the video making it different from

the Primary Format (e.g., down-conversion).

Yellow Reference video (black burst or other reference source)

Red The selected operation cannot be performed

Input/Output Icons The input and output icons are triangles that together with their color show all the input

and outputs and their status (selected, not selected, input present or not, format, etc.). A complete video path is shown when inputs and outputs are connected with lines going to/from the framebuffer.

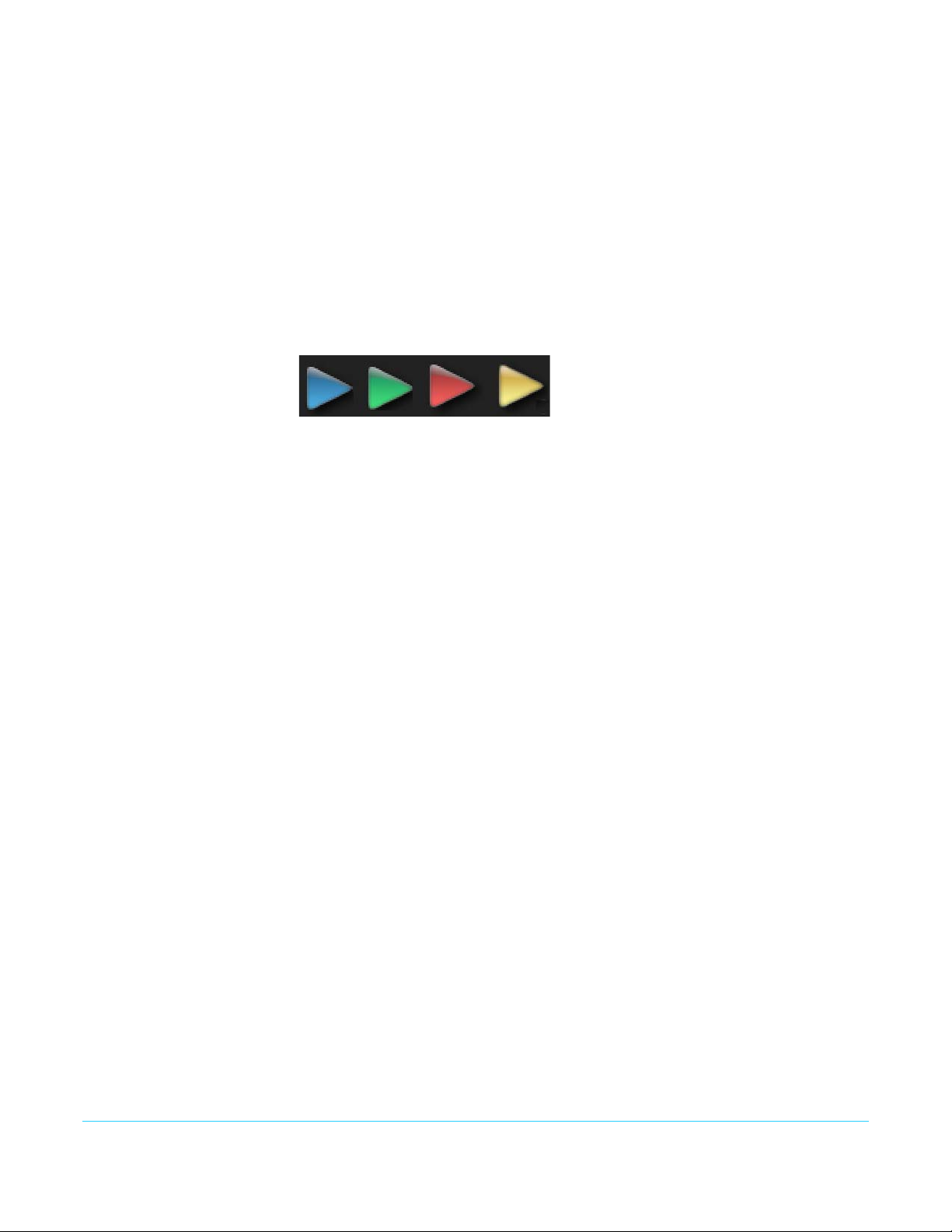

Figure 3. Input/Output Icons

Framebuffer The framebuffer is the “engine” where your third-party applications interface with the

AJA device. The framebuffer has a format (called the “Primary Format”) and color space that it follows, as defined in the linked menu screens or via external application software. The “Secondary Format” is a selection for format conversion.

Primary Format The Primary Format is the media format written to disk and used in your project. This is

the format that the framebuffer will use and is shown in the Control Panel using the color blue. It is the format that the third-party application software will either receive from the AJA hardware, or is sending to the hardware. All icons in blue are the same as the Primary Format used by the framebuffer. Also any text descriptions in the block diagram that appear in blue indicate that something is in the primary format. For example:

• If the input and output icons are blue, you know that the same format is used

throughout the video path. No format conversion is being performed.

• If the input or output icon colors differ (blue input and green output icons for example),

you know that a format conversion is being performed.

Secondary Format Any format other than the currently selected Primary Format, is a secondary format. As

described previously, this means that either the Inputs or Outputs are somehow different from the framebuffer’s assigned format—the Primary Format. A conversion is readily apparent because of the color change from blue.

NOTE: In some cases the application you use with the KONA will automatically set the Primary

Format, overriding the user’s selected primary format in the AJA Control Panel.

Format Screen

Conversion

Format function screen conversion allows selection of a format conversion between High-definition and Standard-definition. The choices offered depend on the AJA device present in your system and the Primary and Secondary format selected.

KONA v12.5

www.aja.com

Page 37

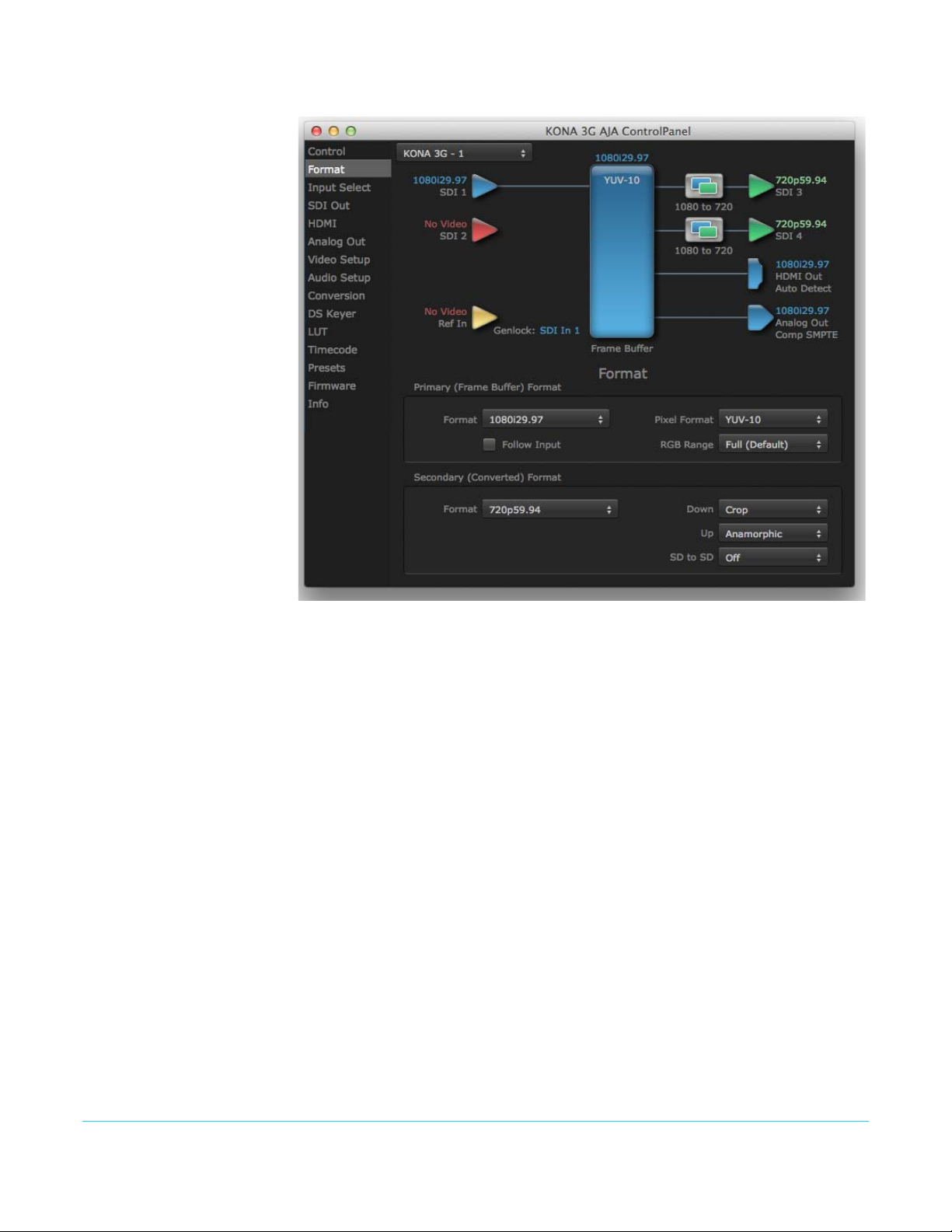

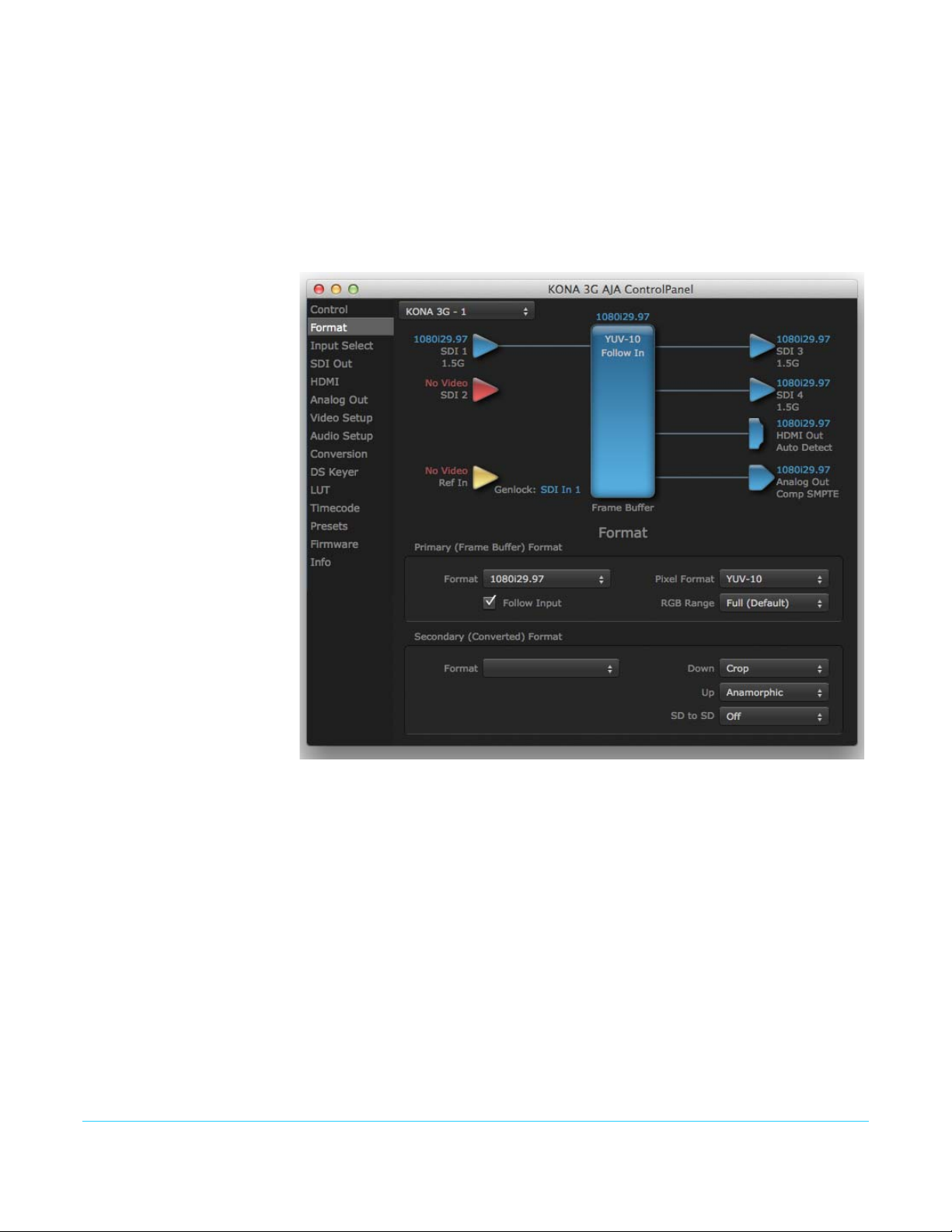

AJA Control Panel, Format Screen

NOTE: When converting an Input to the Primary Format, select the Secondary Format option

that has (I), for input only, appended to it. Conversely, when converting an Output from the Primary Format, you must select an output signal with (O) for output only.

IMPORTANT: Do not confuse this Format function screen conversion, which uses AJA hardware and

operates on either Mac or PC, with the separate Conversion function screen, which uses Quicktime for conversion and is only available on Mac.

Conversion Icons When an input or output is a different standard than the framebuffer, the KONA may be

up- down- or cross-converting the signal to the selected standard. This may be automatic, because it's detected an input signal that differs from the standard currently selected, or because you've explicitly told it to convert. In either case, the block diagram will show the conversion by displaying a conversion icon in between the input/output and the framebuffer.

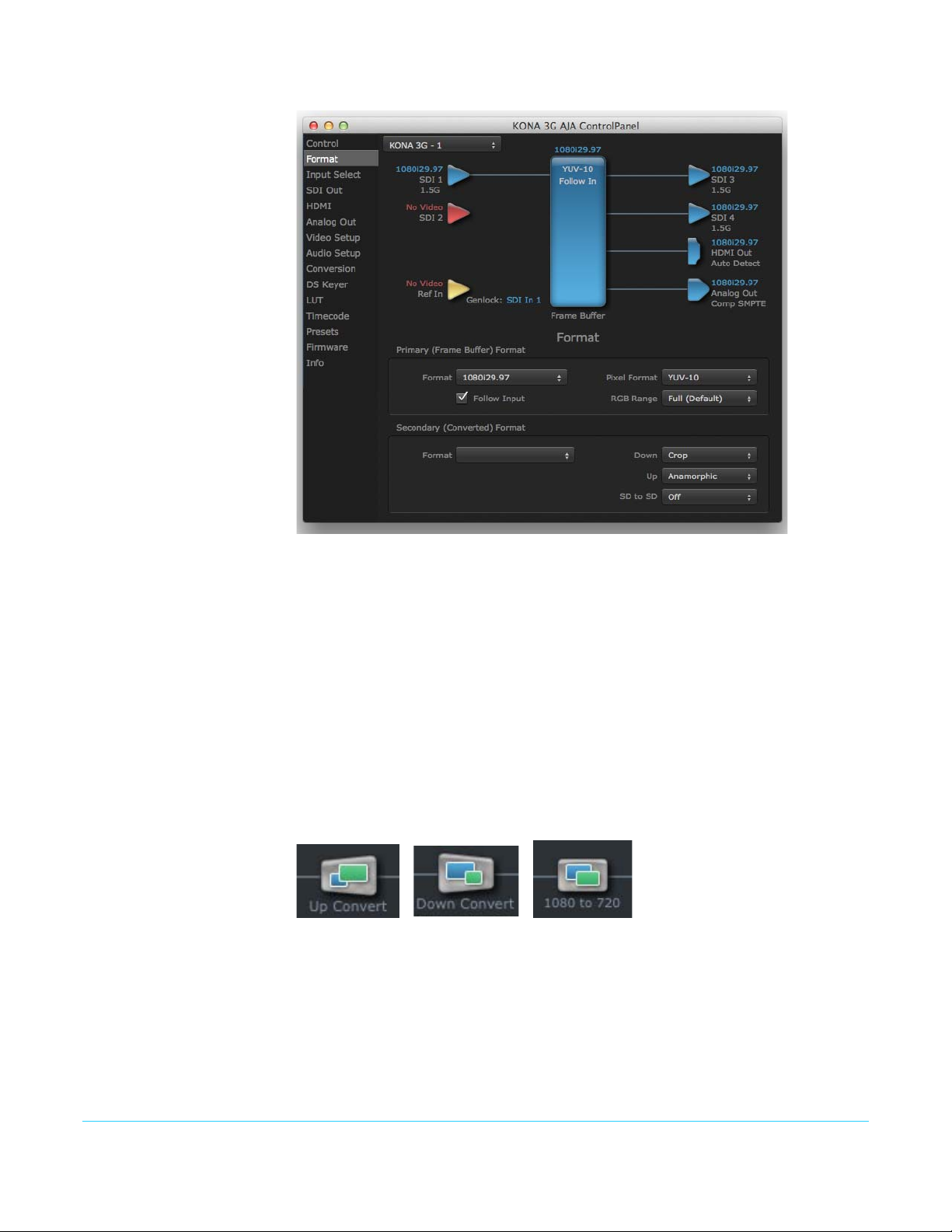

Figure 4. Up, Down, and Cross-convert Icons

KONA v12.5

www.aja.com

Page 38

Controlling Application

It is important to understand that the computer can contain many applications that can use the AJA device (as you switch from window to window) and it may not always be obvious which currently controls it.

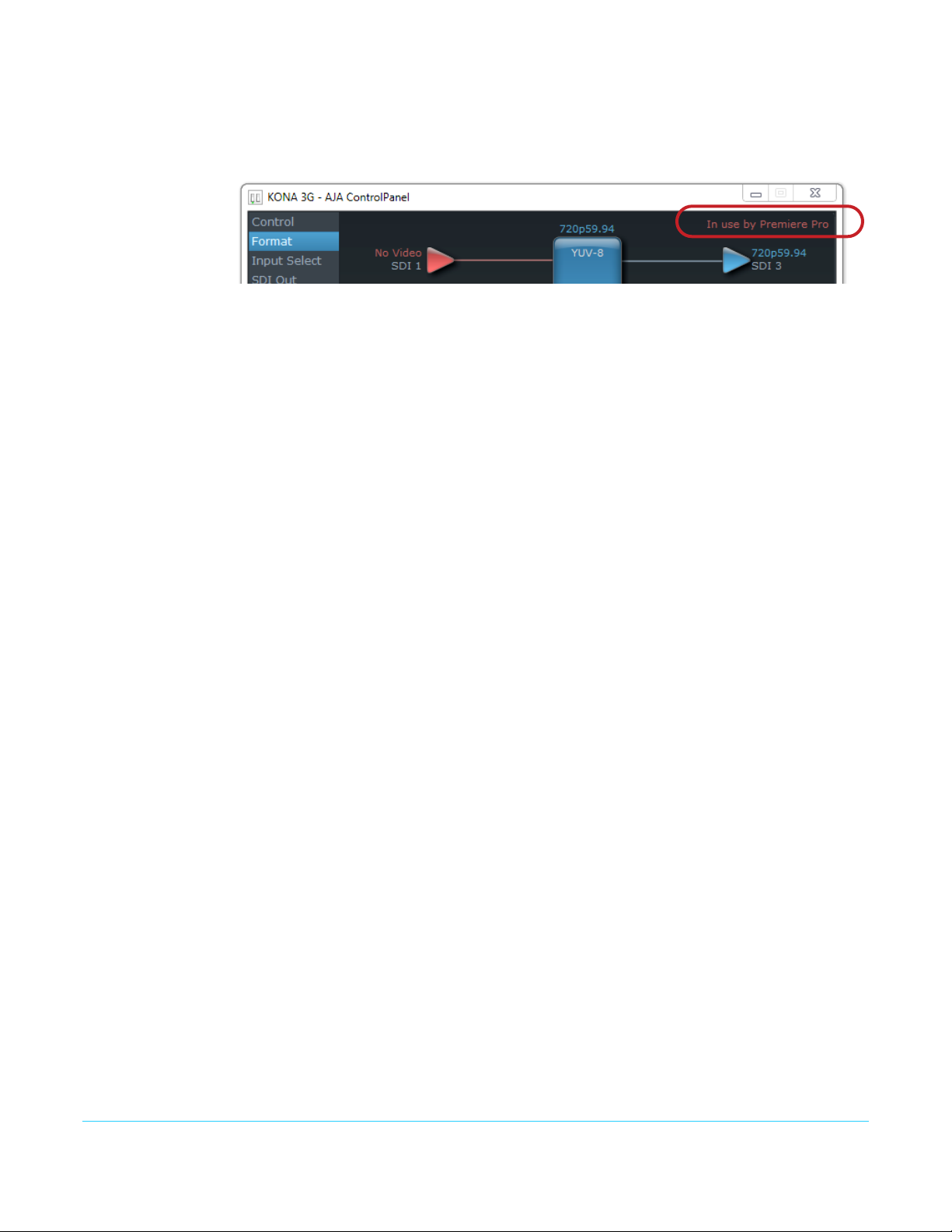

Figure 5. Control Panel In Use Message (in red)

In the top right corner, the Control Panel displays the name of the application controlling the unit. In some cases, applications may not always properly “let go” of the I/O interface as another takes over—you’ll be able to tell by looking at the Control Panel.

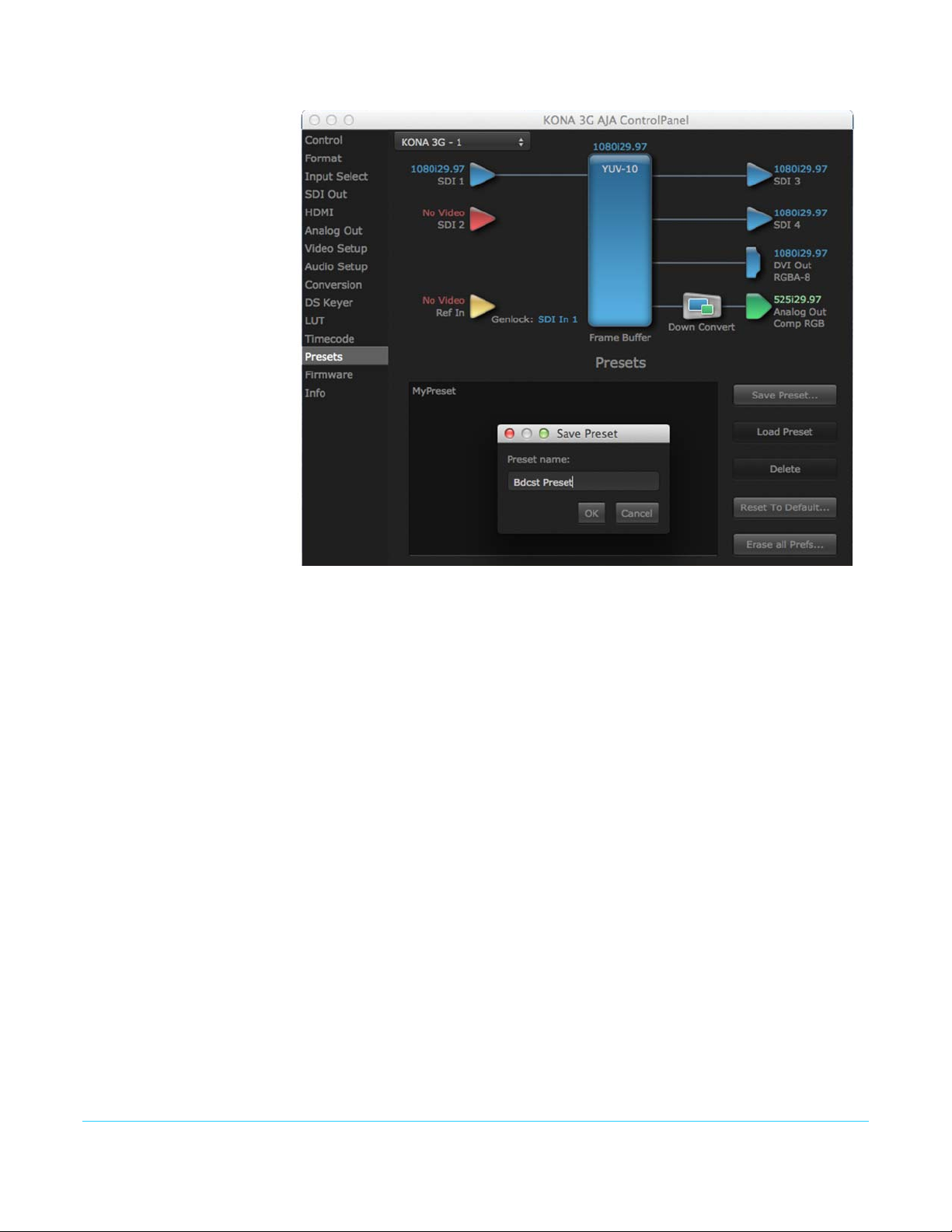

Presets Setups can be named and saved as a snapshot (Preset) for recall at any time. You can save

various Control Panel configurations associated with your frequent tasks. You don’t have to spend time resetting interface configurations—just load the previously saved Preset for each task.If you work on multiple systems and want to carry your saved setup to another location, you can copy your saved Presets file on to movable storage and load it into any computer running the AJA Control Panel application. Presets are described in more detail later in this manual.

Single-User & Shared Preferences

User Preferences This file exists to immediately, automatically, store preference changes made by a user on

When an AJA device starts up, preferences can determine what settings it will have it when it begins to operate. The AJA Control Panel offers preference settings that support both:

• User Preferences— Preferences stored from the last Control Panel State to be used on

next startup of AJA Control Panel.

• Shared Preferences— Preferences saved by an Administrator for use as a default start

state for AJA Control Panel.

a particular AJA device. When any control is changed in the Control Panel, that change is recorded in the preferences file stored in a unique user preferences location dedicated to that particular device and serial number. Then, when AJA control panel is restarted for any reason, it will restart with the same preferences it used when it closed.

However, if a user sets their preferences, and then replaces the AJA device with a different one, the Control Panel will either:

• Start up with the factory defaults, or

• Start up with the “house defaults” dictated by the system administrator (if a Shared

Preferences file exists).

The User Preferences File can be found in the following locations.

On Mac:

• /Users/<USER_NAME>/Library/Preferences/com.aja.devicesettings

KONA v12.5

On Windows:

• C:\Users\<USER_NAME>\AppData\Local\Aja\com.aja.devicesettings

www.aja.com

Page 39

Shared Preferences An administrator can establish house standards for the AJA Control Panel by creating the

user preferences file (described above) and placing it in a shared location where it will establish a standard default startup state for all users of a given computer system. These settings preempt the initial AJA default settings.

To establish the House Default for every user on every system, a system or network administrator can move this default file to all systems on the network (manually or by pushing it out across the network). All users on the network will then open to the House

Defaults when they launch the AJA control panel for the first time.

NOTE: If the user makes changes to the control panel themselves, those changes will be saved in

their user preferences, which will take priority over the house default dictated by the shared preferences file.

The Shared Preferences file should be a file created at the User Preferences location described above, and placed by the System Administrator in the following locations.

On Mac:

/Users/Shared/Library/Preferences/com.aja.devicesettings

On Windows:

C:\Users\All Users\Aja\com.aja.devicesettings

Function Screens

Control Configure some basic KONA operation options and output timing.

Format Select the framebuffer primary video format and any secondary formats for conversion of

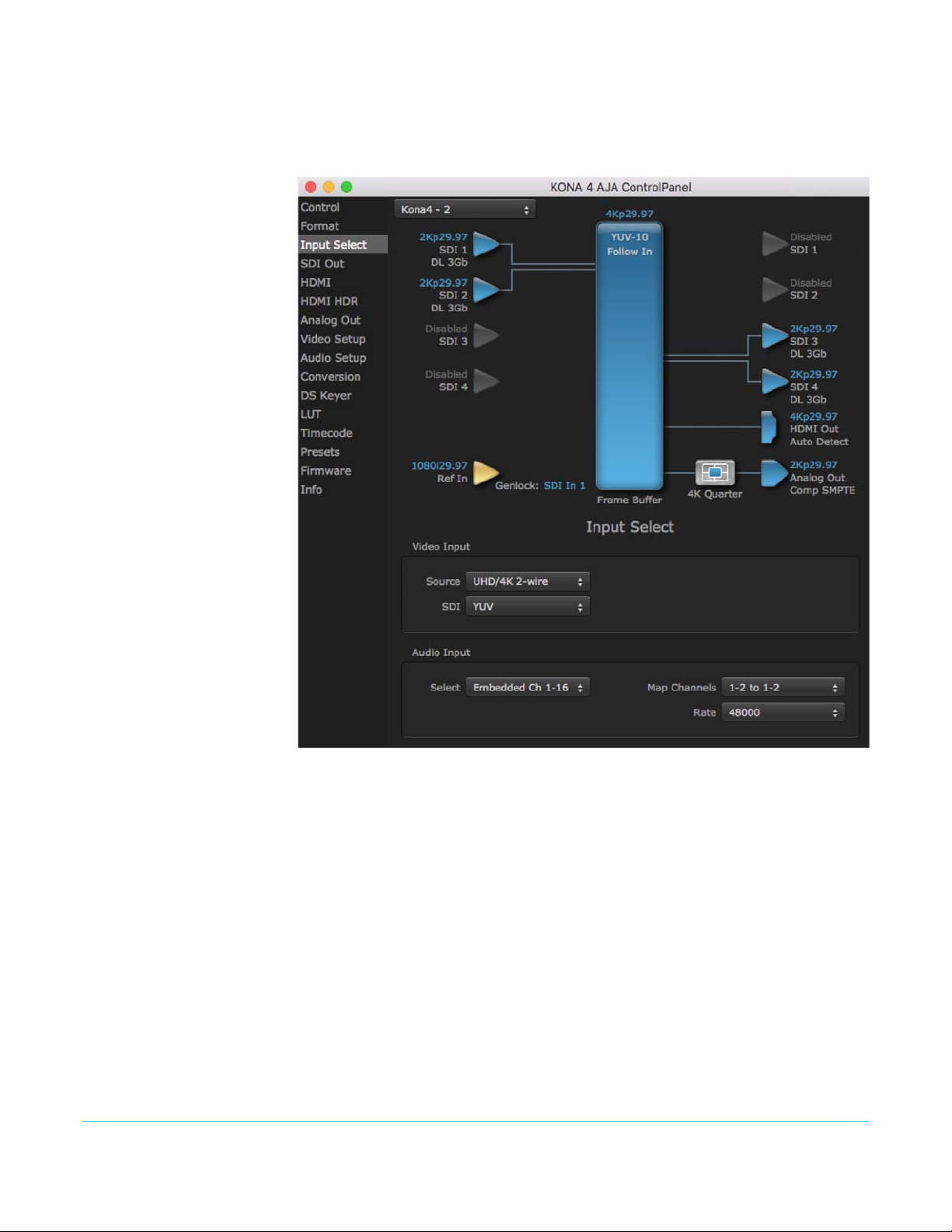

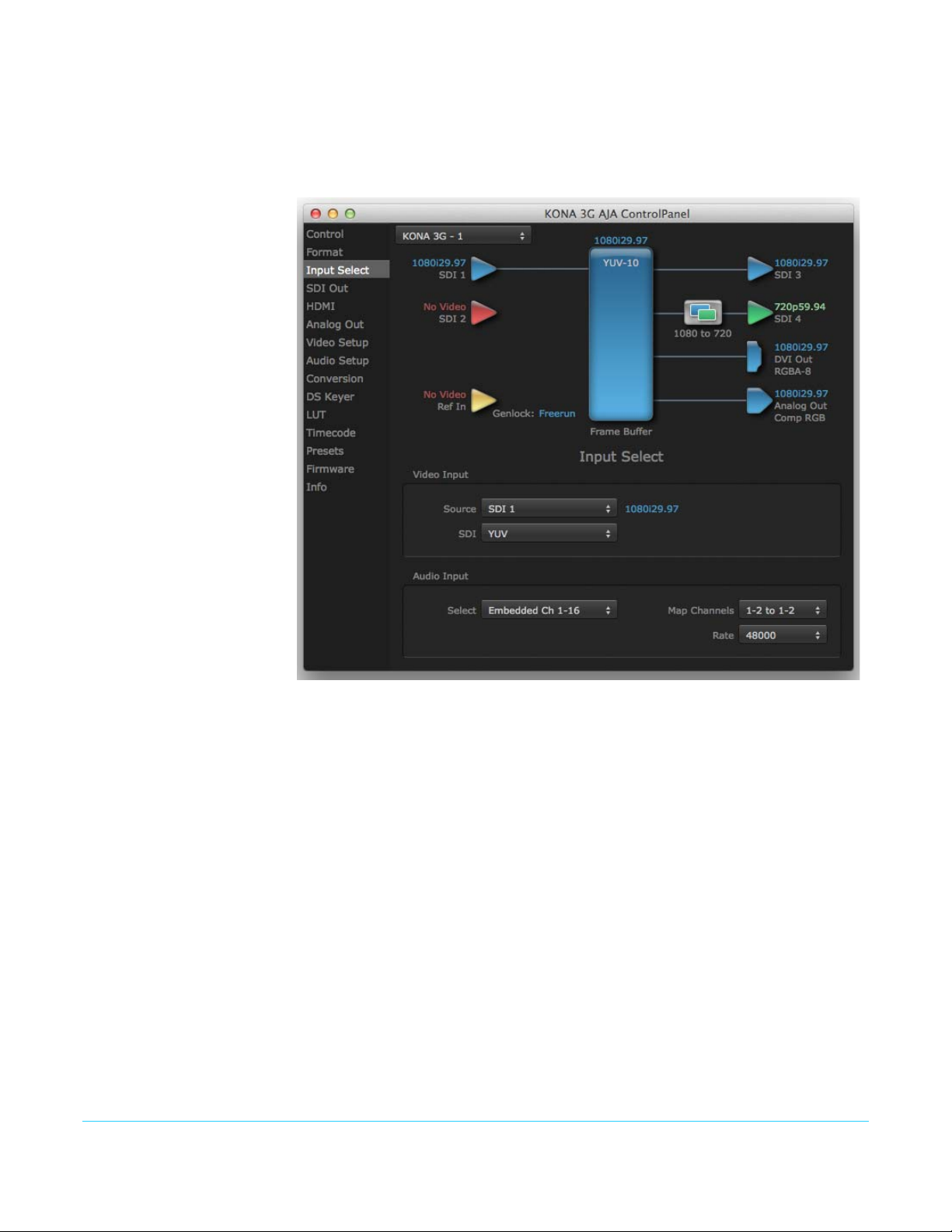

Input Select View and edit input selections and audio mapping.

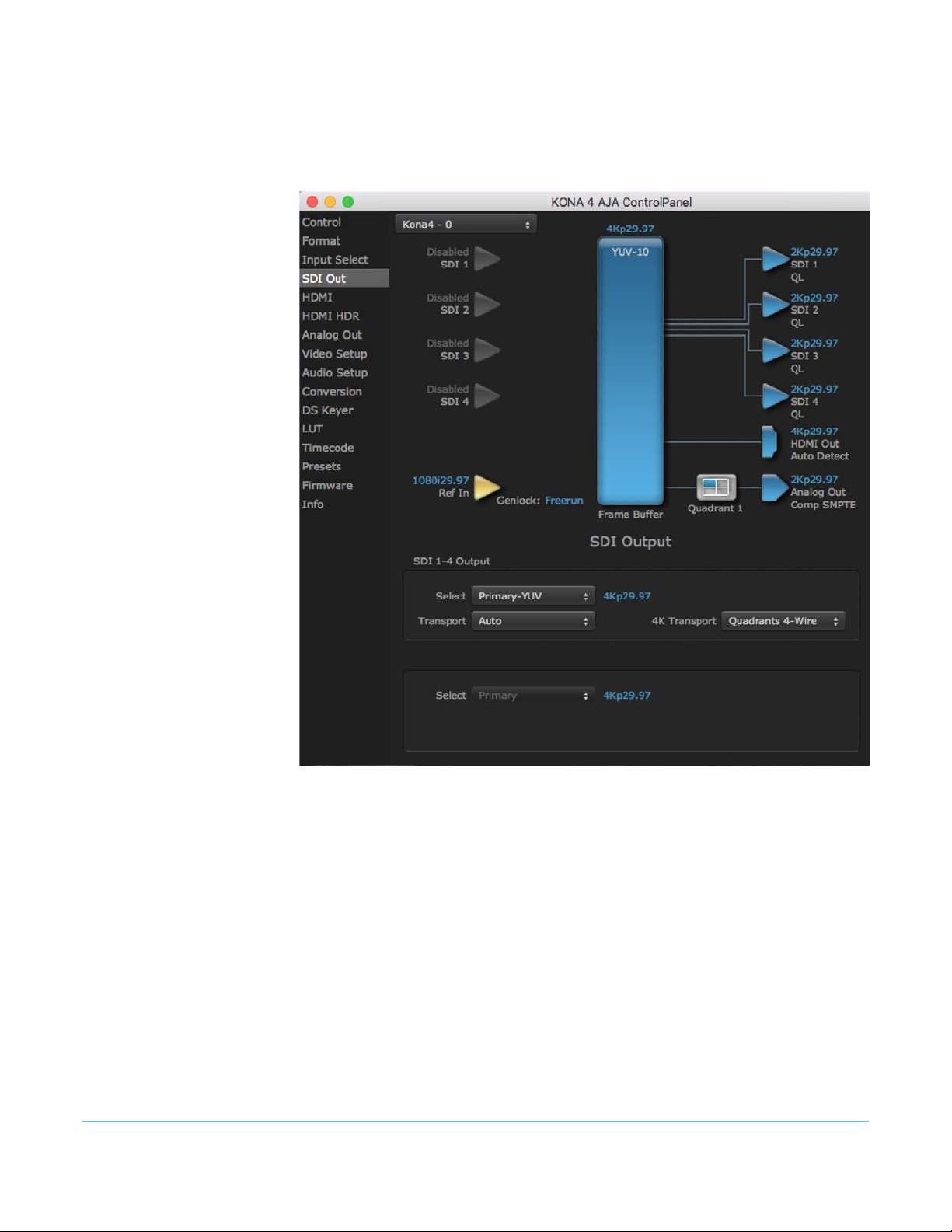

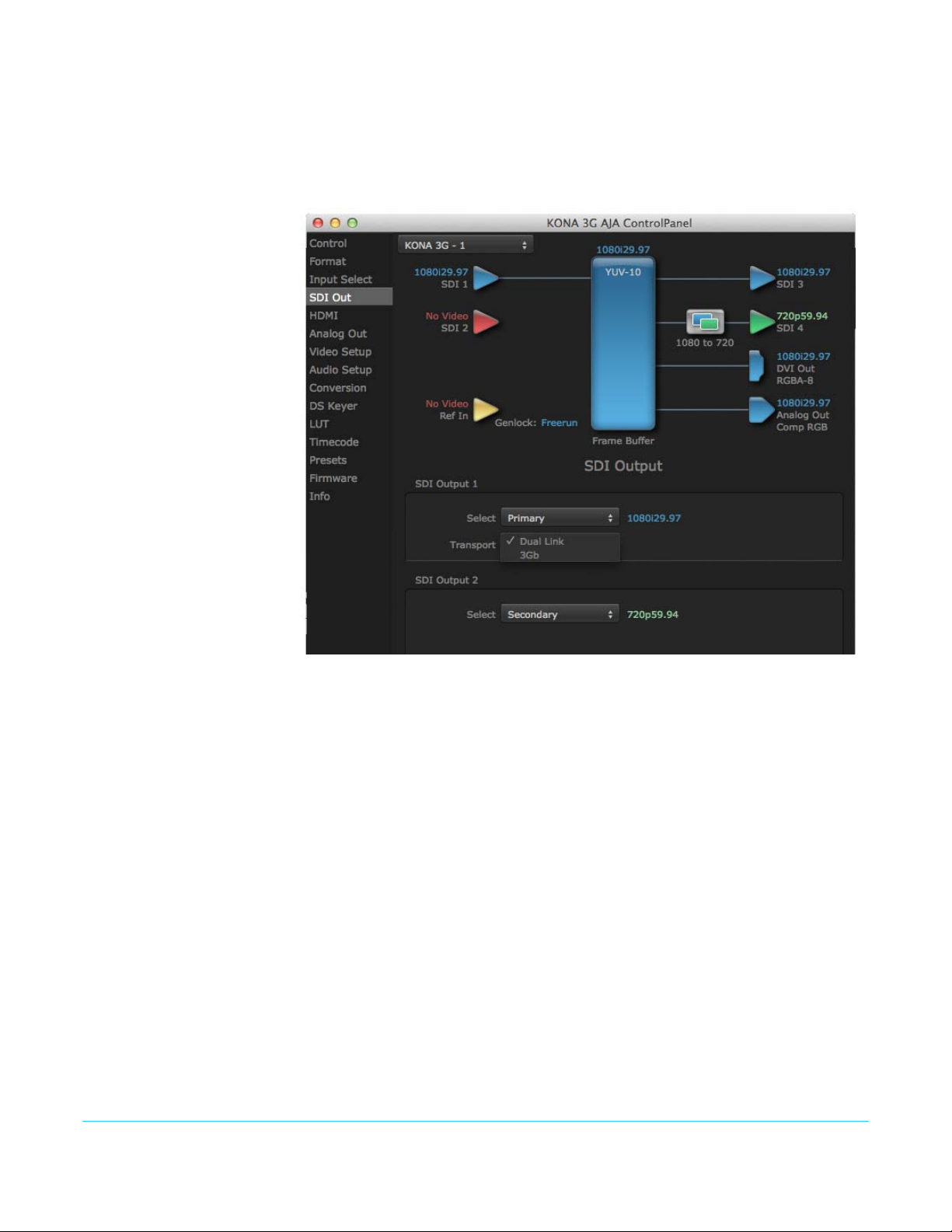

SDI Out Select output format.

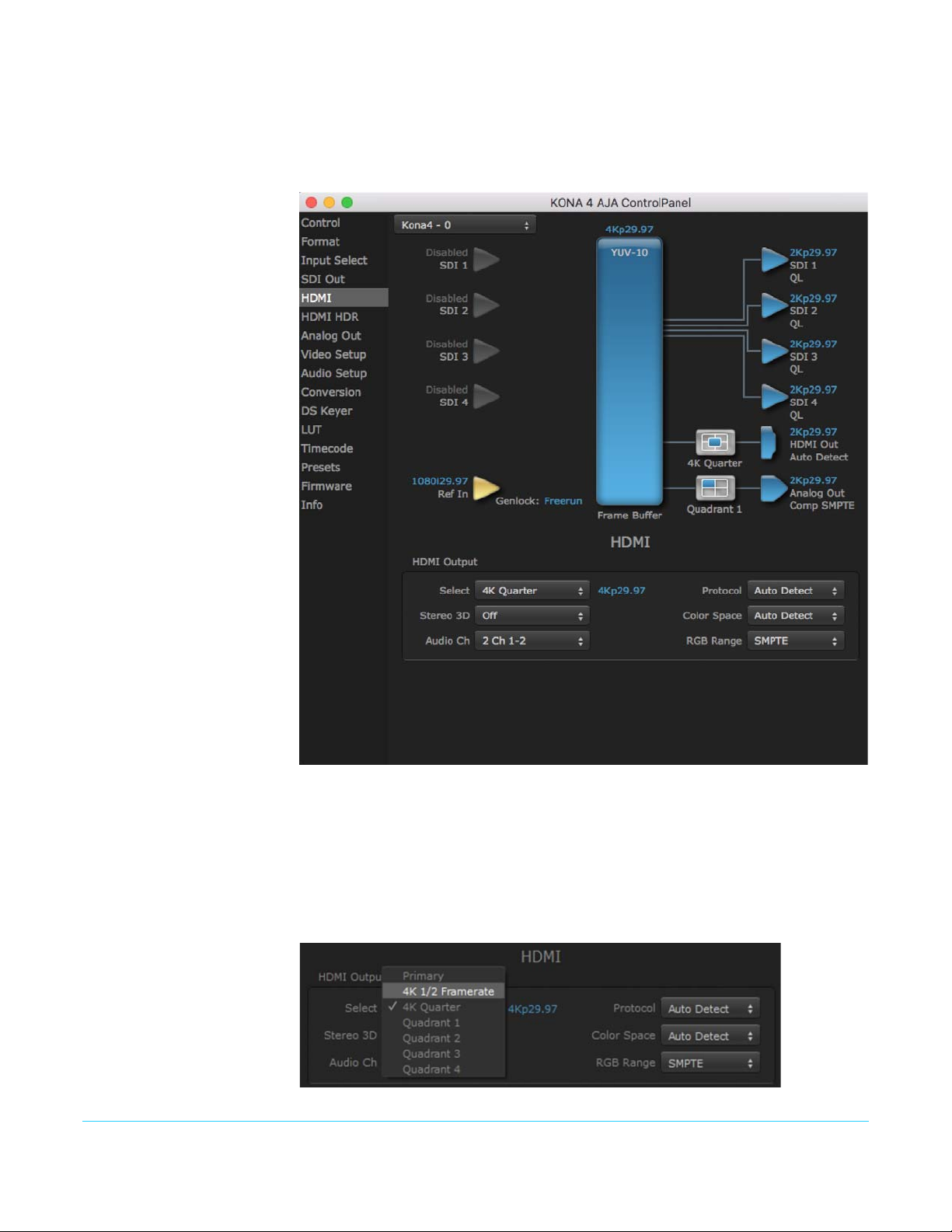

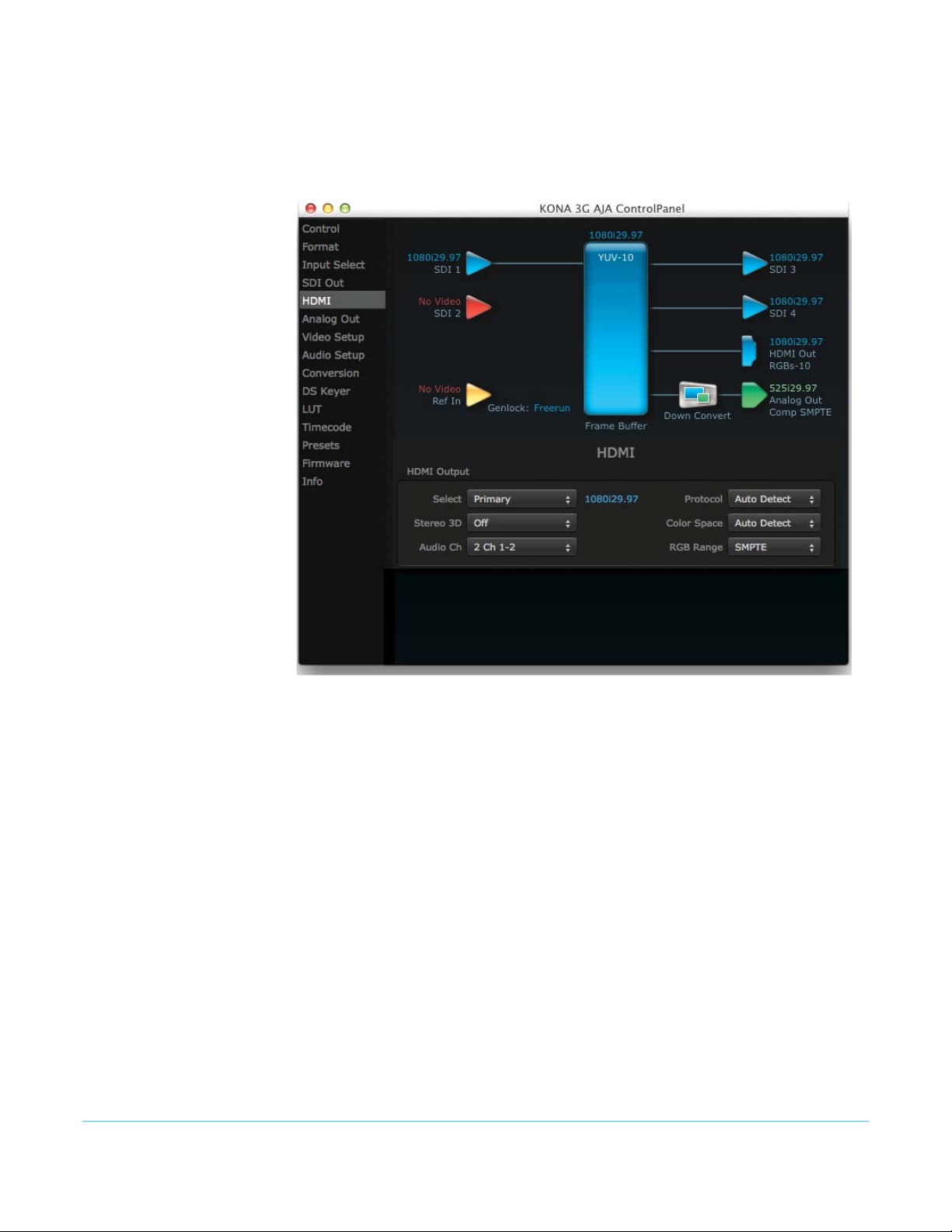

HDMI Configure the HDMI I/O (not LHe Plus)

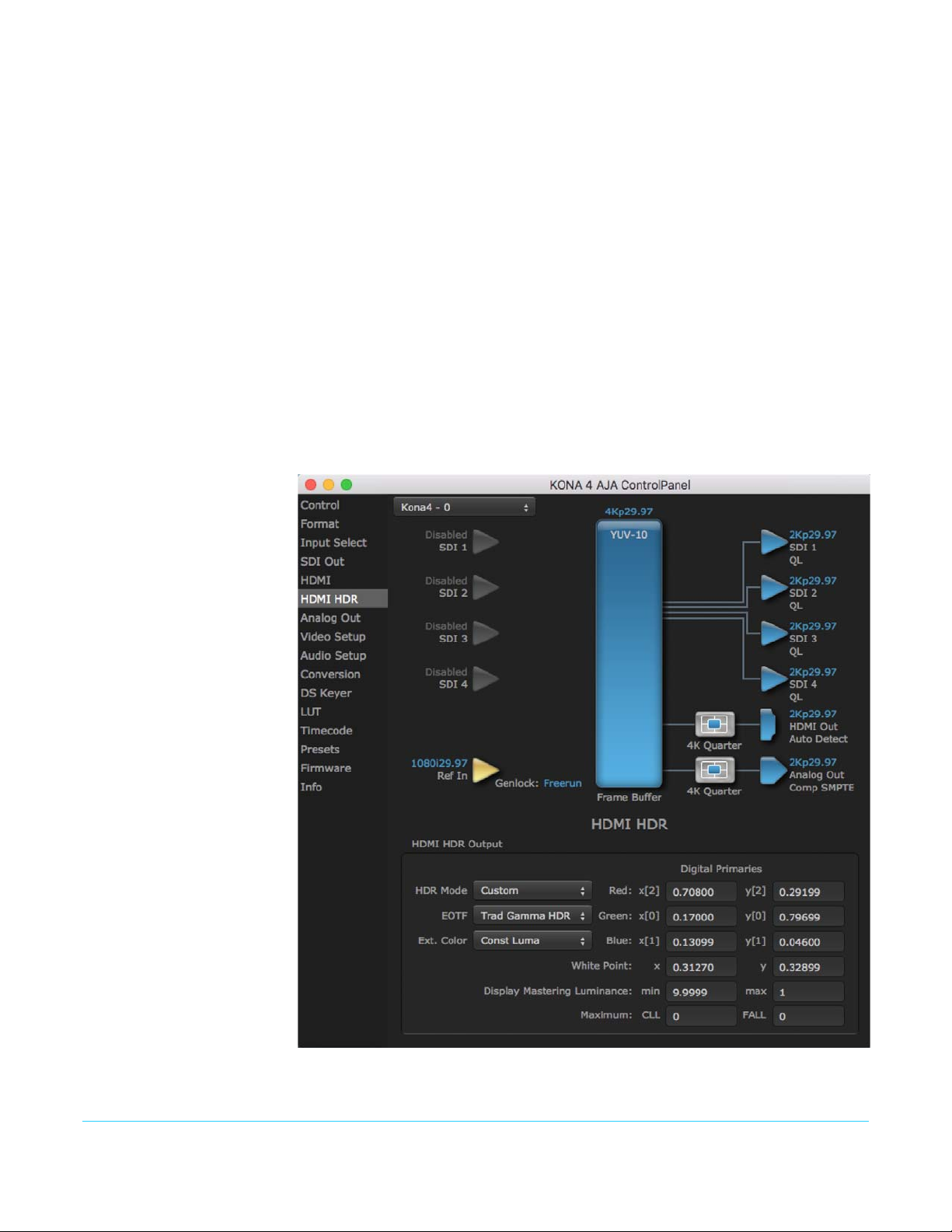

HDMI HDR Configure High Dynamic Range settings for HDMI output (KONA 4/ IP only)

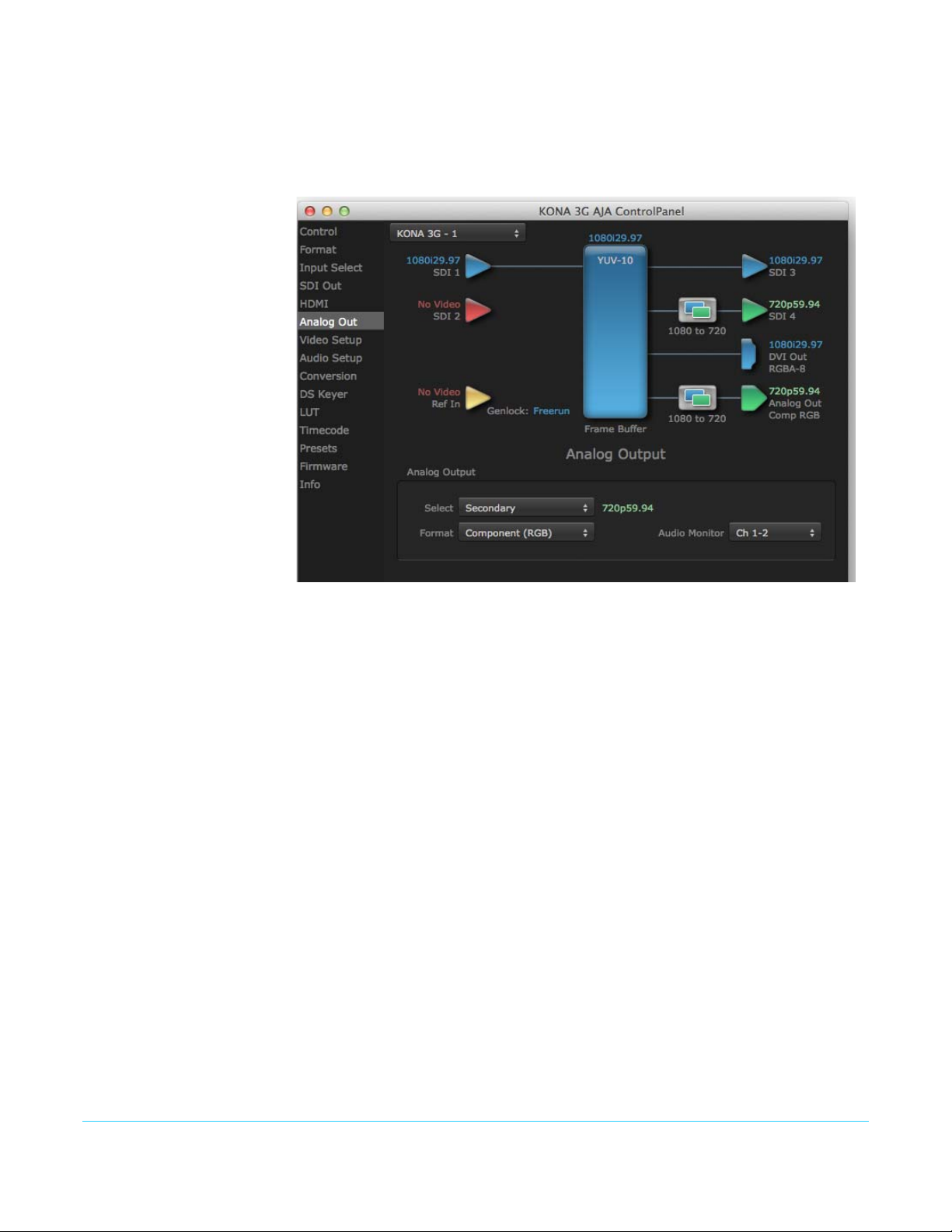

Analog Out Configure the component format and audio monitor setup.

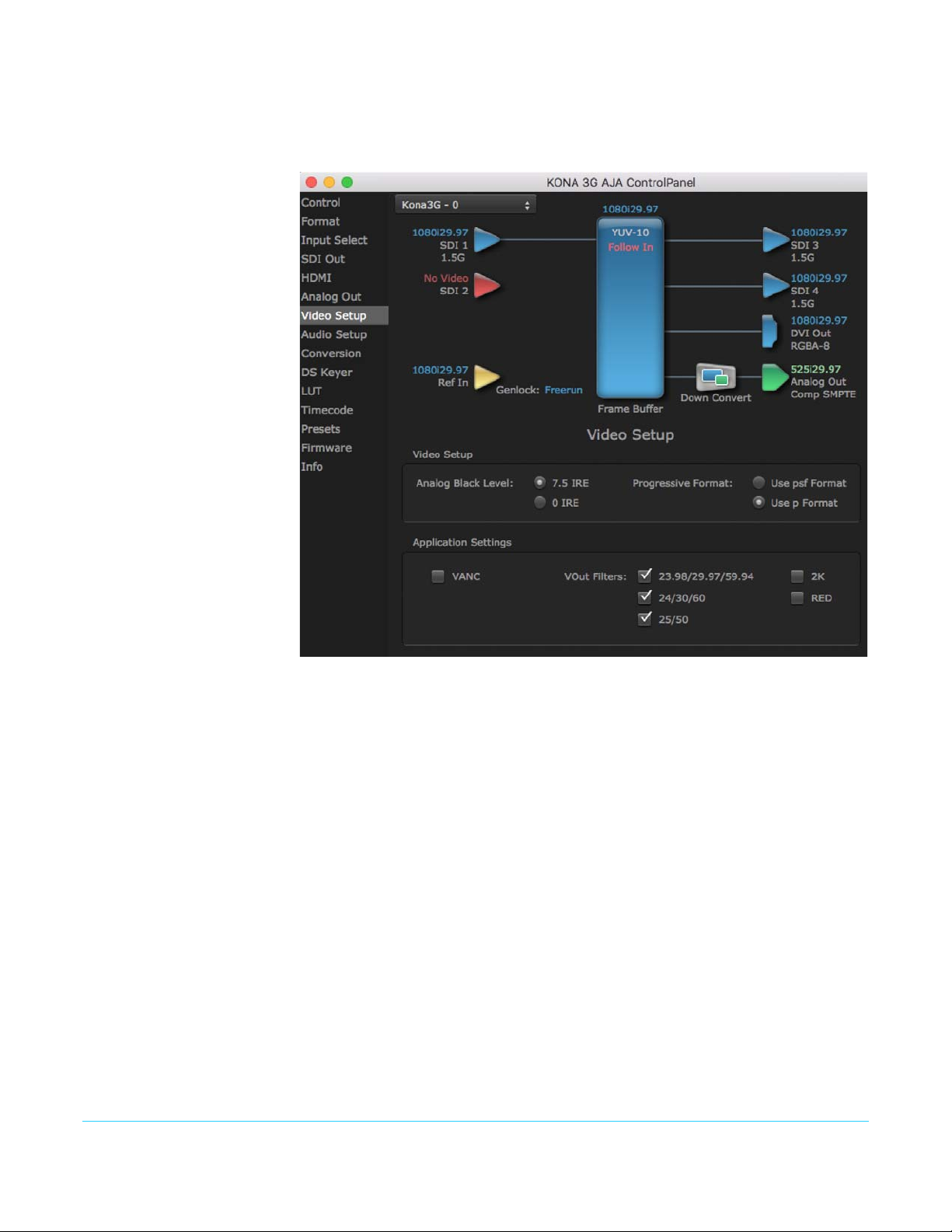

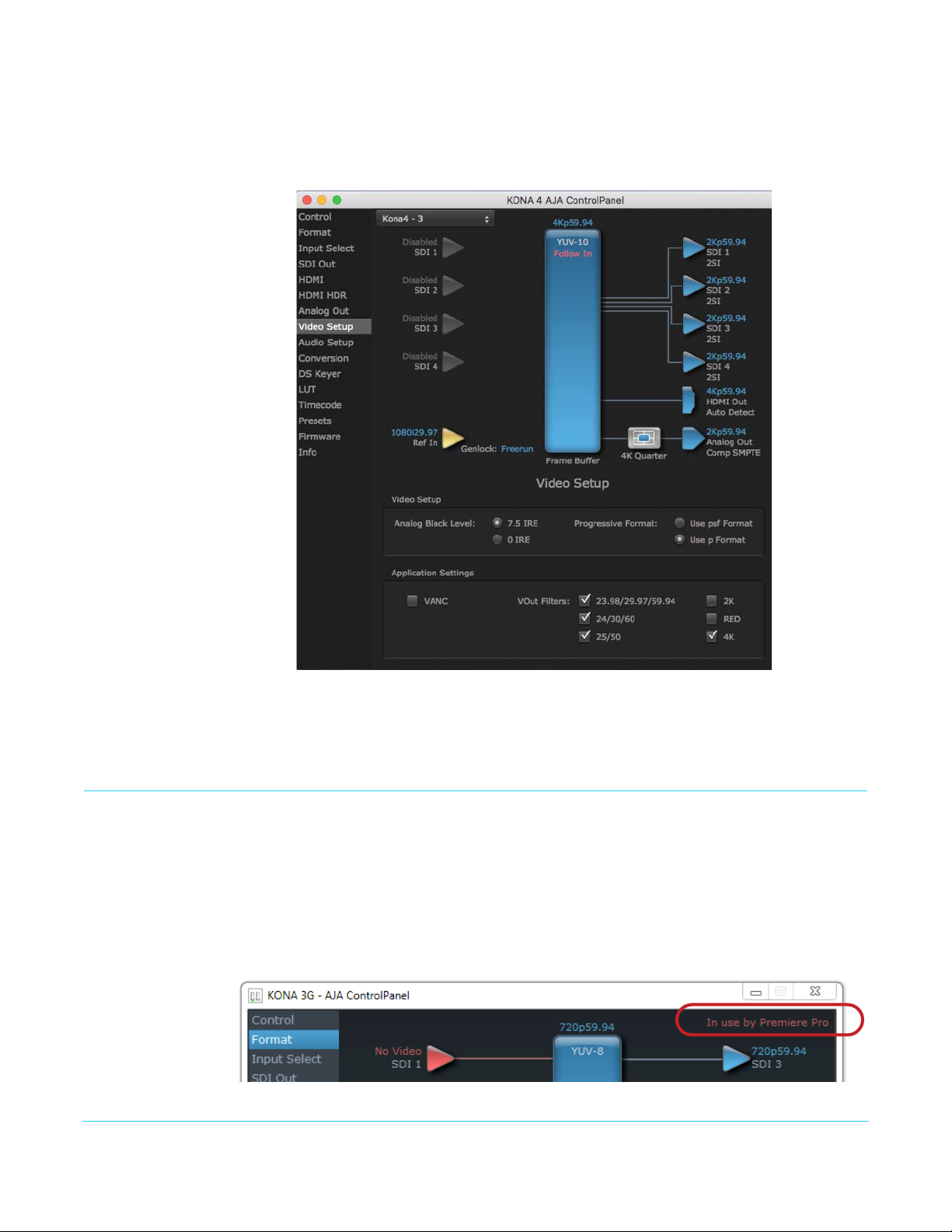

Video Setup Configure Video such as composite black level, progressive format and ancillary data

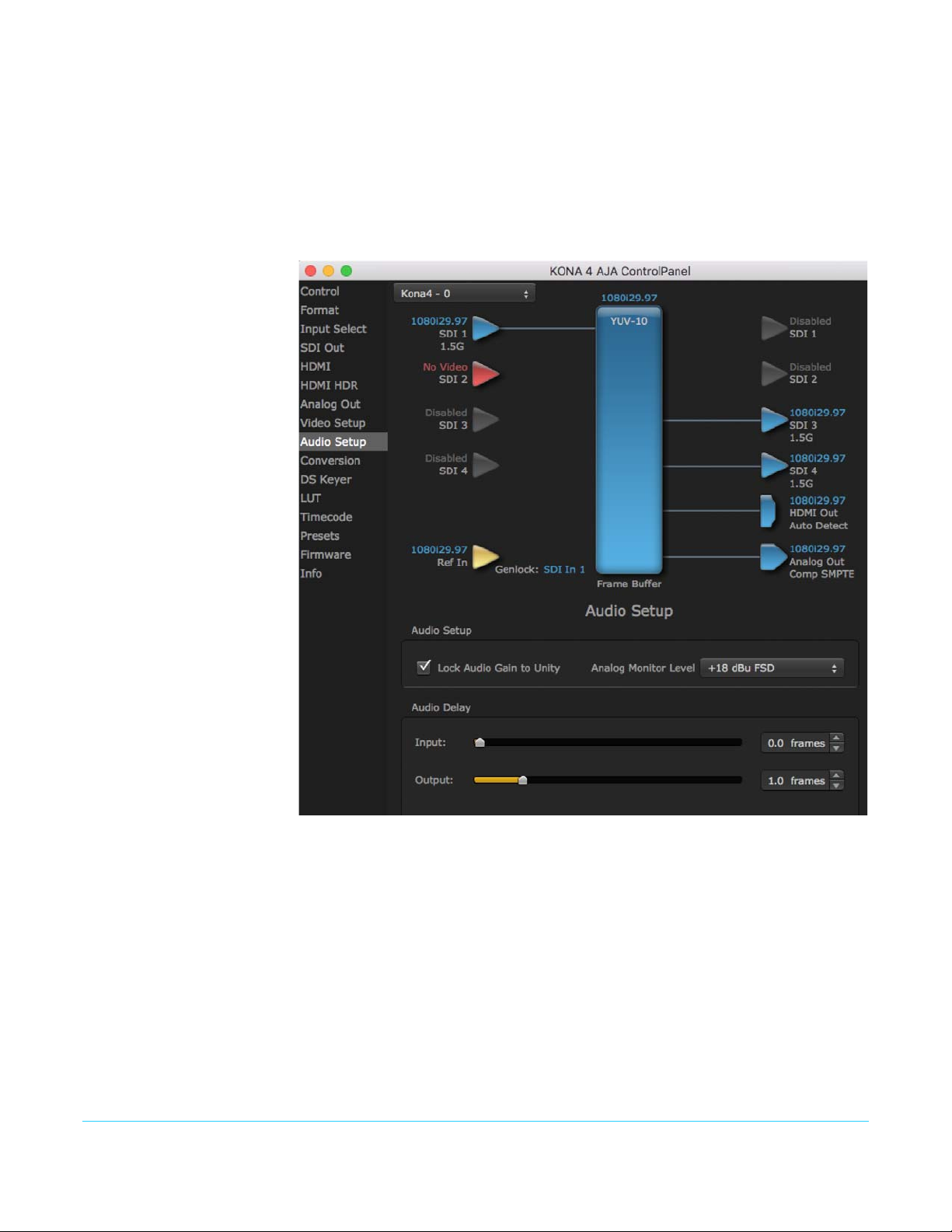

Audio Setup Configures Audio options such as analog audio monitor level.

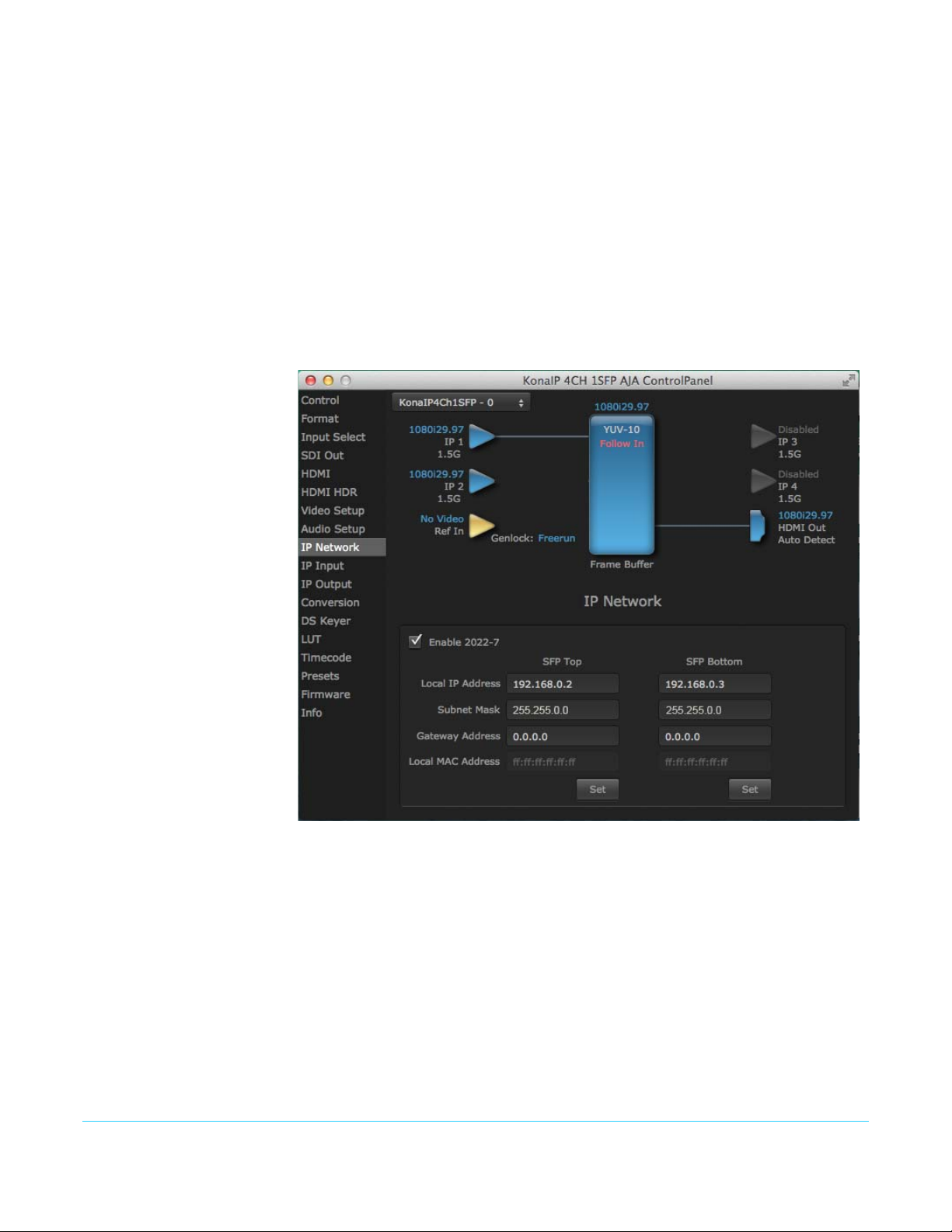

IP Network On KONA IP, define network parameters for the location of each KONA IP physical SFP

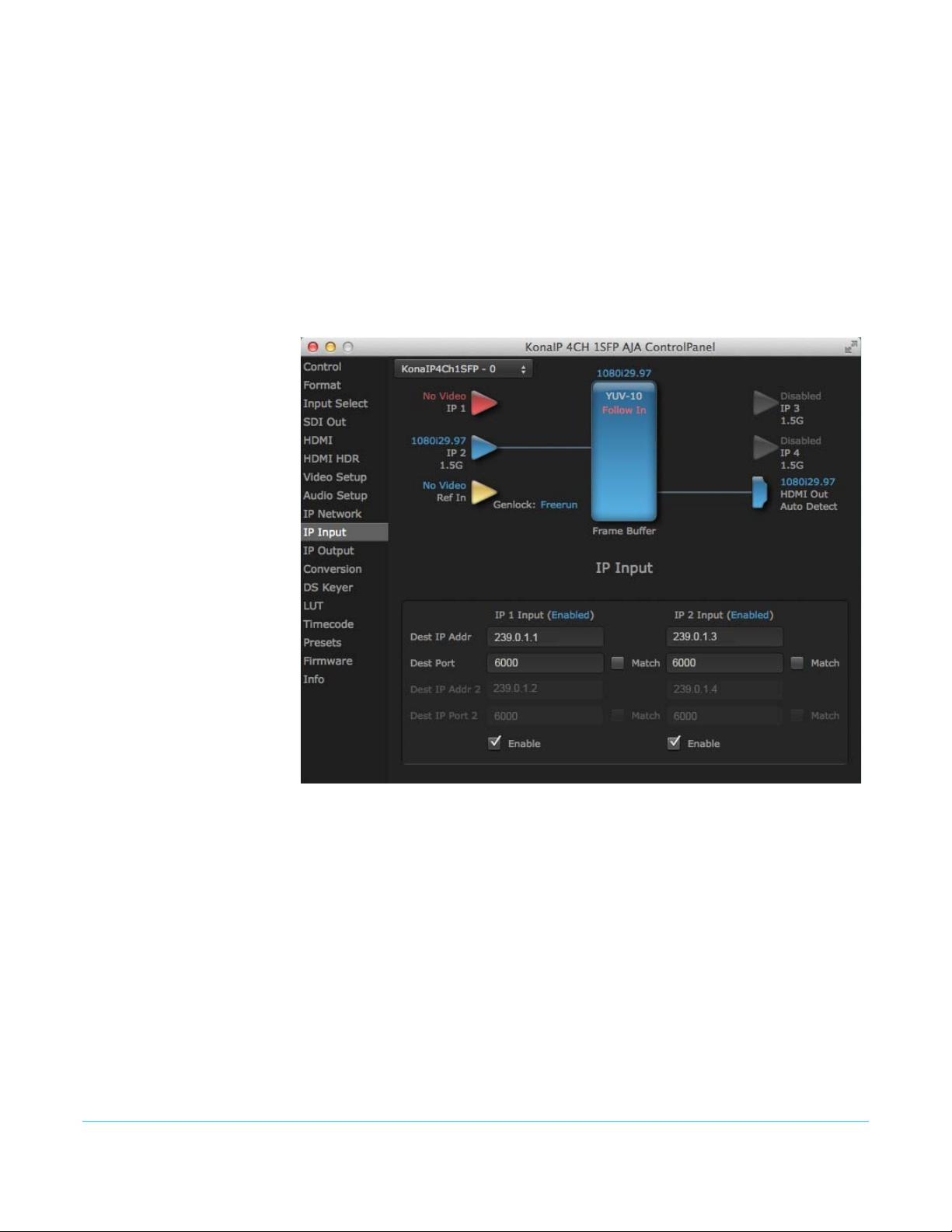

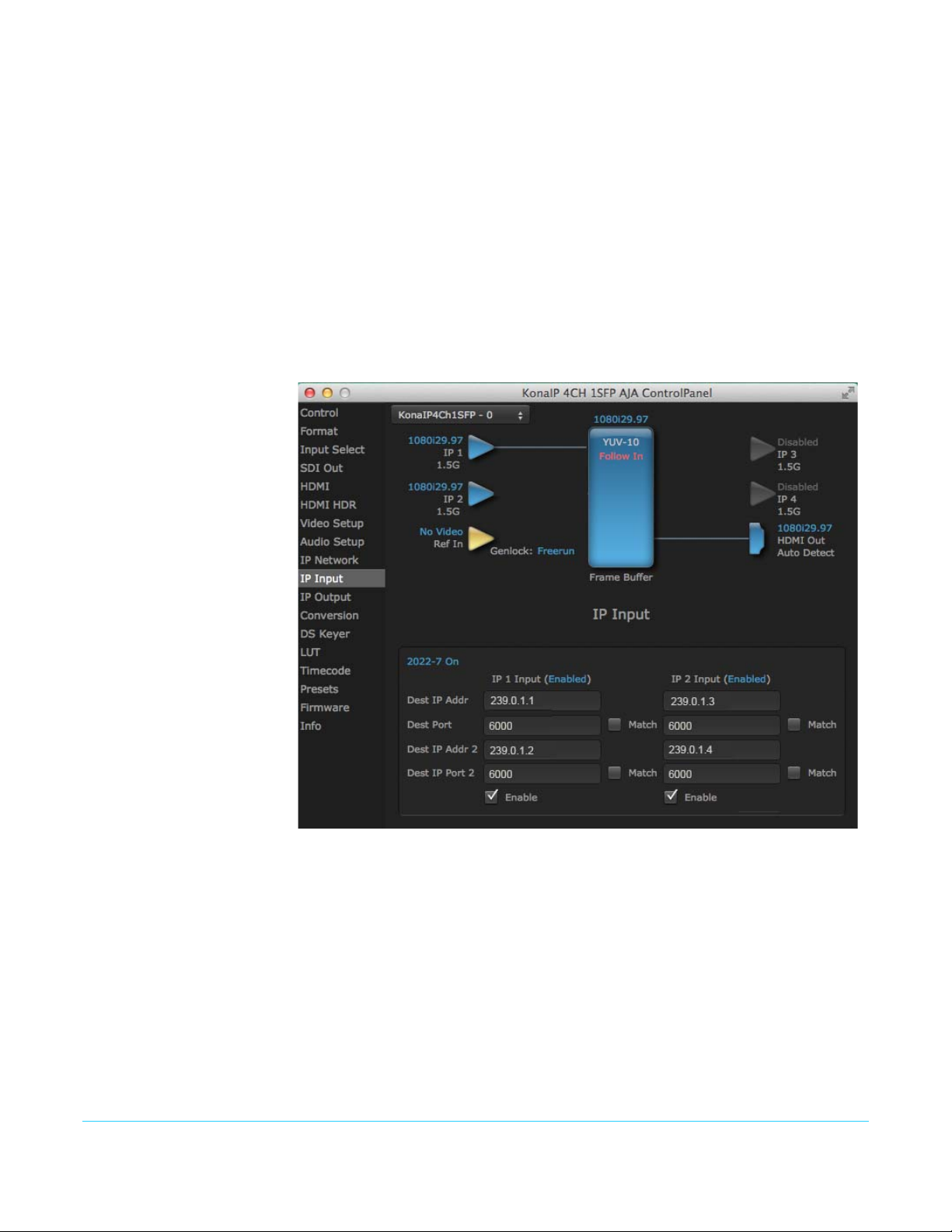

IP Input On KONA IP, define parameters for receiving inputs from the network.

Listed below are the function screens for KONA and what they are used for.

inputs/outputs.

(Closed Caption) option.

cage.

KONA v12.5

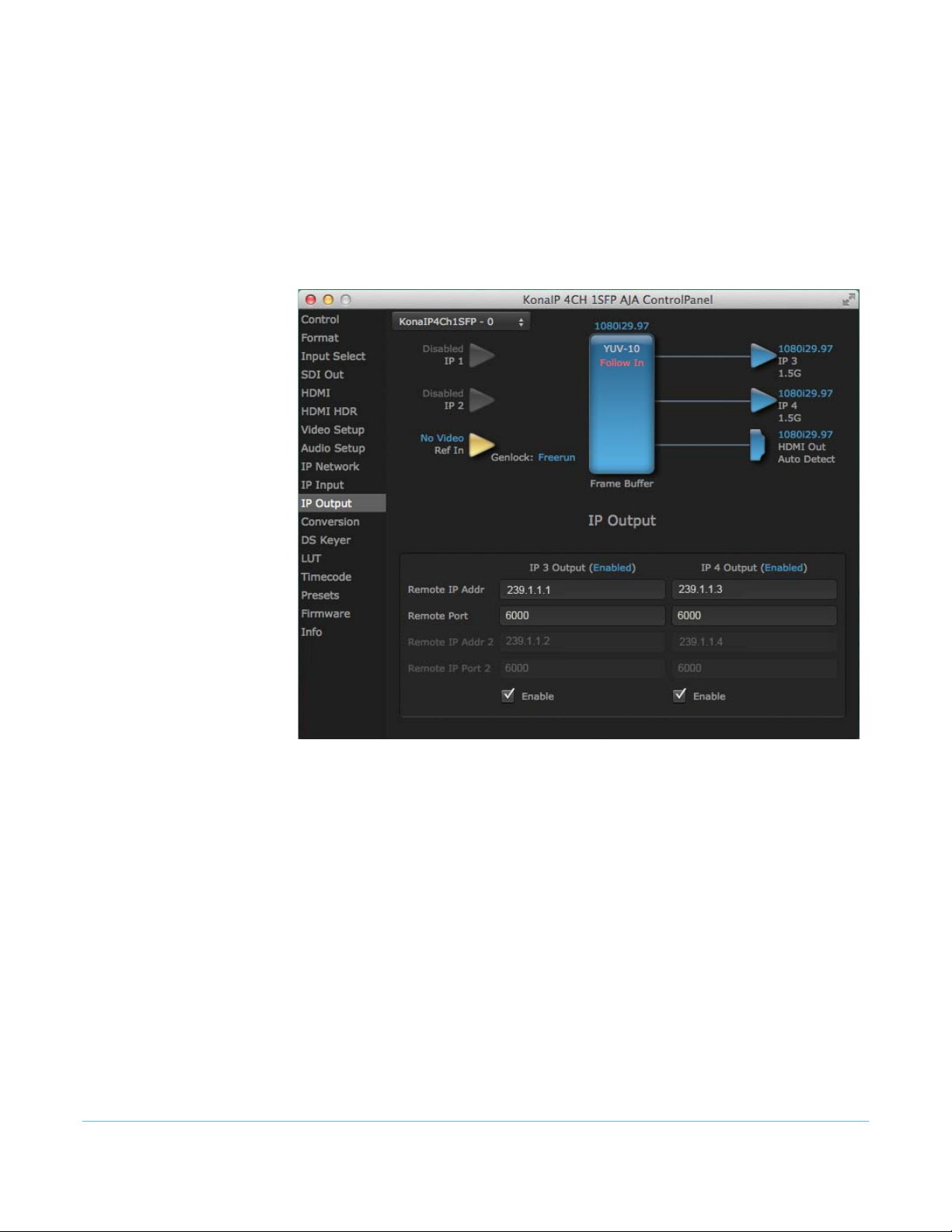

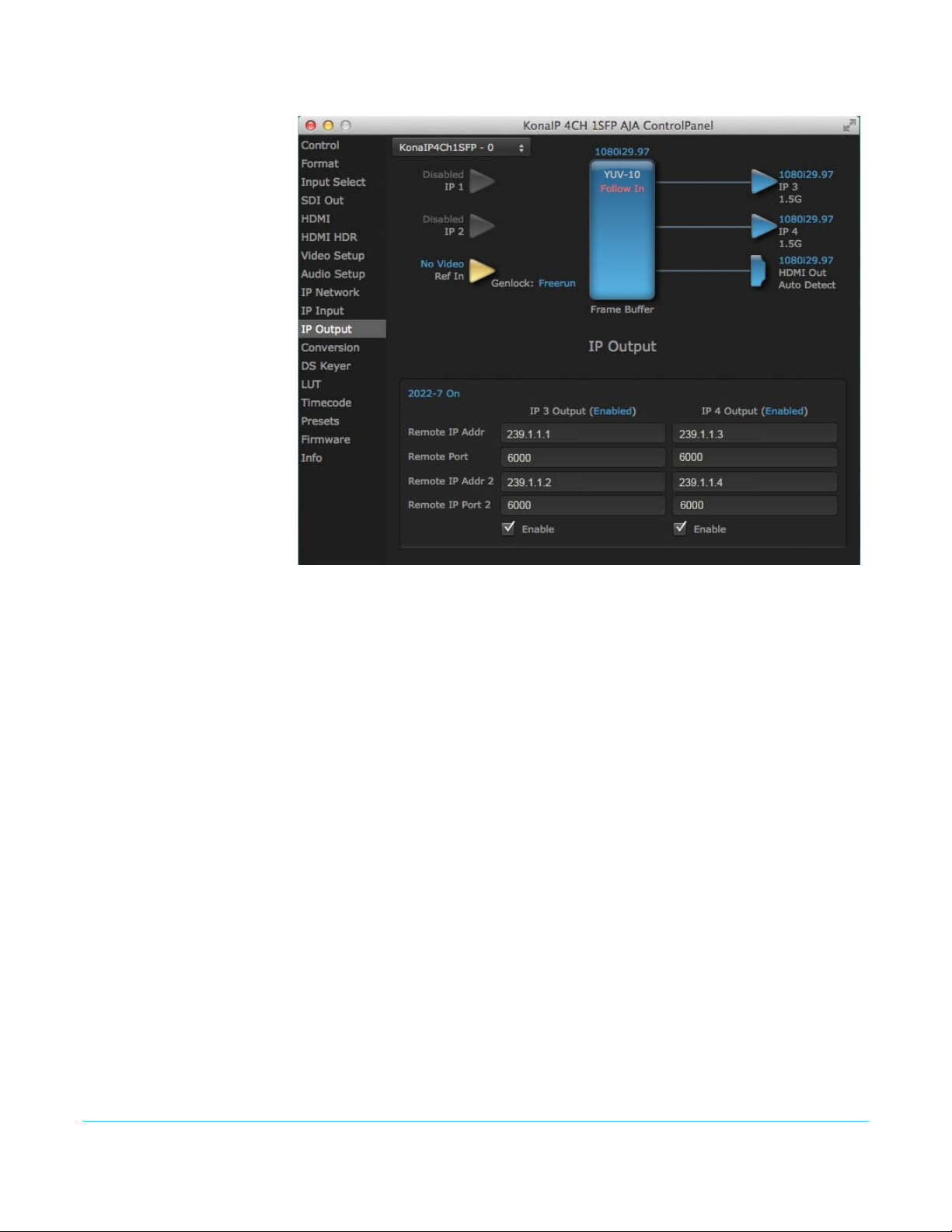

IP Output On KONA IP, define parameters for sending outputs to the network.

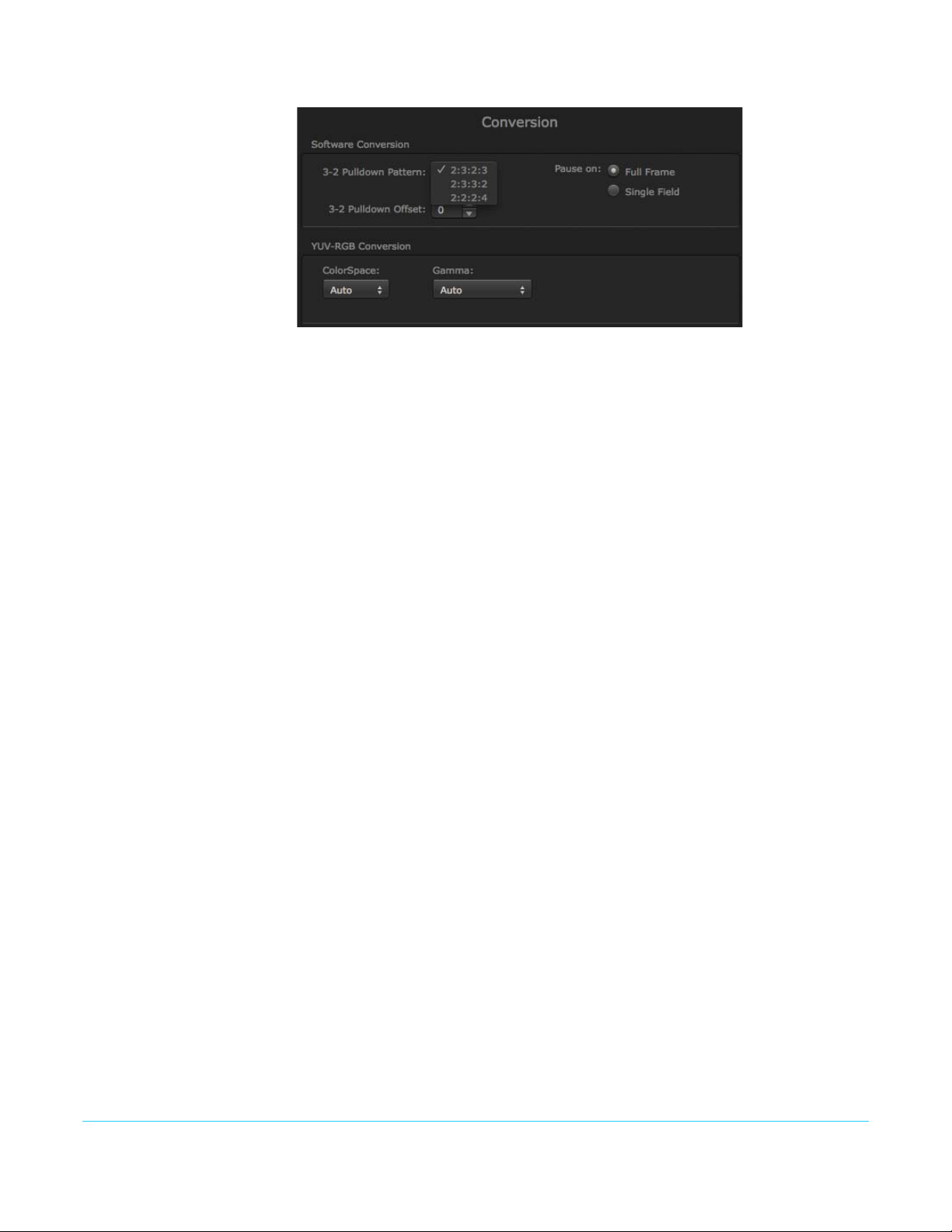

Conversion (Mac platform only) Select codec options such as whether paused video appears as a full

frame or a single field (jitter shown or not shown) and 24 to 30 fps padding patterns. Select RGB range, and Stereo 3D signal configuration (if applicable).

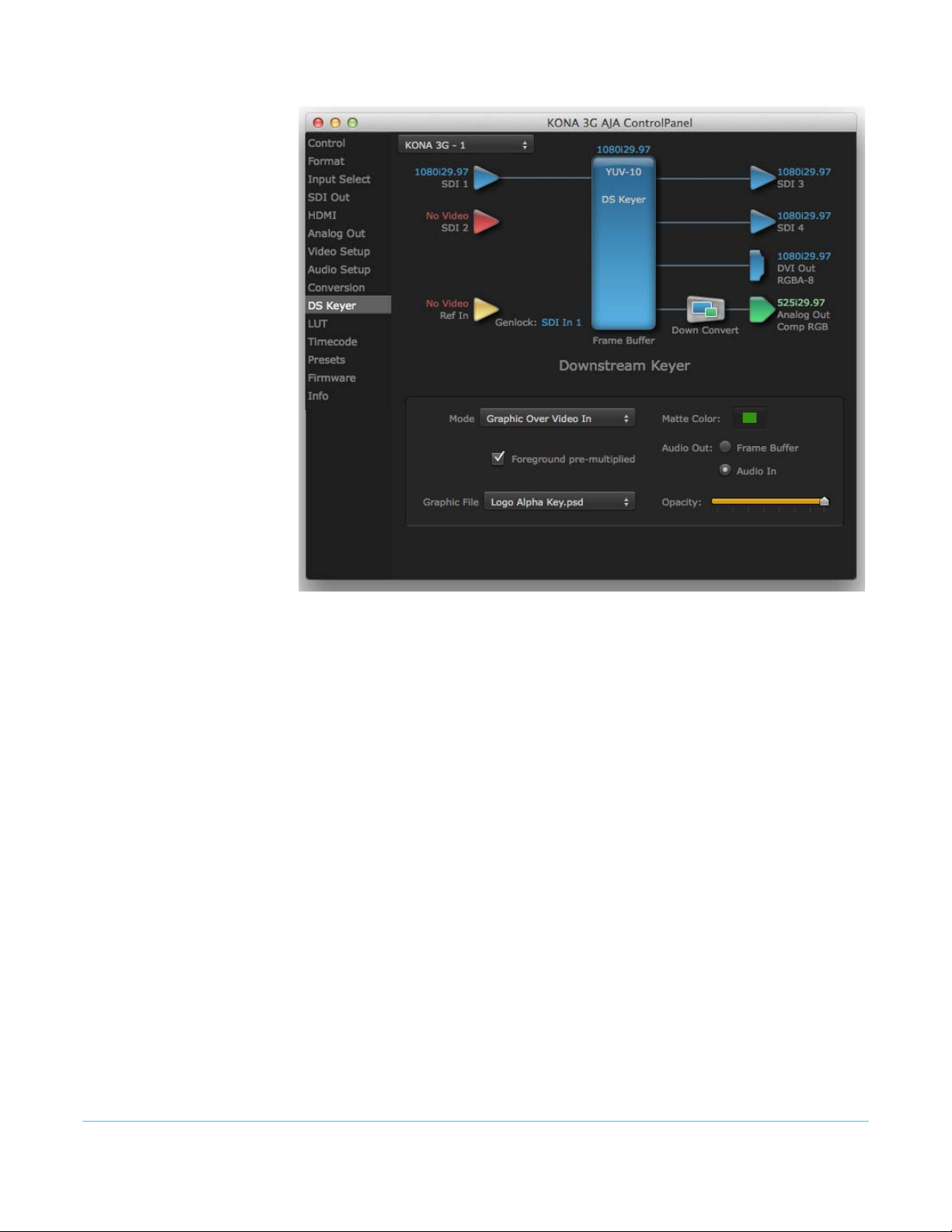

DS Keyer Setup and control the insertion of keyed video from the frame buffer or graphics files

with alpha channel.

www.aja.com

Page 40

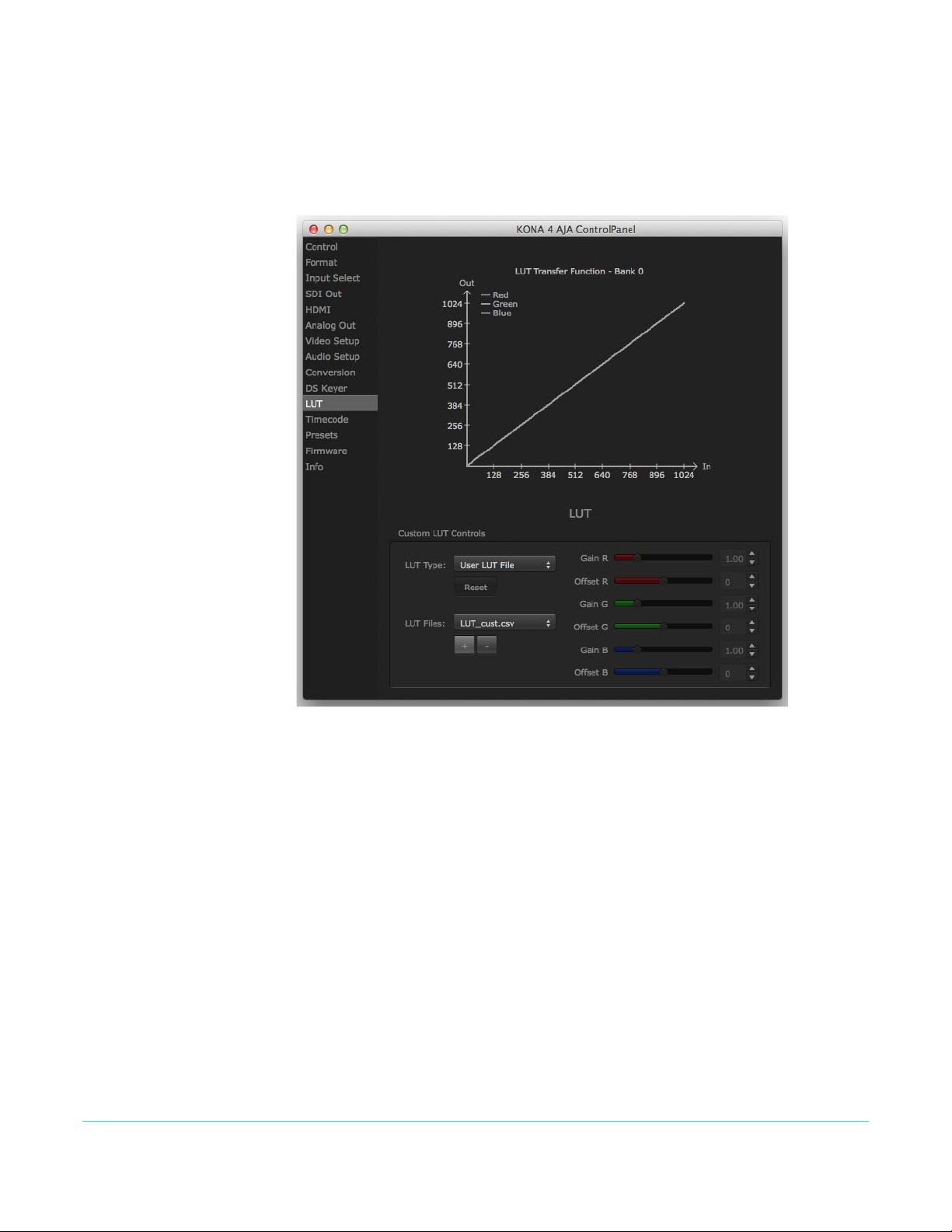

LUT Load a lookup table (LUT) file to adjust the calibration of color for any source.

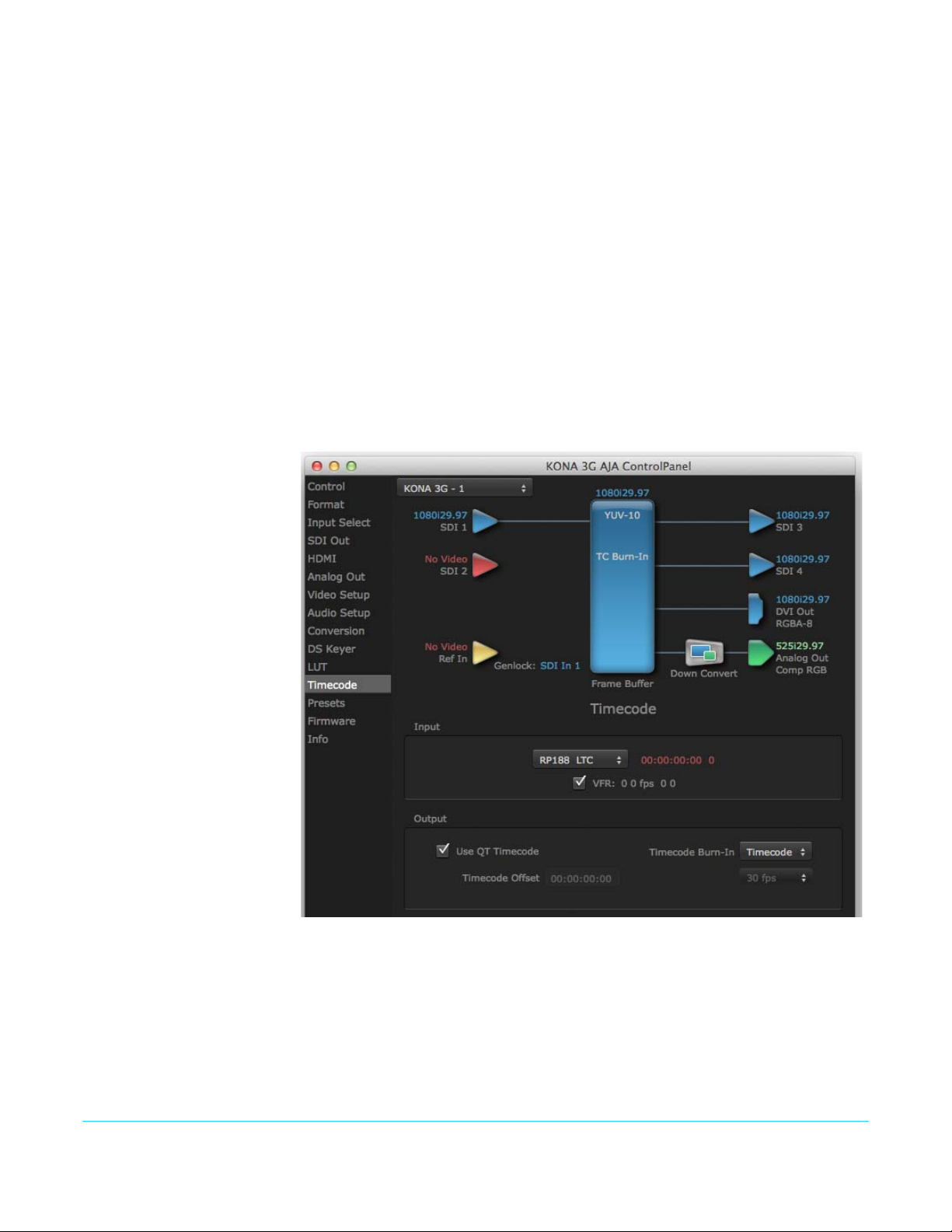

Timecode Monitors SMPTE 12M-2 timecode and configure timecode window burn output.

NOTE: SMPTE 12M-2 is the updated name and specification for what was RP-188.

Presets Add or delete saved preset configurations (handy for setting up the KONA card for varied

workflows and then saving them as canned configuration for quick and easy recall).

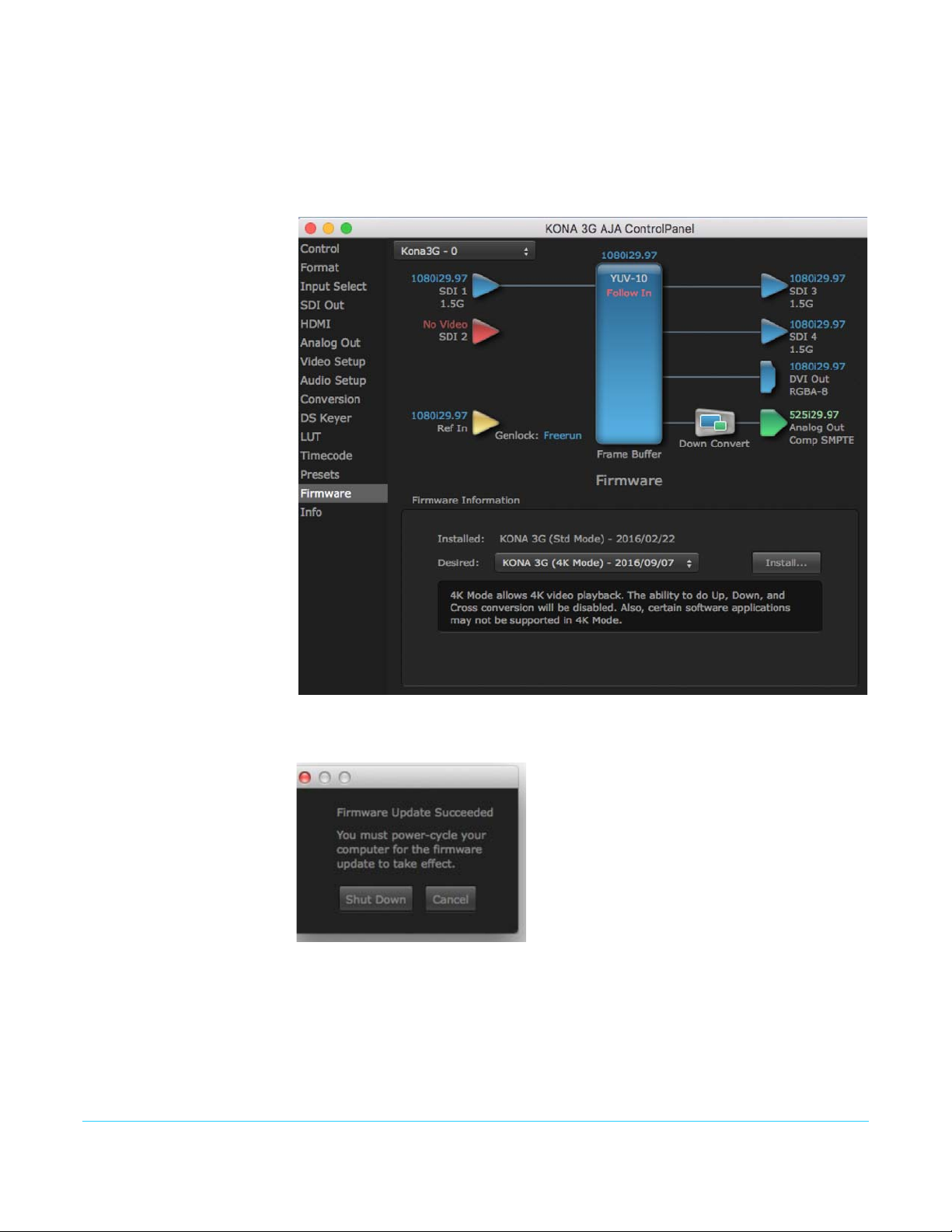

Firmware Install firmware from your currently installed AJA software package.

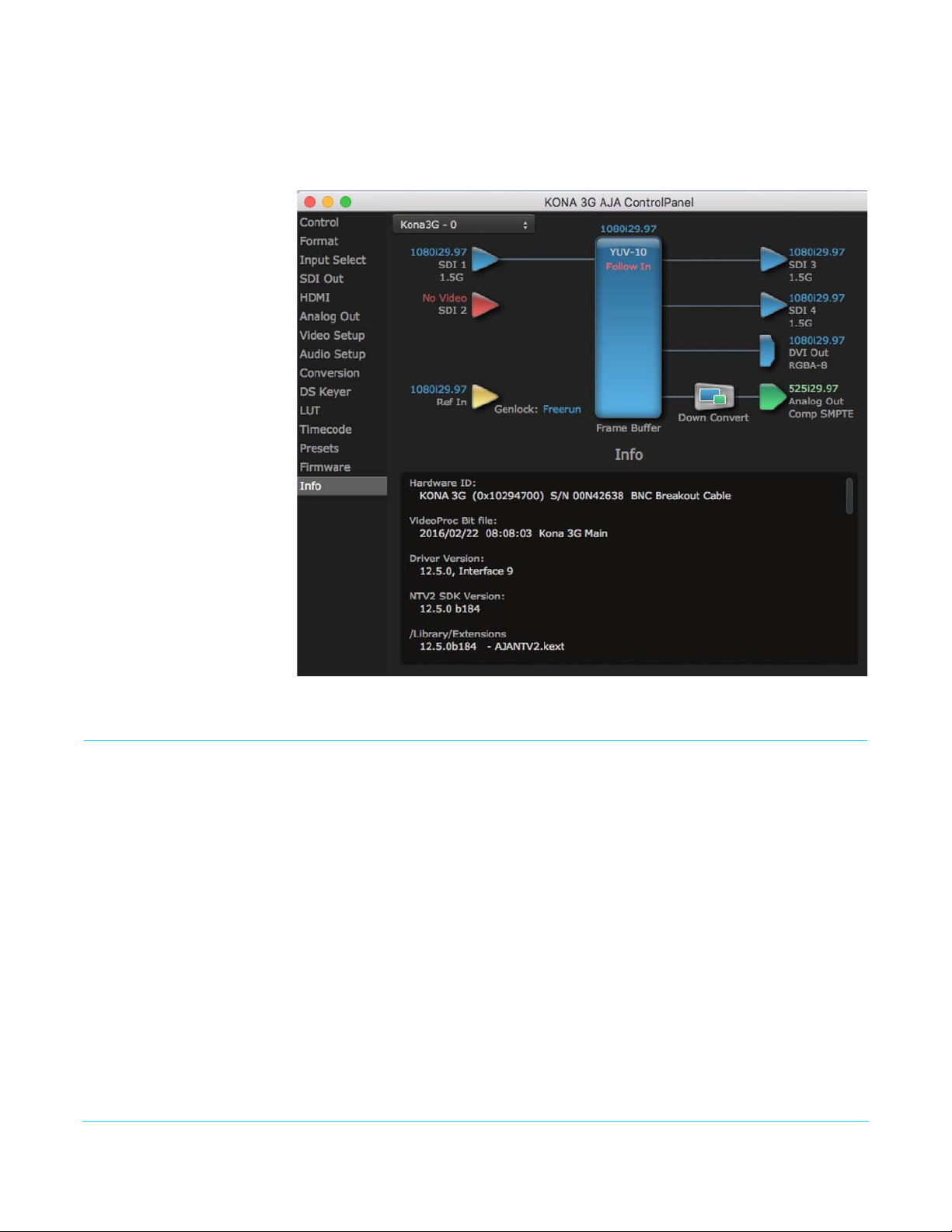

Info Display status information and the firmware version number. This information is

generally intended for troubleshooting/support.

Control Panel Operation of KONA in Standard or UFC Mode

NOTE: This section discusses KONA standard mode Control Panel operation. The KONA 4 and 3G

cards also offer 4K Mode which will be discussed later (see

4 and 3G in 4K Mode” on page 67).

Control Screen The KONA card can be controlled by various software applications running on a host

computer. The Control screen is where you select how the KONA directs video and is used by application software. This screen also provides control for configuring output timing with regard to external reference video and horizontal/vertical delay. The top of the Control Screen shows the currently selected AJA device if more than one is available in your system.

“Control Panel Operation of KONA

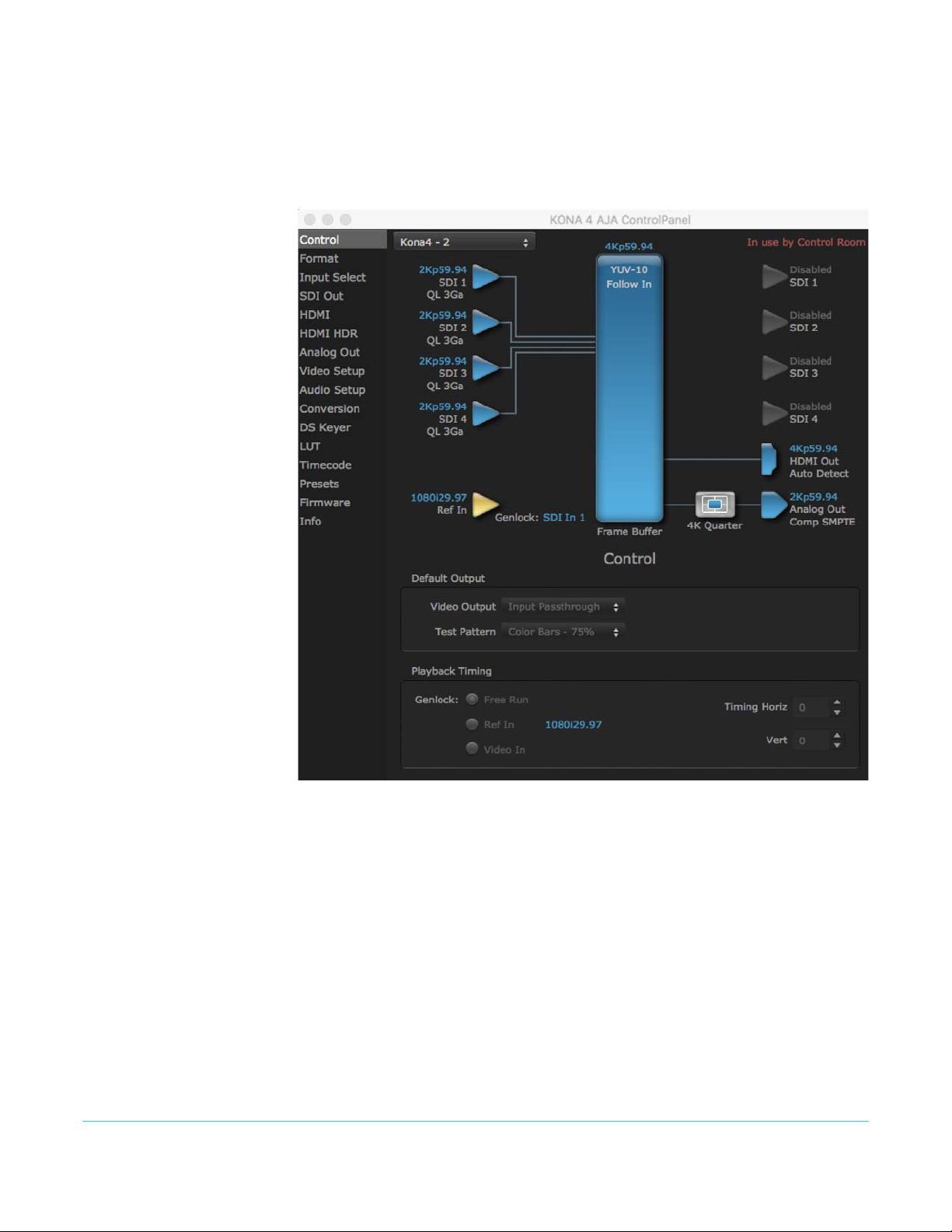

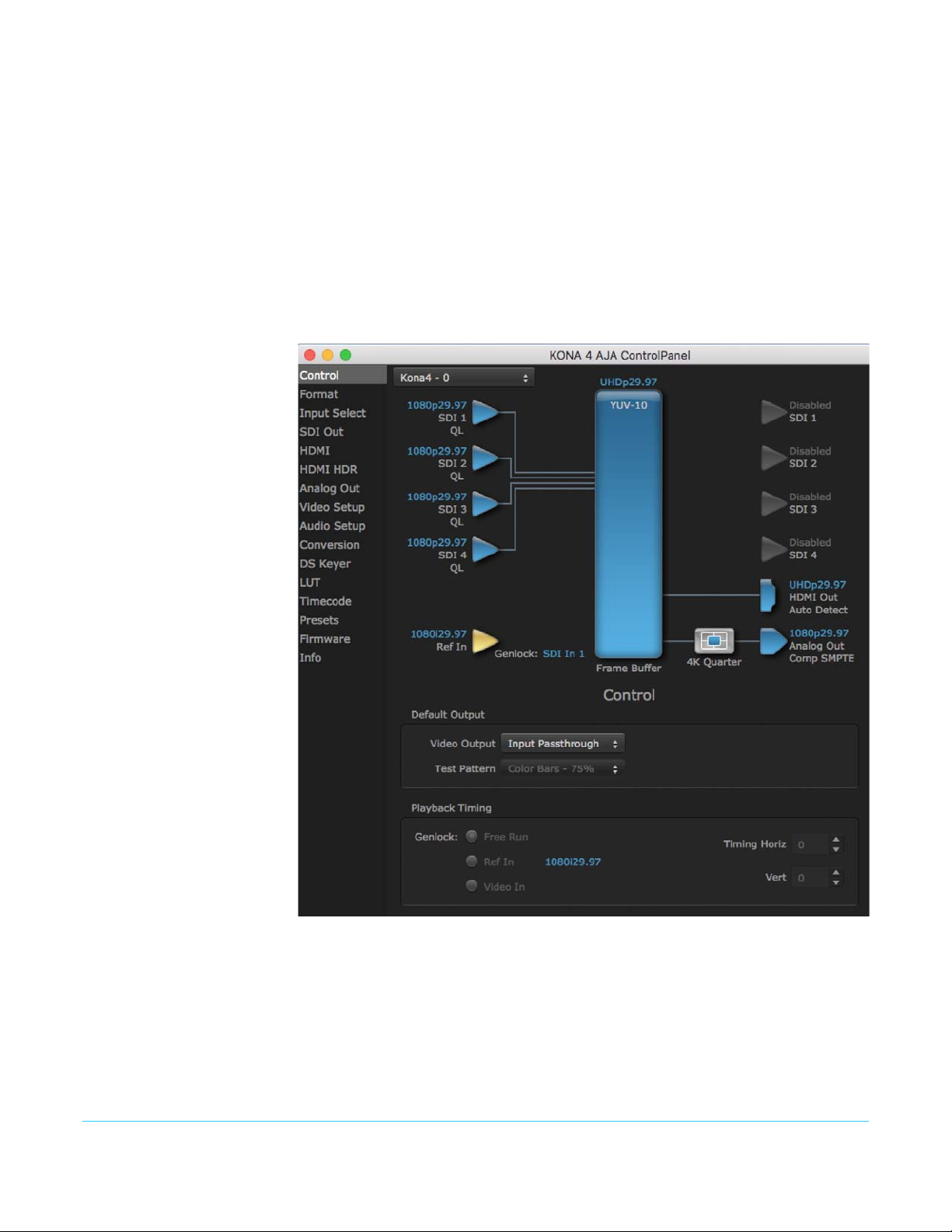

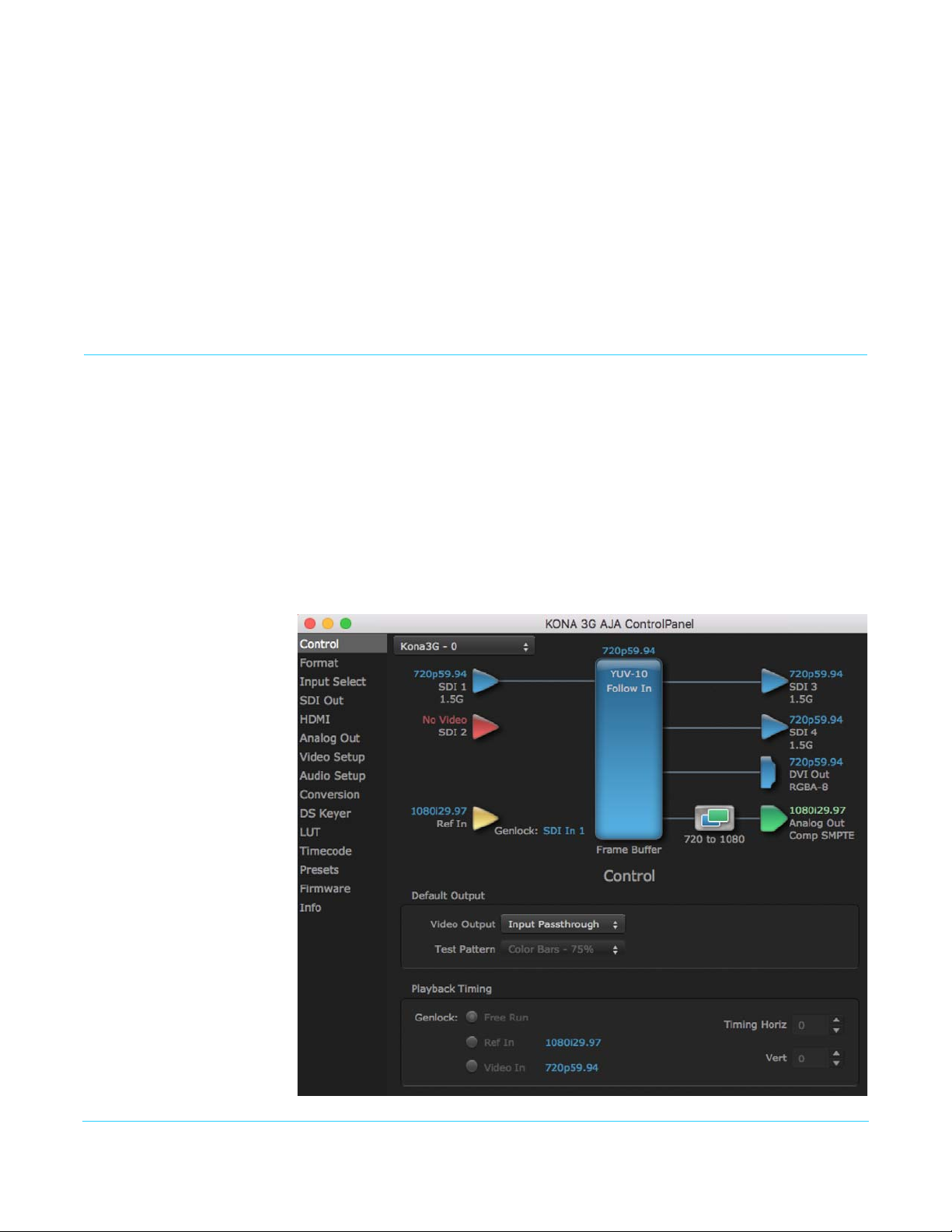

Figure 6. AJA Control Panel, Control Screen

KONA v12.5

www.aja.com

Page 41

Default Output This is where you select what the KONA card will output as a default when no application

has control of the board, such as when the Mac Finder or Windows Navigation Pane is active. Since KONA can be controlled by software applications as well as its own control panel, the output can change dynamically. When you select many video applications, they will take control of the KONA inputs and outputs. However, when an application that doesn’t take control is active, these settings determine what KONA will output.

Black This selection directs the KONA card to output video black whenever an application isn't

controlling the card.

Input Passthrough This selection directs KONA to route video from its selected input through the card for

processing and output. When this selection is chosen, all Primary/Secondary Format selections are available for selection in controlling the output. This in effect makes the KONA card a converter. No applications other than the AJA Control Panel need be open to convert audio and video from one format to another. For example, if you have KONA 3G or LHi and need to dub an SD source tape needs to be HD, the signal can be routed from the SD VTR to the KONA card configured for up-conversion in the AJA Control Panel and then passed through to the HD VTR for recording. (Note: LHe Plus performs downconversion only.)

Test Patter n This selection directs the KONA card to output a choice of preset pattern when no other

application is using the KONA card. You can choose from:

Black, Color bars (75% or 100%), Ramp, Multiburst, Line Sweep, Multi Pattern, or Flat Field.

In addition to the preset test pattern choices, a “Load File...” selection at the bottom of the menu allows you to load any standard RGB graphics file (.tif,.psd, etc.) into the frame buffer for display.

While in Test Pattern mode, you can select RGB or YUV output via a pulldown menu.

NOTE: The graphic file will not be scaled to fit. If it's smaller than the current frame buffer format,

KONA will center it in the frame. If it's larger than the current frame buffer format, it will be cropped on the right and bottom. Also some graphics formats and bit depths may not be supported. Once a graphic file is loaded into the frame buffer it will be retained until it is overwritten by another graphic or test pattern, or when power is turned off. Graphic file names are only “remembered” in the menu until the AJA Control Panel application closed.

Hold Last Application This selection directs KONA to hold and output the last frame of video from the last

application to control KONA. This can be helpful when operating in an environment where you're switching back and forth between multiple application windows.

Playback Timing Use these controls to set Genlock and Timing adjustment.

Genlock Selects how KONA will synchronize program video:

Freerun: In this mode, KONA generates sync without an external reference source

Ref In: Directs KONA to use the Ref Video source for sync (usually an analog black burst

video signal)

Video In: Directs KONA to use whichever video input source has been selected in the Inputs Screen for sync

Timing (Horiz and Vert): These two pull-downs allow output timing adjustment with reference to the Ref Video

source selected:

• Horizontal selects a number of pixels (clocks) to offset

• Vertical specifies a number of lines to offset

KONA v12.5

www.aja.com

Page 42

Format Screen The Format screen shows the video format currently in use by the KONA framebuffer

(called the Primary Format) and allows you to change it. All throughout the Control Panel, choices are always presented based on what KONA can do with the signals available and the inputs/outputs selected. For example, on the Format screen, if the output or inputs are a different format than the primary, then you’ll see an additional information pane that allows you to view and edit the secondary format—including control over whether up/down/cross conversion is employed.

Figure 7. AJA Control Panel, Format screen

IMPORTANT: Do not confuse this Format function screen conversion, which uses AJA hardware and

Format Screen Settings

Video Format (Primary and

Secondary)

KONA v12.5

operates on either Mac or PC, with the separate Conversion function screen, which uses Quicktime for conversion and is only available on Mac.

These pull-down menus show the currently selected formats. If you select an alternate value in the Primary Format using the pull-down, it will change the format used by KONA's framebuffer.

When a change is made via the Video Format pull-down or by clicking an icon and selecting a new format via a contextual menu, the block diagram will change to reflect the new format. In the case of a Secondary Format, the formats available can vary based on what the Primary Format is and the input signal (frame rates of input sources limits the to/from conversion choices).

The “Secondary Video Format” pull-down menu lists all compatible formats for selection (incompatible formats are not shown). This allows you to see what you've chosen, and also see those formats that are compatible with the selected Primary format.

www.aja.com

Page 43

Pixel Format Use this pulldown menu to choose: YUV-10, YUV-8, RGB-10, or ARGB-8 or RGB-12.

RGB Range The RGB Range pulldown menu allows you to select either Full-range (0-1023) or SMPTE

range (typically 64-940) for RGB color output.

For video formats supported by the KONA models, refer to “Specifications” on page 81.

NOTE: The AJA Control Panel software uses the abbreviation “sf” instead of “psf” when referring to

“progressive segmented frame” formats. In the manual and in other literature you may see either of these acronyms used interchangeably. Visually, it is easier to recognize:

• “sf” for progressively segmented frame formats

• “p” for progressive frame formats

Follow Input Enabling the Follow Input checkbox allows the Control Panel Buffer to auto-switch to

whatever is the detected input format. This feature works only if the controlling application supports input-based capture—AJA Control Room for example.

Format Conversions

Cross-Conversion If you have an HD format as your primary and then select a secondary HD format with a

different frame size, the KONA 4/3G will perform a cross-conversion where necessary (input or output) for “like Hz” formats. “Like Hz” means that 720P 59.94 may be converted to 1080i 29.97 (59.94Hz). Converting from disparate Hz is not supported on the KONA 4/ 3G for cross-conversions. The example below shows 1080i to 720p.

Up Conversion The Up and Down pull-down menus are available when conversion has been selected for

the video path to/from the framebuffer and like Hz formats are selected (the one exception is 1080PsF 23.98 which can be downconverted to 525i 29.97.) Different choices will be available depending on the type of conversion and formats being converted. SD to SD conversions are essentially aspect ratio conversions to accommodate transforming anamorphic images to letterbox or vice versa.

For up-conversion the following choices are available:

• Anamorphic: full-screen “stretched” image

• Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars

• Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black sidebars

• Zoom Letterbox: results in image zoomed to fill full screen

• Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen;

this setting can introduce a small aspect ratio change

Down Conversion For down-conversion the following choices are available:

• Letterbox: image is reduced with black top and bottom added to image area with the

aspect ratio preserved

• Crop: image is cropped to fit new screen size

• Anamorphic: full-screen “stretched” image

KONA v12.5

www.aja.com

Page 44

Figure 8. AJA Control Panel, Format screen, Example shows cross-conversion

SD to SD This pulldown is for SD to SD aspect ratio conversion.

• Letterbox: this transforms SD anamorphic material to a letterboxed image

• H Crop: will produce a horizontally stretched effect on the image; transforms

anamorphic SD to full frame SD

• Pillarbox: will produce an image in the center of the screen with black borders on the

left and right sides and an anamorphized image in the center

• V Crop: will transform SD letterbox material to an anamorphic image

KONA v12.5

www.aja.com

Page 45

Input Select Screen On the Inputs screen, you can view the currently selected video and audio input sources

and map audio sources to the channels supported by your editing application. Two information panes in the screen are provided: Video Input and Audio Input.

Figure 9. AJA Control Panel, Inputs Screen

Input Select Screen

Audio Input This pulldown menu allows you to pick where the audio comes from. KONA supports up

KONA v12.5

Settings

Video Input The pulldown menu allows you to see and change the currently selected video format

that KONA has detected (if any). In the KONA 3G example shown above, video is selected at the SDI1 input and the format is 1080i with a frame rate of 29,97. Since this text is shown in blue, you can tell that it matches the framebuffer's primary format selected in the “Formats” screen. By looking at the input source, you can determine how the primary format should likely be set (unless you want to perform a conversion on the input). If you wish to select a different input, use the pulldown to select either SDI 1, 2, or Dual Link for two-wire 4:4:4 RGB, or Stereo 3D. For 3G single-link, choose the SDI Source used and select Stereo 3D from the SDI pulldown menu.

to 8 channels of embedded audio. You can choose from the 16 channels embedded in the SDI, which 8 to bring in (1-8 or 9-16). Here, if only two channels were selected in the third-party application you are using, you can select which two channels from the eight embedded will be mapped to that application.

www.aja.com

Page 46

SDI Output Screen The SDI Output Screen shows the current settings for both of the SDI outputs. Because

the outputs can be configured independently, one output may be the Primary format and the other output may be the Secondary format. If an input/output has no video, it will be indicated on the block diagram (“No Video”).

Figure 10. AJA Control Panel, SDI Output Screen

Primary When selected, this indicates that the SDI output is set to the same format as the

Secondary When selected, this indicates that the SDI output is set to a format different from the

Video+Key When selected, this indicates that the SDI 3 video is set to the same format as the

Stereo When selected, this indicates that SDI 1 represents the left eye output and SDI 2

Transport Options:

Dual Link: Output (SMPTE 372M) using SDI 1 and SDI 1 in concert.

3Gb: Output (SMPTE 424M) using a single-link transport.

framebuffer. That value will be listed in blue.

framebuffer (Primary Format). That secondary format value will be listed in green. This shows that active processing of the video is taking place (format change and possibly upor down-conversion).

framebuffer. SDI 4 is set to a video key signal associated with SDI 3 (the shape to be cut out from the video - this will appear as a black and white image/matte). Using the second KONA output as an Alpha Channel key, with the video output, may be useful for feeding production switchers, DVEs or other professional video equipment. If Video+Key has been selected as an output, the block diagram will indicate the SDI outputs with video in blue and the key in red.

represents the right eye output of stereoscopic material.KONA 4/3G also offers single link 3Gb output of multiplexed Stereo 3D.

KONA v12.5

www.aja.com

Page 47

HDMI Screen The KONA 4, 3G and LHi models offer HDMI output while the LHi card accepts HDMI

input also. The following descriptions and figures show the 3G output configuration options followed by LHi HDMI Input options.

Figure 11. AJA Control Panel, HDMI Screen

HDMI Output Settings

Select The Select pulldown menu allows you to select either the primary video format

Stereo 3D A pulldown menu for 3D output allows you to select either Side-by-Side or Top-Bottom

NOTE: This selection must agree with format selection in the third-party CineForm Codec (NOT

Audio Channels An Audio Channel pulldown allows you to select the number of embedded audio

Protocol The Protocol pulldown allows you to choose Auto Detect, HDMI or DVI protocol—use DVI

KONA v12.5

(framebuffer) or a secondary one (up/down/cross-conversion).

(Stacked) output of left-eye and right-eye signals.

included with AJA KONA 4/3G) pulldown menu.

channels for the HDMI output.

if you’re outputting to a DVI monitor using an HDMI to DVI adapter.

www.aja.com

Page 48

Color Space Selects the HDMI output color space and depth. These are the choices:

• Auto–UDC automatically selects the mode based on getting the attached HDMI

device's EDID information. This is the recommended setting. The selected mode is shown to the right of the pull-down control.

• RGB 8Bit–UDC uses 8-bit RGB mode regardless of the attached device's EDID.

• RGB 10Bit–UDC uses 10-bit RGB mode regardless of the attached device's EDID.

• YCbCr 10Bit–UDC uses 10-bit YCbCr mode regardless of the attached device's EDID.

RGB Range The RGB Range pulldown menu allows you to select the type of RGB color output.

• SMPTE– (typically 64-940)

• Full–(0-1023)

HDMI HDR Screen The HDMI-HDR screen, available in KONA IP and the 4K mode of KONA4/3G, provides a

mechanism to inform an HDMI sink device (such as a TV or monitor) that the video content is HDR. This includes generation of the Dynamic Range and Mastering Infoframe and the static metadata descriptors as defined in CTA-861.3 and HDMI v2.0a. Included are pre-canned primaries values for BT.2020 and DCI P3 color gamuts.

Figure 12. HDMI HDR Screen with 4K Primary Format

KONA v12.5

www.aja.com

Page 49

HDR Mode • Off - HDR Mode disabled (default).

•DCI-P3 D65

• BT-2020

• Custom - Allows custom values for the Digital Primaries.

EOTF The Electrical Optical Transfer Function metadata bit tells the HDMI display which EOTF

to use. Most TV's will require this to be set to ST 2084 for their HDR modes.

Ext. Color Most TV's require this be set to Non-Const Luma to go into their HDR modes.

IP Network Screen The IP Network Screen, available only on KONA IP, lets you input the network parameters

that define the location of each physical SFP+ cage of the KONA IP hardware.

Figure 13. AJA Control Panel, IP Network Screen

KONA v12.5

Enable 2022-7 Enables 2022-7 redundant network operation. See “2022-7 Operation” on page 52 for

more information.

• SFP Top - Indicates the top physical SFP cage on the KONA IP board, farthest from the

copper contacts where the KONA card connects to its PCIe slot.

• SFP Bottom - Indicates the bottom physical SFP cage on the KONA IP board closest to

the copper contacts where the KONA card connects to its PCIe slot.

Local IP Address This is the IP address that identifies each physical KONA IP SFP+ link on the network. This

field must be filled in for at least one of the KONA IP SFPs for KONA IP to work properly

Subnet Mask This is the subnet mask defined by the system administrator. Generally speaking, this

value must be defined in the AJA Control Panel for KONA IP to work correctly on the network.

www.aja.com

Page 50

Gateway Address This is the IP address of a network gateway to a remote network. This value must be

defined if/when the KONA IP needs to send signals to, or receive signals from a remote network.

Local MAC Address This is an information display field that cannot be changed. It is the MAC address that is

assigned to the specific SFP cage on the KONA IP.

Set Button Click the ‘Set’ button to apply the changes.

IP Input Screen The IP Input Screen, only available on KONA IP, lets you define parameters for receiving

inputs to the KONA IP from another device on the network.

Figure 14. AJA Control Panel, IP Input Screen

KONA v12.5

NOTE: The IP 1 Input and IP 2 Input labels do not represent the physical SFP cages on the KONA IP.

They represent different transmissions being received by the KONA IP card, possibly over the same 10GbE link.

Dest IP Addr This filter lets you specify the network address where a multicast from another device on

the network can be found.

Dest Port This filter lets you specify the port number being used to send a multicast to the

‘Destination IP’ address specified above.

Dest IP Addr 2 This field will only be available when 2022-7 is Enabled in the IP Network section. This

filter lets you specify the network address where a duplicate multicast from another 2022-7 device on the network can be found. That device should be sending two duplicate IP video multicasts and the IP addresses of those streams will be specified in ‘Dest IP Addr’ and ‘Dest IP Addr 2’.

Dest Port 2 This filter lets you specify the port number being used to send a multicast to the ‘Dest IP

Addr 2’ address specified above.

www.aja.com

Page 51

Match Checkboxes The ‘Match’ checkbox next to each of the parameters described above can be used to

match the Destination Port to the Dest IP Address.

Enable Checkboxes The 'Enable' checkbox below each IP input connects the KONA IP to the network address

specified by all the matched input parameters.

IP Output Screen The IP Output Screen, only available on KONA IP, lets you define parameters for sending

outputs from the KONA IP card onto the network.

Figure 15. AJA Control Panel, IP Output Screen

KONA v12.5

NOTE: The IP Output 3 and IP Output 4 labels do not represent the physical SFP cages on the KONA IP.

They represent different transmissions being sent by the KONA IP card, possibly over the same 10GbE link.

Remote IP Addr This parameter lets you specify the network address where a multicast from this KONA IP

can be sent for use by other devices on the network.

Remote Port This lets you specify the port number being used to send a multicast to the Destination IP

address specified above.

Remote IP Addr 2 This field will only be available when 2022-7 is Enabled in the IP Network section. This

filter lets you specify the network address where a duplicate multicast from this KONA IP output can be sent. This IP output will then be sent to both the address specified in ‘Remote IP Addr’, and also to the address specified in ‘Remote IP Addr 2’.

Remote Port 2 This lets you specify the port number being used to send a multicast to the ‘Remote IP

Addr 2’ address specified above.

www.aja.com

Page 52

Enable Checkbox The 'Enable' checkbox connects the KONA IP to the network address specified by all the

matched output parameters. Any time a parameter is changed, the output should be reenabled.

2022-7 Operation Enabling 2022-7 (see “Enable 2022-7” on page 49) makes it possible to configure

redundant networking capabilities using both SFP modules. No additional inputs or outputs are activated (KONA IP supports a maximum of two in and two out when using AJA Control Panel), but with 2022-7 operation each SFP transmits and receives the same information. This allows using two separate network paths, making it possible to recover if one path fails.

When 2022-7 is enabled, additional settings are available for configuring your network settings. See

Figure 16 and Figure 17.

IP Input Screen with

2022-7

Figure 16. AJA Control Panel, IP Input Screen, 2022-7 Enabled

KONA v12.5

www.aja.com

Page 53

IP Output Screen with

2022-7

Figure 17. AJA Control Panel, IP Output Screen, 2022-7 Enabled

KONA LHi HDMI Input

Settings

The detected HDMI input video format is displayed and you’re given pull-down menus to configure the RGB range (SMPTE or FULL) and select any two embedded channel pairs from those supplied for stereo output (if applicable).

KONA v12.5

www.aja.com

Page 54

Analog Out Screen KONA 4/3G provides a high-quality analog component or composite + Y/C output,

generally used for monitoring. This screen shows the current settings for that analog output, and allows you to re-configure it when desired (format and black-level).

Figure 18. AJA Control Panel, Analog Out Screen

Analog Out Settings

Analog Output Select Primary or Secondary (any conversion applied) for the analog output; if a

conversion is applied, you’ll see the conversion icon appear on the block diagram.

Formats Select the video format from the Forma t pulldown.

• Component (SMPTE/EBU N10)

• Component (Beta)

• Component (RGB)

A Note About YPbPr Component Video, or YPbPr, has been given several names over time. YUV, Y/R-Y/B-Y, and

YCbCr, are just some examples. Although these various formats have some differences in levels, they are all basically the same. KONA uses the modern YPbPr terminology exclusively. KONA supports three different types of YPbPr:

•SMPTE/EBU N10

• Betacam (NTSC)

• Betacam (NTSC Japan).

These three formats differ in level only and are configured here.

Audio Monitor Here you select which two channels will be mapped to the analog audio stereo output

(headphone jack).

KONA v12.5

www.aja.com

Page 55

Video Setup Screen The Video Setup screen shows various other settings which will affect how video inputs

and outputs behave, and how KONA interacts with some software applications.

Figure 19. AJA Control Panel, Video Setup Screen

Video Setup Screen

Analog Black Level Choices available for Black Level are the two Composite analog formats. Choices

Progressive Formats Radio buttons allow you to choose between psf (progressive segmented frames) and p

VANC Checkbox When checked ON, the VANC checkbox tells the KONA cards (previous to KONA 4) to

VOut Filters These controls enable/disable output capabilities in the Quicktime VOut filter. This filter

KONA v12.5

Settings

presented are for US or Japan:

•7.5 IRE (NTSC US)

• 0 IRE (NTSC Japan)

(progressive frames) non-interlaced output. This feature is used to default the hardware to use either p or psf output over SDI when it has not been specified by the application.

capture and process any ancillary data in the SDI stream. This can include Closed Captioning data, and other types of metadata. Applications such as Premiere Pro and Final Cut Pro will not capture or output this data through the KONA, if this box is not checked on.

NOTE: KONA 4 does not require enabling the VANC checkbox for Closed Captioning.

is used by older applications that are built on legacy Quicktime architecture such as FCP7, AJA TV, VTR Exchange, and older versions of After Effects. Boxes that are checked will define what framerate and resolution types will appear in the list of available formats

www.aja.com

Page 56

in the AJA hardware. For example, if 25/50 is unchecked, then all resolution/framerate combinations with 25 or 50 fps will not appear in the list of capabilities for the installed AJA hardware, when using software that relies on the Quicktime VOut filter.

Audio Setup Screen This screen shows the current settings for the analog audio output, allowing you to re-

configure it when desired.

Figure 20. AJA Control Panel, Audio Setup Screen

Audio Setup Screen

Settings

Lock Audio Gain To Unity When set, the KONA 4/3G will ignore the third-party application gain setting and set the

audio gain at unity. When not set, this checkbox tells the KONA 4/3G to get the audio gain setting from the application.

Audio Delay (Not available for KONA 3G) Here you can set up to 6 frames (in tenths of a frame) of delay

for KONA audio input and output. The AJA Control Panel delays all audio outputs—SDI, HDMI, and Analog

IMPORTANT: If you use this Control Panel delay, do not use other delay settings in your applications. They

can conflict.

KONA v12.5

www.aja.com

Page 57

Conversion Screen (Mac OS only)

In the Mac OS version of the AJA Control Panel, this screen offers controls that determine how the card behaves with 3rd-party applications.

Figure 21. AJA Control Panel, Conversion Screen

IMPORTANT: Do not confuse this Conversion function screen, which uses Quicktime for conversion

and is only available on Mac, with the Format function screen which uses AJA hardware for conversion and operates on either Mac or PC.

Conversion Screen

Settings

Software Conversion These parameters can affect pulldown and pause behavior. This group of software

conversion parameters apply ONLY when using legacy quicktime based applications on Mac OS. These applications include things like FCP7, VTR Exchange, and AJA TV. Applications like FCPX, Premiere Pro, Media Composer and Control Room, no longer use these legacy Quicktime Components.

3:2 Pulldown Pattern The value selected from this list is used whenever, due to format selection, you’ve chosen

to do 24 frames-per-second to 30 conversion where extra fields will be added to pad the existing ones. Depending on video content, selection of different field patterns may be useful in reducing jitter due to the content of adjacent fields. The numbers in the pattern choices specify the frequency with which inserted fields will be repeated. For example, “2:3:2:3” means duplicate a field twice, then the next field three times, then the next twice, and then back to three times.

3:2 Pulldown Offset The 3-2 Pulldown offset is used if the 3-2 pulldown feature is removing the wrong frames.

This setting lets you adjust when the pulldown begins in a sequence of frames.

KONA v12.5

www.aja.com

Page 58

Figure 22. AJA Control Panel, Codec Screen, Frame-padding Pattern Choices

Pause On These two choices determine what happens when the editing application is paused in

stop mode:

• Full Frame: both fields are displayed resulting in some jitter while paused

• Single Field: a single field is displayed, showing no flicker (useful when color correcting

or whenever the flickering would be a distraction).

YUV-RGB Conversion These pulldowns select industry standard color space and gamma transfer functions for

the YUV-RGB conversion, or allow you to direct the KONA card to automatically determine it for you.

Colorspace Choose from:

•Rec 601

•Rec 709

•Auto

Gamma Choose from the following:

•Linear (1.8)

• Rec 601 (2.20)

• Rec 709 (2.22)

•Auto

DS Keyer Screen The KONA 4/3G/IP have a hardware-based downstream keyer that is ideal for putting

logos, “bugs” or other video material with an alpha channel on top of video being played out or printed to tape. A typical application would be putting a television station's call letters or channel over program video content. Keyed video can be from the KONA's internal Frame Buffer (from storage, video In, KONA TV, etc.) or from a graphics file that has an alpha channel (PhotoShop etc.).

NOTE: The Downstream Keyer is for use with Standard Mode firmware, not 4K Mode.

KONA v12.5

www.aja.com

Page 59

Figure 23. AJA Control Panel, Downstream Keyer Screen

Settings in the DS Keyer Screen provide control over how the keyer operates and whether it's turned on or off. Controls and their meanings in the screen are as follows:

Downstream Keyer

Mode

Downstream Keyer Off When this pulldown menu item is selected the downstream keyer will be turned off.

Frame Buffer over Matte Places the keyed video with alpha channel currently in the Frame Buffer over a fixed color

matte determined by the “Matte Color” setting set separately.

Frame Buffer over Video In Places the keyed video currently in the Frame Buffer over the video input for playout or

print-to-tape.

Graphic over Matte Places a graphics file having an alpha channel (chosen in “Graphic File” pulldown) over a

fixed color matte determined by the “Matte Color” setting set separately.

Graphic over Video In Places a graphics file having an alpha channel (chosen in “Graphic File” pulldown) over

the video input for playout or print-to-tape.

Graphic over Frame Buffer Places a graphics file having an alpha channel (chosen in “Graphic File” pulldown) over

the current contents of the KONA card’s Frame Buffer (which might be from storage, video In, KONA TV, etc.).

KONA v12.5

www.aja.com

Page 60

Matte Color Only available when the pulldown “Frame Buffer over Matte” or “Graphic over Matte” are

selected-pressing this button brings up a color selection dialog. The dialog provides a variety of ways to select a matte color including a color wheel, color picker (choose from a location anywhere on the computer screen), numeric sliders, swatches, “crayons”, and spectrums. The matte chosen will be used as a video background under the keyed video.

Foreground pre-

multiplied (checkbox)

Audio Out

Frame Buffer Select audio out to be routed from the contents of the Frame Buffer.

Audio In Select audio out to be routed from KONA’s currently selected input(s).

Opacity This slider controls the transparency of the keyed video (over the background) from

Graphic File This pulldown allows you to choose from any recently accessed file or select a new file

Use to avoid “matte lines” and improve the appearance of the foreground (key) being composited over the background.

translucent to completely opaque.

(“Load File...”), which then brings up a file dialogue. Remember that the file raster (pixel x pixel count) should match the primary format in the frame buffer or the secondary format if upconverting. Example: you wish to key a logo on top of your 1920x1080 footage, the still image with alpha channel that you load should be 1920x1080.

Figure 24. Downstream Keyer Graphic Selection

KONA v12.5

www.aja.com

Page 61

Click Matte Color button to bring up color selection dialog

Figure 25. DS Keyer Screen, Loading a Graphic Over Framebuffer

Figure 26. DS Keyer Screen, Loading a Graphic File Over a Matte

KONA v12.5

www.aja.com

Page 62

LUT Screen Users can specify their own custom LUTs by creating a LUT file and uploading it to an AJA

Video Device using the LUT (lookup table) screen in the Control Panel. You can create a custom LUT file using most text editors or spread sheets, provided the data is arranged according to the LUT File Format Specification that follows (see

Specification” on page 62).

Figure 27. LUT Screen

“LUT File Format

Uploading Custom User LUT

file

LUT File Format

Specification

KONA v12.5

Once the LUT file is created, you can upload it with the following steps:

1. Before loading a LUT, make sure you are using an RGB/RGBA frame buffer format, and that you have a AJA Video Device that supports LUTs.

2. Open AJA Control Panel and select the “LUT” pane.

3. Click the “LUT Type” popup and choose “User LUT File” menu item. Note “LUT Files” options become enabled.

4. Click the “+” button and use the navigation dialog to choose a custom LUT file. The LUT is now loaded.

LUT files are normal text files that contain 1025 lines (numbered 0 - 1024).

Each line contains 3 integer values in the range 0 - 1023, representing 10 bit R, G, B component output values. Component values may be separated by one or more commas, spaces, or tabs. The example below show LUT File contents for Line 0, Line 1, Line 2, and Line 1024, with several valid ways to separate the numbers in a line.

• 16, 17, 17

•171818

• 19 19 21

www.aja.com

Page 63

•…

• 1000, 1022, 1023

In the example above, the first line (Line 0) represents the output values for the case where R=0, G=0, or B=0. In other words, if the R component of a pixel is set to 0, then set R component value to 16. Likewise, if G is set to 0, then set G to 17. The second line (Line 1) does a similar thing for input component values equal to 1.

A simple way to construct a LUT file is to use a Spreadsheet like Excel. Simply fill 3 columns and 1025 rows with LUT data, and save the result as a “CSV” file.

Timecode Screen The Timecode input:

• Selects the timecode stream read for applications that use it (for example, when the

timecode source is set to “Use control panel setting,” AJA Control Room will read the selected stream)

• Is used for monitoring the RP-188 timecode embedded in the digital data stream

• Is used for selecting a timecode offset (if required)

Figure 28. AJA Control Panel, Timecode Screen

KONA v12.5

www.aja.com

Page 64

Timecode Input Settings

RP-188 Timecode <n> In RP-188 timecode (SMPTE 12M-2) there can be multiple timecode types in the data

stream. Use this pull-down to select the one you wish to monitor:

• RP188 LTC (Linear timecode)

• RP188 VITC 1 (Vertical Interval timecode)

•RP188 VITC 2

•LTC Port input

The selection will be displayed in the timecode value to the right of the pull-down.

User Bits For monitoring a variable framerate (VFR) timecode (such as Varicam), you may wish to

check the User-bits box. If you set this checkbox, KONA will detect and interpret the userbits and display them next to the checkbox. You will see the original framerate (30 fps in the figure below) followed by the adjusted frame padding (two digits reporting discarded and retained frame padding).

NOTE: SMPTE 12M-2 is the updated name and specification for what was RP-188.

Timecode Output Settings

Use QT Timecode

(Mac OS Only)

Timecode Burn-in This pulldown selects whether the timecode value is displayed in a “burned-in” window

Timecode Offset (entry field

and FPS pull-down)

NOTE: SMPTE RP 188 defines a standard for the transmission of time code and control code in the

This feature is for Final Cut Pro 7 (or earlier), AJA Control Room, and AJA TV only. When checked, it directs KONA to output timecode from the QuickTime timecode track.

in video output. If set to “OFF”, timecode will not be keyed over the video. If set to “Timecode”, then the timecode value will be keyed over the output video for all of the KONA outputs. This can be useful for synchronizing, choosing edit points, dailies, and many other purposes.

When QuickTime timecode in disabled, this text entry field allows you to generate a timecode based on the offset entry. You can select a framerate from the pulldown menu at the right side of the pane. Use that same value here as the source video to ensure the timecode is synchronized.

ancillary data space of a digital television data stream. Time code information is transmitted in the ancillary data space as defined in ANSI/SMPTE 291M. Multiple codes can be transmitted within a single digital video data stream. Other time information, such as real time clock, DTTR tape timer information, and other user-defined information, may also be carried in the ancillary time code packet instead of time code. The actual information transmitted through the interface is identified by the coding of a distributed binary bit. Equipment manufacturers can use the meta data for different purposes.

Presets Screen After configuring the AJA Control Panel screens, you can then save all your settings as a

snapshot for later recall—called a preset. In this way, you can organize presets for all your typical tasks, eliminating time-robbing manual reconfiguration each time. To save a preset, go to the Presets screen and click “Save Preset.” A dialog will be presented asking you for a name; enter a meaningful name and click “OK”. Thereafter the preset will be available under the Control Panel “Presets” list.

KONA v12.5

www.aja.com

Page 65

Figure 29. Presets Screen

From the Presets screen you can manage your collection of presets easily. To Load or Delete a stored preset, just select it with your mouse and then click the “Load Preset” or “Delete” button respectively.

Transferring Saved Presets If you want to use a saved Preset on another workstation, you can simply copy the file on

removable storage and install it at the new location. The Preset file is always stored at:

• ~/Library/Application Support/AJA/<device name> Presets/ [on Mac]

• c:\Users\<username>\AppData\Local\AJA\Control Panel\<device name> Presets\

[Windows 8]

Reset to Default When you click the 'Reset to default' button the control panel will delete the User's

preference file and do one of the following:

• If “Shared” preferences exist, they are reloaded and the device is set to this state.

• If the “Shared” preferences file does not exist, “factory defaults” are loaded and the

device is set to this state.

Erase all Prefs For technical support purposes you may be required to remove Preference settings. This

button automates that function. If activated, all your preference setting will be lost.

For more information on Preset preferences see “Single-User & Shared Preferences” on

page 38.

Firmware Screen Use the Firmware link to access the firmware update/changeover screen. For the KONA 4/

3G, the Desired pulldown menu allows you to select either:

• Std Mode (KONA 3G)—for SD, HD, and 2K formats (allows up/down/cross-conversion).

• UFC Mode (KONA 4)—for SD, HD, and 2K formats (allows up/down/cross-conversion).

KONA v12.5

www.aja.com

Page 66

• 4K Mode—for SD, HD, 2K and QuadHD (3840x2160) and 4K (4096x2160) formats

(disables up/down/cross-conversion)

Click install to erase current firmware and load the desired mode. Note the Installation message shown below.

Figure 30. Firmware Changeover to 4K

KONA v12.5

You will be required to power-cycle your computer to finish the changeover.

Figure 31. Changeover Completed

www.aja.com

Page 67

Info Screen This screen shows the KONA software files that have been installed on your system. This

information may be needed if you talk to an AJA Customer Service representative to determine if files are missing or need updating.

Figure 32. Information Screen in Standard Mode

Control Panel Operation of KONA 4 and 3G in 4K Mode

This section describes the AJA Control Panel operations specific to 4K Mode. Note that in 4K Mode, you can still capture and playback SD, HD, and 2K formats, though there are no up/down/cross conversions available.

4K Transport Modes The 4K and UHD SDI formats can use different transport modes, associated with the

number of links used to transport the signal, the data rates involved, and the way the image data is organized. KONA 4K mode supports both Quadrant and Two Sample Interleave (2SI) transport standards. Many different combinations of modes and data organization exist. In 4K mode, besides single link transport SD, HD and 2Ksignals, KONA also supports the following transport modes for UHD and 4K:

• Quadrant 4-wire (transported on four links), available on KONA 4 and KONA 3G

• Quadrant 2-wire (transported on two links), available on KONA 4 and KONA 3G

• 2SI (two or four links automatically selected), available on KONA 4

The amount of data in the signal affects the number of links and data rates necessary to carry that signal.

KONA v12.5

www.aja.com

Page 68

Quadrant Mode In Quadrant Mode (KONA4/3G), you can input (for capture) or output four channels of

SDI HD 1080 or 2K video at 30 fps or less, representing individual quadrants of the higher definition UHD 3840x2160 or 4K 4096x2160 4K formats. Physical connections of the quadrants will be mapped to the SDI connectors as shown. Monitoring one of these HD signals on a standard SDI monitor will display one quadrant of the picture.

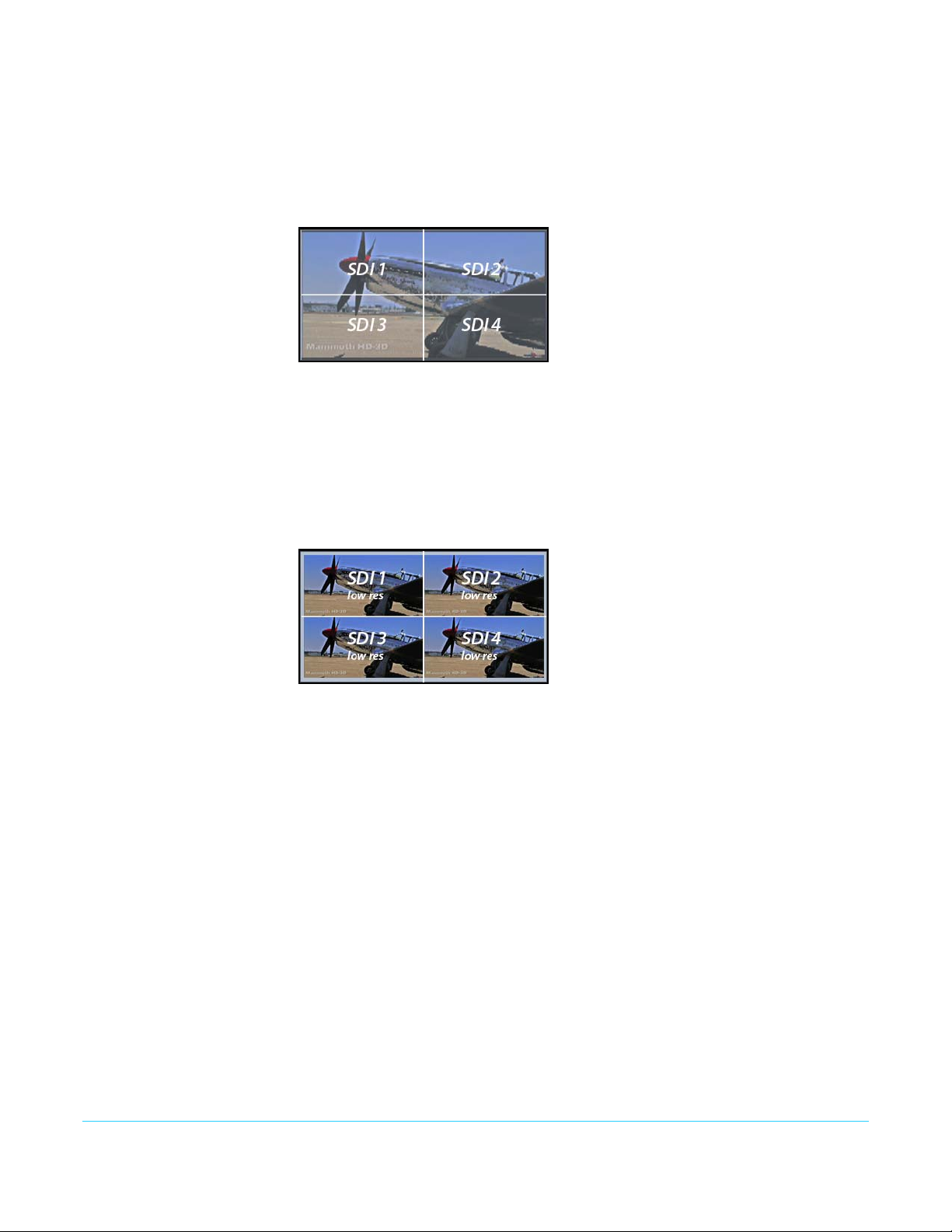

Figure 33. Mapping of Quad SDI Outputs

For UHD and 4K frame rates higher than 30, the same mechanism can be used to transport four 3G signals.

2SI Mode Two Sample Interleave is an alternative method to organize the data of SDI UHD and 4K

formats. Instead of dividing the picture raster into quadrants, this method samples pixels to create four lower resolution versions of the entire picture. These are combined later to create the full resolution image.

NOTE: In some versions of AJA Control Panel, the 2SI method is referred to as '425' which is a

2-Wire and 4-Wire

Modes

Figure 34. Mapping of 2SI Outputs

For 2SI UHD or 4K SDI video at 30 fps or less, monitoring one of these four signals on a standard SDI monitor displays the entire picture, but at a lower resolution. Above 30 fps, 3G bandwidth is required, so this type of signal cannot be monitored on a standard SDI monitor using only one connector.

reference to the SMPTE 425 standard which defines this method.

Using higher data rates, it is possible to carry UHD and 4K signals on two SDI links, instead of four. In this situation, half (two quarters) of the image data is carried on one link, with the other half carried on the other link. These types of signals also cannot be viewed on a standard SDI monitor using one connector.

You can choose 2-wire or 4-wire input and output (depending on the type of signal). If the number of links selected is not sufficient, the number of links is automatically increased to accommodate the signal. UHD or 4K SDI signals 30 fps and below can be input and output simultaneously, using two connectors in each direction. However, all four connectors are required above 30 fps. You will be able to either input or output a high frame rate SDI signal, not both at the same time. In this situation, you can use the HDMI output or a down-converted Analog output to monitor the input signal.

KONA v12.5

www.aja.com

Page 69

Specifying the number of wires for output forces Quadrant mode. You cannot specify the number of links when 2SI output is selected (the lowest number of links will be set automatically).

Control Screen in 4K Mode

Besides SD and HD input and output, 4K mode permits UHD or 4K input and/or output over 2 or 4 links.

For example, setting the Control Screen Default Video Output to Input Passthrough with a UHD 29.97 four link input connected, and selecting UHD/4K 4-wire Source on the Input Select menu, four connectors are used receive the signal to process. UHD signals report their links as1080. No SDI BNC output connectors are available for use.

Figure 35. Control Screen with UHD 4 Link Input

KONA v12.5

www.aja.com

Page 70

If a 4K 29.97 two link input is connected and a UHD/4K 24-wire Source is selected on the Input Select menu, two BNC connectors are used for input, allowing the other two to be used for SID output. 4K signals report their links as 2K.

Figure 36. Control Screen with 4K 2 Link Input and Output

KONA v12.5

www.aja.com

Page 71

4K Controlled Mode Alternatively, if you launch an appropriate control application (such as AJA Control

Room), the SDI input and output ports will be mapped automatically. If you connect a UHD or 4K input signal higher than 30 fps, all four BNCs are required for SDI input or output. You can use the HDMI output to monitor an input signal.

Figure 37. Control Screen with a Controlling Application

KONA v12.5

www.aja.com

Page 72

SDI Output Screen in 4K Mode

The SDI Output Screen allows you to select the Primary format or RGB for 4K output, same as Std or UFC Mode. Video+Key and Stereo 3D are only available for SD, HD, or 2K formats.

Figure 38. SDI Output Screen with 4K Format

KONA v12.5

Additional 4K related settings are available in 4K mode.

Tra nspo rt Select from:

• Auto - Set automatically based on input.

• Dual Link - Output (SMPTE 372M) using SDI 1 and SDI 1 in concert.

• 3Gb - Output (SMPTE 424M) using a single-link transport.

4K Transport Select from:

•Quadrant 4-Wire

•Quadrant 2-Wire

• 2SI (Two Sample Interleave)

www.aja.com

Page 73

HDMI Screen in 4K Mode

The HDMI screen allows you to make the same selections previously described for Standard Mode when an SD, HD, or 2K format is selected (refer to

page 47).

Figure 39. HDMI Output Screen with Quad HD Output Configuration

“HDMI Screen” on

KONA v12.5

For UHD/4K formats, an HDMI monitor output Select menu is available to choose:

• Primary – the full 4K or UHD format

• 4K 1/2 Framerate – outputs every other frame

• 4K Quarter – (in KONA 4) a downconversion to 2K x 1080 in 4K or 1920 x 1080 for UHD.

• A single Quadrant (1, 2, 3, or 4) of the 4K or UHD signal (see the discussion on 4K

quadrant mapping at this beginning of this section).

Figure 40. HDMI 4K Quadrant Selection Menu

www.aja.com

Page 74

Analog Output Screen

in 4K Mode

The Analog Output screen allows you to make the same selections previously described for Standard Mode when an SD, HD, or 2K format is selected (refer to

on page 54).

Figure 41. Analog Output Screen with 4K Primary Format

“Anal og Out Scr een”

KONA v12.5

For 4K formats, a Quandrant Select menu is available to choose the desired quartersegment of the 4K display for Analog Output to a monitor (see the discussion on 4K quadrant mapping at this beginning of this section).

NOTE: KONA 4 offers a 4K Quarter output that is a downconversion to 2K x 1080 for 4K format or

1920 x1080 for UHD.

www.aja.com

Page 75

Video Setup Screen in 4K

4K Mode adds the 4K Geometry selection (check box). Like other raster sizes, the Geometries checkbox for 4K needs to be enabled for the format to be presented and selectable in applications like AJA VTR Xchange and AJA TV.

Figure 42. QuickTime Video Output Filter 4K Geometry Checkbox

No Downstream Keyer

in 4K Mode

The Downstream Keyer is not available for use in 4K Mode. If you select the tab, you will see: “Keyer does not support 4K video formats.”

Who is Controlling KONA?

There are times when you might have several Quicktime applications open at one time, and each of these might want to output their video thru the KONA video output. KONA is very flexible and most applications perform the necessary housekeeping so they work correctly when they're active and when they're not. This means that the application that is “active” (in front) will be granted control of the KONA video output. Generally, when you switch to a different application, the previous application lets go of the video output and the new application gets control.

Figure 43. AJA Control Panel Control Message

KONA v12.5

www.aja.com

Page 76

The AJA Control Panel in-use message will tell you the “active” application that has control of KONA (see in-use message above) and what the format selections are. If you click on another supported application that is running (such as Adobe Premiere Pro or AJA TV), the AJA Control Panel in-use message will report the change by displaying the new “In use” application. If no in-use message is displayed, the AJA Control Panel is in control of KONA. If no QuickTime applications are running, the board’s state is determined by the AJA Control Panel application’s settings.

QuickTime Application
