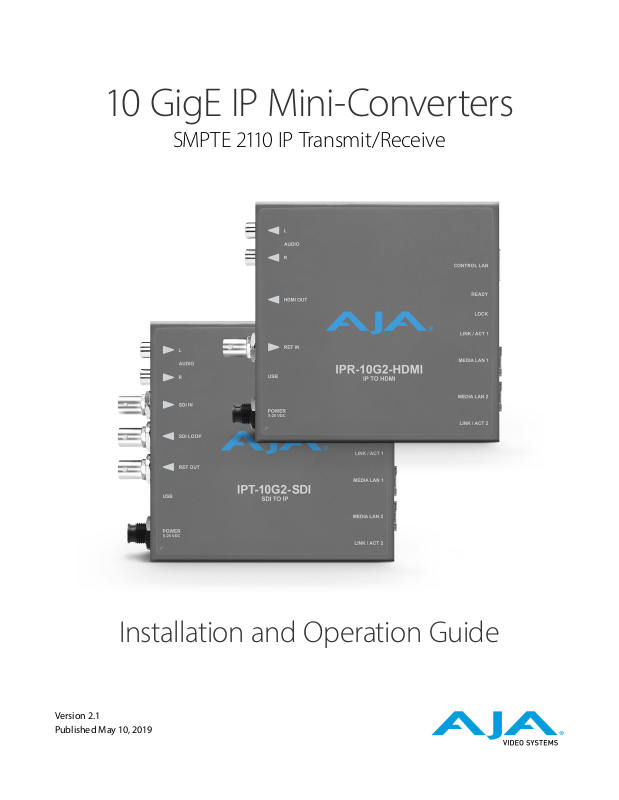

10 GigE IP Mini-Converters

SMPTE 2110 IP Transmit/Receive

Installation and Operation Guide

Version 2.1 Published May 10, 2019

Notices

Trademarks

Copyright

AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products.

CION®, Corvid Ultra®, lo®, Ki Pro®, KONA®, KUMO®, ROI® and T-Tap® are registered trademarks of AJA Video Systems, Inc.

AJA Control Room™, KiStor™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™ and V2Digital™ are trademarks of AJA Video Systems, Inc.

All other trademarks are the property of their respective owners.

Copyright © 2019 AJA Video Systems, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Video Systems, Inc.

Contacting AJA Support

When calling for support, have all information at hand prior to calling. To contact AJA for sales or support, use any of the following methods:

Telephone +1.530.271.3190

FAX +1.530.271.3140

Web https://www.aja.com

Support Email support@aja.com

Sales Email sales@aja.com

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 2 www.aja.com

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contacting AJA Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 1 – Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

10 GigE IP Mini-Converters Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

IPT-10G2-SDI Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

IPT-10G2-HDMI Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

IPR-10G2-SDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

IPR-10G2-HD MI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

IPR-10G -HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Simplied Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control LAN, Ready, Link/Act, and Lock LED Behavior. . . . . . . . . . . . . . 11

Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Initial Setup By Web Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Initial Setup By AJA eMini-Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Settings Retained. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

REST API Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Chapter 2 – eMini-Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Acquiring eMini-Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

eMini-Setup Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Installing eMini-Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

PC Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Mac Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Running eMini-Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

PC Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Mac Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Operating eMini-Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Control LAN Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Media Network 1 Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Media Network 2 Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Update Tab Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Firmware Update Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Info Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Chapter 3 – 10 GigE IP Mini-Converters Web Interface. . . . . . . .23

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Remote Control Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Networking Option – Using Only the Media LAN Port for Control and Media

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Web Browser via Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

General Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

IPT-10G2-SDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

IPR-10G2-HD MI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cong Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

IPT-10G2-SDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

IPR-10G2-HD MI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Presets Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Presets Screen Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Network Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Firmware Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Downloading and Installing Updated Firmware . . . . . . . . . . . . . . . . . 44

Booting the 10 GigE IP Mini-Converters from the Safeboot Firmware . . . 45

Appendix A – Specications . . . . . . . . . . . . . . . . . . . . . . . . 47

IPT-10G2-SDI Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

IPT-10G2-HDMI Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

IPR-10G2-HDMI Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

IPR-10G2-SDI Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

IPR-10G-HDMI Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Appendix B – Safety and Compliance . . . . . . . . . . . . . . . . . . 56

Warranty and Liability Information . . . . . . . . . . . . . . . . . . . .64

Limited Warranty on Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Governing Law and Language; Your Rights. . . . . . . . . . . . . . . . . . . . . . 65

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 4 www.aja.com

Chapter 1 – Introduction

Overview

AJA 10 GigE IP Mini-Converters are designed for point of use applications for encoding, transport, reception and decoding of IP based video sources. Rugged, compact and fanless, the 10 GigE IP Mini-Converters provide the bridge between Baseband and IP video for a range of applications, such as sending and receiving video over IP from remote facilities in post production, source monitoring, digital signage, and video walls. 10 GigE IP Mini-Converters ease the cost of extensive monitoring distribution in a facility.

The 10 GigE IP Mini-Converter Transmitters take baseband HDMI or SDI input and encode the data as SMPTE 2110. The embedded audio associated with the video stream is also encoded to SMPTE 2110. Alternatively, analog audio can be encoded and sent with the video stream instead.

The 10 GigE IP Mini-Converter Receivers decode SMPTE 2110 and format the data for either HDMI or SDI output. The audio associated with the video stream is extracted, synchronized, and then embedded into the HDMI or SDI signal as well as output on a stereo analog RCA audio output.

UltraHD p30 can be received only by the IPR-10G-HDMI.

Both the IPR-10G2-HDMI and the IPR-10G-HDMI can provide RGB (rather than YCbCr) to a compatible monitor if the monitor or other sink device indicates this availability via EDID.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 5 www.aja.com

10 GigE IP Mini-Converters Features

IPT-10G2-SDI Features

• SMPTE ST 2110 audio, video transmitter

• Rugged, fanless design

• 2x 10 GigE SFP+ cages for media LAN (providing support for hitless switching) with status light

• 1x 1 GigE RJ45 socket for control LAN (with status light)

• 1x 3G-SDI Input

• 1x 3G-SDI Loop Out

• Support for HD up to 1080 60p, YCbCr4:2:2

• Full 10-bit pixel processing pipeline

• Embedded SDI audio input (up to eight channels)

• 2x RCA analog audio input

• 1x BNC Reference Out

• 1x mini-USB port for initial network configuration with AJA eMini-Setup software

• Complete control interface on any web browser from a built-in web server

• Customizable control with AJA REST API

• 5-year international warranty and support

IPT-10G2-HDMI Features

• SMPTE 2110 audio, video transmitter

• Rugged, fanless design

• 2x 10 GigE SFP+ cages for media LAN (providing support for hitless switching) with status light

• 1x 1 GigE RJ45 socket for control LAN with status light

• Dedicated HDMI transmitter with full size HDMI 1.4b video input port

• Support for HD up to 1080 60p, YCbCr 4:2:2

• Full 10-bit pixel processing pipeline

• Embedded HDMI audio input (up to eight channels)

• 2x RCA analog audio input

• 1x BNC Reference Out

• 1x mini-USB port for initial network configuration with AJA eMini-Setup software

• Complete control interface on any web browser from a built-in web server

• Customizable control with AJA REST API

• 5-year international warranty and support

IPR-10G2-SDI

• SMPTE ST 2110 audio, video receiver

• Rugged, fanless design

• 2x 10 GigESFP+ cages for media LAN (providing support for hitless switching) with status light

• 1x 1 GigERJ45 socket for control LAN (with status light)

• 2x 3G-SDI Output

• Support for HD up to 1080 60p, YCbCr4:2:2

• Full 10-bit pixel processing pipeline

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 6 www.aja.com

• Embedded SDI audio output (up to eight channels)

• 2x RCA analog audio output

• 1x BNC Reference (reserved for future potential features)

• 1x mini-USB port for initial network configuration with AJA eMini-Setup software

• Complete control interface on any web browser from a built-in web server

• Customizable control with AJA REST API

• 5-year international warranty and support

IPR-10G2-HDMI

• SMPTE 2110 audio, video receiver

• Rugged, fanless design

• 2x 10 GigE SFP+ cages for media LAN (providing support for hitless switching) with status light

• 1x 1 GigE RJ45 socket for control LAN with status light

• Dedicated HDMI transmitter with full size HDMI 1.4b video output port

• Support for HD up to 1080 60p, YCbCr 4:2:2

• Full 10-bit pixel processing pipeline

• Embedded HDMI audio output (up to eight channels)

• 2x RCA analog audio output

• 1x BNC Reference (reserved for future potential features)

• 1x mini-USB port for initial network configuration with AJA eMini-Setup software

• Complete control interface on any web browser from a built-in web server

• Customizable control with AJA REST API

• 5-year international warranty and support

IPR-10G -HDMI

• SMPTE 2110 audio, video receiver

• Rugged, fanless design

• 1x SFP+ Cage for 10G Ethernet media, control, and timing input – SFP+ modules not included

• 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet for control

• Dedicated HDMI transmitter with full size HDMI 1.4b video output port

• Essence support: SMPTE 2110-10, 2110-20, 2110-30

• Support for receiving UltraHD p23.98, p24, p25, p29.97, p30

• Full 10-bit pixel processing pipeline

• Embedded and analog audio outputs

• Networked Media Open Specifications (NMOS) Support

• Ember Plus Support

• Network (LAN) control and status

• 1x mini-USB port for initial network configuration with AJA eMini-Setup software

• Complete control interface on any web browser from a built-in web server

• Customizable control with AJA REST API

• 5-year international warranty and support

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 7 www.aja.com

Frequently Asked Questions

To access responses to freqently asked questions about the 10 GigE IP Mini-Converters, please use the following links:

• https://www.aja.com/products/ipt-10g2-sdi#support

• https://www.aja.com/products/ipt-10g2-hdmi#support

• https://www.aja.com/products/ipr-10g2-sdi#support

• https://www.aja.com/products/ipr-10g2-hdmi#support

• https://www.aja.com/products/ipr-10g-hdmi#support

System Requirements

Remote computer configuration and control is accomplished using the 10 GigE IP Mini-Converters' internal web server. A macOS X or Windows computer with a web browser installed is all that is required. Additionally, initial configuration using eMini-Setup will require a USB port between the host computer and the 10 GigE IP Mini-Converter.

NOTE: Chrome and Firefox are the preferred web browsers for control on Windows.

Safari is the preferred web browser for control on macOS. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions.

Simplified Block Diagrams

Figure 1. IPT-10G2-SDI/HDMI Simplified Block Diagram

IPT-10G2-SDI / IPT-10G2-HDMI

Reference

Output

Control LAN

HDMI Input

with Embedded

Audio

SDI Input

SDI Loop Through

2-Channel

RCA Analog

Audio Input

(connect to PC or Mac)

USB Port

For initial setup of network interfaces

(IPT-10G2-HDMI only)

(IPT-10G2-SDI only)

Video over IP

Processing

Video

Audio

Video over IP

Transmitter

Media LAN 1

Media LAN 2

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 8 www.aja.com

2 Channel

Figure 2. IPR-10G2-SDI/HDMI Simplified Block Diagram

IPR-10G2-SDI / IPR-10G2-HDMI

Reference

Input

Control LAN

Media LAN 1

Media LAN 2

(connect to PC or Mac)

USB Port

For initial setup of

network interfaces

Not active. Reserved for

potential future feature(s).

Video over IP

Receiver

Video over IP

Processing

Figure 3. IPR-10G-HDMI Simplified Block Diagram

IPR-10G-HDMI

1 GbE RJ45 socket

for Control LAN

SFP+ Cage for

10 GbE Media LAN

(connect to PC or Mac)

USB Port

For initial setup of

network interfaces

Video over IP

Receiver

Video over IP

Processing

Video

Audio

Video

Audio

SDI

Transmitter

(IPR-10G2-SDI

only)

HDMI

Transmitter

(IPR-10G2-HDMI

only)

Audio

D/A

HDMI

Transmitter

Audio

D/A

SDI Out 1 with 8 Ch. of embedded audio

SDI Out 2 with 8 Ch. of embedded audio

HDMI Output with 8 Ch. of Embedded Audio

2-Channel RCA Analog Audio Monitor Output

HDMI Output with Embedded Audio

2-Channel RCA Analog Audio Monitor Output

I/O Connections

Figure 4. IPT-10G2-SDI Connections

Unbalanced

Analog Audio

Input

(RCA Jacks)

Input SDI

Connector 1

Output SDI

Connector 2

Reference

Out BNC

USB Port

+5-16 VDC

Power Input

Control

LAN

Ready LED

Lock LED

Link/Act

LED 1

SFP+ Cage for

10 Gbps Ethernet

SFP+ Cage for

10 Gbps Ethernet

Link/Act

LED 2

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 9 www.aja.com

Figure 5. IPT-10G2-HDMI Connections

2 Channel

Unbalanced

Analog Audio

Input

(RCA Jacks)

Input HDMI

Connector

Reference

Out BNC

USB Port

+5-16 VDC

Power Input

Figure 6. IPR-10G2-SDI Connections

2 Channel

Unbalanced

Analog Audio

Output

(RCA Jacks)

Output SDI

Connector 1

Output SDI

Connector 2

Reference BNC.

Reserved for Future

Potential Features.

USB Port

+5-16 VDC

Power Input

Control

LAN

Ready LED

Lock LED

Link/Act

LED 1

SFP+ Cage for

10 Gbps Ethernet

SFP+ Cage for

10 Gbps Ethernet

Link/Act

LED 2

Control

LAN

Ready LED

Lock LED

Link/Act

LED 1

SFP+ Cage for

10 Gbps Ethernet

SFP+ Cage for

10 Gbps Ethernet

Link/Act

LED 2

Figure 7. IPR-10G2-HDMI Connections

2 Channel

Unbalanced

Analog Audio

Output

(RCA Jacks)

Output HDMI

Connector

Reference BNC.

Reserved for Future

Potential Features.

USB Port

+5-16 VDC

Power Input

Control

LAN

Ready LED

Lock LED

Link/Act

LED 1

SFP+ Cage for

10 Gbps Ethernet

SFP+ Cage for

10 Gbps Ethernet

Link/Act

LED 2

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 10 www.aja.com

Figure 8. IPR-10G-HDMI Connections

2 Channel

Unbalanced

Analog Audio

Output

(RCA Jacks)

Output

HDMI

Connector

USB Port

+5-20 VDC

Power

Input

Control LAN, Ready, Link/Act, and Lock LED Behavior

The Control LAN LED illuminates to indicate a link. Blinking indicates activity.

The Ready LED illuminates green when the unit has finished powering up and is ready to use.

The Link/Act LED 1 and Link/Act LED 2 behavior is as follows:

• Off - No SFP+ module present

• Red - SFP+ module present, no link

• Green - Link is up

• Green flash - Link is up and there is Tx or Rx activity

The Lock LED behavior is as follows:

• Off - No Precision Time Protocol (PTP) is detected

• Red - A PTP error is detected

• Yellow and flashing - Locking Phase 1

• Yellow - Locking Phase 2

• Green and flashing - Locking Phase 3

• Green - Signal is locked

NOTE: Achieving locked status may take 5 or more minutes depending on network jitter

behavior. The output of the unit will still function during the locking period.

Control

LAN

Ready LED

Link/Act

LED

SFP+ Cage

for 10 Gbps

Ethernet

Lock LED

Installation Overview

Detailed instructions are provided in "Chapter 2 – eMini-Setup" on page 14 and

"Chapter 3 – 10 GigE IP Mini-Converters Web Interface" on page 23.

As an overview, however, there are two methods available for initial setup for 10 GigE IP Mini-Converters:

1. Using a web browser on the host computer connected to the same network as the 10 GigE IP Mini-Converter, or

2. Using the AJA eMini-Setup application running on the host computer that is directly connected to the 10 GigE IP Mini-Converter via USB.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 11 www.aja.com

Initial Setup By Web Browser

NOTE: Chrome and Firefox are the preferred web browsers for control on Windows.

Safari is the preferred web browser for control on macOS. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions.

10 GigE IP Mini-Converters require a network connection for initial configuration, control and firmware updates. 10 GigE IP Mini-Converters are shipped from the factory with DHCP enabled, and support automatic network discovery via SSDP and MDNS.

To Set Up the Unit with a Web Browser

1. Connect the 10 GigE IP Mini-Converter Control Port to the intended network with an Ethernet cable.

2. The intended network’s DHCP Server will assign an IP address and the 10 GigE IP Mini-Converter will join that network.

3. Locate and connect to the AJA 10 GigE IP Mini-Converter.

Windows PC Host

A. Open Windows Explorer.

B. Navigate to the Network.

C. Click on the Network to enumerate network devices.

D. Search for either “IPT-10G2,” "IPR-10G2," or the device’s Serial Number.

E. Double-click on the intended 10 GigE IP Mini-Converter. The host machine

web browser will launch and display the web UI for the device.

macOS Host

A. Go to System Preferences > Sharing and turn on File Sharing.

B. Open the Finder Window.

C. Navigate to Shared > All…

D. Click on All… to enumerate network devices.

E. Search for either “IPT-10G2,” "IPR-10G2," or the device’s Serial Number.

F. Double-click on the intended 10 GigE IP Mini-Converter. The host machine

web browser will launch and display the web UI for the device.

NOTE: If the above does not work, then you will need to download and install an MDNS

browser to assist with discovering network devices on a macOS host.

Initial Setup By AJA eMini-Setup

1. Acquire AJA eMini-Setup (version 2.1) from the AJA website for either macOS or Windows:

https://www.aja.com/family/software#eminisetup

2. Install eMini-Setup:

A. Unzip the Installer.

B. Run the .dmg file on macOS or the .msi file on Windows.

3. Connect Power to your AJA Ethernet equipped Converter.

4. Connect the USB cong cable to the computer running eMini-Setup.

5. Open eMini-Setup and congure the device’s network settings.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 12 www.aja.com

NOTE: DHCP is enabled by default, and if the device is connected to a DHCP server the IP

address field will populate.

6. Enter the IP address into a browser window. The web UI for your AJA device will display.

7. Use the web UI to fully congure and control your AJA Device.

Settings Retained

The current 10 GigE IP Mini-Converter's configuration settings are retained even when powered off, so subsequent installations for an identical decoding or encoding session can be done with the following simple steps:

1. Apply power to the 10 GigE IP Mini-Converter.

2. Connect the unit to your network using the Control LAN, Media LAN 1 and Media LAN 2 and connect the unit’s inputs and outputs.

NOTE: Three LAN connections to the unit are not necessarily required on an ongoing

basis. If it is desirable for your installation, after the 10 GigE IP Mini-Converter is set up, you can access all control parameters through one of the Media LANs with the appropriate network configuration. See "Networking Option – Using

Only the Media LAN Port for Control and Media Settings" on page 23 for more

information.

NOTE: The 10 GigE IP Mini-Converters pack an unprecedented feature set into the mini

converter box. As a result, the unit uses approximately 13 watts of power. It will be very warm to the touch, which is normal. The unit is engineered to operate across the full temperature range, from 0 to 40 degrees C.

NOTE: For highest reliability, the mini converters rely on convection cooling instead

of using a built-in fan. Therefore, when installing the units, mount in a location where they have access to air for proper cooling. Do not stack the 10 GigE IP Mini-Converters with other mini converters or other powered equipment.

REST API Documentation

AJA’s REST automation API provides a platform from which you can issue commands to an AJA device’s internal web server, allowing remote systems the ability to control AJA embedded or networked devices. With this control framework, you can build integration and automation scripts, using any scripting language, allowing you to take full advantage of the device’s functionality.

This documentation is available at the following link:

https://gitlab.aja.com/pub/rest_api

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 13 www.aja.com

Chapter 2 – eMini-Setup

Overview

This chapter describes using the eMini-Setup application to initially communicate with and configure a 10 GigE IP Mini-Converter over a direct USB connection. Once configured, the IP Mini-Converter can be accessed via an Ethernet network using a web browser. Subsequently, that device can then be reconfigured over that network, using its IP address and built-in web server.

NOTE: The eMini-Setup application is only used to setup selected Ethernet capable AJA

devices, and cannot be used to connect to or setup other AJA Mini-Converters.

The general procedure is:

1. Acquire eMini-Setup from the AJA website and install the eMini-Setup application onto a computer.

2. Connect the IP Mini-Converter to that computer’s USB port.

3. Launch the eMini-Setup application.

4. Go to the Control Network tab and Media Network tabs, where the IP address settings are displayed. You can use the existing DHCP assigned IP address, or it can be changed manually.

5. You can also use eMini-Setup to load rmware to the device, although this can also be done quickly and easily using the web browser interface.

Acquiring eMini-Setup

AJA’s eMini-Setup application is available for download from the AJA website.

To download the latest eMini-Setup package, which includes the eMini-Setup application and documentation:

1. Go to:

https://www.aja.com/family/software#eminisetup

2. Click the link corresponding to the version you want to download for Mac or Windows.

NOTE: IPT-10G2-SDI and IPT-10G2-HDMI require eMini-Setup version 2.1 or later.

IPR-10G2-SDI and IPR-10G2-HDMI require eMini-Setup version 2.0 or later. IPR-10G-HDMI requires eMini-Setup version 1.3 or later.

eMini-Setup Documentation

Included with the eMini-Setup download is the AJA device's Installation and Operation Guide, which can be accessed from the eMini-Setup UI via the Help/

Manual drop-down menu. This manual includes eMini-Setup information.

Documentation can also be accessed directly from the Mac eMini-Setup installer in the Documentation folder.

Documentation included with the eMini-Setup application is the version available at the time of distribution. However, AJA’s documentation can be updated regularly, so newer versions may exist.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 14 www.aja.com

To download just the latest documentation, go to:

https://www.aja.com/products/mini-converters/ip-converters

Click the support button and open the Manuals link.

Installing eMini-Setup

PC Installation

To install eMini-Setup on a Windows PC:

1. Download the application from the AJA website. See "Acquiring eMini-Setup"

on page 14.

2. Open the AJA_eMini-Setup_win.zip le.

3. Double-click on the AJA_eMini-Setup.msi le.

4. The Setup Wizard will guide you through the installation.

Figure 9. eMini-Setup PC Wizard

5. Click Next to begin. Answer the questions in the subsequent dialogues, including device software installation if displayed. When nished, an AJA eMini-Setup shortcut will be installed on the desktop, and you will be able to locate the eMini-Setup application in the AJA folder in the Programs listing.

NOTE: If the eMini-Setup application already exists on the PC, a different Setup Wizard

appears.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 15 www.aja.com

Figure 10. eMini-Setup Wizard, Re-installation

With this screen you can Repair (reinstall) or Remove (uninstall) eMini-Setup on the PC.

Mac Installation

To install the application on a Mac:

NOTE: Mac computers must be Intel-based (G5, G4 and earlier models will not work with

eMini-Setup).

1. Download the application from the AJA website. See "Acquiring eMini-Setup"

on page 14.

2. Unzip the le.

3. Double-click on the AJA eMini-Setup.dmg le.

4. Answer the prompt and a utility program will be launched.

Figure 11. eMini-Setup Mac Installer

5. To complete the installation drag the “AJA eMini-Setup” icon to the Applications folder.

Running eMini-Setup

Connect your Ethernet capable AJA device to the PC or Mac via the supplied USB cable, and then connect the external power supply (supplied) to that AJA device.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 16 www.aja.com

PC Startup

To run eMini-Setup on a PC, double-click on the AJA eMini-Setup icon on your desktop, or open the AJA folder in the program list and click on the AJA eMiniSetup application located inside the eMini-Setup folder.

Figure 12. Launching eMini-Setup on a PC

Mac Startup

To run eMini-Setup on a Mac, open the Applications folder and locate the AJA eMini-Setup application. Double-click the application to launch it.

Operating eMini-Setup

The eMini-Setup application provides a graphical user interface for viewing settings, modifying settings, and updating software.

Figure 13. Example eMini-Setup Screen

USB

connection

status

Tabbed screens

Select an attached AJA device

LAN connection status

Selecting an AJA device from the pull down menu on the upper right causes eMini-Setup to connect to the selected AJA device.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 17 www.aja.com

Version - The version of firmware installed in the AJA device is displayed below

the graphic.

Sn - This is the factory set unique serial number of your AJA device. If you ever call

AJA Support for service, you may be asked for this number.

A status field at the bottom of the screen shows if the eMini-Setup application is connected and communicating with an AJA device.

File Menu - The File drop-down menu on the eMini-Setup application bar has a

Revert to Factory Settings menu item that allows you to change the settings back to the AJA device’s factory defaults.

Edit Menu - The Edit drop-down menu has standard Cut, Copy and Paste

functions for editing text.

Help Menu - The Help drop-down menu has a link to the AJA device’s manual.

Control LAN Tab Screen

Figure 14. eMini-Setup Control LAN Tab Screen

Use this Control LAN tab to change the network setup on the connected AJA device. You must click the Apply button to initiate any network configuration changes.

IP Address Type - Choose from DHCP (default) or Static IP Address.

NOTE: A basic setup would be to run an Ethernet cable directly between the device and

your laptop and set both the computer and IPR to sequential static IP addresses. This provides a rapid way to set up to access the web user interface.

IP Address - The current IP Address is displayed. A different IP address can be

entered.

Subnet Mask - The current Subnet Mask is displayed. A different subnet mask

can be entered.

Gateway - The current Gateway address is displayed. A different gateway address

can be entered.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 18 www.aja.com

UPnP Host - Choose from Enable or Disable to control whether the AJA device

makes itself visible for Windows network browsing.

MAC Address - This is the permanent MAC address of the Control LAN Ethernet

port of the AJA device.

Open Web Page - Opens the IP Mini-Converter's web interface in a web browser.

Media Network 1 Tab Screen

Figure 15. eMini-Setup Media LAN 1 Tab Screen

Use this Media LAN 1 tab to change the corresponding media network setup on the connected AJA device. You must click the Apply button to initiate any network configuration changes.

IP Address Type - Choose from DHCP or Static IP Address.

NOTE: If you intend to directly connect an IPT to an IPR, then you will need to use

sequential static IP addresses for both units (Transmit and Receive).

IP Address - The current IP Address is displayed. A different IP address can be

entered.

Subnet Mask - The current Subnet Mask is displayed. A different subnet mask

can be entered.

Gateway - The current Gateway address is displayed. A different gateway address

can be entered. On the Media LAN, the gateway may be left blank. (A gateway is required on the Control LAN).

MAC Address - This is the permanent MAC address of the Media LAN Ethernet

port of the AJA device.

Open Web Page - Opens the IP Mini-Converter's web interface in a web browser.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 19 www.aja.com

Media Network 2 Tab Screen

Figure 16. eMini-Setup Media LAN 2 Tab Screen

Use this Media LAN 2 tab to change the corresponding media network setup on the connected AJA device. You must click the Apply button to initiate any network configuration changes.

IP Address Type - Choose from DHCP or Static IP Address.

NOTE: If you intend to directly connect an IPT to an IPR, then you will need to use

sequential static IP addresses for both units (Transmit and Receive).

IP Address - The current IP Address is displayed. A different IP address can be

entered.

Subnet Mask - The current Subnet Mask is displayed. A different subnet mask

can be entered.

Gateway - The current Gateway address is displayed. A different gateway address

can be entered. On the Media LAN, the gateway may be left blank. (A gateway is required on the Control LAN).

MAC Address - This is the permanent MAC address of the Media LAN Ethernet

port of the AJA device.

Open Web Page - Opens the IP Mini-Converter's web interface in a web browser.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 20 www.aja.com

Update Tab Screen

Figure 17. eMini-Setup Update Tab Screen

Use this Update tab to install new firmware.

Installed - This field shows the version of the firmware currently installed.

Browse - This button opens a navigation window, allowing you to select the

firmware and load that version of firmware into the AJA device’s non-volatile memory.

Progress - This indicator bar shows the progress of firmware installation.

Firmware Update Procedure

1. Check the AJA website for new firmware.

2. If new software is found, download it and uncompress the le archive (.zip).

3. Connect the device to a Mac or PC via a USB port on the computer.

4. Click the Update tab. Click the Browse button. Navigate to the rmware (.ajas extension), open it, and conrm the update. Progress will be shown via the “Progress” bar.

5. After the update, the AJA device must be rebooted by clicking on the Reboot button in the prompt window.

See also: "Firmware Screen" on page 44 regarding the process of working with firmware with the IP Mini-Converter's Web UI.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 21 www.aja.com

Info Tab Screen

Figure 18. eMini-Setup Info Tab Screen

This tab provides basic information about the connected AJA device. This information is mostly useful when calling AJA Support for service or technical support.

System Name - This field allows you to give your AJA device a unique name. This

can be useful if you have several attached to a Mac/PC via USB so you can distinguish between them easily.

Typ e - This is the factory set model name of the AJA device.

Authentication - If Authentication has been Enabled on the web browser Access

tab, you can disable the security feature by clicking the Disable button.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 22 www.aja.com

Chapter 3 – 10 GigE IP Mini-Converters Web Interface

Overview

Once you have established network connectivity with the 10 GigE IP MiniConverter, you can further configure and more fully control the unit through its web interface. Subsequently, eMini-Setup is no longer required to interface with the unit.

NOTE: It is often best to remove the USB connection once you have acquired the web

interface. This prevents accidentally using eMini-Setup to change parameters already set via the web UI.

Remote Control Overview

An optimized web server in the 10 GigE IP Mini-Converter allows remote control and parameter setting adjustments via a browser client running on a network wired computer. The network can be a closed local area network, a direct connection between a 10 GigE IP Mini-Converter and a computer, or even exposed through a firewall to a WAN.

Each 10 GigE IP Mini-Converter uses a standard RJ-45 connector for the Control LAN connection, two SFP+ cages for the 10 Gbps Ethernet Media LAN connections for the 10G2 products, and one SFP+ cage for the 10 Gbps Ethernet Media LAN connection for the IPR-10G-HDMI.

NOTE: Safari is the preferred web browser for control on the Mac, and additionally

Chrome and Firefox on Windows. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions.

To connect to the 10 GigE IP Mini-Converter, attach the unit to your network and enter its Control Network IP address into the web browser. If authentication has been configured, you may need to enter a password.

Networking Option – Using Only the Media LAN Port for Control and Media Settings

To reduce facility cabling to the 10 GigE IP Mini Converter, it is an option to setup your network connection through an Ethernet switch via the Media LAN ports (rather than using the dedicated Control Port). This means that you will have just one or two cables to the unit, instead of two or three.

To implement this approach, follow these general steps:

1. Note the IP address of the unit’s Media LAN 1 or Media LAN 2 port. This should be a static IP address.

2. Connect the controlling computer’s Ethernet port that is being used to control the unit into an Ethernet switch. This requires disconnecting the Ethernet cable from the Control LAN port of the unit.

3. Connect the Media LAN port of the unit into the Ethernet switch.

4. Connect the source of the Media IP stream into the Ethernet switch.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 23 www.aja.com

5. Set the controlling computer’s Ethernet port that is being used to control the 10 GigE IP Mini-Converter to D H CP.

6. From the controlling computer, point a web browser to the IP address noted in step 1. The 10 GigE IP Mini-Converter’s web user interface displays in the browser.

Web Browser via Ethernet

General Screen Information

All IP Mini-Converter web screens have certain areas and controls in common. Vertical and horizontal scroll bars appear when information extends past the border of a panel.

The round blue Up/Down arrow button on each panel and many status parameters opens and closes that pane or set of parameters.

Menu Panel

On the left of each screen is a Menu panel listing all the available screens. Click any of these links to jump to that screen.

Alarms Panel

Alarms are displayed in a panel on the left side of each screen. Clicking on the arrow opens or closes this panel to show or hide the alarms. Hovering the mouse over an alarm (red) or warning (yellow) may provide additional detail about the condition.

Connections Panel

On the right side of every screen is a Connection panel listing information for the connected IP Mini-Converter.

Network Panel

Also on the right is a Network pane that lists other IP Mini-Converters on the network. The gear icon opens the Network Screen, the same as selecting Network from the Menu Panel. Right-clicking on the name of an IP Mini-Converter in this list allows you to turn on the Identify feature, which will blink all four of the Ethernet LEDs of that device at a 1 second rate.

Parameters and Information

The rest of the screen displays all the parameter selections and information available for the selected IP Mini-Converter screen.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 24 www.aja.com

Alarms appear

here

Menu of Screens: Click one

to display that screen.

Selections

and

Information

S/N, software version and

connection status

Figure 19. Overview of Web Browser User Interface

Dynamic Controls

• Hovering the mouse on a parameter name displays a brief description of its function.

• From the Config Screen, right clicking on the parameter name resets just that parameter to its factory default.

• For values with sliders, fine control is achieved using the arrow keys on the keyboard to move the slider the minimum amount. The numeric value can also be clicked on to enter a specific value.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 25 www.aja.com

Status Screen

IPT-10G2-SDI

Figure 20. IPT-10G2-SDI Status Screen 1 of 2

The IPT-10G2-SDI Status screen reports the current status and settings for:

• Stream Status

• PTP Clock Status

• Network Status

• NMOS Status

• Firmware Status

Each group of parameters can be expanded or collapsed.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 26 www.aja.com

Figure 21. IPT-10G2-SDI Status Screen 2 of 2

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 27 www.aja.com

IPR-10G2-HDMI

Figure 22. IPR-10G2-HDMI Status Screen 1 of 2

The IPR-10G2-HDMI Status screen reports the current status and settings for:

• Input Status

• PTP Clock Status

• Network Status

• NMOS Status

• Firmware Status

Each group of parameters can be expanded or collapsed.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 28 www.aja.com

Figure 23. IPR-10G2-HDMI Status Screen 2 of 2

Config Screen

This section describes the Config Screen for the IPT-10G2-SDI followed by the Config Screen for the IPR-10G2-HDMI.

IPT-10G2-SDI

The IPT-10G2-SDI Config Screen, shown in three parts, has the parameters required for the general operation of the IPT-10G2 units.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 29 www.aja.com

Status

Config

Presets

Network

Firmware

Alarms

None

JG-IPT-10G2-SDI

Config Page

System Name

JG-IPT-10G2-SDI

User Authentication

Dis

abled

Identify LED

UPnP Host

nable

IGMP Version

PTP Domain

PTP Preferred Grandmaster ID

-none-

PTP Grand Master Capable

Dis

abled

Video Dest IP Address 1

239.1.188.1

Video Destination Port 1

10000

Video Source Port 1

10000

Audio Dest IP Address 1

239.2.188.1

Connection

Serial Number

ENG003

Software Version

2.1.0.40d

Connection Status

Connected

Network

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G-HDMI

JG-IPR-10G2-HDMI

JG-IPT-10G2-SDI

Figure 24. IPT-10G2-SDI Config Screen 1 of 3

System Name

Defines a name for the system and gives it a unique identifier. This name is used when displaying systems through the web interface.

User Authentication

Enable or disable user password authentication for the web interface.

Identify LED

Enables flashing of the Ethernet LEDs on the unit.

UPnP Host

Enable or disable network discovery using Universal Plug and Play.

IGMP Version

Select the Internet Group Management Protocol Version. AJA supports IGMP v2 and v3.

NOTE: It is important to know which version of IGMP is in use on your network.

Selecting the wrong IGMP version may cause long delays in processing multicast subscriptions. See your network engineer for more information.

PTP Domain

NOTE: Applicable only if PTP is selected for Video Output Clock Selection.

The PTP Domain field is for the ID of the PTP Source Port. While it is possible that there could be multiple PTP domains, most implementations will use "0". If unsure, consult with your network administrator. Possible values range from 0 to

127.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 30 www.aja.com

PTP Preferred Grandmaster ID

NOTE: Applicable only if PTP is selected for Video Output Clock Selection.

There can be multiple Grandmaster IDs. However, most of the time, it will be automatically determined. Typically, it is the same as the Ethernet address for the port of the Grandmaster.

Example of a PTP Grandmaster ID:

• 08-00-11-FF-FE-22-04-D6

PTP Grand Master Capable

NOTE: Applicable only if PTP is selected for Video Output Clock Selection.

For local demonstration purposes only, the IPT-10G2-SDI and IPT-10G2-HDMI can act as a grandmaster in network environments where there is not one already present, such as during basic testing, or setting up a PoC or demonstration.

WARN ING: Do not enable this control unless you have first checked with your

network administrator.

Disable - Disables the PTP Grand Master capability.

Enable - Enables the PTP Grand Master capability.

Video Dest IP Address 1

Enter the destination IP address of the video packets.

Video Destination Port 1

Enter the UDP destination port of the video packets.

Video Source Port 1

Enter the UDP source port of the video packets.

Audio Dest IP Address 1

Enter the destination IP address of the audio packets.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 31 www.aja.com

Status

Config

Presets

Network

Firmware

Alarms

None

JG-IPT-10G2-SDI

Audio Destination Port 1

10000

Audio Source Port 1

10001

Transmitter 2

nabled

Video Dest IP Address 2

239.1.188.2

Video Destination Port 2

10000

Video Source Port 2

10002

Audio Dest IP Address 2

230.2.188.2

Audio Destination Port 2

10000

Audio Source Port 2

10003

Ref Output Format

NTSC

525

Ref Output H Offset

0 pixels

Ref Output V Offset

0 lines

Connection

Serial Number

ENG003

Software Version

2.1.0.40d

Connection Status

Connected

Network

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G-HDMI

JG-IPR-10G2-HDMI

JG-IPT-10G2-SDI

Figure 25. IPT-10G2-SDI Config Screen 2 of 3

Audio Destination Port 1

Enter the UDP destination port of the audio packets.

Audio Source Port 1

Enter the UDP source port of the audio packets.

Transmitter 2

Enable or disable transmitter 2.

Video Dest IP Address 2

Enter the destination IP address of the video packets.

Video Destination Port 2

Enter the UDP destination port of video packets.

Video Source Port 2

Enter the UDP source port of the video packets.

Audio Dest IP Address 2

Enter the destination IP address of the audio packets.

Audio Destination Port 2

Enter the UDP destination port of the audio packets.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 32 www.aja.com

Audio Source Port 2

Enter the UDP source port of the audio packets.

Ref Output Format

The IPT-10G2-SDI and IPT-10G2-HDMI generate an analog/tri-level reference output synchronized to the PTP clock in your facility. When converting baseband video to ST2110, connect your traditional video source to this reference output to lock it to the facility PTP timing prior to bringing it into the IPT-10G2-SDI or IPT10G2-HDMI for conversion. This provides the unit with the ability to lock cameras, tape decks, Ki-Pro, Kona, or other sources to PTP timing.

Additionally, the IPT-10G2-SDI and IPT-10G2-HDMI can fulfill the function of a PTP to analog black/tri-level reference converter device, which some applications will require.

Select one of the following video reference output formats:

• NTSC 525i

• PAL 625i

• 1280x720p 50

• 1280x720p 59.94

• 1280x720p 60

• 1920x1080i 48

• 1920x1080i 50

• 1920x1080i 59.94

• 1920x1080i 60

• 1920x1080p 23.98

• 1920x1080p 24

• 1920x1080p 25

• 1920x1080p 29.97

• 1920x1080p 30

Ref Output H Offset

Select the horizontal reference offset in pixels (range -2750 pixels to +2750 pixels). You can use either the slider control on the web UI or the left/down and right/up arrow keys on your keyboard.

Ref Output V Offset

Select the vertical reference offset in pixels (range -1125 lines to +1125 lines). You can use either the slider control on the web UI or the left/down and right/up arrow keys on your keyboard.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 33 www.aja.com

Status

Config

Presets

Network

Firmware

Alarms

None

JG-IPT-10G2-SDI

Audio Destination Port 2

10000

Audio Source Port 2

10003

Ref Output Format

NTSC

525

Ref Output H Offset

0 pixels

Ref Output V Offset

0 lines

Audio Source

Audio Packet Interval

1000 us

Audio Delay

0 Milliseconds

Audio Mute

Dis

abled

Video Payload Type

Audio Payload Type

NMOS

nabled

Ember+

nabled

Connection

Serial Number

ENG003

Software Version

2.1.0.40d

Connection Status

Connected

Network

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G-HDMI

JG-IPR-10G2-HDMI

JG-IPT-10G2-SDI

Figure 26. IPT-10G2-SDI Config Screen 3 of 3

Audio Source

Select one of the following audio sources:

• SDI

• Analog

• Disabled

Audio Delay

Use the Audio Delay control as needed to synchronize audio and video signals. Select a fixed number of milliseconds to delay audio output by relative to the video.

0 to 85 Milliseconds - Use the slider control with a mouse or the right and left

arrow keys on your keyboard to adjust the audio delay setting.

Audio Mute

Enable or disable audio mute.

Video Payload Type

Enter a value to specify the video payload type.

Audio Payload Type

Enter a value to specify the audio payload type.

NMOS

Enable or disable NMOS network discovery for the device. NMOS is on by default.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 34 www.aja.com

Ember+

Status

Config

Presets

Network

Firmware

Alarms

None

JG-IPR-10G2-HDMI

Config Page

System Name

JG-IPR-10G2-HDMI

User Authentication

Dis

abled

Identify LED

UPnP Host

nable

IGMP Version

Video Output Clock Selection

PTP

PTP Domain

Video Output Clock Selection

PTP Preferred Grandmaster ID

Video Output Clock Selection

-none-

PTP Grand Master Capable

Video Output Clock Selection

Dis

able

Hitless Media Support

nable

Hitless Window Size(ms)

Hitless Media Support

Connection

Serial Number

ENG003

Software Version

2.1.0.15d

Connection Status

Connected

Network

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPR10G2-SDI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G2-HDMI

SL-IPT-10G2-SDI

Enable or disable Ember+ network discovery for the device.

IPR-10G2-HDMI

The IPR-10G2-HDMI Config Screen, shown in three parts, has the parameters required for the general operation of the IPR-10G2 units.

Figure 27. IPR-10G2-HDMI Config Screen 1 of 3

System Name

Defines a name for the system and gives it a unique identifier. This name is used when displaying systems through the web interface.

User Authentication

Enable or disable user password authentication for the web interface.

Identify LED

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 35 www.aja.com

Enables flashing of the Ethernet LEDs on the unit.

UPnP Host

Enable or disable network discovery using Universal Plug and Play.

IGMP Version

Select the Internet Group Management Protocol Version. AJA supports IGMP v2 and v3.

NOTE: It is important to know which version of IGMP is in use on your network.

Selecting the wrong IGMP version may cause long delays in processing multicast subscriptions. See your network engineer for more information.

Video Output Clock Selection

Select which clock source you want to use for the video output.

PTP - Use the current Precision Time Protocol (PTP) master on the network.

Lock to Input - Use the input signal as the clock source.

PTP Domain

NOTE: Applicable only if PTP is selected for Video Output Clock Selection.

While it is possible that there could be multiple PTP domains, most implementations will use "0". If unsure, consult with your network administrator. Possible values range from 0 to 127.

PTP Preferred Grandmaster ID

NOTE: Applicable only if PTP is selected for Video Output Clock Selection.

There can be multiple Grandmaster IDs. However, most of the time, it will be automatically determined. Typically, it is the same as the Ethernet address for the port of the Grandmaster.

Example of a PTP Grandmaster ID:

• 08-00-11-FF-FE-22-04-D6

PTP Grand Master Capable

NOTE: Applicable only if PTP is selected for Video Output Clock Selection.

For local demonstration purposes only, the IPR-10G2-HDMI and IPR-10G2-SDI can act as a grandmaster in network environments where there is not one already present, such as during basic testing, setting up a PoC or demonstration.

WARN ING: Do not enable this control unless you have first checked with your

network administrator.

Disable - Disables the PTP Grand Master capability.

Enable - Enables the PTP Grand Master capability.

Hitless Media Support

When enabled, the unit will accept signals from both Media LAN 1 and Media LAN 2, allowing for hitless media switching if one of the signals is interrupted. When disabled, the unit will take a signal only from Media LAN 1.

Disable - Disables hitless media support.

Enable - Enables hitless media support.

Hitless Window Size (ms)

NOTE: Applicable only if Hitless Media Support is enabled.

Set the amount of time in milliseconds that the unit will look for redundant packets to decide to accept or reject them for hitless media switching.

To determine the hitless window size, consider any delay between the signals, expected jitter, along with any other sources of potential delay between signals.

Possible values range from 1 to 50. The actual range is determined by the signal's frame rate, raster size and other factors.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 36 www.aja.com

Status

Config

Presets

Network

Firmware

Alarms

None

JG-IPR-10G2-HDMI

Input Stream Selection

Manu

a

Video Input Format

Input Stream Selection

1920x1080i

59.94

Audio Channels

Input Stream Selection

Audio Packet Interval

Input Stream Selection

125 u

Video Destination Address

Input Stream Selection

239.0.131.111

Video Source Address

Input Stream Selection

- Ignore -

Audio Destination Address

Input Stream Selection

- Ignore -

Audio Source Address

Input Stream Selection

- Ignore -

Video2 Destination Address

Input Stream Selection

Hitless Media Support

- Ignore -

Video 2 Source Address

Input Stream Selection

Hitless Media Support

- Ignore -

Connection

Serial Number

ENG003

Software Version

2.1.0.15d

Connection Status

Connected

Network

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPR10G2-SDI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G2-HDMI

SL-IPT-10G2-SDI

Figure 28. IPR-10G2-HDMI Config Screen 2 of 3

Input Stream Selection

Select SDP, Manual or NMOS/Ember.

SDP - The SDP method greatly simplifies the configuration process for the Input

Stream Selection fields. Selecting SDP causes the following four fields to display:

• SDP URL Video - Enter the SDP URL Video string. For example:

ht tp: //172.16.0.109/t xch2v. sdp

• SDP URL Audio - Enter the SDP URL Audio string. For example:

ht tp: //172.16.0.109/t xch2a1.sd p

• SDP URL Video 2 - Enter the SDP URL Video string. For example:

ht tp: //172.16.0.109/t xch2v. sdp

• SDP URL Audio 2 - Enter the SDP URL Audio string. For example:

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 37 www.aja.com

ht tp: //172.16.0.109/t xch2a1.sd p

The strings entered into the SDP URL Video and SDP URL Audio fields point to SDP files that are created by the source that is transmitting the video signal.

The SDP files contain all required configuration parameters for the following Input Stream Selection fields:

• Video Input Format

• Audio Channels

• Audio Packet Interval

• Video Destination Address

• Video Source Address

• Audio Destination Address

• Audio Source Address.

• Video 2 Destination Address

• Video 2 Source Address

Status

Config

Presets

Network

Firmware

Alarms

None

JG-IPR-10G2-HDMI

Video2 Destination Address

Input Stream Selection

Hitless Media Support

- Ignore -

Video 2 Source Address

Input Stream Selection

Hitless Media Support

- Ignore -

Audio 2 Destination Address

Input Stream Selection

Hitless Media Support

- Ignore -

Audio 2 Source Address

Input Stream Selection

Hitless Media Support

- Ignore -

Video Signal Generator

Audio Signal Generator

Audio Delay

0 Milliseconds

HDMI Audio Mode

uto

Analog Audio Channels

hannels 1 &

NMOS Enable

nable

Ember+ Enable

nable

Connection

Serial Number

ENG003

Software Version

2.1.0.15d

Connection Status

Connected

Network

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPR10G2-SDI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G2-HDMI

SL-IPT-10G2-SDI

• Audio 2 Destination Address

• Audio 2 Source Address

Manual - When Manual is selected, you must enter configuration parameters

manually into the following Input Stream Selection fields:

• Video Input Format

• Audio Channels

• Audio Packet Interval

• Video Destination Address

• Video Source Address

• Audio Destination Address

• Audio Source Address

• Video 2 Destination Address

• Video 2 Source Address

• Audio 2 Destination Address

• Audio 2 Source Address

NMOS/Ember - When NMOS/Ember is selected, the unit announces its presence

to the network and the controller registers that it is there and what its capabilities are. Input stream selection occurs through network discovery and communication with facility automation.

Figure 29. IPR-10G2-HDMI Config Screen 3 of 3

Video Signal Generator

You can output a test video signal to validate video signal connections. Select Off or Test Pattern.

Off - No video signal is generated.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 38 www.aja.com

Test Pattern - Color bars with a moving gray line are generated in the currently

selected video format and sent to the Video Output.

NOTE: The Test Pattern is supported only in 1080p and 1080i formats.

Audio Signal Generator

You can output a test audio signal to validate audio signal connections. Select Off or 400 Hz Tone.

Off - No audio signal is generated.

400 Hz Tone - A 400 Hz tone is generated on both channels of a pair and sent

to the analog RCA audio outputs. Each channel pair is at a different volume. Channel pair 1/2 is the loudest. Channel pair 7/8 is the softest.

Audio Delay

Use the Audio Delay control as needed to synchronize audio and video signals.

0 to 100 Milliseconds - Use the slider control with a mouse or the right and left

arrow keys on your keyboard to adjust the audio delay setting.

HDMI Audio Mode

Determine how you want the HDMI audio to function. It can auto-detect which channels are carrying the audio (either Channels 1-2 or Channels 1-8), or you can manually select which channels will carry audio. Select one of the following:

• Auto

• Channels 1-2

• Channels 1-8

Analog Audio Channels

Select which pair of analog audio channels you want to go out through the analog RCA audio outputs. Choose one of the following:

• Channels 1 & 2

• Channels 3 & 4

• Channels 5 & 6

• Channels 7 & 8

NMOS Enable

Enable or disable network discovery for the device.

Ember+ Enable

Enable or disable network discovery for the device.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 39 www.aja.com

Presets Screen

Status

Config

Presets

Network

Firmware

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPR10G2-SDI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G2-HDMI

SL-IPT-10G2-SDI

Figure 30. IPR-10G2-HDMI Presets Screen

Alarms

None

JG-IPR-10G2-HDMI

Factory Reset

Preset #1

Preset #2

Preset #3

Preset #4

Preset #5

Preset #6

Preset #7

Preset #8

Preset #9

Preset #10

Preset #11

Preset #12

Preset #13

Preset #14

Preset #15

Preset #16

Preset #17

Preset #18

Preset #19

Preset #20

Presets #1-

Factory Settings -- Reset -- -- --

My PC Kona Manual Save Recall Export Import Erase

Wills Kona -manual Save Recall Export Import Erase

Will Kona SDP 4-1a1 Save Recall Export Import Erase

Wills Kona manual with

source IPs

My PC Kona 3-4 SDP Save Recall Export Import Erase

Will Kona 4-2a1 SDP Save Recall Export Import Erase

Preset 7 Save Recall Export Import Erase

Preset 8 Save Recall Export Import Erase

Preset 9 Save Recall Export Import Erase

Preset 10 Save Recall Export Import Erase

Preset 11 Save Recall Export Import Erase

Preset 12 Save Recall Export Import Erase

Preset 13 Save Recall Export Import Erase

Preset 14 Save Recall Export Import Erase

Preset 15 Save Recall Export Import Erase

Preset 16 Save Recall Export Import Erase

Preset 17 Save Recall Export Import Erase

Preset 18 Save Recall Export Import Erase

Preset 19 Save Recall Export Import Erase

Preset 20 Save Recall Export Import Erase

All -- -- Export Import Erase

Save Recall Export Import Erase

The Presets screen allows you to save Preset Configurations into 20 separate memory registers and recall the presets whenever needed.

The Presets screen also includes Export and Import functions that allow exporting one or all presets to your computer as files and importing exported preset files from your computer. A displayed message indicates successful or failed saves, recalls, exports, and imports.

Connection

Serial Number

ENG003

Software Version

2.1.0.15d

Connection Status

Connected

Network

Presets Screen Controls

Factory Reset - Factory Reset recalls all editable parameters to their factory

default settings. Individual presets and Network settings, such as the IP Addresses, are not affected.

Recall - The Recall buttons recall the saved preset configurations.

CAUTION: When you recall a Preset Configuration, the recalled preset immediately

replaces the system’s existing configuration. All previous settings are lost unless you have previously stored them in another preset configuration or an exported file.

Save - The Save buttons let you save the current configuration into the preset

register with the associated name and number. A preset is a set of all parameters as they were set at the time the preset was saved. Only editable parameters are saved in the presets. Non-editable parameters are not saved.

To change a preset name, click in the name’s text field, type a new name, and press Enter to save the name. After entering text, you can click the mouse outside of the edit box to exit without changing the name.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 40 www.aja.com

CAUTION: IP Mini-Converter stored presets may contain a web server access password.

If you share an exported preset to someone, that person can extract the password. Before loaning the device to someone, or returning it as a rental, it is recommended that you clear the device of sensitive information.

Export - The Export buttons save the associated preset contents to a file on your

computer. The file gets exported to the default download location specified in your browser options. The file name is the same as the preset name with the suffix .presets. If you export multiple files for the same preset, a number gets appended to ensure a unique file name. The file size is small, usually less than 100 kilobytes.

Import - The Import buttons let you browse for and import a preset file on

your computer into the preset register associated with the selected button. A dialog box warns you that the operation will overwrite the current preset contents with the file contents. You can only import presets from an IP MiniConverter.

Erase - The Erase buttons erase the data in that preset.

Export Presets 1–20 (All) - Export All lets you save the contents of all presets to a

file on your computer.

The file gets exported to the default download location specified in your browser options with the name all.presets. If you export multiple files, a number gets appended to ensure a unique file name.

Import Presets 1–20 (All) - Import All lets you browse for and import a

previously exported all.presets file from your computer. A dialog box warns you that the operation will overwrite all 20 current preset contents with the contents stored in the file.

Erase Presets 1–20 (All) - Erase All erases all data from all the presets. A dialog

box warns you that the operation will erase all 20 current presets.

Network Screen

Use the Network Configuration Control Tab to configure or modify settings for the Control LAN Ethernet port.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 41 www.aja.com

Status

Config

Presets

Network

Firmware

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPR10G2-SDI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G2-HDMI

SL-IPT-10G2-SDI

Network Configuration

Static

10.3.188.113

255.255.0.0

10.3.0.3

10.0.0.8

10.0.0.12

Apply

00:0C:17:88:1D:0C

1000MBit Full-Duplex

Status

Config

Presets

Network

Firmware

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPR10G2-SDI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G2-HDMI

SL-IPT-10G2-SDI

Network Configuration

Static

172.16.188.113

255.255.0.0

172.16.0.0

aja.com

Apply

00:0C:17:88:1D:0D

10000MBit Full-Duplex

Figure 31. IPR-10G2-HDMI Network Configuration Control Tab

Alarms

None

JG-IPR-10G2-HDMI

Factory Reset

Preset #1

Preset #2

Preset #3

Control Media1 Media2

Preset #4

Preset #5

Preset #6

Preset #7

Preset #8

Preset #9

Preset #10

Preset #11

Preset #12

Preset #13

Preset #14

Preset #15

Preset #16

Preset #17

Preset #18

Preset #19

Preset #20

Presets #1-

Factory Settings -- Reset -- -- --

My PC Kona Manual Save Recall Export Import Erase

Wills Kona -manual Save Recall Export Import Erase

Will Kona SDP 4-1a1 Save Recall Export Import Erase

Wills Kona manual with

source IPs

My PC Kona 3-4 SDP Save Recall Export Import Erase

Will Kona 4-2a1 SDP Save Recall Export Import Erase

Preset 7 Save Recall Export Import Erase

Preset 8 Save Recall Export Import Erase

Preset 9 Save Recall Export Import Erase

Primary DNS Server

Preset 10 Save Recall Export Import Erase

Secondary DNS Server

Preset 11 Save Recall Export Import Erase

Preset 12 Save Recall Export Import Erase

Preset 13 Save Recall Export Import Erase

Preset 14 Save Recall Export Import Erase

Preset 15 Save Recall Export Import Erase

Preset 16 Save Recall Export Import Erase

Preset 17 Save Recall Export Import Erase

Preset 18 Save Recall Export Import Erase

Preset 19 Save Recall Export Import Erase

Preset 20 Save Recall Export Import Erase

All -- -- Export Import Erase

Save Recall Export Import Erase

IP Address Type

IP Address

Netmask

Default Gateway

DNS Search Path

MAC Address

Link State

Use the Network Configuration Media 1 Tab to configure or modify settings for the Media 1 SFP+ cage for 10 Gbps Ethernet port.

Connection

Serial Number

ENG003

Software Version

2.1.0.15d

Connection Status

Connected

Network

Figure 32. IPR-10G2-HDMI Network Configuration Media 1 Tab

Alarms

None

JG-IPR-10G2-HDMI

Factory Reset

Preset #1

Preset #2

Preset #3

Control Media1 Media2

Preset #4

Preset #5

Preset #6

Preset #7

Preset #8

Preset #9

Preset #10

Preset #11

Preset #12

Preset #13

Preset #14

Preset #15

Preset #16

Preset #17

Preset #18

Preset #19

Preset #20

Presets #1-

Factory Settings -- Reset -- -- --

My PC Kona Manual Save Recall Export Import Erase

Wills Kona -manual Save Recall Export Import Erase

Will Kona SDP 4-1a1 Save Recall Export Import Erase

Wills Kona manual with

source IPs

My PC Kona 3-4 SDP Save Recall Export Import Erase

Will Kona 4-2a1 SDP Save Recall Export Import Erase

Preset 7 Save Recall Export Import Erase

Preset 8 Save Recall Export Import Erase

Preset 9 Save Recall Export Import Erase

Primary DNS Server

Preset 10 Save Recall Export Import Erase

Secondary DNS Server

Preset 11 Save Recall Export Import Erase

Preset 12 Save Recall Export Import Erase

Preset 13 Save Recall Export Import Erase

Preset 14 Save Recall Export Import Erase

Preset 15 Save Recall Export Import Erase

Preset 16 Save Recall Export Import Erase

Preset 17 Save Recall Export Import Erase

Preset 18 Save Recall Export Import Erase

Preset 19 Save Recall Export Import Erase

Preset 20 Save Recall Export Import Erase

All -- -- Export Import Erase

Save Recall Export Import Erase

IP Address Type

IP Address

Netmask

Default Gateway

DNS Search Path

MAC Address

Link State

Connection

Serial Number

ENG003

Software Version

2.1.0.15d

Connection Status

Connected

Network

Use the Network Configuration Media 2 Tab to configure or modify settings for the Media 2 SFP+ cage for 10 Gbps Ethernet port.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 42 www.aja.com

Status

Config

Presets

Network

Firmware

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPR10G2-SDI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G2-HDMI

SL-IPT-10G2-SDI

Network Configuration

Static

172.16.188.114

255.255.0.0

172.16.0.1

Apply

00:0C:17:88:1D:0E

10000MBit Full-Duplex

Figure 33. IPR-10G2-HDMI Network Configuration Media 2 Tab

Alarms

None

JG-IPR-10G2-HDMI

Factory Reset

Preset #1

Preset #2

Preset #3

Control Media1 Media2

Preset #4

Preset #5

Preset #6

Preset #7

Preset #8

Preset #9

Preset #10

Preset #11

Preset #12

Preset #13

Preset #14

Preset #15

Preset #16

Preset #17

Preset #18

Preset #19

Preset #20

Presets #1-

Factory Settings -- Reset -- -- --

My PC Kona Manual Save Recall Export Import Erase

Wills Kona -manual Save Recall Export Import Erase

Will Kona SDP 4-1a1 Save Recall Export Import Erase

Wills Kona manual with

source IPs

My PC Kona 3-4 SDP Save Recall Export Import Erase

Will Kona 4-2a1 SDP Save Recall Export Import Erase

Preset 7 Save Recall Export Import Erase

Preset 8 Save Recall Export Import Erase

Preset 9 Save Recall Export Import Erase

Primary DNS Server

Preset 10 Save Recall Export Import Erase

Secondary DNS Server

Preset 11 Save Recall Export Import Erase

Preset 12 Save Recall Export Import Erase

Preset 13 Save Recall Export Import Erase

Preset 14 Save Recall Export Import Erase

Preset 15 Save Recall Export Import Erase

Preset 16 Save Recall Export Import Erase

Preset 17 Save Recall Export Import Erase

Preset 18 Save Recall Export Import Erase

Preset 19 Save Recall Export Import Erase

Preset 20 Save Recall Export Import Erase

All -- -- Export Import Erase

Save Recall Export Import Erase

IP Address Type

IP Address

Netmask

Default Gateway

DNS Search Path

MAC Address

Link State

The Network screen allows you to view and change your IP Mini-Converter's network settings. Click Apply to activate any changes.

IP Address Type - IP Address Type determines the type of TCP/IP network

configuration to be used. DHCP enables connecting to the network DHCP server, which assigns the IP Address, Netmask, and Gateway automatically. Static lets you set these parameters manually.

NOTE: If the IP Address Type is DHCP, the IP Address, Netmask, and Default Gateway

are gray, indicating they are set automatically and cannot be changed unless IP Address Type is first set to Static. Changes are saved and activated upon confirmation using the Apply button.

• DHCP (default) - Selects automatic IP address assignment from the LAN

DHCP server. If a DHCP server cannot be found, it fails over to the static IP address.

• Static - Assigns a static IP address manually. The factory default static IP

ad dress: 192.168.0.1.

IP Address - IP Address determines a static IP address to be used for TCP/IP

networking. Consult your network administrator about how to set this value.

• If IP Address Type is set to DHCP, the IP address is set automatically by the

network DHCP server and cannot be entered here.

• If IP Address Type is set to Static, enter an IP address compatible with

your LAN here. Also enter a netmask and default gateway address in the following two parameters. Click Apply when you are ready to apply all three entries.

• If IP Address Type is set to DHCP and there is a DHCP failure, the IP address is

set to the static IP address.

Netmask - Netmask determines the subnet mask to be used for TCP/IP

networking.

• Enter a subnet mask compatible with your LAN. This is only needed for

Static IP configurations. The factory default Subnet Mask is 255.255.255.0

Connection

Serial Number

ENG003

Software Version

2.1.0.15d

Connection Status

Connected

Network

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 43 www.aja.com

• If IP Address Type is set to DHCP, the Subnet Mask is set by the DHCP server

Status

Config

Presets

Network

Firmware

Choose F

ile

CY- IPT-10G2-SDI

CY-IPR10G2-HDMI

CY-IPR10G2-SDI

CY-IPT-10G2-HDMI

GC-IPR10G2SDI

GC-IPT-10G2-SDI-E…

IPR-10G-1PR030114

IPR-10G-1PR030310

IPR-10G-ENG010

IPT-10G2-SDI-ENG…

JG-IPR-10G2-HDMI

SL-IPT-10G2-SDI

and cannot be changed by the user.

Default Gateway - Default Gateway determines the gateway or router used on

your LAN for TCP/IP networking.

Without a properly configured default gateway (whether you have a router/ gateway or not), your IP Mini-Converter will be unable to see other IP MiniConverters on the network, although you may still be able to control this IP Mini-Converter via a web browser. Also, without a proper gateway defined, the discovery feature on the Network web page will not list other units on the network.

• Enter a default gateway or router address. This is only needed for Static IP

configurations. The factory Default Gateway is 192.168.0.1.

• If IP Address Type is set to DHCP, the Default Gateway is set by the DHCP

server and cannot be changed by the user.

MAC Address - Reports the connected IP Mini-Converter's Media Access Control

Address.

Link State - Reports the current status of the Ethernet connection.

Firmware Screen

Figure 34. IPR-10G2-HDMI Firmware Screen

Alarms

None

JG-IPR-10G2-HDMI

Firmware Page

Installed:

2.1.0.15d

Upload New Firmware:

Update Progress:

Use the following to abort an update of your IPR-10G2-HDMI during the upload stage only: Abort Update

Bootloader Version: Unknown Version Safeboot Image Version: 1.1.0.34 Image Version in Flash: 2.1.0.15d Currently Running Image Version: 2.1.0.15d Bitfile Version: 2019/02/23 14:36:58

Bitfile Dev Info (this is not shown in release builds):

Design Name : cochrane10g2;COMPRESS=TRUE;UserID=0XFFFFFFFF;Version=2016.4 Date : 2019/02/23 Time : 14:36:58 Part Name : 7z030ffg676 Bus Width Pattern : Present Sync Word : Present Data Size (dec) : 3902304

Use the following to perform a reboot of your IPR-10G2-HDMI:

For latest firmware point your browser to: IPR-10G2-HDMI Support Page

file choen

Reboot

Connection

Serial Number

ENG003

Software Version

2.1.0.15d

Connection Status

Connected

Network

Downloading and Installing Updated Firmware

The Update Firmware screen allows you to download and install a firmware update from AJA.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 44 www.aja.com

Recessed

Safeboot

Button

To Download and Install Updated Firmware

1. Visit the AJA website (aja.com) to locate and download the updated software. The following page provides support information and will include links to locations where you can download updates:

https://www.aja.com/products/mini-converters/ip-converters#support

2. After downloading the software update to your local drive, use the Browse or Choose File button to locate the local software copy.

3. Follow the prompts to load the new rmware into your unit.

4. After the rmware has nished installing, reboot the unit by disconnecting power for a few seconds, then reconnecting power.

NOTE: You can also update the firmware using eMini-Setup. See "Firmware Update

Procedure" on page 21 for details.

Booting the 10 GigE IP Mini-Converters from the Safeboot Firmware

The 10 GigE IP Mini-Converters contain primary firmware and safeboot (secondary) firmware. To boot from the primary firmware, just cycle the unit's power.

In the event that the primary firmware becomes corrupted, you can boot the unit using the safeboot firmware.

To Boot from the Safeboot Firmware

1. Remove power from the device.

2. Using a very narrow tool, such as the end of a paper clip, press down and hold the recessed safeboot button, making sure you feel the button depress. The recessed safeboot button is located next to the Control LAN port.

Figure 35. Location of recessed safeboot button

3. While keeping the safeboot button depressed, apply power, then continue holding down the safeboot button for three seconds.

4. Remove the paper clip from the safeboot button. The unit will boot from the safeboot rmware. After rebooting, the message "Safeboot" displays under the Alarms heading.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 45 www.aja.com

Figure 36. The Safeboot alarm message

5. Finally, update the rmware as described above under "Downloading and

Installing Updated Firmware" on page 44.

Following a successful firmware update and reboot, the message "None" displays under the Alarms heading.

Figure 37. The alarm message after a successful firmware update

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 46 www.aja.com

Appendix A – Specications

IPT-10G2-SDI Tech Specs

Video Formats

• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HD) 1920x1080i 50, 59.94

• (HD) 1280x720p 50, 59.94, 60

• (SD) 625i 50

• (SD) 525i 59.94

Video Quality

• 10-bit, 4:2:2, uncompressed

Media Transport Interfaces

• SMPTE ST 2110 (-10, -20, -21, -30)

• 2x SFP+ Cages - SFPs not included

• Recommended 10 GigE SFP+ modules:

• Arista Networks SFP-10G-SR Compatible 10GBASE-SR

• Fiberstore SFP-10GSR-85 10G SFP+ 850nm

• Finisar FTLX1471D3BCL (for single mode 1310nm)

• Mellanox MFM1T02A-SR 850nm 10G

NOTE: Maximum supported SFP+ power is 500 mW per SFP+ cage

Video Input Digital

• 1x 3G SDI BNC (single source, with loop through)

• Up to 1080 60p, 4:2:2, 10-bits/pixel, YCbCr

Audio Input Digital

• Up to 8-Channel, SDI embedded audio, 24-bit per channel, 48 kHz synchronous

Audio Input Analog

• 2x RCA analog audio

• Levels at -10 dBu (nominal)

Video Output IP

• SMPTE ST 2110

• Single video channel output

• SMPTE ST 2022-7 dual stream output for hitless switching

• Tx support for Narrow, Gapped Mode

Audio Output IP

• SMPTE ST 2110

• Up to 8 channels audio, 24-bit per channel, 48 kHz synchronous

• 1 ms or 125 µs packet interval

• SMPTE ST 2022-7 dual stream input for hitless switching

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 47 www.aja.com

Reference

• 1x BNC

• Reference Out connector generates an analog/tri-level reference output

synchronized to the PTP clock

• This can be used to ensure the baseband video arriving at the IP Transmitter

is properly timed

Discovery, Registration and Control

• NMOS Tx discovery and control according to standards IS-04 v1.2 and IS-05 v1.0

• Ember+ control (no discovery, control only)

• AJA REST API control (discovery via SSDP or MDNS)

• Supported over dedicated management Ethernet port and in-band over media ports

IP Clock

• PTP support compliant with PTP PTPv2 / IEEE 1588-2008

• SMPTE ST 2059-1 compliant

User Controls

• 1x RJ-45 for 10/100/1000 Base-T Ethernet

• Web and REST clients supported for remote network setup and

configuration

• 1x USB 2.0 Mini-B connector

• AJA eMini-Setup supported for network setup and configuration via local

desktop computer

• Web and REST configuration is also supported in-band over media ports

Size (w x d x h)

• 5.07" x 0.94" x 5.06" (128.8 x 23.9 x 128.4 mm)

Weight

• 0.6 lb (0.3 kg)

Power

• 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% non-condensing

• Operating Altitude: <3,000 meters (<10,000 feet)

with purchase)

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 48 www.aja.com

IPT-10G2-HDMI Tech Specs

Video Formats

• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HD) 1920x1080i 50, 59.94

• (HD) 1280x720p 50, 59.94, 60

• (SD) 625i 50

• (SD) 525i 59.94

Video Quality

• 10-bit, 4:2:2, uncompressed

Media Transport Interfaces

• SMPTE ST 2110 (-10, -20, -21, -30)

• 2x SFP+ Cages - SFPs not included

• Recommended 10 GigE SFP+ modules:

• Arista Networks SFP-10G-SR Compatible 10GBASE-SR

• Fiberstore SFP-10GSR-85 10G SFP+ 850nm

• Finisar FTLX1471D3BCL (for single mode 1310nm)

• Mellanox MFM1T02A-SR 850nm 10G

NOTE: Maximum supported SFP+ power is 500 mW per SFP+ cage

Video Input Digital

• 1x HDMI Standard Type A connector

• HDMI v1.4b 24/30-bits per pixel

• Up to 1080 60p, 4:2:2, 10-bit, YCbCr/RGB

Audio Input Digital

• Up to 8-Channel, HDMI embedded audio, 24-bit per channel, 48 kHz synchronous

Audio Input Analog

• 2x RCA analog audio

• Levels at -10 dBu (nominal)

Video Output IP

• SMPTE ST 2110

• Single video channel output

• SMPTE ST 2022-7 dual stream output for hitless switching

• Tx support for Narrow, Gapped Mode

Audio Output IP

• SMPTE ST 2110

• Up to 8 channels audio, 24-bit per channel, 48 kHz synchronous

• 1 ms or 125 µs packet interval

• SMPTE ST 2022-7 dual stream input for hitless switching

Reference

• 1x BNC

• Reference Out connector generates an analog/tri-level reference output

synchronized to the PTP clock

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 49 www.aja.com

• This can be used to ensure the baseband video arriving at the IP transmitter

is properly timed

Discovery, Registration and Control

• NMOS Tx discovery and control according to standards IS-04 v1.2 and IS-05 v1.0

• Ember+ control (no discovery, control only)

• AJA REST API control (discovery via SSDP or MDNS)

• Supported over dedicated management Ethernet port and in-band over media ports

IP Clock

• PTP support compliant with PTP PTPv2 / IEEE 1588-2008

• SMPTE ST 2059-1 compliant

User Controls

• 1x RJ-45 for 10/100/1000 Base-T Ethernet

• Web and REST clients supported for remote network setup and

configuration

• 1x USB 2.0 Mini-B connector

• AJA eMini-Setup supported for network setup and configuration via local

desktop computer

• Web and REST configuration is also supported in-band over media ports

Size (w x d x h)

• 5.07" x 0.94" x 5.06" (128.8 x 23.9 x 128.4 mm)

Weight

• 0.6 lb (0.3 kg)

Power

• 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% non-condensing

• Operating Altitude: <3,000 meters (<10,000 feet)

IPR-10G2-HDMI Tech Specs

Video Formats

• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HD) 1920x1080i 50, 59.94

• (HD) 1280x720p 50, 59.94, 60

• (SD) 625i 50

• (SD) 525i 59.94

Video Quality

• 10-bit, 4:2:2, uncompressed

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 50 www.aja.com

Media Transport Interfaces

• SMPTE ST 2110 (-10, -20, -21, -30)

• 2x SFP+ Cages - SFPs not included

• Recommended 10 GigE SFP+ modules:

• Arista Networks SFP-10G-SR Compatible 10GBASE-SR

• Fiberstore SFP-10GSR-85 10G SFP+ 850nm

• Finisar FTLX1471D3BCL (for single mode 1310nm)

• Mellanox MFM1T02A-SR 850nm 10G

NOTE: Maximum supported SFP+ power is 500 mW per SFP+ cage

Video Input IP

• SMPTE ST 2110

• Single channel video input

• SMPTE ST 2022-7 dual stream input for hitless switching

• Rx support for Narrow/Wide, Gapped/Linear Modes

Audio Input IP

• SMPTE ST 2110

• Up to 16-channels* audio, 24-bit per channel, 48 kHz synchronous

• 1 ms or 125 µs packet interval

• SMPTE ST 2022-7 dual stream input for hitless switching

* Streams with up to 16-channels are received but only the first 8 are output

Video Output Digital

• 1x HDMI Standard Type A connector

• HDMI v1.4b 24/30-bits per pixel

• Up to 1080 60p, 4:2:2, 10-bit, YCbCr/RGB

Audio Output Digital

• Up to 8-Channel, HDMI embedded audio, 24-bit per channel, 48 kHz synchronous

Audio Output Analog

• 2x RCA analog audio

• Levels at -10 dBu (nominal)

Reference

• 1x BNC

• Reserved for Potential Future Features

Discovery, Registration and Control

• NMOS Rx discovery and control according to standards IS-04 v1.2 and IS-05 v1.0

• Ember+ control (no discovery, control only)

• AJA REST API control (discovery via SSDP or MDNS)

• Supported over dedicated management Ethernet port and in-band over media ports

IP Clock

• PTP support compliant with PTP PTPv2 / IEEE 1588-2008

• SMPTE ST 2059-1 compliant

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 51 www.aja.com

User Controls

• 1x RJ-45 for 10/100/1000 Base-T Ethernet

• 1x USB 2.0 Mini-B connector

• Web and REST configuration is also supported in-band over media ports

Size (w x d x h)

• 5.07" x 0.94" x 5.06" (128.8 x 23.9 x 128.4 mm)

Weight

• 0.6 lb (0.3 kg)

Power

• 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% non-condensing

• Operating Altitude: <3,000 meters (<10,000 feet)

• Web and REST clients supported for remote network setup and

configuration

• AJA eMini-Setup supported for network setup and configuration via local

desktop computer

with purchase)

IPR-10G2-SDI Tech Specs

Video Formats

• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HD) 1920x1080i 50, 59.94

• (HD) 1280x720p 50, 59.94, 60

• (SD) 625i 50

• (SD) 525i 59.94

Video Quality

• 10-bit, 4:2:2, uncompressed

Media Transport Interfaces

• SMPTE ST 2110 (-10, -20, -21, -30)

• 2x SFP+ Cages - SFPs not included

• Recommended 10 GigE SFP+ modules:

• Arista Networks SFP-10G-SR Compatible 10GBASE-SR

• Fiberstore SFP-10GSR-85 10G SFP+ 850nm

• Finisar FTLX1471D3BCL (for single mode 1310nm)

• Mellanox MFM1T02A-SR 850nm 10G

NOTE: Maximum supported SFP+ power is 500 mW per SFP+ cage

Video Input IP

• SMPTE ST 2110

• Single channel video input

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 52 www.aja.com

• SMPTE ST 2022-7 dual stream input for hitless switching

• Rx support for Narrow/Wide, Gapped/Linear Modes

Audio Input IP

• SMPTE ST 2110

• Up to 16 channels audio, 24-bit per channel, 48 kHz synchronous

• 1 ms or 125 µs packet interval

• SMPTE ST 2022-7 dual stream input for hitless switching

*Streams with up to 16-channels are received but only the first 8 are output

Video Output Digital

• 2x 3G SDI BNC (single source, mirrored output)

• Up to 1080 60p, 4:2:2, 10-bits/pixel, YCbCr

Audio Output Digital

• Up to 8-Channel, SDI embedded audio, 24-bit per channel, 48 kHz synchronous

Audio Output Analog

• 2x RCA analog audio

• Levels at -10 dBu (nominal)

Reference

• 1x BNC

• Reserved for Potential Future Features

Discovery, Registration and Control

• NMOS Rx discovery and control according to standards IS-04 v1.2 and IS-05 v1.0

• Ember+ control (no discovery, control only)

• AJA REST API control (discovery via SSDP or MDNS)

• Supported over dedicated management Ethernet port and in-band over media ports

IP Clock

• PTP support compliant with PTP PTPv2 / IEEE 1588-2008

• SMPTE ST 2059-1 compliant

User Controls

• 1x RJ-45 for 10/100/1000 Base-T Ethernet

• Web and REST clients supported for remote network setup and

configuration

• 1x USB 2.0 Mini-B connector

• AJA eMini-Setup supported for network setup and configuration via local

desktop computer

• Web and REST configuration is also supported in-band over media ports

Size (w x d x h)

• 5.07" x 0.94" x 5.06" (128.8 x 23.9 x 128.4 mm)

Weight

• 0.6 lb (0.3 kg)

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 53 www.aja.com

Power

• 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% non-condensing

• Operating Altitude: <3,000 meters (<10,000 feet)

IPR-10G-HDMI Tech Specs

Video Formats

• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HD) 1920x1080i 50, 59.94

• (HD) 1280x720p 50, 59.94, 60

• (SD) 625i 50

• (SD) 525i 59.94

Video Quality

• 10-bit, 4:2:2, uncompressed

Discovery, Registration and Control

• NMOS

• Ember Plus (no discovery, control only)

Media Transport Interfaces

• SMPTE 2110

• 1 x SFP+ Cages - SFPs not included

• Recommended 10 GigE SFP+ modules:

• Arista Networks SFP-10G-SR Compatible 10GBASE-SR

• Fiberstore SFP-10GSR-85 10G SFP+ 850nm

• Finisar FTLX1471D3BCL (for single mode 1310nm)

• Mellanox MFM1T02A-SR 850nm 10G

NOTE: Maximum supported SFP+ power is 500 mWatts

Video Input IP

• SMPTE 2110

• Single channel input

Video Output Digital

• 1x HDMI Standard Type A connector

• HDMI v1.4b 24/30-bits per pixel, RGB/YUV

Audio Output Digital

• Up to 8-Channel embedded audio, 24-bit per channel, 48 kHz synchronous

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 54 www.aja.com

Audio Output Analog

• 2x RCA analog audio

• Levels at -10 dBu (nominal)

User Controls

• 1 x RJ-45 for 10/100/1000 Base-T Ethernet

• Web and REST clients supported

• 1 x USB 2.0 Mini-B connector

• AJA eMini-Setup of network parameters via local desktop computer

Size (w x d x h)

• 5.53" x 0.954" x 4.48" (140.46 x 113.79 x 24.23 mm)

Weight

• 0.6 lb (0.3 kg)

Power

• 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 55 www.aja.com

Appendix B – Safety and Compliance

Federal Communications Commission (FCC) Compli ance Notices

Class A Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Canadian ICES Statement

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class A limits for radio-noise emissions from a digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class A digital apparatus complies with Canadian ICES-003.

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.

European Union and European Free Trade Associa tion (EFTA) Regulatory Compliance

This equipment may be operated in the countries that comprise the member countries of the European Union and the European Free Trade Association. These countries, listed in the following paragraph, are referred to as The European Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, ICELAND, IRELAND, ITALY, LATVIA, LICHTENSTEIN, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, NORWAY, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, SWITZERLAND, UNITED KINGDOM

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 56 www.aja.com

Declaration of Conformity

Marking by this symbol indicates compliance with the Essential Requirements of the EMC Directive of the European Union 2014/30/EU.

This equipment meets the following conformance standards:

Safety

EN 60065: 2014 (T-Mark License),

IEC 60065: 2014 (CB Scheme Report/Certicate)

Additional licenses issued for specic countries available on request.

Emissions

EN 55032: 2012 + AC: 2013, CISPR 32: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013

Immunity

EN 55103-2: 2009, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010,

EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004

Environments: E2, E3 and E4 The product is also licensed for additional country specific standards as required

for the International Marketplace.

Warning! This is a Class A product. In a domestic environment, this product

may cause radio interference, in which case, the user may be required to take appropriate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen

können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.

Attention! Ceci est un produit de Classe A. Dans un environnement domestique,

ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées..

Recycling Notice

This symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Korea KCC Compliance Statement

A급기기 (업무용 방송통신기자재)

이 기기는 업무용(A급) 전자파적합기기로서 판매자또는 사용자는 이점을주의하시기 바라며, 가정외의 지역에서사용하는것을 목적으로 합니다.

Class A (Broadcasting Communication Equipment for Office Use)

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 57 www.aja.com

As an electromagnetic wave equipment for office use (Class A), this equipment is intended to use in other than home area. Sellers or users need to take note of this.

Taiwan Compliance Statement

This is a Class A product based on the standard of the Bureau of Standards, Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Japan Compliance Statement

This is a Class A product based on the standard of the VCCI Council (VCCI 32: 2016). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions.

Translated Warning and Caution Messages

The following caution statements, warning conventions, and warning messages apply to this product and manual.

Before Operation Please Read These Instructions

Warning! Read and follow all warning notices and instructions marked on the

product or included in the documentation.

Avertissement! Lisez et conformez-vous à tous les avis et instructions

d'avertissement indiqués sur le produit ou dans la documentation.

Warnung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf

dem Produkt angebracht oder in der Dokumentation enthalten sind.

¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el

producto o incluidas en la documentación.

Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos

na documentação.

Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o

inclusi nella documentazione.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 58 www.aja.com

Warning! Do not use this device near water and clean only with a dry cloth. Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement

avec un tissu sec..

Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem

trockenen Tuch säubern.

¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con

un paño seco.

Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano

seco.

Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un

panno asciutto.

Warning! Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

Avertissement! Ne bloquez aucune ouverture de ventilation. Suivez les

instructions du fabricant lors de l'installation.

Warnung! Die Lüftungsöffnungen dürfen nicht blockiert werden. Nur gemäß den

Anweisungen des Herstellers installieren.

¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de

acuerdo con las instrucciones del fabricante.

Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as

instruções do fabricante.

Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le

istruzioni del fornitore.

Warning! Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

Avertissement! N'installez pas l'appareil près d'une source de chaleur telle que des

radiateurs, des bouches d'air de chauffage, des fourneaux ou d'autres appareils (amplificateurs compris) qui produisent de la chaleur.

Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern,

Öfen oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern) aufstellen.

¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros

de calor, estufas u otros aparatos (incluidos amplificadores) que generan calor.

Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas

de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor.

Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria

calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 59 www.aja.com

Warning! Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Avertissement! La sécurité de la prise polarisée ou de la prise de type mise à la

terre ne doit en aucun cas être empêchée de fonctionner. Une prise polarisée a deux broches, l'une étant plus large que l'autre. Une prise de type mise à la terre a deux broches et une troisième broche pour la mise à la terre. La broche large ou la troisième broche sont fournies pour votre sécurité. Si la prise fournie ne s'insère pas dans votre prise femelle, consultez un électricien pour le remplacement de la prise femelle obsolète.

Warnung! Der Sicherheitszweck des gepolten bzw. Schukosteckers ist zu

berücksichtigen. Ein gepolter Stecker verfügt über zwei Pole, von denen einer breiter als der andere ist. Ein Schukostecker verfügt neben den zwei Polen noch über einen dritten Pol zur Erdung. Der breite Pol bzw. der Erdungspol dienen der Sicherheit. Wenn der zur Verfügung gestellte Stecker nicht in Ihren Anschluss passt, konsultieren Sie einen Elektriker, um den veralteten Anschluss zu ersetzen.

¡Advertencia! No eche por tierra la finalidad del tipo de enchufe polarizado con

conexión a tierra. Un enchufe polarizado tiene dos espigas, una más ancha que la otra. Un enchufe con conexión a tierra tiene dos espigas iguales y una tercera espiga que sirve para la conexión a tierra. La expiga ancha, o la tercera espiga, sirven para su seguridad. Si el enchufe suministrado no encaja en el tomacorriente, consulte con un electricista para reemplazar el tomacorriente obsoleto.

Aviso! Não anule a finalidade da segurança da ficha polarizada ou do tipo ligação

terra. Uma ficha polarizada tem duas lâminas sendo uma mais larga do que a outra. Uma ficha do tipo de ligação à terra tem duas lâminas e um terceiro terminal de ligação à terra. A lâmina larga ou o terceiro terminal são fornecidos para sua segurança. Se a ficha fornecida não couber na sua tomada, consulte um electricista para a substituição da tomada obsoleta.

Avviso! Non compromettere la sicurezza della spina polarizzata o con messa a

terra. Una spina polarizzata ha due spinotti, di cui uno più largo. Una spina con messa a terra ha due spinotti e un terzo polo per la messa a terra. Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta.

Warning! Since the Mains plug is used as the disconnection for the device, it must

remain readily accessible and operable.

Avertissement! Puisque la prise principale est utilisée pour débrancher l'appareil,

elle doit rester aisément accessible et fonctionnelle.

Warnung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich

und funktionsfähig sein.

¡Advertencia! Puesto que el enchufe de la red eléctrica se utiliza como dispositivo

de desconexión, debe seguir siendo fácilmente accesible y operable.

Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo,

esta deve manter-se prontamente acessível e funcional.

Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di

sconnessione, deve rimane prontamente accessibile e operabile.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 60 www.aja.com

Warning! Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the device.

Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche

pas dessus ou qu'on le pince, en particulier au niveau des prises mâles, des réceptacles de convenance, et à l'endroit où il sort de l'appareil.

Warnung! Vermeiden Sie, dass auf das Netzkabel getreten oder das Kabel geknickt

wird, insbesondere an den Steckern, den Steckdosen und am Kabelausgang am Gerät.

¡Advertencia! Proteja el cable de energía para que no se le pise ni apriete, en

especial cerca del enchufe, los receptáculos de conveniencia y el punto del que salen del equipo.

Aviso! Proteja o cabo de alimentação de ser pisado ou de ser comprimido

particularmente nas fichas, em tomadas de parede de conveniência e no ponto de onde sai do dispositivo.

Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra

e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo.

Warning! Unplug this device during lightning storms or when unused for long

periods of time.

Avertissement! Débranchez cet appareil pendant les orages avec éclairsou s'il est

inutilisé pendant de longues périodes.

Warnung! Das Gerät ist bei Gewitterstürmen oder wenn es über lange Zeiträume

ungenutzt bleibt vom Netz zu trennen.

¡Advertencia! Desenchufe este dispositivo durante tormentas eléctricas o cuando

no se lo utilice por largos periodos del tiempo.

Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é

utilizado durante longos períodos de tempo.

Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal

produttore, quali il treppiedi e l'esoscheletro.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 61 www.aja.com

Warning! Refer all servicing to qualified service personnel. Servicing is required

when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

Avertissement! Référez-vous au personnel de service qualifié pour tout entretien.

L'entretien est exigé quand l'appareil a été endommagé de quelque manière que ce soit, par exemple lorsque le cordon d'alimentation ou la prise sont endommagés, que du liquide a été versé ou des objets sont tombés dans l'appareil, que l'appareil a été exposé à la pluie ou à l'humidité, ne fonctionne pas normalement ou est tombé.

Warnung! Das Gerät sollte nur von qualifizierten Fachkräften gewartet werden.

Eine Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde, wie bei beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder Objekte in das Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt wurde, nicht ordnungsgemäß funktioniert oder fallen gelassen wurde.

¡Advertencia! Consulte al personal calificado por cuestiones de reparación. El

servicio de reparación se requiere cuando el dispositivo ha recibido cualquier tipo de daño, por ejemplo cable o espigas dañadas, se ha derramado líquido o se han caído objetos dentro del dispositivo, el dispositivo ha sido expuesto a la lluvia o humedad, o no funciona de modo normal, o se ha caído.

Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência

qualificado. A prestação de serviços de manutenção é exigida quando o dispositivo foi danificado mediante qualquer forma, como um cabo de alimentação ou ficha que se encontra danificado/a, quando foi derramado líquido ou caíram objectos sobre o dispositivo, quando o dispositivo foi exposto à chuva ou à humidade, quando não funciona normalmente ou quando foi deixado cair.

Avviso! Fare riferimento al personale qualificato per tutti gli interventi di assistenza.

L'assistenza è necessaria quando il dispositivo è stato danneggiato in qualche modo, ad esempio se il cavo di alimentazione o la spina sono danneggiati, è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto

Warning! Do not open the chassis. There are no user-serviceable parts inside.

Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility.

Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis

ne peut être réparé par l’utilisateur. La garantie sera annulée si le châssis est ouvert par toute autre personne qu’un technicien d’un centre de service ou d’un établissement agréé AJA.

Warnung! Öffnen Sie das Gehäuse nicht. Keine der Geräteteile können vom

Benutzer gewartet werden. Durch das Öffnen des Gehäuses wird die Garantie hinfällig, es sei denn, solche Wartungsarbeiten werden in einem AJA-ServiceCenter oder einem lizenzierten Betrieb vorgenommen.

¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el

usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro de servicio AJA o en un local autorizado.

Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita

manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado.

Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili

dall’utente. L’apertura dello chassis invaliderà la garanzia se non viene effettuata da un centro ufficiale o autorizzato AJA.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 62 www.aja.com

Warning! Disconnect the external AC power supply line cord(s) from the mains

power before moving the unit.

Avertissement! Retirez le ou les cordons d’alimentation en CA de la source

d’alimentation principale lorsque vous déplacez l’appareil.

Warnung! Trennen Sie die Wechselstrom-Versorgungskabel vom Netzstrom, bevor

Sie das Gerät verschieben.

¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los

cable(s) de la fuente de alimentación CA tipo brick.

Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover

a unidade.

Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità.

Warning! Only use attachments and accessories specified and/or sold by the

manufacturer.

Avertissement! Utilisez seulement les attaches et accessoires spécifiés et/ou

vendus par le fabricant.

Warnung! Verwenden Sie nur Zusatzgeräte und Zubehör angegeben und / oder

verkauft wurde durch den Hersteller.

¡Advertencia! Utilice solamente los accesorios y conexiones especificados y/o

vendidos por el fabricante.

Aviso! Utilize apenas equipamentos/acessórios especificados e/ou vendidos pelo

fabricante.

Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal

produttore.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 63 www.aja.com

Warranty and Liability Information

AJA VIDEO SYSTEMS, INC.

Limited Warranty on Hardware

AJA Video Systems, Inc. (AJA Video) warrants that the hardware product, not including storage modules or software components, will be free from defects in materials and workmanship for a period of five (5) years from the date of purchase. AJA Video warrants that the storage modules provided as part of the hardware product will be free from defects in materials and workmanship for a period of one year from the date of purchase. AJA Video provides a separate software warranty as part of the license agreement applicable to software components.

If a hardware product or storage module (hereafter, a “product”) proves to be defective during the applicable warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.

To obtain service under this warranty, the Customer must notify AJA Video of the defect before expiration of the warranty period and make suitable arrangements for the performance of service by contacting AJA Video support through the channels set forth on the support contacts web page at http://www.aja.com/support. Except as stated, the Customer shall bear all shipping, packing, insurance and other costs, excluding parts and labor, to effectuate repair. Customer shall pack and ship the defective product to a service center designated by AJA Video, with shipping charges prepaid. AJA Video shall pay to return the product to Customer but only if to a location within the country in which the AJA Video service center is located.

This warranty shall not apply to any defect, failure or damage caused by negligent, inadequate or improper use, handling or maintenance. Without limiting the foregoing, AJA Video shall not be obligated to furnish service under this warranty or repair any damage or malfunction a) resulting from attempts by personnel other than AJA Video representatives to install, repair or service the product, b) resulting from improper use or connection to incompatible equipment, c) caused by the use of non-AJA Video parts or supplies, d) if the product has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product, or e) resulting from being dropped or otherwise subjected to undue force, exposure to moisture or other corrosive or conductive substances, exposure to strong magnetic fields, use with improperly regulated power supplies, exposure to electric shock, use in temperatures outside the specified operating range, or otherwise failing to treat the product in accordance with the standard of care appropriate to sensitive and delicate electronic equipment.

EXCEPT AS STATED ABOVE, AJA VIDEO AND ITS VENDORS DISCLAIM IN THEIR ENTIRETY ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AJA VIDEO’S RESPONSIBILITY TO REPAIR OR REPLACE TIMELY REPORTED DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY CUSTOMER IS PROVIDED WITH RESPECT TO HARDWARE PRODUCTS AND THEIR STORAGE MODULES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH MAY NOT APPLY TO YOU.

THE PRODUCT IS NOT INTENDED, STATED, OR WARRANTED TO OPERATE UNINTERRUPTED OR ERROR-FREE. YOU UNDERSTAND AND ACKNOWLEDGE THAT THE PRODUCT IS NOT INTENDED TO BE USED AS THE SOLE OR PRIMARY DATA SOURCE OR TARGET FOR CRITICAL DATA, AND THAT IT IS YOUR RESPONSIBILITY TO IMPLEMENT REDUNDANT CAPTURE AND BACKUP SYSTEMS AS APPROPRIATE.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 64 www.aja.com

Limitation of Liability

Under no circumstances shall AJA video BE LIABLE IN ANY WAY FOR ANY LOST, CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS, OR FOR ANY THIRD PARTY CLAIM, IN CONNECTION WITH THE PRODUCT, WHETHER RESULTING FROM DEFECTS IN THE PRODUCT, SOFTWARE OR HARDWARE FAILURE, OR ANY OTHER CAUSE WHATSOEVER, EVEN IF AJA VIDEO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AJA VIDEO’S LIABILITY IN CONNECTION WITH THE PRODUCT SHALL UNDER NO CIRCUMSTANCES EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT. The foregoing limitations apply even if any remedy set forth in this LIMITED WARRANTY fails of its essential purpose. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH MAY NOT APPLY TO YOU.

Governing Law and Language; Your Rights.

This limited warranty is the only warranty provided by AJA Video on the hardware product. It supersedes all prior or contemporaneous understandings regarding such subject matter. No amendment to or modification of this warranty will be binding unless in writing and signed by AJA Video. The laws of the State of California, USA will govern this warranty and any dispute arising from it. Any translation of this Agreement is intended for convenience and to meet local requirements and in the event of a dispute between the English and any non-English versions, the English version of this warranty will govern. This limited warranty gives you specific legal rights and you may have other rights that vary from jurisdiction to jurisdiction, some of which are noted above.

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 65 www.aja.com

Index

AJA Support 2 Audio

RCA Analog Audio Output 39

Authentication 23

Disabling 22 Enabling or Disabling 30, 35

Block Diagram 8

Cable

Ethernet 23

USB Cable Supplied 16 Compliance 56 Config Screen 29 Configuration

Initial 8, 14

Decoding 5, 13 DHCP

Assigned IP Address 14

Controlling Computer's Ethernet

Port 24 Failure 43 IP Address 18, 19, 20 Setting IP Address Type for

Media LAN Port 43

eMini-Setup 8, 14

Acquiring 14 Documentation 14 Downloading 14 Installing 15 Operating 17 Running 16 Screen 17

Firmware

Corrupted 45 Downloading 44 Installing New 21 Loading 14 Safeboot 45 Screen, Web UI 44 Status 26, 28 Update Procedure 21 Updating from Web UI 44 Version Installed 18

Installation

eMini-Setup on Mac 16 eMini-Setup on Windows 15 Of Firmware Using eMini-Setup

Overview 11 I/O Connections 9 IP Address 23

Accessing Settings Through

eMini-Setup 14

Applying Changes with eMini-

Setup 18 Assigning from DHCP Server 43 Assigning Static 43 Choosing DHCP or Static with

eMini-Setup 18 Determining Type in Web UI 43 Factory Default Static 43 Media LAN Port 23 Using to Access Web UI 14, 23

LAN

Behavior of Control LAN LEDs 11 Connecting Unit to Network

with Control LAN and Media

LAN 13 Entering Compatible IP Address

43 Using Media LAN for Control and

Media 13, 23 Using Standard RJ-45 Connector

23 Using Web UI Network Screen

to Access Control LAN Port

Settings 41

LED Behavior

Ready, Lock and LAN 11

Network Configuration

Accessing Control and Media

Parameters Through Media

LAN Only 13 IP Address Type 43

Network Screen

Conguring Settings for Control

LAN Ethernet Port 41 Conguring Settings for Media

LAN Ethernet Port 42

Overview

eMini-Setup 14 Installation 11 Remote Control 23 Web Interface 23

Presets

Changing Name 40

Erasing 41 Exporting 40, 41 File Name Sux 41 Importing 41 Recalling 40 Register 40 Saving 40 Screen 40 Screen Controls 40

Remote Control

Overview 23

RJ-45

Connector 23

Safety and Compliance 56 Serial Number 18 Specifications 47

Techn ical 47

Status

eMini-Setup Application 18 Ethernet Connection 44 Screen 26

Status Screen

IPR-10G2-HDMI 28 IPT-10G2-SDI 26

Subnet Mask

Determined by Netmask 43 eMini-Setup 18, 19, 20 Factory Default 43

Technical Support 2

Update

Firmware Screen 44

Updated

Documentation 14

Updated Software

Downloading 45

Update Procedure

Firmware 21

Update Tab 21

Installing New Firmware 21

USB Cable

Running eMini-Setup 16

USB Port

Connecting to Unit from

Controlling Computer 14 Firmware Update Procedure 21 Required for Initial Conguration

Using eMini-Setup 8, 14

User Authentication

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 66 www.aja.com

Enabling or Disabling for Web

Interface 30, 35

Web Browser

Accessing Unit Through Its IP

Address 14 Loading Firmware 14 Preferred 8 System Requirements 8

Web Server

Access Password 41 Built In 14, 23 Unit's Internal 8

10 GigE IP Mini-Converters SMPTE 2110 IP Transmit/Receive v2.1 67 www.aja.com

AJA IPT-10G2-SDI Operation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Installation and Operation Guide

Notices

Trademarks

Copyright

Contacting AJA Support

Contents

Chapter 1 – Introduction

Overview

10 GigE IP Mini-Converters Features

IPT-10G2-SDI Features

IPT-10G2-HDMI Features

IPR-10G2-SDI

IPR-10G2-HDMI

IPR-10G -HDMI

Frequently Asked Questions

System Requirements

Simplified Block Diagrams

I/O Connections

Control LAN, Ready, Link/Act, and Lock LED Behavior

Installation Overview

Initial Setup By Web Browser

Initial Setup By AJA eMini-Setup

Settings Retained

REST API Documentation

Chapter 2 – eMini-Setup

Overview

Acquiring eMini-Setup

eMini-Setup Documentation

Installing eMini-Setup

PC Installation

Mac Installation

Running eMini-Setup

PC Startup

Mac Startup

Operating eMini-Setup

Control LAN Tab Screen

Media Network 1 Tab Screen

Media Network 2 Tab Screen

Update Tab Screen

Firmware Update Procedure

Info Tab Screen

Chapter 3 – 10 GigE IP Mini-Converters Web Interface

Overview

Remote Control Overview

Networking Option – Using Only the Media LAN Port for Control and Media Settings

Web Browser via Ethernet

General Screen Information

Status Screen

IPT-10G2-SDI

IPR-10G2-HDMI

Config Screen

IPT-10G2-SDI

IPR-10G2-HDMI

Presets Screen

Presets Screen Controls

Network Screen

Firmware Screen

Downloading and Installing Updated Firmware

Booting the 10 GigE IP Mini-Converters from the Safeboot Firmware

IPT-10G2-SDI Tech Specs

IPT-10G2-HDMI Tech Specs

IPR-10G2-HDMI Tech Specs

IPR-10G2-SDI Tech Specs

IPR-10G-HDMI Tech Specs

Appendix B – Safety and Compliance

Warranty and Liability Information

Limited Warranty on Hardware

Limitation of Liability

Governing Law and Language; Your Rights.

Index
