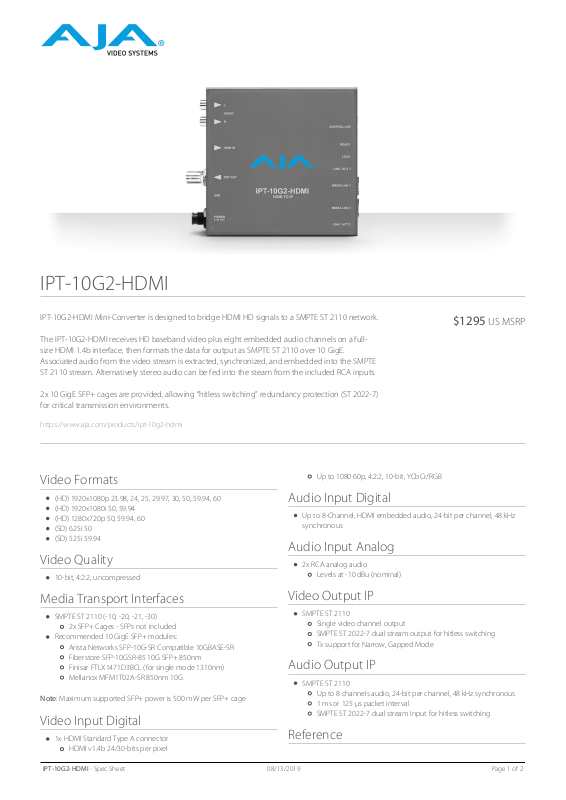

AJA IPT-10G2-HDMI Specifications
IPT-10G2-HDMI
IPT-10G2-HDMI Mini-Converter is designed to bridge HDMI HD signals to a SMPTE ST 2110 network.
The IPT-10G2-HDMI receives HD baseband video plus eight embedded audio channels on a fullsize HDMI 1.4b interface, then formats the data for output as SMPTE ST 2110 over 10 GigE.
Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE
ST 2110 stream. Alternatively stereo audio can be fed into the steam from the included RCA inputs.
2x 10 GigE SFP+ cages are provided, allowing “hitless switching” redundancy protection (ST 2022-7)
for critical transmission environments.
https://www.aja.com/products/ipt-10g2-hdmi
Video Formats
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
Up to 1080 60p, 4:2:2, 10-bit, YCbCr/RGB
Audio Input Digital
Up to 8-Channel, HDMI embedded audio, 24-bit per channel, 48 kHz
synchronous
Audio Input Analog
Video Quality
10-bit, 4:2:2, uncompressed
2x RCA analog audio
Levels at -10 dBu (nominal)
$1295 US MSRP
Media Transport Interfaces
SMPTE ST 2110 (-10, -20, -21, -30)
2x SFP+ Cages - SFPs not included
Recommended 10 GigE SFP+ modules:
Arista Networks SFP-10G-SR Compatible 10GBASE-SR
Fiberstore SFP-10GSR-85 10G SFP+ 850nm
Finisar FTLX1471D3BCL (for single mode 1310nm)
Mellanox MFM1T02A-SR 850nm 10G
Note: Maximum supported SFP+ power is 500 mW per SFP+ cage
Video Input Digital
1x HDMI Standard Type A connector
HDMI v1.4b 24/30-bits per pixel
IPT-10G2-HDMI - Spec Sheet
Video Output IP
SMPTE ST 2110
Single video channel output
SMPTE ST 2022-7 dual stream output for hitless switching
Tx support for Narrow, Gapped Mode
Audio Output IP
SMPTE ST 2110
Up to 8 channels audio, 24-bit per channel, 48 kHz synchronous
1 ms or 125 µs packet interval
SMPTE ST 2022-7 dual stream input for hitless switching
Reference
08/13/2019 Page 1 of 2
1x BNC
Reference Out connector generates an analog/tri-level reference
output synchronized to the PTP clock
This can be used to ensure the baseband video arriving at the IP
transmitter is properly timed
Discovery, Registration and Control
NMOS Tx discovery and control according to standards IS-04 v1.2 and
IS-05 v1.0
Ember+ control (no discovery, control only)
AJA REST API control (discovery via SSDP or MDNS)
Supported over dedicated management Ethernet port and in-band
over media ports
IP Clock
PTP support compliant with PTP PTPv2 / IEEE 1588-2008
SMPTE ST 2059-1 compliant
User Controls
1x RJ-45 for 10/100/1000 Base-T Ethernet
Web and REST clients supported for remote network setup and
configuration
1x USB 2.0 Mini-B connector
AJA eMini-Setup supported for network setup and configuration
via local desktop computer
Web and REST configuration is also supported in-band over media
ports
Size (w x d x h)
5.07" x 0.94" x 5.06" (128.78 x 23.88 x 128.52 mm)
Weight
0.6 lb (0.3 kg)
Power
5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1
included with purchase)
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
IPT-10G2-HDMI - Spec Sheet
08/13/2019 Page 2 of 2
