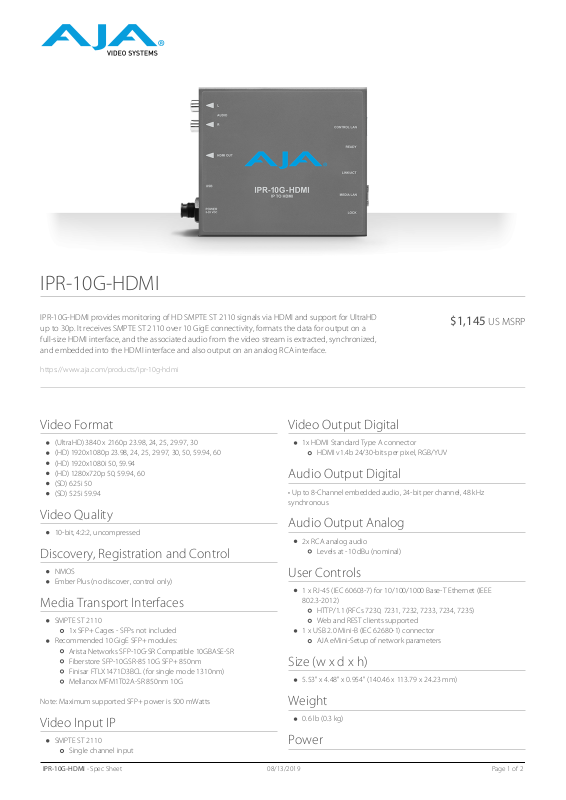

AJA IPR-10G-HDMI Specifications

IPR-10G-HDMI

IPR-10G-HDMI provides monitoring of HD SMPTE ST 2110 signals via HDMI and support for UltraHD
up to 30p. It receives SMPTE ST 2110 over 10 GigE connectivity, formats the data for output on a
full-size HDMI interface, and the associated audio from the video stream is extracted, synchronized,
and embedded into the HDMI interface and also output on an analog RCA interface.

https://www.aja.com/products/ipr-10g-hdmi

Video Format

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Video Output Digital

1x HDMI Standard Type A connector

HDMI v1.4b 24/30-bits per pixel, RGB/YUV

Audio Output Digital

• Up to 8-Channel embedded audio, 24-bit per channel, 48 kHz
synchronous

Video Quality

Audio Output Analog

10-bit, 4:2:2, uncompressed

Discovery, Registration and Control

NMOS
Ember Plus (no discover, control only)

Media Transport Interfaces

SMPTE ST 2110

1x SFP+ Cages - SFPs not included

Recommended 10 GigE SFP+ modules:

Arista Networks SFP-10G-SR Compatible 10GBASE-SR
Fiberstore SFP-10GSR-85 10G SFP+ 850nm
Finisar FTLX1471D3BCL (for single mode 1310nm)
Mellanox MFM1T02A-SR 850nm 10G

Note: Maximum supported SFP+ power is 500 mWatts

2x RCA analog audio

Levels at -10 dBu (nominal)

User Controls

1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE

802.3-2012)
HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
Web and REST clients supported

1 x USB 2.0 Mini-B (IEC 62680-1) connector

AJA eMini-Setup of network parameters

Size (w x d x h)

5.53" x 4.48" x 0.954" (140.46 x 113.79 x 24.23 mm)

Weight

$1,145 US MSRP

Video Input IP

SMPTE ST 2110

Single channel input

IPR-10G-HDMI - Spec Sheet

0.6 lb (0.3 kg)

Power

08/13/2019 Page 1 of 2

5-20VDC Regulated, 13 Watts (estimated), Power supply required
(included with purchase)

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
