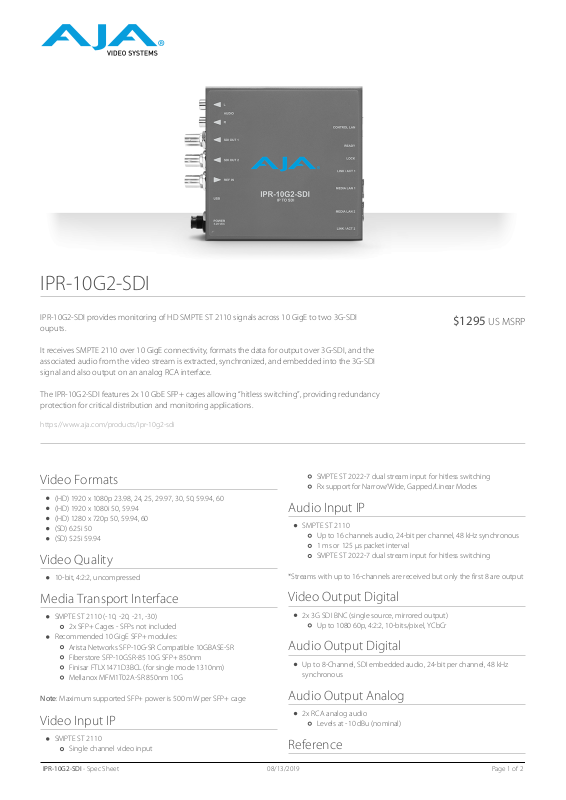

AJA IPR-10G2-SDI Specifications

IPR-10G2-SDI

IPR-10G2-SDI provides monitoring of HD SMPTE ST 2110 signals across 10 GigE to two 3G-SDI
ouputs.

It receives SMPTE 2110 over 10 GigE connectivity, formats the data for output over 3G-SDI, and the
associated audio from the video stream is extracted, synchronized, and embedded into the 3G-SDI
signal and also output on an analog RCA interface.

The IPR-10G2-SDI features 2x 10 GbE SFP+ cages allowing “hitless switching”, providing redundancy
protection for critical distribution and monitoring applications.

https://www.aja.com/products/ipr-10g2-sdi

Video Formats

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Video Quality

10-bit, 4:2:2, uncompressed

SMPTE ST 2022-7 dual stream input for hitless switching
Rx support for Narrow/Wide, Gapped/Linear Modes

Audio Input IP

SMPTE ST 2110

Up to 16 channels audio, 24-bit per channel, 48 kHz synchronous
1 ms or 125 µs packet interval
SMPTE ST 2022-7 dual stream input for hitless switching

*Streams with up to 16-channels are received but only the first 8 are output

$1295 US MSRP

Media Transport Interface

SMPTE ST 2110 (-10, -20, -21, -30)

2x SFP+ Cages - SFPs not included

Recommended 10 GigE SFP+ modules:

Arista Networks SFP-10G-SR Compatible 10GBASE-SR
Fiberstore SFP-10GSR-85 10G SFP+ 850nm
Finisar FTLX1471D3BCL (for single mode 1310nm)
Mellanox MFM1T02A-SR 850nm 10G

Note: Maximum supported SFP+ power is 500 mW per SFP+ cage

Video Input IP

SMPTE ST 2110

Single channel video input

IPR-10G2-SDI - Spec Sheet

Video Output Digital

2x 3G SDI BNC (single source, mirrored output)

Up to 1080 60p, 4:2:2, 10-bits/pixel, YCbCr

Audio Output Digital

Up to 8-Channel, SDI embedded audio, 24-bit per channel, 48 kHz
synchronous

Audio Output Analog

2x RCA analog audio

Levels at -10 dBu (nominal)

Reference

08/13/2019 Page 1 of 2

1x BNC

Reserved for Future Potential Features

Discovery, Registration and Control

NMOS Rx discovery and control according to standards IS-04 v1.2 and
IS-05 v1.0
Ember+ control (no discovery, control only)
AJA REST API control (discovery via SSDP or MDNS)
Supported over dedicated management Ethernet port and in-band
over media ports

IP Clock

PTP support compliant with PTP PTPv2 / IEEE 1588-2008
SMPTE ST 2059-1 compliant

User Controls

1x RJ-45 for 10/100/1000 Base-T Ethernet

Web and REST clients supported for remote network setup and
configuration

1x USB 2.0 Mini-B connector

AJA eMini-Setup supported for network setup and configuration

via local desktop computer
Web and REST configuration is also supported in-band over media
ports

Size (w x d x h)

5.07" x 0.94" x 5.06" (128.78 x 23.88 x 128.52 mm)

Weight

0.6 lb (0.3 kg)

Power

5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1
included with purchase)

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

IPR-10G2-SDI - Spec Sheet

08/13/2019 Page 2 of 2
