Page 1
HDR Image Analyzer
HDR Monitoring Solution
Installation and Operation Guide
Version 2.0r1
Published December 10, 2020
Page 2
Notices
Trademarks
Copyright
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc.
for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for
use with recorder, router, software and camera products. Because it matters.™ is a
trademark of AJA Video Systems, Inc. for use with camera products.
Corvid Ultra®, lo®, Ki Pro®, KONA®, KUMO®, ROI® and T-Tap® are registered trademarks of
AJA Video Systems, Inc.
AJA Control Room™, KiStor™, Science of the Beautiful™, TruScale™, V2Analog™ and
V2Digital™ are trademarks of AJA Video Systems, Inc.
All other trademarks are the property of their respective owners.
Copyright © 2020 AJA Video Systems, Inc. All rights reserved. All information in
this manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.
Contacting AJA Support
When calling for support, have all information at hand prior to calling. To contact AJA
for sales or support, use any of the following methods:
Telephone +1.530.271.3190
FAX +1.530.271.3140
Web https://www.aja.com
Support Email [email protected]
Sales Email [email protected]
HDR Image Analyzer v2.0r1 2 www.aja.com
Page 3
Contents
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Contacting AJA Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter 1 – Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Software Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 2 – HDR Image Analyzer Hardware . . . . . . . . . . . . . . . 7
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

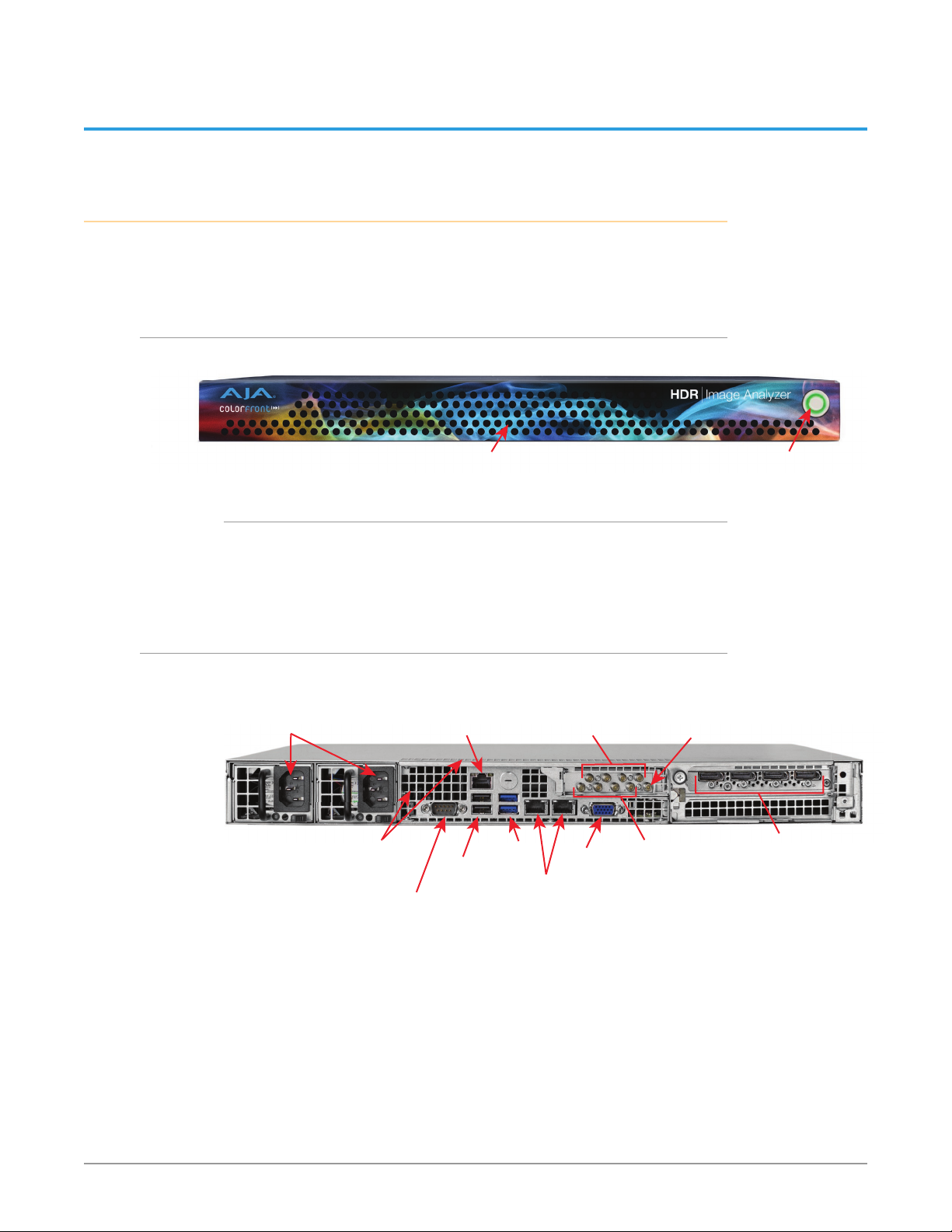

Chassis Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

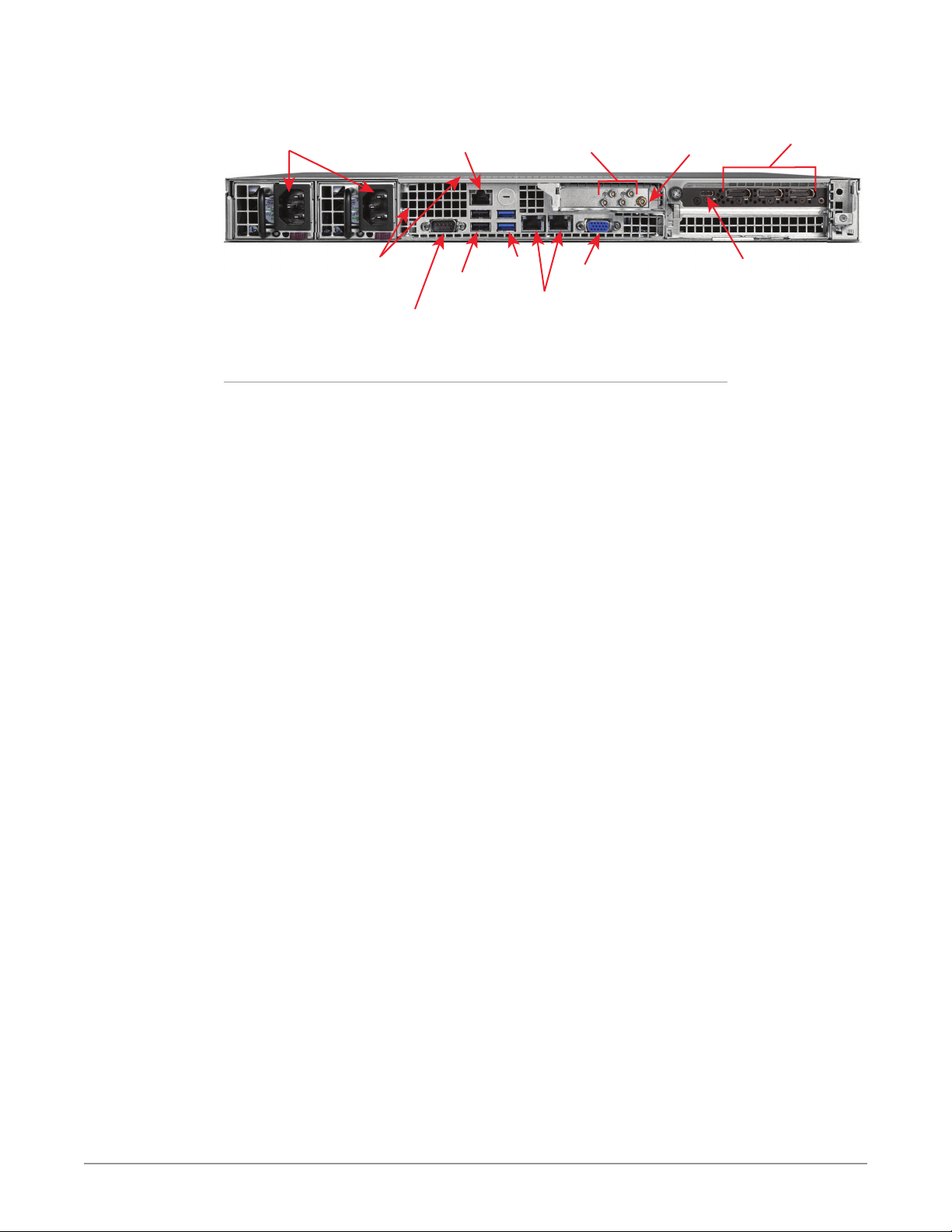

Chassis Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 3 – System Installation . . . . . . . . . . . . . . . . . . . . . . .9
Installation Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Shipping Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rack Mounting the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Network Conguration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Initial System Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Software Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Update with USB stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Update Using Web Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Licensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 4 – HDR Image Analyzer GUI . . . . . . . . . . . . . . . . . . 12
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Drop-Down Menu Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Selecting Views with Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Analyzer Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

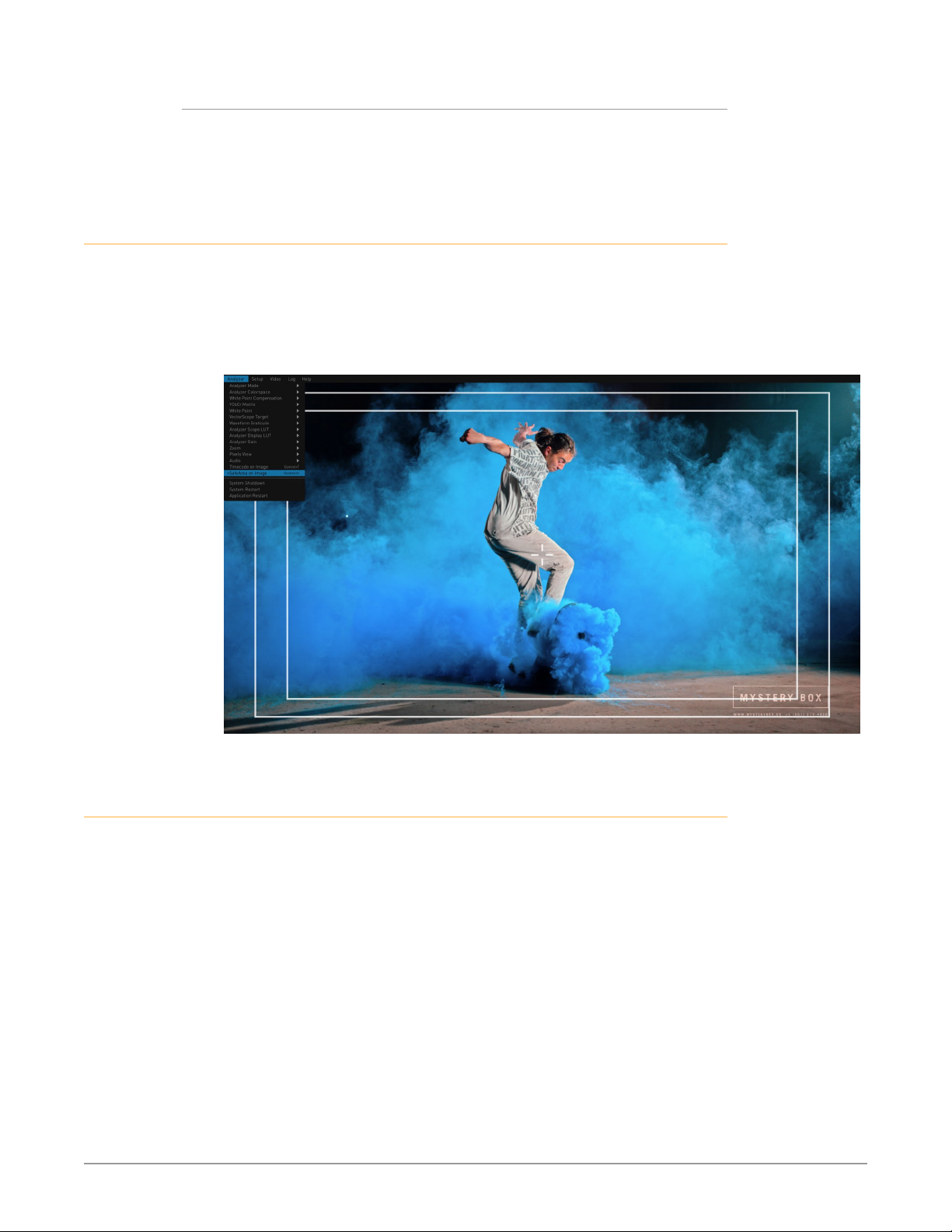

Framing Guides. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

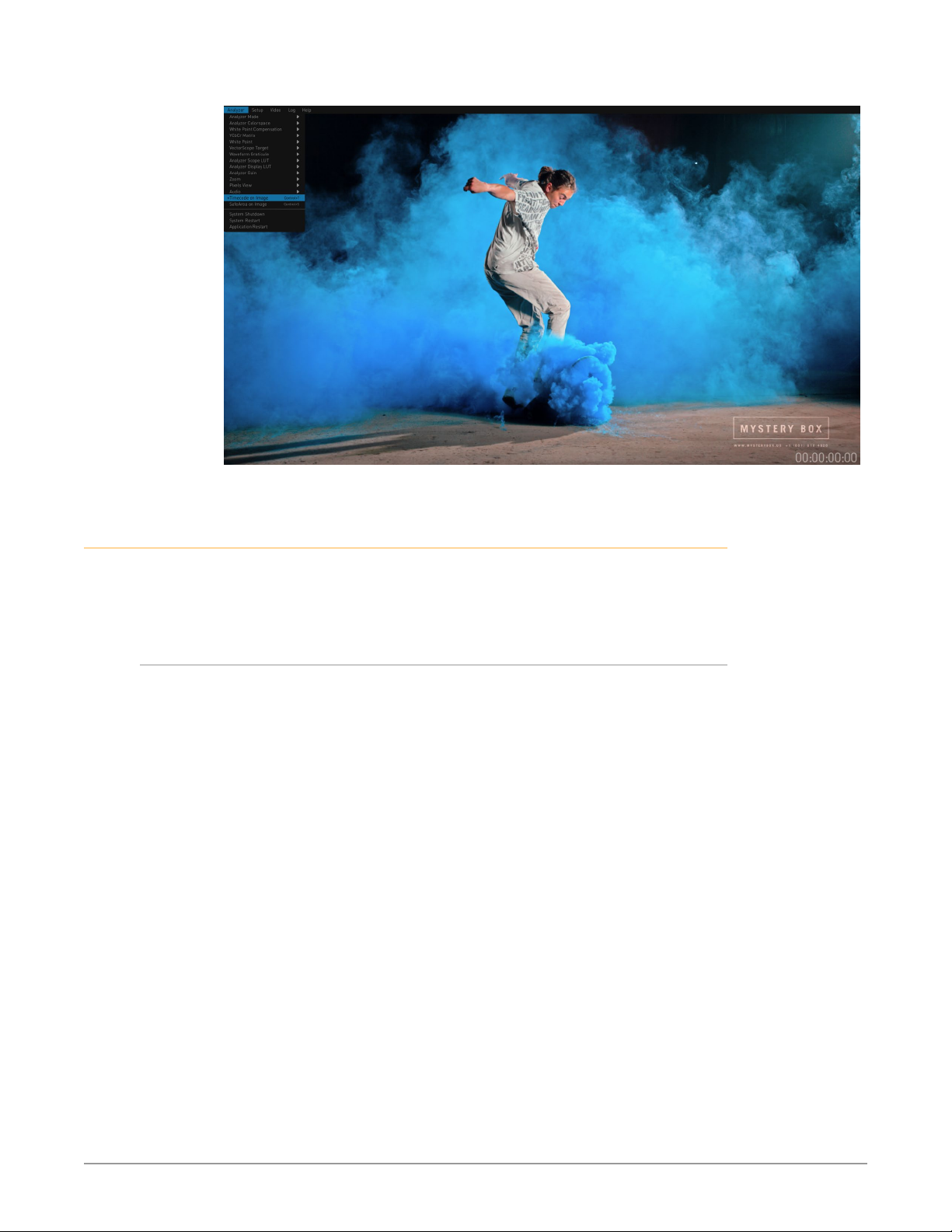

Timecode on Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Audio Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Audio Phase Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Audio Level Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Pixel Picker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Log Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Info Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Other Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Chapter 5 – Using HDR Image Analyzer . . . . . . . . . . . . . . . . . 27
HDR Image Analyzer Setups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Video Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Colorspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Square Division . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Auto Detect Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Screenshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Analyzer Colorspace and Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Auto HDR Mode Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Camera Log Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SDR Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
HLG Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
HDR Image Analyzer v2.0r1 3 www.aja.com
Page 4
HDR Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
CIE xy Gamut View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
YCbCr Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
White Point Compensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
False Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Pixel Picker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Single Line Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
LUTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Settings Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
GUI Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

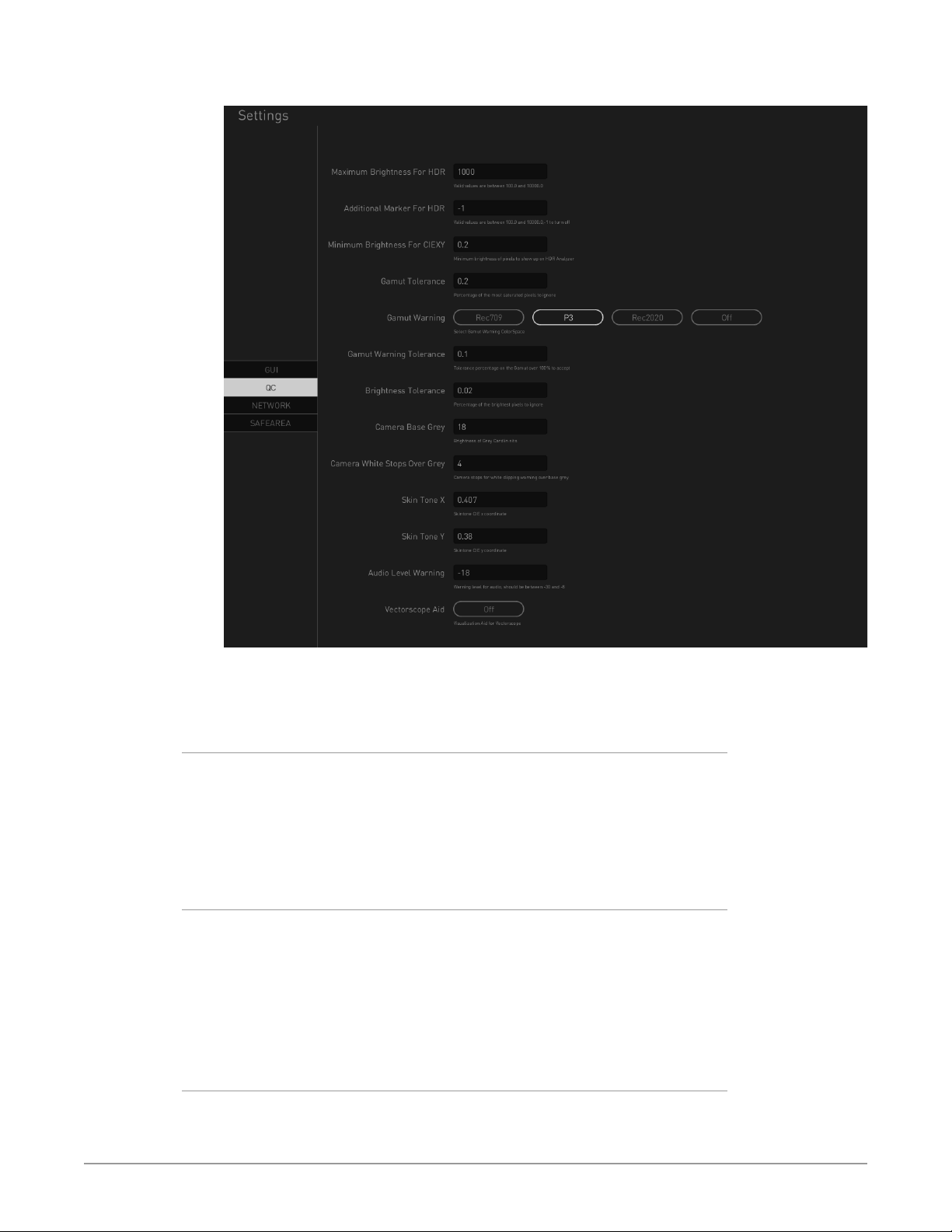

QC Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
NE TWORK Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

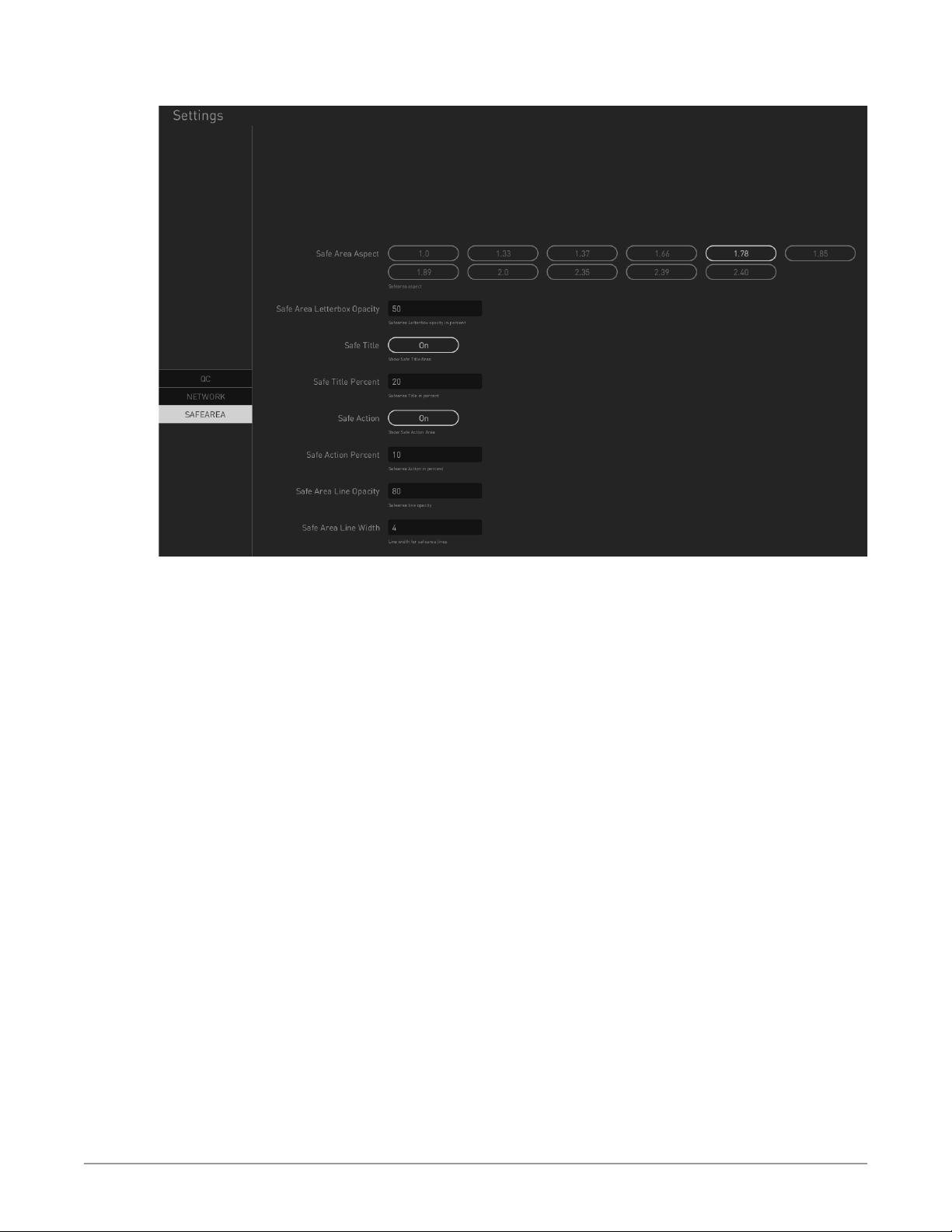

SAFE AREA Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Chapter 6 – Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . 43
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Web Interface Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

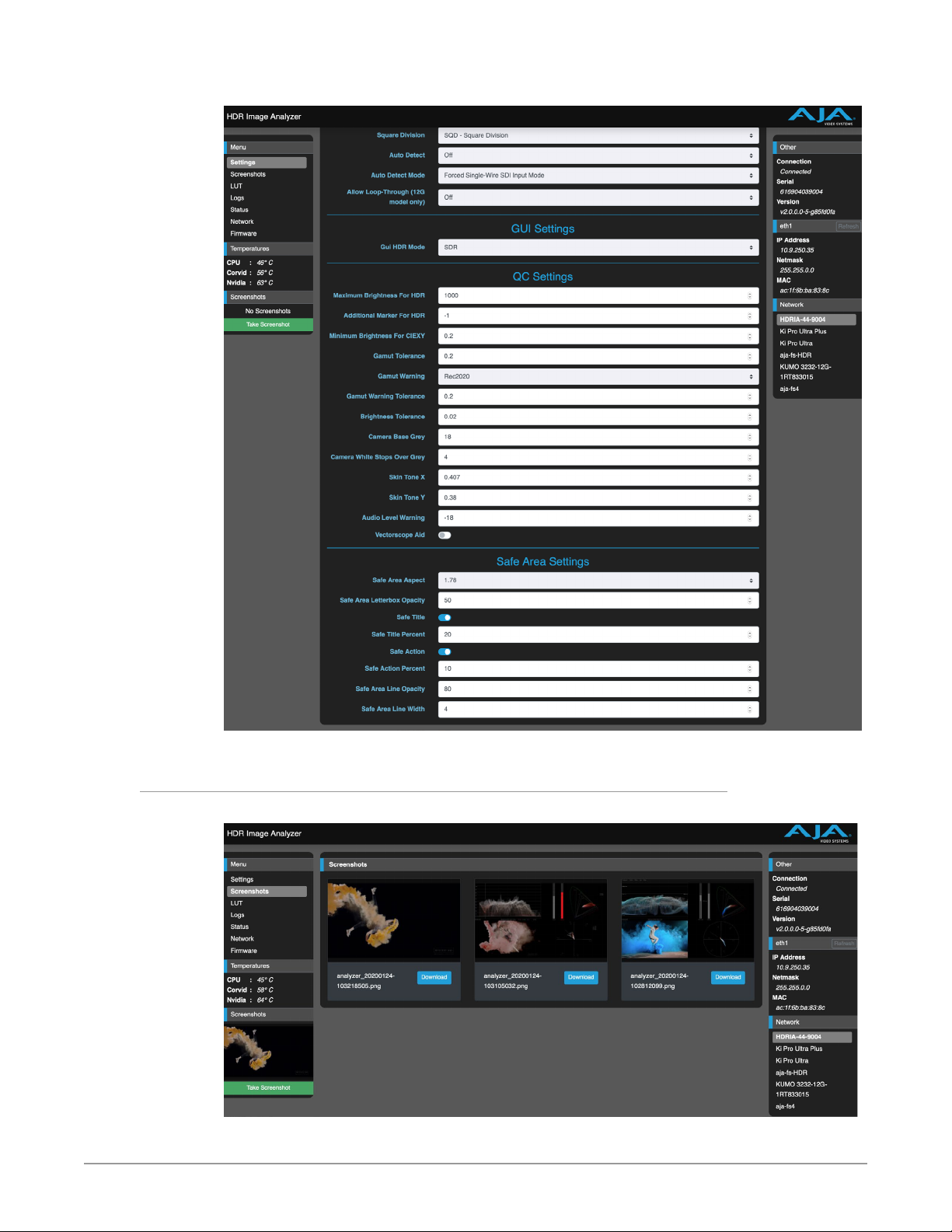

Web Interface Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

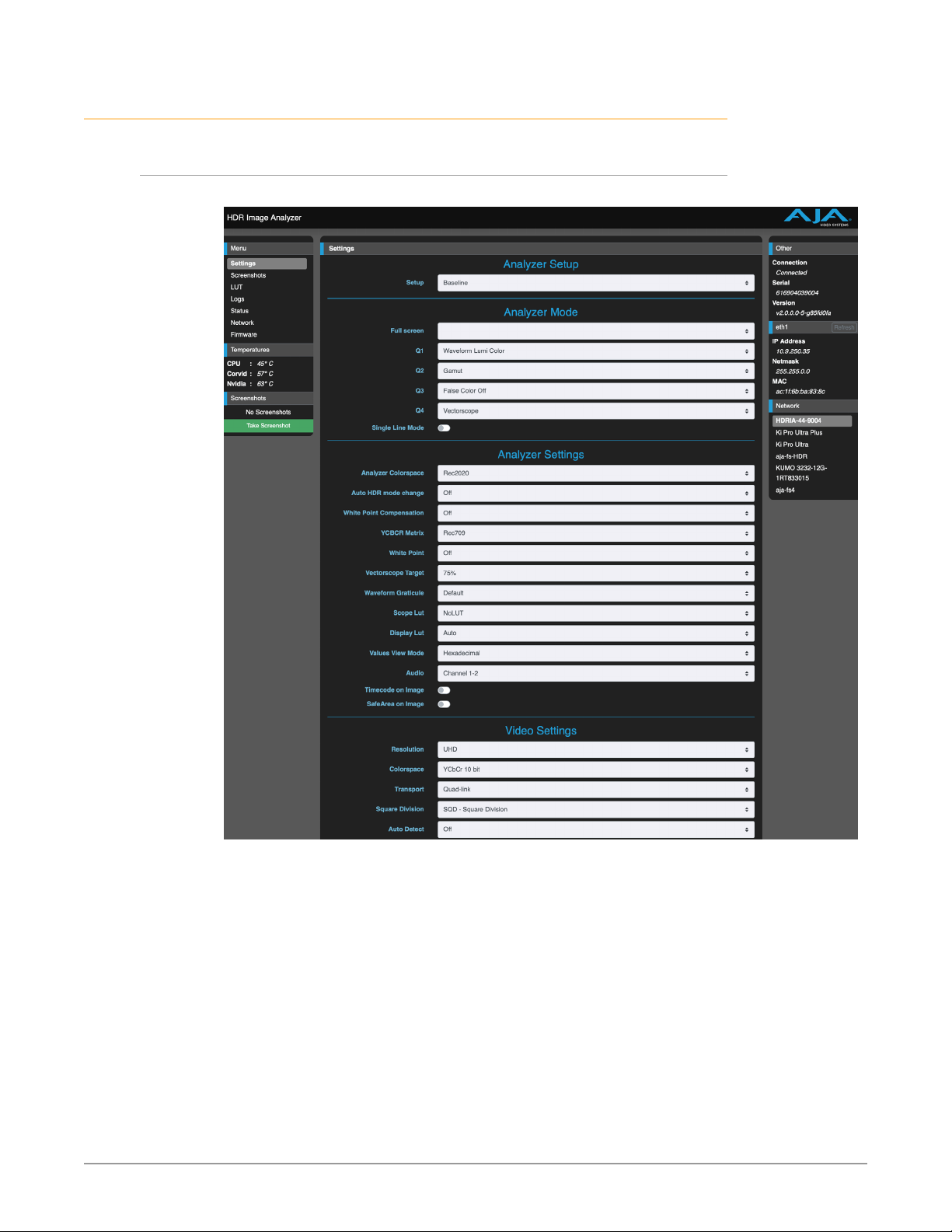

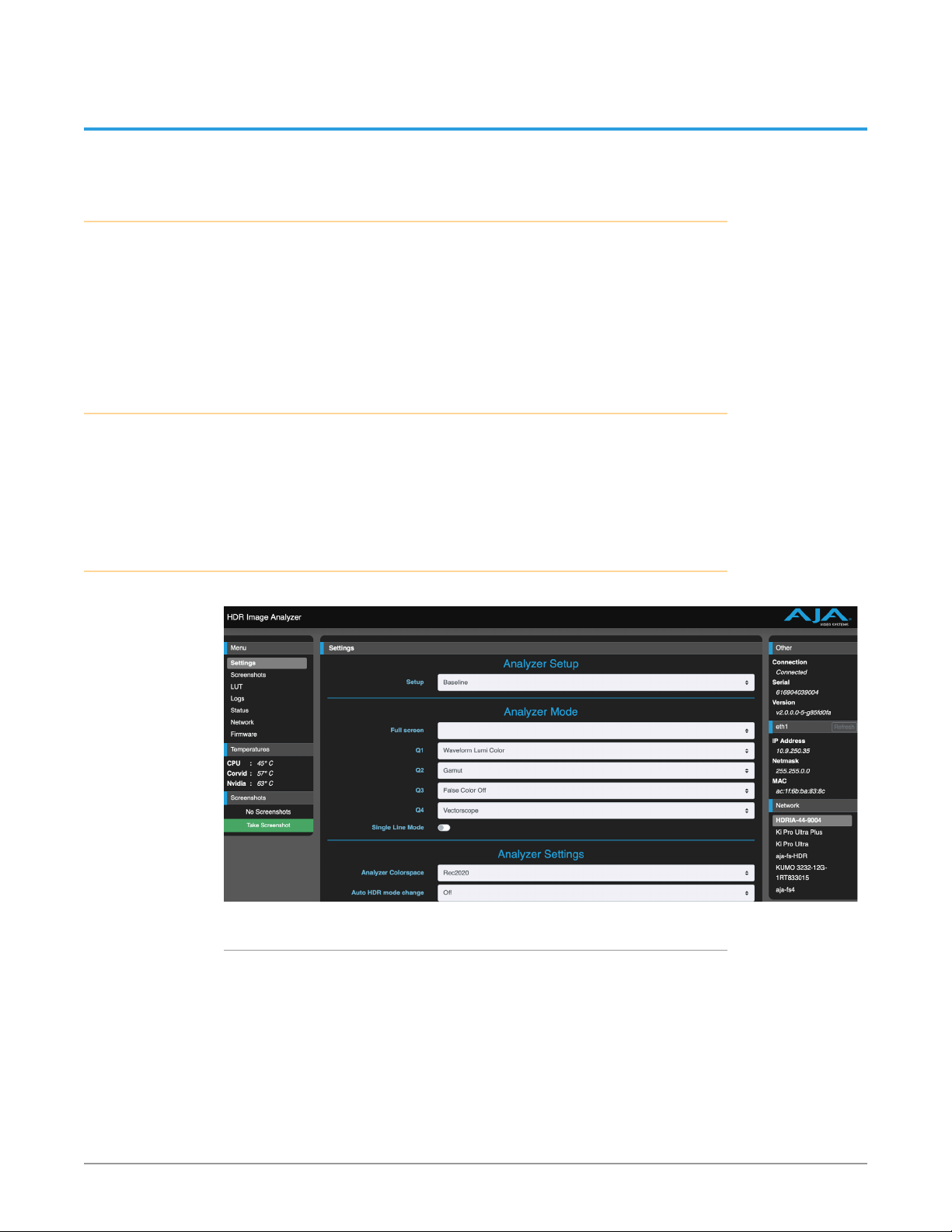

Settings Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Screenshots Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

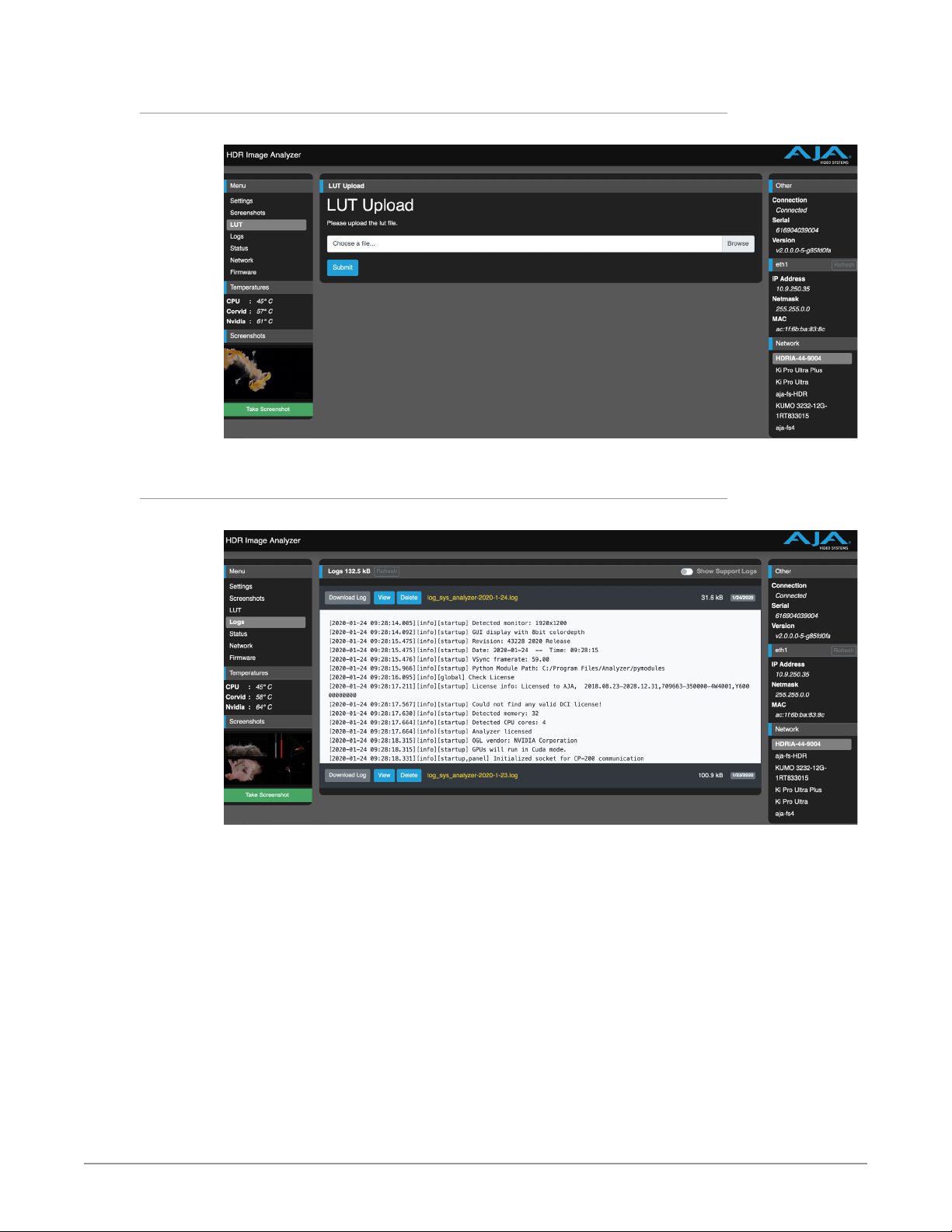

LUT Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Logs Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

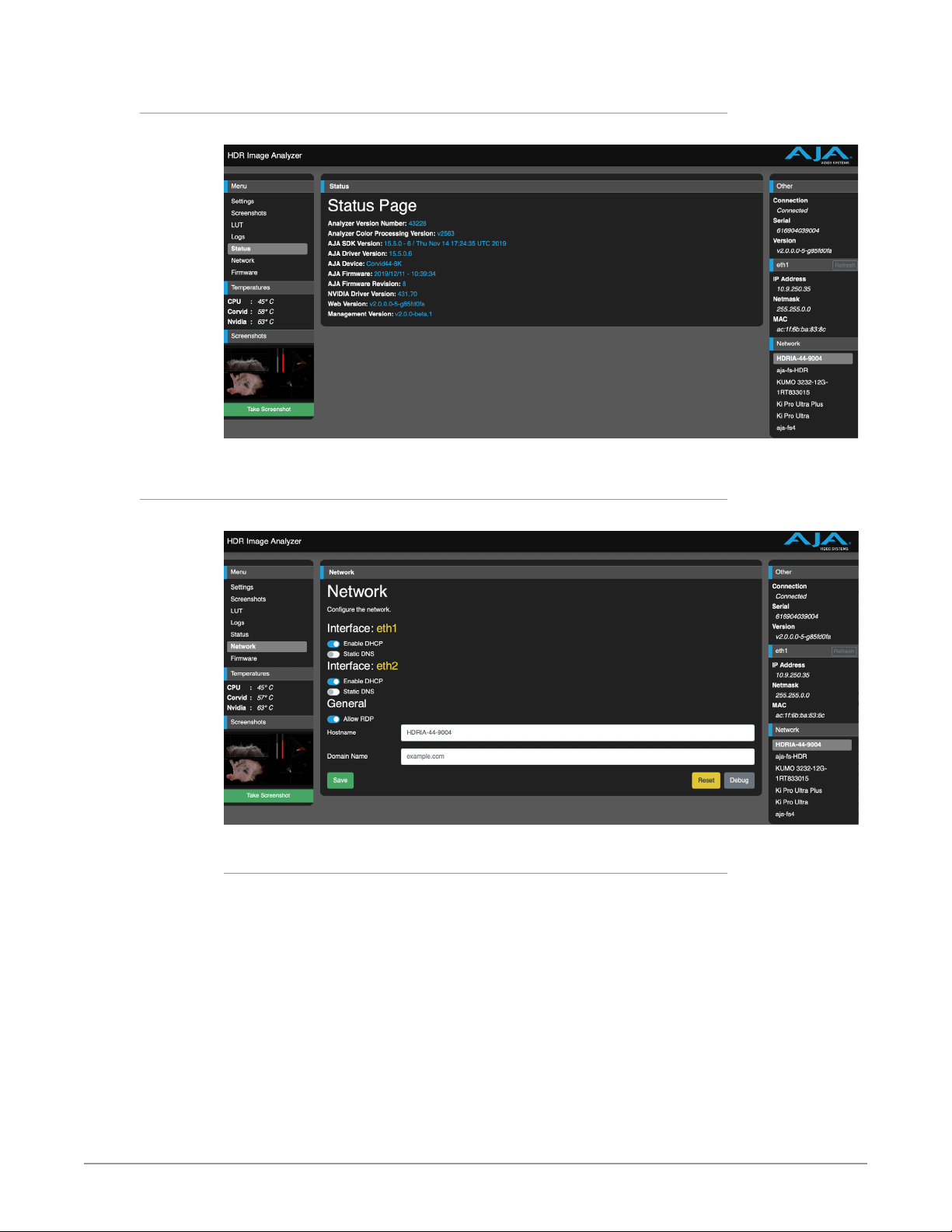

Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Network Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

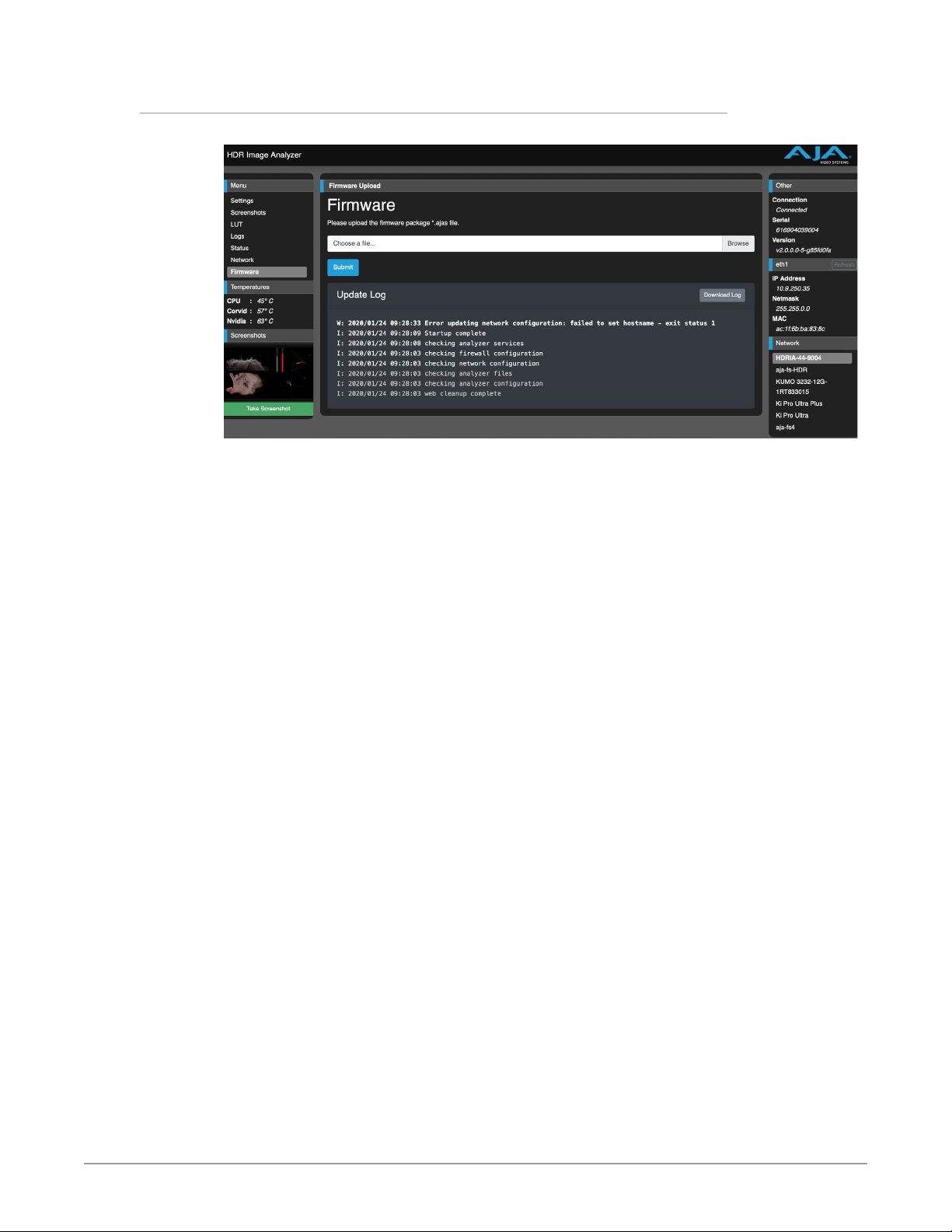

Firmware Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Chapter 7 – Menu Reference. . . . . . . . . . . . . . . . . . . . . . . .50
Analyzer Menu Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Setup Menu Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Video Menu Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Log Menu Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Help Menu Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Other Keyboard Shortcuts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Appendix A – Specications . . . . . . . . . . . . . . . . . . . . . . . . 56
HDR Image Analyzer 3G Tech Specs. . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Video Formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
HDR Image Analyzer 12G Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Appendix B – Safety and Compliance . . . . . . . . . . . . . . . . . .59
Colorfront Copyright Notices . . . . . . . . . . . . . . . . . . . . . . . 68
SOFTWARE LICENSE AGREEMENT . . . . . . . . . . . . . . . . . . . . .69
Warranty and Liability Information . . . . . . . . . . . . . . . . . . . .72
Limited Warranty on Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Governing Law and Language; Your Rights . . . . . . . . . . . . . . . . . . . . . . 72
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
HDR Image Analyzer v2.0r1 4 www.aja.com
Page 5
Chapter 1 – Introduction
Overview
AJA's HDR Image Analyzer simplifies monitoring and analysis of SDI video HDR
and WCG content in production, postproduction, quality control (QC) and

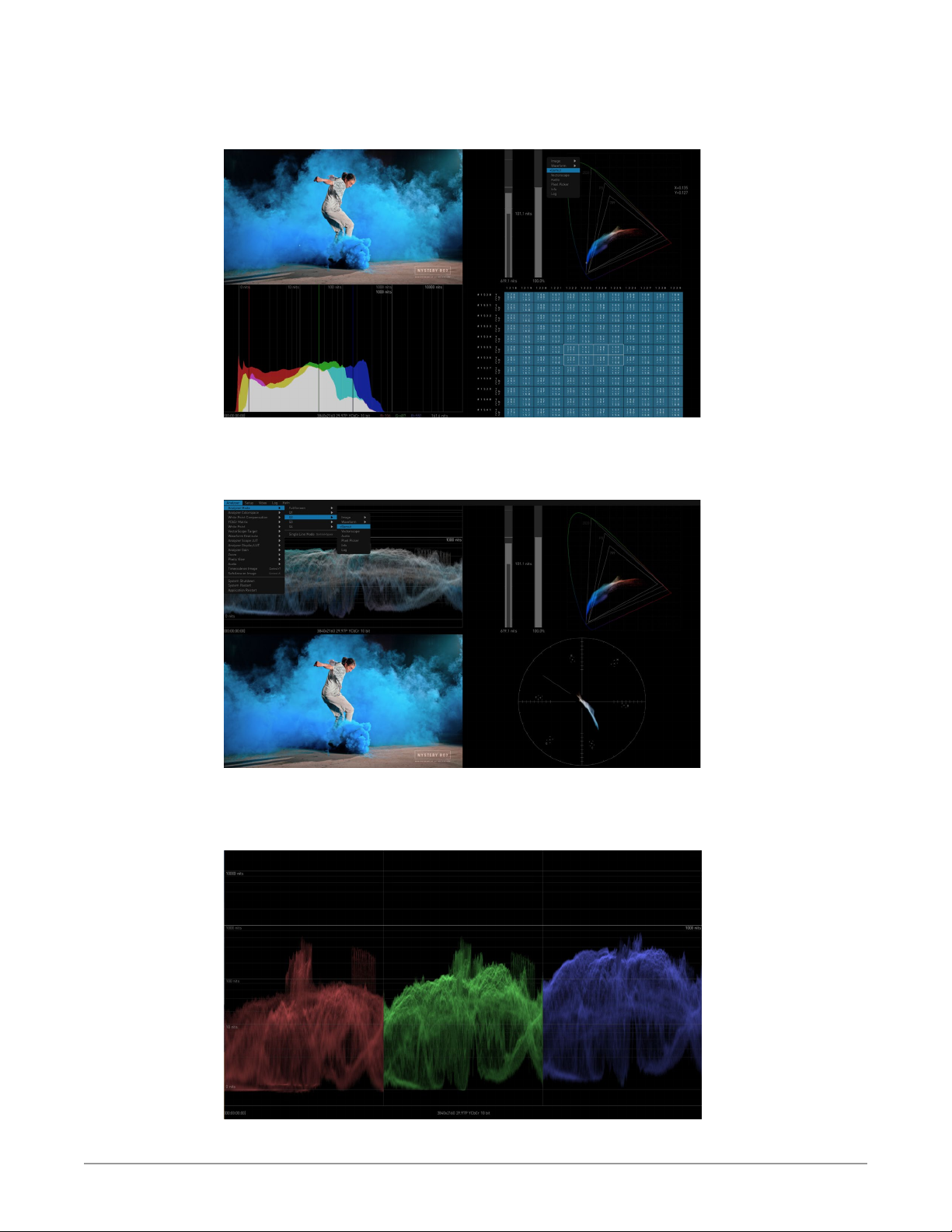

mastering. Tools include waveform, histogram, and vectorscope displays, and
nit-level HDR monitoring. The HDR Image Analyzer can also monitor embedded
audio levels and phase.
Combining AJA’s production-proven and powerful video and audio I/O with HDR
analysis tools from Colorfront in a compact 1RU chassis, the HDR Image Analyzer
offers a flexible solution for monitoring and analyzing HDR formats including
PQ (Perceptual Quantizer), Hybrid Log Gamma (HLG) and Rec2020 for up to 8K/
UltraHD2 workflows. Colorfront has exclusively licensed its Colorfront Analyzer
software to AJA.
Two models of AJA's HDR Image Analyzer are available:
• HDR Image Analyzer: HDR-IMGYZR-88 (3G-SDI model)
• HDR Image Analyzer 12G: HDR-IMGYZR-12G (12G-SDI model)
Software Features
Both HDR Image Analyzer models have identical functionality, except as indicated
below:
Shared HDR Image Analyzer features
• Precise, high quality UltraHD UI for native-resolution picture display
• Advanced out-of-gamut and out-of-brightness detection with error tolerance
• Support for SDR (Rec709), ST2084/PQ and HLG analysis

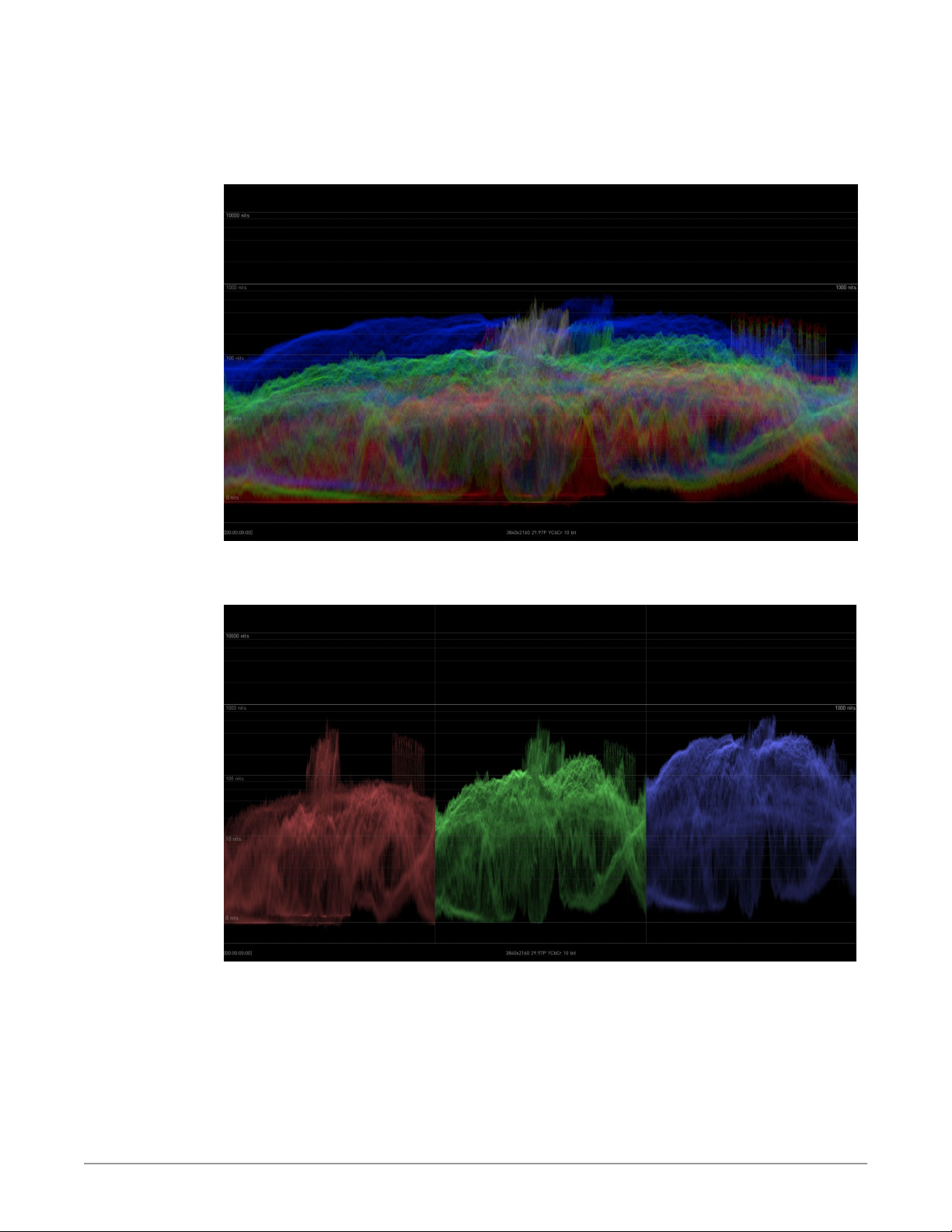

• CIE graph, Vectorscope, Waveform
• Color gamut, including out-of-gamut false color mode to easily spot out-ofgamut/out-of-brightness pixels
• Data analyzer with pixel picker
• Up to 8K/UltraHD2 60p over 12G-SDI inputs (HDR Image Analyzer 12G only)
• Up to 4K/UltraHD 60p over 4x 3G-SDI inputs
• SDI auto signal detection
• File base error logging with timecode
• Display and color processing look up table (LUT) support
• Line mode to focus on a single horizontal line as the region of interest
• Loop through output to broadcast monitors
• Still store
• Nit levels, audio levels, and audio phase metering
• Built-in support for colorspaces (including camera colorspaces)
• 12-bit RGB input support
• PQ display over DisplayPort for compatibility with HDR displays
• Desktop mirroring via DisplayPorts
• Web interface for conguration and control
• Remote desktop support
HDR Image Analyzer v2.0r1 5 www.aja.com
Page 6
Unique HDR Image Analyzer 12G Features
• 12G-SDI support
• 8K and UltraHD2 support
• Four bi-directional SDI connections, congured using software
• SDI Loop through options:
• SDI input count: 4 -> no loop through available
• SDI input count: 2 -> SDI 1 loops to SDI 3, SDI 2 loops to SDI 4 for every
supported mode
• SDI input count: 1 -> SDI 1 loops to SDI 3
Unique HDR Image Analyzer (3G) Features
• Four uni-directional SDI connections, congured using software
• SDI Loop through options:
• SDI In and Out Loop through available for all supported formats and
transports, including quad link inputs
Hardware Features
Shared HDR Image Analyzer Hardware Features
• One RU height rack mountable chassis
• Hot swappable redundant power supplies
• Two Network Interface Cards
• Four USB connectors, two USB 3.0 and two USB 2.0
• Three year warranty
Unique HDR Image Analyzer 12G Hardware Features
• HD-BNC twist-lock SDI connectors, HD-BNC to BNC adapters included
• Three DisplayPort outputs
• One DisplayPort over USB-C output
Unique HDR Image Analyzer (3G) Hardware Features
• DIN 1.0/2.3 slide lock SDI connectors, DIN 1.0/2.3 to BNC adapters included
• Four DisplayPort outputs
HDR Image Analyzer v2.0r1 6 www.aja.com
Page 7
eP
Chapter 2 – HDR Image Analyzer Hardware
Overview
AJA's HDR Image Analyzer is a 1RU hardware appliance equipped with AJA input
and output. The system is designed for immediate use, automatically powering
up to the Colorfront Analyzer application.
Chassis Front
Figure 1. HDR Image Analyzer Chassis Front View
Chassis Power Button
The main power switch is used to apply or remove power from the power supply
to the system. Turning off system power with this button removes the main
power but keeps standby power supplied to the system. Therefore, you must
unplug all system power cords before servicing.
Chassis Rear
Figure 2. HDR Image Analyzer 3G Chassis Rear View
AC Power Supplies
Redundant
Cooling Airow Exit
Rear and Top Panels
Cooling Airow Entranc
Reserved
for IPMI
USB 3.0
USB 2.0
Ports (2)
Unused
Ports (2)
SDI Output
DIN 1.0/2.3
BNCs (#5-#8)
Unused
Active RJ-45
Ethernet (2)
SDI Reference
DIN 1.0/2.3
Input (R)
SDI Input
DIN 1.0/2.3
BNCs (#1-#4)
ower Switch
DisplayPort
Connectors (4)
HDR Image Analyzer v2.0r1 7 www.aja.com
Page 8
SDI Reference
Bi-directional
Figure 3. HDR Image Analyzer 12G Chassis Rear View
Unused
Reserved
for IPMI
USB 2.0
Ports (2)
HD-BNCs Supporting
Up to 12G-SDI (#1-#4)
USB 3.0
Ports (2)
Active RJ-45
Ethernet (2)
Unused
HD-BNC
Input (R)
Redundant
AC Power Supplies
Cooling Airow Exit
Rear and Top Panels
Rear Panel Power Supply LEDs
On the rear of each power supply module an LED indicates its status as follows.
• Solid Green: When illuminated, indicates that the power supply is on.
• Solid Amber: When illuminated, indicates the power supply is plugged in and
turned o, or the system is o but in an abnormal state.
• Blinking Amber: When blinking, this system power supply temperature has
reached 63°C. The system will automatically power-down when the power
supply temperature reaches 70°C and restarts when the power supply
temperature goes below 60°C.
DisplayPort
Connectors (3)
DisplayPort
over USB-C
Connector
HDR Image Analyzer v2.0r1 8 www.aja.com
Page 9
Chapter 3 – System Installation
Installation Summary
1. Unpack the shipping box, removing the HDR Image Analyzer, two power
cords, and either nine DIN 1.0/2.3 to full-size BNC adapter cables (3G model),
or ve HD-BNC adapter cables (12G model).
2. Mount the physical chassis as desired, using the provided sliding rails.
Cooling airow enters the chassis from the front, and exits from the rear and
top panels. Do not obstruct these air vents.
3. Connect the two HDR Image Analyzer power cords to AC mains. For
redundancy, use both power supplies and connect them to separate branch
circuits so that the HDR Image Analyzer will continue to operate even if a
circuit breaker opens on one branch.
4. Connect a computer monitor (user supplied) to one of the rear DisplayPort
ports.
5. Connect a keyboard and mouse (user supplied) to available rear USB
connectors.
6. Connect the BNC adapter cables to the HDR Image Analyzer inputs and
output connectors.
NOTE: HDR Image Analyzer 12G BNC connections are bi-directional, configured for
input and output via software control.
7. Connect the HDR Image Analyzer inputs to your video source, and outputs
to your mastering display monitor, if used.
8. Power up the chassis. The system will boot up to the Analyzer application.
Hardware Installation
Shipping Box Contents
An HDR Image Analyzer is shipped with two AC power cords and BNC adapter
cables. Rackmount brackets are provided as part of the chassis.
As you unpack the shipping box, carefully examine the contents. Make sure you
received everything and that nothing was damaged during shipment. If you find
any damage, immediately notify the shipping service and supply them with a
description of the damage. AJA will repair or replace damaged items.
If you find shipping damage, contact your AJA dealer or distributor for details on
how to have your HDR Image Analyzer repaired or replaced.
NOTE: Save packing materials and the shipping box. If your HDR Image Analyzer ever
requires service or you move your system, use the packaging materials and box
for safe shipment.
Rack Mounting the Chassis
Install the HDR Image Analyzer chassis into a standard 19-inch wide equipment
rack, allowing space for cooling airflow. The chassis occupies only one vertical
rack unit.
HDR Image Analyzer v2.0r1 9 www.aja.com
Page 10
Two rack rail assemblies are included in the rack mounting kit. Each assembly
consists of two sections: an inner fixed chassis rail that secures directly to the
server chassis and an outer fixed rack rail that secures directly to the rack itself.
The rail assemblies are shipped with rack adapters installed for use with IT (square
hole) style rack frames. For IT racks, simply slide the unit into place, as the rails will
lock automatically. For use with a standard round hole rack frame, you will need
to remove the adapters using a small Phillips head screwdriver.
Network Configuration
The HDR Image Analyzer ships configured for DHCP operation. If your facility
uses DHCP, simply connect one of the active Ethernet RJ-45 connectors to your
network.

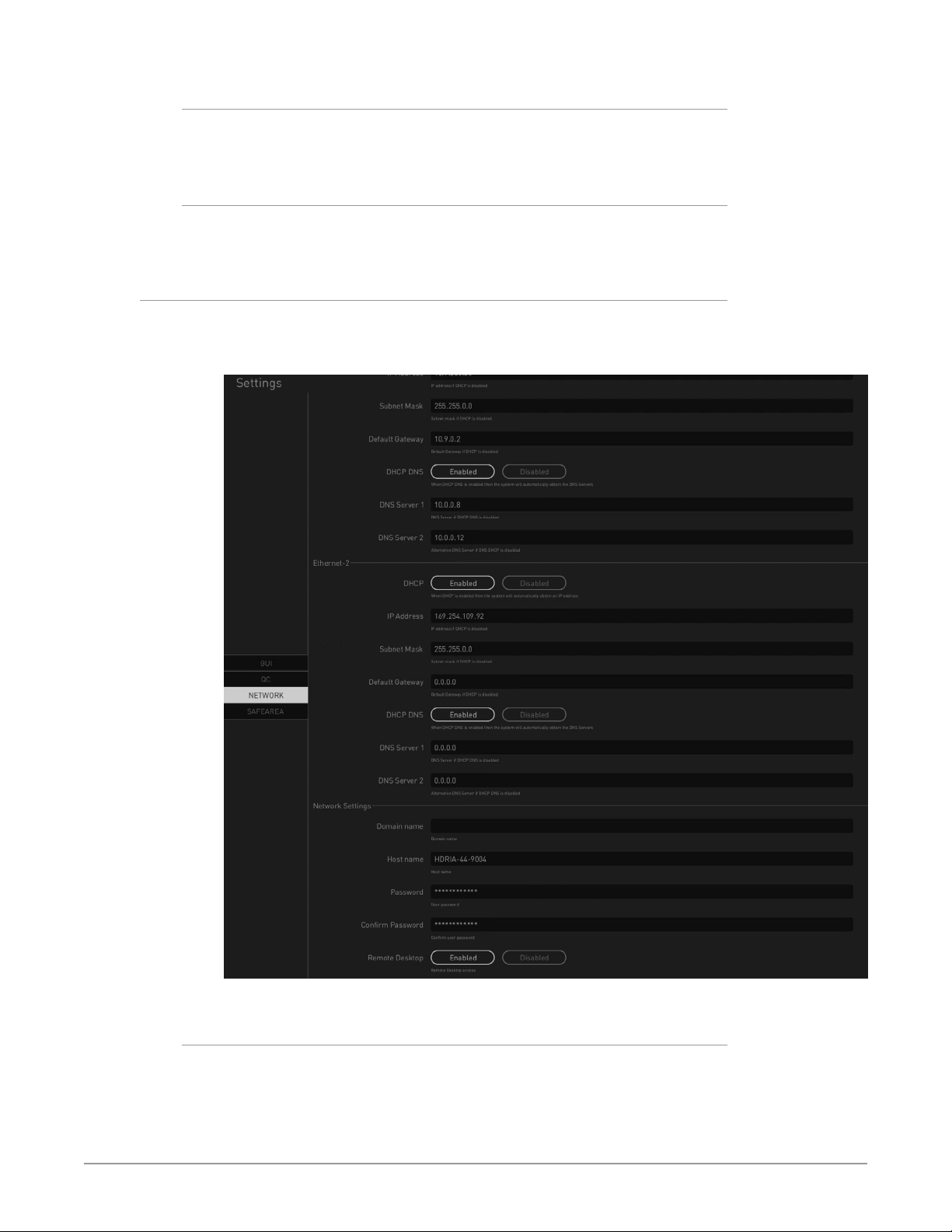

To manually configure your HDR Image Analyzer's IP addresses, on the Analyzer
application press the Tab key on the keyboard when no dropdown menu is visible
to open the Settings screen, and select NETWORK.
See "NETWORK Tab" on page 40 for more information.
Initial System Startup
On initial system startup, no login is required, but you will need to accept End
User License Agreement (EULA) for Microsoft and NVidia. EULA is displayed on
the first startup and after every update.
Software Update
AJA's HDR Image Analyzer ships with Colorfront's Analyzer software preinstalled
with the latest version.
Updates to the software are available at:
https://www.aja.com/products/support/hdr-image-analyzer
https://www.aja.com/products/hdr-image-analyzer-12g#support
NOTE: If you update your HDR Image Analyzer from v1.0, you will need to enter the
serial number of the system found on the rear of the HDR Image Analyzer chassis,
below the 9-pin serial port.
Update with USB stick
To update HDR Image Analyzer software:
1. Download the .zip le and extract and copy the .ajas le to a USB stick.
2. Insert the USB stick into a rear USB port on the HDR Image Analyzer chassis.
3. Go to Help > Update Analyzer.
4. Select the downloaded .ajas le and click Select File.
5. The software will be copied to the HDR Image Analyzer, and when complete
the message "Preparation Complete, please restart Analyzer" appears.
6. Click on the Analyzer > Application Restart menu item to complete the
update, which can take a few minutes and might involve several system
restarts.
HDR Image Analyzer v2.0r1 10 www.aja.com
Page 11
IM PORTANT: Do not power off the system during the software update, which can take up
to nine minutes.
7. When done, a "System shutdown is required to complete updates" message
appears. Click on OK to shut down the system.
8. Power up the HDR Image Analyzer using the front panel power button. One
or more end user license agreement screens will appear. Scroll down and
click on the Accept button for each agreement.
9. The HDR Image Analyzer application will then launch, ready for operation.
Update Using Web Browser
Since v1.1, HDR Image Analyzer supports software update using a Web Browser
running on a separate network connected computer.
1. Download the .zip le and extract the .ajas le to a location on a network
connected computer.
2. Open a web browser on that computer and enter the IP address of your
HDR Image Analyzer. A webpage will be displayed.
3. Go to the Firmware menu and click on Choose a file...
4. Navigate to the saved location on the computer, select the .ajas file from the
list on the HDR Image Analyzer's host computer, and click Submit.
5. The software will be installed, which can take a few minutes and might
involve several system restarts.
IM PORTANT: Do not power off the system during the software update.
Licensing
6. When done, a "System shutdown is required to complete updates" message
appears. Go to the HDR Image Analyzer's computer and click OK to shut
down the system.
7. Power up the HDR Image Analyzer using the front panel power button. One
or more end user agreement screens will appear. Scroll down and click on
the Accept button for each agreement.
8. The HDR Image Analyzer application will then launch, ready for operation.
The HDR Image Analyzer comes with an internal license already activated. No user
involvement is required for licensing, other than accepting end user agreements.
HDR Image Analyzer v2.0r1 11 www.aja.com
Page 12
Chapter 4 – HDR Image Analyzer GUI
Overview
HDR Image Analyzer is a real time video analyzer for QC, Mastering, Grading
and Broadcast. The simple, easy to use graphical user interface features unique
options designed specifically for HDR work. When the HDR Image Analyzer
hardware starts up, the GUI automatically launches.
HDR Image Analyzer interface provides a quadrant layout for viewing your tools
and footage as you work. Quick key shortcuts provide pre-configured common
layouts for how your tools and views are presented. For further customization,
you can also choose a particular tool to be shown in any of the quadrants by
either right-clicking on the quadrant itself and choosing your preferred tool, or by
accessing quadrant choices from the Analyzer Mode menu
Views
The Analyzer uses screen layouts with either a Quadrants view or Single view.

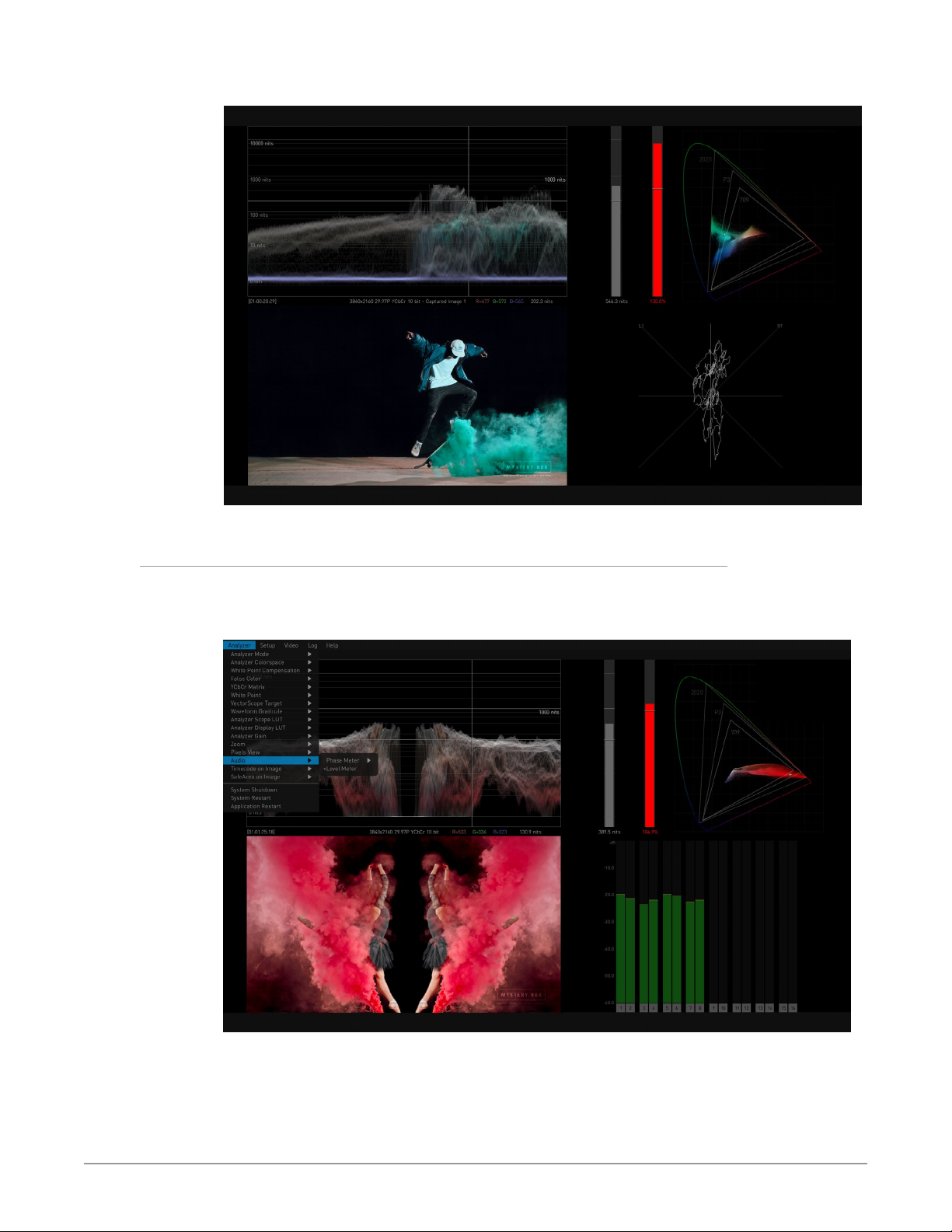

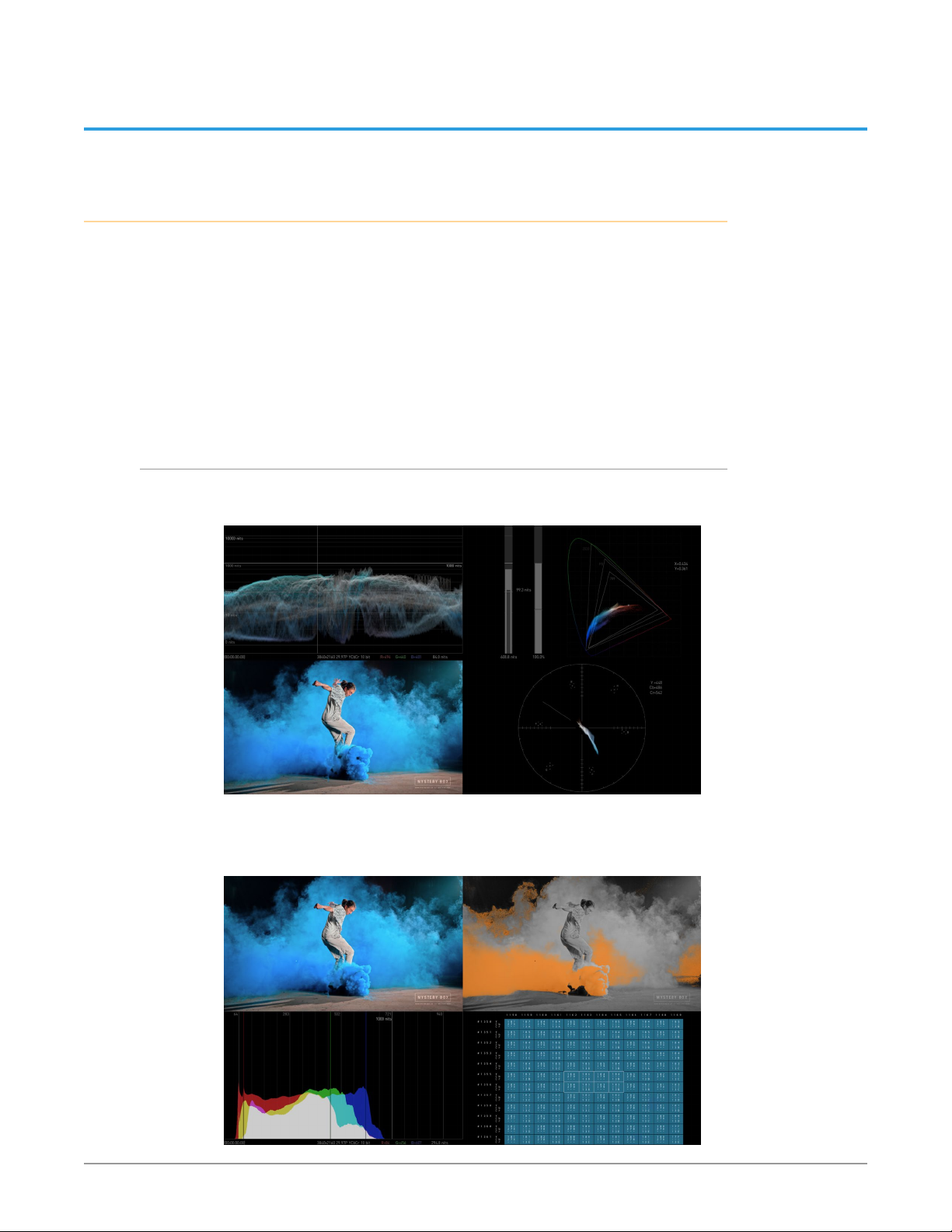

Figure 4. Quadrants View Example
Each screen quadrant can be configured to display the image being examined, or
any of the available measurement tools.
Figure 5. Quadrants View Example, Alternate Configuration
HDR Image Analyzer v2.0r1 12 www.aja.com
Page 13

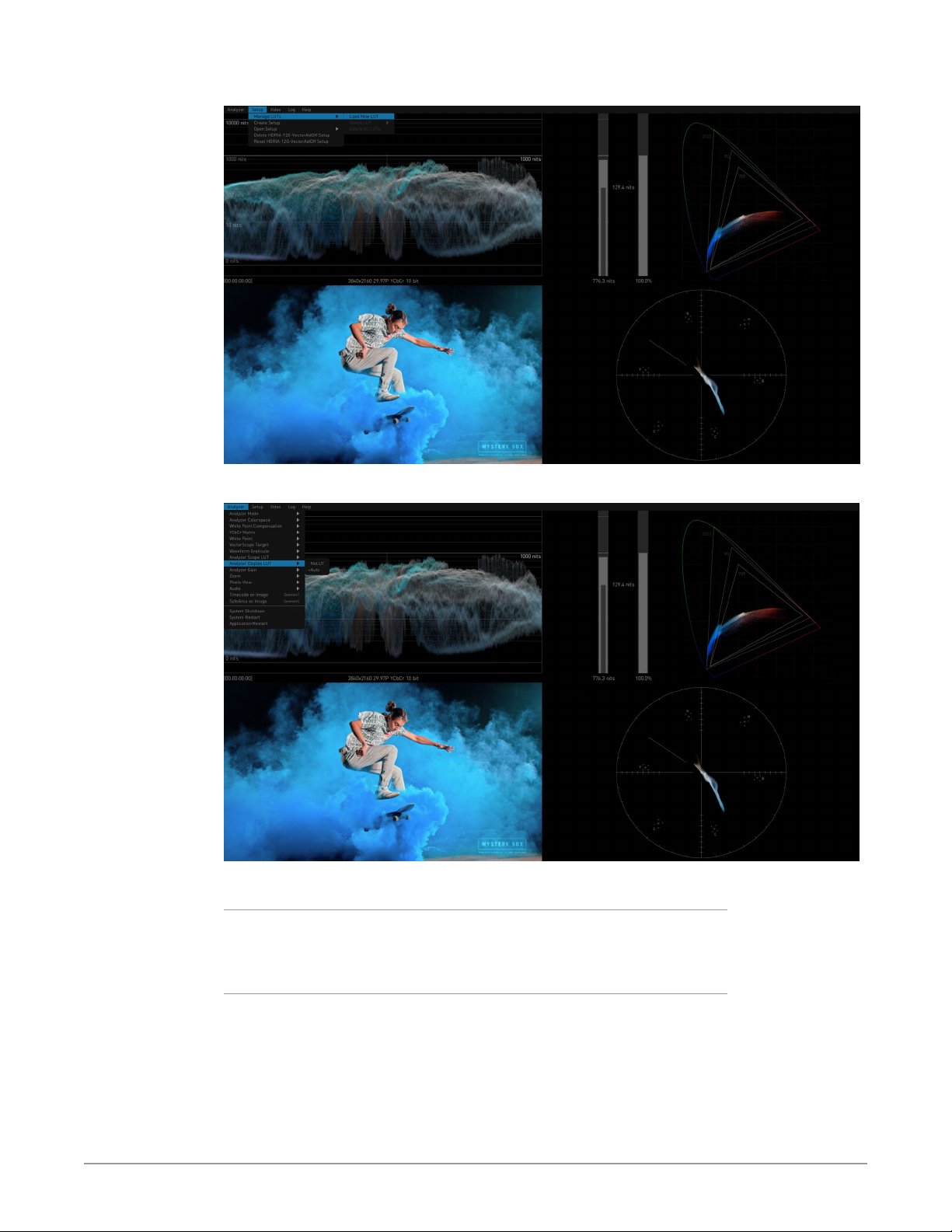

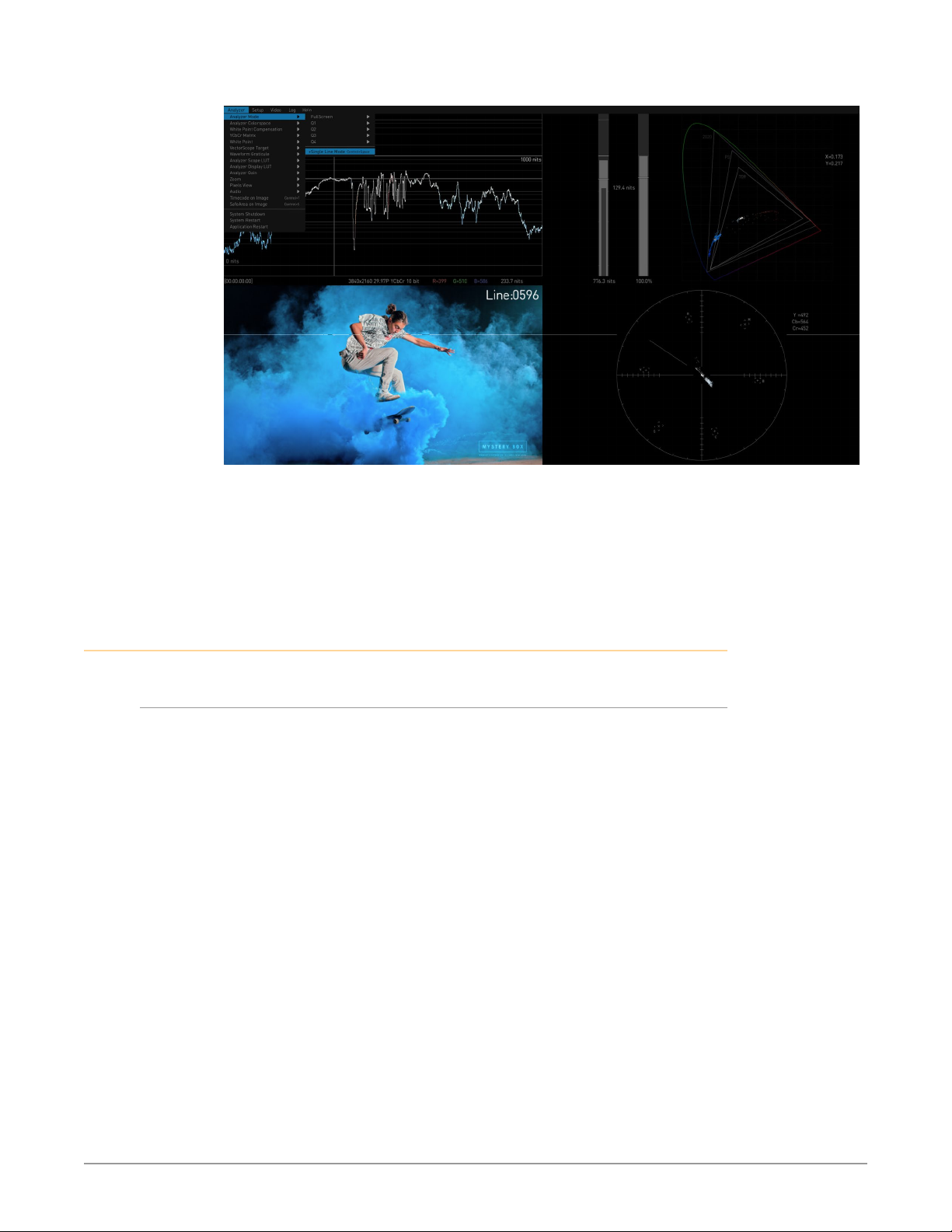

The tool or image in each quadrant can be selected by right-clicking on that
quadrant to open a drop-down selection menu for that quadrant (Figure 6).
Figure 6. Quadrants View Example, Right-click Configuration

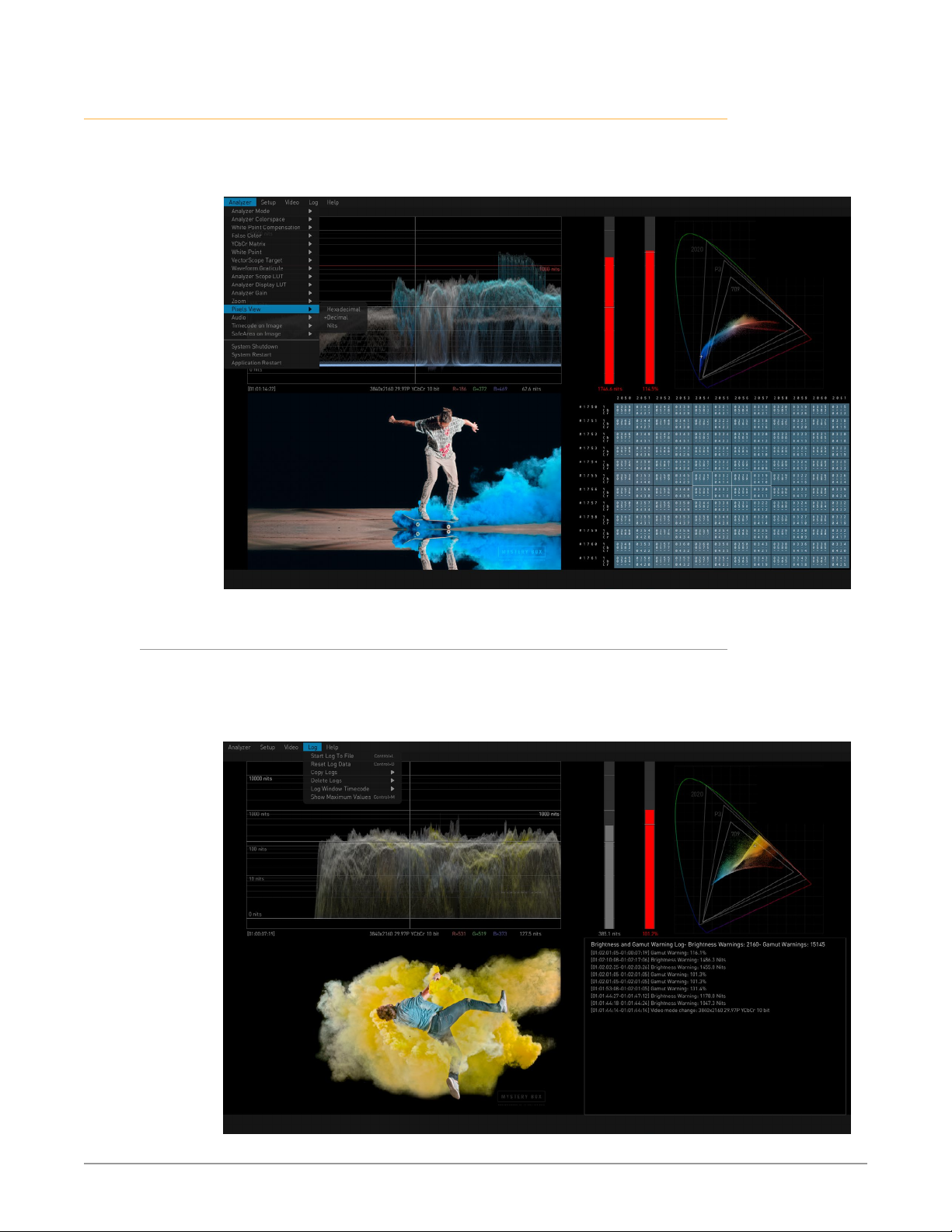

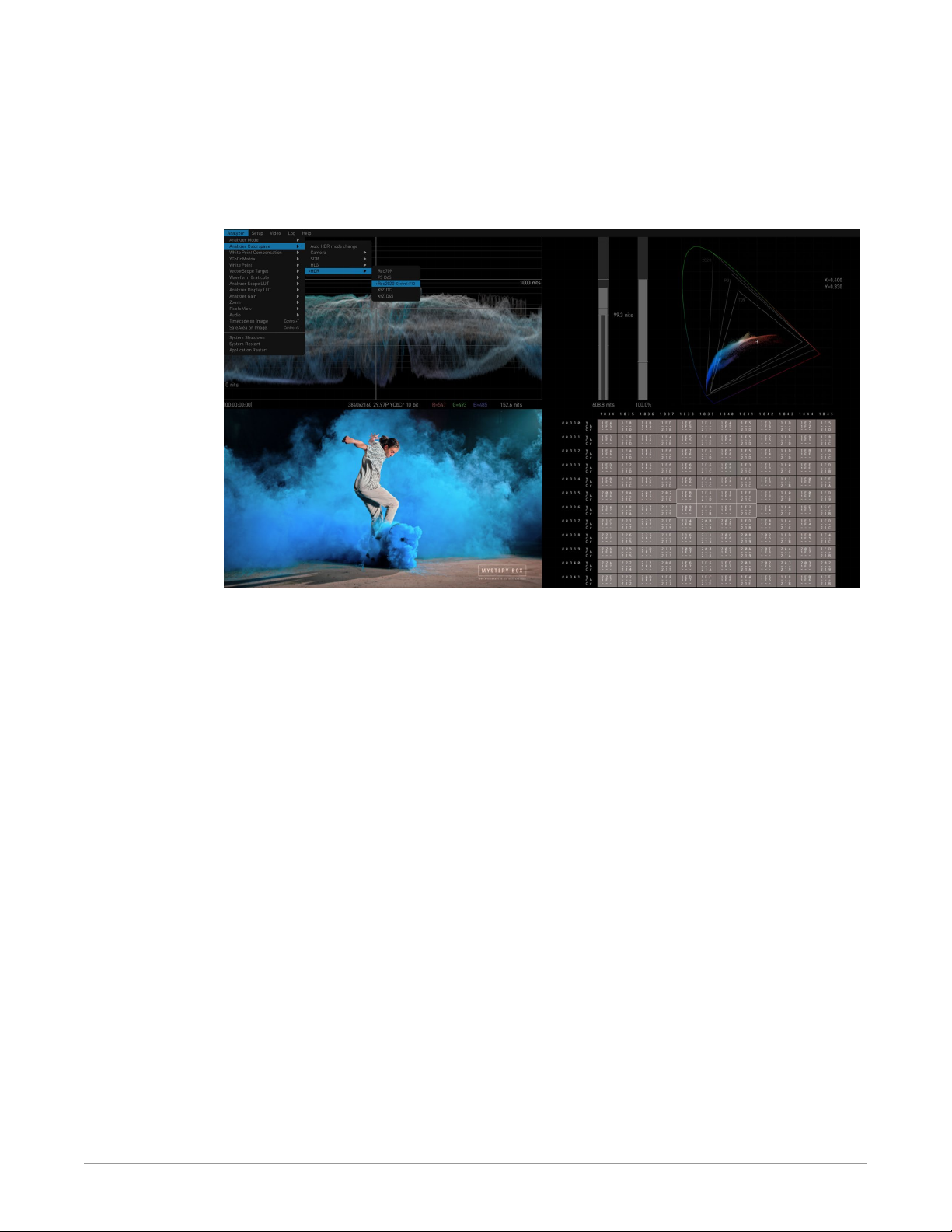

Quadrants can also be configured using the top menu bar's Analyzer Mode dropdown (Figure 7).
Figure 7. Quadrants View Example, Analyzer Mode Drop-Down Configuration

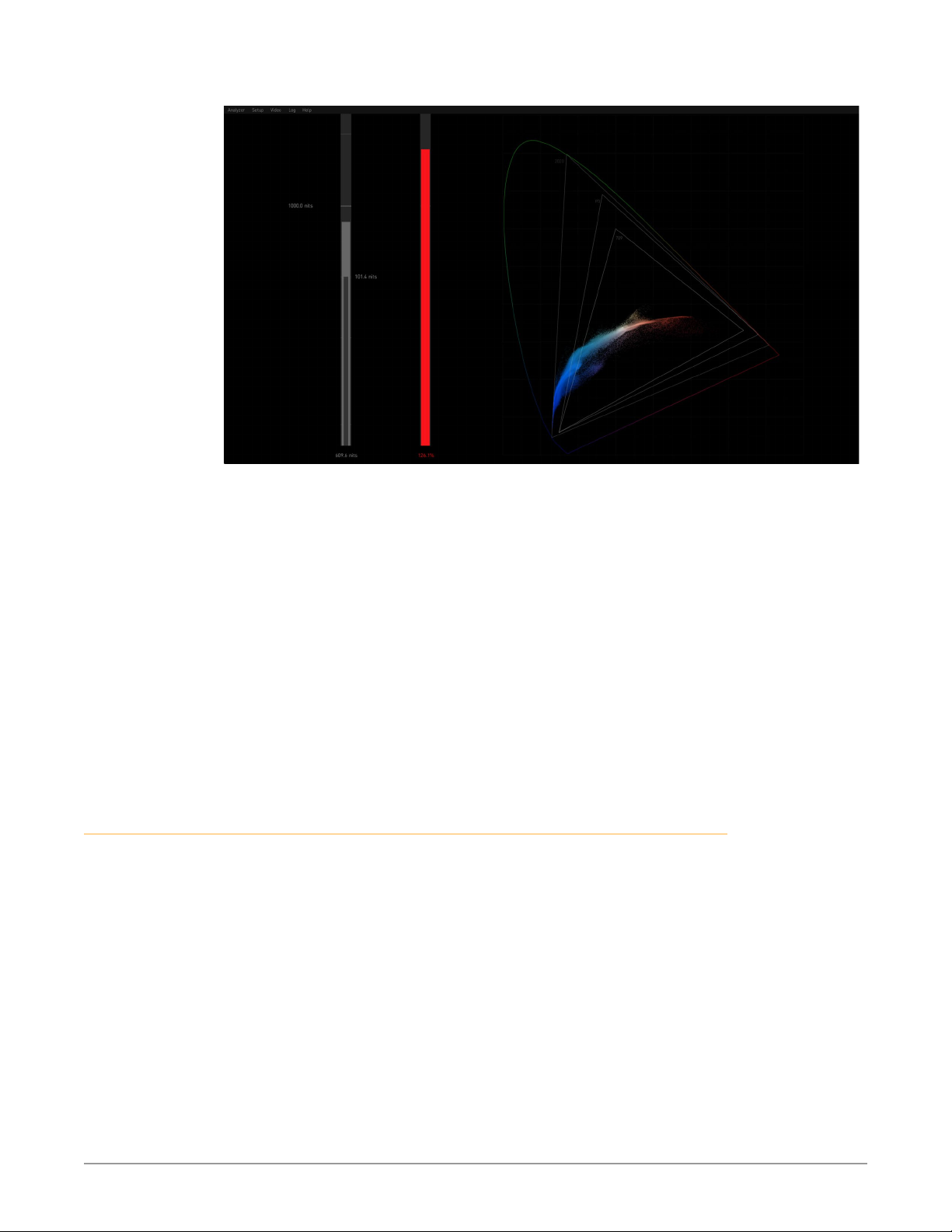

In Single View, the image being examined, or some of the selected measurement
tools, can be displayed full screen.

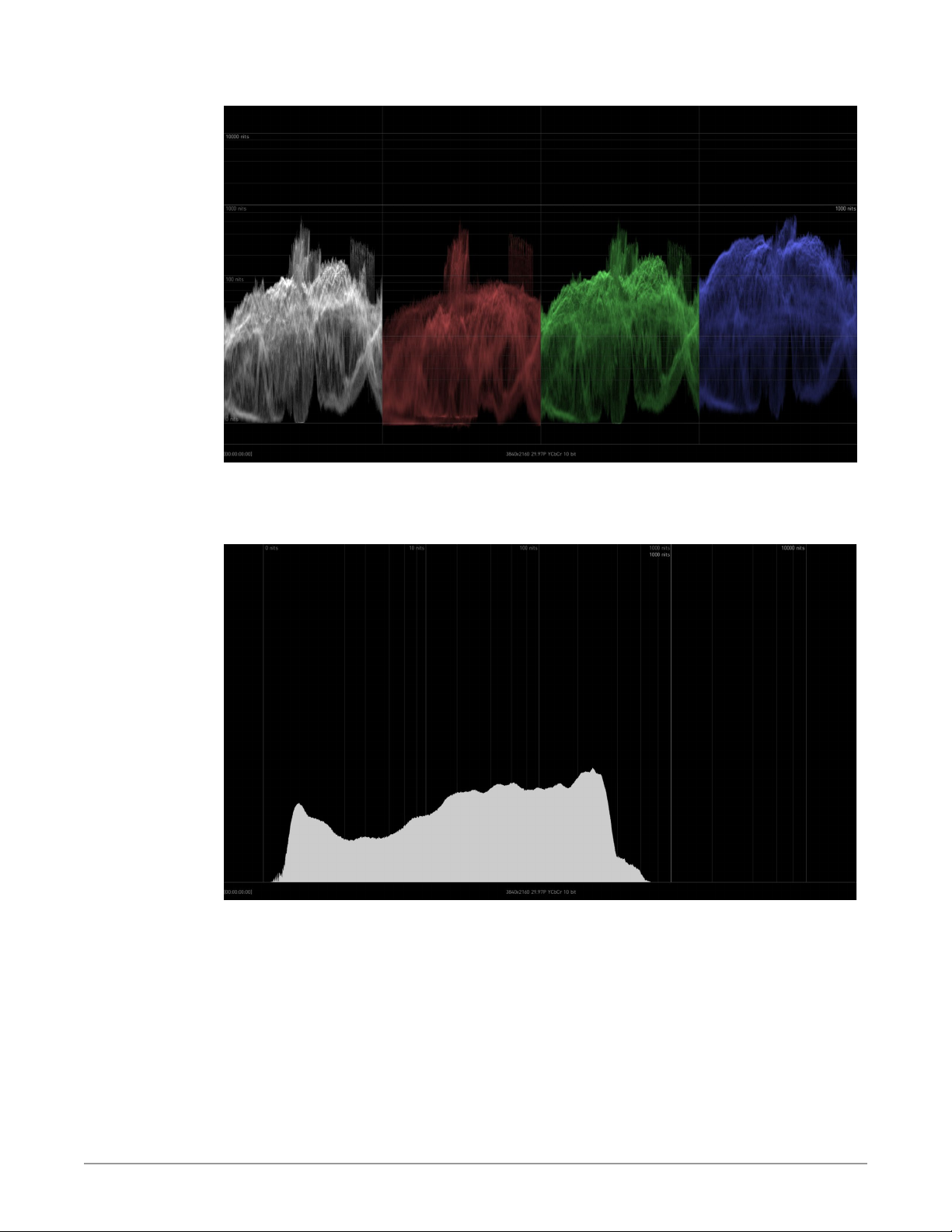

Figure 8. Single View Example, Waveform RGB Color
HDR Image Analyzer v2.0r1 13 www.aja.com
Page 14

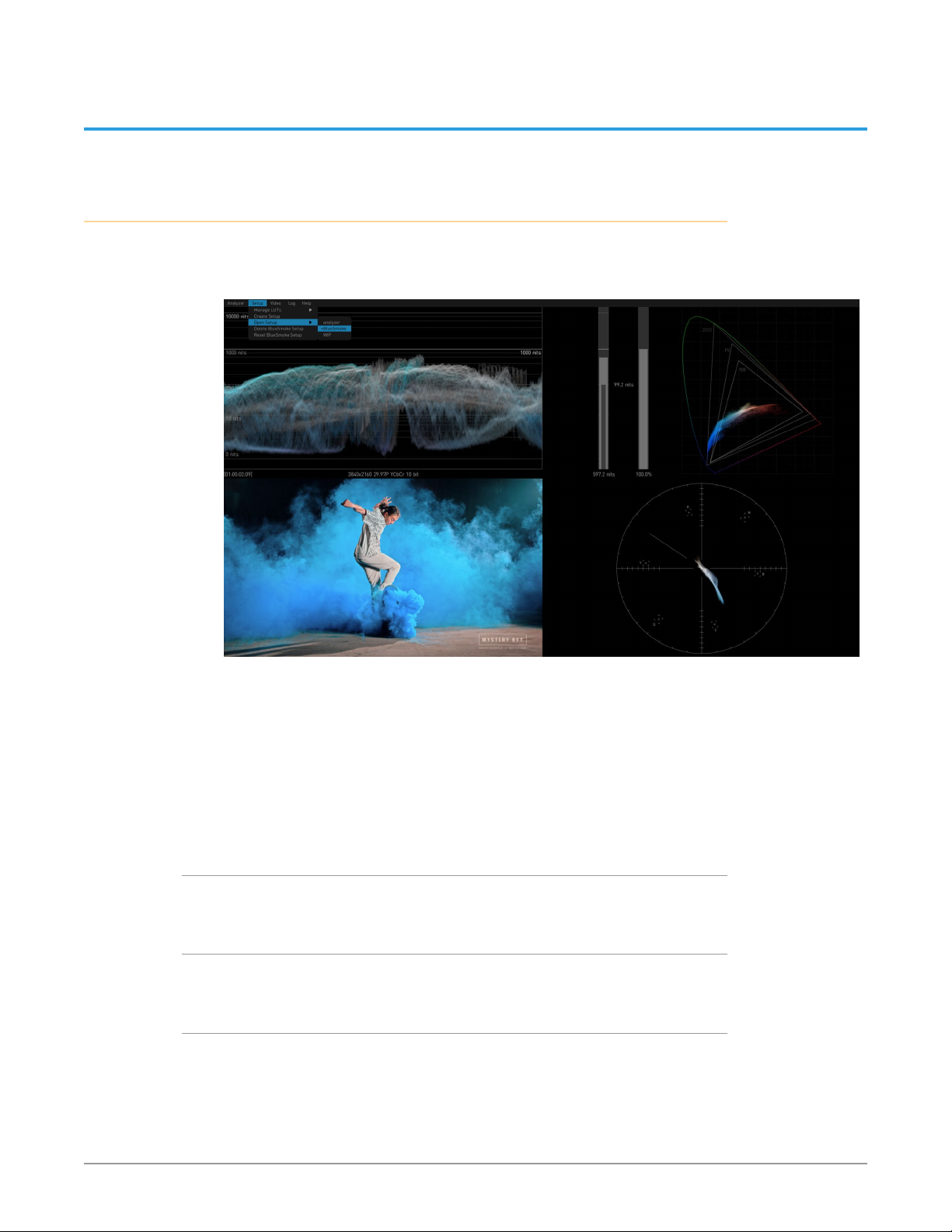

Drop-Down Menu Navigation
A top menu bar appears when the cursor is moved to the top of the screen. These
menus can be used to select layouts and configure settings. Clicking on a menu
name opens that menu.
Pressing the ESC key also displays the drop-down menus.

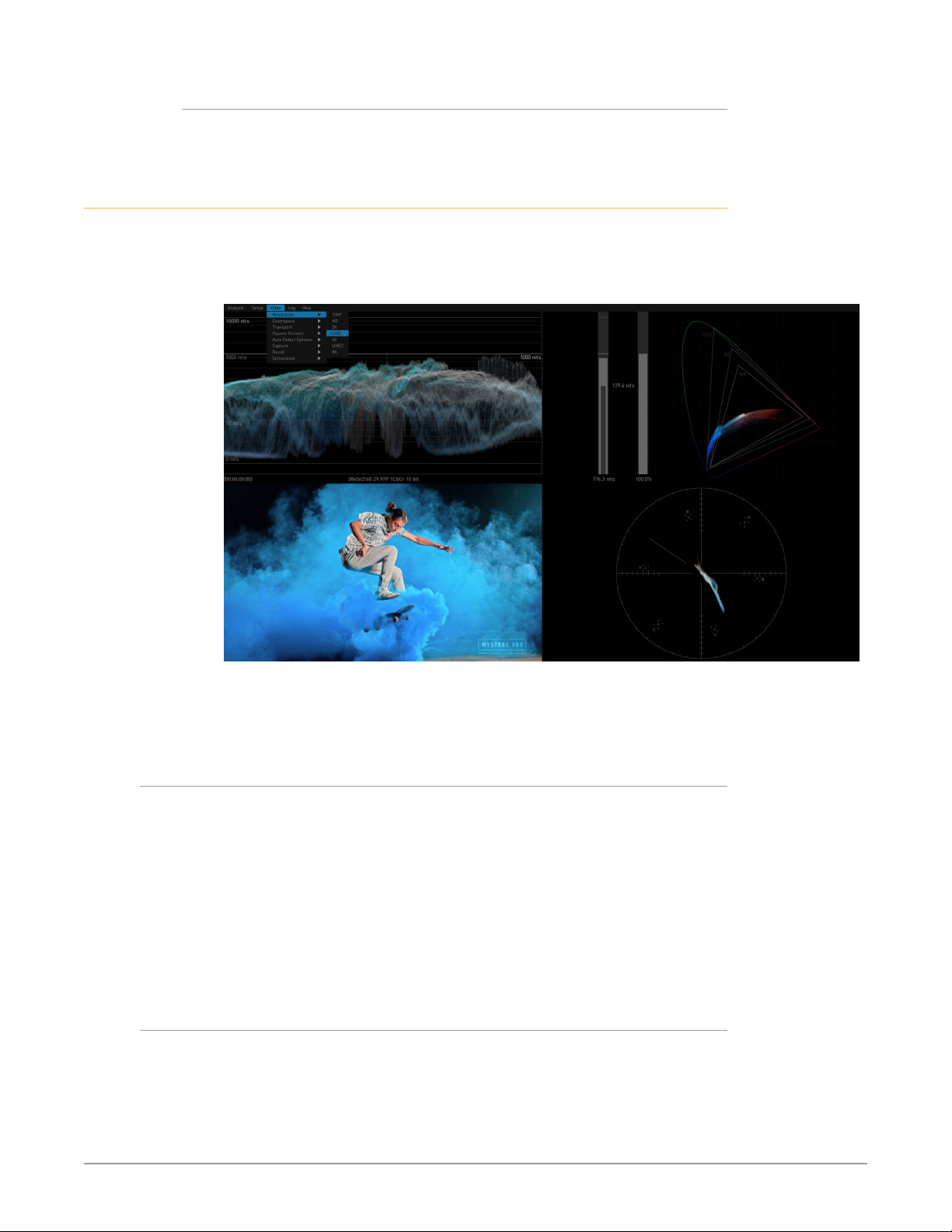

Figure 9. Selecting Colorspace Using Drop-Down Menu
When a drop-down menu is displayed:
• The currently selected setting is indicated with a (+) in front of that menu item.
• The left and right arrow keys can be used to move to an adjacent menu, or
open an additional parameter menu for the current menu selection.
• The up and down arrow keys moves the selection up or down that drop-down
menu.
• Pressing the TAB key selects the next drop-down menu to the right. Shift+TAB
moves the drop-down menu selection to the left.

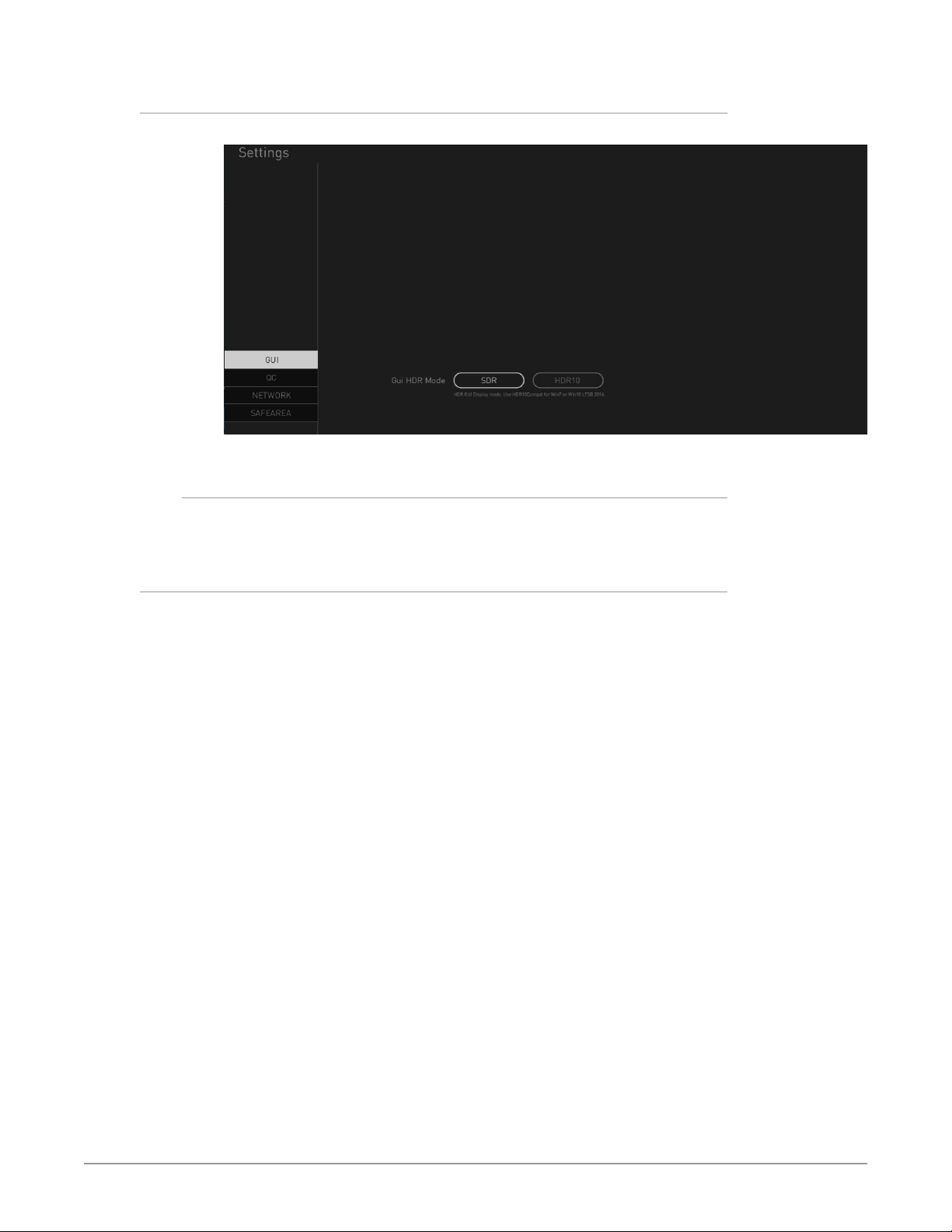

NOTE: When the menu bar is not displayed, the TAB key opens the Settings screen. See
"Settings Screen" on page 37 for more information.
Selecting Views with Keyboard
When a drop-down menu is not open, computer keyboard function keys can also
be used to activate the layouts.
HDR Image Analyzer v2.0r1 14 www.aja.com
Page 15
Table 1. Analyzer Mode Shortcuts
Function Key Activated Layout
F1 Show Single View video Image. Press again to return to
Quadrants view.
F2 Show Single View Waveform. Press again to return to
Quadrants view.
F3 Show Single View Gamut. Press again to return to Quadrants
view.
F4 Show Single View Vectorscope. Press again to return to
Quadrants view.
F5 Cycles only Q1 through Image, Waveform, Gamut,
Vectorscope, and Audio views.
F6 Cycles only Q2 through the ve views above
F7 Cycles only Q3 through the ve views above
F8 Cycles only Q4 through the ve views above
The following shortcuts, using the CTRL key, also affect the current view.
Shortcut Waveform/Histogram Display
CTRL+F5 Cycles Q1 tool variant. The Image display cycles through
Brightness and Gamut tools, and the Waveform display cycles
through Luminance and Color tools.
CTRL+F6 Cycles Q2 tool variant as above.
CTRL+F7 Cycles Q3 tool variant as above.
CTRL+F8 Cycles Q4 tool variant as above.
In addition, the following useful shortcuts are available:
Shortcut Colorspace Setting
CTRL+F10 Sets Colorspace to SDR Rec 709
CTRL+F11 Sets Colorspace to HLG Rec 2020
CTRL+F12 Sets Colorspace to HDR Rec 2020
CTRL+space Toggles Single Line Mode ON and O
Keystrokes for each shortcut are listed in the drop-down menus. See "Chapter 7
Menu Reference" for a complete listing of all keyboard shortcuts.
Analyzer Modes
The waveform, histogram, and vectorscope are a form of oscilloscope and are
used to monitor video brightness, contrast, hue, and color saturation.
• The waveform displays the luminosity or brightness and contrast of the pixels
in the video frame, with the top of the y-axis indicating a high luminosity level,
and the bottom indicating a low luminosity level.
NOTE: Waveform views can be magnified 4x using the Waveform Zoom control. Use the
mouse to move up and down the display.
• The histogram shows the number of pixels in relation to a given list of
luminance, or colors in a specic colorspace.
• The vectorscope displays values for hue and color saturation. The color
saturation of each pixel in the video frame is shown, with the middle of the
circle indicating a lower saturation level, and the edge of the circle indicating
a higher saturation level. Hue is represented by placement in the 360 degree
angle of the circle.
HDR Image Analyzer v2.0r1 15 www.aja.com
Page 16
NOTE: The Vectorscope view can be displayed at either a 75% or 100% size (the
percentage changes the graticules on the Vectorscope, not the rasterized image),
and can be magnified with the Vectorscope Zoom control.
• The gamut screen shows a CIE xy gamut graph reporting the color values
present in the image, with a graticule showing the limits for various standards
(709, P3, 2020).
Several Analyzer view modes are available.

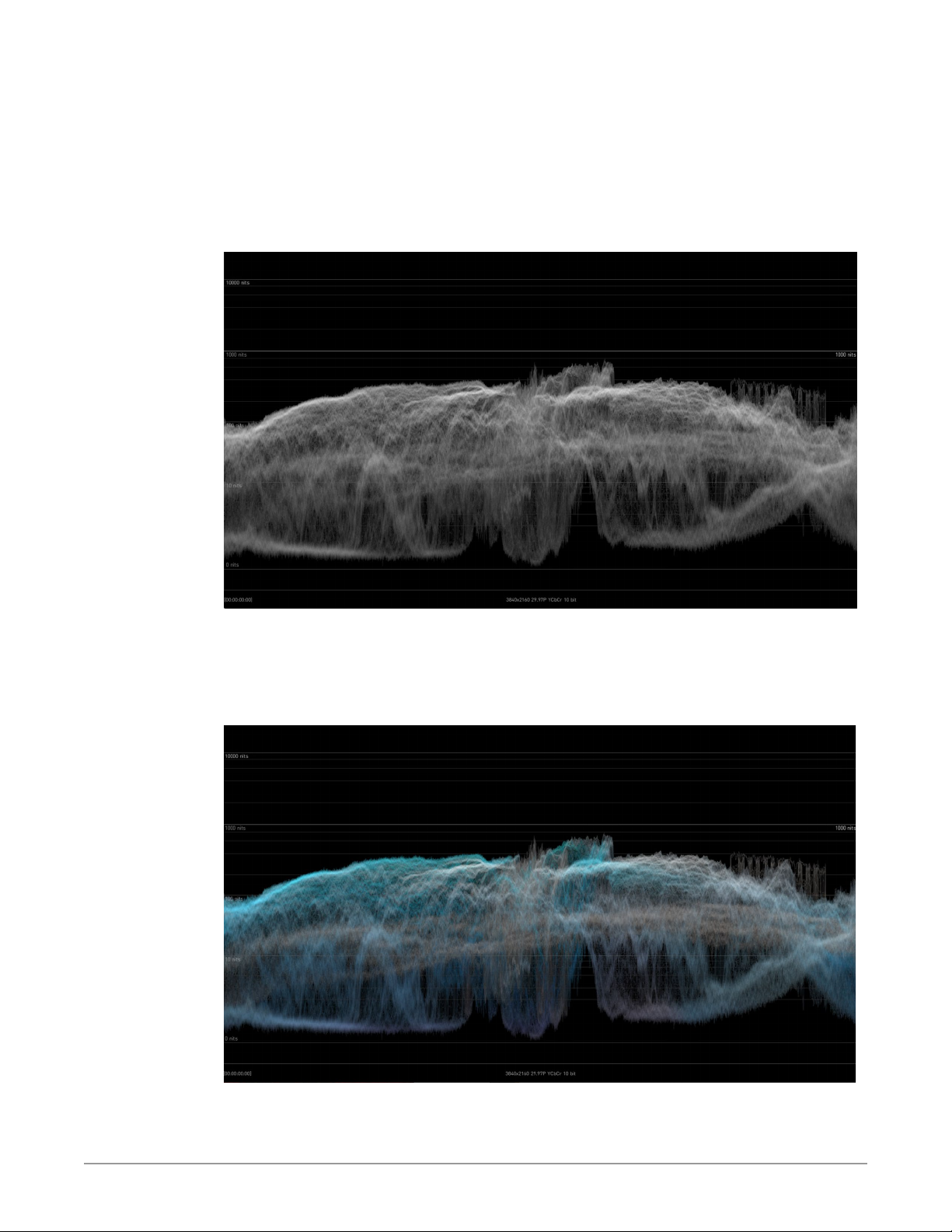

Figure 10. Waveform Luminance Mode
Waveform showing only luminance (Y) and no color information. Each pixel on
the graph shows the frequency of the corresponding luminance value in the
given column. Higher luminance value means lighter image content, lighter pixel
means higher frequency of that luminance value.
Figure 11. Waveform Lumi Color Mode
HDR Image Analyzer v2.0r1 16 www.aja.com
Page 17
Waveform showing both luminance and color information. Here, in addition
to the Waveform Luminance mode, the graph is colored according to color
information. The hue and saturation of a pixel shows the sum of the dominant
colors having the corresponding luminance value.
Figure 12. Waveform Color Mode
Waveform showing the RGB channels superposed in one graph.
Figure 13. Waveform RGB Color Mode
Waveform showing the RGB channels in a split view, where each graph is shown
in its respective color.
HDR Image Analyzer v2.0r1 17 www.aja.com
Page 18

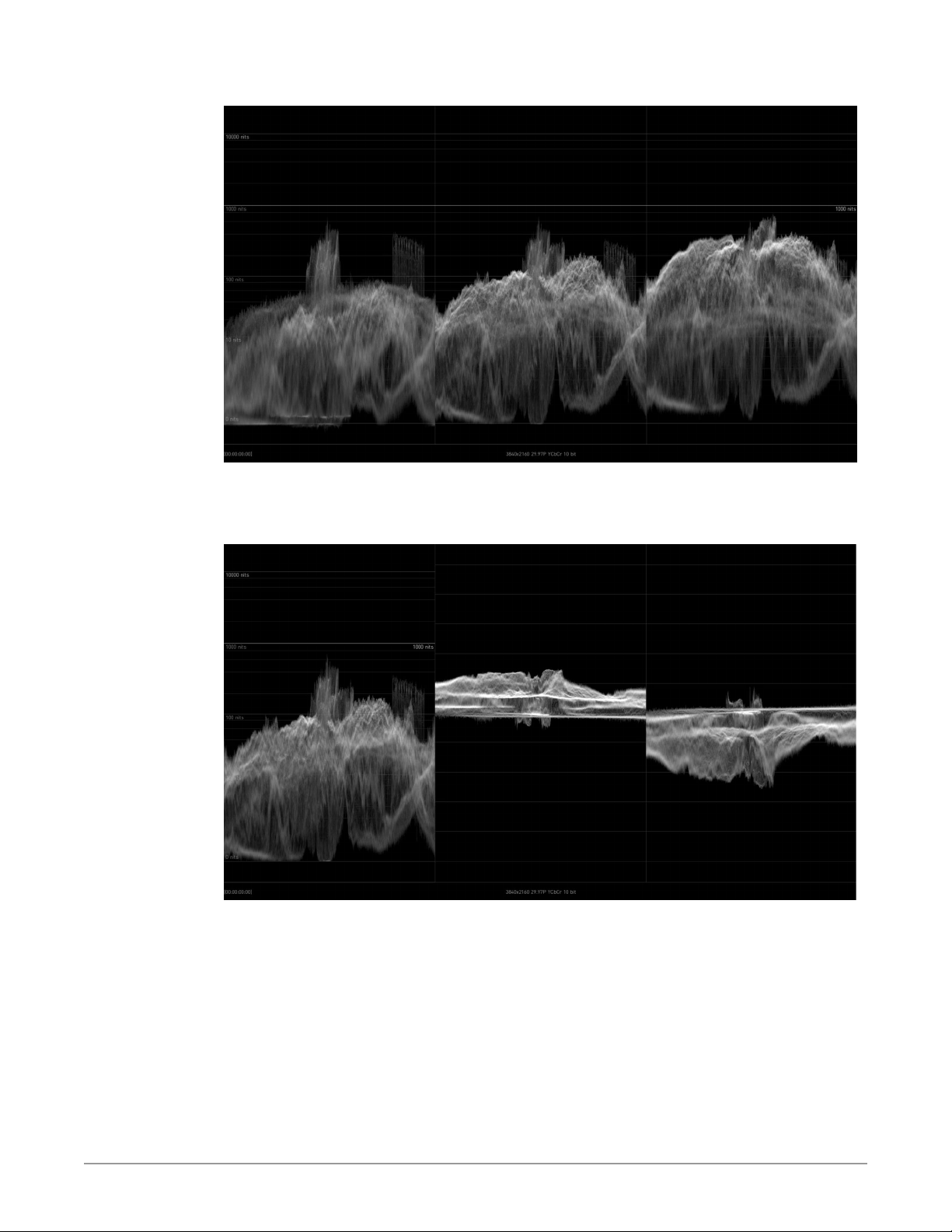

Figure 14. Waveform RGB Mode
Waveform showing the RGB channels in a split view, where each graph is shown
in monochrome.
Figure 15. Waveform YCbCr Mode
Waveform showing luma (Y), blue minus luma (Cb), and red minus luma (Cr) in a
split view.
HDR Image Analyzer v2.0r1 18 www.aja.com
Page 19
Figure 16. Waveform YRGB Mode
Waveform showing luminance and RGB channels in a split view, where each color
channel graph is shown in its respective color.
Figure 17. Histogram Luminance Mode
Histogram Luminance is showing the frequency of luminance values throughout
the current image content. Left-hand part is for darker, right-hand part is for
lighter image content.
HDR Image Analyzer v2.0r1 19 www.aja.com
Page 20

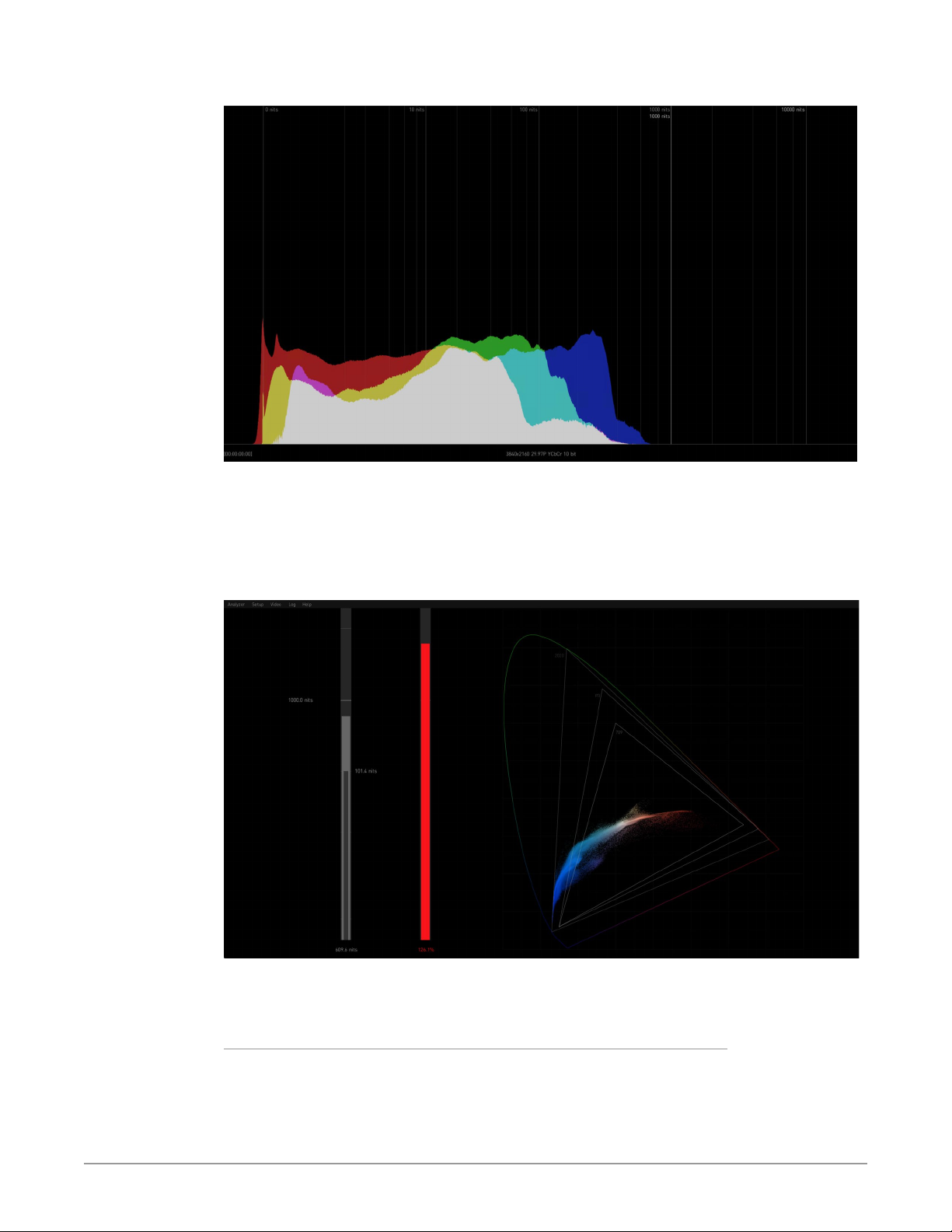

Figure 18. Histogram Color YCbCr Mode
Histogram Color showing the frequency of RGB channel values throughout
the current image content, superposed. For each channel, the left-hand part
represents image content for “0” or Black, while right-hand part represents image
content for "1" and White. The 0-1 range is a scale, also represented as code
values: (0 = 0,0,0 and 1 = 1023,1023,1023) in 10 bit code value for R, G & B.
Figure 19. Gamut Mode (CIE xy Graph) with Gamut Error
This mode displays a CIE xy Gamut, showing various output referred color gamut
standard limits, and also has Brightness and Gamut bars.
Brightness and Gamut Bars
This view also contains two bars: the brightness bar on the left indicates the
brightest pixel detected, the gamut bar on the right shows if the colors are within
the legal color gamut. See "CIE xy Gamut View" on page 31 for more information.
HDR Image Analyzer v2.0r1 20 www.aja.com
Page 21

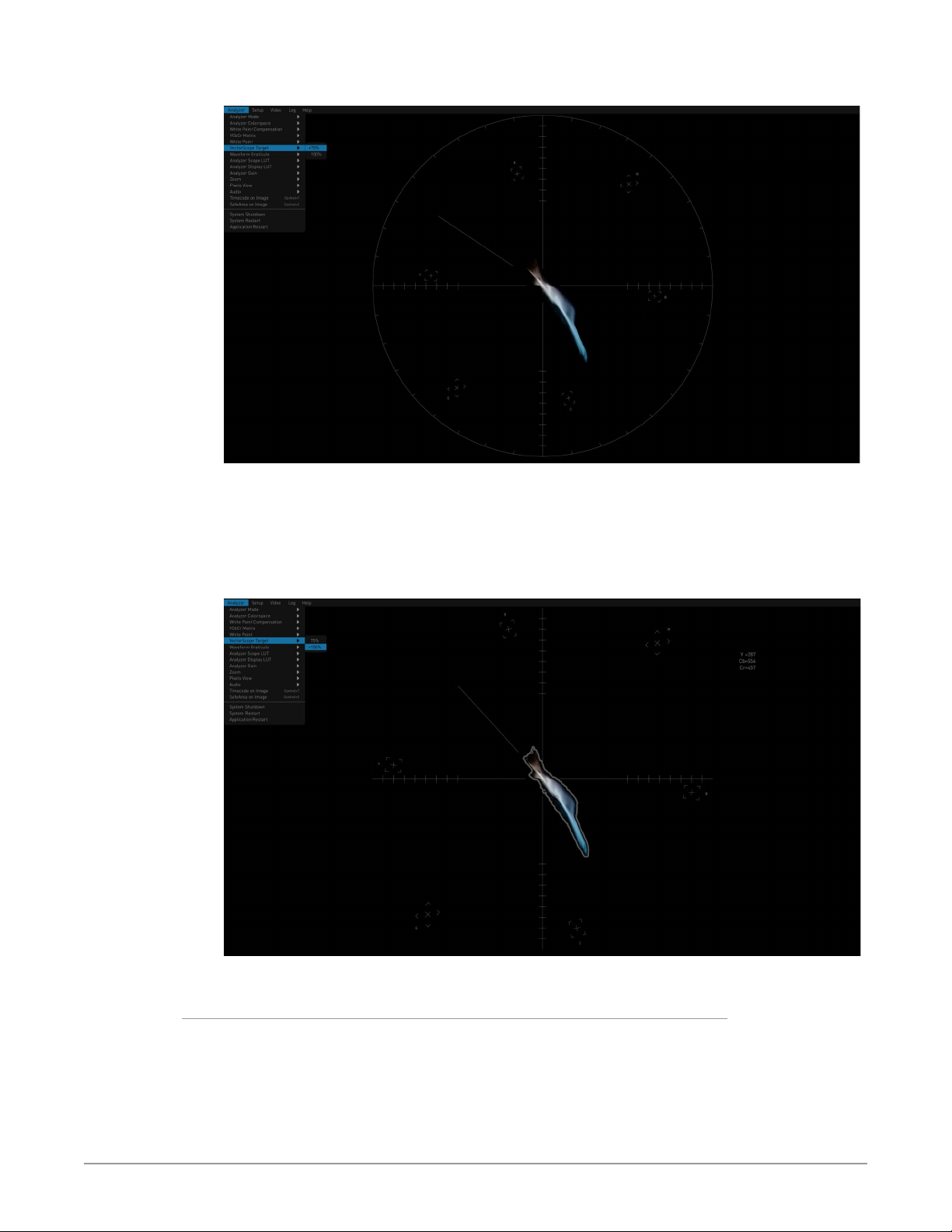

Figure 20. Vectorscope with markers indicating 75% values
Vectorscope is showing the hue and saturation of all pixels throughout the
current image content. The middle of the circle indicates a lower level of
saturation, while the edge of the circle indicates a higher level of saturation. The
brightness of the graph shows the frequency of the respective color in the image
content.
Figure 21. Vectorscope with markers indicating 100% values, Vectorscope Aid
Skin Tone Line
A skin tone line is also available on the Vectorscope graticule, adjustable using
the Skin Tone X and Y controls in the Settings menu.
HDR Image Analyzer v2.0r1 21 www.aja.com
Page 22
Vectorscope Aid
A Vectorscope Aid feature is available in the Settings menu, which draws a grey
bounding area around the chroma on the Vectorscope, which can be useful when
trying to examine individual pixels.
Framing Guides
HDR Image Analyzer supports two framing guides, Safe Title and Safe Action.
Enabling "Safe Area on Image" displays the guides configured in the SAFEAREA
sub-page of the Settings screen. You can display either the Safe Title, Safe Action,
or both boundaries. The CTRL+s hotkey combination enables and disables the
framing guide display.
Figure 22. Framing Guides
Timecode on Image
The timecode is captured from several areas including the SDI and may be
displayed on the image by selecting the Window › Timecode on Image menu
option.
HDR Image Analyzer v2.0r1 22 www.aja.com
Page 23
Figure 23. Timecode on Display Image (Lower Right Corner)
Audio Monitoring
Any quadrant of the HDR Image Analyzer GUI can display one of the audio
monitoring screens. In the following examples the various tools are shown in the
lower right quadrant (Q4).
Audio Phase Meter
Analyzer supports an audio phase meter which can be configured to display
either two channel (stereo) or eight channel (surround) audio. When configured
to display two channels, channels 1-2, 3-4, 5-6, or 7-8 may be displayed. When
configured to display 8 channels, channels 1-8, or 9-16 may be displayed.
HDR Image Analyzer v2.0r1 23 www.aja.com
Page 24
Figure 24. Audio Phase Meter
Audio Level Meter
Analyzer supports an audio level meter with up to 16 channels which can be used
to monitor audio levels and also display peak dB levels.
Figure 25. Audio Level Meter
HDR Image Analyzer v2.0r1 24 www.aja.com
Page 25
Pixel Picker
The HDR Image Analyzer GUI can display Pixel Picker information. See "Pixel
Picker" on page 34 for more information.
Figure 26. Pixel Picker Quadrant View
Log Data
When Log is selected for a quadrant, the current log data is displayed. This
information can be saved to log files. See "Logging" on page 37 for more
information.
Figure 27. Log Data Quadrant View
HDR Image Analyzer v2.0r1 25 www.aja.com
Page 26
Info Page
When Info is selected for a quadrant, useful information about the current
HDR Image Analyzer settings is displayed.
Figure 28. Info Page Quadrant View
Other Features
Other configuration options are available in the various HDR Image Analyzer
menus. See "Chapter 7 Menu Reference" for additional information.
HDR Image Analyzer v2.0r1 26 www.aja.com
Page 27
Chapter 5 – Using HDR Image Analyzer
HDR Image Analyzer Setups
The Setup menu of the top menu bar is used to create, select, and save Setups of
views and parameter settings.
Figure 29. Setup Menu
An opened Setup is updated with any changes made to the HDR Image Analyzer's
current settings. This ensures whenever a Setup is loaded, the last configuration
that was used for that Setup will be restored.
If you want to save a "snapshot" of the current settings, after opening or creating
a Setup and creating the configuration you wish to save, simply create or load a
new Setup. Any subsequent parameter changes will be made to the new Setup,
and the "snapshot" of settings for that earlier Setup will be recalled later when
that earlier Setup is opened.
Create Setup
Opens a window to name and create a setup of the current settings.
Open Setup
Displays a list of the current setups for selection.
Delete Setup
When a Setup has been opened, you can delete it with this choice. The default
“analyzer” setup then gets loaded.
HDR Image Analyzer v2.0r1 27 www.aja.com
Page 28
Reset Setup
Video Menu
Resets the current Setup to factory default values.
The Video drop-down menu of the top menu bar is used to define the
characteristics of the video signal being analyzed, and can be used to capture and
recall still video images for detailed analysis.
Figure 30. Video Menu
NOTE: If Auto Detect is On, the HDR Image Analyzer will automatically select (if possible)
Resolution
A drop-down menu permits selecting a resolution to manually match the
incoming video being analyzed. Select from:
• 720p
• HD
• 2K
• UHD
• 4K
• UHD2 (12G model only)
• 8K (12G model only)
Colorspace
A drop-down menu permits selecting from YCbCr 10 bit, RGB 10 bit, or RGB 12 bit
colorspaces to manually match the incoming video being analyzed. Select from:
• YCbCr 10 bit
• RGB 10 bit
• RGB 12 bit
the incoming video's Resolution, Colorspace, Transport, and Square Division
settings.
HDR Image Analyzer v2.0r1 28 www.aja.com
Page 29
Transport
A drop-down menu permits selecting the SDI transport to manually match the
incoming video being analyzed. Select from:
• Single Link
• Dual Link
• Quad Link
Square Division
A drop-down menu permits selecting the pixel mapping of incoming video.
Select from:
• SQD - Square Division
• 2SI - Two Sample Interleave
2SI LFR and HFR Input
For LFR (Low Frame Rate) 2SI video the Analyzer only uses SDI input 1 and 2 (four
wire LFR 2SI is not supported at this time).
For HFR (High Frame Rate) 2SI video all 4 SDI inputs are used.
Auto Detect Options
The Auto Detect Options setting is used to make the HDR Image Analyzer
automatically select the number of incoming video signals to be used depending
on the detected video, or to force the use of only the first BNC input connector, or
to force the use of all four input connectors. The auto detection is based on the
VPID video payload identifier (SMPTE 352M).
Auto Detect - HDR Image Analyzer automatically detects incoming video and
uses either one link, or four links as appropriate.
Forced 1x SDI Connection Mode - Forces use of only BNC input connector one.
Forced 4x SDI Connection Mode - Forces use of all four input BNC connectors.
Allow Loop Through (12G model only) - Activates loop through BNC outputs, if
output connectors are available.
Capture
Captures the current video frame. Up to four frames can be captured.
NOTE: Captured images are volatile, and will be lost when the HDR Image Analyzer is
turned off.
Recall
Recalls the selected captured video frame for display and detailed analysis.
Screenshot
The Screenshot menu lets you capture the current Analyzer UI screen displayed
on the connected computer. Screenshots are saved as .png files to the local host
computer, and can then be copied into a different folder (for example an attached
USB flash drive).
HDR Image Analyzer v2.0r1 29 www.aja.com
Page 30
Save Screenshot
Captures the current Analyzer UI screen. You can also use the CTRL+e hotkey.
Copy Screenshots
Copy All Screenshots - Opens a file browser window allowing you to select
the drive and folder into which all the currently captured screenshots will be
copied.
Copy Today's Screenshots - Copies only the screenshots captured today.
Copy All Except Today's Screenshots - Copies all captured screenshots except
those captured today.
Delete Screenshots
Delete All Screenshots - Deletes all currently captured screenshots. Does not
affect screenshot files that have been copied into another folder.
Delete Today's Screenshots - Deletes only the screenshots captured today.
Delete All Except Today's Screenshots - Deletes all captured screenshots
except those captured today.
Analyzer Colorspace and Range
You can find the analyzer range configuration options in Analyzer > Analyzer
Colorspace menu.
The Analyzer supports Camera Log, and SDR and HDR (HLG and PQ) colorspace
modes. Select the appropriate option from the Analyzer > Analyzer Colorspace
menu that matches the current image.
Auto HDR Mode Change
This parameter can be used to make the HDR Image Analyzer automatically
configure the Transfer Characteristic and Colorspace settings, based on the
VPID of the incoming SDI signal.
Camera Log Analysis
Several original camera log curves are supported for processing media in the
original capture colorspace. Supported formats are the following:
• ARRI LogC WideGamut
• CanonLog2
• CanonLog3
• Panasonic VLog/VGamut
• Red WideGamut/Log3G10
• Sony SLog3/BT2020
• Sony SLog3/SGamut3
• Sony SLog3/SGamut3Cine
• ACEScct
For scene referred input (Camera Log colorspace modes) CIE xy Gamut Graph
values are clipped to the primaries of the colorspace.
HDR Image Analyzer v2.0r1 30 www.aja.com
Page 31
In these modes, the waveform graticules are displayed in camera stops. To set
up the base level and the warning level, adjust the following settings in the QC
section of the Settings page (open with Tab):
CameraBaseGrey - Base grey level in nits; the 0 exposure line will be drawn at
this level
CameraWhiteStopsOverGrey - Brightness warning level; it stops over base
level
SDR Analysis
For working with SDR gamma encoded broadcast or cinema signal, set the
Analyzer Range to SDR. Possible color primary options are the following:
• Rec709
• P3 DCI
• P3 D65
• Rec2020
• XYZ DCI
HLG Analysis
HLG mode supports the variable Hybrid Log-Gamma color encoding. In this
mode, code values range from 0 to 1 and pixels do not have a specific nit level
interpretation. Possible color primary options are the following:
• Rec709
• Rec2020 (with gamut warning for colors outside of P3)
NOTE: The settings QC tab has a Gamut Warning parameter that allows setting when
the HDR Image Analyzer will trigger out-of-gamut warnings. You can choose Rec
709, P3, Rec2020 or none.
HDR Analysis
HDR mode supports High Dynamic Range analysis. Peak brightness values above
the maximum allowed nit level are indicated in red on all graphs.
Possible color primary options are the following:
• Rec709
• P3 D65
NOTE: By default, the peak brightness threshold is set to 1000 nits according to the
HDR10 standard. When working with PQ masters of higher peak brightness, the
corresponding maximum brightness needs to be adjusted on the QC section of
the Settings page (open with Tab).
• Rec2020 (with gamut warning for colors outside of P3)
• XYZ DCI
• XYZ D65
CIE xy Gamut View
The CIE xy Gamut View can be used to check the encoded colors on a standard
CIE xy graph, and to see if they are within the valid color range in case a specific
gamut constrain is to be enforced. This is relevant when working in the Rec2020
colorspace, so the operator can identify that the colors are outside of the P3
gamut. This is a requirement for several currently popular delivery formats.
HDR Image Analyzer v2.0r1 31 www.aja.com
Page 32
Figure 31. CIE xy Graph with Brightness and Gamut Bars
This view also contains two bars. Illegal colors are indicated when a bar is colored
red.
The bar on the left is the brightness bar that indicates the brightest pixel detected
on the actual frame. When properly configured, an inner vertical bar on the left
with a nits value shows the Frame Average Light Level (FALL) of the current frame,
which allows the operator to inspect the average brightness of the image.
The bar on the right is the gamut bar that shows if the colors of the actual frame
are within the legal color gamut (P3 in case of Rec2020 input colorspace).
The maximum values are calculated using the Tolerance parameters available
in the Settings Screen. The P3 colorspace is the limit. HDR Image Analyzer uses
thresholds when detecting these extremes, so using the default settings a few
pixels are allowed to exceed the legal limits without triggering a warning.
NOTE: Cumulative maximum values can be displayed on the Brightness and Gamut bars
using the Log > Show Maximum Values parameter.
YCbCr Matrix
For the purpose of showing YCbCr components in various graphs (such as the
vectorscope or the waveform YCbCr), the result image is converted to the YUV
space. Select from the following formats for the specific matrix transformation:
• Rec2020
• Rec709
HDR Image Analyzer v2.0r1 32 www.aja.com
Page 33

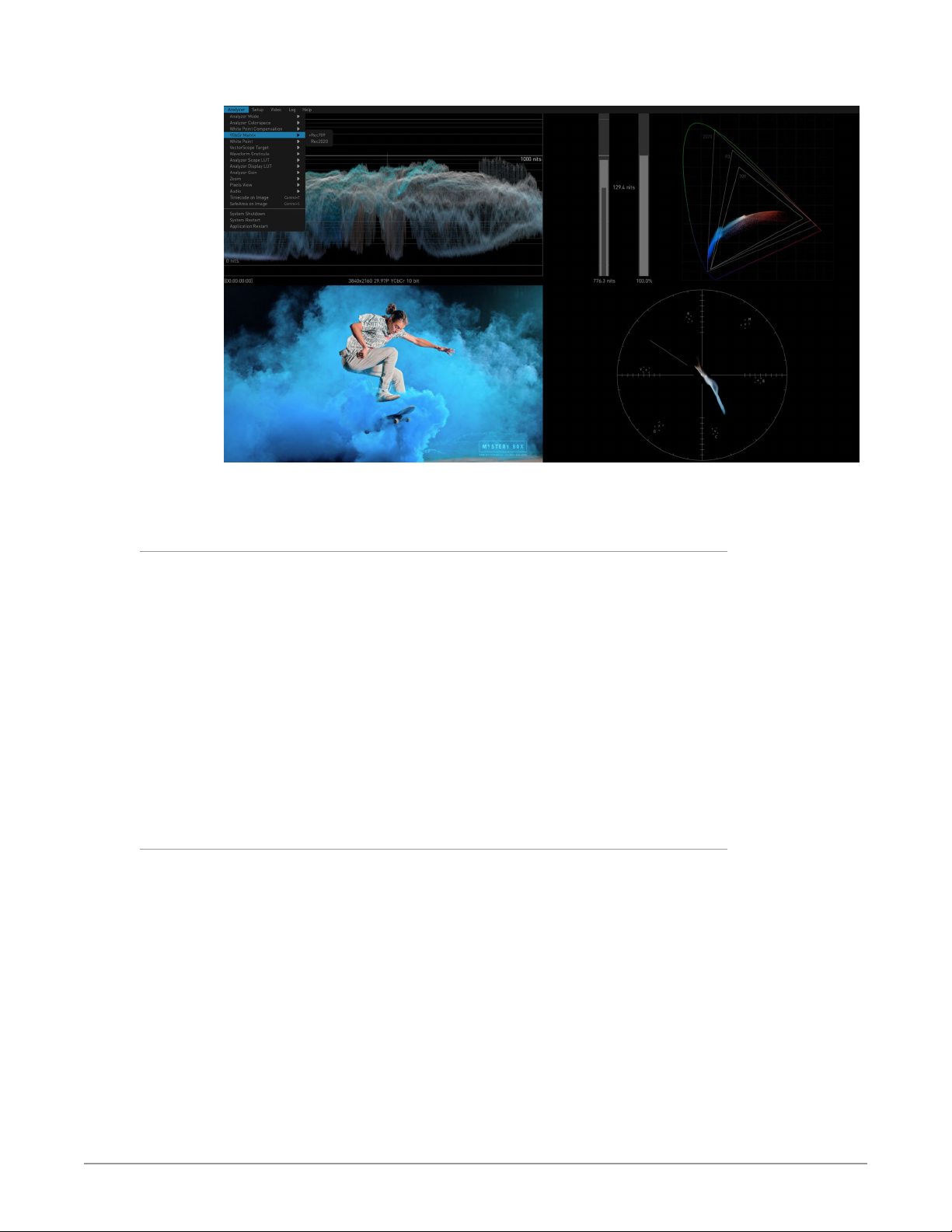

Figure 32. Signal Analysis with CIE xy Gamut Graph and Vectorscope
NOTE: The above settings will be reflected in the CIE xy graph and the gamut meter.
White Point Compensation
White point is a marker on the CIE graph. White point compensation D65,
however, is an option to change processing. Thus, if you are in XYZ Gamma2.6
colorspace (Digital Cinema), you can change the Vectorscope and Waveform
processing so that the balanced white would be D65 instead of DCI. By default,
DCI white would be in the center of the Vectorscope, and DCI white would have
the same level in the three channels of the waveform. If you turn on White Point
Compensation to D65, then D65 white would be in the center of the Vectorscope,
and D65 white would have the same level in the three channels.
• The White Point Compensation parameter in the Analyzer menu turns
compensation On and O, which will change the analysis of the incoming
video.
• The White Point parameter simply displays a box for either D65 or DCI on the
CIE graph, and does NOT alter the analysis of the incoming video.
False Color
You can check for illegal or near-illegal brightness and gamut levels by enabling
the False Color mode. The available False Color display modes are the following:
• Brightness
• Brightness Warning
• Gamut
• Gamut Warning
In the Warning modes, pixels that are too bright or out-of-gamut are colored
red. Values at 90% of threshold are orange. The rest of the pixels are displayed in
grayscale.
HDR Image Analyzer v2.0r1 33 www.aja.com
Page 34
Pixel Picker
The Pixel Picker is always active. With a left click of the mouse you can pick any
pixel on the image (Full Screen or Lower Left Quadrant.) The Pixel Picker view
provides an extra precision view with per-pixel granularity.

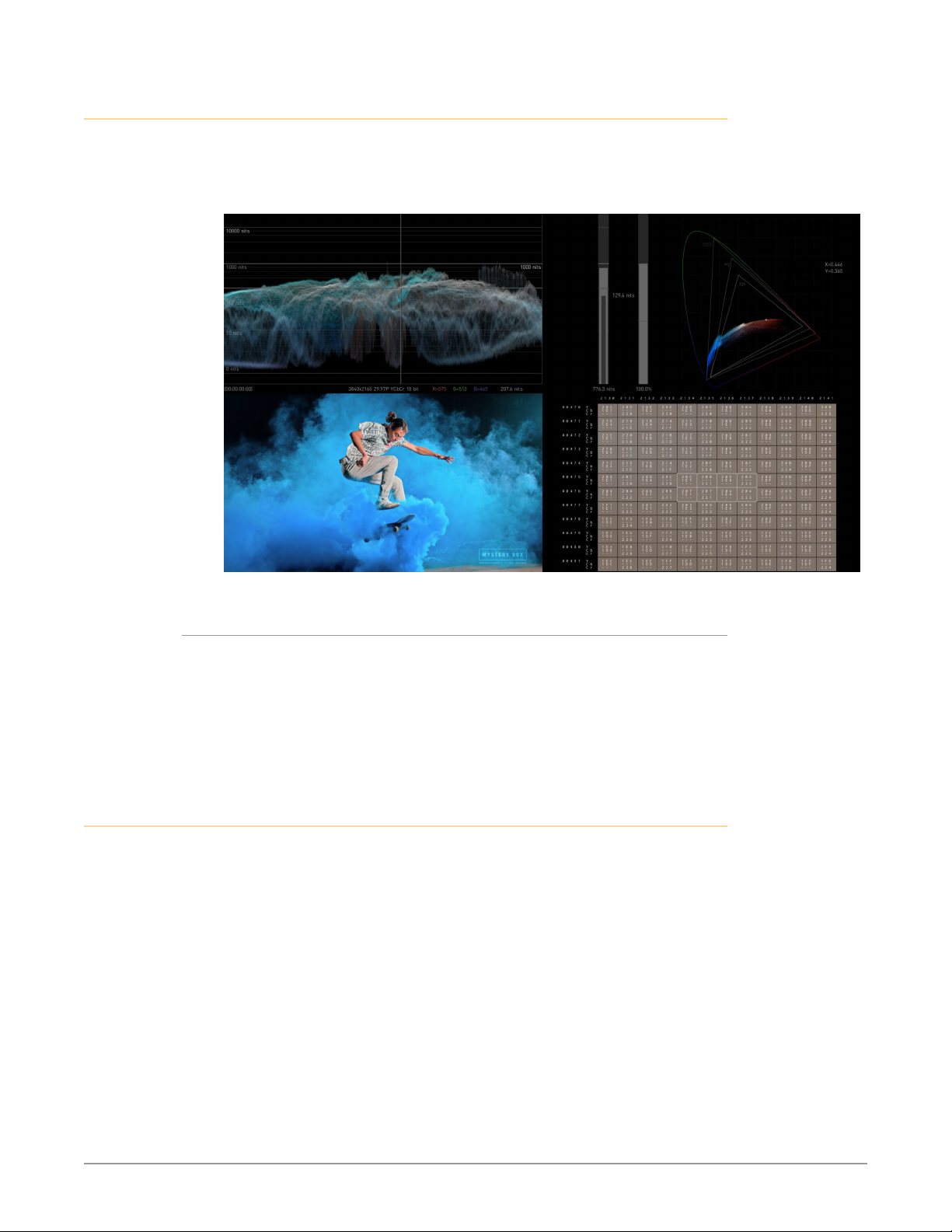

Figure 33. Pixel Picker
Pixel Picker Modes
From the menu the operator can choose how to inspect the pixel color values.
The options are:
Hexadecimal mode - Displays the hex code values of the pixels.
Decimal mode - Displays the decimal code values of the pixels.
Nit value mode - Displays the pixel brightness in nit level.
Single Line Mode
Single Line Mode limits the analysis to a single horizontal line of video. This mode
can be used by a QC operator to verify blanking.
HDR Image Analyzer v2.0r1 34 www.aja.com
Page 35
Figure 34. Single Line Mode
The line being analyzed is indicated with a contrastingly colored line, and the
number of the line is shown on the upper right.
Single Line Mode is turned on and off with the Analyzer Mode menu, or with the
CTRL+space hotkeys. Additionally the hotkey CTRL + Up/Down Arrow moves the
single line mode up and down one line at the time.
LUTs
Overview
Lookup Tables (LUTs) allow the mapping of colors between colorspaces.
The HDR Image Analyzer allows external Lookup Tables (LUTs) to be used for two
different purposes:
• A Display LUT is only applied to the image being shown and does not aect
the actual analysis of the pixel values. This can allow an operator to look at a
correct image on a display device that does not match the current video signal
type.
• A Scope LUT is applied to the video signal being processed, so all scopes,
waveforms etc. will be based on the remapped image.
No external LUTs are provided with the HDR Image Analyzer. Users can create and
load custom LUTs, if desired, provided they are formatted as either a *.cube or
*.3dmesh LUT file.
LUT files are loaded into and deleted using the Setup > Manage LUTs menu
(Figure 35 on page 36), but are not active until selected for use as either an
Analyzer Scope LUT or an Analyzer Display LUT (Figure 36 on page 36), using the
Analyzer menu selections.
HDR Image Analyzer v2.0r1 35 www.aja.com
Page 36
Figure 35. Manage LUTs Menu
Figure 36. Analyzer Display LUT Menu
Analyzer Scope LUT
Generally the No LUT Analyzer Scope LUT setting should be used to maintain the
correct color analysis.
Display Scope LUT
Generally the Auto Analyzer Display setting should be used, which enables
HDR Image Analyzer to use its internal, calibrated LUTs for proper display.
HDR Image Analyzer v2.0r1 36 www.aja.com
Page 37
Logging
Analyzer detects the events below and logs them with time stamps in a log file
and on screen:
• Gamut violations of the current colorspace.
• For HDR, P3 Gamut violation if HDR Colorspace is set to Rec2020.
• For HDR, Brightness violation. Max brightness for HDR is congured in the
Settings > QC tab.
• Timecode break

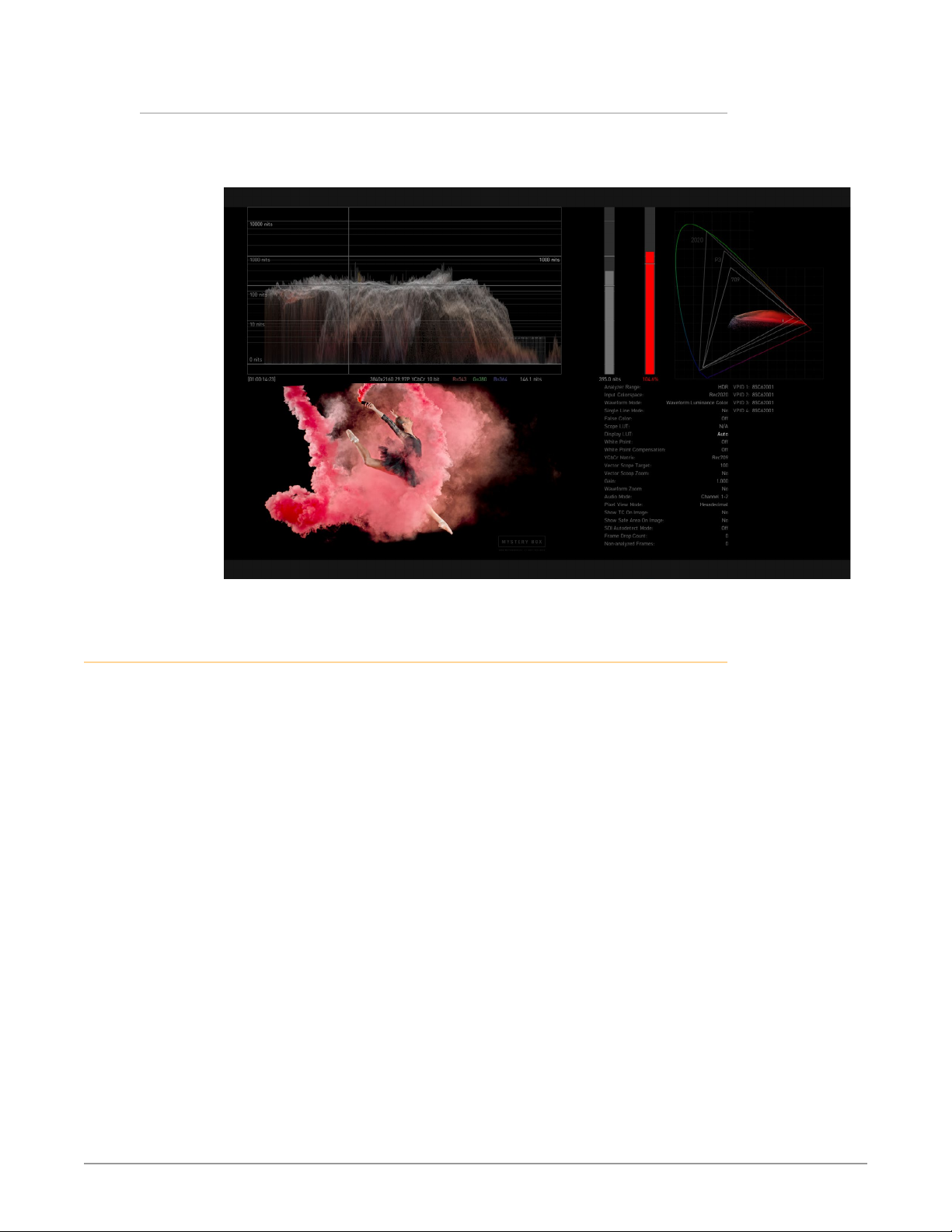

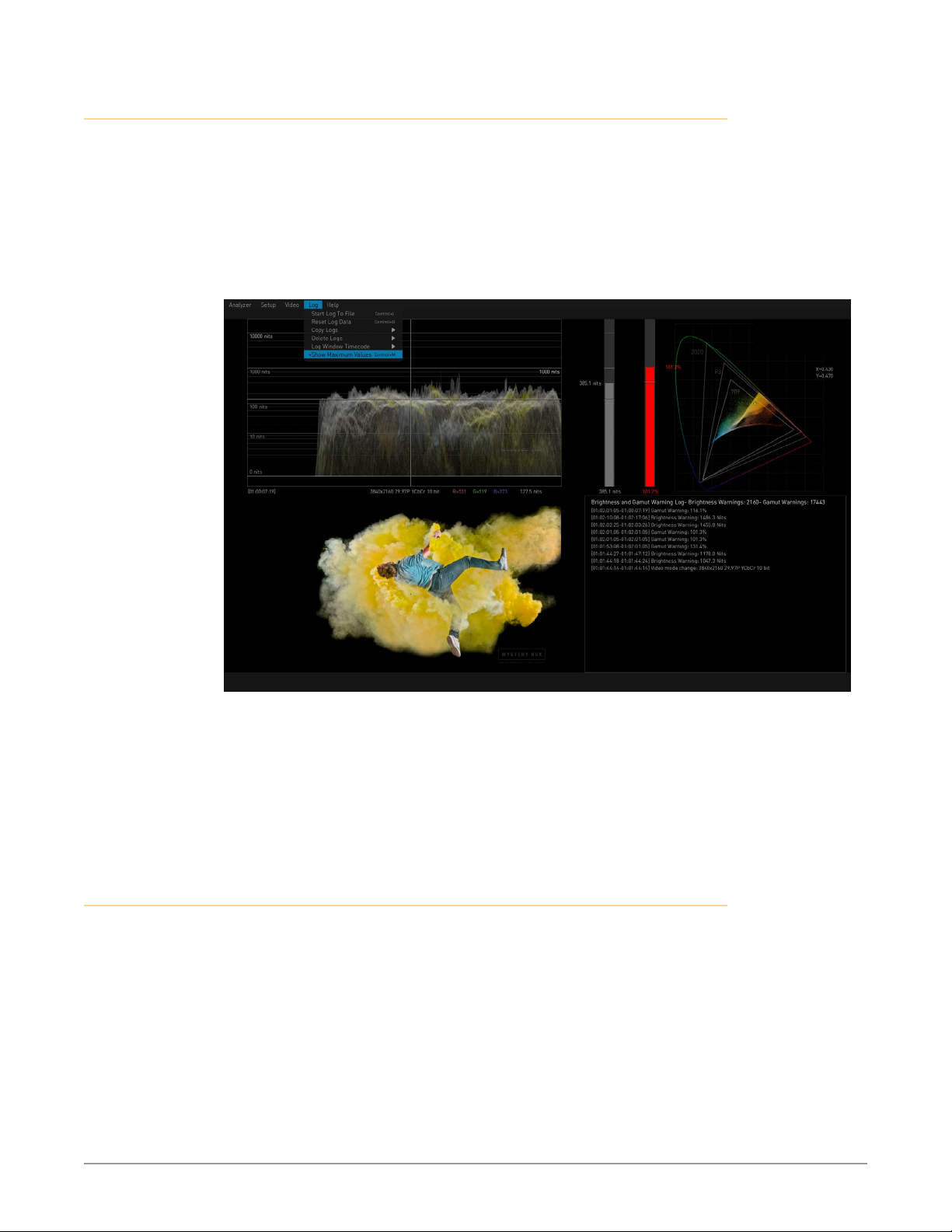

Figure 37. Logging with Show Maximum Values Selected.
A new log file can be created by starting a QC session from the Log drop-down
menu:
• Start Log to File (CTRL+l)
• Clear Log Data (CTRL+d)
You can also select the timecode or session clock to be used in the log:
• Log Window Timecode
Settings Screen
Advanced features are available on the Settings screen, allowing customization of
the HDR Image Analyzer GUI for special purposes. The Settings screen is accessed
by pressing the TAB key when the top menu line is not displayed. Click on the
desired tab to display the available parameters.
NOTE: In v2.0 and newer software, scrolling on the settings screen can be accomplished
with the mouse's scroll wheel, or by holding down right-click and moving the
mouse up and down. Earlier software versions support scrolling only using rightclick method.
HDR Image Analyzer v2.0r1 37 www.aja.com
Page 38
GUI Tab
GUI HDR Mode
Figure 38. Setting Screen, GUI Tab
QC Tab
The Settings/GUI menu lets you choose between SDR and HDR10 (use HDR10 if
you have an HDR enabled DisplayPort monitor).
These advanced settings are for experienced colorists and QC professionals,
permitting customization of the values used for analysis.
The QC parameters are saved in Setups. If you Reset a Setup, all values in QC are
returned to Defaults.
HDR Image Analyzer v2.0r1 38 www.aja.com
Page 39
Figure 39. Setting Screen, QC Tab
The parameters are largely self explanatory, but the following special features are
available.
Additional Marker for HDR
This control lets you add an additional custom level marker line to the Waveform
view. As an example, if mastering for 600 nits Rec2020, you may want to add a
“600” line for visual reference.
• Range 100.0 to 10,000.0
• Enter -1 to hide the custom level marker line
Gamut Warning
The Gamut Warning parameter allows setting when the HDR Image Analyzer will
trigger out-of-gamut warnings. You can choose from:
• Rec709
• P3
• Rec2020
• O
Skin Tone
You can adjust the location of the skin tone line on the vectorscope display by
entering X and Y CIE coordinates. The default location of the skin tone line varies
depending on the colorspace being used.
HDR Image Analyzer v2.0r1 39 www.aja.com
Page 40
Audio Level Warning
Customizes the audio level warning threshold, which can vary depending on the
country standard.
Vectorscope Aid
When On, draws a grey bounding area around the chroma on the Vectorscope,
which can be useful when examining individual pixels.
NET WOR K Tab
The Network settings are used to configure the two network interface cards
(NICs) installed in the HDR Image Analyzer chassis.
Figure 40. Setting Screen, Network Tab
Network Settings
NOTE: The lower Network Settings parameters may not initially be visible. Scroll down
the screen to see it, using the mouse's scroll wheel or by holding down right-click
and moving the mouse up and down.
HDR Image Analyzer v2.0r1 40 www.aja.com
Page 41
Domain and Host Names
By default the HDR Image Analyzer is configured for DHCP operation. If a DHCP
server is found on power up, these fields will be filled in automatically. You can
change these names if you need to adjust the configuration for your network
environment.
NOTE: Changing the Domain Name and/or Host Name requires a system reboot.
Password Fields
IM PORTANT: On the very first HDR Image Analyzer startup, a unique password is
generated when the serial number is entered in the Web UI. The password is
"hdria<last four digits of serial number>" (for example, "hdria1234"). The default
HDR Image Analyzer User Name is "kiosk", and it cannot be changed by the user.
The password is required for login and Remote Desktop operation. You can
change the default password with these two fields.
NOTE: You must exit Setup screen (press Tab) to enable a password change. No system
or application reset or reboot is required.
If a Remote Desktop connection was active when the password is changed, that
connection will immediately be dropped.
Remote Desktop
HDR Image Analyzer supports Remote Desktop, allowing control from a separate
computer running an RDP client. HDR Image Analyzer supports one connection
at a time. Connecting via Remote Desktop will disable the local computer's
Analyzer application or any other remote connection. Control can be reacquired
at any time from the local computer, or from any remote computer.
Click on the Enabled button on the local computer running HDR Image Analyzer.
After launching your RDP client on a remote networked computer, simply type in
the IP address of the HDR Image Analyzer and enter your login credentials.
SAFE AREA Tab
These settings are used to customize the Safe Area box displays, including the
ability to choose which (or both) regions to display.
HDR Image Analyzer v2.0r1 41 www.aja.com
Page 42
Figure 41. Settings Screen, Safe Area Tab
The Safe Area parameters are saved in Setups.
HDR Image Analyzer v2.0r1 42 www.aja.com
Page 43
Chapter 6 – Web Interface
Overview
The web interface feature allows users to control the HDR Image Analyzer from
a remote computer. It also allows for remote updates, log file and screenshot
viewing and transfer, as well as control of all the HDR Image Analyzer's settings.
The web interface also displays status information such as software and firmware
versions, serial number, IP address, and current temperatures of the CPU, GPU and
Corvid card.
Operation
When your HDR Image Analyzer is operating with v1.1 or newer software, simply
connect it to your network via its rear panel RJ-45 connector (or directly to a
computer), and enter the IP address of the HDR Image Analyzer into a browser
running on your remote computer.
Web Interface Description
Figure 42. Example HDR Image Analyzer Web Interface Screen Example Menu
Menu
On the left of each screen is a navigational list of the available screens. Click any of
these items to jump to that screen.
• Settings
• Screenshots
• LUT
• Logs
• Status
• Network
• Firmware
HDR Image Analyzer v2.0r1 43 www.aja.com
Page 44
Temperatures
Current temperatures of the CPU, GPU, and Corvid card are displayed below the
Menu list.
Screenshots
The last captured screenshot (if any) is displayed on the lower left side of all
HDR Image Analyzer web UI screens.
Clicking on the Take Screenshot button captures the HDR Image Analyzer 's
current local computer screen (less any displayed drop-down menus).
Main Display
In the center of each screen is the main display showing the status and menu
selections for the screen you are viewing. The content of the HDR Image Analyzer
web screens closely mirrors the parameter menus displayed on the local
computer's HDR Image Analyzer screen.
Other
The right side of the screen lists HDR Image Analyzer system details, including
connection status, system serial number, and the installed software version. This
information is useful if you ever have to call AJA Technical Support for help.
eth1
Current values for Ethernet 1 are displayed, but are not edited here.
Ethernet settings for both Ethernet 1 and 2 displayed and editable using the
Network screen.
Network
The right side of the screen lists AJA systems on the network. If you right-click any
system in the list and select Identify, the ID LEDs on the unit will blink to identify
it. Click on Identify again to stop the blinking. Another way to identify systems
is to notice which system’s EXT front panel LED flashes when you change any
setting from a remote control device, such as the web browser.
HDR Image Analyzer v2.0r1 44 www.aja.com
Page 45
Web Interface Screens
Settings Screen
Figure 43. Web Interface Settings Screen, Top
HDR Image Analyzer v2.0r1 45 www.aja.com
Page 46
Figure 44. Web Interface Settings Screen, Bottom
Screenshots Screen
Figure 45. Web Interface Screenshots Screen
HDR Image Analyzer v2.0r1 46 www.aja.com
Page 47
LUT Screen
Figure 46. Web Interface LUT Screen
Logs Screen
Figure 47. Web Interface Logs Screen
HDR Image Analyzer v2.0r1 47 www.aja.com
Page 48
Status Screen
Figure 48. Web Interface Status Screen
Network Screen
Figure 49. Web Interface Network Screen
Allow RDP
Enables Remote Desktop Protocol (RDP). Turn this on if you wish to remote
desktop into the unit.
HDR Image Analyzer v2.0r1 48 www.aja.com
Page 49
Firmware Screen
Figure 50. Web Interface Firmware Screen
HDR Image Analyzer v2.0r1 49 www.aja.com
Page 50
Chapter 7 – Menu Reference
Analyzer Menu Guide
Table 2. Analyzer Menu > Analyzer Mode
Sub Menu Menu Option 1 Menu Option 2 Menu Option 3 or Description
Analyzer Mode FullScreen Image False Color O F1
Brightness
Brightness Warning
Gamut
Gamut Warning
Waveform Waveform Luninance
Waveform Lumi Color F2
Waveform Color
Waveform RGB Color
Waveform RGB
Waveform YCbCr
Waveform YRGB
Histogram Luninance
Histogram Color
Gamut F3
Vectorscope F4
Q1, Q2, Q3, or Q4 Image False Color O
Brightness
Brightness Warning
Gamut
Gamut Warning
Audio Audio tool
Pixel Picker Pixel Picker tool
Info Info Tool
Log Log tool
Single Line Mode Enable Single Line Mode CTRL+space
Keyboard
Shortcut
HDR Image Analyzer v2.0r1 50 www.aja.com
Page 51
Table 3. Analyzer Menu > Analyzer Colorspace, White Point Compensation,
False Color, YCbCr Matrix, White Point
Menu Menu Option 1 Menu Option 2 Description
Analyzer
Colorspace
White Point
Compensation
False Color Brightness Apply false color to entire Brightness ALT+F1
YCbCr Matrix Rec709 Image is converted to the YUV space, using Rec709.
White Point D65 Display a box on the CIE xy graph showing the D65
Auto HDR mode
change
Camera Arri LogC Wide
Gamut
Canon Log2 Set Canon Log2 colorspace
Canon Log3 Set Canon Log3 colorspace
Panasonic VLog/
Gamut
Red WideGamut/
Log3G10
Sony SLog3/
BT2020
Sony SLog3/
SGamut3
Sony SLog3/
SGamut3Cine
ACEScct Sets ACES colorspace
SDR Rec709 Set SDR Rec709 colorspace CT RL+F10
P3DCI Set SDR P3DCI colorspace
P3D65 Set SDR P3D65 colorspace
Rec2020 Set SDR Rec2020 colorspace
XYZ DCI Set SDR XYZ DCI colorspace
HLG Rec709 Set HLG Rec709 colorspace
Rec2020 Set HLG Rec2020 colorspace CTRL+F11
HDR Rec709 Set HDR Rec709 colorspace
P3D65 Set HDR RecP3D65 colorspace
Rec2020 Set HDR Rec2020 colorspace CTRL+F12
XYZ DCI Set HDR XYZ DCI colorspace
XYZ D65 Set HDR XYZ D65 colorspace
O No white point compensation
D65 Apply D65 white point compensation to the analysis.
Brightness
Warning
Gamut Apply false color to entire Gamut ALT+F3
Gamut Warning Apply false color to Gamut above warning level ALT+F4
O No false color ALT+F5
Rec2020 Image is converted to the YUV space, using Rec2020.
DCI Display a box on the CIE xy graph showing the DCI
O Hide the white point box on the CIE xy graph.
When On, colorspace is adjusted automatically
according to the SDI agging between
Rec709Rec709, HLG Rec2020 and HDR Rec.
Set Arri LogC Wide Gamut colorspace
Set Panasonic VLog/Gamut colorspace
Set Red WideGamut/Log3G10 colorspace
Set Sony SLog3/BT2020 colorspace
Set Sony SLog3/SGamut3 colorspace
Set Sony SLog3/SGamut3Cine colorspace
Apply false color to Brightness above warning level ALT+F2
white point. Analysis is not aected.
white point. Analysis is not aected.
Keyboard
Shortcut
HDR Image Analyzer v2.0r1 51 www.aja.com
Page 52
Table 4. Analyzer Mode > Vectorscope Target, Waveform Graticule, Scope and
Display LUTs, Analyzer Gain, Zoom, Pixels View
Menu Menu Option 1 Description
Vectorscope
Target
Waveform
Graticule
Analyzer Scope
LUT
Analyzer
Display LUT
Analyzer Gain Increase Gain Simple increase of display gain. CTRL+NumPad
Zoom Vectorscope Zoom Apply a 5x magnication to the Vectorscope display. CT RL+v
Pixels View Hexadecimal Color picker displays hexadecimal values
75%
100%
Default
Code Values
Percentage
NoLUT No LUT applied to input signal.
(selection list) Optionally apply a variety of LUTs to the input signal being analyzed.
NoLUT No LUT applied to display signal.
Auto The LUT is automatically selected in a way that the incoming image
looks correct on a 709 SDR monitor.
(selection list) Optionally apply a variety of LUTs to the displayed video image,
analysis is not aected.
Decrease Gain Simple decrease of display gain. CT RL+NumPad
Reset Gain Simple reset of display gain. CTRL+ENTER
Waveform Zoom Apply a 4x magnication to the Waveform display. CT RL+w
Decimal Color picker displays decimal values
Nits Color picker displays nits (RGB only)
Keyboard
Shortcut
Plus Sign
Minus Sign
Table 5. Analyzer Mode > Audio, Timecode, SafeArea
Menu Menu Option 1 Menu Option 2 Description
Audio Phase Meter Channel 1-2 Show audio phase between Ch 1& 2
Channel 3-4 Show audio phase between Ch 3&4
Channel 5-6 Show audio phase between Ch 5&6
Channel 7-8 Show audio phase between Ch 7&8
Channel 1-8 Show four phase diagrams of Ch 1&2, thru Ch 7&8
Channel 9-16 Show four phase diagrams of Ch 9&10, thru Ch 15&16
Level Meter Display Level Meter
Timecode
on Image
SafeArea on
System
Shutdown
System
Restart
Application
Restart
Enable (on/o) Show Timecode box on the image. CT RL+t
Enable (on/o) Show framing guides on the image. CT RL+s
Closes the application and powers o the system.
Restarts the system and automatically relaunches the
application.
Restarts the application without shutting down the
system.
Keyboard
Shortcut
HDR Image Analyzer v2.0r1 52 www.aja.com
Page 53
Setup Menu Guide
Table 6. Analyzer Mode > Audio, Timecode, SafeArea
Menu Menu Option 1 Description
Manage
LUTs
Create
Setup
Open
Setup
Delete
<name>
Reset
<name>
Load New LUT Opens the Windows Explorer browser used to navigate to and load a 3d
Delete LUT Opens a list of the currently loaded LUTs that you can select for deletion.
Delete All LUTs Deletes all currently loaded LUTs.
analyzer Selects the "analyzer" Setup le, which is the original setup le that may
(selection list) Reloads the selected Setup le.
Video Menu Guide
Table 7. Video Menu Options
Menu Menu Option 1 Menu Option 2 Description
Resolution 720P Denes a 720p input video signal.
HD Denes a 1080 input video signal.
2K Denes a 2K input video signal.
UHD Denes an UltraHD input video signal.
4K Denes a 4K input video signal.
UHD2 (12G model) Denes an UltraHD2 input video signal.
8K (12G model) Denes an 8K input video signal.
Colorspace YCbCr 10Bit
RGB 10 Bit
RGB 12 Bit
Transport Single-link
Dual-link
Quad-link
Square
Division
Auto Detect
Options
SQD Square Division
2SI Two Sample Interleave
Auto Detect Toggles Auto Detect of the incoming
Forced Single-Wire
SDI Input Mode
Forced Quad-Wire
SDI Input Mode
Keyboard
Shortcut
Mesh or a .cube LUT le.
Opens a dialog box for naming and saving a new Setup le. This le will have
the current operational settings.
have been changed.
Deletes the currently open Setup le.
Resets the currently open Setup le to factory defaults.
Keyboard
Shortcut
SDI link On or O.
Forces single link input.
Forces four link input.
HDR Image Analyzer v2.0r1 53 www.aja.com
Page 54
Menu Menu Option 1 Menu Option 2 Description
Capture Capture 1 Captures current image and stores in
Capture 2 Captures current image and stores in
Capture 3 Captures current image and stores in
Capture 4 Captures current image and stores in
Recall Show Live Show live video signal CT RL+NumPad 5
Show Captured 1 Show memory 1 CTRL+NumPad 1
Recall › Show
Captured 2
Recall › Show
Captured 3
Recall › Show
Captured 4
Screenshot Save Screenshot Captures a screenshot of the Analyzer
Copy Screenshots
(Opens a le
browser for
selection of a
folder to copy to.)
Delete Screenshots Delete All Deletes all captured screenshots from
Copy All Copies all captured screenshots into
Copy Today's Copies only screenshots captured
Copy All Except Today's Copies all screenshots except those
Delete Today's Deletes only screenshots captured
Delete All Except Today's Deletes all screenshots except
memory 1
memory 2
memory 3
memory 4
Show memory 2 CTRL+NumPad 2
Show memory 3 CTRL+NumPad 3
Show memory 4 CTRL+NumPad 4
UI to the host computer.
the selected folder.
today into the selected folder.
captured today into the selected folder
the host computer.
today from the host computer.
those captured today from the host
computer.
Keyboard
Shortcut
ALT+NumPad 1
ALT+NumPad 2
ALT+NumPad 3
ALT+NumPad 4
CTRL+e
Log Menu Guide
Table 8. Log Menu Options
Menu Menu Option 1 Description
Start Logging
To A File
Reset Log Data Clears current log data. CTRL+d
Copy Logs
(Opens a le
browser for
selection of a
folder to copy
to.)
Delete Logs Delete All Log Files Deletes all log les from the host computer.
Copy All Log Files Copies all log les into the selected folder.
Copy Today's Log Files Copies only log les captured today into the selected folder.
Copy All Except Today's
Log Files
Delete Today's Log Files Deletes only log les captured today from the host computer.
Delete All Except
Today's Log Files
Creates a new log le for a new QC session on disk CTRL+l
Copies all log les except those captured today into the selected
folder
Deletes all log les except those captured today from the host
computer.
HDR Image Analyzer v2.0r1 54 www.aja.com
Keyboard
Shortcut
Page 55
Menu Menu Option 1 Description
Log Window
Timecode
Show Maximum
Values
Timestamp Comments in the Log Window to be tagged based on session
Timecode Comments in the Log Window to be tagged based on SDI
Auto Timecode/
Timestamp
Timestamp - Timecode Show both time stamps with session clock priority.
Timecode - Timestamp Show both time stamps with SDI timecode priority.
Set Time Opens a window that allows you to change the time used by the
Help Menu Guide
Table 9. Help Menu Options
Menu Description
About Displays the Application name and Version information. ALT+Forward Slash(/)
Update Analyzer Opens a browser allowing HDR Image Analyzer software update.
Keyboard
Shortcut
clock.
timecode.
Shows timecode, timestamp, or both in the Log Window if the
information is present on the incoming signal.
local computer, which will be entered into logs.
Toggles maximum value display on the Gamut tool on and o. CTRL+m
Keyboard
Shortcut
Other Keyboard Shortcuts
Keyboard Shortcut Description
CT RL+p Show/Hide Performance window
CTRL + Up/Down Arrow Moves the single line mode analysis up and down one line at the time.
HDR Image Analyzer v2.0r1 55 www.aja.com
Page 56
Appendix A – Specifications
HDR Image Analyzer 3G Tech Specs
Video Formats
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
Video Input Digital
• 4x 3G-SDI BNC
• 3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
Video Output Digital
• 4x 3G-SDI BNC
• 3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
Audio Input Digital
• 16-Channel 24-bit SDI embedded, 48 kHz synchronous
Audio Output Digital
• 16-Channel 24-bit SDI embedded, 48 kHz synchronous
Computer Monitor Output
• Display Port Output:
• Up to UltraHD 60p
Reference Input
• Signal: Analog video sync (Blackburst or Tri-Level)
Size: (w x d x h)
• 1RU form factor
• 17.2” x 16.9" x 1.7" (436.88 x 429.26 x 43.18 mm)
Weight
• 28 lb (12.7kg) in box
• 18 lb (8.2kg) server only
Power
• 100-240 VAC 50/60 Hz (Dual, redundant power supplies)
• 190W typical, 245W Max
HDR Image Analyzer v2.0r1 56 www.aja.com
Page 57
Environment
• Safe Operating Temperature: 5 to 35 C (41 to 95 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 8-90% noncondensing
• Nonoperating Relative Humidity: 5-95% noncondensing
HDR Image Analyzer 12G Tech Specs
SDR/HDR Image Analysis Tool
HDR Waveform, Histogram and Vectorscope Monitoring
Video Formats
• (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
Video Input/Output Digital
• 4x 12G-SDI BNC
• 12G-SDI, SMPTE-259/292/296/424/425/2081/2082, 12-bit, 10-bit and 8-bit
SDI I/O
• SDI connections are bidirectional
• 8K/UltraHD2 with 12G-SDI, all four connections must be used for input only
• 4K/UltraHD with 12G-SDI, input and loop out are simultaneous
• 4K/UltraHD with 3G-SDI, all four connections must be used for input only
• 2K/HD, input and loop out are simultaneous
Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD2/8K/
UltraHD/4K formats are supported.
Audio Input Digital
• 16-channel 24-bit SDI embedded, 48 kHz synchronous
Audio Output Digital
• 16-channel 24-bit SDI embedded, 48 kHz synchronous
Computer Monitor Output
• 4x Display Port Outputs:
• Up to UltraHD 60p
Reference Input
• Signal: Analog video sync (Blackburst or Tri-Level)
HDR Image Analyzer v2.0r1 57 www.aja.com
Page 58
Size: (w x d x h)
• 1RU form factor
• 17.2” x 16.9" x 1.7" (436.88 x 429.26 x 43.18 mm)
Weight
• 28 lb (12.7kg) in box
• 18 lb (8.2kg) server only
Power
• 100-240 VAC 50/60 Hz (Dual, redundant power supplies)
• 190W typical, 245W Max
Environment
• Safe Operating Temperature: 5 to 35 C (41 to 95 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 8-90% noncondensing
• Nonoperating Relative Humidity: 5-95% noncondensing
HDR Image Analyzer v2.0r1 58 www.aja.com
Page 59
Appendix B – Safety and Compliance
Federal Communications Commission (FCC) Compliance Notices
Class A Interference Statement
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Canadian ICES Statement
Canadian Department of Communications Radio Interference Regulations
This digital apparatus does not exceed the Class A limits for radio-noise emissions
from a digital apparatus as set out in the Radio Interference Regulations of
the Canadian Department of Communications. This Class A digital apparatus
complies with Canadian ICES-003.
Règlement sur le brouillage radioélectrique du ministère des Communications
Cet appareil numérique respecte les limites de bruits radioélectriques visant les
appareils numériques de classe A prescrites dans le Règlement sur le brouillage
radioélectrique du ministère des Communications du Canada. Cet appareil
numérique de la Classe A est conforme à la norme NMB-003 du Canada.
European Union and European Free Trade Association (EFTA)
Regulatory Compliance
This equipment may be operated in the countries that comprise the member
countries of the European Union and the European Free Trade Association. These
countries, listed in the following paragraph, are referred to as The European
Community throughout this document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA,
LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL,
ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND,
LICHTENSTEIN, NORWAY, SWITZERLAND
HDR Image Analyzer v2.0r1 59 www.aja.com
Page 60
Declaration of Conformity
Marking by this symbol indicates compliance with the Essential Requirements of
the EMC Directive of the European Union 2014/30/EU.
This equipment meets the following conformance standards:
EN 60065: 2014 (T-Mark License),
IEC 60065: 2014 (CB Scheme Report/Certificate)
Additional licenses issued for specific countries available on request.
Emissions
EN 55032: 2012 + AC: 2013, CISPR 32: 2015,
EN 61000-3-2: 2014, EN 61000-3-3: 2013
Immunity
EN 55103-2: 2009, EN 61000-4-2:2009, EN 61000-4-3: 2006 + A1:2008 + A2:2010,
EN 61000-4-4: 2004 + A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009,
EN 61000-4-11:2004
Environments: E2, E3 and E4
The product is also licensed for additional country specific standards as required
for the International Marketplace.
Warning! This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case, the user may be required to take
appropriate measures.
Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen
können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen
Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.
Attention! Ceci est un produit de Classe A. Dans un environnement domestique,
ce produit risque de créer des interférences radioélectriques, il appartiendra
alors à l?utilisateur de prendre les mesures spéciques appropriées..
Recycling Notice
This symbol on the product or its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment
at the time of disposal will help conserve natural resources and ensure that
it is recycled in a manner that protects human health and the environment.
For more information about where you can drop o your waste for recycling,
please contact your local authority, or where you purchased your product.
Korea KCC Compliance Statement
A급기기
(업무용 방송통신기자재)
Class A
(Broadcasting Communication
Equipment for Office Use)
HDR Image Analyzer v2.0r1 60 www.aja.com
이 기기는 업무용(A급) 전자파적합기기로서 판매자또는 사용자는
이점을주의하시기 바라며, 가정외의 지역에서사용하는것을
목적으로 합니다.
As an electromagnetic wave equipment for office use (Class A),
this equipment is intended to use in other than home area.
Sellers or users need to take note of this.
Page 61
Taiwan Compliance Statement
This is a Class A product based on the standard of the Bureau of Standards,
Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment
this product may cause radio interference in which case the user may be required
to take adequate measures.
Japan Compliance Statement
This is a Class A product based on the standard of the VCCI Council (VCCI32:2016).
If this equipment is used in a domestic environment, radio interference may
occur, in which case, the user may be required to take corrective actions.
China Compliance Statement
The HDR-IMGYZR-88 has been tested to the following Chinese standards:
GB/T13837-2012, GB8898-2011, and GB17625.1-2012
This product meets the requirements of implementation rules for compulsory
certification (REF NO. CNCA-C08-01:2014) under certificate number
2019010805151936
Translated Warning and Caution Messages
The following caution statements, warning conventions, and warning messages
apply to this product and manual.
Before Operation Please Read These Instructions
Warning! Read and follow all warning notices and instructions marked on the
product or included in the documentation.
Avertissement! Lisez et conformez-vous à tous les avis et instructions
d'avertissement indiqués sur le produit ou dans la documentation.
Warnung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf
dem Produkt angebracht oder in der Dokumentation enthalten sind.
¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el
producto o incluidas en la documentación.
Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos
na documentação.
Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o
inclusi nella documentazione.
HDR Image Analyzer v2.0r1 61 www.aja.com
Page 62
Warning! Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement
avec un tissu sec.
Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem
trockenen Tuch säubern.
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con
un paño seco.
Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano
seco.
Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un
panno asciutto.
Warning! Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Avertissement! Ne bloquez aucune ouverture de ventilation. Suivez les
instructions du fabricant lors de l'installation.
Warnung! Die Lüftungsönungen dürfen nicht blockiert werden. Nur gemäß den
Anweisungen des Herstellers installieren.
¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de
acuerdo con las instrucciones del fabricante.
Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as
instruções do fabricante.
Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le
istruzioni del fornitore.
Warning! Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
Avertissement! N'installez pas l'appareil près d'une source de chaleur telle que des
radiateurs, des bouches d'air de chauage, des fourneaux ou d'autres appareils
(amplicateurs compris) qui produisent de la chaleur.
Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern,
Öfen oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern)
aufstellen.
¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros
de calor, estufas u otros aparatos (incluidos amplicadores) que generan calor.
Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de
calor, fogões ou outros aparelhos (incluindo amplicadores) que produzam calor.
Avviso! Non installare vicino a fonti di calore come termosifoni, diusori di aria
calda, stufe o altri apparecchi (amplicatori compresi) che emettono calore
HDR Image Analyzer v2.0r1 62 www.aja.com
Page 63
Warning! Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does
not t into your outlet, consult an electrician for replacement of the obsolete
outlet.
Avertissement! La sécurité de la prise polarisée ou de la prise de type mise à la
terre ne doit en aucun cas être empêchée de fonctionner. Une prise polarisée
a deux broches, l'une étant plus large que l'autre. Une prise de type mise à la
terre a deux broches et une troisième broche pour la mise à la terre. La broche
large ou la troisième broche sont fournies pour votre sécurité. Si la prise
fournie ne s'insère pas dans votre prise femelle, consultez un électricien pour le
remplacement de la prise femelle obsolète.
Warnung! Der Sicherheitszweck des gepolten bzw. Schukosteckers ist zu
berücksichtigen. Ein gepolter Stecker verfügt über zwei Pole, von denen einer
breiter als der andere ist. Ein Schukostecker verfügt neben den zwei Polen noch
über einen dritten Pol zur Erdung. Der breite Pol bzw. der Erdungspol dienen der
Sicherheit. Wenn der zur Verfügung gestellte Stecker nicht in Ihren Anschluss
passt, konsultieren Sie einen Elektriker, um den veralteten Anschluss zu ersetzen.
¡Advertencia! No eche por tierra la nalidad del tipo de enchufe polarizado con
conexión a tierra. Un enchufe polarizado tiene dos espigas, una más ancha
que la otra. Un enchufe con conexión a tierra tiene dos espigas iguales y una
tercera espiga que sirve para la conexión a tierra. La expiga ancha, o la tercera
espiga, sirven para su seguridad. Si el enchufe suministrado no encaja en el
tomacorriente, consulte con un electricista para reemplazar el tomacorriente
obsoleto.
Aviso! Não anule a nalidade da segurança da cha polarizada ou do tipo ligação
terra. Uma cha polarizada tem duas lâminas sendo uma mais larga do que
a outra. Uma cha do tipo de ligação à terra tem duas lâminas e um terceiro
terminal de ligação à terra. A lâmina larga ou o terceiro terminal são fornecidos
para sua segurança. Se a cha fornecida não couber na sua tomada, consulte um
electricista para a substituição da tomada obsoleta.
Avviso! Non compromettere la sicurezza della spina polarizzata o con messa a
terra. Una spina polarizzata ha due spinotti, di cui uno più largo. Una spina con
messa a terra ha due spinotti e un terzo polo per la messa a terra. Lo spinotto
largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non
si inserisce nella presa di corrente, contattare un elettricista per la sostituzione
della presa obsoleta.
Warning! Since the Mains plug is used as the disconnection for the device, it must
remain readily accessible and operable.
Avertissement! Puisque la prise principale est utilisée pour débrancher l'appareil,
elle doit rester aisément accessible et fonctionnelle.
Warnung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich
und funktionsfähig sein.
¡Advertencia! Puesto que el enchufe de la red eléctrica se utiliza como dispositivo
de desconexión, debe seguir siendo fácilmente accesible y operable.
Aviso! Dado que a cha principal é utilizada como a desconexão para o dispositivo,
esta deve manter-se prontamente acessível e funcional.
Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di
sconnessione, deve rimane prontamente accessibile e operabile.
HDR Image Analyzer v2.0r1 63 www.aja.com
Page 64
Warning! Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the device.
Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche
pas dessus ou qu'on le pince, en particulier au niveau des prises mâles, des
réceptacles de convenance, et à l'endroit où il sort de l'appareil.
Warnung! Vermeiden Sie, dass auf das Netzkabel getreten oder das Kabel geknickt
wird, insbesondere an den Steckern, den Steckdosen und am Kabelausgang am
Gerät.
¡Advertencia! Proteja el cable de energía para que no se le pise ni apriete, en
especial cerca del enchufe, los receptáculos de conveniencia y el punto del que
salen del equipo.
Aviso! Proteja o cabo de alimentação de ser pisado ou de ser comprimido
particularmente nas chas, em tomadas de parede de conveniência e no ponto
de onde sai do dispositivo.
Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra
e che non venga schiacciato soprattutto in corrispondenza delle spine e del
punto in cui esce dal dispositivo.
Warning! Unplug this device during lightning storms or when unused for long
periods of time.
Avertissement! Débranchez cet appareil pendant les orages avec éclairsou s'il est
inutilisé pendant de longues périodes.
Warnung! Das Gerät ist bei Gewitterstürmen oder wenn es über lange Zeiträume
ungenutzt bleibt vom Netz zu trennen.
¡Advertencia! Desenchufe este dispositivo durante tormentas eléctricas o cuando
no se lo utilice por largos periodos del tiempo.
Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é
utilizado durante longos períodos de tempo.
Avviso! Utilizzare soltanto i collegamenti e gli accessori specicati e/o venduti dal
produttore, quali il treppiedi e l'esoscheletro.
HDR Image Analyzer v2.0r1 64 www.aja.com
Page 65
Warning! Refer all servicing to qualied service personnel. Servicing is required
when the device has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the device,
the device has been exposed to rain or moisture, does not operate normally, or
has been dropped.
Avertissement! Référez-vous au personnel de service qualié pour tout entretien.
L'entretien est exigé quand l'appareil a été endommagé de quelque manière
que ce soit, par exemple lorsque le cordon d'alimentation ou la prise sont
endommagés, que du liquide a été versé ou des objets sont tombés dans
l'appareil, que l'appareil a été exposé à la pluie ou à l'humidité, ne fonctionne pas
normalement ou est tombé.
Warnung! Das Gerät sollte nur von qualizierten Fachkräften gewartet werden.
Eine Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde,
wie bei beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder
Objekte in das Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt
wurde, nicht ordnungsgemäß funktioniert oder fallen gelassen wurde.
¡Advertencia! Consulte al personal calicado por cuestiones de reparación. El
servicio de reparación se requiere cuando el dispositivo ha recibido cualquier
tipo de daño, por ejemplo cable o espigas dañadas, se ha derramado líquido o
se han caído objetos dentro del dispositivo, el dispositivo ha sido expuesto a la
lluvia o humedad, o no funciona de modo normal, o se ha caído.
Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência
qualicado. A prestação de serviços de manutenção é exigida quando o
dispositivo foi danicado mediante qualquer forma, como um cabo de
alimentação ou cha que se encontra danicado/a, quando foi derramado
líquido ou caíram objectos sobre o dispositivo, quando o dispositivo foi exposto
à chuva ou à humidade, quando não funciona normalmente ou quando foi
deixado cair.
Avviso! Fare riferimento al personale qualicato per tutti gli interventi di assistenza.
L'assistenza è necessaria quando il dispositivo è stato danneggiato in qualche
modo, ad esempio se il cavo di alimentazione o la spina sono danneggiati, è
stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel
dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona
correttamente o è caduto
Warning! Do not open the chassis. There are no user-serviceable parts inside.
Opening the chassis will void the warranty unless performed by an AJA service
center or licensed facility.
Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis
ne peut être réparé par l’utilisateur. La garantie sera annulée si le châssis est
ouvert par toute autre personne qu’un technicien d’un centre de service ou d’un
établissement agréé AJA.
Warnung! Önen Sie das Gehäuse nicht. Keine der Geräteteile können vom
Benutzer gewartet werden. Durch das Önen des Gehäuses wird die Garantie
hinfällig, es sei denn, solche Wartungsarbeiten werden in einem AJA-ServiceCenter oder einem lizenzierten Betrieb vorgenommen.
¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el
usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro
de servicio AJA o en un local autorizado.
Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita
manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura
seja realizada por uma central de serviços da AJA ou por um local autorizado.
Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili
dall’utente. L’apertura dello chassis invaliderà la garanzia se non viene eettuata
da un centro uciale o autorizzato AJA.
HDR Image Analyzer v2.0r1 65 www.aja.com
Page 66
Warning! Disconnect the external AC power supply line cord(s) from the mains
power before moving the unit.
Avertissement! Retirez le ou les cordons d’alimentation en CA de la source
d’alimentation principale lorsque vous déplacez l’appareil.
Warnung! Trennen Sie die Wechselstrom-Versorgungskabel vom Netzstrom, bevor
Sie das Gerät verschieben.
¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los
cable(s) de la fuente de alimentación CA tipo brick.
Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover
a unidade.
Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità.
Warning! Only use attachments and accessories specied and/or sold by the
manufacturer.
Avertissement! Utilisez seulement les attaches et accessoires spéciés et/ou
vendus par le fabricant.
Warnung! Verwenden Sie nur Zusatzgeräte und Zubehör angegeben und / oder
verkauft wurde durch den Hersteller.
¡Advertencia! Utilice solamente los accesorios y conexiones especicados y/o
vendidos por el fabricante.
Aviso! Utilize apenas equipamentos/acessórios especicados e/ou vendidos pelo
fabricante.
Avviso! Utilizzare soltanto i collegamenti e gli accessori specicati e/o venduti dal
produttore.
Hazard! High Voltage. This situation or condition can cause injury due to electric
shock.
Avertissement! Tension élevée. Cette situation ou condition peut causer des
blessures dues à un choc électrique.
Warnung! Hochspannung. Diese Situation oder Bedingung kann zu Verletzungen
durch Stromschlag führen.
¡Advertencia! Alto voltaje . Esta situación o condición puede causar lesiones
debidas a una descarga eléctrica.
Aviso! Alta Tensão . Esta situação ou condição pode causar danos devido a
choques elétricos.
Avviso! Alta tensione. Questa situazione o condizione può causare lesioni a causa
di scosse elettriche.
Warning! Dual Power Cord Notice—please read this. To reduce the risk of electrical
shock,disconnect both power cords before servicing equipment.
Avertissement! Avis concernant la double alimentation électrique — à lire
soigneusement. Pour éviter tout risque d’électrocution, débranchez les deux
câbles électriques avant d’intervenir sur l’équipement.
Achtung! Hinweis auf Doppel-Netzkabel—bitte lesen. Um das Risiko eines
Elektroschocks zu verringern, müssen beide Netzkabel ausgestöpselt werden,
bevor die Vorrichtung gewartet wird.
Avvertenza. Avviso concernente il cavo di alimentazione doppio – leggere
attentamente. Per ridurre il rischio di elettrocuzione, scollegare entrambi i cavi
di alimentazione prima di eseguire la manutenzione o riparazioni di questo
apparecchio.
Aviso! Aviso de Cabo Elétrico Duplo - por favor, leia isto. Para reduzir o risco
de choque elétrico, desconecte ambos os cabos elétricos antes de fazer
manutenção ao equipamento.
¡Advertencia! Aviso del doble cable de alimentación - leer esto por favor.
Para reducir el riesgo de descarga eléctrica, desconecte ambos cables de
alimentación antes de dar servicio al equipo.
HDR Image Analyzer v2.0r1 66 www.aja.com
Page 67
Caution! To meet safety regulations for leakage current, connect the dual power
supplies to separate branch circuits.
¡Advertencia! Para cumplir con las normas de seguridad para la corriente de fuga,
conecte las dos fuentes de alimentación para circuitos derivados diferentes.
Attention! Pour répondre aux mesures de sécurité concernant le courant de
fuite, raccorder les sources d'alimentation doubles à des circuits de dérivation
distincts.
Warnung! Zur Erfüllung der Sicherheitsbestimmungen bezüglich Reststrom
schließen Sie bitte die zwei Netzteile an unterschiedlichen Abzweigleitungen an.
Cuidado! Para atender aos regulamentos de segurança para correntes de fuga,
conecte as fontes duplas a circuitos elétricos separados.
Attenzione! Per soddisfare le norme di sicurezza sulla corrente di perdita,
collegare i doppi alimentatori a circuiti derivati separati.
Warning! Hazardous Voltages! The safe operation of this product requires that a
protective earth connection be provided. This protective earth is provided by
the grounding conductor in the equipment's supply cord. To reduce the risk of
electrical shock to operator and service personnel, this ground conductor must
be connected to an earthed ground.
Avertissement : tensions dangereuses — Pour utiliser ce produit en toute sécurité,
il faut un raccordement à la terre. Ce raccordement s’eectue par l’intermédiaire
du connecteur de terre dans le cordon d’alimentation de l’équipement. Pour
réduire le risque d’électrocution de l’opérateur ou du personnel de maintenance,
ce cordon avec conducteur de terre doit être branché sur une prise reliée à la
terre.
Achtung! Gefährliche Spannungen — Sichere Bedienung dieses Geräts erfordert,
dass ein Schutzleiteranschluss vorgesehen wird. Dieser Schutzleiteranschluss
wird mittels der Erdungsleitung im Netzkabel der Vorrichtung vorgesehen.
Um die Gefahr eines Elektroschocks für Bedien- und Wartungspersonal zu
verringern, muss diese Erdungsleitung mit einer geerdeten Masse verbunden
werden.
Avvertenza – Alte tensioni – Il funzionamento in sicurezza di questo prodotto
richiede una presa di terra, che viene fornita dal conduttore di messa a terra
presente nel cavo di alimentazione dell’apparecchio. Per ridurre il rischio di
elettrocuzione per l’operatore e il personale di manutenzione, tale conduttore
deve essere collegato a un punto al potenziale di terra.
Advertencia de voltajes peligrosos — El funcionamiento seguro de este producto
require que se proporcione una conexión terrestre protegida. Esta protección
terrestre es proporcionada por el conductor de conexión en la tierra del cable de
alimentación del equipo. Para reducir el riesgo de descarga eléctrica al operador
y el personal de servicio, este conductor de conexión de la tierra debe ser
conectado a la misma tierra.
HDR Image Analyzer v2.0r1 67 www.aja.com
Page 68
Colorfront Copyright Notices
Freetype 2.3.9, 2.3.5
FreeType License (FTL)
Copyright © 2008 The FreeType Project (HYPERLINK "https://protect-us.mimecast.
com/s/GrHNC68zR0IWmW4i6fpI5" \t "_blank" www.freetype.org). All rights
reserved.
HYPERLINK "https://protect-us.mimecast.com/s/p4YKC73WLAhRNRBUBNmyL" \t
"_blank" http://www.freetype.org/FTL.TXT
FTGL - OpenGL font library 2.1.3
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright © 2001-2004 Henry Maddocks <HYPERLINK "mailto:[email protected].
nz" \t "_blank" [email protected]>
Copyright © 2008 Sam Hocevar <HYPERLINK "mailto:[email protected]" \t "_blank"
[email protected]>
Copyright © 2008 Sean Morrison <HYPERLINK "mailto:[email protected]" \t
"_blank" [email protected]>
HYPERLINK "https://protect-us.mimecast.com/s/SOzVC82B69ukqkytM7qV0" \t
"_blank" http://ftgl.sourceforge.net/docs/html/index.html
Inconsolata font
SIL OPEN FONT LICENSE
Version 1.1 - 26 February 2007
Created by Raph Levien using his own tools and FontForge. Copyright 2006 Raph
Levien. Released under the SIL Open Font License, HYPERLINK "https://protect-us.
mimecast.com/s/cuUpC9rLQ2hOqOwHPJLAe" \t "_blank" http://scripts.sil.org/
OFL.
Python 2.7
HYPERLINK "https://protect-us.mimecast.com/s/iiVqC0RXV9uyByAt3o0C6" \t
"_blank" BEOPEN.COM LICENSE AGREEMENT FOR PYTHON 2.0
Copyright © 2001-2019 Python Software Foundation; All Rights Reserved
HYPERLINK "https://protect-us.mimecast.com/s/laylCgJQLksByBziZVHHj" \t "_
blank" http://docs.python.org/license.html
HDR Image Analyzer v2.0r1 68 www.aja.com
Page 69
SOFTWARE LICENSE AGREEMENT
AJA VIDEO SYSTEMS, INC.
THIS IS AN AGREEMENT BETWEEN YOU AND AJA VIDEO SYSTEMS, INC. (“AJA”) THAT
GOVERNS YOUR USE OF the software ACCOMPANYING THIS LICENSE (E.G., AS installed
on the device with which this license is provided).
The “AJA Software” referenced in this Agreement includes all such software, whether
made available to you on disk, in read only memory, on any other media or in
any other form, and all updates, corrections, enhancements and new versions of
such software made available by AJA, together with all related documentation. BY
INSTALLING OR USING THE AJA SOFTWARE, YOU ARE AGREEING TO BE BOUND BY
THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF THIS
AGREEMENT, DO NOT INSTALL OR USE IT AND, IF APPLICABLE, RETURN THE AJA
SOFTWARE TO THE PLACE WHERE YOU OBTAINED IT FOR A REFUND.
1. License Grant. AJA hereby grants you a nonexclusive, personal, nonsublicenseable and limited license to install and use AJA Software on a computer or
AJA device. The foregoing license also includes the right to make copies of the AJA
Software in machine-readable form for installation and backup purposes only, and
provided that each copy you make must include all copyright or other proprietary
notices contained on the original.
2. Limitations. You may not decompile, reverse engineer, disassemble, modify, or
create derivative works of the AJA Software or any part thereof except to the extent
(if any) authorized by applicable law notwithstanding the foregoing restriction. You
may not rent, lease, lend, loan, distribute or act as a service bureau or “cloud service”
provider with respect to use of the AJA Software or any functionality thereof. THE AJA
SOFTWARE IS NOT INTENDED FOR USE IN THE OPERATION OF NUCLEAR FACILITIES,
AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL
SYSTEMS, LIFE SUPPORT MACHINES OR OTHER EQUIPMENT IN WHICH THE FAILURE OF
THE AJA SOFTWARE COULD LEAD TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL
OR ENVIRONMENTAL DAMAGE.
3. Reservation of Rights. The AJA Software is protected by law, including without
limitation copyright law. The AJA Software is licensed, not sold, to you. AJA and its
licensors reserve all rights not expressly granted to you by this Agreement. You own
the media on which the AJA Software is recorded but AJA and/or AJA's licensor(s)
retainownership of the AJA Software itself. You may not use the AJA Software for any
illegal purpose.
4. Transfer. You may make a one-time permanent transfer of all of your license
rights to the AJA Software to another person or entity, provided that: (a) you transfer
all of the AJA Software, including all its component parts, original media, printed
materials and this Agreement; (b) you do not retain any copies of the AJA Software,
including any copies stored on a computer or other device; and (c) you transfer the
AJA Software subject to this Agreement, and the person or entity receiving the AJA
Software accepts the terms and conditions of this Agreement.
5. NFR (Not for Resale) Copies and Add-On Features: Notwithstanding anything
to the contrary in this Agreement, (a) AJA Software that is labeled “Not for Resale” or
otherwise provided to you on a promotional or demonstration basis may be used only
for your demonstration, testing and evaluation purposes and may not be resold or
transferred; and (b) AJA may make available certain software components (“Add-On
Features”) under separate terms and conditions, in which case those separate terms
and conditions apply and the Add-On Features are not considered AJA Software
under this Agreement.
6. Termination. Your rights in the AJA Software are conditioned on complying
with this Agreement, and those rights (together with this Agreement) will terminate
automatically, without notice from AJA, if you fail to comply with any term(s) of this
Agreement. Upon termination of this Agreement, you must cease all use of the AJA
Software and destroy all copies, full or partial, of the AJA Software in your possession
or control.
HDR Image Analyzer v2.0r1 69 www.aja.com
Page 70
7. Limited Warranty on AJA Software. If you comply with all terms of this
Agreement and use the AJA Software in accordance with its documentation, and
you install any patches or other updates made available to the AJA Software by AJA,
AJA warrants that the AJA Software will perform substantially in accordance with its
documentation for a period of ninety (90) days from the date of your original retail
purchase. Your exclusive remedy under this warranty will be, at AJA’s option, a refund
of the purchase price of the product containing the AJA Software or an update to
or replacement of the AJA Software (or applicable component of it). THIS LIMITED
WARRANTY AND ANY IMPLIED WARRANTIES ON THE AJA SOFTWARE INCLUDING,
BUT NOT LIMITED TO, ANY WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY
QUALITY, OR OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION
TO NINETY (90) DAYS FROM THE DATE OF ORIGINAL RETAIL PURCHASE. SOME
JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG A WARRANTY LASTS,
SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
BY JURISDICTION.
8. Disclaimer of Other Warranties on Aja Software. EXCEPT FOR THE LIMITED
WARRANTY ON AJA SOFTWARE SET FORTH ABOVE, AJA AND AJA'S LICENSORS
(COLLECTIVELY REFERRED TO AS "AJA" FOR THE PURPOSES OF SECTIONS 8 AND 9)
HEREBY DISCLAIM ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE AJA
SOFTWARE, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF MERCHANTABILITY,
OF SATISFACTORY QUALITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY,
AND OF QUIET ENJOYMENT. FURTHER, AJA DOES NOT MAKE ANY WARRANTY
REGARDING NON-INFRINGEMENT OF THIRD PARTY RIGHTS. SUBJECT ONLY TO THE
LIMITED WARRANTY SET FORTH IN SECTION 7, YOU EXPRESSLY ACKNOWLEDGE
AND AGREE THAT USE OF THE AJA SOFTWARE IS AT YOUR SOLE RISK. AJA DOES NOT
WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE AJA SOFTWARE,
THAT THE AJA SOFTWARE WILL MEET YOUR REQUIREMENTS, THAT THE OPERATION
OF THE AJA SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT DEFECTS
IN THE AJA SOFTWARE WILL BE CORRECTED. NO ORAL OR WRITTEN INFORMATION
OR ADVICE GIVEN BY AJA OR AN AJA AUTHORIZED REPRESENTATIVE WILL CREATE
A WARRANTY. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED
WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER,
SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH MAY NOT APPLY TO YOU.
9. Limitation of Liability. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT
WILL AJA BE LIABLE FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL, INDIRECT
OR CONSEQUENTIAL DAMAGES OR LOST PROFITS WHATSOEVER, INCLUDING,
WITHOUT LIMITATION, DAMAGES FOR LOSS OF DATA, BUSINESS INTERRUPTION
OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR RELATED
TO YOUR USE OR INABILITY TO USE THE AJA SOFTWARE, HOWEVER CAUSED,
REGARDLESS OF THE THEORY OF LIABILITY (E.G., WHETHER UNDER CONTRACT,
TORT OR OTHERWISE) AND EVEN IF AJA HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. In no event will AJA's total liability to you for all damages
(INCLUDING WITHOUT LIMITATION BREACH OF WARRANTY) exceed the amount of
fifty dollars ($50.00). The foregoing limitations will apply even if the any remedy set
forth in this agreement fails of its essential purpose. SOME JURISDICTIONS DO NOT
ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH
MAY NOT APPLY TO YOU.
10. Export Law Assurances. You may not use or otherwise export or reexport
the AJA Software except as authorized by United States law and the laws of the
jurisdiction in which the AJA Software was obtained. In particular, but without
limitation, the AJA Software may not be exported or re-exported (a) into (or to a
national or resident of) any U.S. embargoed countries, or (b) to anyone on the U.S.
Treasury Department's list of Specially Designated Nationals or the U.S. Department
of Commerce Denied Persons List or Entity List or any similar legal designation. By
using the AJA Software, you represent and warrant that you are not located in, under
control of, or a national or resident of any such country or on any such list.
HDR Image Analyzer v2.0r1 70 www.aja.com
Page 71
11. Government End Users. The AJA Software including its documentation
is a "Commercial Item", as that term is defined at 48 C.F.R. § 2.101, consisting
of "Commercial Computer Software" and "Commercial Computer Software
Documentation", as such terms are used in 48 C.F.R. § 12.212 or 48 C.F.R. § 227.7202 (or
their successors), as applicable. Consistent with these provisions, the AJA Software
is licensed to U.S. Government end users (a) only as a Commercial Item and (b) with
only those rights as are granted to all other end users pursuant to this Agreement.
Unpublished-rights reserved under the copyright laws of the United States.
12. Controlling Law and Severability. This Agreement will be governed by and
construed in accordance with the laws of the State of California, as applied to
agreements entered into and to be performed entirely within California between
California residents. This Agreement will not be governed by the United Nations
Convention on Contracts for the International Sale of Goods, the application of which
is expressly excluded. If for any reason a court of competent jurisdiction finds any
provision, or portion thereof, to be unenforceable, the remainder of this Agreement
will continue in full force and effect.
13. Complete Agreement; Governing Language. This Agreement constitutes the
entire agreement between the parties with respect to the use of the AJA Software
licensed hereunder and supersedes all prior or contemporaneous understandings
regarding such subject matter. No amendment to or modification of this Agreement
will be binding unless in writing and signed by AJA. Any translation of this Agreement
is intended for convenience and to meet local requirements and in the event of a
dispute between the English and any non-English versions, the English version of this
Agreement will govern.
HDR Image Analyzer v2.0r1 71 www.aja.com
Page 72
Warranty and Liability Information
Limited Warranty on Hardware
AJA Video Systems, Inc. (AJA Video) warrants that the hardware product, not
including storage modules or software components, will be free from defects in
materials and workmanship for a period of three years from the date of purchase. AJA
Video warrants that the storage modules provided as part of the hardware product
will be free from defects in materials and workmanship for a period of one year from
the date of purchase. AJA Video provides a separate software warranty as part of the
license agreement applicable to software components.
If the Customer brings a valid claim under this limited warranty for a hardware
product or storage module (hereafter, a “product”) during the applicable warranty
period, AJA Video will, at its sole option and as the Customer’s sole remedy for breach
of the above warranty, provide one of the following remedies:
• Repair or facilitate the repair the product within a reasonable period of time,
free of charge for parts and labor.
• Replace the product with a direct replacement or with a product that
performs substantially the same function as the original product.
• Issue a refund of the original purchase price less depreciation to be
determined based on the age of the product at the time remedy is sought
under this limited warranty.
To obtain service under this warranty, the Customer must notify AJA Video of the
defect before expiration of the warranty period and make suitable arrangements for
the performance of service by contacting AJA Video support through the channels
set forth on the support contacts web page at https://www.aja.com/support.
Except as stated, the Customer shall bear all shipping, packing, insurance and other
costs, excluding parts and labor, to effectuate repair. Customer shall pack and ship
the defective product to a service center designated by AJA Video, with shipping
charges prepaid. AJA Video shall pay to return the product to Customer, but only
if to a location within the country in which the AJA Video service center is located.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR
LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER, SO SOME OR ALL
OF THE TERMS OF THIS PARAGRAPH MAY NOT APPLY TO YOU.
Limitation of Liability
Under no circumstances shall AJA video BE LIABLE IN ANY WAY FOR ANY LOST,
CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS,
OR FOR ANY THIRD PARTY CLAIM, IN CONNECTION WITH THE PRODUCT, WHETHER
RESULTING FROM DEFECTS IN THE PRODUCT, SOFTWARE OR HARDWARE FAILURE,
OR ANY OTHER CAUSE WHATSOEVER, EVEN IF AJA VIDEO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. AJA VIDEO’S LIABILITY IN CONNECTION WITH THE
PRODUCT SHALL UNDER NO CIRCUMSTANCES EXCEED THE PURCHASE PRICE PAID
FOR THE PRODUCT. The foregoing limitations apply even if any remedy set forth in
this LIMITED WARRANTY fails of its essential purpose. SOME JURISDICTIONS DO NOT
ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH
MAY NOT APPLY TO YOU.
Governing Law and Language; Your Rights
This limited warranty is the only warranty provided by AJA Video on the hardware
product. It supersedes all prior or contemporaneous understandings regarding such
subject matter. No amendment to or modification of this warranty will be binding
unless in writing and signed by AJA Video. The laws of the State of California, USA
will govern this warranty and any dispute arising from it. Any translation of this
HDR Image Analyzer v2.0r1 72 www.aja.com
Page 73
Agreement is intended for convenience and to meet local requirements and in the
event of a dispute between the English and any non-English versions, the English
version of this warranty will govern. This limited warranty gives you specific legal
rights and you may have other rights that vary from jurisdiction to jurisdiction, some
of which are noted above.
HDR Image Analyzer v2.0r1 73 www.aja.com
Page 74
Index
Symbols
2SI LFR and HFR Input 29
A
Additional Marker for HDR 39
AJA Support 2
Allow RDP 48
Analyzer Application 7
Analyzer Modes 15
Analyzer Scope LUT 36
Audio Level Meter 24
Audio Level Warning 40
Audio Monitoring 23
Audio Phase Meter 23
Auto Detect Options 29
Auto HDR Mode Change 30
B
Brightness Bar 20
C
Camera Log Analysis 30
Capture 29
Chassis Front View 7
Chassis Rear View 7, 8
CIE xy Gamut View 31
CIE xy Graph 20
Colorspace 28
Copy Screenshot 30
Create Setup 27
D
Delete Screenshot 30
Delete Setup 27
Display LUT 35
Display Scope LUT 36
Domain Name 41
Drop-Down Menu Navigation 14
H
Hardware Features 6
Hardware Installation 9
Hardware Overview 7
HDR Analysis 31
Histogram Color YCbCr Mode 20
Histogram Luminance Mode 19
HLG Analysis 31
Host Name 41
I
Info Page 26
Initial System Startup 10
Installation
Hardware 9
Installation Summary 9
K
Keyboard View Selection 14
L
Licensing 11
Log Data 25
Logging 37
Logs Screen
Web Interface 47
LUTs 35
M
Menu Navigation 14
Menu Reference 50
N
Network Configuration 10
Network Screen
Web Interface 48
Network Settings 40
NETWORK Tab 40
R
Rack Mounting 9
Recall 29
Remote Desktop 41
Reset Setup 28
Resolution 28
S
Safe Area Tab
Settings Screen 42
SAFE AREA Tab 41
Save Screenshot 30
Scope LUT 35
Screenshot 29
Screenshots Screen
Web Interface 46
SDR Analysis 31
Selecting Views 14
Setting Screen
QC Tab 38, 39, 40
Settings Screen 37
Safe Area Tab 42
Web Interface 45
Setup Menu 27
Setup View 27
Shipping Box Contents 9
Single Line Mode 34
Skin Tone 39
Skin Tone Line 21
Software Features 5
Software Update 10
Square Division 29
Status Screen
Web Interface 48
T
Technical Support 2
Timecode on Image 22
Transport 29
F
False Color 33
Features
Hardware 6
Software 5
Firmware Screen
Web Interface 49
Framing Guides 22
G
Gamut Bar 20
Gamut Mode 20
Gamut Warning 39
GUI HDR Mode 38
GUI Overview 12
GUI Tab 38
HDR Image Analyzer v2.0r1 74 www.aja.com
O
Open Setup 27
Overview
GUI 12
Hardware 7
Product 5
P
Password 41
Pixel Picker 25, 34
Pixel Picker Mode 34
Product Overview 5
Q
QC Tab 38
Setting Screen 38, 39, 40
V
Vectorscope Aid 22, 40
Vectorscope Mode
75% 21
100% 21
Video Menu 28
View 12
View Setup 27
W
Waveform Color Mode 17
Waveform Lumi Color Mode 16
Waveform Luminance Mode 16
Waveform RGB Color Mode 17
Waveform RGB Mode 18
Waveform YCbCr Mode 18
Page 75
Waveform YRGB Mode 19
Web Interface
Firmware Screen 49
Logs Screen 47
Network Screen 48
Screenshots Screen 46
Settings Screen 45
Status Screen 48
Web Interface Description 43
White Point Compensation 33
Y
YCbCr Matrix 32
HDR Image Analyzer v2.0r1 75 www.aja.com
Loading...
