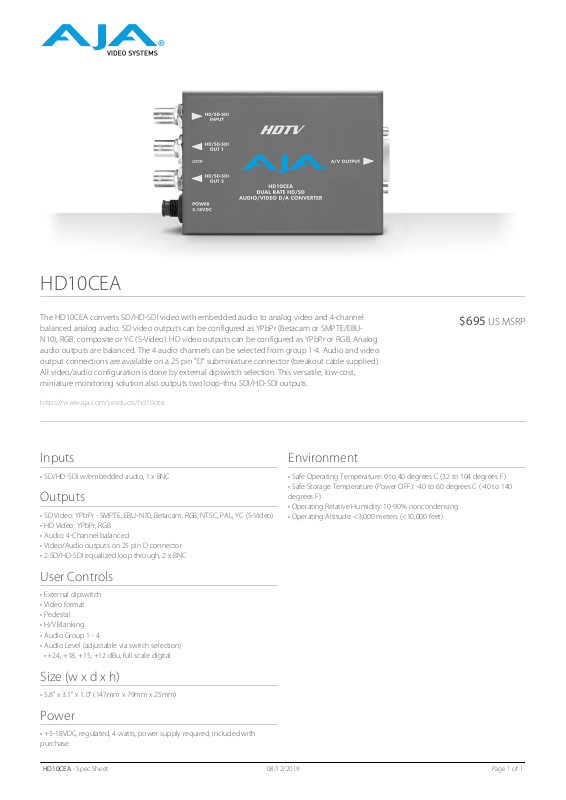

AJA HD10CEA Specifications

HD10CEA

The HD10CEA converts SD/HD-SDI video with embedded audio to analog video and 4-channel
balanced analog audio. SD video outputs can be configured as YPbPr (Betacam or SMPTE/EBU­N10), RGB, composite or YC (S-Video). HD video outputs can be configured as YPbPr or RGB. Analog
audio outputs are balanced. The 4 audio channels can be selected from group 1-4. Audio and video
output connections are available on a 25 pin "D" subminiature connector (breakout cable supplied).
All video/audio configuration is done by external dipswitch selection. This versatile, low-cost,
miniature monitoring solution also outputs two loop-thru SDI/HD-SDI outputs.

https://www.aja.com/products/hd10cea

Inputs

• SD/HD-SDI w/embedded audio, 1 x BNC

Outputs

• SD Video: YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL, YC (S-Video)

• HD Video: YPbPr, RGB

• Audio: 4-Channel balanced

• Video/Audio outputs on 25 pin D connector

• 2 SD/HD-SDI equalized loop through, 2 x BNC

Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)

• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140
degrees F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)

User Controls

$695 US MSRP

• External dipswitch

• Video format

• Pedestal

• H/V Blanking

• Audio Group 1 - 4

• Audio Level (adjustable via switch selection)

• +24, +18, +15, +12 dBu, full scale digital

Size (w x d x h)

• 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)

Power

• +5-18VDC, regulated, 4 watts, power supply required, included with
purchase

HD10CEA - Spec Sheet

08/12/2019 Page 1 of 1
