HD10C2 Mini-Converter

HD/SD Serial Digital to Analog

Installation & Operation Guide

Version 1.0r2
Published: July 3, 2014

Table of Contents

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Contacting Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Simplified Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Video Output Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

User Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 2: Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

HD VGA MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Internal Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Appendix A: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Appendix B: Safety and Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Federal Communications Commission (FCC) Compliance Notices . . . . . . . . . . . . . . . . . . 10

Class A Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

FCC Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Canadian ICES Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

European Union and European Free Trade Association (EFTA)

Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Korean KCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Taiwan Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Japanese Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Recycling Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Translated Warning and Caution Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Before Operation Please Read These Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

HD10C2 Mini-Converter v1.0r2 www.aja.com

2

Notices

Trademarks

AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered
trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks
of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™,
Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™ and
V2Digital™ are trademarks of AJA Video Systems, Inc.

AirPort, Apple, Apple logo, AppleShare, AppleTalk, FireWire, iPod, iPod touch, Mac and
Macintosh are registered trademarks of Apple Inc. Final
QuickTime

Avid, Avid DNxHD and Media Composer are registered trademarks of Avid Technology,
Inc.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing, LLC.

DVI is a registered trademark of DDWG.

logo are trademarks of Apple Inc.

Cut Pro, QuickTime and

Copyright

Contacting Support

Telephone: [phone]

FAX : [phone]

Web: http://www.aja.com

Support Email: [email protected]

TASCAM is a registered trademark of TEAC Corporation.

All other trademarks are the property of their respective holders.

Copyright © 2014 AJA Video Systems, Inc. All rights reserved. All information in this
manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.

When calling for support, have all information at hand prior to calling.

To contact AJA for sales or support, use any of the following methods:

Sales Email: [email protected]

HD10C2 Mini-Converter v1.0r2 www.aja.com

3

Chapter 1: Introduction

Overview

Features

The HD10C2 is a high-quality 10-bit HD converter that’s “dual-rate”—and works with
both HD-SDI and SD SDI inputs. For HD-SDI inputs, the HD10C2 outputs full bandwidth
HD component or “VGA” style RGBHV video. For SD-SDI inputs, component or composite
SD outputs are supported. When connected to a multi-format monitor like the Sony
20L5, the HD10C2 will automatically provide an image from almost any HD or SD input
format. The HD10C2 also features 2 equalized HD/SD SDI outputs.

• High-Quality 10-bit Dual Rate HD/SD D/A Conversion

• Full Bandwidth HD Analog RGB or YPbPr Output (HD input)

• Component/Composite SD Output (SD input)

• 2 Equalized Loop-Thru HD-SDI/SDI Outputs

• 5 wire RGBHV VGA style HD output

• HD Sync Selectable Between Bi-level and Tri-Level

• 4:3 Safe Area Graticule (HD)

• Uses universal input +5V power supply AJA model DWP-U-R1 (included)

• External Dip Switch Configuration

HD10C2 Mini-Converter v1.0r2 www.aja.com

4

Simplified Block Diagram

HD-SDI Input

HD-SDI Loop

Output

Configuration

Determined by
DIP switch on
other side of

Converter

Output 1

BNC

Connects to Converter

Output Connector for
HD-RGB or YPbPr Video

Connects to Converter
Output Connector for
VGA Video

BNCs for HD-RGB
or YPbPr equipment

HD10C2 Component Video Cable and HD15 SVGA Adapter

HD-SDI Loop

Output 2

+ 5 VDC

Power

Input

D-Connector

Cable EQ

HD-SDI

Input

De-serializer

D/A

Conversion

H Drive

V Drive

Y G

Pb B

Pr R

(Output is selected by DIP switch)

HD RGB or YPbPr Outputs
(selected by DIP switch)

I/O Connections

DA Outputs

HD-SDI Out 1

HD-SDI Out 2

HD10C2 Mini-Converter v1.0r2 www.aja.com

5

Video Output Connector

User Controls

The video output connector is a 13W3 D-sub with the following pinouts:

Table 1. Video Output Connector Pinouts

Pin Description

1 no connection
2 V DRIVE
3 no connection
4 GROUND
5 H DRIVE
6 - 9 no connection
10 GROUND
A1 RED / Pr Video/ C
A2 GREEN / Y Video / Composite
A3 BLUE / Pb Video / Y

The user interface for the HD10C2 is an 8-switch DIP accessible through a cut-out in the
bottom of the unit, and an internal jumper block accessed by removing the converter’s
cover (secured by 4 screws).

Installation

Use the jumper to configure HD Sync, if necessary. Then use the DIP switches to
configure the converter.

Factory default settings are internal jumper installed (HD uses Tri-level Sync), and all the
DIP switches in the leftmost position. The exact function of the jumper settings and each
DIP switch are described in

Typically, HD10C2 installation consists of the following:

1. Disconnect +5VDC from the converter.

2. If you wish to operate the HD10C2in HD with Bi-level Sync, open the case and set the

internal jumper as required.

3. Configure the DIP switches for the desired settings.

4. Connect external devices to the converter BNCs and breakout cable or VGA adapter.

5. Apply power to the converter.

“Operation” on page 7.

HD10C2 Mini-Converter v1.0r2 www.aja.com

6

Chapter 2: Operation

DIP Switches

LEFT RIGHT

DIP Switches

DIP switches on the back of the unit are used to configure output formats, and enable/
disable video sync and graticule.

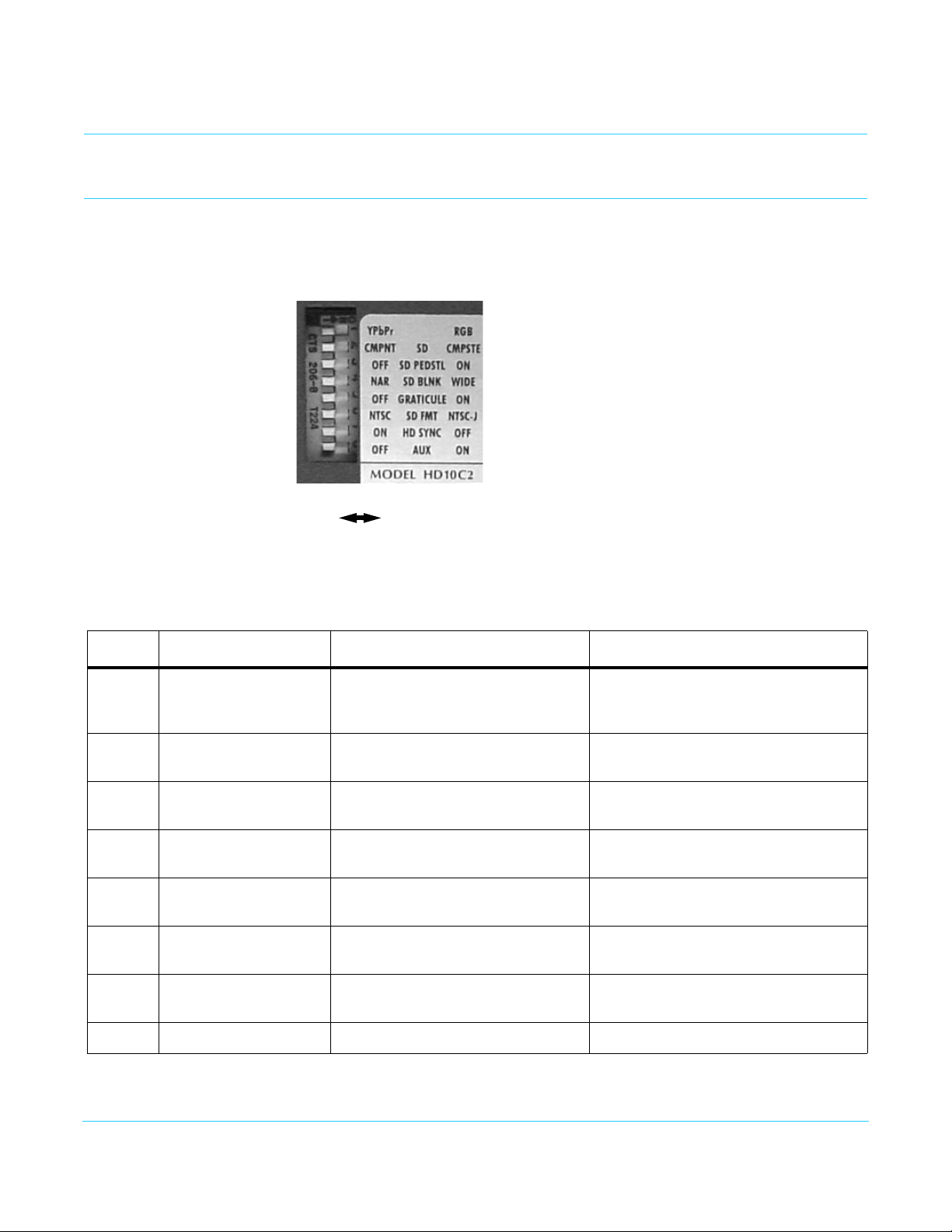

Figure 1. HD10C2 DIP Switches and Label.

DIP Switch Settings The combination of switch settings determines the overall operation of the HD10C2.

Table 1. HD10C2 DIP Switch Setting Descriptions

SWITCH FUNCTION DIP Set LEFT (default) DIP Set RIGHT

1 Component Video

Output Format

2 SD Output Format: COMPONENT:

3 SD Pedestal OFF:

4 SD Blanking NARROW:

5 Graticule:

(HD Mode 4:3 Safe Area)

6 SD Format NTSC:

7 HD Sync ON:

YPbPr:
Selects YPbPr Component output
(YPbPr)

Selects Component output (SD Input)

Disable pedestal (SD Input)

Select narrow blanking

OFF:
Disable graticule

(SD Input)

Enable HD Sync

RGB:
Selects RGB Component output

COMPOSITE:
Selects Composite output (SD Input)

ON:
Enable pedestal (SD Input)

WIDE:
Selects wide blanking

ON:
Enable graticule

NTSCJ:
Selects Japan’s NTSCJ format (SD Input)

OFF:
Disable HD Sync (remove sync on RGB)

8 Aux Not currently used

HD10C2 Mini-Converter v1.0r2 www.aja.com

7

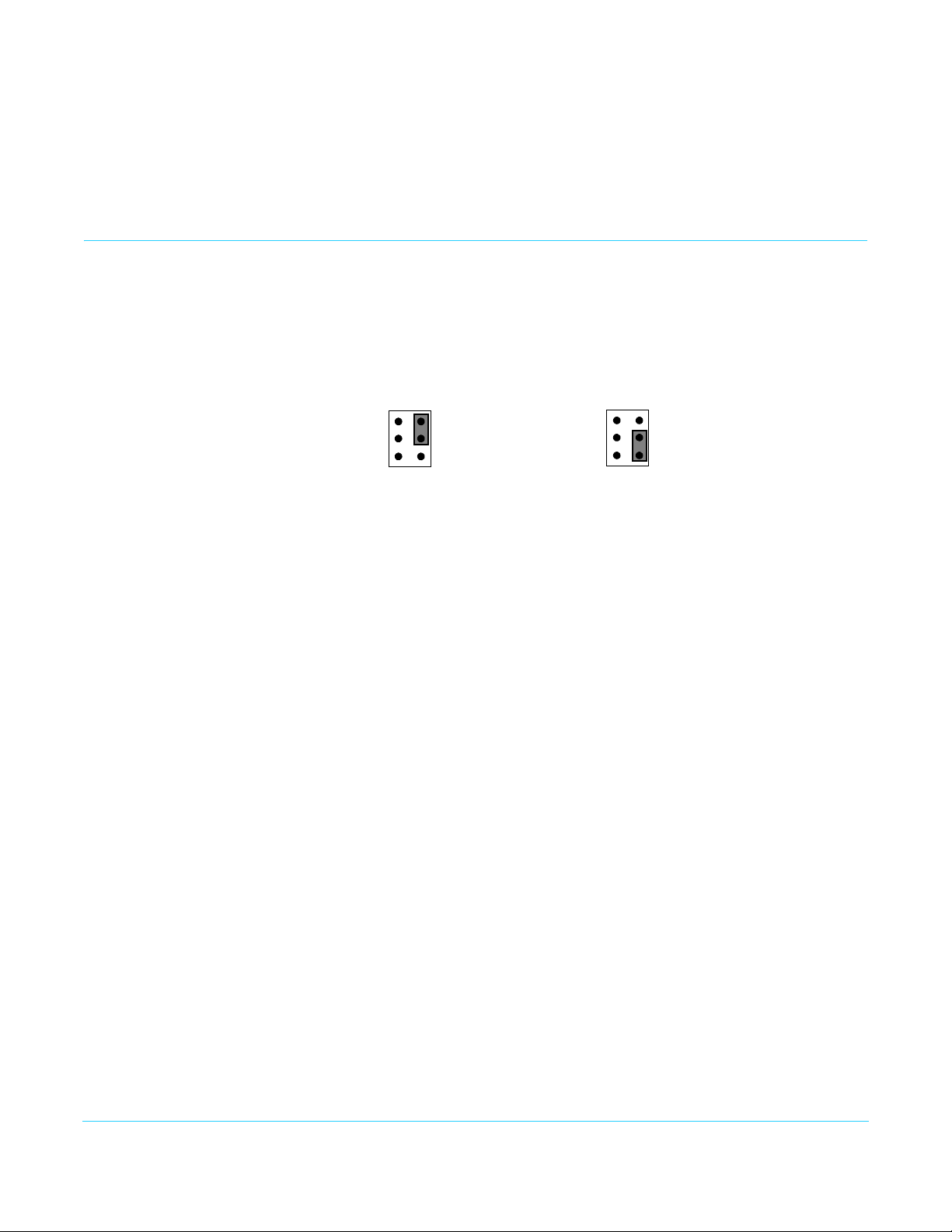

0

1

S1 S2

0

1

S1 S2

S2 Set
For
Tri-level
Sync

S2 Set
For
Bi-level
Sync

HD VGA MODE For HD VGA mode use the supplied 15 pin D adapter and make the following DIP switch

settings:

•S1 = RGB (right)

• S7 = HD SYNC OFF (right)—Note: only certain monitors require no sync on video.

Internal Jumper

An internal jumper inside the HD10C2 case allows you to select between bi and tri level
sync. To set the jumper, remove the four phillips screws securing the case cover
(dipswitch side) and locate the jumper in the middle of the circuit board (see illustration
below). Placing the internal jumper "S2" in the "0" position provides tri-level sync on the
HD output; alternatively, placing it in the "1" position allows for bi-level sync on HD
output. SD output is always bi-level. Note: jumper S1 is not used.

HD10C2 Mini-Converter v1.0r2 www.aja.com

8

Appendix A: Specifications

Formats • 1080i @ 50/59.94/60 Hz

• 1080p sf @ 23.98/24/25/29.97/30 Hz (displayed as interlaced)

• 1035i @ 59.94/60 Hz

• 720p @ 59.94/60 Hz

• 525i @ 59.94 Hz

•625i @ 50 Hz

Input Selection Automatic

Video Input HD-SDI/SDI, SMPTE-259/292/296

Input Equalization 100/300 meter 1694 cable (SD/HD)

SDI Outputs HD-SDI/SDI, active input loop, equalizing

Video Output: HD:YPbPr, RGB

SD: YPbPr, RGB (component mode)

Composite/YC (composite mode)

D/A converters: 12 bits

Sync Bi-level, Tri-level, H/V drive

2T K factor < 1% (Y)

Frequency Response • Y +/ -.5db to 30 MHz

• C +/- .25db to 15 MHz

Y/C delay < 2 ns

Power Uses AJA Power Supply model DWP-U-R1 (included)

• 100-240V, 50/60Hz Universal Input

• +5V DC regulated, 7.5 watt capacity

Size 147 x 79 x 25 mm

Table 2. Horizontal Scan Rates

Format H ScanRate

1080i 59.94 / 60 Hz 33.75 Khz

1080i 50 28.125 Khz (see note below)

1080p sf 23.98 / 24 Hz 27.000 Khz (see note below)

720p 59.94 / 60 Hz 45.000 Khz

NOTE: Most VGA monitors are not compatible with a Horizontal scan rate below 30 Khz (including

the SONY GDM-W900, a popular HD monitor). The Sony 20L5 and 14L5 are compatible with
all formats supported on the HD10C2.

HD10C2 Mini-Converter v1.0r2 www.aja.com

9

Appendix B: Safety and Compliance

Federal Communications Commission (FCC) Compliance Notices

Class A Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

Canadian ICES Statement

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class A limits for radio-noise emissions from a
digital apparatus as set out in the Radio Interference Regulations of the Canadian
Department of Communications. This Class A digital apparatus complies with Canadian
ICES-003.

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils
numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du
ministère des Communications du Canada. Cet appareil numérique de la Classe A est
conforme à la norme NMB-003 du Canada.

HD10C2 Mini-Converter v1.0r2 www.aja.com

10

European Union and European Free Trade Association (EFTA) Regulatory Compliance

This equipment may be operated in the countries that comprise the member countries
of the European Union and the European Free Trade Association. These countries, listed
in the following paragraph, are referred to as The European Community throughout this
document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA,
LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA,
SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY,
SWITZERLAND

Declaration of Conformity

Emissions:: EN 55103-1: 1996

Immunity:: EN 55103-2: 1996

Marking by this symbol indicates compliance with the Essential Requirements of the EMC
Directive of the European Union 2004/108/EC.

Safety: CB- IEC 60065:2001 + A1:2005

NRTL - UL 60065:2003 R11.06, CSA C22.2 NO. 60065:2003 + A1:06

GS - EN 60065:2002 + A1

Additional licenses issued for specific countries available on request.

EN61000-3-2:2006, EN61000-3-3:1995 +A1:2001 +A2:2005

EN61000-4-2:1995 + A1:1999 + A2:2001, EN61000-4-3:2006, EN61000-4-4:2004,

EN 61000-4-5: 2005, EN 610004-6:2007, EN61000-4-11:2004

The product is also licensed for additional country specific standards as required for the
International Marketplace.

The product is also licensed for additional country specific standards as required for the
International Marketplace.

Warning!

This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case, the user may be required to take appropriate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen
können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen Fällen
der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.

Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce
produit risque de créer des interférences radioélectriques, il appartiendra alors à
l?utilisateur de prendre les mesures spécifiques appropriées.

HD10C2 Mini-Converter v1.0r2 www.aja.com

11

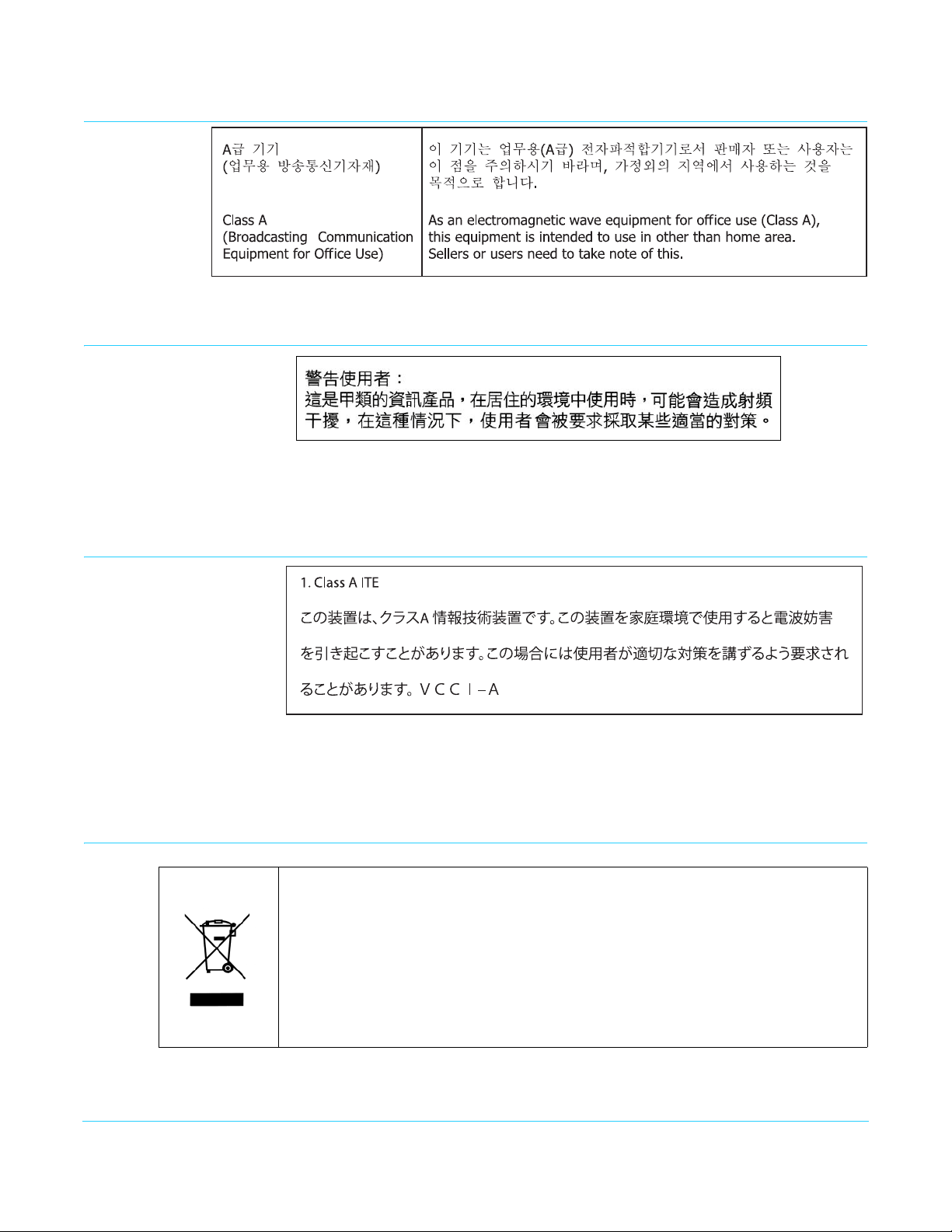

Korean KCC Compliance Statement

Taiwan Compliance Statement

This is a Class A product based on the standard of the Bureau of Standards, Metrology
and Inspection (BSMI) CNS 13438, Class A.

Japanese Compliance Statement

This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2008.04). If
this equipment is used in a domestic environment, radio interference may occur, in
which case, the user may be required to take corrective actions.

Recycling Notice

This symbol on the product or its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to
dispose of your waste equipment by handing it over to a designated collection point
for the recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help conserve
natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off your
waste for recycling, please contact your local authority, or where you purchased your
product.

HD10C2 Mini-Converter v1.0r2 www.aja.com

12

Translated Warning and Caution Messages

The following caution statements, warning conventions, and warning messages apply to
this product and manual.

Before Operation Please Read These Instructions

War ning!

Read and follow all warning notices and instructions marked on the product or
included in the documentation.

Avertissement ! Lisez et conformez-vous à tous les avis et instructions
d'avertissement indiqués sur le produit ou dans la documentation.

War nung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf dem
Produkt angebracht oder in der Dokumentation enthalten sind.

¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el
producto o incluidas en la documentación.

Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na
documentação.

Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi
nella documentazione.

War ning!

Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement avec

un tissu sec..
War nung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem

trockenen Tuch säubern.
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un

paño seco.
Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano

seco.
Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un

panno asciutto.

HD10C2 Mini-Converter v1.0r2 www.aja.com

13

War ning!

Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.

Avertissement ! Ne bloquez aucune ouverture de ventilation. Suivez les instructions
du fabricant lors de l'installation.

War nung! Die Lüftungsöffnungen dürfen nicht blockiert werden. Nur gemäß den
Anweisungen des Herstellers installieren.

¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de
acuerdo con las instrucciones del fabricante.

Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as
instruções do fabricante.

Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le
istruzioni del fornitore.

War ning!

Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

Avertissement ! N'installez pas l'appareil près d'une source de chaleur telle que des
radiateurs, des bouches d'air de chauffage, des fourneaux ou d'autres appareils
(amplificateurs compris) qui produisent de la chaleur.

War nung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern, Öfen
oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern) aufstellen.

¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros de
calor, estufas u otros aparatos (incluidos amplificadores) que generan calor.

Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de
calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor.

Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda,
stufe o altri apparecchi (amplificatori compresi) che emettono calore.

HD10C2 Mini-Converter v1.0r2 www.aja.com

14

War ning!

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.

Avertissement! La sécurité de la prise polarisée ou de la prise de type mise à la terre
ne doit en aucun cas être empêchée de fonctionner. Une prise polarisée a deux
broches, l'une étant plus large que l'autre. Une prise de type mise à la terre a deux
broches et une troisième broche pour la mise à la terre. La broche large ou la
troisième broche sont fournies pour votre sécurité. Si la prise fournie ne s'insère pas
dans votre prise femelle, consultez un électricien pour le remplacement de la prise
femelle obsolète.

War nung! Der Sicherheitszweck des gepolten bzw. Schukosteckers ist zu
berücksichtigen. Ein gepolter Stecker verfügt über zwei Pole, von denen einer breiter
als der andere ist. Ein Schukostecker verfügt neben den zwei Polen noch über einen
dritten Pol zur Erdung. Der breite Pol bzw. der Erdungspol dienen der Sicherheit.
Wenn der zur Verfügung gestellte Stecker nicht in Ihren Anschluss passt, konsultieren
Sie einen Elektriker, um den veralteten Anschluss zu ersetzen.

¡Advertencia! No eche por tierra la finalidad del tipo de enchufe polarizado con
conexión a tierra. Un enchufe polarizado tiene dos espigas, una más ancha que la
otra. Un enchufe con conexión a tierra tiene dos espigas iguales y una tercera espiga
que sirve para la conexión a tierra. La expiga ancha, o la tercera espiga, sirven para su
seguridad. Si el enchufe suministrado no encaja en el tomacorriente, consulte con un
electricista para reemplazar el tomacorriente obsoleto.

Aviso! Não anule a finalidade da segurança da ficha polarizada ou do tipo ligação
terra. Uma ficha polarizada tem duas lâminas sendo uma mais larga do que a outra.
Uma ficha do tipo de ligação à terra tem duas lâminas e um terceiro terminal de
ligação à terra. A lâmina larga ou o terceiro terminal são fornecidos para sua
segurança. Se a ficha fornecida não couber na sua tomada, consulte um electricista
para a substituição da tomada obsoleta.

Avviso! Non compromettere la sicurezza della spina polarizzata o con messa a terra.
Una spina polarizzata ha due spinotti, di cui uno più largo. Una spina con messa a
terra ha due spinotti e un terzo polo per la messa a terra. Lo spinotto largo o il terzo
polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa
di corrente, contattare un elettricista per la sostituzione della presa obsoleta.

HD10C2 Mini-Converter v1.0r2 www.aja.com

15

War ning!

Since the Mains plug is used as the disconnection for the device, it must remain
readily accessible and operable.

Avertissement! Puisque la prise principale est utilisée pour débrancher l'appareil, elle
doit rester aisément accessible et fonctionnelle.

War nung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich
und funktionsfähig sein.

¡Advertencia! Puesto que el enchufe de la red eléctrica se utiliza como dispositivo de
desconexión, debe seguir siendo fácilmente accesible y operable.

Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo,
esta deve manter-se prontamente acessível e funcional.

Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione,
deve rimane prontamente accessibile e operabile.

War ning!

Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the device.

Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche pas
dessus ou qu'on le pince, en particulier au niveau des prises mâles, des réceptacles de
convenance, et à l'endroit où il sort de l'appareil.

War nung! Vermeiden Sie, dass auf das Netzkabel getreten oder das Kabel geknickt
wird, insbesondere an den Steckern, den Steckdosen und am Kabelausgang am
Gerät.

¡Advertencia! Proteja el cable de energía para que no se le pise ni apriete, en especial
cerca del enchufe, los receptáculos de conveniencia y el punto del que salen del
equipo.

Aviso! Proteja o cabo de alimentação de ser pisado ou de ser comprimido
particularmente nas fichas, em tomadas de parede de conveniência e no ponto de
onde sai do dispositivo.

Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e
che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in
cui esce dal dispositivo.

HD10C2 Mini-Converter v1.0r2 www.aja.com

16

War ning!

Unplug this device during lightning storms or when unused for long periods of time.
Avertissement! Débranchez cet appareil pendant les orages avec éclairsou s'il est

inutilisé pendant de longues périodes.
War nung! Das Gerät ist bei Gewitterstürmen oder wenn es über lange Zeiträume

ungenutzt bleibt vom Netz zu trennen.
¡Advertencia! Desenchufe este dispositivo durante tormentas eléctricas o cuando no

se lo utilice por largos periodos del tiempo.
Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é

utilizado durante longos períodos de tempo.
Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal

produttore, quali il treppiedi e l'esoscheletro.

War ning!

Refer all servicing to qualified service personnel. Servicing is required when the
device has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the device, the device has been
exposed to rain or moisture, does not operate normally, or has been dropped.

Avertissement ! Référez-vous au personnel de service qualifié pour tout entretien.
L'entretien est exigé quand l'appareil a été endommagé de quelque manière que ce
soit, par exemple lorsque le cordon d'alimentation ou la prise sont endommagés, que
du liquide a été versé ou des objets sont tombés dans l'appareil, que l'appareil a été
exposé à la pluie ou à l'humidité, ne fonctionne pas normalement ou est tombé.

War nung! Das Gerät sollte nur von qualifizierten Fachkräften gewartet werden. Eine
Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde, wie bei
beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder Objekte in das
Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt wurde, nicht
ordnungsgemäß funktioniert oder fallen gelassen wurde.

¡Advertencia! Consulte al personal calificado por cuestiones de reparación. El servicio
de reparación se requiere cuando el dispositivo ha recibido cualquier tipo de daño,
por ejemplo cable o espigas dañadas, se ha derramado líquido o se han caído objetos
dentro del dispositivo, el dispositivo ha sido expuesto a la lluvia o humedad, o no
funciona de modo normal, o se ha caído.

Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência
qualificado. A prestação de serviços de manutenção é exigida quando o dispositivo
foi danificado mediante qualquer forma, como um cabo de alimentação ou ficha que
se encontra danificado/a, quando foi derramado líquido ou caíram objectos sobre o
dispositivo, quando o dispositivo foi exposto à chuva ou à humidade, quando não
funciona normalmente ou quando foi deixado cair.

Avviso! Fare riferimento al personale qualificato per tutti gli interventi di assistenza.
L'assistenza è necessaria quando il dispositivo è stato danneggiato in qualche modo,
ad esempio se il cavo di alimentazione o la spina sono danneggiati, è stato rovesciato
del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo
è stato esposto a pioggia o umidità, non funziona correttamente o è caduto.

HD10C2 Mini-Converter v1.0r2 www.aja.com

17

War ning!

This device is a Class A product. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case users will be required to take
whatever measures may be necessary to correct the interference at their own
expense.

Attention! Le périphérique est un produit de Classe A. Le fonctionnement de cet
équipement dans une zone résidentielle risque de causer des interférences nuisibles,
auquel cas l'utilisateur devra y remédier à ses propres frais.

Achtung! Dies ist ein Gerät der Klasse A. Bei Einsatz des Geräts in Wohngebieten kann
es Störungen des Radio- und Fernsehempfangs verursachen. In diesem Fall muss der
Benutzer alle notwendigen Maßnahmen ergreifen, die möglicherweise nötig sind, um
die Störungen auf eigene Rechnung zu beheben.

¡Precaución! Este es un producto clase A. El uso de este equipo en áreas residenciales
puede causar interferencias nocivas, en cuyo caso, se requerirá que los usuarios
tomen cualquier medida necesaria para corregir la interferencia por cuenta propia.

Cuidado! Este dispositivo é um produto Classe A. Operar este equipamento em uma
área residencial provavelmente causará interferência prejudicial; neste caso, espera­se que os usuários tomem as medidas necessárias para corrigir a interferência por sua
própria conta.

Attenzione! Questo dispositivo è un prodotto di Classe A. Il funzionamento di questo
apparecchio in aree residenziali potrebbe causare interferenze dannose, nel cui caso
agli utenti verrà richiesto di adottare tutte le misure necessarie per porre rimedio alle
interferenze a proprie spese.

War ning!

Do not open the chassis. There are no user-serviceable parts inside. Opening the
chassis will void the warranty unless performed by an AJA service center or licensed
facility.

Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne
peut être réparé par l’utilisateur. La garantie sera annulée si le châssis est ouvert par
toute autre personne qu’un technicien d’un centre de service ou d’un établissement
agréé AJA.

War nung! Öffnen Sie das Gehäuse nicht. Keine der Geräteteile können vom Benutzer
gewartet werden. Durch das Öffnen des Gehäuses wird die Garantie hinfällig, es sei
denn, solche Wartungsarbeiten werden in einem AJA-Service-Center oder einem
lizenzierten Betrieb vorgenommen.

¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el
usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro de
servicio AJA o en un local autorizado.

Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita
manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura
seja realizada por uma central de serviços da AJA ou por um local autorizado.

Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
L’apertura dello chassis invaliderà la garanzia se non viene effettuata da un centro
ufficiale o autorizzato AJA.

HD10C2 Mini-Converter v1.0r2 www.aja.com

18

War ning!

Disconnect the external AC power supply line cord(s) from the mains power before
moving the unit.

Avertissement! Retirez le ou les cordons d’alimentation en CA de la source
d’alimentation principale lorsque vous déplacez l’appareil.

War nung! Trennen Sie die Wechselstrom-Versorgungskabel vom Netzstrom, bevor
Sie das Gerät verschieben.

¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s)
de la fuente de alimentación CA tipo brick.

Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a
unidade.

Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità.

HD10C2 Mini-Converter v1.0r2 www.aja.com

19

Warranty Information

Limited Warranty

AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in

materials and workmanship for a period of five years from the date of purchase. If a
product proves to be defective during this warranty period, AJA Video, at its option, will
either repair the defective product without charge for parts and labor, or will provide a
replacement in exchange for the defective product.

In order to obtain service under this warranty, you the Customer, must notify AJA Video
of the defect before the expiration of the warranty period and make suitable
arrangements for the performance of service.The Customer shall be responsible for
packaging and shipping the defective product to a designated service center nominated
by AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the
product to the Customer if the shipment is to a location within the country in which the
AJA Video service center is located. Customer shall be responsible for paying all shipping
charges, insurance, duties, taxes, and any other charges for products returned to any
other locations.

This warranty shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. AJA Video shall not be obligated to
furnish service under this warranty a) to repair damage resulting from attempts by
personnel other than AJA Video representatives to install, repair or service the product,
b) to repair damage resulting from improper use or connection to incompatible
equipment, c) to repair any damage or malfunction caused by the use of non-AJA Video
parts or supplies, or d) to service a product that has been modified or integrated with
other products when the effect of such a modification or integration increases the time
or difficulty of servicing the product.

THIS WARRANTY IS GIVEN BY AJA VIDEO IN LIEU OF ANY OTHER WARRANTIES, EXPRESS
OR IMPLIED. AJA VIDEO AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AJA VIDEO’S
RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND
EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR ANY INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER AJA VIDEO OR
THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

HD10C2 Mini-Converter v1.0r2 www.aja.com

20
