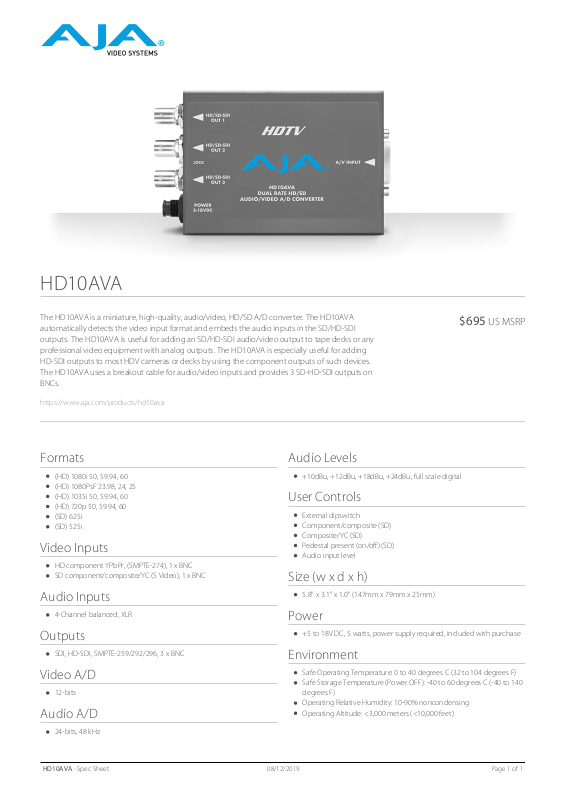

HD10AVA
The HD10AVA is a miniature, high-quality, audio/video, HD/SD A/D converter. The HD10AVA
automatically detects the video input format and embeds the audio inputs in the SD/HD-SDI
outputs. The HD10AVA is useful for adding an SD/HD-SDI audio/video output to tape decks or any
professional video equipment with analog outputs. The HD10AVA is especially useful for adding
HD-SDI outputs to most HDV cameras or decks by using the component outputs of such devices.
The HD10AVA uses a breakout cable for audio/video inputs and provides 3 SD-HD-SDI outputs on
BNCs.
https://www.aja.com/products/hd10ava
Formats
(HD) 1080i 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25
(HD) 1035i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i
(SD) 525i
Video Inputs
HD component YPbPr, (SMPTE-274), 1 x BNC
SD component/composite/YC (S Video), 1 x BNC
Audio Levels
+10dBu, +12dBu, +18dBu, +24dBu, full scale digital
User Controls
External dipswitch
Component/composite (SD)
Composite/YC (SD)
Pedestal present (on/off) (SD)
Audio input level
Size (w x d x h)
$695 US MSRP
Audio Inputs
4-Channel balanced, XLR
Outputs
SDI, HD-SDI, SMPTE-259/292/296, 3 x BNC
Video A/D
12-bits
Audio A/D
24-bits, 48 kHz
HD10AVA - Spec Sheet
5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Power
+5 to 18V DC, 5 watts, power supply required, included with purchase
Environment
Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140
degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
08/12/2019 Page 1 of 1
