XR-EM70
K
XR-EM71
EZ
SERVICE MANUAL
COMPACT DISC
STEREO SYSTEM
COMPACT
DISC
XR-EM70
XR-EM71
This Service Manual is the Revision Publishing and replaces
Simple Manual of XR-EM70 <K>/ 71 <EZ>, (S/M Code No. 09-018-449-6T1).
CX-LEM70
CX-LEM71
BASIC TAPE MECHANISM : AZM-1 A4NM
BASIC CD MECHANISM : 3ZG-3 E13NM
SPEAKERSYSTEM
SX-LEM70
REMOTE
CONTROLLER
RC-BAT15
S/M Code No. 09-019-449-6R1
REVISION
DATA
TABLE OF CONTENTS
SPECIFICATIONS .............................................................................................................................................................. 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ......................................................................4
ELECTRICAL MAIN PARTS LIST ..............................................................................................................................5 ~ 9
TRANSISTOR ILLUSTRATION........................................................................................................................................ 10
WIRING 1 (MAIN / PHONE / OPTICAL) ......................................................................................................................... 11
SCHEMATIC DIAGRAM 1 (MAIN 1 / 2 / PHONE / OPTICAL / HEAD) .......................................................................... 12
SCHEMATIC DIAGRAM 2 (MAIN 2 / 2 : AMP SECTION) ............................................................................................13
WIRING 2 (FRONT) ....................................................................................................................................................... 14
WIRING 3 (FL) ............................................................................................................................................................... 15
SCHEMATIC DIAGRAM 3 (FRONT / FL / DECK / FRAME / DRIVE) ............................................................................16
WIRING 4 (CD / CD DRIVE / CD LOAD) ..................................................................................................................17

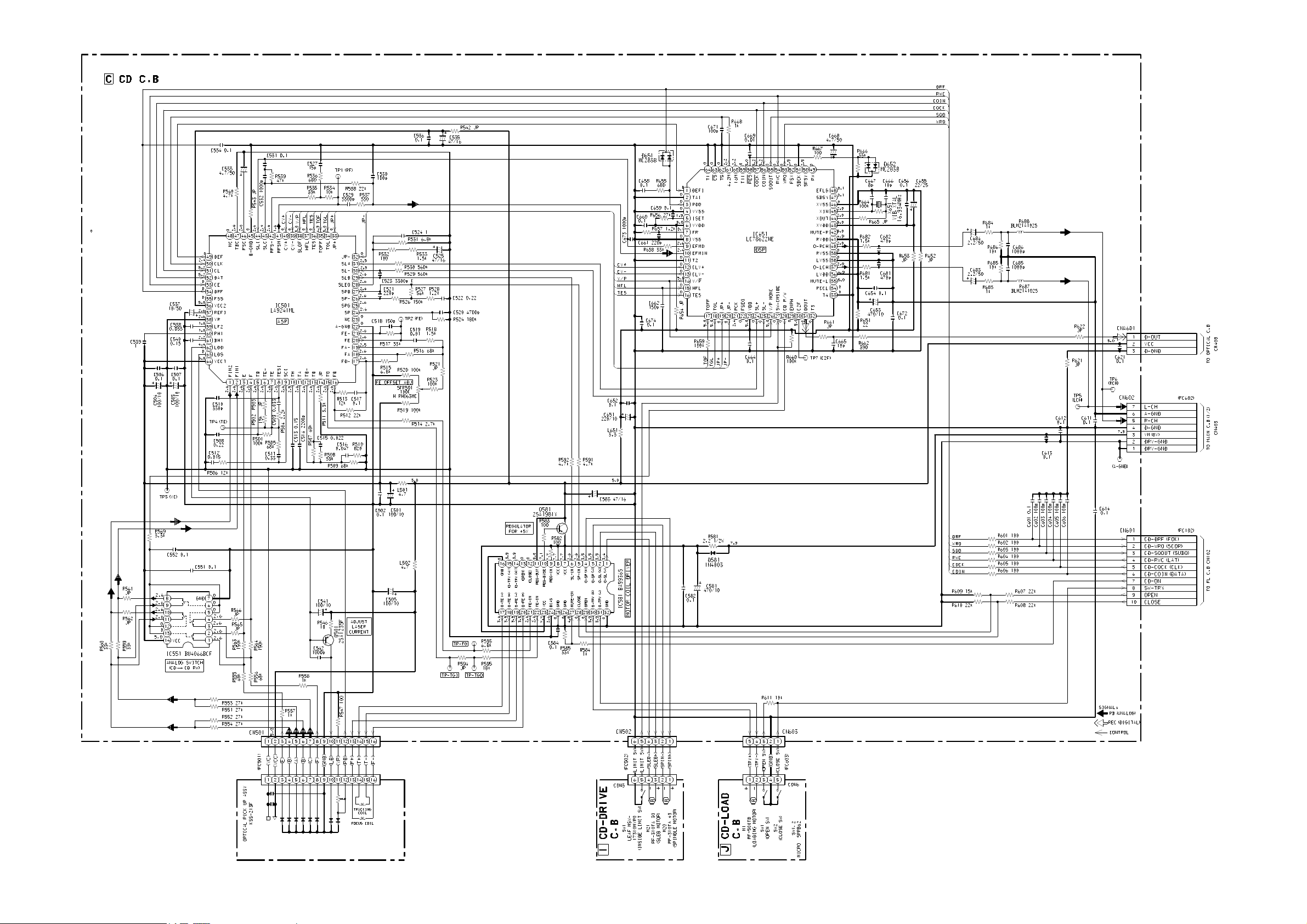

SCHEMATIC DIAGRAM 4 (CD / CD DRIVE / CD LOAD) ........................................................................................ 18
WIRING 5 (TUNER) ....................................................................................................................................................... 19
SCHEMATIC DIAGRAM 5 (TUNER) .............................................................................................................................20
WIRING 6 (PT) ............................................................................................................................................................... 21
SCHEMATIC DIAGRAM 6 (PT) ..................................................................................................................................... 22
WIRING 7 (DECK / FRAME / DRIVE / HEAD)................................................................................................................ 23
IC BLOCK DIAGRAM ................................................................................................................................................24, 25
FL (HNA 11MS25) GRID ASSIGNMENT AND ANODE CONNECTION.................................................................... 26
IC DESCRIPTION ....................................................................................................................................................27 ~ 32

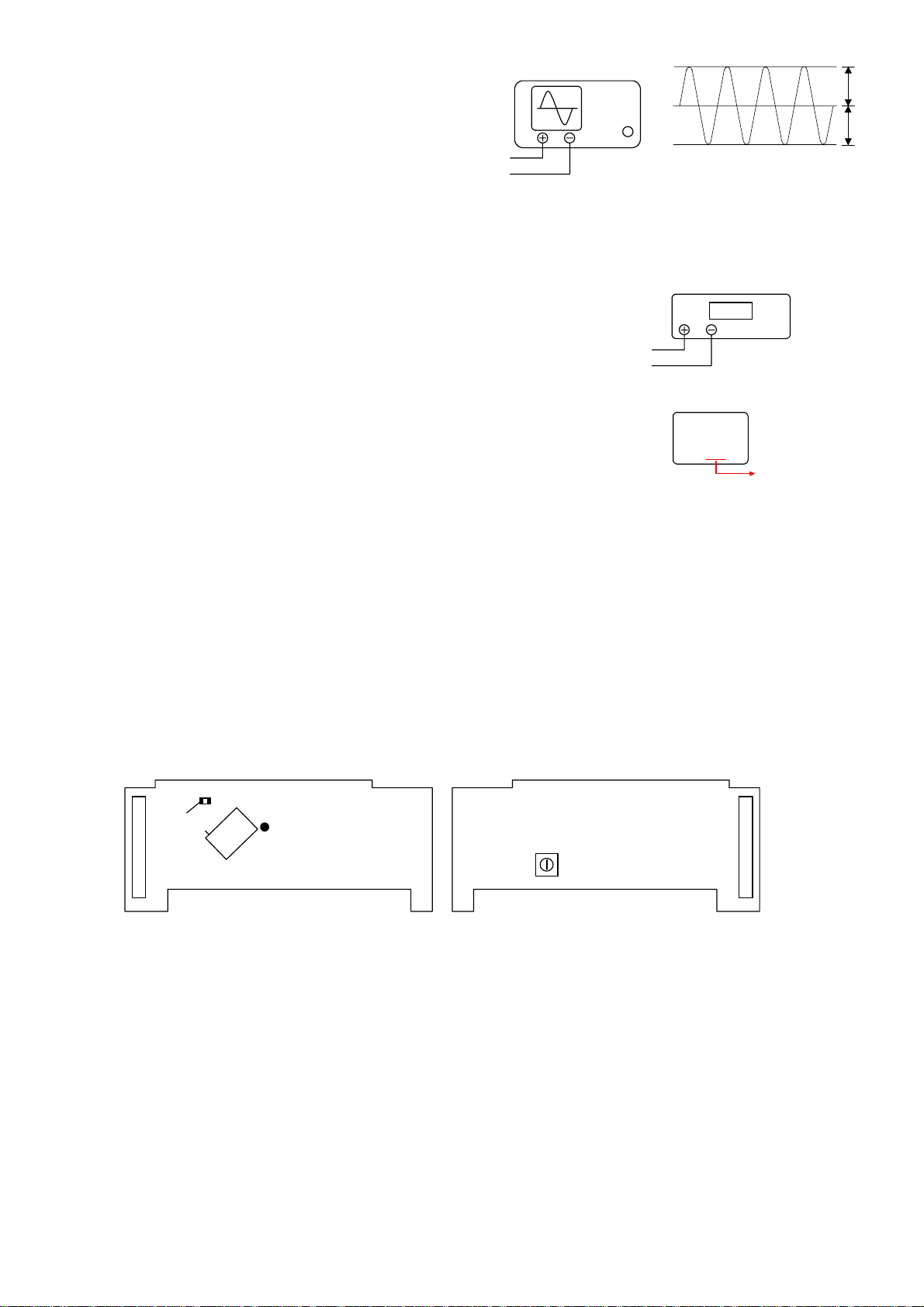

ADJUSTMENT (TUNER / DECK / CD / FL) .............................................................................................................. 33 ~ 39
CD TEST MODE .............................................................................................................................................................40
MECHANICAL EXPLODED VIEW 1 / 1......................................................................................................................... 41
MECHANICAL PARTS LIST 1 / 1 ................................................................................................................................... 42
TAPE MECHANISM EXPLODED VIEW 1 / 2 ............................................................................................................... 43
TAPE MECHANISM PARTS LIST 1 / 2 ......................................................................................................................... 44
TAPE MECHANISM EXPLODED VIEW 2 / 2 ............................................................................................................... 45
TAPE MECHANISM PARTS LIST 2 / 2 ......................................................................................................................... 46
CD MECHANISM EXPLODED VIEW 1 / 2 ................................................................................................................... 47
CD MECHANISM PARTS LIST 1 / 2 .............................................................................................................................48
CD MECHANISM EXPLODED VIEW 2 / 2 ................................................................................................................... 49
CD MECHANISM PARTS LIST 2 / 2 .............................................................................................................................49
GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE) ...........................................................50
SPEAKER PARTS LIST <SX LEM70 (YJMN)> ..........................................................................................................51
ACCESSORIES / PACKAGE LIST ...................................................................................................................................51
2
SPECIFICATIONS
MAIN UNIT CX-LEM70 (K) / CX-LEM71 (EZ)
TUNER
FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 16.8 dBf
FM antenna terminal 75 ohms (unbalanced)
MW tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
MW usable sensitivity 350 µV/m
LW tuning range 144 kHz to 290 kHz
LW usable sensitivity 1400 µV/m
MW/LW antenna Loop antenna
AMPLIFIER
Power output Rated: 28 W + 28 W
(6 ohms, T.H.D. 1%, 1 kHz/DIN 45500)
Reference: 35 W + 35 W
(6 ohms, T.H.D. 10 %, 1 kHz/DIN 45324)
EZ: DIN MUSIC POWER
75 W + 75 W
Input AUX IN: 700 mV
Outputs SPEAKERS: 6 ohms or more
PHONES: 32 ohms or more
DIGITAL OUT (OPTICAL) jack
CASSETTE DECK
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz - 15000 Hz
Recording system AC bias
Heads Recording/playback X 1, erase X 1
CD PLAYER
Laser Semiconductor laser (λ = 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 88 dB (1 kHz, 0 dB)
Harmonic distortion Unmeasurable (1 kHz, 0 dB)
Wow and flutter Unmeasurable
GENERAL
Power requirements 230 V AC, 50 Hz
Power consumption 60 W
Power consumption in
standby mode With ECO mode on or auto: 0.8 W
With ECO mode off: 11.1 W
Dimensions (W x H x D) 191.5 x 249.0 x 389.0 mm
Weight 5.3 kg
SPEAKER SYSTEM SX-LEM70
Speaker system 2 way, bass reflex (magnetic shielded)
Speaker units Woofer: 120 mm cone
Tweeter: 25 mm dome
Impedance 6 ohms
Dimensions (W x H x D) 155 x 250 x 218 mm
Weight 2.4 kg
Design and specifications are subject to change without notice.
3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
Lutillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
CD PICK-UP Assy PWB
Solder
4
ELECTRICAL MAIN PARTS LIST
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
IC
87-020-454-010 IC,DN6851
87-A21-831-010 IC,SPS-422-1-F1
8B-CLX-610-010 C-IC,LC876564V-5Y22
87-A20-455-010 IC,HA12211
87-A22-112-040 C-IC,BD3861FS
87-017-825-010 IC,GP1F32T
87-A20-446-010 C-IC,LA9241ML
87-A21-365-010 IC,NJM7808FA(A)
87-017-917-080 IC,BU4066BCF
87-A20-445-010 IC,BA5936S
87-A21-319-010 C-IC,LC78622NE
87-A21-695-010 IC,LA1845L
87-A20-440-040 C-IC,BU1920FS<EZ>
87-A21-928-010 IC,LC72131D-N
TRANSISTOR
87-A30-435-040 C-TR,DTC144EKA
87-A30-073-080 C-TR,RT1N 141C
89-112-965-080 TR,2SA1296GR
87-A30-495-080 TR,2SA1981Y
89-406-555-080 TR,2SD655E
87-A30-075-080 C-TR,2SA1235F
87-A30-484-080 C-TR,KRA102S
87-A30-087-080 C-FET,2SK2158
87-A30-076-080 C-TR,2SC3052F
89-322-405-680 TR,2SC2240(GR/BL)
87-A30-306-010 TR,2SB1677
87-A30-307-010 TR,2SD2619
87-A30-268-040 C-TR,2SA1514K(S)
87-A30-119-040 C-TR,2SC3906K R
87-A30-186-010 FET,2SK3053
87-A30-455-040 C-TR,DTA144EKA
87-A30-105-080 C-TR,RT1P 441C
87-026-610-080 TR,KTC3198GR
87-A30-494-080 TR,2SA1980G
89-213-702-010 TR,2SB1370E
87-A30-521-080 C-TR,2SC5345SF/S(O)
87-A30-489-080 C-TR,KRA107S
87-A30-060-080 C-TR,KTC3875GR<EZ>
89-503-602-080 C-FET,2SK360E
87-A30-664-080 C-TR,2SC2620B
87-A30-086-040 C-TR,CSD1306E
87-A30-234-080 TR,CSC4115BC
DIODE
87-A40-291-080 DIODE,1N4148 (CPT)
87-017-978-080 DIODE,1N4003
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-455-080 DIODE,RL203 GW
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-749-080 ZENER,UZ5.6BSB
87-A40-764-080 ZENER,UZ10BSC
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-760-080 ZENER,UZ9.1BSA
87-A40-455-090 DIODE,RL203 GW
87-A40-553-080 DIODE,1N4003 LES
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-777-080 ZENER,UZ30BSB
87-A40-763-080 ZENER,UZ10BSB
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C101 87-012-274-080 C-CAP,U 1000P-50 B
C102 87-012-274-080 C-CAP,U 1000P-50 B
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
C103 87-A12-091-080 CAP,E 10-50 SMG
C104 87-A12-091-080 CAP,E 10-50 SMG
C107 87-A12-091-080 CAP,E 10-50 SMG
C108 87-A12-091-080 CAP,E 10-50 SMG
C109 87-012-195-080 C-CAP,U 100P-50CH
C110 87-012-195-080 C-CAP,U 100P-50CH
C111 87-A12-092-080 CAP,E 22-50 SMG
C112 87-A12-092-080 CAP,E 22-50 SMG
C113 87-012-195-080 C-CAP,U 100P-50CH
C114 87-012-195-080 C-CAP,U 100P-50CH
C117 87-A12-317-080 C-CAP,U 0.1-50 ZF
C118 87-A12-317-080 C-CAP,U 0.1-50 ZF
C119 87-012-286-080 CAP, U 0.01-25
C120 87-012-286-080 CAP, U 0.01-25
C123 87-010-177-080 C-CAP,S 820P-50 SL
C124 87-010-177-080 C-CAP,S 820P-50 SL
C127 87-012-195-080 C-CAP,U 100P-50CH
C128 87-012-195-080 C-CAP,U 100P-50CH
C131 87-010-831-080 C-CAP,U,0.1-16F
C133 87-012-282-080 CAP, U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50 B
C186 87-010-759-080 C-CAP,U, 0.1-25F
C187 87-A12-077-080 CAP,E 33-35 SMG
C188 87-A12-077-080 CAP,E 33-35 SMG
C189 87-012-195-080 C-CAP,U 100P-50CH
C190 87-012-195-080 C-CAP,U 100P-50CH
C303 87-012-268-080 C-CAP,U 330P-50 B
C304 87-012-268-080 C-CAP,U 330P-50 B
C307 87-010-759-080 C-CAP,U, 0.1-25F
C311 87-010-787-080 CAP, U 0.022-25
C312 87-010-787-080 CAP, U 0.022-25
C313 87-A12-071-080 CAP,E 47-25 SMG
C314 87-A12-071-080 CAP,E 47-25 SMG
C315 87-012-276-080 C-CAP, U 1500P-50 B
C316 87-012-276-080 C-CAP, U 1500P-50 B
C321 87-A10-025-080 C-CAP,U 0.22-16Z F
C322 87-A10-025-080 C-CAP,U 0.22-16Z F
C324 87-A12-071-080 CAP,E 47-25 SMG
C325 87-A12-057-080 CAP,E 330-6.3 SMG
C327 87-A12-090-080 CAP,E 4.7-50 SMG
C328 87-A12-090-080 CAP,E 4.7-50 SMG
C332 87-010-759-080 C-CAP,U, 0.1-25F
C335 87-A12-087-080 CAP,E 1-50 SMG
C336 87-A12-087-080 CAP,E 1-50 SMG
C337 87-010-759-080 C-CAP,U, 0.1-25F
C340 87-010-759-080 C-CAP,U, 0.1-25F
C341 87-010-759-080 C-CAP,U, 0.1-25F
C342 87-A12-070-080 CAP,E 33-25 SMG
C343 87-012-280-080 CAP, U 3300P-50
C344 87-012-286-080 CAP, U 0.01-25
C345 87-012-188-080 C-CAP,U 47P-50 CH
C346 87-012-286-080 CAP, U 0.01-25
C351 87-012-270-080 CAP, U 470P-50
C352 87-012-270-080 CAP, U 470P-50
C354 87-012-271-080 CAP, U 560P-50
C355 87-012-274-080 CHIP CAP,U 1000P-50B
C356 87-A12-071-080 CAP,E 47-25 SMG
C357 87-012-286-080 CAP, U 0.01-25
C358 87-012-279-080 C-CAP,U 2700P-50 B
C359 87-012-279-080 C-CAP,U 2700P-50 B
C360 87-012-279-080 C-CAP,U 2700P-50 B
C368 87-A10-781-080 C-CAP,U 0.15-10 KB
C369 87-A10-781-080 C-CAP,U 0.15-10 KB
C370 87-010-759-080 C-CAP,U, 0.1-25F
C371 87-012-282-080 C-CAP,U 4700P-50 B
C372 87-012-282-080 C-CAP,U 4700P-50 B
C378 87-010-759-080 C-CAP,U, 0.1-25F
C381 87-012-337-080 C-CAP,U 56P-50 J CH
C382 87-012-337-080 C-CAP,U 56P-50 J CH
C388 87-012-199-080 CAP 220P
5
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
C391 87-010-787-080 C-CAP,U 0.022-25 KB
C403 87-010-759-080 C-CAP,U, 0.1-25F
C409 87-012-282-080 CAP, U 4700P-50
C422 87-016-459-080 CAP,E 470-10 M SMG
C426 87-A12-088-080 CAP,E 2.2-50 SMG
C427 87-A12-088-080 CAP,E 2.2-50 SMG
C439 87-A10-304-080 CAP,M 0.056-50 J
C440 87-A10-304-080 CAP,M 0.056-50 J
C441 87-A10-307-080 CAP,M 0.1-50 J
C442 87-A10-307-080 CAP,M 0.1-50 J
C443 87-010-785-080 C-CAP,U0.015-25BK
C444 87-010-785-080 C-CAP,U0.015-25BK
C451 87-012-275-080 C-CAP,U 1200P-50 KB
C452 87-012-275-080 C-CAP,U 1200P-50 KB
C460 87-A12-087-080 CAP,E 1-50 SMG
C461 87-A12-087-080 CAP,E 1-50 SMG
C462 87-A12-087-080 CAP,E 1-50 SMG
C463 87-A12-087-080 CAP,E 1-50 SMG
C464 87-A12-065-080 CAP,E 33-10 SMG
C465 87-012-271-080 C-CAP,U 560P-50 KB
C466 87-012-271-080 C-CAP,U 560P-50 KB
C467 87-012-274-080 C-CAP,U 1000P-50 KB
C468 87-012-274-080 C-CAP,U 1000P-50 KB
C470 87-012-274-080 C-CAP,U 1000P-50 KB
C471 87-012-274-080 C-CAP,U 1000P-50 KB
C472 87-A12-471-080 C-CAP,U 1000P-50 J SL
C473 87-010-759-080 C-CAP,U, 0.1-25F
C474 87-012-278-080 C-CAP,U 2200P-50 KB
C475 87-012-278-080 C-CAP,U 2200P-50 KB
C481 87-A12-090-080 CAP,E 4.7-50 SMG
C482 87-A12-090-080 CAP,E 4.7-50 SMG
C483 87-A12-088-080 CAP,E 2.2-50 SMG
C484 87-A12-088-080 CAP,E 2.2-50 SMG
C485 87-012-282-080 CAP, U 4700P-50
C486 87-012-282-080 CAP, U 4700P-50
C487 87-010-785-080 C-CAP,U0.015-25BK
C488 87-010-785-080 C-CAP,U0.015-25BK
C489 87-010-785-080 C-CAP,U0.015-25BK
C490 87-010-785-080 C-CAP,U0.015-25BK
C495 87-A12-087-080 CAP,E 1-50 SMG
C496 87-A12-087-080 CAP,E 1-50 SMG
C497 87-A12-087-080 CAP,E 1-50 SMG
C498 87-A12-087-080 CAP,E 1-50 SMG
C503 87-010-759-080 C-CAP,U, 0.1-25F
C504 87-010-759-080 C-CAP,U, 0.1-25F
C505 87-010-759-080 C-CAP,U, 0.1-25F
C506 87-010-759-080 C-CAP,U, 0.1-25F
C509 87-010-759-080 C-CAP,U, 0.1-25F
C510 87-010-759-080 C-CAP,U, 0.1-25F
C511 87-010-759-080 C-CAP,U, 0.1-25F
C512 87-010-759-080 C-CAP,U, 0.1-25F
C519 87-A10-520-000 CAP,E 3300-35 M SMG
C520 87-A10-520-000 CAP,E 3300-35 M SMG
C521 87-010-928-000 CAP,E 4700-25 M SMG
C522 87-A10-011-090 CAP,E 2200-25 SMG
C525 87-A10-918-080 CAP,E 100-16 SMG
C526 87-A10-918-080 CAP,E 100-16 SMG
C530 87-A12-079-080 CAP,E 100-35 SMG
C531 87-A12-062-080 CAP,E 100-10 SMG
C532 87-012-286-080 CAP, U 0.01-25
C534 87-A12-072-080 CAP,E 100-25 SMG
C535 87-010-367-040 CAP,E 4.7-25 M BP SRA
C536 87-A12-067-080 CAP,E 330-16 SMG
C538 87-012-282-080 CAP, U 4700P-50
C539 87-012-278-080 C-CAP,U 2200P-50 B
C540 87-A12-062-080 CAP,E 100-10 SMG
C541 87-A12-079-080 CAP,E 100-35 SMG
C545 87-010-831-080 C-CAP,U,0.1-16F
C546 87-A12-064-080 CAP,E 1000-10 SMG
C547 87-010-831-080 C-CAP,U,0.1-16F
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
C560 87-A12-089-080 CAP,E 3.3-50 SMG
C561 87-A12-071-080 CAP,E 47-25 SMG
C861 87-010-405-080 CAP, ELECT 10-50V<EZ>
C862 87-010-759-080 C-CAP,U, 0.1-25F<EZ>
C863 87-012-199-080 CAP 220P<EZ>
C864 87-012-199-080 CAP 220P<EZ>
C865 87-012-274-080 CHIP CAP,U 1000P-50B<EZ>
C866 87-012-270-080 CAP, U 470P-50<EZ>
C867 87-012-286-080 CAP, U 0.01-25<EZ>
C868 87-010-405-080 CAP, ELECT 10-50V<EZ>
C869 87-012-286-080 CAP, U 0.01-25<EZ>
C870 87-012-184-080 C-CAP,U 33P-50 CH<EZ>
C871 87-012-180-080 C-CAP,U 22P-50 CH<EZ>
C872 87-012-280-080 CAP, U 3300P-50<EZ>
C873 87-012-280-080 CAP, U 3300P-50<EZ>
CN230 84-722-638-010 CONN,5P H WHT EH
CN301 87-A60-625-010 CONN,8P V 2MM JMT
CN402 87-A60-189-010 CONN,16P V TUC-P16P-B1
CN403 87-099-195-010 CONN,7P V BLK 6216
CN410 87-099-719-010 CONN,30P TYK-B(X)
CN502 87-A90-510-010 HLDR,WIRE 2.5-9P
CNA201 8B-CJZ-640-010 CONN ASSY,9P TID-A(200)
FB405 87-A90-896-080 F-BEAD, 035600STY7
FB406 87-A90-896-080 F-BEAD, 035600STY7
J404 87-A61-711-010 JACK,PIN 2P MSP-242V-01 PBSN
JW432 87-A90-896-080 F-BEAD, 035600STY7
JW433 87-A90-896-080 F-BEAD, 035600STY7
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L402 87-A50-610-010 COIL,1UH K(MDEC)
L403 87-A50-610-010 COIL,1UH K(MDEC)
L861 87-005-847-080 COIL,2.2UH(CECS)<EZ>
L871 87-A50-027-010 COIL,1 POLE MPX(TOK)
L872 87-A50-027-010 COIL,1 POLE MPX(TOK)
R129 87-A00-258-080 RES,M/F 0.22-1W J
R130 87-A00-258-080 RES,M/F 0.22-1W J
R131 87-A00-258-080 RES,M/F 0.22-1W J
R132 87-A00-258-080 RES,M/F 0.22-1W J
SFR351 87-024-436-080 SFR,47K RH063EC
SFR352 87-024-436-080 SFR,47K RH063EC
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
TM401 87-A61-712-010 TERMINAL, 4P SP MSP-324V1-01
X862 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST<EZ>
FRONT C.B
C50 87-012-274-080 CHIP CAP,U 1000P-50B
C51 87-A12-091-040 CAP,E 10-50 SMG
C52 87-A12-310-080 C-CAP,U 0.01-50 K B
C53 87-A12-310-080 C-CAP,U 0.01-50 K B
C54 87-A12-310-080 C-CAP,U 0.01-50 K B
C55 87-A12-310-080 C-CAP,U 0.01-50 K B
C56 87-A12-310-080 C-CAP,U 0.01-50 K B
C57 87-A12-310-080 C-CAP,U 0.01-50 K B
C60 87-A10-025-080 C-CAP,U 0.22-16 ZF
CN50 87-099-040-010 CONN,23P H BLK 6216
CN53 87-099-212-010 CONN,05P V BLK 6216
CNA52 8B-CLX-617-010 CONN ASSY,9P DECK PL-CONT
D50 87-A41-062-040 LED,LTL-1CHEE-012A RED
D51 87-A41-062-040 LED,LTL-1CHEE-012A RED
D52 87-A41-062-040 LED,LTL-1CHEE-012A RED
D53 87-A41-062-040 LED,LTL-1CHEE-012A RED
D54 87-A41-062-040 LED,LTL-1CHEE-012A RED
FC050 88-923-091-110 FF-CABLE,23P 1.25 90MM
FC053 88-905-231-110 FF-CABLE,5P 1.25 230MM
S50 87-A91-024-180 SW-TACT KSHG611BT
S51 87-A91-024-180 SW-TACT KSHG611BT
S52 87-A91-024-180 SW-TACT KSHG611BT
6
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
S53 87-A91-024-180 SW-TACT KSHG611BT
S54 87-A91-024-180 SW-TACT KSHG611BT
S55 87-A91-024-180 SW-TACT KSHG611BT
S56 87-A91-024-180 SW-TACT KSHG611BT
S57 87-A91-024-180 SW-TACT KSHG611BT
S58 87-A91-024-180 SW-TACT KSHG611BT
S59 87-A91-024-180 SW-TACT KSHG611BT
S60 87-A91-024-180 SW-TACT KSHG611BT
S61 87-A91-024-180 SW-TACT KSHG611BT
S62 87-A91-024-180 SW-TACT KSHG611BT
S63 87-A91-024-180 SW-TACT KSHG611BT
S64 87-A91-024-180 SW-TACT KSHG611BT
S65 87-A91-024-180 SW-TACT KSHG611BT
S66 87-A91-024-180 SW-TACT KSHG611BT
S67 87-A91-687-010 SW,RTRY RE012104PV-VOL
S68 87-A91-687-010 SW,RTRY RE012104PV-VOL
S69 87-A92-291-010 SW,RTRY RE121PVB25FINB1-24E
CD C.B
C501 87-A12-062-040 CAP,E 100-10 SMG
C502 87-010-831-080 C-CAP,U,0.1-16F
C503 87-A12-062-040 CAP,E 100-10 SMG
C504 87-A12-062-040 CAP,E 100-10 SMG
C505 87-A12-062-040 CAP,E 100-10 SMG
C506 87-010-831-080 C-CAP,U,0.1-16F
C507 87-010-831-080 C-CAP,U,0.1-16F
C508 87-A11-058-080 C-CAP,U 0.22-10 K B
C509 87-A11-070-080 C-CAP,U 0.033-16 K B
C510 87-012-268-080 C-CAP,U 330P-50 B
C511 87-A10-828-080 C-CAP,U 0.33-6.3 K B
C512 87-010-785-080 C-CAP,U0.015-25BK
C513 87-A10-781-080 C-CAP,U 0.15-10 K B
C514 87-012-278-080 CAP, U 2200P-50
C515 87-010-787-080 C-CAP,U 0.022-25 K B
C516 87-A10-504-080 C-CAP,U 0.047-16 K B
C517 87-A10-260-080 C-CAP,U 0.1-16 K B
C518 87-012-197-080 C-CAP,U 150P-50 J CH
C519 87-012-286-080 CAP, U 0.01-25
C520 87-012-282-080 CAP, U 4700P-50
C521 87-012-266-080 C-CAP,U 220P-50 B
C522 87-A11-058-080 C-CAP,U 0.22-10 K B
C523 87-012-280-080 CAP, U 3300P-50
C524 87-A11-049-080 C-CAP,U 1-6.3 K B
C525 87-A12-066-040 CAP,E 47-16 SME
C527 87-012-176-080 CAP 15P
C529 87-012-280-080 CAP, U 3300P-50
C530 87-012-195-080 C-CAP,U 100P-50 CH
C531 87-010-831-080 C-CAP,U,0.1-16F
C532 87-012-274-080 CHIP CAP,U 1000P-50B
C533 87-A12-090-040 CAP,E 4.7-50 SMG
C534 87-010-831-080 C-CAP,U,0.1-16F
C535 87-A12-066-040 CAP,E 47-16 SMG
C536 87-010-831-080 C-CAP,U,0.1-16F
C537 87-A12-091-040 CAP,E 10-50 SMG
C538 87-A11-070-080 C-CAP,U 0.033-16 K B
C539 87-A11-049-080 C-CAP,U 1-6.3 K B
C540 87-A10-781-080 C-CAP,U 0.15-10 K B
C541 87-A12-062-040 CAP,E 100-10 SMG
C542 87-012-274-080 CHIP CAP,U 1000P-50B
C551 87-010-831-080 C-CAP,U,0.1-16F
C552 87-010-831-080 C-CAP,U,0.1-16F
C581 87-016-459-040 CAP,E 470-10 SMG
C582 87-010-831-080 C-CAP,U,0.1-16F
C583 87-A12-066-040 CAP,E 47-16 SMG
C584 87-010-831-080 C-CAP,U,0.1-16F
C601 87-010-831-080 C-CAP,U,0.1-16F
C602 87-012-195-080 C-CAP,U 100P-50CH
C603 87-012-195-080 C-CAP,U 100P-50CH
C604 87-012-195-080 C-CAP,U 100P-50CH
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
C605 87-012-195-080 C-CAP,U 100P-50CH
C606 87-012-195-080 C-CAP,U 100P-50CH
C611 87-010-831-080 C-CAP,U,0.1-16F
C612 87-010-831-080 C-CAP,U,0.1-16F
C613 87-010-831-080 C-CAP,U,0.1-16F
C614 87-010-831-080 C-CAP,U,0.1-16F
C621 87-010-831-080 C-CAP,U,0.1-16F
C651 87-A12-063-040 CAP,E 220-10 SMG
C652 87-010-831-080 C-CAP,U,0.1-16F
C653 87-016-459-040 CAP,E 470-10 SMG
C654 87-010-831-080 C-CAP,U,0.1-16F
C655 87-A12-069-040 CAP,E 22-25 SMG
C656 87-010-831-080 C-CAP,U,0.1-16F
C658 87-010-831-080 C-CAP,U,0.1-16F
C659 87-010-831-080 C-CAP,U,0.1-16F
C660 87-010-831-080 C-CAP,U,0.1-16F
C661 87-012-266-080 C-CAP,U 220P-50 B
C662 87-012-197-080 C-CAP,U 150P-50 CH
C664 87-010-831-080 C-CAP,U,0.1-16F
C665 87-012-172-080 C-CAP,U 10P-50 D CH
C666 87-012-172-080 C-CAP,U 10P-50 D CH
C667 87-012-170-080 C-CAP,U 8P-50 D CH
C668 87-A12-090-040 CAP,E 4.7-50 SMG
C669 87-012-286-080 CAP, U 0.01-25
C671 87-012-195-080 C-CAP,U 100P-50CH
C672 87-010-831-080 C-CAP,U,0.1-16F
C673 87-012-274-080 CHIP CAP,U 1000P-50 K B
C674 87-010-831-080 C-CAP,U,0.1-16F
C681 87-012-270-080 CHIP CAP,U 470P-50B
C682 87-012-270-080 CHIP CAP,U 470P-50B
C683 87-A12-088-040 CAP,E 2.2-50 SMG
C684 87-A12-088-040 CAP,E 2.2-50 SMG
C685 87-012-274-080 C-CAP, U 1000P-50 B
C686 87-012-274-080 C-CAP, U 1000P-50 B
CN501 87-A60-424-010 CONN,16P V TOC-B
CN502 87-099-199-010 CONN,6P 6216 H
CN601 87-A60-077-010 CONN,10P H 9604S-10F
CN602 87-099-200-010 CONN,7P 6216H
CN603 87-099-210-010 CONN,05P H BLK 6216
CNA601 8B-CLX-619-010 CONN ASSY,3P D-OUT
FC501 8B-CLX-618-010 FF-CABLE,16P 150MMCD-P
FC502 88-906-081-110 FF-CABLE,6P 1.25 80MM
FC602 88-907-211-110 FF-CABLE,7P 1.25 200MM
FC603 88-905-131-110 FF-CABLE,5P 1.25 130MM
R551 87-022-249-080 CHIP RES,U 27K-1/16W F
R552 87-022-249-080 CHIP RES,U 27K-1/16W F
R553 87-022-249-080 CHIP RES,U 27K-1/16W F
R554 87-022-249-080 CHIP RES,U 27K-1/16W F
R555 87-022-284-080 C-RES,U 68K-1/16W F
R556 87-022-284-080 C-RES,U 68K-1/16W F
R559 87-022-251-080 C-RES U33K 1/16WF
R560 87-022-251-080 C-RES U33K 1/16WF
R563 87-022-288-080 C-RES,U 150K-1/16W F
R564 87-022-288-080 C-RES,U 150K-1/16W F
R687 87-A50-190-080 C-COIL,S BLM21A102S
R688 87-A50-190-080 C-COIL,S BLM21A102S
SFR501 87-024-437-080 SFR100K,RH063EC
X651 87-A70-046-010 VIB,XTAL 16.934MHZ
FL C.B
C101 87-A12-069-040 CAP, ELECT 22-25V SMG
C102 87-A12-069-040 CAP, ELECT 22-25V SMG
C103 87-A12-078-040 CAP,E 47-35 SMG
C104 87-010-831-080 C-CAP,U,0.1-16F
C105 87-010-831-080 C-CAP,U,0.1-16F
C106 87-012-178-080 C-CAP,U 18P-50 CH
C107 87-012-184-080 C-CAP,U 33P-50 CH
C108 87-010-787-080 CAP, U 0.022-25
C109 87-A12-086-080 CAP,E 0.47-50 SMG
7
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
C110 87-010-831-080 C-CAP,U,0.1-16F
C111 87-A12-063-040 CAP,E 220-10 SMG
C112 87-A10-353-080 C-CAP,U0.22-10KB
C113 87-010-831-080 C-CAP,U,0.1-16F
C114 87-010-831-080 C-CAP,U,0.1-16F
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN102 87-A60-077-010 CONN,10P H 9604S-10F
CN103 87-099-761-010 CONN,23P H 9604
FC102 88-910-171-110 FF-CABLE,10P 1.25 170MM
FL101 8B-CLX-611-010 FL,HNA-11MS25
L101 87-A50-657-010 COIL,CLK 9.43MHZ (TOKO)7KLY
TUNER C.B
C772 87-012-286-080 CAP, U 0.01-25
C780 87-012-274-080 C-CAP,U 1000P-50 KB
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-A11-228-080 C-CAP,U 0.027-25 K B
C790 87-A11-228-080 C-CAP,U 0.027-25 K B
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A10-262-080 C-CAP,U 1-10 Z F
C795 87-012-286-080 CAP, U 0.01-25
C798 87-010-831-080 C-CAP,U,0.1-16F
C799 87-010-982-040 CAP,E 33-25 GAS
C800 87-012-191-080 CHIP CAP 68 PF
C801 87-A10-262-080 C-CAP,U 1-10 Z F
C802 87-010-829-080 CAP, U 0.047-16
C804 87-010-555-040 CAP,E 100-10 GAS
C807 87-A10-463-080 C-CAP,U 0.47-10 Z F
C808 87-A10-262-080 C-CAP,U 1-10 Z F
C809 87-A10-262-080 C-CAP,U 1-10 Z F
C815 87-A10-463-080 C-CAP,U 0.47-10 Z F
C816 87-A10-463-080 C-CAP,U 0.47-10 Z F
C818 87-012-276-080 CAP, CHIP SS 1500 PBK
C821 87-A11-063-080 C-CAP,S 4.7-10 Z F
C822 87-012-270-080 CAP, U 470P-50
C823 87-012-274-080 CHIP CAP,U 1000P-50B
C824 87-A11-063-080 C-CAP,S 4.7-10 Z F
C825 87-A11-317-080 C-CAP,U 0.068U-16 K B
C831 87-010-552-040 CAP,E 22-16 GAS
C837 87-A12-022-080 C-CAP,U 0.22-16 Z F
C842 87-010-831-080 C-CAP,U,0.1-16F
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A10-262-080 C-CAP,U 1-10 Z F
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C859 87-010-831-080 C-CAP,U,0.1-16F
C860 87-012-286-080 CAP, U 0.01-25
C901 87-012-162-080 C-CAP,U 1P-50 CK
C902 87-012-165-080 CAP 3P
C903 87-012-164-080 C-CAP,U 2P-50 CK
C904 87-A12-348-080 C-CAP,U 560P-25 J CH
C905 87-012-162-080 C-CAP,U 1P-50 CK
C906 87-012-172-080 CAPACITOR CHIP U 10P CH
C907 87-012-166-080 C-CAP,U 4P-50 CH
C908 87-012-165-080 CAP 3P
C909 86-ZA1-615-080 C-CAP,U 680P-25 J CH
C910 87-012-164-080 C-CAP,U 2P-50 CK
C911 87-012-166-080 C-CAP,U 4P-50 CH
C912 87-012-195-080 C-CAP,U 100P-50CH
C913 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C914 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C915 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C916 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C917 87-012-178-080 C-CAP,U 18P-50 CH
C918 87-012-172-080 CAPACITOR CHIP U 10P CH
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
C919 87-012-184-080 C-CAP,U 33P-50 CH
C920 87-012-184-080 C-CAP,U 33P-50 CH
C921 87-012-180-080 C-CAP,U 22P-50 CH
C922 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C923 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C924 87-012-164-080 C-CAP,U 2P-50 CK
C925 87-012-164-080 C-CAP,U 2P-50 CK
C926 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR)
C927 87-012-195-080 C-CAP,U 100P-50CH
C942 87-012-172-080 CAPACITOR CHIP U 10P CH
C947 87-012-286-080 CAP, U 0.01-25
C948 87-012-270-080 CAP, U 470P-50
C952 87-012-286-080 CAP, U 0.01-25
C957 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C958 87-012-286-080 CAP, U 0.01-25
C962 87-A10-262-080 C-CAP,U 1-10 Z F
C963 87-010-831-080 C-CAP,U,0.1-16F
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A11-063-080 C-CAP,S 4.7-10 Z F
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C976 87-010-831-080 C-CAP,U,0.1-16F
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-010-553-040 CAP,E 47-16 GAS
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-A11-132-080 CAP,TC U 0.01-50 K B
C984 87-012-286-080 CAP, U 0.01-25
C985 87-012-195-080 C-CAP,U 100P-50CH
C987 87-012-286-080 CAP, U 0.01-25
C989 87-012-286-080 CAP, U 0.01-25
C990 87-012-195-080 C-CAP,U 100P-50CH
C991 87-012-182-080 C-CAP,U 27P-50 CH
C992 87-012-172-080 CAPACITOR CHIP U 10P CH
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C994 87-012-195-080 C-CAP,U 100P-50CH
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C996 87-012-195-080 C-CAP,U 100P-50CH
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-010-553-040 CAP,E 47-16 GAS
C999 87-012-286-080 CAP, U 0.01-25
CF831 87-008-423-010 FLTR,CF SFE10.7MS3G-A
CF832 82-785-747-010 CF,MS2 GHY,R
CN991 87-A60-650-010 CONN,16P H GRY TUC-P16X-C1
D901 87-A41-048-040 C-VARI-CAP,HVM16-03 TL
D902 87-A41-048-040 C-VARI-CAP,HVM16-03 TL
D903 87-A41-048-040 C-VARI-CAP,HVM16-03 TL
J832 87-A61-534-010 TERMINAL,ANT PAL AJ-2021
J940 87-A60-633-010 CONN,2P H 2.5MM JMT
JW959 87-A11-132-080 CAP,TC U 0.01-50 K B
L801 87-A50-694-010 COIL,FM-DET 2 (COILS)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L901 86-ZA1-612-010 COIL,FM ANT/RF-1-Z
L902 86-ZA1-613-010 COIL,FM ANT/RF-2-Z
L903 87-005-847-080 COIL,2.2UH K CECS
L904 86-ZA1-613-010 COIL,FM ANT/RF-2-Z
L905 86-ZA1-612-010 COIL,FM ANT/RF-1-Z
L906 87-005-847-080 COIL,2.2UH(CECS)
L907 86-ZA1-614-010 COIL,FM OSC-Z
L908 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS)
L941 87-A50-020-010 COIL,ANT LW(COI)
L942 87-A50-019-010 COIL,OSC LW(COI)
L951 8B-ZA3-668-010 COIL,AM PACK 2Z(TOK)
R790 87-012-286-080 CAP, U 0.01-25
TC942 87-A91-774-080 TRIMMER,PLY 30P 6.8X5.4 CDYL
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
PT C.B
8
PART NO. DESCRIPTIONREF. NO. KANRI
C251 87-A12-074-080 CAP,E 470-25 SMG
CN201 87-A61-110-010 CONN,9P V TID-A
PT250 8B-CLX-615-010 PT,EZ BCL-30
!
PT251 8B-MA6-675-010 PT,SUB BMA E (VRK)
!
RY251 87-A91-418-010 RELAY,AC12V G5PA-1-M
!
T250 87-A60-317-010 TERMINAL, 1P MSC
!
T251 87-A60-317-010 TERMINAL, 1P MSC
!
PHONE C.B
C231 87-010-831-080 C-CAP,U,0.1-16F
C232 87-012-272-080 C-CAP,U 680P-50 B
C233 87-012-272-080 C-CAP,U 680P-50 B
CNA230 8B-CLX-626-010 CONN ASSY,5P V W HP
J231 87-A60-420-010 JACK,3.5 ST (MSC)
NO.
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
DECK C.B
CON1 87-009-352-010 CONN,9P H WHT PH
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL2 82-ZM3-628-010 SOL ASSY,23SO
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW5 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW6 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 86-ZM4-601-110 RBN-CORD,4P-300MM
FRAME C.B
S1 87-A90-948-010 SW,LVR 2-1-2 MPU11263MLB0
OPTICAL C.B
C401 87-010-759-080 C-CAP,U 0.1-25 ZF
CN408 87-A60-620-010 CONN,3P V 2MM JMT
CD-DRIVE C.B
CON3 87-A60-086-010 CONN,6P H 6216
M20 87-045-358-010 MOT,RF-310TA 43
M21 87-045-356-010 MOT,RF-310TA 30
SW1 87-A90-042-010 SW,LEAF MSW-17310MVP0
CD-LOAD C.B
CON6 87-099-210-010 CONN,5P H BLK 6216
M1 87-045-305-010 MOTOR,RF-500TB
SW1 87-036-110-010 SW, MICRO SPPB62
SW2 87-036-110-010 SW, MICRO SPPB62
DRIVE C.B
CN1 86-NFZ-675-010 CONN,5P H 6216-11H
M1 87-045-305-010 MOT,RF-500TB
S2 87-A91-662-010 SW,PUSH 1-1-1 MPU11244MLB0
W2 8Z-ZG4-614-010 F-CABLE,2P 130MM LED
HEAD C.B
85-ZM3-602-010 PWB,FLEX A
CNA301 86-ZM1-605-010 CONN ASSY,AR3
CHIP RESISTOR PART CODE
Chip Resistor Part Coding
88
A
Resistor Code
Chip resistor
Wattage Type Tolerance
1/16W 1005 5% CJ
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
Symbol
CJ
CJ
CJ
Figure
Value of resistor
Form
L
9
Dimensions (mm)
t
W
0.55
Resistor Code
108
118
128
LW t
1.0 0.5 0.35 104
1.6 0.8 0.45
2 1.25 0.45
3.2
1.6
: A
: A
TRANSISTOR ILLUSTRATION
E C B
2SA1296GR
CSC4115BC
KTC3198GR
G D S
2SK3053
E C B
2SA1980G
2SA1981Y
2SC2240(GR/BL)
2SD655E
D
G
S
2SK2158
B C E
2SB1677
2SD2619
D
G
2SK360E
B C E
2SB1370E
S
B
2SA1235F
2SA1514K(S)
2SC2620B
2SC3052F
2SC3906KR
2SC5345SF/S(O)
CSD1306E
C
E
DTA144EKA
DTC144EKA
KRA102S
KRA107S
KTC3875GR
RT1N141C
RT1P441C
10
WIRING – 1 (MAIN / PHONE / OPTICAL)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 11 –
R
S
T
U
SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2 / PHONE / OPTICAL / HEAD)
– 12 –
SCHEMATIC DIAGRAM – 2 (MAIN 2 / 2 : AMP SECTION)
– 13 –
WIRING – 2 (FRONT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 14 –
R
S
T
U
WIRING – 3 (FL)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 15 –
R
S
T
U
SCHEMATIC DIAGRAM – 3 (FRONT / FL / DECK / FRAME / DRIVE)
– 16 –
WIRING – 4 (CD / CD – DRIVE / CD – LOAD)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 17 –
R
S
T
U
SCHEMATIC DIAGRAM – 4 (CD / CD – DRIVE / CD – LOAD)
– 18 –
WIRING – 5 (TUNER)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 19 –
R
S
T
U
SCHEMATIC DIAGRAM – 5 (TUNER)
– 20 –
WIRING – 6 (PT)
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 21 –
R
S
T
U
SCHEMATIC DIAGRAM – 6 (PT)
– 22 –
WIRING – 7 (DECK / FRAME / DRIVE / HEAD)
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 23 –
R
S
T
U
IC BLOCK DIAGRAM
– 24 –
– 25 –
FL (HNA 11MS25) GRID ASSIGNMENT / ANODE CONNECTION
GRID ASSIGNMENT
ANODE CONNECTION
26
IC DESCRIPTION
IC, LC78622NE
Pin No.
1 DEFI I Defect detection signal (DEF) input. ("L" is applied when not used.)
2 TAI I For PLL/Test input. (Connected to 0V)
3 PDO O Phase comparison output to control the external VCO.
4 VVSS Ground of the built-in VCO. Normally 0V.
5 ISET I For the connection of a resistor which adjusts the PDO output current.
6 VVDD Power supply of the built-in VCO.
7 FR I Adjusts the VCO frequency range.
8 VSS Ground of digital circuits. Normally 0V.
9 EFMO O For slice level control/EFM signal output.
10 EFMIN I EFM signal input.
11 T2 I Test input. A pull-down resistor is incorporated. (Connected to 0V)
12 CLV+
13 CLV-
14 V/P O
15 HFL I Track detection signal input. Schmitt trigger input.
16 TES I Track error signal input. Schmitt trigger input.
17 TOFF O Tracking off output.
Pin Name I/O
O Disc motor control tri-state output.
Output to monitor the automatic switching between the rough servo control and phase servo
control. "H" : Rough servo, "L": Phase servo.
Description
18 TGL O Tracking gain switching output. "L" raises the gain.
19 JP+
20 JP-
21 PCK O
22 FSEQ O
23 VDD Power supply of digital circuits.
24 SL+ O Controlled by serial data command issued by the microprocessor.
25 SL O Controlled by serial data command issued by the microprocessor.
26 V/P MONI I Prevent high speed rotation of no recording CD-R/RW disc by watch V/P.
27 SW-INSIDE I CD pickup inside limit switch.
28 CD R/W O CD-RW disc select control.
29 EMPH O Deemphasis monitor. "H": when playing a deemphasis disc. (Not used)
30 C2F O C2 flag output. (Not used)
31 DOUT O Output a digital OUT signal. (EIAJ format)
32 T3
33 T4
O Track jump control tri-state output.
Monitors the clock signal for EFM data playback. 4.3218MHz when the phase is locked.
(Not used)
Sync signal detection output. Goes "H" when the sync signal detected from the EFM
signal matches the sync signal generated internally. (Not used)
I Test input. (Connected to 0V)
34 PCCL Not used.
35 MUTE-L O Lch 1-bit DAC/Lch muting output. (Not used)
36 LVDD Lch power supply.
37 O-LCH O Lch output.
38 LVSS Lch ground. Normally 0V.
39 RVSS Rch 1-bit DAC/Rch ground. Normally 0V.
27
Pin No.
40 O-RCH O Rch output.
41 RVDD Rch power supply.
42 MUTE-R O Rch muting output. (Not used)
43 XVDD Power supply of crystal oscillator.
Pin Name
I/O Description
44 XOUT O
45 XIN I
46 XVSS Ground of crystal oscillator. Normally 0V.
47 SBSY O Subcode block sync signal output. (Not used)
48 EFLG O C1, C2, single, duplex correction monitor. (Not used)
49 PW O Output of subcodes P, Q, R, S, T, U and W. (Not used)
50 SFSY O Subcode frame sync signal output. Falls when the subcode is set to the standby state. (No used)
51 SBCK I
52 FSX O 7.35kHz sync signal output obtained by dividing the oscillator frequency. (Not used)
53 WRQ O Subcode Q standby output.
54 RWC I Read/write control input. Schmitt trigger input.
55 SQOUT O Subcode Q output.
56 COIN I Command input from the microprocessor.
57 CQCK I
58 RES I LC78622NE reset input.
59 T11 O Test output. Set to open (normally "L" output.) (Not used)
60 16M O 16.9344MHz output. (Not used)
For the connection of a 16.934MHz crystal oscillator.
Subcode read-out clock input. Schmitt trigger input. ("L" is applied when not used.)
(Connected to 0V)
Command input retrieval clock or subcode retrieval clock input from SQOUT. Schmitt trigger
input.
61 4.2M O 4.236MHz output.
62 T5 I Test input. A pull-down resistor is incorporated. (Connected to 0V)
63 CS I Chip select input. (Connected to 0V)
64 T1 I Test input with no pull-down resistor. (Connected to 0V)
28
IC, LA9241ML
Pin No.
1 FIN2 I
2 FIN1 I For the connection of the pickup photodiode.
3EI
4 F I For the connection of the pickup photodiode.
5 TB I Inputs the DC components in the TE signal.
6 TE I
7 TE O TE signal output.
8 TESI I TES (track error sense) comparator input. The TE signal is passed through a BPF.
9 SCI I Shock detection input.
10 TH I Sets the time constant for the tracking gain.
11 TA O TA amp output.
12 TD I Composes the tracking phase compensation constant between the TD and VR pins.
13 TD O Sets the tracking phase compensation.
14 JP I Sets the amplitude of the tracking jump signal (kick pulses).
Pin Name I/O
For the connection of the pickup photodiode. Addition to the FIN1 pin creates an RF
signal and subtraction from it create an EF signal.
For the connection of the pickup photodiode. Subtraction from the F pin creates a TE
signal.
For the connection of a resistor which sets the gain of the TE signal between this pin
and the TE pin.
Description
15 TO O Tracking control signal output.
16 FD O Focusing control signal output.
17 FD I Composes the focusing phase compensation constant between the FD and FA pins.
18 FA O Composes the focusing phase compensation constant between the FD- and FA- pins.
19 FA I Composes the focusing phase compensation constant between the FA and FE pins.
20 FE O FE signal output.
21 FE I
22 A-GND Ground of analog signals.
23 NC Not connected.
24 SP O Single-ended output of the signals input to the CV+ and CV- pins.
25 SPG I For the connection of a resistor which sets the gain in the spindle 12cm mode. (Not used)
26 SP I For the connection of the spindle phase compensation constant with the SPD pin.
27 SPD O Spindle control signal output.
28 SLEQ I For the connection of sled phase compensation constant.
29 SLD O Sled control signal output.
30 SL
31 SL+
For the connection of a resistor whichs sets the gain of the FE signal between this pin
and the TE pin.
I Sled feed signal input from the microprocessor.
32 JP
33 JP+
34 TGL I Tracking gain control signal input from the DSP. Low gain when TGL is "H".
35 TOFF I Tracking off control signal input from the DSP. Off when TOFF is "H".
36 TES O Outputs the TES signal to the DSP.
37 HFL O
I Tracking signal input from the DSP.
The HFL (high frequency level) signal is used to judge whether the main beam is positioned
on the pit or on the mirror.
29
Pin No.
38 SLOF I Sled servo off control input.
39 CV
40 CV+
41 RFSM O RF output.
42 RFS O Sets the RF gain and the EFM signal's 3T compensation constant together with the RFSM pin.
I/O DescriptionPin Name
I CLV error signal input from the DSP.
43 SLC O
44 SLI I Input to control the DSP's data slice level.
45 D-GND Ground of digital signals.
46 FSC O Output for the focus search smoothing capacitor.
47 TBC I The TBC (tracking balance control) signal sets the EF balance variation range.
48 NC Not connected.
49 DEF O Disc defect detection output.
50 CLK I Reference clock input. 4.23MHz is input from the DSP.
51 CL I Microprocessor command clock input.
52 DAT I Microprocessor command data input.
53 CE I Microprocessor chip enable input.
54 DRF O DRF (detect RF) is an output to detect the RF level.
55 FSS I
56 VCC2 VCC of servo and digital circuits.
57 REFI For the connection of bypass capacitor for the reference voltage.
58 VR O Reference voltage output.
The SLC (slice level control) signal is output to control the DSP's data slice level of the RF
waveform.
The FSS (focus search select) signal switches the focus search modes (+/-search / +search with
respect to the reference voltage). (Not used)
59 LF2 Sets the time constant for disc defect detection.
60 PH1 For the connection of a capacitor to hold the RF signal peak.
61 BH1 For the connection of a capacitor to hold the RF signal bottom.
62 LDD O APC circuit output.
63 LDS I APC circuit input.
64 VCC1 VCC of RF signal circuits.
30
IC, LC876564V-5Y22
Pin No. Pin Name I/O Description
1 O-COIN O CD IC control data output.
2 O-CDCONT O CD block power ON / OFF control output.
3 O-OPEN (CD) O CD tray open data output.
4 O-CLOSE (CD) O CD tray close data output.
5 O-OPEN (CT) O Deck open / close output.
6 O-PL O Deck solenoid output.
7 I-AS I Deck auto stop signal input.
8 O-MOTOR O Deck motor ON / OFF output.
9 O-CLOSE (CT) O Deck open / close output.
10 O-CLKSFT O MICON clock shift control.
11 I-RESET I Reset input.
12 I-TU SIG I Tuner SD detect input.
13 I-CDSW (DOOR) I CD mecha switch A/D converter input.
14 VSS1 GND.
15 CF1 Connection of 9.43MHz oscillator.
16 CF2 Connection of 9.43MHz oscillator.
17 VDD1 Power supply input.
18 I-HOLD I Power failure detection input.
19 I-LEVEL I Signal level input.
20 I-STOP (HEAD) I Deck cam switch input and tape tray condition detect input.
21 I-CSTSW I Cassette tape and side A, B tab of cassette detect input.
22 I-ENC3 (VOL) I Volume rotary encoder A/D input.
23 I-ENC2 (TREBLE) I Treble rotary encoder A/D input.
24 I-ENC1 (BASS) I Bass rotary encoder A/D input.
25 I-KEY2 I Key input. (A/D)
26 I-KEY1 I Key input. (A/D)
27 I-TM BASE I Reference clock input for watch.
28 I-RDCL I RDS clock input. (EZ only)
29 I-RMC I System remote control signal input.
30 ~ 40 G11 ~ G1 O FL grid G11 ~ G1 output.
41 ~ 45 P21 ~ P17 O FL segment P21 ~ P17 output.
46 VDD3 Power supply input.
47 ~ 50 P16 ~ P13 O FL segment P16 ~ P13 output.
51 VP Power supply for FL display.
52 ~ 62 P12 ~ P2 O FL segment P12 ~ P2 output.
63 LW/P1 I/O LW diode input / FL segment P1 output.
64 ~ 67 NC Not connected.
68 SI (ECHO) Connected to GND through a resistor.
69 SLT (ECHO) Connected to GND through a resistor.
70 SCK (ECHO) Connected to GND through a resistor.
71 I-MIC I Microphone input. (Connected to GND through a resistor)
72 VDD4 Power supply input.
31
Pin No. Pin Name I/O Description
73 O-LED (CD) O CD function LED ON / OFF.
74 O-LED (TU) O Tuner function LED ON / OFF.
75 O-LED (AU) O AUX function LED ON / OFF.
76 O-LED (TA) O Tape function LED ON / OFF.
77 O-LED (PW) O Power function LED ON / OFF. (Light up : ECO standby)
78 O-ECO O Relay switch ON / OFF output.
79 O-TUCE O PLL IC chip enable output.
80 O-TUDO O PLL IC control data output.
81 O-TUCL O PLL IC control clock output.
82 I-TUDI I Tune IF count serial data input.
83 I-STEREO I Tuner stereo detect input.
84 I-RDDT I RDS data input. (EZ only)
85 O-TUCONT O Tuner ON / OFF control output.
86 O-CLK (FUNC) O Function IC control clock output.
87 O-DATA (FUNC) O Function IC control data output.
88 O-AMP-CONT O Amplifier ON / OFF control output. (Not used)
89 VSS2 GND.
90 VDD2 Power supply input.
91 O-MUTE O Audio mute ON / OFF control output.
92 O-DOLBY O Dolby ON / OFF control output. (Not used)
93 O-BIAS O Bias ON / OFF control output.
94 O-PB/REC O PB IN /REC OUT control output.
95 O-REC-SEL O REC IN / REC MUTE control output.
96 I-DRF I CD focus ON detect data input.
97 I-WRQ I CD interrupt subcode out standby signal input.
98 I-SQOUT I CD IC subcode Q data input.
99 O-RWC O CD IC control chip enable output.
100 O-CQCK O CD IC control clock output.
32
ADJUSTMENT (TUNER / DECK / CD / FL)
V
DIGITAL MULTIMETER
VT
GND
V
DIGITAL MULTIMETER
VT
GND
FREQUENCY COUNTER
CLOCK
GND
Hz
<TUNER SECTION>
PWB TUNER
JW970
IC991
IC801
12 11
VT
CN991
Rch
Lch
Lch
PATTERN SIDE
24
CLK
1. VT Adjustment (LW)
Requirement
Measuring Device: Digital Multimeter
Test Point: VT, GND
Adjustment Point: L942
(1) Adjust the reception frequency of the set to 144 kHz.
(2) Adjust L942 until the test point voltage (VT) is 1.3 V ± 0.05 V.
(3) Adjust the reception frequency of the set to 290 kHz.
(4) Check that the test point (VT) voltage is below 8 V.
4
GND
PARTS SIDE
L801
CN991
L802
L907
L905
L942
L904
L908
TC942
L902
L951
L901
L941
1 2 4
4
9
1
7
6
5
1
2
6
5
6
5
3
3 4
7 9
7 9
2. VT Check (MW)
Requirement
Measuring Device: Digital Multimeter
Test Point: VT, GND
(1) Adjust the reception frequency of the set to 1602 kHz.
(2) Check that the test point voltage is below 8 V.
(3) Adjust the reception frequency of the set to 531 kHz.
(4) Check that the test point voltage is above 0.6 V.
3. CLOCK Check
Requirement
Measuring Device: Frequency Counter
Test Point: CLOCK, GND
(1) Change to MW and adjust the reception frequency of the set to 1602 kHz.
(2) Check that the test point (CLOCK) frequency is 2052 kHz ± 45 Hz.
4. VT Adjustment (FM)
Requirement
Measuring Device: Digital Multimeter
Test Point: VT, GND
Adjustment Point: L907
(1) Adjust the reception frequency of the set to 108.0 kHz.
(2) Adjust L907 until the test point voltage (VT) is 7 V ± 0.05V.
(3) Adjust the reception frequency of the set to 87.5 MHz.
(4) Check that the test point voltage is above 0.5 V.
DIGITAL MULTIMETER
V
VT
GND
33
<MW/LW Adjustment>
For MW/LW adjustment, do wiring and connection as in the following.
60cm
Standard Signal Generator
5. IF adjustment (MW)
Requirement
Measuring Device: Oscilloscope and Millivoltmeter
Test Point: Lch, Rch, GND
Adjustment Point: L802
(1) Adjust the setting of Standard Signal Generator (hereinafter S.S.G) to 450 kHz of 30 % variation.
(2) Adjust the reception frequency of the set to 999 kHz.
(3) While looking at the waveform on the oscilloscope, reduce the output level all the way.
(4) Adjust L802 until the value of the millivoltmeter reaches the maximum.
6. Tracking Adjustment (MW)
Requirement
Measuring Device: Oscilloscope and millivoltmeter
Test Point: Lch, Rch, GND
Adjustment Point: L951
(1) Adjust the S.S.G setting to 999 kHz of 30 % variation.
(2)While looking at the waveform on the oscilloscope, reduce the output level all the way.
SET
Lch
Rch
GND
TP
Connect to the respective measuring device
OSCILLOSCOPE
CH2CH1
GND
Lch
Rch
GND
AC MILLIVOLTMETER
CH2
Lch
GND
Rch
CH1
GND
(3) Adjust L951 until the value of the millivoltmeter reaches the maximum.
7. Tracking Adjustment (LW)
Requirement
Measuring Device: Oscilloscope and millivoltmeter
Test Point: Lch, Rch, GND
Adjustment Point: L941, TC942
(1) Adjust the S.S.G setting to 144 kHz, 30 % variation and reduce the output level all the way.
(2) Adjust L941 until the value of millivoltmeter reaches the maximum.
(3) Adjust the S.S.G setting to 290 kHz, 75 kHz variation, and reduce the output level all the way.
(4) Adjust TC942 until the value of the millivoltmeter reaches the maximum.
(5) Repeat the adjustment 2 or 3 times from step 1 to 4 above.
8. Auto Stop Check (MW)
Requirement
(1) Adjust the S.S.G setting to 999 kHz, 30 % variation, and 78 dBuV for the output level.
(2) Activate the tuner search function, and check that there is reception of 999 kHz.
34
<FM Adjustment>
For adjusting FM, do wiring and connection as in the following.
Standard Signal Generator
i
SET
Lch
Rch
GND
TP
Connect to the respective measuring device
9. Tracking Adjustment (FM)
Requirement
Measuring device: Millivoltmeter
Test Point: Lch, Rch, GND
Adjustment Point: L901, L902, L904, L905
(1) Adjust the S.S.G setting to 108.0 MHz, 75 kHz variation and reduce the output level all the way.
(2) Adjust L901, L902, L904, L905 until the value of millivoltmeter reaches the maximum.
(3) Adjust the S.S.G setting to 98.0 MHz, 75 kHz variation, and 66 dBuV for the output level.
(4) Check that the test point voltage is below 13 dBuV.
10. Auto Stop Check (FM)
Requirement
(1) Adjust the S.S.G setting to 98.0 MHz, 75 kHz variation, and 40 dBuV for the output level.
(2) Activate the tuner search function, and check that there is reception of 98.0 MHz.
Lch
GND
Rch
AC MILLIVOLTMETER
CH2
CH1
GND
35
<DECK SECTION>
PWB MAIN
PATTERN SIDE
SFR351
SFR352
Lch
GND
Rch
SP OUT
1 2
5
4
3
Prepare the following before adjusting the deck.
Preparation
Measuring Device: Audio Signal Generator / Attenuator / Wow & Flutter Meter (Frequency Counter) / Oscilloscope / Millivolmeter /
Dummy Load (6 ohm).
1) Connect the set to the measuring device as shown in the following diagram.
2) Output 1V(1 kHz) from the generator and adjust the attenuator until AUX IN becomes 0.5 V.
3) Set AUX for FUNCTION and adjust the volume until the millivoltmeter value becomes 2 V.
AUDIO SIGNAL
GENERATOR
OUTPUT
(1KHz,1V)
ATTENUATOR
INPUT
WOW&FLU TTER METE R
OUTPUT
Hz
INPUT
%
CENTER UNIT
AUX(L)
(0.5V)
AUX(R)
HP OUT
SPOUT(L)
SPOUT(R)
AC MILLI VOLTMETER
DUMMY
LOAD
6
Ω
OSCILL OSCOPE
CH2CH1
OUTPUT
CH2CH1
36
1. Checking Tape Speed
Requirements
Test Tape: TTA-100 (3 kHz)
Test Point: Lch, Rch, GND
Adjustment Point: SFR1
1) Insert the test tape (TTA-100), FWD play back the centre of the tape and check that the speed is 3,000 Hz ± 45 Hz.
2) RVS playback and check that ± 45 Hz is added according to the FWD speed.
2. Adjusting Head Azimuth
Requirements
Test Tape: TTA-300 (10 kHz)
Test Point: Lch, Rch, GND
Adjustment Point: Head Azimuth Screws
1) Set the V mode of the oscilloscope to ADD.
2) Insert the test tape (TTA-300), FWD playback the centre of the tape and adjust, using the head azimuth screws until the waveform of the
oscilloscope has reached the maximum when playing back at 10 kHz.
3) Reverse the tape, RVS playback and adjust, using the head azimuth screws until the waveform of the oscilloscope has reached the maximum.
4) After the adjustment, bond lock (1600B) the screws.
3. Checking Playback Frequency Reponse
Requirements
Test Tape: TTA-300 (315 Hz / 10 kHz)
Test Point: Lch, Rch, GND
1) Insert the test tape (TTA-300) and playback 315 Hz and 10 kHz.
2) Use the 315 Hz output level as a standard, check that the 10 kHz level is within ± 3 dB.
4. Checking Playback Sensitivity
Requirements
Test Tape: TTA-200 (400 Hz)
Test Point: Lch, Rch, GND
1) Insert the tape (TTA-200) and playback.
2) Check that the output level is within 900 mV ± 3 dB.
5. Adjusting the REC / PB Frequency Response
Requirements
Test Tape: TTA-602
Test Point: Lch, Rch, GND
Input Point: AUX (1 kHz / 10 kHz)
Adjustment Point: SFR351 (Lch), SFR352 (Rch)
1) Set AUX for function and reduce attenuator output by 20 dB.
2) Insert the test tape (TTA-602) and record 1 kHz and 10 kHz alternately from AUX.
3) Playback the tape, adjust SFR351 (Lch) / SFR352 (Rch) until the playback output level of 1 kHz is within ± 1 dB according to the standard
when the playback output level of 1 kHz is used as the standard.
37
<CD SECTION>
PWB CD
6
VC
R546
1
RIOP
CD Adjustment Method
Perform the adjustments after the machine enters the test mode.
Place the CD mechanism on level ground.
Equipment and tools required
Measuring equipment: Oscilloscope (Use the probe of 10:1)
Digital Multimeter (Use it in the DC Volt range)
Jitter meter (Kikusui 6235)
Test Disc: TCD-782
ATD-001
SFR501
RF
IC651
FE
IC501
TE
4
3
2
1. Focus Offset Adjustment
1) Connect a digital multimeter to the test point (FE), (VC).
2) Play back the 2nd track of TCD-782.
3) Adjust SFR501 until the digital multimeter indicates 0 ± 10 mV.
2. RF Waveform Check
1) Connect an oscilloscope to test point (RF), (VC).
2) Play back the 2nd track of TCD-782.
3) Check that the RF waveform has the maximum amplitude and
the center of the wedge waveform has the clear blank.
3. Jitter Check
1) While an oscilloscope is kept connected in the same test point as
in step 2. RF Waveform Check, connect the output terminal of an
oscilloscope to the input terminal of the jitter meter.
2) Set the VOLT range selector of an oscilloscope to 500 mV range
or lower.
3) Play back the 2nd track of TCD-782.
4) Check that the jitter meter indicates 28.0 ns or less.
RF
VC
38
OSCILLOSCOPE
OUTPUT
OSCILLOSCOPE
RF
VC
DIGITAL MULTIMETER
FE
VC
EYE PATTERN
must be CLEAR and MAX
OUTPUT
JITTER METER
INPUT
V
Approx.
1.8 ± 0.3
Vp-p
VOLT / DIV: 500mV
ns
0V
4. Tracking Balance Check
1) Connect the test point (TE), (VC) to the oscilloscope.
2) Playback the second track of TCD-782 and press the PAUSE button.
3) Check that the traverse waveforms of the oscilloscope are up and
down symmetrical.
5. Play Ability Check
1) Play back the 3rd, 8th, and 13th track of ATD-001. Check that the
noise does not occur and sound skipping does not occur.
6. Laser Current Check
* Do not perform this measurement unless the laser is suspected to
be defective.
1) Connect a digital multimeter across the resistor R546 (10 ohm).
2) Play back the TCD-782 and check the DC voltage value on the
digital multimeter.
3) Calculate the laser current (Iop) by dividing the DC voltage across
R546 by the resistor value (R546 = 10 ohm). Check that the laser
current (Iop) is SPEC VALUE ± 10 %.
TE
VC
OSCILLOSCOPE
OUTPUT
R546
R546
VC
DIGITAL MULTIMETER
EXAMPLE
KSS-213F
05Y93
DA372
VOLT / DIV: 500mV
TIME / DIV: 1ms
V
SPEC VALUE
37.2 mA
A
B
<FL SECTION>
FLPW B
PATTERN SIDE
R149
TP
77
IC101
1. Clock Adjustment
1) Connect an oscilloscope to test point OSC (IC101 77 pin) and GND (IC101 89 pin).
2) Insert the AC plug while pressing POWER and TUNER / BAND buttons.
3) Adjust L101 until the oscilloscope indicates 318.87 Hz ± 0.08 Hz (3.1352 ~ 3.1368 ms)
GND
PARTS SIDE
L101
39
CD TEST MODE
1. How to Start the CD Test Mode
While pressing the CD FUNCTION button, insert the AC plug to the power outlet.
When the test mode started, the message [CD TEST] is displayed.
2. How to Exit the CD Test Mode
Press the POWER button or disconnect the AC plug.
3. Function and Usage of the CD Test Mode
No Mode
1 Start Mode All lights are Microcomputer check
2 Search Mode STOP button READING LD illuminates all the time APC circuit check
3 Play Mode PLAY button Normal Normal playback Each servo circuit is checked
4 Traverse Mode PAUSE button Normal Tracking servo OFF/ON Tracking balance check
5 Sled Mode FF button CD TEST Pickup moves to the inner Sled circuit check
* 1. The driver IC heats up and the protection circuit starts working when the focus search is continued for 10 minutes or longer. There can be a
case that operations cannot be performed correctly. In such a case, turn off the main power. After cooling down the machine, restart the
machine.
Button for
Activation
RWD button CD TEST Pickup is moves to the outer
Display Operation Contents
lit.
Focus search continues Laser current measurement
operations *1 Focus search waveform check
Spindle motor continuous kick
If TOC cannot be read, focus DRF check
search is continued
STOP button to cancel
circumference *2 Mechanism operation check
circumference *2
Pickup Check
* 2. Be careful not to damage the gear because the sled motor rotates while the FF or RWD button is being pressed even if the pickup is located in
the innermost track or the outermost track.
40
MECHANICAL EXPLODED VIEW 1 / 1
10
F
A
28
A
3ZG-3
PWB
A
FL
9
8
11
E
16
B
17
12
7
PWB
A
E
D
E
29
6
5
A
PWB
19
PWB
18
HT-SINK,
20
21
HT-SINK,
SUB B
ASSY MAIN 2
22
A
A
A
G
G
A
A
A
PWB
A
A
PWB
A
27
B
A
A
13
D
D
A
14
4
15
B
HT-SINK,
25
SUB A
23
H
3
2
A
1
PWB
D
24
PWB
C
A
26
AZM-1
F
CHAS,MAIN
41
MECHANICAL PARTS LIST 1 / 1
PART NO.
NO.
1 8B-CLX-001-010 CABI,FR<EZ[S]>
1 8B-CLX-022-010 CABI,FR K<K[S]>
2 8B-CLX-008-010 PANEL,TRAY CASS
3 8B-CLX-010-010 KNOB,RTRY VOL
4 8B-CLX-011-010 KNOB,RTRY BT
5 8B-CLX-014-010 KEY,POWER
6 8B-CLX-009-110 WINDOW ASSY,DISP<EZ[S]>
6 8B-CLX-028-110 WINDOW ASSY,DISP K<K[S]>
7 8B-CLX-013-010 KEY,CONT
8 8B-CLX-012-010 KEY,FUNC
9 8B-CLX-018-010 REFLECTOR,FUNC
10 8B-CLX-004-110 PANEL,SIDE L
11 8B-CLX-203-010 HLDR,FL
12 88-923-091-110 FF-CABLE,23P 1.25 90MM
13 8B-CLX-015-010 KEY,EJECT CD
14 8B-CLX-016-010 KEY,EJECT CASS
15 88-905-231-110 FF-CABLE, 5P 1.25 230MM
16 8B-CLX-007-010 PANEL,TRAY CD
17 8B-CLX-202-010 CHAS,CD
18 88-905-131-110 FF-CABLE,5P 1.25 130MM
DESCRIPTIONREF. NO. KANRI
PART NO.
19 88-910-171-110 FF-CABLE,10P 1.25 170MM
20 8B-CLX-618-010 FF-CABLE,16P 1.0 150MM CD-PICK
21 88-906-081-110 FF-CABLE,6P 1.25 80MM
22 88-907-211-110 FF-CABLE,7P 1.25 210MM
23 87-003-317-010 F-BEAD,15-25-15 E2515MRT
24 87-085-185-010 BUSHING,AC CORD(E) CM-22B
25 87-A80-157-010 AC CORD ASSY,E BLK CC
!
26 8B-CLX-005-110 PANEL,SIDE R
27 8B-CLX-002-010 CABI,REAR<EZ[S]>
27 8B-CLX-026-010 CABI,REAR K<K[S]>
28 8B-CLX-003-010 PANEL,TOP
29 8B-CLX-017-010 REFLECTOR,POWER
A 87-067-703-010 BVT2+3-10 W/0 SL0T
B 87-B10-315-010 BVIT3B+3-8 R W/O
C 87-B10-318-010 BVIT3C+4-8 R W/O
D 87-721-096-410 QT2+3-10 W/O SLOT
E 87-B10-294-010 BVT2+2.6-8
F 87-067-761-010 BVT2+3-10 BLK
G 87-NF4-224-010 S-SCREW,IT3B+3-8 CU
H 88-AR1-217-010 S-SCREW,BFT2+3-8
NO.
DESCRIPTIONREF. NO. KANRI
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green HT Transparent Gray
HM Metallic Gray NH Champagne Gold M Wood Pattern
42
TAPE MECHANISM EXPLODED VIEW 1 / 2
C
3
4
1
C
2
7
8
5
6
12
16
17
15
D
PWB
B
10
11
13
14
E
18
19
9
6ZM-4
A
A
E
43
TAPE MECHANISM PARTLIST 1 / 2
PART NO.
NO.
1 8A-ZM1-214-010 PLATE,F STOPPER
2 8A-ZM1-223-010 SPR-T,LOCK F
3 8A-ZM1-209-010 GEAR,SLIDE B
4 8A-ZM1-233-010 FRAME,MAIN BL
5 8A-ZM1-215-210 LEVER ASSY,SLIDE L
6 8A-ZM1-217-010 LEVER ASSY,SLIDE R
7 8A-ZM1-212-010 LEVER,LOCK F
8 8A-ZM1-208-110 GEAR,SLIDE A
9 8A-ZM1-230-210 BELT,BASE
10 8A-ZM1-220-010 SPR-E,CLAMP
11 8A-ZM1-216-310 PLATE ASSY,CLAMP
12 8A-ZM1-234-110 TRAY,CASSETTE BL
13 87-045-305-010 MOTOR, RF-500TB DC-5V (2MA)
14 86-ZL1-210-010 PULLEY,MOT
15 8Z-ZG4-614-010 F-CABLE,2P 130MM LED
16 8A-ZM1-202-110 BASE,
17 86-ZL1-214-010 SPR-P,CASS
18 8A-ZM1-207-110 GEAR,FRAME
19 8A-ZM1-213-110 GEAR,PULLEY
A 87-067-660-010 TAPPING SCREW, BVT2+3-8
B 88-ZG5-302-010 S-SCREW,8ZG5+2-4 W/O
C 88-ZG5-317-010 S-SCREW,8ZG5S+2-4 W/O
D 87-251-072-410 U+2.6-5
E 8A-ZM1-240-010 S-SCREW,GEAR F/P
DESCRIPTIONREF. NO. KANRI
44
TAPE MECHANISM EXPLODED VIEW 2 / 2
4
5
6
53
21
B
B
51
49
3
HEAD C.B
2
52
a
7
11
12
47
H
48
54
13
1
8
9
10
a
8
14
16
15
18
17
9
DECK C.B
J
A
23
24
25
19
26
22
I
50
PLATE,SHLD DECK
20
b
D
HLDR,MOT L
D
b
44
G
45
27
32
33
31
34
35
29
28
36
37
38
46
E
42
40
43
30
41
C
CUSH-G
39
F
R7NM
45
TAPE MECHANISM PARTLIST 2 / 2
PART NO.
NO.
1 82-ZM1-358-010 CHAS ASSY,FPC
2 82-ZM1-258-210 SPR-T,PINCH L
3 82-ZM1-363-010 LEVER,ASSY PINCH LD
4 82-ZM1-266-310 LVR,DIR
5 82-ZM1-214-010 SPR-T,DIR
6 82-ZM1-333-210 PLATE,LINK2
7 86-ZM1-203-010 CAP,REEL
8 86-ZM1-221-010 SPR-C,BT 2L
9 82-ZM1-240-110 LVR,REC(*)
10 82-ZM1-241-310 LVR,MC
11 82-ZM1-242-010 LVR,CAS
12 82-ZM1-243-010 LVR,STOP
13 82-ZM3-339-110 SHAFT,COUPLER N3
14 82-ZM1-222-310 LVR,PLAY(*)
15 82-ZM1-223-010 GEAR,PLAY
16 82-ZM3-353-010 SPR-T,HEAD 2
17 82-ZM1-210-110 GEAR,H T
18 82-ZM1-269-210 SPR-T,BRG
19 82-ZM1-219-110 SPR-T,LINK
20 86-ZM1-217-110 BELT,MOT
21 82-ZM1-314-110 PLATE,HEAD
22 87-A92-197-010 HEAD,RPH HADKH5666A FPC
23 82-ZM1-208-310 HLDR,HEAD
24 82-ZM1-207-910 GUIDE,TAPE
25 82-ZM1-218-010 SPR-E,HB
26 82-ZM1-206-910 CHAS,HEAD
27 82-ZM1-362-010 LEVER,ASSY PINCH RD
28 82-ZM1-259-210 SPR-T,PINCH R
29 82-ZM3-628-010 SOL ASSY,23 SO
30 82-ZM1-322-010 SPR-T,FR 60
31 82-ZM1-220-210 GEAR,IDLER
32 82-ZM3-616-010 RING MAGNET 4
33 86-ZM1-219-010 CLR,REEL SLIP
34 86-ZM1-220-010 FELT,DIA 5.3-14-0.8
35 82-ZM1-216-510 GEAR,REEL
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
36 82-ZM1-224-410 LVR,FR
37 82-ZM3-333-310 SLIP DISK ASSY 2
38 82-ZM1-338-110 BELT,FR 4
39 82-ZM1-305-210 SPR-E,TRIG 2
40 82-ZM1-227-310 LVR,TRIG
41 82-ZM1-225-210 GEAR,FR
42 82-ZM1-226-010 GEAR,REW
43 86-ZM4-214-010 FLY-WHL ASSY,R4W
44 86-ZM4-215-010 FLY-WHL ASSY,L4W
45 82-ZM1-221-310 GEAR,CAM(*)
46 82-ZM1-255-310 SPR-E,LVR DIR
47 82-ZM3-335-310 PULLEY,COUPLER M3
48 86-ZM1-206-010 BELT,MAIN L
49 87-A90-343-010 MOT,SHU2R 70
50 82-ZM3-221-210 PULLEY,MOT 2M
51 86-ZM4-601-110 RBN-CORD,4P 300MM
52 86-ZM1-605-010 CONN ASSY, AR3
53 86-ZM1-202-010 SHAFT,REEL
54 82-ZM1-288-010 SH,1.63-3.2-0.5 SLT
A 85-ZM3-202-010 S-SCREW,TG
B 80-ZM6-207-010 V+1.6-7
C 82-ZM3-318-110 S-SCREW W,MOTOR M2
D 87-067-178-010 VTT+2.6-3
E 87-B10-008-010 W-P,2.08-8-0.4-SLIP
F 82-ZM3-334-010 PW 2.16-6-0.4
G 82-ZM3-222-010 S-SCREW,SHILD PLATE
H 87-B10-043-010 W-P,0.99-4-0.25 SLT
I 80-ZM6-243-010 SH 1.75-3.6-0.5 SLT
J 86-ZM4-206-110 S-SCREW,AZIMUTH L
DESCRIPTIONREF. NO. KANRI
46
CD MECHANISM EXPLODED VIEW 1 / 2
9
C
F
18
16
15
14
18
F
3ZG-2 E3NM
b
5
7
B
E
8
2
13
a
11
10
4
6
12
D
3
17
PWB
b
a
A
1
47
CD MECHANISM PARTS LIST 1 / 2
PART NO.
NO.
1 83-ZG3-224-510 HLDR M2
2 83-ZG3-228-610 CHAS,L6
3 83-ZG3-208-010 PULLEY,MOTOR
4 83-ZG3-213-010 LVR,SW
5 83-ZG3-209-610 CAM,SLIDE
6 83-ZG3-207-010 GEAR,TRAY
7 83-ZG3-204-210 GEAR,C
8 83-ZG3-205-010 GEAR,D
9 83-ZG3-219-010 PLATE,CLAMP
10 83-ZG3-220-210 GEAR,PULLEY 2
11 83-ZG3-214-010 BELT,L
12 83-ZG3-231-210 TRAY,CD 3
13 83-ZG3-230-110 HLDR,CHUCK 2(*)
14 86-ZG1-239-110 PLATE,DISC PC
15 83-ZG3-604-010 RING,MAG 2
16 86-ZG1-238-010 HLDR,MAGNET 6ZG N
17 87-045-305-010 MOTOR, RF-500TB DC-5V (2MA)
18 83-ZG3-225-010 CUSH-G, MAIN A
A 87-067-945-110 VFT2+3-12(F10)
B 87-251-071-410 U+2.6-4
C 83-ZG3-235-010 VFT2+2.6-8
D 87-352-075-210 VT2+2.6-10
E 83-ZG3-217-010 S-SCREW,GEAR D
F 81-ZG1-254-010 S-SCREW,MECH HLDR
DESCRIPTIONREF. NO. KANRI
48
CD MECHANISM EXPLODED VIEW 2 / 2
8
7
2
1
A
6
SW1
3
4
M21
5
PWB
CD MECHANISM PARTS LIST 2 / 2
PART NO.
NO.
1 83-ZG2-262-010 CHAS ASSY,E3
2 87-A90-836-010 PICKUP,KSS-213F
3 83-ZG2-235-010 GEAR,A3
4 83-ZG2-236-010 GEAR,MOTOR 3
5 83-ZG2-205-310 GEAR,B
6 83-ZG2-253-010 SHAFT,SLIDE 5
7 83-ZG2-245-510 LEVER,SHUTTER(*)
8 83-ZG2-250-210 SPR-E,SHT 2
A 87-261-032-210 V+2-3
DESCRIPTIONREF. NO. KANRI
49
GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE)
Type.1
Insert a flat-bladed screwdriver into the position indicated by the
arrows and remove the panel. Remove the screws of each speaker
unit and then remove the speaker units.
Type.2
Remove the grill frame and four pieces of rubber caps by pulling
out with a flat-bladed screwdriver. Remove the screws from hole
where installed rubber caps. Insert a flat-bladed screwdriver into
the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker
units.
Type.4
TOOLS
1 Plastic head hammer
2 (() flat head screwdriver
3 Cut chisel
12 3
How to Remove the PANEL, FR
1. Insert the (() flat head screwdriver tip into the gap
between the PANEL, FR and the PANEL, SPKR. Tap the
head of the (() flat head screwdriver with the plastic
hammer head, and create the clearance as shown in Fig-1.
2. Insert the cut chisel in the clearance, and tap the head of
the cut chisel with plastic hammer as shown in Fig-2, to
remove the PANEL, FR.
Type.3
Insert a flat-bladed screwdriver into the position indicated by the
arrows and remove the panel. Turn the speaker unit to counterclockwise direction while inserting a flat-bladed screwdriver into
one of the hollows around speaker unit, and then remove the speaker
unit. After replacing the speaker unit, install it turning to clockwise
direction until "click" sound comes out.
3. Place the speaker horizontally. Tap head of the cut chisel
with plastic hammer as shown in Fig-3, and remove the
PANEL, FR completely.
Fig-1 Fig-2
How to Attach the PANEL, FR
Attach the PANEL, FR to the PANEL, SPKR. Tap the four
corners of the PANEL, FR with the plastic hammer to fit the
PANEL, FR into the PANEL, SPKR completely.
– 50 –
Fig-3
SPEAKER PARTS LIST <SX LEM70 (YJMN)>
PART NO.
NO.
1 8B-CPX-002-010 RING,W
2 8B-CPX-003-010 RING,TW
3 8B-CPX-004-010 GRILLE,FRAME ASSY
4 8B-CPX-016-010 BADGE,AIWA 27.5
5 8B-CPX-602-010 SPKR,W 130 25/2
6 8A-CJ5-415-010 TERMINAL
7 8B-CP5-610-010 CORD,SPKR
DESCRIPTIONREF. NO. KANRI
ACCESSORIES / PACKAGE LIST
PART NO.
1 8B-CLX-905-010 IB,K(E)M<K>
1 8B-CLX-906-010 IB,EZ(9L)M<EZ>
2 87-006-226-010 ANT,LOOP AM
3 87-A90-118-010 ANT,WIRE FM (Z)
4 8B-CLX-951-010 RC UNIT,RC-BAT15
5 87-099-726-010 PLUG,ADPTR CONV (K)<K>
!
NO.
DESCRIPTIONREF. NO. KANRI
51
211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
9301978 921338
Printed in Singapore
Loading...
