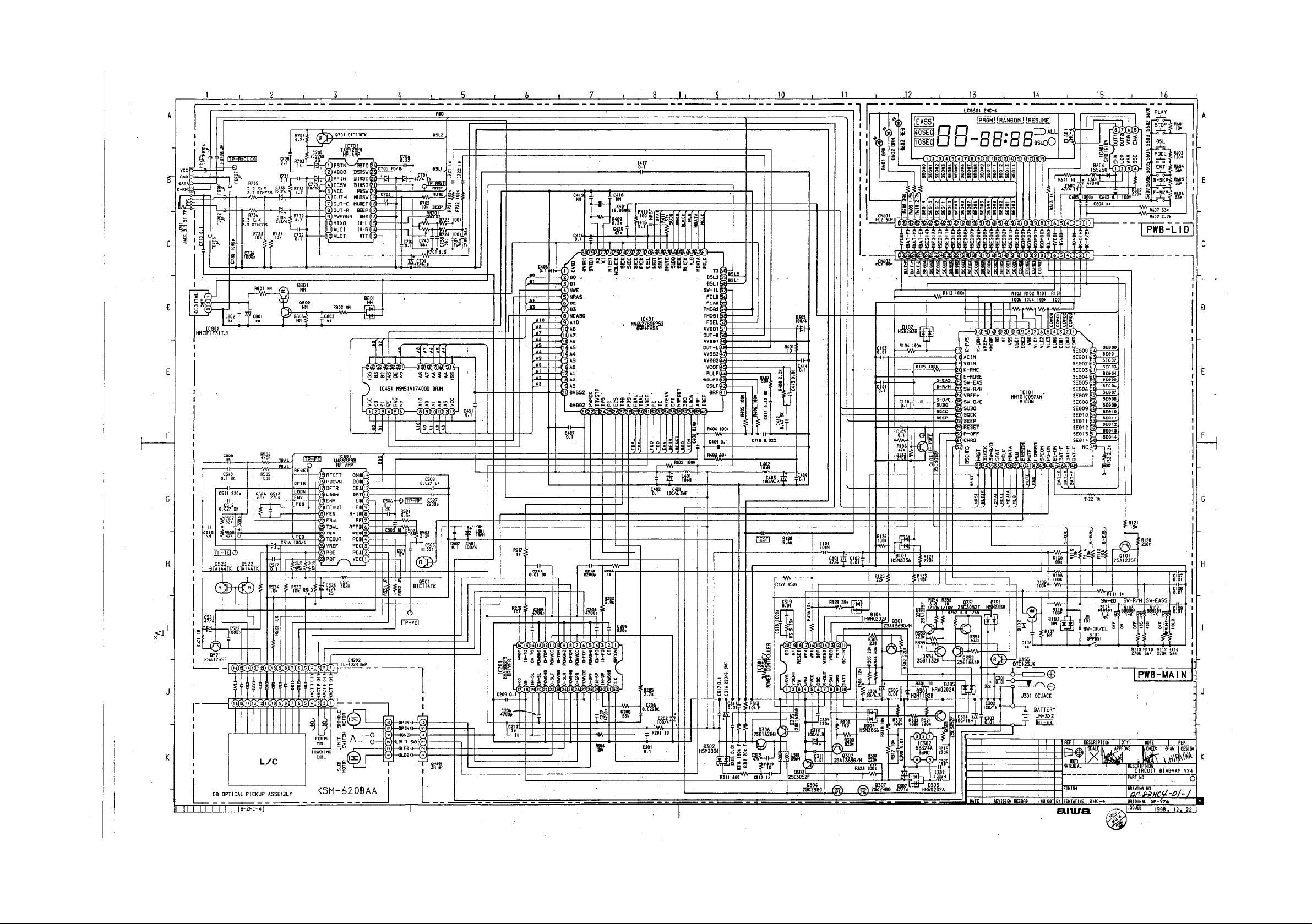

Aiwa XPV-706-C Schematic

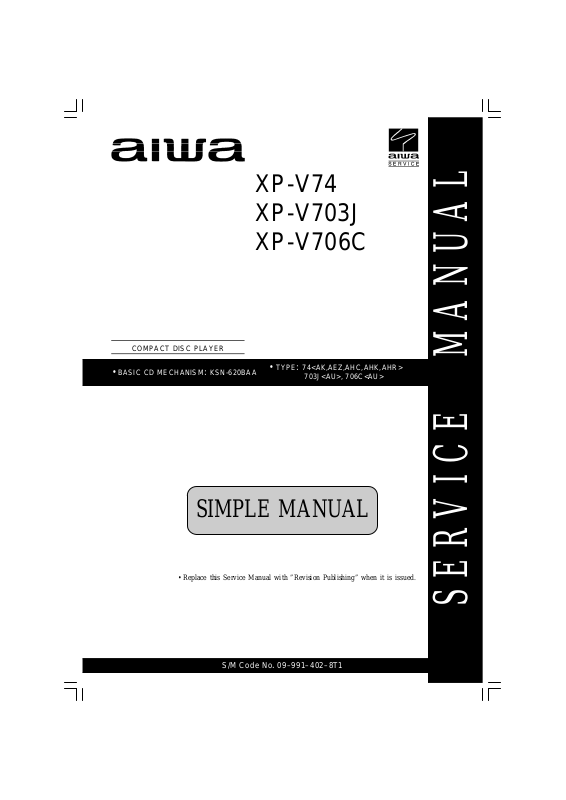

S E R V I C E M A N U A L
COMPACT DISC PLAYER
XP-V74
XP-V703J
XP-V706C
• BASIC CD MECHANISM: KSN-620BAA
SIMPLE MANUAL
• TYPE: 74<AK,AEZ,AHC,AHK,AHR>
703J<AU>, 706C<AU>
• Replace this Service Manual with ”Revision Publishing” when it is issued.
S/M Code No. 09–991–402–8T1
ELECTRICAL MAIN PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
703JAUBSC ..............XX..................................A...................
74AK1SM ................XX...................................B..................
74AEZ1SM ...............XX....................................C.................
74AHRJ1SM ..............XX.....................................D................
706CAUBC ...............XX......................................E...............
74AHKJ1SM ..............XX.......................................F..............
74AHC1SM ...............XX........................................G.............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 105 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 109 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 108 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 104 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 107 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 102 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 103 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 101 87-A11-166-080 1A C-CAP,TN 47-4 M F93 B ABCDEFG.............
CN 602 87-A60-792-080 1B C-CONN,30P V 30FLT-SM1TB ABCDEFG.............
D 101 87-A40-468-040 0E C-DIODE,HSM2836CTR ABCDEFG.............
D 102 87-A40-469-080 0E C-DIODE,HSM2838CTR ABCDEFG.............
D 104 87-A40-590-040 0E C-DIODE,HRW0202A ABCDEFG.............
D 103 87-A40-590-040 0E C-DIODE,HRW0202A ABCDEFG.............
IC 101 8Z-HC4-603-010 1H C-IC,MN101C097-XXX ABCDEFG.............
L 101 87-A50-367-080 0E C-COIL, 10UH LQG21F ABCDEFG.............
Q 101 87-A30-075-080 0E C-TR,2SA1235F ABCDEFG.............
S 101 87-036-252-010 0E SW,PUSH SPPB 51 ABCDEFG.............
S 102 87-A90-494-080 1A C-SW,SL 1-1-3 SSSS81 ABCDEFG.............
S 103 87-A90-494-080 1A C-SW,SL 1-1-3 SSSS81 ABCDEFG.............
D 351 87-A40-469-080 0E C-DIODE,HSM2838CTR ABCDEFG.............
Q 355 87-026-608-080 0E C-TR,DTC 123 JK ABCDEFG.............
Q 353 87-A30-075-080 0E C-TR,2SA1235F ABCDEFG.............
Q 351 87-A30-076-080 0E C-TR,2SC3052F ABCDEFG.............
Q 354 89-211-323-080 1A C-TR,2SB1132R ABCDEFG.............
Q 352 89-416-643-080 0E C-TR,2SD1664R ABCDEFG.............
C 309 87-012-196-080 0E C-CAP,U 120P-50 CH ABCDEFG.............
C 301 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 303 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 305 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 308 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 307 87-016-428-080 0E C-CAP,E 47-16 5.5N ABCDEFG.............
C 306 87-016-430-080 0E C-CAP,E 100-6.3 5.5N ABCDEFG.............
C 302 87-A11-031-080 0E C-CAP,E 100-16 M WX ABCDEFG.............
C 304 87-A11-031-080 0E C-CAP,E 100-16 M WX ABCDEFG.............
C 316 83-HC3-635-080 1B C-CAP,E 220-6.3 WF ABCDEFG.............
C 317 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 313 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFG.............
C 318 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............
C 314 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 315 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 311 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 319 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 310 87-016-430-080 0E C-CAP,E 100-6.3 5.5N ABCDEFG.............
C 312 87-A10-047-080 0E C-CAP,U 1-10 Z F ABCDEFG.............
C 320 87-A10-047-080 0E C-CAP,U 1-10 Z F ABCDEFG.............
D 304 87-A40-468-080 0E C-DIODE,HSM2836CTR ABCDEFG.............
D 302 87-A40-469-080 0E C-DIODE,HSM2838CTR ABCDEFG.............
D 305 87-A40-590-040 0E C-DIODE,HRW0202A ABCDEFG.............
D 303 87-A40-590-040 0E C-DIODE,HRW0202A ABCDEFG.............
D 301 87-A40-592-040 0E C-ZENER,HZM11NB2 ABCDEFG.............
IC 301 87-A21-082-040 1D C-IC,BA6655AFV ABCDEFG.............
IC 302 87-A21-143-080 1B C-IC,S8324A33MC-EON-T2 ABCDEFG.............
J 301 87-A60-421-010 1A JACK,DC HEC3600 BLK 6 ABCDEFG.............
L 302 87-A50-012-080 0E C-COIL,100UH LQH3C ABCDEFG.............
L 301 88-HC4-615-040 1B C-COIL,39UH 7006-2M ABCDEFG.............
Q 303 87-A30-076-080 0E C-TR,2SC3052F ABCDEFG.............
Q 308 87-A30-076-080 0E C-TR,2SC3052F ABCDEFG.............
Q 306 87-A30-183-040 1A C-TR,2SD1628G ABCDEFG.............
Q 305 87-A30-183-040 1A C-TR,2SD1628G ABCDEFG.............
Q 307 87-A30-278-040 1A C-FET,2SK2980 ABCDEFG.............
Q 304 87-A30-278-040 1A C-FET,2SK2980 ABCDEFG.............
Q 301 89-113-695-680 1A C-TR,2SA1369G/H ABCDEFG.............
Q 302 89-113-695-680 1A C-TR,2SA1369G/H ABCDEFG.............
R 313 87-022-239-080 0E C-RES U 10K-1/16WF ABCDEFG.............
R 312 87-022-246-080 0E C-RES,U 20K-1/16W F ABCDEFG.............
R 314 87-022-288-080 0E C-RES,U 150K-1/16WF ABCDEFG.............
C 208 87-010-787-080 0E CAP, U 0.022-25 ABCDEFG.............
C 201 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 209 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 203 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFG.............
C 207 87-012-282-080 0E CAP, U 4700P-50 ABCDEFG.............
C 205 87-012-282-080 0E CAP, U 4700P-50 ABCDEFG.............
C 204 87-012-282-080 0E CAP, U 4700P-50 ABCDEFG.............
C 206 87-012-282-080 0E CAP, U 4700P-50 ABCDEFG.............
C 202 87-016-429-080 0E C-CAP,E 100-4 5.5N ABCDEFG.............
C 210 87-012-285-080 0E C-CAP,U 8200P-50 B ABCDEFG.............
C 211 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 212 87-A10-249-080 0E C-CAP,U 1-10 ZF ABCDEFG.............
CN 202 87-A60-757-080 1B C-CONN,16P H IL-402R-16S ABCDEFG.............
IC 201 87-A21-044-040 1H C-IC,BH6508FS ABCDEFG.............
ELECTRICAL MAIN PARTS LIST - 2/2
C 402 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 407 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 404 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 409 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 406 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 408 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFG.............
C 401 87-016-085-080 1A CAP,E 1000-6.3PF ABCDEFG.............
C 405 87-016-429-080 0E C-CAP,E 100-4 5.5N ABCDEFG.............
C 403 87-016-430-080 0E C-CAP,E 100-6.3 5.5N ABCDEFG.............
C 410 87-010-787-080 0E CAP, U 0.022-25 ABCDEFG.............
C 417 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 414 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 416 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 415 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 413 87-012-286-080 0E CAP, U 0.01-25 ABCDEFG.............
C 411 87-A10-353-080 0E C-CAP,U0.22-10KB ABCDEFG.............
C 412 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B ABCDEFG.............
C 420 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFG.............
C 451 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 502 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 505 87-012-180-080 0E C-CAP,U 22P-50 CH ABCDEFG.............
C 507 87-012-278-080 0E C-CAP,U 2200P-50 B ABCDEFG.............
C 501 87-016-429-080 0E C-CAP,E 100-4 5.5N ABCDEFG.............
C 506 87-A10-260-080 0E C-CAP,U 0.1-16 K B ABCDEFG.............
C 508 87-A11-228-080 0E C-CAP,U 0.027-25 K B ABCDEFG.............
C 517 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 511 87-012-199-080 0E CAP 220P ABCDEFG.............
C 513 87-012-267-080 0E C-CAP,U 270P-50 B ABCDEFG.............
C 514 87-012-269-080 0E C-CAP,U 390P-50 B ABCDEFG.............
C 516 87-016-429-080 0E C-CAP,E 100-4 5.5N ABCDEFG.............
C 510 87-A10-260-080 0E C-CAP,U 0.1-16 K B ABCDEFG.............
C 512 87-A11-228-080 0E C-CAP,U 0.027-25 K B ABCDEFG.............
C 523 87-010-942-180 0E C-CAP,E 47-4 M MV ABCDEFG.............
C 522 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............
C 521 87-016-426-080 0E C-CAP,E 47-4 5.5N ABCDEFG.............
IC 401 87-A21-180-010 2P C-IC,MN662780RPS2 ABCDEFG.............
IC 451 87-A21-140-010 2P C-IC,MSM51V17400D ABCDEFG.............
IC 501 87-A21-181-040 1D C-IC,AN8838SB ABCDEFG.............
L 401 87-A50-117-080 0E C-COIL,10UHLQH3C ABCDEFG.............
L 402 87-A50-117-080 0E C-COIL,10UHLQH3C ABCDEFG.............
L 501 87-A50-367-080 0E C-COIL, 10UH LQG21F ABCDEFG.............
L 521 87-A50-367-080 0E C-COIL, 10UH LQG21F ABCDEFG.............
Q 501 87-026-239-080 0E TR,DTC114TK (0.2W) ABCDEFG.............
Q 523 87-026-297-080 0E TR,DTA144TK ABCDEFG.............
Q 522 87-026-297-080 0E TR,DTA144TK ABCDEFG.............
Q 521 87-A30-075-080 0E C-TR,2SA1235F ABCDEFG.............
X 401 87-A70-143-080 1A C-VIB,CER 16.93MHZ CSTCV-MX0C4 ABCDEFG.............
C 708 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 702 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 709 87-016-421-080 0E C-CAP,E 10-16 5.5N ABCDEFG.............
C 705 87-016-421-080 0E C-CAP,E 10-16 5.5N ABCDEFG.............
C 701 87-016-427-080 0E C-CAP,E 47-6.3 5.5N ABCDEFG.............
C 703 87-A10-047-080 0E C-CAP,U 1-10 Z F ABCDEFG.............
C 706 87-A10-353-080 0E C-CAP,U0.22-10KB ABCDEFG.............
C 707 87-A11-029-080 C-CAP,E 2.2-50 M ZS 4.5L ABCDEFG.............
C 704 87-A11-166-080 1A C-CAP,TN 47-4 M F93 B ABCDEFG.............
C 710 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 721 87-A10-047-080 0E C-CAP,U 1-10 Z F ABCDEFG.............
C 722 87-A10-047-080 0E C-CAP,U 1-10 Z F ABCDEFG.............
C 731 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 732 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFG.............
C 734 87-010-944-180 1A C-CAP,E 220-4 M MV ABCDEFG.............
C 735 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............
C 736 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFG.............
C 733 87-016-431-080 0E C-CAP,E 220-4 5.5N ABCDEFG.............
IC 701 87-A21-085-040 1C C-IC,TA2120FN ABCDEFG.............
J 701 85-HC5-616-010 1B JACK,3.5 ST W/R GRN A...E...............
J 701 87-A60-682-010 1B JACK,3.5 ST 7P .BCD.FG.............
Q 701 87-026-239-080 0E TR,DTC114TK (0.2W) ABCDEFG.............
VR 701 87-A91-145-080 1B C-VR,RTRY 30KCX2 H RK14J12R ABCDEFG.............
C 604 87-010-178-080 0E CHIP CAP 1000P ABCDEFG.............
C 605 87-010-178-080 0E CHIP CAP 1000P ABCDEFG.............
C 603 87-A10-811-080 0E C-CAP, 0.1-100 VC30E ABCDEFG.............
C 602 87-A11-166-080 1A C-CAP,TN 47-4 M F93 B ABCDEFG.............
CN 601 87-A60-791-080 1B C-CONN,30P H FLZ-RSM1TB ABCDEFG.............
D 604 84-XMC-624-080 0E C-DIODE,1SS250 ABCDEFG.............
D 603 87-A91-326-040 C-LED,SEC1603C RED ABCDEFG.............
D 601 87-A91-327-040 C-LED,SEC1703C GRN ABCDEFG.............
D 602 87-A91-329-040 C-LED,SECS1803C ORN ABCDEFG.............
EL 601 8Z-HC4-606-010 1D EL, ZHC-4 ABCDEFG.............
IC 601 87-A21-113-040 1D C-IC,SM8141BV ABCDEFG.............
L 601 87-A50-281-080 0E C-COIL,LQH4N470UH K ABCDEFG.............
LCD 601 8Z-HC4-605-010 1C LCD,ZHC-4 ABCDEFG.............
S 606 87-A90-232-080 0E C-SW,TACT SKQRAA ABCDEFG.............
S 604 87-A90-232-080 0E C-SW,TACT SKQRAA ABCDEFG.............
S 602 87-A90-232-080 0E C-SW,TACT SKQRAA ABCDEFG.............
S 603 87-A90-232-080 0E C-SW,TACT SKQRAA ABCDEFG.............
S 601 87-A90-232-080 0E C-SW,TACT SKQRAA ABCDEFG.............
S 605 87-A90-232-080 0E C-SW,TACT SKQRAA ABCDEFG.............
S 607 87-A90-232-080 0E C-SW,TACT SKQRAA ABCDEFG.............
Loading...
