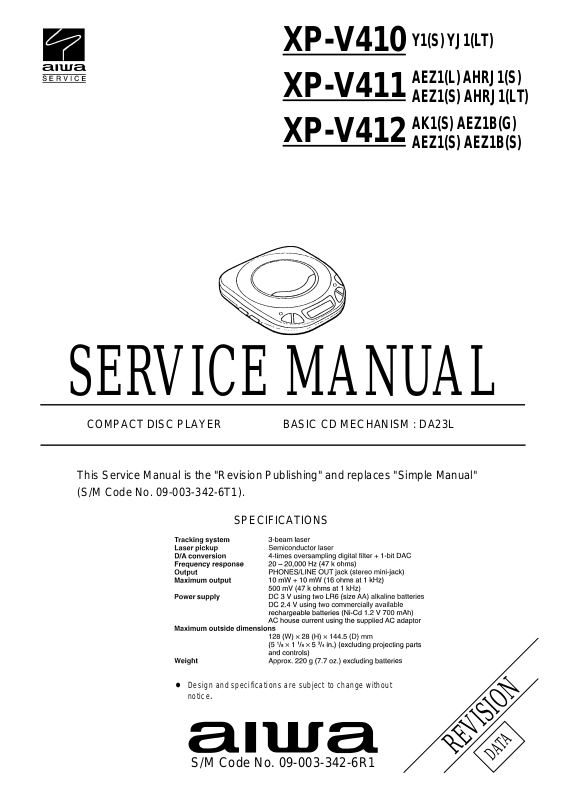

Aiwa XPV-411 Schematic

XP-V410 XP-V411 XP-V412

Y1(S) YJ1(LT) AEZ1(L) AHRJ1(S)

AEZ1(S) AHRJ1(LT) AK1(S) AEZ1B(G)

AEZ1(S) AEZ1B(S)

SERVICE MANUAL

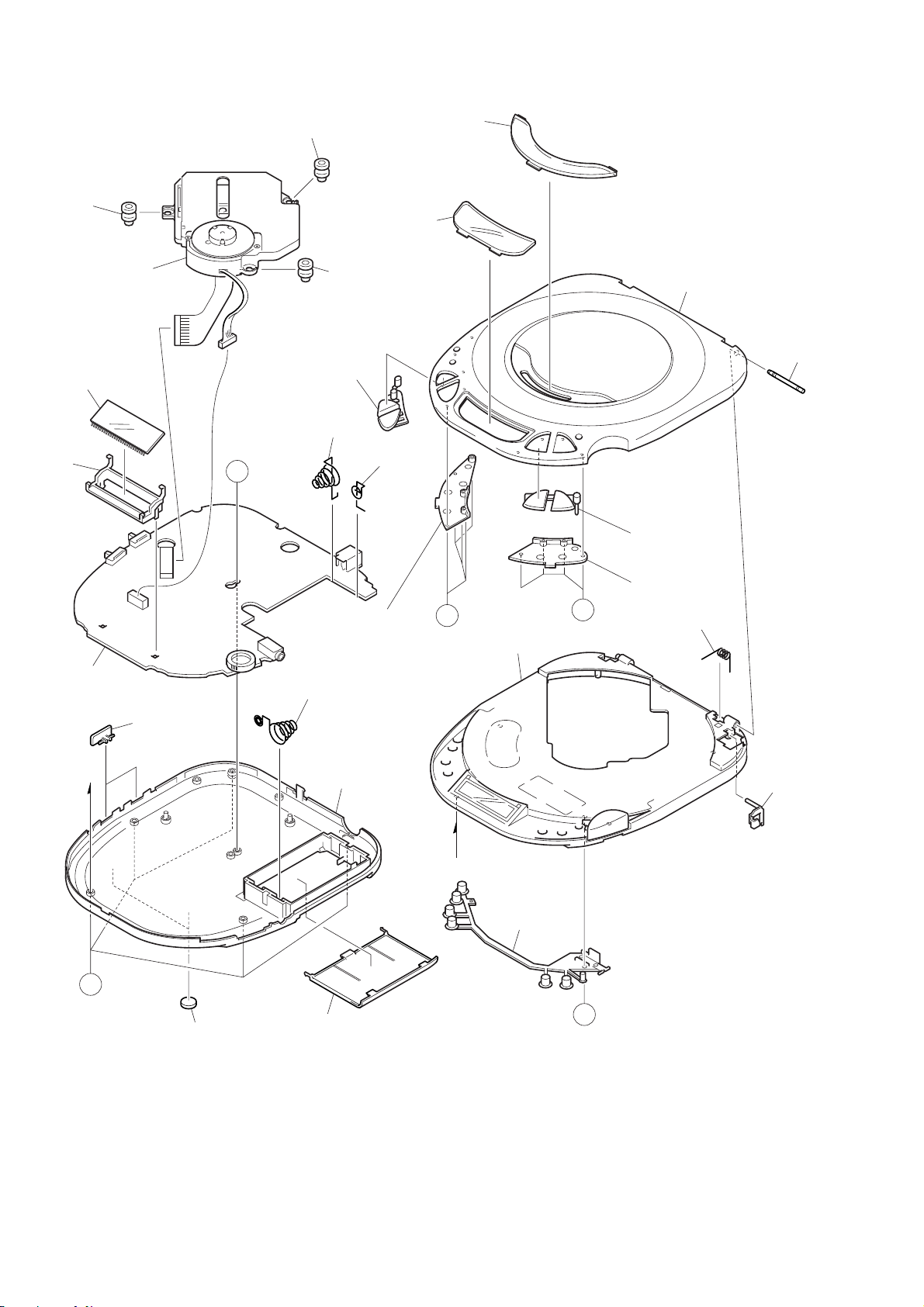

COMPACT DISC PLAYER

This Service Manual is the "Revision Publishing" and replaces "Simple Manual" (S/M Code No. 09-003-342-6T1).

SPECIFICATIONS

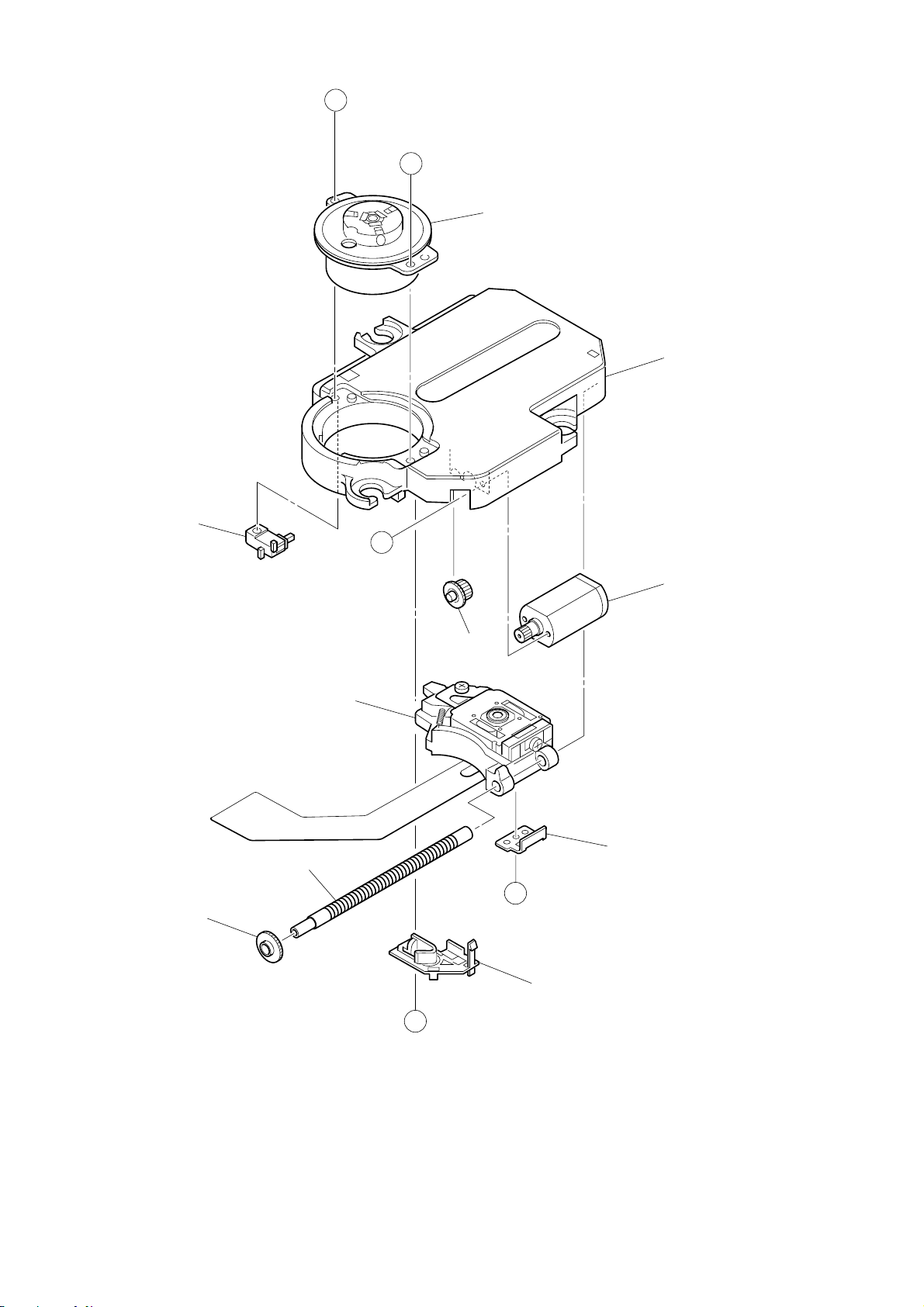

BASIC CD MECHANISM : DA23L

Design and specifications are subject to change without

•

notice

S/M Code No. 09-003-342-6R1

REVISION

DATA

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing.

WARNING!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

Caution: Invisible laser radiation when open and interlocks defeated avoid exposure to beam. Advarsel:Usynling laserståling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som specificeras i denna bruksanvising, kan användaren utsättas för osynling laserstrålning, som överskrider gränsen för laserklass 1.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

ATTENTION

L'utilisation de commandes, réglages ou procédures autres que ceux spécifiés peut entraîner une dangereuse exposition aux radiations.

ADVARSEL!

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior.

CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1

LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT

Precaution to replace Optical block (SF-P200)

Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode.

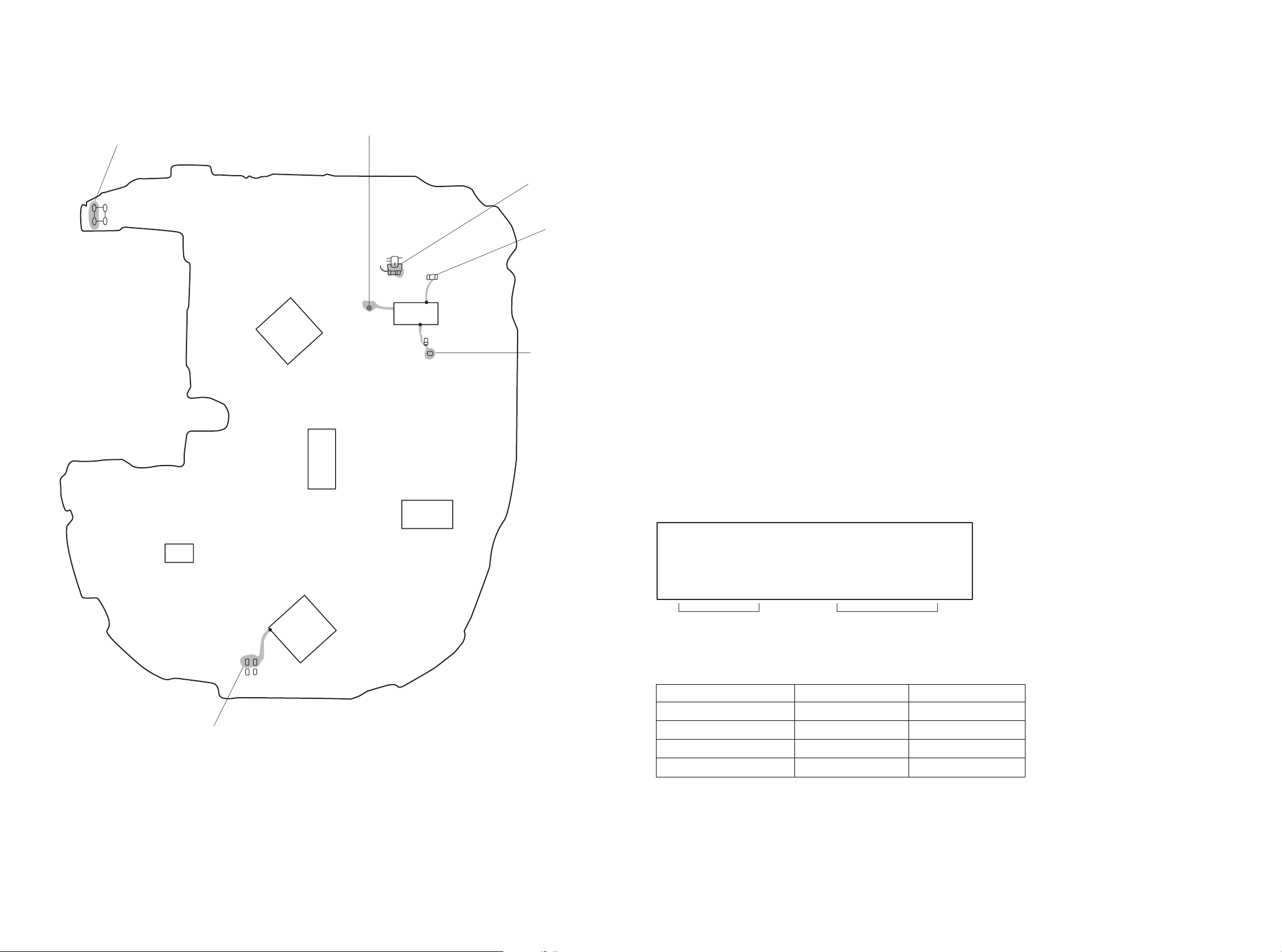

1) After the connection, remove solder shown in the right figure.

:SOLDER

10 9

PICK UP ASSY

116

SF-P200

ELECTRICAL MAIN PARTS LIST

REF. NO PART NO. KANRI DESCRIPTION

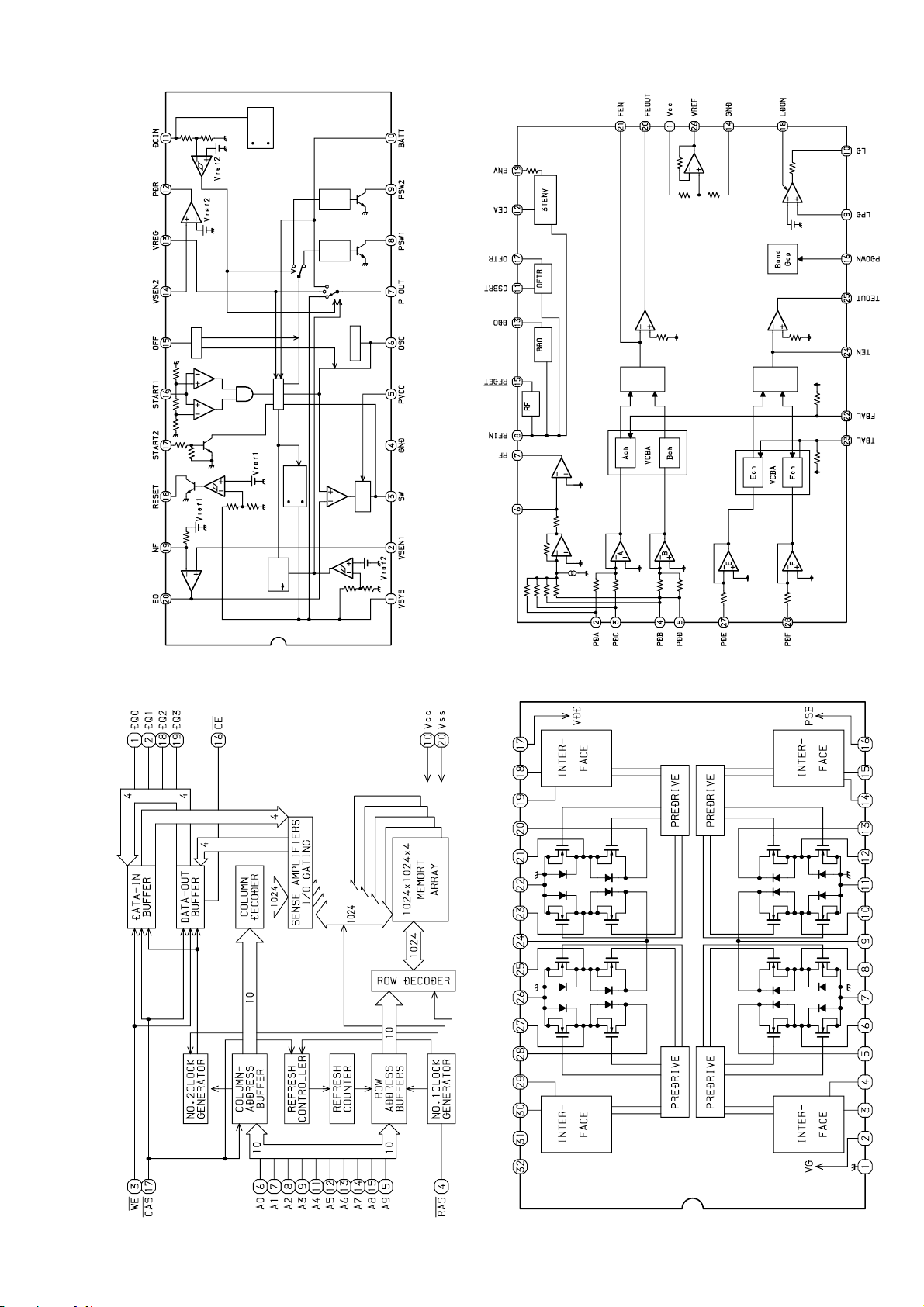

IC 87-A21-082-040 C-IC,BA6655AFV

8A-HCH-602-010 C-IC,MN101C439-XXX 87-A21-446-010 C-IC,MN662782RPT1 87-A21-568-040 C-IC,GLT441M04 87-A21-578-040 C-IC,AN8838NSB

87-A21-543-040 C-IC,NJU7012 87-A21-521-040 C-IC,BH6517FS 87-A21-085-040 C-IC,TA2120FN

TRANSISTOR 89-211-323-080 C-TR,2SB1132R

87-A30-332-040 C-TR,CPH3106 87-A30-333-040 C-TR,CPH3206 87-026-608-080 C-TR,DTC 123 JK 89-111-625-080 TR,2SA1162 (0.15W)

89-416-643-080 C-TR,2SD1664R 89-327-125-080 CHIP TR,2SC2712GR 87-026-680-080 C-TR,IMH4A 87-026-268-080 C-TR,RN2411 87-026-239-080 TR,DTC114TK (0.2W)

89-324-121-080 C-TR,2SC2412K 87-026-235-080 CHIP-TR,DTC114EK

DIODE 87-A40-614-040 C-DIODE,SFPB-72

87-020-591-080 C-ZENER,02CZ 11Y 87-A40-554-040 C-DIODE,RB491D 87-A40-469-040 C-DIODE,HSM2838CTR 87-020-331-080 CHIP-DIODE,DAN202K

87-002-882-080 C-DIODE,RB425D

MAIN C.B C101 87-010-060-040 CAP,E 100-16

C102 87-010-197-080 CAP, CHIP 0.01 DM C103 87-010-197-080 CAP, CHIP 0.01 DM C105 87-012-156-080 C-CAP,S 220P-50 CH C106 87-010-483-040 CAP,E 220-4 7L SRA

C107 87-010-194-080 CAP, CHIP 0.047 C108 87-010-178-080 CHIP CAP 1000P C109 87-A12-158-040 CAP,E 100-4 M 7L SRA C110 87-012-141-080 CHIP-CAPACITOR,0.22-16F C111 87-A10-505-080 CAP,E 220-6.3 SF

C112 87-010-805-080 CAP, S 1-16 C113 87-010-196-080 CHIP CAPACITOR,0.1-25 C301 87-A10-488-040 CAP,E 47-4 7L SR C302 87-010-197-080 CAP, CHIP 0.01 DM C303 87-010-196-080 CHIP CAPACITOR,0.1-25

C304 87-010-196-080 CHIP CAPACITOR,0.1-25 C305 87-010-197-080 CAP, CHIP 0.01 DM C306 87-010-197-080 CAP, CHIP 0.01 DM C307 87-010-197-080 CAP, CHIP 0.01 DM C308 87-010-309-080 C-CAP,1000P-50 CH

C309 87-010-196-080 CHIP CAPACITOR,0.1-25 C401 87-016-557-040 CAP,E 100-6.3 SF C403 87-015-677-040 CAP,E 100-6.3 7L C406 87-A11-550-080 C-CAP,S 820P-50 K B C407 87-010-198-080 CAP, CHIP 0.022

C408 87-016-460-080 C-CAP,S 0.22-16 B C409 87-016-526-080 C-CAP,S 0.47-16 BK C410 87-010-197-080 CAP, CHIP 0.01 DM C412 87-A12-158-040 CAP,E 100-4 M 7L SRA C414 87-010-318-080 C-CAP,S 47P-50 CH

C417 87-010-318-080 C-CAP,S 47P-50 CH C418 87-010-146-080 CHIP CAP 2PF C419 87-010-146-080 CHIP CAP 2PF

NO.

REF. NO PART NO. KANRI DESCRIPTION

C451 87-010-196-080 CHIP CAPACITOR,0.1-25 C501 87-A12-158-040 CAP,E 100-4 M 7L SRA C505 87-012-365-080 C-CAP,S 0.027-25VBK C506 87-012-156-080 C-CAP,S 220P-50 CH C507 87-010-321-080 CHIP CAPACITOR,82P(J)

C508 87-010-321-080 CHIP CAPACITOR,82P(J) C509 87-A11-550-080 C-CAP,S 820P-50 K B C510 87-A12-158-040 CAP,E 100-4 M 7L SRA C511 87-010-196-080 CHIP CAPACITOR,0.1-25 C512 87-A10-488-040 CAP,E 47-4 7L SR

C513 87-010-196-080 CHIP CAPACITOR,0.1-25 C514 87-012-365-080 C-CAP,S 0.027-25VBK C515 87-012-365-080 C-CAP,S 0.027-25VBK C516 87-010-196-080 CHIP CAPACITOR,0.1-25 C518 87-010-312-080 C-CAP,S 15P-50 CH

C520 87-A10-488-040 CAP,E 47-4 7L SR C521 87-012-349-080 C-CAP,S 1000P-50 CH C522 87-010-805-080 CAP, S 1-16 C523 87-010-805-080 CAP, S 1-16 C524 87-010-154-080 CAP CHIP 10P

C601 87-A12-158-040 CAP,E 100-4 M 7L SRA C602 87-010-197-080 CAP, CHIP 0.01 DM C603 87-010-805-080 CAP, S 1-16 C604 87-010-197-080 CAP, CHIP 0.01 DM C605 87-010-196-080 CHIP CAPACITOR,0.1-25

C606 87-010-196-080 CHIP CAPACITOR,0.1-25 C607 87-010-197-080 CAP, CHIP 0.01 DM C610 87-010-805-080 CAP, S 1-16 C701 87-A12-158-040 CAP,E 100-4 M 7L SRA C702 87-010-854-080 C-CAP,S 560PCH

C703 87-010-854-080 C-CAP,S 560PCH C706 87-012-368-080 C-CAP,S 0.1-50 F C707 87-A10-826-080 C-CAP,S 1-10 K B C708 87-A10-826-080 C-CAP,S 1-10 K B C709 87-A10-826-080 C-CAP,S 1-10 K B

C710 87-015-681-040 E/CAP 10-16 C711 87-A10-488-040 CAP,E 47-4 7L SR C712 87-012-141-080 CHIP-CAPACITOR,0.22-16F C713 87-012-368-080 C-CAP,S 0.1-50 F C714 87-015-696-040 CAP,E 2.2-50 SRA

C715 87-015-681-040 E/CAP 10-16 C716 87-012-368-080 C-CAP,S 0.1-50 F C717 87-012-368-080 C-CAP,S 0.1-50 F C718 87-010-483-040 CAP,E 220-4 7L SRA C719 87-010-483-040 CAP,E 220-4 7L SRA

C720 87-010-178-080 CHIP CAP 1000P C721 87-010-178-080 CHIP CAP 1000P C722 87-012-368-080 C-CAP,S 0.1-50 F C723 87-010-197-080 CAP, CHIP 0.01 DM CN501 87-A61-104-010 CONN,16P H WHITE 52089-1610

CN601 87-009-411-010 CONN,6P ZH V FB701 83-XM1-617-080 C-COIL,BK2125HM601 FB702 83-XM1-617-080 C-COIL,BK2125HM601 FB703 83-XM1-617-080 C-COIL,BK2125HM601 FB704 83-XM1-617-080 C-COIL,BK2125HM601

J101 87-A60-421-010 JACK,DC HEC3600 BLK 6 J701 85-HC5-616-010 JACK,3.5 ST W/R GRN L101 87-005-770-080 COIL,47UH 7607 L301 87-A50-367-080 C-COIL, 10UH LQG21F L401 87-A50-556-080 C-COIL, 47UH K LQH3C

L402 87-A50-440-080 C-COIL, 100UH K LQH3C34 L501 87-A50-367-080 C-COIL, 10UH LQG21F L502 87-A50-367-080 C-COIL, 10UH LQG21F L601 87-A50-580-080 COIL,470UH LHL06NB LCD101 8A-HC7-602-010 LCD,AHC-7

R115 87-022-525-080 C-RES,S 20K-1/10W F R116 87-022-355-080 C-RES,S10K-1/10W F S301 87-A90-163-010 SW,SL1-1-2 HSW1060 S302 87-A91-742-010 SW,SL 4-1-3 HSW2061-010010 S303 87-A91-622-010 SW,MICRO PV1102

NO.

REF. NO PART NO. KANRI DESCRIPTION

S304 87-A90-095-080 SW,TACT EVQ11G04M S305 87-A90-095-080 SW,TACT EVQ11G04M S306 87-A90-095-080 SW,TACT EVQ11G04M S307 87-A90-095-080 SW,TACT EVQ11G04M S308 87-A90-095-080 SW,TACT EVQ11G04M

S309 87-A90-095-080 SW,TACT EVQ11G04M VR701 87-A90-462-010 VR,RTRY 30KCX2 H RK14J12A0 X401 87-A70-202-080 C-VIB,CER 16.93MHZ CSACV-MXJ04

NO.

• Regarding connectors, they are not stocked as they are not the initial order items.

The connectors are available after they are supplied from connector manufacturers upon the order is received.

CHIP RESISTOR PART CODE

Chip Resistor Part Coding

Resistor Code

Chip resistor

Wattage Type Tolerance 1/16W 1005 5% CJ

1/16W 1/10W

1/8W

1608 2125

3216

5% 5%

Symbol

CJ CJ

Figure

Value of resistor

Form

Dimensions (mm)

0.55

Resistor Code

108 118

128

LW t

1.0 0.5 0.35 104

1.6 0.8 0.45 2 1.25 0.45

3.2

1.6

: A : A

TRANSISTOR ILLUSTRATION

2SA1162 2SC2412 2SC2712 CPH3106 CPH3206 DTC114EK DTC114TK DTC123JK RN2411

BCE

IMH4A 2SB1132

2SD1664

LCD DISPLAY LCD, AHC-7

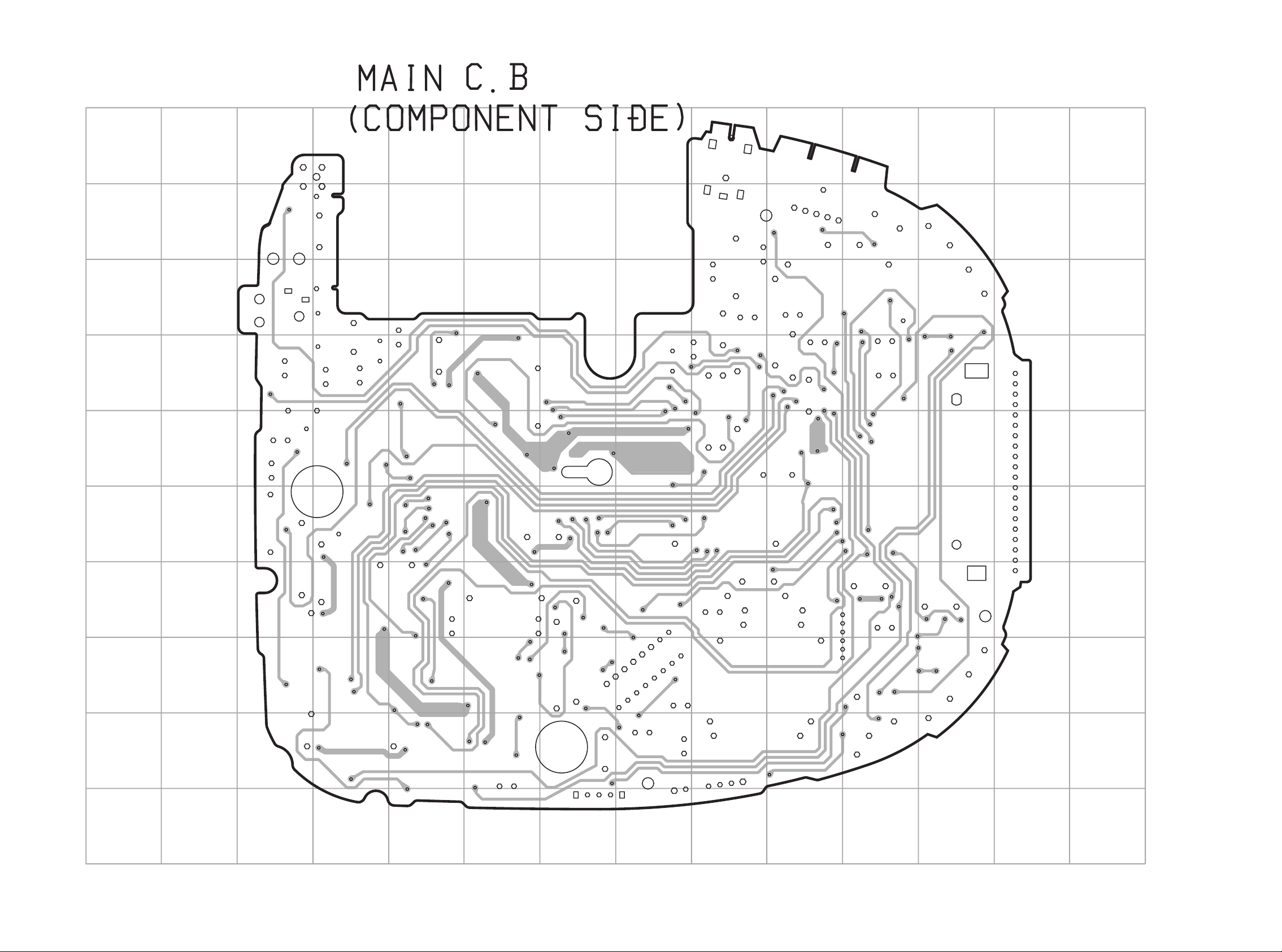

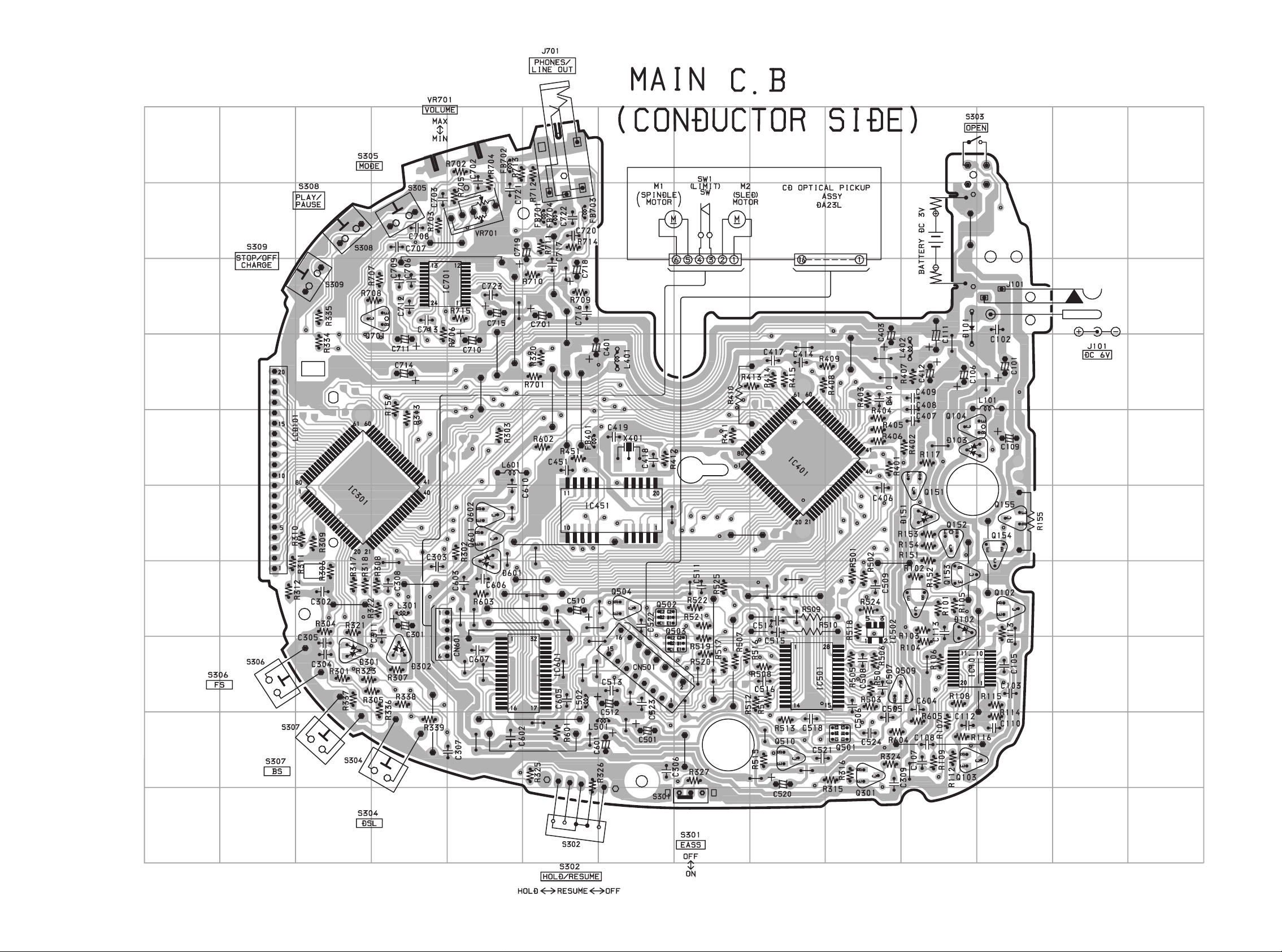

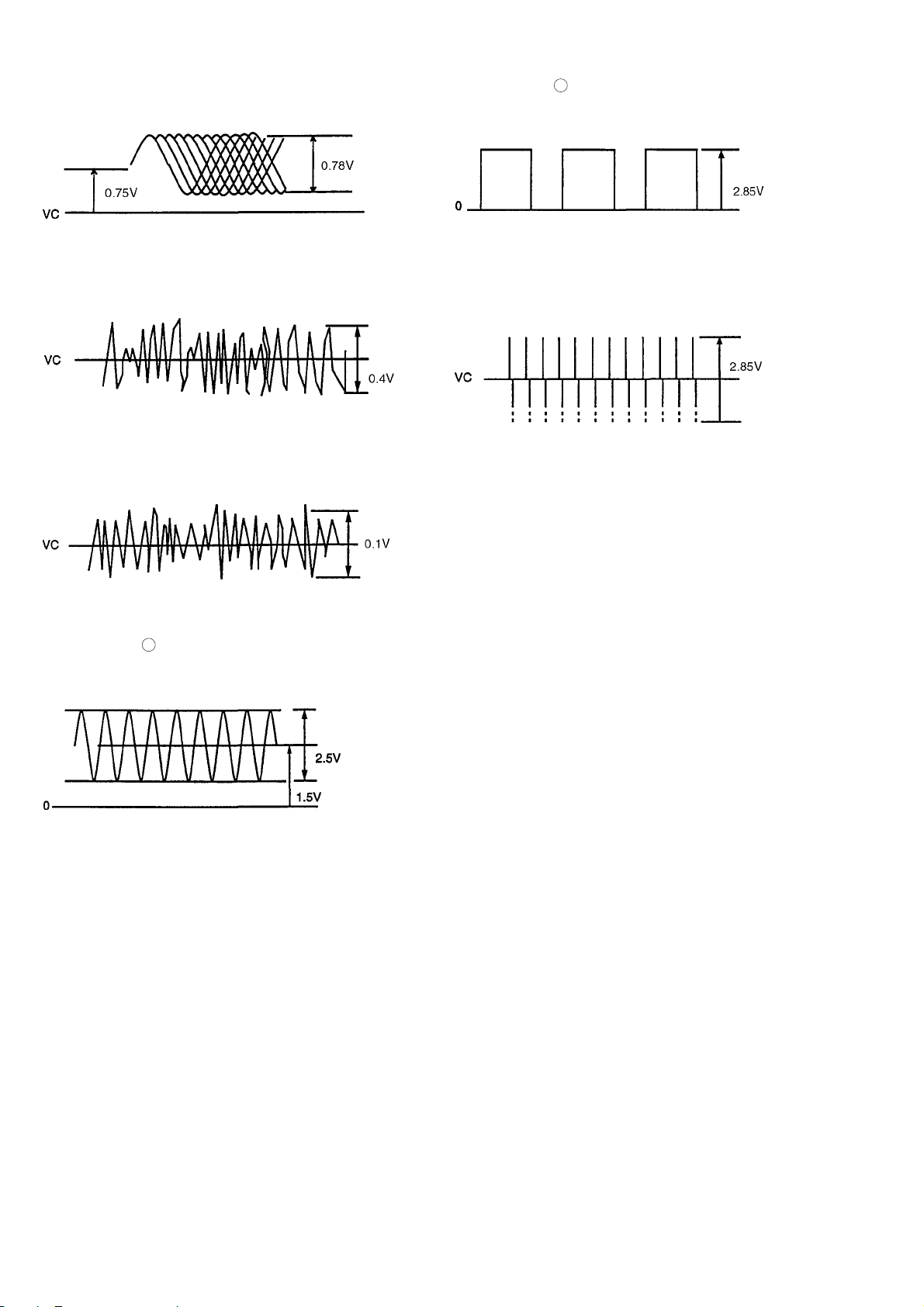

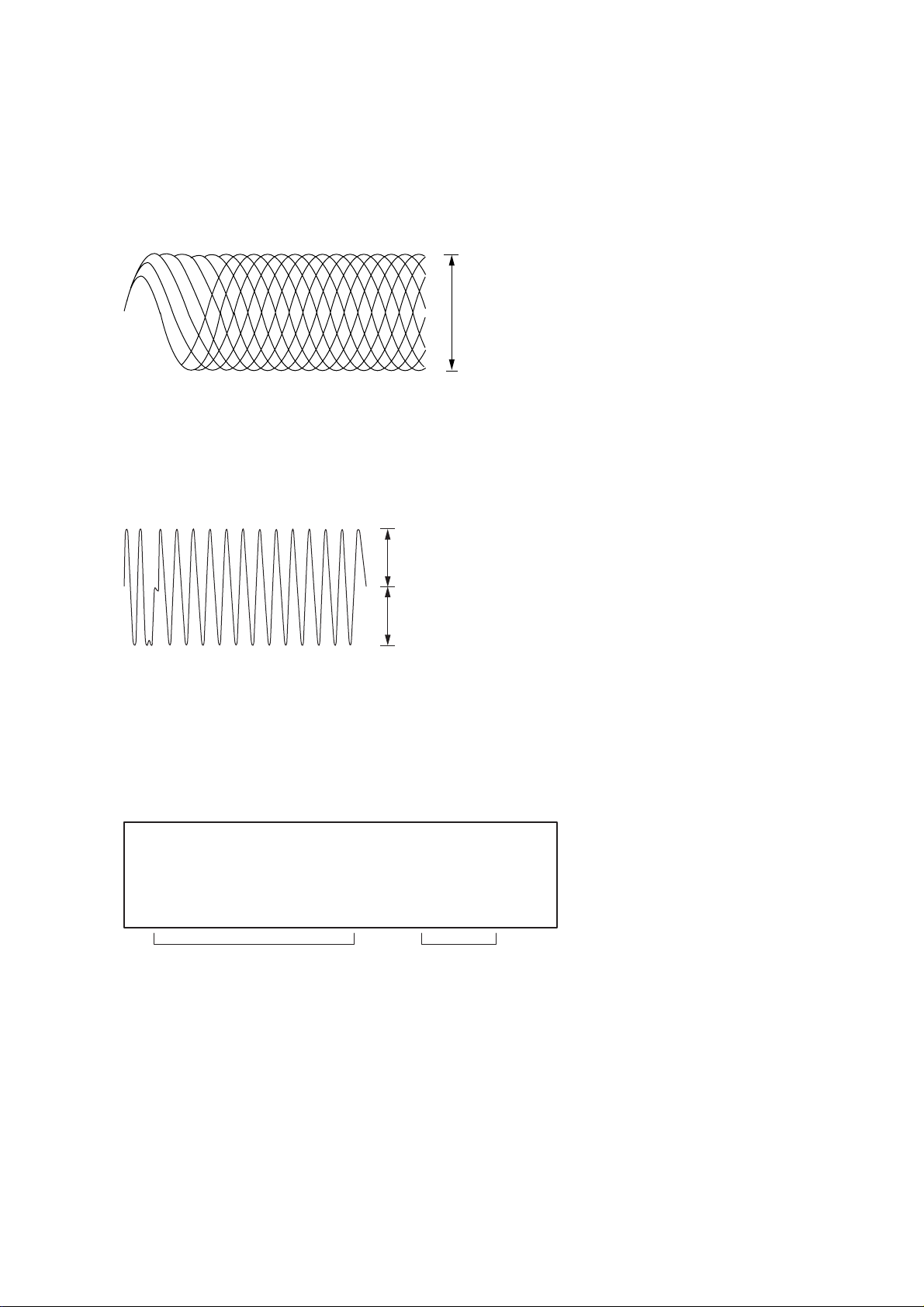

SCHEMATIC DIAGRAM

FB701

BK2125HM601

FB704

BK2125HM601

HSM2838CTR
