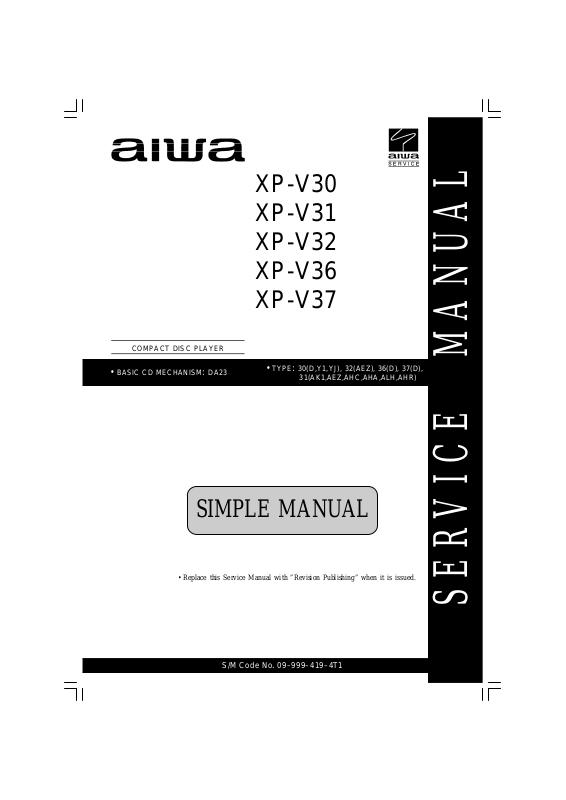

S E R V I C E M A N U A L

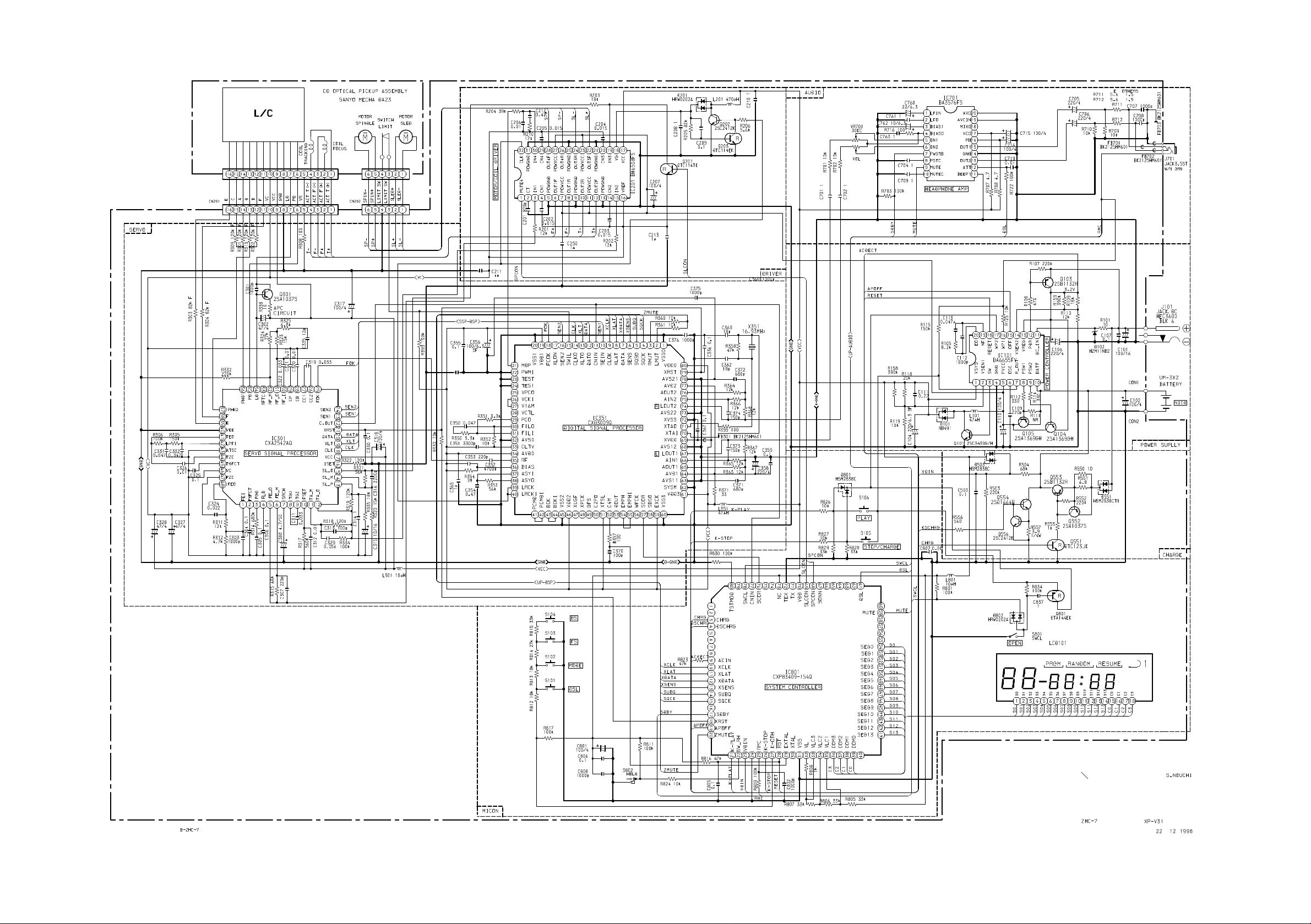

COMPACT DISC PLAYER

XP-V30
XP-V31
XP-V32
XP-V36
XP-V37

• BASIC CD MECHANISM: DA23

SIMPLE MANUAL

• TYPE: 30(D,Y1,YJ), 32(AEZ), 36(D), 37(D),

31(AK1,AEZ,AHC,AHA,ALH,AHR)

• Replace this Service Manual with ”Revision Publishing” when it is issued.

S/M Code No. 09–999–419–4T1

ELECTRICAL MAIN PARTS LIST - 1/4 (EXCEPT XP-V31<AK1, AEZ1LB>)

NOTE: The characters in the suffix column indicate the part usage.

30S ....................OO..................................A...................

36S ....................OO...................................B..................

37S ....................OO....................................C.................

30YJ1S .................XX.....................................D................

30YJ1LT ................XX......................................E...............

31AHRJ1S ...............XX.......................................F..............

31AHRJLL ...............XX........................................G.............

31ALH1S ................XX.........................................H............

31AHR1S ................XX..........................................I...........

30Y1S ..................XX...........................................J..........

31AEZ1S ................XX............................................K.........

32AEZ1L ................XX.............................................L........

31AHABS ................XX..............................................M.......

31AHC1S ................XX...............................................N......

31AHCLL ................XX................................................O.....

31ALHBS ................XX.................................................P....

30Y1BS .................XX..................................................Q...

30Y1BLL ................XX...................................................R..

32AEZ1S ................XX....................................................S.

31AEZ1LT ...............XX.....................................................T

KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 806 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 805 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 807 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJKLMNOPQRST
C 801 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJKLMNOPQRST
C 808 87-012-349-080 0E C-CAP,S 1000P-50 CH ABCDEFGHIJKLMNOPQRST
C 837 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
D 801 87-A40-469-080 0E C-DIODE,HSM2838CTR ABCDEFGHIJKLMNOPQRST
D 802 87-A40-590-040 0E C-DIODE,HRW0202A ABCDEFGHIJKLMNOPQRST
IC 801 8Z-HC7-603-010 2A C-IC,CXP83409-XXXQ ABCDEFGHIJKLMNOPQRST
L 801 87-A50-501-080 C-COIL,10UH-FSLB2520 ABCDEFGHIJKLMNOPQRST
LCD 101 8Z-HC7-610-010 LCD,ZHC-7 ABCDEFGHIJKLMNOPQRST
Q 801 87-026-211-080 0E TR,DTA144EK ABCDEFGHIJKLMNOPQRST
S 103 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJKLMNOPQRST
S 105 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJKLMNOPQRST
S 102 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJKLMNOPQRST
S 104 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJKLMNOPQRST
S 101 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJKLMNOPQRST
S 106 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJKLMNOPQRST
S 801 87-036-252-010 0E SW,PUSH SPPB 51 ABCDEFGHIJKLMNOPQRST

S 802 87-A90-163-010 1B SW,SL1-1-2 HSW1060 ....................

S 802 87-A90-714-010 SW,SL 3-1-2 HSW2060-010010 ABCDEFGHIJKLMNOPQRST
C 503 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
D 503 87-A40-469-080 0E C-DIODE,HSM2838CTR ABCDEFGHIJKLMNOPQRST
D 551 87-A40-469-080 0E C-DIODE,HSM2838CTR ABCDEFGHIJKLMNOPQRST
Q 551 86-NFZ-667-040 0E C-TR,DTC123JKA ABCDEFGHIJKLMNOPQRST
Q 552 87-A30-246-040 0E C-TR,2SA1037AK ABCDEFGHIJKLMNOPQRST
Q 553 89-211-323-080 1A C-TR,2SB1132R ABCDEFGHIJKLMNOPQRST
Q 556 89-324-123-080 0E C-TR,2SC2412K S ABCDEFGHIJKLMNOPQRST
Q 554 89-416-643-080 0E C-TR,2SD1664R ABCDEFGHIJKLMNOPQRST
C 107 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 102 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJKLMNOPQRST
C 106 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJKLMNOPQRST
C 109 87-012-156-080 0E C-CAP,S 220P-50 CH ABCDEFGHIJKLMNOPQRST
C 101 87-016-044-040 0E CAP,E 100-16 GAS ABCDEFGHIJKLMNOPQRST
C 104 87-A10-505-080 0E CAP,E 220-6.3 SF ABCDEFGHIJKLMNOPQRST
C 112 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJKLMNOPQRST
C 113 87-010-194-080 0E CAP, CHIP 0.047 ABCDEFGHIJKLMNOPQRST
C 110 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJKLMNOPQRST
C 111 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F ABCDEFGHIJKLMNOPQRST
D 101 87-A40-554-080 0E C-DIODE,RB491D ABCDEFGHIJKLMNOPQRST
D 102 87-A40-592-040 0E C-ZENER,HZM11NB2 ABCDEFGHIJKLMNOPQRST
IC 101 87-A21-082-040 1D C-IC,BA6655AFV ABCDEFGHIJKLMNOPQRST
J 101 87-A60-421-010 1A JACK,DC HEC3600 BLK 6 ABCDEFGHIJKLMNOPQRST
L 101 87-005-770-010 1A COIL,47UH K #7607 ABCDEFGHIJKLMNOPQRST
Q 105 89-113-695-680 1A C-TR,2SA1369G/H ABCDEFGHIJKLMNOPQRST
Q 104 89-113-695-680 1A C-TR,2SA1369G/H ABCDEFGHIJKLMNOPQRST
Q 103 89-211-323-080 1A C-TR,2SB1132R ABCDEFGHIJKLMNOPQRST
Q 101 89-334-397-880 1A C-TR,2SC3439G/H ABCDEFGHIJKLMNOPQRST
C 201 87-010-177-080 0E C-CAP,S 820P-50 SL ABCDEFGHIJKLMNOPQRST
C 209 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 206 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJKLMNOPQRST
C 203 87-010-213-080 0E C-CAP,S 0.015-50 B ABCDEFGHIJKLMNOPQRST
C 205 87-010-213-080 0E C-CAP,S 0.015-50 B ABCDEFGHIJKLMNOPQRST
C 204 87-010-213-080 0E C-CAP,S 0.015-50 B ABCDEFGHIJKLMNOPQRST
C 202 87-010-213-080 0E C-CAP,S 0.015-50 B ABCDEFGHIJKLMNOPQRST
C 207 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJKLMNOPQRST
C 208 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJKLMNOPQRST
C 213 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJKLMNOPQRST
C 210 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJKLMNOPQRST
C 212 87-016-461-080 0E C-CAP,S 0.47-16F ABCDEFGHIJKLMNOPQRST
C 250 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJKLMNOPQRST
CN 202 87-009-411-010 0E CONN,6P ZH V ABCDEFGHIJKLMNOPQRST
CN 201 87-A61-104-010 CONN,16P H WHITE 52089-1610 ABCDEFGHIJKLMNOPQRST
D 201 87-A40-590-040 0E C-DIODE,HRW0202A ABCDEFGHIJKLMNOPQRST
IC 201 87-A21-083-040 1H C-IC,BH6508FS ABCDEFGHIJKLMNOPQRST
L 201 87-A50-524-010 COIL,470UH LHL06NB ABCDEFGHIJKLMNOPQRST
Q 203 87-026-235-080 0E CHIP-TR,DTC114EK ABCDEFGHIJKLMNOPQRST

ELECTRICAL MAIN PARTS LIST - 2/4 (EXCEPT XP-V31<AK1, AEZ1LB>)

Q 201 87-A30-287-040 0E C-TR,DTC114TKA ABCDEFGHIJKLMNOPQRST
Q 202 89-324-121-080 0E C-TR,2SC2412K ABCDEFGHIJKLMNOPQRST
C 303 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJKLMNOPQRST
C 301 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJKLMNOPQRST
C 306 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 304 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 305 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 308 87-010-497-040 0E CAP,E 4.7-35 GAS ABCDEFGHIJKLMNOPQRST
C 302 87-010-501-040 0E E/CAP GAS 47-4 ABCDEFGHIJKLMNOPQRST
C 307 87-012-156-080 0E C-CAP,S 220P-50 CH ABCDEFGHIJKLMNOPQRST
C 316 87-010-182-080 0E C-CAP,S 2200P-50 B ABCDEFGHIJKLMNOPQRST
C 311 87-010-193-080 0E CHIP CAPACITOR,0.033 ABCDEFGHIJKLMNOPQRST
C 319 87-010-193-080 0E CHIP CAPACITOR,0.033 ABCDEFGHIJKLMNOPQRST
C 312 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJKLMNOPQRST
C 313 87-010-322-080 0E C-CAP,S 100P-50 CH ABCDEFGHIJKLMNOPQRST
C 315 87-010-498-040 0E CAP,E 10-16 GAS ABCDEFGHIJKLMNOPQRST
C 317 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJKLMNOPQRST
C 318 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJKLMNOPQRST
C 314 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
C 322 87-010-193-080 0E CHIP CAPACITOR,0.033 ABCDEFGHIJKLMNOPQRST
C 325 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 326 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJKLMNOPQRST
C 320 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJKLMNOPQRST
C 321 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJKLMNOPQRST
C 324 87-010-198-080 0E CAP, CHIP 0.022 ABCDEFGHIJKLMNOPQRST
C 327 87-010-501-040 0E E/CAP GAS 47-4 ABCDEFGHIJKLMNOPQRST
C 328 87-010-501-040 0E E/CAP GAS 47-4 ABCDEFGHIJKLMNOPQRST
C 329 87-010-993-080 0E C-CAP,S 0.056-25 B ABCDEFGHIJKLMNOPQRST
C 332 87-010-194-080 0E CAP, CHIP 0.047 ABCDEFGHIJKLMNOPQRST
C 331 87-010-194-080 0E CAP, CHIP 0.047 ABCDEFGHIJKLMNOPQRST
C 336 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 330 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 335 87-010-311-080 0E CAP 12P ABCDEFGHIJKLMNOPQRST
C 351 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ABCDEFGHIJKLMNOPQRST
C 352 87-010-186-080 0E CAP,CHIP 4700P ABCDEFGHIJKLMNOPQRST
C 350 87-010-194-080 0E CAP, CHIP 0.047 ABCDEFGHIJKLMNOPQRST
C 359 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 355 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 358 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJKLMNOPQRST
C 353 87-012-156-080 0E C-CAP,S 220P-50 CH ABCDEFGHIJKLMNOPQRST
C 354 87-012-358-080 0E C-CAP,S 0.47-10 F Z ABCDEFGHIJKLMNOPQRST
C 356 87-016-557-010 0E CAP,E 100-6.3 SF ABCDEFGHIJKLMNOPQRST
C 360 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJKLMNOPQRST
C 367 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJKLMNOPQRST
C 362 87-010-313-080 0E CAP, CHIP 18P ABCDEFGHIJKLMNOPQRST
C 363 87-010-313-080 0E CAP, CHIP 18P ABCDEFGHIJKLMNOPQRST
C 365 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
C 372 87-010-176-080 0E C-CAP,S 680P-50 SL ABCDEFGHIJKLMNOPQRST
C 371 87-010-176-080 0E C-CAP,S 680P-50 SL ABCDEFGHIJKLMNOPQRST
C 375 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJKLMNOPQRST
C 376 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJKLMNOPQRST
C 370 87-010-322-080 0E C-CAP,S 100P-50 CH ABCDEFGHIJKLMNOPQRST
C 374 87-012-154-080 0E C-CAP,S 150P-50 CH ABCDEFGHIJKLMNOPQRST
C 373 87-012-154-080 0E C-CAP,S 150P-50 CH ABCDEFGHIJKLMNOPQRST
FB 301 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJKLMNOPQRST
IC 301 87-A21-091-010 1D C-IC,CXA2542AQ ABCDEFGHIJKLMNOPQRST
IC 351 87-A20-916-010 2A C-IC,CXD3009Q ABCDEFGHIJKLMNOPQRST
L 301 87-A50-501-080 C-COIL,10UH-FSLB2520 ABCDEFGHIJKLMNOPQRST
L 351 87-A50-455-080 C-COIL,47UH-FSLB2520 ABCDEFGHIJKLMNOPQRST
Q 301 87-A30-246-040 0E C-TR,2SA1037AK ABCDEFGHIJKLMNOPQRST
R 303 87-022-214-080 0E C-RES S100K-1/10WF ABCDEFGHIJKLMNOPQRST
R 304 87-022-214-080 0E C-RES S100K-1/10WF ABCDEFGHIJKLMNOPQRST
R 301 87-022-366-080 0E C-RES,S 120K-1/10WF ABCDEFGHIJKLMNOPQRST
R 302 87-022-366-080 0E C-RES,S 120K-1/10WF ABCDEFGHIJKLMNOPQRST
R 309 87-022-366-080 0E C-RES,S 120K-1/10WF ABCDEFGHIJKLMNOPQRST
R 310 87-022-366-080 0E C-RES,S 120K-1/10WF ABCDEFGHIJKLMNOPQRST
X 351 81-592-641-010 1A VIB,CER 16.93MHZ ABCDEFGHIJKLMNOPQRST
C 707 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJKLMNOPQRST
C 708 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJKLMNOPQRST
C 706 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJKLMNOPQRST
C 705 87-010-503-040 0E CAP,E 220-4 GAS ABCDEFGHIJKLMNOPQRST
C 702 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
C 709 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
C 701 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
C 704 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
C 719 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJKLMNOPQRST
C 716 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJKLMNOPQRST
C 715 87-010-502-040 0E CAP ELECT GAS 100/4 ABCDEFGHIJKLMNOPQRST
C 760 87-010-499-040 0E CAP,E 22-6.3 GAS ABCDEFGHIJKLMNOPQRST
C 762 87-015-969-040 0E ELECTROLYTIC CAPACITOR, SRE 10 ABCDEFGHIJKLMNOPQRST
C 761 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
C 763 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJKLMNOPQRST
FB 703 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJKLMNOPQRST
FB 702 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJKLMNOPQRST
FB 701 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJKLMNOPQRST
IC 701 87-A20-507-010 1D C-IC,BA3576FS ABCDEFGHIJKLMNOPQRST
J 701 85-HC5-616-010 1B JACK,3.5 ST W/R GRN ABCDEFGHIJKLMNOPQRST
VR 701 87-A90-462-010 1B VR,RTRY 30KCX2 H RK14J12A0 ABCDEFGHIJKLMNOPQRST
