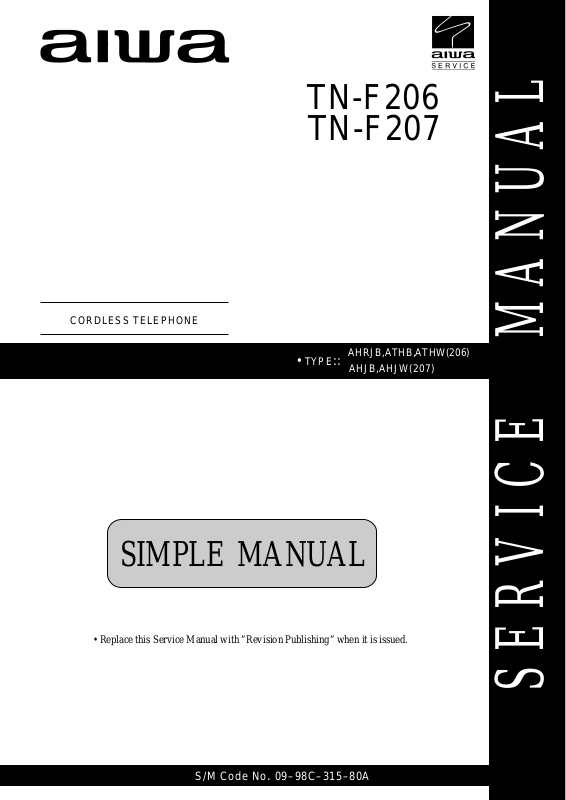

Aiwa TN-F206, TN-F207 Service Manual
HJB,HJW(207)HJB,HJW(207)
TN-F206
TN-F207
CORDLESS TELEPHONE
SIMPLE MANUAL
• TYPE::
AHRJB,ATHB,ATHW(206)
AHJB,AHJW(207)
• Replace this Service Manual with ”Revision Publishing” when it is issued.
S/M Code No. 09–98C–315–80A
S E R V I C E M A N U A L
MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
6AHRJB .................XX..................................A...................
6ATHB ..................XX...................................B..................
6ATHW ..................XX....................................C.................
7AHJB ..................XX.....................................D................
7AHJW ..................XX......................................E...............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-135-799-010 0E DIODE,IN4148 ABCDE...............
82-135-799-010 0E DIODE,IN4148 ....................
86-NFZ-664-080 TR,DTC143TKA ....................
86-NFZ-664-080 TR,DTC143TKA ABCDE...............
87-003-097-010 COIL,1UH ABCDE...............
87-003-097-010 COIL,1UH ....................
87-003-150-080 INDUCTOR 68UH ....................
87-003-150-080 INDUCTOR 68UH ABCDE...............
87-005-444-010 INDUCTOR,100UH ABCDE...............
87-005-444-010 INDUCTOR,100UH ....................
87-005-497-080 INDUCTOR,1MH ....................
87-005-497-080 INDUCTOR,1MH ABCDE...............
87-005-674-080 INDUCTOR,1.5UH ABCDE...............
87-005-674-080 INDUCTOR,1.5UH ....................
87-010-035-010 CAP,E 2.2-50V ....................
87-010-035-010 CAP,E 2.2-50V ABCDE...............
87-010-037-010 CAP,E 10-50V ABCDE...............
87-010-037-010 CAP,E 10-50V ....................
87-010-045-010 CAP,E 100-25V ABCDE...............
87-010-045-010 CAP,E 100-25V ....................
87-010-072-070 CAP,E 2.2-50V ....................
87-010-072-070 CAP,E 2.2-50V ABCDE...............
87-010-075-040 CAP,E 10-16V ABCDE...............
87-010-075-040 CAP,E 10-16V ....................
87-010-234-070 CAP,E 4-16V ABCDE...............
87-010-234-070 CAP,E 4-16V ....................
87-010-380-010 CAP,E 47-16V ....................
87-010-380-010 CAP,E 47-16V ABCDE...............
87-010-387-080 CAP,E 470-25V ....................
87-010-387-080 CAP,E 470-25V ABCDE...............
87-010-403-010 CAP,E 3.3-50V ABCDE...............
87-010-403-010 CAP,E 3.3-50V ....................
87-017-781-080 RECTIFIER IN-4004 ....................
87-017-781-080 RECTIFIER IN-4004 ABCDE...............
87-070-106-010 0E LED,SE3001 RED ....................
87-070-106-010 0E LED,SE3001 RED ABCDE...............
87-263-033-210 SCREW,2x4 ....................
87-342-036-210 SCREW,ST2-8 ABCDE...............
87-343-075-210 SCREW,ST 2.6-10 ABCDE...............
87-352-095-010 SCREW,ST3-8 ABCDE...............
87-352-095-010 SCREW,ST3-8 ....................
87-352-097-210 SCREW,ST3-12 ABCDE...............
87-353-076-210 SCREW,+2.6-12 ....................
87-641-092-410 SCREW,ST3-4 ABCDE...............
87-741-096-410 SCREW,ST3-10MM ABCDE...............
87-741-096-410 SCREW,ST3-10MM ....................
87-743-036-410 SCREW,ST2-8 ABCDE...............
87-743-036-410 SCREW,ST2-8 ....................
87-743-073-410 0E SCREW,ST2.6-6MM ABCDE...............
87-743-073-410 0E SCREW,ST2.6-6MM ....................
87-751-035-410 SCREW,ST2-6 ABCDE...............
87-751-074-410 SCREW,ST 2.6-8 ABCDE...............
87-A20-566-010 IC,AT24C01A-10PC 8P ABCDE...............
87-A20-566-010 IC,AT24C01A-10PC 8P ....................
MAIN PARTS LIST - 2
87-A21-136-040 IC,AT24C01A-10SC 8P ....................
87-A21-136-040 IC,AT24C01A-10SC 8P ABCDE...............
87-A40-226-080 DIODE,SVC251SPA ABCDE...............
87-A40-226-080 DIODE,SVC251SPA ....................
88-PCD-605-010 C-IC,TB31224F ....................
88-PCD-605-010 C-IC,TB31224F ABCDE...............
89-317-412-310 TR,2SC1741SQ ABCDE...............
89-317-412-310 TR,2SC1741SQ ....................
89-321-204-080 TR,2SC2120Y ABCDE...............
89-324-122-080 TR,2SC2412KQ ABCDE...............
89-324-122-080 TR,2SC2412KQ ....................
89-327-126-080 C-TR,2SC2712GR ....................
89-327-126-080 C-TR,2SC2712GR ABCDE...............
89-327-143-010 C-TR,2SC2714Y ABCDE...............
89-327-143-010 C-TR,2SC2714Y ....................
S0-001-070-010 CER,FILTER ....................
S0-001-070-010 CER,FILTER ABCDE...............
S0-001-820-110 IFT,182 11.5MM ABCDE...............
S0-001-820-110 IFT,182 11.5MM ....................
S0-002-550-070 IFT,0.47-7-8 ....................
S0-002-550-070 IFT,0.47-7-8 ABCDE...............
S0-002-570-070 IFT,0.34-7-8 ABCDE...............
S0-002-570-070 IFT,0.34-7-8 ....................
S0-002-720-070 IFT,7.7MM 0.27UH ....................
S0-002-720-070 IFT,7.7MM 0.27UH ABCDE...............
S0-002-720-080 IFT,272 8.5MM ABCDE...............
S0-002-720-080 IFT,272 8.5MM ....................
S0-004-550-070 CER,FILTER 455KHZ ....................
S0-004-550-070 CER,FILTER 455KHZ ABCDE...............
S0-008-000-000 CER,RESO 8 MHZ ABCDE...............
S0-008-000-000 CER,RESO 8 MHZ ....................
S0-008-701-070 IFT,0.47UH 7MM ....................
S0-008-701-070 IFT,0.47UH 7MM ABCDE...............
S0-022-020-000 JACK,TEL MINI L/P 6P2C ABCDE...............
S0-022-020-000 JACK,TEL MINI L/P 6P2C ....................
S0-041-400-070 IFT,0.34UH 7MM ....................
S0-041-400-070 IFT,0.34UH 7MM ABCDE...............
S0-049-410-030 LED,3MM(GRN) ABCDE...............
S0-049-410-030 LED,3MM(GRN) ....................
S0-075-600-070 IFT,7MM 455KHZ ABCDE...............
S0-075-600-070 IFT,7MM 455KHZ ....................
S0-100-511-230 ZENER,BZX55-C5V1 5.1V ABCDE...............
S0-100-511-230 ZENER,BZX55-C5V1 5.1V ....................
S0-100-561-230 ZENER,BZX55-C5V6 5.6V ....................
S0-100-561-230 ZENER,BZX55-C5V6 5.6V ABCDE...............
S0-100-621-210 ZENER,BZX55-C6V2 6.2V ABCDE...............
S0-100-621-210 ZENER,BZX55-C6V2 6.2V ....................
S0-102-115-000 CAP,CER 0.001UF-500V ABCDE...............
S0-102-115-000 CAP,CER 0.001UF-500V ....................
S0-104-030-000 ANT,ROD ABCDE...............
S0-104-030-000 TELESCOPIC ROD ANT ....................
S0-104-330-000 ANT,ROD 82MM ABCDE...............
S0-109-100-000 ANT,TELESCOPIC ROD ....................
S0-112-010-000 APA-EI41IEC 100MA/DO A..DE...............
S0-112-010-020 APA-EI35IEC 100MA/DO .BC.................
S0-112-160-000 APA-IE41IEC&100MA/DO 115/230V ....................
S0-112-170-000 APA-EI41IEC&200MA/DO 115/230V ....................
S0-112-250-000 APA-EI41IEC 200MA/DO A..DE...............
S0-112-250-010 APA-EI41IEC 200MA/DO .BC.................
S0-220-117-000 CONVERTOR 220V-117V ....................
S0-220-117-000 CONVERTOR 220V-117V A..DE...............
S0-251-100-000 HOLDER MIC ....................
S0-251-100-010 HOLDER MIC ABCDE...............
S0-251-520-000 RUBBER FOOT ....................
