HS-PX517

AE

SERVICE MANUAL

STEREO

CASSETTE PLAYER

BASIC TAPE MECHANISM : 7ZM-1 P3NF

S/M Code No. 09-013-439-1N1

DATA

SPECIFICATIONS

Maximum output: 4 mW + 4 mW (EIAJ 16 ohms)
Load impedance: 16 - 80 ohms
Power source: DC 1.2 V using supplied rechargeable battery NB-5G,

Maximum outside dimensions:

Weight Approx. 138g, (4.8 oz) excluding batteries

 Design and specifications are subject to change without notice.

 Dolby noise reduction manufactured under license from Dolby

Laboratories Licensing Corporation.

DOLBY and the double-D symbol are trademarks of Dolby

Laboratories Licensing Corporation.

DC 1.5V using an R6 (AA) dry cell battery,
AC house current using an optional AC adaptor

79.1 (W) x 110 (H) x 20.8 (D) mm
(3 1/8 x 4 3/8 x 27/
(excluding projecting parts and controls)

in.)

32

ACCESSORIES / PACKAGE LIST

PART NO.

1 8B-HK6-906-010 IB,AE(EDPHC)F PX517
1 8B-HK6-905-010 IB,AE(EGFSI)F PX517
2 8Z-HK4-090-110 BOX,BAT ASSY SIL
3 87-B30-418-010 HEADPHONE,HP-M041(S) WT
4 87-B30-479-010 CHARGER,RB-107 E (L)

!

5 8A-HK5-951-010 RC UNIT,RC607
6 87-B30-298-010 BAT,NB-5G(S)

NO.

DESCRIPTIONREF. NO. KANRI

 2 

ELECTRICAL MAIN PARTS LIST 1 / 1

REF. NO.

IC

87-A21-179-040 C-IC,TA2123AF
87-A20-818-040 C-IC,NJM2185AV
87-A20-961-040 C-IC,MM1279XV
87-A21-694-130 C-IC,ML63512A-A04TB
87-A21-691-040 C-IC,PST9009NL

TRANSISTOR

89-111-624-080 C-TR,2SA1162Y
87-026-263-080 C-TR,RN1410
89-333-266-080 CHIP TR,2SC3326B
87-A30-085-040 C-TR,CSA1362GR
89-327-125-080 CHIP TR,2SC2712GR

87-026-267-080 C-TR,RN2407

DIODE

87-A40-666-040 C-DIODE,HN2S01F

MAIN C.B

C101 87-012-272-080 C-CAP,U 680P-50 B
C102 87-012-272-080 C-CAP,U 680P-50 B
C103 87-012-272-080 C-CAP,U 680P-50 B
C104 87-012-272-080 C-CAP,U 680P-50 B
C105 87-016-296-080 C-CAP,TN 22-4SV(A)

C106 87-016-296-080 C-CAP,TN 22-4SV(A)
C107 87-016-114-080 C-CAP,U0.01-25B
C108 87-016-114-080 C-CAP,U0.01-25B
C109 87-010-828-080 CHIP CAPACITOR,U 0.033-25F
C110 87-010-828-080 CHIP CAPACITOR,U 0.033-25F

C111 87-016-396-080 C-CAP,U 0.22-16F
C112 87-012-274-080 CHIP CAP,U 1000P-50B
C113 87-010-831-080 C-CAP,U,0.1-16F
C114 87-010-805-080 CAP, S 1-16
C115 87-016-296-080 C-CAP,TN 22-4SV(A)

C117 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C118 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C119 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C120 87-010-502-040 CAP ELECT GAS 100/4
C121 87-010-502-040 CAP ELECT GAS 100/4

C124 87-012-142-080 CAP, S 0.33-16
C125 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C126 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C127 87-012-284-080 CAP, U 6800P-50
C128 87-012-284-080 CAP, U 6800P-50

C130 87-010-805-080 CAP, S 1-16
C133 87-012-142-080 CAP, S 0.33-16
C134 87-016-087-080 C-CAP,S 0.47-16F
C135 87-010-805-080 CAP, S 1-16
C136 87-016-087-080 C-CAP,S 0.47-16F

C137 87-016-087-080 C-CAP,S 0.47-16F
C138 87-010-424-080 CAPACTOR,TANTAL 4.7-4
C139 87-010-831-080 C-CAP,U,0.1-16F
C140 87-010-805-080 CAP, S 1-16
C141 87-010-805-080 CAP, S 1-16

C142 87-010-805-080 CAP, S 1-16
C143 87-016-296-080 C-CAP,TN 22-4SV(A)
C144 87-010-805-080 CAP, S 1-16
C145 87-010-805-080 CAP, S 1-16
C146 87-016-034-080 CHIP CAP U 0.027-25F

C150 87-010-805-080 CAP, S 1-16
C180 87-010-831-080 C-CAP,U,0.1-16F
C201 87-010-746-080 CAP, TANTAL 10-4
C202 87-012-274-080 CHIP CAP,U 1000P-50B
C203 87-010-805-080 CAP, S 1-16

C204 87-010-805-080 CAP, S 1-16
C205 87-016-526-080 C-CAP,S 0.47-16 BK

PART NO. DESCRIPTIONREF. NO.

KANRI
NO.

DESCRIPTION

PART NO.

C206 87-016-526-080 C-CAP,S 0.47-16 BK
C207 87-016-460-080 C-CAP,S 0.22-16 B
C208 87-016-460-080 C-CAP,S 0.22-16 B
C301 87-012-286-080 CAP, U 0.01-25
C302 87-A10-260-080 C-CAP,U 0.1-16 K B

C303 87-010-805-080 CAP, S 1-16
C304 87-010-831-080 C-CAP,U,0.1-16F
C305 87-A10-708-080 C-CAP,U 0.68U-10 F Z
C306 87-016-087-080 C-CAP,S 0.47-16F
C307 87-010-805-080 CAP, S 1-16

C308 87-012-286-080 CAP, U 0.01-25
C309 87-012-286-080 CAP, U 0.01-25
C310 87-010-805-080 CAP, S 1-16
C606 87-010-805-080 CAP, S 1-16
C701 87-010-805-080 CAP, S 1-16

C702 87-010-805-080 CAP, S 1-16
C703 87-010-831-080 C-CAP,U,0.1-16F
C704 87-010-831-080 C-CAP,U,0.1-16F
C705 87-010-831-080 C-CAP,U,0.1-16F
C706 87-010-424-080 CAPACTOR,TANTAL 4.7-4

C707 87-010-831-080 C-CAP,U,0.1-16F
C708 87-012-160-080 C-CAP,U 50P-50 CK
C709 87-010-831-080 C-CAP,U,0.1-16F
C720 87-012-277-080 C-CAP, U 1800P-50 B
C801 87-A10-498-010 CAP,E 220-4 L 12.5T

D500 87-A91-355-040 C-LED,BR1112H-TR-RED
J101 87-A60-272-010 JACK,3.5 ST 4P
L700 87-A50-690-080 C-COIL,S 10UH M FCI2012V
PS401 87-A92-120-010 SNSR,PHOTO EL-ITR8307T21F43
R103 87-022-281-080 CHIP RES U 680-1/6W F

R104 87-022-281-080 CHIP RES U 680-1/6W F
R105 87-022-283-080 CHIP RES U820-1/16W
R106 87-022-283-080 CHIP RES U820-1/16W
R107 87-022-243-080 CHIP RES,U 15K-1/16W F
R108 87-022-243-080 CHIP RES,U 15K-1/16W F

R109 87-022-292-080 CHIP RES U 330K-1/16W F
R110 87-022-292-080 CHIP RES U 330K-1/16W F
R200 87-022-252-080 C-RES,U36K-1/16WF
R714 87-022-243-080 CHIP RES,U 15K-1/16W F
R716 87-022-243-080 CHIP RES,U 15K-1/16W F

R724 87-022-243-080 CHIP RES,U 15K-1/16W F
S101 8A-HR4-604-010 SW,LEAF 7ZM-1 P2
S102 87-A91-457-180 C-SW,SL 1-1-3 SS-350-A13B-C-T
S202 87-036-379-280 C-SW,SL 1-1-2 SS-350-A12B-C-T
S701 87-036-379-280 C-SW,SL 1-1-2 SS-350-A12B-C-T

S702 87-036-379-280 C-SW,SL 1-1-2 SS-350-A12B-C-T
S703 87-A91-780-180 C-SW,TACT LS15B3T
S704 87-A91-780-180 C-SW,TACT LS15B3T
S705 87-A91-780-180 C-SW,TACT LS15B3T
S706 87-A91-780-180 C-SW,TACT LS15B3T

S707 87-A90-698-080 C-SW,PUSH 1-1-1 PS-170-AT
SFR301 87-A91-465-040 C-SFR,K 6.8K H RH03AEC
TH301 87-A00-695-080 M-RES,M/F 3.9K-1/8W J 3000PPM
VR101 87-A91-750-010 VR,RTRY 20KCX2 XV0107
X700 87-A70-151-110 VIB,XTAL 32.768KHZ VT-200(6PF)

HEAD FLEX C.B

PH1 87-ZM1-601-010 HEAD ASSY,7ZM-1

KANRI
NO.

 3 

CHIP RESISTOR PART CODE

Chip Resistor Part Coding

88

A

Resistor Code

Chip resistor

Wattage Type Tolerance
1/16W 1005 5% CJ

1/16W
1/10W

1/8W

1608
2125

3216

5%
5%

5%

TRANSISTOR ILLUSTRATION

C

B

E

2SA1162
2SC2712
2SC3326
CSA1362
RN1410
RN2407

Symbol

CJ
CJ

CJ

Figure

Value of resistor

Form

L

Dimensions (mm)

t

W

0.55

Resistor Code

108
118

128

LW t

1.0 0.5 0.35 104

1.6 0.8 0.45
2 1.25 0.45

3.2

1.6

: A
: A

 4 

WIRING

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

I

I

J

J

K

K

L

L

M

M

N

N

O

O

P

P

Q

Q

R

R

S

S

T

T

U

U

 5 

SCHEMATIC DIAGRAM

 6 

IC BLOCK DIAGRAM

– 7 –

IC DESCRIPTION

IC, ML63512A-A04TB

Pin No. Pin Name I/O Description

1 AF IN I Sound detection input terminal.

2 SCLK I Serial clock input terminal. (Not used)

3 MUTE O H : MUTE OFF L : MUTE ON

4 SDATA O Serial data output terminal. (Not used)

5 F/R CONT O H : REV Mode L : FWD Mode

6 HI-SP-SW O H : FF/REW (Inclusive of MS & BS) L : Others

7 MOT DIR O H : MOTOR CCW L : MOTOR CW

8 LOAD CTL O Battery capacity check output. (Not used)

9 DSL H O H : DSL 1 L : DSL OFF, 2 (Not used)

10 MOT ON O H : MOTOR ON L : MOTOR OFF

11 MOT BR O H : MOTOR BRAKE ON L : MOTOR BRAKE OFF

12 HOLD IN I H : HOLD OFF L : HOLD ON

13 P-SNSR-IN I Photo sensor input terminal.

14 P-SNSR DET I H : P-SNSR-IN superintend L : P-SNSR-IN disregard

15 KEY MAIN I Main unit key input terminal.

16 KEY REMOTE I Remote controller key input terminal.

17 N.C.  Not connected.

18 P-SNSR K O P-SNSR control output.

19 LED K O OPE, BATT LED control output.

20 DOLBY+B SW O DOLBY power supply control output.

21 VDD I  External equipment interface power supply terminal.

22 VSS  Negative ( - ) side power supply terminal.

23 VDD  Positive ( + ) side power supply terminal.

24 VDDH  Boost power supply terminal for back up.

25 ~ 26 CB1 ~ 2  Capacitor connection terminal for boost power supply.

27 VDDL  Positive ( + ) side power supply terminal for internal logic.

28 XT0  Clock oscillator terminal for low frequency side.

29 XT1  Connect 32,768 kHz crystal oscillator.

30 ~ 31 VDD  Test terminal. (Connected to VDD)

32 VSS  Negative ( - ) side power supply terminal.

33 OSC 0 

34 OSC 1 

35 RESETB I RESET input terminal.

Clock oscillator terminal for high frequency side. (Not used)

36 BEEP O Sound alarm output terminal.

37 CASS SW I H : No CASS L : With CASS

38 AF IN CTL I Discrimination terminal for P 3.0; AF IN detection level.

39 JACK DET I JACK insertion detection terminal. (Connected to GND)

40 TIMING SW I Mechanism operation detection input terminal.

41 REMOTE DET I Level detector switching terminal. (Not used)

42 SET STOP I H : In normal operations L : STOP mechanism operations

43 BS L O OFF : REP,PLAY mode ON : BS mode (Not used)

 8 

Pin No. Pin Name I/O Description

44 HI-SP L O H : HI-SP L level L : HI-SP H level

45 POWER ON O H : POWER ON L : POWER OFF

46 DSL 1 O Output ON when in DSL 1 mode. (Not used)

47 DSL ON O Output ON when in DSL ON mode. (Not used)

48 BS MODE IN O H : Continues playback. BS enable L : Auto reverse playback. BS disable

ADJUSTMENT

1. Tape Speed Adjustment
Settings :  Test tape : TTA  100

(Tape center)
 Test point : Phones Jack (J101)
 Adjustment location : SFR301
 Dolby : OFF
 DSL : OFF
 Tape selector : NORMAL(AUTO)
 Volume : Non  clip

(MAX  10 dB down)

Method : Play back the test tape and adjust SFR301 so that the

frequency becomes 3015 Hz ± 10 Hz. Then confirm
WOW is less than 0.50%.

2. Dolby Level Adjustment
Setting :  Test tape : TTA  200

 Test point : TP1(LCH), TP2(RCH),
 DSL : OFF
 Tape selector : NORMAL(AUTO)
 Dolby SW : OFF
 Volume : M IN
 Adjustment points : Soldered patterns

Procedure : Short the patterns via solder as shown in the table so

the Dolby NR level is 32 mV ± 1.0 dB. Adjust so the
specifications are satisfied in both the forward and
reverse directions. Connect 10mF/16V coupling
capacitors between test points and test equipment
(connect the positive terminals to the test points).

SOLDER PATTERN

~ 

SOLDER POINT INCREASE LEVEL

~ 

 only + 0.8 dB

Lch

 only + 1.6 dB
 and  + 2.3 dB
 only + 0.8 dB

Rch

 only + 1.6 dB
 and  + 2.3 dB

 9 

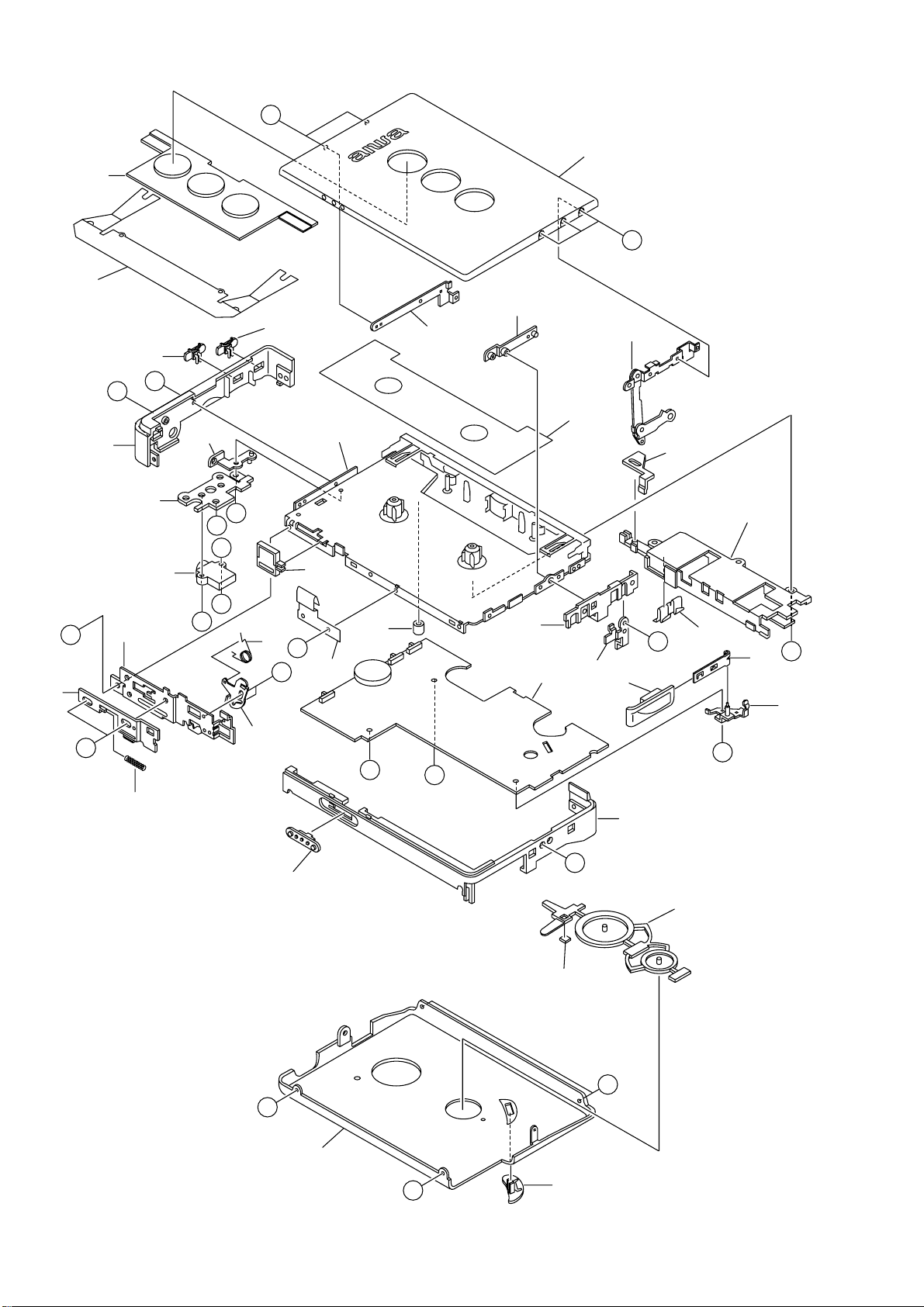

MECHANICAL EXPLODED VIEW 1 / 1

A

2

3

34

28

34

33

M

32

7ZM-1

1

H

5

4

SH-CHAS,
AE

6

7

22

31

30

B

23

J

21

C

B

F

29

E

D

25

B

26

J

24

20

27

G

I

10

PWB

K

11

14

15

M

9

16

8

C

12

13

G

17

M

M

19

L

18

HS-PX517 AEINF
(FileName:EXP.EPS)
13/3/10 AHK-5

 10 

MECHANICAL PARTS LIST 1 / 1

REF. NO.

1 8B-HK6-001-010 LID,CASS GLD AE ASSY
2 8B-HK6-012-010 WINDOW,CASS AE
3 8Z-HK4-228-110 SPR-P,LID
4 8A-HK5-206-110 HLDR,LID
5 8Z-HK4-210-110 NUT, B-BOX

6 8Z-HK4-206-210 HLDR,ARM ASSY
7 8A-HK5-207-010 LEVER,EJECT
8 8A-HK5-201-010 HLDR,BAT
9 8A-HJ2-207-010 BAT-CONTACT,(-)
10 8A-HK5-202-010 HLDR,CONT

11 8A-HJ2-216-010 BAT-CONTACT,BOX (-)
12 8Z-HK4-212-010 BAT-CONTACT,(+)
13 8A-HK5-216-010 SHAFT,ASSY
14 8B-HK6-015-010 LID,BAT GLD AE
15 8B-HK6-014-010 FRAME,CTR AE

16 8A-HK5-008-010 KEY,CONT
17 8A-HK5-013-010 LENS,LED
18 8B-HK6-019-010 KNOB,SL HOLD AE
19 8B-HK6-018-010 CABI,REAR GLD AE
20 8A-HK5-009-010 KNOB,SL OPEN

21 8A-HK5-210-010 SPR-C,OPEN
22 8A-HK5-205-010 PLATE,OPEN
23 8A-HK5-204-010 BASE,LOCK
24 8A-HK5-221-010 PLATE,LOCK K5
25 8A-HJ2-224-010 SPR-T,LOCK

26 8A-HK5-226-010 SPR-P,CASS M
27 8A-HK5-212-010 CAP,SCREW
28 8B-HK6-017-010 KNOB,SL DSL AE
29 8A-HR4-604-010 SW,LEAF 7ZM-1 P2
30 87-A60-272-010 JACK,3.5 ST 4P

31 8A-HK5-203-010 HLDR,JACK
32 8A-HK5-215-010 HLDR,SCREW
33 8B-HK6-010-010 FRAME,JACK AE
34 8B-HK6-016-010 KNOB,SL BS AE
A 87-B10-339-010 VTT+1.4-2 B TITE CR

B 87-078-216-010 SCRW-SR,1.4-1.4B LS
C 87-067-511-010 SCREW,V+1.4-2 BK
D 87-067-496-010 SCREW+1.4-3.5(BK)
E 8A-HK5-223-010 S-SCREW,+1.4-3.8 SWCH BLK
F 8A-HK5-220-010 W-M,1.5-3.1-0.25 BLK

G 8A-HR5-206-010 S-SCREW,+1.4-4 SWCH CR HL
H 87-HK5-237-010 S-SCREW,1.4-2 CR NL
I 8A-HK5-217-010 S-SCREW,SERR1.4-6 CR
J 88-HJ3-220-010 S-SCREW,+1.4-0.7-1 BLK NL
K 87-078-153-010 SCRW,1.4-2.5 CR

L 8A-HK5-219-010 S-SCREW,+1.4-6.5-0.4 CR NL
M 8A-HK5-218-010 S-SCREW,+1.4-3-0.4 CR NL

PART NO. DESCRIPTIONREF. NO.

KANRI
NO.

DESCRIPTION

PART NO.

KANRI
NO.

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange
G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver

T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink

LA Aqua Blue GL Light Green HT Transparent Gray

 11 

TAPE MECHANISM EXPLODED VIEW 1 / 1

12

10

5

6

7

8

A

9

11

B

15

HEAD FLEX. C.B

1

2

3

4

49

A

33

31

23

14

16

H

19

13

34

35

41

37

38

E

36

39

40

C

32

42

43

44

F

F

43

46
47

17

48

C

C

45

D

44

F

18

42

22

20

21

30

29

28

G

26

27

G

26

25

24

50

BRG,
7ZSIA

 12 

TAPE MECHANISM PARTS LIST 1 / 1

REF. NO.

1 87-ZM1-230-010 HLDR,HEAD
2 87-ZM1-254-110 ARM ASSY,PINCH R
3 87-ZM1-287-010 SPR-T,PINCH BACK R
4 87-ZM1-285-010 SPR-T,PINCH R
5 87-ZM1-252-110 ARM ASSY,PINCH L

6 87-ZM1-286-010 SPR-T,PINCH BACK L
7 87-ZM1-284-010 SPR-T,PINCH L
8 87-ZM1-225-110 HLDR ASSY,CASSET
9 87-ZM1-275-010 SPR-T,HEAD BACK
10 87-ZM1-269-010 SHAFT,PINCH

11 87-ZM1-267-010 CAP,CAPSTAN
12 87-ZM1-263-010 HLDR,CASSET HLD L
13 87-ZM1-221-110 LEVER ASSY,DIR
14 87-ZM1-264-010 HLDR,CASSET HLD R
15 87-ZM1-601-010 HEAD ASSY, 7ZM-1

16 87-ZM1-271-010 BELT,MOT
17 87-ZM1-234-110 GEAR,PULLY
18 87-ZM1-244-010 GEAR,IDL D
19 M8-7ZS-191-000 ABL-71 YMB
20 87-ZS1-205-010 COIL,FP 7ZS1A

21 87-ZS1-216-010 PIN ASSY,7ZS1 5.0
22 87-ZM1-243-010 GEAR,IDL C
23 87-ZS1-210-210 HLDR,7ZS1A
24 87-ZM1-248-410 FLY-WHL ASSY,L
25 80-ZM4-230-310 REAL CAP,L

26 85-ZM2-269-010 SPR-C GEAR REEL
27 80-ZM4-231-210 REAL CAP,R
28 87-ZM1-232-010 GEAR,CAM
29 87-ZM1-266-210 HLDR,DIR
30 87-ZM1-268-010 LEVER,CAM 2

31 87-ZM1-265-010 HLDR,CAM
32 87-ZM1-261-010 LEVER,SW
33 87-ZM1-250-210 FLY-WHL ASSY,R
34 87-ZM1-272-010 BELT,FLY-WHL
35 87-ZM1-313-010 LEVER,DIR OFF P3

36 87-ZM1-231-010 LEVER,CAM CONNECT
37 87-ZM1-207-010 SHAFT,CONTROL
38 87-ZM1-262-110 LEVER,FR CONTROL
39 87-ZM1-246-010 GEAR,CAM C
40 87-ZM1-282-110 SPR-E,CAM

41 87-ZM1-325-010 GEAR ASSY,SLIP J
42 87-ZM1-241-010 GEAR,IDL A
43 87-ZM1-307-010 SH,AUTO J
44 87-ZM1-236-110 GEAR,REEL
45 87-ZM1-217-010 LEVER ASSY,T-UP

46 87-ZM1-281-010 SPR-C,FR
47 87-ZM1-245-010 GEAR,FF/REW
48 87-ZM1-242-010 GEAR,IDL B
49 87-ZM1-315-010 CHAS ASSY,OUT-SERT P3
50 87-ZS1-211-010 MAGNET,PULL 7ZS1A

A 87-ZM1-273-010 S-SCREW,1.7-5
B 87-ZM1-274-010 S-SCREW,HEAD 7ZM-1
C 87-B10-136-010 W-P,1.09-3.1-0.4
D 87-B10-228-010 W-P,0.95-2-0.2
E 87-ZM1-292-010 W,1.55-2.62-0.2 SOMA LIGHT

F 87-ZM1-291-010 W-P,0.86-3-0.25
G 87-ZM1-296-010 W-L,1.15-2.6-0.188
H 87-ZS1-215-010 S-SCREW,VT+1.4-3.5 CR HL

PART NO. DESCRIPTIONREF. NO.

KANRI
NO.

DESCRIPTION

PART NO.

KANRI
NO.

 13 

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]

Printed in Singapore9630472 0251431

HS-PX517

YH

SERVICE MANUAL

STEREO

CASSETTE PLAYER

 This Service Manual contains information about the difference between

HS-PX517<YH> and HS-PX517<AE>. If requiring other information,

see Service Manual of HS-PX517<AE>, (S/M Code No. 09-013-439-1N1).

BASIC TAPE MECHANISM : 7ZM-1 P3NF

S/M Code No. 09-014-439-1S1

SUPPLEMENT

DATA

SPECIFICATIONS

Maximum output: 4 mW + 4 mW (EIAJ 32 ohms)
Power sources: DC 1.2 V using supplied rechargeable battery NB-5G,

Maximum outside dimensions:

Weight Approx. 138g, (4.8 oz) excluding batteries

 Design and specifications are subject to change without notice.

DC 1.5 V using an R6 (AA) dry cell battery,
AC house current using an optional AC adaptor

79.1 (W) x 110 (H) x 20.8 (D) mm
(3 1/8 x 4 3/8 x 27/
(excluding projecting parts and controls)

in.)

32

ACCESSORIES / PACKAGE LIST

PART NO.

NO.

1 8B-HK6-903-010 IB,YHS(ECC)F PX517
1 8B-HK6-913-010 IB,YHS(K)F PX517

DESCRIPTIONREF. NO. KANRI

 2 

ELECTRICAL MAIN PARTS LIST 1 / 1

REF. NO.

IC

87-A21-179-040 C-IC,TA2123AF
87-A20-961-040 C-IC,MM1279XV
87-A21-694-130 C-IC,ML63512A-A04TB
87-A21-691-040 C-IC,PST9009NL

TRANSISTOR

89-111-624-080 C-TR,2SA1162Y
87-026-263-080 C-TR,RN1410
89-333-266-080 CHIP TR,2SC3326B
87-A30-085-040 C-TR,CSA1362GR
89-327-125-080 CHIP TR,2SC2712GR

DIODE

87-A40-666-040 C-DIODE,HN2S01F

MAIN C.B

C101 87-012-273-080 C-CAP,U 8 20P-50 BK
C102 87-012-273-080 C-CAP,U 8 20P-50 BK
C103 87-012-273-080 C-CAP,U 8 20P-50 BK
C104 87-012-273-080 C-CAP,U 8 20P-50 BK
C105 87-016-296-080 C-CAP,TN 22-4SV(A)

C106 87-016-296-080 C-CAP,TN 22-4SV(A)
C107 87-012-2 86 -080 C-CAP,U0.01-25BK
C108 87-012-2 86 -080 C-CAP,U0.01-25BK
C109 87-010-828-080 CHIP CAPACITOR,U 0.033-25F
C110 87-010-828-080 CHIP CAPACITOR,U 0.033-25F

C111 87-016-396-080 C-CAP,U 0.22-16F
C112 87-012-274-080 CHIP CAP,U 1000P-50B
C113 87-010-831-080 C-CAP,U,0.1-16F
C114 87-010-805-080 CAP, S 1-16
C115 87-016-296-080 C-CAP,TN 22-4SV(A)

C117 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C118 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C119 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C120 87-010-502-040 CAP ELECT GAS 100/4
C121 87-010-502-040 CAP ELECT GAS 100/4

C124 87-012-142-080 CAP, S 0.33-16
C125 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C126 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C127 87-012-284-080 CAP, U 6800P-50
C128 87-012-284-080 CAP, U 6800P-50

C130 87-010-805-080 CAP, S 1-16
C133 87-012-142-080 CAP, S 0.33-16
C134 87-016-087-080 C-CAP,S 0.47-16F
C135 87-010-805-080 CAP, S 1-16
C136 87-016-087-080 C-CAP,S 0.47-16F

C137 87-016-087-080 C-CAP,S 0.47-16F
C138 87-010-424-080 CAPACTOR,TANTAL 4.7-4
C139 87-010-831-080 C-CAP,U,0.1-16F
C140 87-010-805-080 CAP, S 1-16
C141 87-010-805-080 CAP, S 1-16

C142 87-010-805-080 CAP, S 1-16
C143 87-016-296-080 C-CAP,TN 22-4SV(A)
C146 87-016-034-080 CHIP CAP U 0.027-25F
C148 87-010-805-080 C-CAP, S 1-16Z F
C149 87-010-805-080 C-CAP, S 1-16Z F

C150 87-010-805-080 CAP, S 1-16
C180 87-010-831-080 C-CAP,U,0.1-16F
C301 87-012-286-080 CAP, U 0.01-25
C302 87-A10-260-080 C-CAP,U 0.1-16 K B
C303 87-010-805-080 CAP, S 1-16

C304 87-010-831-080 C-CAP,U,0.1-16F
C305 87-A10-708-080 C-CAP,U 0.68U-10 F Z
C306 87-016-087-080 C-CAP,S 0.47-16F
C307 87-010-805-080 CAP, S 1-16
C308 87-012-286-080 CAP, U 0.01-25

PART NO. DESCRIPTIONREF. NO.

KANRI
NO.

DESCRIPTION

PART NO.

C309 87-012-286-080 CAP, U 0.01-25
C310 87-010-805-080 CAP, S 1-16
C606 87-010-805-080 CAP, S 1-16
C701 87-010-805-080 CAP, S 1-16
C702 87-010-805-080 CAP, S 1-16

C703 87-010-831-080 C-CAP,U,0.1-16F
C704 87-010-831-080 C-CAP,U,0.1-16F
C705 87-010-831-080 C-CAP,U,0.1-16F
C706 87-010-424-080 CAPACTOR,TANTAL 4.7-4
C707 87-010-831-080 C-CAP,U,0.1-16F

C708 87-012-160-080 C-CAP,U 50P-50 CK
C709 87-010-831-080 C-CAP,U,0.1-16F
C720 87-012-277-080 C-CAP, U 1800P-50 B
C801 87-A10-498-010 CAP,E 220-4 L 12.5T
D500 87-A91-355-040 C-LED,BR1112H-TR-RED

J101 87-A60-272-010 JACK,3.5 ST 4P
L700 87-A50-690-080 C-COIL,S 10UH M FCI2012V
PS401 87-A92-120-010 SNSR,PHOTO EL-ITR8307T21F43
R714 87-022-243-080 CHIP RES,U 15K-1/16W F
R716 87-022-243-080 CHIP RES,U 15K-1/16W F

R724 87-022-243-080 CHIP RES,U 15K-1/16W F
S101 8A-HR4-604-010 SW,LEAF 7ZM-1 P2
S102 87-A91-457-180 C-SW,SL 1-1-3 SS-350-A13B-C-T
S701 87-036-379-280 C-SW,SL 1-1-2 SS-350-A12B-C-T
S702 87-036-379-280 C-SW,SL 1-1-2 SS-350-A12B-C-T

S703 87-A91-780-180 C-SW,TACT LS15B3T
S704 87-A91-780-180 C-SW,TACT LS15B3T
S705 87-A91-780-180 C-SW,TACT LS15B3T
S706 87-A91-780-180 C-SW,TACT LS15B3T
S707 87-A90-698-080 C-SW,PUSH 1-1-1 PS-170-AT

SFR301 87-A91-465-040 C-SFR,K 6.8K H RH03AEC
TH301 87-A00-695-080 M-RES,M/F 3.9K-1/8W J 3000PPM
VR101 87-A91-750-010 VR,RTRY 20KCX2 XV0107
X700 87-A70-151-110 VIB,XTAL 32.768KHZ VT-200(6PF)

HEAD FLEX C.B

PH1 87-ZM1-601-010 HEAD ASSY,7ZM-1

KANRI
NO.

 3 

WIRING

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

I

I

J

J

K

K

L

L

M

M

N

N

O

O

P

P

Q

Q

R

R

S

S

T

T

U

U

 4 

SCHEMATIC DIAGRAM

– 5 –

MECHANICAL EXPLODED VIEW 1 / 1

A

2

3

34

28

M

33

32

7ZM-1

1

H

5

4

SH-CHAS

6

7

22

31

30

B

23

J

21

C

B

F

29

E

D

25

B

26

J

24

20

I

27

G

10

PWB

K

11

14

15

M

9

16

8

C

12

13

G

17

M

M

19

L

18

HS-PX517 YHS1SF
(FileName:EXP.EPS)
13/3/25 BHK-6

 6 

MECHANICAL PARTS LIST 1 / 1

REF. NO.

1 8A-HK5-053-010 LID,CASS ASSY AH C
2 8B-HK6-003-010 WINDOW,CASS
3 8Z-HK4-228-110 SPR-P,LID
4 8A-HK5-206-110 HLDR,LID
5 8Z-HK4-210-110 NUT, B-BOX

6 8Z-HK4-206-210 HLDR,ARM ASSY
7 8A-HK5-207-010 LEVER,EJECT
8 8A-HK5-201-010 HLDR,BAT
9 8A-HJ2-207-010 BAT-CONTACT,(-)
10 8A-HK5-202-010 HLDR,CONT

11 8A-HJ2-216-010 BAT-CONTACT,BOX (-)
12 8Z-HK4-212-010 BAT-CONTACT,(+)
13 8A-HK5-216-010 SHAFT,ASSY
14 8A-HK5-007-010 LID,BAT
15 8B-HK6-004-010 FRAME,CTR

16 8A-HK5-008-010 KEY,CONT
17 8A-HK5-013-010 LENS,LED
18 8B-HK6-009-010 KNOB,SL HOLD
19 8B-HK6-006-010 CABI,REAR
20 8A-HK5-009-010 KNOB,SL OPEN

21 8A-HK5-210-010 SPR-C,OPEN
22 8A-HK5-205-010 PLATE,OPEN
23 8A-HK5-204-010 BASE,LOCK
24 8A-HK5-221-010 PLATE,LOCK K5
25 8A-HJ2-224-010 SPR-T,LOCK

26 8A-HK5-226-010 SPR-P,CASS M
27 8A-HK5-212-010 CAP,SCREW
28 8B-HK6-008-010 KNOB,SL DSL
29 8A-HR4-604-010 SW,LEAF 7ZM-1 P2
30 87-A60-272-010 JACK,3.5 ST 4P

31 8A-HK5-203-010 HLDR,JACK
32 8A-HK5-215-010 HLDR,SCREW
33 8B-HK6-005-010 FRAME,JACK
34 8B-HK6-007-010 KNOB,SL BS
A 87-B10-339-010 VTT+1.4-2 B TITE CR

B 87-078-216-010 SCRW-SR,1.4-1.4B LS
C 87-067-511-010 SCREW,V+1.4-2 BK
D 87-067-496-010 SCREW+1.4-3.5(BK)
E 8A-HK5-223-010 S-SCREW,+1.4-3.8 SWCH BLK
F 8A-HK5-220-010 W-M,1.5-3.1-0.25 BLK

G 8A-HR5-206-010 S-SCREW,+1.4-4 SWCH CR HL
H 87-HK5-237-010 S-SCREW,1.4-2 CR NL
I 8A-HK5-217-010 S-SCREW,SERR1.4-6 CR
J 88-HJ3-220-010 S-SCREW,+1.4-0.7-1 BLK NL
K 87-078-153-010 SCRW,1.4-2.5 CR

L 8A-HK5-219-010 S-SCREW,+1.4-6.5-0.4 CR NL
M 8A-HK5-218-010 S-SCREW,+1.4-3-0.4 CR NL

PART NO. DESCRIPTIONREF. NO.

KANRI
NO.

DESCRIPTION

PART NO.

KANRI
NO.

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange

G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver

T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink

LA Aqua Blue GL Light Green HT Transparent Gray

 7 

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]

Printed in Singapore9630472 0251431

HS-PX517

AH

SERVICE MANUAL

STEREO

CASSETTE PLAYER

 This Service Manual contains information about the difference between

HS-PX517<AH> and HS-PX517<AE>. If requiring other information,

see Service Manual of HS-PX517<AE>, (S/M Code No. 09-013-439-1N1).

BASIC TAPE MECHANISM : 7ZM-1 P3NF

S/M Code No. 09-014-439-1S2

SUPPLEMENT

DATA

SPECIFICATIONS

Maximum output: 4 mW + 4 mW (EIAJ 32 ohms)
Power sources: DC 1.2 V using supplied rechargeable battery NB-5G,

Maximum outside dimensions:

Weight Approx. 138g, (4.8 oz) excluding batteries

 Design and specifications are subject to change without notice.

DC 1.5 V using an R6 (AA) dry cell battery,
AC house current using an optional AC adaptor

79.1 (W) x 110 (H) x 20.8 (D) mm
(3 1/8 x 4 3/8 x 27/
(excluding projecting parts and controls)

in.)

32

ACCESSORIES / PACKAGE LIST

PART NO.

1 8B-HK6-902-010 IB,AH(ECC)F PX517

!

4 87-B30-341-310 CHARGER,RB-107 H(L)

NO.

DESCRIPTIONREF. NO. KANRI

 2 

MECHANICAL EXPLODED VIEW 1 / 1

A

2

3

34

28

M

M

33

32

7ZM-1

1

H

5

4

SH-CHAS,
AE

6

7

22

31

30

B

23

J

21

C

B

F

29

E

D

25

B

26

J

24

20

27

G

I

10

PWB

K

11

14

15

M

9

16

8

C

12

13

G

17

M

M

19

L

18

HS-PX517 AHISF
(FileName:HSPX517.EPS)
13/4/15 BHK-6

 3 

MECHANICAL PARTS LIST 1 / 1

REF. NO.

1 8A-HK5-053-010 LID,CASS ASSY AH C
2 8B-HK6-003-010 WINDOW,CASS
3 8Z-HK4-228-110 SPR-P,LID
4 8A-HK5-206-110 HLDR,LID
5 8Z-HK4-210-110 NUT, B-BOX

6 8Z-HK4-206-210 HLDR,ARM ASSY
7 8A-HK5-207-010 LEVER,EJECT
8 8A-HK5-201-010 HLDR,BAT
9 8A-HJ2-207-010 BAT-CONTACT,(-)
10 8A-HK5-202-010 HLDR,CONT

11 8A-HJ2-216-010 BAT-CONTACT,BOX (-)
12 8Z-HK4-212-010 BAT-CONTACT,(+)
13 8A-HK5-216-010 SHAFT,ASSY
14 8A-HK5-007-010 LID,BAT
15 8B-HK6-004-010 FRAME,CTR

16 8A-HK5-008-010 KEY,CONT
17 8A-HK5-013-010 LENS,LED
18 8B-HK6-009-010 KNOB,SL HOLD
19 8B-HK6-006-010 CABI,REAR
20 8A-HK5-009-010 KNOB,SL OPEN

21 8A-HK5-210-010 SPR-C,OPEN
22 8A-HK5-205-010 PLATE,OPEN
23 8A-HK5-204-010 BASE,LOCK
24 8A-HK5-221-010 PLATE,LOCK K5
25 8A-HJ2-224-010 SPR-T,LOCK

26 8A-HK5-226-010 SPR-P,CASS M
27 8A-HK5-212-010 CAP,SCREW
28 8B-HK6-008-010 KNOB,SL DSL
29 8A-HR4-604-010 SW,LEAF 7ZM-1 P2
30 87-A60-272-010 JACK,3.5 ST 4P

31 8A-HK5-215-010 HLDR,SCREW
32 8A-HK5-203-010 HLDR,JACK
33 8B-HK6-005-010 FRAME,JACK
34 8B-HK6-007-010 KNOB,SL BS
A 87-B10-339-010 VTT+1.4-2 B TITE CR

B 87-078-216-010 SCRW-SR,1.4-1.4B LS
C 87-067-511-010 SCREW,V+1.4-2 BK
D 87-067-496-010 SCREW+1.4-3.5(BK)
E 8A-HK5-223-010 S-SCREW,+1.4-3.8 SWCH BLK
F 8A-HK5-220-010 W-M,1.5-3.1-0.25 BLK

G 8A-HR5-206-010 S-SCREW,+1.4-4 SWCH CR HL
H 87-HK5-237-010 S-SCREW,1.4-2 CR NL
I 8A-HK5-217-010 S-SCREW,SERR1.4-6 CR
J 88-HJ3-220-010 S-SCREW,+1.4-0.7-1 BLK NL
K 87-078-153-010 SCRW,1.4-2.5 CR

L 8A-HK5-219-010 S-SCREW,+1.4-6.5-0.4 CR NL
M 8A-HK5-218-010 S-SCREW,+1.4-3-0.4 CR NL

PART NO. DESCRIPTIONREF. NO.

KANRI
NO.

DESCRIPTION

PART NO.

KANRI
NO.

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange

G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver

T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink

LA Aqua Blue GL Light Green HT Transparent Gray

 4 

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]

Printed in Singapore9630472 0251431
