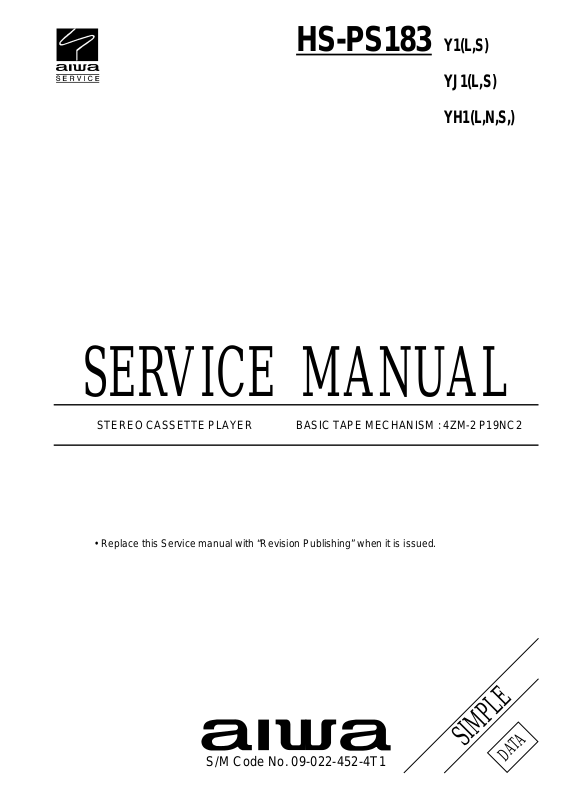

HS-PS183 Y1(L,S)
YJ1(L,S)
YH1(L,N,S,)
SERVICE MANUAL
STEREO CASSETTE PLAYER |
BASIC TAPE MECHANISM : 4ZM-2 P19NC2 |
|
|
• Replace this Service manual with “Revision Publishing” when it is issued.
S/M Code No. 09-022-452-4T1

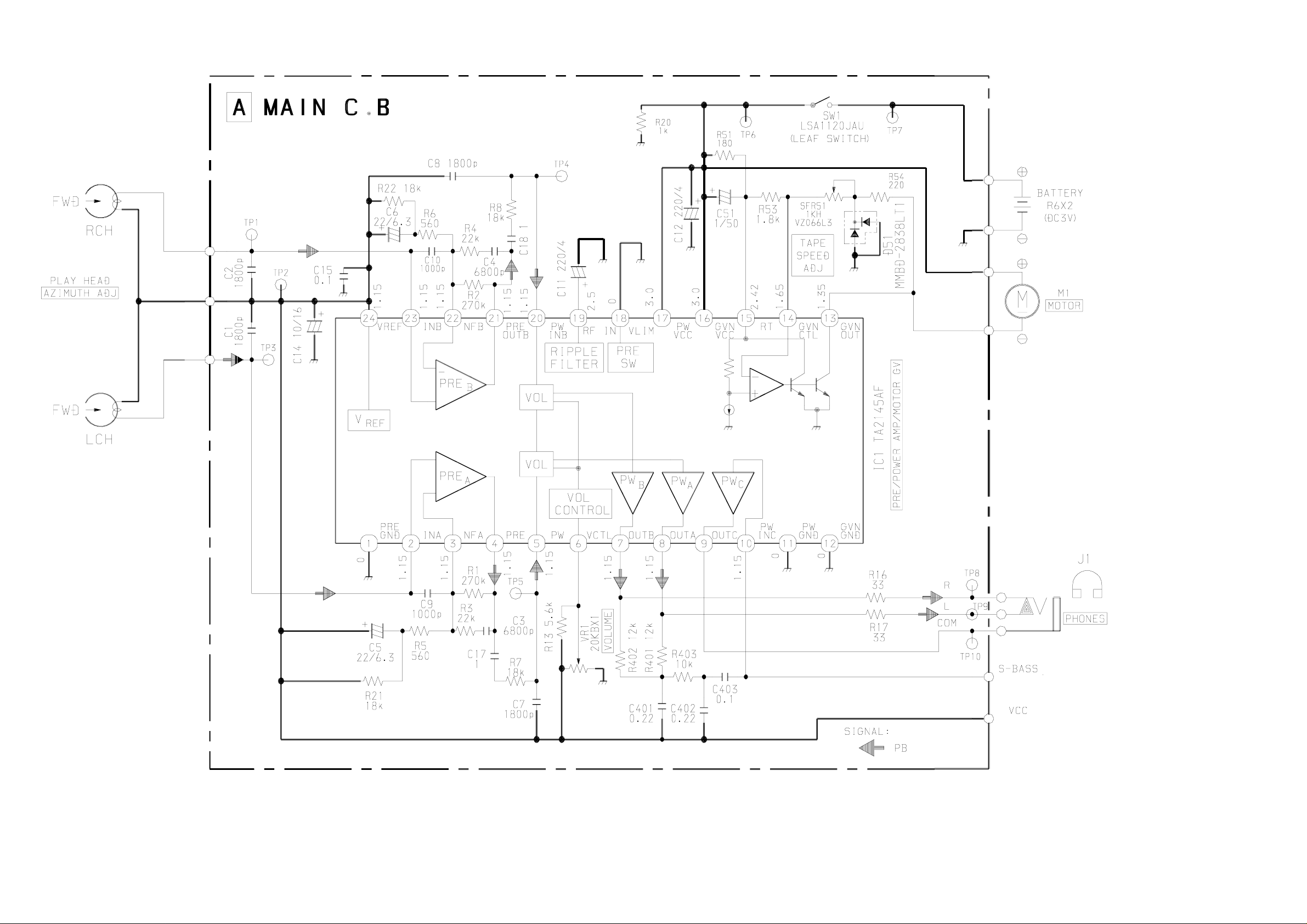

SIMPLE DATA
ELECTRICAL PARTS LIST
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME |
! C REF-NO |
PARTS-NO |
PARTS-NAME |
SUFFIX&MODEL |
|
|
|
|
|
|
|
|
|
|
|
|
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
|
|
|
|
|
Y1LC |
YH1NC |
YH1LC |
YJ1LC |
YJ1SC |
YH1SC |
Y1BSC |
|
O C |
0001 |
87-012-277-08 |
C-CAP, U 1800P-50 B |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0002 |
87-012-277-08 |
C-CAP, U 1800P-50 B |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0003 |
87-012-284-08 |
CAP, U 6800P-50 |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0004 |
87-012-284-08 |
CAP, U 6800P-50 |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0005 |
87-015-674-04 |
CAP E 22-6.3M SRA |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0006 |
87-015-674-04 |
CAP E 22-6.3M SRA |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0007 |
87-012-277-08 |
C-CAP, U 1800P-50 B |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0008 |
87-012-277-08 |
C-CAP, U 1800P-50 B |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0009 |
87-012-274-08 |
CHIP CAP,U 1000P-50B |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0010 |
87-012-274-08 |
CHIP CAP,U 1000P-50B |
a |
b |
c |
d |
e |
f |
g |
|
|
|
|
|
|
|
|
|
|
|
|
|
O C |
0011 |
87-A10-489-04 |
CAP,E 220-4 7L SR |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0012 |
87-A10-489-04 |
CAP,E 220-4 7L SR |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0014 |
87-015-681-04 |
E/CAP 10-16 |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0015 |
87-010-831-08 |
C-CAP,U,0.1-16F |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0017 |
87-A11-056-08 |
C-CAP,U 1-10 Z F |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0018 |
87-A11-056-08 |
C-CAP,U 1-10 Z F |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0027 |
87-010-831-08 |
C-CAP,U,0.1-16F |
a |
b |
c |
d |
e |
f |
g |
|
O C |
0051 |
87-015-695-04 |
E/CAP 1UF 50V TAPG |
a |
b |
c |
d |
e |
f |
g |
|
S D |
0001 |
87-A40-630-04 |
C-DIODE,RB411D |
. |
b |
c |
d |
e |
f |
. |
|
S IC 0001 87-A21-684-04 |
C-IC,TA2145AF |
a |
b |
c |
d |
e |
f |
g |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
|
|
|
|
|
Y1LC |
YH1NC |
YH1LC |
YJ1LC |
YJ1SC |
YH1SC |
Y1BSC |
|
O J |
0001 |
85-HRL-623-01 |
JACK,3.5 ST BLK |
a |
b |
c |
d |
e |
f |
g |
|
O J |
0002 |
87-A61-124-11 |
JACK,DC DIA2.75 BLK TC |
. |
b |
c |
d |
e |
f |
. |
|
X JR 0001 88-108-000-08 |
C-JUMPER,U |
a |
b |
c |
d |
e |
f |
g |
||
|
X JR 0002 88-108-000-08 |
C-JUMPER,U |
a |
b |
c |
d |
e |
f |
g |
||
|
X JR 0003 88-108-000-08 |
C-JUMPER,U |
a |
. |
. |
. |
. |
. |
g |
||
|
X JR 0004 88-129-000-08 |
C-JUMPER |
a |
b |
c |
d |
e |
f |
g |
||
|
X JW 0001 88-100-000-08 |
JUMPER WIRE,PLATING |
a |
b |
c |
d |
e |
f |
g |
||
|
X R |
0001 |
88-108-274-08 |
C-RES,U 270K-1/16W J |
a |
. |
. |
. |
. |
. |
g |
|
X R |
0001 |
88-108-334-08 |
C-RES,U 330K-1/16W J |
. |
b |
c |
d |
e |
f |
. |
|
X R |
0002 |
88-108-274-08 |
C-RES,U 270K-1/16W J |
a |
. |
. |
. |
. |
. |
g |
|
|
|
|
|
|
|
|
|
|
|
|
|
X R |
0002 |
88-108-334-08 |
C-RES,U 330K-1/16W J |
. |
b |
c |
d |
e |
f |
. |
|
X R |
0003 |
88-108-223-08 |
RESISTOR, 1/16W 22K |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0004 |
88-108-223-08 |
RESISTOR, 1/16W 22K |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0005 |
88-108-561-08 |
RESISTOR, 1/16W 560 |
a |
. |
. |
. |
. |
. |
g |
|
X R |
0005 |
88-108-391-08 |
C-RES,U 390-1/16W J |
. |
b |
c |
d |
e |
f |
. |
|
X R |
0006 |
88-108-561-08 |
RESISTOR, 1/16W 560 |
a |
. |
. |
. |
. |
. |
g |
|
X R |
0006 |
88-108-391-08 |
C-RES,U 390-1/16W J |
. |
b |
c |
d |
e |
f |
. |
|
X R |
0007 |
88-108-153-08 |
C-RES,U 15K-1/16W J |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0008 |
88-108-153-08 |
C-RES,U 15K-1/16W J |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0013 |
88-108-562-08 |
RESISTOR, 1/16W 5.6K |
a |
b |
c |
d |
e |
f |
g |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
|
|
|
|
|
Y1LC |
YH1NC |
YH1LC |
YJ1LC |
YJ1SC |
YH1SC |
Y1BSC |
|
X R |
0014 |
88-108-000-08 |
C-JUMPER,U |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0016 |
88-108-330-08 |
C-RES,U 33-1/16W J |
a |
. |
. |
. |
. |
. |
g |
|
X R |
0016 |
88-108-000-08 |
C-JUMPER,U |
. |
b |
c |
d |
e |
f |
. |
|
X R |
0017 |
88-108-330-08 |
C-RES,U 33-1/16W J |
a |
. |
. |
. |
. |
. |
g |
|
X R |
0017 |
88-108-000-08 |
C-JUMPER,U |
. |
b |
c |
d |
e |
f |
. |
|
X R |
0018 |
88-108-000-08 |
C-JUMPER,U |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0020 |
88-108-102-08 |
RESISTOR, 1/16W 1K |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0021 |
88-108-183-08 |
RESISTOR, 1/16W 18K |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0022 |
88-108-183-08 |
RESISTOR, 1/16W 18K |
a |
b |
c |
d |
e |
f |
g |
|
O R |
0051 |
87-A00-530-08 |
C-RES,S 180-1/10W F |
a |
b |
c |
d |
e |
f |
g |
|
|
|
|
|
|
|
|
|
|
|
|
|
X R |
0053 |
88-108-182-08 |
RESISTOR, 1/16W 1.8K |
a |
b |
c |
d |
e |
f |
g |
|
X R |
0054 |
88-108-221-08 |
RESISTOR, 1/16W 220 |
a |
b |
c |
d |
e |
f |
g |
|
O SFR0051 87-024-197-01 |
SEMI-FIXED RESISTOR, 1K |
a |
b |
c |
d |
e |
f |
g |
||
|
O SW 0001 87-A90-133-11 |
SW,LEAF LSA1120JAU |
a |
b |
c |
d |
e |
f |
g |
||
|
O VR 0001 87-A91-581-11 |
VR,RTRY 20KBX1 |
a |
b |
c |
d |
e |
f |
g |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
– 2 –
MECHANICAL PARTS LIST
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual. However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME |
! C REF-NO |
PARTS-NO |
PARTS-NAME |
SUFFIX&MODEL |
|
|
|
|
|
|
|
|
|
|
|
|
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
|
|
|
|
|
Y1LC |
YH1NC |
YH1LC |
YJ1LC |
YJ1SC |
YH1SC |
Y1BSC |
|
O |
1 |
8C-HKB-003-01 |
LID,CASS 183 BLU |
a |
. |
c |
d |
. |
. |
. |
|
O |
2 |
8C-HKB-001-01 |
LID,CASS 183 SG |
. |
b |
. |
. |
. |
. |
. |
|
O |
3 |
8C-HKB-002-01 |
LID,CASS 183 SIL |
. |
. |
. |
. |
e |
f |
g |
|
O |
4 |
8C-HRM-007-01 WINDOW,CASS |
a |
b |
c |
d |
e |
f |
g |
|
|
X |
5 |
8C-HRM-203-01 |
SH,ADHESIVE CASS |
a |
b |
c |
d |
e |
f |
g |
|
O |
6 |
86-HRM-205-01 SPR-T,CLICK |
a |
b |
c |
d |
e |
f |
g |
|
|
O |
7 |
8C-HRM-031-01 |
BTN,PLAY N 004 |
. |
b |
. |
. |
. |
. |
. |
|
O |
8 |
8C-HRM-013-01 |
BTN,PLAY SIL 034 |
a |
. |
c |
d |
e |
f |
g |
|
O |
9 |
8C-HKB-008-01 |
CABI,REAR BLU |
a |
. |
. |
. |
. |
. |
. |
|
O |
10 |
8C-HKB-009-01 |
CABI,REAR H BLU |
. |
. |
c |
d |
. |
. |
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
O |
11 |
8C-HKB-005-01 |
CABI,REAR H SG |
. |
b |
. |
. |
. |
. |
. |
|
O |
12 |
8C-HKB-007-01 |
CABI,REAR H SIL 049 |
. |
. |
. |
. |
e |
f |
. |
|
O |
13 |
8C-HKB-006-01 |
CABI,REAR SIL 049 |
. |
. |
. |
. |
. |
. |
g |
|
O |
14 |
8C-HRM-011-01 |
FRAME,CENTER 034 |
a |
. |
c |
d |
e |
f |
g |
|
O |
15 |
8C-HRM-030-01 |
FRAME,CENTER N 004 |
. |
b |
. |
. |
. |
. |
. |
|
O |
16 |
8C-HKB-012-01 |
LID,BATT BLU |
a |
. |
c |
d |
. |
. |
. |
|
O |
17 |
8C-HKB-010-01 |
LID,BATT SG |
. |
b |
. |
. |
. |
. |
. |
|
O |
18 |
8C-HKB-011-01 |
LID,BATT SIL 049 |
. |
. |
. |
. |
e |
f |
g |
|
X |
19 |
87-B40-281-01 |
LBL,BAR-CODE A 35X8 |
a |
b |
c |
d |
e |
f |
g |
|
X |
20 |
87-B40-154-01 |
LBL,BAR-CODE CU |
a |
b |
c |
d |
e |
f |
g |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
HS-PS183 |
|
|
|
|
|
Y1LC |
YH1NC |
YH1LC |
YJ1LC |
YJ1SC |
YH1SC |
Y1BSC |
|
X |
21 |
8C-HKB-015-01 |
LBL,SPEC 183 |
a |
b |
c |
. |
. |
f |
g |
|
X |
22 |
8C-HKB-013-01 |
LBL,SPEC 183 J |
. |
. |
. |
d |
e |
. |
. |
|
O |
23 |
87-264-525-31 |
SCREW, V+1.7-2.5 |
a |
b |
c |
d |
e |
f |
g |
|
O |
24 |
87-067-384-01 SCREWVT1.4-3.5HL |
a |
b |
c |
d |
e |
f |
g |
|
|
O |
25 |
87-067-815-11 VT+1.4-3(HL) |
a |
b |
c |
d |
e |
f |
g |
|
|
O |
26 |
8Z-HKA-205-01 BAT-CONTACT,(-) |
a |
b |
c |
d |
e |
f |
g |
|
|
O |
27 |
8B-HKA-201-01 BAT-CONTACT,(+) |
a |
b |
c |
d |
e |
f |
g |
|
|
X |
28 |
8B-HRM-209-01 |
CUSH, 8-8-4 |
a |
b |
c |
d |
e |
f |
g |
|
O |
29 |
8Z-HKA-201-11 HLDR,JACK |
a |
b |
c |
d |
e |
f |
g |
|
|
O |
30 |
8C-HRM-206-01 |
PLATE,BTN 004 |
. |
b |
. |
. |
. |
. |
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
O |
31 |
8C-HRM-205-01 |
PLATE,HEAD 004 |
. |
b |
. |
. |
. |
. |
. |
|
O |
32 |
8B-HRL-208-01 SPR-P,CASS |
a |
b |
c |
d |
e |
f |
g |
|
|
O |
33 |
8C-HRM-202-01 |
PLATE,BTN 034 |
a |
. |
c |
d |
e |
f |
g |
|
O |
34 |
8C-HRM-201-01 |
PLATE,HEAD 034 |
a |
. |
c |
d |
e |
f |
g |
|
X |
35 |
M8-4ZM-285-07 |
4ZM-2 P19NC2 |
a |
b |
c |
d |
e |
f |
g |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
– 3 –
