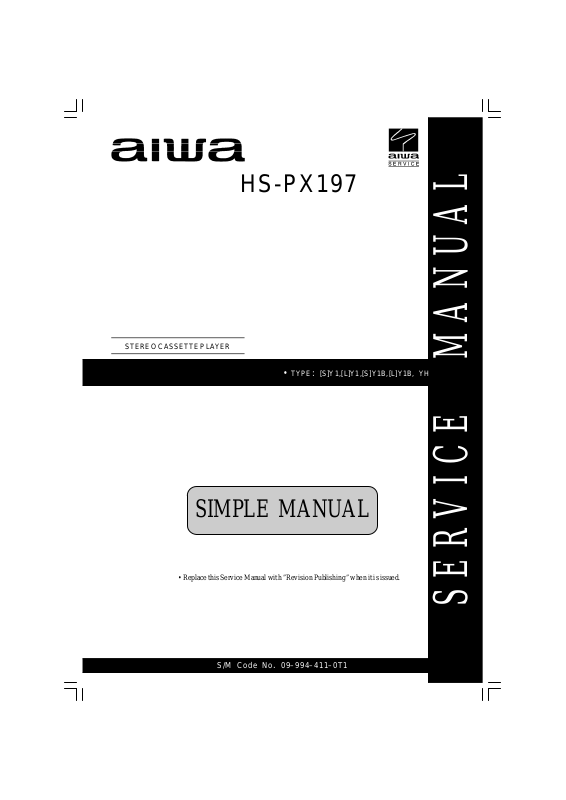

S E R V I C E M A N U A L
STEREO CASSETTE PLAYER
HS-PX197
• TYPE: [S]Y1,[L]Y1,[S]Y1B,[L]Y1B, YH
SIMPLE MANUAL
• Replace this Service Manual with ”Revision Publishing” when it is issued.
S/M Code No. 09–994–411–0T1
NOTE: The characters in the suffix column indicate the part usage.
[S]Y1B .................XX..................................A...................
[L]Y1B .................XX...................................B..................
YH .....................XX....................................C.................
[S]Y1 ..................XX.....................................D................
[L]Y1 ..................XX......................................E...............
KANRI REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 102 87-010-176-080 C-CAP,S 680P-50 SL ABCDE...............
C 101 87-010-176-080 C-CAP,S 680P-50 SL ABCDE...............
C 103 87-010-176-080 C-CAP,S 680P-50 SL ABCDE...............
C 104 87-010-176-080 C-CAP,S 680P-50 SL ABCDE...............
C 109 87-010-198-080 CAP, CHIP 0.022 ABCDE...............
C 108 87-010-499-040 CAP,E 22-6.3 GAS ABCDE...............
C 107 87-010-499-040 CAP,E 22-6.3 GAS ABCDE...............
C 106 87-010-958-080 CHIP -CAP,S 0.01-25BJ ABCDE...............
C 105 87-010-958-080 CHIP -CAP,S 0.01-25BJ ABCDE...............
C 117 87-010-182-080 C-CAP,S 2200P-50 B ABCDE...............
C 118 87-010-182-080 C-CAP,S 2200P-50 B ABCDE...............
C 119 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 112 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 110 87-010-198-080 CAP, CHIP 0.022 ABCDE...............
C 111 87-010-497-040 CAP,E 4.7-35 GAS ABCDE...............
C 113 87-010-805-080 CAP, S 1-16 ABCDE...............
C 116 87-010-805-080 CAP, S 1-16 ABCDE...............
C 115 87-010-805-080 CAP, S 1-16 ABCDE...............
C 114 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABCDE...............
C 126 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 120 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 125 87-010-499-040 CAP,E 22-6.3 GAS ABCDE...............
C 121 87-010-502-040 CAP ELECT GAS 100/4 ABCDE...............
C 124 87-010-503-040 CAP,E 220-4 GAS ABCDE...............
C 123 87-010-503-040 CAP,E 220-4 GAS ABCDE...............
C 122 87-010-503-040 CAP,E 220-4 GAS ABCDE...............
IC 101 87-002-677-080 IC,TA2002F ABCDE...............
J 101 87-A60-438-010 JACK,3.5 BLK ST W/O SW (1537) ABCDE...............
Q 101 87-026-213-080 CHIP-TR,DTC114YK ABCDE...............
Q 102 87-026-213-080 CHIP-TR,DTC114YK ABCDE...............
R 109 87-022-371-080 C-RES,S 330K-1/10W F ABCDE...............
R 111 87-022-357-080 C-RES,S 15K-1/10W F ABCDE...............
R 112 87-022-357-080 C-RES,S 15K-1/10W F ABCDE...............
R 110 87-022-371-080 C-RES,S 330K-1/10W F ABCDE...............
S 101 87-A90-050-010 SW, SL 2-2-2 NS (BLK) ABCDE...............
VR 101 87-A90-479-010 VR,RTRY 20KAX2 ABCDE...............
C 204 87-010-178-080 CHIP CAP 1000P ABCDE...............
C 203 87-010-499-040 CAP,E 22-6.3 GAS ABCDE...............
C 209 87-010-805-080 CAP, S 1-16 ABCDE...............
C 202 87-010-805-080 CAP, S 1-16 ABCDE...............
C 201 87-010-805-080 CAP, S 1-16 ABCDE...............
C 208 87-016-460-080 C-CAP,S 0.22-16 B ABCDE...............
C 207 87-016-460-080 C-CAP,S 0.22-16 B ABCDE...............
C 206 87-016-526-080 C-CAP,S 0.47-16 BK ABCDE...............
C 205 87-016-526-080 C-CAP,S 0.47-16 BK ABCDE...............
C 211 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 210 87-010-805-080 CAP, S 1-16 ABCDE...............
IC 201 87-A21-276-040 C-IC,NJM2185AM ABCDE...............
R 201 87-A00-559-080 C-RES,S 36K-1/10W F ABCDE...............
S 201 87-031-816-010 SLIDE SWITCH ABCDE...............
C 305 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 301 87-010-805-080 CAP, S 1-16 ABCDE...............
C 302 87-010-805-080 CAP, S 1-16 ABCDE...............
C 303 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABCDE...............
C 304 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABCDE...............
Q 302 87-026-213-080 CHIP-TR,DTC114YK ABCDE...............
Q 301 87-026-213-080 CHIP-TR,DTC114YK ABCDE...............
Q 303 89-327-125-080 CHIP TR,2SC2712GR ABCDE...............
Q 304 89-327-125-080 CHIP TR,2SC2712GR ABCDE...............
S 301 87-A90-050-010 SW, SL 2-2-2 NS (BLK) ABCDE...............
C 403 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 406 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 407 87-010-992-080 C-CAP,S 0.047-25 B ABCDE...............
C 408 87-010-992-080 C-CAP,S 0.047-25 B ABCDE...............
C 409 87-010-992-080 C-CAP,S 0.047-25 B ABCDE...............
C 404 87-016-526-080 C-CAP,S 0.47-16 BK ABCDE...............
C 405 87-016-526-080 C-CAP,S 0.47-16 BK ABCDE...............
C 401 87-A10-201-080 C-CAP,S0.33-16 KB ABCDE...............
IC 401 87-A20-532-040 IC,LB1977M ABCDE...............
Q 402 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABCDE...............
Q 401 89-333-266-080 CHIP TR,2SC3326B ABCDE...............
SFR 401 87-A90-734-080 C-SFR,33K B RH03AXAN4X ABCDE...............
TH 401 87-A90-542-080 C-THMS,NTH5G2M35A472K04TE ABCDE...............
PS 501 87-A90-440-010 SNSR,PHOTO GP2S24N2- ABCDE...............
Q 501 89-327-125-080 CHIP TR,2SC2712GR ABCDE...............
D 601 87-017-026-010 LED KLR 226 RED ABCDE...............
C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 705 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDE...............
C 706 87-010-805-080 CAP, S 1-16 ABCDE...............
C 702 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABCDE...............
C 703 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABCDE...............
C 704 87-012-358-080 C-CAP,S 0.47-10 F Z ABCDE...............
D 701 87-001-142-080 DIODE,1SS294 (100MA) ABCDE...............
IC 702 87-A20-638-040 C-IC,PST9120 ABCDE...............
IC 701 87-A21-274-040 C-IC,TMP47C443LM-HK47 ABCDE...............
Q 703 87-026-267-080 LIGHT EMITTING DIODE,RN2407 ABCDE...............
Q 706 87-026-267-080 LIGHT EMITTING DIODE,RN2407 ABCDE...............
Q 705 87-026-267-080 LIGHT EMITTING DIODE,RN2407 ABCDE...............
Q 704 87-026-267-080 LIGHT EMITTING DIODE,RN2407 ABCDE...............
Q 701 87-026-581-080 C-TR,RN2405 ABCDE...............
Q 707 87-026-581-080 C-TR,RN2405 ABCDE...............
Q 702 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABCDE...............
R 713 87-022-358-080 C-RES,S 18K-1/10W F ABCDE...............
R 714 87-022-358-080 C-RES,S 18K-1/10W F ABCDE...............
S 702 87-A90-356-210 SW,LEAF 6ZM-2 ABCDE...............
S 701 87-A90-361-010 SW,PUSH SPPB51-H11.3 ABCDE...............
X 701 87-030-198-080 VIB,CER KBR-4.0OMKS ABCDE...............
C 801 87-010-503-040 CAP,E 220-4 GAS ABCDE...............
J 801 87-A60-849-010 JACK,DC DIA 2.75 BLK ABCDE...............
Q 801 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABCDE...............
R 903 87-022-348-080 C-RES,S 2.2K-1/10W F ABCDE...............
R 902 87-022-348-080 C-RES,S 2.2K-1/10W F ABCDE...............
R 901 87-022-348-080 C-RES,S 2.2K-1/10W F ABCDE...............
R 904 87-022-350-080 C-RES,S3.3K-1/10WF ABCDE...............
S 905 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 ABCDE...............
S 901 87-A90-665-180 C-SW,TACT LS7A2M ABCDE...............
S 902 87-A90-665-180 C-SW,TACT LS7A2M ABCDE...............
S 904 87-A90-665-180 C-SW,TACT LS7A2M ABCDE...............
S 903 87-A90-665-180 C-SW,TACT LS7A2M ABCDE...............
S 906 87-A91-365-080 C-SW,PUSH 1-1-1 SPVG21 ABCDE...............
8Z-HKE-605-010 PWB,FLEX 3P ABCDE...............
MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
[S]Y1B .................XX..................................A...................
[L]Y1B .................XX...................................B..................
YH .....................XX....................................C.................
[S]Y1 ..................XX.....................................D................
[L]Y1 ..................XX......................................E...............
KANRI REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-HKE-001-010 LID,CASS P A.CD................
8Z-HKE-002-010 WINDOW,CASS P ABCDE...............
8Z-HKE-003-010 PANEL,BASE P A.CD................
8Z-HKE-009-010 LID,CASS BLU P .B..E...............
8Z-HKE-010-010 PANEL,BASE Y P .B..E...............
8Z-HKE-008-010 KEY,CONT P ABCDE...............
8Z-HKE-014-010 KNOB,SL HOLD BLU P .B..E...............
8Z-HR8-008-010 KNOB,SL HOLD A.CD................
86-HJ4-222-010 S-SCREW,+1.4-4 B HL ABCDE...............
87-078-190-010 S-SCRW,+1.7-3HL B ABCDE...............
88-HJ3-219-010 S-SCREW,+1.4-2.5 B HL(0.3) ABCDE...............
8Z-HKE-201-010 COVER, PWB P ABCDE...............
8Z-HR8-204-010 SPR-T,OPEN ABCDE...............
8Z-HR8-207-010 PLATE,STOPPER ABCDE...............
8Z-HR8-208-010 SPR-P,POP UP ABCDE...............
8Z-HKE-004-010 CABI,REAR P A.CD................
8Z-HKE-005-010 FRAME,CENTER P A.CD................
8Z-HKE-011-010 CABI,REAR BLU P .B..E...............
8Z-HKE-012-010 FRAME,CENTER BLU P .B..E...............
8Z-HKE-013-010 LID,BATT BLU P .B..E...............
8Z-HR8-004-010 LID,BATT A.CD................
8Z-HKE-007-010 KNOB,SL SIDE A.CD................
8Z-HKE-015-010 KNOB,SL SIDE BLU .B..E...............
8Z-HR8-012-010 KNOB,SL OPEN ABCDE...............
87-067-384-010 SCREWVT1.4-3.5HL ABCDE...............
87-067-430-010 VT1.4-5 BLK ABCDE...............
87-HK5-235-010 S-SCREW,1.4-0.6-2.5 ABCDE...............
8Z-HR8-211-010 S-SCREW,+1.4-8 BLK HL ABCDE...............
8Z-HR8-212-010 S-SCREW,+1.4-4.5 CR HL ABCDE...............
87-HG6-204-010 SPR-P,CASS ABCDE...............
87-HR5-225-010 SPR-E,EJECT N ABCDE...............
8Z-HR8-201-010 HLDR,ANTENNA ABCDE...............
8Z-HR8-202-010 HLDR,SW ABCDE...............
8Z-HR8-203-010 PLATE,LOCK ABCDE...............
8Z-HR8-205-010 TERMINAL,BAT+ ABCDE...............
8Z-HR8-206-010 TERMINAL,BAT- ABCDE...............
8Z-HKE-605-010 PWB,FLEX 3P ABCDE...............
ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
[S]Y1B .................XX..................................A...................
[L]Y1B .................XX...................................B..................
YH .....................XX....................................C.................
[S]Y1 ..................XX.....................................D................
[L]Y1 ..................XX......................................E...............
KANRI REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-HKE-904-010 IB,YHJ(ECC) S ..C.................
8Z-HKE-907-010 IB,Y(EGFSI) S AB.DE...............
8Z-HKE-908-010 IB,Y(EDPHNCZ) S AB.DE...............
84-447-019-310 CLIP,BELT ABCDE...............
87-B30-150-210 HEADPHONE,HP-M006A(F) ABCDE...............
SCHEMATIC DIAGRAM - 1 (MAIN)
4
9630469
Tokyo Japan
Printed in Singapore
