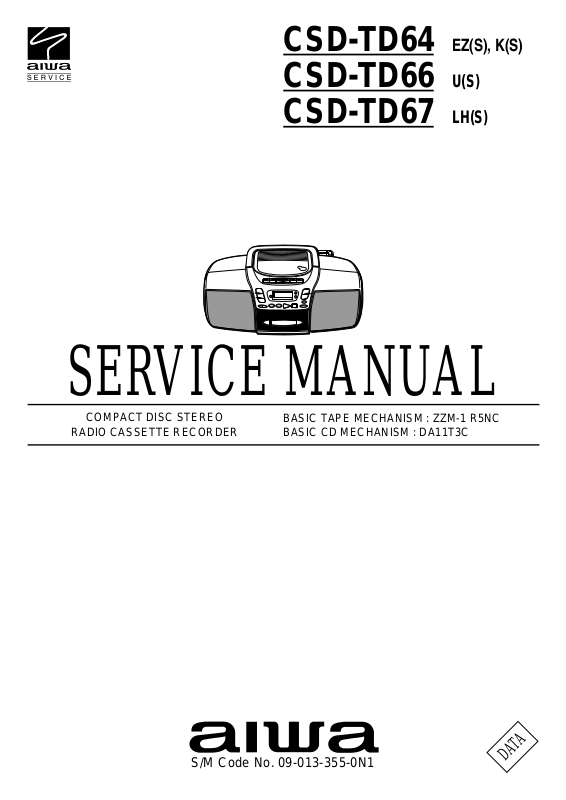

Page 1
CSD-TD64
EZ(S), K(S)
CSD-TD66
CSD-TD67
U(S)
LH(S)
SERVICE MANUAL
COMPACT DISC STEREO
RADIO CASSETTE RECORDER
BASIC TAPE MECHANISM : ZZM-1 R5NC
BASIC CD MECHANISM : DA11T3C
S/M Code No. 09-013-355-0N1
DATA
Page 2
SPECIFICATIONS
64 (EZ) 64 (K)
Design and specifications are subject to change without
•
notice
.
Design and specifications are subject to change without
•
notice
66 (U) 67 (LH)
.
Design and specifications are subject to change without
•
notice
.
-2-
Design and specifications are subject to change without
•
notice
.
Page 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid exposure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
-3-
Page 4
Precaution to replace Optical block
(SF-P101NR)
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
1) After the connection, remove solder shown in
the right figure.
PICK-UP Assy PWB
Solder
-4-
Page 5
ELECTRICAL MAIN PARTS LIST-1/4
REF. NO PART NO. KANRI DESCRIPTION
IC
87-A21-550-010 IC,TA2149N
87-A21-185-040 C-IC,LC72121M<66USC,64EZSC>
87-A21-928-010 IC,LC72131D-N<67LHSC,64KSC>
87-A21-090-010 IC,LA4600<67LHSC>
87-A21-193-010 IC,TA8227P<EXCEPT 67LHSC>
87-A21-520-040 C-IC,M61509FP<67LHSC,66USC>
87-A21-443-040 C-IC,M62495AFP<64KSC,64EZSC>
87-A20-446-010 C-IC,LA9241ML
87-A21-319-010 C-IC,LC78622NE
87-A21-891-010 C-IC,MM1469XH
8B-CHA-600-010 C-IC,LC867132V-5T67
87-A20-650-010 IC,RPM6938-V11
87-A21-607-010 IC,NJM14558LD
TRANSISTOR
89-327-143-080 TR,2SC2714 (0.1W)<66USC,64EZSC>
87-026-447-080 TR,2SC1740S R
89-111-624-080 TR,2SA1162Y
87-A30-288-040 C-TR,DTC114YKA
89-503-025-010 C-FET,2SK302GR<64KSC,64EZSC>
89-320-011-080 TR,2SC2001 (15W)<64KSC,64EZSC>
87-A30-283-040 C-TR,DTA114YKA<64KSC,64EZSC>
87-026-211-080 C-TR,DTA144EK<66USC,64EZSC>
89-327-125-080 CHIP TR,2SC2712GR<67LHSC,64KSC>
89-318-154-080 TR,2SC1815 (0.4W)
87-026-463-080 TR,2SA933S (0.3W)
89-112-965-080 TR,2SA1296 (0.75W)
87-026-291-080 TR,DTC124XS
87-A30-476-010 TR,KTA1046Y
87-026-462-080 TR,2SC1740 S(RS 0.3W)
89-109-332-380 TR,2SA933RS
87-A30-515-080 TR,2SA1979O/Y
87-A30-287-040 C-TR,DTC114TKA
87-026-237-080 CHIP-TR,DTC124XK
87-026-239-080 TR,DTC114TK (0.2W)
87-026-464-080 TR,DTC114TS (0.3W)
DIODE
87-070-345-080 DIODE,IN4148
87-A40-616-070 VARI-CAP,SVC384(S/T)
87-A40-916-040 C-VARI-CAP,HVC202A
87-017-072-080 ZENER,HZS3B1<66USC,64EZSC>
87-017-090-080 ZENER,HZS5B3<67LHSC,64KSC>
87-A40-650-080 ZENER,MTZJ6.8A<64KSC,64EZSC>
87-A40-509-080 ZENER,MTZJ6.8C<67LHSC,66USC>
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-648-080 ZENER,MTZJ8.2A
87-A40-234-080 ZENER,MTZJ5.6A
87-017-978-080 DIODE,1N4003
87-017-932-080 ZENER,MTZJ6.2B
87-A40-465-010 DIODE,FR202
MAIN-CD C.B
C30 87-010-263-080 CAP, ELECT 100-10V
C251 87-010-405-080 CAP, ELECT 10-50V
C263 87-010-178-080 CHIP CAP 1000P
C264 87-010-178-080 CHIP CAP 1000P
C265 87-010-263-080 CAP, ELECT 100-10V<EXCEPT 67LHSC>
C266 87-010-545-080 CAP, ELECT 0.22-50V<67LHSC>
C266 87-010-263-080 CAP, ELECT 100-10V<EXCEPT 67LHSC>
C267 87-010-545-080 CAP, ELECT 0.22-50V<67LHSC>
C267 87-010-385-080 CAP, ELECT 220-25V<EXCEPT 67LHSC>
C268 87-010-385-080 CAP, ELECT 220-25V<EXCEPT 67LHSC>
C271 87-010-237-080 CAP, ELECT 1000-16V<67LHSC>
C271 87-010-221-080 CAP, ELECT 470-10V<EXCEPT 67LHSC>
NO.
C272 87-010-237-080 CAP, ELECT 1000-16V<67LHSC>
C272 87-010-221-080 CAP, ELECT 470-10V<EXCEPT 67LHSC>
C277 87-010-404-080 CAP, ELECT 4.7-50V<67LHSC>
C278 87-010-263-080 CAP, ELECT 100-10V<67LHSC>
C278 87-010-385-080 CAP, ELECT 220-25V<EXCEPT 67LHSC>
C279 87-010-382-080 CAP, E 22-25M 11L SME<67LHSC>
C279 87-010-235-080 CAP,E 470-16 SME<EXCEPT 67LHSC>
!
C306 87-010-404-080 CAP, ELECT 4.7-50V
C307 87-010-401-080 CAP, ELECT 1-50V
C308 87-010-221-080 CAP, ELECT 470-10V
C311 87-010-265-080 CAP, ELECT 33-16V
C312 87-010-385-080 CAP, ELECT 220-25V
C321 87-010-197-080 CAP, CHIP 0.01 DM
C322 87-010-263-080 CAP, ELECT 100-10V
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-405-080 CAP, ELECT 10-50V
C401 87-010-403-080 CAP, ELECT 3.3-50V
C402 87-010-197-080 CAP, CHIP 0.01 DM
C403 87-010-263-080 CAP, ELECT 100-10V
C404 87-010-248-080 CAP, ELECT 220-10V
C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-010-374-080 CAP, ELECT 47-10V
C407 87-018-131-080 CAP, CER 1000P-50V
C408 87-010-198-080 CAP, CHIP 0.022
C409 87-010-248-080 CAP, ELECT 220-10V
C410 87-010-263-080 CAP, ELECT 100-10V
C411 87-A11-177-080 C-CAP,S 0.15-16 K B
C412 87-010-401-080 CAP, ELECT 1-50V
C413 87-016-369-080 C-CAP,S 0.033-25 B K
C414 87-010-405-080 CAP, ELECT 10-50V
C416 87-010-545-080 CAP, ELECT 0.22-50V
C417 87-012-157-080 C-CAP,S 330P-50 CH
C418 87-010-213-080 C-CAP,S 0.015-50 B
C419 87-A11-608-080 C-CAP,S 0.33-25 K B
C420 87-016-369-080 C-CAP,S 0.033-25 B K
C421 87-A11-177-080 C-CAP,S 0.15-16 K B
C422 87-010-184-080 CHIP CAPACITOR 3300P(K)
C423 87-010-992-080 C-CAP,S 0.047-25 B
C424 87-A11-606-080 C-CAP,S 0.22-25 K B
C425 87-018-129-080 CAP, CER 680P-50V
C426 87-A11-608-080 C-CAP,S 0.33-25 K B
C428 87-010-197-080 CAP, CHIP 0.01 DM
C429 87-010-186-080 CAP,CHIP 4700P
C430 87-012-156-080 C-CAP,S 220P-50 CH
C431 87-010-545-080 CAP, ELECT 0.22-50V
C432 87-010-374-080 CAP, ELECT 47-10V
C433 87-010-401-080 CAP, ELECT 1-50V
C434 87-010-184-080 CHIP CAPACITOR 3300P(K)
C435 87-010-197-080 CAP, CHIP 0.01 DM
C436 87-010-374-080 CAP, ELECT 47-10V
C437 87-010-404-080 CAP, ELECT 4.7-50V
C438 87-016-669-080 C-CAP,S 0.1-25 K B<64KSC,64EZSC>
C439 87-010-178-080 CHIP CAP 1000P
C440 87-018-139-080 CAP,TC-U 1P-50 CH
C441 87-010-197-080 CAP, CHIP 0.01 DM
C442 87-018-109-080 CAP, CER 22P-50V
C445 87-012-368-080 C-CAP,S 0.1-50 F
C446 87-012-368-080 C-CAP,S 0.1-50 F
C447 87-012-368-080 C-CAP,S 0.1-50 F
C448 87-010-315-080 C-CAP,S 27P-50 CH
C451 87-012-156-080 C-CAP,S 220P-50 CH
C455 87-010-247-080 CAP, ELECT 100-50V
C457 87-010-312-080 C-CAP,S 15P-50 CH
C458 87-010-312-080 C-CAP,S 15P-50 CH
C459 87-010-263-080 CAP, ELECT 100-10V
C460 87-015-819-080 CAPACITOR,0.01
C461 87-010-197-080 CAP, CHIP 0.01 DM
C462 87-010-248-080 CAP, ELECT 220-10V
C463 87-A11-132-080 CAP,TC U 0.01-50 K B
REF. NO PART NO. KANRI DESCRIPTION
NO.
C301 87-016-495-000 CAP,E 3300-25 M SMG
-5-
Page 6
ELECTRICAL MAIN PARTS LIST-2/4
REF. NO PART NO. KANRI DESCRIPTION
NO.
C465 87-010-404-080 CAP, ELECT 4.7-50V
C466 87-012-368-080 C-CAP,S 0.1-50 F
C467 87-010-263-080 CAP, ELECT 100-10V
C469 87-012-154-080 C-CAP,S 150P-50 CH
C470 87-018-131-080 CAP, CER 1000P-50V<64KSC,64EZSC>
C471 87-018-209-080 CAP, CER 0.1-50V
C472 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C473 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z<67LHSC,66USC>
C473 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C473 87-010-196-080 CHIP CAPACITOR,0.1-25<64KSC,64EZSC>
C474 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C475 87-A11-132-080 CAP,TC U 0.01-50 K B
C476 87-010-236-080 CAP,E 1000-10 SME
C477 87-010-197-080 CAP, CHIP 0.01 DM
C478 87-010-263-080 CAP, ELECT 100-10V
C479 87-010-197-080 CAP, CHIP 0.01 DM
C480 87-010-221-080 CAP, ELECT 470-10V
C481 87-010-405-080 CAP, ELECT 10-50V
C482 87-010-405-080 CAP, ELECT 10-50V
C489 87-012-368-080 C-CAP,S 0.1-50 F
C490 87-012-368-080 C-CAP,S 0.1-50 F
C491 87-A11-132-080 CAP,TC U 0.01-50 K B
C492 87-010-221-080 CAP, ELECT 470-10V
C493 87-012-368-080 C-CAP,S 0.1-50 F<64KSC,64EZSC>
C493 87-010-180-080 C-CER 1500P<67LHSC,66USC>
C501 87-012-368-080 C-CAP,S 0.1-50 F
C502 87-010-322-080 C-CAP,S 100P-50 CH
C503 87-018-119-080 CAP, CER 100P-50V
C504 87-010-322-080 C-CAP,S 100P-50 CH
C505 87-010-322-080 C-CAP,S 100P-50 CH
C506 87-010-322-080 C-CAP,S 100P-50 CH
C510 87-016-669-080 C-CAP,S 0.1-25 K B<64KSC,64EZSC>
C831 87-010-198-080 CAP, CHIP 0.022
CN202 8A-CH4-687-010 CONN,4P V 2.5
CN205 87-A60-109-010 CONN,2P V S2M-2W
CN301 8A-CH4-689-010 CONN,3P V 2.5
CN401 87-A60-424-010 CONN,16P V TOC-B
CN403 87-099-201-010 CONN,8P 6216 H
CN802 8A-CH4-687-010 CONN,4P V 2.5
CNA402 8B-CDA-625-010 CONN ASSY,6P CD-ME
J201 87-A60-420-010 JACK,3.5 ST (MSC)
JW429 87-003-283-080 COIL,18UH LAL02<64KSC,64EZSC>
JW442 87-003-098-080 COIL,2.2UH<64KSC,64EZSC>
L401 87-003-102-080 COIL, 10UH
L402 87-003-098-080 COIL,2.2UH<64KSC,64EZSC>
L404 87-003-152-080 COIL, 100UH
R840 87-029-124-010 RES,FUSE 2.2-1/4
SFR430 87-024-437-080 SFR100K,RH063EC
X401 8Z-CD5-633-010 VIB, CER16.93MHZ FCR16.93M2
MAIN-TP C.B
C211 87-A11-603-080 C-CAP,S 0.15-16 K B
C212 87-A11-603-080 C-CAP,S 0.15-16 K B
C215 87-016-460-080 C-CAP,S 0.22-16 B
C216 87-016-460-080 C-CAP,S 0.22-16 B
C231 87-010-213-080 C-CAP,S 0.015-50 B
C232 87-010-213-080 C-CAP,S 0.015-50 B
C233 87-A10-201-080 C-CAP,S0.33-16 KB
C234 87-A10-201-080 C-CAP,S0.33-16 KB
C235 87-016-669-080 C-CAP,S 0.1-25 K B
C236 87-016-669-080 C-CAP,S 0.1-25 K B
C237 87-010-371-080 CAP, ELECT 470-6.3V
C239 87-010-197-080 CAP, CHIP 0.01 DM<67LHSC,66USC>
C239 87-010-805-080 CAP, S 1-16<64KSC,64EZSC>
C240 87-010-197-080 CAP, CHIP 0.01 DM<67LHSC,66USC>
C240 87-010-805-080 CAP, S 1-16<64KSC,64EZSC>
C247 87-010-401-080 CAP, ELECT 1-50V
C248 87-010-401-080 CAP, ELECT 1-50V
C310 87-010-248-080 CAP, ELECT 220-10V
REF. NO PART NO. KANRI DESCRIPTION
C316 87-010-263-080 CAP, ELECT 100-10V
C317 87-010-197-080 CAP, CHIP 0.01 DM
C801 87-010-248-080 CAP, ELECT 220-10V
C805 87-012-365-080 C-CAP,S 0.027-25VBK
C806 87-012-365-080 C-CAP,S 0.027-25VBK
C807 87-010-406-080 CAP, ELECT 22-50
C808 87-010-406-080 CAP, ELECT 22-50
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-401-080 CAP, ELECT 1-50V
C811 87-010-178-080 CHIP CAP 1000P
C812 87-010-178-080 CHIP CAP 1000P
C816 87-010-180-080 C-CER 1500P
C817 87-010-180-080 C-CER 1500P
C821 87-010-401-080 CAP, ELECT 1-50V
C822 87-010-401-080 CAP, ELECT 1-50V
C823 87-010-178-080 CHIP CAP 1000P
C824 87-010-178-080 CHIP CAP 1000P
C829 87-010-178-080 CHIP CAP 1000P
C830 87-010-178-080 CHIP CAP 1000P
C834 87-010-248-080 CAP, ELECT 220-10V
C843 87-A11-132-080 CAP,TC U 0.01-50 K B
C844 87-018-124-080 CAP, CER 270P-50V
C845 87-010-178-080 CHIP CAP 1000P
C846 87-010-263-080 CAP, ELECT 100-10V
C851 87-A11-128-080 CAP,TC U 4700P-50 K B
C852 87-018-131-080 CAP, CER 1000P-50V
C853 87-A11-132-080 CAP,TC U 0.01-50 K B
CN201 87-099-018-010 CONN,16P
CN801 87-A60-110-010 CONN,4P V S2M-4W
CNA302 8B-CDA-629-010 CONN ASSY,6P MA-TU
JW108 87-003-097-080 COIL,1UH
JW132 87-003-097-080 COIL,1UH
JW133 87-003-097-080 COIL,1UH
L801 87-007-342-010 COIL,OSC 85K BIAS
SW801 8Z-CD9-609-010 SW,SL 1-6-2 PS62D01
FRONT C.B
C601 87-010-196-080 CHIP CAPACITOR,0.1-25
C602 87-010-555-040 CAP,E 100-10 GAS
C603 87-A10-189-040 CAP,E 220-10
C604 87-010-196-080 CHIP CAPACITOR,0.1-25
C605 87-018-150-080 CAP,TC-U 18P-50 CH
C606 87-018-111-080 CAP, CERA-SOL SS 27P
C607 87-018-116-080 CAP, CER 56P-50V
C608 87-018-114-080 CAP, CERA-SOL SS 39P
C609 87-018-149-080 CAP,TC-U 15P-50 CH
C610 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C611 87-010-197-080 CAP, CHIP 0.01 DM
C612 87-018-131-080 CAP, CER 1000P-50V
C613 87-A10-826-080 C-CAP,S 1-10 K B
C614 87-010-494-040 CAP,E 1-50 GAS
C615 87-010-493-040 CAP,E 0.47-50 GAS
C616 87-010-196-080 CHIP CAPACITOR,0.1-25
C617 87-010-495-040 CAP,E 2.2-50 GAS
C618 87-010-197-080 CAP, CHIP 0.01 DM<67LHSC,66USC>
C619 87-010-197-080 CAP, CHIP 0.01 DM
C622 87-010-560-040 CAP,E 10-50 GAS
C623 87-010-178-080 CHIP CAP 1000P
C625 87-010-197-080 CAP, CHIP 0.01 DM
C626 87-010-197-080 CAP, CHIP 0.01 DM
C627 87-010-197-080 CAP, CHIP 0.01 DM
CN601 87-099-757-010 CONN,16P 9604S F
CN602 87-A60-079-010 CONN,08P H 9604S-08F
CNA603 8B-CHA-610-010 CONN ASSY,4P TU-FR
L601 87-003-102-080 COIL, 10UH
L602 87-003-102-080 COIL, 10UH
LCD601 8B-CT5-601-010 LCD,AIW4239-32PIN
LED601 8A-CDA-646-010 LED,6224-10GD GRN<67LHSC,66USC>
S601 87-A92-170-080 SW,TACT EVQPAD05R
NO.
-6-
Page 7
ELECTRICAL MAIN PARTS LIST-3/4
REF. NO PART NO. KANRI DESCRIPTION
NO.
S602 87-A92-170-080 SW,TACT EVQPAD05R
S603 87-A92-170-080 SW,TACT EVQPAD05R
S604 87-A92-170-080 SW,TACT EVQPAD05R
S605 87-A92-170-080 SW,TACT EVQPAD05R
S606 87-A92-170-080 SW,TACT EVQPAD05R
S607 87-A92-170-080 SW,TACT EVQPAD05R<67LHSC,66USC>
S608 87-A92-170-080 SW,TACT EVQPAD05R<67LHSC,66USC>
S609 87-A91-704-080 SW,TACT EVQ 214 05R<64KSC,64EZSC>
S611 87-A92-170-080 SW,TACT EVQPAD05R
S612 87-A92-170-080 SW,TACT EVQPAD05R
S613 87-A92-170-080 SW,TACT EVQPAD05R
S614 87-A92-170-080 SW,TACT EVQPAD05R
S615 87-A92-170-080 SW,TACT EVQPAD05R
X601 87-030-273-010 VIB,XTAL 32.768K5PPM
X602 87-030-376-080 VIB,CER CSA5.76MG200
TUNER C.B
C1 87-010-312-080 C-CAP,S 15P-50 CH
C2 87-010-316-080 C-CAP,S 33P-50 CH
C3 87-010-312-080 C-CAP,S 15P-50 CH
C5 87-012-368-080 C-CAP,S 0.1-50 F<67LHSC,66USC>
C5 87-012-360-080 CAP, CER 1-10<67LHSC,66USC>
C6 87-010-313-080 CAP, CHIP 18P<67LHSC,66USC>
C7 87-014-049-080 CAP,PP 470P-100 J
C8 87-012-349-080 C-CAP,S 1000P-50 CH
C10 87-010-197-080 CAP, CHIP 0.01 DM
C11 87-010-197-080 CAP, CHIP 0.01 DM
C12 87-010-197-080 CAP, CHIP 0.01 DM
C13 87-010-150-080 C-CAP,S 6P-50 CH
C14 87-010-303-080 C-CAP,S 330P-50CH
C15 87-010-178-080 CHIP CAP 1000P
C16 87-010-374-080 CAP, ELECT 47-10V
C17 87-010-198-080 CAP, CHIP 0.022
C18 87-015-835-080 C-CAP,0.047 D
C19 87-010-263-080 CAP, ELECT 100-10V
C20 87-010-404-080 CAP, ELECT 4.7-50V
C21 87-010-197-080 CAP, CHIP 0.01 DM<66USC,64EZSC>
C22 87-010-197-080 CAP, CHIP 0.01 DM<66USC,64EZSC>
C23 87-010-197-080 CAP, CHIP 0.01 DM<66USC,64EZSC>
C24 87-010-303-080 C-CAP,S 330P-50CH
C25 87-016-460-080 C-CAP,S 0.22-16 B
C27 87-A11-067-080 C-CAP,S 1-10 K B
C28 87-016-669-080 C-CAP,S 0.1-25 K B
C29 87-016-669-080 C-CAP,S 0.1-25 K B
C30 87-010-220-080 C-CAP,S 0.018-25 B<64KSC,64EZSC>
C30 87-012-365-080 C-CAP,S 0.027-25 VKB<67LHSC,66USC>
C31 87-010-220-080 C-CAP,S 0.018-25 B
C31 87-012-365-080 C-CAP,S 0.027-25 VKB<67LHSC,66USC>
C33 87-012-358-080 C-CAP,S 0.47-10 F Z
C34 87-012-358-080 C-CAP,S 0.47-10 F Z
C35 87-010-197-080 CAP, CHIP 0.01 DM<67LHSC,64KSC>
C35 87-015-819-080 CAPACITOR,0.01<66USC,64EZSC>
C36 87-010-263-080 CAP, ELECT 100-10V
C37 87-010-197-080 CAP, CHIP 0.01 DM
C38 87-010-263-080 CAP, ELECT 100-10V
C39 87-010-404-080 CAP, ELECT 4.7-50V
C40 87-010-197-080 CAP, CHIP 0.01 DM
C41 87-010-178-080 CHIP CAP 1000P
C42 87-010-178-080 CHIP CAP 1000P
C43 87-010-178-080 CHIP CAP 1000P
C44 87-010-311-080 CAP 12P
C45 87-010-312-080 C-CAP,S 15P-50 CH
REF. NO PART NO. KANRI DESCRIPTION
C46 87-010-197-080 CAP, CHIP 0.01 DM
C47 87-010-197-080 CAP, CHIP 0.01 DM
C48 87-010-197-080 CAP, CHIP 0.01 DM
C49 87-012-140-080 CAP 470P
C50 87-010-197-080 CAP, CHIP 0.01 DM
C51 87-010-316-080 C-CAP,S 33P-50 CH<64KSC,64EZSC>
C52 87-010-197-080 CAP, CHIP 0.01 DM<64KSC,64EZSC>
C53 87-010-197-080 CAP, CHIP 0.01 DM<64KSC,64EZSC>
C54 87-014-055-080 CAP,PP 820P-100 J<64KSC,64EZSC>
C55 87-010-197-080 CAP, CHIP 0.01 DM<64KSC,64EZSC>
C56 87-010-312-080 C-CAP,S 15P-50 CH<64KSC,64EZSC>
C71 87-010-197-080 CAP, CHIP 0.01 DM
C72 87-010-263-080 CAP, ELECT 100-10V
C73 87-010-197-080 CAP, CHIP 0.01 DM
C75 87-010-197-080 CAP, CHIP 0.01 DM
C80 87-010-197-080 CAP, CHIP 0.01 DM
C92 87-010-197-080 CAP, CHIP 0.01 DM
C93 87-010-197-080 CAP, CHIP 0.01 DM
CF2 87-008-261-010 FILTER, SFE10.7MA5-A
CF3 87-008-261-010 FILTER, SFE10.7MA5-A<66USC,64EZSC>
CN2 87-099-854-010 CONN,6P S2M-6W
CN3 87-A60-110-010 CONN,4P V S2M-4W
HD1 88-CD6-661-010 HLDR,BAR ANT.
HD2 88-CD6-661-010 HLDR,BAR ANT.
L2 87-A50-560-010 COIL,FM BPF(ACD)
L3 8A-CH4-670-010 BAR-ANT,MW 2B-ACH(COI)<67LHSC,66USC>
L3 8A-CH4-671-010 BAR-ANT,MW/LW 3B-ACH(COI)<64KSC,64EZSC>
L4 87-A50-420-010 COIL,MW OSC(SYN)
L5 87-A50-566-010 COIL,FM RF EX(ACH)
L6 87-A50-567-010 COIL,FM OSC(ACH)
L7 87-A91-308-010 FLTR,PCFAZH- 450T (TOK)
L8 87-005-849-080 COIL,10UH(CECS)
L51 87-A50-421-010 COIL,LW OSC(SYN)<64KSC,64EZSC>
TC1 87-011-254-080 TRIMER,20P LAR
TC51 87-A91-659-010 TRIMMER,50P 4.0X4.5 ECRL<64KSC,64EZSC>
X1 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
BATT1 C.B
C901 87-010-192-080 C-CAP,S 0.022-50 F
C902 87-010-192-080 C-CAP,S 0.022-50 F
C903 87-010-192-080 C-CAP,S 0.022-50 F
C904 87-010-192-080 C-CAP,S 0.022-50 F
CNA901 8B-CDA-627-010 CONN ASSY,3P PWR
!
PR901 87-A91-940-080 PROTECTOR,2.5A 20P 60V
SP901 8A-CDA-214-010 SPR-C,BATT
SP902 8A-CDA-214-010 SPR-C,BATT
BATT2 C.B
SP903 8A-CDA-214-010 SPR-C,BATT
SP904 8A-CDA-214-010 SPR-C,BATT
MOTOR C.B
M2 S0-M10-A09-700 MOTOR SLED ASSY
PIN3 S2-369-750-000 PLUG,6P
SW1 S4-S13-A01-600 SW,LEAF
VOL SEL C.B<67LHSC>
!
87-A91-369-010 SW,AC SL 2 2 2 SDKGA41700<67LHSC>
NO.
-7-
Page 8
ELECTRICAL MAIN PARTS LIST-4/4
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
CHIP RESISTOR PART CODE
Chip Resistor Part Coding
88
A
Resistor Code
Chip resistor
Wattage Type Tolerance
1/16W 1005 5% CJ
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
Symbol
CJ
CJ
CJ
Figure
Value of resistor
Form
L
Dimensions (mm)
t
W
0.55
Resistor Code
108
118
128
LW t
1.0 0.5 0.35 104
1.6 0.8 0.45
2 1.25 0.45
3.2
1.6
: A
: A
-8-
Page 9
TRANSISTOR ILLUSTRATION-1/1
BCE
ECB
S
D
G
KTA1046Y
C
B
E
2SA1162Y
2SC2712GR
2SC2714
DTA114YK
DTC114TK
DTC114YK
DTC124XK
DTC114TS
OUT
IN
GND
DTA144EK
2SK302GR
ECB
2SA19790
2SA933RS
2SC1740S R
DTC124XS
ECB
2SA933S
2SA1296
2SC1740 S
2SC1815
2SC2001
-9-
Page 10
FL (AIW4239-32PIN) GRID ASSIGNMENT/ANODE CONNECTION-1/1
GRID ASSIGNMENT
ANODE CONNECTION
-10-
Page 11
WIRING-1/5 (MAIN: U, EZ, K MODEL)
101112131415161718192021222324
1234567892526272829303132
A
B
MOTOR C.B
M2
+
_
6
SW1
PIN3
1
M2
(SLED MOTOR)
SW1
(INSIDE LIMIT SW)
(SPINDLE MOTOR)
_
M3
M3
C
D
E
F
+
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
TUNER
002
U
-11-
Page 12
WIRING-2/5 (MAIN: LH MODEL)
101112131415161718192021222324
1234567892526272829303132
A
B
MOTOR C.B
M2
+
_
6
SW1
PIN3
1
M2
(SLED MOTOR)
SW1
(INSIDE LIMIT SW)
(SPINDLE MOTOR)
_
M3
M3
C
D
E
F
+
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
TUNER
-12-
U
002
Page 13

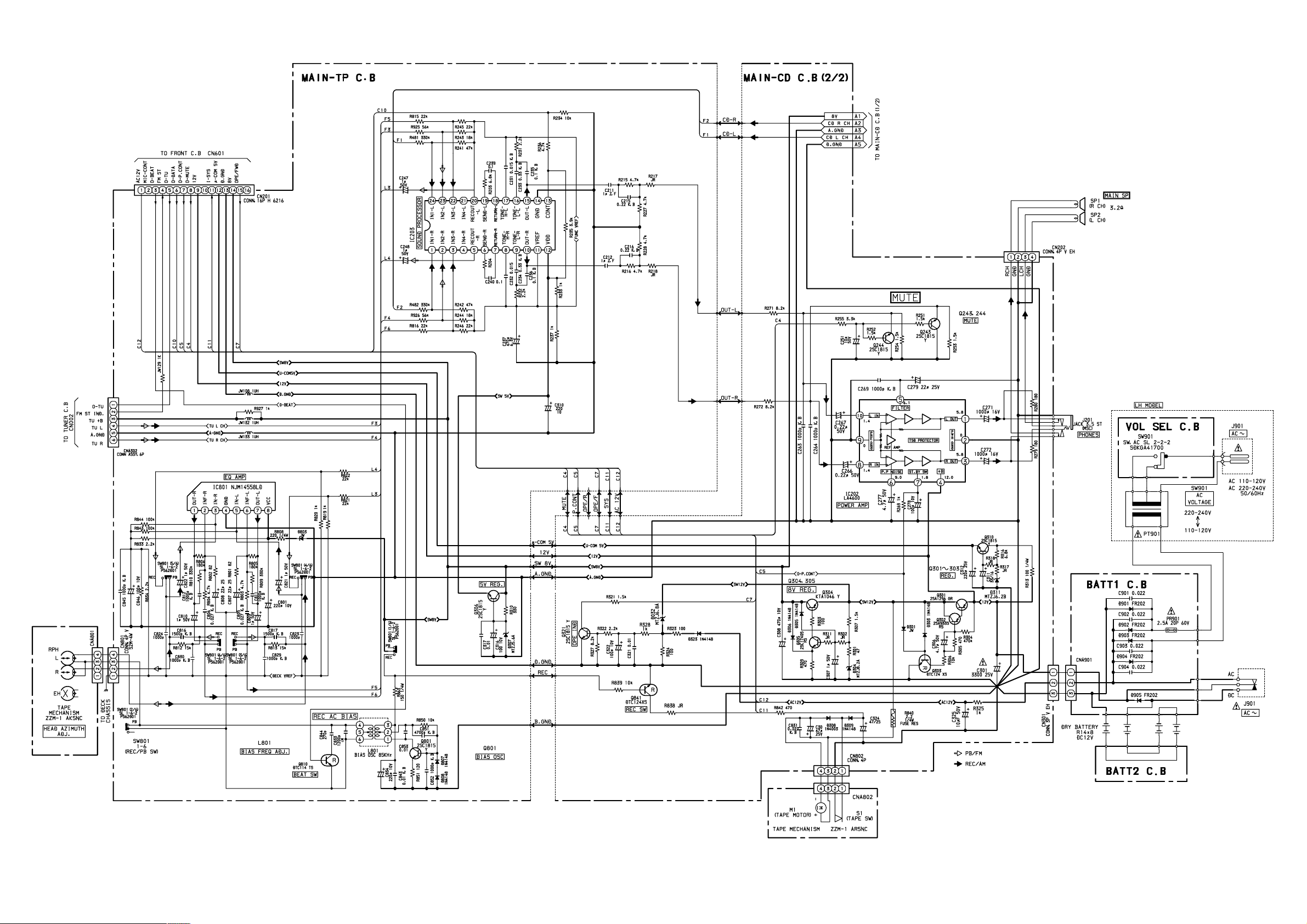

SCHEMATIC DIAGRAM-1/6 (MAIN-TP/MAIN-CD2/2: U, EZ, K MODEL)
5V REG
NM
-13-
Page 14
SCHEMATIC DIAGRAM-2/6 (MAIN-TP/MAIN-CD2/2: LH MODEL)
M61509FP
JR
-14-
SIGNAL
Page 15
SCHEMATIC DIAGRAM-3/6 (MAIN-CD1/2)
JW429
1.8 H
LH, U
EZ, K
-15-
2.2UH
JW442
2.2 H
EZ, K
LH, U
Page 16
WIRING-3/5 (FRONT/BATT1/BATT2/VOL SEL)
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
-16-
R
S
T
U
Page 17
SCHEMATIC DIAGRAM-4/6 (FRONT)
-17-
Page 18
WIRING-4/5 (TUNER: LH, U)
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
-18-
R
S
T
U
Page 19
SCHEMATIC DIAGRAM-5/6 (TUNER: LH, U)
VT
L007
0 (JR)
0 (JR)
0 (JR)
0 (JR)
0 (JR)
0 (JR)
TRACKING
L007
VT
-19-
Page 20
WIRING-5/5 (TUNER: EZ, K)
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
-20-
R
S
T
U
Page 21
SCHEMATIC DIAGRAM-6/6 (TUNER: EZ, K)
VT
VT
0 (JR)
0 (JR)
0 (JR)
0 (JR)
0 (JR)
0 (JR)
-21-
Page 22
IC BLOCK DIAGRAM-1/3
IC, NJM14558LD
IC, LC72121M
A
A OUTPUT
A INPUT
A INPUT
B
B INPUT
B INPUT
B OUTPUT
IC, TA2149
-22-
Page 23
IC BLOCK DIAGRAM-2/3
IC, M61509FP
INA1
INB1
INC1
IND1
INE1
QF1
QF2
TONEH1
TONEL1
OUT1
GND
VDD
1
2
3
4
5
6
7
8
9
10
11
VOL VOL
Treble
boost
Mono.SW
MUTE
ATT ATT
Bass
boost
Bass
boost
Control logic
Treble
boost
24
23
22
21
20
19
18
17
16
15
14
1312
INA2
INB2
INC2
IND2
INE2
QF4
QF3
TONEH2
TONEL2
OUT2
VSS
CONT
IC, M62495AFP
AUTO RESET
-23-
Page 24
IC BLOCK DIAGRAM-3/3
IC, LC72131D
IC, MM1469XH
28 27 26 25 24 23 22
10k
13k
Level shift
T.S.D
Level shift
13k
10k
1 2 3 4 5 6 7
10k
Vcc
10k
50k
50k
21 20 19 18 17 16 15
Vcc
10k
13k
Level shift
DRIVER MUTE
Level shift
13k
10k
8 9 10 11 12 13 14
-24-
Page 25
ELECTRICAL ADJUSTMENT-1/2
TUNER C.B
3
5
L007
IC001
1
(LH MODEL)
L003
(BAR-ANT)
L005
L004
L006
C39
+
24
TC001
TUNER C.B
5
3
1
2
4
MAIN-CD C.B
37
L007
(U, EZ MODEL)
L003
(BAR-ANT)
L005
IC001
TC051
L006
C39
+
246
EZ MODEL
L004
L051
EZ MODEL
TC001
TUNER C.B
5
3
7
1
2
4
6
J201
90
37
L007
(K MODEL)
L005
IC001
+
246
L003
(BAR-ANT)
TC051
L004
L006
C39
L051
TC001
3
7
2
4
6
!
SFR430
CN401
MAIN-TP C.B
0
L801
8
M1
(DECK MOTOR)
9
-25-
Page 26
ELECTRICAL ADJUSTMENT-2/2
< TUNER SECTION >
(LH MODEL)
1. AM IF Adjustment
L007 ....................................................................... 450kHz
(K, EZ MODEL)
1. MW IF Adjustment
L007 ....................................................................... 450kHz
2. AM VT Adjustment
Settings: • Test point: C39+
• Adjustment location: L004
Method: Set to AM 1000kHz adjust L004 so that the test point
becomes 3.75 V±0.1V
3. AM Tracking Adjustment
L003 ....................................................................... 600kHz
TC001................................................................... 1400kHz
4. FM VT Adjustment
Settings: • Test point: C39+
• Adjustment location: L006
Method: Set to FM 108MHz adjust L006 so that the test point
becomes 6.0V±0.1V
5. FM Tracking Adjustment
L005 ........................................................................98MHz
(U MODEL)
1. AM IF Adjustment
L007 ....................................................................... 450kHz
2. AM VT Adjustment
Settings: • Test point: C39+
• Adjustment location: L004
Method: Set to AM 1000kHz adjust L004 so that the test point
becomes 3.75V±0.02V
2. MW VT Adjustment
Settings: • Test point: C39+
• Adjustment location: L004
Method: Set to MW 999kHz adjust L004 so that the test point
becomes 3.8V±0.1V
3. MW Tracking Adjustment
L003 ....................................................................... 603kHz
TC001................................................................... 1404kHz
4. FM VT Adjustment
Settings: • Test point: C39+
• Adjustment location: L006
Method: Set to FM 108MHz adjust L006 so that the test point
becomes 6.0V±0.1V
5. FM Tracking Adjustment
L005 ........................................................................98MHz
6. LW VT Adjustment
Settings: • Test point: C39+
• Adjustment location: L051
Method: Set to LW 288kHz adjust L051 so that the test point
becomes 4.5V±0.1V
7. LW Tracking Adjustment
L003 ....................................................................... 153kHz
TC051..................................................................... 288kHz
3. AM Tracking Adjustment
L003 ....................................................................... 600kHz
TC001................................................................... 1400kHz
4. FM VT Adjustment
Settings: • Test point: C39+
• Adjustment location: L006
Method: Set to FM 108MHz adjust L006 so that the test point
becomes 6.0V±0.2V
5. FM Tracking Adjustment
L005 ........................................................................98MHz
< TAPE SECTION >
8. Bias frequency Adjustment
L801 ............................................................ 85Hz ±0.5kHz
9. Tape speed Adjustment
Settings: • Test tape: TTA-100
• Test point: PHONES JACK (J201)
• Adjustment location: SFR of deck motor
Method: Play back the test tape and adjust so that the output
frequency is 3000Hz ±30Hz.
10. Azimuth Adjustment
Settings: • Test tape: TTA-320
• Test point: PHONES JACK (J201)
• Adjustment location:Azimuth adjustment screw
Method: Play back the test tape and adjust so that the output is
maximum.
< CD SECTION >
11. FE Balance Adjustment
Settings: • Test point: IC401 PIN58 (VR) , IC401 PIN20 (FE)
• Adjustment location:SFR430
Method: Playback the disc and adjust SFR430 so that the test
point voltage becomes 0~-10mV.
-26-
Page 27
IC DESCRIPTION-1/3 (LA9241ML)-1/2
Pin No. Pin Name I/O Description
1
FIN2
Pin to which external pickup photo diode is connected. RF signal is created by adding with the
I
FIN1 pin signal. FE signal is created by subtracting from the FIN1 pin signal.
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
FIN1
E
F
TB
TE-
TE
TESI
SCI
TH
TA
TD-
TD
JP
TO
FD
I
Pin to which external pickup photo diode is connected.
Pin to which external pickup photo diode is connected. TE signal is created by subtracting from
I
the F pin signal.
I
Pin to which external pickup photo diode is connected.
I
DC component of the TE signal is input.
I
Pin to which external resistor setting the TE signal gain is connected between the TE pin.
O
TE signal output pin.
TES “Track Error Sense” comparator input pin. TE signal is passed through a band-pass filter
I
then input.
I
Shock detection signal input pin.
I
Tracking gain time constant setting pin.
O
TA amplifier output pin.
Pin to which external tracking phase compensation constants are connected between the TD and
I
VR pins.
I
Tracking phase compensation setting pin.
I
Tracking jump signal (kick pulse) amplitude setting pin.
O
Tracking control signal output pin.
O
Focusing control signal output pin.
17
18
19
20
21
22
23
24
25
26
27
28
29
30, 31
FD-
FA
FA-
FE
FE-
AGND
SP
SPI
SPG
SP-
SPD
SLEQ
SLD
SL-, SL+
—
Pin to which external focusing phase compensation constants are connected between the FD and
I
FA pins.
Pin to which external focusing phase compensation constants are connected between the FD–
I
and FA– pins.
Pin to which external focusing phase compensation constants are connected between the FA and
I
FE pins.
O
FE signal output pin.
I
Pin to which external FE signal gain setting resistor is connected between the FE pin.
Analog signal GND.
O
Signal ended output of the CV+and CV- pin input signal.
I
Spndle amp input.
I
Pin to which external spindle gain setting resistor in 12 cm mode is connected. (Not connected)
Pin to which external spindle phase compensation constants are connected together with SPD
I
pin.
O
Spindle control signal output pin.
I
Pin to which external sled phase compensation constants are connected.
O
Sled control signal output pin.
I
Sled advance signal input pin from microprocessor.
32, 33
34
35
JP-, JP+
TGL
TOFF
I
Tracking jump signal input pin from DSP.
I
Tracking gain control signal input from DSP. Low gain when TGL = H.
I
Tracking off control signal input pin from DSP. Off when TOFF = H.
-27-
Page 28
IC DESCRIPTION-1/3 (LA9241ML)-2/2
Pin No. Pin Name I/O Description
36
TES
O
Pin from which TES signal is output to DSP.
37
38
39, 40
41
42
43
44
45
46
47
48
49
50
51
52
53
HFL
SLOF
CV-, CV+
RFSM
RFS-
SLC
SLI
DGND
FSC
TBC
NC
DEF
CLK
CL
DAT
CE
O
O
O
—
O
—
O
“High Frequency Level” is used to judge whether the main beam position is on top of bit or on
top of mirror.
I
Sled servo off control input pin.
I
CLV error signal input pin from DSP.
RF output pin.
I
RF gain setting and EFM signal 3T compensation constant setting pin together with RFSM pin.
“Slice Level Control” is the output pin which controls the RF signal data slice level by DSP.
I
Input pin which control the data slice level by the DSP.
Digital system GND.
Output pin to which external focus search smoothing capacitor is connected.
I
“Tracking Balance Control” EF balance variable range setting pin.
Not connected.
Disc defect detector output pin.
I
Reference clock input pin. 4.23 MHz of the DSP is input.
I
Microprocessor command clock input pin.
I
Microprocessor command data input pin.
I
Microprocessor command chip enable input pin.
54
55
56
57
58
59
60
61
62
63
64
DRF
FSS
VCC2
REFI
VR
LF2
PH1
BH1
LDD
LDS
VCC1
—
—
—
O
“Detect RF” RF level detector output.
“Focus Search Select” focus search mode (± search/+ search) select pin.
I
(Not connected)
Servo system and digital system Vcc pin.
Pin to which external bypass capacitor for reference voltage is connected.
O
Reference voltage output pin.
I
Disc defect detector time constant setting pin.
I
Pin to which external capacitor for RF signal peak holding is connected.
I
Pin to which external capacitor for RF signal bottom holding is connected.
O
APC circuit output pin.
I
APC circuit input pin.
RF system Vcc pin.
-28-
Page 29
IC DESCRIPTION-2/3 (LC78622NE)-1/2
Pin No. Pin Name I/O Description
1
DEFI
I
Defect sense signal (DEF) input pin. (Connect to 0V when not used).
2
3
4
5
6
7
8
9
10
11
12, 13
14
15
16
17
18
TAI
PDO
VVSS
ISET
VVDD
FR
VSS
EFMO
EFMIN
T2
CLV+, CLK-
__
V/P
HFL
TES
TOFF
TGL
—
—
—
I
O
For PLL.
I
I
Digital system GND. Be sure to connect to 0V.
O
For slice level control.
I
I
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
O
Disc motor control output. Three level output is possible using command.
Rough servo or phase control automatic selection monitoring output pin. Rough servo at H.
O
Phase servo at L.
I
Track detect signal input pin. Schmidt input.
I
Tracking error signal input pin. Schmidt input.
O
Tracking OFF output pin.
O
Tracking gain selection output pin. Gain boost at L.
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
Phase comparator output pin to control external VCO.
GND pin for built-in VCO. Be sure to connect to 0V.
Pin to which external resistor adjusting the PD0 output current.
Power supply pin for built-in VCO.
Pin for VCO frequency range adjustment.
EFM signal output pin.
EFM signal input pin.
19, 20
21
22
23
24
25
26
27
28
29
30
31
32, 33
34
35
36
37
JP+, JP-
PCK
FSEQ
VDD
SL+
SL-
—
PUIN
RW
EMPH
C2F
DOUT
T3, T4
N.C.
MUTEL
LVDD
LCHO
—
—
—
—
O
Track jump control signal output pin. Three level output is possible using command.
O
EFM data playback clock monitoring pin 4.3218 MHz when phase is locked in. (Not connected)
Sync signal detection output pin. H when the sync signal which is detected from EFM signal and
O
thesync signal which is internally generated agree. (Not connected)
Digital system power supply pin.
O
Moves the sled to outer circumference.
O
Moves the sled to inner circumference.
Not connected.
I
CD pickup inner switch detection.
O
Read, wright signal.
O
De-emphasis monitor output pin. De-emphasis disc is being played back at H. (Not connected)
O
C2 flag output pin. (Not connected)
O
DIGITAL OUT output pin. (EIAJ format). (Not connected)
I
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
Not connected. Set the pin to open.
O
L-channel 1-bit DAC.
O
L-channel mute output pin. (Not connected)
L-channel power supply pin.
L-channel output pin.
38
39
40
41
42
LVSS
RVSS
RCHO
RVDD
MUTER
—
—
—
O
R-channel 1-bit DAC.
O
L-channel GND. Be sure to connect to 0V.
R-channel GND. Be sure to connect to 0V.
R-channel output pin.
R-channel power supply pin.
R-channel mute output pin. (Not connected)
-29-
Page 30
IC DESCRIPTION-2/3 (LC78622NE)-2/2
Pin No. Pin Name I/O Description
43
XVDD
—
Crystal oscillator power supply pin.
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
XOUT
XIN
XVSS
SBSY
EFLG
PW
SFSY
SBCK
FSX
WRQ
RWC
SQOUT
COIN
____________
CQCK
RES
—
O
Pin to which external 16.9344 MHz crystal oscillator is connected.
I
Crystal oscillator GND pin. Be sure to connect to 0V.
O
Subcode block sync signal output pin. (Not connected)
O
C1, C2, single and dual correction monitoring pin. (Not connected)
O
Subcode P, Q, R, S, T, U and W output pin. (Not connected)
Subcode frame sync signal output pin. Falls down when subcode enters standby. (Not
O
connected)
I
Subcode read clock input pin. Schmidt input. (Be sure to connected to 0V when not in use.)
Pin outputting the 7.35 kHz sync signal which is generated by dividing frequency of crystal
O
oscillator. (Not connected)
O
Subcode Q output standby output pin.
I
Read/write control input pin. Schmidt input.
O
Subcode Q output pin.
I
Command input pin from microprocessor.
I
Command input read clock or subcode read input clock from SQOUT pin
I
LC78622 reset input pin. Set this pin to L once when the main power is turned on.
59
60
61
62
63
64
T11
16M
4.2M
T5
_____
CS
T1
O
Test signal output pin. Use this pin as open (normally L output). (Not connected)
O
16.9344 MHz output pin. (Not connected)
O
4.2336 MHz output pin.
I
Test signal input pin with built-in pull-down resistor. Be sure to connect to 0V.
Chip select signal input pin with built-in pull-down resistor. Be sure to connect to 0V while it is
I
not controlling.
I
Test signal input pin without built-in pull-down resistor. Be sure to connect to 0V.
-30-
Page 31
IC DESCRIPTION-3/3 (LC867132V-5T67)-1/2
Pin No. Pin Name I/O Description
O
1
2
3
O-RWC/CE
O-DATA
O-CLK
CD read/write control output.
O
Data output to sound processor IC (M62495AFP or M61509FP).
O
Clock output to sound processor IC (M62495AFP or M61509FP).
10
11
12
13
14
15
16
17
18
19
20
4
5
6
7
8
9
O-DI
O-CLK SFT
I-HOLD
I-RST
XT1 (IN)
XT2 (OUT)
VSS1
CF1 (IN)
CF2 (OUT)
VDD1
I-FM ST
I-KEYO
_______________
I-DOOR. SW
I-KEY1
TAPE
NC (I-REC)
NC (I-FM/AM)
—
—
—
DATA output to LC72121.
O
Clock shift output of the microcomputer.
I
Hold status detection.
I
Microcomputer reset.
I
Connected to 32.768kHz crystal oscillator.
O
GND.
I
Connected to 5.76MHz Ceramic Filter.
O
Power supply for microcomputer (+5V).
I
FM STEREO status input.
I
KEY AD input.
I
CD DOOR SW status detection input.
I
KEY AD input.
I
DECK MECHA MOTOR status input.
I
REC status input.
I
FM, AM status input. (Not connected)
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
I-TU DO
O-BASS. LED
O-QS. LED
NC (DUB)
I-INT
I-RF
I-WRSQ
I-RMC
SEG0/SW
SEG1/LW
SEG2/AM 10K
SEG3/FM WIDE
SEG4/OIRT
SEG5/WDEK
SEG6/ANA
SEG7/DEM1
SEG8/DEM2
—
I
Data input from tuner PLL.
O
BASS LED ON/OFF control output.
O
Q-Sound LED ON/OFF control output.
Not connected.
O
INT DIODE MATRIX detection output.
I
CD RF level detection input.
I
CD sub-code Q standby input.
I
Remote control input.
O
LCD segment output and initial settings output. (SW)
O
LCD segment output and initial settings output. (LW) (EZ, K Model)
O
LCD segment output and initial settings output. (MW 10K) (LH, U Model)
O
LCD segment output and initial settings output. (FM WIDE)
O
LCD segment output and initial settings output. (OIRT)
O
LCD segment output and initial settings output. (SW2)
O
LCD segment output and initial settings output. (SYN)
O
O
LCD segment output and initial settings output.
38-40
41
42
43-51
SEG9-SEG11
VDD3
VSS3
SEG12, 13, 16-22
—
—
O
Power supply for microcomputer (+5V).
GND.
O
LCD segment output.
-31-
Page 32
IC DESCRIPTION-3/3 (LC867132V-5T67)-2/2
Pin No. Pin Name I/O Description
52-54
NC
LCD segment output. (Not Connected)
O
55
56
57
58
59
60
61
62
63
64-66
67
68
69
70
71
72
73
O-CD LED
O-RADIO. LED
TAPE
ROCK
POP
JAZZ
NC
I-AC/DC
NC (I-TU TEST)
COM0-COM2
NC
VSS2
VDD2
O-CD
O-RADIO
O-P. CON
_______________
HI. DUB
—
—
—
—
—
LED ON/OFF control output for CD functions. (Not Connected)
O
LED ON/OFF control output for RADIO functions. (Not Connected)
O
LED ON/OFF control output for TAPE functions. (Not Connected)
O
LED ON/OFF control output for ROCK. (Not Connected)
O
LED ON/OFF control output for POP. (Not Connected)
O
LED ON/OFF control output for JAZZ. (Not Connected)
O
Not connected.
I
I
LCD common output.
O
Not connected.
GND.
Power supply for microcomputer (+5V).
CD PWR control output.
O
RADIO PWR control output.
O
Power supply control output.
O
Not connected
74
75
76
77
78
79
80
O-MUTE
NC (O-CLR1)
NC (O-CLR2)
O-REC. BEAT
O-COIN
I-SQSO
O-SQCK
Main mute output.
O
Not connected.
O
Not connected.
O
BEAT switch over output.
O
CD command output.
O
CD sub-code Q input.
I
CLK for CD commands/sub-codes.
O
-32-
Page 33
MECHANICAL EXPLODED VIEW-1/1
22
20
19
18
17
16
G
6
A
A
15
A
8
47
A
14
21
26
25
DA11T3C
C
27
A
PWB
C
10
13
23
11
PWB
28
7
24
45
44
J
A
A
42
31
33
41
38
C
30
E
29
A
32
PWB
37
PWB
39
PLATE,PT
34
B
I
H
35
D
B
36
PLATE,ANT
PWB
12
5
9
48
4
2
1
3
FL
49
A
ZZM-1
43
K
46
A
A
6
F
PWB
PWB
40
A
PWB
A
-33-
Page 34
MECHANICAL PARTS LIST-1/1
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 8B-CDA-009-010 WINDOW,CASS
2 8B-CDA-003-010 LID,CASS
3 8B-CDA-208-010 SPR-T,CASS
4 8B-CHL-012-010 WINDOW,DISP EZ K<64KSC,64EZSC>
4 8B-CHL-015-010 WINDOW,DISP LH<67LHSC>
4 8B-CHL-011-010 WINDOW,DISP U<66USC>
5 8B-CHL-008-010 CABI ASSY,FRONT EZ K<64KSC,64EZSC>
5 8B-CHL-013-010 CABI ASSY,FRONT LH<67LHSC>
5 8B-CHL-007-010 CABI ASSY,FRONT U<66USC>
6 8B-CDA-650-010 SPKR,10 3.2OHM<67LHSC>
6 8B-CDA-615-010 SPKR,10 7OHM<EXCEPT 67LHSC>
7 8B-CDA-020-010 KEY,STOP
8 8B-CHA-029-010 KEY,FUNC E<66USC>
8 8B-CHA-030-010 KEY,FUNC F<EXCEPT 66USC>
9 8B-CDA-014-010 KEY,CD
10 8B-CDA-019-010 KEY,PAUSE
11 87-063-165-010 OIL-DMPR 150
12 8B-CHA-201-010 HLDR,LCD
13 8B-CDA-622-010 FF-CABLE,8P CD-FR
14 8B-CDA-620-010 FF-CABLE,16P FR-MAIN
15 8B-CDL-008-010 PANEL,TOP
16 8Z-CT6-213-110 BASE,CHUCK
17 8Z-CT6-214-110 RING,CHUCK
18 87-036-368-010 MAGNET
19 86-CT9-217-110 HLDR,CHUCK A(S)
20 8B-CDA-006-010 LID,CD
21 8B-CDA-005-010 CHAS,CD
22 87-036-389-010 SW,PUSH LOCK
23 8B-CDA-206-010 SPR-T,CD
24 8B-CDA-021-010 KEY,FF
25 8Z-CDB-169-010 PANEL,CD SANYO
26 8B-CDA-621-010 FF-CABLE,16P CD-RF
27 88-CH6-220-010 CUSHION,CD A
28 8B-CDA-630-010 CONN ASSY,4P RPH
29 8B-CDA-631-010 CONN ASSY,4P TA-ME
REF. NO PART NO. KANRI DESCRIPTION
30 8B-CDA-633-010 CONN ASSY,4P SP
31 8B-CDA-626-010 CONN ASSY,2P DOOR
32 8B-CDA-010-010 LID,HANDL
33 8B-CDA-007-010 HANDL,ARM
34 8B-CDA-004-010 LID,BATT
35 87-A91-857-010 ANT,ROD 5SEC709
36 8B-CHA-003-010 CABI,REAR<EXCEPT 67LHSC>
36 8B-CHA-004-010 CABI,REAR LH<67LHSC>
!
37 87-A60-178-010 JACK,AC E W/SW<EXCEPT 66USC>
!
37 87-A60-177-010 JACK,AC U W/SW<66USC>
38 8Z-CD5-634-010 COVER,AC SOCKET
!
39 8A-CDA-612-010 PT,E 2.5W<64KSC,64EZSC>
!
39 8A-CD9-604-010 PT,H 4.5WT04541A<67LHSC>
!
39 8A-CDA-611-010 PT,U 2.5W<66USC>
40 8B-CDA-202-010 HLDR,TU
41 8A-CDA-220-010 PLATE,REC
42 8A-CDA-221-010 SPR-P,REC
43 8B-CDA-024-010 KEY,REC
44 8B-CDA-023-010 KEY,PLAY
45 8B-CDA-022-010 KEY,REW
46 87-064-185-010 HLDR,WIRE
47 86-CT9-222-010 PLATE,MAGNET
48 8B-CDA-016-010 KEY,FUNC B
49 87-063-164-010 OIL-DMPR 80
A 87-721-096-410 QT2+3-10 GLD
B 87-751-104-410 VT2+3-30
C 87-751-076-410 SCREW 2.6-12
D 87-254-097-410 U+3-12 CR
E 8A-CK4-223-010 S-SCREW,CD
F 8A-CDA-222-010 S-SCREW,CASS+2.6-4
G 87-751-096-410 VT2+3-10 GLD
H 87-751-097-410 VT2+3-12 W/O SLOT
I 87-501-092-410 VF+3-4
J 87-721-074-410 QT2+2.6-8 W/O SLOT
K 87-751-096-410 VT2+3-10 W/O SLOT
NO.
-34-
Page 35
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green
-35-
Page 36
TAPE MECHANISM EXPLODED VIEW-1/1 (ZZM-1 AR5NC)
12
11
TERMINAL,LB1
A
2
10
9
4
3
1
8
14
7
55
42
6
5
13
53
19
17
16
21
20
22
27
24
18
26
25
23
28
15
31
54
30
29
48
50
51
52
49
47
C
B
33
34
1
35
38
46
45
44
43
32
36
37
40
41
39
-36-
Page 37
TAPE MECHANISM PARTS LIST-1/1 (ZZM-1 AR5NC)
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 8Z-ZM1-254-310 SPR-C,REEL R
2 8Z-ZM1-225-110 GEAR,REEL R
3 8Z-ZM1-253-210 SPR-C,AUTO SENSOR
4 8Z-ZM1-217-110 LEVER,AUTO SENSOR
5 8Z-ZM1-212-110 LEVER,T-UP
6 8Z-ZM1-245-310 SPR-T,AUTO
7 8Z-ZM1-236-010 CLR,SLIP FF/REW
8 8Z-ZM1-252-110 SPR-C,FF/REW
9 8Z-ZM1-230-010 GEAR,SLIP FF/REW A
10 8Z-ZM1-269-010 FELT,FF/REW 2
11 8Z-ZM1-238-110 GEAR,SLIP FF/REW B 2
12 8Z-ZM1-237-110 LEVER,FF/REW 2
13 8Z-ZM1-283-010 LEVER,PAUSE 2
14 8Z-ZM1-222-010 LEVER,E-LOCK M
15 8Z-ZM1-219-010 LEVER,E-OPEN
16 8Z-ZM1-244-110 SPR-T,T-UP
17 8Z-ZM1-247-310 SPR-T,PINCH
18 8Z-ZM1-261-110 ROLLER ASSY,PINCH
19 8Z-ZM1-221-210 LEVER,PINCH
20 8Z-ZM1-205-310 LEVER,PLAY
21 8Z-ZM1-248-210 SPR-T,BRG
22 87-A92-207-010 HEAD,AP-4211T4
23 84-ZM2-227-310 SPR-C,AZIMUTH
24 8Z-ZM1-216-110 LEVER,AUTO
25 8Z-ZM1-246-110 SPR-T,AUTO 2
26 8Z-ZM1-233-110 GEAR,IDL REW
27 8Z-ZM1-208-010 LEVER,STOP
28 8Z-ZM1-207-010 LEVER,FF
29 8Z-ZM1-206-010 LEVER,REW
30 8Z-ZM1-211-210 LEVER,REC 2
REF. NO PART NO. KANRI DESCRIPTION
NO.
31 87-A91-819-010 HEAD,EH 2NSS-2200
32 8Z-ZM1-215-010 LEVER,REC LOCK
33 87-A91-492-010 SW,LEAF MSW18560
34 8Z-ZM1-226-010 GEAR,REEL L
35 8Z-ZM1-241-210 SPR-T,PLAY
36 8Z-ZM1-220-110 LEVER,REC SENSOR
37 8Z-ZM1-249-210 SPR-T,FR
38 8Z-ZM1-242-310 SPR-T,FF/REW
39 8Z-ZM3-244-010 GEAR,CAM TD20
40 8Z-ZM1-232-010 GEAR,IDL FF/REW
41 82-ZM1-290-010 FLY-WHL ASSY,ZZM1
42 8Z-ZM1-275-010 W-L,1.47-4-0.25
43 8Z-ZM1-228-010 GEAR,SLIP T-UP B
44 8Z-ZM1-265-010 FELT,T-UP
45 8Z-ZM1-227-010 GEAR,SLIP T-UP A
46 8Z-ZM1-251-210 SPR-C,T-UP SLIP
47 8Z-ZM1-243-310 SPR-T,STOP/PAUSE
48 87-A91-825-010 MOT,M09Y/Z
49 8Z-ZM1-271-010 PULLEY,MOT ZZM-1
50 8Z-ZM1-264-010 BELT,MAIN S
51 8Z-ZM1-260-010 SPR-P,CASETTE
52 8Z-ZM1-201-910 CHAS ASSY,ZZM-1
53 8Z-ZM1-255-310 SPR-T,E-LOCK
54 8Z-ZM1-214-210 LEVER,LOCK
55 8Z-ZM1-257-110 SPR-C,F/R
A 84-ZM2-242-010 S-SCREW,AZ1-2-6.4
B 8Z-ZM1-270-110 V+2.6 ZZM-1
C 87-B10-301-010 W-L,1.63-3.2-0.5 SLIT
-37-
Page 38
CD MECHANISM EXPLODED VIEW-1/1 (DA11T3C)
1
SW1
A
2
3
4
MOTOR C.B
M2
PIN 3
-38-
Page 39
CD MECHANISM PARTS LIST-1/1 (DA11T3C)
REF. NO PART NO. KANRI DESCRIPTION
1 M8-ZZK-E90-070 DA11T3C
2 S2-121-A28-400 COVER GEAR
3 S2-511-A21-000 GEAR MIDDLE
4 S2-511-A21-100 GEAR,DRIVE
A S1-PN2-03R-OSE SCR PAN PCS 2-3
NO.
-39-
Page 40
ACCESSORIES/PACKAGE LIST-1/1
REF. NO PART NO. KANRI DESCRIPTION
1 8B-CHA-906-010 IB,EZ(9L)FM<64EZSC>
1 8B-CHA-905-010 IB,K(E)FM<64KSC>
1 8B-CHL-902-010 IB,LH(ESP)FM<67LHSC>
1 8B-CHA-903-010 IB,U(ESF)FM<66USC>
2 8A-CLB-961-210 RC UNIT,RC-AAT11
!
3 87-A80-081-010 AC CORD SET ASSY,EZ BLK<EXCEPT 66USC>
!
3 87-A80-109-010 AC CORD,HK7281 BLK U<66USC>
!
4 87-099-726-010 PLUG,ADPTR CONV(K)<64KSC>
!
4 87-A91-017-010 PLUG,CONVERSION JT-0476<67LHSC>
NO.
-40-
Page 41
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
H251701
Printed in Singapore
Loading...
